USER MANUAL imageRUNNER ADVANCE C256i II CANON

Quick Operation Guide

English 3

Français 15

Deutsch 27

Italiano 39

Español 51

Quick

Operation Guide

Learning How to Use Your Machine 4

Tips for Copying 6

Tips for Printing 7

Tips for Faxing 8

Tips for Scanning 9

Tips for Registering Destinations 10

You can access http://canon.com/oip-manual to read the User's Guide that describes all functions of this machine.

Store this guide in a safe place for future reference.

Some functions may not be available, depending on the model of the machine you are using.

The information in this document is subject to change without notice.

If your machine is of the model dedicated to printing only

The machine dedicated to printing only cannot be used for any other functions than printing. Although this Guide contains the descriptions of the functions and operations for copying, faxing, and scanning as well as printing, please read only the necessary descriptions to use your machine.

Silhouette of a person in red and white, no text or symbols visible

Learning How to Use Your Machin

This section contains a brief overview of the basic operations of your machine.

Turning On the Display

Illustration of a printer and a hand interacting with a circular button (no text or symbols)

When the display is turned off, press the Ⓞ button on the control panel to exit the Sleep mode and turn it back on.

The Main Buttons for Operations

Abstract geometric shapes including a yellow rectangle, green circle with diamond, pink triangle, and black circle on a gray background (no text or symbols)

Press ☐to execute functions, to □ cancel operations, and ☐ to clear the current settings.

- Accessing the Main Menu

Main Menu Quick Menu Select a function. Copy

Perform a wide variety of operations from the Main Menu, displayed from any screen by pressing 📄.

▶ Quickly Checking the Status of Machine

Access Stored Files Status Monitor/Cancel

All you need to do to check the machine's status is press Status MonitorCancel

See "Control Panel" in the User's Guide.

Red line drawing of a computer with control panel and buttons (no text or symbols)

Two Methods for Setting Original Documents

Placing Original Documents Correctly

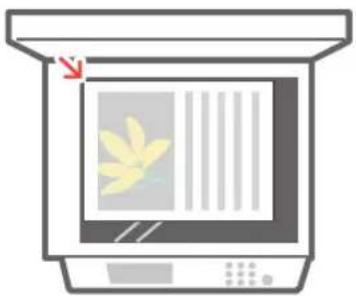

Placing Original Documents on the Platen Glass

• Place the side to scan face down.
• Place the original documents so that it fits in the back left corner.

Illustration of a kitchen appliance with a window showing a leaf print (no text or symbols)

Compatible Types of Original Documents

Books, magazines

Business cards

Newspaper clippings

Placing Original Documents in the Feeder

• Place the side to scan face up.
• Adjust the slide guide.

Illustration of a printer with a yellow flower inside, showing paper feed and control buttons (no text or symbols)

Compatible Types of Original Documents

Documents with many pages, quotations, etc.

Silhouette of a person in profile, no text or symbols visible

Tips for Copying

Use helpful functions, such as two-sided printing and N on 1 feature, to make your copies look better while using paper efficiently.

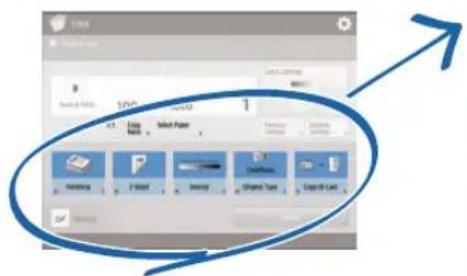

Basic Copy Flow

1 | Set the document.
2 | Press [Copy].
3 | Enter the number of copies.
4 | Set your preferred setting.

100 Back 2 Options 100 Class Help Select Paper Handling F-Read Drawing Chase Type Copy Off List

5 | Press (Start).

Non 1

The N on 1 feature helps you save paper by combining multiple pages onto one single sheet of paper.

Stacked sheets of paper with a magnified inset showing a grid pattern (no text or symbols)

Density

Adjust the text density to make hard to read documents (such as something written in pencil) easier to read.

Recommended Settings

2-Sided

Halve the amount of paper you use by printing on both sides of copied paper.

Illustration of two stacked rectangular sheets with striped patterns, one being folded and the other curled (no text or symbols)

Copy Ratio

Use "Copy Ratio" when copying to magnify small text for easy reading.

Finishing (Collate)

Output original documents in sets with the Collate mode, convenient for organizing big copy jobs.

Illustration of a printer next to three stacked documents labeled A, B, and C (no text or symbols on the devices themselves)

Original Type

Pick one of a variety of different original types when copying to optimize the settings for that original document.

Illustration of a magazine with open and closed pages, photos, and city skyline (no text or symbols)

For further information about the functions, see "A Variety of Features," on p.12.

Tips for Printing

Don't bother getting up! Specify print settings directly from your computer.

To print from a computer, first install the printer driver. For instructions on installing printer drivers, see the Printer Driver Installation Guide.

Silhouette of a seated woman holding an object, against a solid pink background (no text or symbols)

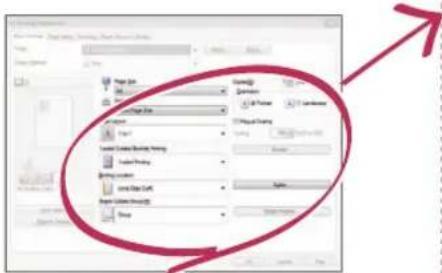

Basic Print Flow

1 | Select the print function from the application menu.
2 | Select the machine from [Select Printer].
3 | Select the paper source.
4 | Set your preferred setting.

Project Data File Edit View Insert Project Data Import Export Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data Export Data

5 | Enter the number of copies, and press [Print].

Recommended Settings

2-Sided

Two-sided printing can save paper, especially for those big copy jobs!

Illustration of two stacked documents with a pink arrow indicating transformation (no text or symbols)

Page Layout

Significantly decrease the amount of paper you use by printing a total of four pages on a single sheet of paper.

Two 3D rectangular blocks with internal patterns, one showing a pink arrow indicating transformation or alignment (no text or symbols)

Finishing (Collate)

Use [Collate] when printing a large number of copies to sort them for easy distribution.

Illustration of a printer and three stacked documents labeled A, B, C (no text or symbols on the devices themselves)

For further information about the functions, see "A Variety of Features," on p.12.

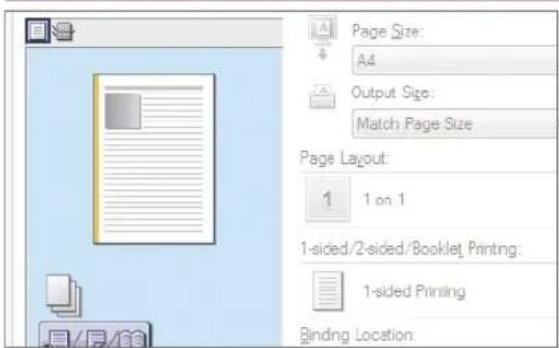

Change Print Settings with Just One Easy Click!

Page Size: A4 Output Size: Match Page Size Page Layout: 1 on 1 1-sided/2-sided/Booklet Printing: 1-sided Printing Binding Location

Change print settings, such as the page layout, by simply clicking the icon on the printer driver screen. The icon changes as you adjust the settings, so you can easily see your changes taking effect.

Silhouette of a person standing against a green background (no text or symbols)

Tips for Faxing

Faxing is easy with these simple steps! Improve the clarity of your faxes by adjusting settings, such as density or resolution.

Basic Fax Flow

1 | Set the document.
2 | Press [Fax].
3 | Enter the fax number and press [OK].

To send a fax to a registered address, press Address Book

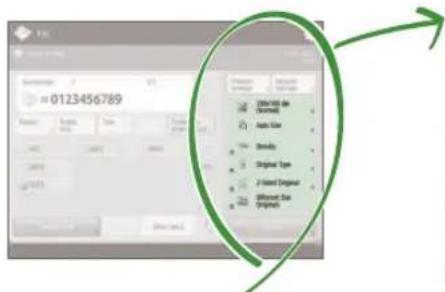

4 | Set your preferred setting.

=0123456789 Driver: Auto Size Type: Auto Size Density: Original Type

Fixed Original

Different Size: Original

5 | Press (Start) and once scanning is complete, press [Start Sending].

Recommended Settings

Resolution

Improve text clarity by increasing the resolution of a document, when sending documents with small text.

Density

Increase the density of thin text when sending (such as text written in pencil) to make it easier to read.

Original Type

Pick one of a variety of different original types when faxing to optimize the settings for that original document.

For further information about the functions, see "A Variety of Features," on p.12.

Press the Button to Adjust the Fax Volume

1 2 3 4 5 6 7 8 9 * 0 # ID C

Adjust the volume when sending and receiving faxes by pressing on the control panel.

Previewing Received Faxes Before Printing

CHECK AICD

Check received faxes before printing, letting you select which to print while saving paper.

See "Saving Received Documents in the Machine (Memory Reception)" in the User's Guide.

Tips for Scanning

Not enough space for storing mountains of paperwork? You can scan and store them as data on your computer.

Silhouette of a person standing against a patterned background (no text or symbols)

Basic Scan Flow

1 | Set the document.
2 | Press [Scan and Send].
3 | Press [New Destination] and enter the destination address.

To scan and send to a registered destination, press .

4 | Set your preferred setting.

Auto and Level Options Auto (Color/Color) Multi-Size (Size) Auto Size Multi-Size Compact Multi-Size Compact

5 | Press (Start).

Recommended Settings

Resolution

You can adjust the resolution when scanning a magazine or picture to make the image more vivid and clear.

File Format

Save a scanned original document in the format that best suits your needs, such as contracts as PDFs or presentation materials as PowerPoint documents.

For further information about the functions, see "A Variety of Features," on p.12.

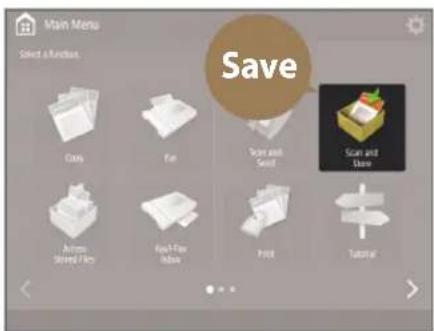

Digitize Stacks of Paper Documents to Save Office Space

Main Menu Select a function. Copy For Print and Send Scan and Save Airbox Stored Files Foot-Flow Boxer Print Tutorial

Illustration of three electronic devices: a printer, a USB flash unit, and a desktop computer (no text or symbols)

Digitize your paper documents by selecting [Scan and Store] when scanning an original document. You can even choose a variety of different destinations to save the data, such as the machine or a file server.

See "Basic Operations for Scanning Originals" in the User's Guide.

Silhouette of a human figure in walking pose against a teal background (no text or symbols)

Tips for Registering Destinations

Register destinations in the address book to make sending operation simple. Increase efficiency by using One-Touch Buttons for frequently used destinations!

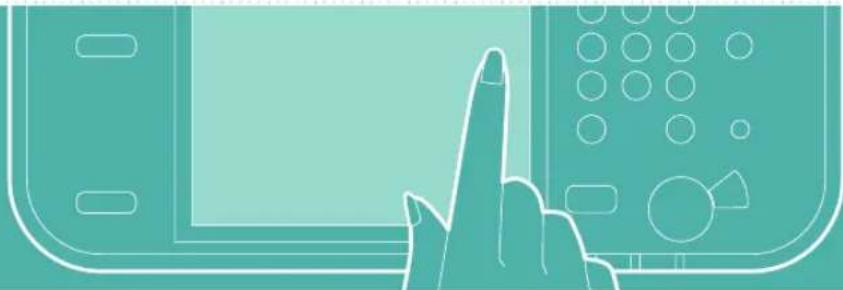

Basic Flow for Registering Destinations

1 | Press [Dest./Fwd. Settings].

Digital OK

2 | Press [Register Destinations].

Send Free Settings new to exit it New Subscribers Remove from Home Forming Settings

3 | Press [Register New Dest.].

Send/Send Settings Name: Size: 12.463.574 Date: 01/22/2019 Current: 12.463.574 Date: 01/22/2019 Current: 12.463.574 Date: 01/22/2019 Log: 12.463.574 Date: 01/22/2019 Log: 12.463.574 Date: 01/22/2019 Log: 12.463.574 Date: 01/22/2019 Log: 12.463.574 Date: -12.463.574 Log: 12.463.574 Date: 01/22/2019 Log: 12.463.574 Date: 01/22/2019 Log: 12.463.574 Date: 01/22/2019 Log: 12.463.574 Date: Log: 12.463.574 Log: 01/22/2019 Log: 12.463.574 Date: 01/22/2019 Log: 12.463.574 Date: 01/22/2019 Log: 12.463.574 Date: 01/22/2019 Log: -12.463.574 Date: 01/22/2019 Log: -12.463.574 Date: 01/22/2019 Log: -12.463.574 Date: 01/22/2019 Log: -12.463.574 Date: 0-12-2019 Log: -12.463.574 Date: 0-12-2019 Log: -12.463.574 Date: 0-12-2019 Log: -12.463.574 Date: 0-12-2019 Log: -12.463.574

4 | Select the type of destination.

Set-Field Settings File Edit View Help 100 Up Up Up Down Begin Menu User Server Down

5 | Enter the address and press [OK].

Send, Send Settings Name: email: 2 Mail Address: [e-mail] Connection Status: No. 10

Illustration of a hand pointing at a computer monitor (no text or symbols visible)

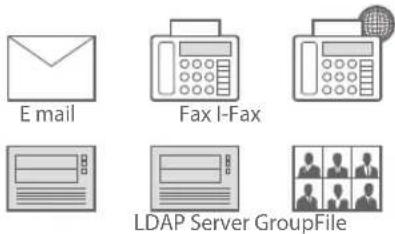

Select the Destination Type

Register e-mail addresses, fax numbers, even servers as destinations! Pick the destination type that is right for you.

See "Registering Destinations" in the User's Guide.

Using [Group]

You can register multiple destinations to a single group.

Send documents to everyone in a meeting at once!

Send Documents Easily With One-touch Buttons

Register an often used destination to a one-touch button with [Register One-Touch], and save time!

Easy Address Editing from Your Computer

Add Book Management Tools

You can access the machine from your computer with the Remote UI, enabling you to edit addresses easily with the keyboard.

See "Registering Destinations" in the User's Guide.

See "Managing the Machine from a Computer (Remote UI)" in the User's Guide.

Silhouette of a person in motion against a solid orange background (no text or symbols)

And More! A Variety of Features

There are many more helpful features that are not mentioned in this guide. For details, see the User's Guide.

Change Machine Settings Remotely from Your Computer

OFFIO

Use the "Remote UI" function to edit the address book, check consumable status, and more from your computer.

See "Managing the Machine from a Computer (Remote UI)" in the User's Guide.

☐ Prevent Security Leaks with Document Security

Illustration of a key and padlock next to a document (no text or symbols)

Password your documents with the Encrypted Secure Print mode. This feature is perfect for protecting important documents.

See "Advanced Functions for Printing" in the User's Guide.

Print Two-Sided ID Cards on One Side of Paper

Diagram illustrating document review process with clipboard, checklist, and signature checkmark

Check IDs easily by copying both sides of an ID and printing them to a single piece of paper with [Copy ID Card].

See "Making ID Card Copies" in the User's Guide.

Advanced Paper Saving Options

Two 3D diagrams showing a rectangular block and a folded cylindrical object, with no visible text or symbols.

Print up to an incredible 8 pages of original documents on a single sheet of paper with [2-Sided] and [N on 1].

See "Copying" in the User's Guide.

Illustration of a hand pressing down on a device with circular components (no text or symbols)

One-touch Settings

Register often used combinations of settings to "Quick Menu" to efficiently use them with a single button.

See "Customizing the Touch Panel Display" in the User's Guide.

Guide

Silhouette of a person in red and white, no text or symbols visible

Illustration of a printer and a hand interacting with a circular button (no text or symbols)

Abstract diagram with geometric shapes and symbols (no text or labels)

Red stylized illustration of a computer with control panel and buttons (no text or symbols)

Illustration of a kitchen appliance with a window showing a yellow leaf and ventilation slots (no text or symbols)

Types de documents originaux compatibles

Livres, magazines

Cartes de visite

Coupures de presse

Illustration of a printer with a yellow flower inside, showing paper cutting through it (no text or symbols)

Types de documents originaux compatibles

Silhouette of a person in profile, standing against a dotted background (no text or symbols)

Astuces pour copier

Screenshot of a software interface showing file selection and folder options with an upward arrow indicator

Stacked sheets of paper with a magnified inset showing a grid pattern (no text or symbols)

Densité

Two 3D isometric diagrams showing a rectangular block and a folded paper sheet, with no text or symbols present.

Illustration of a printer next to three stacked documents labeled A, B, and C (no text or symbols on the devices themselves)

Type d'original

Illustration of a magazine with open and photo views, no visible text or symbols

Form1 Form2 Form3 Form4 Form5 Form6 Form7 Form8 Form9 Form10 Form11 Form12 Form13 Form14 Form15 Form16 Form17 Form18 Form19 Form20 Form21 Form22 Form23 Form24 Form25 Form26 Form27 Form28 Form29 Form30 Form31 Form32 Form33 Form34 Form35 Form36 Form37 Form38 Form39 Form40 Form41 Form42 Form43 Form44 Form45 Form46 Form47 Form48 Form49 Form50 Form51 Form52 Form53 Form54 Form55 Form56 Form57 Form58 Form59 Form60 Form61 Form62 Form63 Form64 Form65 Form66 Form67 Form68 Form69 Form70 Form71 Form72 Form73 Form74 Form75 Form76 Form77 Form78 Form79 Form80 Form81 Form82 Form83 Form84 Form85 Form86 Form87 Form88 Form89 Form90 Form91 Form92 Form93 Form94 Form95 Form96 Form97 Form98 Form99 Form100

Two 3D rectangular blocks with striped patterns, one being cut with a red arrow (no text or symbols)

Mise en page

Two 3D rectangular blocks with horizontal grooves, one with a pink arrow indicating transformation or alignment (no text or symbols)

Illustration of a printer next to three document sheets labeled A, B, and C (no text or symbols on the diagram itself)

Silhouette of a person standing against a green background (no text or symbols)

Astuces pour le fax

0123456789 ZENKANSAN SOMED FORMAI DESOU Yam DISHIPE GAMES MILKANS DISHIPE

Silhouette of a person standing against a dotted background (no text or symbols)

Line of Manager Add Delete Export Add Delete Export Add Delete Export

Illustration of a printer, USB flash unit, and desktop computer (no text or symbols)

Silhouette of a human figure in walking pose against a teal background (no text or symbols)

Mini-pencil Close-up History B-100 File Edit View Insert Help Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As Save As

File农业科技.txt Version to Institutions Editor-in-13400 Editor-in-13400 Editor-in-13400

Nipponed.html File Edit View Insertion Name: Nipponed.html File Edit View Insertion Name: Nipponed.html File Edit View Insertion Name: Nipponed.html File Edit View Insertion Name: Nipponed.html File Edit View Insertion Name: Nipponed.html File Edit View Insertion Name: Nipponed.html File Edit View Insertion Name: Nipponed.html File Edit View Insertion Name: Nipnoned.html File Edit View Insertion Name: Nipnoned.html File Edit View Insertion Name: Nipnoned.html File Edit View Insertion Name: Nipnoned.html File Edit View Insertion Name: Nipnoned.html File Edit View Insertion Name: Nipnoned.html File Edit View Insertion Name: Nipnoned.html File Edit View Insertion Name: Nipnoned.com File Edit View Insertion Name: Nipnoned.com File Edit View Insertion Name: Nipnoned.com File Edit View Insertion Name: Nipnoned.com File Edit View Insertion Name: Nipnoned.com File Edit View Insertion Name: Nipnoned.com File Edit View Insertion Name: Nipnoned.com File Edit View Insertion Name: Nipnoned.com file Edit View Insertion file Edit View Insertion file Edit View Insertion file Edit View Insertion file Edit View Insertion file Edit View Insertion file Edit View Insertion file Edit View Insertion file Edit View Insertion file Edit View Insertion file Edit View Insertion file Edit View Insertion file Edit View Insertion file Edit View Insertion file Edit View Insertion file Edit View Insertion file Edit View Insertion file Edit 2000-2001 file Edit 2001-2002 file Edit 2002-2003 file Edit 2003-2004 file Edit 2004-2005 file Edit 2005-2006 file Edit 2006-2007 file Edit 2007-2008 file Edit 2008-2009 file Edit 2009-2010 file Edit 2010-2011 file Edit 2011-2012 file Edit 2012-2013 file Edit 2013-2014 file Edit 2014-2015 file Edit 2015-2016 file Edit 2016-2017 file Edit 2017-2018 file Edit 2018-2019 file Edit 2019-2020 file Edit 2020-2021

Hypergrailed Excel File Age Time Edit Groups Microsoft Excel General Excel

Recognized event Add to: Add to: add to the event Update: [e-mail] Update: add to the event Import OK

Illustration of a hand interacting with a device, no text or symbols present

Silhouette of a person standing against a solid orange background (no text or symbols)

HDRS TENSION! HORS TENSION!

Illustration of a key and padlock next to a document (no text or symbols)

Diagram illustrating document processing workflow with ID card, clipboard, and pen, showing parallel processing steps.

Two 3D block diagrams showing a striped surface and a folded paper sheet, with no text or symbols present.

Illustration of a hand pressing down on a device with circular components (no text or symbols)

Réglages 1 touche

Silhouette of a person in red and white, no text or symbols visible

Illustration of a printer next to a hand with a circular button and pointer, no text or symbols present.

Abstract diagram with geometric shapes and colored circles (no text or symbols)

Red line drawing of a computer with a screen and keypad (no text or symbols)

Illustration of a kitchen appliance with a window showing a leaf design and a red arrow pointing to it (no text or symbols)

Illustration of a printer with a yellow flower inside, showing paper barcode and arrows indicating orientation (no text or symbols)

Kompatible Originaldokumenttypen

Silhouette of a person in profile, wearing a suit and holding an object (no text or symbols visible)

Stacked sheets of paper with a magnified inset showing a grid pattern (no text or symbols)

Dichte

Two 3D isometric diagrams showing a striped rectangular block and a folded paper or sheet with a blue arrow indicating transformation (no text or symbols)

Kopierfaktor

Verwenden Sie beim

Kopieren den

"Kopierfaktor", um

kleinen Text zwecks

Illustration of a printer next to three document sheets labeled A, B, and C (no text or symbols on the devices themselves)

Originaltyp

Illustration of a magazine with an open book, a photo collage, and a newspaper (no visible text or symbols)

Silhouette of a person sitting in a chair, holding an object (no text or symbols visible)

Illustration of two rectangular blocks with striped patterns, one being cut with a red arrow (no text or symbols)

Seitenlayout

Two 3D rectangular blocks with internal grating, one with a pink arrow indicating compression or dislocation (no text or symbols)

Silhouette of a person standing against a green background (no text or symbols)

Tipps für das Faxen

Silhouette of a person standing against a plain background (no text or symbols)

Sunnan and Lotion Add (Delete) Add 200 for Show Add format map Remove the Format Remove the Format

Illustration of three electronic devices: a printer, a USB flash unit, and a desktop computer (no text or symbols)

Silhouette of a human figure in walking pose against a dotted background (no text or symbols)

Screenshot of a mobile app interface showing a hand interacting with a red 3D cube icon, surrounded by image thumbnails and text labels.

Unidirectional Name http://www.unidirectional.com/ Envelope English Static design Unidirectional English

Sanskopartet-Wind Name: Sanskopartet-Wind File Edit View Insert Help Name: 123-045-788 Name: 123-045-788 Name: 123-045-788 Name: 123-045-788 Name: 123-045-788 Name: 123-045-788 Name: 123-045-788 Name: 123-050-696 Name: 123-050-696 Name: 123-050-696 Name: 123-050-696 Name: 123-050-696 Name: 123-050-696 Name: 123-050-696 Name: 123-060-696 Name: 123-060-696 Name: 123-060-696 Name: 123-060-696 Name: 123-060-696 Name: 123-060-696 Name: 123-060-696 Name: 233-045-788 Name: 233-045-788 Name: 233-045-788 Name: 233-045-788 Name: 233-045-788 Name: 233-045-788 Name: 233-045-788 Name: 233-050-696 Name: 233-050-696 Name: 233-050-696 Name: 233-050-696 Name: 233-050-696 Name: 233-050-696 Name: 233-050-696 Name: 233-060-696 Name: 233-060-696 Name: 233-060-696 Name: 233-060-696 Name: 233-060-696 Name: 233-060-696 Name: 233-060-696 Name: 123-045-788 Name: 123-045-788 Name: 123-045-788 Name: 123-045-788 Name: 123-045-788 Name: 123-045-788 Name: 123-060-696 Name: 123-060-696 Name: 123-060-696 Name: 123-060-696 Name: 123-060-696 Name: 123-060-696 Name: 123-070-696 Name: 123-070-696 Name: 123-070-696 Name: 123-070-696 Name: 123-070-696 Name: 123-070-696 Name: 123-070-696 Name: 233-045-788 Name: 233-045-788 Name: 233-045-788 Name: 233-045-788 Name: 233-045-788 Name: 233-045-788 Name: 123-045-788 Name: 123-045-788 Name: 123-045-788 Name: 123-045-788 Name: 123-045-788 Name: 123-045-788

E-mail Fax Map Base Delete Save CDF/Server Services Subdiva

Developmental Web Name: New Browse Download Add/Remove Web Delete Web OK Cancel

Illustration of a hand pointing at a device panel with circular buttons (no text or symbols)

Silhouette of a person in motion against a solid orange background (no text or symbols)

Illustration of a key, lock, and document (no text or symbols)

Diagram showing a 3D block being converted to a rolled-up sheet of paper (no text or symbols present)

Illustration of a hand pressing down on a device with circular components (no text or symbols)

Silhouette of a person in red and white, no text or symbols visible

Illustration of a printer and a hand interacting with a circular button (no text or symbols)

Abstract diagram with geometric shapes and colored circles (no text or symbols)

Red abstract illustration of a stylized electronic device with no visible text or symbols

Illustration of a kitchen appliance with a window showing a yellow leaf and ventilation slots (no text or symbols)

Illustration of a printer with a yellow flower inside, showing paper cutting through it (no text or symbols)

Silhouette of a person in motion, no text or symbols visible

Stacked sheets of paper with a magnified inset showing a grid pattern (no text or symbols)

Densità

Two 3D isometric diagrams showing a rectangular block being folded into a grid-like structure, with no text or symbols present.

Illustration of a printer next to three stacked documents labeled A, B, and C (no text or symbols on the devices themselves)

Tipo di originale

Illustration of a newspaper with magazines, photos, and an open book (no text or symbols visible)

Silhouette of a person sitting on a chair, no text or symbols visible

Properties Properties to be completed

Silhouette of a person standing against a green background (no text or symbols)

Consigli per il fax

Silhouette of a person standing against a dotted background (no text or symbols)

Add Delete Export

Illustration of a printer, USB flash unit, and desktop computer (no text or symbols)

Silhouette of a human figure in profile against a teal background (no text or symbols)

New source 100% 100% New Source 100% 100%

New Email Account Name: 1234567888 email: [e-mail] + Email account with 确定 取消

Illustration of a hand pointing at a device with control buttons (no text or symbols)

Silhouette of a person standing against a solid orange background (no text or symbols)

E altro ancora!

Illustration of a key, lock, and document (no text or symbols)

Two 3D block diagrams showing a striped block and a rolled-up rectangular object, with no visible text or symbols.

Illustration of a hand pressing down on a device with circular components (no text or symbols)

Silhouette of a person in red and white, no text or symbols visible

Cómo usar el equipo

Illustration of a printer and a hand interacting with a circular button (no text or symbols)

Abstract diagram with geometric shapes and colored circles (no text or symbols)

Red line art illustration of a computer with control panel and buttons (no text or symbols)

Dos métodos para colocar documentos originales

Illustration of a kitchen appliance with a window showing a yellow leaf and control panel (no text or symbols)

Illustration of a printer with a yellow flower inside, showing paper barcode and alignment arrows (no text or symbols)

Silhouette of a person in profile against a blue background (no text or symbols)

Stacked sheets of paper with a magnified inset showing a grid pattern (no text or symbols)

Densidad

Two 3D isometric diagrams showing a rectangular block and a folded paper or sheet, with no text or symbols present.

Escala de copia

Illustration of a printer and three stacked documents labeled A, B, C (no text or symbols on the devices themselves)

Tipo original

Illustration of a newspaper with an open book, photos, and a magazine (no text or symbols visible)

Silhouette of a seated person holding an object, against a solid pink background (no text or symbols)

Two 3D rectangular blocks with striped patterns, one being cut with a pink arrow (no text or symbols)

Diseño de página

Two 3D rectangular blocks with internal grid patterns, one with a pink arrow indicating transformation (no text or symbols)

Acabado (Clasificar)

Illustration of a printer and three stacked documents labeled A, B, C (no text or symbols on the devices themselves)

Silhouette of a person standing against a green background (no text or symbols)

REVISAR A CD

Silhouette of a person standing against a dotted background (no text or symbols)

Auto and foot Auto (Color/RGB) COLDEN-AS (100%) Auto Size Size 3 Deep Image 20000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

5 | Pulse (Iniciar).

Silhouette of a human figure in walking pose against a teal background (no text or symbols)

Unsourced Items Save Asbury Save Asbury Open Save Asbury Closed

3 | Pulse [Guardar nuevo dest.].

Programming Tools Name: Size: 100 Name: Size: 100 Name: Size: 100 Name: Size: 100 Name: Size: 100 Name: Size: 100 Name: Size: 100 Name: Size: 100 Name: Size: 100 Name: Size: 100 Name: Size: 10 Name: Size: 10 Name: Size: 10 Name: Size: 10 Name: Size: 10 Name: Size: 10 Name: Size: 10 Name: Size: 10 Name: Size: 10 Name: Size: 10 Name: Size: 10 Name: Size: 1 Name: Size: 1 Name: Size: 1 Name: Size: 1 Name: Size: 1 Name: Size: 1 Name: Size: 1 Name: Size: 1 Name: Size: 1 Name: Size: 1 Name: Size: 1 Name: Size: 1 Name: Size: 1 Name:

Email Fax Email Email Email Email Email Email

Illustration of a hand pointing at a device with a keypad (no text or symbols)

Items in disclosure Items in disclosure Items in disclosure Items in disclosure Items in disclosure Items in disclosure Items in disclosure Items in disclosure Items in disclosure Items in disclosure Items in disclosure Items in disclosure Items in disclosure Items in disclosure Items in disclosure Items in disclosure Items in disclosure Items in disclosure Items in disclosure Items in disclosure Items in disclosure Items in disclosure Items in disclosure Items in disclosure Items in disclosure Items in disclosure

Silhouette of a person standing against a solid orange background (no text or symbols)

Illustration of a key, lock, and document (no text or symbols)

Two 3D block diagrams showing a striped surface and a rolled-up sheet of paper (no text or symbols)

Illustration of a hand pressing down on a device with circular components (no text or symbols)

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

CANON U.S.A., INC.

One Canon Park, Melville, NY 11747, U.S.A.

CANON CANADA INC.

8000 Mississauga Road Brampton ON L6Y 5Z7, Canada

CANON EUROPA N.V.

Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands

(See http://www.canon-europe.com/ for details on your regional dealer)

CANON AUSTRALIA PTY. LTD

Building A, The Park Estate, 5 Talavera Road, Macquarie Park, NSW 2113, Australia

CANON CHINA CO., LTD

2F Jinbao Building No.89 Jinbao Street, Dongcheng District, Beijing 100005, China

CANON SINGAPORE PTE. LTD.

1 Fusionopolis Place, #15-10, Galaxis, Singapore 138522

CANON HONGKONG CO., LTD

19/F., The Metropolis Tower, 10 Metropolis Drive, Hunghom, Kowloon, Hong Kong
