USER MANUAL Envirobase Axkid

Simple line drawing of a seatbelt inside a circle (no text or symbols)

UN regulation no. 129

Instruction Manual

AXKID ENVIROBASE for use with:

AXKID ENVIROBABY car seat 0-13kg, 40-75cm

AXKID ENVIROKID car seat 0-18kg, 61-105cm

Simple line diagram showing an airplane on a lift transforming into a car (no text or symbols)

1

Diagram of a handheld device with sensor input and internal component view (no text or symbols)

2

Top-down schematic of a device casing with internal components and directional arrows indicating flow or movement (no text or symbols)

4

Silhouette of a car with two side seats (no text or symbols)

AIRBAG

Line drawing of a car seat with a black seatbelt and green checkmark indicating selection (no text or symbols)

Diagram of a car seat with a black brake lever and a red X mark, no text or symbols present

Abstract blue graphic with curved shapes and arrows, no text or symbols present

Close-up of a car seatbelt buckle with blue arrows indicating movement or force (no text or symbols)

Illustration of a baby car seat with a lapel, showing seat positioning and usage (no text or symbols)

Silhouette of an airplane on a lift with an arrow pointing left, next to a car silhouette (no text or symbols)

Mechanical bench diagram showing left and right arm positioning with directional arrows (no text or symbols)

10

Illustration of a car seat with arrows indicating movement or force direction (no text or symbols)

11

Close-up of a black mechanical component with a red belt and blue arrow indicating a transition or movement (no text or symbols)

12

Mechanical device with lever and lever assembly, showing motion arrows (no text or symbols)

F1

F2

Mechanical component diagram showing a lever and lever assembly with directional arrows indicating motion (no text or symbols)

F3

Diagram of a game controller with sensor inputs and motion indicators (no text or symbols)

F4

HQ/Sverige/Norge

Axkid AB

www.axkid.com

[e-mail]

Tel:[phone]

Czech Republic

Domecek pro deti

www.domecekprodeti.cz

[e-mail]

([phone]

Deutschland

Axkid GmbH

www.axkid.com

[e-mail]

Tel: +(49) 60-99 84 89 05

Eesti

GreenHansa OÜ

www.beebipood.ee

[e-mail]

([phone]

España/Portugal

Independent Marketing

www.infobebe.es

[e-mail]

([phone]

France

Axkid AB

www.axkid.com

[e-mail]

Tel [phone]

Greece Ελλάδα

Serbia Србија

LETO shop

www.letoshop.gr

[e-mail]

([phone]

Ísland

Leiftur

www.leiftur.is

[e-mail]

([phone]

Latvia

Muki

www.muki.lv

[e-mail]

([phone]

Lietuva

Kotryna Group

www.kotrynagroup.com

[e-mail]

([phone]

Malaysia

SafenSound

www.safensound.com.my

[e-mail]

([phone]

New Zealand

Clicksafe

www.clicksafe.co.nz/axkid

[e-mail]

Tel:[phone]

Polsce

Junior Andrzej Kwapinski

Horbaczewskiego 4-6

54-130 Wroclaw Dh Astra Sklep

Poland Tel: +(48) 713 549 723

România

SC Baby Car seats

www.axkid.ro

[e-mail]

([phone]

South Africa

Quality Imports SA & #Carseatfullstop

www.qualityimportssa.co.za

[e-mail]

([phone]

Suomi

Lastentarvike

www.lastentarvike.fi

[e-mail]

([phone]

UK/Ireland

Axkid Ltd

www.axkid.com

[e-mail]

Tel:[phone]

EN	10-17
DE	18-25
FR	26-33
NO	34-41
PL	42-49
SE	50-57
TH	58-65

Thank you for choosing AXKID ENVIROBASE

Read this instruction manual before installing the AXKID ENVIROBASE in your vehicle.

For more information and installation videos visit www.axkid.com.

AXKID ENVIROBASE is a part of the Axkid modular system, and can be used with

AXKID ENVIROBABY - Rear facing infant car seat for children 40-75 cm and up to 13 kg, and

AXKID ENVIROKID - Rear facing car seat for children 61-105 cm and up to 18kg.

This is an i-Size Enhanced Child Restraint Module System. It is approved according to UN Regulation No. 129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle user's manual. If in doubt, consult either the Enhanced Child Restraint System manufacturer (www.axkid.com) or the retailer

Important information

To maximize your child's safety, it is important that you keep the following in mind:

• Always follow the instructions in this manual. An incorrect installation may seriously affect the safety for your child. If in doubt, contact your retailer who can demonstrate a correct installation.
- Keep this instruction manual for future reference. If manual is lost, you can find it online at www.axkid.com
- Do not use AXKID ENVIROBASE and compatible car seats in a seating position where an active frontal airbag is fitted. If you still wish to install the Axkid car seat in this location the airbag must be switched off according to the vehicle manufacturers instructions.
- Should you have an accident, no matter how small, your car seat should always be replaced. It may have damage that is non visual and and could seriously affect the safety of your child. For this reason, Axkid does not recommend purchasing second hand car seats.
- If the AXKID ENVIROBASE and compatible seat has been exposed to direct sunlight, make sure that the car seat is not too hot before installing your child.
- Never leave your child unattended in the vehicle.
- Ensure that any luggage or loose objects are secured in your vehicle as they may cause injuries to passengers in the event of an accident.
- Ensure that the AXKID ENVIROBASE and the car seat is installed in a way where no parts become trapped by movable seats, car doors, etc.
- AXKID ENVIROBASE may only be installed rear-facing.
• Always make sure the support leg is in its correct position and have contact with the vehicle floor. Check that the indicator on top of the support leg is green and that you don't hear any beeping sound from the support leg foot.
- Do not attempt to disassemble nor modify any part of AXKID ENVIROBASE. The warranty and and the safety performance of the AXKID ENVIROBASE could be affected if doing so.
- Read the vehicle manual to find which seating positions are suitable for this base and compatible car seats.
- Axkid recommends to always use a seat protection to protect your vehicle seat from scratches and dirt.
• If in any doubts, contact the retailer where the base and compatible car seat was purchased or contact [e-mail].

Table of content

Parts 12

Installing AXKID ENVIROBASE in the vehicle 13

Allowed and disallowed positioning of the AXKID ENVIROBASE 13

Installing AXKID ENVIROBABY on the base 14

Installing AXKID ENVIROKID on the base 15

The Axkid module system 15

Removing car seat from AXKID ENVIROBASE 16

Removing AXKID ENVIROBASE from your vehicle 16

AXKID ENVIROBASE adjustments 16

Care and maintenance 17

Warranty 17

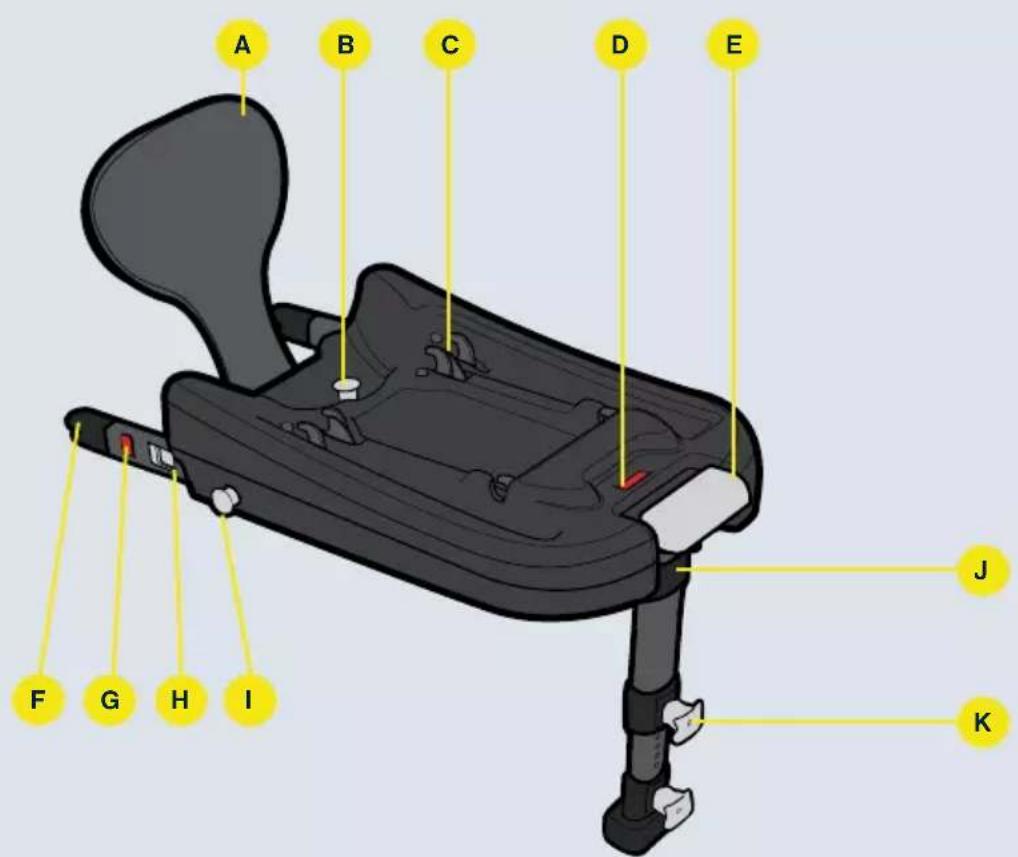

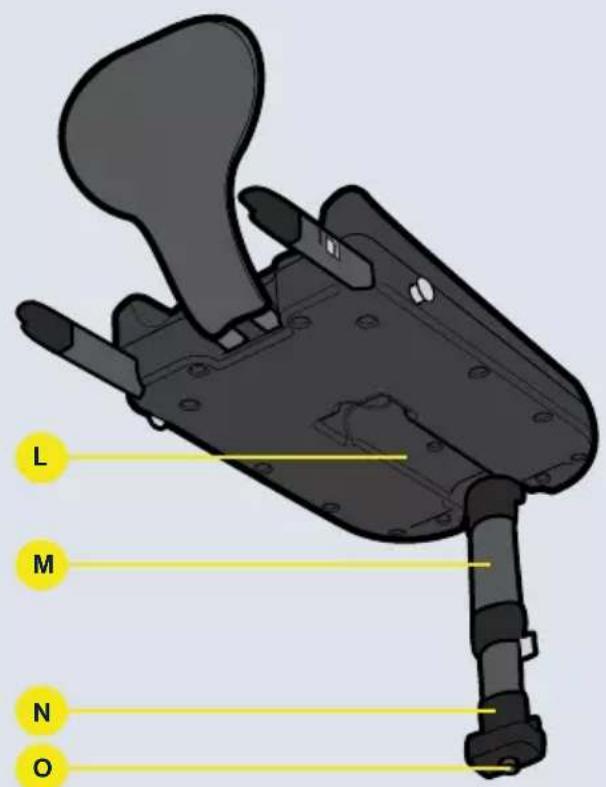

Parts

A FRONT BRACE
B FRONT BRACE RELEASE KNOB
C ATTACHMENT HOOKS
D SEAT ATTACHMENT INDICATOR
E SEAT RELEASE HANDLE
F ISOFIX ARM
G ISOFIX INSTALLATION INDICATOR
H ISOFIX RELEASE BUTTON
I ISOFIX KNOB
J SUPPORT LEG INSTALLATION INDICATOR
K SUPPORT LEG KNOB
L SUPPORT LEG PARKING POSITION
M SUPPORT LEG
N SUPPORT LEG FOOT
O SUPPORT LEG INSTALLATION BUZZER

Installing AXKID ENVIROBASE in the vehicle

1

Attach and adjust the front brace (A) to its innermost position by pulling the front brace release knob (B) and pushing the front brace into the AXKID ENVIROBASE. Fold out the support leg (M) until the support leg installation indicator (J) turns green. When the support leg is unfolded the support leg installation buzzer (O) will start beeping. The beeping will stop after correct installation is completed.

2

Pull the ISOFIX knob (I) and extend the ISOFIX arm (F) to a suitable position (i-iv). Repeat step for both ISOFIX arms.

3

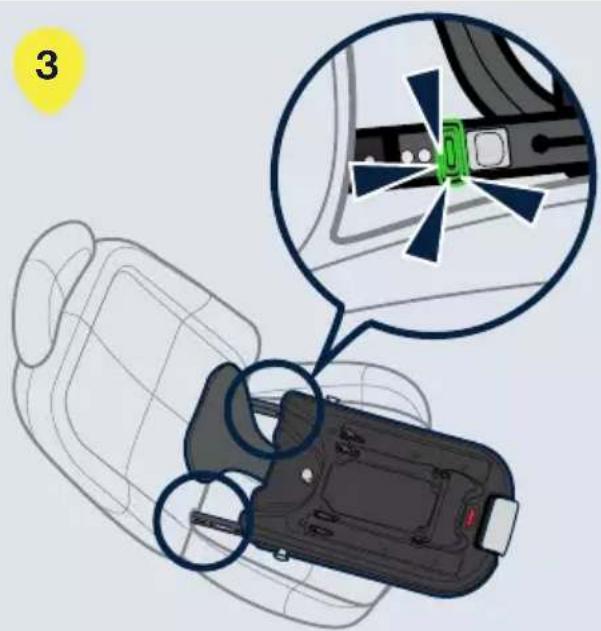

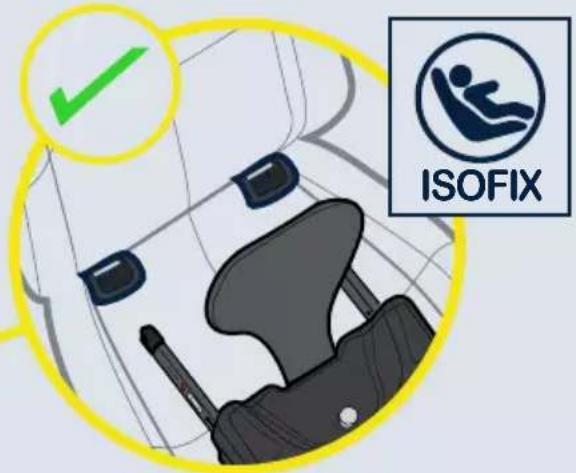

Attach the ISOFIX arms (F) to the vehicle ISOFIX connection points in the correct vehicle seat position (see Allowed and disallowed positioning of the AXKID ENVIROBASE, p14). Make sure that the ISOFIX installation indicator (G) shows green.

4

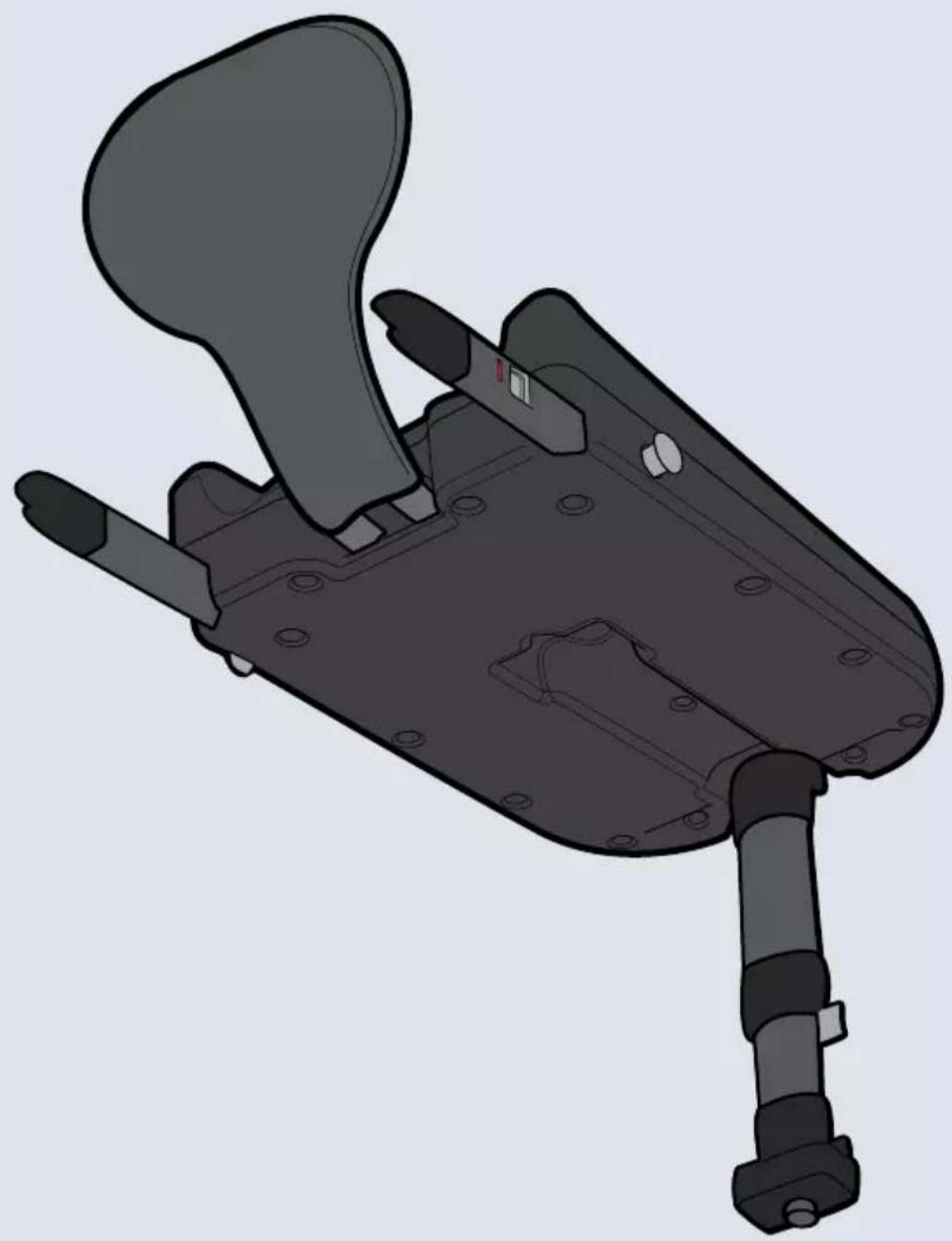

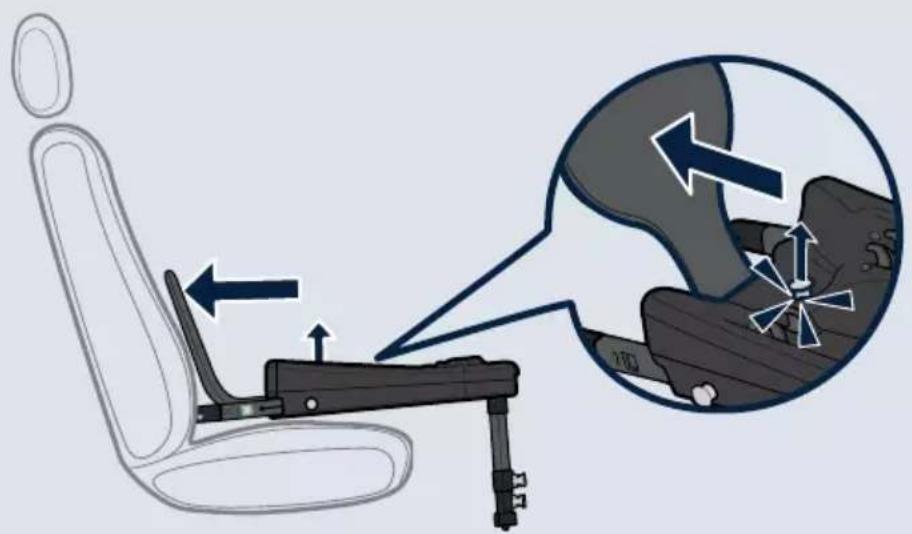

Extend the front brace (A) towards the vehicle seat by pulling the front brace release knob (B) and pushing the front brace (A) towards the vehicle seat, and then release the front brace release knob (B). Make sure to apply as much pressure as possible and that the front brace release knob (B) clicks into position.

5

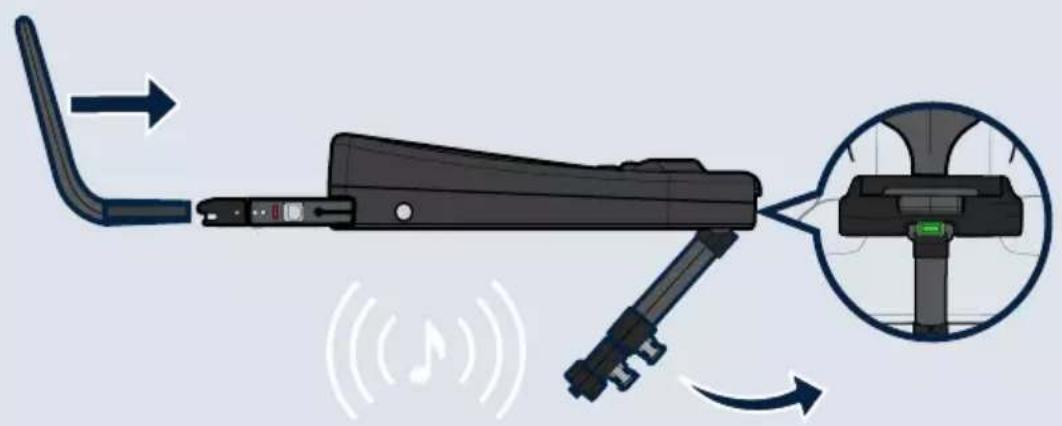

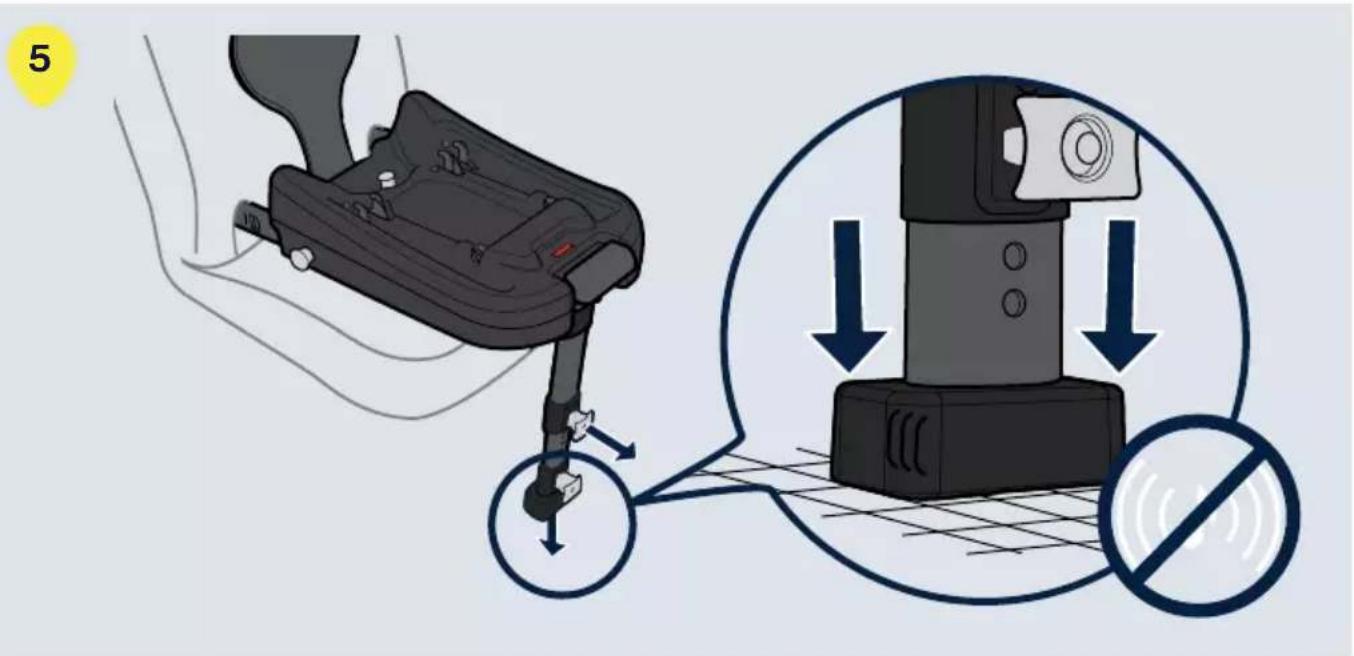

Pull the support leg knob (K) and pull the lower part of the support leg (M) downwards until the support leg foot (N) is in contact with the vehicle floor. Let go of the support leg knob (K) and lift the AXKID ENVIROBASE upwards to further extend the support leg (M) until you hear a click. The support leg (M) should now be locked and firmly pressed against the vehicle floor and the sound from the support leg installation buzzer (O) have stopped.

6

To install AXKID ENVIROBABY or AXKID ENVIROKID on the AXKID ENVIROBASE, pull the seat release handle (E) to its extended position (see F6). Place the car seat in position on top of the AXKID ENVIROBASE and push the car seat down into the AXKID ENVIROBASE until the seat release handle (E) clicks into locked position and the seat attachment indicator (D) shows green.

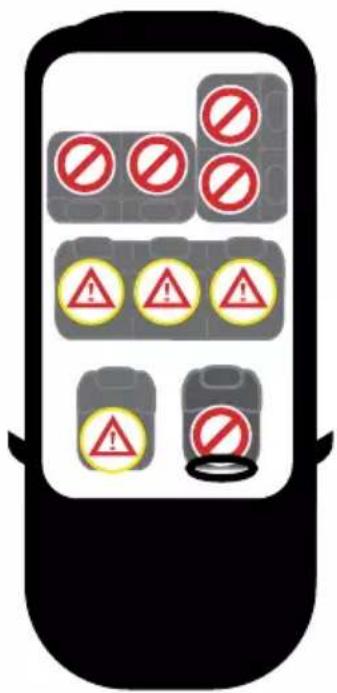

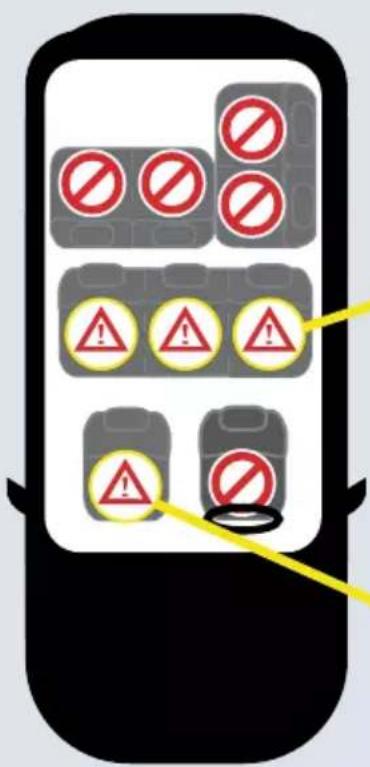

Allowed and disallowed positioning of the AXKID ENVIROBASE

The AXKID ENVIROBASE can only be installed rear-facing using ISOFIX. It is approved for use in all i-Size approved seating positions but may also fit in other non-i-Size approved ISOFIX seating positions. Check your vehicle instruction manual to find suitable seating positions and check the vehicle list on www.axkid.com.

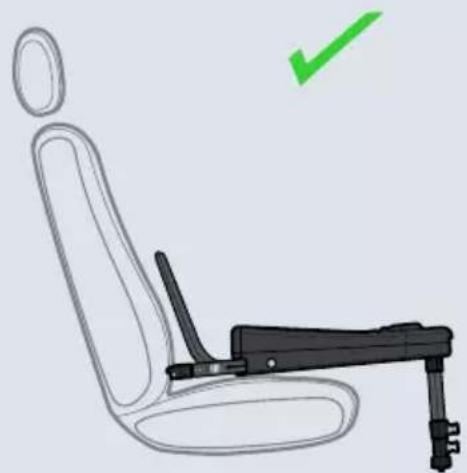

Front passenger seat with ISOFIX (no active airbag) YES/NO*

Front passenger seat with ISOFIX (active airbag) NO
Rear passenger seat with ISOFIX YES

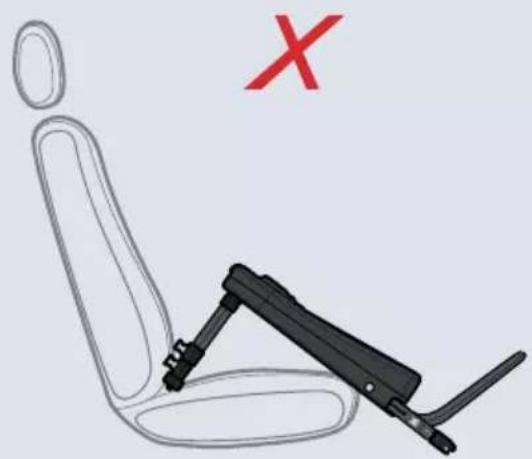

Side and rear facing seats with ISOFIX NO
Seats without ISOFIX NO

IMPORTANT: If you wish to install your Axkid car seat in a location where a frontal airbag is fitted, the airbag must be disconnected according to your vehicle manufacturer instruction. Note that some vehicles require an authorized service center to disconnect the airbag.

* The General Regulation of Traffic in Spain, in its article 117, establishes the prohibition of driving with children of stature equal to or less than 135 centimetres located in the front seats of the vehicle, without exceptions.

Never install a child restraint in a passenger seat where an active airbag is fitted.

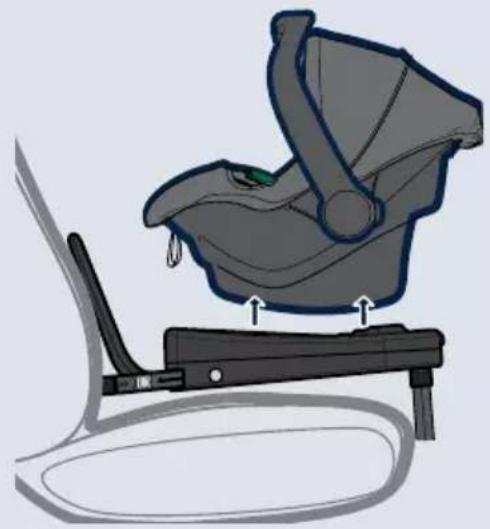

Installing AXKID ENVIROBABY on the base

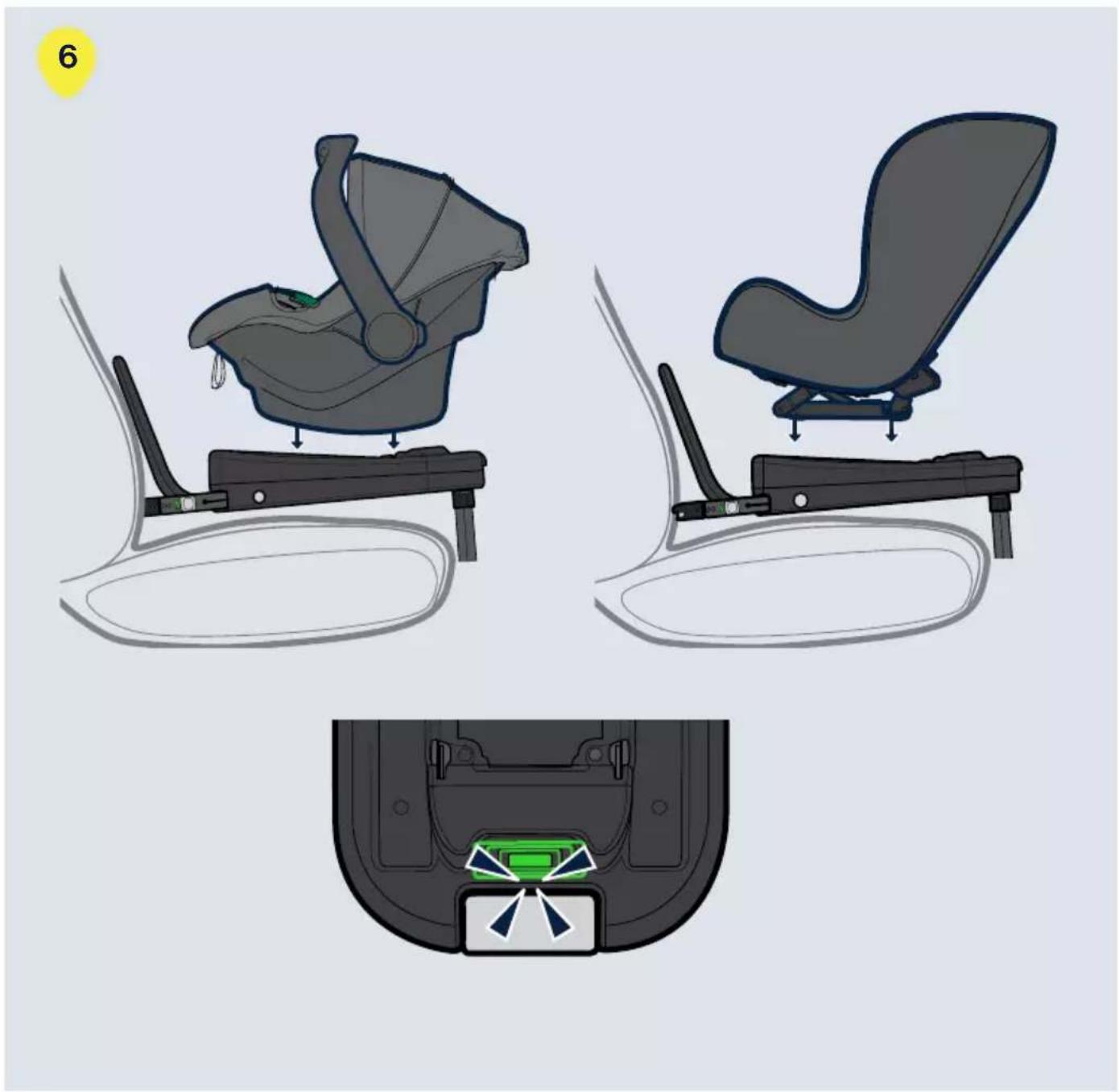

Pull the seat release handle (E) until it locks into its extended position (see F6). Place the car seat in position on top of the AXKID ENVIROBASE and push the car seat down into the AXKID ENVIROBASE until the seat release handle (E) clicks into locked position and the set attachment indicator shows green. The beige attachment hooks (C) should now have attached to the car seat in both front and rear.

Ensure that the AXKID ENVIROBABY is not in contact with any adjacent vehicle seat and that the support leg is firmly clamped to the floor and that the support leg installation buzzer (O) has stopped buzzing. Also make sure that the handle is in position A1 (see AXKID ENVIROBABY manual for further instructions)

IMPORTANT:

See your AXKID ENVIROBABY manual for full instructions on how to install the product and how to buckle your child in the seat.

Installing AXKID ENVIROKID on the base

Pull the seat release handle (E) until it locks into its extended position (see F6). Place the car seat in position on top of the AXKID ENVIROBASE and push the car seat down into the AXKID ENVIROBASE until the seat release handle (E) clicks into locked position and the seat attachment indicator (D) shows green. The base attachment hooks (C) should now have attached to the car seat in both front and rear.

Ensure that the AXKID ENVIROKID is not in contact with any adjacent vehicle seat and that the support leg is firmly clamped to the floor and that the support leg installation buzzer (O) has stopped buzzing.

IMPORTANT:

See your AXKID ENVIROKID manual for full instructions on how to install the product and how to buckle your child in the seat.

The Axkid module system

The Axkid Module system consists of:

• AXKID ENVIROBASE – Base for easy installation in vehicles with ISOFIX connection points.
• AXKID ENVIROBABY – Infant car seat for children between 40-75cm and up to 13kg.
• AXKID ENVIROKID – Rear-facing car seat for children between 61-105cm and up to 18kg.

WARNING: Only install the AXKID ENVIROBABY or the AXKID ENVIROKID on the AXKID ENVIROBASE. Trying to use other products on AXKID ENVIROBASE can result in serious injury in the event of a collision.

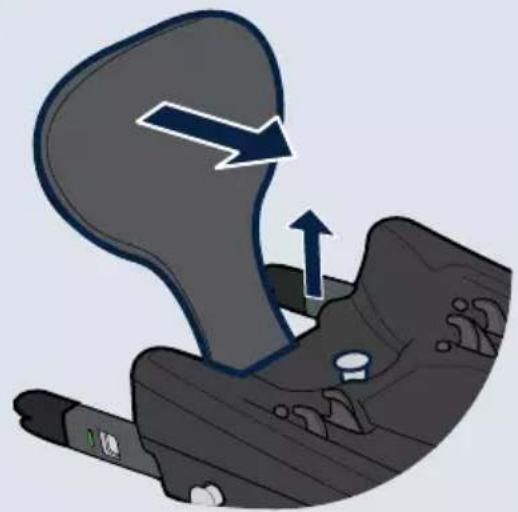

Removing car seat from AXKID ENVIROBASE

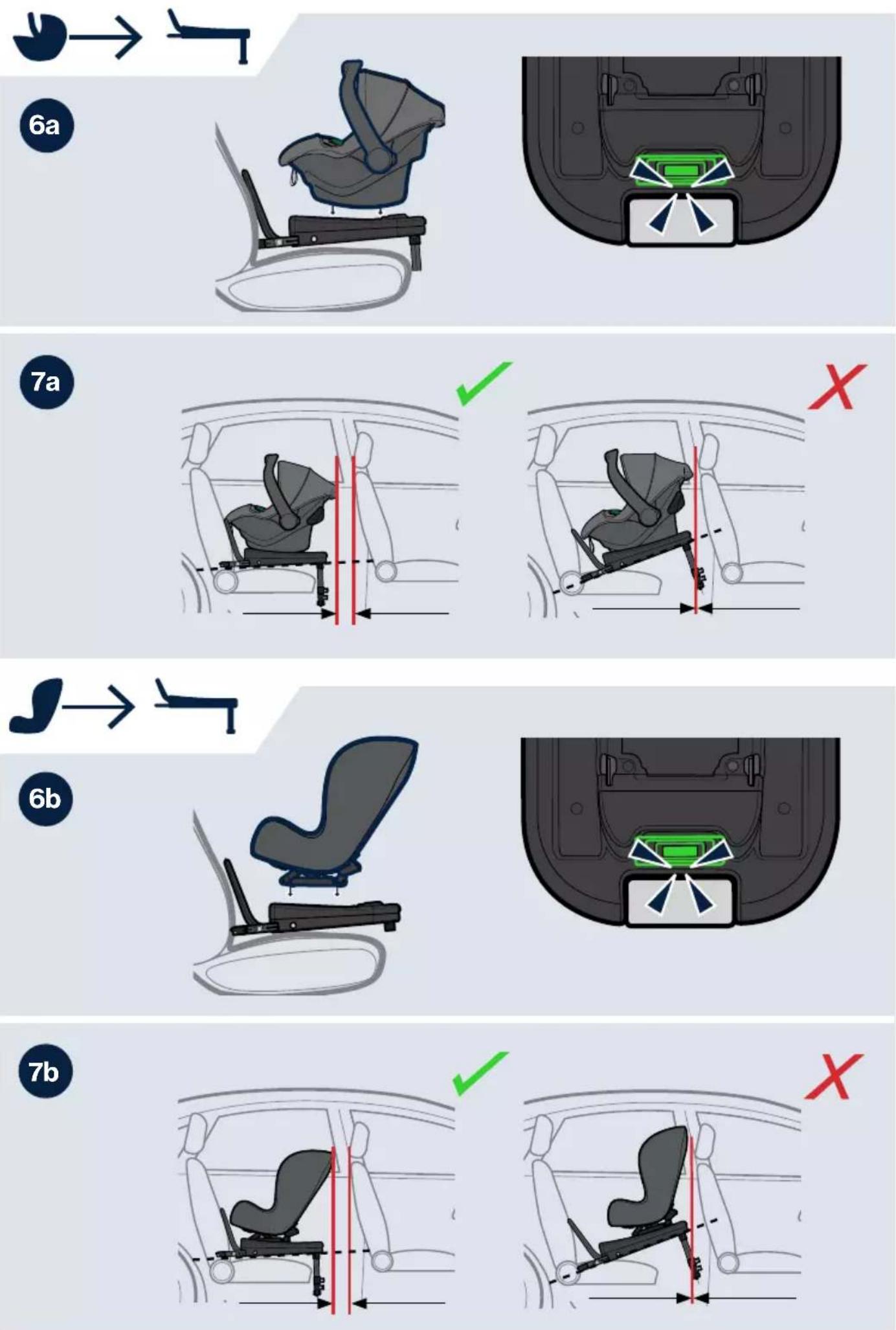

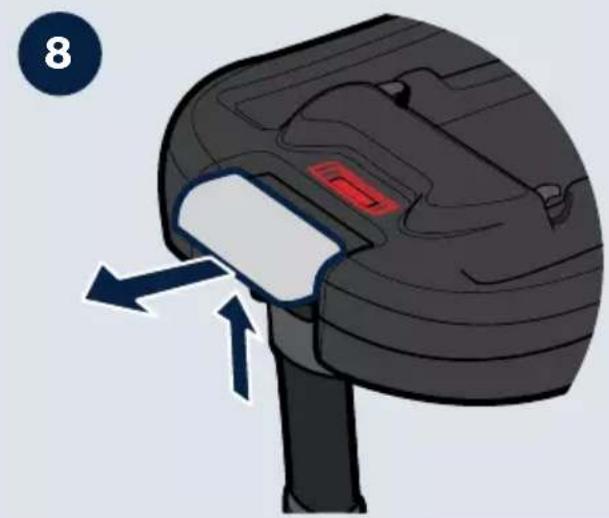

8 To release the car seat from AXKID ENVIROBASE, pull the seat release handle (E) and lift the car seat straight up at the same time.

Simple line drawing showing a car and a plane on a bench, with no text or symbols present.

Removing AXKID ENVIROBASE from your vehicle

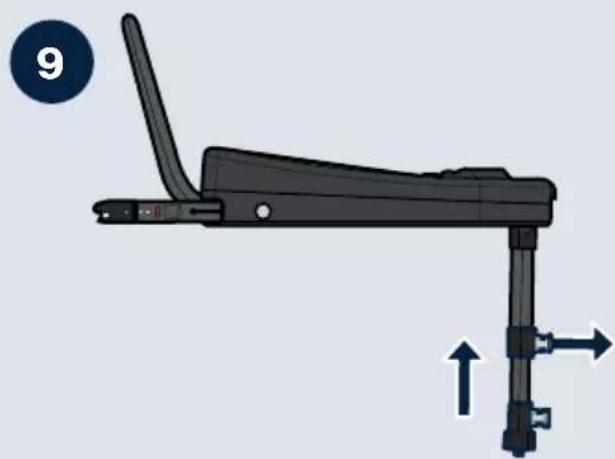

9 Release tension on the support leg (M) by pulling the support leg knob (K) and retract the support leg to its shortest position.
10 Release tension on the front brace (A) by pulling the front brace release knob (B) and adjust the front brace to its shortest position by pushing the front brace into the envirobase.

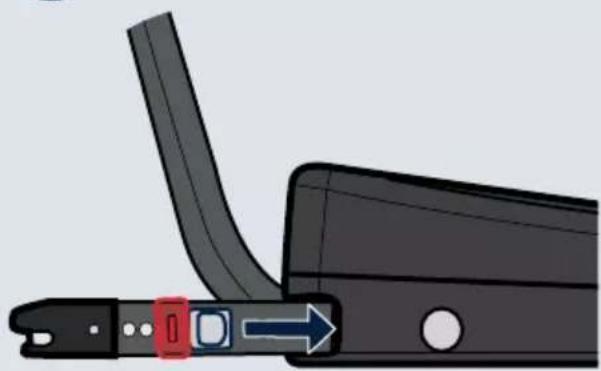

11 Press in and slide backwards on the ISOFIX release buttons (H) to release the AXKID ENVIROBASE from the vehicle. Repeat this step on both sides. The envirobase should now be released and free to remove from the vehicle.

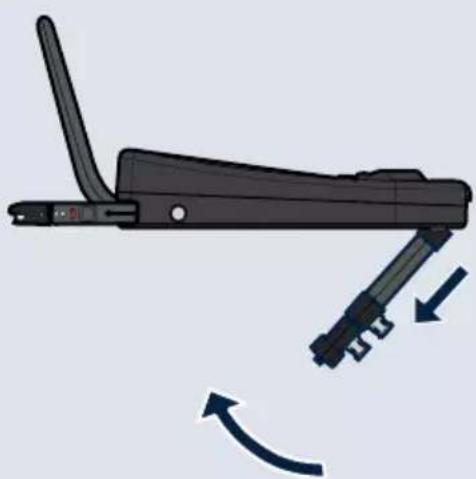

12 The support leg (M) can be folded away into its parking position (L) when AXKID ENVIROBASE is outside of the vehicle for easy handling and storage (see F4). WARNING: Never use AXKID ENVIROBASE in the vehicle with the support leg in the parking position. The supprt leg is an important safety feature and must always be used in the vehicle.

AXKID ENVIROBASE adjustments

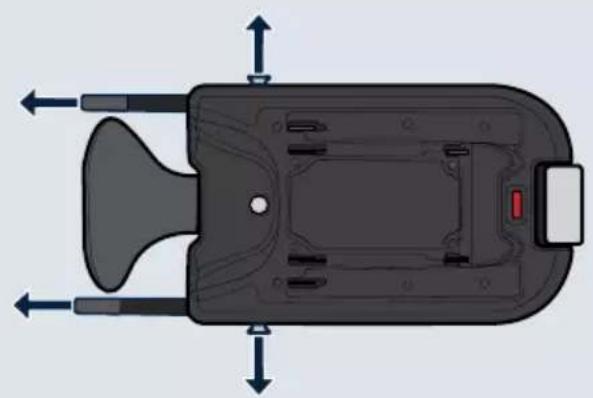

The AXKID ENVIROBASE can be adjusted to provide more leg space for the child or to provide more space for the driver or passenger seat in your vehicle. This is done by adjusting the length of the ISOFIX arms and the front brace.

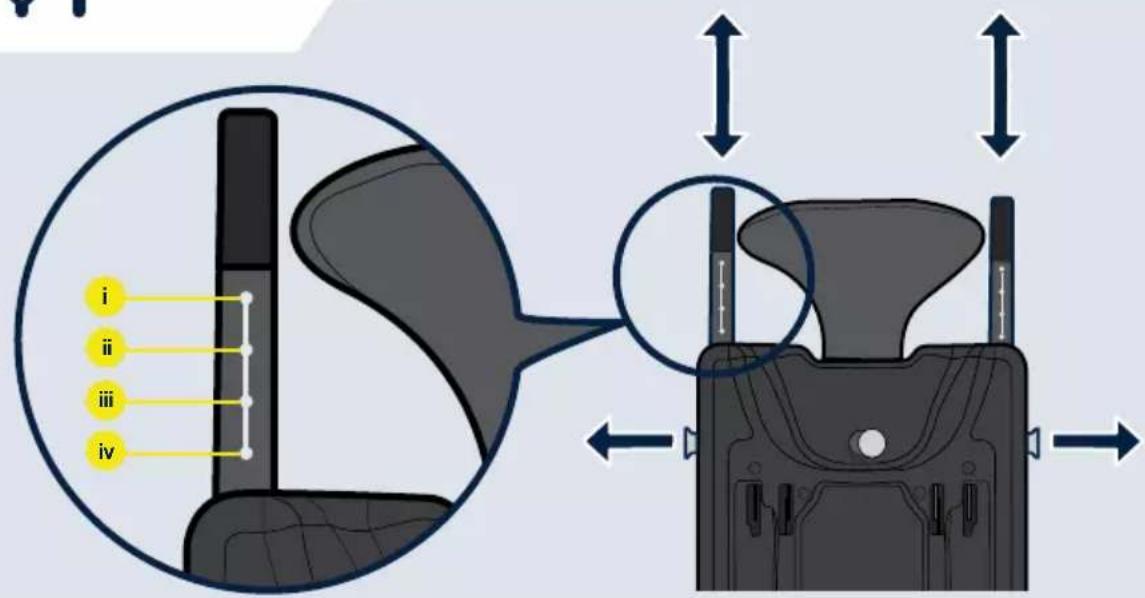

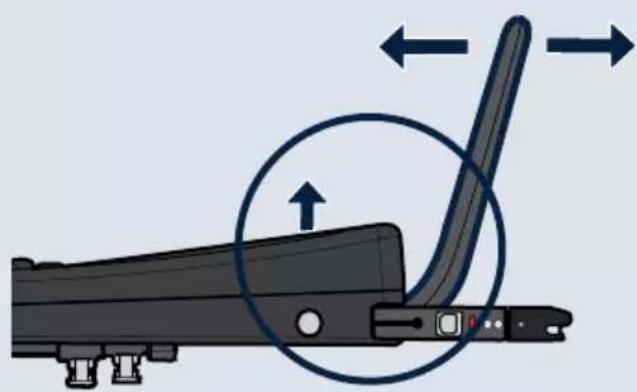

F1 The ISOFIX arms (F) can be adjusted to different lengths to accommodate different seating positions. There are 4 positions, i-iv. The ISOFIX arms (F) are adjusted by pulling the ISOFIX knob (I) and simultaneously pushing or pulling on the ISOFIX arms (F).
F2 The front brace can be adjusted to different positions to accommodate different seating positions with more or less leg room for the child. The front brace (A) is not installed on the base at delivery and must be inserted into AXKID ENVIROBASE. Pull the front brace release knob (B) and slide the front brace (A) into its slot. Make sure that the front brace release knob (B) clicks into position after adjusting the front brace. WARNING: The front brace is an important safety feature and must always be used when installing AXKID ENVIROBASE in a vehicle.

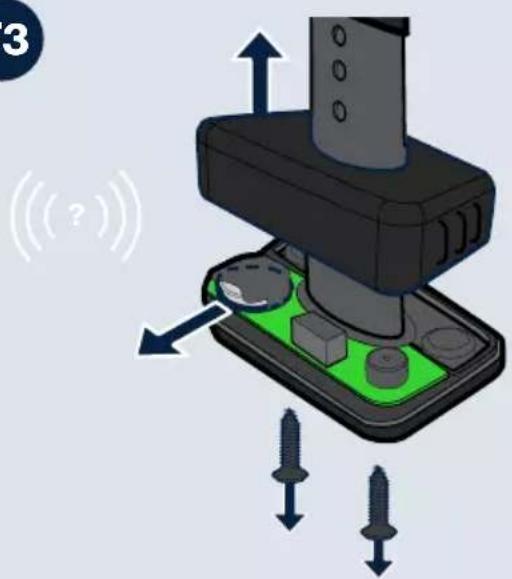

F3 If no sound is emitted from the support leg installation buzzer (O) when the support leg is folded out, check the battery. The battery is checked by unscrewing the two screws under the support leg foot (N) and removing the cover. The battery is then accessible. Note that you can only replace the battery with a CR1632 size battery.

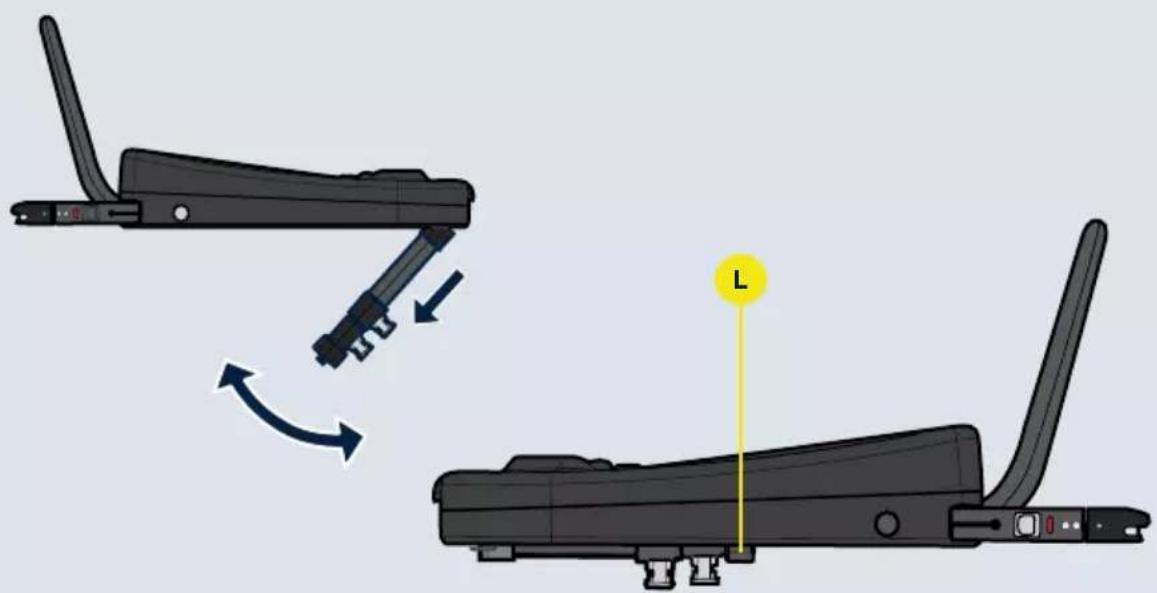

F4 The support leg (M) can be folded into a parking position by pulling downwards on the support leg and fold it underneath AXKID ENVIROBASE and push it into the parking position. The parking position allows for easier handling and storage of AXKID ENVIROBASE and also stops the support leg installation buzzer (O) from beeping when the AXKID ENVIROBASE is not in use. The parking position of the support leg should only be used outside of the vehicle. The support leg is an important safety feature and must always be used when installing enviro base in a vehicle.

Care and maintenance

• The front brace cover can be removed and washed in a washing machine at 30^ on the "Gentle Cycle" program. Do not put the cover in a dryer as this can damage the cover and the padding may separate from the fabric.
• Any plastic parts of AXKID ENVIROBASE can be cleaned with mild detergent and water. Do not use aggressive chemicals containing solvents etc, as this can cause damage to the plastic and compromise the safety of the child car seat.
• All materials used in the AXKID ENVIROBASE are recyclable and should be recycled as per your local legislation. Ask your local recycling center for advice when recycling this product.
• Do not make any modifications or alterations to the AXKID ENVIROBASE car seat other than those described in this instruction manual. Follow the instructions in this manual carefully. Any repairs must be carried out by the manufacturer or agent.
• If the seat cover needs replacing, ensure only original products from Axkid are used. If other products are used, the AXKID ENVIROKID's safety system may be compromised and could lead to severe injury in case of an accident.

Recycling your base

Axkid strongly recommends recycling of old car seats. Before leaving the base at your local recycling station separate metal and plastic parts if possible. The main part of the base should be marked unsafe or expired (use a marker) to deter anyone from using it again. Please check your local municipal guidelines for recycling instructions for the different materials.

trifilon.com

Trifilon is a Swedish based company that makes sustainable plastics.

Trifilon's technology uses plant fibres to both lower the CO2 footprint and give plastics higher performance.

The world needs greener plastics — our mission is to help.

Warranty

The AXKID ENVIROBASE is covered by a 24-month warranty from date of purchase. Ensure you save your receipt and bring it to your place of purchase if you have any warranty issues.

The warranty does not cover:

• Normal wear and tear
• Damage due to incorrect use, neglect or accident
  • If repairs have been carried out by a third party
• All materials used have a very high UV-resistance rating. However, UV-light is very aggressive and will ultimately lead to fading of the seat cover. This is not covered by our warranty as it is considered normal wear and tear.

A ANTIREBOUNDBAR (ARB), RÜCK-PRALLSCHUTZ
B ARB-FREIGABEKNOPF
C BEFESTIGUNGSHAKEN
D INDIKATOR FÜR SITZBEFESTIGUNG
E SITZFREIGABEGRIFF
F ISOFIX-ARM
G ISOFIX-INSTALLATIONSINDIKATOR
H ISOFIX-FREIGABEKNOPF
ISOFIX-KNOPF
J INSTALLATIONSINDIKATOR DES STÜTZBEINS
K KNOPF FÜR STÜTZBEIN
L PARKPOSITION STÜTZBEIN
M STÜTZBEIN
N FUSS DES STÜTZBEINS
O INSTALLATIONSSUMMER DES STÜTZBEINS

Simple line drawing showing a car and a plane with an arrow indicating direction (no text or symbols)

trifilon.com

A RENFORT ANTI REBOND

B BOUTON DE DÉGAGEMENT DU RENFORT ANTI REBOND

C CROCHETS DE FIXATION

D INDICATEUR DE FIXATION DU SIÈGE

E POIGNÉE DE DÉGAGEMENT DU SIÈGE

F BRASISOFIX

G INDICATEUR D'INSTALLATION ISOFIX

H BOUTON DE DECROCHAGE DE L'ISOFIX

I BOUTONISOFIX

J INDICATEUR D'INSTALLATION DE LA JAMBE DE FORCE

K BOUTON DE LA JAMBE DE FORCE

L POSITION DE RANGEMENT DE LA JAMBE DE FORCE

M JAMBE DE FORCE

N PIED DE LA JAMBE DE FORCE

O SIGNAL SONORE D'INSTALLATION DE LA JAMBE DE FORCE

Simple line drawing showing a bench and car with an arrow indicating direction (no text or symbols)

trifilon.com

A ANTIROTASJONSB∅YLE
B UTL∅SERKNAPP ANTIROTASJONSB∅YLE
C FESTEKROKER
D SETEINDIKATOR
E UTL∅SERKNAPP SETE
F ISOFIX ARM
G ISOFIX INSTALLASJON INDIKATOR
H UTL∅SERKNAPP ISOFIX
I ISOFIX KNAPP
J STÖTTEBEN INSTALLASJON INDIKATOR
K ST∅TTEBEN KNAPP
L ST∅TTEBEN STILLE POSISJON
M ST∅TTEBEN
N T∅TTEBENFOT
O ST∅TTEBENLYDINDIKATOR

Installere AXKID ENVIROBASE i bilen

1

Simple line drawing showing a bench and car with an arrow indicating direction (no text or symbols)

trifilon.com

Trifilon is a Swedish based company that makes sustainable plastics.

Trifilon's technology uses plant fibres to both lower the CO2 footprint and give plastics higher performance.

The world needs greener plastics — our mission is to help.

Garanti

A RAMA ANTYROTACYJNA
B UCHWYT REGULACJI RAMY ANTYROTACYJNEJ
C HAKIMOCUJĄCE FOTELIK
D WSKAŻNIK WPIĘCIA FOTELIKA
E UCHWYT WYPIĘCIA FOTELIKA
F ZŁĄCZE ISOFIX
G WSKAŻNIK WPIĘCIA ISOFIX
H PRZYCISK ZWOLNIENIA ISOFIX
I UCHWYT REGULACJI ISOFIX
J WSKAŻNIK POPRAWNOŚCI MONTAŻU NOGI
K UCHWYT REGULACJINOGI
L POZYCJA SPOCZYNKOWA NOGI
M NOGA PODPIERAJĄCA
N STOPANOGI PODPIERAJĄCEJ
O BRZĘCZYK INSTALACYJNYNOGI

Simple line drawing showing a car and a bench with an arrow indicating direction (no text or symbols)

trifilon.com

A ANTI REBOUND BAR (ARB), ANTI-ROTATIONSBÄGEN
B ARB-FRISLÄPPNINGSKNOPP
C FÄSTKROKAR
D INDIKATOR FÖRSITSFÄSTNING
E FRISLÄPPNINGSHANDTAG FÖR SITS
F ISOFIX-ARM
G ISOFIX-MONTERINGSINDIKATOR
H ISOFIX-FRISLÄPPNINGSKNAPP
ISOFIX-KNOPP
J MONTERINGSSUMMER FÖR STÖDBEN
K KNOPPFÖRSTÖDBEN
L PARKERINGSPOSITION STÖDBEN
M STÖDBEN
N STÖDBEN FOT
O MONTERINGSSUMMER FÖR STÖDBEN

Montering i bilen

1

Simple line drawing showing a bench and car with an arrow indicating direction (no text or symbols)

trifilon.com

Simple line drawing showing a car and a bench with an arrow indicating direction (no text or symbols)

trifilon.com

Black and white circular logo with a stylized 'e' and registered trademark symbol (no text or numbers)

Technical illustration of a mechanical device with handle and mounting bracket (no text or symbols)
