GIGASET ZX600 - Cordless phone SIEMENS - Free user manual and instructions

USER MANUAL GIGASET ZX600 SIEMENS

Attention: Be sure to read this user guide and the safety precautions before using your telephone.

Electronic Devices

To avoid electromagnetic interference, please turn off the headset in any place where posted notices instruct you to do so.

Note: Most modern electronic devices are susceptible to electromagnetic interference (EMI) if inadequately shielded, designed, or otherwise configured for electromagnetic compatibility.

Aircraft

Turn off the headset when on board an aircraft. The use of this headset might interfere with the electrical system of an aircraft.

Medical Instruments

Using your headset may affect nearby medical equipment. Be aware of the technical conditions in your particular environment e.g., doctor's surgery.

Power Adapter

Only use the supplied power adapter with the headset.

Placement

You are advised to put the headset in a safe place where it will not be bent or crushed otherwise it may harm the users.

Repair or Service

Any attempt to modify or remove any part of the headset will void the warranty.

Additional Safety Information

Headsets can emit high-volume and high-frequency tones. Subjecting your ears to these tones may lead to permanent loss of hearing. The volume required depends on the conditions under which you use the device. Please read and understand the safety precautions below before using the headset.

Before using this product, complete the following steps:

Set the volume to the minimum setting before putting on the headset.
Put on the headset and adjust the volume to a comfortable level.

While using this product:

Always keep the volume as low as possible and avoid using the headset in a noisy environment where you may have a tendency to increase the volume.

2. General Descriptions

Gigaset ZX600 is a Bluetooth-enabled, wireless hand-sfree headset designed to work with Gigaset, mobile phones and other portable devices as long as they adhere to the Bluetooth specifications and support either the headset or hand-sfree Bluetooth profile.

3. Getting started

3.1 Identifying parts

1	Front of headset	4	Earbuds holster
2	Multifunction button	5	Earloop
3	Earphone cover	6	Volume key

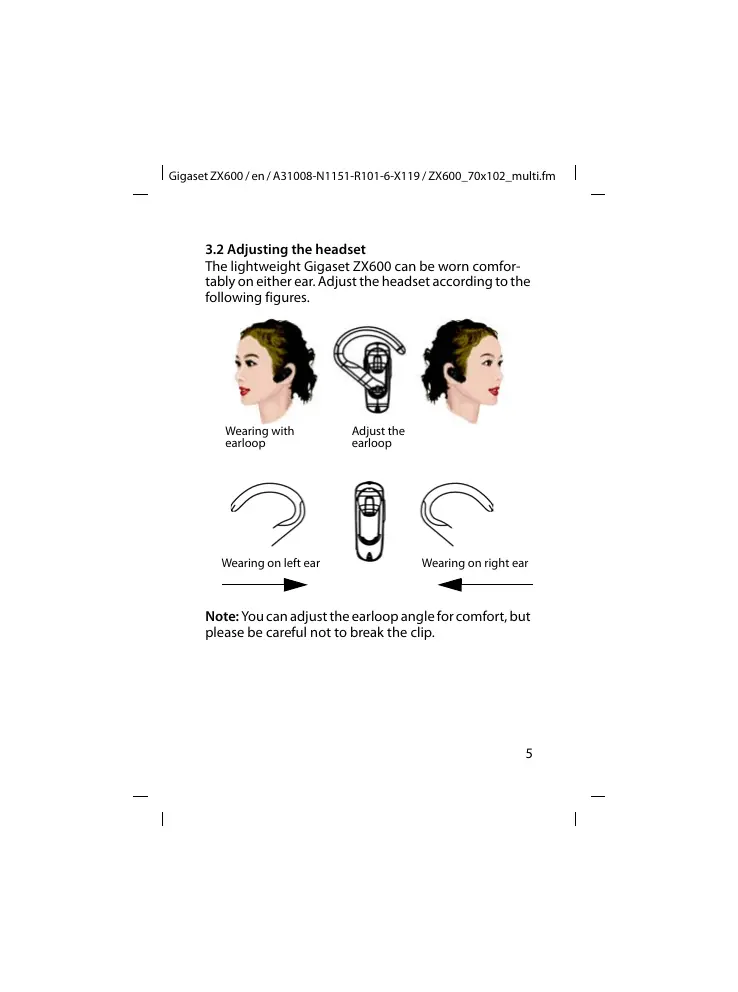

3.2 Adjusting the headset

The lightweight Gigaset ZX600 can be worn comfortably on either ear. Adjust the headset according to the following figures.

Wearing with earloop

Adjust the earloop

Wearing on left ear

Wearing on right ear

Note: You can adjust the earloop angle for comfort, but please be careful not to break the clip.

3.3 Status LED

Headset state	LED colour	Status
Power off	Red	Steady for 1 sec.
Power on	Blue	Steady for 1 sec.
Pairing Mode	Red and blue	Flash alternately
Pair Success	Blue	Steady for 5 sec.
Standby Mode	Blue and red	Flash once every 5 sec.
Ringing	Violet	Flash once every 1 sec.
Ongoing Call	Blue	Flash once every ca. 10 sec.
Charging Mode	Red	Always on
Charging Complete	Red and blue	Always off

3.4 Charging the built-in battery

Gigaset ZX600 has a built-in battery, which must be charged fully before using the headset. Charging takes about 2 hours. You can charge the headset through the AC adapter or USB connector on the computer.

Using USB charging adapter

Note:

1 Be sure the USB connector is aligned correctly and do not force the connection. Use the USB icon on the connector and in the illustrations below as a guide.
2 The headset is disabled when charging.

4. The functions at a glance

	Time period/function
Short press	Press less than 1 second
Long press	Press more than 3 seconds
Press and hold	Press more than 5 seconds
MFB button	Multi-function button
Button . (Vol+)	Volume up button
Button . (Vol-)	Volume down button

Phone operation: Pairing the headset with a phone Before you can use the headset to make calls, you must pair the headset with your phone. Pairing creates a secure link between your phone and the unique ID of the headset. You only have to pair devices once.

1 To put the headset in pairing mode, press and hold (longer than 5 seconds) the multi-function button until the LED flashes red/blue.
2 Scroll to the Bluetooth menu in your Gigaset phone and search for active devices. Refer to your phone's user manual for details.
3 When the search is completed, a list of found devices is displayed.

4 Select ZX600 and, when prompted, input the default passkey (0000). When successfully paired, the red/blue LED on the headset changes to flashing blue.

Note: You can pair the headset with up to eight Bluetooth devices. When you pair the device with a ninth device, the oldest paired device is deleted.

Phone functions at glance

Headset Function	Headset Status	Button
Power on	Power off	Long press multi-function button
Power off	Power on	Very long press multi-function button
Pairing	Power off	Very long press multi-function button
Answer incoming call	Incoming call	Short press multi-function button
Reject incoming call	Incoming call	Long press multi-function button
End a call	Ongoing call	Short press multi-function button
Volume+	Power on	Short press button . (Vol+)
Volume-	Power on	Short press button . (Vol-)
Voice divert betw. headset and phone	Ongoing call	Long press multi-function button
Voice dialling (if supported by Bluetooth device)	Connected	Long press multi-function button
Redial	Connected	Double short press multi-function button

5. Specifications

Battery capacity	100 mAh Li-Polymer
Talk time	up to 7 hours
Standby time	up to 170 hours
Weight	15 g
Size	55.6 x 21,5 x 14 mm
Bluetooth	Bluetooth 2.0 headset, handsfree profile
Environmental conditions in operation	0 °C to +50 °C

6. Removing the battery

Note: Your device uses a battery that is subject to EU Directive 2006/66/EC and national legal regulations based thereon. The device and the battery contained therein may not be disposed of in assorted hou

sehold waste; they must be disposed of at a facility for separate collection of waste. As shown in the illustration, the battery can be removed easily. The best approach is to have it removed and correctly disposed of by a professional at an official collection point. Caution: Opening the device will result in its being damaged or destroyed.

7.1 Customer Service & Assistance

Do you have any questions? As a Gigaset customer, you can find help quickly in this User Manual and in the service section of our Gigaset online portal www.gigaset.com/service. Our representatives are also available on the telephone hotlines for consultation.

Australia 1300780878

Austria 00431313046

Belgium. 078156679

Bosnia Herzegovina. 033 276 649

Bulgaria.+359 2 9710666

(0.50 eBo Na MmHyTa 07 BCuKn DpbjxABn 3a CtaUHOAPn H TenefoHn. 3a 06jaDnHn OMOBnHn TenefoHn MoKe da mMa dpyrTu cheHn).

Croatia 01 2456 555 (0,23 Kn)

Czech Republic. [phone]

Denmark.+45 (0) 35 25 86 00

Finland. 0923113425

Hungary. 06 14 71 24 44 (27 Ft)

Kuwait. [phone]/22458738

Luxembourg [phone]

Malaysia. [phone]

Malta [phone] (0,10 €)

New Zealand 0800780878

Norway 22708400

(Oppstartskost 89 øre + 15 øre pr minuttfra fasttelefon linje. For samplertafter mobil vit del gijele ogne prisoner.)

Poland. 0801 140 160

Portugal (custo de una chamada local) (351) 808 781 223

Romania. [phone]

Russia 8 (495) 2281312

Serbia. 0800222111

Slovak Republic. 02 59 68 22 66 (4,428 sk)

Slovenija 014746336

Sweden 08-7509911

Switzerland 0848 212 000

Turkey. 0216 459 98 59

Ukraine.+380-44-451-71-72

United Arab Emirates.+97144458255 / [phone]

Please have your record of purchase ready when calling.

Replacement or repair services are not offered in countries where our product is not sold by authorised dealers.

7.2 Protecting our environment

Our environmental mission statement

We, Gigaset Communications GmbH, bear social responsibility and are actively committed to a better world. Our ideas, technologies and actions serve people, society and the environment.

The aim of our global activity is to secure sustainable life resources for humanity. We are committed to a responsibility for our products that comprises their entire life cycle. The environmental impact of products, including their manufacture, procurement, distribution, use, service and disposal, are already evaluated during product and process design.

Further information on environmentally friendly products and processes is available on the Internet at www.gigaset.com.

Environmental management system

Gigaset Communications GmbH is certified pursuant to the international standards EN 14001 and ISO 9001. ISO 14001 (Environment): certified since September 2007 by TuV SUD Management Service GmbH. ISO 9001 (Quality): certified since 17/02/1994 by TuV SUD Management Service GmbH.

Disposal

Batteries should not be disposed of in general household waste. Observe the local waste disposal regulations, details of which can be obtained from your local authority. All electrical and electronic products should be disposed of separately from the municipal

waste stream via designated collection facilities appointed by the government or the local authorities. This crossed-out wheeled bin symbol on the product means the product is covered by the European Directive 2002/96/EC. The correct disposal and separate collection of your old appliance will help prevent potential negative consequences for the environment and human health. It is a precondition for reuse and recycling of used electrical and electronic equipment. For more detailed information about disposal of your old appliance, please contact your local council refuse centre or the original supplier of the product.

7.3 Authorisation

This device is intended for use within the European Economic Area and Switzerland. If used in other countries, it must first be approved nationally in the country in question. Country-specific requirements have been taken into consideration. We, Gigaset Communications GmbH, declare that this device meets the essential requirements and other relevant regulations laid down in Directive 1999/5/EC.

A copy of the 1999/5/EC Declaration of Conformity is available at this Internet address: www.gigaset.com/docs.

€ 0682

7.4 Caring for your telephone

Wipe the unit with a damp cloth or an antistatic cloth. Do not use solvents or microfibre cloths. Never use a dry cloth. This can cause static.

7.1 Assistance Service Clients

© Gigaset Communications GmbH 2011

All rights reserved. Subject to availability.

Rights of modification reserved.

A31008-N1151-R101-6-X119
