Scope IT - Inspection camera dnt - Free user manual and instructions

Product Type	Inspection Camera
Brand	dnt
Model	Scope IT
Dimensions (without cable)	186 x 145 x 41 mm
Weight	530 g
Power Supply	4 AA batteries (included)
Screen	2.4" TFT-LCD (480 x 240 pixels)
Image Sensor	CMOS (704 x 576 pixels PAL)
Viewing Angle	50°
Minimum Illumination	0 Lux
Camera Diameter	16 mm
Video System	PAL
Video Level	0.9-1.3 Vpp / 75 Ohm
Admissible Humidity Range	15~85% RH
Included Accessories	Cable with mini camera, hook, magnet, mirror, 4 AA batteries
Functions	LED brightness adjustment (8 levels), contrast, 180° image rotation/mirror
Safety	Do not twist the cable (min radius 15 cm), avoid >60°C, humidity, dust
Maintenance	Clean with a clean, dry cloth
Warranty	Legal warranty, repair or replacement of material/manufacturing defects
Customer Service	dnt GmbH, [e-mail], [phone]
Compliance	Directive 1999/5/EC
Ecological Disposal	Recycling via collection points (directive 2002/96/EC)

Frequently Asked Questions - Scope IT dnt

How to insert the batteries?

Open the battery compartment located in the handle by removing the screw and sliding the cover off. Insert the 4 AA batteries respecting polarity, then close. Always use a complete set of batteries when replacing.

How to attach the cable to the handheld device?

Plug the cable connector into the handheld device's slot and manually tighten the knurled knob to ensure a proper connection.

How to adjust the LED brightness?

Press the LED brightness button to vary the lighting. 8 adjustment levels are available for the LEDs located on the camera tip.

Can I use the device in the rain or in a bathroom?

No, protect the device from moisture. Do not use it in high-humidity rooms such as bathrooms, as this could damage it.

How to clean the device?

Use a clean, dry cloth to clean the surfaces. Do not use chemicals. Store the device in a clean and dry place.

How to attach the accessories (mirror, magnet, hook)?

The accessories attach to the camera head in two possible positions. Simply snap them onto the provided holder.

What to do if the device does not turn on?

First check the correct insertion and polarity of the batteries. If the device remains off, contact dnt customer service at [phone] or by email at [e-mail].

How to rotate or mirror the image?

Press the Image Framing button to rotate and/or mirror the image by 180°.

What is the minimum bending radius of the cable?

Never twist the cable. The maximum inner radius must not be less than 15 cm to avoid damage.

How to get the complete manual?

You can download the manual in PDF format for free from notice-facile.com. If the manual is not available in your language, you can request a translation by providing your email.

USER MANUAL Scope IT dnt

Red and black handheld endoscope with cable, no visible text or symbols

Inhalt

Red and black handheld device with a button on top (no visible text or symbols)

Simple black circular diagram with two curved arrows pointing outward (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with ports and connectors (no text or symbols)

Diagram of a battery pack with two side compartments labeled AA, showing internal structure without any text or symbols.

Line drawing of a mechanical assembly with a cylindrical component and a rod (no text or symbols)

Simple line drawing of a cylindrical object with a looped end (no text or symbols)

Security instructions 9

delivery content 10

Appliance description

Appliance description 10

Getting started

Insert batteries ....11

Installing imager head cable 11

Installing the accessories ....12

Operation....12

Technical specification 13

Disposal of electrical and electronic equipment .....13

Service information 13

Declaration of Conformity ....13

Warranty regulations 27

Please read this information carefully before you use the two way radio.

General instructions

• Don't place the unit on unstable location, if it falls down, people may be injured.
  ● The unit is not a toy, please beware of small children.
• If you connect the unit to other electronic devices, please study also the security instruction of this device.
• If you have any question regarding the unit, how it works, the safety or the correct connection please contact our technical support or ask any specialist.
  ● The seller will not be liable for any damages caused by misuse of the product and any claim from third parties.

Environmental conditions

• Don't drop or shake the unit, it might be damaged.
• Avoid too high pressure to the LC-display, it might be damaged.
• Don't leave the unit where the temperature is higher than 60^ , e.g. in cars with closed windows in the summertime, near heaters or any other type of heat source.
• Don't use the unit in rooms with high humidity e.g. bathrooms. Parts of the apparatus, tube and mini camera, are water proofed See technical specifications for details
• Don't use the unit at dusty places.

Technical problems

• In case any foreign material or liquid gets into the product, please immediately remove the power cord. Before you use it again, ask your authorised dealer to check the product carefully.
• Please do not hesitate to contact our service center.

Packaging material

- Please don't keep any packaging material within reach of small children. It can become a dangerous toy.

Maintenance

• Please remove the battery in case you don't use the product for a longer period of time. Leaking batteries can damage the product. Store the product at a clean and dry place.
• For cleaning use dry and soft cloth.

Delivery content

Red and black handheld device with a button and indicator lights (no visible text or symbols)

Simple black circular diagram with two curved arrows pointing outward (no text or symbols)

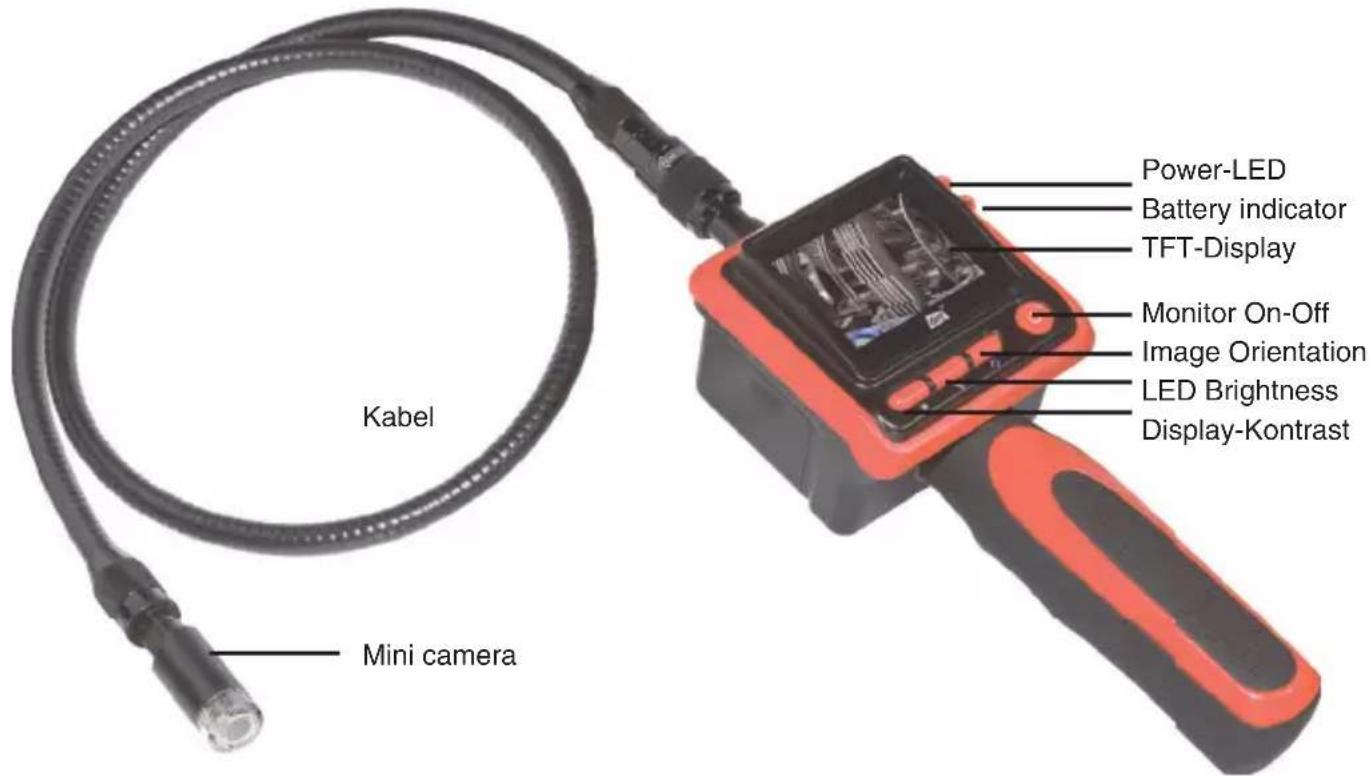

Appliance description
Tube with cable

Kabel Mini camera Power-LED Battery indicator TFT-Display Monitor On-Off Image Orientation LED Brightness Display-Kontrast

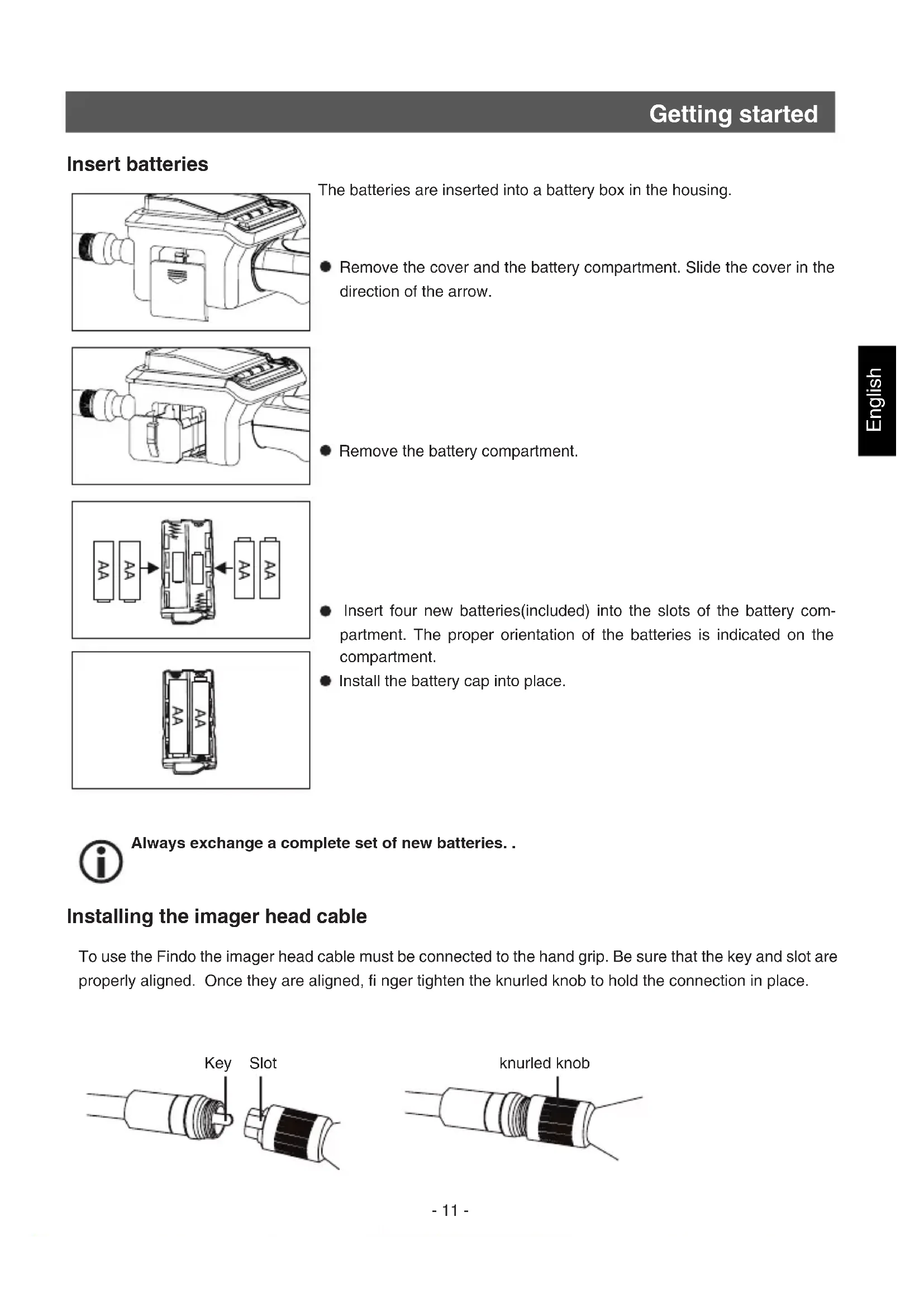

Insert batteries

Technical line drawing of a mechanical device with no visible text or symbols

The batteries are inserted into a battery box in the housing.

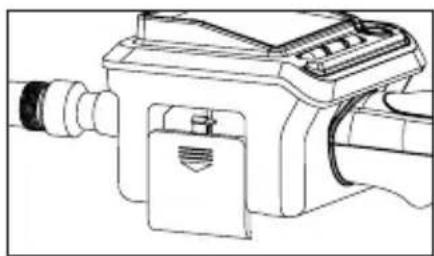

- Remove the cover and the battery compartment. Slide the cover in the direction of the arrow.

Technical line drawing of a mechanical device with ports and connectors (no text or symbols)

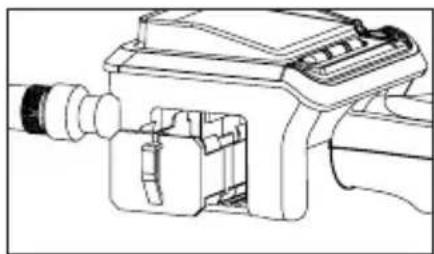

- Remove the battery compartment.


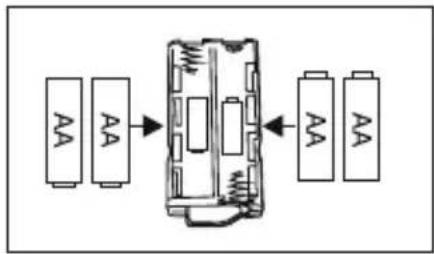

• Insert four new batteries(included) into the slots of the battery compartment. The proper orientation of the batteries is indicated on the compartment.
  ● Install the battery cap into place.

Diagram of a battery pack with two side compartments labeled AA, showing internal structure without any text or symbols.

Always exchange a complete set of new batteries.

Installing the imager head cable

To use the Findo the imager head cable must be connected to the hand grip. Be sure that the key and slot are properly aligned. Once they are aligned, fi nger tighten the knurled knob to hold the connection in place.

Key Slot

knurled knob

Getting started

Installing the accessory

The accessories consist of 3 parts, a mirror, a magnet and a hook, which are all attached to the imager head on the same way. The accessories have 2 mounting positions at the imager head.

Line drawing of a mechanical assembly with a handle and shaft (no text or symbols)

Simple line drawing of a cylindrical object with a looped end (no text or symbols)

Inspect the inspection camera before use and correct any problems to reduce the risk of serious injury from electric chock and other causes and prevent tool damage.

Operation

Don't buckle the tube. The min. should not go below 15 cm.

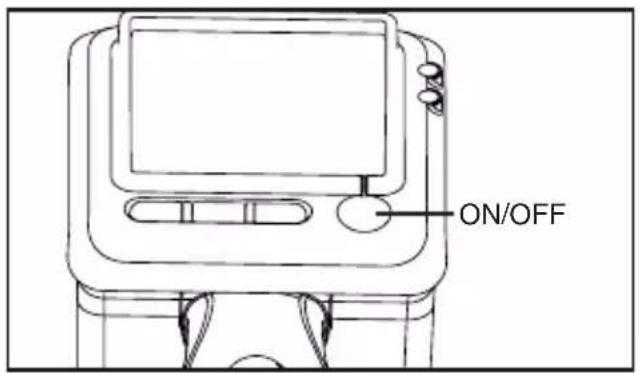

ON/OFF

Twinlight LEDs

Turn the monitor on with the power button. The Power LED indicates green. Setup a suitable lighting with the LED brightness button. At the monitor you can adjust the contrast of the display, which also depends on the pre-setting of the Twin LEDs

If the Image Orientation button is pressed, the picture orientation turns 180° or is mirrored.

Specification

Image sensor CMOS

Resolution 704 x 576 (PAL)(Camera)

View angle 50°

min. illumination 0 Lux

Camera diameter 16mm

Display 2.4" TFT-LCD

Pixel 480 x 234 (Monitor)

Dimension 201x83x59 mm

Weight 140g

Operating temperature -10°C\~+50°C/+14°F\~+122°F

Operation humidity 15\~85%RH

Power 4xAA Batteries

Declaration of conformity

Hereby, dnt GmbH, declares that this Scope IT is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity for this product can be downloaded from:

http://www.dnt.de/conformity

Service information

In case of complaints your device shows a defect, please consult your dealer or contact the service department of dnt to agree a servicing.

Service time: Monday until Thursday from 8.00-17.00h

Friday from 8.00-16.00h

Hotline/service: [phone]

E-mail: [e-mail]

Please do not send your device to our address without request by our service team. The expense and the risk of the loss are for debits of the sender. We reserve to refuse the unrequested shipment or return corresponding goods to the sender at buyer's risk and expense.

Disposal of electrical and electronic equipment

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

Red and black handheld device with a screen and handle (no visible text or symbols)

Simple black circular diagram with two curved arrows pointing inward (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with ports and housing (no text or symbols)

Diagram of a battery pack with two side compartments labeled AA, showing internal structure (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a cylindrical object with a looped end (no text or symbols)

Dimensions 100x70x30mm

Poids 140g

Plage de température -10^ +50^/+14^ +122^

Red and black handheld device with a small screen (no visible text or symbols)

Simple black circular diagram with two curved arrows pointing outward (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with ports and internal components (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical assembly with a lever and shaft (no text or symbols)

Simple line drawing of a cylindrical object with a looped end (no text or symbols)

Camera diameter 16mm

Display 2.4" TFT-LCD

Pixel 480 x 240

Videosysteem PAL

Videoniveau 0,9-1,3Vpp an 75Ohm

Afmetingen 100x70x30mm

Gewicht

140g

Temperatuurbereik -10°C\~+50°C/+14°F\~+122°F

Vochtigheidsgraad

15\~85%RH

CE-verklaring

Solid gray rectangular shape with no text, symbols, or discernible features.

Garantiebedingungen

Warranty regulations

1. In general the European warranty regulations are valid. Warranty starts with receipt of unit. In a warranty case, please submit the unit together with invoice, unit pass and error description. Without these documentary evidence we are not obliged to a warranty performance.
2. During warranty period we repair all constructional or material defects which are caused by a manufacturing fault. It is in the decision of the manufacturer to change or replace defective parts/units. Further claims are excluded. Changed parts will automatically go over into our property. We will not be held responsible for future damages.
3. Manipulation on the unit through non-authorized companies/persons automatically leads to an end of warranty period.
4. Excluded of warranty claims are damages due to improper treatment, not following the manual, oxidation of batteries, permanent usage.
5. The initial warranty period is not extended because of repair or replacement of parts.
6. These warranty regulations are valid in the Federal Republik of Germany.

Application de la garantie

Stamp and signature of the dealer
