Product Type	Submersible water pump for wells and boreholes
Brand	Oase
Model	ProMax Pressure Well 3000/18
Rated Voltage	220-240 V AC
Mains Frequency	50 Hz
Power Consumption	900 W
Protection Rating	IPX8
Maximum Flow Rate	3000 l/h
Maximum Delivery Head	70 m
Maximum Immersion Depth	20 m
Admissible Sand Content	150 g/m³ max.
Suction / Discharge Connection	G1 (1 inch)
Power Cable Length	30 m
Pump Diameter	74 mm
Pump Height	1085 mm
Weight	12.85 kg
Intended Use	Clear water or rainwater, watering, irrigation, cistern extraction
Operating Mode	Manual on/off via plug; automatic with optional switch (ProMax Garden Automatic Switch)
Safety Device	Thermal overload protection, check valve
Routine Maintenance	Clean suction strainer and check valve; rinse with clear water
Winter Maintenance	Drain, clean, store frost-free
Wear Parts	Operating unit (replacement by Oase service)
Recycling	Do not dispose of with household waste; cut the cable and return to collection point
Recommended Accessories	Oase ProMax Garden Automatic Switch (44538) for automatic operation

Frequently Asked Questions - ProMax Pressure Well 3000/18 OASE

How to install the pump in a well or borehole?

Attach a double-knot fixing cable to the pump ring, then lower it into the well. Keep the suction strainer at least 150 mm below the water level and 1.5 m from the bottom. For depths >5 m, tie the power cable to the fixing cable every 5 m to avoid strain.

What pipe diameter to use for discharge?

The recommended inner diameter is 25 mm (1 inch) for optimal flow. You can use a quick coupler for easier connection.

The pump does not start, what should I do?

First check the power supply: fuse, plug and cable. If all is correct, the motor may be overheated (thermal protection). Wait for cooling and clean the suction opening. Also ensure the well is not dry.

Why does the pump stop after a few minutes?

This is often due to overheating: the safety device has cut the power. Clean the suction opening and let the pump cool down. If the problem persists, check that the well contains enough water.

How to clean the check valve?

Disconnect the discharge pipe and adapter. Carefully remove the check valve with pliers, rinse it with clear water, then reassemble. If sand blocks the valve, clean it thoroughly.

Can I use the pump with salt water or for drinking water?

No, the pump is not compatible with salt water and is not suitable for drinking water. It is designed only for clear water or rainwater.

How to protect the pump in winter?

The pump is not frost-resistant. Before frost, drain it completely, clean it thoroughly, inspect for damage, and store it dry and frost-free. Protect the plugs from moisture.

What are the wear parts and how to replace them?

The main wear part is the operating unit (impeller). Its replacement is exclusively reserved for Oase service. Contact authorized after-sales service.

How does automatic mode work?

Automatic mode requires the Oase ProMax Garden Automatic Switch (model 44538). When you open a tap, the pump starts; when you close it, it stops automatically.

What to do if there is sand in the pumped water?

If the water contains a lot of sand (e.g. in a new well), run the pump at full capacity for about 1 hour to flush out the sand. Then clean the check valve and pump with clear water. Sand can block the impeller or valve.

USER MANUAL ProMax Pressure Well 3000/18 OASE

Black-and-white photo of a man kneeling beside a utility pole in a garden with a brick house and hedges in the background (no visible text or symbols)

ProMax Pressure Well 3000/18 | 6500/10

EN Operating instructions

FR Notice d'emploi

Two metallic cylindrical containers with black lids and mounting brackets, no visible text or symbols.

POX0023

C

Technical diagram showing a mechanical assembly with hoses and components, no visible text or symbols

POX0024

D

POX0095

Translation of the original Operating Instructions

WARNING

• This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved.
• Do not allow children to play with the unit.
• Only allow children to carry out cleaning and user maintenance under supervision.
• Ensure that the unit is fused for a rated fault current of max. 30 mA by means of a fault current protection device.
• Only connect the unit if the electrical data of the unit and the power supply correspond. The unit data is to be found on the unit type plate, on the packaging or in this manual.
• Possible death or severe injury from electrocution! Before reaching into the water,

disconnect all electrical units in the water from the mains.

• Only operate the unit if no persons are in the water.
• If a power connection cable is damaged, have it immediately replaced by OASE, an authorised customer service or a qualified electrician to prevent electric shock.

SAFETY INFORMATION

Electrical connection

• Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use (splash-proof).
• Protect the plug connection from moisture.
• Only connect the unit to a correctly fitted socket.

Safe operation

• Never operate the unit if the housing is defective!
• Never operate the unit if an electrical cable is defective!
• Never carry or pull the unit by the electrical cable.
• Route cables such that they are protected from damage and do not present a tripping hazard.
• Never carry out technical changes to the unit.
• Only carry out work on the unit that is described in this manual. If problems cannot be overcome, please contact an authorised customer service point or, if in doubt, the manufacturer.
• Only use original spare parts and accessories for the unit.

INFORMATION ABOUT THIS OPERATING MANUAL

Welcome to OASE Living Water. You made a good choice with the purchase of this product ProMax Pressure Well.

Prior to commissioning the unit, please read the instructions of use carefully and fully familiarise yourself with the unit. Ensure that all work on and with this unit is only carried out in accordance with these instructions.

Adhere to the safety information for the correct and safe use of the unit.

Keep these instructions in a safe place! Please also hand over the instructions when passing the unit on to a new owner.

Warnings used in these instructions

The warning information is categorised by signal words, which indicate the extent of the hazard.

WARNING

• Indicates a possibly hazardous situation.
• Non-observance may lead to death or serious injuries.

NOTE

Information for the purpose of clarification or for preventing possible damage to assets or to the environment.

Cross-references used in these instructions

☐ A Reference to a figure, e.g. Fig. A.
→ Reference to another section.

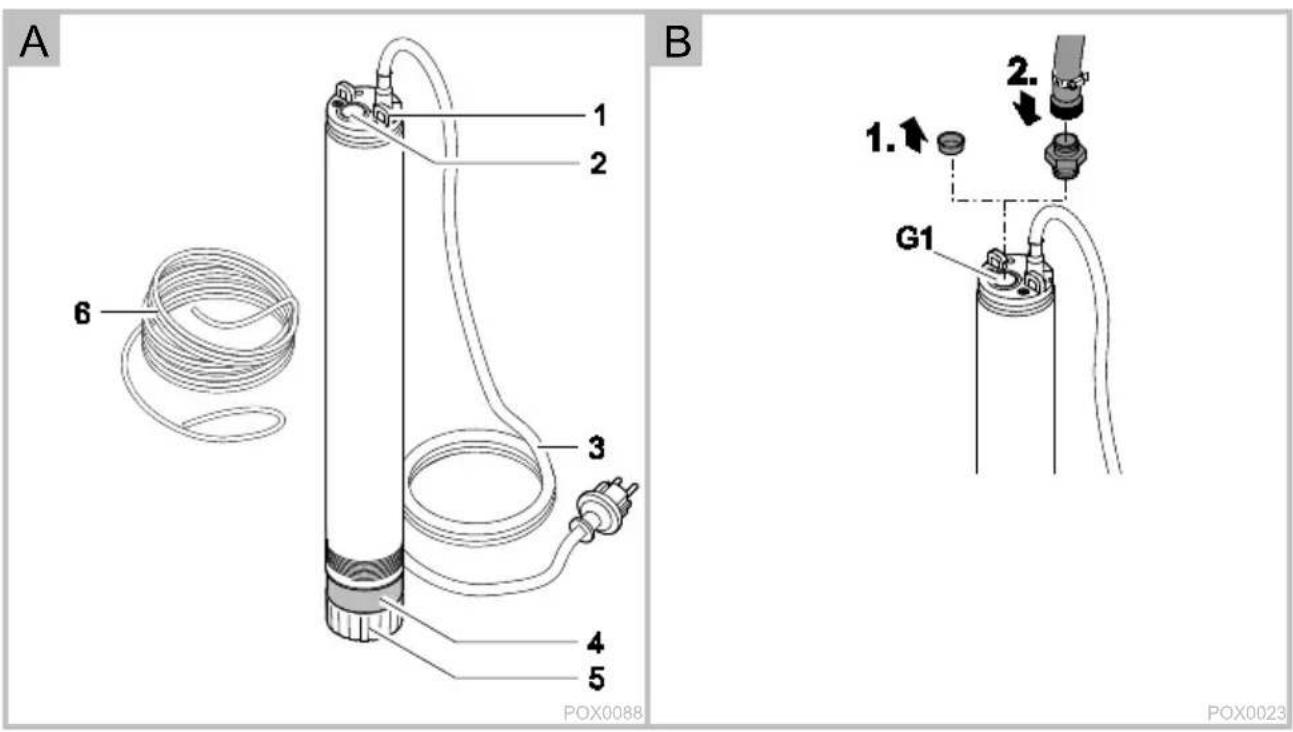

PRODUCT DESCRIPTION

Overview

☐ A	ProMax Pressure Well
1	Fastening lugs for the rope
2	Connection, pressure side G1
3	Power connection cable
4	Screen, suction side
5	Pump base
6	Fixing rope, 20 m

Accessories

- OASE ProMax Garden Automatic Switch (44538) controls the pump during water withdrawal. The pump is switched on and off automatically.

Intended use

ProMax Pressure Well, referred to as "unit", may only be used as specified in the following:

• For pumping clear water or rain water.
• For irrigating and watering.
• For pumping the water out of water butts/rain barrels or cisterns.
• Operate in accordance with instructions. (→ Technical data)

Possible incorrect use

The following restrictions apply to the unit:

• Not suitable for salt water.
• Not suitable for drinking water.
- Do not use for long-term operation (e.g. continuous recirculation of the water in a pond).
- Do not use for commercial or industrial purposes.
- Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.
- Do not connect to the drinking water supply.

INSTALLATION AND CONNECTION

Connecting the pressure hose

An optimum flow rate is achieved with a hose inside diameter of 25 mm (1").

How to proceed:

□ B

1. Remove the protection cap.
2. Connect the pressure hose and adapter to the connection on the pressure side.
3. Recommendation: Use a quick-release coupling.

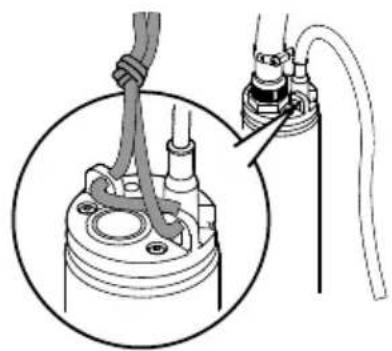

Installing the pump in a bored well or shaft

□C

• Attach the fixing rope with a double knot to the lugs and lower the pump into the bored well or shaft.
• Use the fixing rope to fix the pump at a height of at least 1.5 m above the bottom of the well or shaft.
• This prevents it from drawing in dirt particles.
• Ensure that the screen on the suction side is at least 150 mm below the surface of the water.
• Do not carry the pump by its power connection cable.
• From a well or shaft depth of 5 m, fix the power connection cable to the fixing rope at a distance of 5 m from the pump (strain relief).

OPERATION

The pump has no integrated switching on and off device. As soon as the pump is connected to the power supply, the pump starts up.

Automatic mode

The use of OASE ProMax Garden Automatic Switch allows automatic operation. When the connected appliance (water withdrawal) is opened, the pump switches on; when it is closed, the pump is switched off.

Starting up the pump

WARNING

Dangerous electrical voltage!

Death or severe injury from electrocution.

• Only connect the pump to the power supply when there are no persons in or reaching into the water.
• Before stepping into or reaching into the water, switch off all units located in the water.

- Insert the power plug into the socket. - The pump starts pumping.

NOTE

If the water contains a large quantity of suspended sand (e.g. in the case of a new well), allow the pump to run at full flow rate for approx. 1 hour without interruption in order to pump out the water containing the sand. Otherwise the non-return valve could become blocked by sand being deposited in the pressure line.

Taking the pump out of operation

• Disconnect the power plug.
• When the pump is switched off, residual water in the hose may flow back and out of the pump intake.

REMEDY OF FAULTS

WARNING

Dangerous electrical voltage!

Death or severe injury from electrocution.

Prior to starting work:

• Switch off the unit, disconnect the power plug and secure the unit from being switched on again.
• Before stepping into or reaching into the water, switch off all units located in the water.
  On completion of the work:
• Restore all the prerequisites for start-up.

Malfunction	Cause	Remedy
Pump does not start.	Power supply interrupted	Check the fuse and electrical plug connections.
Pump switches off after a short running period.	Overload protection has switched the pump off due to overheating.	Clean the intakeAllow the pump to cool down.
	The well has run dry.	Wait until there is sufficient water in the well.
The pump is running but is not delivering, or the delivered quantity is insufficient	Pressure hose blocked	Route the pressure hose without kinks.Check the outlet and clean if necessary
	Intake blocked	Clean the intake
	Air in the pressure hose	Expel the air from the pressure hose.
	If applicable:Non-return valve incorrectly fitted in the pressure hose or clogged	Correctly fit the non-return valve.Clean the non-return valve.
	The non-return valve is blocked with sand.	Clean the non-return valve. (→ Cleaning the non-return valve)If the pump still does not start up, contact OASE.
	Impeller defective or worn	Contact OASE.The impeller may only be replaced by the OASE Service.
	The impeller is clogged with sand.	Clean the non-return valve. (→ Cleaning the non-return valve)Flush the pump with sand-free water until all
		the sand has been completely flushed out. If the pump still does not start up, contact OASE.- The impeller may only be replaced by the OASE Service.

MAINTENANCE AND CLEANING

WARNING

Dangerous electrical voltage!

Death or severe injury from electrocution.

• Before reaching into the water, switch off the mains voltage of all units in the water.
• Isolate the unit (disconnect from the power supply) before carrying out any work on it.

NOTE

Recommendation on regular cleaning:

- Clean the unit as required but at least twice per year.

- Do not use aggressive cleaning agents or chemical solutions as they could attack the housing or impair the function of the unit.

- Recommended cleaning agent for removing stubborn limescale deposits:

• Pump cleaning agent PumpClean from OASE.
  – Vinegar- and chlorine-free household cleaning agent.

- After cleaning, thoroughly rinse all parts in clean water.

Cleaning the non-return valve

Sand can block the non-return valve of the pump so that it cannot close properly. The non-return valve has to be cleaned.

Prerequisite:

- The pressure hose and adapter have been dismantled.

How to proceed:

□D

1. Carefully pull out the non-return valve with pliers.

2. Thoroughly clean the non-return valve with clean water.

3. Reassemble in the reverse order.

4. Prior to installing, allow the pump to convey clear water for a few minutes (e.g. in a basin) to completely remove any sand residue. (→ Installation and connection)

WEAR PARTS

The following components are wear parts and may only be replaced by the OASE Service.

- Impeller unit

STORAGE/OVERWINTERING

The unit is not frost proof. If the unit is installed in a frost-protected place, it does not need to be removed in case of minus temperatures. If the unit is not installed in a frost-protected place, it must be removed and stored if minus temperatures are expected.

How to correctly store the unit:

• Drain the unit as far as possible, clean thoroughly and check for damage.
• Empty all hoses, pipes and connections as far as possible.
• Thoroughly clean the unit, check it for damage and replace any damaged parts.
• Store the unit in a dry and frost-free place.
• Protect open plug connections from moisture and dirt.

SPARE PARTS

The use of original parts from OASE ensures continued safe and reliable operation of the unit.

Please visit our website for spare parts drawings and spare parts.

DISPOSAL

NOTE

Do not dispose of this unit with domestic waste.

- Render the unit unusable beforehand by cutting the cables and dispose of the unit via the return system provided for this purpose.

www.oase-livingwater.com/spareparts-di

TECHNICAL DATA

ProMax Pressure Well			3000/18	6500/10
Rated voltage		V AC	220-240
Rated frequency		Hz	50
Rated power		W	900	1400
Protection type		-	IPX8
Connection, pressure socket		-	G1
Flow rate	Max.	l/h	3000	6500
Head height	Max.	m	70
Immersion depth	Max.	m	20
Permissible quantity of sand in the water to be pumped	Max.	g/m3	150
Power connection cable	Length	m	30
Dimensions	Diameter	mm	74	98
	Height	mm	1085	778
Weight		kg	12,85	11,2
