Product type	Water filter with integrated pump
Brand	Oase
Model	BioCompact 50
Dimensions (L × W × H)	115 × 85 × 36 mm
Rated voltage	230 V AC
Network frequency	50 Hz
Power consumption	5 W
Delivery capacity	120 to 240 l/h
Permissible water temperature	+4 °C to +35 °C
Protection	Class II, immersion up to 1 m
Intended use	Indoor water filtration and circulation
Filter elements	Filter foam and carbon filtration material
Flow regulation	Integrated flow regulator
Mounting	Suction cups for attachment
Maintenance	Cleaning with clear water, replacement of foam and carbon
Wear parts	Functioning unit, filter elements, suction cups
Safety	Residual current device (RCD) mandatory (30 mA max)
Recycling	Do not dispose of with household waste, take to recycling center

Frequently Asked Questions - BioCompact 50 OASE

How to install the Oase BioCompact 50 filter?

Attach the device to the basin wall using suction cups. Plug the power cord into an outlet protected by an RCD (30 mA max). The device starts immediately. Adjust the desired flow rate with the regulator. Form a drip loop with the cable to prevent water from entering the outlet.

What is the power and flow rate of the BioCompact 50?

The pump has a power consumption of 5 W and a delivery capacity of 120 to 240 l/h.

How to clean the filter?

Unplug the device. Disassemble the housing by gently pulling. Clean the components with clear water using a brush or soft sponge. Do not use chemicals.

Which filter elements are used and when to change them?

The filter contains a filter foam and a carbon filtration material. Replace the foam when it is dirty or worn. The activated carbon should be changed when its effect is exhausted.

What to do if the device does not start?

Check the mains voltage. If it is correct, the functioning unit may be blocked. Clean it.

Why is the water flow insufficient?

Check that the flow regulator is not too closed. Otherwise, the filter body or the functioning unit may be dirty: clean them. If the unit is worn, replace it.

Can the device be used outdoors?

No, the device is designed only for indoor use. It must not be exposed to weather.

What safety precautions must be observed?

Unplug all submerged electrical devices before entering the water. Use an RCD (30 mA max). Do not lift the device by the cable. Do not use it if the cable or housing is damaged.

What are the dimensions of the device?

Dimensions: 115 × 85 × 36 mm.

How to dispose of the device?

Do not dispose of the device with household waste. Cut the cables and take it to a designated collection point (recycling center). Contact your local waste management company.

USER MANUAL BioCompact 50 OASE

Exterior view of a modern office building (no signage)

BioCompact

25, 50

EN Operating instructions

FR Notice d'emploi

BCT0001

Diagram of a mechanical device with three sensors and a handle, labeled 'act 25' (no text or symbols on the device itself)

BioCompact 50

Diagram of a device with three buttons and a handle, labeled 'act 50' (no readable text or symbols beyond label)

BCT0010

DE

Gerät ausstatten

BioCompact 25

BCT001

BioCompact 50

DE

BCT0012

Gerät montieren

Diagram of a vertical cylindrical device with internal flow and water flow indicators, no text or symbols present.

BCT0013

Inbetriebnahme

Diagram of a cable being inserted into a socket, showing wire routing and a downward arrow indicating direction (no text or symbols)

Diagram of a mechanical component with rotating arrows indicating rotation (no text or symbols)

BSE0003
BCT0014

Technical line drawing of a mechanical assembly with rotating components and directional arrows (no text or symbols)

DE

BCT0015

BioCompact 50

BCT0016

Störungsbeseitigung

▶ Disconnect all electrical devices in the water from the power supply before reaching into the water. Otherwise there is a risk of severe injuries or death by electrocution.
This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved. Do not allow children to play with the unit. Only allow children to carry out cleaning and user maintenance under supervision.

Safety information

Electrical connection

• Only connect the unit if the electrical data of the unit and the power supply match.
• Only plug the unit into a correctly installed outlet.
• The device is to be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.
• Protect open plugs and sockets from moisture.

Safe operation

• Do not use the unit, if electrical lines or the housing are damaged.
• Dispose of the unit if its power connection cable is damaged. The power connection cable cannot be replaced.
• Do not carry or pull the unit by its power cable.
• Route lines in such a way that they are protected from damage and do not present a tripping hazard.
• Never carry out technical changes to the unit.
• Only carry out work on the unit that is described in this manual.
• Only use original spare parts and accessories.
• Should problems occur, please contact the authorised customer service or OASE.

Intended use

Only use the product described in this manual as follows:

• Filter and circulate water.
- While adhering to the technical specifications. (→ Technical data)

The following restrictions apply to the unit:

• Never use the unit with fluids other than water.
• Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.
• Never run the unit without water.
• Do not use for commercial or industrial purposes.

Product Description

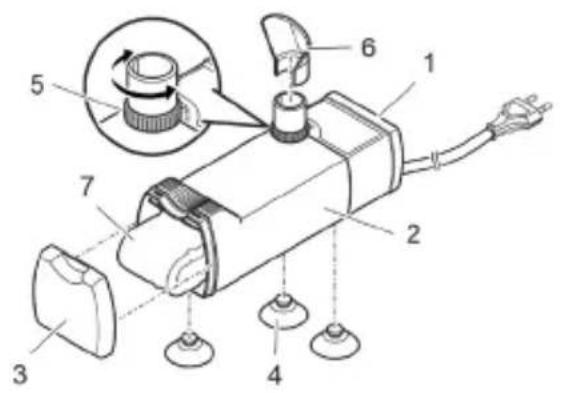

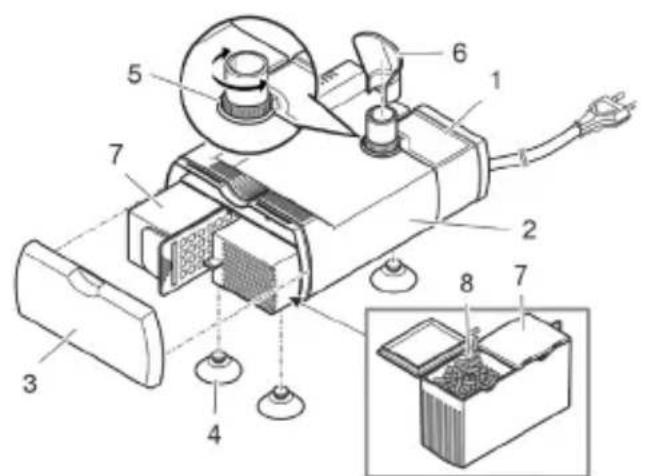

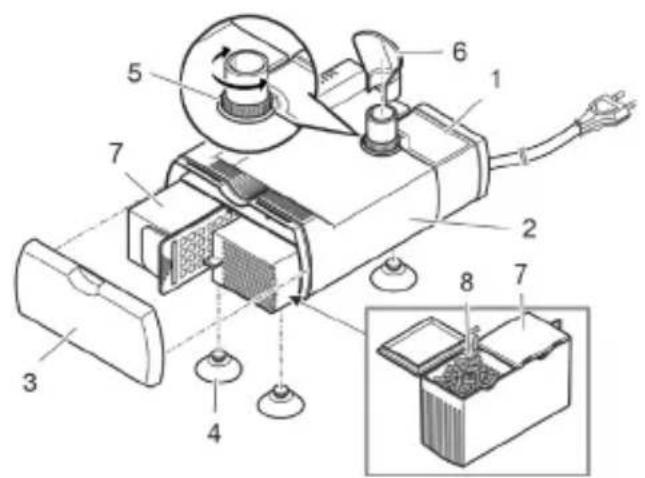

Overview

BCT0001

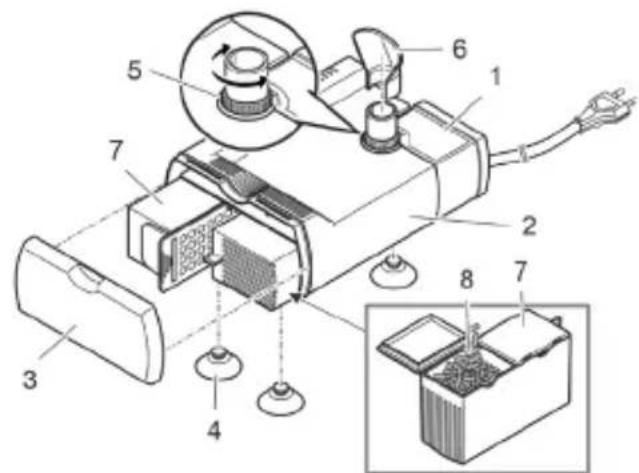

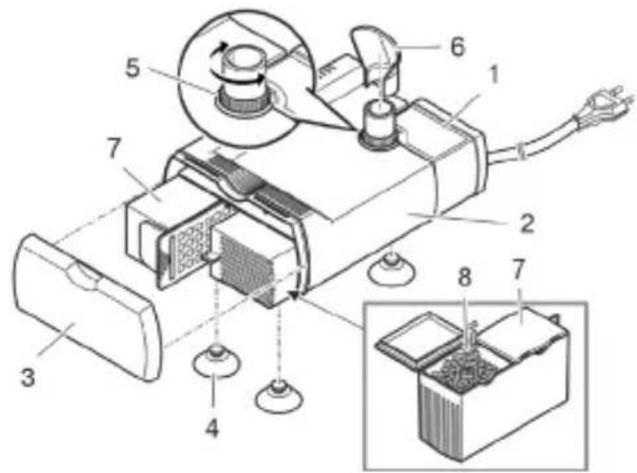

1	Pump casing
2	Filter housing
3	Filter cover
4	Suction cups
5	Flow controller
6	Water distributor
7	Foam filter
8	Carbon filter material

Symbols on the unit

The unit is protected against the results of permanent immersion in water to a depth of 1 m.

EN

Protection class II, reliable electrical isolation from the mains by reinforced or double insulation.

Only use the unit in indoor spaces.

Do not dispose of the unit with normal household waste.

Do not dispose of the unit with normal household waste.

Assembly

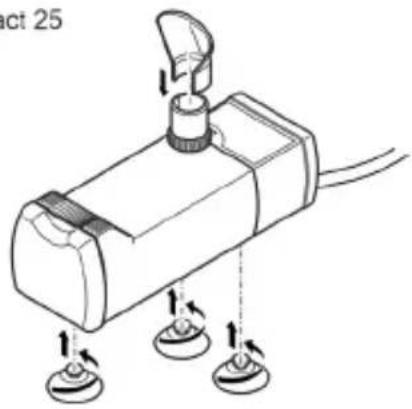

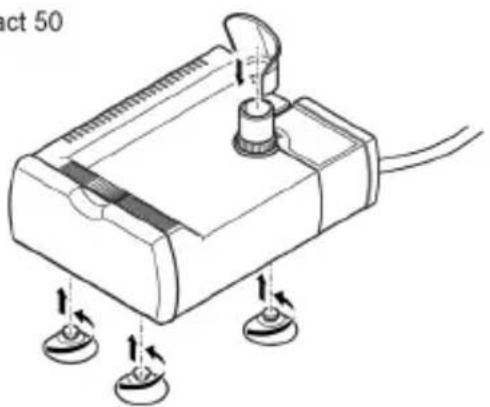

Reassembling the unit

BioCompact 25

Diagram of a mechanical device with three adjustment knobs and a handle, labeled 'act 25' (no text or symbols on the device itself)

BioCompact 50

Diagram of a device with a lever and three base sensors, labeled 'act 50' (no text or symbols on the device itself)

BCT0010

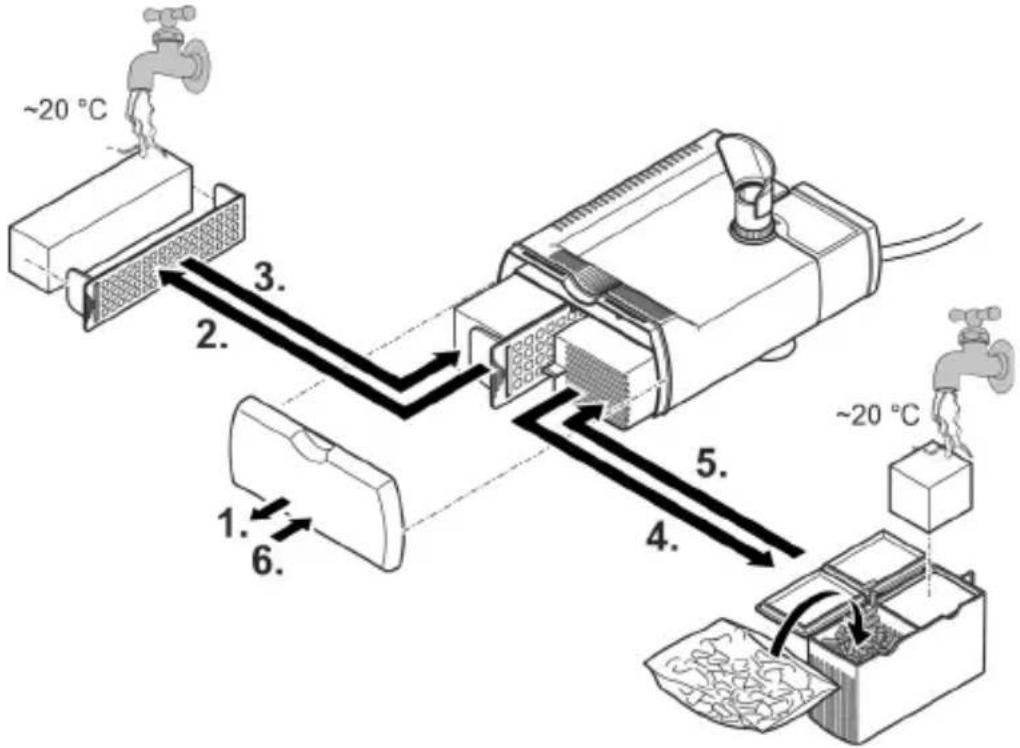

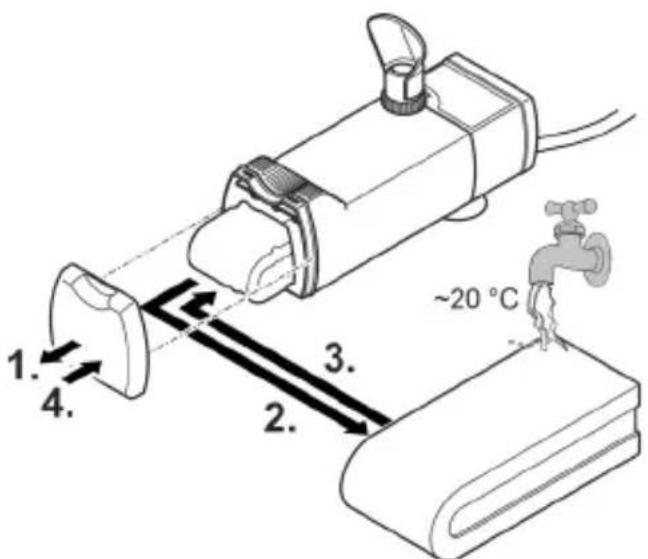

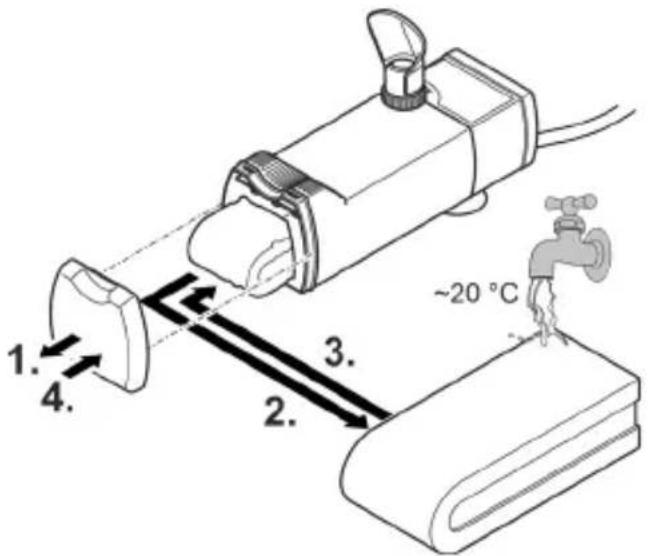

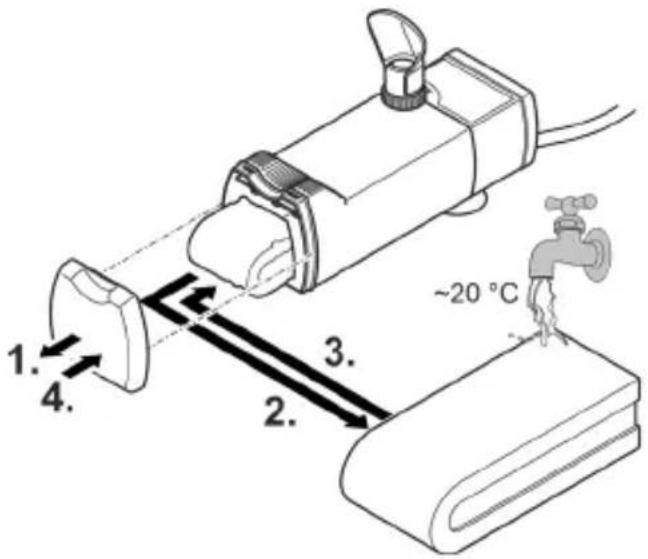

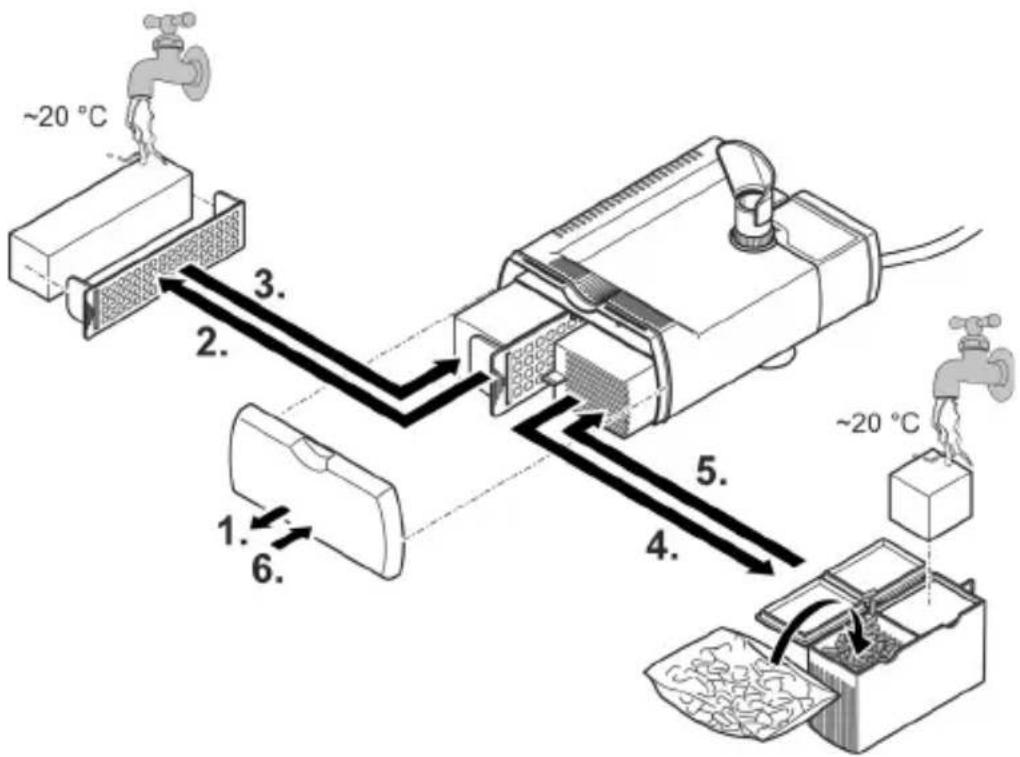

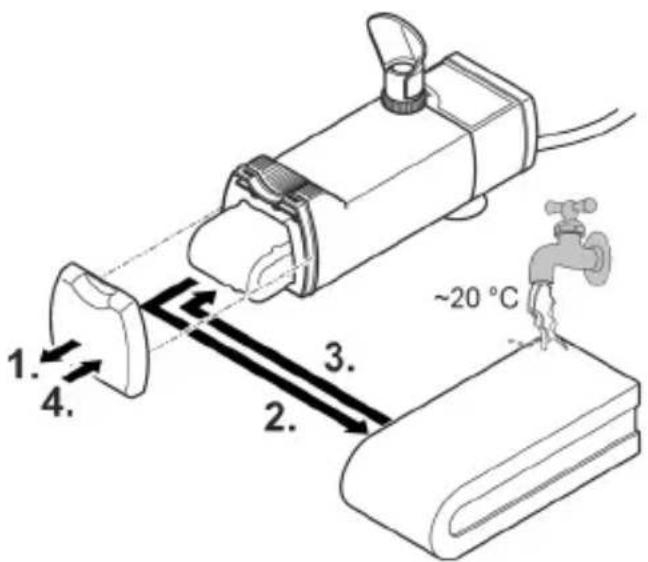

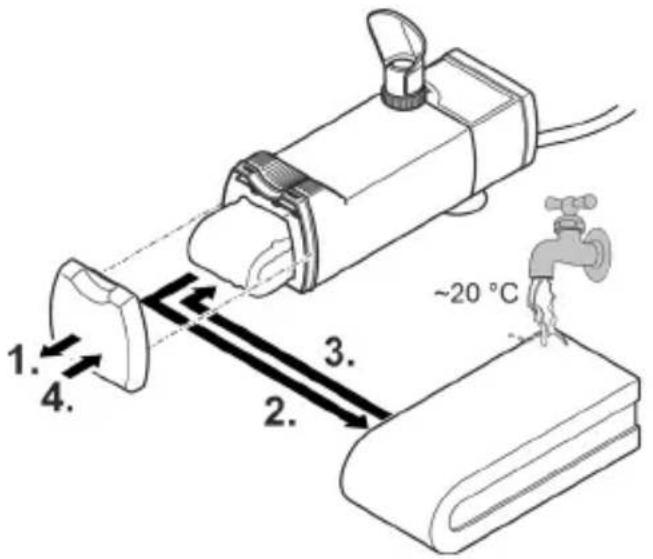

Filling the unit

BioCompact 25

EN

BCT001

BioCompact 50

BCT0012

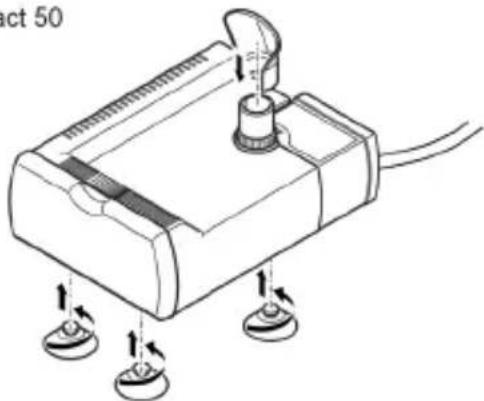

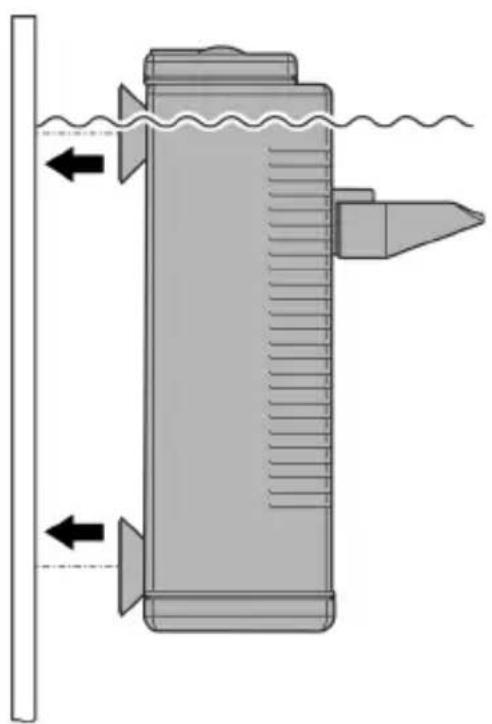

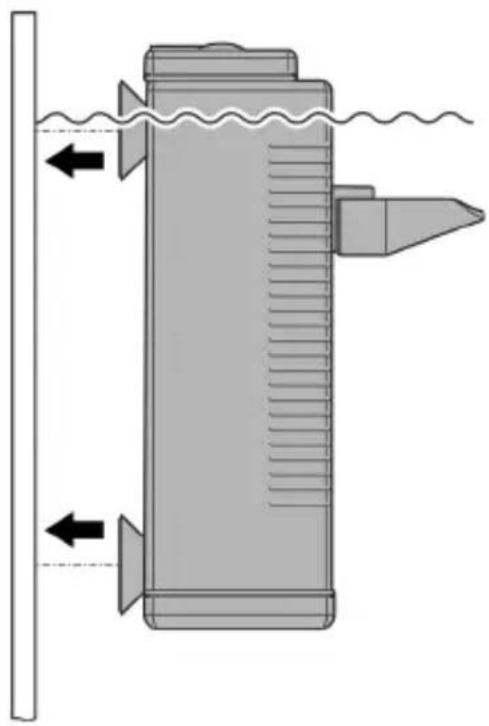

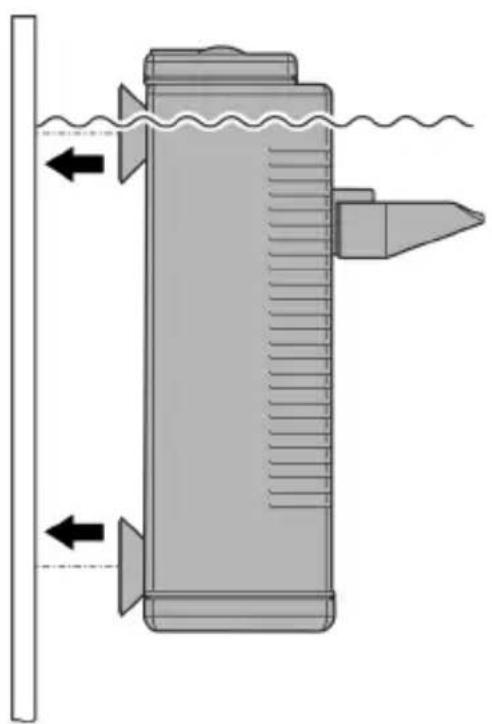

Installing the device

Diagram of a vertical cylindrical device with internal flow arrows and water level indicator (no text or symbols)

EN

BCT0013

Commissioning/start-up

- Switching on: Plug the power plug into the outlet.

- The unit switches on immediately.

— Lay the mains cable so that a drip loop is formed and the lowest point is below the socket. This prevents dripping water from entering the socket.

— Set the desired flow rate.

- Switching off: Pull the power plug from the outlet.

Form a drip loop

Diagram of a cable being inserted into a socket, showing a downward force indicated by an arrow (no text or symbols present)

Set the flow rate

Diagram of a mechanical component with rotational arrows indicating motion, no text or symbols present

BSE0003
BCT0014

Maintenance and cleaning

NOTE

Do not use aggressive cleaning agents or chemical solutions. These agents can damage the housing, impair the function of the device and harm animals, plants and the environment.

▶ Clean the device only with clear water and a soft brush or sponge.

Clean the unit when its performance decreases noticeably.

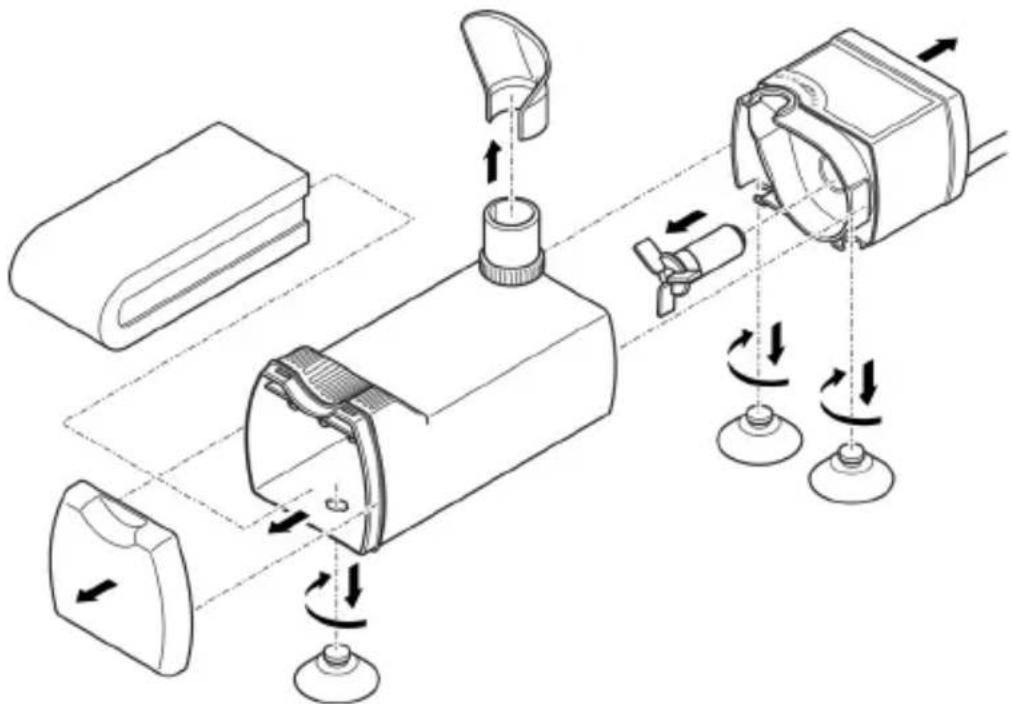

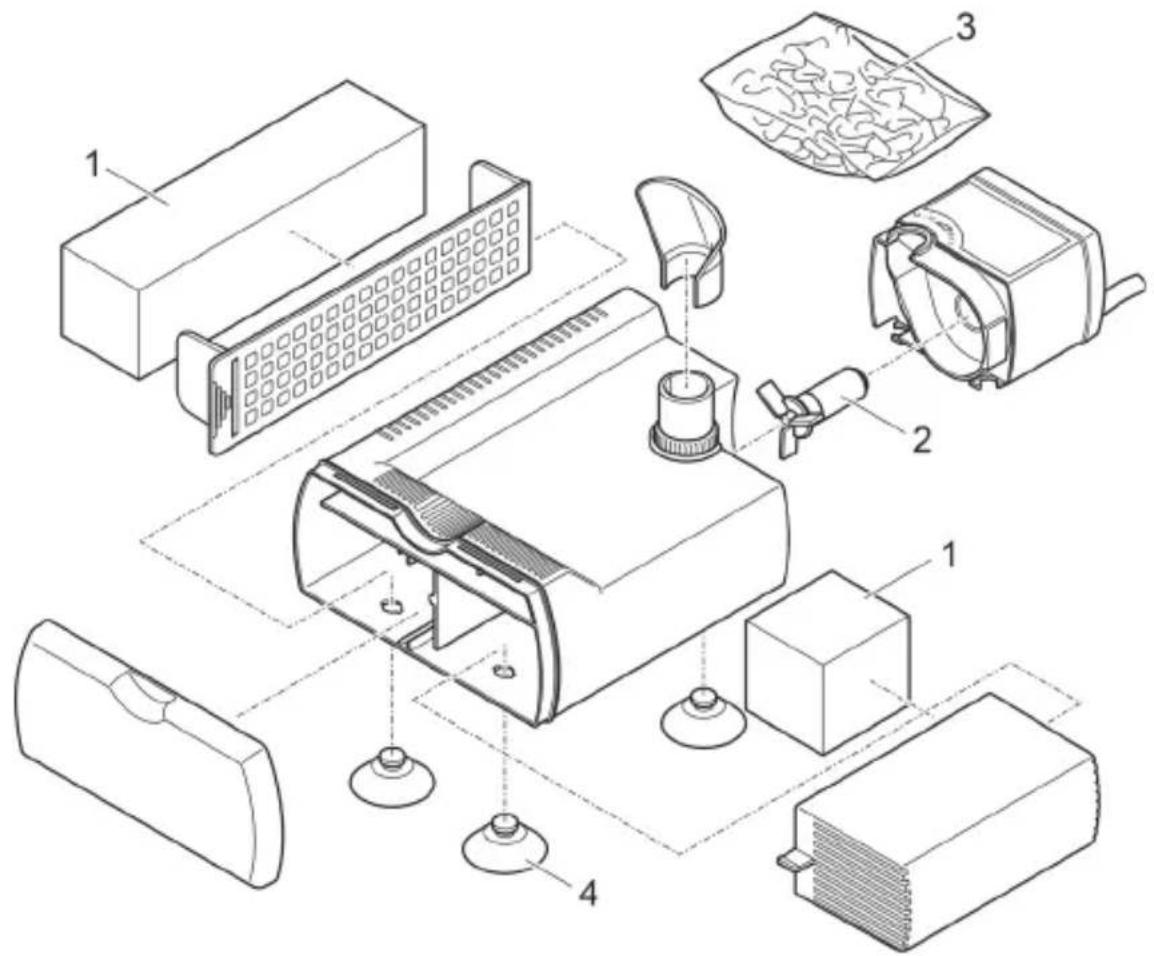

Dismantling the unit for cleaning and maintenance

The unit can be dismantled without tools by pulling it apart.

BioCompact 25

Technical line drawing of a mechanical assembly with rotating components and directional arrows (no text or symbols)

BCT0015

BioCompact 50

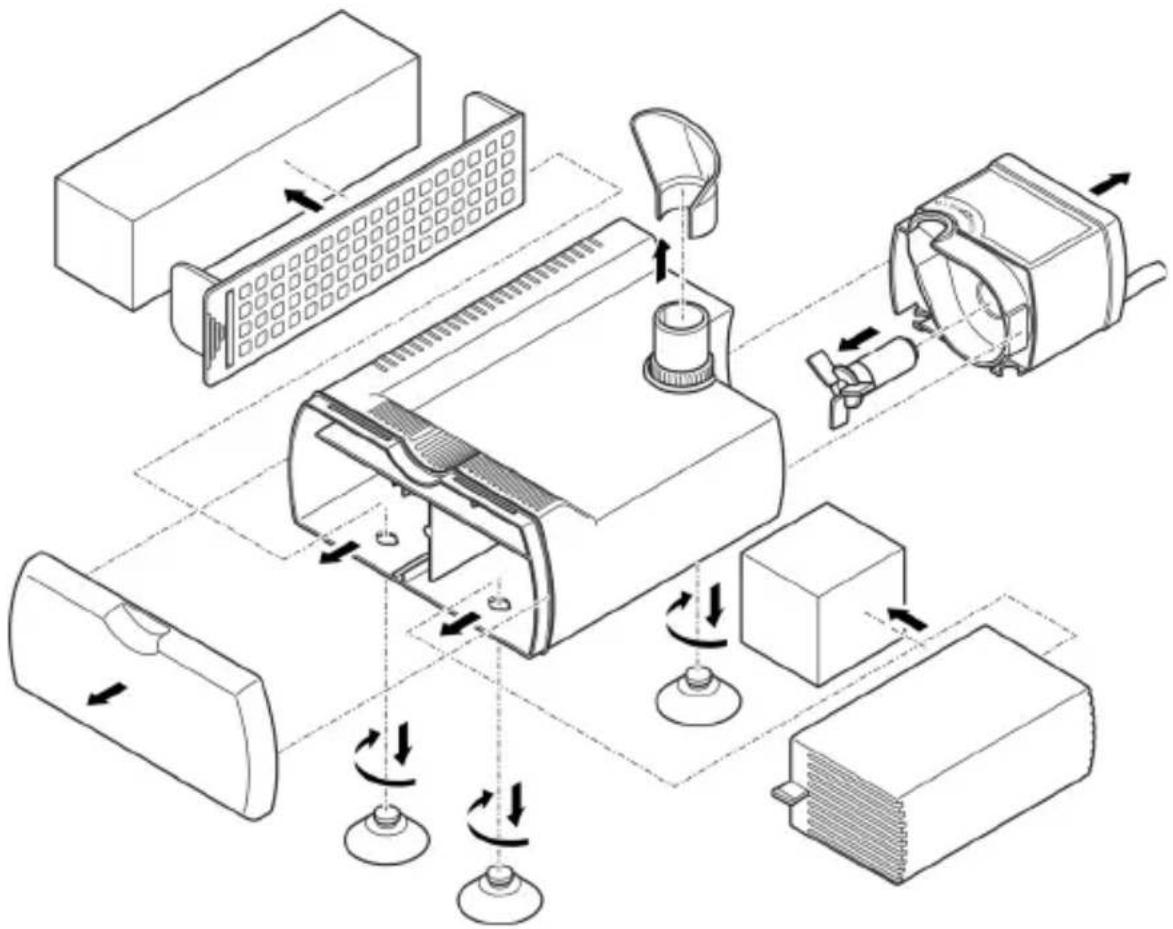

Exploded view diagram of a mechanical device showing internal components and motion arrows (no text or labels)

BCT0016

Malfunction remedy

Malfunction	Cause	Remedy
The unit does not start up	No mains voltage	Check the mains voltage.
	Impeller unit blocked	Clean
Water flow insufficient	Regulator closed too far	Adjust regulator
	Filter housing or impeller unit soiled	Clean
	Impeller unit worn	Replace impeller unit
Insufficient filtering performance	Foam filter clogged	Clean
	Foam filter worn	Replace
	The activated carbon is exhausted.	Replace the activated carbon.

Technical data

BioCompact		25	50
Rated voltage of pump	AC V	230	230
Mains frequency of pump	Hz	50	50
Pump power consumption	W	5	5
Pump capacity	l/h	120 ... 240	120 ... 240
Dimensions	mm	115 × 40 × 38	115 × 85 × 36
Water temperature	°C	+4 ... +35	+4 ... +35

Wear parts

• Impeller unit
• Filter media
• Suction cups

Disposal

NOTE

Do not dispose of this unit with household waste.

▶ Dispose of the unit by using the return system provided for this purpose.
▶ Should you have questions, please contact your local disposal company. They will give you information on how to correctly dispose of the unit.
▶ Render the unit unusable by cutting the cables.
