Quick NQ100 - Broom Numatic - Free user manual and instructions

Product type	Cordless stick vacuum
Brand	Numatic
Model	Quick NQ100
Power supply	Rechargeable 25.2V lithium-ion battery
Runtime	70 min (low power, brush off) / 16 min (Boost mode, brush off)
Charging time	150 min to 100%
Suction type	Dry only
Bag capacity	1 L
Dimensions (L x W x H)	270 x 240 x 1220 mm
Weight (ready to use)	3.2 kg
Noise level	77 dB(A)
Protection class	Class III
Main features	Boost mode, activable/deactivatable rotating brush, charge indicator, full bag/blockage indicator
Maintenance and cleaning	Regular cleaning of hoses and tubes, replacement of filter bag, cleaning of brush
Safety	Motor and battery thermal protection, automatic brush stop in case of overpressure, specific Numatic charger
Spare parts and repairability	Use exclusively original Numatic parts (battery, charger, filter bag, brush)
General information	Domestic and light commercial use (hotels, schools, offices). Warranty valid with proper maintenance.

Frequently Asked Questions - Quick NQ100 Numatic

What is the battery runtime of the Numatic Quick NQ100?

The runtime varies by mode: 70 minutes on low power with brush off, 55 minutes with brush on, 16 minutes in Boost mode without brush, and 14 minutes in Boost mode with brush.

How to recharge the battery of the Quick NQ100?

Use only the supplied Numatic charger. Plug the charger jack into the battery and connect the charger to a mains socket. Full charging time is approximately 150 minutes.

What should I do if the red light flashes on the control ring?

This indicates an obstruction or a full filter bag. Check the hose, tubes, and floor head, remove blockages. If no blockage is found, replace the filter bag.

What is the dust bag capacity?

The filter bag has a capacity of 1 liter. It must be replaced when full or regularly to maintain performance.

Can I use the Quick NQ100 to vacuum liquids?

No, this vacuum is designed only for dry use. Do not use it to vacuum liquids or wet materials.

The rotating brush stops on thick carpets, what should I do?

On very thick carpets, the pressure may become too high and the safety system cuts the brush. Deactivate the brush via the control panel or switch to normal mode (exit Boost mode).

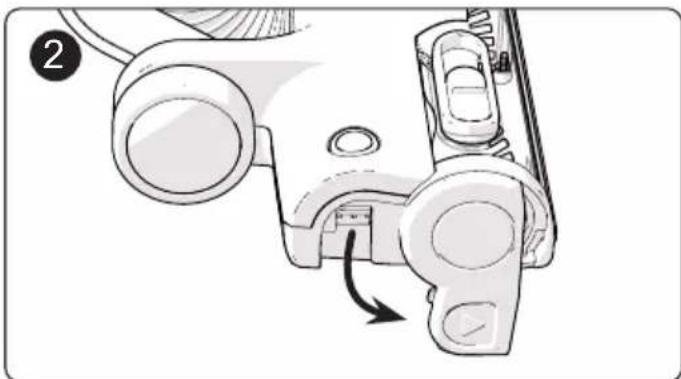

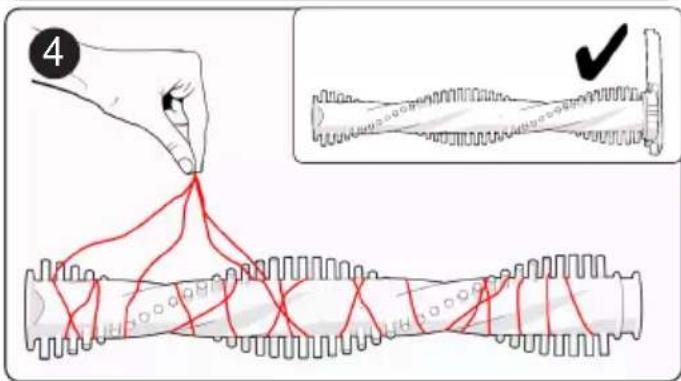

How to clean the rotating brush?

Remove the brush from the floor head (see manual page 13) and remove hair or fibers wrapped around. Clean it regularly to maintain efficiency.

What should I do if the vacuum does not turn on after prolonged use?

The device is equipped with thermal protection. Let the machine and battery cool down completely before attempting to turn it on again.

What type of battery does the Quick NQ100 use?

It uses a rechargeable Numatic lithium-ion battery. Charge only with the supplied specific charger (ref. Z0024M00112C or similar). Replace only with an original Numatic battery.

How to dispose of the used battery?

Do not dispose of the battery with household waste. Take it to a collection point for electrical and electronic waste (WEEE) or follow local recycling recommendations.

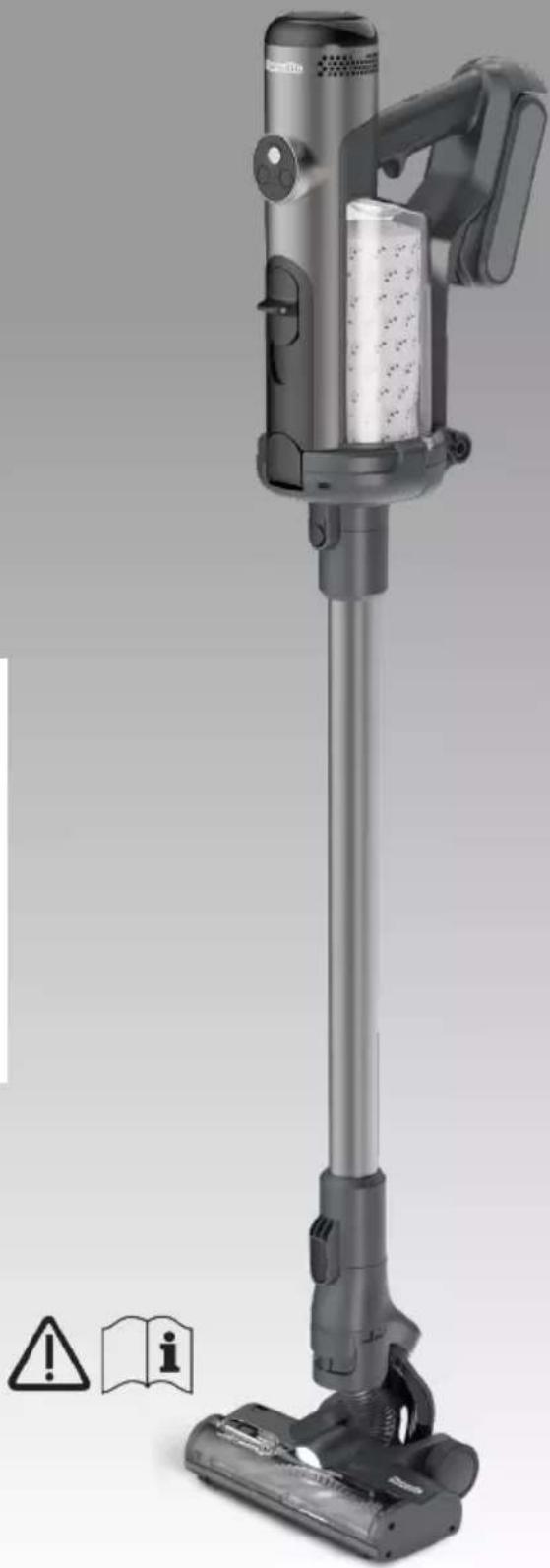

USER MANUAL Quick NQ100 Numatic

Technical line drawings of a vacuum cleaner device, showing front and side views (no text or symbols)

Exterior view of a modern vacuum cleaner with warning symbols (no text or labels on the device itself)

Original Instructions

CAUTION, Read instructions before using the machine.

Labeled diagram of a handheld device with numbered parts for identification

Labeled diagram of a vacuum cleaner with numbered parts for identification

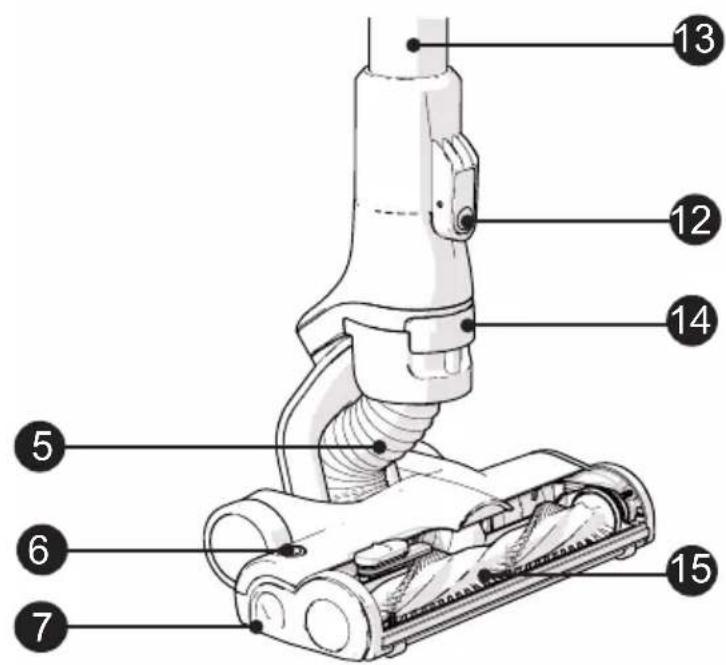

(GB) Index
1 E	Extension handle Page 11
2 B	Battery pack Page 6
3 Ch	Charging Port Page 12
4 F	Iter Pod / Tank Page 10
5 Hose	Page 13
6 Brush	release button Page	14
7 Brush	release panel Page	14
8 S	cent capsule cover Page	8
9 Control	Panel Page 7/12
10 Lid	release / Pod Eject Page	10
11 Lid	Catch Page 10
12 Release Button Page 5
13 Wand Section Page 5
14 Hose	release Page 13
15 Brush Roll Page 14

Technical line drawings of various household appliances including a vacuum cleaner, cordless device, and electrical connectors (no text or labels present)

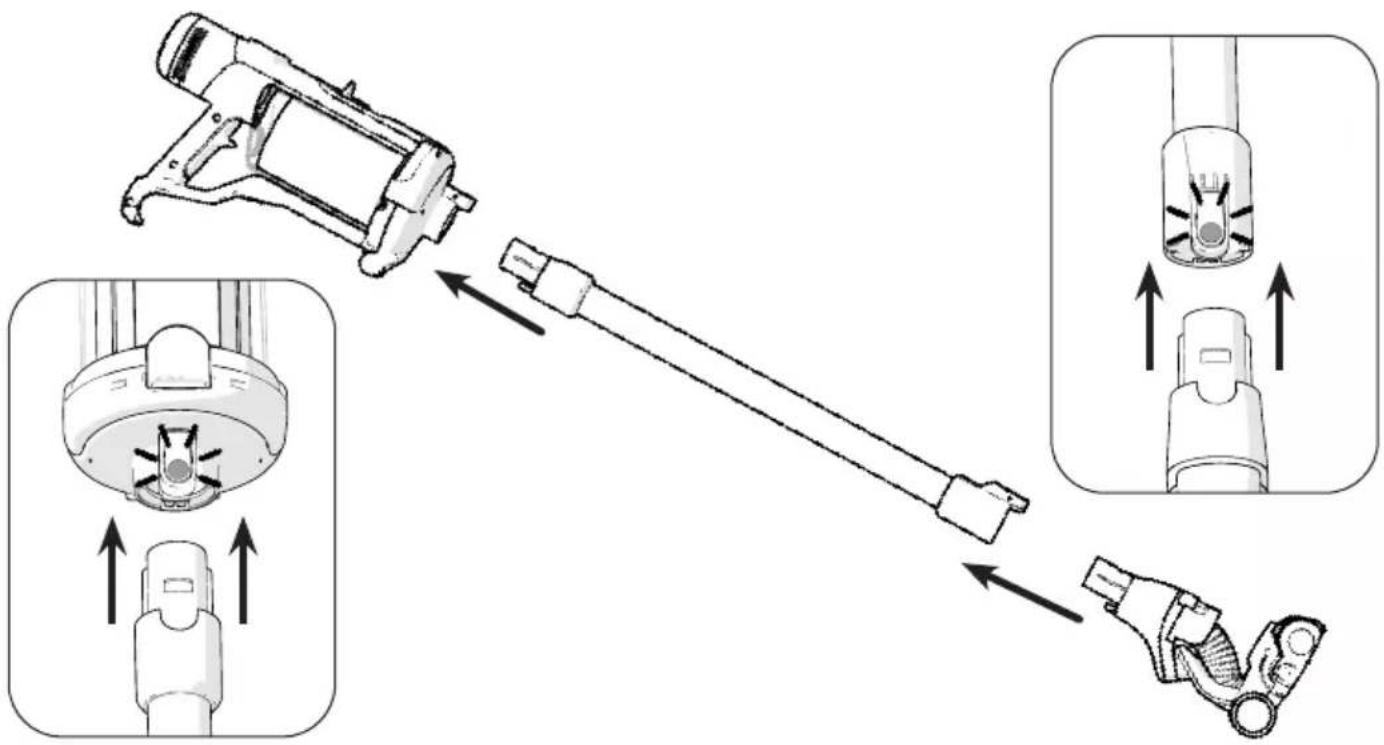

Main Assembly, Hauptbaugruppe, Unité principale, Montage hoofdunit, Montagem principal, Corpo principale, Conjunto principal

Technical diagram illustrating the assembly of a vacuum cleaner with labeled components and directional arrows indicating motion.

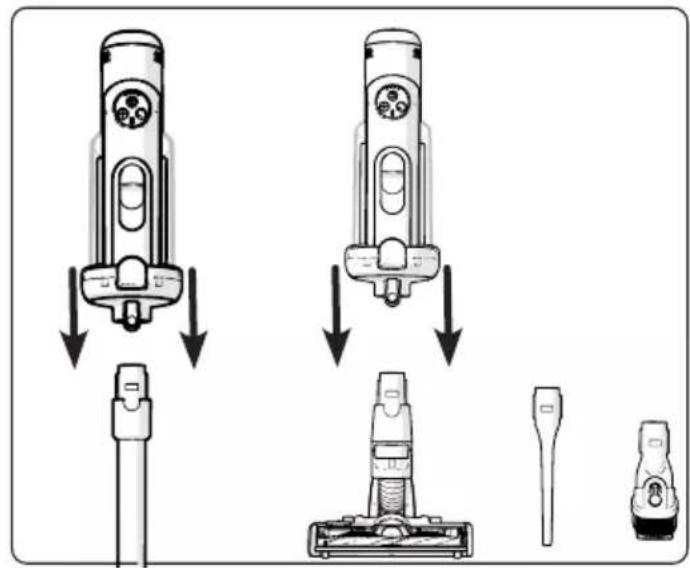

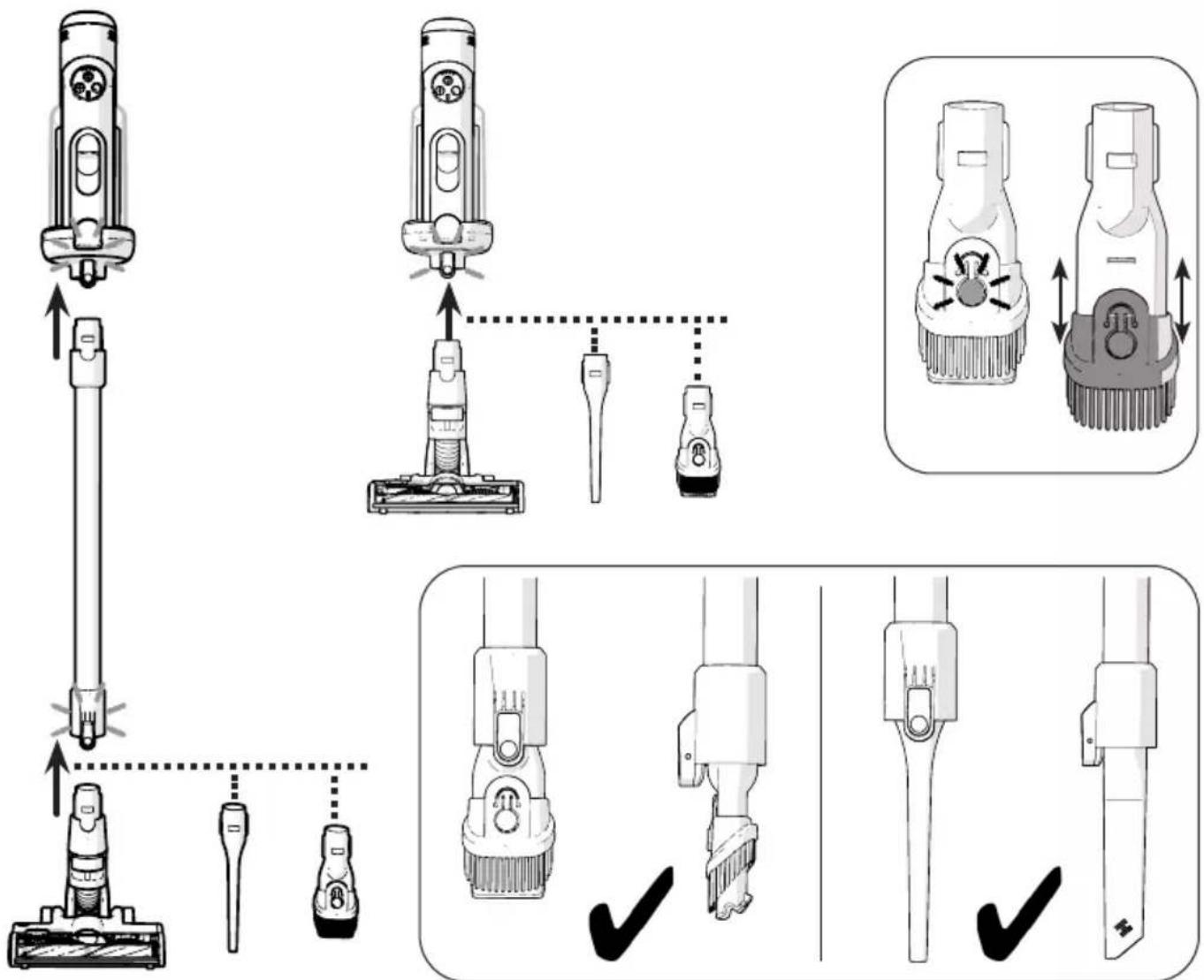

Accessory Fitting, Zubehöranschluss, Fixation des accessoires, Accessoires plaatsen, Encaixe dos acessórios, Montaggio degli accessori, Conexión de accesorios

Diagram illustrating the step-by-step installation of a vacuum cleaner, showing how to install components with arrows and checkmarks.

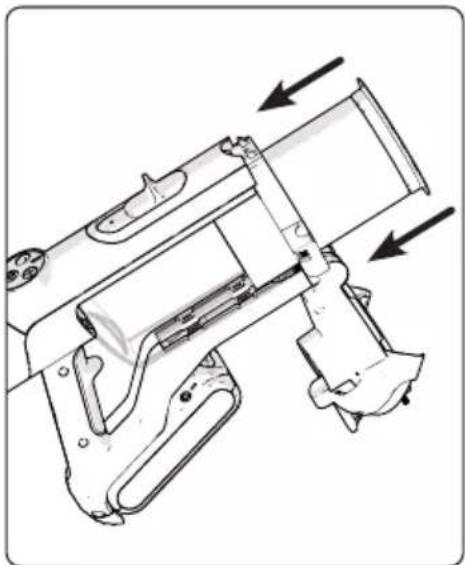

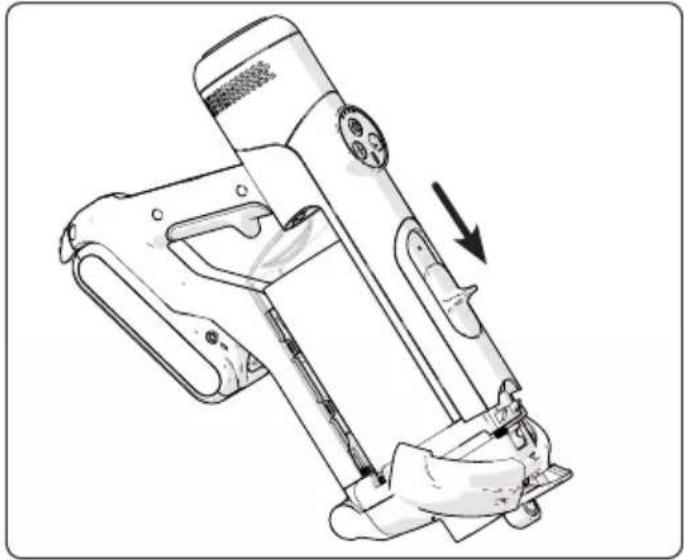

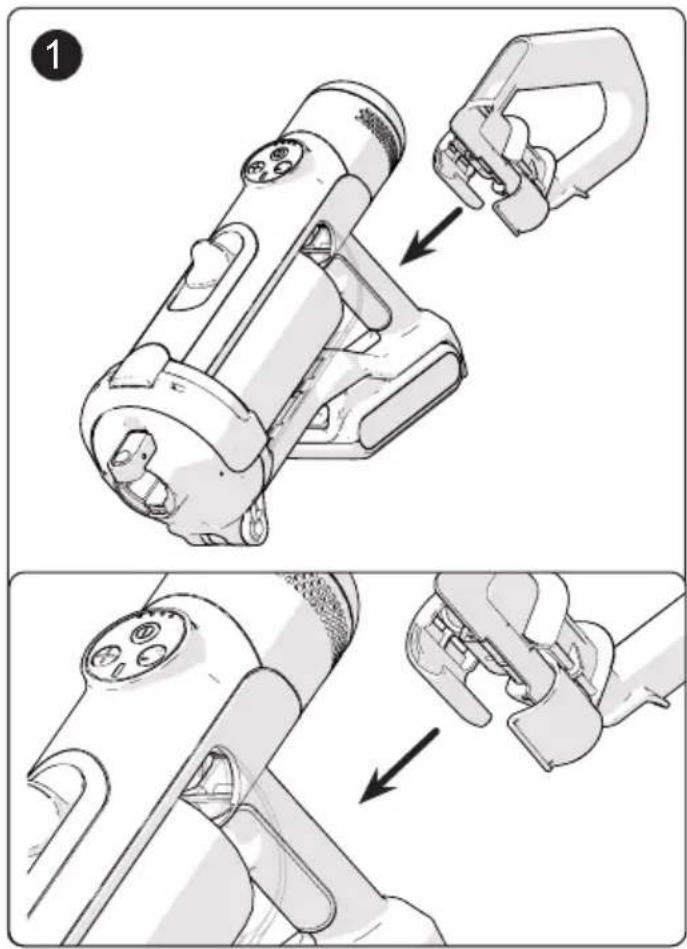

Battery Fitting, Akkuanschluss, Fixation de la batterie, Accu plaatsen, Encaixe da bateria, Montaggio della batteria, Conexión de la batería

Technical line drawing of a handheld device with two directional arrows indicating movement or assembly (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a detail view (no text or symbols)

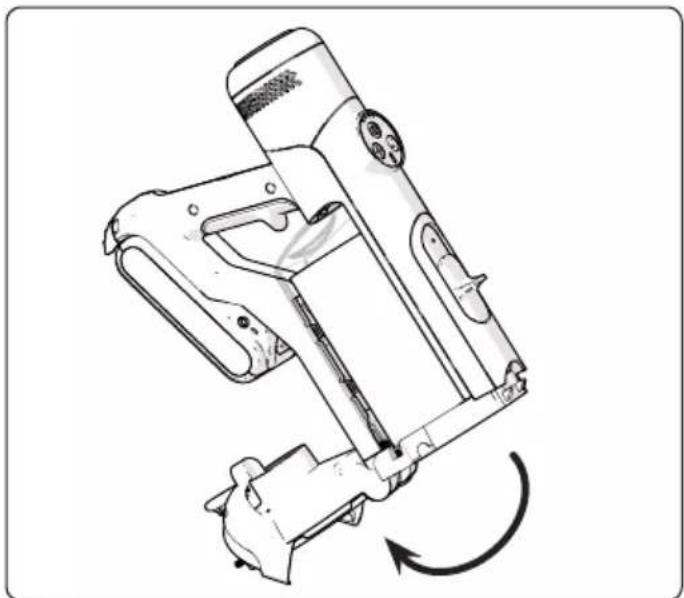

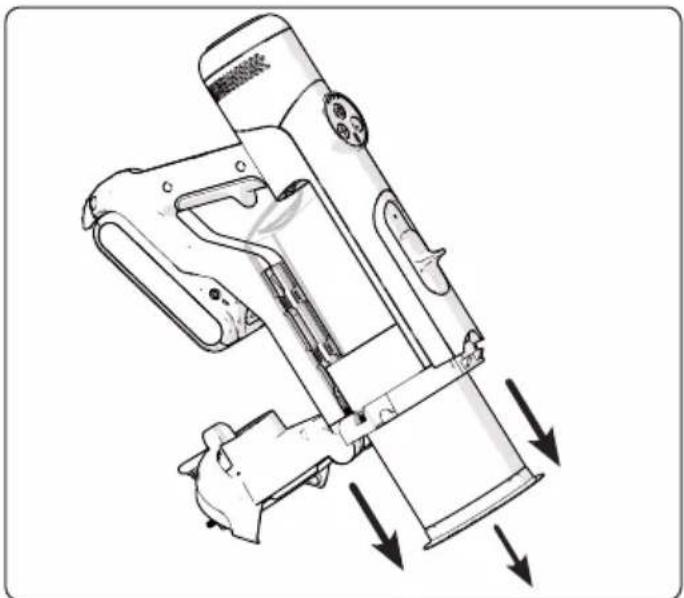

Battery Removal, Entfernung des Akkus, Retrait de la batterie, Accu verwijderen, Remoção da bateria, Rimozione della batteria, Extracción de la batería

Technical line drawing of a handgun with an inset close-up showing a mechanical component detail (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up of the component (no text or symbols present)

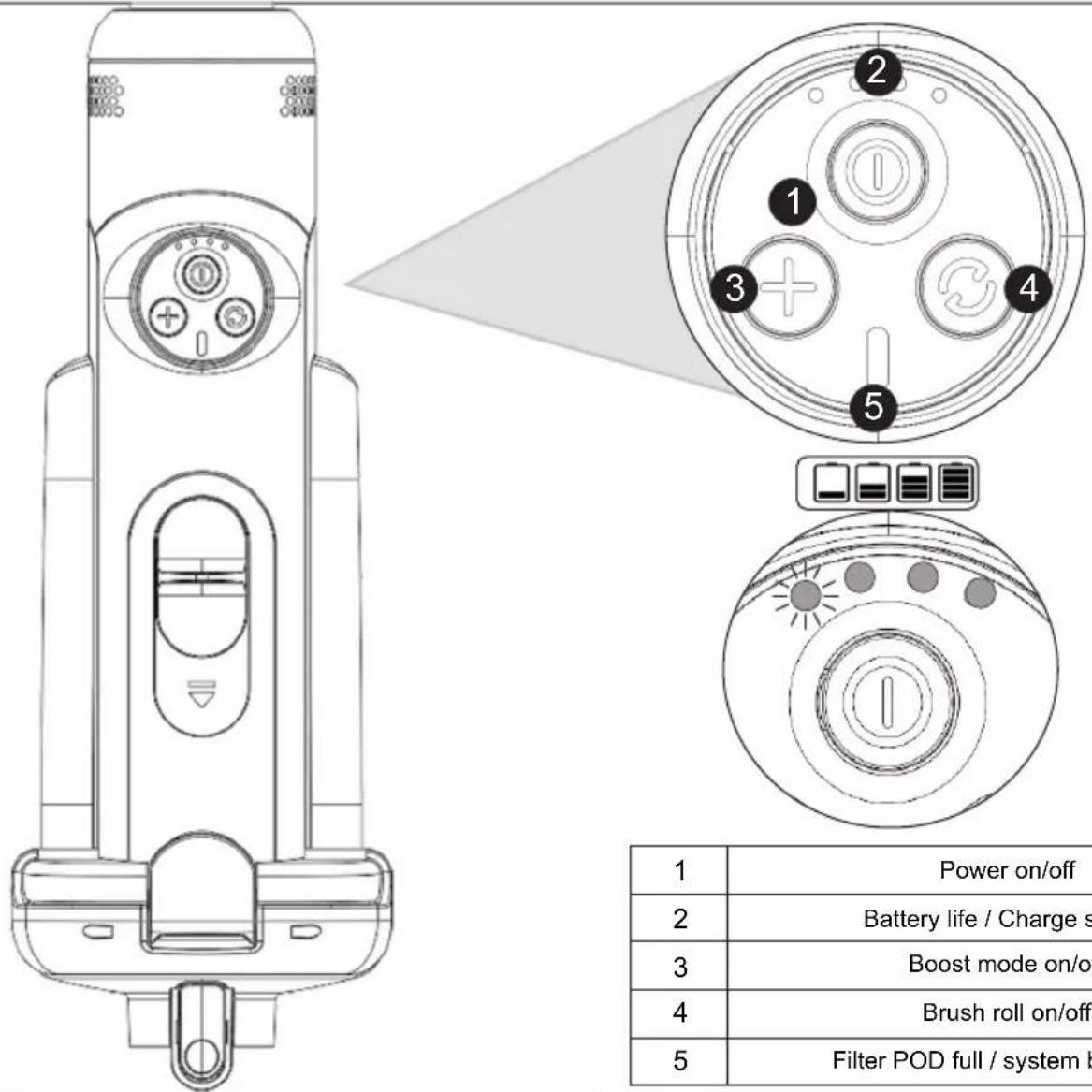

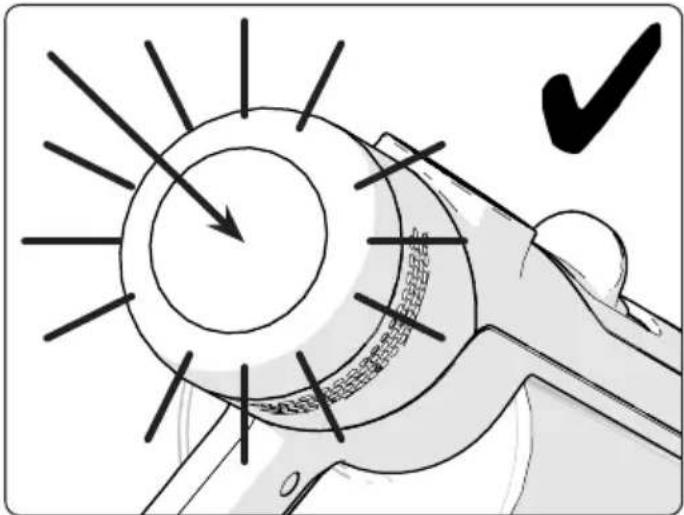

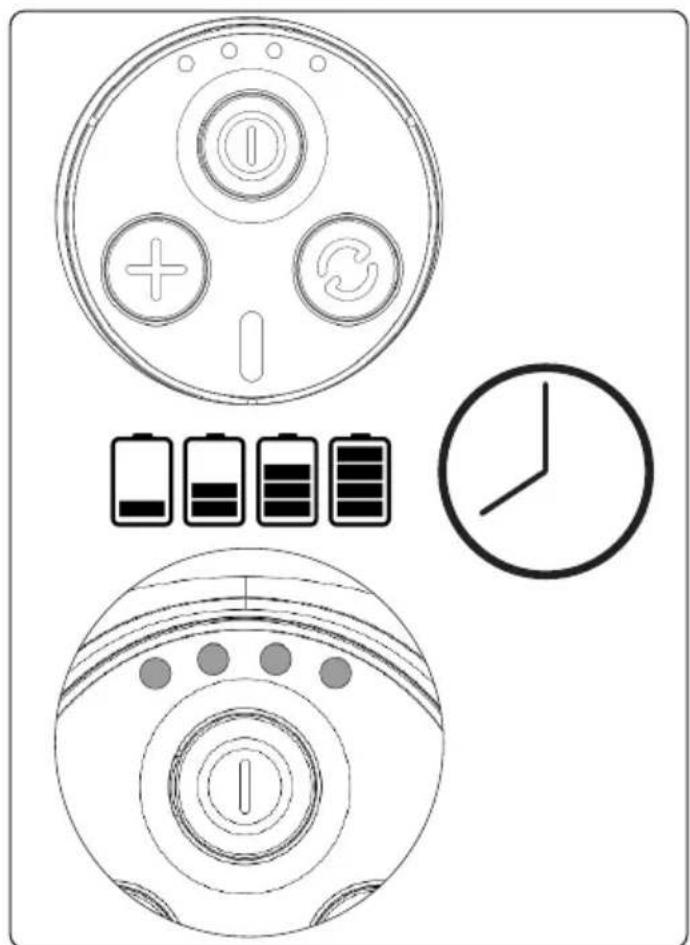

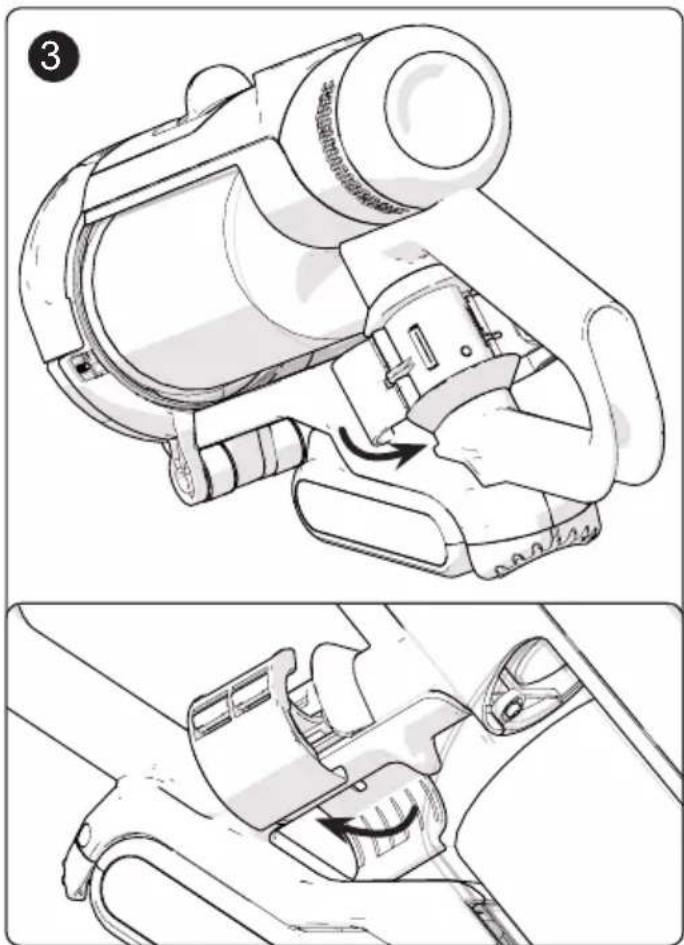

Control Panel, Bedienfeld, Panneau de commande, Bedieningspaneel, Painel de controlo, Pannello di controllo, Panel de control

1 2 3 4 5 Power on/off Battery life / Charge s Boost mode on/o Brush roll on/off Filter POD full / system b

1	Ein/Aus (DE)
2	Akkulaufzeit/Ladestatus
3	Boost-Modus ein/aus
4	Bürstenrolle ein/aus
5	FILTERKARTUSCHE voll/System blockiert
1	In-/uitschakelen (NL)
2	Levensduur accu/oplaadstatus
3	Boostmodus aan/uit
4	Borstelrol aan/uit
5	Filter vol/systeem verstopt
1	Accensione/spegnimento (IT)
2	Durata della batteria/Stato di ricarica
3	Attivazione/disattivazione modalità Boost
4	Accensione/spegnimento spazzola a rullo
5	Gondola filtro piena/Blocco del sistema

1	Power on/off (GB)
2	Battery life / Charge status
3	Boost mode on/off
4	Brush roll on/off
5	Filter POD full / system blockage

Diagram of a cylindrical device with internal components and directional arrows indicating movement or flow (no text or symbols)

Technical diagram of a mechanical component with a circular part inserted into a spiral housing (no text or symbols)

Diagram of a mechanical component with a circular feature and concentric layers, showing no text or symbols.

Diagram of a mechanical or optical component with arrows indicating direction, no text or symbols present

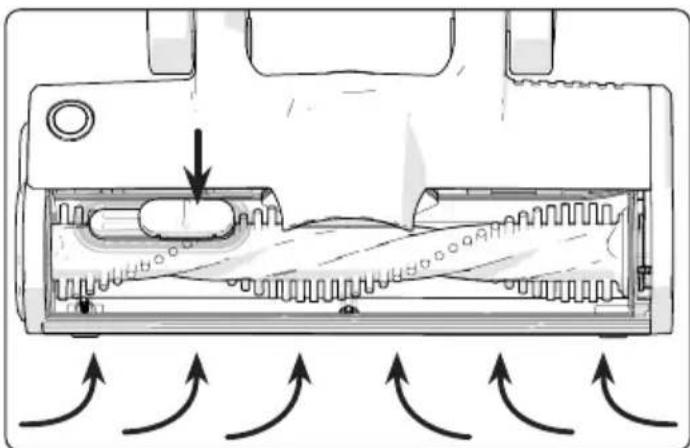

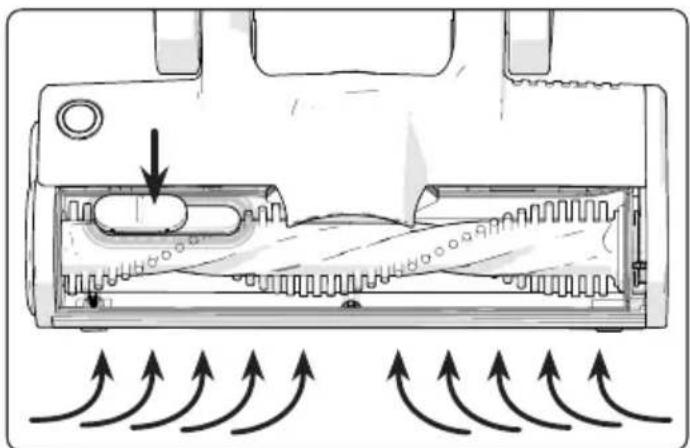

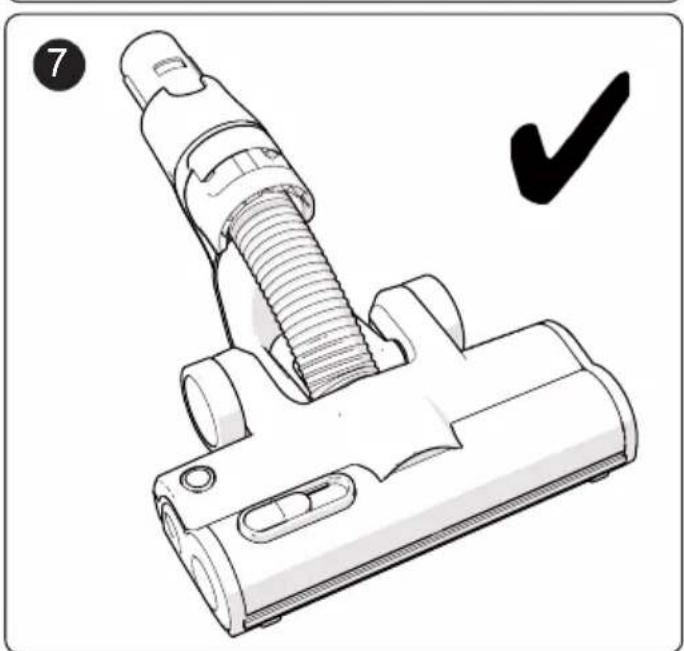

Floor Tool Air Bleed Control, Bedienung der Saugdüsenentlüftung, Commande de purge d'air de l'outil pour sol, Ontluchtingsregeling zuigmond, Controlo de purga de ar do acessório do pavimento, Comando di sfiato aria del tergipavimento, Control de purga de aire de la boquilla de aspiración

Diagram of a device interior with directional arrows indicating flow or movement, no text or symbols present.

Diagram of a device interior with arrows indicating flow or movement, showing internal components and directional arrows (no text or symbols)

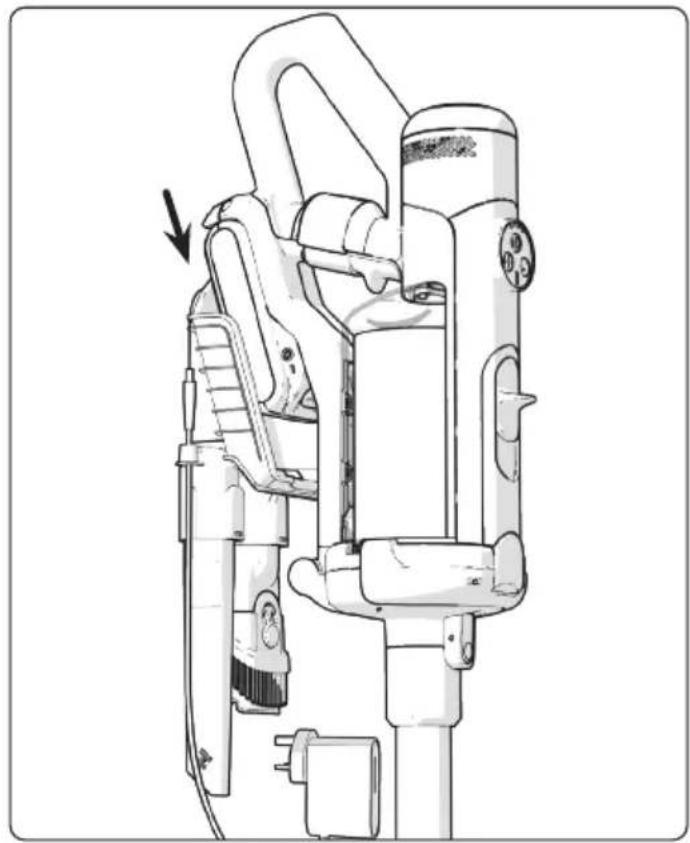

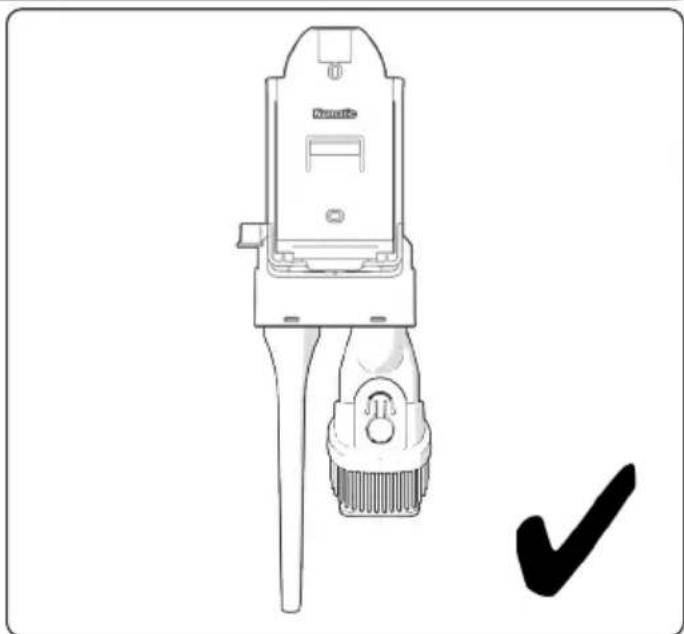

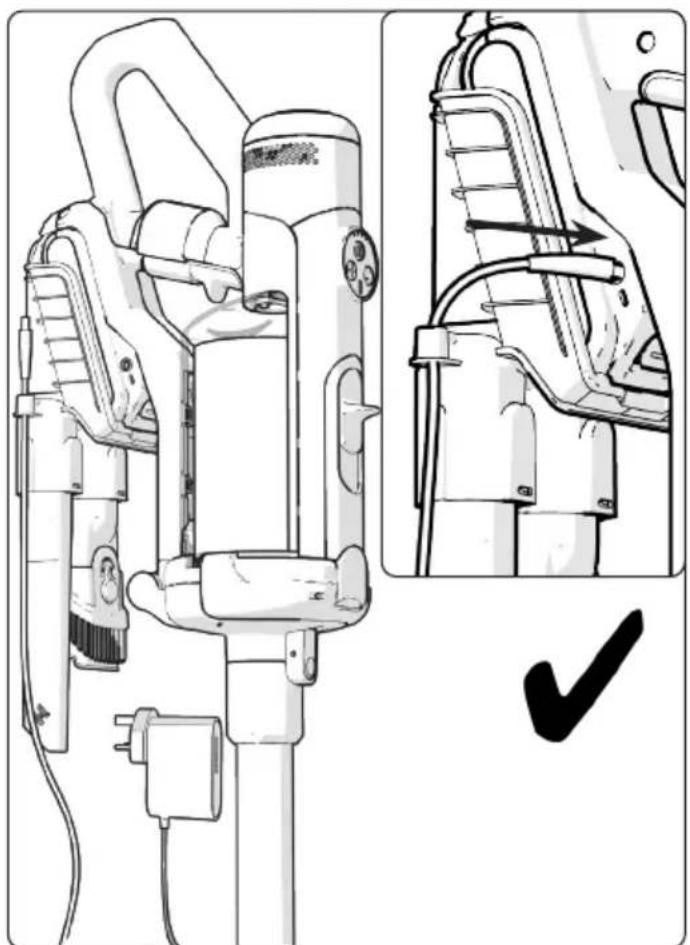

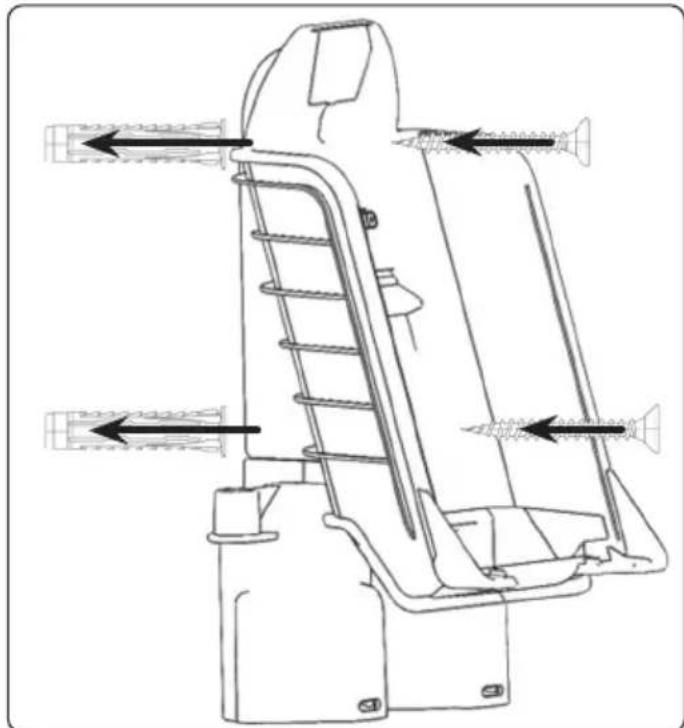

Charger Wall Mounting, Wandbefestigung des Ladegeräts, Montage mural du chargeur, Lader wandbevestiging, Montagem na parede do carregador, Montaggio a parete del caricabatteria, Montaje del cargador en la pared

Technical line drawing of a mechanical device with internal components and directional arrows indicating flow or movement (no text or symbols)

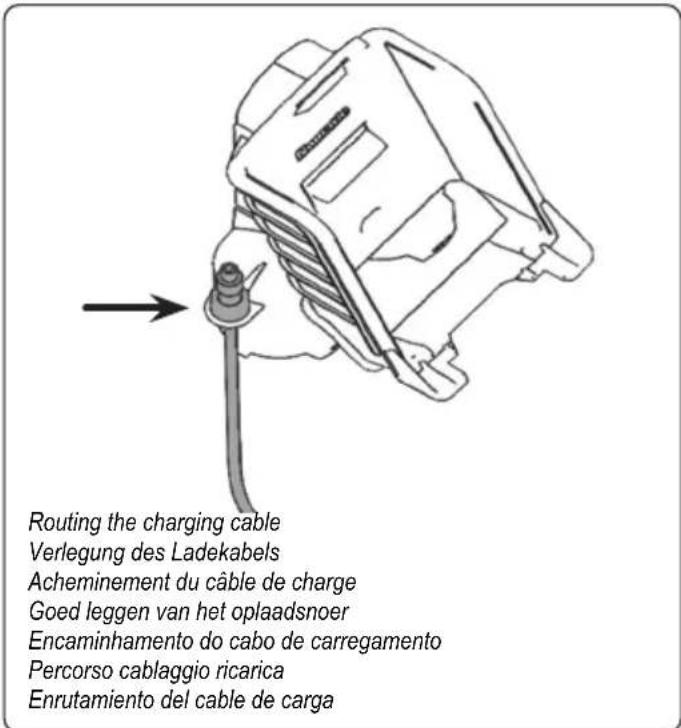

Routing the charging cable Verlegung des Ladekabels Acheminement du câble de charge Goed leggen van het oplaadsnoer Encaminhamento do cabo de carregamento Percorso cablaggio ricarica Enrutamiento del cable de carga

Use correct fixings for your wall type, which is suitable for the weight of the machine (3.2 kg).

The use of adhesives is not considered a reliable means of fixing.

Diagram showing a device with two connectors and directional arrows indicating movement or force (no text or symbols present)

Line drawing of a portable electronic device with a black checkmark indicating cancellation (no text or symbols on the device itself)

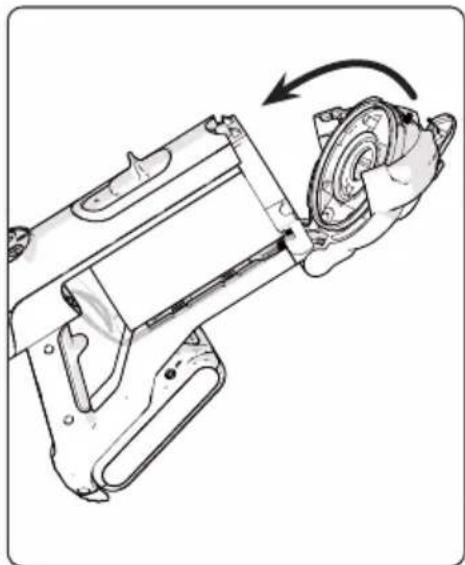

Disposable Pod Emptying, Leerung der Einwegkartusche, Retrait du sac jetable, Wegwerpfilter legen, Esvaziamento do compartimento descartável, Svuotamento della gondola monouso, Vaciado del filtro desechable

Diagram showing a sequence of cleaning or installation steps for a vacuum cleaner, with arrows indicating downward movement.

Technical line drawing of a handheld device with a lever mechanism, showing no text or symbols

Technical line drawing of a handheld device with a rotating arm (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

Disposable Pod Fitting, Anschluss der Einwegkartusche, Fixation du sac jetable, Wegwerpfilter plaatsen, Encaixe do compartimento descartável, Montaggio della gondola monouso, Instalación del filtro desechable

Technical line drawing of a firearm with directional arrows indicating movement or force (no text or symbols present)

Technical line drawing of a mechanical assembly with a hand holding a rotating component (no text or symbols)

Illustration of a hand using a gun to lift a weapon, showing motion and assembly steps (no text or symbols)

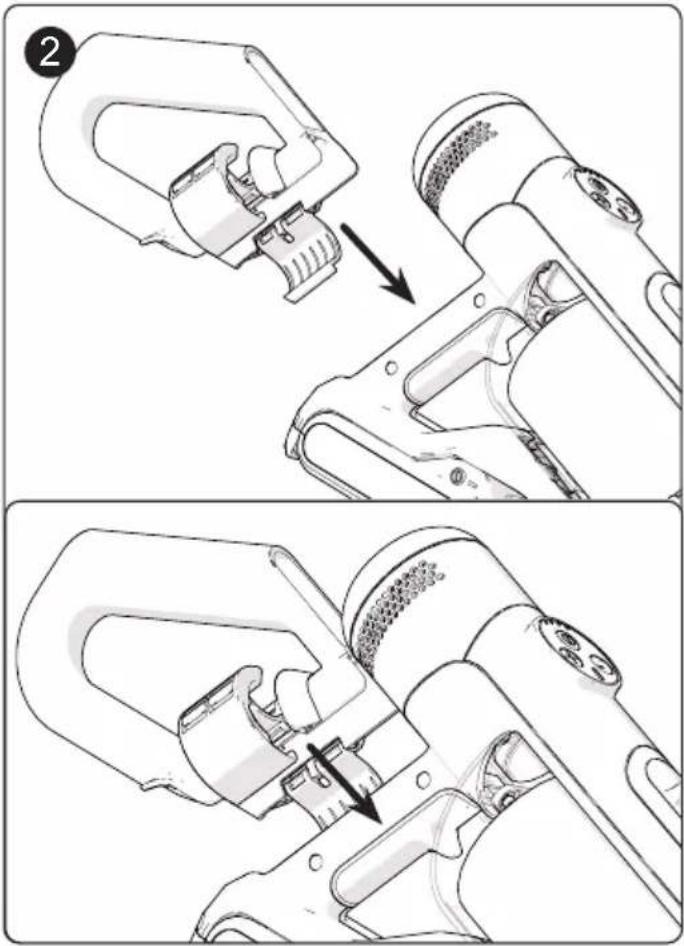

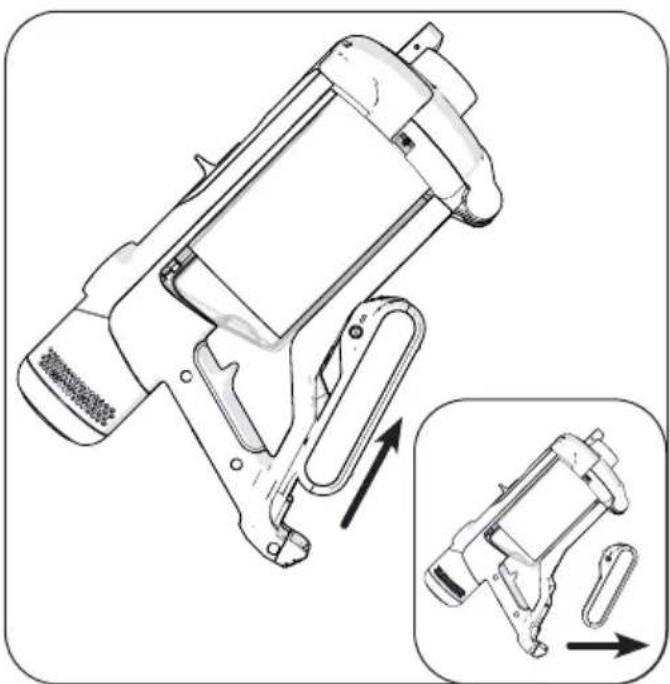

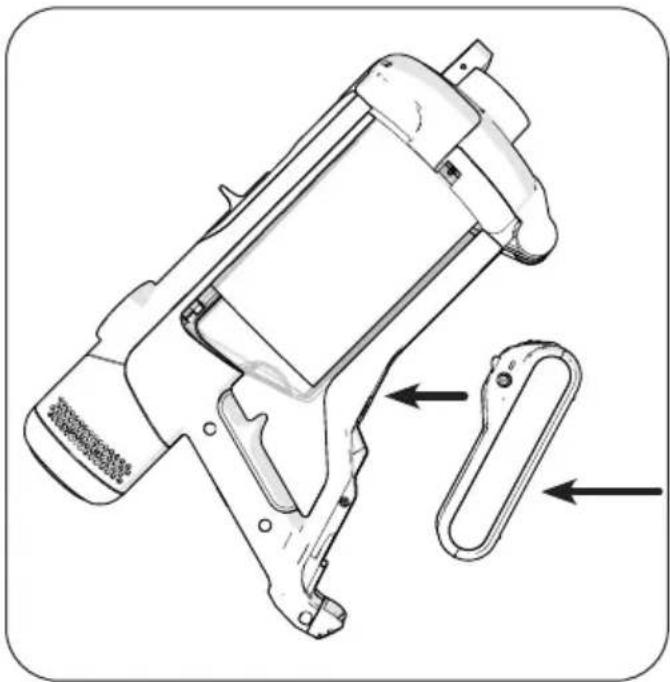

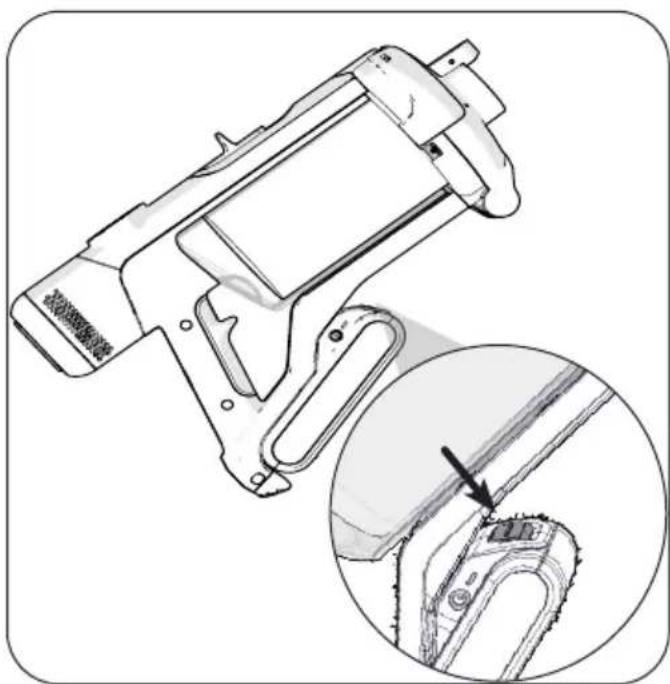

Extension Handle Fitting / Removal, Anbringung / Entfernung des Verlängerungsgriffs, Fixation / Retrait de la poignée d'extension, Verlengingshandvat plaatsen / verwijderen, Encaixe / remoção da pega de extensão, Montaggio / rimozione della maniglia di estensione, Montaje / desmontaje del mango de extensión

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Technical illustration of a hand-operated cleaning or cleaning device, showing two steps with arrows indicating process (no text or symbols present)

Technical illustration of a handheld device with a hand operating the button, showing two steps of tool manipulation (no text or symbols present)

Technical illustration of a robotic arm with motion capture, showing hand positioning and tool path (no text or symbols)

Technical illustration of a vacuum cleaner with three views showing mechanical components and assembly (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with an inset detail showing internal components (no text or symbols)

Diagram showing battery and clock components with no text or symbols

Recharge time: 150 min = 100%
Ladezeit 150 min. = 100%
Temps de recharge 150 min = 100%
Laadduur 150 min. = 100%
Tempo de recarga 150 min = 100%
Tempo di ricarica 150 min = 100%
Tiempo de recarga 150 min = 100%

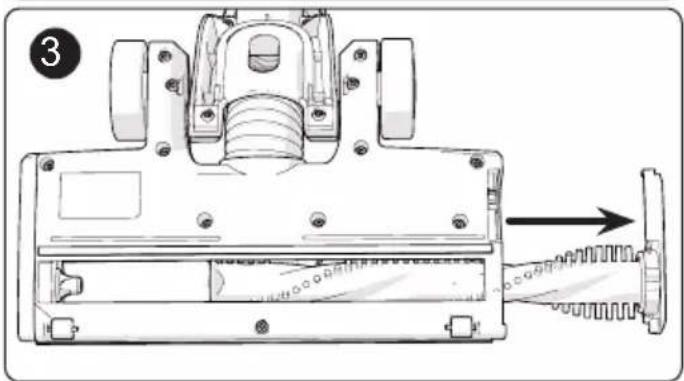

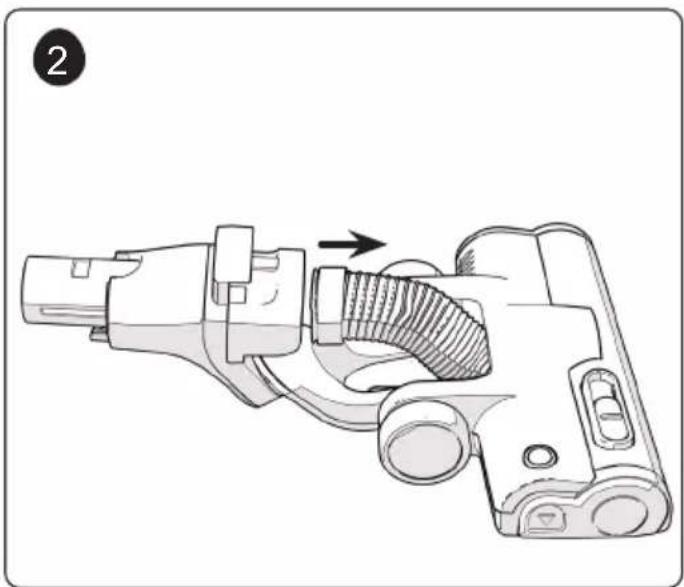

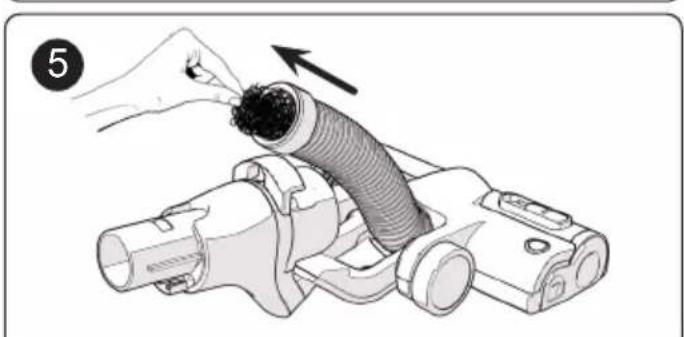

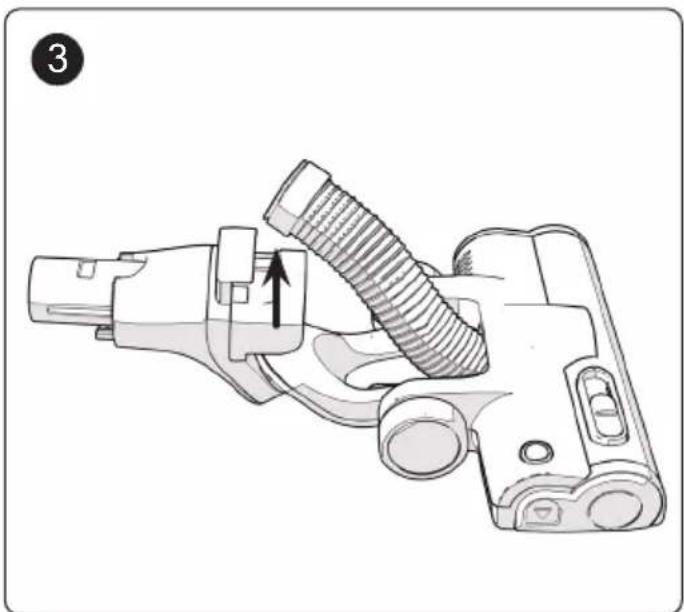

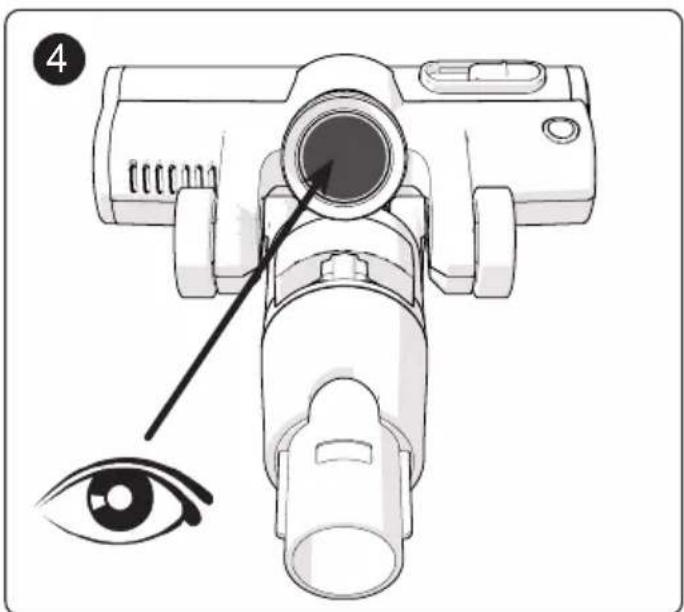

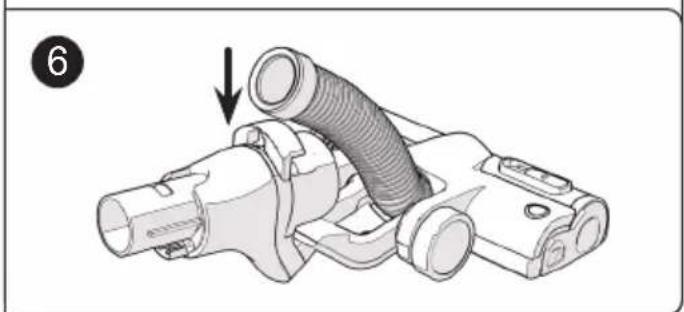

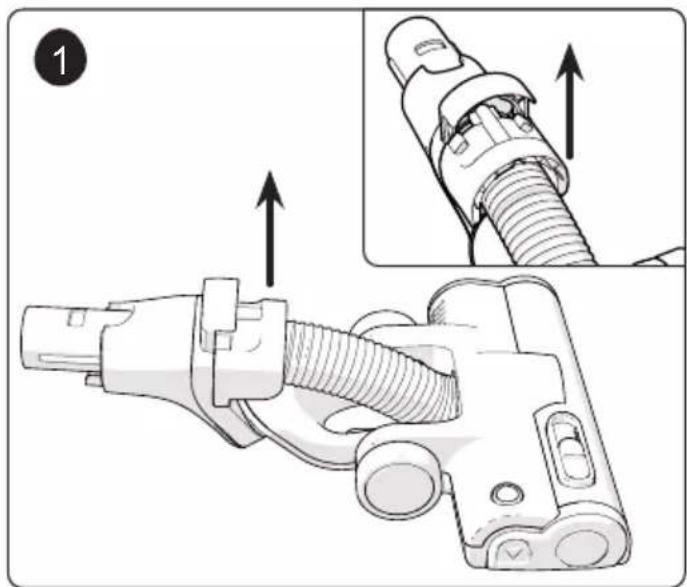

Floortool Hose Cleaning / Blockage Removal, Reinigung / Entfernen einer Blockierung des Saugdüsenschlauchs, Nettoyage / Élimination des obstructions du tuyau de l'outil pour sol, Zuigmondslang reinigen / verstopping verwijderen, Limpeza / remoção de obstrução do tubo flexível do acessório do pavimento, Pulizia del tubo flessibile del tergipavimento / rimozione delle ostruzioni, Limpieza / desobstrucción de la manguera de la boquilla de aspiración

Technical illustration of a mechanical device with threaded connectors and a close-up view showing internal components (no text or symbols)

Technical line drawing of a handgun mechanism with an arrow indicating motion (no text or symbols present)

Technical illustration of a firearm with a coiled hose and lever mechanism (no text or symbols)

4

Illustration of a hand inserting a flexible hose into a mechanical device (no text or symbols)

Technical illustration of a vacuum cleaner with threaded body and handle, showing assembly (no text or symbols)

Mechanical assembly diagram showing a pipe fitting with a valve, no text or symbols present

Technical diagram showing a mechanical assembly with labeled component '1' and an inset detail showing a circular component being inserted.

Mechanical device component diagram showing a lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical device with a gear and spring mechanism (no text or symbols)

Diagram illustrating a hand pulling a cable with red wire loops, accompanied by a magnified view showing the cable being twisted.

Machine data (GB)

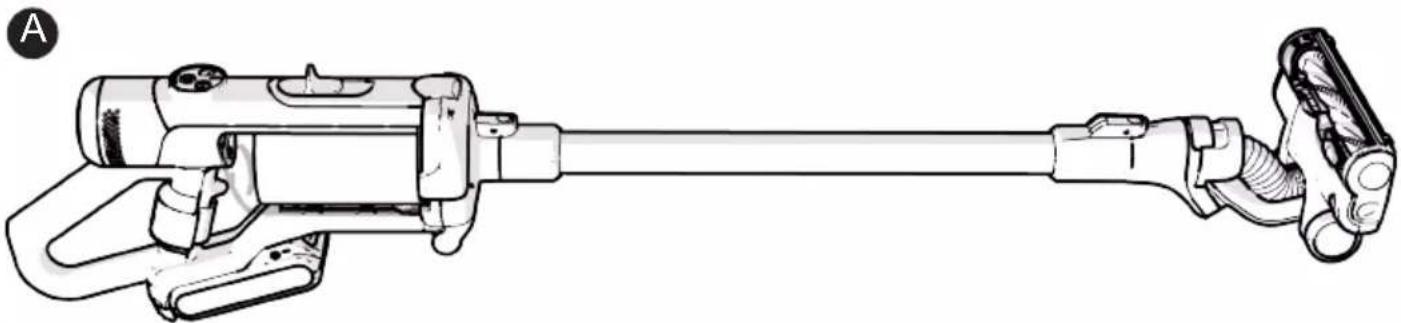

Model Voltage Protection class			Weight (Ready to work) See Fig (A)	Sound pressure (LpA) Uncertainty (KpA)	*Run Time
NQ.100	25.2 V Class III 3.2 kg			77 dB (A)0.5 dB	70 min (Low – Brush OFF)55 min (Low – Brush ON)16 min (High – Brush OFF)14 min (High – Brush ON)
	Pod Capacity	*Charging Times	Rated Power Hand / Arm Vibration		DimensionsL x W x H
	1 L	150 mins to 100 %	300 W ah ≤	2.5 m/s ^2	270 mm x 240 mm x 1220 mm
*Run and Recharge times may vary dependent on ambient temperature and expected battery ageing.

Technical line drawing of a mechanical device with articulated joints and a handle (no text or symbols)

Trouble Shooting

No.			Problem Possible Reason	Solution
1			Large RED light on control panel is flashing	There may be a blockage in the system	Check the floorhead hose, wands, connections and accessories, remove any blockages, page 13
				The filter pod may be full If there are no	blockages in the system, eject and replace the filter pod, page 10
2			Machine is difficult to push on carpet	The carpet pile is very deep or dense and can cause high pressure inside the floor head	Open the air valve on top of the floorhead to reduce pressure, page 8
					Switch the machine from boost to normal mode, page 7
3			Floor brush cuts out on rugs or carpet	The carpet or rug pile is very deep and can cause high pressure on the brush, the safety system cuts power to the brush	Switch off floor brush from the control panel, page 7
					Switch the machine from boost to normal mode, page 7
4			Vacuum lifts area rugs The vacuum	suction may be too high and/or the brush roll is picking up the rug	Switch the machine from boost to normal mode and switch off the brush roll, page 7
					Adjust floor Tool Air Bleed Control page 8
5			Floor head is not picking up hair or fibres	The floor brush has excessive hair wrapped around it	Remove the floor brush from the floor head and clean, page 13
				There is a partial blockage in the floor head or wands	Check the floorhead hose and wands, remove any blockages, page 13
6			No power at rotating floor brush	The brush head button is switched off	Switch the machine off and then back on again, page 7
7			Machine will not power up after prolonged use	The machine is equipped with a motor-protective thermostat as well as battery extreme temperatures protection, the system temperatures are outside of working parameters	Allow the machine and the battery to cool down
Modell Spannung Schutzklasse			Gewicht (betriebsbereit) siehe Abb. (A)	Schalldruckpegel (LpA) Toleranz (KpA)	*Laufzeit
NQ.100	25.2 V Klasse III 3.2 kg			77 dB (A) 0.5 dB	70 Min. (Niedrig – Bürste AUS) 55 Min. (Niedrig – Bürste AN) 16 Min. (Hoch – Bürste AUS) 14 Min. (Hoch – Bürste AN)
	Kartuschenkapazität	*Ladezeiten Nennleistung Hand / Arm Vibration			Abmessungen L x B x H
	1 L	In 150 Min. auf 100 %	300 W ah ≤ 2.5 m/s ^2	2	270 mm x 240 mm x 1220 mm
*Die Lauf- und Ladezeiten können je nach Umgebungstemperatur und der erwarteten Akkulaufzeit variieren.

Fehlersuche (DE)

(GB) About your machine

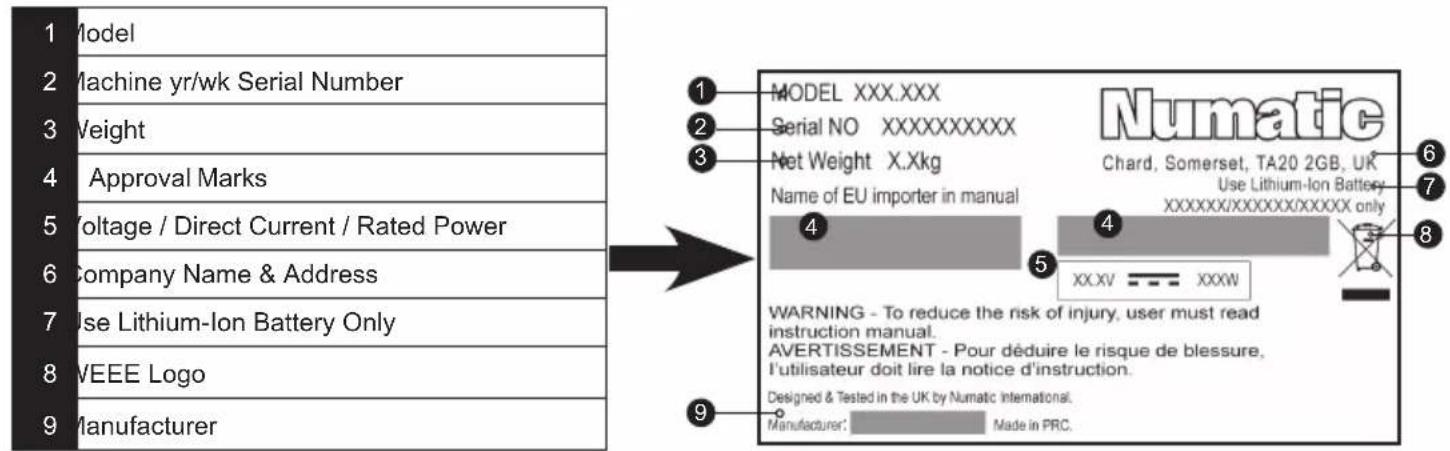

Rating Label

1 Model 2 Machine yr/wk Serial Number 3 Weight 4 Approval Marks 5 Voltage / Direct Current / Rated Power 6 Company Name & Address 7 Use Lithium-Ion Battery Only 8 VEEE Logo 9 Manufacturer MODEL XXX.XXX Serial NO XXXXXXXXXXXX Net Weight X.Xkg Name of EU importer in manual 4 5 6 7 Use Lithium-Ion Battery XXXXXX/XXXXXX/XXXXXX only WARNING - To reduce the risk of injury, user must read instruction manual. AVERTISSEMENT - Pour déduire le risque de blessure, l'utilisateur doit lire la notice d'instruction. Designed & Tested in the UK by Numatic International. Manufacturer: Made in PRC. Numatic Chard, Somerset, TA20 2GB, UK Use Lithium-Ion Battery XXXXXX/XXXXXX/XXXXXX only 8

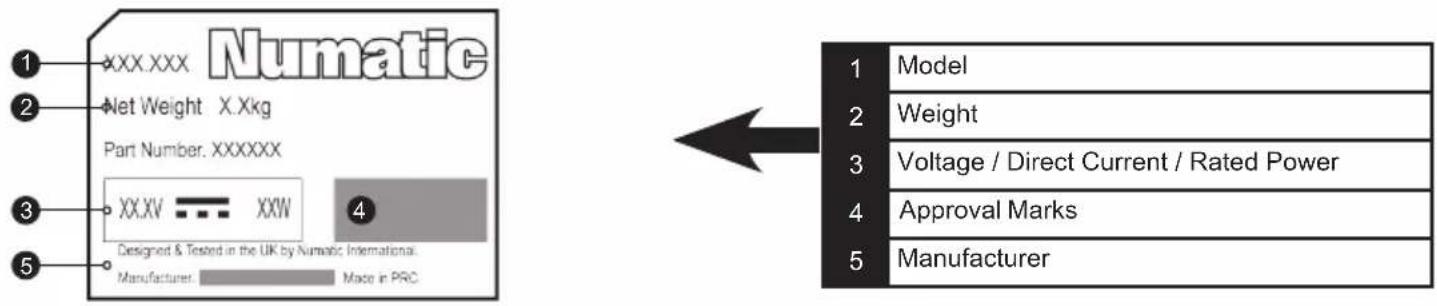

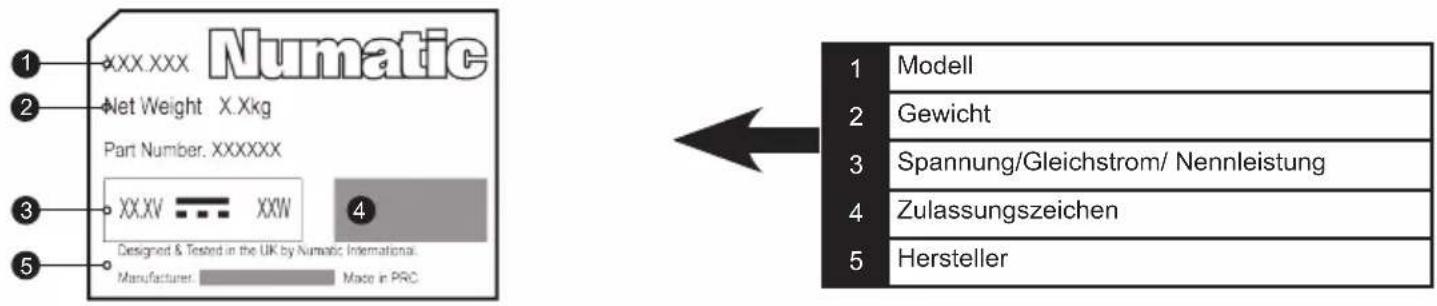

Floor Tool Label

Numatic 1 XXX XXX 2 Net Weight X.Xkg Part Number. XXXXXX 3 XXXV XXXW 4 Designed & Tested in the UK by Numatic International. Manufacturer Made in PRC 1 Model 2 Weight 3 Voltage / Direct Current / Rated Power 4 Approval Marks 5 Manufacturer

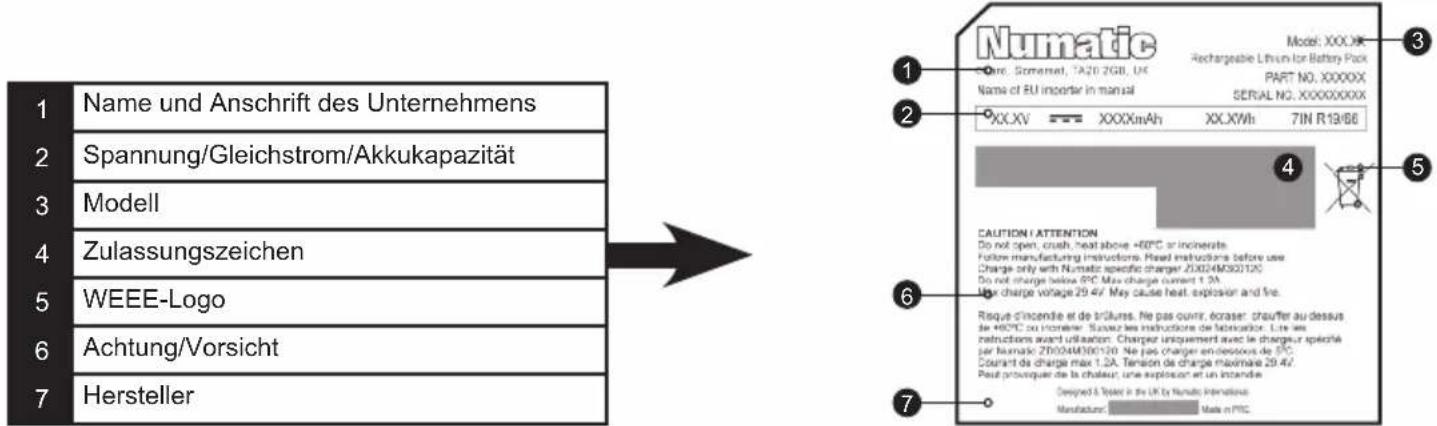

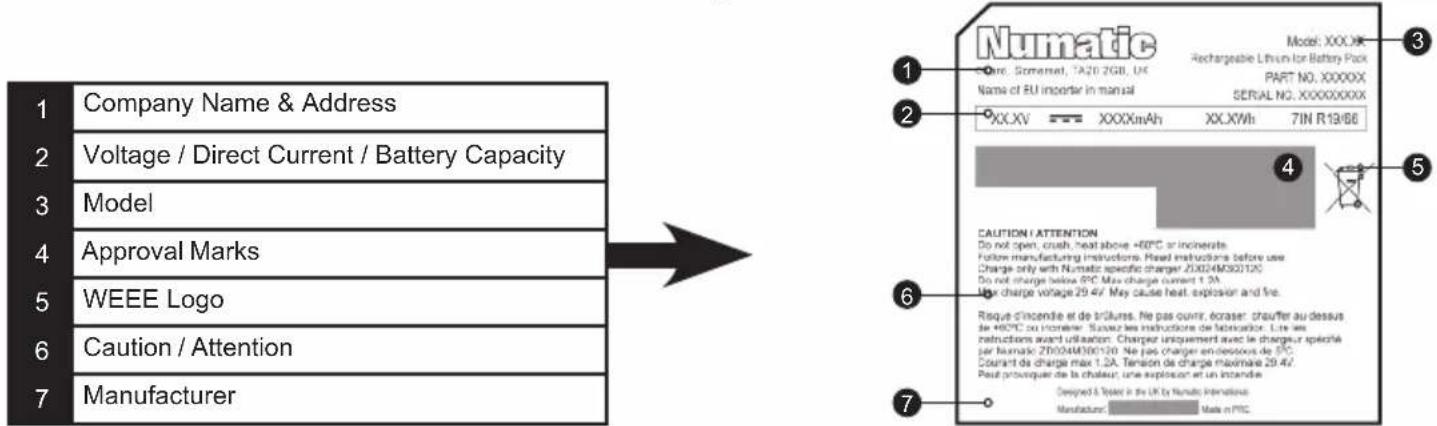

Battery Label

1 Company Name & Address 2 Voltage / Direct Current / Battery Capacity 3 Model 4 Approval Marks 5 WEEE Logo 6 Caution / Attention 7 Manufacturer Numatic Model: XXXX Rechargeable Lithium for Battery Pack PART NO. XXXXXX Name of EU importer in manual SERIAL NO. XXXXXXXXX XXX.XV XXXXmAh XX.X/Mh 7IN R19/66 CAUTION / ATTENTION Do not open, crush, heat above +60°C or incinerate Follow manufacturing instructions. Rear instructions before use Charge only with Numatic specific charger Z0024M30012C Do not charge below 60°C Max charge current 1.2A Use charge voltage 29.4V May cause heat explosion and fire. Resque d'incendite et de trâlures. Ne pas currir, écraser, chauffer au dessus de +60°C ou incinerer. Suscès les instructions de l'impaction. Une les instructions avant utilisation: Charger uniquement avec le chargeur spécifié par humatic Z0024M30012C. Ne pas charger endicssous de 5°C. Courant de charge max 1.2A. Tension de charge maximale 29.4V. Pour provoquer de la chaleur, une explosion et un incendance. Designed & Telear in the UK by Numatic International Manufacturer: Made in PTC

Daily

Keep the machine and all parts clean, including hoses and tubes.

Ensure the filter pod is fitted.

Regularly examine the charger.

Check fi Iter pod frequently and renew if required.

Weekly - as daily and:-

Check for any worn or damaged parts and replace immediately.

Batteries

Always recharge the batteries after use.

WEEE (Waste, Electrical and Electronic Equipment)

Accessories and packaging should be sorted for environmentally-friendly recycling.

Only for UK/EU countries.

Do not dispose into household waste.

According to the European Directive 2012/19/EU on waste electrical electronic equipment and its incorporation into national law.

Items that are no longer suitable for use must be separated, collected and sent for recovery in an environmentally-friendly manner.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

PPE (Personal protective equipment) that may be required for certain operations.

Silhouette icon of a person wearing headphones inside a circle (no text or symbols)

Black circular icon with a white boot symbol (no text or numbers)

Silhouette of a person wearing a helmet, enclosed in a black circle (no text or symbols)

Black circular icon with white hand gesture symbol (no text or numbers)

Ear Protection Safety Footwear Head Protection Safety Gloves

Simple icon of a person wearing sunglasses inside a circle (no text or symbols)

Symbol of a human figure in a wide-brimmed pose inside a black circle (no text or numbers present)

Black circular icon with a white safety vest symbol (no text or numbers)

CAUTION WET FLOOR

Dust / Allergens Protection

Eye Protection Protective Clothing

Hi-Vis Jacket

Caution Wet Floor Sign

NOTE: A risk assessment should be conducted to determine which PPE should be worn.

Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline [phone]

Information for Dry use Battery Vacuum cleaners

Warning

Read the instruction manual before using the machine.

Operators shall be adequately instructed on the use of these machines, as with all electrical equipment, care and attention must be exercised at all times during use, you must also make certain that routine and preventative maintenance is carried out periodically to ensure safe operation.

Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility in this respect.

This machine is for DRY USE only.

When charging the appliance make sure that the charging lead is safely secured and the jack is properly inserted into the battery.

Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.

You must remove the battery from the machine BEFORE cleaning or maintenance and when replacing parts or converting the machine to another function.

This appliance is intended to be assembled, cleaned and maintained by an adult.

This machine is not suitable for the collection of biological hazards, hazardous or explosive dusts.

Contact your local distributor if you require a machine capable of performing these tasks.

This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.

Keep scent capsules away from children, as they are harmful if swallowed.

Extra care must be taken when cleaning on stairs.

Children should be supervised to ensure that they do not play with the appliance.

This machine is not a toy; children shall not play with this machine.

Caution

This machine must not be stored outside, or used in wet environments, or to collect wet materials.

The vacuum cleaner should be stored in a dry place and is for indoor use only.

You must ensure that the machine is suitable for the material being collected.

Note:

The primary use for this machine is for domestic, as well as commercial settings, for example in homes, hotels, schools, hospitals, factories, shops and offices.

This vacuum cleaner is fitted with a thermal protection device.

If the vacuum cleaner has a blockage, remove the battery and inspect the floor tool, tubes and hose for debris.

If the floor tool, tubes and hose are clear, replace the filter pod.

The vacuum cleaner should be inspected after use for damage.

When moving from one place to another, consider the weight of the machine.

Do

Keep your machine clean including hoses and tubes.

Change the filter pod frequently.

Keep hoses and tubes clear.

Replace any worn or damaged parts immediately.

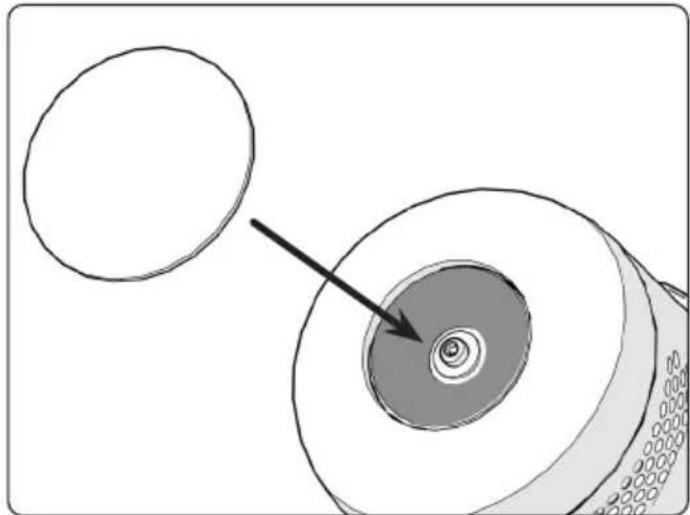

Use OEM specifi ed Numatic Scent Capsules only as shown in this manual.

Don't

Use to suck up hot ashes or lighted cigarette ends.

Use steam cleaners or pressure washers to clean the machine or use in the rain.

Immerse in water for cleaning.

Attempt machine maintenance or cleaning unless battery has been removed from the machine.

Under any circumstances place foreign objects i.e. air fresheners, air freshener capsules or scented beads or any other object not originally supplied as part of the machine or OEM accessory pack, into the machine.

Doing so can be dangerous and risks damage to the machine and may also invalidate the machine warranty.

NOTE:- It is recommended that a battery is fully charged before first use.

Important Warnings – Charger

Read all these warnings before using the charger.

• CAUTION! Charge only Numatic Lithium-Ion batteries, other types of batteries may burst causing personal injury and damage.
- Do not charge damaged batteries.
- Do only charge dry batteries.
- Check the charger cable regularly for any sign of damage. If the charger cable is damaged the charger should be replaced, by an original NUMATIC INTERNATIONAL charger available from the manufacturer or service agent.
- Do not use damaged chargers.
- Protect the charger against moisture and store it in a dry place.
- Do not use the charger if it is wet or handle the charger with wet hands.
- The mains voltage available must correspond to the voltage stated on the rating plate of the charger.
• The no load voltage of the charger is 30 V.
- Do not operate charger in explosive environment.
- Do not carry the charger by holding the charger cord.
- Do not unplug by pulling on cord. To unplug, grasp the charger, not the cord.
- Do not cover the charger whilst charging.
- Do not open the charger. Repairs shall be done only by authorised personnel.

Warning:

The battery included in this product must only be charged by the Numatic Charger supplied with the product under NO circumstances should an alternative non Numatic charger be used as there is risk severe damage and fire could result. Only use genuine Numatic parts.

Instructions for Use – Charging Batteries

The charger is capable of operating at different mains voltages and frequencies without user adjustment. Ensure the charger jack plug is fully inserted into the battery.

If the charger is damaged or does not charge anymore, do not use the charger and contact your supplier. Make sure charger replacements are a genuine Numatic service part.

Health Hazards (Acute & Chronic).

The chemicals used in the battery are in a sealed container.

Risk of exposure only occurs if the battery is abused or damaged.

Contact of electrolyte and lithium with skin and eyes should be avoided.

Signs & Symptoms of Exposure.

A damaged or leaking battery can cause chemical burns upon contact.

Such situation might only occurred when the battery cell is opened or damaged.

Important Warnings – Batteries

Read all the warnings before using the battery.

This cleaner uses Numatic Lithium-Ion batteries. Used batteries should be disposed of safely and placed in a sealed plastic bag and then handled according to all locally approved precautions and environmental regulations.

a) Do not dismantle, open or shred batteries.
b) Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
c) Do not short-circuit a battery. Do not store batteries haphazardly in a box or drawer where they may short-circuit each other or be short circuited by other metal objects.
d) Do not remove a battery from its original packaging until required for use.
e) Do not subject batteries to mechanical shock.
f) In the event of battery leaking, do not allow the liquid to come in contact with the skin or eyes and avoid inhaling fumes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
g) Do not use any charger other than that specifically provided for use with the appliance.
h) Do not use any battery which is not designed for use with the appliance.
i) Use only original NUMATIC batteries, when replacement batteries are required.
j) Keep batteries clean and dry.
k) Do not leave a battery on prolonged charge when not in use.
I) After extended periods of storage, it may be necessary to charge and discharge the batteries several times to obtain maximum performance.
m) Retain the original appliance literature for future reference.
n) When possible, remove the battery from the equipment when not in use.
o) Do not immerse in any liquid.
p) Do not charge damaged batteries.
q) If the batteries are leaking, return batteries to a disposal plant or a similar local facility.
r) The batteries must be removed from the appliance before the appliance is scrapped.
s) If the appliance is to be stored unused for a long period, the batteries should be removed.

The battery is equipped with electronic thermal protection, refer to the Temperature and Humidity Range Table below for recommended operating conditions.

Temperature and Humidity Range Table

Storing +5 ...	+35	°C
Discharge +5 ...	+35	°C
Charge +5 ...	+35	°C
Shipment -20 ...	+60	°C
Humidity 25 - 85% RH no condensation
Long term storage
Humidity ≤ 50% RH no condensation

In case battery is subject to environmental conditions outside the above parameters user must allow at least 3 hours for battery to acclimatise at room temperature before attempting to operate.

If the battery is found to be faulty at any time, contact Numatic International, or World Wide Lithium-Ion Battery Technical Helpline [phone]

Care and Disposal of Li Ion Batteries

DEFECTIVE BATTERIES

ATTENTION

Please follow all safety guidelines set out.

A defective battery should not be stored inside buildings on any account.

• If a customer wishes to return a battery to a supplier, then collection of the battery must be arranged by the supplier, however, Faulty batteries must not be returned through the postal system or by courier.
• If on return to a supplier, OR at a customer base, a suspected defective battery shows any signs of impact damage, distortion, blistering, loose parts or leakage then on no account should it be off ered for condition checking. It must be considered defective and the procedures described followed.
• If, on return to a supplier, OR at a customer base, a suspected defective battery, that shows no signs of impact damage, distortion, blistering, loose parts or leakage, may be off ered for condition checking with an appropriate battery condition checking device operated by a competent person.
• If on checking the battery is found to be operational then a single recharge cycle under observation can be attempted with the appropriate Numatic charger.
  • If the battery recharges correctly on this single recharge cycle then it can be deemed a good battery.
• If the battery fails to recharge correctly on this single recharge cycle then it must be deemed a defective battery and the procedures followed.
• On no account must any further attempt to recharge be made.
  • A defective battery should not be stored inside buildings on any account.
• The defective discharged battery can then be stored in a locked battery waste container which should be plastic or plastic lined and placed away from buildings and clearly signed as a defective battery container with appropriate warnings.

The battery is to be disposed of safely and in accordance with all locally approved precautions and environmental regulations.

First Aid Measures

If exposed to any of the Chemicals mentioned in the Hazards section please follow the procedures below:

Eyes.

Flush eyes with plenty of water for at least 15 minutes, occasionally lifting the upper and lower eyelid. Seek medical attention.

Skin.

Remove contaminated clothing and rinse skin with plenty of water or shower for 15 minutes. Seek medical attention.

Inhalation.

Vacate from site of exposure to fresh air immediately. Use oxygen if available.

Ingestion.

Give at least two glasses of milk or water. Induce vomiting, unless patient is unconscious. Seek medical attention.

Note:

Inhalation, skin contact and eye contact are possible if the battery is damaged.

Exposure to internal contents, the corrosive fumes will be very irritating to skin, eyes and mucous membranes.

Overexposure can cause symptoms of non-fi broid lung injury and membrane irritation.

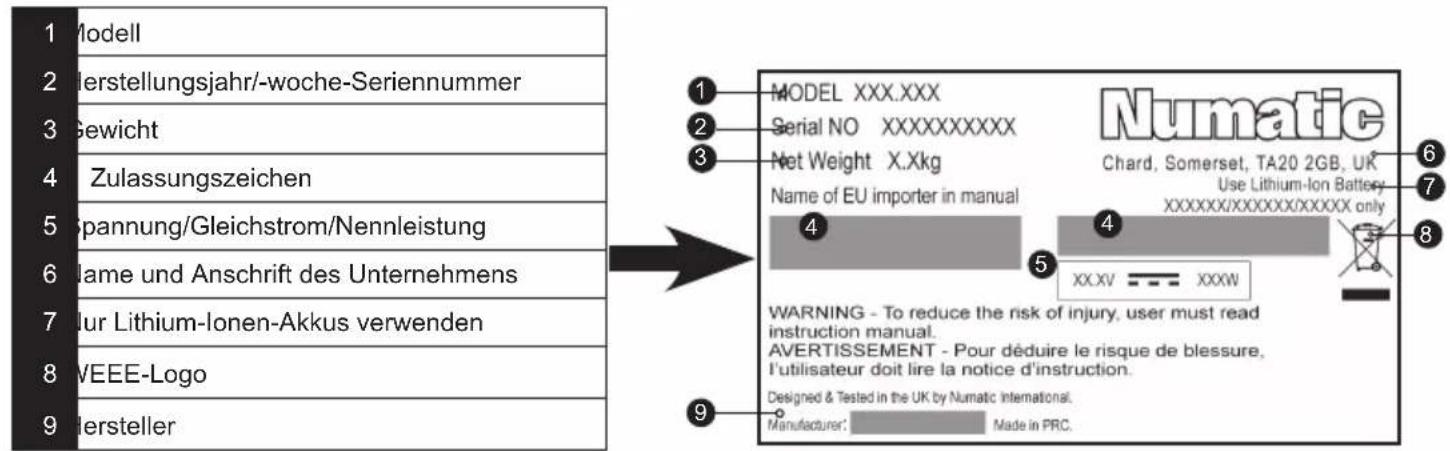

Typenschild

1 Modell 2 Herstellungsjahr/-woche-Seriennummer 3 Gewicht 4 Zulassungszeichen 5 Spannung/Gleichstrom/Nennleistung 6 Name und Anschrift des Unternehmens 7 Zur Lithium-Ionen-Akkus verwenden 8 VEEE-Logo 9 Hersteller MODEL XXX.XXX Serial NO XXXXXXXXXXXX Net Weight X.Xkg Name of EU importer in manual 4 5 6 7 Use Lithium-Ion Battery XXXXXX/XXXXXX/XXXXXX only WARNING - To reduce the risk of injury, user must read instruction manual. AVERTISSEMENT - Pour déduire le risque de blessure, l'utilisateur doit lire la notice d'instruction. Designed & Tested in the UK by Numatic International. Manufacturer: Made in PRC.

Saugdüsenetikett

Numatic 1 XXX.XXX 2 Net Weight X.Xkg Part Number. XXXXXX 3 XX.XV XXW 4 Designed & Tested in the UK by Numatic International. Manufacturer: Made in PRC 1 Modell 2 Gewicht 3 Spannung/Gleichstrom/ Nennleistung 4 Zulassungszeichen 5 Hersteller

Akku-Etikett

1 Name und Anschrift des Unternehmens 2 Spannung/Gleichstrom/Akkukapazität 3 Modell 4 Zulassungszeichen 5 WEEE-Logo 6 Achtung/Vorsicht 7 Hersteller Numatic Model: XXXX Rechargeable Lithium Ion Battery Pack PART NO. XXXXXX Name of EU importer in manual SERIAL NO. XXXXXXXXX XX.XV XXXXmAh XX.XWh 7IN R19/66 CAUTION / ATTENTION Do not open, crash, heat above +80°C or inchiterate Follow manufacturing instructions. Rear instructions before use Charge only with Numatic specific charger Z0024M300120 Do not charge below 80°C May charge current 1.3A Use charge voltage 29.4V/ May cause heat explosion and fire. Rasque d'incendite et de trâtres. Ne pas ouvr, doraser, chautier au dessus de +80°C ou Rohrer. Sussez les instructions de latoquer. Lire les instructions avant utilisation. Charger uniquement avec le chargeur spécifié par hurnatic Z0024M300120. Ne pas charger en-dessous de 80°C. Courant de charge max 1.3A. Tension de charge maximaire 29.4V/ Pour provoquer de la chaleur, une explosion et un incandie. Designed by: Taylor in the UK by Numatic International Manufactur: Made in PTC

Täglich

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Silhouette icon of a person wearing headphones inside a circle (no text or symbols)

Black circular icon with a white boot symbol (no text or numbers)

Silhouette of a person wearing a helmet, enclosed in a black circle (no text or symbols)

Black circular icon with white hand gesture symbol (no text or numbers)

Simple icon of a person wearing sunglasses inside a circle (no text or symbols)

Symbol of a human figure in a suit inside a black circle (no text or numbers present)

Black circular icon with a white safety vest symbol (no text or numbers)

CAUTION WET FLOOR

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Silhouette icon of a person wearing headphones inside a circle (no text or symbols)

Black circular icon with a white boot symbol (no text or numbers)

Icon of a person wearing a helmet, enclosed in a black circle (no text or symbols)

Symbol of two gloves inside a black circle (no text or numbers)

Simple icon of a person wearing sunglasses inside a circle (no text or symbols)

Symbol of a human figure in a suit inside a black circle (no text or numbers present)

Black circular icon with a white safety vest symbol (no text or numbers)

CAUTION WET FLOOR

Symbol of a trash bin crossed with no visible text or labels

Icon of a person wearing headphones inside a black circle (no text or symbols)

Gehoorbescherming

Black circular icon with a white boot symbol (no text or numbers)

Silhouette of a person wearing a helmet, enclosed in a black circle (no text or symbols)

Veiligheidshelm

Symbol of two gloves on a black circular background (no text or symbols)

CAUTION SET FLOOR

Simple icon of a person wearing sunglasses inside a circle (no text or symbols)

Oogbescherming

Symbol of a human figure in a suit inside a black circle (no text or numbers present)

Beschermende kleding

Black circular icon with a white safety vest symbol (no text or numbers)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Icon of a person wearing headphones inside a circle (no text or symbols)

Silhouette of a person wearing a helmet inside a black circle (no text or symbols)

Black circular icon with white hand gesture symbol (no text or numbers)

Luvas de segurança

CAUTION SET FLOOR

Simple icon of a person wearing sunglasses inside a circle (no text or symbols)

Proteção ocular

Symbol of a human figure in a wide stance, enclosed in a black circle (no text or numbers present)

Black circular icon with a white safety vest symbol (no text or numbers)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Icon of a person wearing headphones inside a black circle (no text or symbols)

Black circular icon with a white boot symbol (no text or numbers)

Silhouette of a person wearing a helmet, enclosed in a black circle (no text or symbols)

Symbol of two gloves on a black circular background (no text or symbols)

Guanti di sicurezza

CAUTION SET FLOOR

Simple line drawing of a person's head wearing sunglasses (no text or symbols)

Symbol of a human figure in a wide stance, enclosed in a black circle (no text or numbers present)

Black circular icon with a white safety vest symbol (no text or numbers)

Icon of a person wearing headphones inside a circle (no text or symbols)

Silhouette of a person wearing a helmet (no text or symbols)

Black circular icon with white hand gesture symbol (no text or numbers)

CAUTION WET FLOOR

Simple icon of a person wearing sunglasses on a black circular background (no text or symbols)

Symbol of a human figure in a wide-brimmed pose inside a black circle (no text or numbers present)

Ropa de protección

Black circular icon with a white safety vest symbol (no text or numbers)

Spares and Accessories (GB)

915170 Battery Pack Assembly (25.2 V)

914434 Battery Charger - European Plug / Swiss Plug

914440 Battery Charger - UK Plug

914437 Battery Charger - South African Plug

914746 Numatic Floor Tool Graphite

915269 Pack of 10 Pods

914593 Pack of 10 Scent Capsules

Ersatzteile (DE)

915170 Akku-Baugruppe (25,2 V)

914434 Akkuladegerät mit EU / SE-Netzstecker

914440 Akkuladegerät mit UK-Netzstecker

914437 Akkuladegerät mit SA-Netzstecker

914746 Numatic Saugdüse

915269 Packung mit 10 Kartuschen

914593 Packung mit 10 Duftkapseln

Pièces de rechange (FR)

915170 Bloc batterie (25,2 V)

914434 Chargeur de batterie - Fiche EU/SE

914440 Chargeur de batterie - Fiche UK

914437 Chargeur de batterie - Fiche SA

914746 Outil pour sol Numatic

915269 Lot de 10 sacs filtrants

914593 Lot de 10 capsules parfumées

Reserveonderdelen (NL)

915170 Accuset (25,2 V)

914434 Acculader - EU / SE-stekker

914440 Acculader - UK-stekker

914437 Acculader - SA-stekker

914746 Numatic zuigmond

914592 Verpakking met 10 filters

914593 Verpakking met 10 geurcapsules

UKCA Declaration of Conformity
Manufacturer:	Numatic International LimitedChardSomersetTA20 2GBwww.numatic.co.uk
Product:	HEN, HTY, NQ
Description:	Vacuum Cleaner – Commercial – Dry
We, Numatic hereby declare under our sole responsibility, that the above-mentioned product(s) is/are in conformity with the following directives and standards.
S.I. 2008: 1597	Supply of Machinery Regulations	EN60335-1:2012 + AC:2014 + A11:2014 + A13:2017EN60335-2-69:2012EN62233:2008
S.I. 2016: 1091	EMC Regulations	EN55014-1:2017 + A11:2020EN55014-2:1997 + A1:2001 + A2:2008EN61000-3-2:2014EN61000-3-3:2013
S.I. 2012: 3032	RoHS Regulations
Authorised Signatory: Mr. Matthew ColesSigned: Date: 29 ^th Apr 2022		Position: Head of TechnologyNumatic International Limited, Chard,Somerset, TA20 2GB, UK

Numatic

Numatic International Limited.

Chard, Somerset TA20 2GB ENGLAND

Tel: [phone] www.numatic.co.uk

Numatic International GmbH. Fränkische Straße 15–19

D-30455 Hannover, DEUTSCHLAND

Tel: [phone] www.numatic.de

Numatic International SAS. 13 / 17 rue du Valengelier

EAE La Tuilerie – 77500 CHELLES, FRANCE

Tel: [phone] www.numatic.fr

Numatic International BV

16th & Pharmaceutical Roads, Midrand, Gauteng,

SOUTH AFRICA 1685

Tel: [phone] www.numatic.co.za

Numatic International Schweiz AG.

Sihlbruggstrasse 3A, 6340 Baar. SCHWEIZ

Tel: [phone] - 0 www.numatic.ch

Specification subject to change without prior notice

www.numatic.co.uk © Numatic International Limited

This Product has been comprehensively inspected and checked during every stage of its manufacture.

Including an in-depth electrical safety and functionality test.
