USER MANUAL Henry Quick HEN100 Numatic

Technical line drawings of a vacuum cleaner device, showing front and side views (no text or symbols)

Original Instructions

CAUTION, Read instructions before using the machine.

Red and black Henry Gas washing machine with warning symbols (no text or labels on device body)

myhenry.com

Labeled diagram of a sewing machine with numbered parts for identification

Labeled diagram of a vacuum cleaner with numbered parts for identification

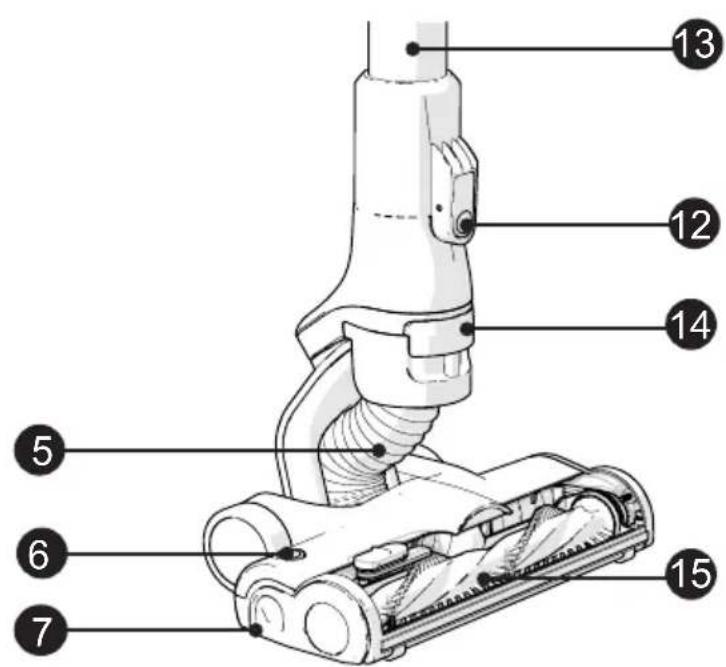

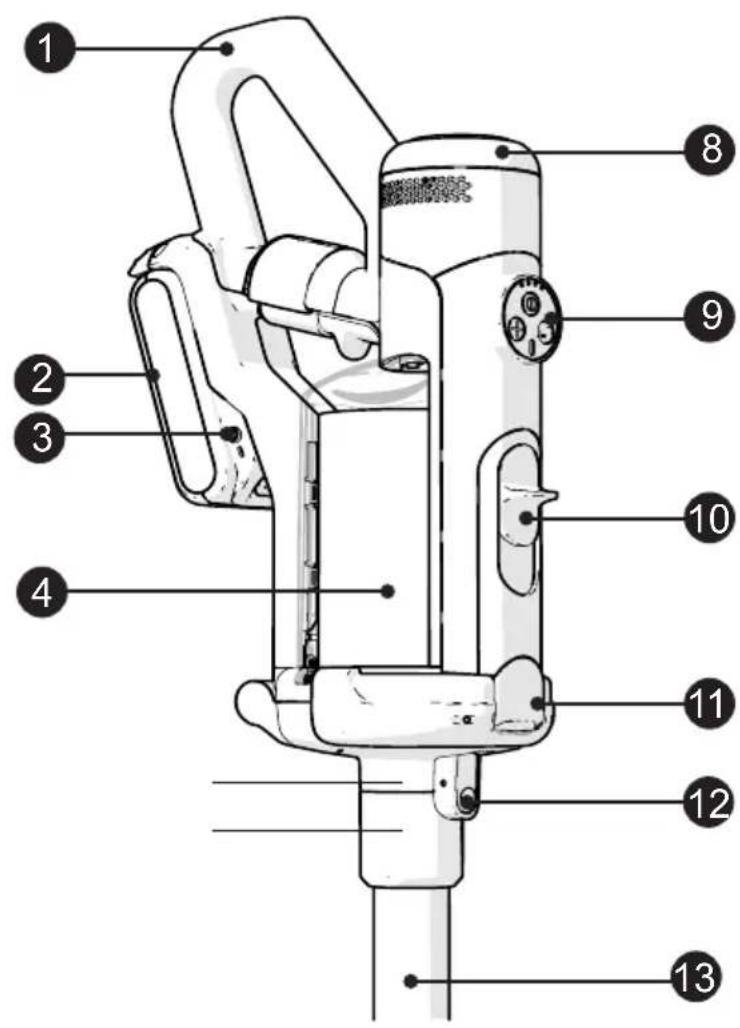

(GB) Index
1	Extension handle Page 11
2	Battery pack Page 6
3	Charging Port Page 12
4	Filter Pod / Tank Page 10
5	Hose Page 13
6	Brush release button Page	14
7	Brush release panel Page	14

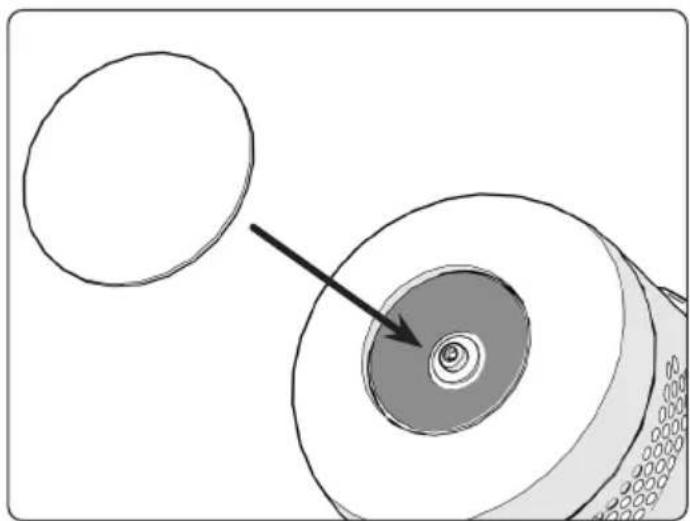

8	Scent capsule cover Page	8
9	Control Panel Page 7/12
10	Lid release / Pod Eject Page	10
11	Lid Catch Page 10
12	Release Button	Page 5
13	Wand Section Page 5
14	Hose release	Page 13
15	Brush Roll	Page 14

Technical line drawings of various household appliances including a vacuum cleaner, electrical connectors, and a cord (no text or labels present)

Main Assembly, Hauptbaugruppe, Unité principale, Montage hoofdunit, Montagem principal, Corpo principale, Conjunto principal

Technical diagram illustrating the assembly of a vacuum cleaner with labeled components and directional arrows indicating motion.

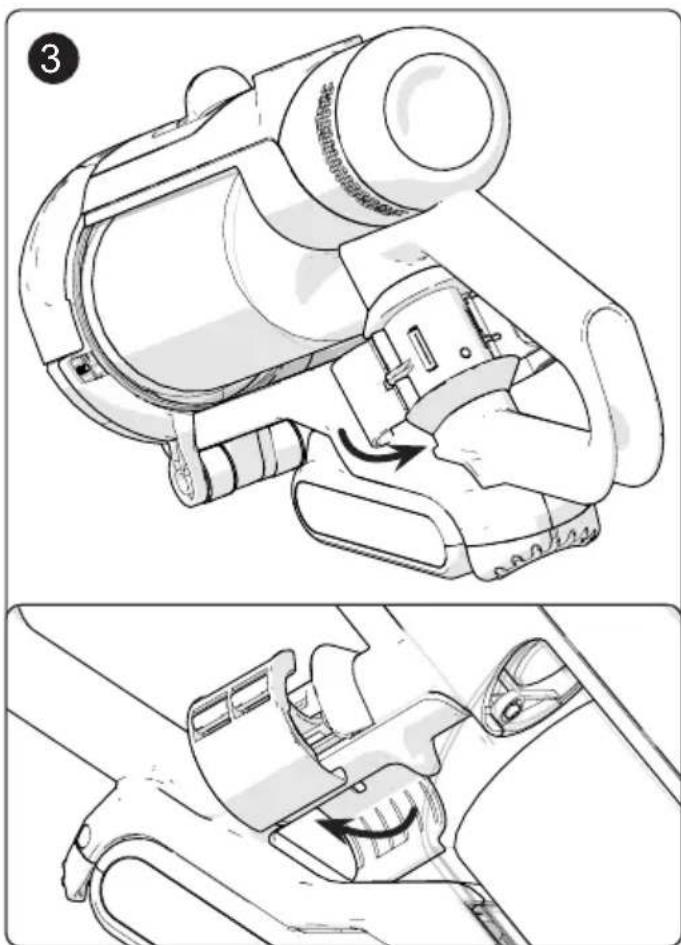

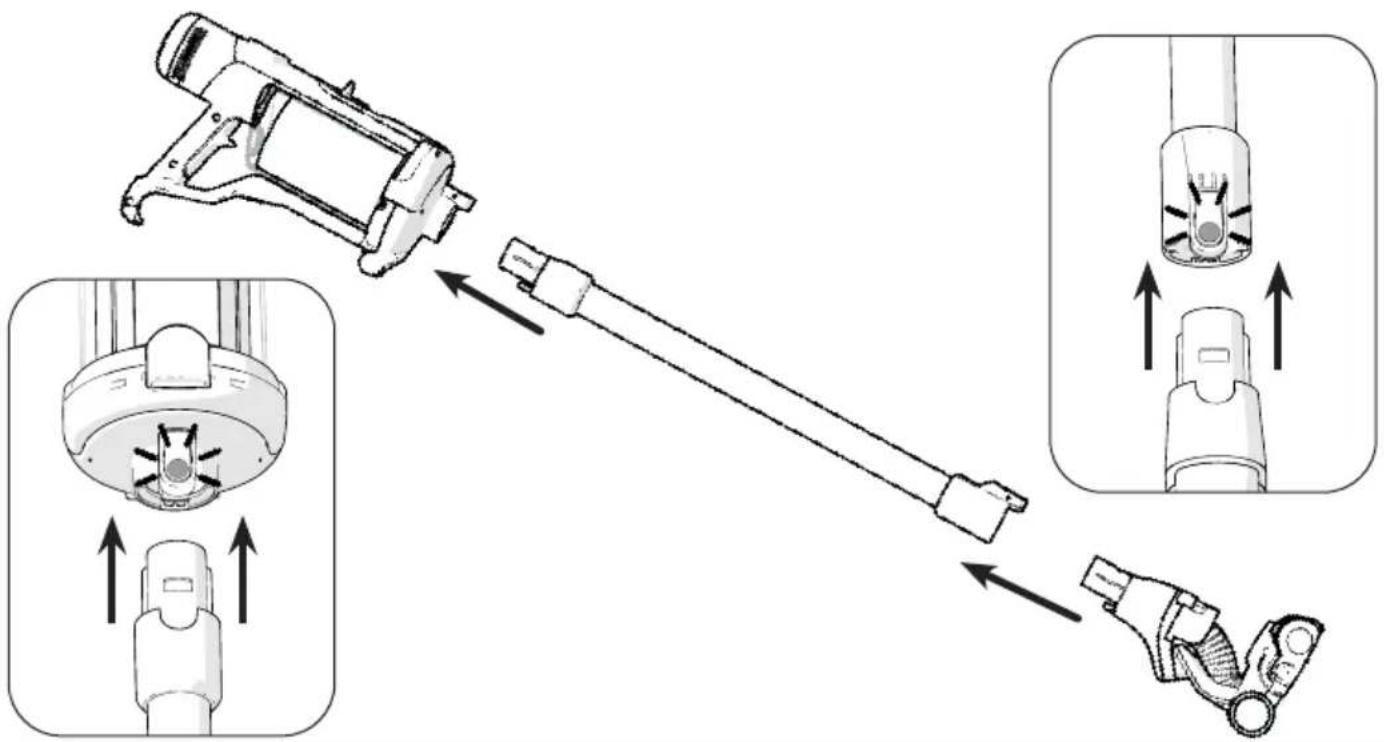

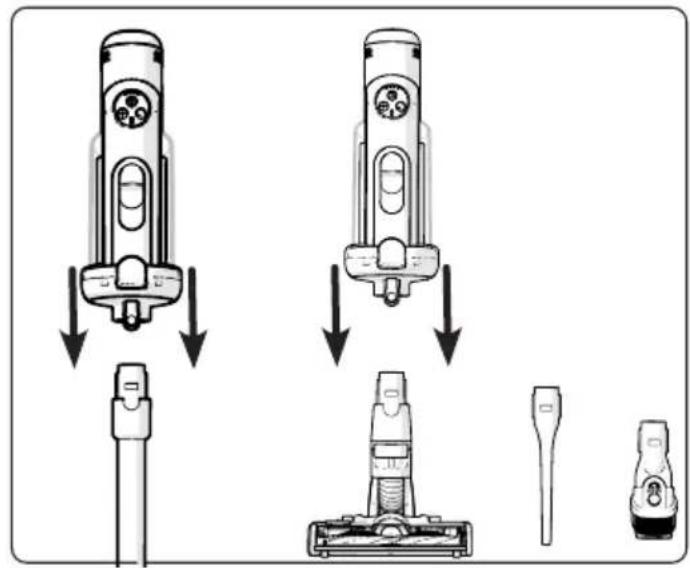

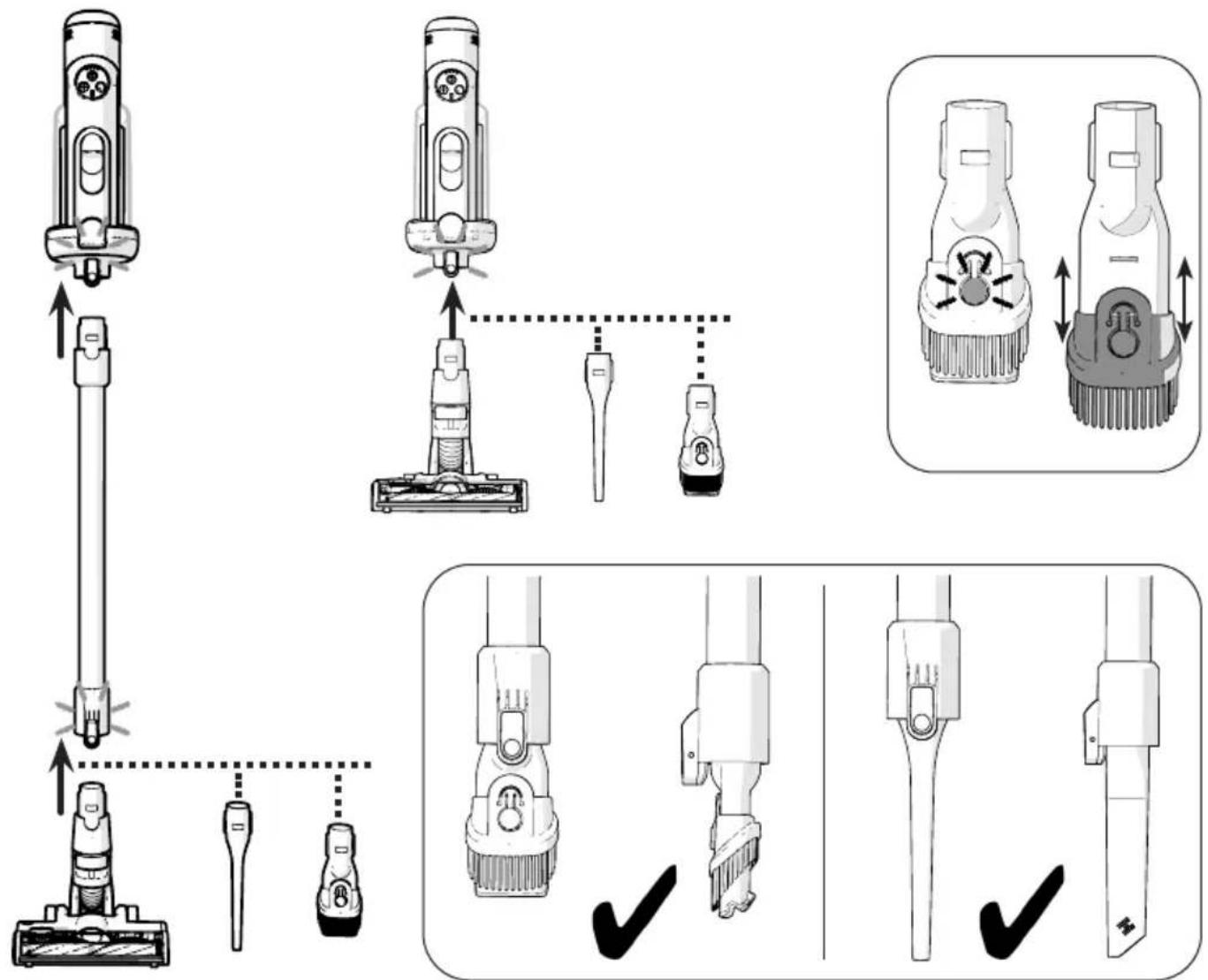

Accessory Fitting, Zubehöranschluss, Fixation des accessoires, Accessoires plaatsen, Encaixe dos acessórios, Montaggio degli accessori, Conexión de accesorios

Diagram illustrating the step-by-step installation of a vacuum cleaner, showing how to install components from a single brush to a multi-pin tool.

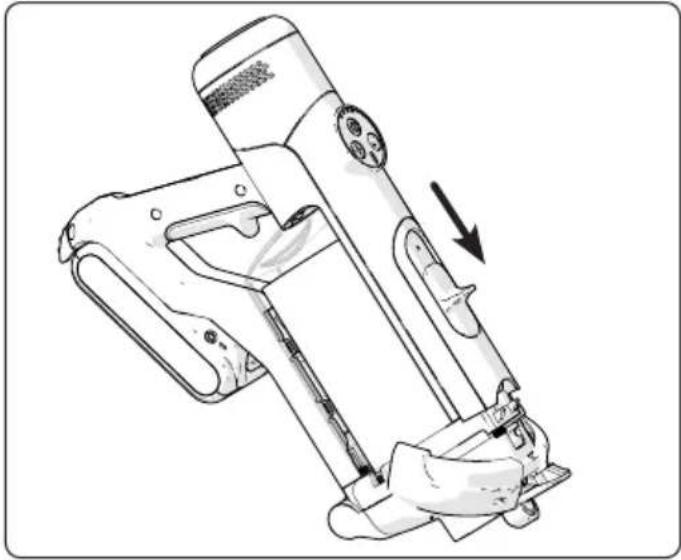

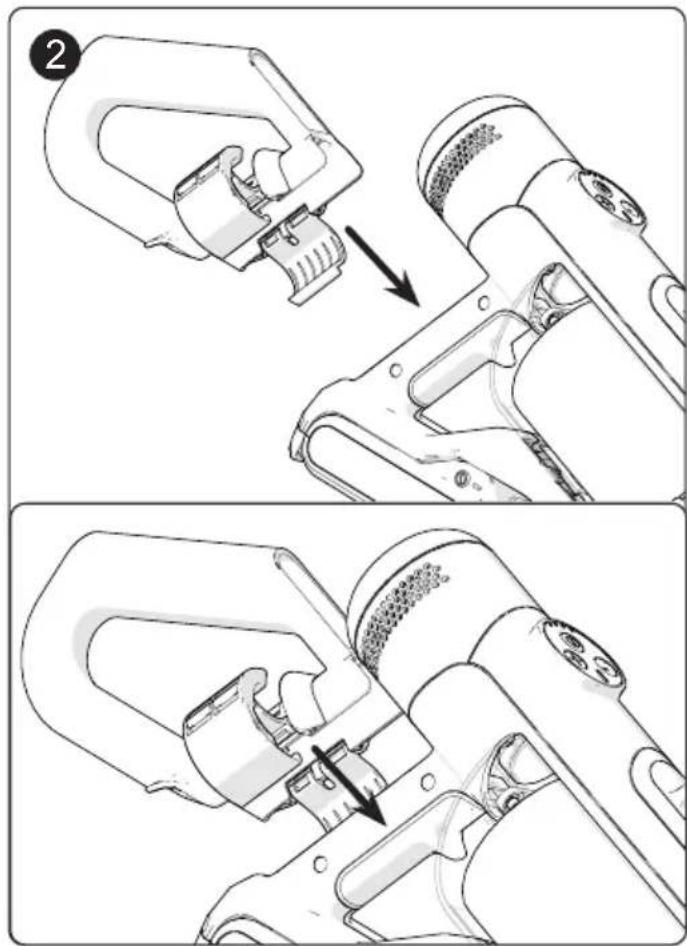

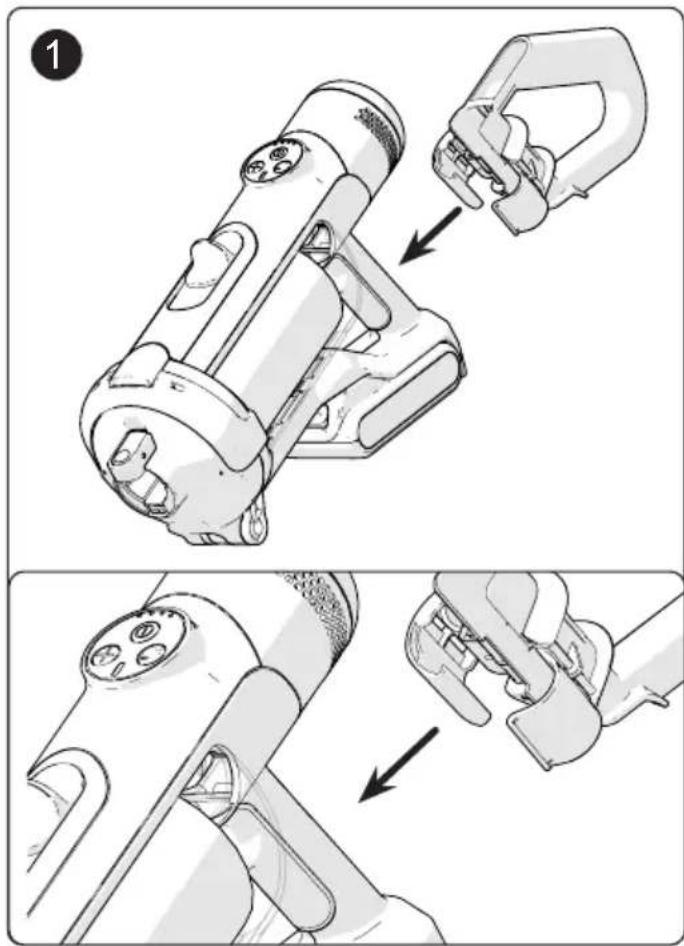

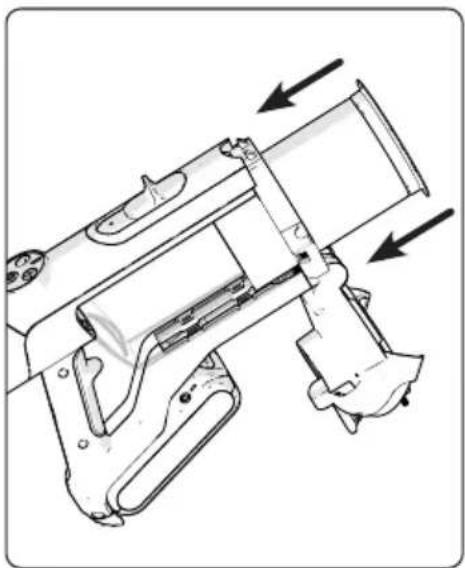

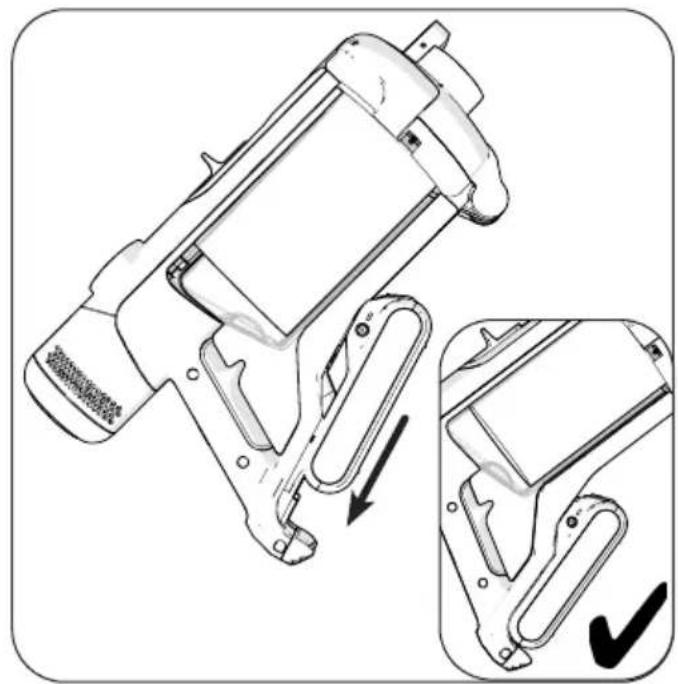

Battery Fitting, Akkuanschluss, Fixation de la batterie, Accu plaatsen, Encaixe da bateria, Montaggio della batteria, Conexión de la batería

Technical line drawing of a handheld device with two directional arrows indicating movement or assembly (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing a close-up of the component (no text or symbols present)

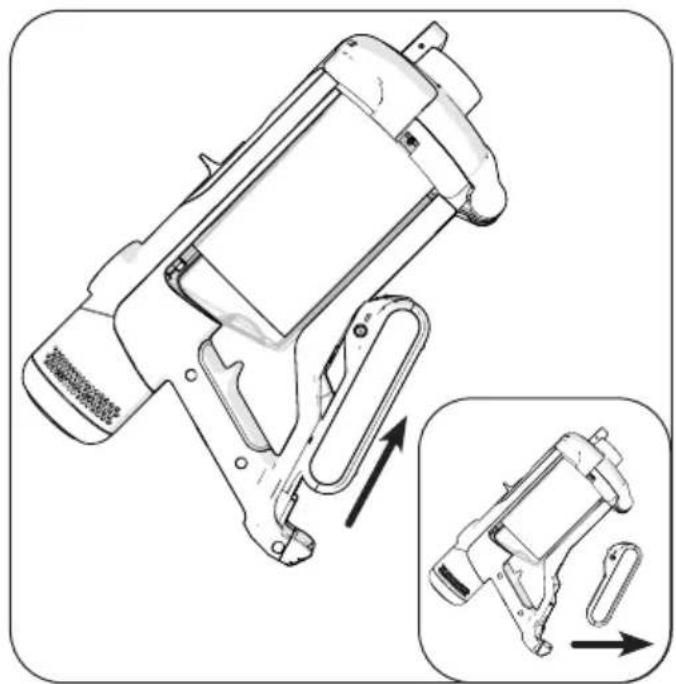

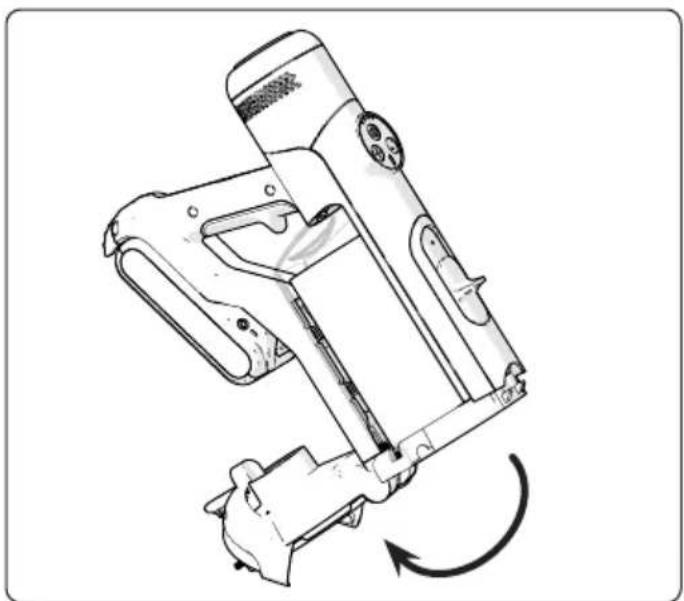

Battery Removal, Entfernung des Akkus, Retrait de la batterie, Accu verwijderen, Remoção da bateria, Rimozione della batteria, Extracción de la batería

Technical line drawing of a handgun component with an inset close-up showing a small mechanical part (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing a close-up of its internal components (no text or symbols present)

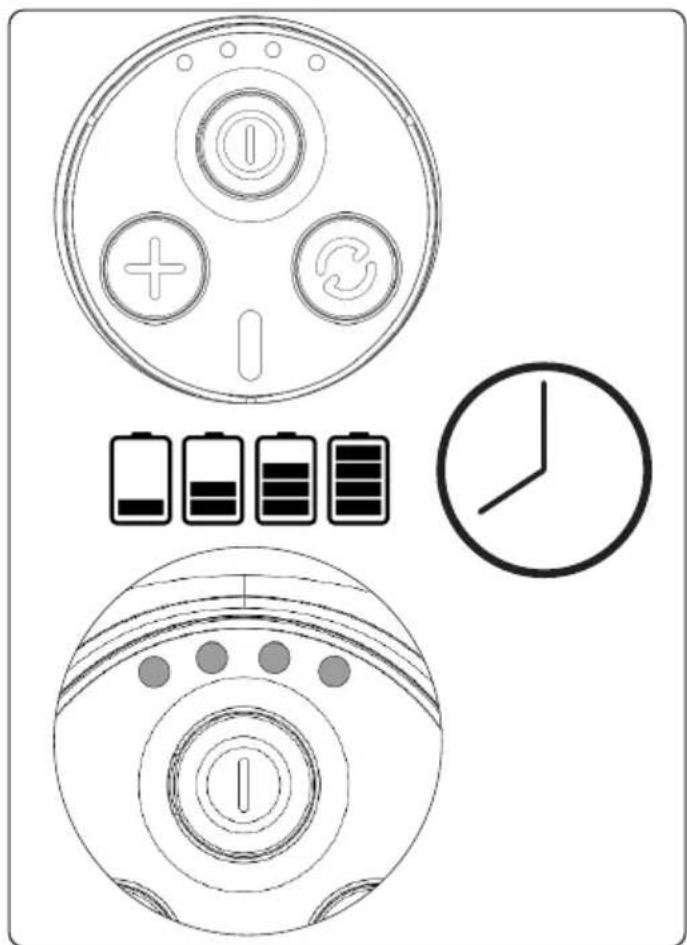

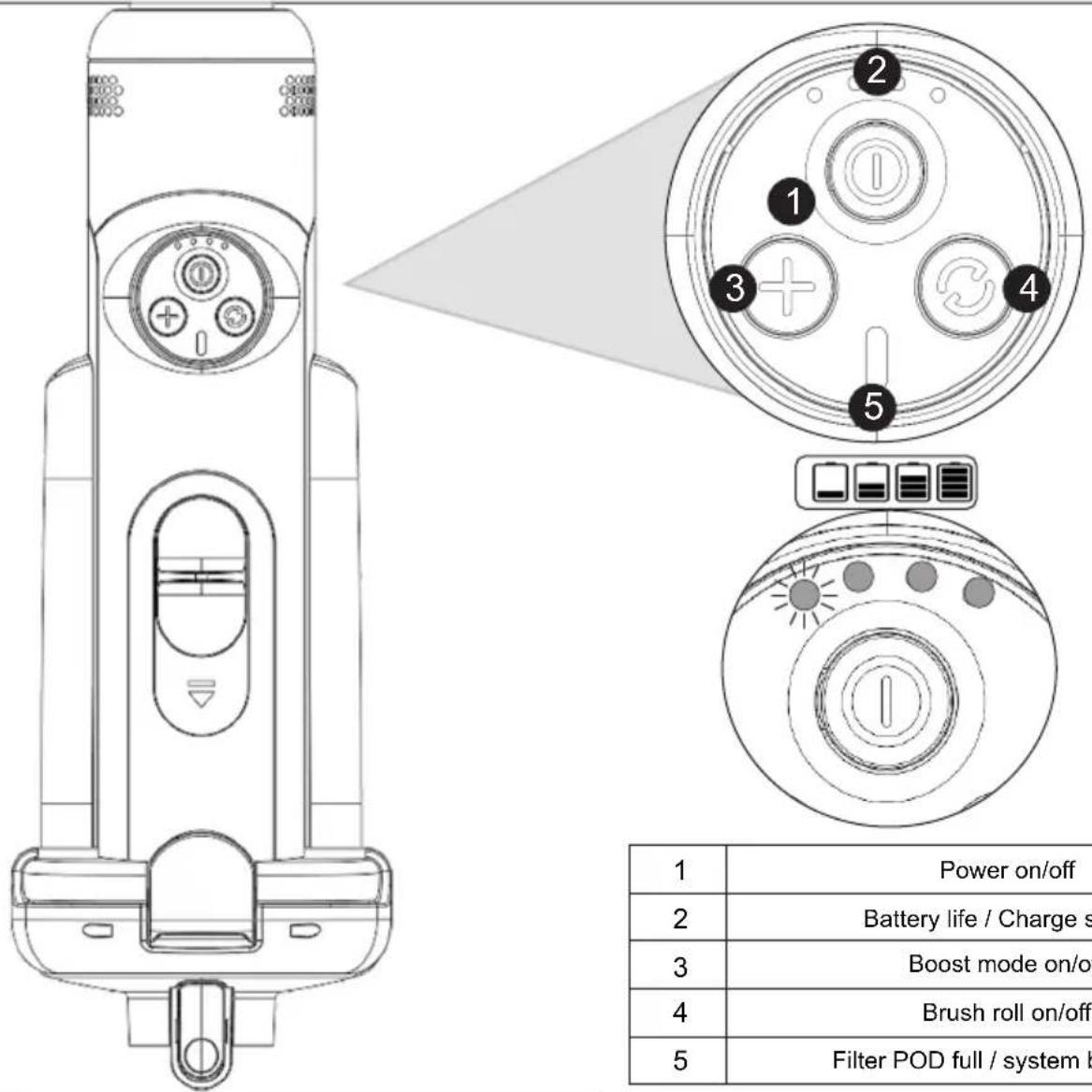

Control Panel, Bedienfeld, Panneau de commande, Bedieningspaneel, Painel de controlo, Pannello di controllo, Panel de control

1 2 3 4 5 Power on/off Battery life / Charge s Boost mode on/o Brush roll on/off Filter POD full / system b

1	Ein/Aus (DE)
2	Akkulaufzeit/Ladestatus
3	Boost-Modus ein/aus
4	Bürstenrolle ein/aus
5	FILTERKARTUSCHE voll/System blockiert
1	In-/uitschakelen (NL)
2	Levensduur accu/oplaadstatus
3	Boostmodus aan/uit
4	Borstelrol aan/uit
5	Filter vol/systeem verstopt
1	Accensione/spegnimento (IT)
2	Durata della batteria/Stato di ricarica
3	Attivazione/disattivazione modalità Boost
4	Accensione/spegnimento spazzola a rullo
5	Gondola filtro piena/Blocco del sistema

1	Power on/off (GB)
2	Battery life / Charge status
3	Boost mode on/off
4	Brush roll on/off
5	Filter POD full / system blockage

Diagram of a mechanical component with concentric circular features and directional arrows indicating motion (no text or symbols)

Technical diagram of a mechanical component with a circular part inserted into a housing (no text or symbols)

Diagram of a mechanical component with a circular feature and an arrow pointing to a concentric ring (no text or symbols)

Diagram of a mechanical component with arrows indicating direction and a checkmark (no text or symbols present)

Floor Tool Air Bleed Control, Bedienung der Saugdüsenentlüftung, Commande de purge d'air de l'outil pour sol, Ontluchtingsregeling zuigmond, Controlo de purga de ar do acessório do pavimento, Comando di sfiato aria del tergipavimento, Control de purga de aire de la boquilla de aspiración

Diagram of a device interior with directional arrows indicating flow or movement, no text or symbols present

Diagram of a device's internal structure with directional arrows indicating flow or movement (no text or symbols present)

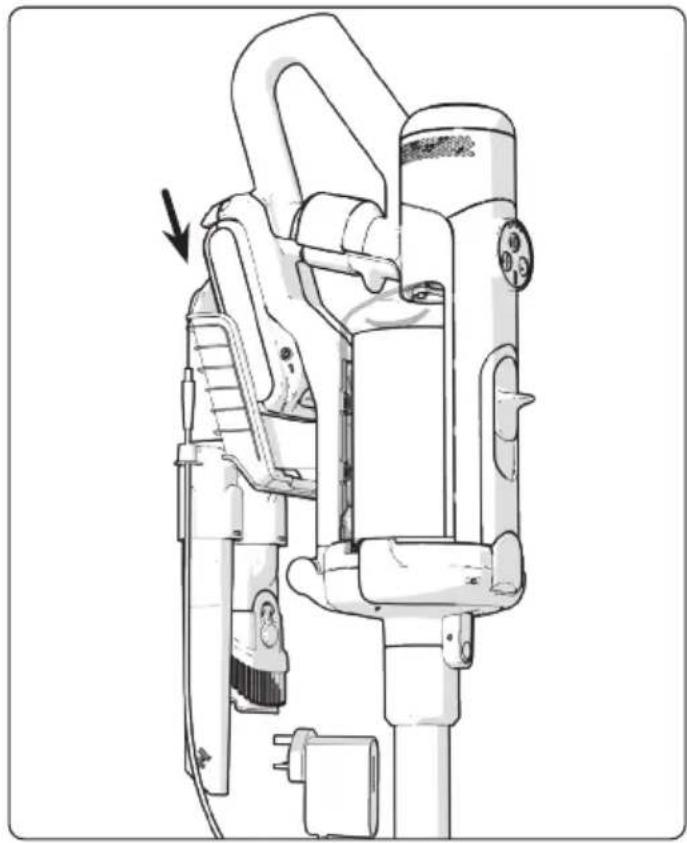

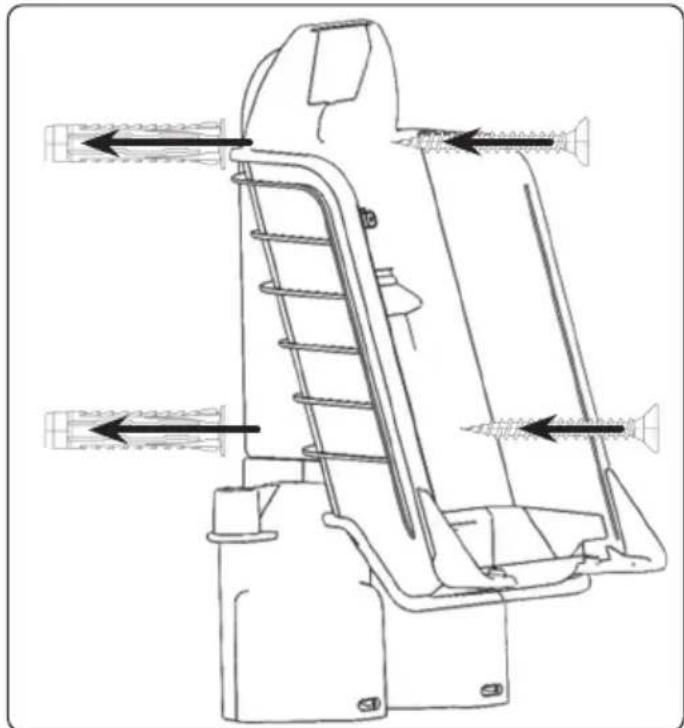

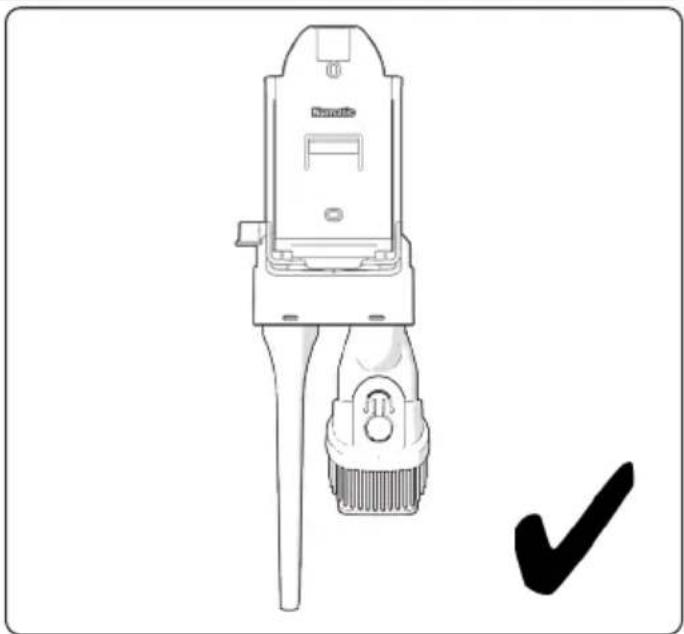

Charger Wall Mounting, Wandbefestigung des Ladegeräts, Montage mural du chargeur, Lader wandbevestiging, Montagem na parede do carregador, Montaggio a parete del caricabatteria, Montaje del cargador en la pared

Technical line drawing of a mechanical device with internal components and directional arrows indicating flow or movement (no text or symbols)

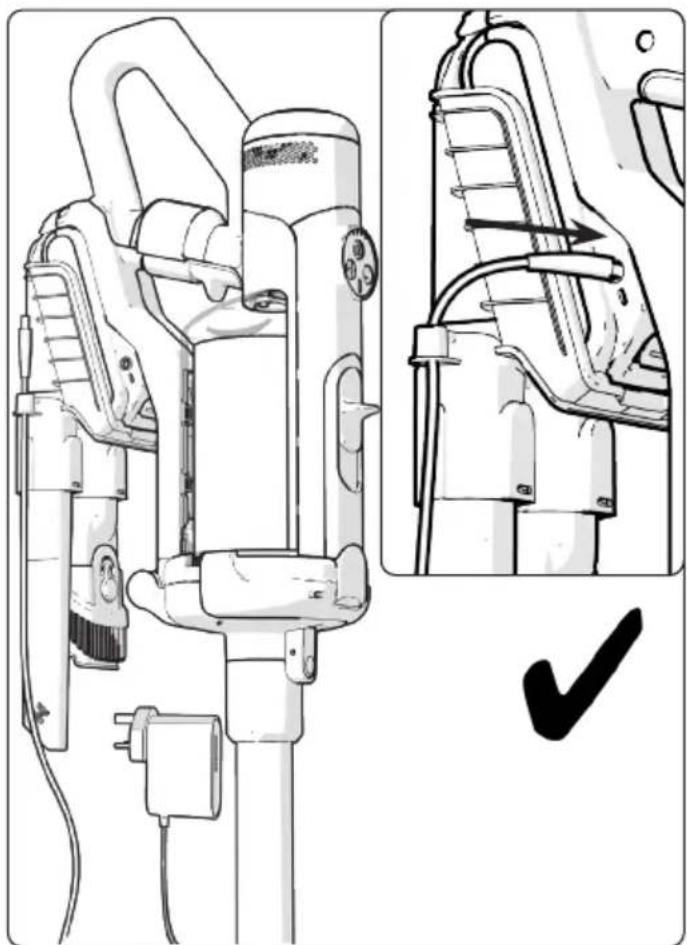

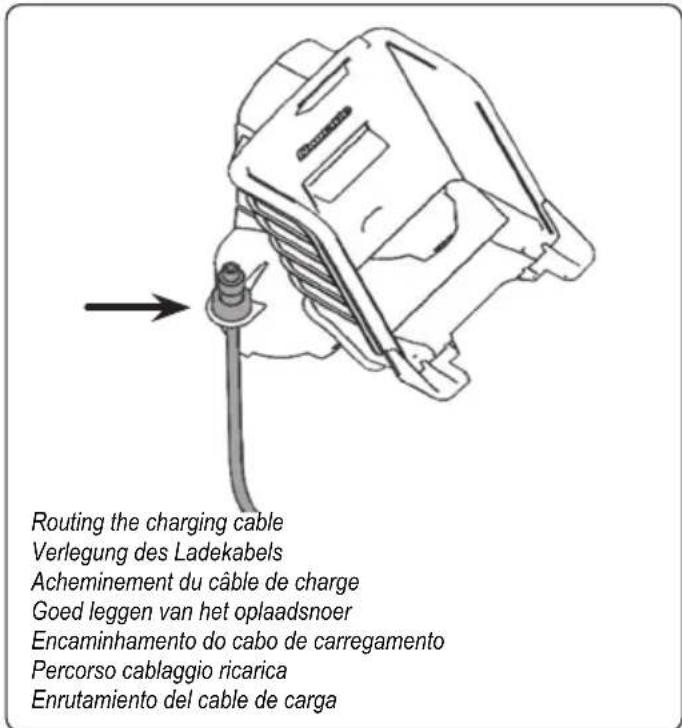

Routing the charging cable Verlegung des Ladekabels Acheminement du cable de charge Goed leggen van het oplaadsnoer Encaminhamento do cabo de carregamento Percorso cablaggio ricarica Enrutamiento del cable de carga

Use correct fixings for your wall type, which is suitable for the weight of the machine (3.2 kg).

The use of adhesives is not considered a reliable means of fixing.

Technical diagram showing a device with two connectors and directional arrows indicating movement or force (no text or symbols present)

Line drawing of a portable electronic device with a checkmark indicating approval (no text or symbols on the device itself)

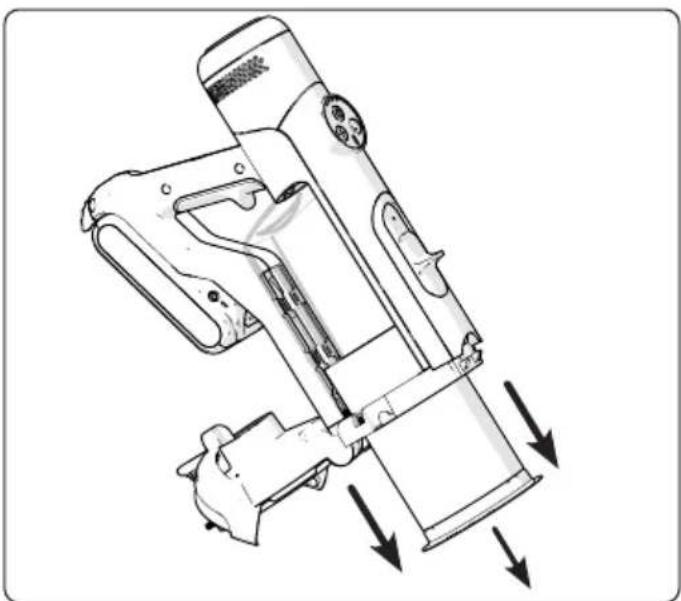

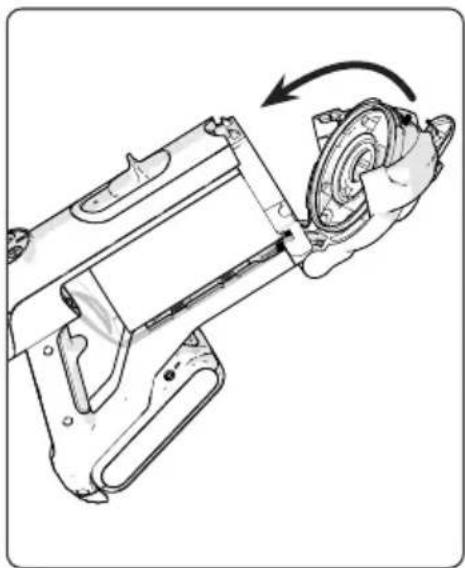

Disposable Pod Emptying, Leerung der Einwegkartusche, Retrait du sac jetable, Wegwerpfilter legen, Esvaziamento do compartimento descartável, Svuotamento della gondola monouso, Vaciado del filtro desechable

Diagram showing a sequence of cleaning or installation steps for a vacuum cleaner, with arrows indicating downward motion.

Technical line drawing of a handheld device with a downward arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical device with a rotating arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

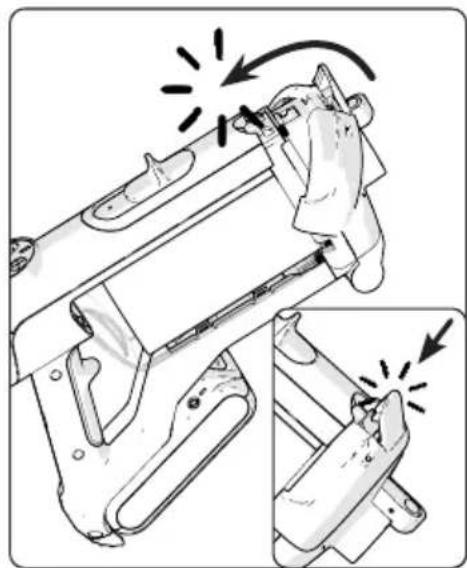

Disposable Pod Fitting, Anschluss der Einwegkartusche, Fixation du sac jetable, Wegwerpfilter plaatsen, Encaixe do compartimento descartável, Montaggio della gondola monouso, Instalación del filtro desechable

Technical line drawing of a firearm with directional arrows indicating movement or force (no text or symbols present)

Mechanical assembly diagram showing a hand turning a gear component (no text or symbols)

Illustration of a hand using a firearm to adjust the part of a gun, with no visible text or symbols.

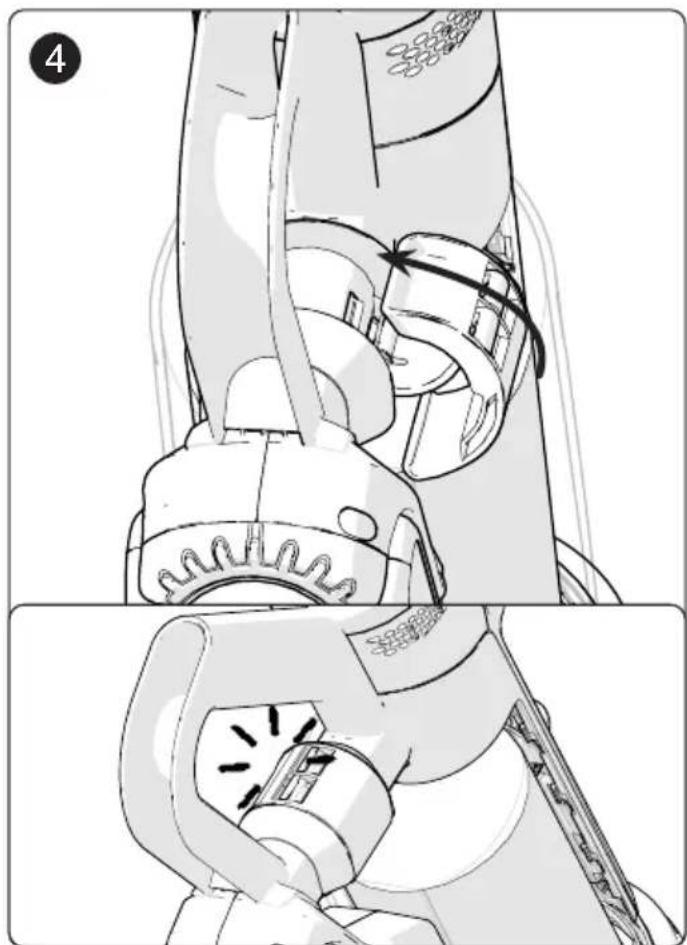

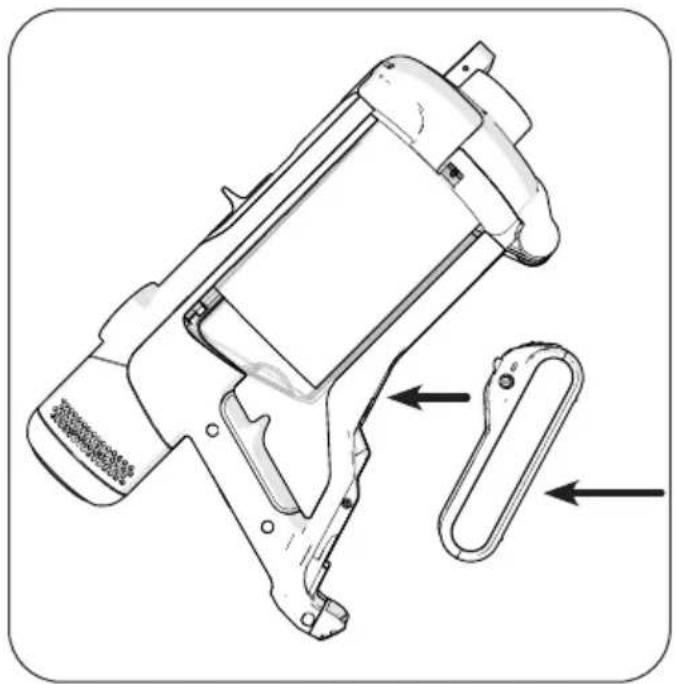

Extension Handle Fitting / Removal, Anbringung / Entfernung des Verlängerungsgriffs, Fixation / Retrait de la poignée d'extension, Verlengingshandvat plaatsen / verwijderen, Encaixe / remoção da pega de extensão, Montaggio / rimozione della maniglia di estensione, Montaje / desmontaje del mango de extensión

Technical diagram showing a device being assembled with a clamp, labeled with step number 1

Technical illustration of a hand tool in two different states, showing the process from disassembly to assembly (no text or symbols present)

Technical illustration of a handheld device with a hand operating the button, showing two steps of tool manipulation (no text or symbols present)

Technical illustration of a mechanical device with two views showing internal components and motion (no text or symbols)

Technical illustration of a vacuum cleaner with exploded view and side profile views (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with an inset detail showing internal components (no text or symbols)

Diagram showing battery and clock components with no text or symbols

Recharge time: 150 min = 100%
Ladezeit 150 min. = 100%
Temps de recharge 150 min = 100%
Laadduur 150 min. = 100%
Tempo de recarga 150 min = 100%
Tempo di ricarica 150 min = 100%
Tiempo de recarga 150 min = 100%

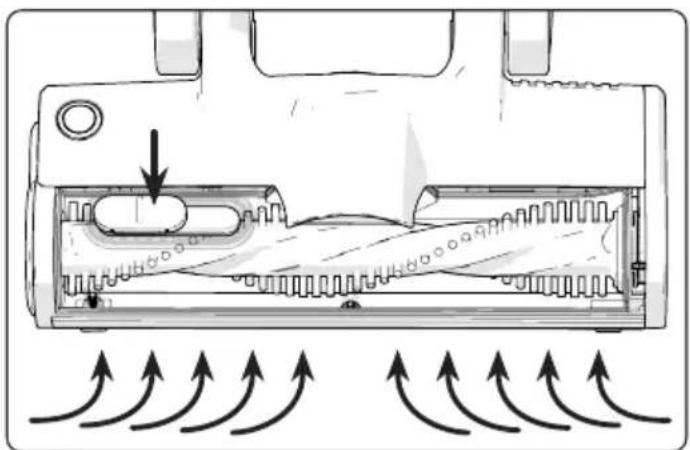

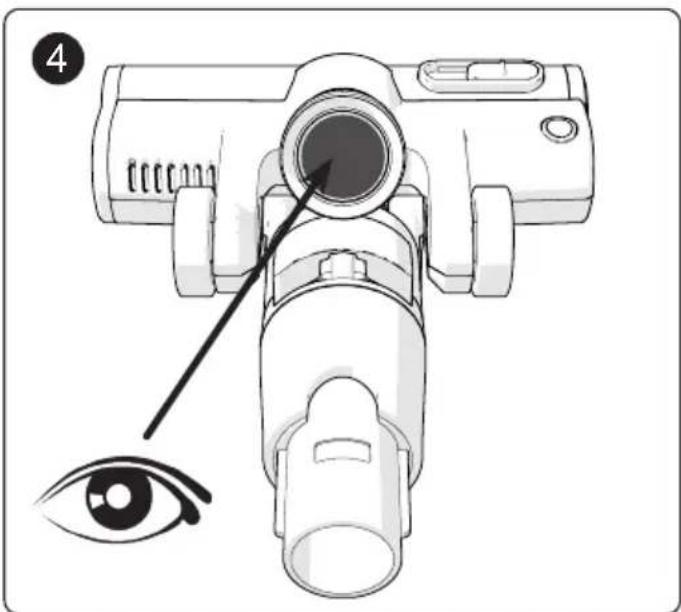

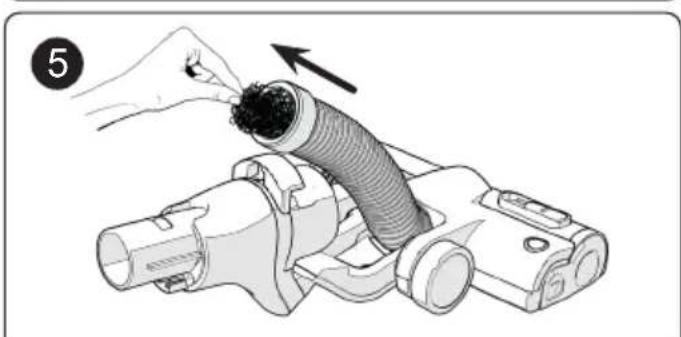

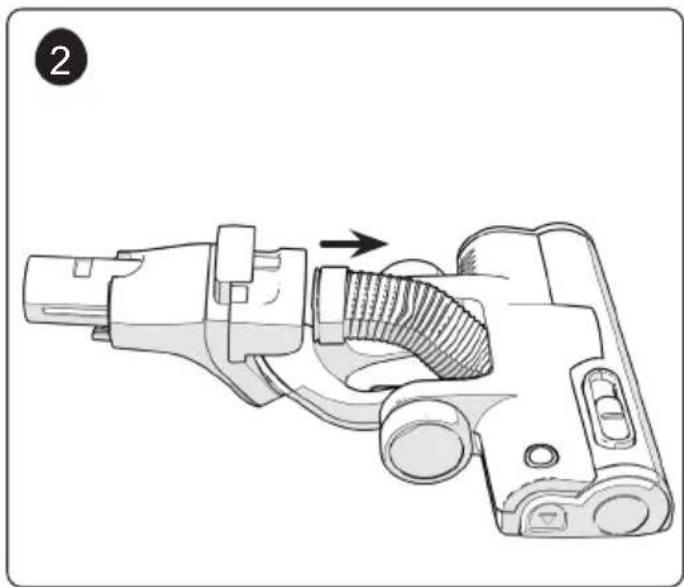

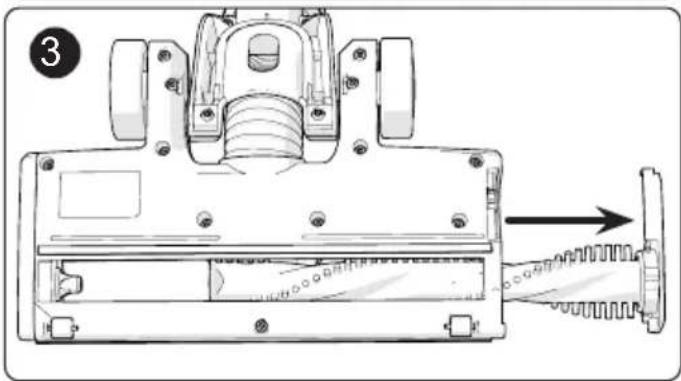

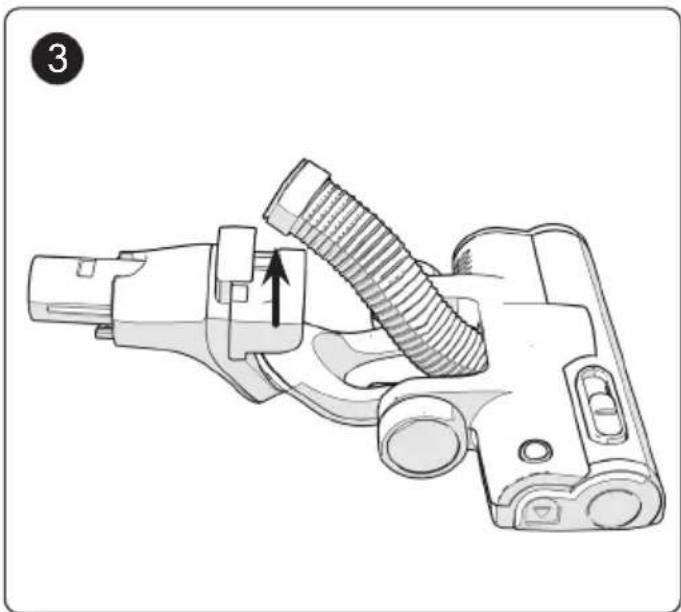

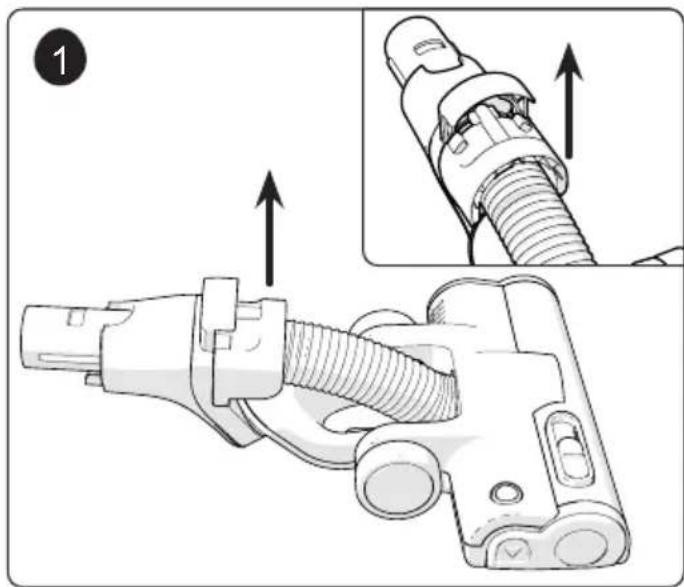

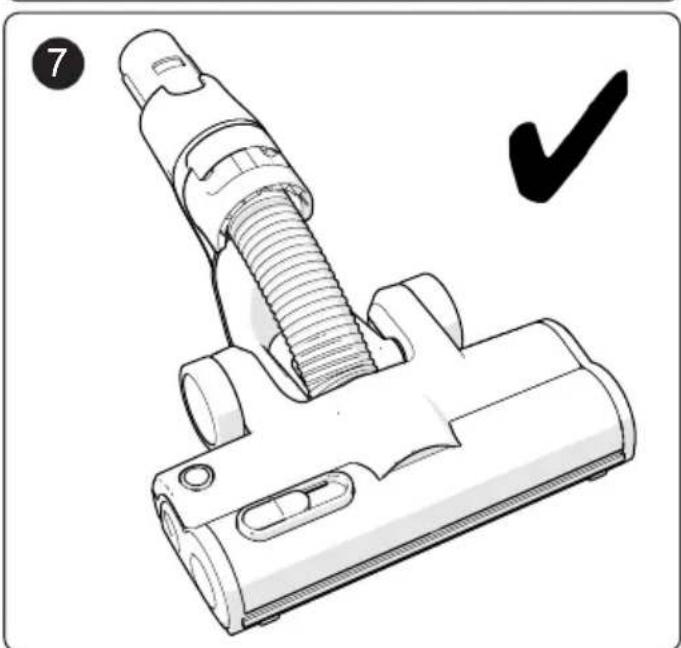

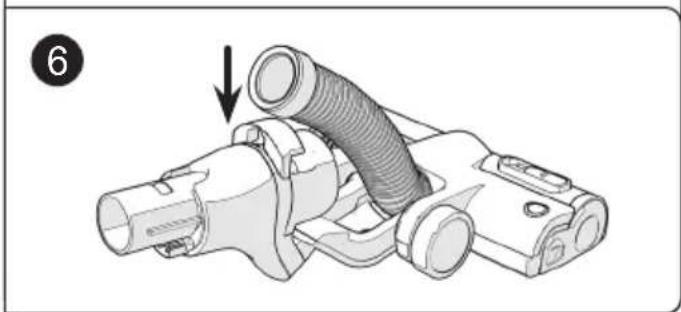

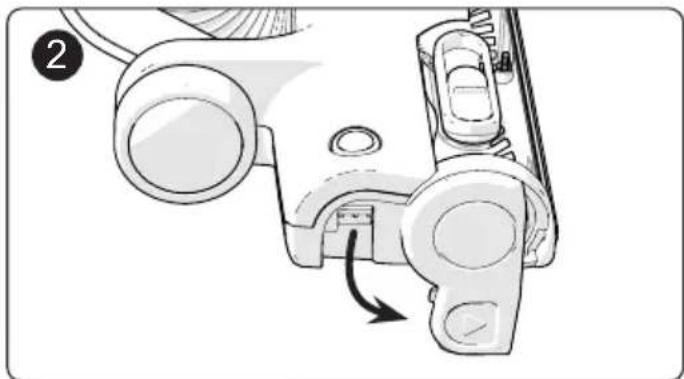

Floortool Hose Cleaning / Blockage Removal, Reinigung / Entfernen einer Blockierung des Saugdüsenschlauchs, Nettoyage / Élimination des obstructions du tuyau de l'outil pour sol, Zuigmondslang reinigen / verstopping verwijderen, Limpeza / remoção de obstrução do tubo flexível do acessório do pavimento, Pulizia del tubo flessibile del tergipavimento / rimozione delle ostruzioni, Limpieza / desobstrucción de la manguera de la boquilla de aspiración

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or assembly steps.

Technical line drawing of a handgun mechanism with an arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical device with a coiled spring and lever mechanism (no text or symbols)

4

Illustration of a hand inserting a flexible hose into a vacuum cleaner (no text or symbols present)

Technical illustration of a vacuum cleaner assembly with a checkmark indicating inspection (no text or symbols present)

Mechanical assembly diagram showing a pipe fitting with a black arrow indicating direction (no text or symbols)

Mechanical component diagram showing a valve assembly with a highlighted circular component (no text or symbols)

Mechanical component diagram showing a lever mechanism with a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical device with a spring-loaded component and a numbered label (3), showing no text or symbols.

Diagram illustrating a hand using a tool to connect two red lines to a cylindrical object, with an inset showing the same line being smoothed.

Machine data (GB)

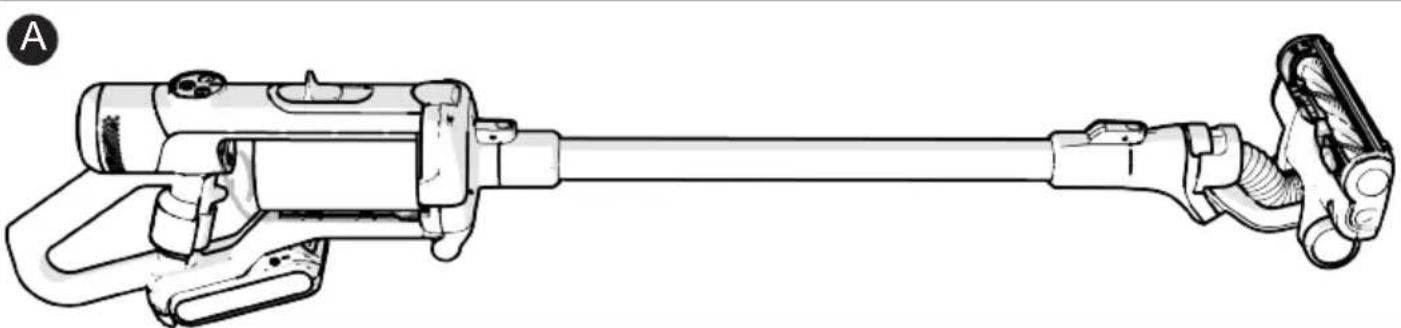

Model Voltage Protection class			Weight (Ready to work) See Fig (A)	Sound pressure (LpA) Uncertainty (KpA)	*Run Time
HEN.100 HTY.100	25.2 V Class III 3.2 kg			77 dB (A) 0.5 dB	70 min (Low – Brush OFF) 55 min (Low – Brush ON) 16 min (High – Brush OFF) 14 min (High – Brush ON)
	Pod Capacity	*Charging Times	Rated Power Hand / Arm Vibration		Dimensions L x W x H
	1 L	150 mins to 100 %	300 W ah ≤	2.5 m/s ^2	270 mm x 240 mm x 1220 mm
*Run and Recharge times may vary dependent on ambient temperature and expected battery ageing.

Technical line drawing of a mechanical device with articulated joints and a handle (no text or symbols)

Trouble Shooting

No.			Problem Possible Reason	Solution
1			Large RED light on control panel is flashing	There may be a blockage in the system	Check the floorhead hose, wands, connections and accessories, remove any blockages, page 13
				The filter pod may be full If there are no	blockages in the system, eject and replace the filter pod, page 10
2			Machine is difficult to push on carpet	The carpet pile is very deep or dense and can cause high pressure inside the floor head	Open the air valve on top of the floorhead to reduce pressure, page 8
					Switch the machine from boost to normal mode, page 7
3			Floor brush cuts out on rugs or carpet	The carpet or rug pile is very deep and can cause high pressure on the brush, the safety system cuts power to the brush	Switch off floor brush from the control panel, page 7
					Switch the machine from boost to normal mode, page 7
4			Vacuum lifts area rugs The vacuum	suction may be too high and/or the brush roll is picking up the rug	Switch the machine from boost to normal mode and switch off the brush roll, page 7
					Adjust floor Tool Air Bleed Control page 8

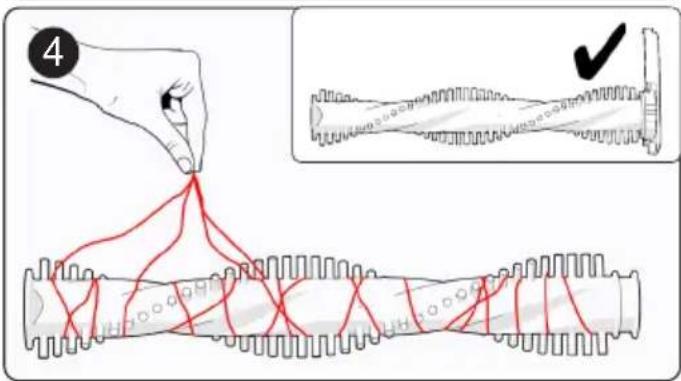

5			Floor head is not picking up hair or fibres	The floor brush has excessive hair wrapped around it	Remove the floor brush from the floor head and clean, page 13
				There is a partial blockage in the floor head or wands	Check the floorhead hose and wands, remove any blockages, page 13
6			No power at rotating floor brush	The brush head button is switched off S	Switch the machine off and then back on again, page 7
7			Machine will not power up after prolonged use	The machine is equipped with a motor-protective thermostat as well as battery extreme temperatures protection, the system temperatures are outside of working parameters	Allow the machine and the battery to cool down
Modell Spannung Schutzklasse			Gewicht (betriebsbereit) siehe Abb. (A)	Schalldruckpegel (LpA) Toleranz (KpA)	*Laufzeit
HEN.100 HTY.100	25.2 V Klasse III 3.2 kg			77 dB (A) 0.5 dB	70 Min. (Niedrig – Bürste AUS) 55 Min. (Niedrig – Bürste AN) 16 Min. (Hoch – Bürste AUS) 14 Min. (Hoch – Bürste AN)
	Kartuschenkapazität	*Ladezeiten Nennleistung Hand / Arm Vibration			Abmessungen L x B x H
	1 L	In 150 Min. auf 100 %	300 W ah ≤	2.5 m/s ^2	270 mm x 240 mm x 1220 mm
*Die Lauf- und Ladezeiten können je nach Umgebungstemperatur und der erwarteten Akkulaufzeit variieren.

Fehlersuche (DE)

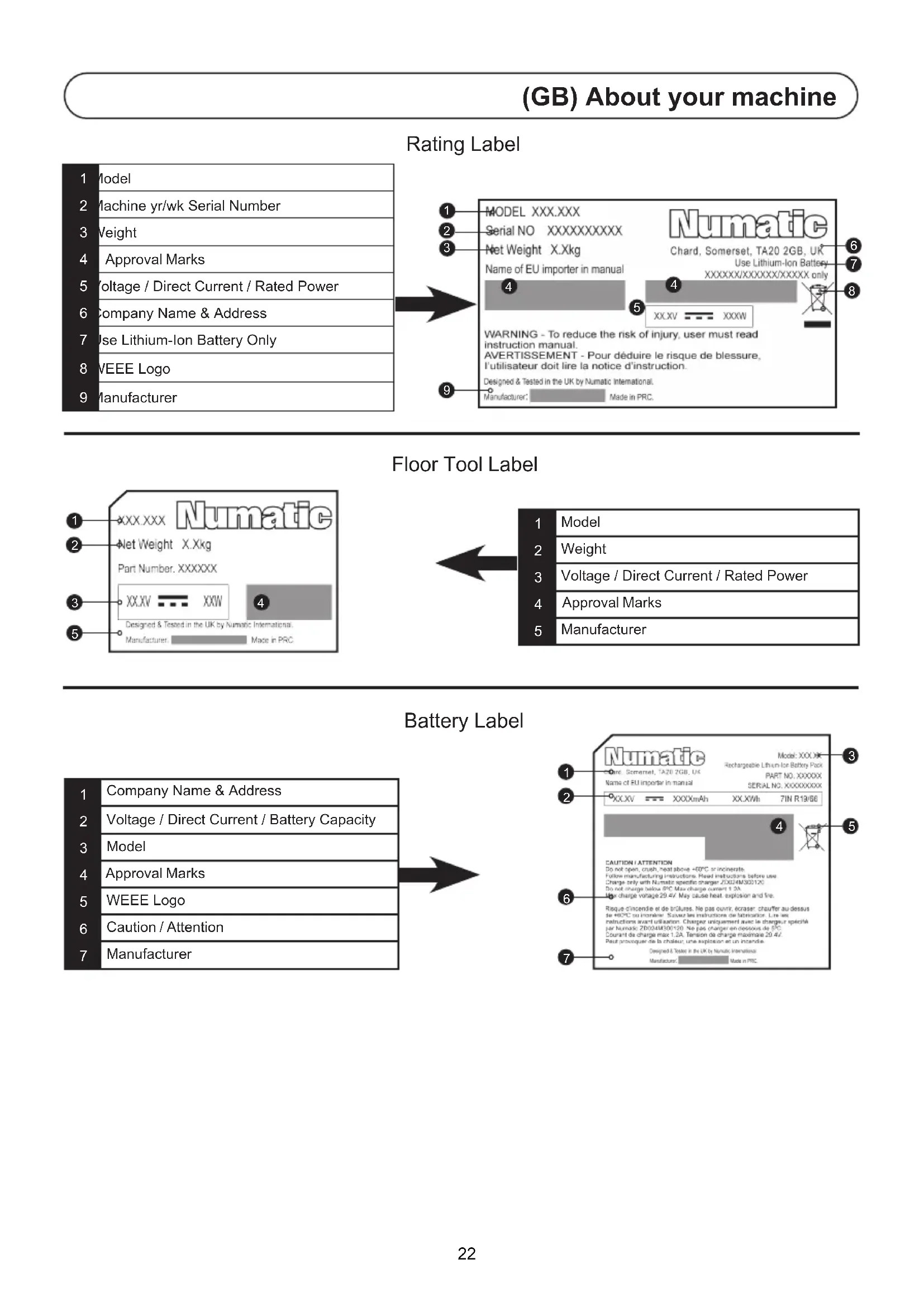

(GB) About your machine

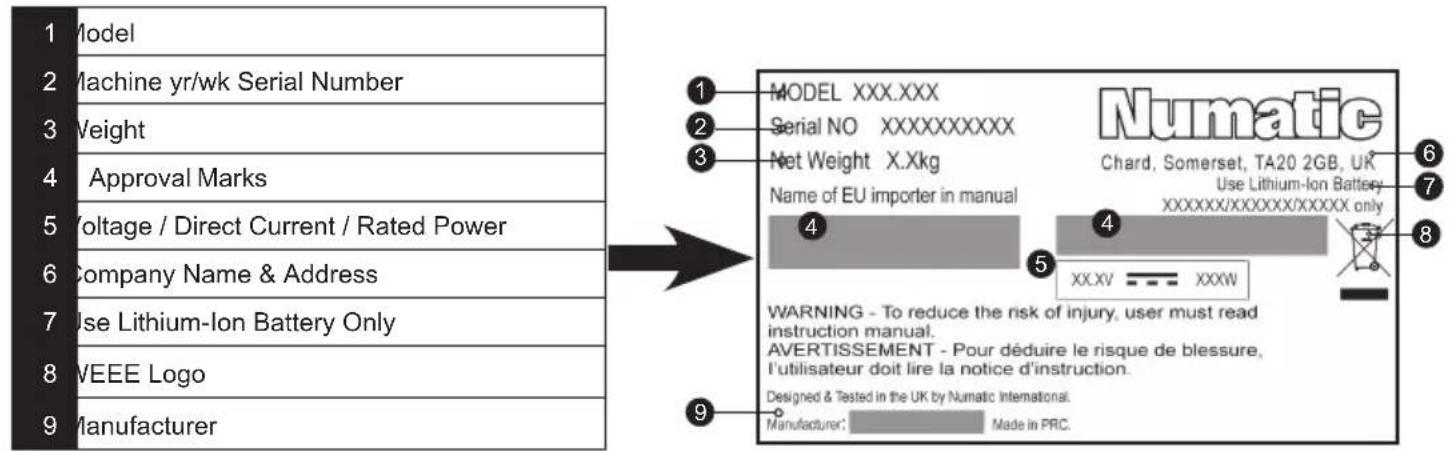

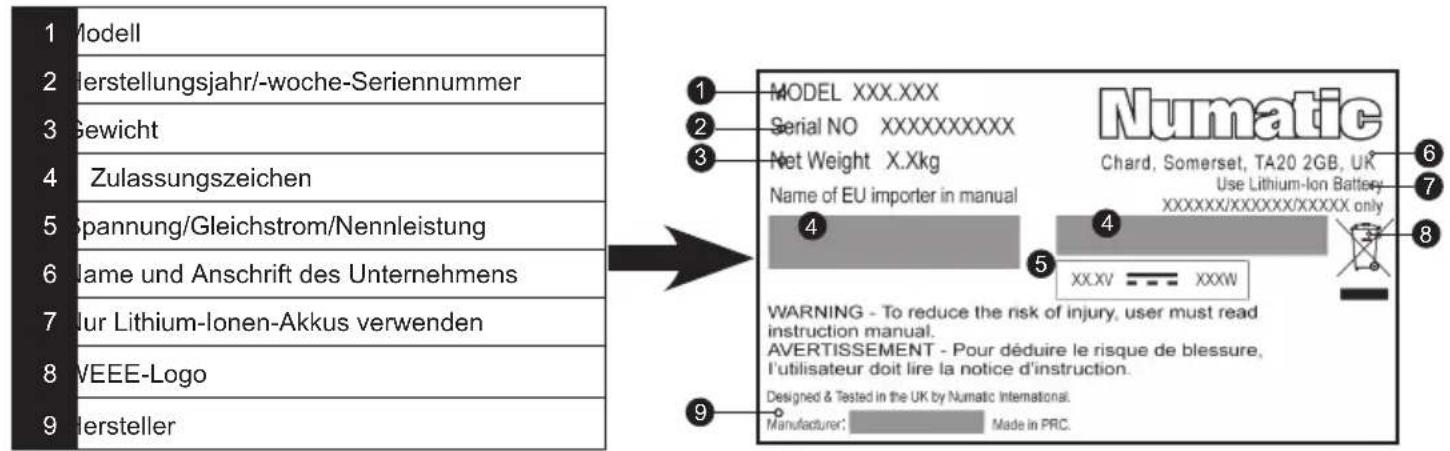

Rating Label

1 Model 2 Machine yr/wk Serial Number 3 Weight 4 Approval Marks 5 Voltage / Direct Current / Rated Power 6 Company Name & Address 7 Use Lithium-Ion Battery Only 8 VEEE Logo 9 Manufacturer MODEL XXX.XXX Serial NO XXXXXXXXXXXX Net Weight X.Xkg Name of EU importer in manual 4 5 6 7 Use Lithium-Ion Battery XXXXXX/XXXXXX/XXXXXX only WARNING - To reduce the risk of injury, user must read instruction manual. AVERTISSEMENT - Pour déduire le risque de blessure, l'utilisateur doit lire la notice d'instruction. Designed & Tested in the UK by Numatic International. Manufacturer: Made in PRC. Numatic Chard, Somerset, TA20 2GB, UK Use Lithium-Ion Battery XXXXXX/XXXXXX/XXXXXX only 8

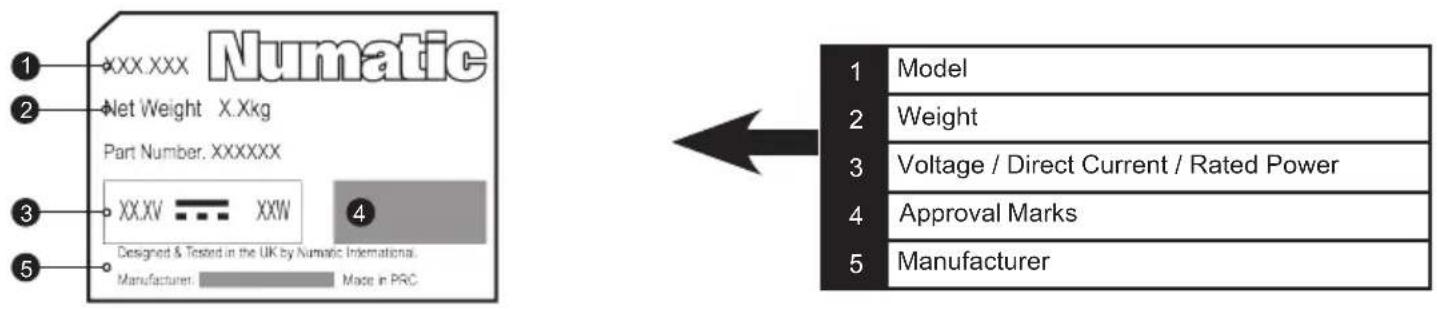

Floor Tool Label

Numatic 1 XXX.XXX 2 Net Weight X.Xkg Part Number. XXXXXX 3 XXXV - - - - XXW 4 Designed & Tested in the UK by Numatic International. Manufacturer: Made in PRC 1 Model 2 Weight 3 Voltage / Direct Current / Rated Power 4 Approval Marks 5 Manufacturer

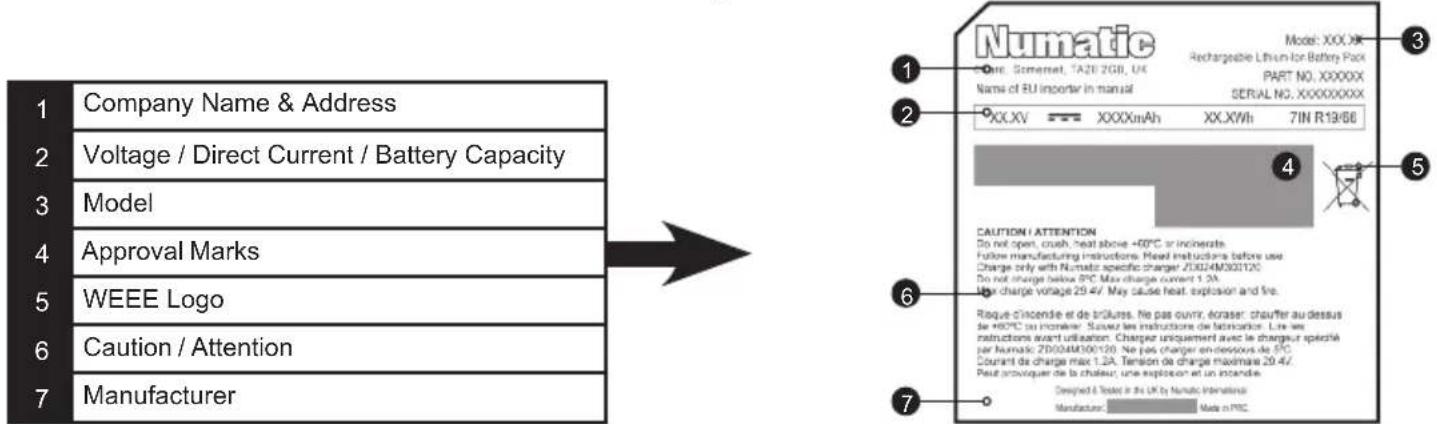

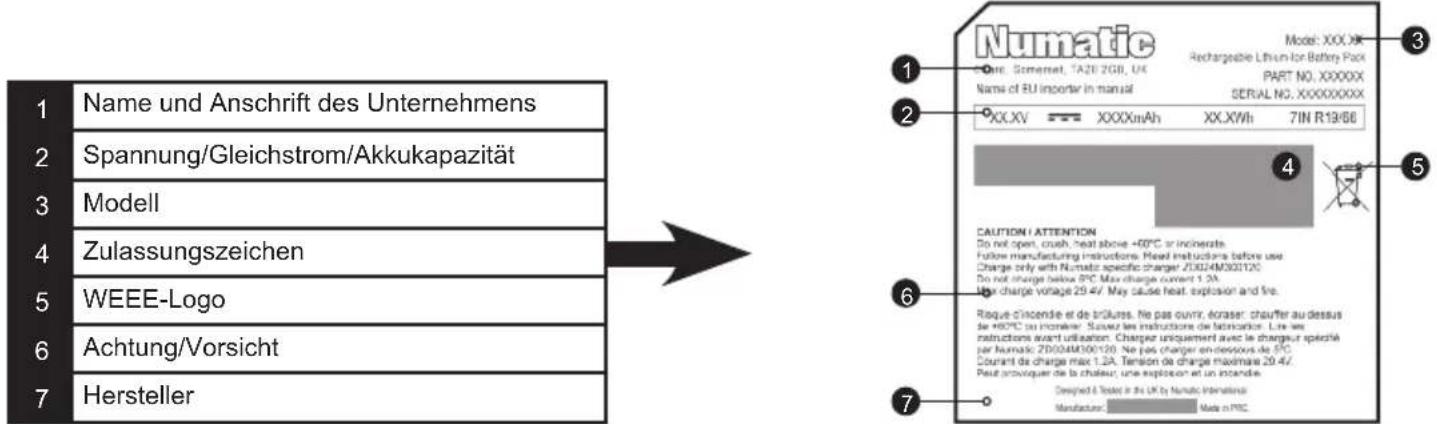

Battery Label

1 Company Name & Address 2 Voltage / Direct Current / Battery Capacity 3 Model 4 Approval Marks 5 WEEE Logo 6 Caution / Attention 7 Manufacturer Numatic Model: XXXX Rechargeable Lithium for Battery Pack PART NO. XXXXXX Name of EU Importer in manual SERIAL NO. XXXXXXXXXX XX.XV XXXXmAh XX.X/Mh 7IN R19/66 CAUTION / ATTENTION Do not open, crush, heat above +00°C or incinerate. Follow manufacturing instructions. Heat instructions before use Charge only with Numatic specific charger ZD024M300120 Do not charge below 8PC Max charge current 1.2A Max charge voltage 29.4V May cause heat explosion and fire. Raque c'incendie et de brouss. He pas ouvrir, d'orser, chatter au dessus de +00°C ou monclaire. Sussez les instructions de latrondre. Use les instructions avant utilisation. Charger uniquement avec le chargeur spécifié par humatic ZD024M300120. Ne pas charger en-dessous de 8PC. Courant de charge max 1.2A. Tension de charge maximale 20.4V/ Peut provisquer de la chaleur, une explosion et un incendie. Designed & Tested in the UK by Numatic International Manufacturer: Mala n PRC

Daily

Keep the machine and all parts clean, including hoses and tubes.

Ensure the filter pod is fitted.

Regularly examine the charger.

Check fi Iter pod frequently and renew if required.

Weekly - as daily and:-

Check for any worn or damaged parts and replace immediately.

Batteries

Always recharge the batteries after use.

WEEE (Waste, Electrical and Electronic Equipment)

Accessories and packaging should be sorted for environmentally-friendly recycling.

Only for UK/EU countries.

Do not dispose into household waste.

According to the European Directive 2012/19/EU on waste electrical electronic equipment and its incorporation into national law.

Items that are no longer suitable for use must be separated, collected and sent for recovery in an environmentally-friendly manner.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

PPE (Personal protective equipment) that may be required for certain operations.

Icon of a person wearing headphones inside a circle (no text or symbols)

White boot icon inside a black circle (no text or symbols)

Icon of a person wearing a helmet, enclosed in a black circle (no text or symbols)

Black circular icon with white hand gesture symbol (no text or numbers)

Ear Protection Safety Footwear Head Protection Safety Gloves

Simple icon of a person wearing sunglasses inside a circle (no text or symbols)

Symbol of a human figure in a suit inside a black circle (no text or numbers present)

Circular icon with a white safety vest symbol (no text or numbers)

CAUTION WET FLOOR

Dust / Allergens Protection

Eye Protection Protective Clothing

Hi-Vis Jacket

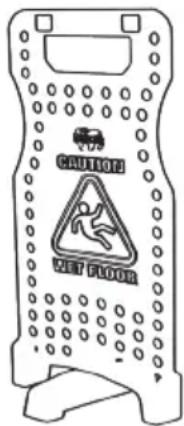

Caution Wet Floor Sign

NOTE: A risk assessment should be conducted to determine which PPE should be worn.

Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline [phone]

Information for Dry use Battery Vacuum cleaners

Warning

Read the instruction manual before using the machine.

Operators shall be adequately instructed on the use of these machines, as with all electrical equipment, care and attention must be exercised at all times during use, you must also make certain that routine and preventative maintenance is carried out periodically to ensure safe operation.

Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility in this respect.

This machine is for DRY USE only.

When charging the appliance make sure that the charging lead is safely secured and the jack is properly inserted into the battery.

Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.

You must remove the battery from the machine BEFORE cleaning or maintenance and when replacing parts or converting the machine to another function.

This appliance is intended to be assembled, cleaned and maintained by an adult.

This machine is not suitable for the collection of biological hazards, hazardous or explosive dusts.

Contact your local distributor if you require a machine capable of performing these tasks.

This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.

Keep scent capsules away from children, as they are harmful if swallowed.

Extra care must be taken when cleaning on stairs.

Children should be supervised to ensure that they do not play with the appliance.

This machine is not a toy; children shall not play with this machine.

Caution

This machine must not be stored outside, or used in wet environments, or to collect wet materials.

The vacuum cleaner should be stored in a dry place and is for indoor use only.

You must ensure that the machine is suitable for the material being collected.

Note:

The primary use for this machine is for domestic, as well as commercial settings, for example in homes, hotels, schools, hospitals, factories, shops and offices.

This vacuum cleaner is fitted with a thermal protection device.

If the vacuum cleaner has a blockage, remove the battery and inspect the floor tool, tubes and hose for debris.

If the floor tool, tubes and hose are clear, replace the filter pod.

The vacuum cleaner should be inspected after use for damage.

When moving from one place to another, consider the weight of the machine.

Do

Keep your machine clean including hoses and tubes.

Change the filter pod frequently.

Keep hoses and tubes clear.

Replace any worn or damaged parts immediately.

Use OEM specifi ed Numatic Scent Capsules only as shown in this manual.

Don't

Use to suck up hot ashes or lighted cigarette ends.

Use steam cleaners or pressure washers to clean the machine or use in the rain.

Immerse in water for cleaning.

Attempt machine maintenance or cleaning unless battery has been removed from the machine.

Under any circumstances place foreign objects i.e. air fresheners, air freshener capsules or scented beads or any other object not originally supplied as part of the machine or OEM accessory pack, into the machine.

Doing so can be dangerous and risks damage to the machine and may also invalidate the machine warranty.

NOTE:- It is recommended that a battery is fully charged before first use.

Important Warnings – Charger

Read all these warnings before using the charger.

• CAUTION! Charge only Numatic Lithium-Ion batteries, other types of batteries may burst causing personal injury and damage.
- Do not charge damaged batteries.
- Do only charge dry batteries.
- Check the charger cable regularly for any sign of damage. If the charger cable is damaged the charger should be replaced, by an original NUMATIC INTERNATIONAL charger available from the manufacturer or service agent.
- Do not use damaged chargers.
- Protect the charger against moisture and store it in a dry place.
- Do not use the charger if it is wet or handle the charger with wet hands.
- The mains voltage available must correspond to the voltage stated on the rating plate of the charger.
• The no load voltage of the charger is 30 V.
- Do not operate charger in explosive environment.
- Do not carry the charger by holding the charger cord.
- Do not unplug by pulling on cord. To unplug, grasp the charger, not the cord.
- Do not cover the charger whilst charging.
- Do not open the charger. Repairs shall be done only by authorised personnel.

Warning:

The battery included in this product must only be charged by the Numatic Charger supplied with the product under NO circumstances should an alternative non Numatic charger be used as there is risk severe damage and fire could result. Only use genuine Numatic parts.

Instructions for Use – Charging Batteries

The charger is capable of operating at different mains voltages and frequencies without user adjustment. Ensure the charger jack plug is fully inserted into the battery.

If the charger is damaged or does not charge anymore, do not use the charger and contact your supplier. Make sure charger replacements are a genuine Numatic service part.

Health Hazards (Acute & Chronic).

The chemicals used in the battery are in a sealed container.

Risk of exposure only occurs if the battery is abused or damaged.

Contact of electrolyte and lithium with skin and eyes should be avoided.

Signs & Symptoms of Exposure.

A damaged or leaking battery can cause chemical burns upon contact.

Such situation might only occurred when the battery cell is opened or damaged.

Important Warnings – Batteries

Read all the warnings before using the battery.

This cleaner uses Numatic Lithium-Ion batteries. Used batteries should be disposed of safely and placed in a sealed plastic bag and then handled according to all locally approved precautions and environmental regulations.

a) Do not dismantle, open or shred batteries.
b) Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
c) Do not short-circuit a battery. Do not store batteries haphazardly in a box or drawer where they may short-circuit each other or be short circuited by other metal objects.
d) Do not remove a battery from its original packaging until required for use.
e) Do not subject batteries to mechanical shock.
f) In the event of battery leaking, do not allow the liquid to come in contact with the skin or eyes and avoid inhaling fumes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
g) Do not use any charger other than that specifically provided for use with the appliance.
h) Do not use any battery which is not designed for use with the appliance.
i) Use only original NUMATIC batteries, when replacement batteries are required.
j) Keep batteries clean and dry.
k) Do not leave a battery on prolonged charge when not in use.
I) After extended periods of storage, it may be necessary to charge and discharge the batteries several times to obtain maximum performance.
m) Retain the original appliance literature for future reference.
n) When possible, remove the battery from the equipment when not in use.
o) Do not immerse in any liquid.
p) Do not charge damaged batteries.
q) If the batteries are leaking, return batteries to a disposal plant or a similar local facility.
r) The batteries must be removed from the appliance before the appliance is scrapped.
s) If the appliance is to be stored unused for a long period, the batteries should be removed.

The battery is equipped with electronic thermal protection, refer to the Temperature and Humidity Range Table below for recommended operating conditions.

Temperature and Humidity Range Table

Storing +5 ...	+35	°C
Discharge +5 ...	+35	°C
Charge +5 ...	+35	°C
Shipment -20 ...	+60	°C
Humidity 25 - 85% RH no condensation
Long term storage
Humidity ≤ 50% RH no condensation

In case battery is subject to environmental conditions outside the above parameters user must allow at least 3 hours for battery to acclimatise at room temperature before attempting to operate.

If the battery is found to be faulty at any time, contact Numatic International, or World Wide Lithium-Ion Battery Technical Helpline [phone]

Care and Disposal of Li Ion Batteries

DEFECTIVE BATTERIES

ATTENTION

Please follow all safety guidelines set out.

A defective battery should not be stored inside buildings on any account.

• If a customer wishes to return a battery to a supplier, then collection of the battery must be arranged by the supplier, however, Faulty batteries must not be returned through the postal system or by courier.
• If on return to a supplier, OR at a customer base, a suspected defective battery shows any signs of impact damage, distortion, blistering, loose parts or leakage then on no account should it be off ered for condition checking. It must be considered defective and the procedures described followed.
• If, on return to a supplier, OR at a customer base, a suspected defective battery, that shows no signs of impact damage, distortion, blistering, loose parts or leakage, may be off ered for condition checking with an appropriate battery condition checking device operated by a competent person.
• If on checking the battery is found to be operational then a single recharge cycle under observation can be attempted with the appropriate Numatic charger.
  • If the battery recharges correctly on this single recharge cycle then it can be deemed a good battery.
• If the battery fails to recharge correctly on this single recharge cycle then it must be deemed a defective battery and the procedures followed.
• On no account must any further attempt to recharge be made.
  • A defective battery should not be stored inside buildings on any account.
• The defective discharged battery can then be stored in a locked battery waste container which should be plastic or plastic lined and placed away from buildings and clearly signed as a defective battery container with appropriate warnings.

The battery is to be disposed of safely and in accordance with all locally approved precautions and environmental regulations.

First Aid Measures

If exposed to any of the Chemicals mentioned in the Hazards section please follow the procedures below:

Eyes.

Flush eyes with plenty of water for at least 15 minutes, occasionally lifting the upper and lower eyelid. Seek medical attention.

Skin.

Remove contaminated clothing and rinse skin with plenty of water or shower for 15 minutes.

Seek medical attention.

Inhalation.

Vacate from site of exposure to fresh air immediately. Use oxygen if available.

Ingestion.

Give at least two glasses of milk or water. Induce vomiting, unless patient is unconscious.

Seek medical attention.

Note:

Inhalation, skin contact and eye contact are possible if the battery is damaged.

Exposure to internal contents, the corrosive fumes will be very irritating to skin, eyes and mucous membranes.

Overexposure can cause symptoms of non-fi broid lung injury and membrane irritation.

Typenschild

1 Modell 2 Hierstellungsjahr/-woche-Seriennummer 3 Gewicht 4 Zulassungszeichen 5 Spannung/Gleichstrom/Nennleistung 6 Name und Anschrift des Unternehmens 7 Zur Lithium-Ionen-Akkus verwenden 8 VEEE-Logo 9 Hersteller MODEL XXX.XXX Serial NO XXXXXXXXXXXX Net Weight X.Xkg Name of EU importer in manual 4 5 XXXV XXXW WARNING - To reduce the risk of injury, user must read instruction manual. AVERTISSEMENT - Pour déduire le risque de blessure, l'utilisateur doit lire la notice d'instruction. Designed & Tested in the UK by Numatic International. Manufacturer: Made in PRC.

Saugdüsenetikett

Numatic 1 XXX.XXX 2 Net Weight X.Xkg Part Number. XXXXXX 3 XX.XV XXW 4 Designed & Tested in the UK by Numatic International. Manufacturer: Made in PRC 1 Modell 2 Gewicht 3 Spannung/Gleichstrom/ Nennleistung 4 Zulassungszeichen 5 Hersteller

Akku-Etikett

1 Name und Anschrift des Unternehmens 2 Spannung/Gleichstrom/Akkukapazität 3 Modell 4 Zulassungszeichen 5 WEEE-Logo 6 Achtung/Vorsicht 7 Hersteller Numatic Model: XXXX Rechargeable Lithium for Battery Pack PART NO. XXXXXX Name of EU importer in manual SERIAL NO. XXXXXXXXXX XX.XV XXXXmAh XX.X/Mh 7IN R19/66 CAUTION / ATTENTION Do not open, crush heat above +00°C or incinerate. Follow manufacturing instructions. Heat instructions before use Charge only with Numatic specific charger ZD024M300120 Do not charge below 8PC Max charge current 1.2A Max charge voltage 29.4V/ May cause heat explosion and fire. Raque Cincendie et de tributes. He pas ouvrir, docrer, chatur au dessus de +00°C ou monclaire. Susser les instructions de latrimodier. Use les instructions avant utilisation. Charger uniquement avec le chargeur spécifié par humatic ZD024M300120. Ne pas charger en-dessous de 8PC. Courant de charge max 1.2A. Tension de charge maximale 20.4V/ Peut provisquer de la chaleur, une explosion et un incendie. Designed & Tested in the UK by Numatic International Manufacture: Meta n.PRC

Täglich

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Icon of a person wearing headphones inside a circle (no text or symbols)

White boot icon inside a black circle (no text or symbols)

Icon of a person wearing a helmet, enclosed in a black circle (no text or symbols)

Icon of two gloves on a black circular background (no text or symbols)

Simple icon of a person wearing sunglasses inside a circle (no text or symbols)

Symbol of a human figure in a suit inside a black circle (no text or numbers present)

Circular icon with a white safety vest symbol (no text or numbers)

CAUTION WET FLOOR

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Icon of a person wearing headphones inside a circle (no text or symbols)

White boots icon inside a black circle (no text or symbols)

Silhouette of a person wearing a helmet (no text or symbols)

Icon of two gloves on a black circular background (no text or symbols)

Simple icon of a person wearing sunglasses inside a circle (no text or symbols)

Symbol of a human figure in a suit inside a black circle (no text or numbers present)

Black circular icon with a white safety vest symbol (no text or numbers)

CAUTION WET FLOOR

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Silhouette of a person wearing headphones inside a circle (no text or symbols)

Gehoorbescherming

White boot icon inside a black circle (no text or symbols)

Silhouette of a person wearing a helmet inside a black circle (no text or symbols)

Veiligheidshelm

Symbol of two gloves inside a black circle (no text or numbers)

CAUTION WET FLOOR

Simple icon of a person wearing sunglasses inside a circle (no text or symbols)

Oogbescherming

Symbolic icon of a human figure in a suit with a button, enclosed in a black circle (no text or numbers present)

Beschermende kleding

Black circular icon with a white safety vest symbol (no text or numbers)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Icon of a person wearing headphones inside a circle (no text or symbols)

Silhouette of a person wearing a helmet, enclosed in a black circle (no text or symbols)

Symbol of two gloves on a black circular background (no text or numbers)

Luvas de segurança

CAUTION WET FLOOR

Simple icon of a person wearing sunglasses inside a circle (no text or symbols)

Proteção ocular

Symbolic icon of a human figure in a suit with a button, enclosed in a black circle (no text or numbers present)

Black circular icon with a white safety vest symbol (no text or numbers)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Icon of a person wearing headphones inside a circle (no text or symbols)

Silhouette of a person wearing a helmet, enclosed in a black circle (no text or symbols)

Symbol of two gloves on a black circular background (no text or numbers)

Guanti di sicurezza

CAUTION WET FLOOR

Simple icon of a person wearing sunglasses inside a circle (no text or symbols)

Symbol of a human figure in a suit inside a black circle (no text or numbers present)

Black circular icon with a white safety vest symbol (no text or numbers)

Icon of a person wearing headphones inside a circle (no text or symbols)

Silhouette of a person wearing a helmet, enclosed in a black circle (no text or symbols)

Black circular icon with white hand gesture symbol (no text or numbers)

CAUTION WET FLOOR

Simple icon of a person wearing sunglasses inside a circle (no text or symbols)

Symbol of a human figure in a wide-brimmed pose inside a black circle (no text or numbers present)

Ropa de protección

Black circular icon with a white safety vest symbol (no text or numbers)

Spares and Accessories (GB)
915170 Battery Pack Assembly (25.2 V)
914440 Battery Charger - UK Plug
914434 Battery Charger - European Plug / Swiss Plug
914437 Battery Charger - South African Plug
914303 Henry Floor Tool 914305 Hetty	Floor Tool
914744 Henry Floor Tool Graphite	914593 Pack of 10 Scent Capsules
915269 Pack of 10 Pods

UKCA Declaration of Conformity
Manufacturer:	Numatic International LimitedChardSomersetTA20 2GBwww.numatic.co.uk
Product:	HEN, HTY, NQ
Description:	Vacuum Cleaner – Commercial – Dry
We, Numatic hereby declare under our sole responsibility, that the above-mentioned product(s) is/are in conformity with the following directives and standards.
S.I. 2008: 1597	Supply of Machinery Regulations	EN60335-1:2012 + AC:2014 + A11:2014 + A13:2017EN60335-2-69:2012EN62233:2008
S.I. 2016: 1091	EMC Regulations	EN55014-1:2017 + A11:2020EN55014-2:1997 + A1:2001 + A2:2008EN61000-3-2:2014EN61000-3-3:2013
S.I. 2012: 3032	RoHS Regulations
Authorised Signatory: Mr. Matthew ColesSigned: Date: 29 ^th Apr 2022		Position: Head of TechnologyNumatic International Limited, Chard,Somerset, TA20 2GB, UK

Numatic

Numatic International Limited.

Chard, Somerset TA20 2GB ENGLAND

Tel: [phone] www.numatic.co.uk

Numatic International GmbH. Fränkische Straße 15–19

D-30455 Hannover, DEUTSCHLAND

Tel: [phone] www.numatic.de

Numatic International SAS. 13 / 17 rue du Valengelier

EAE La Tuilerie - 77500 CHELLES, FRANCE

Tel: [phone] www.numatic.fr

Numatic International BV

16th & Pharmaceutical Roads, Midrand, Gauteng,

SOUTH AFRICA 1685

Tel: [phone] www.numatic.co.za

Numatic International Schweiz AG.

Sihlbruggstrasse 3A, 6340 Baar. SCHWEIZ

Tel: [phone] - 0 www.numatic.ch

Specification subject to change without prior notice

www.numatic.co.uk © Numatic International Limited

This Product has been comprehensively inspected and checked during every stage of its manufacture.

Including an in-depth electrical safety and functionality test.
