USER MANUAL Charles CVC370 Numatic

HomeCare HomeCare HomeCare Numatic Numatic Charles Numatic CVC 370 WV 370 WVT 370 WV 380 WV 470

Owner Instructions

Numatic INTERNATIONAL

Original Instructions

Warning! Read instructions before using the machine

www.numatic.com

Product photo of a Charles vacuum cleaner with black cover, coiled tubing, and cleaning tools (no text or symbols visible)

Product photo of a Charles vacuum cleaner and its associated cleaning tools (no text or symbols visible on main objects)

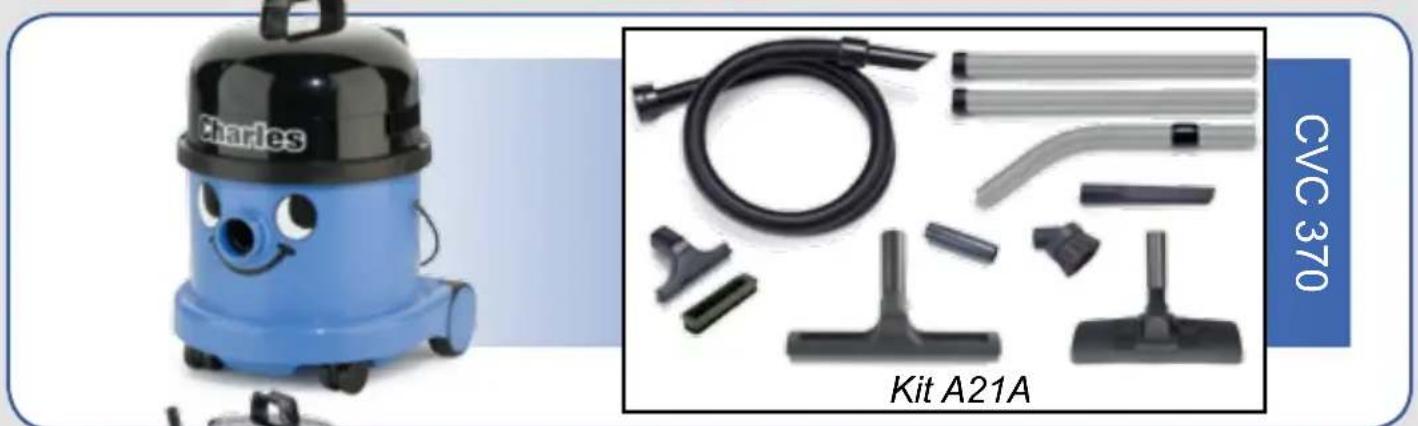

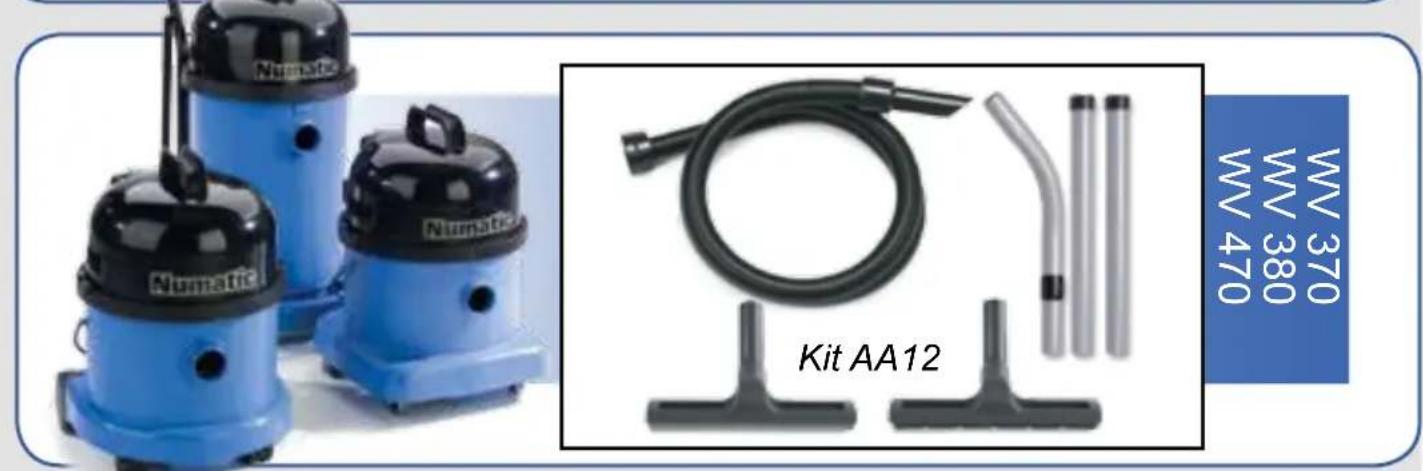

Numatic Numatic Kit AA12 WV 370 WV 380 WV 470

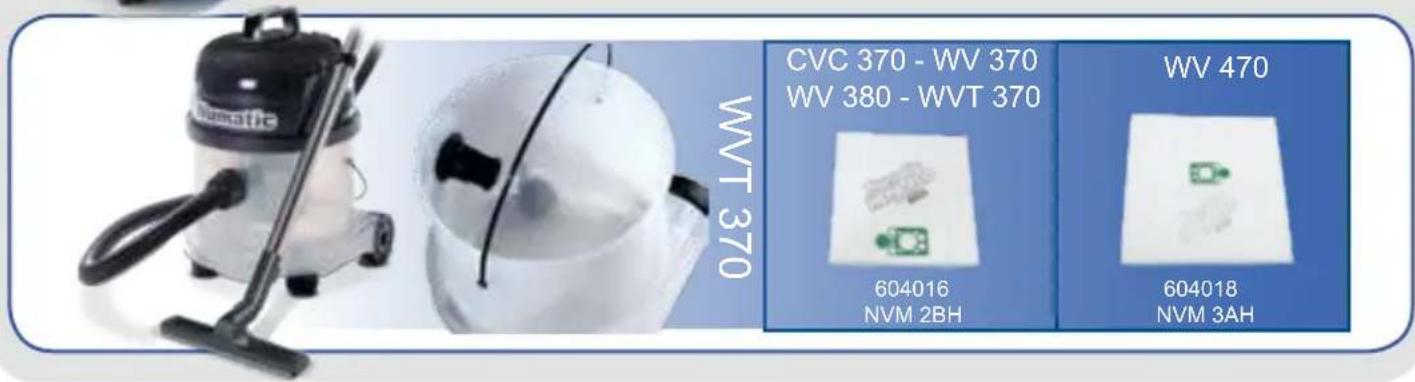

CVC 370 - WV 370 WV 380 - WVT 370 WVT 370 604016 NVM 2BH WV 470 604018 NVM 3AH

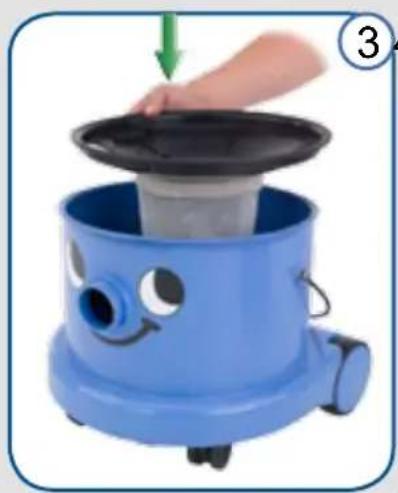

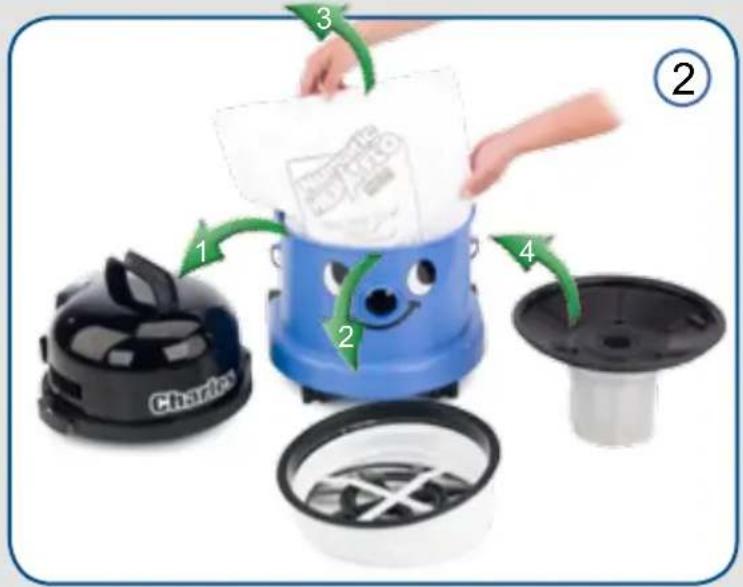

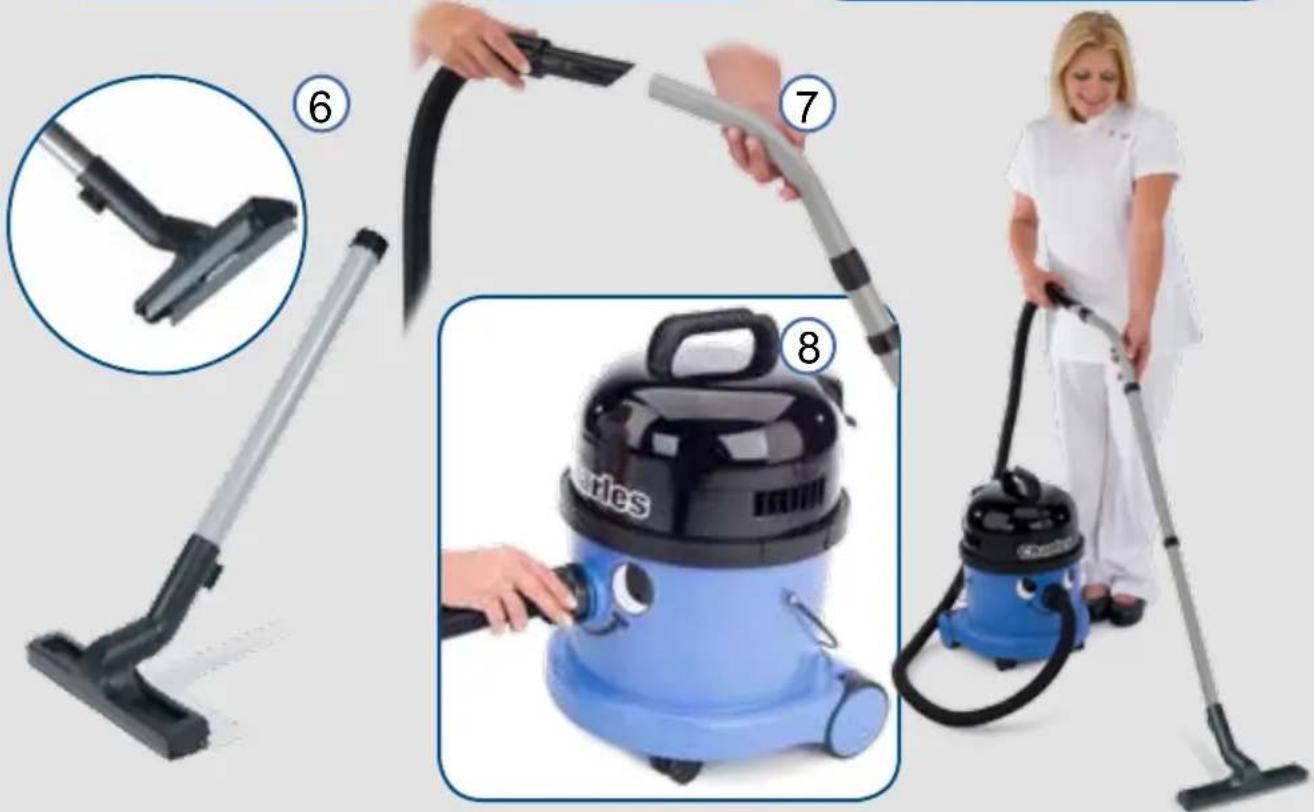

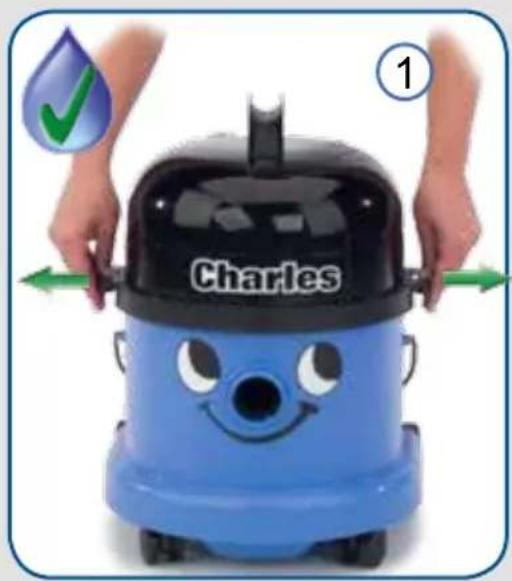

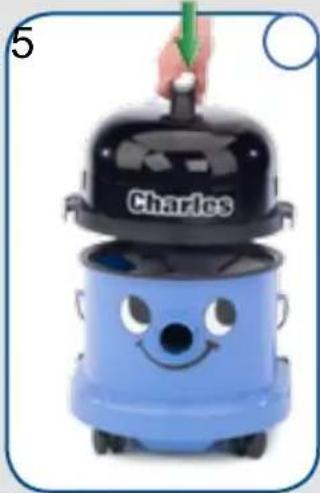

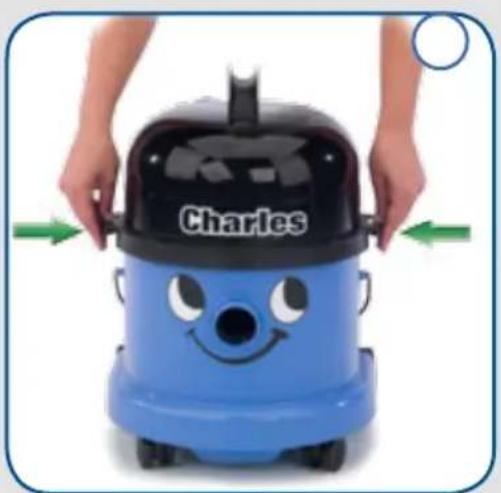

Wet Assembly

Charles 1

② ③ ④ 1 2 3 Charter

Blue industrial machine with cartoon eyes and a hand holding a lid, no visible text or symbols

Blue cartoon character with facial features and a black top labeled 'Charles' being inserted by a hand (no text beyond label)

Blue Charles vacuum cleaner with black top and cartoon eyes, hands adjusting handle (no text or symbols on device)

Illustration of a person using a vacuum cleaner with numbered parts (6, 7, 8), showing different tool designs and components.

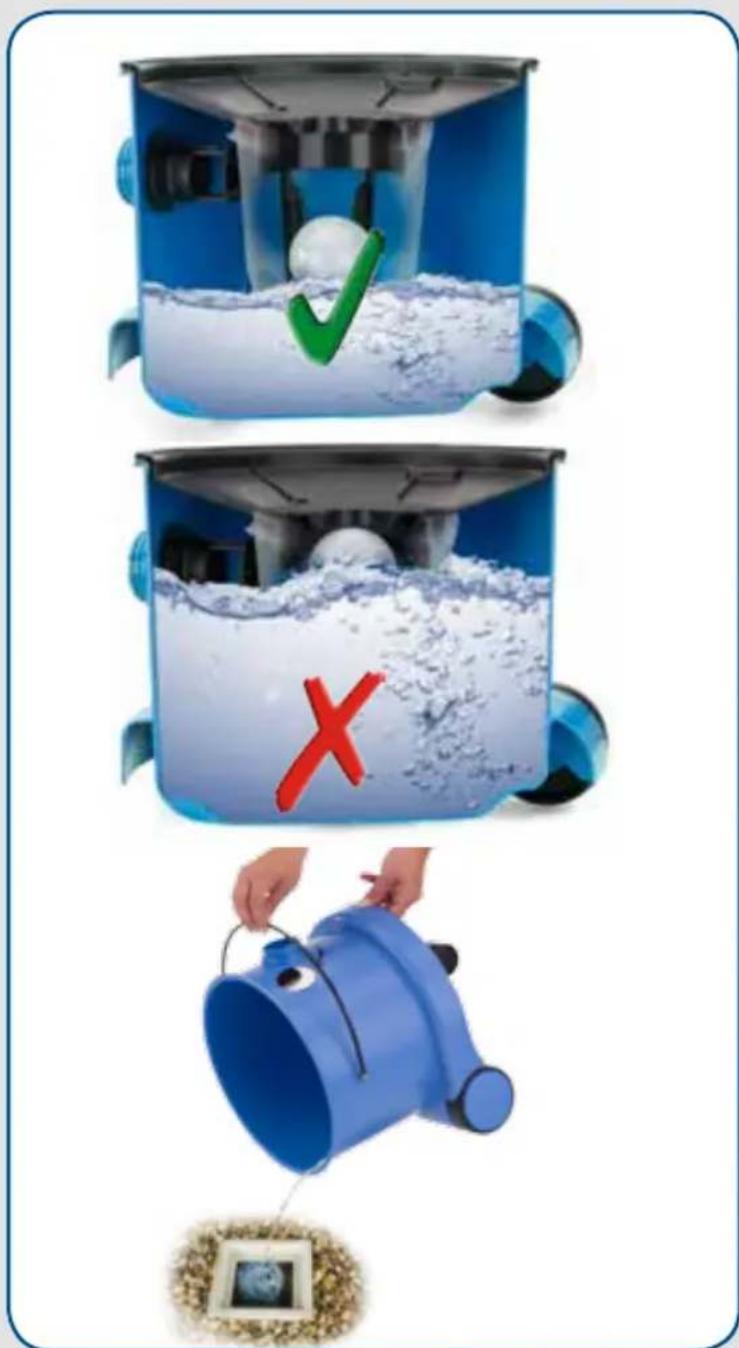

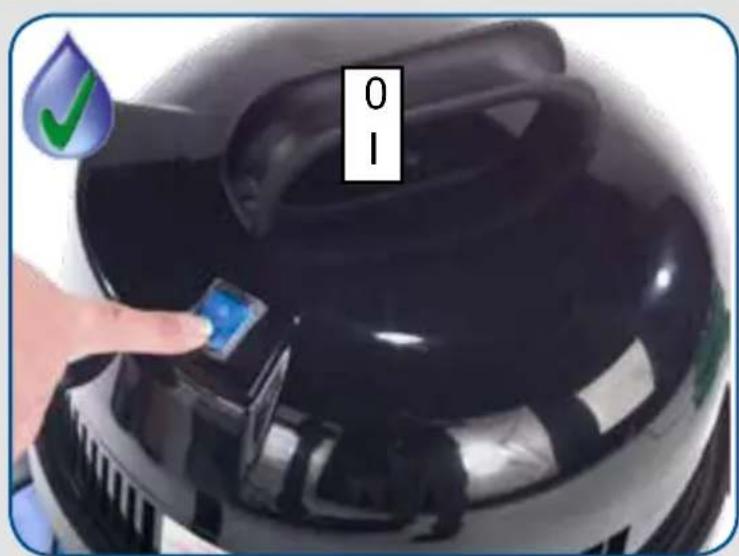

Wet - Using your machine

0 1

Woman in white outfit using a blue vacuum cleaner on a surface with water droplets (no text or symbols visible)

Illustration showing three steps of a water treatment device with checkmark and X symbol, plus a hand placing a blue bucket into a photo frame.

Blue Charles vacuum cleaner with cartoon face and black hood (no text or symbols on device)

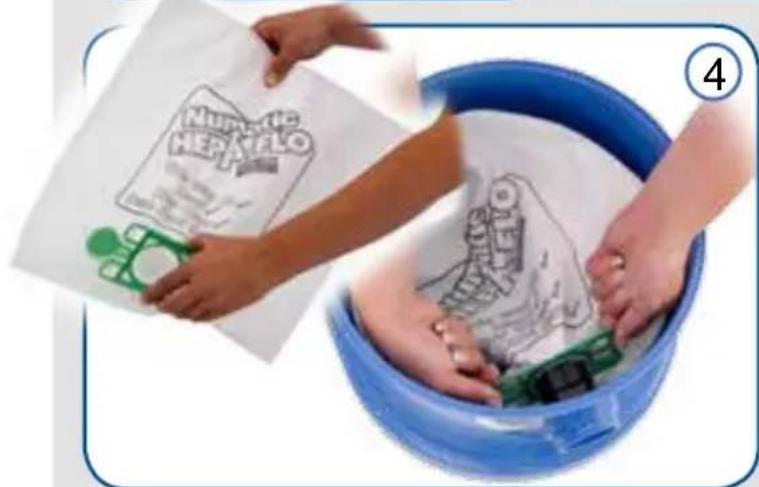

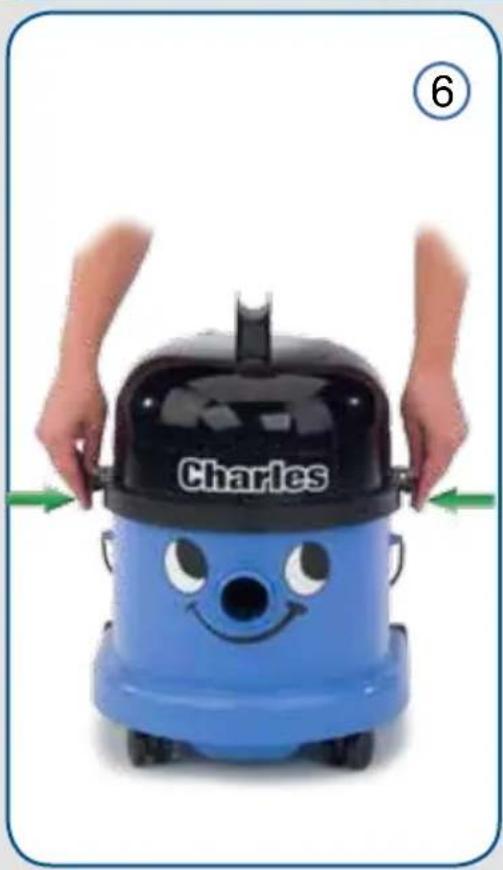

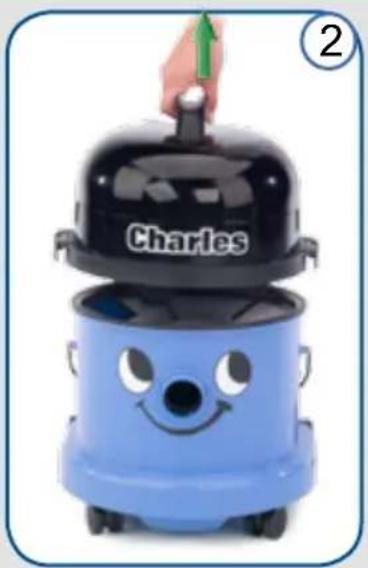

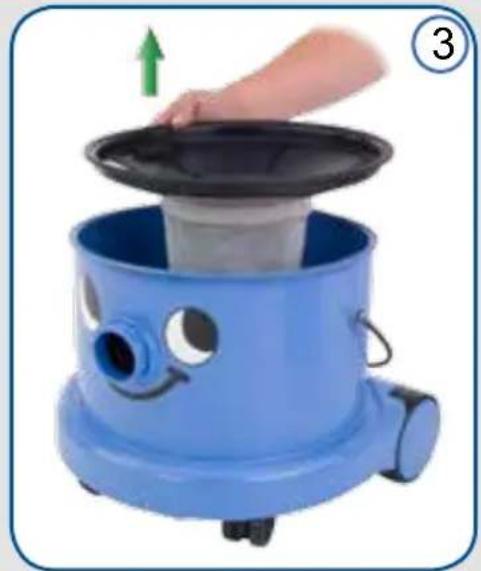

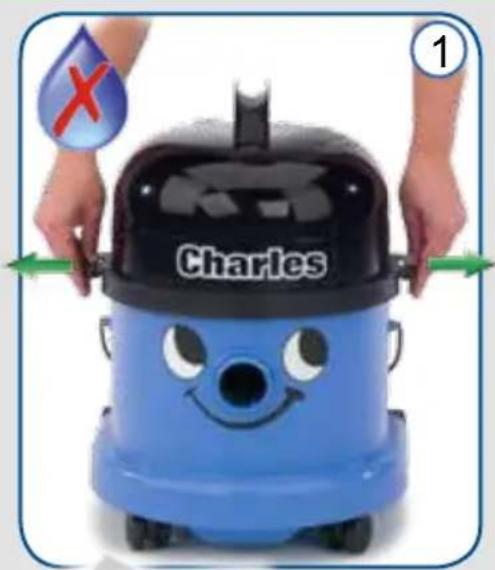

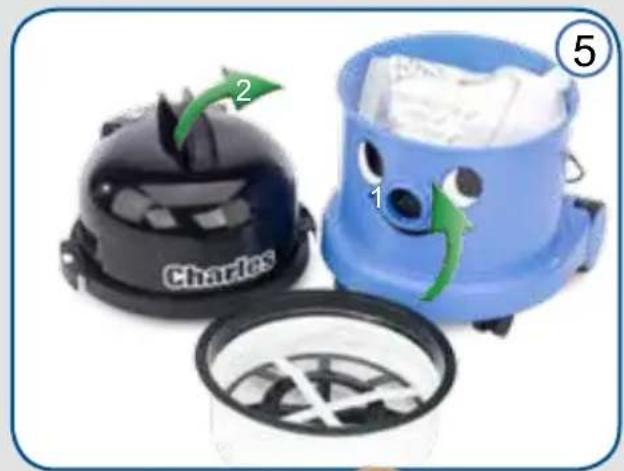

Dry - Assembly

Charles 1

Blue Charles vacuum cleaner with cartoon face and handle, labeled with number 2 (no text on device)

Blue industrial waste bin with cartoon eyes and handle, hand holding top lid (no text or symbols)

Numbrip MEPAELO 4

Three household appliances: a black hard hat with 'Charles' branding, a blue vacuum cleaner with green arrows, and a circular container filled with paper (no visible text or symbols)

Blue Charles vacuum cleaner with hands adjusting its lid, showing a smiley face and green directional arrows (no text or symbols on the device itself)

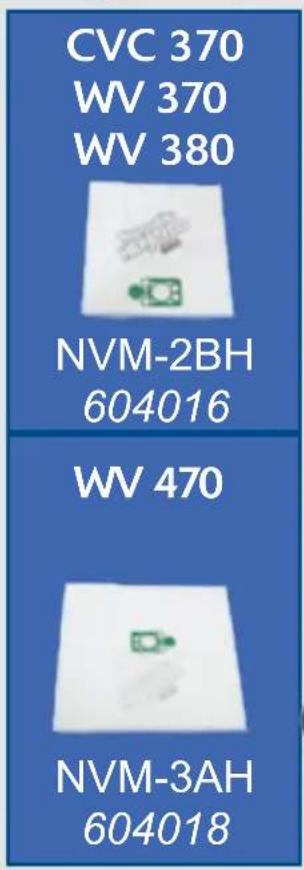

CVC 370 WV 370 WV 380 NVM-2BH 604016 WV 470 NVM-3AH 604018

Woman in white uniform using a blue and black vacuum cleaner (no visible text or symbols)

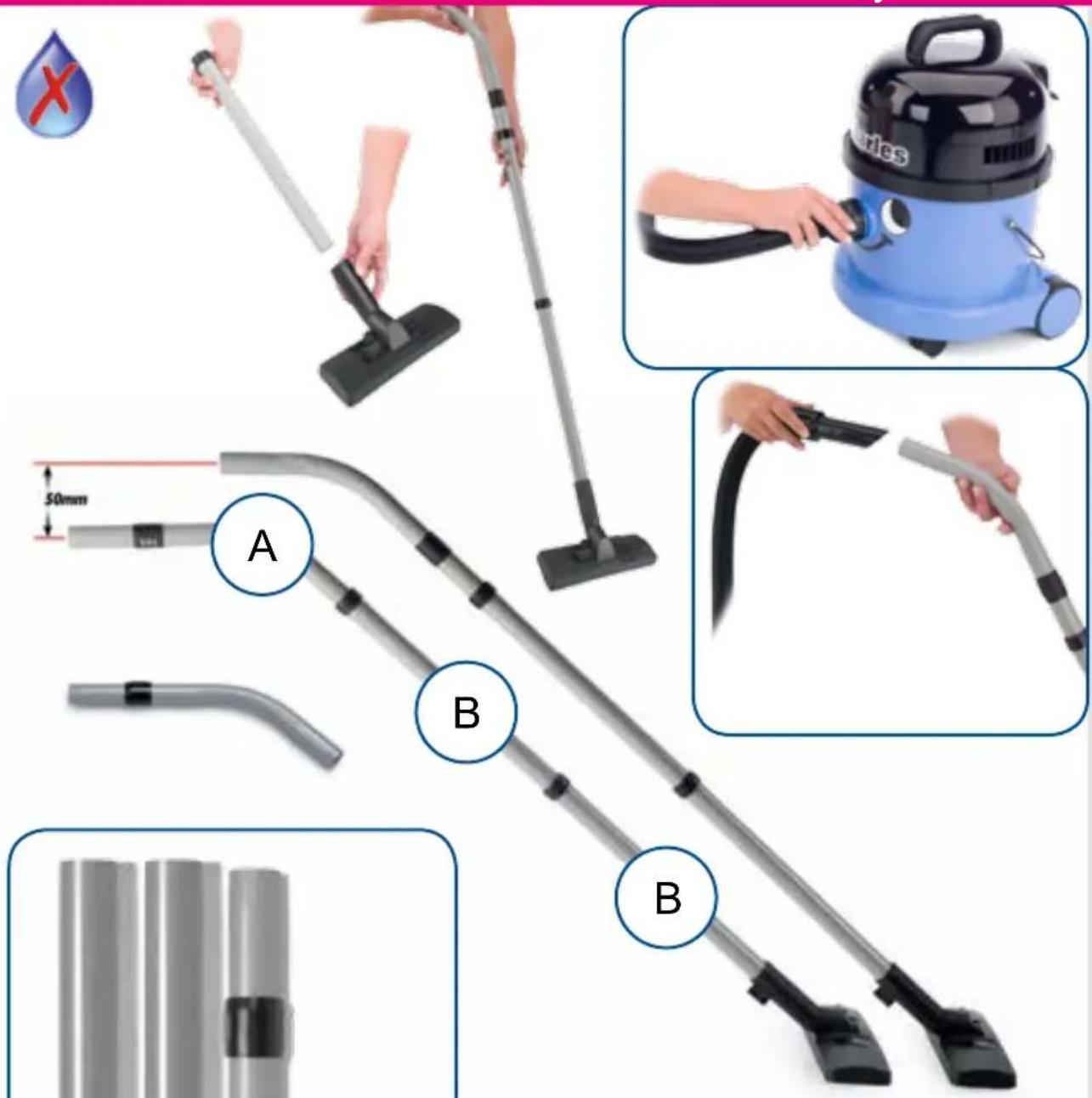

Dry - Assembly

Illustration of a vacuum cleaner with labeled parts A and B, including a water drop symbol and close-up photos of the device.

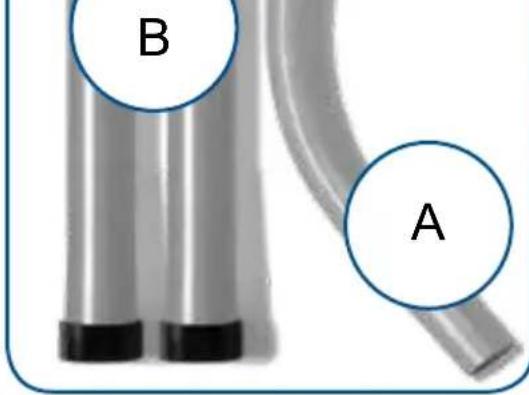

Close-up of two metallic devices labeled A and B, with no visible text or symbols on the devices themselves.

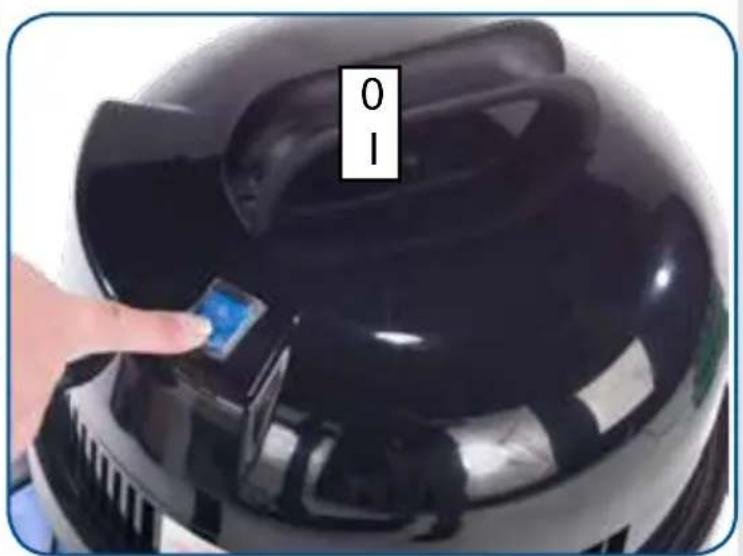

0 1

Dry - Using your machine

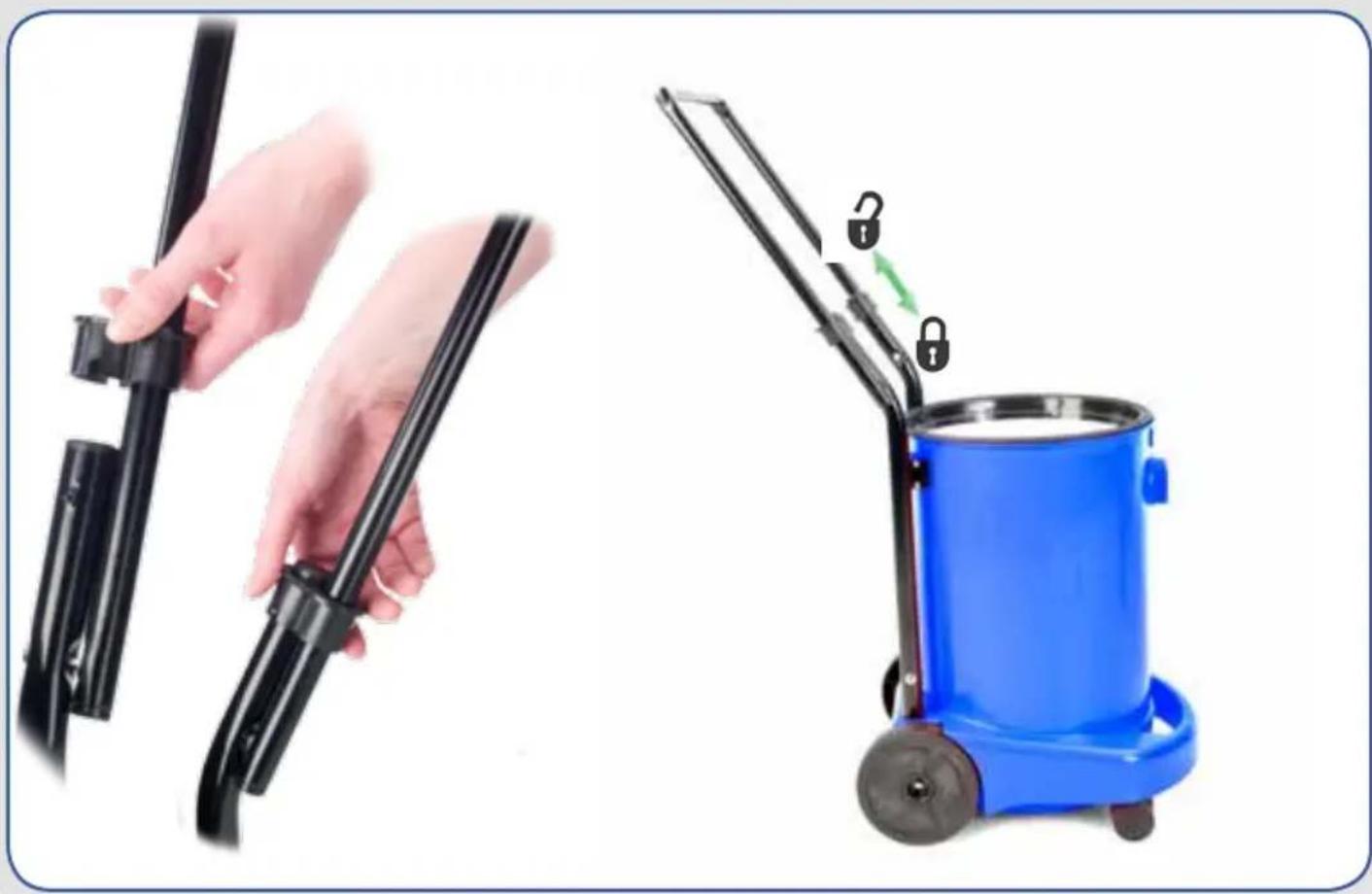

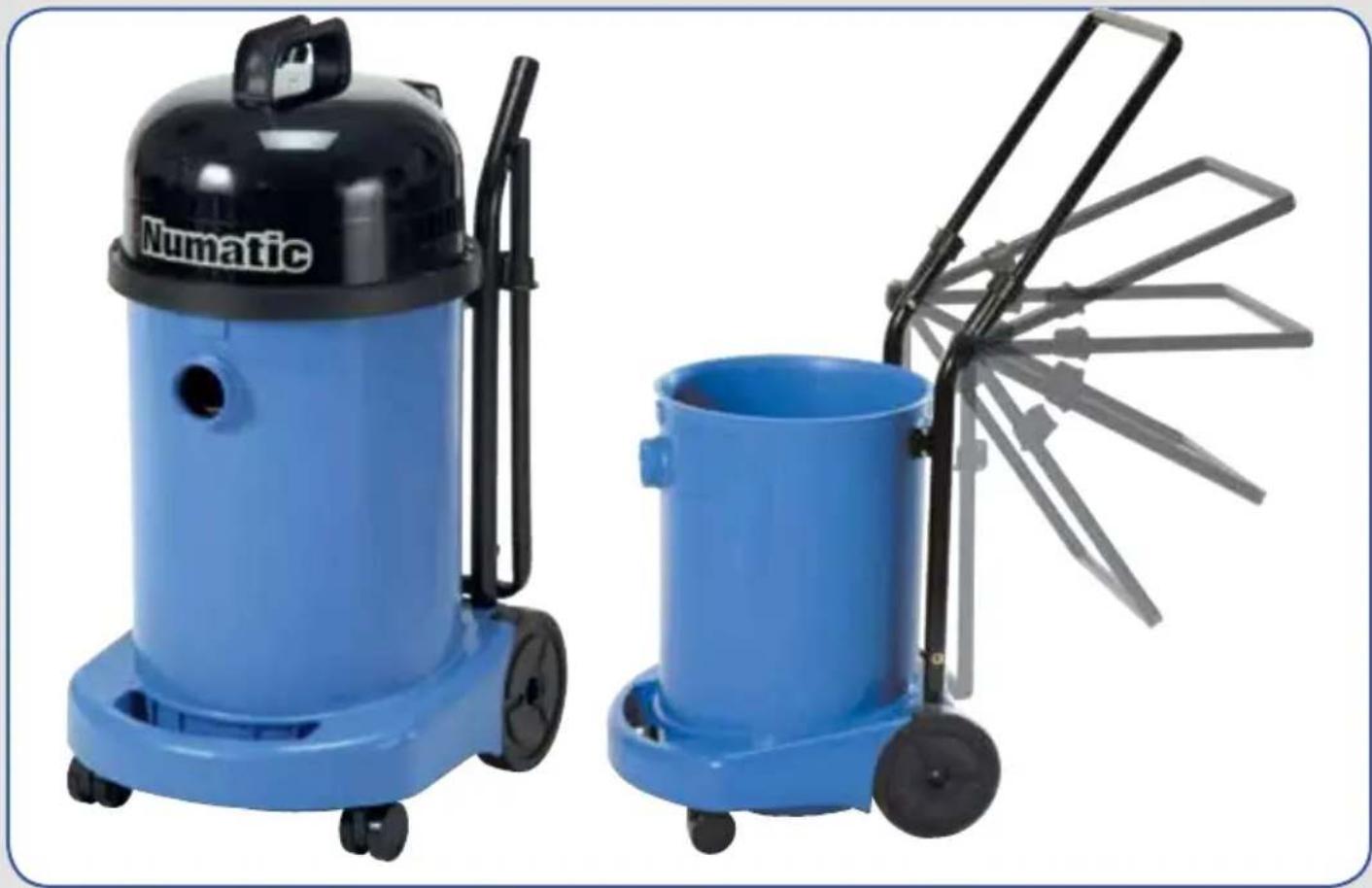

470 Handle Locking Instructions

Two blue industrial vacuum cleaner units with black cover and handlebars, one labeled 'Numatic' (no additional text or symbols visible)

Two different cleaning tools: a hand holding black tool holders and a blue handheld device with a lock mechanism (no text or symbols visible)

Fitting the face

1 2 CLICK CLICK

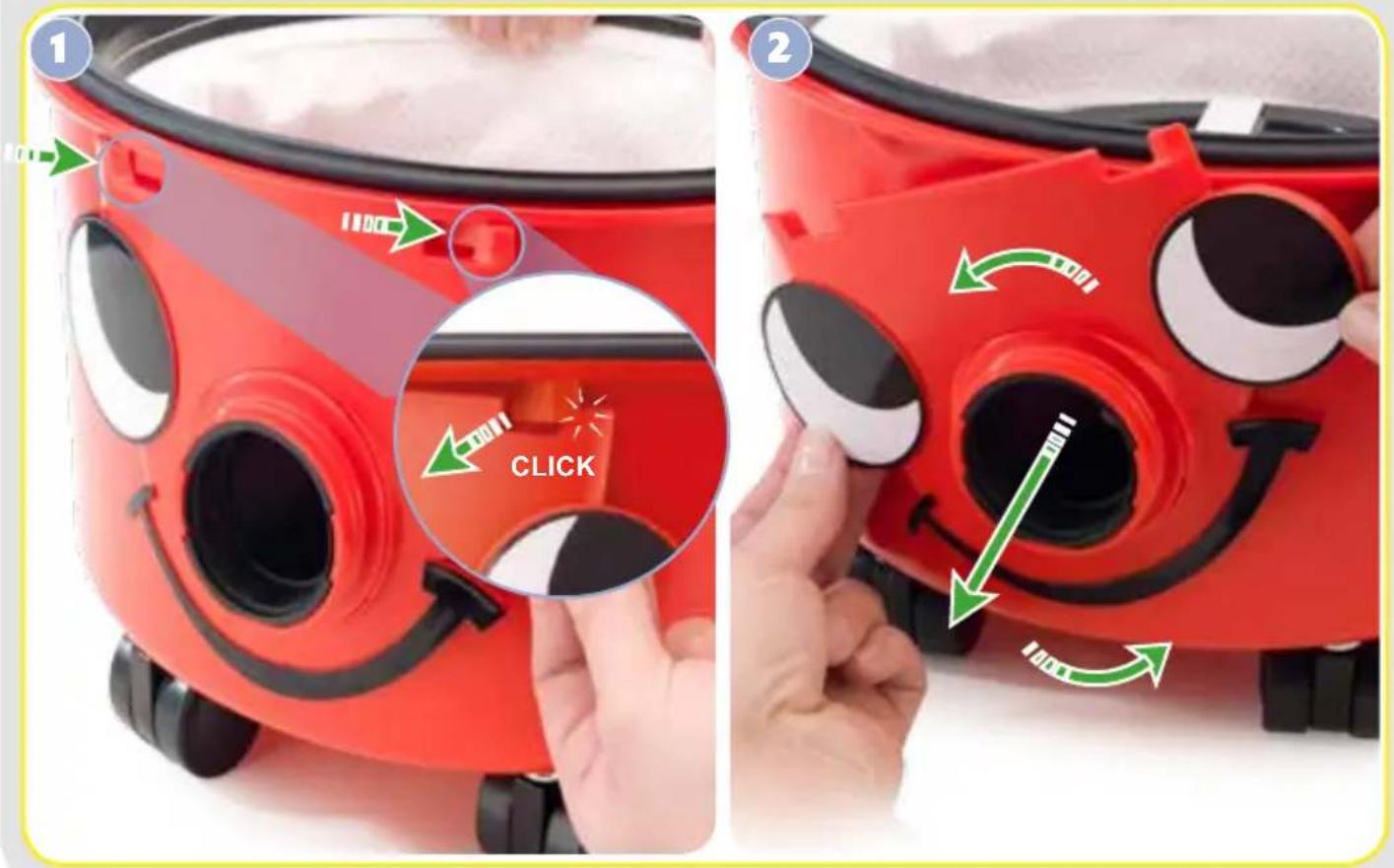

Removing the face

1 100 100 CLICK 2

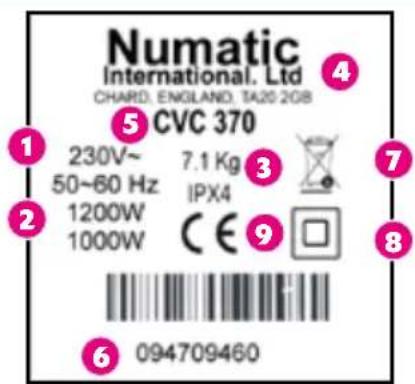

1 Voltage Frequency
2 Power rating
3 Weight (ready to use)
4 Company Name & Address
5 Machine Description
6 Machine yr/wk Serial number
7 WEEE Logo
8 Class 2 Symbol
9 CE Mark

Rating Label

Numatic International, Ltd CHARD, ENGLAND, TA20 208 CVC 370 230V~ 50~60 Hz 1200W 1000W 7.1 Kg IPX4 CE 9 094709460

PPE (personal protective equipment) That may be required for certain operations.

Ear Protection

Safety Footwear

Head Protection

Safety Gloves

Eye Protection

Protective Clothing

Dust / Allergens Protection

Hi Vis Jacket

Caution Floor Sign

Safety Critical Components

Mains leads:

HO5VV-F 10 x 2 x 1.00 mm

2

WEEE Legislation

(Waste, Electrical and Electronic Equipment)

Vacuum cleaner, accessories and packaging should be sorted for environmentally - friendly recycling.

(Only for EU Countries)

Do not dispose of vacuum cleaner into household waste! According to the European Directive 2002 / 96 / EC on waste electrical and electronic equipment and its incorporation into national law.

Vacuum cleaners that are no longer suitable for use must be separately collected and sent for recovery in an environmentally - friendly manner.

Simple line drawing of a trash bin with no text or symbols

Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline [phone]

Daily

Keep the machine clean, including hoses and tubes.

Ensure the bag and filter are fitted.

Regularly examine the power cord.

Check dust bag frequently.

Check filters are clean.

Weekly - as daily and:-

Check for any worn or damaged parts and replace immediately.

Do not steam clean or pressure wash.

Information for wet and dry use vacuum cleaners

Ensure you read the instruction manual before using the machine.

Read the instruction manual before using the machine.

Operators shall be adequately instructed on the use of these machines.

WARNING As with all electrical equipment, care and attention must be exercised at all times during use,

in addition to ensuring that routine and preventative maintenance is carried out periodically to ensure safe operation.

Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility in this respect.

The machine shall be disconnected from the mains by removing the plug from the supply socket during cleaning or maintenance and when replacing parts or converting the machine to another function.

The machine is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction.

Children being supervised are NOT to play with the machine.

This appliance is intended to be assembled, cleaned and maintained by an adult.

This machine is not a toy.

If foam/liquid comes out of machine exhaust, switch off immediately. Allow the accumulated liquid to drain out through the machine exhaust, check the float assembly to ensure correct operation, empty the container if full of liquid, reassemble the machine.

Immediately upon start up there will be a certain amount of liquid issuing from the machine exhaust which will be the residue of liquid still within the power head.

This will be quickly discharged after which the machine should function normally. Liquid ejected from the machine could be hazardous as a result of its temperature, pressure or chemical content.

This machine is not suitable for the collection of biological hazards, hazardous or explosive dust. You should contact your local distributor if you require a machine capable of performing these tasks.

Ensure that the filtration system fitted to the machine is suitable for the material being collected.

This machine is for indoor use only.

This machine shall be stored indoors only

This product complies with the requirements IEC 60335-2-69.

When moving from one place to another, consider the weight of the machine.

NOTES

This machine is also suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offices for other than normal housekeeping purposes.

• Use a bag and filter at all times when using 'dry'.
• Keep your machine clean.
• Keep filters clean.
• Regularly clean the water level limiting float safety valve and examine for signs of damage or correct operation.
• Keep hoses and tubes clear.

• Replace any worn or damaged parts immediately.

• Regularly examine the power cord, if damage is found, power cord must be replaced by a qualified person using the correct Numatic original part.
  • Empty dust container frequently.

• Keep diffuser filter (where fitted) clean.

DON'T

• Use steam cleaners or pressure washers to clean the machine or use the machine in the rain.
• Immerse in water for cleaning.
• Allow any inexperienced repairs. Call the experts.
• Use wet if float valve is not functioning or fitted.
• Use to suck up hot ashes, or lighted cigarette ends.

• Suck up liquid before emptying dirt from container.

• Suck up dirt before emptying liquid from container.

• Run the machine over the power cable during operation as a hazard may occur.
• Pull on the cable to unplug the machine from the power supply.
• Walk over-wet carpets, upholstery or fabrics.
  • Walk on clean carpets until fully dry.
• Spray onto people or animals.
• Attempt machine maintenance or cleaning unless the power supply plus has been removed from the supply outlet.

This machine can be used for wet and dry pick up.

Fault Finding

DRY MODE

If the vacuum cleaner stops working switch off and remove the plug from the wall before investigating were the fault lies.

If the vacuum cleaner will not pick up any debris from the surface, switch off and remove the plug from the wall, inspect the floor tool, wands and hose for blockages, if no blockages are found, the dust bag may be full if the dust bag is not full the filter may be blocked.

WET MODE

If the vacuum cleaner stops working switch off and remove the plug from the wall before investigating were the fault lies.

If the vacuum cleaner has a blockage and will not pick up liquid, switch off and remove the plug from the wall, has the float valve operated, this will shut off the suction and the pitch of the vacuum motor will change.

Remove the power head and empty the liquid out of the container, if the container is empty, check that the floor tool wands and hose are not blocked.

After use always inspect the machine for damage.

Data

	Motor AirFlo Suction Cleaning			Range	Class
CVC 370WV 370WV 470	1200W1200W1200W	40 L/sec40 L/sec40 L/sec	2500 mm2500 mm2500 mm	28.8m28.8m28.8m	II
	CapacityDry	CapacityWet	Size Weight Sound		Pressure
CVC 370WV 370WV 470	15 Ltrs15 Ltrs27 Ltrs	9 Ltrs9 Ltrs20 Ltrs	355x355x510355x355x510355x355x710	7.1 Kgs7.1 Kgs9.6 Kgs	73-77 dB(IEC 60704-2-1)Uncertainty: 0.2 dB (A)

Numatic International Warranty Mmatic International Limited warrant to the original purchaser

Numatic International Limited warrant to the original purchaser that its products are free of defects in both material or workmanship for the period shown below:-

Homecare and Cleancare Vacuum cleaners 2 Years

Rotary Floor Machines.... 2 Years

Twintec Auto Scrubber Dryer 1 Year

Vario Ride-On Scrubber Dryer 1 Year / 1500 hours

Mopping, Compacts, Combi and Servocare Products.... 1 Year

Individual Accessories and Spare Parts 6 Months

Note: This warranty expressly excludes consumable parts such as carbon brushes, floor brushes, mops, batteries etc, that are considered replaceable from time to time during the normal working life of the machine.

A. The warranty period commences from the date the goods are purchased.

B. All warranty claims must be processed through the Dealer from whom the equipment was purchased. The Dealer will co-operate with the purchaser throughout the warranty claims procedure and will arrange any necessary repairs using genuine Numatic parts.

C. If the original Dealer is no longer able to fulfil his obligations please contact Numatic International Limited with full details of the claim and proof of purchase so that this may be processed without delay.

D. Any warranty claim can only relate to the specific part that is proven to be at fault and for which a replacement will be supplied but cannot be extended to constitute a claim against the complete machine.

E. Numatic International will supply the Dealer with any warranty parts required, subject to the claim being validated, after return of the faulty items in accordance with Numatic International Limited's General Conditions of Sale.

F. Claims will not be accepted if they are the result of fair wear and tear, misuse or abuse of any kind.

G. No replacement will be given unless the appropriate evidence of the validity of the claim has been provided to the satisfaction of Numatic International Limited.

H. Numatic International Limited reserve the right to charge for any unnecessary work carried out as a result of an invalid claim.

I. No variation to this warranty may be made or implied by any member of Numatic International Limited or its Dealers unless such variation is in writing and authorised by the Company

Numatic International Limited. Chard, Somerset, TA20 2GB

Telephone: [phone] Fax: [phone]

© Numatic International Limited

CE 16

EU DECLARATION

OF

CONFORMITY

We hereby declare under our sole responsibility that the following equipment fulfils all the relevant provisions of the following EU Directives:

Machinery Directive 2006/42/EC

EMC Directive 2014/30/EU

RoHS Directive 2011/65/EU

Machine Description:

Vacuum Cleaner

Type: CVC, WV, WX, CDC series

Manufactured by:

Numatic International Limited

Relevant standards upon which conformity is declared include:

IEC60335-1:1991+A1+A2

IEC60335-2-2:1993+A1+A2

IEC60335-2-69:1997+A1

EN 55014-1 2001 +A1 2001, +A2 2002

EN 55014-2 1997 + A1 2001 (Cat II)

EN 50366 2003 + A1 2006

A technical construction file for this equipment is retained at the manufacturer's address under the authorisation of the following signatory:

Name:Allyn Boyes

Position: Technical Manager

Signed:

Numatic INTERNATIONAL

Date: 20/04/2016

Numatic International Limited,

Chard, Somerset.

TA20 2GB

www.numatic.co.uk

12" Plastic WV / CVC

WD-0239 (A02)

MAINS CABLE BLUE DOUBLE POLE SWITCH PT.No 220843 SWITCH COVER PT.No 206573 SUPPRESSOR ASSY PT NO. 220898 205441 BL21101T 130V BTPRSS 205443 BL21104T 240V BTPRSS WHITE WIRE 1sqmm x 340LG PT.No 321004

Spare Parts

TriTex Filter
604165 TriTex	Filter
HepaFlo Dust Bags
604016 370 /	380 Drum NVM 2BH (Pack of 10)
604018 470 D	drum NVM 3AH (Pack of 10)

Numatic INTERNATIONAL Numatic Charles Numatic

Distributed by:-

Numatic International Limited, Chard, Somerset, TA20 2GB

Telephone: [phone]

Fax: [phone]

UNITED KINGDOM: www.numatic.co.uk

GERMANY: www.numatic.de

SOUTH AFRICA: www.numatic.co.za

Specification subject to change without prior notice

www.numatic.com © Numatic International Limited

233987 04/16 (A11)
