Product type	2K Wireless Security Camera
Brand	Lorex
Model	U424AA-E
Resolution	2K
Power Supply	Rechargeable battery (2-5 h charge) and UL/CSA AC adapter
Connectivity	Wi-Fi (2.4 GHz and 5 GHz)
Dimensions (H x W x D)	121 x 131 x 73 mm
Weight	Approximately 350 g (with battery)
Viewing angle	Not specified (estimated 110°-130°)
Night vision	Yes, with mechanical IR filter (audible click during day/night transition)
Storage	Recording on NVR recorder (not included) via Lorex Cirrus app
Mobile App	Lorex Cirrus (iOS/Android)
Audio	Built-in microphone (audio recording subject to local laws)
Motion detection	PIR sensor (passive infrared)
Protection rating	Sheltered outdoor use (not submersible)
Mounting	Wall mount with screws and anchors included
Antenna	Removable, included
Maintenance	Clean with a damp cloth, no abrasive products
Operating temperature	Not specified (estimated -10°C to 40°C)
Included accessories	Camera, antenna, power adapter and cable, mounting bracket, screw kit, Allen key, drill bit, screwdriver
Warranty	Limited hardware warranty (see Lorex website)

Frequently Asked Questions - U424AA-E Lorex

How to charge the battery of the Lorex U424AA-E camera?

Remove the protective film from the contacts, then plug the provided AC adapter into the camera. The charging indicator shows status: steady red = charging, green = fully charged. Charging time is 2 to 5 hours depending on the number of cells.

How to pair the camera with the Lorex Cirrus app?

Download the Lorex Cirrus app, create an account or log in. From the home screen, select your recorder, then a free channel. Press 'Pair' and hold the pairing button on the back of the camera until the red LEDs stop blinking. The message 'Pairing success!' confirms the pairing.

What to do if the camera does not pair?

Check that the camera is sufficiently charged and that Wi-Fi is enabled. Make sure the 5 GHz network is compatible (some channels are prohibited in Canada). Try resetting the camera by holding the pairing button for 10 seconds, then retry pairing.

How to physically install the camera?

Attach the mounting bracket to the wall using the provided screws and anchors. Orient the camera bracket upward, align the slots with the tabs on the bracket, then push down. Tighten the security screw with the screwdriver to lock the assembly. Adjust the angle and tighten the adjustment ring.

The camera makes a clicking sound when switching to night mode, is this normal?

Yes, this click is normal. It indicates that the mechanical IR filter is moving to switch between day and night mode. No action is needed.

Can I use the camera without a subscription?

Yes, the camera works with the Lorex Cirrus app without charge. Local recording requires a compatible NVR recorder (not included). No subscription is needed for live viewing.

What safety precautions should be observed?

Do not disassemble the camera, do not point it at the sun, use only the provided adapter (UL/CSA certified). Clean with a damp cloth without abrasive products. Install the camera in a sheltered location, do not immerse it in water.

How to know if the battery is fully charged?

The charging indicator on the camera shows: steady green = battery full, steady red = charging. You can also check the battery level in the Lorex Cirrus app.

What to do if the camera does not turn on?

Make sure the battery is charged. If it does not turn on, remove and reinsert the battery (you should hear a click). Try plugging in the AC adapter directly. If the problem persists, contact Lorex support.

Can I record audio with this camera?

Yes, the camera has a built-in microphone. However, audio recording without consent is illegal in some places. Check local laws before using this feature.

USER MANUAL U424AA-E Lorex

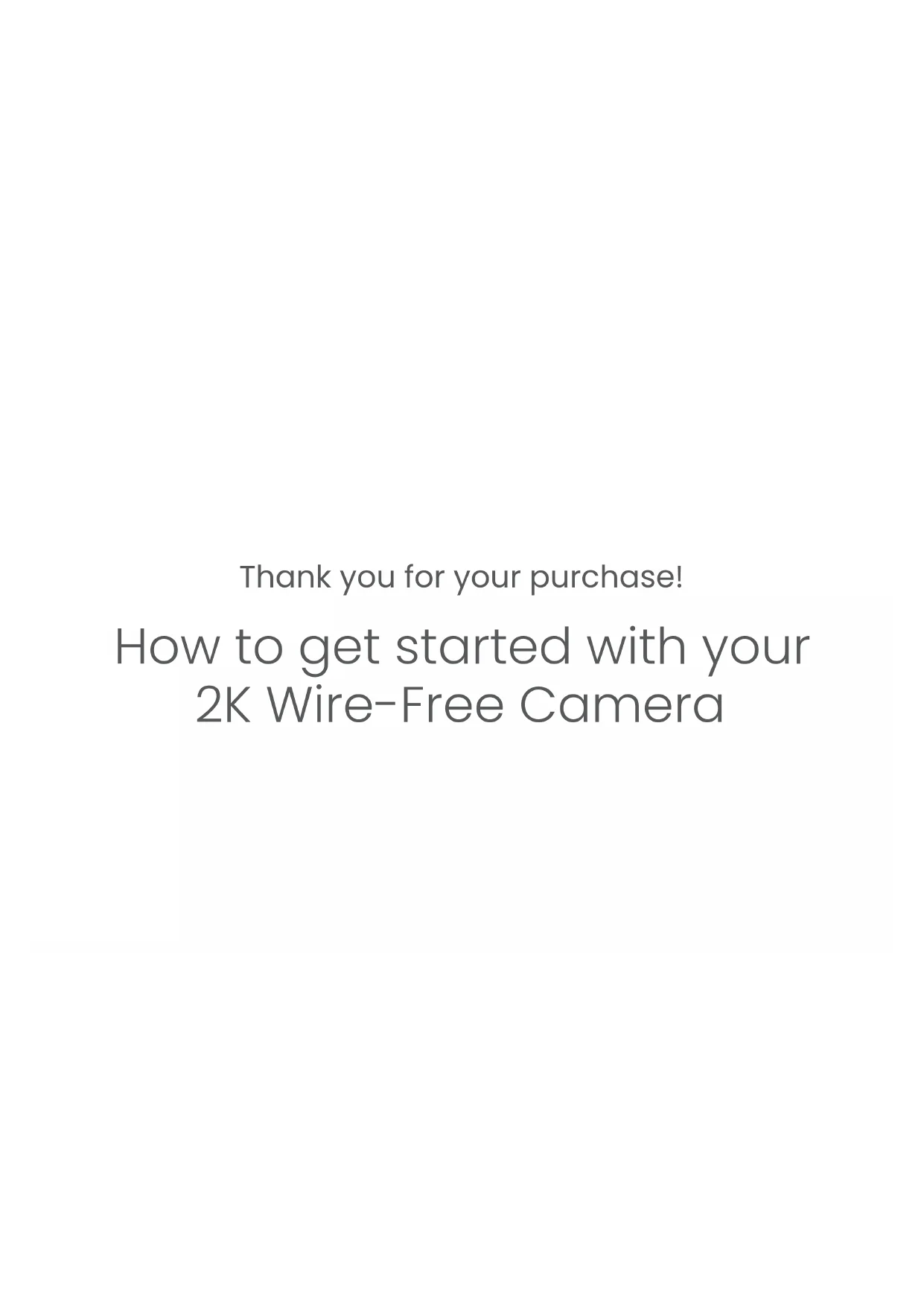

Thank you for your purchase!

How to get started with your 2K Wire-Free Camera

Safety Precautions

• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use and handling of the product.
• Operate the camera within the specified temperature, humidity and voltage and use manufacturer approved accessories.
• Do not disassemble the camera.
• Do not point the camera directly at the sun or a source of intense light.
• Periodic cleaning may be required. Use a damp cloth only. Do not use any harsh, chemical-based cleaners.

Disclaimers

• A regulated UL / CSA approved power supply is required for use with this camera (included). Use of a non-regulated, non-conforming power supply can damage this product and voids the warranty.
• Not intended for submersion in water. Installation in a sheltered location recommended.
• Audio recording without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for use of its products that does not conform with local laws.
• This camera includes an Auto Mechanical IR Cut Filter. When the camera changes between Day/Night viewing modes, an audible clicking noise may be heard from the camera. This clicking is normal and indicates that the camera filter is working.

- Some channels on the 5GHz Wi-Fi band are restricted in Canada. This means certain Wi-Fi networks may not be available to connect to during setup.

Contents

Section

1 Package Contents
2 Overview
3 Before You Start
4 Setup
5 Pairing to the App
6 App Live View
7 Mounting

Package Contents

2K Wire-Free Security Camera (x1)

Camera Antenna (x1)

Re-chargeable Battery Pack (x1)

Charging Adapter & Cable (x1)

Allen Key (x1) Drill Bit (x1) Screwdriver (x1)

Anchors (x4) Screws (x4) Security Screws (x2)

Mounting Bracket (x1)

2 Overview

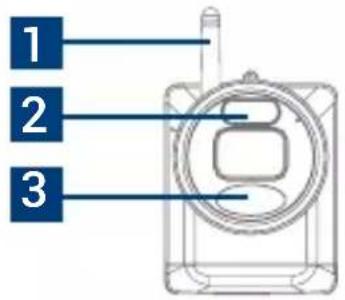

SIDEFRONT

1 2 3

1. Detachable antenna
2. Warning light
3. PIR sensor
4. Locking screw
5. Power port
6. Battery charging indicator

7 8 9 10

11

1. Fastener
2. Pairing button
3. Adjustment ring
4. Battery release tabs (x2)
5. Mounting plate slots (x2)

BOTTOM BACK MOUNTING PLATE

Dimensions

• Height: 4.8" (121mm)

- Width: 5.2" (131mm)

- Length: 2.9" (73mm)

Before You Start

The camera battery comes partially charged (due to safety regulations). Please, fully charge the battery before use and setup. You can charge the battery pack inside or outside of the camera.

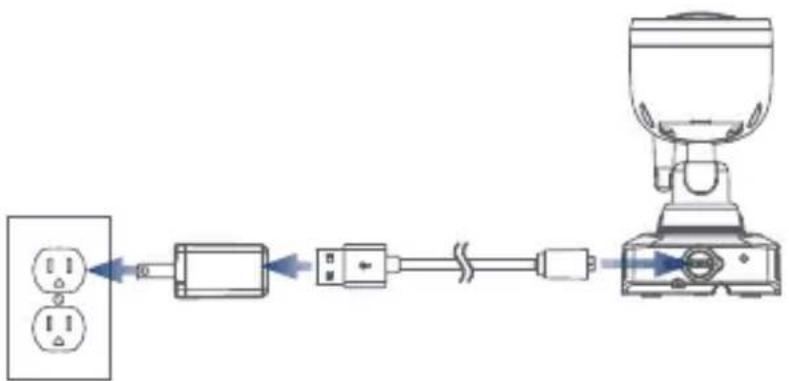

To charge the camera battery pack:

1. Remove the protective film on the battery contacts and camera lens.
2. Using the provided battery charging adapter and cable, connect the camera to a nearby outlet.

Camera Battery Charging Indicator Battery Charging Time

(solid)	Fully charged
(solid)	Charging

2-cell 2-4 hours
3-cell 3-5 hours

4 Setup

1. Turn the adjustment ring counterclockwise to loosen and angle the camera.
2. Screw in the antenna.

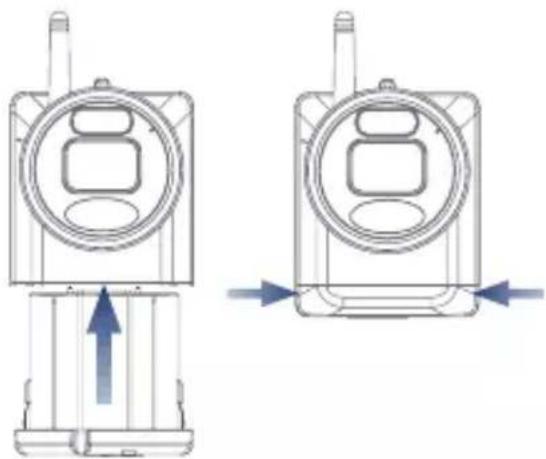

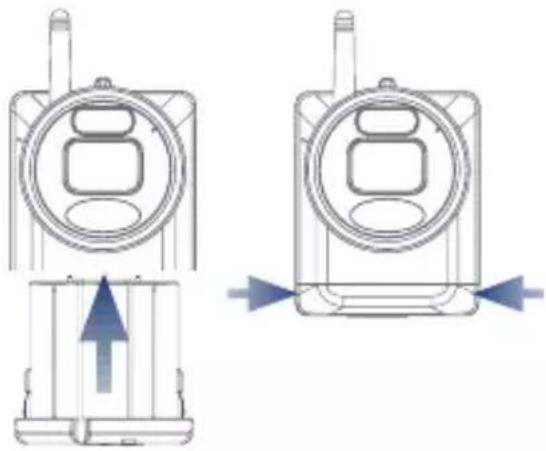

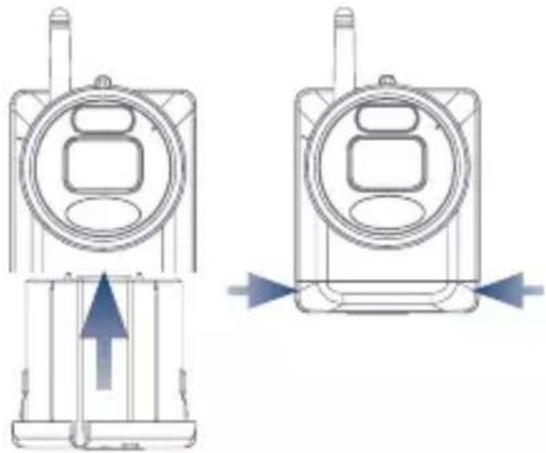

3. Insert the battery pack into the bottom of the camera.

Note: You will hear a 'beep' when the power pack is properly inserted. If you do not hear this alert, remove the power pack by pushing in on the battery release tabs then re-insert.

Diagram of a mechanical device with a lever and lever assembly, showing a blue arrow pointing to a component (no text or symbols present)

Adjustment ring

Technical line drawing of two views of a mobile phone device with directional arrows indicating movement (no text or symbols)

Pairing to the App

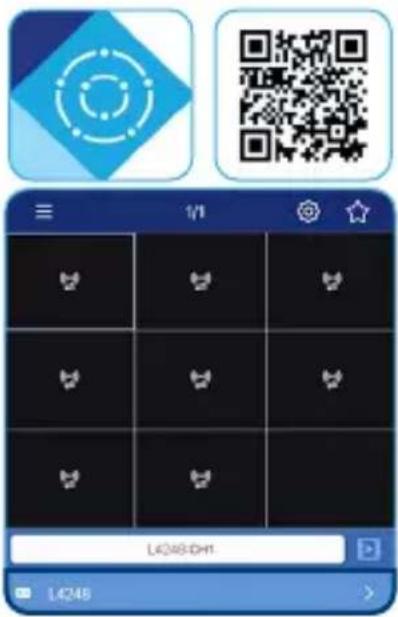

1. Download the Lorex Cirrus app by scanning the QR code.
2. Open the Lorex Cirrus app and sign in or create an account.

3. From the Home screen, select your recorder from the list of devices.

4. Tap any free channel marked with a 🎨 icon.

5. Tap Pair.

6. Press and hold the pairing button on the back of the camera until the red LED lights stop flashing, then release the pairing button. A 'Pairing success!' message will appear on screen. If you do not see this message, repeat steps 3-6.

Mobile app interface screenshot showing a QR code and a grid of user avatars with L4248-DH1 button

Optional: Pairing on the Recorder

Click the icon in an empty channel screen. After you press and hold the pairing button on the back of your camera, you will have 30 seconds to pair the camera.

App Live View

Device casting Settings Favorite group Name display Device name L4248:CH1[P2P] Search / playback video L4248 L222A8

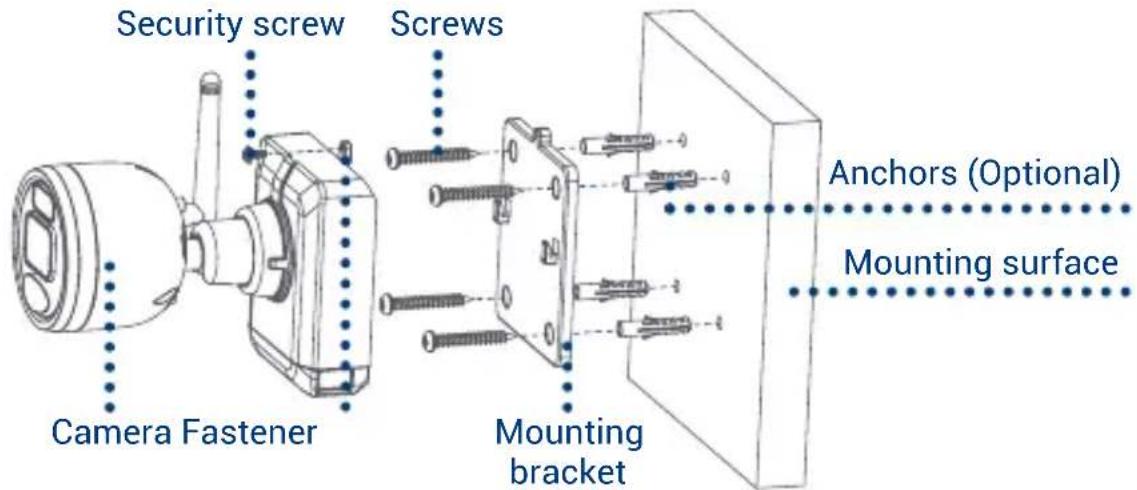

Mounting

Security screw Screws Camera Fastener Mounting bracket Anchors (Optional) Mounting surface

1. Set the mounting bracket to the desired mounting position.
2. Mark holes through the mounting bracket.
3. Using the included drill bit, drill holes where marked.

4. Using the included screwdriver, secure the bracket with the provided mounting screws. Optional: If you are mounting the camera into drywall, use the provided drywall anchors.

5. Orient the camera fastener upwards, then align the camera's mounting plate slots to the tabs in the mounting bracket. Push in and slide down to secure in place.

6. Insert the security screw through the fastener on the top of the camera and mounting bracket, then tighten with the screwdriver.

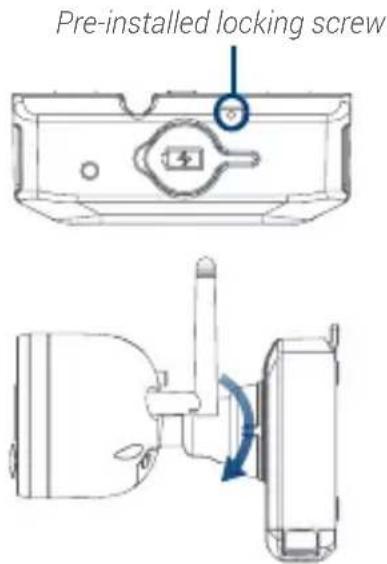

7. Tighten the pre-installed locking screw using the screwdriver.

Note: To remove the battery pack in the future, loosen the locking screw.

1. Adjust the camera to the desired position. Tighten the adjustment ring clockwise.

Pre-installed locking screw

Need help?

Visit help.lorex.com for up-to-date information and resources:

• Download product guides
• Watch how-to-videos
  • Find related troubleshooting tips & FAQs

Register your product

Please see our full Terms of Service and Limited Hardware Warranty Policy at lorex.com/warranty.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Copyright©2021LorexCorporation

As our products are subject to continuous improvement, Lorex reserves the right to modify product design, specifications and prices, without notice and without incurring any obligation.

E&OE. All rights reserved.

U424AA-Series_QSG_TRILINGUAL_R1
