Brand	Bosch
Model	TCG3323
Product type	Electric grill plate
Category	Contact grill / Tabletop grill / Gratin
Power supply	220-240 V ~, 50/60 Hz, power ~2000 W
Temperature adjustment	Yes, continuous regulator with positions 1-6 (approx. 100-240 °C)
Control light	Yes, heating indicator light
Cooking plates	Two removable plates, non-stick ceramic coating
Functions	Contact grilling, open grilling, gratin, keep warm
Use positions	Indoor electric grill (horizontal), tabletop grill (tilted), gratin position (vertical)
Drip tray	Removable mini dripping pan, placed under the drainage spouts
Handle	Yes, for opening and carrying
Cord storage	Yes, built-in cord winder
Cleaning	Plates dishwasher-safe; exterior: damp cloth
Prohibited cleaning materials	Steam cleaner, high pressure, alcohol-based products, metal objects, abrasive cloths
Safety	Do not leave unattended, unplug after use, do not immerse, children >8 years under supervision
Repairability	Power cord replaceable only by the manufacturer or qualified service
After-sales service	Contact details via QR code on enclosed document
Disposal	Compliant with WEEE (Directive 2012/19/EU), recyclable

Frequently Asked Questions - TCG3323 BOSCH

How to clean the cooking plates?

The removable plates can be removed and cleaned in the dishwasher. For manual cleaning, use a soft cloth and soapy water. Never use abrasive products, metal objects, or a steam cleaner.

What oil to use for the grill?

Use a cooking oil with a high smoke point (e.g., refined sunflower oil). Avoid extra virgin olive oil which has a low smoke point (<180°C) and can damage the ceramic coating.

Can I grill frozen foods?

It is recommended to thaw completely frozen foods before grilling and dry them. This ensures even cooking and prevents the formation of acrylamide.

How to use the gratin position?

Place the food to be gratin on the grill and attach the top plate in gratin position (vertical). Set the temperature to a high value to gratin the top.

What to do if the power cord is damaged?

To avoid any danger, the cord must only be replaced by the manufacturer, its after-sales service, or similarly qualified personnel. Do not attempt to repair it yourself.

Can I leave the appliance unattended while operating?

No, the appliance must be used under supervision at all times. After use, unplug it immediately. Never let children play with the appliance.

How to prevent acrylamide formation?

To limit acrylamide (a harmful substance), avoid blackening food and remove burnt residues. Only salt meat and fish after cooking and do not overheat cereal-based or potato-based foods.

The appliance emits an odor or smoke during first use, is this normal?

Yes, it's normal. Before first use, heat the grill three times empty at maximum temperature with the window open. Then let it cool and clean the plates. A slight odor or smoke may be emitted.

Can I use metal utensils on the plates?

No, do not use sharp, pointed, or metal utensils on the plates. Instead, use wooden or plastic utensils to avoid scratching the non-stick coating.

How to store the grill?

Let the appliance cool completely, then place it in the vertical position. Wind the power cord around its storage holder. Store it in a dry place out of dust.

USER MANUAL TCG3323 BOSCH

Register your new device on MyBosch now and get free benefits: bosch-home.com/ welcome

Contact grill

TCG3323

[de] Gebrauchsanleitung 7
[en] Information for Use 11
[fr] Manuel d'utilisation 15
[It] Manuale utente 19
[nl] Gebruikershandleiding 23
[da] Betjeningsvejledning 27
[no] Bruksanvisning 31
[sv] Bruksanvisning 34
[fi] Käyttoohje 37
[es] Manual de usuario 41
[pt] Manual do'utilizar 45
[el] Evyipio xpiotn 49
[tr] Kullanim kilavuzu 53
[pl] Instrukcja obstugi 57
[hu] Hasznalati utmutato 61
[bg] PbKOBOIDCTBO 3a yNoTpe6a 65
[ru] RykoBoIcTBo noJIb3OBaTeIa 69
[ar] 73

[de] Weitere Informationen und Erklarungen finden Sie online. Scannen Sie den QR-Code auf der Titelseite.
[en] You can find additional information and explanations online. Scan the QR code on the title page.
[fr] Voues pouvez trouver d'autres informations et explications en ligne. Scannez le code QR sur la page de titre.
[iit] Puoitrovate ulteriori info e spiegazioni online. Scansiona il codice QR sul frontespiozio.
[n] U kurz online aanvullende informatie en uitleg vinden. Scan de QR-code op de titelpagina.
[da] Derfindes yderligere oplysninger og forklaringer online. Skan QR-koden pa forsiden.
[no] Du kan finne mer informasjon og forklaringer på Internett. Skann QR-koden på tittelsiden.
[sv] Det finns mer information och förklaringar online. Scanna QR-koden på omslaget.
[fi] Lóydát lisiātieta ja salityksiä verkosta. Skannaa QR-koodn sivun otsikosta.
[es] Se pueda encontrar informacion y explicaciones adiconiales online. Escanear el numero QR en la pagina de titulo.
[pt] Pode encontrar informacoes e explicacoes adcionais online. Leia o��g Q que figura na pagina de tifo.
[el] Mtnopeite v a BpEit e nIaov nnpoepiec kai Enyiogic oto diaktu (online). ZapwTe Tov Kwiok QR otn oeAiO tairou.
[tr] Ek bilgi ve aqiklamalar cevrimi olarak bulabilirsiniz. Barangk sayfasindaki QR kodunu tarayin.
[pl] Dodatkowe informace je objasnienia sa dostepne online. Zeskanuj kod QR na stronie tytuwoj.
[hu] További informáciosétajekoztatás az interneten található.Olvassa be a borito belso oldalán levO QR kódot.
[bg] Moxete da Hamepnte doTbHInTeHa HOpMaunn I ObaChenn OHnaH. CKaHpaIte QR KoJa Ha 3aIgIaHBaTa CTpaHua.
[ru] DOnIOJIHHTeJIbHyIO INHOpMaIIO N O6BaIcEHn MOxHO HAITN B CETN IVHTepHET. CkaHmpyTe QR-KoI Ha TITyJbHOI CTpaHnE.
[ar]

1

2
3

4

5

6

7

8

9

10

11

	√	√	√	√	√
	√	×	×	×	×

13

14

	√	×	√	5
	√	×	√	4-5
	√	×	√	4-5
	×	×	√	5
	√	×	√	5
	√	×	×	5
	×	√	×	5
	×	√	×	5
Keep warm	×	√	√	1-3

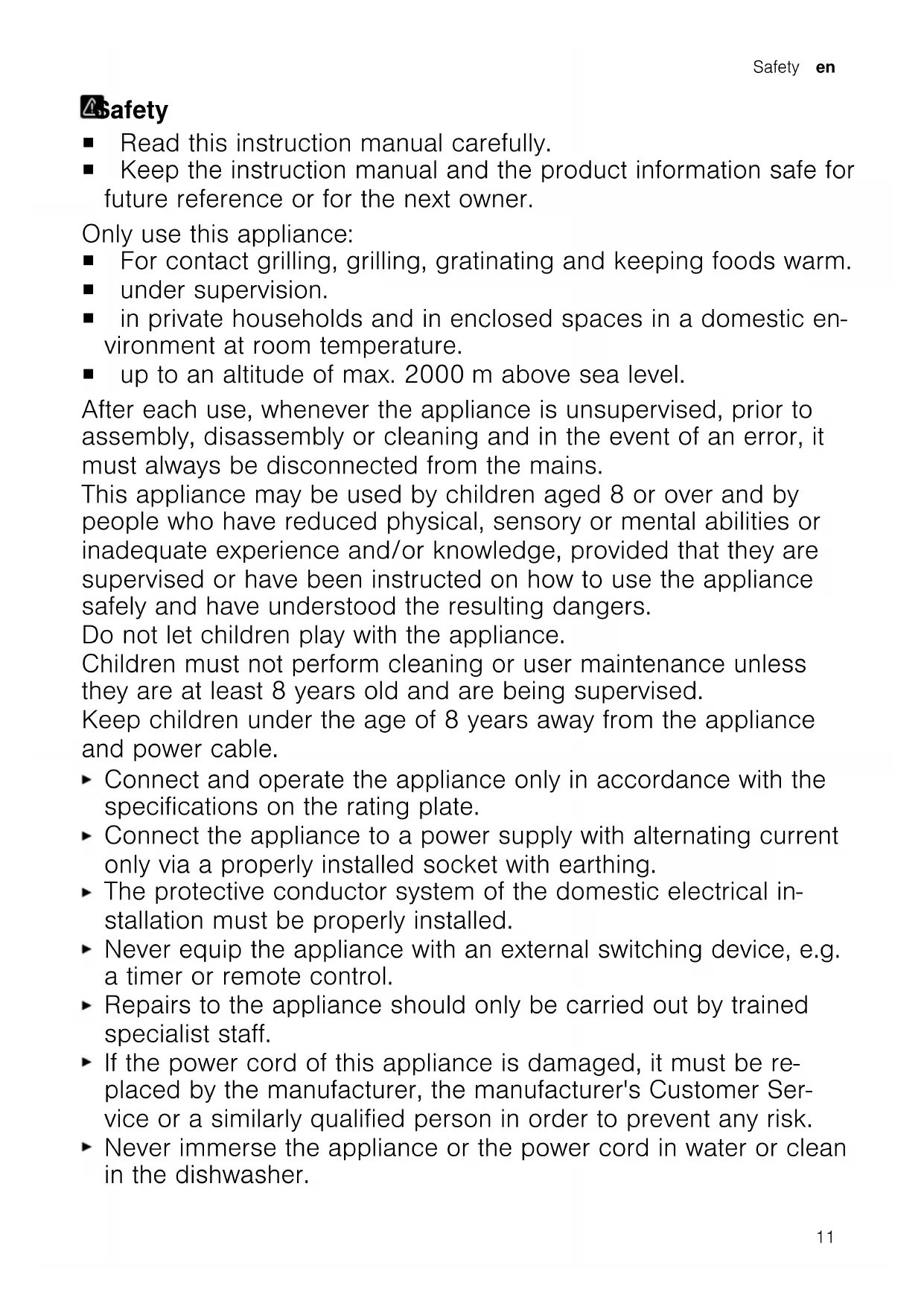

4sicherheit

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.

Only use this appliance:

• For contact grilling, grilling, gratinating and keeping foods warm.
  under supervision.
• in private households and in enclosed spaces in a domestic environment at room temperature.
  up to an altitude of max. 2000m above sea level.

After each use, whenever the appliance is unsupervised, prior to assembly, disassembly or cleaning and in the event of an error, it must always be disconnected from the mains.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
• The protective conductor system of the domestic electrical installation must be properly installed.
• Never equip the appliance with an external switching device, e.g. a timer or remote control.
• Repairs to the appliance should only be carried out by trained specialist staff.
• If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

• Never immerse the appliance or the power cord in water or clean in the dishwasher.

• Do not use steam- or high-pressure cleaners to clean the appliance.

• Never let the power cord come into contact with hot parts or be dragged over sharp edges.

The appliance becomes hot during operation. Never the hot surfaces.

• During operation only the controls or the handle should be touched.
• Allow the appliance to cool down before cleaning or transporting.
• To avoid injuries, only use the appliance for its intended purpose.
• Keep packaging material away from children.
• Do not let children play with packaging material.
• Keep small parts away from children.
• Do not let children play with small parts.

Avoiding material damage

• Never switch on the grill without the grill plates in place.
• Do not use sharp, pointed or metal cutlery on the grill plates. Use grill utensils made of wood or plastic.
  Always place the grease pans under the grease drains.
• Do not use cooking oil with a smoke point below 180^ , e.g., extra virgin olive oil, to avoid damage to the ceramic coating.
• Never continue to heat up the grill plates without food after the set grilling temperature has been reached.

Familiarising yourself with your appliance

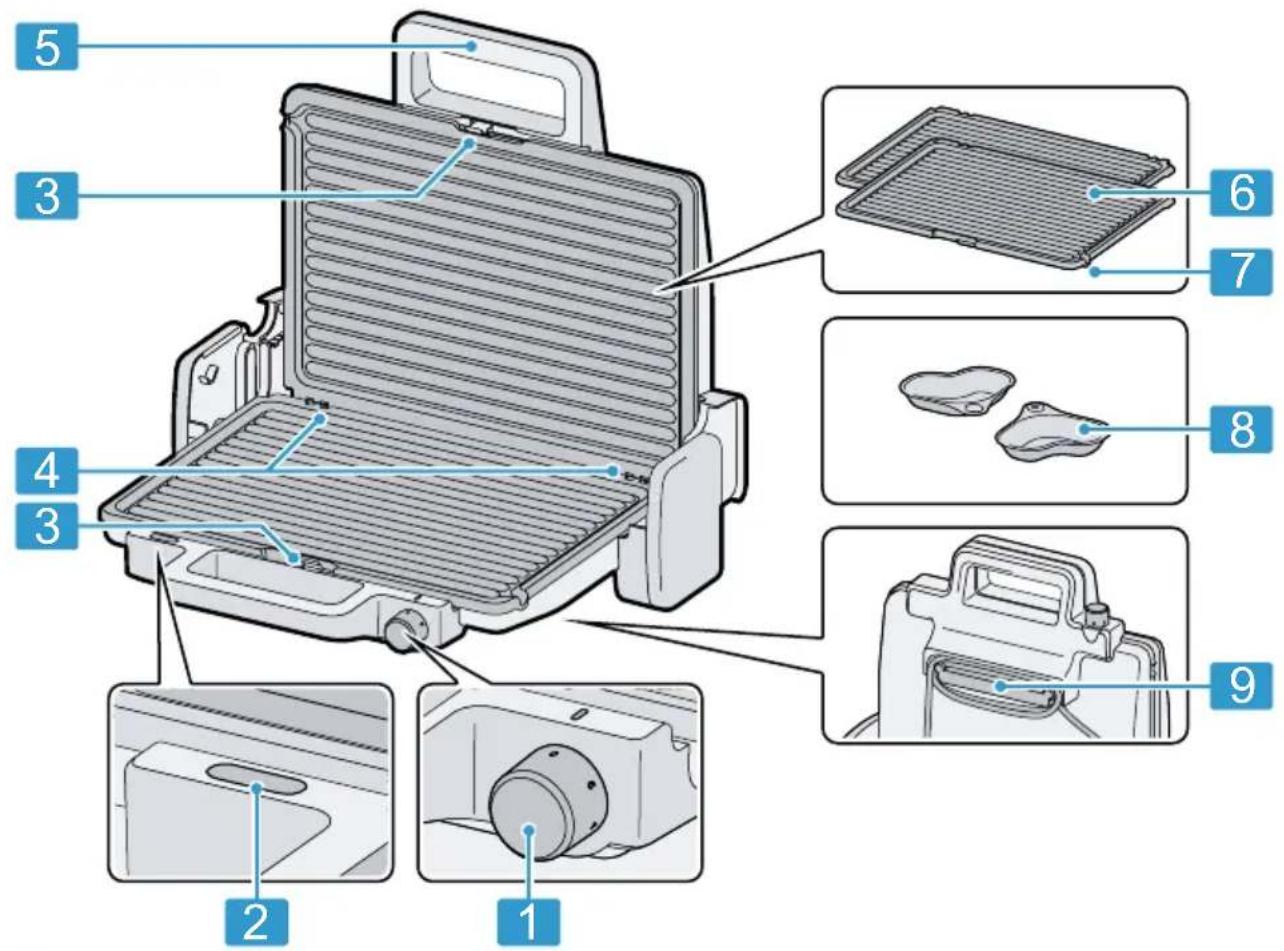

Overview Fig. 1

1	Temperature controller
2	Indicator light
3	Plate lock
4	Plate holder
5	Handle
6	Removable grill plates

7 Fat drain
Grease pans
9 Cord storage

Grilling positions

You can use the grill in 3 positions for different types of cooking.

→Fig. 2

A Contact grill
Table top grill
C Gratin position

Grill plates

You can remove the non-stick grill plates for thorough cleaning and put them in the dishwasher.

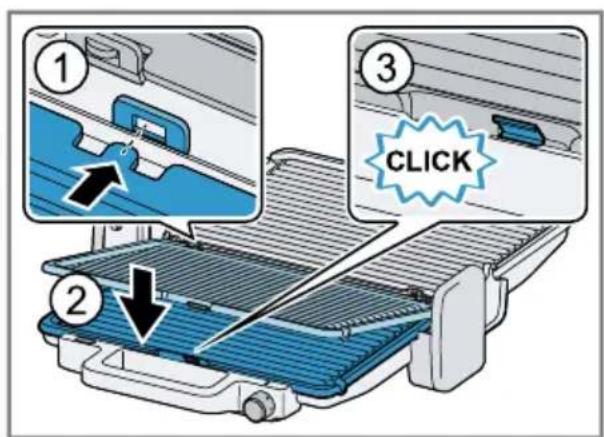

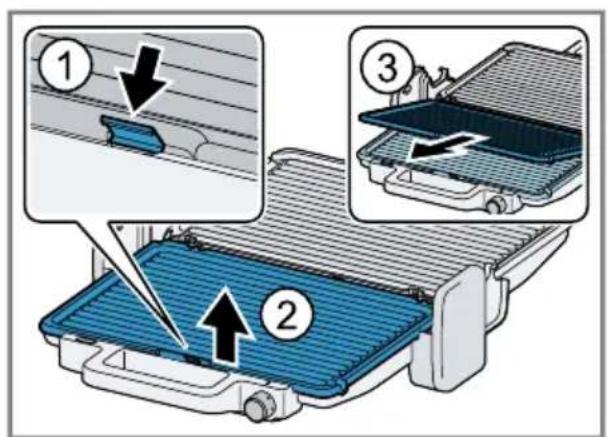

Removing and inserting the grill plates

→Fig. 3 - 4

Preparing the appliance for first use

1. Open the grill and plug in the mains plug.

2. Make sure a window is open and allow the grill to heat up and cool down without food and at the highest temperature setting three times.

3. After the grill has cooled down completely, clean the grill plates.

Note: Slight smoke or odour emission during initial use is normal.

Operation

General information

Please bear this information in mind so that you can get the best out of your appliance.

Before use, apply a small amount of cooking oil to the top sides of the grill plates.
Use cooking oil with a high smoke point, such as refined sunflower oil.
- Do not put any food on the grill plates until the preset temperature has been reached and the indicator light has gone out.
Take the food out of the refrigerator at least 30 minutes before grilling and so allow them to reach room temperature.
- Completely thaw and dry frozen foods before grilling.
- Do not season meat and fish until after grilling.
- Acrylamide is harmful to your health and is produced when you cook cereal and potato products at very high temperatures. Do not grill the food to the point where it is too dark; remove any burnt residues.

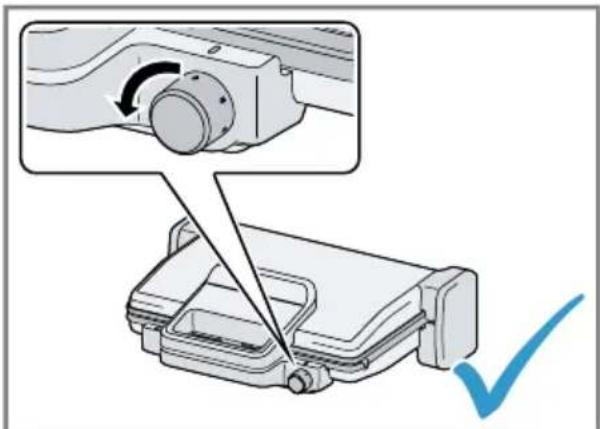

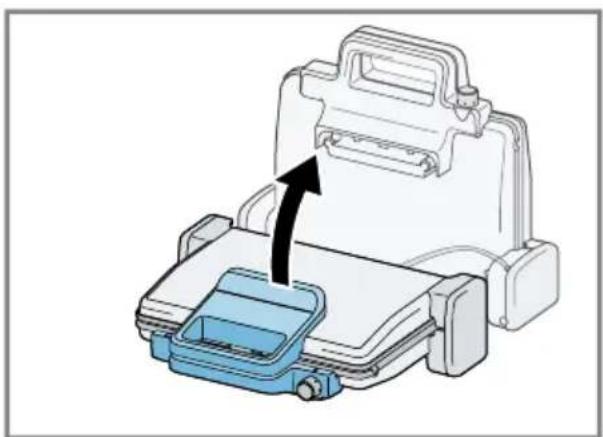

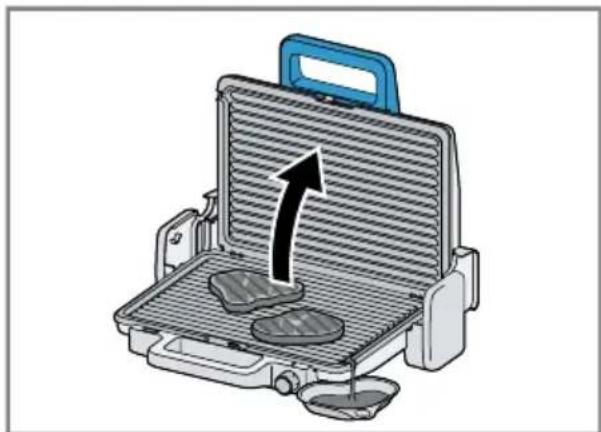

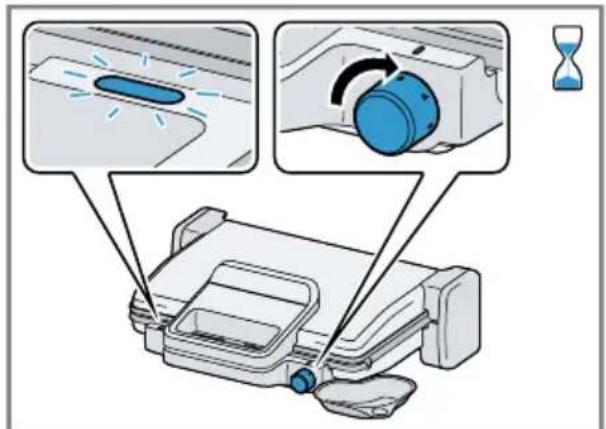

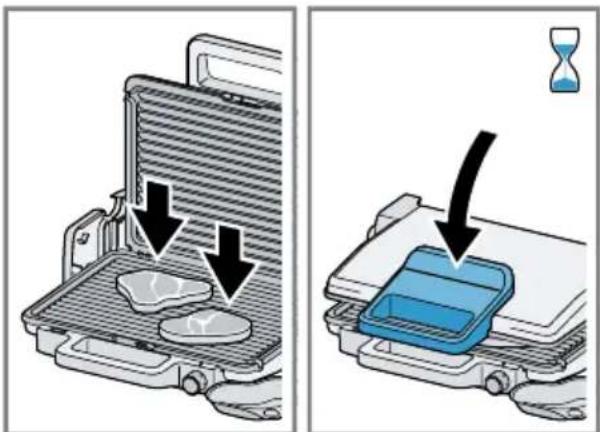

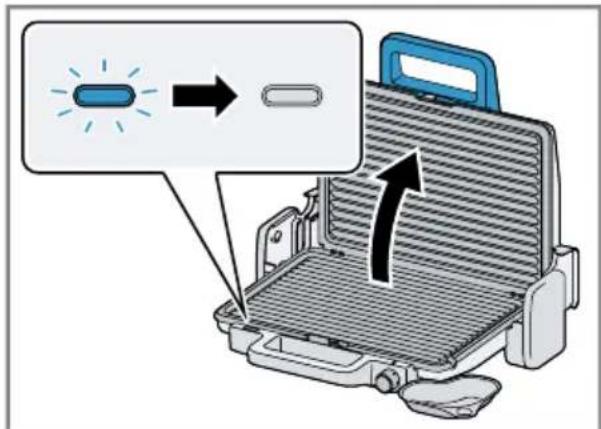

Contact grilling

The food is grilled evenly from the bottom and top. The upper grill plate adjusts to the thickness of the food.

$$ \rightarrow F i g. \quad 5 - 9 $$

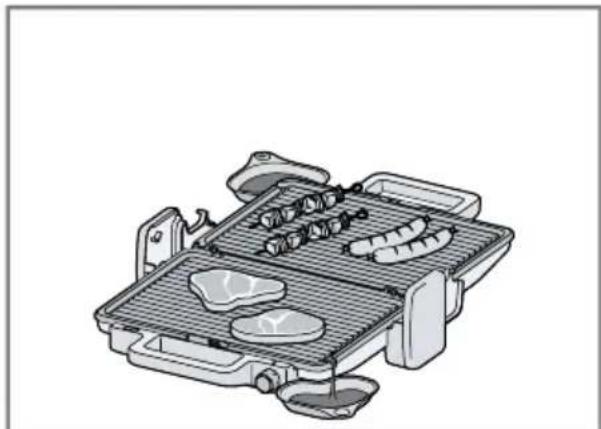

Grilling

• Distribute the food across the two plates, turning it over as needed.

$$ \rightarrow \text {F i g .} \quad 1 0 $$

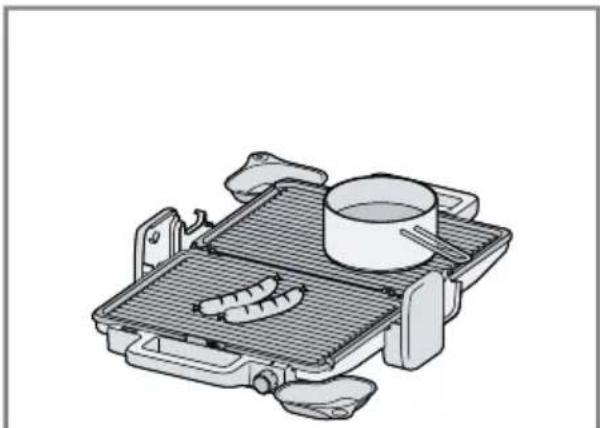

Keeping food warm

• Keep the food or pans and pots warm at a low temperature setting.

$$ \rightarrow \text {F i g .} \quad 1 1 $$

Set the temperature controller to 1-3.

Tip: You can also keep food warm in the gratin position.

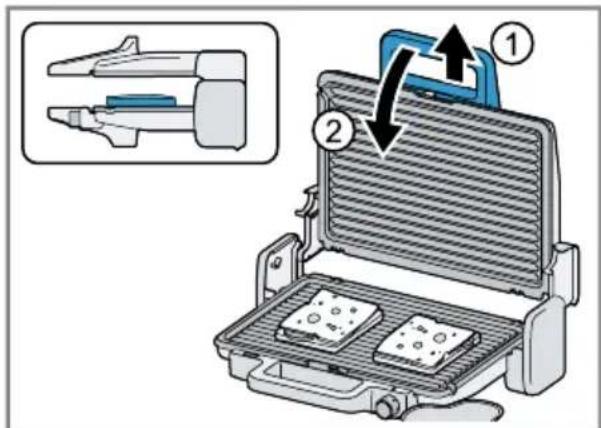

Au gratin dishes

• Place the food to be gratinated on the grill and attach the top plate in the gratin position.

$$ \rightarrow \text {F i g .} \quad 1 2 $$

Overview of cleaning

Clean the individual parts as indicated in the table.

• Do not use cleaning agents containing alcohol or spirits.
• Do not use sharp, pointed or metal objects.
• Do not use abrasive cloths or cleaning agents.
• Do not use oven or barbecue sprays for cleaning.

$$ \rightarrow \text {F i g .} \quad 1 3 $$

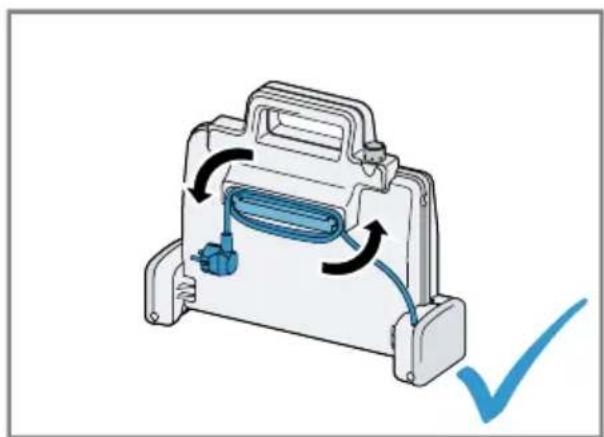

Storing or transporting the appliance

Place the grill in an upright position and wind the power cord onto the cord storage, to store or transport the grill in an upright position.

$$ \begin{array}{l} \rightarrow F i g. \ 1 4 - 1 5 \ \end{array} $$

Grill guide

For the best possible results, follow the recommendations in the grill guide.

$$ \rightarrow F i g. \quad 1 6 $$

Disposing of old appliance

• Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Customer Service

Detailed information about the warranty period and the warranty conditions in your country is available via the QR code on the enclosed document on service contacts and warranty conditions, from our customer service or on our website.

You can find the contact details for our customer service via the QR code on the en

closed document on service contacts and warranty conditions or on our website. You can find the information required as per Regulation (EU) 2023/826 online at www.bosch-home.com on the product and service pages for your appliance, in the area of user manuals and additional documents.

4scurite

cal and electronic equipment - WEEE).

Advertencias de character general

Kovouoku (waste electrical and electronic equipment - WEEE).

H oynia npoka0piεi Ta
πλaioia viα μia anoupon kai
αξioiən Tov naiow ou-
okewv με IOxU σ' oAn Tnv EE

Yπnpεoia εξuunnpετnong nελατωv

AeToupeic nnpopopiec yia Tov xpOvo EYyunongkai Tou opouc Eyyunong otn Xwpa aactheta Aaepeoou kwoiKOU QR oTo ouvnmuEvo eyyapoo yia TIC eTAPec oepic kai Tou c npouc Eyyunong ano tv unnpoeia eunnpetnonc neatow tnc eTaipeiac mac, Tov eTOpO aac nTV IOTOeAidaa mac.

Ta otoiexia eikoiwviac tnc unnpoeiac Eux npetnonc neatov tha 0a bpitee eow tou kwikou QR to ouvnmuevo eyypapo yia tic enapec ocepic kai touc opouc eyyunonc n otny iotoeia ac.

Oi npopopiec ouuwpwa e Tov kavovioe (EU) 2023/826 pioakovta online kaTw ano www.bosch-home.com otn oelia npoiobvtoC kai otn oelia oepic nC ouakenuC oac otic obnyiec xponc kai ot a npoeeTa Eyypaa.

Güvenlik

81739 Munchen, Germany

www.bosch-home.com

IpeodotbpaTbaHe Ha MaTepnaJIHn ΜeTn

Hnkora He BkIIOUBaIte rpnla 6e3 nocTaBeHN rpnI pOuN.
He n3noJ3BaItepeXeU,ocTpHn MeTaJIHn np6OpN BbPxy rpnI IIOuHTe. H3noJ3BaIte np6OpN 3a rpnI OT IbPBO nnPiactMaCa.
BnHaHn NOCTaBnTe TaBnUknte 3a Cb-6npaHe Ha Ma3HNHaTa NOD OTBOpNTe 3a OTTnuaHe Ha Ma3HNHa.
He n3no3BaIe OJIO 3a roTBeHe C ToUka Ha n3napraBaHe noJ 180^, HAp. Heo6pa6OteHO macInHOBO MacNo,extra virgin",3a Da n36erHete NOBpeDN Ha KepaMHOTO NOKPNTne.
Cleid doctnrahe Ha hactpoehata Temnepaotypa 3a rniloBaHe HNKORA He 3arpaBaiTe nobuee rnil nlouHte 6e3 xpaHNTeHNn PpOdyKTN.

3an03HabaHe

O6u nperei

→Φur. 1

1	Perúlatop Ha Temnepatypata
2	KoHTpOlaHa IaMnUcka
3	ΦIκCatop Ha ПLOUaTa
4	Дьржач Ha ПLOUaTa
5	ДрьЖka
6	Ссемаемп грил пLOчи
7	Улей 3a OTTHUaHe Ha Ma3HINHaTa
8	Тавочи 3a сьбираHe Ha Ma3HINHa
9	Място 3a сьхpaHeHne Ha 3axpaHbAsnja Ka6eJ

POnzHnHa rpnla

Moxete da n3noJ3BaTe rPnla B 3 no3n- 3a pa3nueHn HauHH Ha nprirotBHe.

→ΦnΓ. 2

A KohtaKeH rpn
B HacToIeH rpn
C I03n7a 3a 3aneKaHka

Tpnilnlou

3a ⅢaTeJIHO IOUHCTBaHe MoKTe Da H3BaIInTe rPnI PLOHTe C He3aJIeNBAIo

POKPNTHe I Da Tn H3MneTe B CbDOMnHaMaShnHa.

I3BaJdaHe n NOCTaBHe Ha rPnI pNoUH-Te

→ΦMΓ. 3-4

Poirotobka Ha ypea 3a nbpBaTa ynoTpe6a

1. OTbopete rPnla n BKJIIOUeTe UeNceLa B KOHTaKT.
2. Прп OTворен позорец загейтгппьтngрILA на наи-Bисокараз Temпературан Habстpoиka 6e3 xpaHNTeHLN npoduktnи Го OCTaBeTe Да ce oxlaadi.
3. Cnei KaTo rPnIbT ce Oxlaadn HanblHo, NouchTeTe rPnI nlouHTe.

3a6eJek: Jeko o6pa3yBaHe Ha dIIM NII Mnpnc IIO BpeMe Ha IIpbBata yNtpe-6a e HopMaJIHo.

O6cnyKBaHe

06uynka3aHn

B3emete noi BnMaHne yka3aHnraTa, 3a Da n3noJ3BaTe oTImaJHo BaJn ypeI.

HaMa3HeTe IeKO rOpHaTa cTpaHa Ha rPnI nloUHTe C OIIIO npEi yNoTpe6a.
- Прелорьаме олно CBисokeda Точka надиме, нар. рфИнраHO CЛьн- чогледо Олно.
IocTaBnTe npOdyKTH Bbpxy rpnI IIOuHte eDba KOraTo npeDbapntHo HacTpoEHaTa TemnepaTypa e DoCTnRHaTa N KOHTpOJHaTa lammnyka e yraChana.
I3BaTe XpaHnTeJnHnTe npOdyKtn OT xlaAnlHnka MmHmym 30 MnHytn npei IprnIOBaHeTo n Tn OCTaBeTe da ce 3aTOnJIrTO cTaHa TempepaTypa.
Pa3mpa3eTe n3qIIO n IOcCyUWeTe 3aMPa3eHnTe XpaHnTeJHn IpoDyKTH npeiN rPnIOBaHeTo.
- Obkycete pnbata n mecoTo eDba cneI rpnIOBaHeto.
- AkpnilamnDbTe BpeDeH 3a 3dpabeto n ce o6pa3yBa, KOrato npnroTbTe 3bpHeHn KapTOphiHn PpOdyKTn C MHOTo cnHa TOnnHa. He rplnoBaIte npekomepho XpaHnTeHNHTe PpOdyKTn n OTCTpaHete 3arOpelnte OCTaTbU.

KoHTaKTHO neueHe Ha rpnJ

XpaHnTeJHnTe npOdyKTn Ce rpnIOBaT paBHomepHo OTdoJy n OTrope. TOpHaTa rPnI Ploya ce aanTpapa cnopei nebeHnHaTa Ha xpaHnTeJHnTe npOdyKTn.

→ΦHΓ.5-9

Пechени на грпл

Pa3npedeJeTe xpaHHTeHNHTe npOdyKTH Bbpxy DBeTe NIOUH N O6bPHeTe Pn HEOxOIMOCCT.

$$ \rightarrow \Phi_ {H F}. \quad 1 0 $$

Iopdtpkahe B Tonno cboTOnHne

• PoiDbpxaTe B TOIIO CbCTOHNHe XpaHnTeHNHTe PPOyKTH NIN TnraHn N TeHdKePn Prn HnCKa HaCTpOJKa Ha Tempepatpata.

$$ \rightarrow \Phi_ {M F}. \boxed {1 1} $$

Noctabete perylaTopa Ha Temnepatypata Ha 1-3.

CbBET: MoKeTe Ia noIbPkaTe xpaHnTeJIHn IpoAkyTn B TOIIO CbCTOarHne Cb-IO B N03uYra 3a 3aneKaHka.

Ppennuane

• Пocstabeteхрантелпte npodyktn 3a npenuache Bbpxy rpnna n Okayete rophata ПLOuya B NO3nryta 3a 3aneKaHka.

$$ \rightarrow \Phi_ {M F}. \quad 1 2 $$

Yka3aHn8 3a NOuchTbaHe

IounCTBaIte OTdEHNHe yactn CbIaCHO yKa3aHnTa B Ta6nIaTa.

He n3noJ3BaIte cIbPkaun aIKOXoJ noUncTbaU npenapatn.
He n3noJ3BaIte oCTpn,peXeIIN nn MeTaJIHN pPeDMeTn.
He n3noJ3BaIte a6pa3nBn KbPn nn nouchBaun npenapatn.
He n3noJ3BaIte cnpeioBe 3a noUncTBAHe Ha yprHn nn rpnIOBE.

→ΦMΓ. 13

CbXpaHHe H TpaHCnOpTnpaHe Ha ypeDa

3a cbyxpaHЯBaHe nIITpaHCnOpTnpaHe NOCTaBete rPILA B n3npaBeHO NIOJKeHne HABNITe MpeKOBn Ka6eHa npnc-

NOCOJIeHHeTo 3a CbXpaHHe Hn KaBe- Ia.

→ΦnΓ. 14-15

Грелkomпас

3a ONTImaJIHn pe3yJITaTH B3eMeTe NOBHHMaHHe IpeIopbKHTe B rPNI KOMNaCa. Onr. 16

IpedaBaHe 3a OTpaDbuHa H3- Ie3Jn OT ynotpe6a ypeiN

IpeaTe ypea 3a OTnabu n no ekolorocbO6pa3eH hauHH. AkyaHa HOpMaun OTHOCHOaHnHte Ha npedabaHe 3a OTnabu n Ie noyuHTe ot Baun cneuaJn3npan TbprOBeU, KaTO n OT cbOTBeTHata ObUnHcKa nn rpaDcKa ynpaba.

To3n ypeJe o6o3HaueH BCbOTBETCTBHe C eBpOneiCKaTa DInpeKTHBa 2012/19/EC 3a cTapNeEKeKTPnueeCKn EeKeKTPoHHNypeDi (waste electrical and electronic equipment - WEEE). Ta3n DInpeKTHBa peIaMeHTnpaBaJIINHITe BpaMKTe Ha EC

npaBnla 3a npneMaHe nN3noJ-3BaHe Ha cTapn ypeDi.

He donycka Te dete MnaDwe 8 let K npbOpu n ero cTeBOMy npoBdy.

• Прп подключени прибopa и сero заци coьл�дайе даньie, привedeнные на сирмehнов tabличke.
• Прибор можно подкюа Только К заektposети перементоka уеpe3 установенью согласно прдпсаням розтуку с 3a-3emlehenem.
  CnCTema 3a3eMneHnB DOMaShHeN 3JeKTPoPpOBoDKe DoJxHa 6bItb yCTaHOBLeHa COrlaCHO PpeDnncAHnA M.
  3anpeaetc ochaatb npbop BheHnM nepeKIOuataleM, Hapnmep, TaMePOM nIyIbTOM dNCTaHcNOHHoro ynpabLeHna.
• PemontpoBaTb np6op pa3pe7aetc T0lbKO KBaHnΦnIrpOBaHbIM CneuaJIncTaM.
  Bo n36eXaHne onaChOCTe 3aMeHa nobpeJdeHHoro ceTeBOrO Ka6eIaHHoro np6bopa MoKeT bItb BbINOJIHeHa TOnbKO pOn3BOJN-

ru PpeIOToBpaueHne MaTePnaIbHoro yuepe6a

TeIeM IIN aBTOpN3OBaHHoN IM cepBnCHoN clyXbO JInO JInOm, IMeIOUIM aHaIOnHyIO KBaJIuΦNKaUIO.

▶ Kateropnueckn 3aPpeuTcra NpRpyKATb PnOBOp B Body HIN NOME- tB eRo B NocydOMoeHyIO MaunHy.
He nCnoIb3yIe IJIa OUHCTKn IprObopa napoouHCTHTeJIu nn OUHCTHTeJIu BbICOKOTo DaBJIeHJ.
▶ Kateropnueckn 3anpeuhen KOHTaKT cTeBOrO KaBeIc rOpAumN uactamn nll OCTpbIMN KpaAMN.

Bo Bpempaobtbpnboop cnIbHo harpeBaetc. He npkaK ropaym BHeuHm NOBepxHOCTaM.

Bo Bpempaobtki kacaTecb Tolbko 3JeMeHTOB ynpaBHeHn nnpyKoRTKn.
- Перад оочстков слп Транспоровков побора дайу понocтю OCTыИнТь.
- UTo6bI npEdoTbpaTb TpaBMbl, nCnoJb3yInTe npH6Op TolbKO no Ha3NaueHnIO.
He noDnyckaIte deTei K ynaKOBOHOMy MaTePnAly.
He N03BOJnTe DeTm nIpaTb C yNaKOBOHyBIM MaTePnaIOM.
He noDnyckaIte dete K MeIKNM DetaIaM.
He N03BOJIAIte DeTAM HgpaTb C MeJKNMn DeTaJIaMn.

IpeodotBpaueHne MaTePnaJIb-Horo yUepe6a

He BkIIOuAte rpnIb 6e3 yCTaHOBNeHbIX nlaCTnH.
He nCnoJb3yIte oCtpbIe, KOJIIOUne Hn MeTaNJIueCKHe CTOLOBbIe np6OpbI Ha KOHTaKTHom rPInJe. NcNoJIb3yITe np6OpbI dIg rPnJIr n3 DepeBa nn nI NaCTMaCCbl.
Bcerda noctabnyTe ynaBnBaIOune emKocTN NOcCnVB dJa Xnpa.
Bo n36eXaHne NOBpeKdEHNr KepaMHueCKOro NOKpbITnHr He NCNoJIb3yIte NIISeBOe MacNo C TempepaTyPOr DbIMJeHNr HnKe 180 ^ C ,HaNPmEp HaTypaJIbHOe OINBKOBoE MaCNo 3KCTpa.
He npoIoljkaIte HarpeBaTb KOHTaKTHbI rPnIb 6e3 npOdyKTOB, eCIn DoCTnHyTa HAcTpoEHHa TEmpepaTypa npnyrTOBLeHna.

3HaKOMCTBO C npH6Opom 063op

→PnC. 1

1 PeryJIaTOp TempepaTypbI
2 KoHTpOJIbHaJ lamNoUka
3 3aueIka nlaactnHbI
4 ČeρЖaTeJIb Пл actHbI
5 Puyka
6 CbemHa nlaactnHa rpnla
7 KeIobok Ia cInBa Jupa
8 Iotkn dny c6opa kupa
9 OTCEKДЯХpaHeHnKa6eJn

Iolokenra rnila

Гриль можно ИспOLTБОВТВ 3 NOLOKeHnIX ДЛЯ рaЗИчнblIX CnOCO6OB ПriROTOBJIeHnI.
→PnC. 2
A KoHTaKTbIg rPnJIb

PnroToBneHne Ha rpnJe

PacnpedeIte npOdykTbI NO OBeHM INaCTnHaM IpeBopauBaIte No Ntpe6HocTn.

→PnC. 10

PoiDepKaHne TempePaTpybI

He nCnoIb3yIte moIoune cpeIcTba, coIepkaune aIKOroIb IIN cNnpt.
He nCnoIb3yInTe MeTaJIInueckne N octpOKOHeuHbIe IpeDMeTbI, a TaKKe IpeDMeTbIC OCTpbIMKpOMKaMn.

ru CoBebI IO NcNoJIb3ObaHnIO rpnJIa

He npimehnTe rpybYIO TkaHb nIa6pa3NBhIE YNCTAUNe CpeDCTBa.
He nCnoJb3yIe IJIa OUHCTKN Cnpen, PpeHa3HaueHHbIe IJIa DuxOBOK N rPnJIeN.

→PUC. 13

XpaHeHne n TpaHCnOpTnpOBka np6opa

a aaa a a a a a a a a a a a a a a a a a a a a a a a

jIJI Uc UU

J 1

g j g 100

jIJIiJg,Jlao Jkwo

.1gXl dIwic g 1oJl 1g 1jL jL jos

g 1111 g jg jj jos J S 1111 1111 1111 1111 0jj j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

jIJI 0bui

ar dJlJI Jj

aiaw jjg 00000 g g kwwll alog g g y loo poo .olglg gg gl

s

.ààlωJl

.

.dai g1 daabii jj

.

.1jbJUglio jc 1sgo

jLlU 1gao jgol JbX

.1j0bJUgIoo jc oJzJl|JzJ

.0jLjJxUgJUJbX

Igulgolgo

3 10

.àdoliao muánj gij

2 ≤ /J

auijgA

aIgIgB

C

Igulalgl

1b 111111111111111

gaoJI cbiuJU Joo guiuJluo

.1uXl uUwC 1g L20gg

LgJgIgJIgJIj

4-3 JswJ

UgXpIaWJlqJI J

oo

.1

Ljgo aulc yIgogugwUJaw.2

aJ LcI Lc lebuaog aagio o jolil

jLgJlgl Joo

aIgJI cbi, looJ gWU Joo.3

|gawl|

gJjAJI Joo Joo:aa

JgX1 1

Jasw

dolc U|slwj

p|ssai|diSosu|sLwJdui

.aaJoo oJgwo Jj

a gll a gll lglggl

pI 100 pIbI Uj no Iu

aJlJI JjI 1

gug gulgul llo 8

.1gJlso 1g 1g

aoglo oJoa Jg 1pssw

pAaiwI .guiI gJI Lc dJx0 g]

aJwU|gI aWU|gWU Ug

.ugwJgJoo

J 1

JlJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJn

auiu jaiy auij ylln no uai iaii Ulogloll Ugolld liS J Iaiall n o uai lIw w d gil ayll OJSL gglnnssdai

daolgalIbjoJgJl

acgaoJl/2012/19 aUjgZI

aI aJgX I aJxioX

auijjiSjglguijqSj0jQ

waste electrical and) aJ

.(electronic equipment - WEEE

jIbXJSSaD aOggal oAog

g 5jw jglgo

yggjg jx1 xjx1 jgs

aai jgai

.qljIooI oJlcg

LaaJdo

oji jc auiuoo loglo Ugallg

j 10

gaggl aJjwJdLwwJ j0J p|xaiw|

Uull Ue Lw golll suiuoll

do do 日 JUJX1 g1, 日 LADl bgjw g do

liogo ojgl Jgall gl

.

do do yu jyui ly uynu

gagollaeJwU,duiWJl jojuC

gao gao jai jia jia jia jia

gWl

|gω|

sic wgg aolly oJlo sdoLjS lo

J J 10000000000000000000000000000000000000000000000

.0J|J

11

3-1 1c ojJl Jd jy pio g

Jgai agaw lc bloal elSau:daai

.1Jggo 5S d

gJ

joo jai jai jai jai jai

gglgglgglgglg

.

12 JswJ

joo g0 los oJoaal |j

Ug

Uc agio oabui slgo paaui

. g g g

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration - also on mobile phones:

www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you: www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

BSH Hausgeräte GmbH

Carl-Wery-StraBe 34

81739 Munchen, GERMANY

www.bosch-home.com

A Bosch Company

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom
