Dock Pro USB4 8K Triple View - Other computer accessories IOGEAR - Free user manual and instructions

Product Type	USB4 Docking Station
Brand	IOGEAR
Model	Dock Pro USB4 8K Triple View (GUD3C4K4)
Dimensions (approx.)	20 cm x 10 cm x 3 cm
Weight (approx.)	500 g
Power Supply	DC 120W (20V/6A) power adapter
Front Ports	Power button, SD 3.0, MicroSD 3.0, USB-A Quick Charge, 2x USB-A Gen2 (10 Gbps), USB-C Gen2 (10 Gbps), Audio 3.5mm
Rear Ports	4x DisplayPort/HDMI (up to 8K), Gigabit Ethernet, USB-A Gen1 (10 Gbps), USB-C PD 100W, USB-C Host, Kensington Lock, DC Input
Maximum Resolution	8K (DisplayPort 1.4) or triple 4K display
Compatibility	Windows 10/11, macOS 10.13+, Thunderbolt 3/4, USB4
Key Features	Triple 8K/4K display, 100W fast charging, 10 Gbps data transfer, SD/MicroSD card reader
System Requirements	USB-C port with DisplayPort Alt Mode, DisplayLink driver
Maintenance	Clean with a soft, dry cloth. Avoid any liquids.
Safety	Use the provided adapter. Do not expose to moisture. Use the Kensington lock.
Spare Parts and Repairability	No detachable parts provided. Repair by a certified professional.
Warranty	1 year (see IOGEAR website for details)

Frequently Asked Questions - Dock Pro USB4 8K Triple View IOGEAR

Which operating systems are compatible with the Dock Pro USB4?

The dock is compatible with Windows 10/11 and macOS 10.13 or later. A DisplayLink driver is required.

Can I connect multiple monitors?

Yes, the dock supports up to three 4K monitors or one 8K monitor using the DisplayPort/HDMI ports.

Does the dock charge my laptop?

Yes, the rear USB-C port delivers up to 100W to charge your USB-C compatible laptop.

How do I install the DisplayLink driver?

Download the driver from the official website displaylink.com/downloads and install it. For M1 Macs, use the specific macOS version.

Is the dock compatible with Apple Silicon Macs (M1/M2)?

Yes, with the DisplayLink driver for macOS. Check the DisplayLink website for the latest compatible driver.

Which cables are included in the package?

The package includes a USB-A/C to Type-C cable and a DC 120W power adapter with power cord.

Can I use SD cards with this dock?

Yes, the dock has slots for SD 3.0 and MicroSD 3.0 on the front, supporting speeds up to 104 Mbps.

Is there an audio output?

Yes, a 3.5 mm audio jack is available on the front for audio output and input (48 KHz).

Does the dock have an Ethernet port?

Yes, there is a Gigabit Ethernet port on the rear for wired network connection.

How do I physically secure the dock?

The dock is equipped with a Kensington lock on the rear. Use a compatible security cable to secure it.

USER MANUAL Dock Pro USB4 8K Triple View IOGEAR

Host device requirements

- USB-C™ (Thunderbolt™ 3 compatible) device

OS requirements

• Windows® 10, 11
• MacOS® 10.13+

- DisplayLink Driver installation (http://www.displaylink.com/downloads)

Notes for M1 Mac Users: For M1 Mac Users, please check DisplayLink website for latest Mac Displaylink driver at http://www.displaylink.com/downloads/macos

Product Overview

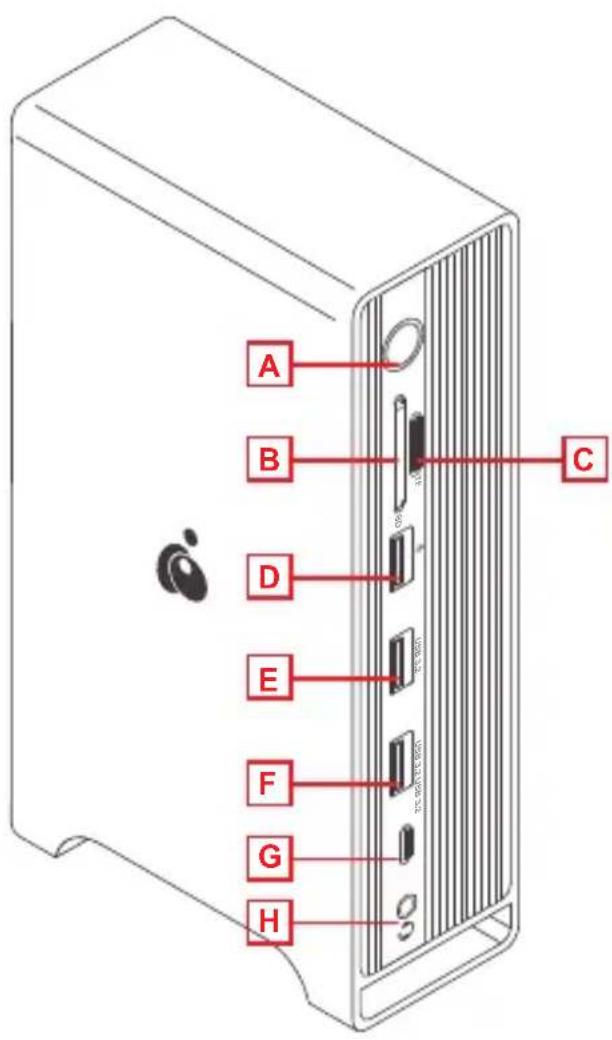

A. Power Key
B. SD 3.0 (Max: 104Mbps)
C. TF/Micro-SD 3.0 (Max: 104Mbps)
D. USB-A Quick Charge
E. USB-A Gen2 (Max: 10 Gbps)
F. USB-A Gen2 (Max: 10 Gbps)
G. USB-C Gen2 (Max: 10 Gbps)
H. 3.5mm Audio (48KHz)

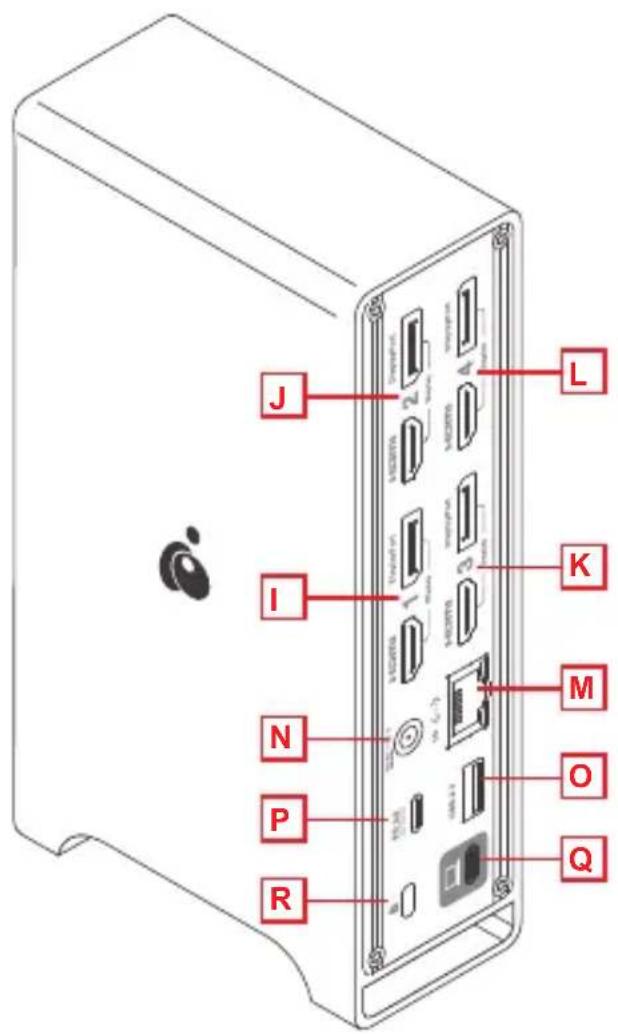

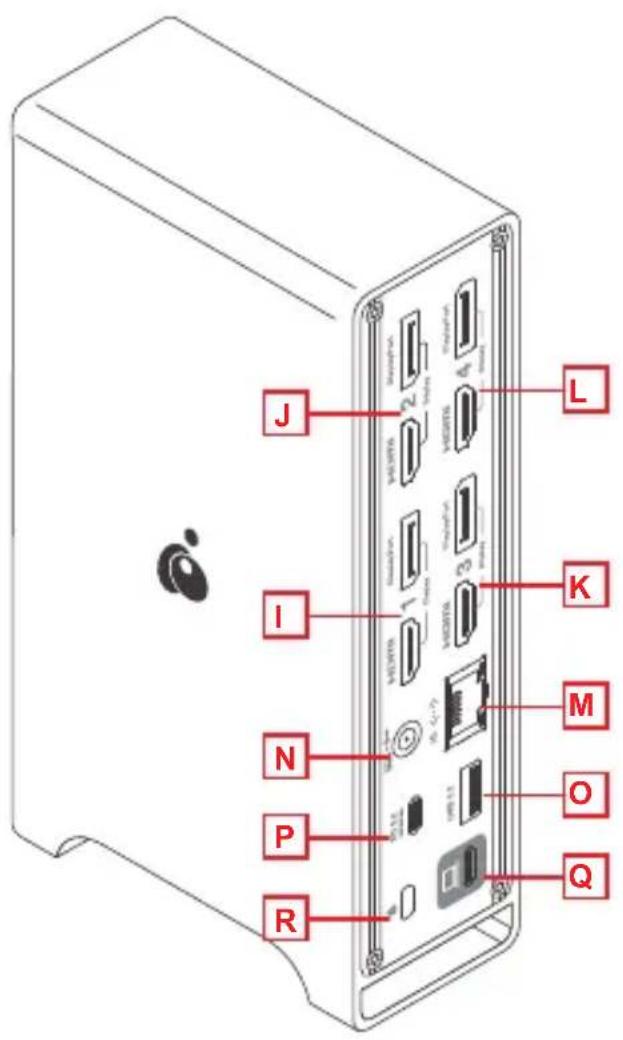

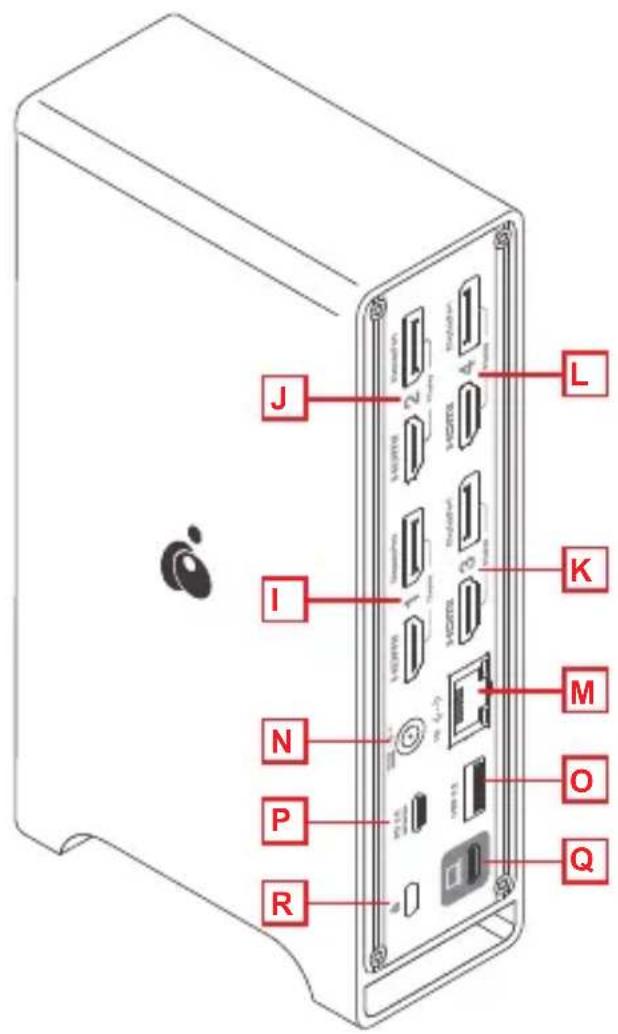

I. Display 1 (DP or HDMI)
J. Display 2 (DP or HDMI)
K. Display 3 (DP or HDMI)
L. Display 4 (DP or HDMI)
M. Gigabit Ethernet Port
N. DC Power (Max: 120W)
O. USB-A Gen1 (Max: 10 Gbps)
P. Type-C Power (Max: 100W)
Q. Type-C (Connects to Host)
R. Anti-Theft Lock

A B C D E F G H

Front Back

J L I K M N O P Q R

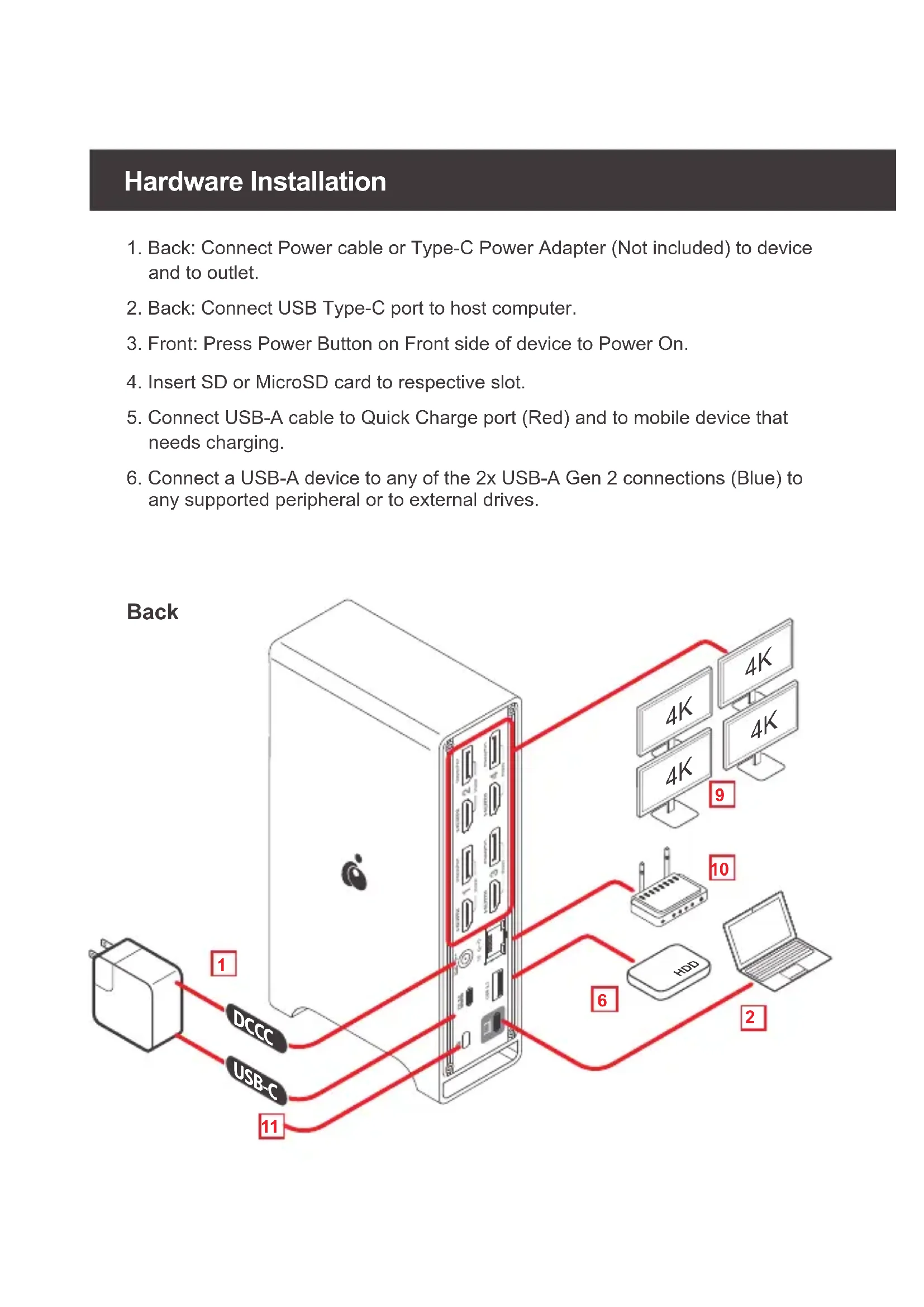

Hardware Installation

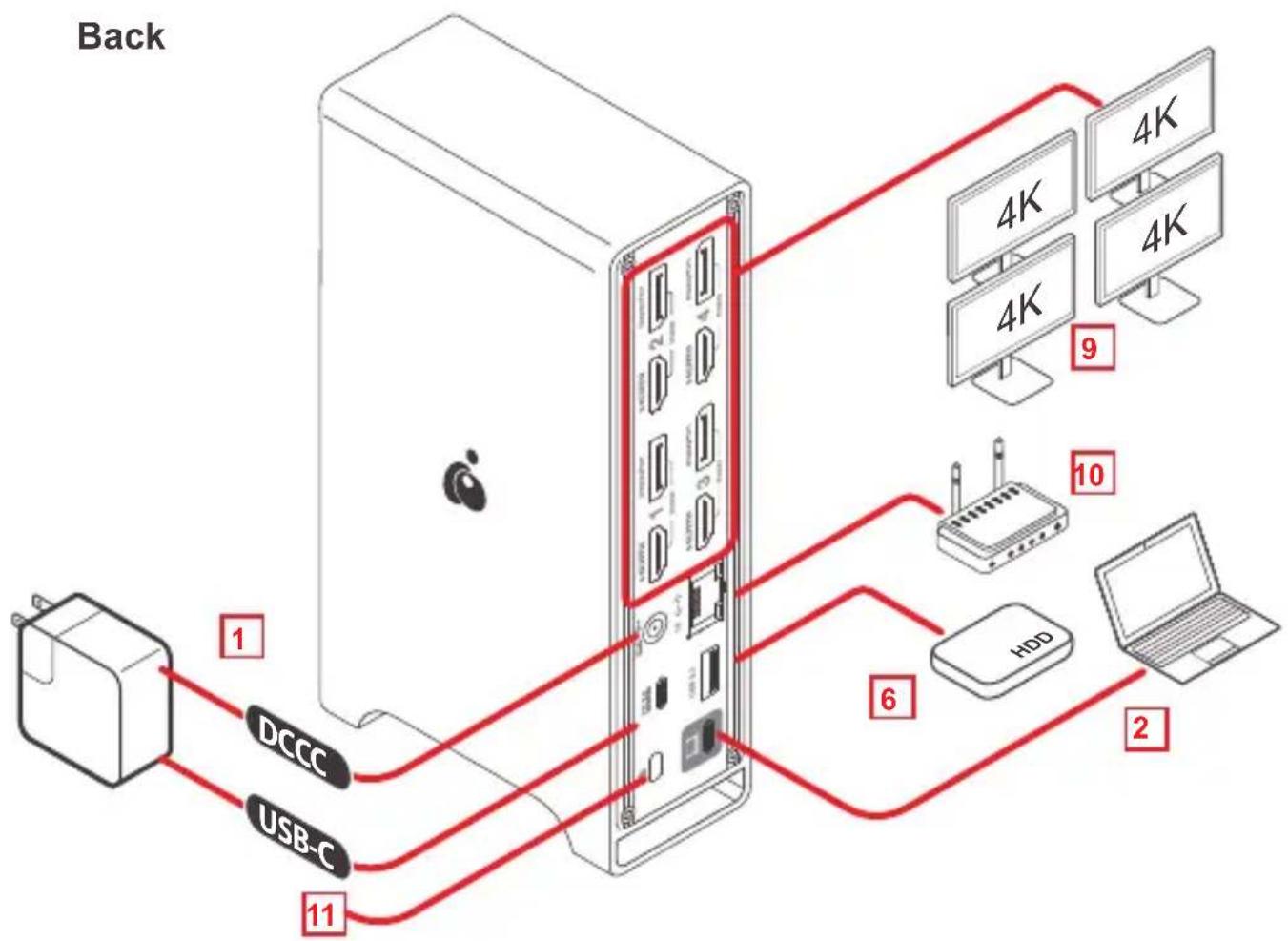

1. Back: Connect Power cable or Type-C Power Adapter (Not included) to device and to outlet.
2. Back: Connect USB Type-C port to host computer.
3. Front: Press Power Button on Front side of device to Power On.
4. Insert SD or MicroSD card to respective slot.
5. Connect USB-A cable to Quick Charge port (Red) and to mobile device that needs charging.
6. Connect a USB-A device to any of the 2x USB-A Gen 2 connections (Blue) to any supported peripheral or to external drives.


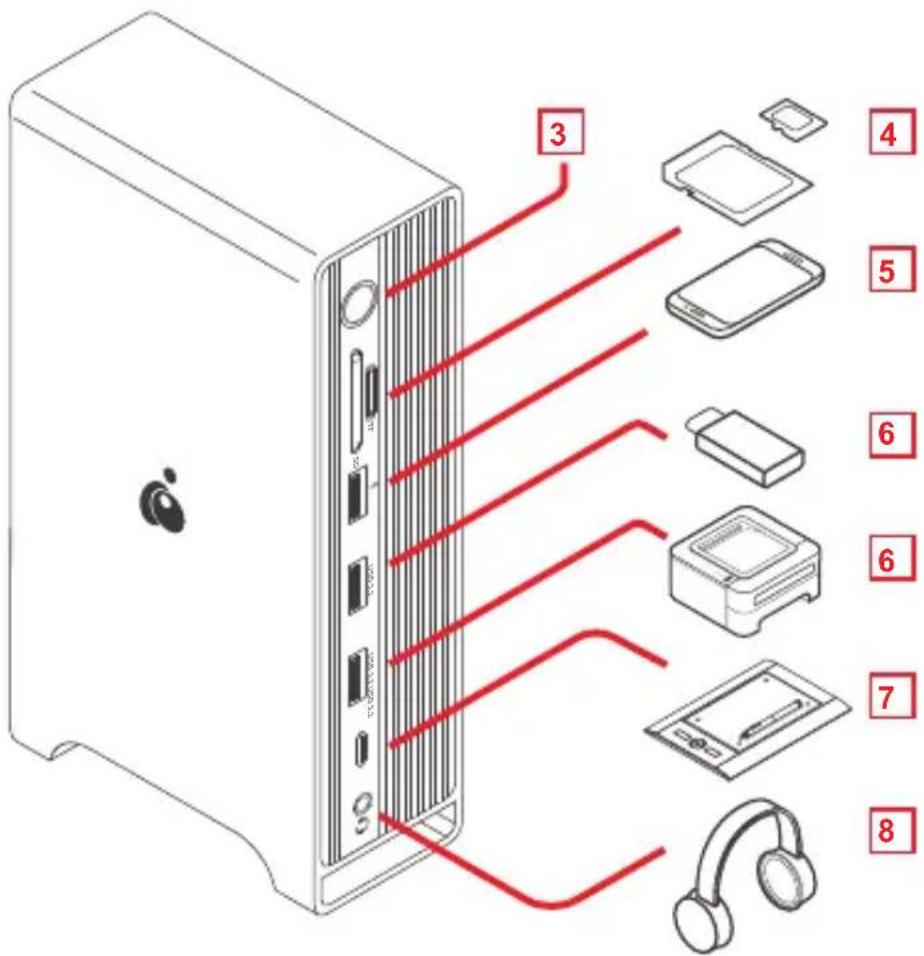

1. Connect USB-C device to the USB-C Gen 2 connection on the front of the docking station.
2. Connect a 3.5mm device to the 3.5mm audio jack on the front of the docking station for audio out and in.
3. Connect either an HDMI or DisplayPort Cable to the ports labeled Display 1, 2, 3 or 4 on the back of the device. Only one connection may be active on each respective Display.
4. Connect Ethernet Cable to Gigabit Ethernet Port for network/internet access.
5. Connect Anti-theft device to Anti-theft port on docking station

Front

Diagram of a server rack with labeled components including hardcover, headphones, and devices

Limited Warranty

Warranty Information

This product carries a 1 Year Limited Warranty. For the terms and conditions of this warranty, please go to https://www.iogear.com/support/warranty

Register online at https://www.iogear.com/register

Important Product Information Product Model ____ Serial Number ____
