Product Type	Thunderbolt 4 Mini Dock
Brand	IOGEAR
Model	GTD4MHTAA
Host Connectivity	1 Thunderbolt 4 port (upstream, up to 40 Gbit/s)
Downstream Connectivity	3 Thunderbolt 4 ports (USB-C), 1 USB-A port 10 Gbit/s
Video Outputs	Up to 2 simultaneous displays (extended mode)
Maximum Video Resolution (1 display)	7680 x 4320 at 30 Hz
Maximum Video Resolution (2 displays)	4096 x 2160 at 60 Hz each
Power Supply	External power adapter included
Host Charging Power	86 W via Thunderbolt
Power Button	Yes, with LED indicator
Compatible Operating Systems	Windows 10/11, macOS 10.13 and later
Included Cable	Thunderbolt 4 cable, 0.8 m
Warranty	1 year (limited warranty)
Care and Cleaning	Clean with a soft, dry cloth. Do not use chemical products.
Safety	FCC Class B, CE (EMC, low voltage, R&TTE) compliant
Dimensions (approx.)	13 x 8 x 3 cm
Weight (approx.)	200 g
Operating Temperature	0 °C to 40 °C
Storage Temperature	-20 °C to 70 °C

Frequently Asked Questions - Quantum Thunderbolt 4 GTD4MHTAA IOGEAR

What devices are compatible with this dock?

This dock requires a host with a Thunderbolt 4 port to achieve the maximum 40 Gbit/s bandwidth. The downstream Thunderbolt 4 ports also accept USB-C devices, but speed will be limited to USB standards. Compatible with Windows 10/11 and macOS 10.13+.

How many displays can I connect simultaneously?

You can connect up to 2 displays simultaneously in extended mode. The maximum resolution for a single display is 7680 x 4320 at 30 Hz; for two displays, each can reach 4096 x 2160 at 60 Hz.

Can I charge my laptop through this dock?

Yes, the host Thunderbolt 4 port can deliver up to 86 W of charging power to the connected laptop. Make sure to use the included power adapter.

What cables are included in the box?

The box includes a 0.8 m Thunderbolt 4 cable, a power adapter, a quick start guide, and a warranty card.

Is the USB-A port compatible with USB 2.0/3.0 devices?

Yes, the USB-A port offers 10 Gbit/s speed and is backward compatible with USB 3.0/2.0 devices. Performance will be limited to the lowest standard.

Do I need to install a driver to use the dock?

No specific driver is required for basic functions. However, for advanced features or updates, visit www.iogear.com/support.

How do I turn on the device?

Press the power button located on the back of the dock. The LED indicator lights up to indicate power on. Ensure the power adapter is connected.

Is the dock compatible with macOS M1/M2/M3?

Yes, it is compatible with Macs equipped with Apple Silicon (M1, M2, M3) as well as Intel Macs running macOS 10.13 or later.

What if no external display is detected?

Check that the Thunderbolt cable is properly connected to a Thunderbolt 4 port on the computer. Try resetting the dock by unplugging the power for 30 seconds. Ensure the video cable works and the display is powered on.

Can the dock be used with Thunderbolt 3 devices?

Yes, it is backward compatible with Thunderbolt 3, but the maximum bandwidth will be limited to 40 Gbit/s (same as Thunderbolt 4) and some advanced features may not be available.

USER MANUAL Quantum Thunderbolt 4 GTD4MHTAA IOGEAR

Host device requirements:

- Thunderbolt 4 host required for max bandwidth (40Gbps)

OS requirements:

• Windows® 10,11
• macOS® 10.13+

USB Type-C and USB-C are registered trademarks of USB Implementers Forum. Thunderbolt™ and the Thunderbolt™ logo are trademarks of Intel Corporation in the U.S. and/or other countries. Windows is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. macOS is trademarks of Apple Inc., registered in the U.S. and other countries. All other trademarks are the properties of their respective owners. Reproduction in whole or in part without permission is prohibited.

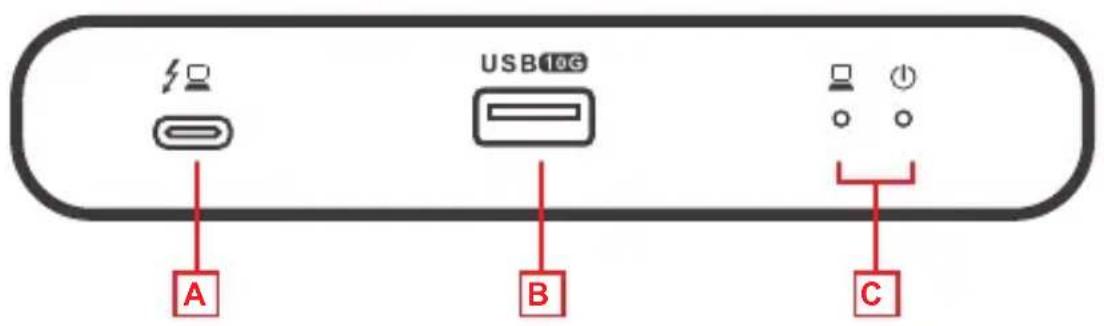

Front

Back

A. Thunderbolt 4 Host Port
B. USB-A 10 Gbps for peripherals and storage devices
C. Link and Power LED indicator
D. DC Jack for power adapter
E. Power Button
F. 3 x Thunderbolt 4 ports for Monitors, and other Thunderbolt or USB-C ^® devices

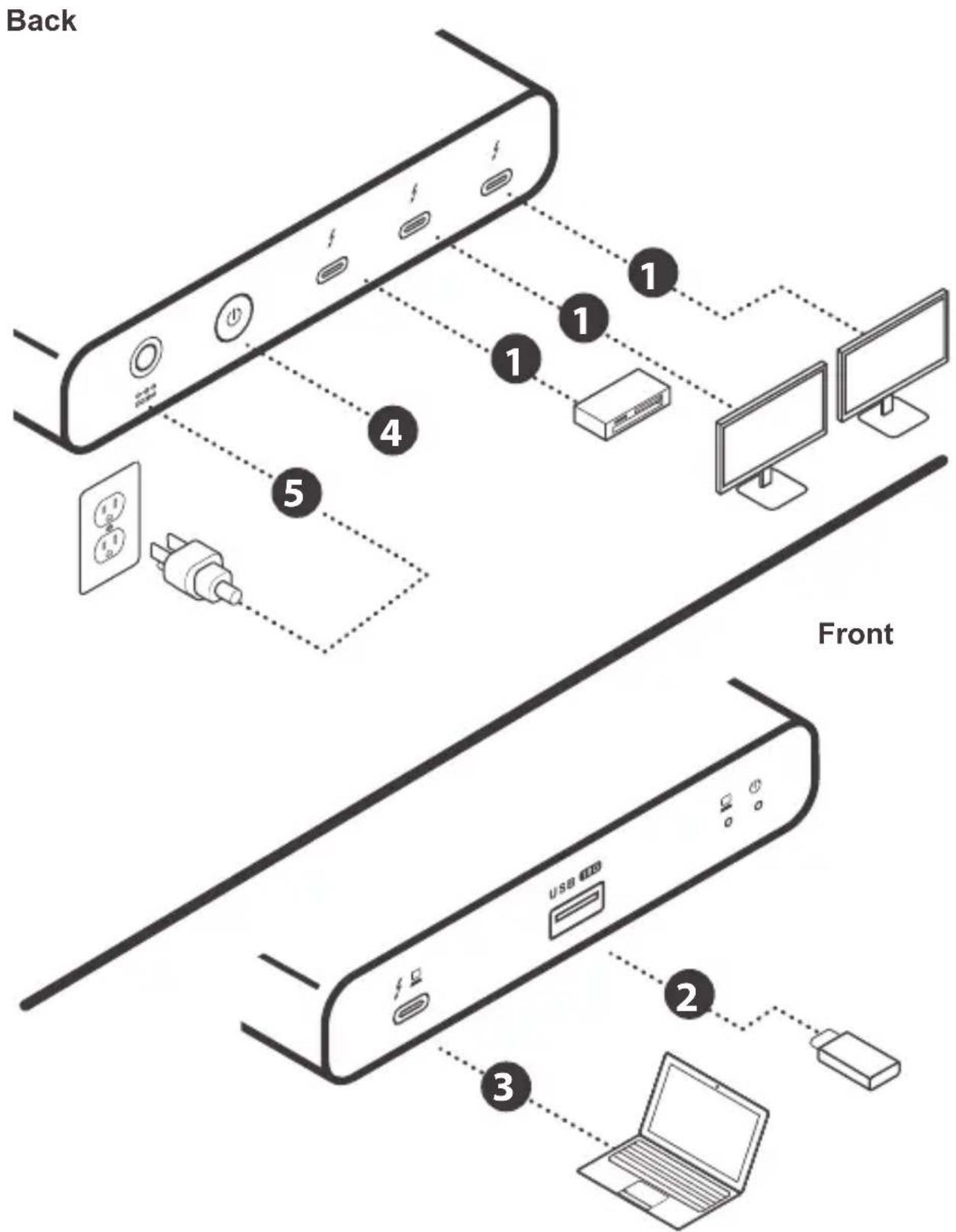

Please follow steps below to ensure the optimal performance:

Step 1

Connect up to 3 Thunderbolt 4 or USB-C devices to the Thunderbolt 4 downstream ports.

- Up to two displays can be connected at a time

Step 2

Connect a USB-A peripheral device

Step3

Connect a Thunderbolt host computer (86W)

Step 4

Connect the power supply to power port

Step 5

Turn on power by pressing Power button

Single Video Output
Operating System Display 1
Windows	up to 7680 x 4320@30Hz
macOS X	up to 7680 x 4320@30Hz

Dual Video Output Mode
Operating System Display 1		Display 2	Mode
Windows	up to 4096 x 2160@60Hz	up to 4096 x 2160@60Hz	Extend
macOS X	up to 4096 x 2160@60Hz	up to 4096 x 2160@60Hz	Extend

Limited Warranty

Warranty Information

This product carries a 1 Year Limited Warranty. For the terms and conditions of this warranty, please go to https://www.iogear.com/support/warranty

Register online at https://www.iogear.com/register

Important Product Information Product Model ____ Serial Number ____

Contact

WE'RE HERE TO HELP YOU! NEED ASSISTANCE SETTING UP THIS PRODUCT?

Make sure you:

1. Visit www.iogear.com for more product information
2. Visit www.iogear.com/support for live help and product support

IOGEAR

iogear.custhelp.com

[e-mail]

www.iogear.com

Compliance Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user's authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CE Statement:

This device has been tested and found to comply with the following European Union directives: Electromagnetic Capability (2004/108/EC), Low Voltage (2006/95/EC) and R&TTED (1999/5/EC).

USB Type-C and USB-C are registered trademarks of USB Implementers Forum. Thunderbolt™ and the Thunderbolt™ logo are trademarks of Intel Corporation in the U.S. and/or other countries. Windows is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. macOS is trademarks of Apple Inc., registered in the U.S. and other countries. All other trademarks are the properties of their respective owners. Reproduction in whole or in part without permission is prohibited.

L'aperçu du produit

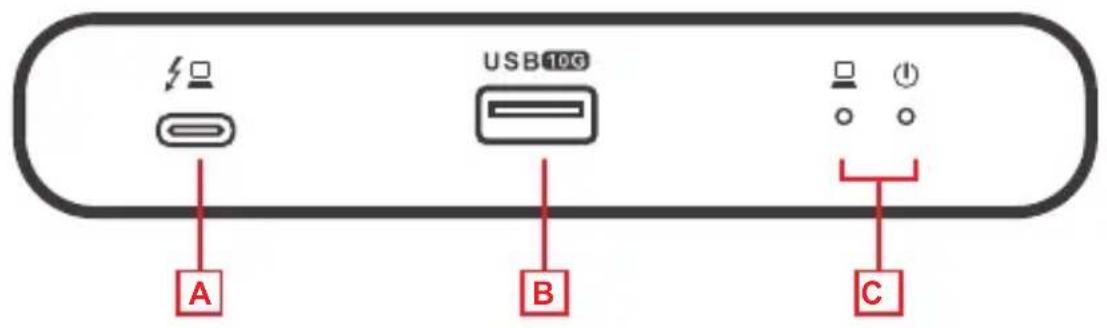

Vue avant

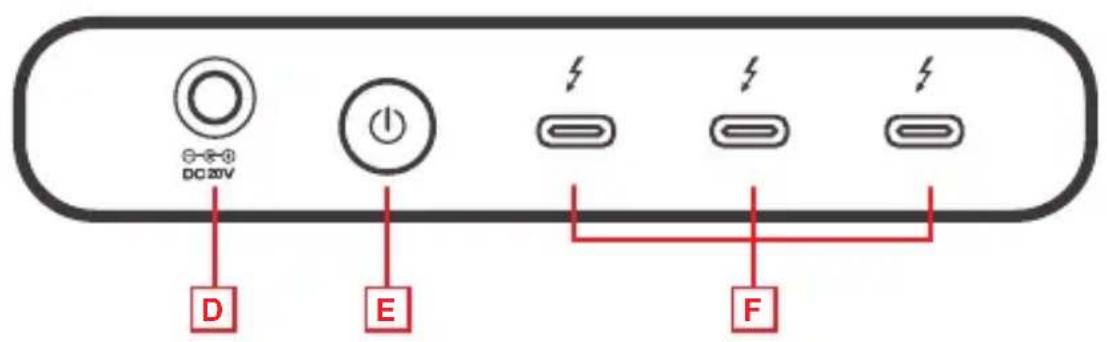

Vue arrière
