Product type	Electric breast pump
Brand	Neno
Model	Bella
Power supply	USB 5V 1A (110-240V 50-60Hz AC adapter included)
Battery	Rechargeable lithium-ion 3.7V 1400 mAh
Weight	417 g
Dimensions (pump)	105 × 53 mm
Operating modes	Stimulation (6 levels: 3-43 kPa) and Expression (9 levels: 19-43 kPa)
Suction levels	Stimulation: L1=3 kPa to L6 slow=43 kPa; Expression: L1=19 kPa to L9=43 kPa (tolerance ±5 kPa)
Automatic timer	Automatic shut-off after 30 minutes
Memory	Saves the settings from the last use
Display	Screen with icons: suction level, mode, session duration, battery status
Kit contents	Pump, breast shield, suction bowl, connector, valve ×2, milk bottle, bottle holder, tube, charging cable, nipple, bottle cap
Materials	Parts in contact with milk: silicone and food-grade plastic
Cleaning	Wash with warm soapy water and sterilize by boiling (10 min) for parts in contact with milk
Pump unit maintenance	Do not immerse; clean the screen with a soft, damp cloth
Consumable parts	Diaphragm (every 8 weeks), valve (every 2-3 months), funnel (every 6 months), tube (if damaged)
Safety	Do not use during pregnancy; do not use if painful; do not immerse the pump
Warranty	24 months
User manual languages	French, English, German, etc. (available on request)

Frequently Asked Questions - Bella Neno

Why won't the breast pump start?

Make sure the device is charged (plug it in for at least 2 hours). Check that the USB cable is properly connected. If the screen does not light up, the battery may be depleted or the device is in storage mode (plug it in to reactivate).

The suction is weak or absent, what to do?

Disassemble the breast pump and check that all parts (valves, connector, suction bowl) are clean and intact. Make sure the tube is dry and properly connected. Reassemble carefully following the instructions in the manual.

How to clean and sterilize the breast pump parts?

After each use, wash parts in contact with milk with warm soapy water. For sterilization, boil these parts in water for 10 minutes (before first use and once a day). Let air dry.

Can I use the breast pump during pregnancy?

No, using the breast pump during pregnancy is not recommended as it may cause premature labor. Use it only after delivery.

When should I replace the consumable parts?

The diaphragm should be replaced every 8 weeks (or 3-4 weeks if used >3 times/day). The valve every 2-3 months (or 4 weeks with intensive use). The funnel every 6 months. The tube only if damaged or wet.

How to switch from stimulation mode to expression mode?

Stimulation mode automatically lasts 2 minutes, then the breast pump switches to expression mode. You can also press the Mode change button to switch manually earlier.

What to do if the battery doesn't hold a charge?

The device may go into storage mode after prolonged inactivity. Plug it into the mains and charge it for 2 hours to reactivate. If the problem persists, contact customer service.

How long does it take to fully charge the breast pump?

A full charge takes about 2 hours with the supplied USB cable. The full battery icon indicates the end of charging.

Is the breast pump delivered with bottles?

Yes, the kit includes one milk bottle, a nipple, and a cap. You can use your own compatible standard bottles.

Where to find spare parts or the manual?

Spare parts are available on the official website neno.pl (contact in English). The complete manual can be downloaded for free as a PDF on notice-facile.com.

USER MANUAL Bella Neno

Pink neno medical device with digital display and pump bottle, no visible text or symbols on the device itself.

Table of contents

Spis treści

4 Instrukcja obsługi PL
10 User manual EN
16 Bedienungsanleitung DE
22 Návod k použití CZ
28 Használati utasítás HU
34 Používatel'ská príručka SK
40 Användarhandbok SE
46 Käyttäjän käsikirja FI
52 Brukerhåndbok NO
58 Brugermanual DK
64 Gebruikershandleiding NL
70 Manual del usuario ES
77 Manuale utente IT
83 Manuel de l'utilisateur FR
89 Manual de utilizare RO

A 1 2 3 4 5 6 7 8 9 10 11 12 13

B 1 2 3 4 5 6 7 8 9

Diagram showing a sequence of cleaning steps with numbered arrows indicating progression from top to bottom.

INSTRUKCJA OBSŁUGI

Szanowny Kliencie,

the device Neno Bella you received is an electronic breast pump. It is used to express breast milk after childbirth.

Please read the instructions before using the device.

01. SAFETY MEASURES

1. Do not use the breast pump during pregnancy – this can cause early delivery.
2. Do not use the device if you suffer from chronic diseases or oversensitivity that would make using the device painful to you.
3. Before each use of the device, make sure that no component is damaged. Do not use
4. a breast pump if any of its components are clearly damaged.
5. Keep the device away from children and animals.
6. For hygienic reasons, only one person should use the breast pump.
7. Keep the pumping part of the device away from water.
8. Avoid exposing the device to mechanical damage caused by, for example, dropping it.
9. Store the silicon parts of the breast pump away from hot surfaces to avoid distorting them.
10. Store only milk that has been drained using a clean and disinfected breast pump.
11. Do not clean parts of the device with abrasives.
12. Do not try to repair the breast pump yourself – this will void the warranty.
13. If the use of the device causes pain or severe discomfort, turn it off and move
14. the breast pump away from your breast.
15. Do not clean the tube too often and make sure it is dry before use. A wet tube can damage the device.
16. Do not charge the device with a voltage higher than specified in the technical specification.

02. ELEMENTS

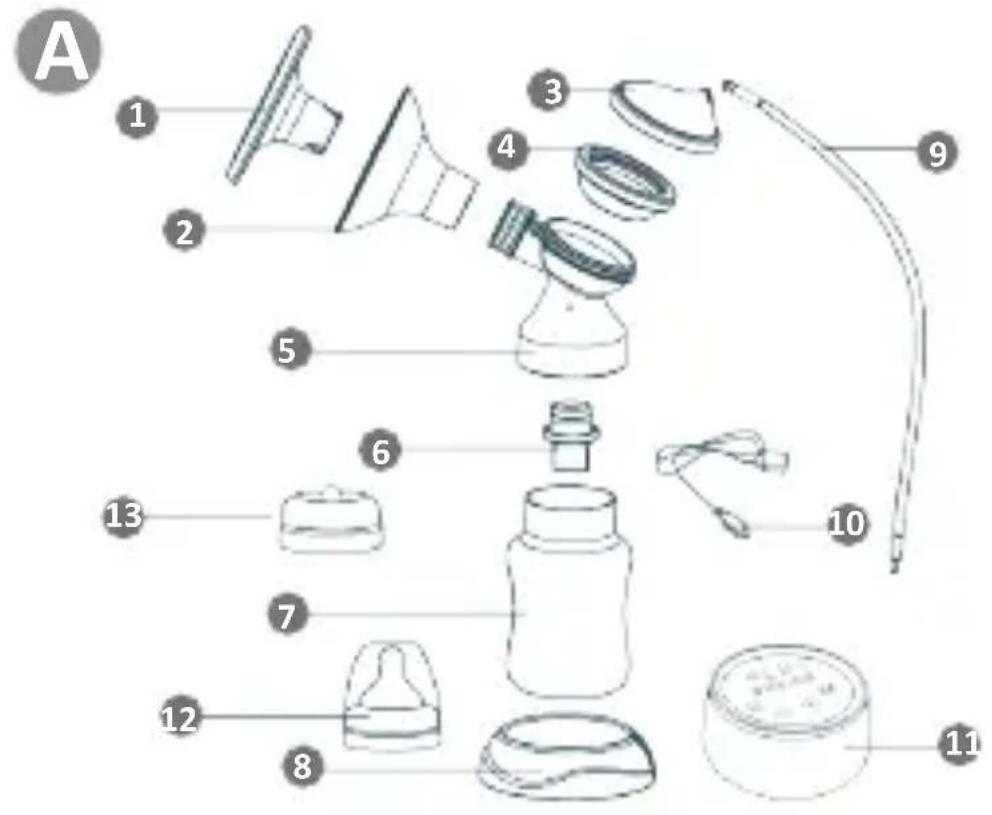

SEE FIG. A

1. Cap
2. Breast shield
3. Suction cap
4. Suction bowl
5. Connector
6. Valve x2
7. Milk bottle
8. Bottle holder
9. Tube
10. Charging cable
11. Pumping device
12. Bottle teat
13. Bottle lid

03. DESCRIPTION OF MODES

Stimulation mode:

L1 – 3 kPa; L2 – 9 kPa; L3 – 15 kPa; L4 – 19 kPa; L5 – 23 kPa; L6 Fast – 12 kPa; L6

Slow - 43 kPa;

Expression mode:

L1 – 19 kPa; L2 – 23 kPa; L3 – 26 kPa; L4 – 29 kPa; L5 – 34 kPa; L6 – 37 kPa; L7 – 39

kPa; L8 – 40 kPa; L9 – 43 kPa;

Permissible difference ±5 Kpa.

04. DESCRIPTION OF ICONS AND BUTTONS

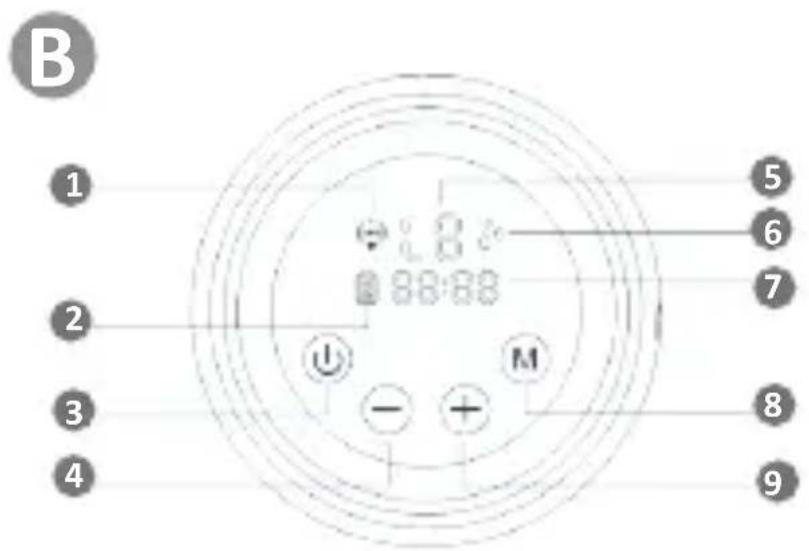

SEE FIG. B

1. Stimulation mode
2. Battery percent
3. Power button
4. Suction decrease
5. Suction level
6. Expression mode
7. Session duration
8. Mode change
9. Suction increase

Power button:

Hold for 2 seconds to turn the breast pump on or off.

Mode change:

Press the button to change the mode. The device will automatically switch from stimulation to expression mode after 2 minutes. The device can save settings and has a time counter.

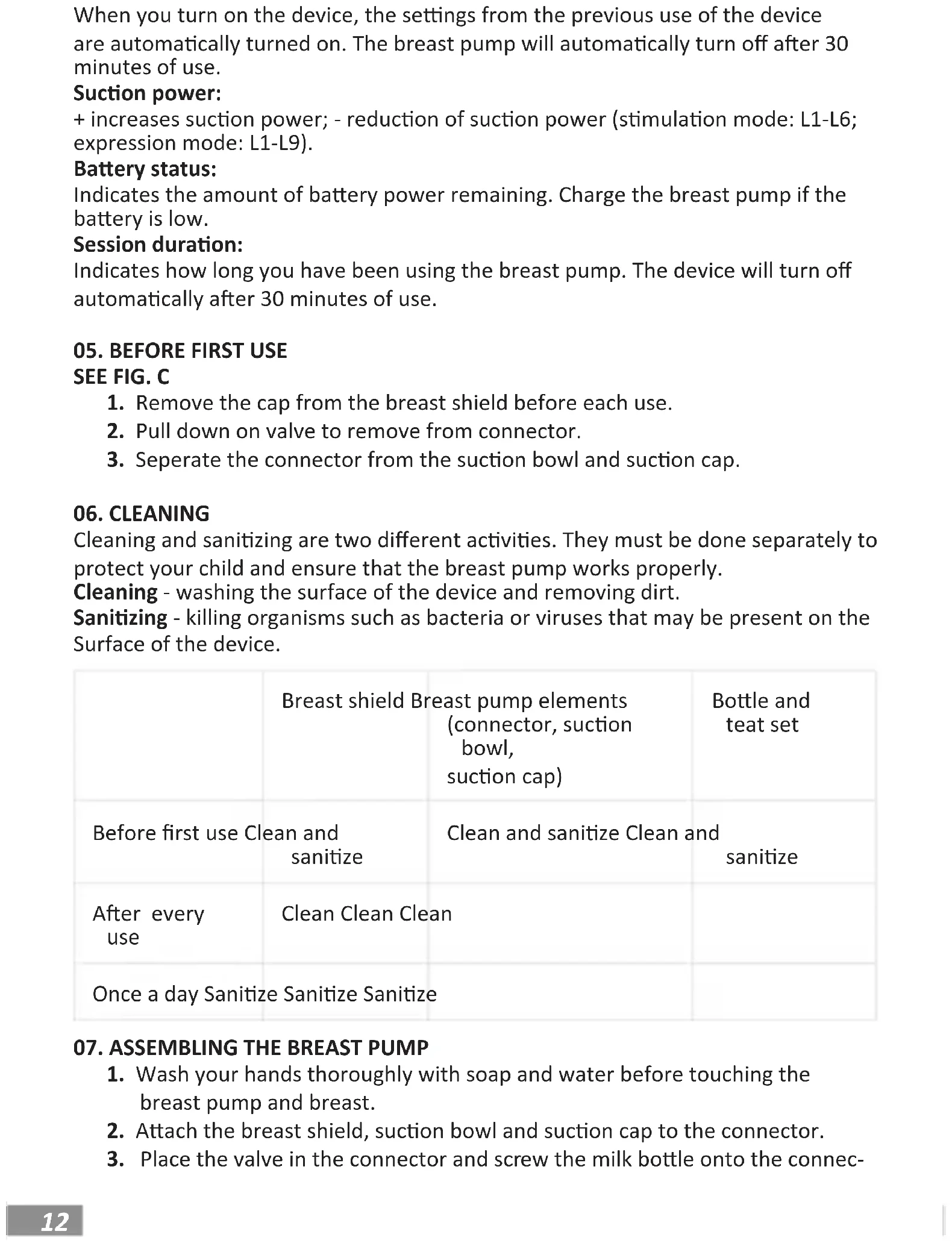

When you turn on the device, the settings from the previous use of the device are automatically turned on. The breast pump will automatically turn off after 30 minutes of use.

Suction power:

+ increases suction power; - reduction of suction power (stimulation mode: L1-L6; expression mode: L1-L9).

Battery status:

Indicates the amount of battery power remaining. Charge the breast pump if the battery is low.

Session duration:

Indicates how long you have been using the breast pump. The device will turn off automatically after 30 minutes of use.

05. BEFORE FIRST USE

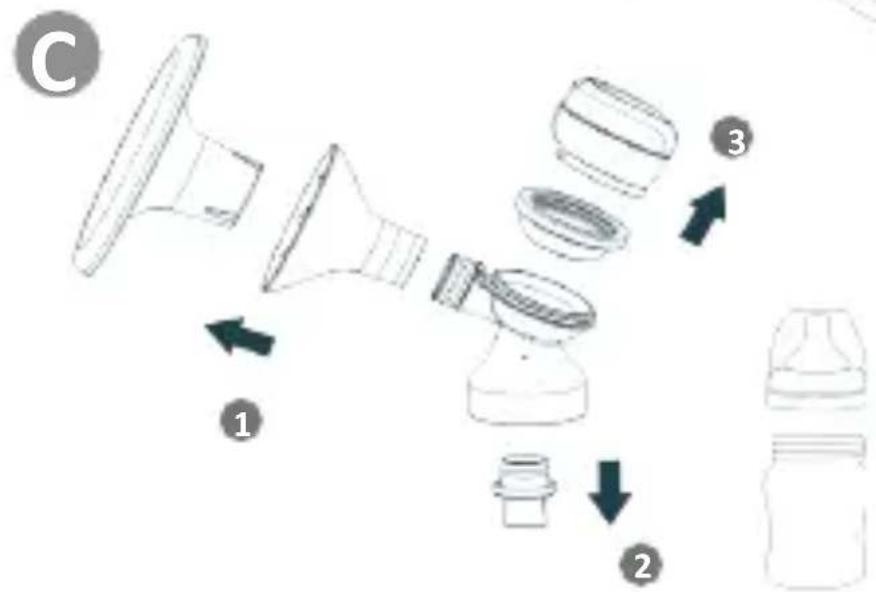

SEE FIG. C

1. Remove the cap from the breast shield before each use.
2. Pull down on valve to remove from connector.
3. Seperate the connector from the suction bowl and suction cap.

06. CLEANING

Cleaning and sanitizing are two different activities. They must be done separately to protect your child and ensure that the breast pump works properly.

Cleaning - washing the surface of the device and removing dirt.

Sanitizing - killing organisms such as bacteria or viruses that may be present on the Surface of the device.

	Breast shield Breast pump elements (connector, suction bowl, suction cap)	Bottle and teat set
Before first use Clean and sanitize	Clean and sanitize Clean and sanitize	sanitize
After every use	Clean Clean Clean
Once a day Sanitize Sanitize Sanitize

07. ASSEMBLING THE BREAST PUMP

1. Wash your hands thoroughly with soap and water before touching the breast pump and breast.
2. Attach the breast shield, suction bowl and suction cap to the connector.
3. Place the valve in the connector and screw the milk bottle onto the connec-

tor by turning it clockwise until it stops turning.

1. Connect the tube to the suction cap.
2. Connect the tube to the appropriate port on the pumping device.

Tips:

a. Check the breast pump components for damage before each use. Replace damaged items with new ones as needed.
b. Always check the cleanliness of the elements before using the machine.
c. To avoid damage to the breast pump, make sure that all its parts are dry before using it.

08. CHARGING THE BREAST PUMP

Before the first use, charge the breast pump for 2 hours by connecting it to the power supply using the USB cable. The battery icon on the display will be full when charging is complete.

09. USING THE BREAST PUMP

1. Place the breast shield on the breast so that the nipple is inside the drainage channel.
2. Press the breast shield and the connector to your breast, using your thumb and forefinger.

Support your chest with the palm of your hand.

1. Turn on the breast pump by pressing the power button and select the mode of operation that suits you.
2. Press the power button to turn off the breast pump after use and place the lid on the breast shield to protect the machine from dust.

a. The breast pump starts work in the stimulation mode. Set the suction power to a level that is comfortable for you using the +/- buttons Stimulation mode - fast pumping that mimics the natural sucking of breast milk by a baby, stimulating milk flow.
b. After 2 minutes, the breast pump will automatically activate the expression mode. Adjust the level of suction using the +/- buttons to find the highest level of suction that is comfortable for you. If milk begins to flow out of your breast before two minutes pass, press the mode button to manually switch to the expression mode.

Expression mode - slower pumping which gently and efficiently sucks breast milk.

c. In the expression mode, increase the suction power until you feel slight discomfort (not pain) and reduce the suction power by one degree.

10. REPLACEMENT OF CONSUMABLE PARTS

Consumable parts are subject to natural wear and tear during operation of the breast pump and are therefore not covered by the manufacturer's warranty.

Worn components of the breast pump that come into contact with milk should be replaced. A worn component has a crack, deformation, tarnishing or a distinct change in colour.

• Replace the diaphragm every 8 weeks (if you use the breast pump 1-3 times a day) or every 3-4 weeks (if you use the breast pump more than 3 times a day).
• Replace the valve every 2-3 months (if using 1-3 times a day) or every 4 weeks (if using more than 3 times a day).
• Replace the funnel every 6 months if you use the breast pump more than 3 times a day.
• Replace the tube only if moisture enters the tube or the tube is damaged.

11. FAQ

1. The machine does not start: ensure that the breast pump is connected to a working electrical outlet. If the breast pump has no power source, its display will not turn on and no error message will appear.
2. No/ poor suction: make sure all parts of the breast pump are correctly positioned. Disassemble the breast pump and make sure that all parts are clean and undamaged. Assemble the breast pump again according to the instructions in section „Assembling the breast pump”.
3. More milk has flowed out of the breast than the bottle can hold: switch off the breast pump and unplug it. Use a damp (not wet) cloth to wipe the breast pump. When all parts of the device are dry, reassemble them.

12. LONG-TERM STORAGE

1. The breast pump has a built-in battery. To protect against damage, the device goes into storage mode after a long period of inactivity. To turn off storage mode, connect the device to power and charge it for 2 hours.
2. Before putting the breast pump away for a longer period of time, make sure that:

a. All parts of the breast pump are clean.
b. You have cleaned the pumping device.
c. The device's battery is fully charged.

13. CLEANING INSTRUCTIONS

Prepare: mild soap or other cleaning agent, clean dish towel, drinking-quality water. Parts that need to be washed or disinfected:

• Breast shield,
• Milk bottle,
• Connector,
• Valve,
• Suction cup,
• Suction bowl,

- Breast shield dust cap.

WARNING:

• Wash all parts that have had direct contact with breast milk immediately after use. This helps you will avoid residue and the growth of bacteria in the device.
• Use only drinking-quality water (tap or bottled) to clean the appliance.
• When cleaning valves, do not use small instruments such as brushes. Be careful not to pierce the part.
• Disassemble, wash and rinse all parts of the device that have come into direct contact with

breast milk (except for the pump).

1. Cleaning the breast pump components (Before first use and after each use):

Step 1 - Disassemble the device and rinse all parts that have come into contact with the breast and milk in cold water to get rid of the remains of milk and any residue. ^P

Step 2 - Soak in warm, soapy water for 5 minutes, then wash and rinse

Step 3 - Let the parts air dry. Store dry device parts in a cool and dry place when you're not using them.

2. Sterilization of the breast pump components (before first use and after use):

Step 1 - Fill the pot with enough water to cover all parts of the disassembled appliance. Bring the water to a boil before you put the unfolded breast pump inside.

Step 2 - Place the parts of the device in boiling water for 10 minutes.

Step 3 - Let the parts air dry. Store dry device parts in a cool and dry place when you're not using them.

3. Cleaning the pumping device:

Prepare: mild soap or other cleaning agent, clean dish towel.

Parts that need to be cleaned: pumping device.

WARNING:

• Do not submerge the pumping device in water.
• Do not rinse the pumping device with water.
• When cleaning the display of the pumping device, use only a damp, soft cloth with a mild soap or cleaner. Stronger cleaning products or abrasive materials can destroy the display.

14. SPECIFICATION

Output power: 110-240V 50-60Hz | Input power: 5V 1A | Weight: 417 g | Dimensions: 105x53 mm | Battery capacity and type: 3.7V 1400 mAh Li-Ion

15. WARRANTY CARD/ COMPLAINTS

The product is covered by a 24-month warranty.

The terms of the guarantee can be found at: https://neno.pl/gwarancja

Details, contact and website address can be found at:

https://neno.pl/contact/?lang=en

Specifications and contents of the kit are subject to change without notice. We apologise for any inconvenience.
