USER MANUAL EWB 6068 CB BOMANN

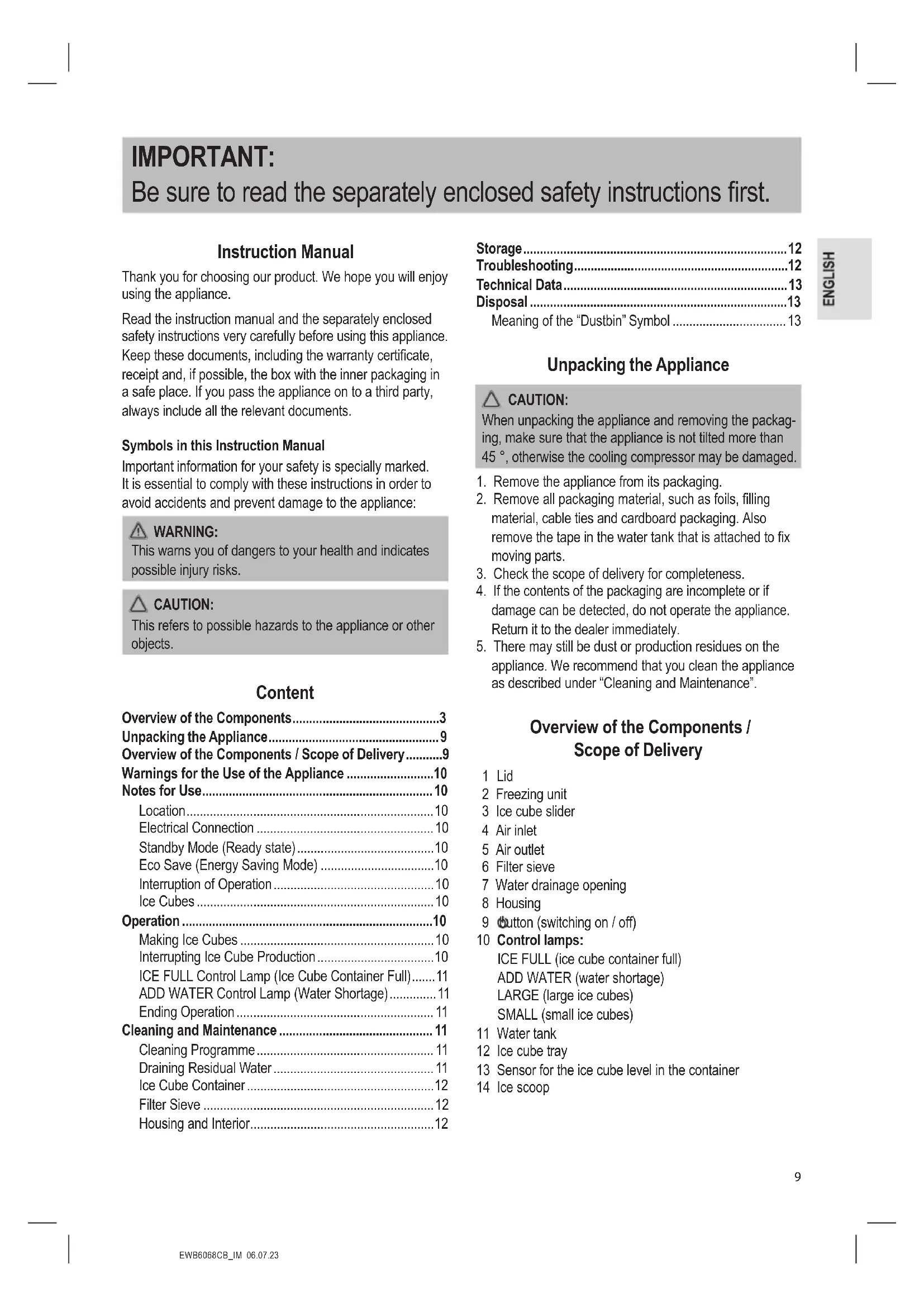

IMPORTANT: Be sure to read the separately enclosed safety instructions rst. Instruction Manual Thank you for choosing our product. We hope you will enjoy using the appliance. Read the instruction manual and the separately enclosed safety instructions very carefully before using this appliance. Keep these documents, including the warranty certicate, receipt and, if possible, the box with the inner packaging in a safe place. If you pass the appliance on to a third party, always include all the relevant documents. Symbols in this Instruction Manual Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

1. Remove the appliance from its packaging.

2. Remove all packaging material, such as foils, lling

material, cable ties and cardboard packaging. Also remove the tape in the water tank that is attached to x moving parts.

3. Check the scope of delivery for completeness.

4. If the contents of the packaging are incomplete or if

damage can be detected, do not operate the appliance. Return it to the dealer immediately.

5. There may still be dust or production residues on the

appliance. We recommend that you clean the appliance as described under “Cleaning and Maintenance”. Overview of the Components / Scope of Delivery 1 Lid 2 Freezing unit 3 Ice cube slider 4 Air inlet 5 Air outlet 6 Filter sieve 7 Water drainage opening 8 Housing 9 button (switching on / off) 10 Control lamps: ICE FULL (ice cube container full) ADD WATER (water shortage) LARGE (large ice cubes) SMALL (small ice cubes) 11 Water tank 12 Ice cube tray 13 Sensor for the ice cube level in the container 14 Ice scoopEWB6068CB_IM 06.07.23

Warnings for the Use of the Appliance

The appliance contains the refrigerant isobutane (R600a) in the refrigerant circuit, a natural gas with high environmental compatibility, which is ammable. When transporting and setting up the appliance, make sure that the appliance does not fall down. The refrigerant circuit should not be damaged. If the Refrigerant Circuit is Damaged:

• Avoid open ames and sources of ignition at all costs.

• Pull the appliance’s mains plug out of the socket.

• Ventilate the room in which the appliance is located. CAUTION:

• Be sure to observe the waiting time of 2 hours when using the appliance for the rst time or after transport, so that the refrigerant can settle. Otherwise, the refrig- eration compressor would be damaged.

• If you interrupt ice cube production with the button, wait at least 3 minutes before switching the appliance on again to avoid damaging the compressor.

• Do not disconnect the appliance from the mains while the cleaning programme is running!

• Never operate the appliance without the lter sieve! Notes for Use Location

• Place the appliance on a stable, horizontal, water-resist- ant and level surface. Keep a distance of at least 10 cm from walls or objects.

• Do not place the appliance on or in the immediate vicinity of heat sources such as stoves, radiators, etc. Electrical Connection

• Check that the mains voltage you intend to use matches that of the appliance. You will nd the information on the type plate.

• Only connect the appliance to a properly installed earthed socket. Standby Mode (Ready state) The control lamp SMALL ashes. Eco Save (Energy Saving Mode) The appliance switches off when the ice cube container is full. You benet from increased safety and lower power consumption. Interruption of Operation After an interruption due to lack of water, full ice cube con- tainer, manual stop or power failure, the compressor starts with a delay of 3 minutes after it is switched on again. Ice Cubes

• You can choose between two sizes: - SMALL (small) - LARGE (large)

• Ice cubes from the rst production cycle should not be used for hygienic reasons.

• The best results are achieved at a water temperature between 7 °C and 20 °C and an ambient temperature between 16 °C and 25 °C.

• Depending on the water and ambient temperature, the rst ice cubes are smaller. Only in the following cycles do the ice cubes become larger.

• Due to the rapid freezing, the ice cubes may look “milky”. This is air trapped in the water. This does not affect the quality of the ice cubes.

• If you want ice cubes with a clear appearance, use drink- ing water that has previously been boiled and cooled. Operation When using the appliance for the rst time or if you have not used it for a long time, clean the appliance as described in the chapter “Cleaning and Maintenance”. Use the appli- ance’s cleaning programme. Making Ice Cubes

1. Make sure that the water drain opening at the bottom of

the appliance is tightly closed.

2. Open the lid and remove the ice cube container.

3. There is a lter at the bottom of the water tank. Make

sure that it is rmly inserted.

4. There is an arrow in the water tank below the MAX mark.

Fill approx. 1 litre of fresh water into the water tank, up to a maximum of below the arrow (minimum quantity: 500 ml). Only use drinking water to make ice cubes.

5. Reinsert the ice cube container and close the lid.

6. Insert the mains plug into the socket.

button once. The control lamps LARGE and SMALL ash alternately. The appliance is in ice cube size selection mode.

8. When the control lamp of the desired ice cube size lights

up, press the button again. The compressor switches on. Ice cube production starts. - Keep the lid closed during ice cube production. - One ice cube production cycle takes between 8 and 10 minutes. Interrupting Ice Cube Production Press the button to stop ice cube production. The control lamp SMALL ashes.

• If operation is interrupted manually, the water that is not needed is returned to the water tank. Only then does the appliance switch off. Half-nished ice cubes remain stuck on the cooling bars. As soon as they have thawed a little, they detach and fall off.EWB6068CB_IM 06.07.23

• Please note that ice splinters can form and block the ice cube slide. In this case, after switching on, the mecha- nism is moved back and forth until it is free again. - If you want to remove the ice splinters yourself, rst pull the mains plug out of the socket.

• Note the waiting time of at least 3 minutes if you want to continue the operation.

• You can change the size of the ice cubes as long as the compressor is switched off. ICE FULL Control Lamp (Ice Cube Container Full) As soon as the ice cube container is full, production stops. The ICE FULL control lamp lights up. The compressor switches off.

1. Remove the ice cubes. If necessary, use the enclosed

ice scoop. When removing the ice cube container, some water drips through the holes at the bottom.

2. After the ICE FULL control lamp goes out, ice cube pro-

duction starts again automatically after a while. ADD WATER Control Lamp (Water Shortage) The control lamp indicates when there is not enough water in the water tank. Ice cube production is automatically interrupted.

2. Empty the ice cube container.

3. Rell with drinking water as described in “Making Ice

Cubes”. As there may still be residual water in the appli- ance, observe the MAX marking in the water tank.

button. The ADD WATER control lamp goes out. The appliance is in standby mode again. You can continue with the operation. Ending Operation

button to stop ice cube production. The control lamp SMALL ashes.

2. Unplug the mains plug from the socket.

3. Remove the ice cube container.

4. Drain the remaining water as described in “Cleaning and

5. Leave the lid of the appliance open so that no fungal

cultures or bacteria can form. Cleaning and Maintenance

• Switch off the appliance before maintenance and cleaning. Pull the mains plug out of the socket.

• Never immerse the appliance in water for cleaning. It could cause an electric shock or re. CAUTION:

• Do not use a wire brush or other abrasive objects.

• Do not use harsh or abrasive cleaners.

• Do not use chemicals, acids, petrol or oil. Cleaning Programme With this programme, the water system is rinsed several times. The process takes about 5 minutes. Important! The appliance should not be disconnected from the mains during the cleaning programme.

1. There is an arrow in the water tank below the MAX mark.

Fill approx. 1 litre of fresh water into the water tank, up to a maximum of below the arrow.

2. While the appliance is in standby mode, press and hold

the button for about 2 seconds. The appliance starts the cleaning programme. The four control lamps ash alternately.

3. The appliance automatically switches to standby mode

when the cleaning programme is nished.

4. Drain the water from the appliance. Dispose of the water.

Draining Residual Water Drain the residual water after each use of the appliance or at the end of the day.

1. Place the appliance on the edge of a table. Hold a bowl

under the water drain opening.

2. Pull out the plug at the bottom.

3. After the residual water has drained off, put the plug back

in the opening.EWB6068CB_IM 06.07.23

Ice Cube Container Remove the ice cube container. Clean it in warm rinse water with a little hand dishwashing liquid. Rinse with clean water. Filter Sieve Clean the lter sieve at regular intervals to remove limes- cale deposits.

1. Pull the lter sieve off the bottom of the water tank.

2. Rinse the lter sieve under running water. You can use a

nylon brush to help.

3. Put the lter sieve back on the pins at the bottom of the

water tank. CAUTION: Never use the appliance without the lter sieve! Housing and Interior

• Clean the housing and the inside of the appliance with a damp cloth. Make sure that no moisture gets into the air inlet or air outlet openings.

• Use a diluted solution of vinegar and water.

• Wipe the inside of the appliance dry. Storage

• Allow the interior of the appliance to dry completely before closing the lid and storing the appliance.

• We recommend storing the appliance in its original packaging if you do not intend to use it for a long period of time.

• Always store the appliance out of the reach of children in a well-ventilated and dry place. Troubleshooting Problem Possible Cause Remedy The appliance has no function. The appliance has no power supply. Check the power socket with another appliance. Insert the mains plug correctly. Check the house fuse. The appliance is defective. Contact our service or a specialist. The compressor makes abnormal noises. The mains voltage is too low. Switch off the appliance and check the mains voltage. The ADD WATER control lamp lights up. Water shortage. Rell with water as described in the chapter “Operation” “Making ice cubes”. The ICE FULL control lamp lights up. The ice cube container is full. Empty the ice cube container. The ice cubes are too small. The ambient temperature is too high. Move the appliance to a cooler place. Ensure sufcient air circulation around the appliance. The water temperature is too high. Stop the ice cube production. Drain some water and rell with cold water (max. 20 °C). Ice cube size incorrectly selected. Select the LARGE size with the button while the appliance is in ice cube size selection mode. Smaller ice cubes are normal for the rst few cycles. The ice cubes are too big and stick together. The water temperature or the ambient temperature is too low. Stop the ice cube production. Drain some water and rell with lukewarm water (max. 35 °C). The ice cube container is full, but the ICE FULL control lamp does not light up. The sensor for “ice cube container is full” is damaged. Contact our service or a specialist. The appliance is operating but not producing ice cubes. Blockage or leakage of the refrigerant pipe. Contact our service or a specialist. The compressor is damaged. The fan motor is defective.EWB6068CB_IM 06.07.23

(Cyclopentane) Climate class: ................................................................ SN / N Protection class: ..................................................................... Net weight: ....................................................... approx. 6.5 kg The right to make technical and design modications in the course of continuous product development remains reserved. This appliance has been tested according to all applicable, current CE directives and built according to the latest safety regulations. Disposal Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of elec- trical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.EWB6068CB_IM 06.07.23
