USER MANUAL BZ 6029 CB BOMANN

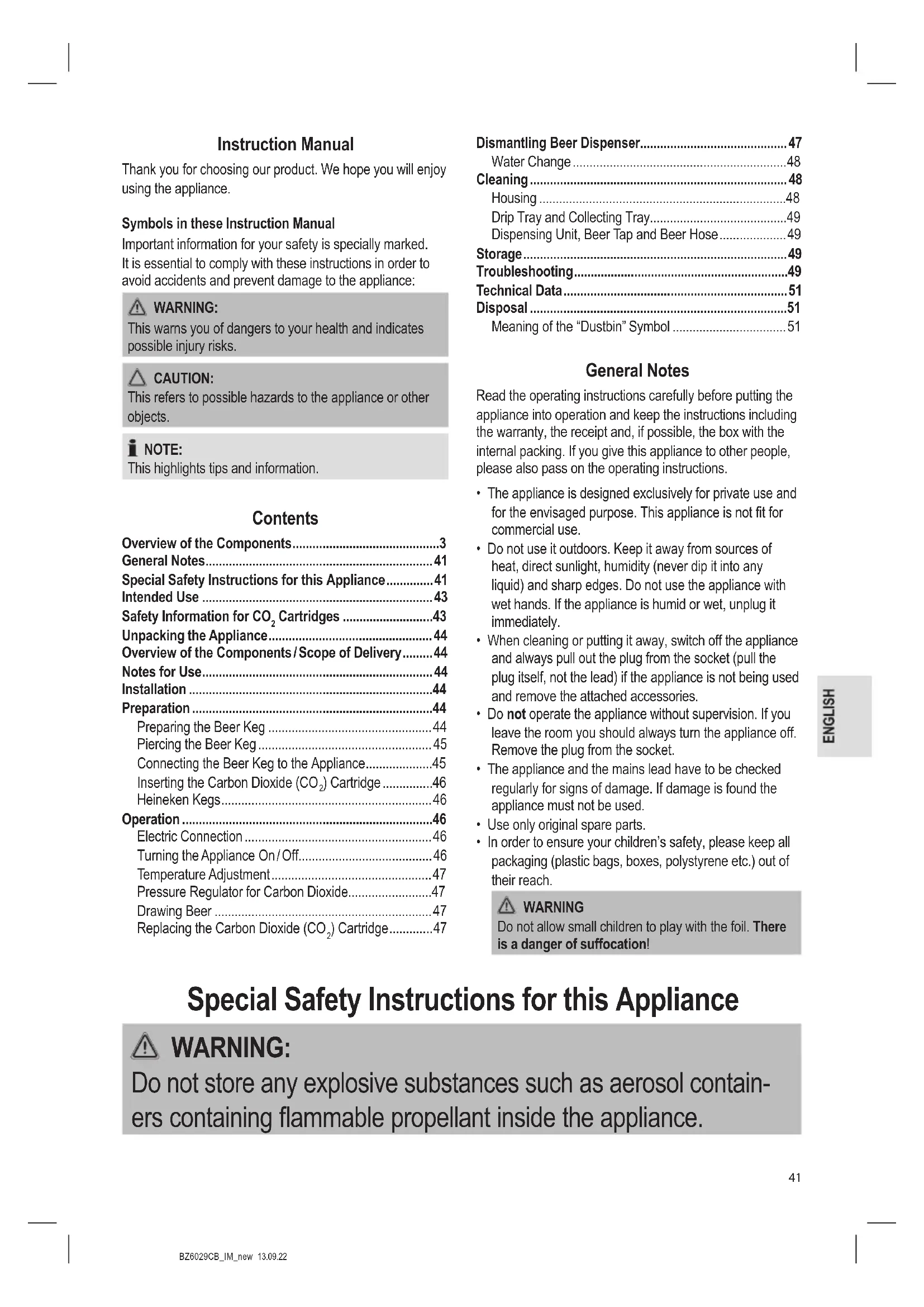

Instruction Manual Thank you for choosing our product. We hope you will enjoy using the appliance. Symbols in these Instruction Manual Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:
- The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not t for commercial use.
- Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
- When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
- Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
- The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
- Use only original spare parts.
- In order to ensure your children’s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach. WARNING Do not allow small children to play with the foil. There is a danger of suffocation! Special Safety Instructions for this Appliance
Do not store any explosive substances such as aerosol contain- ers containing ammable propellant inside the appliance.BZ6029CB_IM_new 13.09.22
CAUTION: Risk of overheating!
- Keep the ventilation slots free! If the heat generated by the operation is not properly dissipated, it can result in overheating and re.
- Position the appliance in such a way that a minimum space of 15 cm to other objects or walls around said appliance is pro- vided.
- Do not place the appliance on or directly next to heat sources such as ovens, radiators, etc.
- Do not expose the appliance to direct sunlight.
- Do not repair the appliance by yourself. Always contact an au- thorized technician. If the supply cord is damaged, it must be re- placed by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental ca- pabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- Observe the instructions in the chapter “Disposal”. CAUTION: This appliance is not designed to be immersed in water during cleaning. Please follow the instructions that we have included for you in the chapter on “Cleaning”.BZ6029CB_IM_new 13.09.22
Intended Use This dispenser serves for chilling dispensing beer from standard 5 litre party kegs. It is intended for use in the household and in similar applications, such as:
- In personal kitchen areas in shops, ofces and other work areas;
- By guests in hotels, motels and other accommodation;
- In bed and breakfast accommodation. It is not intended for the following use:
- In catering and similar wholesale use. This appliance may not be exposed to the rain. Safety Information for CO
cartridges are pressurised. Store the cartridges in a dry, cool place.
- The cartridges must not be subjected to temperatures above 50 °C. Protect from heat sources and direct sunlight.
cartridges should have room temperature when used.
cartridges out of the reach of children.
- Do not tamper with the cartridge.
- Avoid contact with the cartridge at freezing temperatures (risk of frostbite) and do not use.
cartridges intended for the dispenser. The use of other cartridges will invalidate the warranty.
cartridge before it is completely emptied.
- Only dispense of the CO
1. Remove the appliance from its packaging.
2. Remove all packaging material such as plastic lms, ller
material, cable ties and cardboard packaging.
3. Sensitive surfaces are possibly protected with foil.
4. Check the content for any missing parts.
5. In the event that the packaging content should be incom-
plete or if damages are noticeable, do not operate the appliance. Return it to the dealer immediately. NOTE: There may be dust and production residue on the appliance. We recommend cleaning the appliance as described under “Cleaning”. Overview of the Components / Scope of Delivery 1 Buttons / (temperature adjustment) 2 LED temperature indicator 3 Pressure regulator for carbon dioxide 4 Beer hose cover 5 Fitting for the connections 6 CO
feed valve 9 Keg holder 10 Beer connection valve 11 Ventilation slots 12 Power cord 13 Main switch 14 Collecting tray 15 Drip tray 16 Drain lever 17 Beer tap 18 Lid opener 19 Tap handle 20 Cleaning balloon 21 Cleaning hose 22 Universal adapter 23 CO
cartridge No Illustration Keg tap Beer hose including adapter for Heineken kegs Spare silicone ring for the keg tap thread Spare CO
- When transporting the beer dispenser, always carry it holding the bottom edge and not by the beer tap, lid or power cord.
- Only use the dispenser with the correct beer keg.
- Do not place any objects on the dispenser.
- Follow the instructions on the kegs.
- Check that the kegs are tight and undamaged! Ensure that the keg lid is not dented so that the clamps of the dispensing unit can grip under the edge of the lid.
- Do not use beer that has already reached the best before date.
- Before placing the keg into the appliance, store it in a cool environment (but not in the freezer compartment) for 12 hours.
- Never shake the keg before using it.
- Do not expose the kegs to direct sunlight. Installation
Before tting or removing any parts, always disconnect the plug from the mains socket!
1. Place the beer dispenser on a stable, horizontal, level
and non-slip surface. Ensure that there is at least 15 cm of space around the dispenser for optimal operation.
2. Place the drip tray on the collecting tray. Now, slide the
collecting tray to the front of the appliance until it clicks into place. Make sure the collecting tray does not pro- trude beyond the base.
3. Attach the tap handle. The attened
side of the handle points forward. En- sure that the silicone ring is in the right place. Make sure the handle is fully seated on the tap.
4. Dispensing unit: Make sure the silicone
ring has been inserted into the threaded part of the keg tap. Then put the tting through the barrel holder. Make sure the lug on the tting is seated in the recess of the keg holder. Screw the keg tap onto the tting. Now the keg holder is sitting between the tting and the keg tap. Preparation Preparing the Beer Keg
1. Buy a standard 5 litre party keg of your choice.
CAUTION: If the keg has been shaken (transport, etc.), the beer must be allowed to stand for a sufcient time prior to use.
2. Cool the 5 litre party keg prior to use. The optimal
drinking temperature is about 6 – 8 °C. The beer from a warmer keg is less refreshing. Heavy foaming can also result. To cool the keg in the beer dispenser, it is recommended to place it in the connected dispenser the day before. At a keg temperature of about 23 °C, itBZ6029CB_IM_new 13.09.22
is recommended to wait 16 hours before pulling the rst glasses of beer. NOTE: Use your domestic refrigerator to pre-cool the keg. This allows the cooling to process to be accelerated. Storing the 5 litre party keg in a refrigerator offers the advan- tage of always having a second keg ready to use. CAUTION: Never cool the party keg in a freezer as it can burst. Shock cooling can impair the quality of beer.
3. The commercially available 5-liter party kegs are
equipped with different stoppers. Depending on the stop- per the party keg is provided with, it may be necessary to remove the keg stopper and insert one of the universal adapters. The various stoppers are described below. CAUTION:
- Before removing the stopper, always rst vent the keg as stated on the keg and allow to stand for a sufcient period so that the foam does not escape from the vent opening.
- Also observe the instructions on the respective keg regarding the handling of the different stoppers.
- Heineken kegs are described in a separate chapter. You may use kegs with the following stoppers in this appliance: The Rubber Stopper Rubber stoppers do not require the use of any tools or adapters. Kegs with rubber stopper can simply be pierced with the keg tap as described in the chapter “Piercing the Beer Keg”. The Combination Stopper The combination stopper is equipped with a red stopper lid. No tools or adapters are required. See the adjacent gure. When buying a keg with this cover, make sure it is provided with the sealing member that has been circled in the middle. For the combination stopper, you rst need to vent the keg and then remove the stopper lid with a powerful jerk. You may then pierce the keg as described in chapter “Piercing the Beer Keg”. The Aerator Stopper The aerator stopper is equipped with a black stopper lid. Kegs with this type of stopper must rst be vented, as it is necessary with the combination stopper. After that, you may use a tool to remove this stopper, if necessary. Once the stopper has been removed, the sup- plied universal adapter can be inserted into the bunghole in the keg and the following carried out. CAUTION: Do not dispose of the universal adapter after emptying the keg, but remove and clean with warm water and a small amount of mild washing up liquid and retain for reuse. Remove the adapter by gripping the edge of the rubber ring and pulling rmly towards you. Hold the keg rmly with the other hand to ensure that it does not tip over. Piercing the Beer Keg (Exception: Heineken kegs)
1. Take the dispensing unit and place it on the 5 litre beer
keg, which should have been allowed to stand for mini- mum one hour so that no beer sprays out off the bung- hole when the keg is tapped. For this purpose, the tap located at the bottom of the dis- pensing unit must be moistened with water.
2. Subsequently place it vertically on the
tap opening of the stopper / universal adapter and push it downwards rmly and evenly into the keg. You may need to knock in the keg tap.
3. Attach the dispensing unit to the keg:
First, hook one side of the keg holder at the edge of the keg. Then push the other side of the keg holder down until it clicks into place. NOTE: After tapping the keg, the beer can be used for one week. A precondition is that the keg remains in the dispenser; the dispenser must remain on with a full CO
2. Use clean, cold water to ll the tank of the appliance up
3. On the back of the beer tap you will see a button located
below the beer hose. Press this button to release the cover (4). Lift the cover and bend the beer hose to the side.
4. Place the keg with the mounted dispensing unit into the
5. Put the beer hose back into the guide of the beer tap.
Close the cover by rst inserting the lug into the recess on the beer tap.
6. Attach the beer hose to the beer connection valve of the
dispensing unit (10). You may slightly turn the keg, if nec- essary. The click connection must audibly engage. CAUTION:
- Check the beer connection valve and ensure it is prop- erly attached to the dispensing unit before proceeding with the preparation.
- Turn the pressure regulator to the “ ” position. Inserting the Carbon Dioxide (CO
1. Remove the holder for the
cartridge (6) from the clamps of the lid. Turn and remove the holder.
cartridge (with the round bottom rst) into the holder.
WARNING for frostbite: When screwing it onto the thread, do not cover the ventilation opening of the holder with your bare hand. Use gloves to protect your hands. This will help to avoid cryogenic (cold) burns, if carbon dioxide acciden- tally escapes. CAUTION: Pressure
- Check the position of the pressure regulator! It should be in the “ ” position!
- Screw the holder with the CO
cartridge quickly and rmly onto the thread, so that no pressure escapes.
4. Secure the holder with the CO
cartridge in the clamps of the lid.
feed valve onto the connector on the tting. The click connection must audibly engage. CAUTION: The carbon dioxide supply line is thus opened. The keg is pressurized. Heineken Kegs The Heineken kegs already contain carbon dioxide (CO
You do not need the pressure regulator or the CO
cartridge. The pressure regulator on the lid remains without function.
1. Use the button to open the lid of the appliance.
2. Use cold water to ll the tank of the appliance up to the
3. In the lid to the left of the
cartridge you will see a clamp. Attach the hose of the CO
feed valve to said clamp.
4. Loosen the cover (4) as
described above in order to bend the beer hose to the side.
5. Now, place the keg in the tank of the appliance.
6. Change the beer hoses. Remove the beer hose by pull-
ing the tap forward and removing the beer hose. Insert the beer hose with the adapter for Heineken kegs.
7. Use a screwdriver to remove the green seal of the keg.
8. Mount the beer hose adapter on the Heineken keg by
pressing the adapter into the keg.
9. Put the beer hose back into the guide of the tap. Close
the cover by rst inserting the lug into the recess on the beer tap. Disassembly: If you want to remove the adapter from the Heineken keg, press the corrugated sides of the adapter while you remove it. Otherwise the adapter may be damaged. Operation CAUTION: Before switching of the beer dispenser, always ensure that no 5 litre party keg is present in the dispenser as the beer in the keg becomes warm and is no longer fresh. Close the lid of the appliance. It must audibly snap. Electric Connection
1. Ensure that your mains power corresponds with the
specications of the appliance. The specications are printed on the type label.
2. Connect the mains cable to a properly installed and
earthed wall outlet. Turning the Appliance On / Off
- Set the switch to the “ I ” position to turn the appliance on.
- The appliance is turned off when in the “ ” position.BZ6029CB_IM_new 13.09.22
Temperature Adjustment NOTE: The appliance saves the most recently set cooling tem- perature while switching it off. After switching the appliance on again, the display will show the current temperature of the inserted beer keg and the last set cooling temperature.
- You can choose a cooling temperature ranging from 2 °C to 12 °C.
- In order to display the set temperature, you may briey press the or button.
- Press and hold the or button to adjust the temper- ature setting. Pressure Regulator for Carbon Dioxide (Exception: Heineken kegs) Use the pressure regulator to select the appropriate pres- sure for your beer. As different beer varieties are carbonated to a differing extent, different pressures (saturation pres- sure) are required to ensure the quality of the respective beer. If a beer is dispensed with insufcient pressure, for example, it can make the beer taste at, whilst too much pressure can make it too zzy. If the beer should be too zzy or at, simply adjust the pressure accordingly. To be noted is that the CO
content in the beer initially changes over the course of time. NOTE: Make sure the pressure regulator is always in the “
- the beer drawing procedure is interrupted.
- In case you can no longer draw beer, even though there is still beer in the keg, or foaming requires too much time, slowly turn the pressure regulator towards “ ” for 5 seconds. Then set the pressure regulator back to the “ ” position. Drawing Beer
1. Preparing glasses
Wash the glasses in hot water with a small amount of washing / up liquid. Rinse the glasses thoroughly each time before dispensing with cold, clear water. Ensure that all grease and residues are removed com- pletely to avoid impairing foam formation. NOTE: The best results can be achieved by using glasses exclusively for beer to ensure that no residues from fat containing drinks (e. g. milk) are present.
Hold the glass under the beer tap at an angle. The tip of the outlet tube should not come into contact with the glass as this can impair the foam formation. NOTE: The foam produced when dispensing beer can be inuenced by changing the angle of the glass. Pull down the tap handle in one motion. NOTE: If the tap is only partly open, the beer may foam exces- sively as it is not able to ow out freely. Allow the beer to run down the inside of the glass and slowly straighten the glass while dispensing until it is upright towards the end. When the foam reaches the rim of the glass, close the beer tap by pushing back the beer tap handle. Place the glass on the drip plate and wait until the foam has settled. Ensure that the glass is not located directly under the beer tap so that no drops fall into the bear foam. Repeat the dispensing process until the beer and foam are in the correct proportion. This is the case when the head is about two nger’s breadth high and slightly over the rim of the glass. Replacing the Carbon Dioxide (CO
cartridge before it is com- pletely emptied.
- A residual amount of CO
may still be present in the cartridge, which suddenly empties and results in the formation of ice. Once no beer can be drawn, even though the pressure regulator is in the “ ” position and there is still beer in the keg, replace the CO
1. Switch off the appliance.
2. Disconnect the mains plug from the socket.
3. Turn the pressure regulator to the “
4. Use the button to open the lid of the appliance.
feed valve from the connector on the tting. To do this, press the white release button labeled “PRESS” that is located on the tting.
cartridge into the holder as described in the chapter “Inserting the Carbon Dioxide (CO
) Cartridge”. Dismantling Beer Dispenser To clean the beer dispenser and / or to replace the keg, it is necessary to remove the dispensing unit from the dispenser.BZ6029CB_IM_new 13.09.22
CAUTION: Never remove the dispensing unit from the keg while it is still pressurized.
1. Switch off the appliance.
2. Disconnect the mains plug from the socket.
3. Turn the pressure regulator to the “
4. Use the button to open the lid of the appliance.
feed valve from the connector on the tting. To do this, press the white release button labelled “PRESS” that is located on the tting.
6. Place a container underneath the beer tap.
7. Keep the tap handle pressed until the appliance is no
longer pressurized. There must be no more beer or foam escaping.
8. Remove the beer hose from the beer connection valve
of the dispensing unit. To do this, press the white release button labelled “PRESS” that is located on the tting.
9. Now you are able to remove the keg with the dispensing
unit from the tank of the appliance. NOTE: This may require some effort due to the keg being secured by a suction cup located at the bottom of the appliance.
10. Detach the dispensing unit from the
keg: See the adjacent gure. First, re- move the right holder. Then push the left holder out of the keg’s edge.
11. Remove the dispensing unit from the keg by evenly
pulling it out. NOTE: As the beer tap may not be moist during extraction, removal may take some effort.
12. The dispensing unit can now be cleaned as described
in the chapter “Cleaning” and subsequently installed on a new keg as described in the chapter “Piercing the Beer Keg”. NOTE: If necessary, replace the CO
cartridge as described in the chapter “Replacing the Carbon Dioxide (CO
Cartridge”. Water Change There is no need to change the water in the tank every time a beer keg has been emptied. Exchange the water weekly.
1. Remove the collecting tray from the appliance.
2. After disconnecting the appliance from the power supply,
place it near a table edge and make sure the front feet are still on the table.
3. Place an empty container than can hold about 1 litre of
water under the edge of the table.
4. To open the outlet, pull the drain lever down. The tank
5. Use a clean cloth to wipe the tank.
6. Release the drain lever.
7. Use clean water to ll the tank up to the MAX mark.
8. Repeat the procedure in order to rinse the tank.
- Before cleaning, always remove the mains plug and wait until the appliance has cooled down.
- Do not immerse the appliance in water. Otherwise this might result in an electric shock or re. CAUTION:
- The dispensing unit is not dishwasher-safe. Clean the appliance prior to initial commissioning and after each use. In order to keep the quality of the dispensed beer at a consistently high level, it is important to clean the dispenser thoroughly. Housing
1. Empty the tank completely. (Refer to chapter “Water
2. Use a clean cloth to wipe the tank.
3. Clean the lid and the exterior of the housing with a damp
cloth. You may add some manual washing-up liquid to the cloth.
Drip Tray and Collecting Tray
1. Remove both the drip tray and the collecting tray from
2. Pour the accumulated beer into a sink.
3. Clean both components with hot water. If required, you
can add some manual washing-up liquid to the rinsing bath. Dispensing Unit, Beer Tap and Beer Hose For this procedure you will need the cleaning balloon, the cleaning hose, a container that holds about 2 litres of clean, warm water and an empty container the water will be drained into.

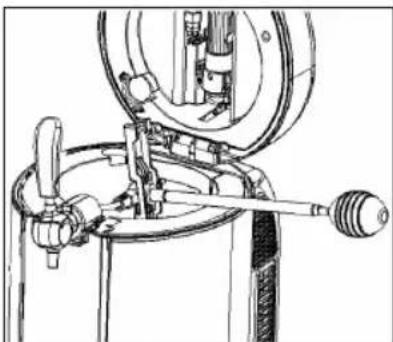

1. Place the empty container underneath the beer tap.
2. Fill the cleaning balloon with the warm water.
3. Connect the dispensing unit to the beer hose. The click
connection must audibly engage.
4. Plug the cleaning balloon onto the end of the keg tap.
5. Use one hand to open the tap. Use your other hand to
hold and press the cleaning balloon. Pump all the water from the balloon through the dispensing unit and the beer tap.
6. Repeat this procedure several times.
7. Remove the dispensing unit from the beer hose.
8. Disassemble the dispensing unit into its 3 components.
To do this, turn the keg tap and remove it from the tting.
9. Clean these components under running warm water.
Thoroughly rinse the keg tap. In order to clean the beer tap with the beer hose but without the dispensing unit, proceed as follows:

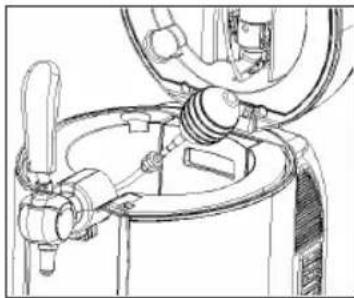

1. Connect the cleaning hose with the balloon. If you have
used the beer hose with Heineken kegs, you only need the balloon.
2. Attach the cleaning hose to the tip of the beer hose. For
Heineken kegs, put the balloon on the beer hose.
3. Use one hand to open the beer tap. Use your other hand
to hold and press the cleaning balloon. Pump all the water from the balloon through the beer hose.
4. Repeat this procedure until the beer hose is clean.
- Clean the appliance as described and let it dry com- pletely.
- We recommend that you store the appliance in its original packaging when it is not to be used for a longer period.
- Always store the appliance at a well ventilated and dry place outside the reach of children. Troubleshooting If a problem occurs, it is often just a small matter. Before contacting our customer service, please note the following: Problem Possible cause Solution The appliance does not work. The appliance is not connected to mains power. Check the wall outlet with a different appliance. Insert the plug properly in the wall outlet. Check the fuse. The appliance is defective. Contact our service or a repair centre. No beer is dispensed. The 5 litre party keg is empty or there is not a 5 litre party keg in the beer dispenser. Place a new 5 litre party keg in the dispenser. The CO
cartridge is empty. Change the CO
cartridge. The keg tap is not tted. The keg is not correctly tapped. Attach the dispensing unit to the keg by using the keg tap. Tap the keg correctly. The tap handle is not correctly installed. Install the tap handle correctly.BZ6029CB_IM_new 13.09.22
Problem Possible cause Solution Too much foam is produced when dispensing. The 5 litre party keg is not cold enough. Cool the 5 litre party keg longer. The 5 litre party keg was shaken. Allow the 5 litre part keg to stand in the beer dispenser for a while. The beer does not ow freely out of the tube. Open the beer tap fully. The glass is held upright when dispensing. Tilt the glass when dispensing so that the beer is able to run down the side of the glass. The CO
pressure in the keg is too high. Turn the pressure regulator to the “ ” position. It takes some time until the pressure in the keg is relieved and the amount of foam is reduced. Not enough foam is produced while dispensing. The CO
pressure in the keg is too low. Slowly turn the pressure regulator towards “ ” for 5 seconds. The beer is too cold. Allow the keg to stand in the dispenser for while. The temperature is then corrected by the appliance. There are grease, washing-up liquid or residues in the glass. Wash the glass thoroughly and subsequently rinse with cold water. The glass is too warm. Rinse the glass with cold water. The glass is dry. Rinse the glass with cold water. The beer turns cloudy. The beer is too cold. Allow the keg to stand in the dispenser for while. The temperature is then corrected by the appliance. The beer hose is not clean. Clean the beer hose. The beer was incorrectly shock- chilled prior to using the beer dispenser. Use a correctly chilled keg. The beer is too warm. The keg was not chilled long enough. Chill the keg longer. The vents are covered. Insufcient space next to and behind the dispenser. Uncover the vents. Position the dispenser so that there is mini- mum 15 cm space on all sides. The beer tastes at. The CO
pressure is too low. Slowly turn the pressure regulator towards “ ” for 5 seconds. The best before date has expired. Use a new keg. The keg has been tapped too long. Use a new keg. The beer runs too slowly out of the beer tap. The CO
cartridge is empty. Change the CO
pressure in the keg is too low. Slowly turn the pressure regulator towards “ ” for 5 seconds. The beer does not ow freely out of the tube. Open the beer tap fully. The dispenser does not close. The dispensing unit is not correctly installed and protrudes from the dispenser. Install the dispensing unit correctly. It is difcult to install the dispensing unit on the keg. The keg tap was not moistened prior to tapping. Wet the keg tap with cold water.BZ6029CB_IM_new 13.09.22
The right to make technical and design modications in the course of continuous product development remains reserved. This appliance has been tested according to all applicable, current CE directives and built according to the latest safety regulations. Disposal Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of elec- trical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.BZ6029CB_IM_new 13.09.22
ManualGo.com
