HNU61425B - Basket BEKO - Free user manual and instructions

Product Type	Range hood
Brand	Beko
Model	HNU61425B
Color	Black
Power supply	220-240 V, 50 Hz
Motor power	115 W
Lighting power	5 W (LED)
Lighting	LED strip 300x26 mm, 420 lm, 3800 K, class F
Insulation class	Class I
Number of speeds	3
Maximum airflow	415 m³/h
Duct diameter	120 or 150 mm
Minimum distance to cooking surface	65 cm
Filter type	Aluminum oil filter (washable); optional charcoal filter
Oil filter cleaning frequency	Once a month
Charcoal filter replacement frequency	Every 3 months
Control	Mechanical (toggle switch)
Operating mode	Extraction or recirculation
Installation	Integrated under cabinet
Finish	Glass and stainless steel
Compliance	WEEE, RoHS
Spare parts availability	12 years after purchase date

Frequently Asked Questions - HNU61425B BEKO

How to clean the grease filters?

To clean the aluminum oil filter, remove it from the hood. Wash it with a neutral liquid detergent and rinse with water. You can also wash it in the dishwasher. Let it dry completely before putting it back. It is recommended to clean it once a month.

How often should I replace the charcoal filter?

The charcoal filter should be replaced every 3 months under normal use. It cannot be washed. Only use an original or manufacturer-recommended activated charcoal filter.

How to install the hood under a cabinet?

Installation must be carried out by a qualified professional. The distance between the hood and the hob must be at least 65 cm. Cut a hole in the cabinet according to the dimensions given in the manual. Fix the hood using the screws provided, from the top or sides of the cabinet. Ensure the electrical power supply is correctly connected.

What to do if the hood does not start?

First check the fuse and circuit breaker. Make sure the plug is properly inserted and the mains voltage is 220-240 V. If other appliances are working, the problem may be with the hood itself. Contact after-sales service.

How to replace the LED bulb?

The LED bulb is a specific strip. First switch off the power supply. Replacement must be carried out by a qualified electrician or an authorized service center. Do not touch the bulb when hot. Use a 5 W bulb, model NS39-G2.

What is the minimum distance between the hood and the hob?

The minimum distance is 65 cm between the cooking surface and the lowest part of the hood. For gas hobs, measure from the grate; for electric hobs, from the glass surface.

How to use the mechanical controls?

The hood is equipped with a toggle switch. Press '0' to turn off, '1' for minimum speed, '2' for medium speed, '3' for maximum speed. The separate button controls the lighting.

What to do in case of fire on the hob?

If a flame appears, immediately turn off the hood and the cooking appliances. Cover the flame with a lid or a fire blanket. Never use water to extinguish a grease fire.

Can I use the hood without an exhaust duct?

Yes, in recirculation mode. You must install an activated charcoal filter (not supplied). Remove the flaps from the duct adapter. The hood filters the air and returns it to the room.

How to reduce the energy consumption of the hood?

Use low speeds (1-2) for normal conditions and high speeds only for strong odors. Turn on the hood before steam forms and turn it off after a few minutes. The lighting is intended for cooking, do not use it as a room lamp.

USER MANUAL HNU61425B BEKO

Simple line icon of a chimney emitting steam (no text or symbols)

HNU 61425 B

EN - PL - ET - LV - LT - FR - NL - DE

CONTENTS

ENGLISH	3-16
POLSKI	17-32
EESTI	33-45
LATVIEŠU	46-58
LIETUVIŲ K	59-72
FRANÇAIS	73-87
NEDERLANDS	88-102
DEUTSCH	103-118

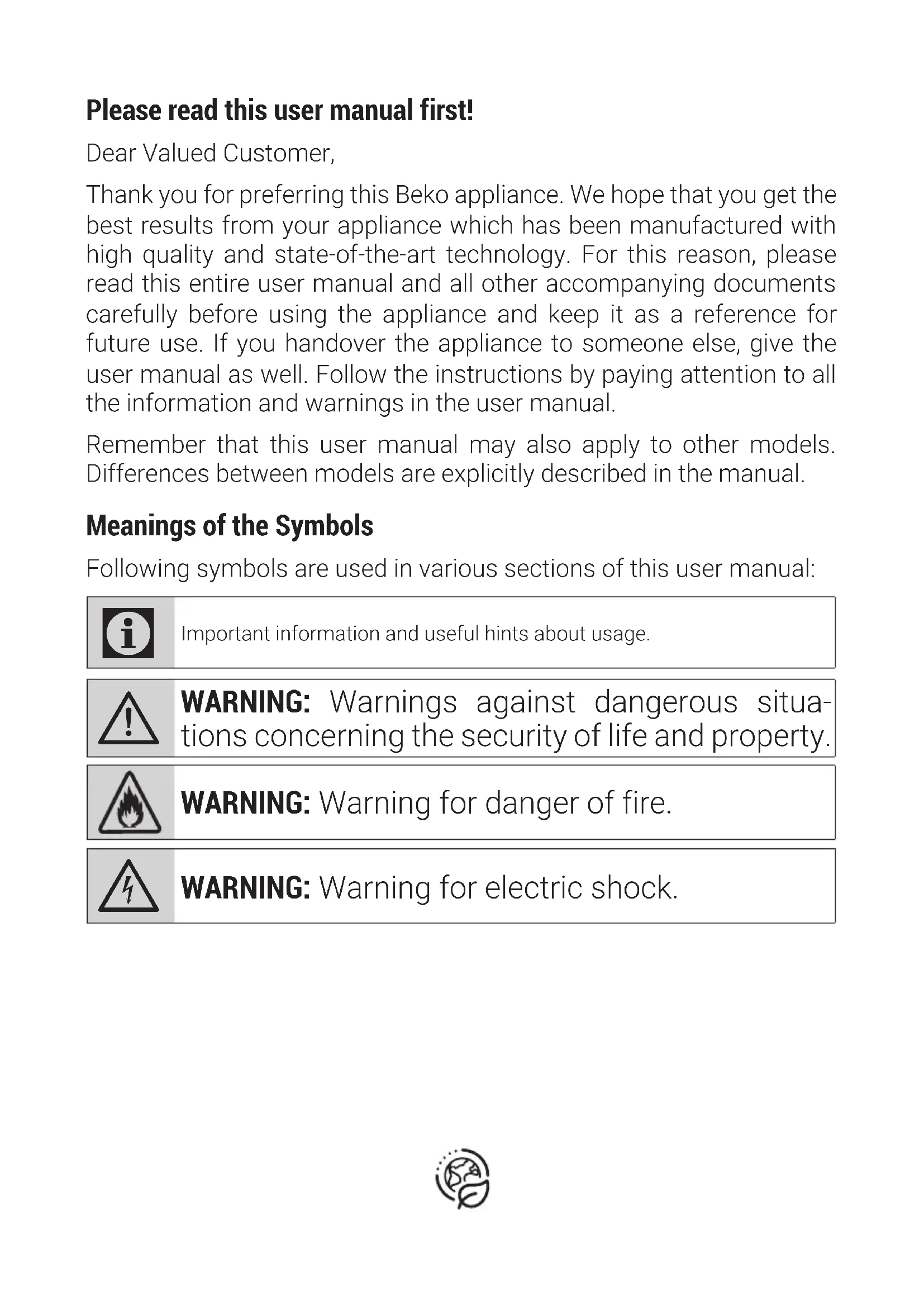

Please read this user manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

WARNING: Warning for danger of fire.

WARNING: Warning for electric shock.

1 Important safety and environmental instructions

1.1 General Safety

Important Safety Instructions Read Carefully And Keep For Future Reference This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

•Beko products comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.

•This appliance is intended

to be used in household and similar applications such as:

-Staff kitchen areas in shops, offices and other working environments;
-Farm houses
-By clients in hotels, and other residential type environments;
-Bed and Breakfast type environments.

- Operate the appliance for its intended purpose only as described in this manual.

•The manufacturer cannot be held liable for damages resulting from improper installation or misuse of the product.

•This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowl-

1 Important safety and environmental instructions

edge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

•Children shall not be allowed play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

•The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of your product must be at least 65 cm.

- If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account.

- Make sure that your mains power supply complies with the information supplied on the rating plate of the appliance.

- Never use the appliance if the power cable or the appliance itself is damaged.

- Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.

- Use the appliance with a grounded outlet only.

WARNING: Do not connect the appliance to the mains until the installation is fully complete.

- Place the appliance in a way so that the plug is always accessible.

- Do not touch the lamps if they have operated for a long time. They can burn your hands since they will be hot.

- Follow the regulations set out by competent authorities on discharge of the exhaust air (this warning is not applicable for use

1 Important safety and environmental instructions

without flue).

- Operate your appliance after putting a pot, pan etc. on the hob. Otherwise, high heat may cause deformation in some parts of your product.

- Turn off the hob before taking the pot, pan etc. from it.

- Do not leave hot oil on the hob. Pans with hot oil may cause self combustion.

- Pay attention to your curtains and covers since oil may catch fire while cooking food such as fries.

- Grease filter must be cleaned at least monthly. Carbon filter must be replaced at least every 3 months.

- Product shall be cleaned accordance with user manual. If cleaning was not carried out in accordance with user manual, there may be fire risk.

- Do not use non-fire-resist-

ant filtering materials in- stead of the current filter.

- Only use the original parts or parts recommended by the manufacturer.

- Do not operate the product without the filter and do not remove the filters while the product is running.

• In the event of be started any flame, de-energize your product and cooking appliances.

• In the event of be started any flame, cover the flame and never use water to extinguish.

- Unplug the appliance before each cleaning and when the appliance is not in use.

•The negative pressure in the environment should not exceed 4 Pa (4x10 bar) while the hood for electric hob and appliances running on another type of energy but electricity op-

1 Important safety and environmental instructions

erate simultaneously.

•In the environment where the appliance is being used, the exhaust of devices running on fuel oil or gas, such as room heater must be absolutely isolated or device must be hermetical type.

- When connecting the flue, use pipes with a diameter of 120 or 150 ~mm . Pipe connection must be as short as possible and have as few elbows as possible.

- Danger of choking! Keep all the packaging materials away from children.

CAUTION: Accessible parts may become hot when used with cooking appliances.

•The product outlet must not be connected to air channels that include other smoke.

•The ventilation in the room may be insufficient when the hood for electric hob

is used simultaneously with the devices operating on gas or other fuels (this may not apply to appliances that only discharge the air back into the room).

- Objects placed on the product may fall. Do not place any objects on the product. - Do not flambe under the your product.

WARNING: Before installing the Hood, remove the protective films.

- Never leave high naked flames under the hood when it is in operation

- Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

1 Important safety and environmental instructions

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 General appearance

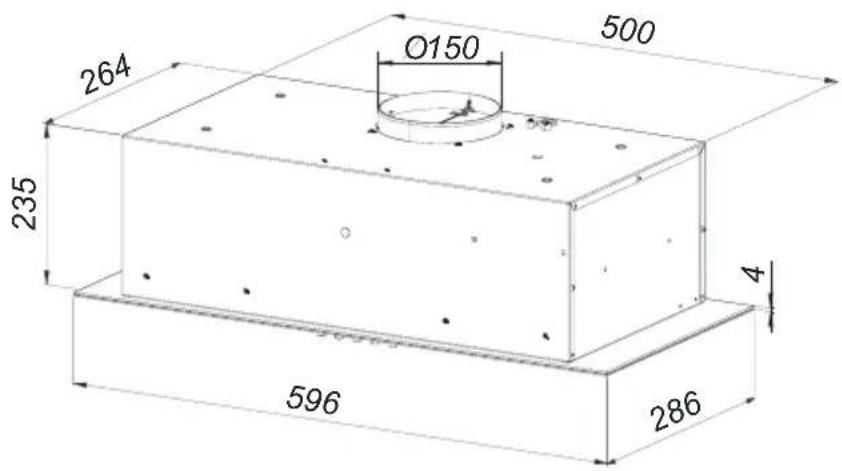

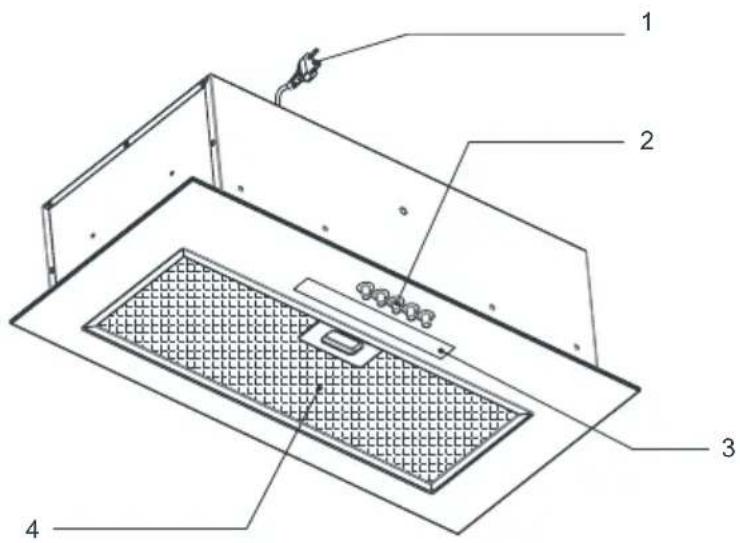

2.1 Overview

Technical diagram of a microwave oven with numbered components labeled 1 to 4

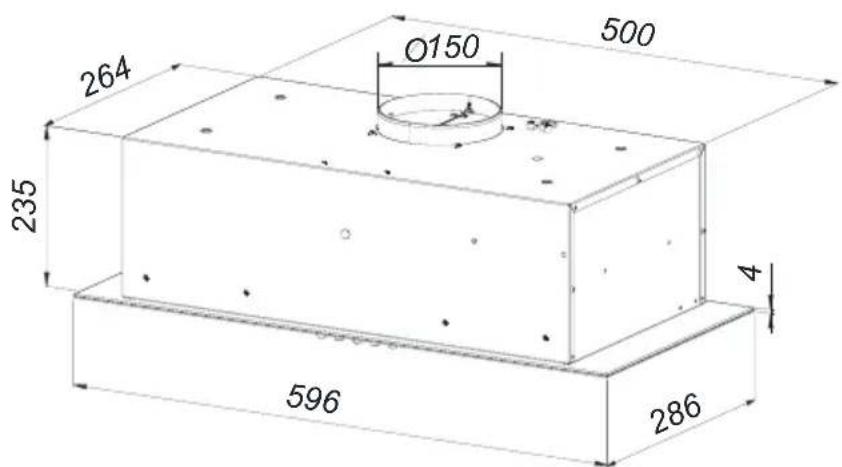

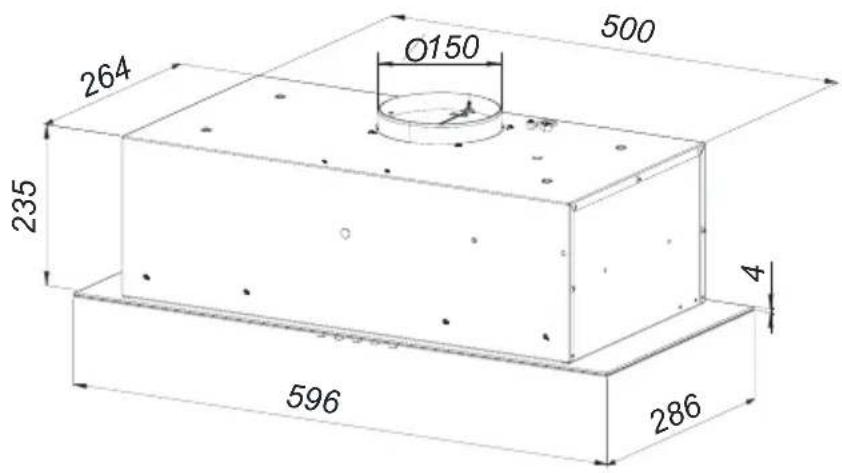

264 O150 500 235 596 286 4

1. Power cord
2. Mechanical control
3. Lighting
4. Grease filter

2.2 Technical data

Model HNU 61425 B
Supply voltage and frequency	220-240 V 50 Hz
Lamp power	5 W
Motor power	115 W
Air flow – 3. Level 415 m3/h
Motor insulation class class F
Insulation class class II

3 Using the appliance

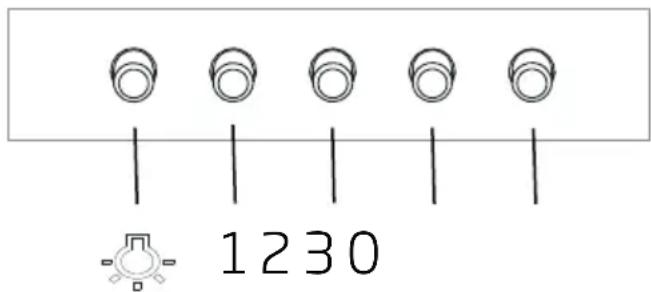

3.1 Use of the rocker switch

1230

The hood is equipped with a mechanical control.

• Pressing the "0" - disables the hood.
• Pressing the "1" - to turn the hood with a minimum speed.
• Pressing the "2" - turns the hood with an average speed.
• Pressing the "3" - turns the hood at maximum speed.
• Press the button to turn on the lights. Repeat pressing the button to turn off the lighting.

3.2 Energy efficient usage

- When using your appliance, adjust the speed settings according to vapour and odour intensity, in order to save energy.

- Use low speeds (1-2) under normal conditions, and high speed (3) and boost mode for intense odour and vapour.

- The hood is equipped with lamps in order to illuminate the cooking area.

- Using them for environmental lighting shall cause unnecessary energy expenditure and insufficient lighting.

- For your device to consume less energy, run it at a low speed level.

- Your device will reduce energy consumption as it will run more efficiently when you provide sufficient air intake to it.

- Set your device to the intense suction power level before the formation of steam, in cases where you know that the dense steam will occur. So, you reduce energy consumption by using your device for a shorter time as it will have a sufficient air intake.

- Keep the lids of the cookware closed to reduce the steam evolving.

3.3 Operating the Hood

• Hood is equipped with a motor having various speed settings.
• For a better performance, we advise you to use low speeds in normal conditions, and high speeds when smell and vapors are intensified.
• You can start the hood by pressing the desired speed level key.(1,2,3)
• You can illuminate the cooking area by pressing the light key. (-)

3.4 Lamp replacement

• Before replacing the light bulbs, disconnect the power supply of the hood.
• Do not touch the light bulbs when they are hot.
• Be careful not to touch the replaced light bulb directly with hands.

You may procure lamps from Authorised Service Agents.

Led strip is used in the product 5 W. Before starting any works related to the light replacement, switch off the power. In the case of hood with a LED panel, the replacement of the light source should be entrusted to a properly licensed person

3 Using the appliance

(e.g. an electrician) or the fault should be reported to an authorized service center.

Lamp
Power 5 W
Socket NS39-G2
Voltage 220 - 240 W
Dimension 300 x 26 mm
Luminous flux 420 lm
Correlated colour temperature	3800 K

This product contains a light source of energy efficiency class "F".

3.5 Operation with chimney connection

extracted thro-

ugh the flue duct, which is fastened to the connection head on the hood.

- The diameter of the flue duct must be the same as the connection ring. In horizontal settings, the pipe has to have a slight upward slope (around 10^ ) so that the air can exit the room easily.

3.6 Operation without chimney connection

ed through the

carbon filter and recirculated in the room. Carbon filter is used when it is impossible to use a flue in

the house.

• In flueless use, remove the flaps inside the flue adapter.
• Remove the aluminum grease filter. To install the carbon filter, fit the filter

to the tabs by centring it on the plastic piece on both sides of the fan body. tighten it by turning right or left.

-Replace aluminum grease filter.

4 Cleaning and maintenance

The device should be cleaned and maintained regularly. Failure to keep the device clean will adversely affect the service life of the device. For cleaning and maintenance, follow the instructions stated in the manual.

Before cleaning and maintenance, unplug the product or turn off the switch.

Non-compliance with the provisions associated with the cleaning of the device and replacement of the filters may result in a risk of fire. Therefore, it is recommended to follow the guidelines stated here. The manufacturer is not responsible for the engine damages or fires originating from the improper use.

Clean using only a cloth dampened with a neutral liquid detergent. Do not use abrasive products or alcohol.

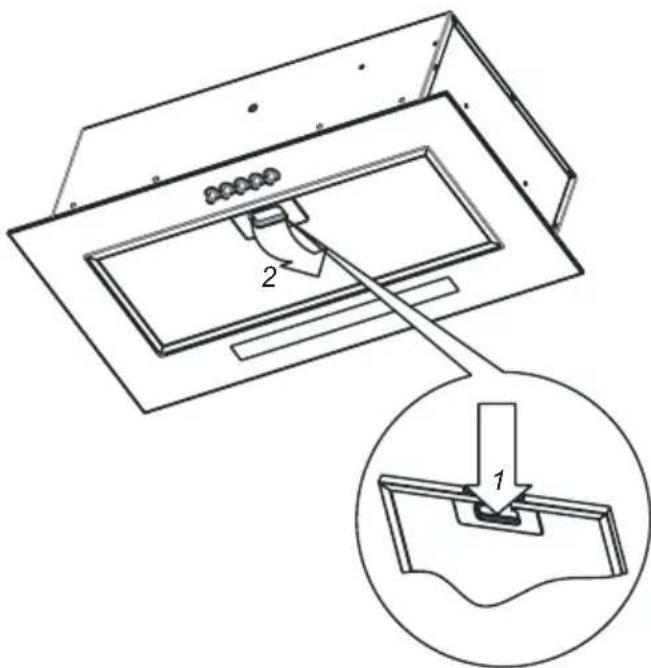

4.1 Cleaning of Grease Filter

This filter captures oil particles in the air. You are recommended to clean your filter every month under normal usage conditions. First remove the grease filters for this process. Wash the filters with liquid detergent and rinse them with water and install them back after they get dry. Aluminium grease filters may get discolored as they are washed; this is normal and you don't need to change your filter.

You may wash your grease filter in the dishwasher.

CAUTION: In case of normal use, clean your filter once in a month.

Technical diagram showing a mechanical assembly with labeled components and an inset view of a component being inserted into a base.

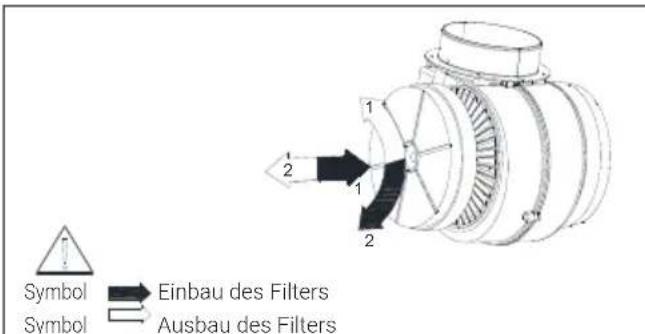

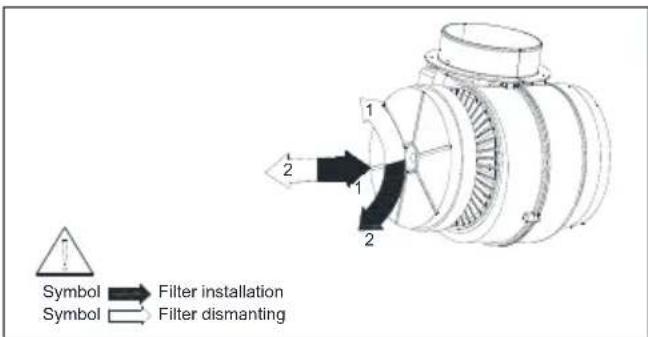

4.2 Changing of Carbon Filter (Air Circulation Mode)

The hood can be fitted with an active carbon filter. The carbon filter is applied only in case the hood is not connected to the vent duct.

Symbol → Filter installation Symbol → Filter dismantling

4 Cleaning and maintenance

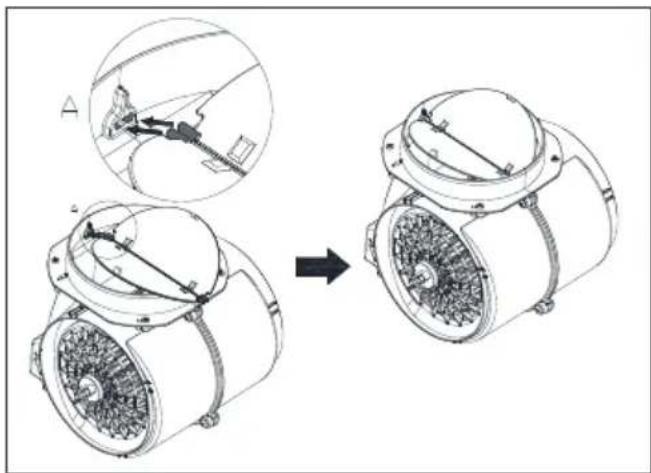

Technical line drawing of a mechanical assembly showing a disassembly process with labeled components (no text or symbols present)

WARNING: •The carbon filter is never washed. •Replace carbon filters once every 3 months. •Carbon filter is available from Authorized Services.

5 Setting up the device

WARNING: Before starting the installation, read the safety information on user manual.

WARNING: Failure to install with screws and stabilizers in accordance with these instructions may result in electric shock.

For the installation of the hood, please contact the nearest Authorized Service.

It is the customer's responsibility to prepare the location and electrical installation of the hood.

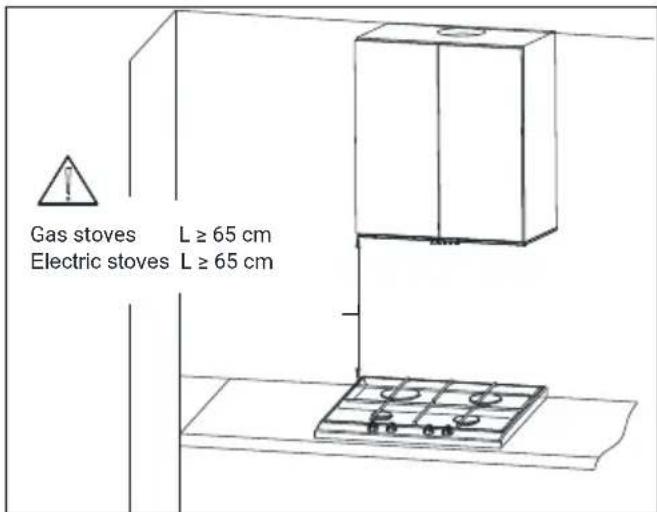

Gas stoves L ≥ 65 cm Electric stoves L ≥ 65 cm

5.1 Position of the appliance

- Distance between the cooker and the cooker hood must be considered prior to assembly. This distance should be 65 cm.

- Distance must be measured from the surface of grate for gas cookers, from surface of glass for electric cookers.

5 Setting up the device

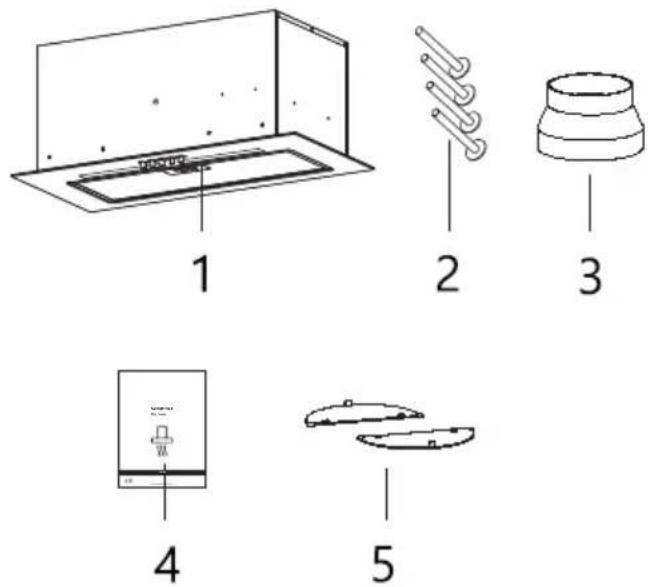

5.2 Installation accessories

1. Hood
2. 4x5x35 mm Screw
3. 150/ 120 plastic adapter
4. User Manual
5. Blower flaps

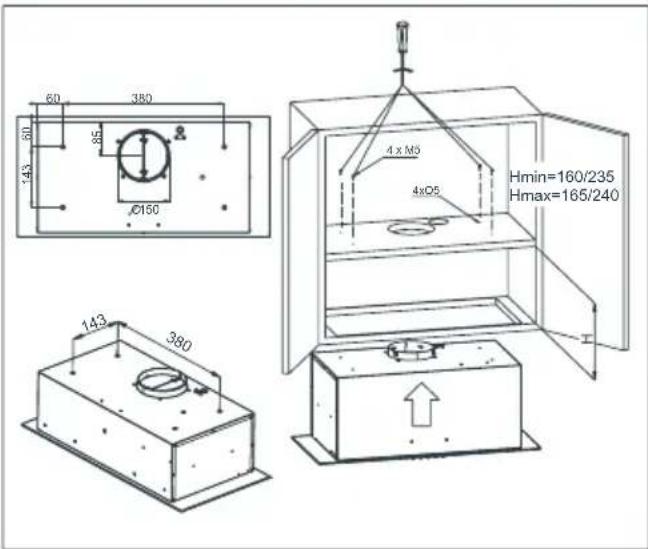

5.3 Installation of the device

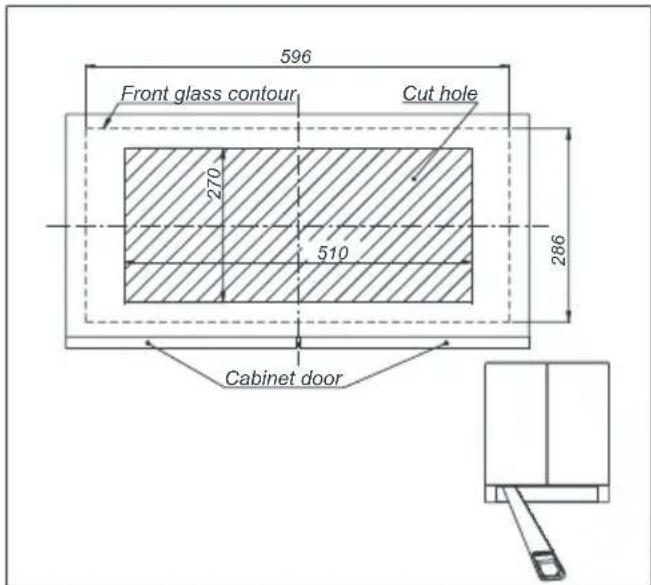

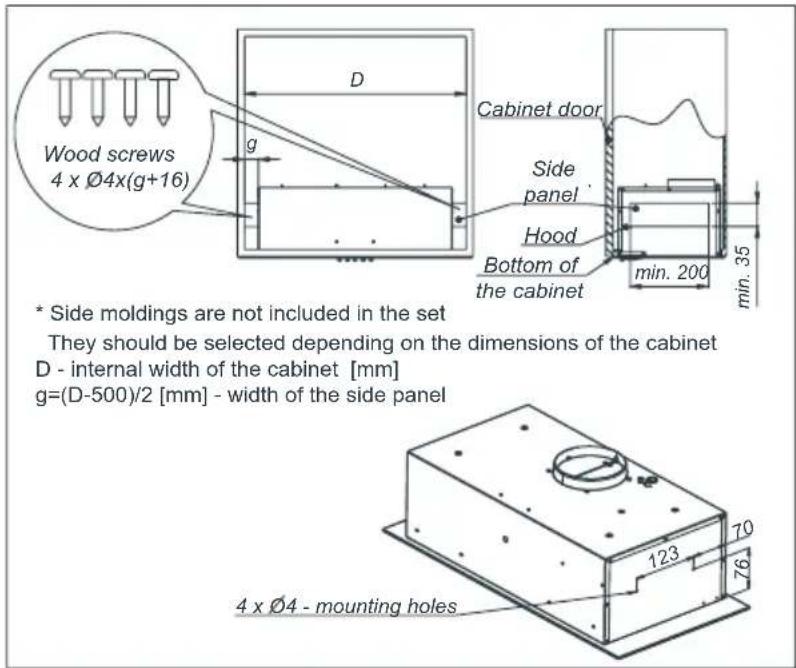

1. Prepare the cabinet for the installation of the hood, cut the hole in the bottom of the cabinet in accordance with the drawing.

Preparation of the cabinet

596 Front glass contour Cut hole 270 510 286 Cabinet door

1. Remove the grease grease filters
2. Carefully insert the hood into the previously cut hole, hold the hood with one hand or ask an additional person for help. Screw in the bolts / screws choosing one mounting variant a-fixing to the top of the cabinet, b- fixing to the side of the cabinet.

Installation of the hood - top mounting version

60 380 143 85 Ø150 4 x M5 4xØ5 Hmin=160/235 Hmax=165/240 143 380

1. When attaching the hood to the top of the cabinet, prepare holes in the shelf of the cabinet according to the dimensions shown in the drawing. However, in the case of a side variant, the side skirts should be prepared as described in

5 Setting up the device

Installation of the hood - side mounting version

Wood screws 4 x Ø4x(g+16) D g Cabinet door Side panel Hood Bottom of the cabinet min. 200 min. 35 * Side moldings are not included in the set They should be selected depending on the dimensions of the cabinet D - internal width of the cabinet [mm] g=(D-500)/2 [mm] - width of the side panel 4 x Ø4 - mounting holes

5.4 Electrical connections

The network voltage shall correspond to the voltage indicated at the plate placed inside the hood. If the hood is equipped with a plug, insert it into the socket complying with the applicable requirements, and located in the easily accessible place. If the hood is not equipped with a plug, the hood installations shall be performed by a person having the required authorizations (such as electrician).

5.5 Storage

- If you do not intend to use the appliance for a long time, please store it carefully.

- Please make sure that the appliance is unplugged, cooled down and totally dry.

- Store the appliance in a cool and dry place.

- Keep the appliance out of the reach of children

5.6 Handling and transportation

- During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.

- Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.

- Dropping the appliance will render it non-operational or cause permanent damage.

6 Troubleshooting

Troubleshooting Root cause Help
Appliance is not working.	Check your fuses. Fuse	may be blown, inspect and restore it.
Appliance is not working.	Check the electrical connection.	Mains voltage shall be between 220 and 240 V.
Appliance is not working.	Check the electrical connection.	Check if other appliance in your kitchen operate.
Illumination light does not operate.	Check the electrical connection.	Mains voltage shall be between 220 and 240 V.
Illumination light does not operate.	Inspect the lamp switch.	Lamp switch shall be at “on” position.
Illumination light does not operate.	Inspect the lamps. The lamps of the appliance shall illuminate.
Air inlet of the appliance is inadequate.	Inspect the grease filter.	Under normal operating conditions, grease filter shall be cleaned at least once in a month.
Air inlet of the appliance is inadequate.	Check the air discharge chimney.	The air discharge chimney shall be at “on” position.
Air inlet of the appliance is inadequate.	Inspect the carbon filter.	The filters of the appliances with carbon filters shall be replaced once in every 3 months under normal conditions.

Technical diagram of a microwave oven with numbered components labeled 1 to 4

264 O150 500 235 596 286 4

Technical diagram showing a mechanical assembly with labeled components and an inset view of a component being inserted into a housing.

Symbol Filter installation Symbol Filter dismanting

Technical illustration of a mechanical assembly showing two views of a motor or fan with internal components, no text or symbols present.

Gas stoves L ≥ 65 cm Electric stoves L ≥ 65 cm

Technical diagram of a device with numbered components, likely an enclosure or rack unit.

264 O150 500 235 596 286 4

Technical diagram showing a mechanical assembly with labeled components and an inset view of a component being inserted into a base.

Technical illustration of a mechanical assembly showing a disassembly process with labeled components (no text or symbols present)

HOIATUS:

•Söefiltrit ei tohi kunag pesta.

Technical diagram of a microwave oven with numbered components labeled 1 to 4

264 O150 500 235 596 286 4

Technical diagram showing a mechanical assembly with labeled components and an inset view of a component being inserted into a base.

Technical illustration of a mechanical device showing assembly and disassembly (no text or symbols)

UZMANIBU

Simple line drawing of a rectangular box with a small circular top and base (no text or symbols)

Simple line drawing of a four-wető appliance mounted on a base plate (no text or symbols)

Technical diagram of a device interior with numbered components for identification

264 O150 500 235 596 286 4

Technical diagram showing a mechanical assembly with labeled components and an inset view of a component being inserted into a base.

Technical illustration of a mechanical assembly showing a disassembly process with labeled components (no text or symbols present)

DÉMESIO

Technical diagram of a device with numbered components, showing internal structure and mounting points.

264 O150 500 235 596 286 4

Technical diagram showing a mechanical assembly with labeled components and an inset view of a component being inserted into a housing.

Symbol Filter installation Symbol Filter dismantling

Diagram showing motor assembly process with two views of a device (A and B) and a directional arrow indicating transformation (no text or labels)

ATTENTION

Technical diagram of a double door with labeled components including ventilation grating and wall-mounted sensors

264 O150 500 235 596 286 4

1. Netsnoer
2. Bedieningspaneel
3. Verlichting
4. Aluminium vetfilter

Technical diagram showing a mechanical assembly with labeled parts and an inset view of a component being inserted into a housing.

Technical illustration of a mechanical assembly showing a disassembly process with labeled components (no text or symbols present)

OPGELET

Technical diagram of a double door with labeled components including ventilation grating and wall-mounted sensors

264 O150 500 235 596 286 4

Technical diagram showing a device with labeled components and an inset view of a component with numbered parts.

4.2 Changing of Carbon Filter (Air Circulation Mode)

The hood can be fitted with an active carbon filter. The carbon filter is applied only in case the hood is not connected to the vent duct.

Technical illustration of a mechanical assembly showing two views of a motor with internal components and a directional arrow (no text or symbols)

WARNUNG
