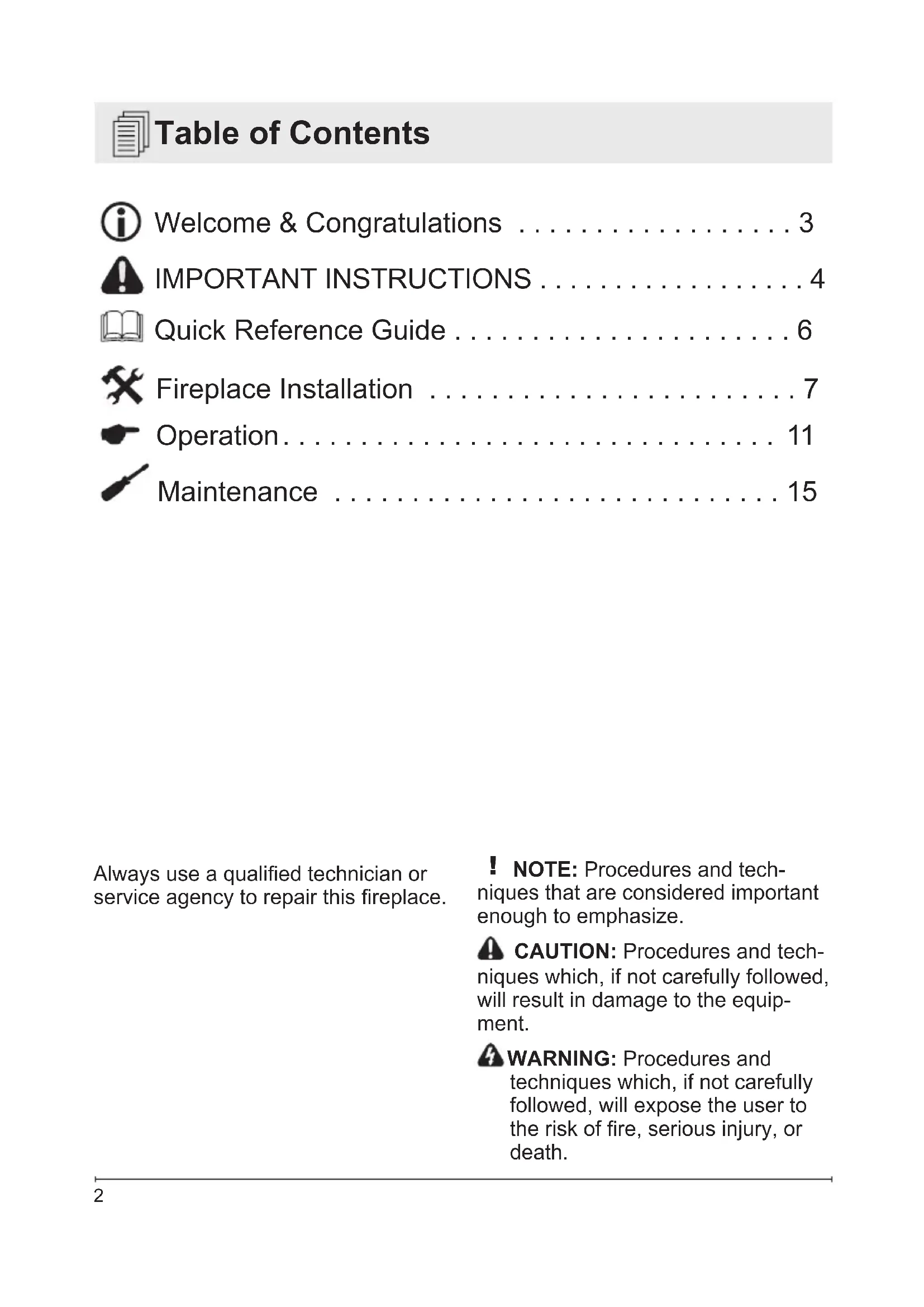

USER MANUAL XLF100 DIMPLEX

NOTE: Procedures and tech- niques that are considered important enough to emphasize. CAUTION: Procedures and tech- niques which, if not carefully followed, will result in damage to the equip- ment.

WARNING: Procedures and

• techniques which, if not carefully followed, will expose the user to the risk of re, serious injury, or death. Welcome & Congratulations p. 3
• IMPORTANT INSTRUCTIONS p. 4
• Quick Reference Guide p. 6
• Fireplace Installation p. 7
• Operation p. 11
• Maintenance Welcome & Congratulations Thank you and congratulations for purchasing an electric replace from Dimplex. Please take note of the location of the Model & Serial for this product it is important to be able to locate it in the event of requiring technical support. Model and Serial Number Label Please carefully read and save these instructions. CAUTION: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible electric shock, re hazard and will void the warranty.4 Important Safety Advice When using electrical appliances, basic precautions should be followed to reduce the risk of re, electric shock, and injury to persons, including the following: If the appliance is damaged, check immediately with the supplier before installation and operation. Do not use this appliance in the immediate surroundings of a bath, shower or swimming pool. Do not use outdoors. This appliance must not be located immediately above or below a xed socket outlet or connection box. p. 153

WARNING: The appliance carries the Warning Symbol

indicating that it must not be covered or has a Do not cover label. Do not cover or obstruct in any way the heat outlet grille located at the top of the appliance overheating will result if the appliance is accidentally covered. Do not place material or garments on the appliance, or obstruct the air circulation around the appliance, for instance by curtains or furniture, as this could cause overheating and a re risk. In the event of a fault unplug the heater. Unplug the appliance when not required for long periods.The supply cord must be placed on the right hand side of the heater away from the heat outlet underneath the appliance. Although this appliance complies with safety standards, we do not recommend its use on deep pile carpets or on long hair type of rugs. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experinence and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintaince shall not be made by children IMPORTANT INSTRUCTIONS5

SAVE THESE INSTRUCTIONS

without supervision. Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understanding the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintaince. The appliance must be positioned so that the plug is accessible. If the supply cord is damaged it must be replaced by the manufacturer or service agent or similarly qualied person in order to avoid a hazard. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. CAUTION - Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. CAUTION

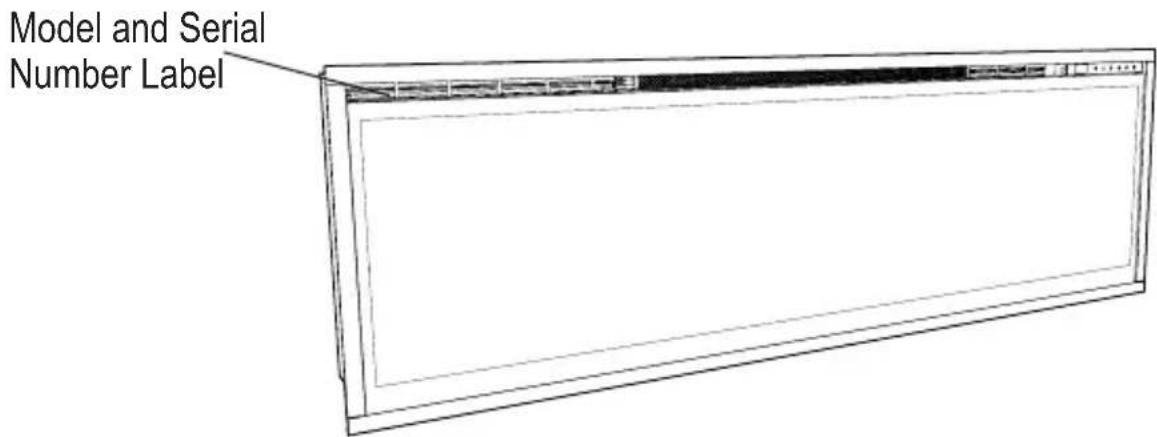

regarding your electric replace can be found on the rating label located on the top of the unit.

2. If you have any technical

questions or concerns regarding the operation of your electric replace, or require service contact the relavent customer service as listed on your warrenty card.

3. For dimensions of your

Minimum Heat Output P min - - - kW Maximum Continous Heat Output P max,c

Technical Information with electronic room temperature control7 CAUTION: Ensure installation does not allow replace to be in direct contact with building vapor barrier or insulation and meets all local building code.

NOTE: A dedicated, properly fused 13 Amp circuit is required, rated for the appropriate voltage (230-240V).

WARNING: Construction

and wiring must comply with local building codes and other applicable regulations to reduce the risk of re, electric shock and injury to persons.

WARNING: To reduce the risk

of re, electric shock or injury to persons, always use a licensed electrician.

WARNING: To reduce the risk of

re, do not store or use gasoline or other ammable vapors or liquids in the vicinity of the heater.

1. Select a location that is not

susceptible to moisture and is away from drapes, furniture and high trafc.

2. Unpack the replace and

hardware from the box.

NOTE: Leave the front glass and partially reective glass, safely, in the box until the time you Fireplace Installation are ready to install it.

3. Store the replace in a safe,

dry and dust free location until you are ready to install the replace. Installation CAUTION: Two people will be required for various steps of this procedure. This design of this unit allows three options for installation: partial recess, ush mounted or sub- surface mounted. CAUTION: Sub-surface mounting should be limited to ½ in. (12 mm) to ensure adequate air ow of heated air out of the rebox area.

1. Prepare a wall with a framed

opening of 16 in. (40.6 cm) high,

• XLF100 - 100 ⅝ in. (255.7 cm) wide, with a bottom sill that is a minimum of 4 in. (10.2 cm) deep. The sill can be constructed to support the front of the unit to allow the power supply wires to easily8 Fireplace Installation be run behind or ush with the back of the unit and a pass thru hole drilled for electrical wire routing.

NOTE: It is recommended that the bottom of the unit be mounted between 30 in. (76.2 cm) and 40 in. (102 cm) from the ground to maintain an optimized viewing angle of the ame.

WARNING: Do not attempt to

wire your own new circuits. To reduce the risk of re, electric shock or injury to persons, always use a licensed electrician.

WARNING: Ensure that the

circuit on which the replace is to be installed has the power cut off at the service panel until installation is complete.

2. The unit is provided with an

installed ¾ in. (2.0 cm) trim. Depending on the installation, this trim can be removed by removing the securing screws and the 4 trim pieces.

3. Lift replace, from the bottom

and the handles located on the back, and insert into opening to the desired depth.

4. Using a bubble level (supplied)

ensure that the replace is level within the framing. Adjust as required.

5. Drive four supplied mounting

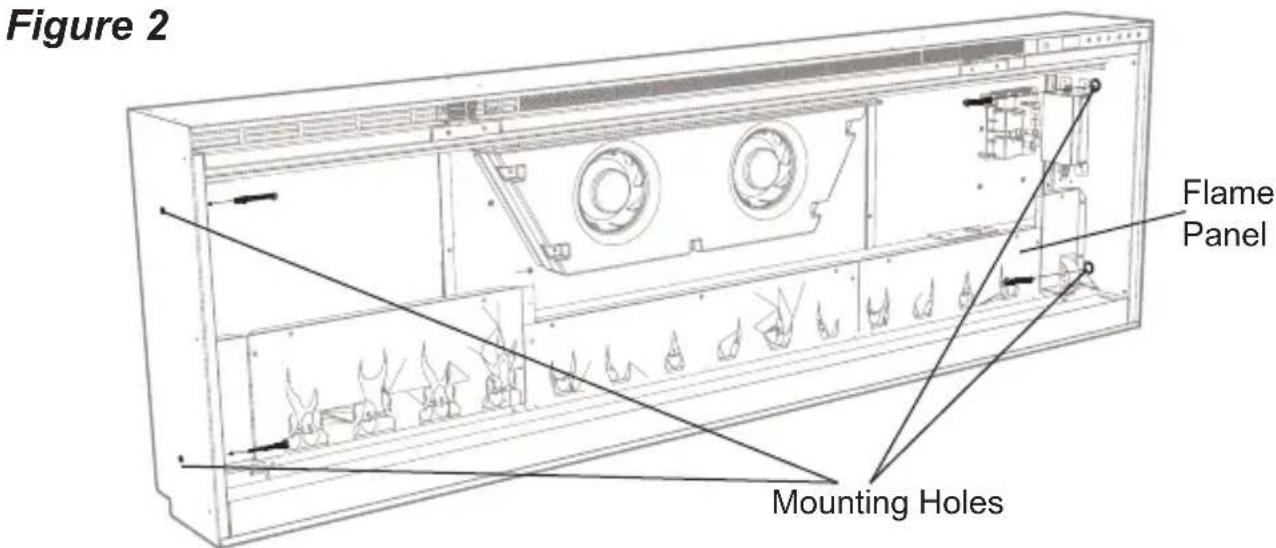

screws through the four mounting holes located on the inside surface of the replace chassis, into wall studs (Figure 2). Figure 2 Mounting Holes Flame Panel9 Fireplace Installation To prevent electrical shock this unit is an electrical appliance that is NOT watertight and must be installed as to prevent water from entering unit. This must be installed away from showers, tubs, etc. Never locate replace where it may fall into a bathtub or other water container. Final Assembly

1. Locate and remove the

12 screws securing the partially reflective glass bracket to the unit, along the top of the opening, and set bracket and screws aside.

2. Remove the provided suction

cup from the inside cavity of the unit (only for XLF60, XLF74 and XLF100 units).

3. Before installation ensure that

the front glass and the partially reective glass are clean. Particles can be removed by dusting lightly with a clean dry cloth. To remove ngerprints or other marks, the glass can be cleaned with a damp cloth. Ensure that the glass has completely dried before installation.

4. Carefully secure the suction

cup to the partially reflective glass, reflective side out, and place into the openings on either side of the unit.

5. Tip the glass into the unit and

using the removed screws secure the glass into the unit with the provided bracket (Figure 3). Remove the suction cup. Figure 3 Partially Reective Glass Retaining Bracket Media Tray Glass Openings10 Fireplace Installation

6. Evenly space the large media

in the media tray along the back of the media tray (for optimum media effect), then carefully pour and evenly distribute the smaller media into the Media Tray.

7. Carefully place the front glass

into the lip located at the bottom of the opening of the firebox.

8. Tip the front glass into the

unit and secure using the provided screws and Allen key. (Figure 4).

NOTE: Ensure that the suction cup and Allen key are kept for any future maintenance or service. Figure 4 Fixed Wiring In some jurisdictions this appliance is supplied without a plug this is to comply with the local regulations. In such instances this appliance must be installed by a suitabily quailied installer and the means for disconnection must be incorporated in the xed wiring in accordance with the local wiring rules.11 Operation Remote Operation The replace is supplied with an IR multi-function remote control.

NOTE: To operate correctly, the remote control must be pointed towards the front of the unit. Controls The unit can be controlled by either the manual controls which are located on the upper right of the replace or the remote (Figure 5 & 6). A. Standby Turns the unit On and Off.

• Activated by pressing the Standby button on the remote or the unit.

• The unit will turn On with the same functions that it was set to when it was turned Off and the intake temperature will be indicated on the Display.

NOTE: When any button is pressed on the unit the intake temperature will be displayed on the Display for 7 seconds. B. Flame Effects Turns the Flame Effect On and Off.

• Activated by pressing the button on the remote. General Operation

WARNING: This electric firebox

must be properly installed before it is used. This firebox operates with Comfort$aver

technology, which automatically adjusts the fan speed and heater wattage to safely and precisely match the requirements of the room based on the thermostat setting. The heater operates such that once the room reaches the set point, the fan and heater will continuously run at a low level, to maintain the desired room temperature. If the temperature in the room rises significantly, i.e. sun coming through a window or a central furnace turns on, the heater will turn off and periodically turn back on to circulate the air around the unit, until the room temperature drops and requires the heater to be constantly on again.

NOTE: The unit is designed so that the fan will run continuously while the heater is on.

NOTE: The element retains heat after shutdown, there is a built in cool down period of 2 minute before the fan shuts off completely, when the heat function is turned Off.12 Figure 5

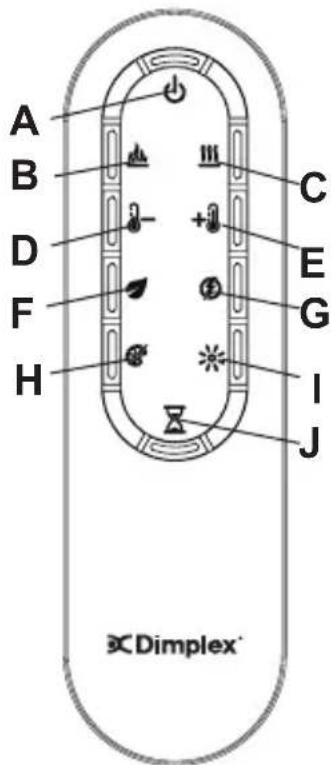

Operation C. Heat ON/OFF Turns the heater On and Off.

• Activated by pressing the button on the remote.

• Indicated by the icon and the setpoint temperature will ash on the display, then the intake temperature will be displayed before turning off.

NOTE: After the heater is switched off, there is a 2 minute fan delay, where the fan will continue running before turning off.

NOTE: The unit can be operated in Heat Only Mode. When the unit is only running with the heater, the icon will continuously be displayed on the Display.

NOTE: The heater may emit a slight, harmless odor when rst used. This odor is a normal condition caused by initial heating of internal heater parts and will not occur again.

Temperature Down Decreases the temperature setting.

• Adjusted by repeatedly pressing the corresponding button on the remote.*

• Indicated by setpoint temperature on the Display decreasing and the speed of the fan decreasing to reduce the amount of heat being projected into the room.** E. Temperature Up Increases the temperature setting.

• Activated and adjusted by repeatedly pressing the corresponding button on the remote.

• Indicated by the heater running at full heat, for a user set amount of time, to quickly heat up a cold room/space. The Heat Boost can be set for a maximum of 20 minutes, in 5 minute increments. Disable Heat If desired, depending on the season, the heater on the unit can be disabled. The function of the remaining controls will continue to function as outlined in this manual. Pressing the and buttons on the unit at the same time and holding for 2 seconds will disable and enable the heater.

NOTE: When the heater has been disabled and any of the heat related functions are used, the Display will indicate "---". H. Color Themes Different presets of lighting color combinations are available in the unit.

• Changed by repeatedly pressing the corresponding button on the remote or the unit.

• Adjusted by repeatedly pressing the corresponding button on the remote.*

• Indicated by the setpoint on the Display increasing and the speed of the fan increasing to increase the amount of heat being projected into the room.

• The rst time the button is pressed the current temperature set point will be displayed for 2 seconds. ** The temperature can be adjusted from 5 °C to 37 °C (41 °F to 99 °F).

NOTE: Holding the and the buttons down for two seconds, on the unit, will change the temperature scale from °C to °F, or vice versa.

Eco Operation Runs the heater in a reduced wattage range when activated.

• Adjusted by pressing the corresponding button on the remote when the heater is on.

• Indicated by the Display and a reduced fan speed.

Heat Boost Turns the Heater Boost On and Off. Runs the unit at the full rated wattage. Operation14 repeatedly, until the desired time is displayed.

• The Display will display the different times as it is adjusted. Once the timer has begun, pressing the button will display the time remaining before the unit turns Off.

NOTE: The Sleep Timer can be cancelled at any time by pressing the button repeatedly until the sleep timer displays nothing. Resetting the Temperature Cutoff Switch Should the heater overheat, an automatic cut out will turn the whole unit off and it will not come back on without being reset. If the button on the unit is pressed, Er2 will be displayed on the unit. It can be reset by turning the unit off at the main disconnect panel and waiting 5 minutes before turning the unit back on. CAUTION: If you need to continuously reset the heater, turn the unit off at the main disconnect panel and call technical support.

• Cycles through the different preset light settings of the unit, this includes different combinations of colors of the ame base and media lighting.

NOTE: Two of the themes in the cycle are a prism where the unit cycles through a variety of colors. Pressing the stops the cycling and holds the unit on the preferred color, indicated by a solid circle. When the unit is on prism, and is cycling through the colors, a rotating circle will be displayed.

Brightness Changes the Brightness of the lights in the unit.

• Adjusted by repeatedly pressing the corresponding button on the remote or the unit.

• Indicated by the second digit on the Display changing to show: "H" (high), and "L" (low). J. Sleep Timer The Sleep Timer can be set to automatically shut off the replace after a preset time (from 30 minutes to 8 hours).

• To set the timer press the timer button on the remote, Operation15 Operation Remote Control Battery Replacement To replace the Battery:

1. Slide battery cover open on the

(CR2032 [longer life] or CR2025) Battery in the battery holder.

3. Close the battery cover.

Battery must be recycled or disposed of properly. Check with your Local Authority or Retailer for recycling advice in your area. Maintenance

WARNING: Disconnect power

and allow heater to cool before attempting any maintenance or cleaning to reduce the risk of re, electric shock or damage to persons.

NOTE: The replace should not be operated with an accumulation of dust or dirt on or in the unit, as this can cause a build up of heat and eventual damage. For this reason the heater must be inspected regularly, depending upon conditions and at a minimum yearly intervals. Partially Reective Glass Cleaning The partially reective glass is cleaned in the factory during the assembly operation. During shipment, installation, handling, etc., the partially reective glass may collect dust particles; these can be removed by dusting lightly with a clean dry cloth. To remove ngerprints or other marks, the partially reective glass can be cleaned with a damp cloth. The partially reective glass should be completely dried with a lint free cloth to prevent water spots. To prevent scratching, do not use abrasive cleaners.16 Fireplace Surface Cleaning Use only a damp cloth to clean painted surfaces of the replace. Do not use abrasive cleaners. Recycling At the end of the electrical products useful life it should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice in your country. After Sales Service Your product is guaranteed for one year from the date of purchase. Within this period, we undertake to repair or exchange this product free of charge (excluding lamps & subject to availability) provided it has been installed and operated in accordance with these instructions. Your rights under this guarantee are additional to your statutory rights, which in turn are not affected by this guarantee. Should you require after sales service you should contact our customer services the contact number is located on your warrenty card. It would assist us if you can quote the model number, series, date of purchase, and nature of the fault at the time of your call. The customer services help desk will also be able to advise you should you need to purchase any spares. Please do not return a faulty product to us in the rst instance as this may result in loss or damage and delay in providing you with a satisfactory service. Please retain your receipt as proof of purchase. Maintenance17 Inhaltsverzeichnis Beauftragen Sie stets einen qualizierten Techniker oder eine Wartungsagentur,um diesen Kamin zu reparieren.
