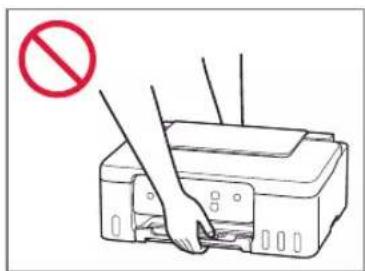

Diagram showing a printer with a red prohibition symbol indicating no printing or disassembly

Setting Up the Printer

1. Box Contents

- Print Heads

©

B

• Ink Bottles
  Power Cord
• Setup CD-ROM
  • Safety and Important Information
  • Getting Started (this manual)

2. Turning on the Printer

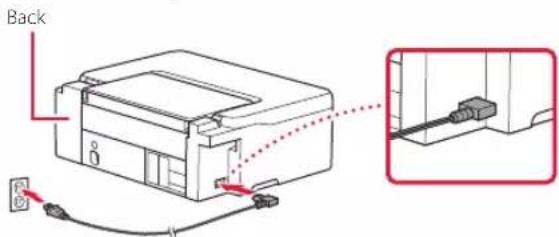

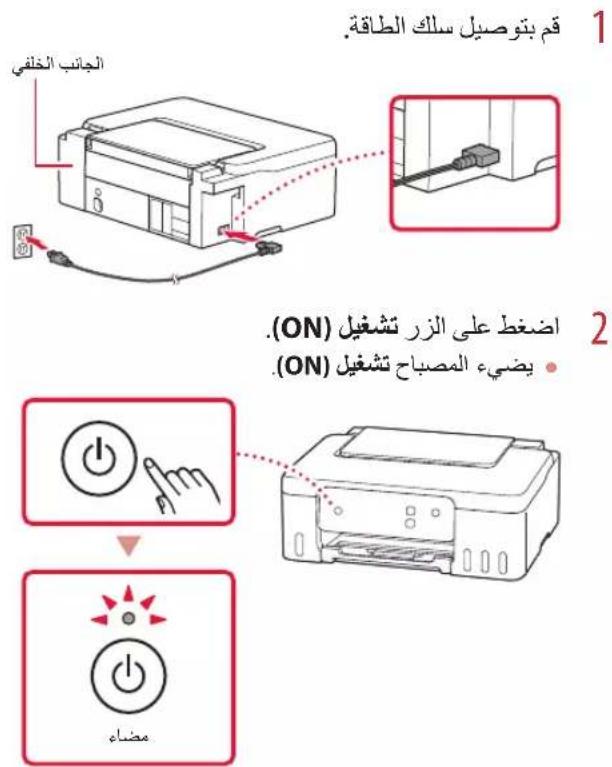

1 Connect the power cord.

Back

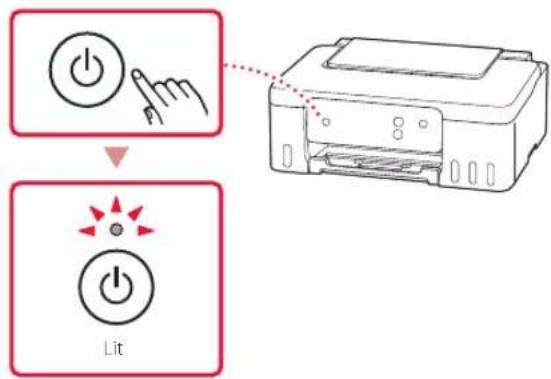

2 Press the ON button.

• The ON lamp lights.

Power Lit

Setting Up the Printer

Easy Setup Using Computer

Computer

Setup Using this Manual

Getting Started

3 Easy Setup Using Computer

Simple, easy-to-follow instructions are displayed on your computer.

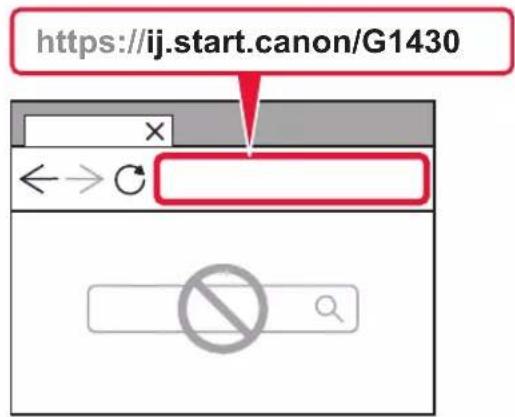

1 Visit the URL below to start setup.

https://ij.start.canon/G1430

2 Follow the instructions to complete setup and print.

1

Illustration of a printer with speech bubbles containing icons (power, documents, and a folder), no text or symbols present.

2

Simple line drawing of a printer connected to a laptop (no text or symbols)

4. Installing the Print Heads

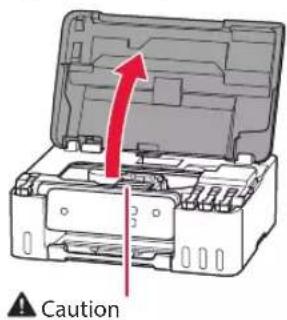

1 Open the top cover.

Caution

Do not touch the print head holder until it stops moving.

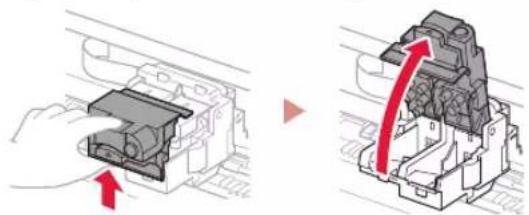

2 Open the print head locking cover.

Diagram showing a mechanical component being inserted into a housing, with red arrows indicating direction (no text or symbols present)

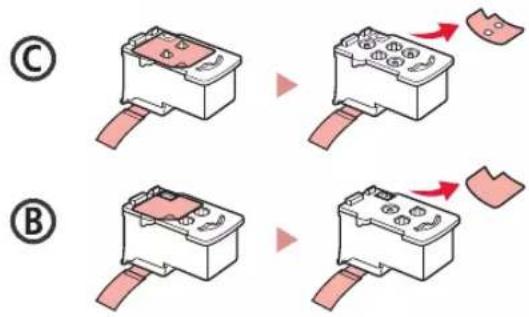

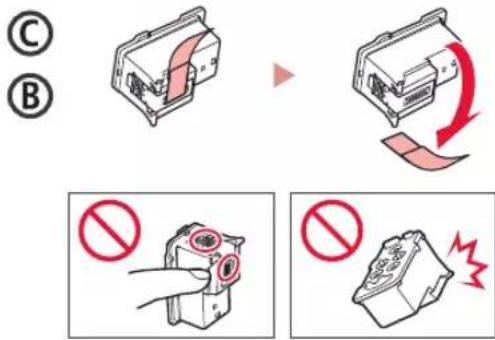

3 Take out each print head from the package and remove the label.

Diagram showing two steps (C and B) of a battery pack being inserted, with arrows indicating process direction.

4 Remove the orange tape.

Diagram illustrating a mechanical device operation with labeled steps and prohibition symbols

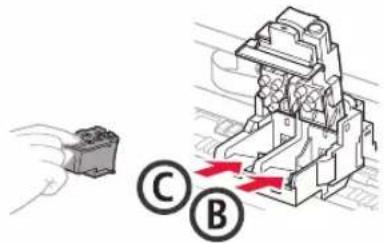

5 Insert the C (color) print head on the left and the B (black) print head on the right.

Diagram showing a device with labeled parts C and B, indicating a process or operation with red arrows indicating direction.

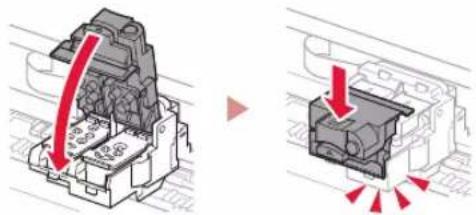

6 Close the print head locking cover and press down until it clicks.

Mechanical component diagram showing a presser pressing a button with red arrows indicating motion (no text or symbols)

Setting Up the Printer

5. Pouring Ink

Important

This product requires careful handling of ink. Ink may splatter when the ink tanks are filled with ink. If ink gets on your clothes or belongings, it may not come off.

1 Open the tank cap on the left of the printer.

Mechanical assembly diagram showing a lever mechanism with red arrow indicating motion (no text or symbols)

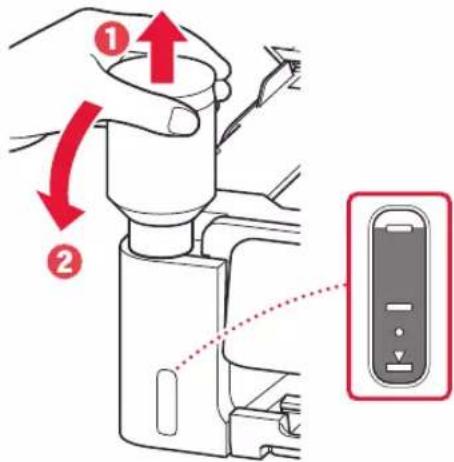

2 Hold the ink bottle upright and gently twist the bottle cap to remove.

Check!

PGBK

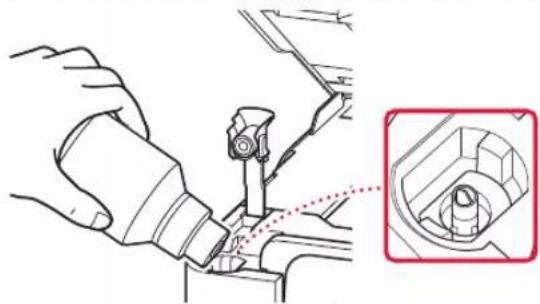

3 Align the nozzle of the ink bottle with the inlet.

Illustration of a mechanical assembly with tool and component details (no text or symbols)

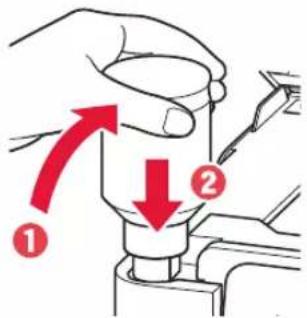

4 Slowly stand the ink bottle upside down and push down to pour the ink.

- If the ink does not pour, gently remove the ink bottle and try again.

Diagram showing a hand operating a tool with two red arrows indicating direction of movement or force, labeled ① and ②.

5 Gently remove the ink bottle from the inlet.

- Be careful not to spill the ink.

Diagram showing a hand holding a digital device with labeled parts and directional arrows indicating movement or change.

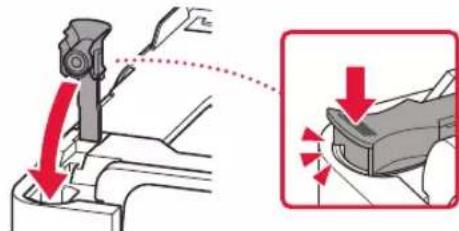

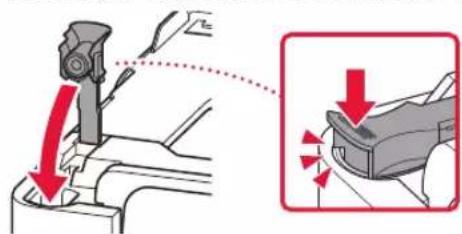

6 Replace the tank cap securely.

Diagram illustrating car gear shift mechanism with red arrows indicating motion direction and magnified detail

7 Repeat steps 1 through 6 to pour all ink into the corresponding ink tanks on the right.

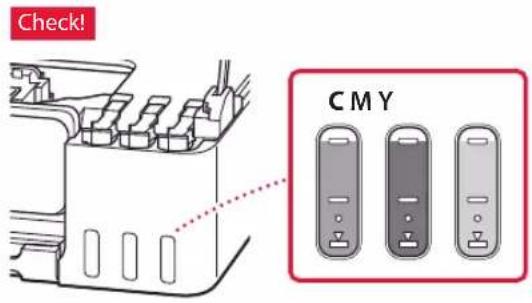

Check! CMY

8 Close the top cover.

Diagram of an open printer with a red arrow indicating the component (no text or symbols present)

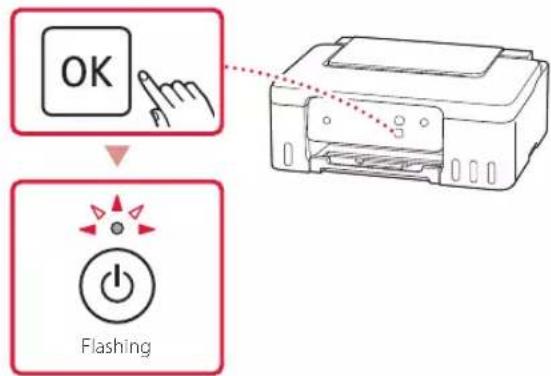

9 Press the OK button.

- The ON lamp flashes and the ink system preparation starts. It takes about 6 minutes to complete.

If the Alarm lamp flashes or lights

Count the number of flashes.

• 4 times

Print heads are not installed correctly.

→ "4. Installing the Print Heads" on page 3

- 5 times

Print heads cannot be recognized.

→ "4. Installing the Print Heads" on page 3

For all other cases, refer to the Online Manual.

6. Connecting to a Computer

If you are using multiple computers, perform these steps on each computer.

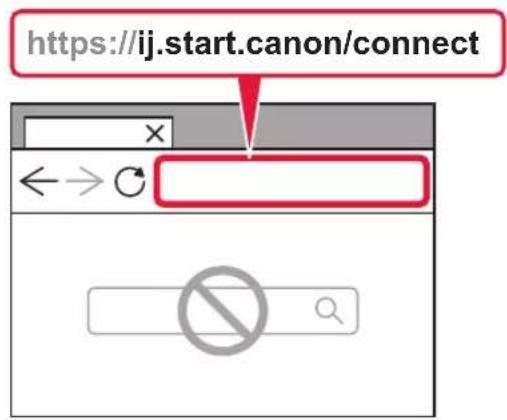

1 Access the Canon website directly. No need to search.

https://ij.start.canon/connect

2 Enter your printer's model name and click Go.
3 Follow the on-screen instructions.

Using the Setup CD-ROM

1. Double click EasySetup.exe on the screen that appears.
2. If the printer selection screen appears, select G1430. If the installation screen appears, click Next.
3. Follow the on-screen instructions.

If nothing appears, start Explorer and then run EasySetup.exe in the CD-ROM.

Loading Paper

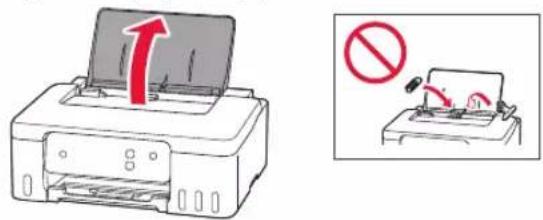

1 Open the paper support.

Diagram showing printer printing process with red upward arrow and prohibition symbol indicating no printing or disassembly

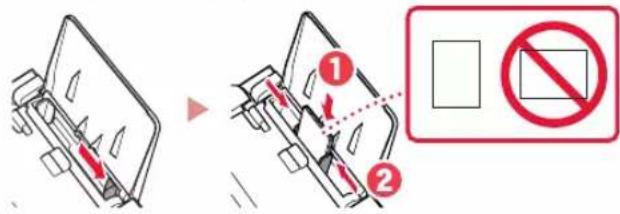

2 Slide the right-hand side paper guide to the far right.
3 Load several sheets of paper with the print side facing up and slide the side paper guide against the edge of the paper stack.

Diagram illustrating a mechanical or electrical hazard test with labeled components and a prohibition symbol.

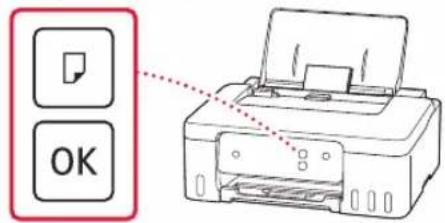

4 Press the Paper Select button, select a paper size, and then press the OK button.

OK

5 Extend the paper output tray.

Diagram showing two views of a printer's internal structure with red arrows indicating movement (no text or symbols)

Transporting Your Printer

When relocating the printer, check the following. Refer to the Online Manual for details.

Check if the tank caps are completely closed.

Diagram of a mechanical component with red arrows indicating motion or force direction (no text or symbols)

If the print head holder is in the center of the printer, check that the cover is closed.

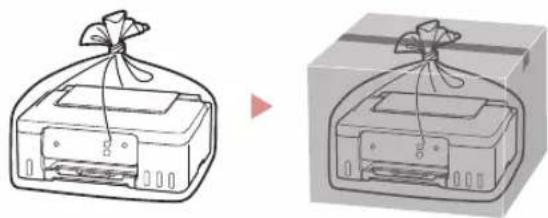

Pack the printer in a plastic bag in case ink leaks.

• Pack the printer in a sturdy box so that it is placed with its bottom facing down, using sufficient protective material to ensure safe transport.
• Do not tilt the printer. Ink may leak.
• Please handle with care and ensure the box remains flat and NOT turned upside down or on its side, as the printer may be damaged and ink in the printer may leak.
• When a shipping agent is handling transport of the printer, have its box marked "THIS SIDE UP" to keep the printer with its bottom facing down. Mark also with "FRAGILE" or "HANDLE WITH CARE".

Illustration of a printer with a bag attached to its side, showing the same device's tip and base (no text or symbols present)

https://ij.start.canon/G1430

Illustration of a printer with three speech bubbles containing icons: power button, documents, and phone (no text or symbols)

2

Simple line drawing of a printer connected to a laptop (no text or symbols)

Mechanical assembly diagram showing a component being inserted into a housing, with red arrows indicating direction (no text or symbols present)

Diagram showing two steps (C and B) of a battery terminal with red arrows indicating process direction.

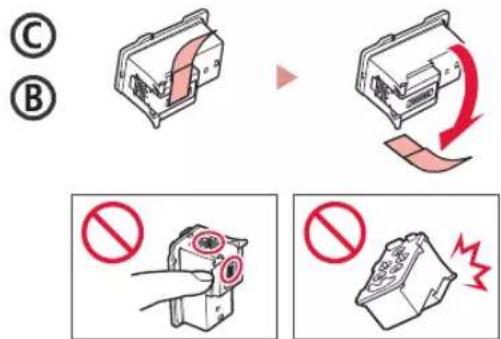

4 Retire la cinta naranja.
