Brand	EINHELL
Model	ST-G 400 E
Product type	Electronic jigsaw
Application	Cutting wood, plastic, and metal
Power supply	Mains 230 V ~ 50 Hz
Power consumption	400 W
Speed (strokes per minute)	500 - 2900 min⁻¹ (continuous electronic adjustment)
Blade stroke	16 mm
Maximum cutting depth (wood)	55 mm
Maximum cutting depth (plastic)	20 mm
Maximum cutting depth (metal)	3 mm
Bevel cut	Max. 45° left and right
Saw base	Adjustable angle and sliding for close cuts
Sound pressure level (LPA)	89 dB(A)
Sound power level (LWA)	96 dB(A)
Vibration at handle	7.9 m/s²
Weight	1.7 kg
Double insulation	Yes
Main functions	Pulse operation, continuous operation, variable speed control, electronic speed preselection, quick blade change, integrated chip extraction
Maintenance and cleaning	Clean regularly, occasionally lubricate the guide roller, use sharp and undamaged blades
Safety	Eye and ear protection recommended, gloves and dust mask advised, unplug before maintenance, do not use in damp conditions
Spare parts and repairability	Use only original spare parts, repairs by a qualified electrician
Warranty	2 years from purchase date, covers material and manufacturing defects
Contents of manual	46 pages, available in multiple languages

Frequently Asked Questions - ST-G 400 E EINHELL

What is the power of the Einhell ST-G 400 E jigsaw?

The power consumption is 400 W at a voltage of 230 V ~ 50 Hz.

How to adjust the cutting speed?

The speed can be adjusted in two ways: by pressing the ON/OFF switch more or less firmly (continuous variation), or by turning the knurled screw on the switch for electronic preselection. The range is from 500 to 2900 strokes per minute.

What is the maximum cutting depth in wood?

The maximum cutting depth in wood is 55 mm.

How to change the saw blade?

Before any change, unplug the device. Loosen the two screws on the slide with the hex key. Slide the new blade into the guide groove until it stops, ensuring the teeth are in the cutting direction. Tighten the screws.

Can this saw make bevel cuts?

Yes, the saw base can pivot up to 45° left and right. Simply loosen the two screws under the base, set the desired angle (markings at 15°, 30°, and 45° are present) and retighten the screws.

Can a vacuum cleaner be connected?

Yes, the saw is equipped with a vacuum cleaner connection at the rear. You can connect any suitable vacuum cleaner. If necessary, contact your vacuum cleaner manufacturer for a specific adapter.

What is the noise level of the device?

The sound pressure level is 89 dB(A) and the sound power level is 96 dB(A). It is recommended to wear ear protection.

What safety equipment is recommended?

Wear safety glasses, gloves, ear protection and, if dust is produced, a respirator mask. Work in a well-lit and tidy area.

How to maintain the jigsaw?

Before each use, check the condition of the device, cable, and plug. Clean chips regularly. Occasionally lubricate the guide roller with a drop of oil. Always use sharp and undamaged blades.

What is the warranty period?

The warranty is 2 years from the date of purchase. It covers material, functional, and manufacturing defects. Spare parts and labor are not charged within this framework.

USER MANUAL ST-G 400 E EINHELL

Line drawing of a mechanical device with lever and base plate (no text or symbols)

ST-G 400 E

GB Please read the operating instructions carefully before assembling and using

GBPlease pull out page 2

©Desdobre as página 2

⑤Fäll upp sidorna 2

Technical line drawing of a mechanical device with an inset close-up showing a component (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

4

0100 45° 30° 15° 0° 45° 30° 15° 0°

1 Power cable
2 Locking button
3 On/Off switch
4 Knurled screw for regulating the speed
5 Inspection guard
6 Saw blade
7 Guide roller
8 Adjustable base
9 Dust extractor socket

General safety and accident prevention regulations

To work safely with this machine and to prevent accidents it is imperative to read the following safety regulations and operating instructions in full and to put all the information into practice.

●Always check the machine, the power cable and the plug before use. Only ever use the machine if it is in perfect, undamaged condition. Damaged parts are to be repaired or replaced immediately by a qualified electrician.
●Always pull the plug out of the power socket before carrying out any work on the machine, before changing the tool and in periods of non-use.
●Always run the power cable away from the back of the machine to guard it from damage.
- For outdoors work use only suitably approved extension cables with a minimum conductor cross section of 1.5 ~mm^2 . The plug connectors must have earthing contacts and be rain-water-proof.
- Keep the machine in a safe place and out of the reach of children.
●Always wear goggles, safety gloves and ear muffs when grinding, brushing and cutting. Wear a breathing mask on dusty jobs.
●Never leave any tool keys or adjustment spanners in position on the machine. Before switching on, check that all keys and adjustment spanners have been removed.
- Secure the workpiece (with a clamp) so that it cannot slip.
- It is imperative to use a dust extractor when working on stone (cutting or grinding). Make sure the dust extractor is approved for stone dust.

●It is prohibited to use the machine on
asbestos materials. Please note the accident prevention regulations in force in your country.
●Use only original spare parts.
●Repairs are to be carried out by qualified electricians only.
●The level of noise at the workplace may exceed 85 dB(A). In this case you will need to introduce noise protection measures for the user. The noise produced by this electric tool is measured in accordance with ISO 3744, NFS 31-031 (84/537/EEC).
●Make sure of your footing. Avoid abnormal working positions.
- Keep your electric tool out of the rain. Never use electric tools in wet or damp conditions, and never use them near inflammable liquids.
●Never carry the machine by its power cable. Keep the power cable safe from damage. Oil, solvent and sharp edges can damage cables.
- Keep your workplace tidy.
●Make sure the power switch is off before inserting the plug in the socket.
●Wear suitable clothing. Never wear loose-fitting clothes or jewelry. Use a hair-net on long hair.
- For your own safety, use only the manufacturer's accessories and attachments.
- Use only sharp saw blades that are in perfect condition. Replace bent and cracked saw blades immediately.
●After switching off the jigsaw, do not press against the side of the blade to bring it to a halt.
●Always cut at a steady rate of progress. This will prevent accidents and prolong the life of your jigsaw and the blade.

GB

Operating instructions for the ST-G 400 E electronic jigsaw

STARTING UP

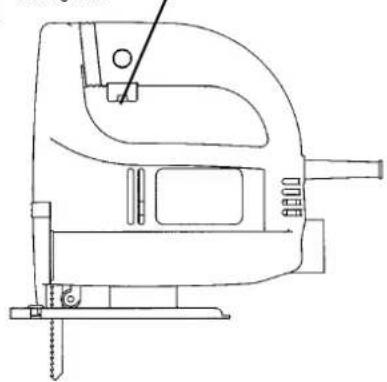

Instant response operation (Figure 1)

Switching on: Press the On/Off switch Switching off: Release the On/Off switch

Continuous operation

Switching on: Press the On/Off switch, keep pres sed and lock with the locking button Switching off: Press the On/Off switch and release

Electronic speed control setting (Figure 3)

Using the knurled screw on the On/Off switch you can pre-set any speed. Turn the knurled screw in PLUS direction for a higher speed and turn it in MINUS direction for a lower speed. The ideal cutting rate depends on the specific material and working conditions.

The general rules for tool speed in cutting operations apply.

Changing the saw blade (Figure 2)

Switch off the jigsaw and remove the plug from the power socket before changing the blade or carrying out any other work on the jigsaw.

Use the supplied hexagon-socket spanner to undo the two screws on the ram (Figure 2). Slide the saw blade into the guide slot and up to the stop between the piston rod and the retention clip. Use the supplied hexagon-socket spanner to tighten the two screws. The teeth of the saw blade must face in cutting direction. Make sure that the saw blade sits properly in the guide slot of the ram and roller.

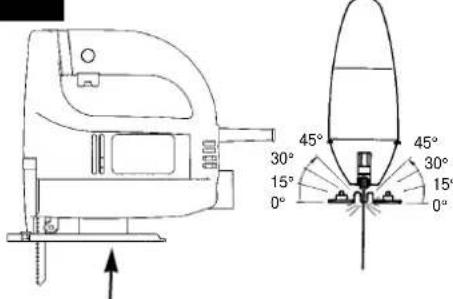

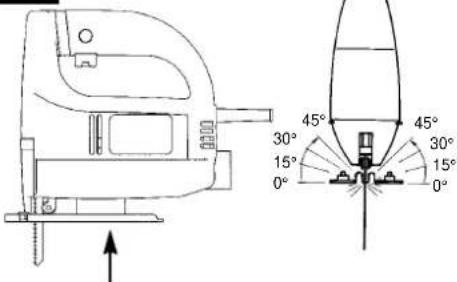

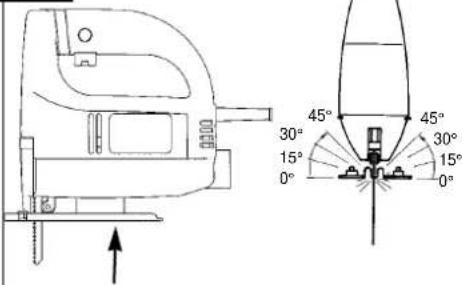

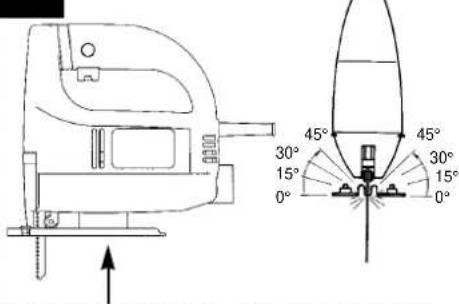

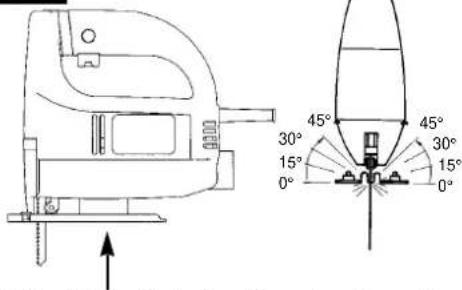

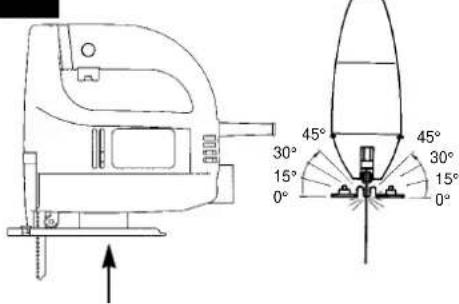

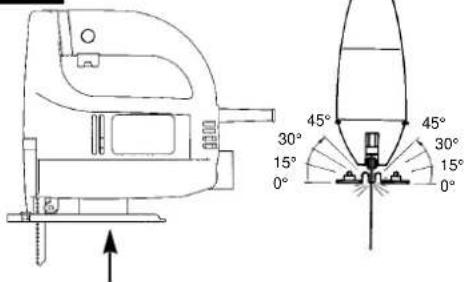

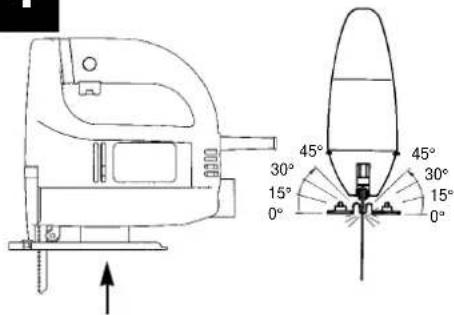

Adjusting the base

(for mitering and sawing near edges, Figure 4) For mitre and bevel cuts you can swivel the base by up to 45^ in either direction after undoing the two screws on the bottom. The angles 15^ , 30^ and 45^ are marked but you can adjust the saw to any angle between these markings as required.

To adjust the cutting angle, undo the two screws (Figure 4) until you can just about move the blade. Adjust to the required angle and re-tighten the two screws.

To enable you to saw right up to the edge, the base can be pushed backward. To do so, undo the two screws underneath (Figure 4) and push the base to the back. Re-tighten the two screws.

Dust extraction

The jigsaw is equipped with a dust extractor socket. Any vacuum cleaner can be connected to the socket at the rear of the jigsaw. If you require a special adapter, please contact the manufacturer of your vacuum cleaner.

TECHNICAL DATA

Nominal voltage: 230 V ~ 50 Hz
Power consumption: 400 W
Cutting rate: 500 - 2900 strokes/min.
Stroke height: 16 mm
Cutting depth in wood: 55 mm
Cutting depth in plastic: 20 mm
Cutting depth in iron: 3 mm
Mitre cuts: up to 45° (left and right)
Sound pressure level LPA: 89 dB(A)
Sound power level LWA: 96 dB(A)
Vibration aw	7,9 m/s2
Double isolation
Weight 1,7 Kg

Vibration measured on the handle acc. to ISO 8662-8.

GB

1

On/Off switch

Locking button

Switching on: Press the On/Off switch
Continuous operation: Lock the On/Off switch with the
locking button
Switching off: Press the On/Off switch
and release

2

Changing the saw blade

Insert the saw blade in the ram up to the stop and

tight the screw of the retention clip.

Important: Make sure that the saw blade sits properly in the slot of the roller and ram.

Technical line drawing of a mechanical device with an inset close-up showing a component (no text or symbols)

Releasing the saw blade:
Turn screw anticlockwise.

3

Turn the speed controller to increase the cutting rate /

Technical line drawing of a mechanical device with no visible text or symbols

4

Technical diagram showing a cutting machine with angular annotations and a close-up of its internal structure.

Undo the two screws to set the base to an angle of up to 45^ on the right or left side.

F

Description

Technical line drawing of a mechanical device with no visible text or symbols

4

Technical diagram of a sewing machine with angular annotations and component labels

Technical line drawing of a mechanical device with no visible text or symbols

4

Technical diagram showing a hand tool and its 45-degree angle measurement setup with angular annotations.

Conector/Desconector

Technical line drawing of a mechanical device with no visible text or symbols

4

Technical line drawing of a mechanical device with no visible text or symbols

45° 30° 15° 0° 45° 30° 15° 0°

Technical diagram of a mechanical device with labeled components and an inset showing a connector detail.

Technical line drawing of a mechanical device with no visible text or symbols

4

Line drawing of a mechanical device with a lever and mounting base (no text or symbols)

45° 30° 15° 0° 45° 30° 15° 0°

Technical line drawing of a mechanical device with no visible text or symbols

4

Technical diagram of a solar-powered device with angular annotations and component labels

Technical diagram of a mechanical device with labeled components and an inset view showing a component inserted into a base.

Løsne sagbladet:
Drei den innvendige
sekskantnøkkelen ca. 1
omdreining mot venstre.

3

Technical line drawing of a mechanical device with no visible text or symbols

4

Line drawing of a mechanical device with an arrow indicating upward motion (no text or symbols)

45° 30° 15° 0° 45° 30° 15° 0°

Technical line drawing of a mechanical component with an inset close-up showing a small component (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

4

45° 30° 15° 0° 45° 30° 15° 0°

Technical line drawing of a mechanical device with no visible text or symbols

4

Technical diagram of a hairdryer with angular annotations and component labels

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

4

Technical diagram of a hairdryer with angular measurement annotations and component layout

Technical diagram of a device's internal components with numbered parts for identification

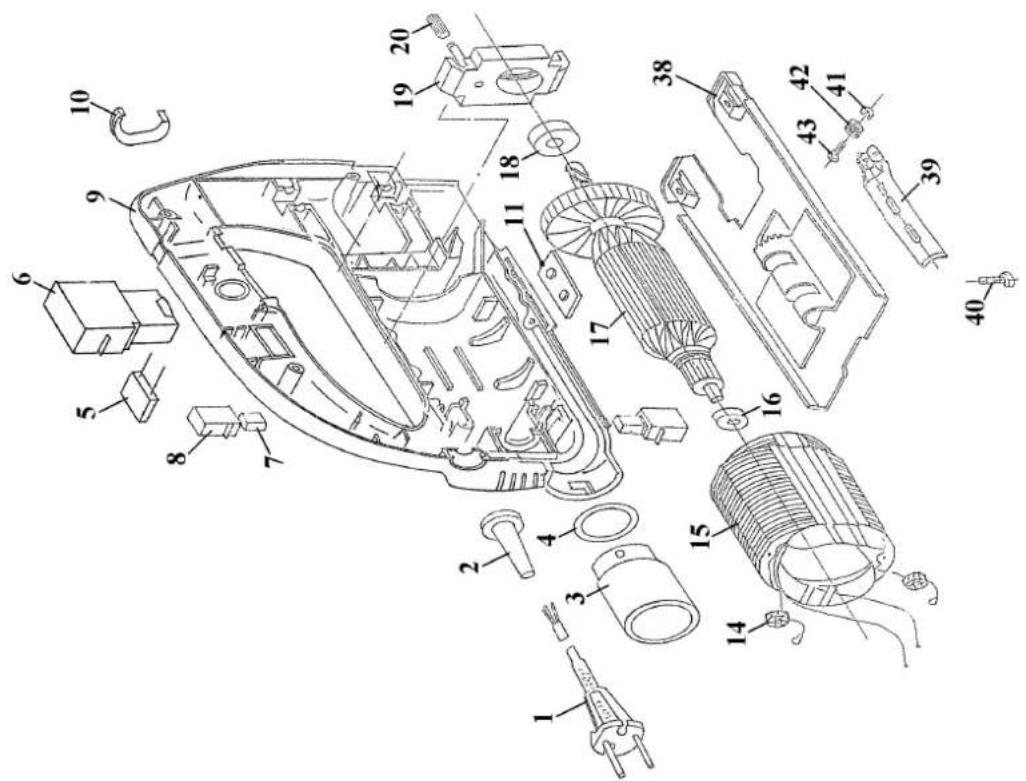

Exploded view diagram of a handheld air cleaner with numbered parts for identification

⑤ EINHELL GARANTIBEVIS

The guarantee period begins on the sales date and is valid for 2 years.

Responsibility is assumed for faulty construction or material or functional defects.

Any necessary replacement parts an necessary repair work are free of charge.

We do not assume responsibility for consequential damage.

Your customer service partner

NL EINHELL-GARANTIE

DK EINHELL GARANTIBEVIS

Eschenstraße 6 · D-94405 Landau/Isar (Germany)

32, Craven Court Winwick Quay

Warrington, Cheshire, WA2 8QU

F Agence Bellut Prudent, Service Après-Vente

1. allée Joseph Cugnot, Z.I. du Phare

F-33700 Merignac

DK Danish Trading Co. Silkeborg ApS

S Rodelundvej 11 - Rodelund

N DK-8653 Them

Technical changes subject to change
