APR043x2 - Dashcam Pro-User - Free user manual and instructions

Product type	Wireless rear view camera system
Brand	Pro-User
Model	APR043x2
Screen size	10.92 cm (4.3 inches)
Screen resolution	480 x 272 pixels
Camera sensor	CMOS
Camera resolution	640 x 480 pixels
Camera lens	2.4 mm / F2.1
Transmission frequency	2414 MHz or 2468 MHz
Wireless range	80 m in open field
Camera power supply	5 V DC, <150 mA
Monitor power supply	12 V DC, standby <50 mA, operation <250 mA
Operating temperature	-10 °C to +45 °C
Box contents	Monitor with mounting bracket, 2 cameras with mounting plates, 2 transmitter units, power cables, mounting accessories
Distance grid function	Yes, activation/deactivation by GUIDELINE button
Menu settings	Brightness, contrast, color, image flip
Monitor mount type	Suction cup on windshield or dashboard
Camera installation	On license plate (mount included) or other rear location
Power supply	Connection to reverse light (12 V DC) via transmitter unit
Warranty	2 years from date of purchase
Maintenance and cleaning	Clean the screen and camera with a soft, dry cloth
Safety instructions	Do not open the device; professional installation recommended
Disposal	Do not dispose of with household waste, take to a recycling center

Frequently Asked Questions - APR043x2 Pro-User

How to install the camera on the license plate?

Remove the license plate, attach the supplied bracket behind the plate, then mount the camera on the bracket. Adjust the angle vertically. Ensure the field of view is clear.

How to connect the system to the vehicle's electrical system?

Identify the reverse light (white), connect the red wire of the transmitter unit to positive (+) and the black wire to negative (-). Use the supplied connectors. Disconnect the battery before operation.

What to do if the screen remains black?

Check that the monitor is on (POWER button). Make sure the power cable is properly connected to the cigarette lighter socket and that reverse gear is engaged. If the blue LED flashes, there is a signal problem.

How to adjust brightness and contrast?

Press the MENU button, use the ▲ and ▼ arrows to navigate between Brightness, Contrast, Color, and Direction. Press MENU again to confirm the setting.

The advertised range is 80 m, but the image cuts out before. Why?

The 80 m range is in open field. Interference (phones, GPS, electrical cables) can reduce the range. Move away from interference sources and check that the transmitter antenna is clear.

Can I use the camera in rainy weather?

Yes, the camera is designed for outdoor use. However, avoid exposing it to direct water jets. In rain, the image may be slightly impaired.

How to enable or disable the guideline lines?

Press the GUIDELINE button on the monitor to show or hide the distance markings on the screen.

Is the warranty valid if I install the system myself?

Yes, the 2-year warranty applies, unless the device is damaged by incorrect installation or unauthorized repairs. To claim the warranty, return the device with your invoice.

How to clean the monitor screen?

Use a soft, dry cloth. Do not use abrasive products or solvents that could damage the screen.

Can I add a third camera?

No, this model is designed to work with a maximum of two cameras. The two cameras are supplied and connected to their own transmitter units.

USER MANUAL APR043x2 Pro-User

WIRELESS BACK-UP CAMERA SYSTEM with 11cm / 4.3" monitor

Product photo of a PROAM device with four wireless sensors and a monitor displaying the screen (no visible text or symbols)

R&TTE approved CE 0560

PROUSER®

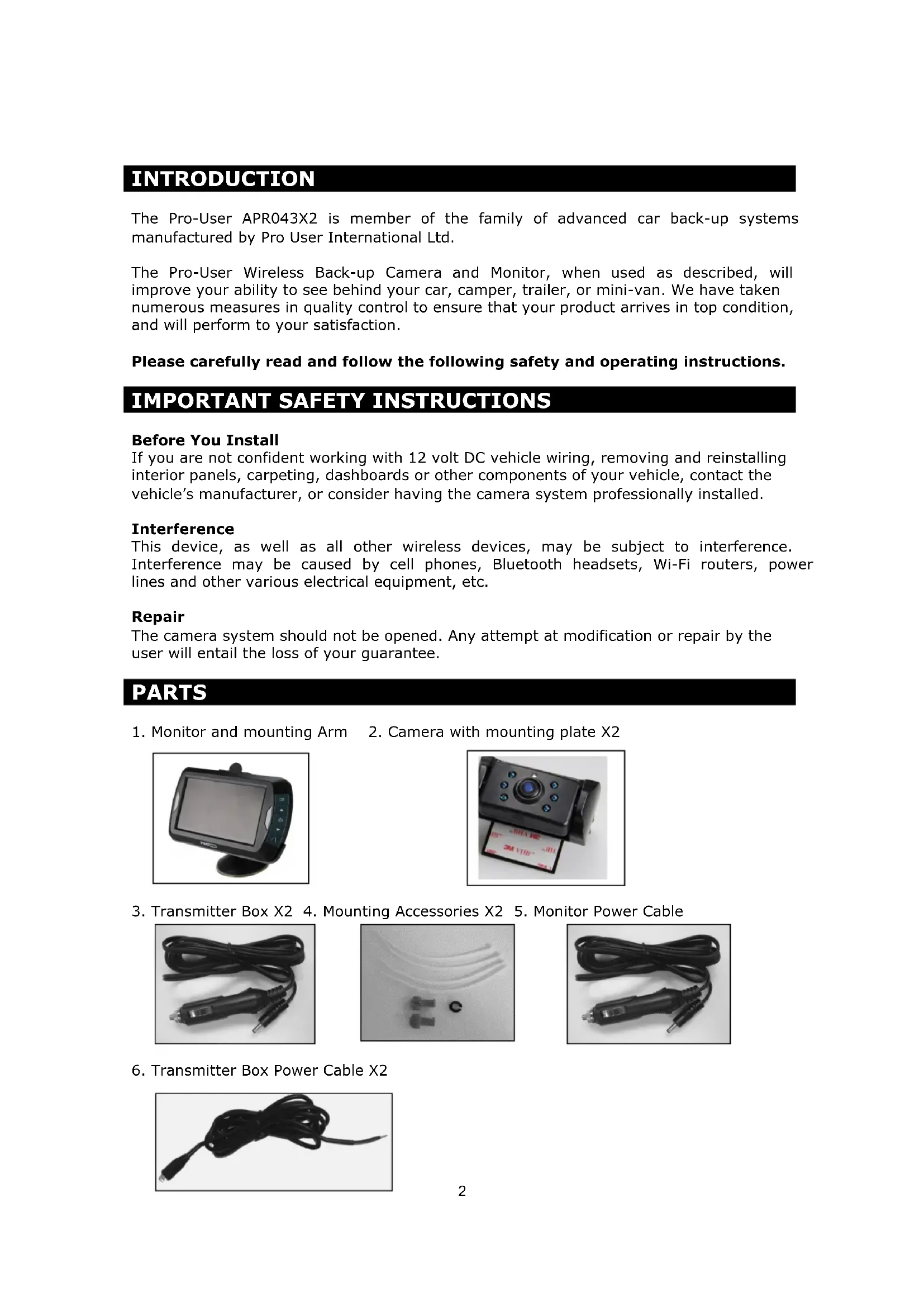

INTRODUCTION

The Pro-User APR043X2 is member of the family of advanced car back-up systems manufactured by Pro User International Ltd.

The Pro-User Wireless Back-up Camera and Monitor, when used as described, will improve your ability to see behind your car, camper, trailer, or mini-van. We have taken numerous measures in quality control to ensure that your product arrives in top condition, and will perform to your satisfaction.

Please carefully read and follow the following safety and operating instructions.

IMPORTANT SAFETY INSTRUCTIONS

Before You Install

If you are not confident working with 12 volt DC vehicle wiring, removing and reinstalling interior panels, carpeting, dashboards or other components of your vehicle, contact the vehicle's manufacturer, or consider having the camera system professionally installed.

Interference

This device, as well as all other wireless devices, may be subject to interference. Interference may be caused by cell phones, Bluetooth headsets, Wi-Fi routers, power lines and other various electrical equipment, etc.

Repair

The camera system should not be opened. Any attempt at modification or repair by the user will entail the loss of your guarantee.

PARTS

1. Monitor and mounting Arm

2. Camera with mounting plate X2

Black rectangular electronic device with a screen and control panel, mounted on a stand (no visible text or symbols)

-3M VTD -3M VTD

1. Transmitter Box X2 4. Mounting Accessories X2 5. Monitor Power Cable

Black handheld electrical fuse with coiled cable (no visible text or symbols)

Close-up of white plastic tubing with two small accessories (no text or symbols visible)

Black electric motor with coiled cable and terminal plug (no visible text or symbols)

1. Transmitter Box Power Cable X2

Black cable with a connector, isolated on white background (no text or symbols)

INSTALLATION

These instructions do not apply to all vehicles. They are only meant as a general guide due to the number of different makes & models. For vehicle specific questions contact your vehicle's manufacturer.

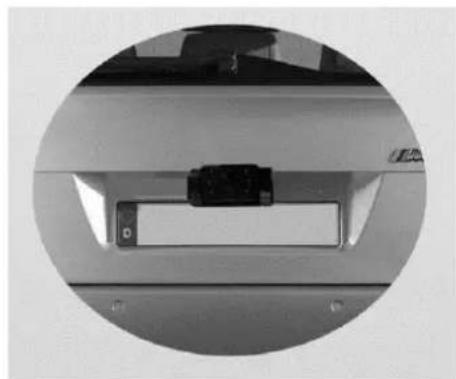

Camera installation

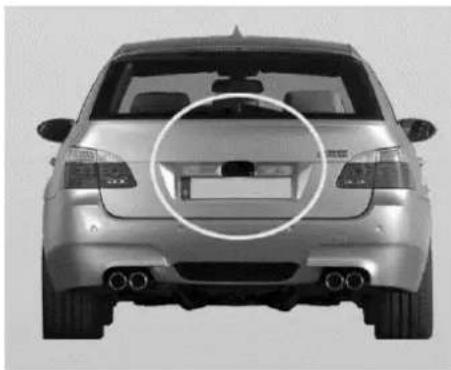

There are several ways to mount the camera on the back of your car. But the most convenient is to mount it near the license plate of the car. Supplied is one mounting plate that can be fixed behind the license plate, and the mounting plate have been installed in the camera.

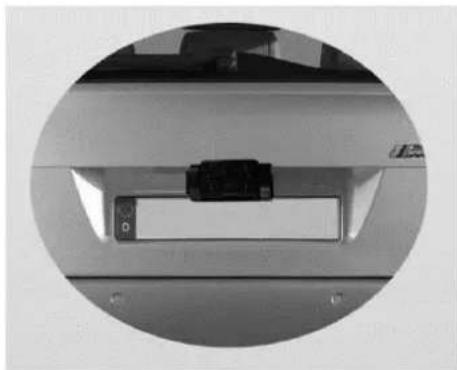

The camera is tiltable, camera angle can be adjusted manually on vertical direction. Make sure that its field of view and detection are not obstructed.

Front view of a silver sedan car with visible headlights, grille, and exhaust pipes (no text or symbols)

Close-up of a mechanical component with a black plastic housing and a small rectangular component, enclosed in a circular frame (no visible text or symbols)

At some type of cars it is not possible to mount the camera near the license plate. You may have to find another spot at the back of your car to mount the camera.

There are two sets of cameras and transmitters, use the same way below to install them on the vehicle and trailer respectively.

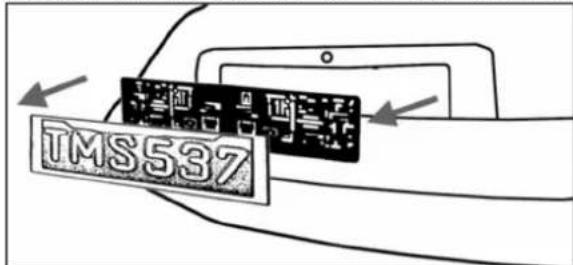

1. Remove the rear license plate, and then loosen the license plate bolts/screws.

TMS537

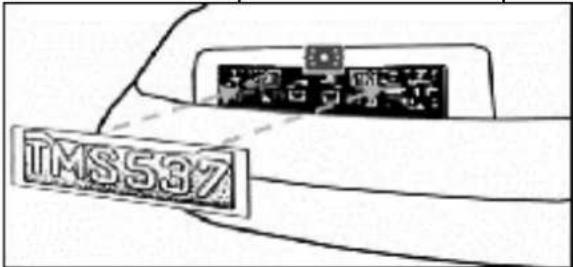

1. Mount the license plate on the license plate bracket.

TMS537

1. Choose a routing path for the camera's power cable through the vehicle's body to the reverse light circuit. If in doubt, seek professional installation assistance.

2. Some vehicles may have a hole available to pass the wire through, such as where the license plate light is mounted, or you can drill a hole close to where the power cable is attached to the camera. Once you have chosen where the cable will enter the vehicle's body, remove the camera. If you are able to use an existing opening, skip the next two steps.

3. Before you drill a hole you MUST CHECK and see WHAT IS BEHIND WHERE YOU ARE DRILLING. If there are any vehicle components, such as electrical parts or fuel system components behind where you are drilling, you must take whatever precaution is necessary not to damage them. Remove the license plate and camera before drilling.
4. After you have drilled the hole, insert the supplied grommet, then pass the camera cables through the grommet into the vehicle. You must use the grommet to prevent the metal edge of the hole from cutting the camera cable.
5. Mount the transmitter box inside the trunk. Connect the camera's power cable and the transmitter box power cable to the transmitter box.

NOTICE: Choose position to mount the transmitter boxes as close as possible to the receiver for better signal transmission; The length of the power cables are long enough for routing from the rear end to the front of the vehicle or trailer. The transmitter doesn't comply with weatherproof.

1. Next you'll need to find the vehicle's reverse lights. Turn the vehicle's ignition key to the accessory position, engage the parking brake and put the car in reverse. Look at the vehicle's tail lights to see where the reverse lights are located, they are the white lights. To locate the reverse light's 12V+ wire it will be necessary to gain access to the rear of the vehicle's tail light. For help locating the vehicle's reverse light circuit contact your vehicle's manufacturer for vehicle specific wiring diagrams.

2. Once you have located the reverse light circuit you will have to route the transmitter box power cable to that location. You must securely fasten the power cable to prevent it from being caught on any vehicle component such as the trunk hinge. Never route the cable on the outside of the vehicle!

3. The reverse light sockets on most vehicles have two wires connected to them. Usually the negative wire is black and the positive wire is a colored wire. If you are uncertain about the wiring, you can use a 12 volt multimeter available at most auto parts stores to determine which is the positive wire. Follow the manufacturer's instructions for the safe use of the multimeter.

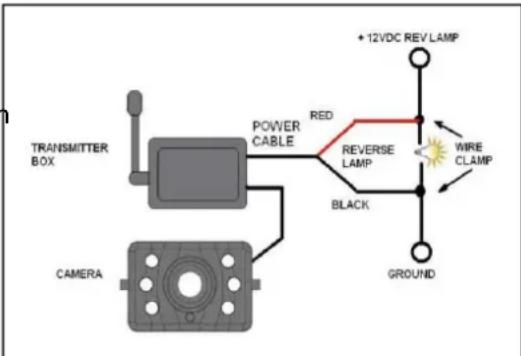


1. After determining which wire is the positive and which is the negative, turn off the ignition key, then remove the battery's negative cable.
2. Splice the red wire using the supplied in-line wire connectors to the reverse light's positive (+) wire. Use a set of slip joint pliers to squeeze the TAP and insure good connection.

Close-up of a black plastic clip attached to a wire, no visible text or symbols

Close-up of a metallic object with reflective surfaces and a small protrusion (no visible text or symbols)

Close-up of a black rectangular electronic component with two wires (no visible text or symbols)

1. Next splice the black wire of the transmitter box power cable to the reverse light's negative (-) wire or ground.
2. Replace the reverse light bulb, and then re-install the light socket. Secure all the wires with cable ties or electrical tape.
3. Re-attach the negative battery cable to the battery.

Monitor Installation

When choosing a location to mount the monitor, make sure the monitor is in an area that will not obstruct your vision while driving.

Close-up of a car interior with steering wheel and dashboard (no visible text or symbols)

1. Before mounting the monitor, clean the mounting surface well.
2. Position the suction mount to the smooth surface which suits your requirement.
3. Press the suction cap against the smooth surface and press the lock down to attach and fix the mount to the surface.

Close-up of a mechanical component with metallic parts and a circular base (no visible text or symbols)

Mechanical assembly diagram showing a valve mechanism inside a container (no text or symbols visible)

Mechanical assembly diagram showing a rotating component with directional arrows (no text or labels)

3D rendering of a wall-mounted device with a sensor and screen (no text or symbols visible)

Snap in the monitor to the suction mount.

1. Adjust the mounting arms to suit your view angle to the monitor and tighten the screws on the mount to fix the position.

Illustration of a computer monitor with a scroll wheel and circular button, showing no text or symbols.

3D illustration of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

1. Route the power cable to the vehicle's cigarette lighter socket/12V power outlet. The cable must not interfere with the safe operation of the vehicle.
2. Insert the small 12 Volt DC plug of the power cable into the right side of the monitor.
3. Plug the 12 Volt cigarette lighter plug into the vehicle's cigarette lighter socket.

To maximize the effectiveness of the suction mount, it is recommended that the application be performed under the following conditions:

• Surface temperature should be between 21 and 38 degrees Celsius.
- Application below 10 degrees should be avoided.
- Application should not occur in direct sunlight.

Mounting should be protected from exposure to direct sunlight for a period of 24 hours.

NOTE: UNDER EXTREME BRIGHT LIGHT CONDITIONS, THE SCREEN IMAGE MAY TAKE A FEW SECONDS TO STABLIZE. PLEASE WAIT UNTIL THE IMAGE HAS STABLIZED BEFORE BACKING UP.

System testing

1. Reattach the vehicle's negative battery cable.
2. Turn the ignition key to the accessory position, do not start the vehicle.
3. Engage the parking brake, and then put the shifter in the reverse position.
4. After testing the unit and you are satisfied with the route you have chosen for the cabling, you must permanently install it.
5. Route all wires behind interior panels or under carpeting so they are hidden. Use supplied cable ties to neatly gather any excess wire.

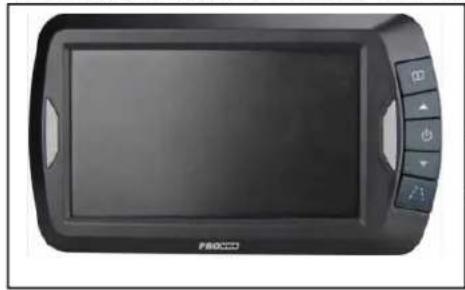

OPERATION

The monitor will automatically turn on when the vehicle is in reverse gear. There are 5 control buttons available for users to have their controls:

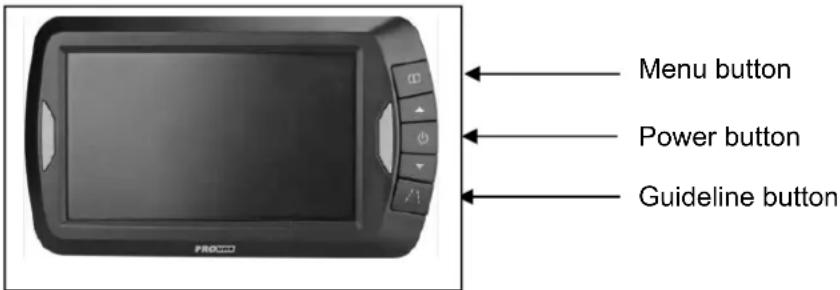

Menu button Power button Guideline button

Power button

Press the POWER button to supply power to the monitor. When the monitor image is on, the blue LED will be lit. If there is power to the monitor, but the monitor image is OFF, the blue LED will blink on and off. When the monitor power is off, no picture can appear on the screen and the blue LED will be off.

Menu button

Press the Menu button to enter the menu screen as shown below:

BRIGHTNESS 20 CONTRAST 20 COLOR 20 DIRECTION ↑↓ EXIT

Repeat pressing the Menu button to select Brightness, contrast, colour or direction of the picture.

Press the △ button or ▽ button to adjust settings within the control selected. Press the △ button to increase the value and press the ▽ button to decrease the value.

To change the orientation of the screen image, press the menu button until direction is selected. By pressing the △ or ▽ button repeatedly, different screen orientations will be available. These different views allow you to mount the camera and monitor in any position with keeping the right picture on the monitor.

To exit the menu screen, select exit on the screen.

Guideline button

This camera system has the option to show distance-guidelines on the display. This helps you to visually see the distance between the objects behind your car. By pressing the guideline button, you can switch this option on and off.

Black-and-white photo of a car parked on a paved surface with brick pavement pattern (no visible text or symbols)

TECHNICAL SPECIFICATIONS

Camera
Operating Voltage 5V DC
Current consumption <150mA
Image sensor CMOS
No. of pixel 640x480
Resolution >330
Optical lens 2,4mm / F2,1
Wireless transmitter
Transmission frequency 2414MHz or 2468MHz
RF transmission distance (open space) 80M
LCD monitor
Operation Voltage 12V DC
Standby Current <50mA
Operation Current <250mA
LCD display screen size 10,92cm / 4.3 inch
No. of pixel 480x272
Operation temperature -10 to +45 degree Celsius

This model may be operated in EU countries.

CE R&TTE approved CE 0560 ! E24 21 PAP RoHS 2011/65/EU

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

WARRANTY

Pro-User warrants this product for a period of 2 years from the date of purchase to the original purchaser. Warranty is not transferable. Warranty covers defect against workmanship and materials only. To obtain warranty service, please return the unit to the place of purchase or authorized Pro-User dealer together with your proof of purchase. The warranty is void if the product has been damaged or not used as described in this manual. Warranty is void if a non-authorized repair has been performed. Pro-User makes no other warranty expressed or implied. Pro-User is only responsible for repair or replacement (at Pro-Users' Discretion) of the defective product and is not responsible for any consequential damage or inconvenience caused by the defect.

EINLEITUNG

Front view of a black rectangular electronic device with a screen and control buttons (no visible text or symbols)

Close-up of a black electronic device with a circular button and two partially visible cards (no readable text or symbols)

1. Sender X2

Black plastic electronic device with a cylindrical port and rectangular base (no visible text or symbols)

1. Installations- Material X2

Close-up of three plastic components: a coiled tube, a flat screw, and a circular cap (no text or symbols visible)

Black and white photo of a handheld electric shaver with two leads (no text or symbols visible)

Black cable with a connector, isolated on white background (no text or symbols)

MONTAGE

Front view of a silver sedan car with visible license plate and side exhaust pipes (no text or symbols)

Close-up of a mechanical component with a black rectangular block and circular outline (no visible text or symbols)

Close-up of a black mechanical component with a curved handle and attached cable (no visible text or symbols)

Interior view of a car dashboard with steering wheel and sensor device (no visible text or symbols)

Close-up of a mechanical component with a circular base and metallic parts (no visible text or symbols)

Mechanical assembly showing a lever pressing down on a circular component (no visible text or symbols)

Mechanical assembly diagram showing a rotating component with curved arrows indicating motion (no text or symbols)

3D rendering of a mechanical device with a curved arm and screen (no visible text or symbols)

Illustration of a computer monitor with a blue screen and a metallic case, showing a curved arrow (no text or symbols)

Illustration of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Front view of a black rectangular electronic device with control buttons and a screen (no visible text or symbols)

Black-and-white photo of a car parked on a paved surface with tiled pavement (no visible text or symbols)

Front view of a black electronic device with a screen and antenna (no visible text or symbols)

Close-up of a black electronic device with a circular button and blue buttons, no visible text or symbols.

Black rectangular device with a vertical rod extending from its side, placed on a plain white surface (no text or symbols visible)

Close-up of three plastic components: two threaded fasteners and one circular nut, arranged on a plain surface (no text or symbols visible)

Black handheld electrical plug with coiled cable, no visible text or symbols

Black cable with a connector, isolated on white background (no text or symbols)

INSTALLATION

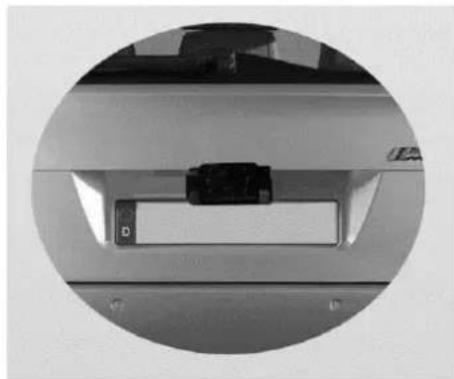

Front view of a silver sedan car with visible license plate and side exhaust pipes (no text or symbols)

Close-up of a mechanical component with a black rectangular block and circular housing, no visible text or symbols

Close-up of a black plastic clip attached to a wire, no visible text or symbols

Close-up of a black plastic clip attached to wires (no visible text or symbols)

Close-up of a metallic object with a small square component inserted, possibly part of a mechanical or electronic component (no visible text or symbols)

Close-up of a black rectangular electronic component with two wires, no visible text or symbols

Close-up of a mechanical component with a spring scale and fan blade (no visible text or symbols)

Close-up of a mechanical component with a circular base and lever mechanism (no visible text or symbols)

Mechanical assembly diagram showing a lever pressing into a circular component with an arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing a rotating component with arrows indicating motion (no text or symbols)

3D rendering of a medical device with a skull-mounted sensor and screen (no visible text or symbols)

Close-up of a transparent plastic device with a blue square and metallic components, no visible text or symbols.

Illustration of a computer monitor with a mouse and scroll, showing internal components (no text or symbols)

The monitor will automatically turn on when the vehicle is in reverse gear. There are 5 control buttons available for users to have their controls:

Front view of a black rectangular electronic device with control buttons and a display screen (no visible text or symbols)

Bouton menu Bouton Power (Marche / Arrêt) Bouton Guideline (grille de distance)

Bouton POWER (M/A)

Black-and-white photo of a car parked on a paved surface with a brick-patterned pavement (no visible text or symbols)

CARACTERISTIQUES TECHNIQUES

Black rectangular electronic device with a screen and control panel, mounted on a stand (no visible text or symbols)

Close-up of a black electronic device with a circular button and control buttons, placed on a surface with a partially visible printed label (no legible text or symbols)

Black rectangular device with a vertical rod extending upward, no visible text or symbols

Close-up of plastic components including coiled tubes, two screws, and a circular hole (no text or symbols visible)

Black electric drill bit with coiled cable and terminal plug (no visible text or symbols)

Black cable with a connector, isolated on white background (no text or symbols)

INSTALLATE

Front view of a silver sedan car with visible license plate and side exhaust pipes (no text or symbols)

Close-up of a mechanical component or bracket with a small rectangular component inserted, enclosed in a circular frame (no visible text or symbols)

Close-up of a black plastic clip attached to a wire, no visible text or symbols

Close-up of a metallic insect head with visible segmented body and antennae (no text or symbols)

Close-up of a robotic arm interacting with a car dashboard and steering wheel (no visible text or symbols)

Close-up of a mechanical component with a circular base and lever mechanism (no visible text or symbols)

Mechanical assembly diagram showing a lever mechanism interacting with a circular component (no text or symbols visible)

Mechanical assembly diagram showing rotating components with curved arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with curved arrows indicating motion (no text or symbols)

Illustration of a computer monitor with a blue screen and a metallic handle, showing a circular arrow indicating rotation (no text or symbols present)

Illustration of a computer monitor with a curved arrow indicating rotation (no text or symbols)

Black-and-white photo of a car's rear bumper and paved pavement with no visible text or symbols

TECHNISCHE SPECIFICATIES

R&TTE approved CE 0560

BESCHERMING VAN HET MILIEU

EU – Declaration of Conformity

We herewith confirm that the appliance as detailed below complies with the mentioned directives.

Artikelbezeichnung:

Article description:

Wireless Back-up Camera System

Electromagnetic compatibility (EMC)

2014/30/EU

Low voltage directive

2014/35/EU

Radio and Telecommunication Terminal Equipment

R&TTE 1999/5/EC

ROHS directive

2011/65/EU

The article complies with the standards as mentioned below which are necessary to obtain the CE-symbol:

Zu 1.EN55022:2010+A1:2007EN55024:2010+A2:2003	Zu 3.EN 300 440-1 V1.6.1:2010EN 300 440-2 V1.4.1:2010EN 301 489-1 V1.9.2:2011EN 301 489-3 v1.6.1 :2013
Zu 2.EN 60950-1: 2006+A11:2009+A1:2010+A12:2011+A2:2013	Zu 4.IEC62231:2008

Unterschrift / Signature & Firmenstempel / Company Chop

Germany www.pro-user.com
