SpeedConnect Suspended Ceiling Tile Replacement Kit

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively “Milestone”), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness, or sufficiency of the information contained in this document.

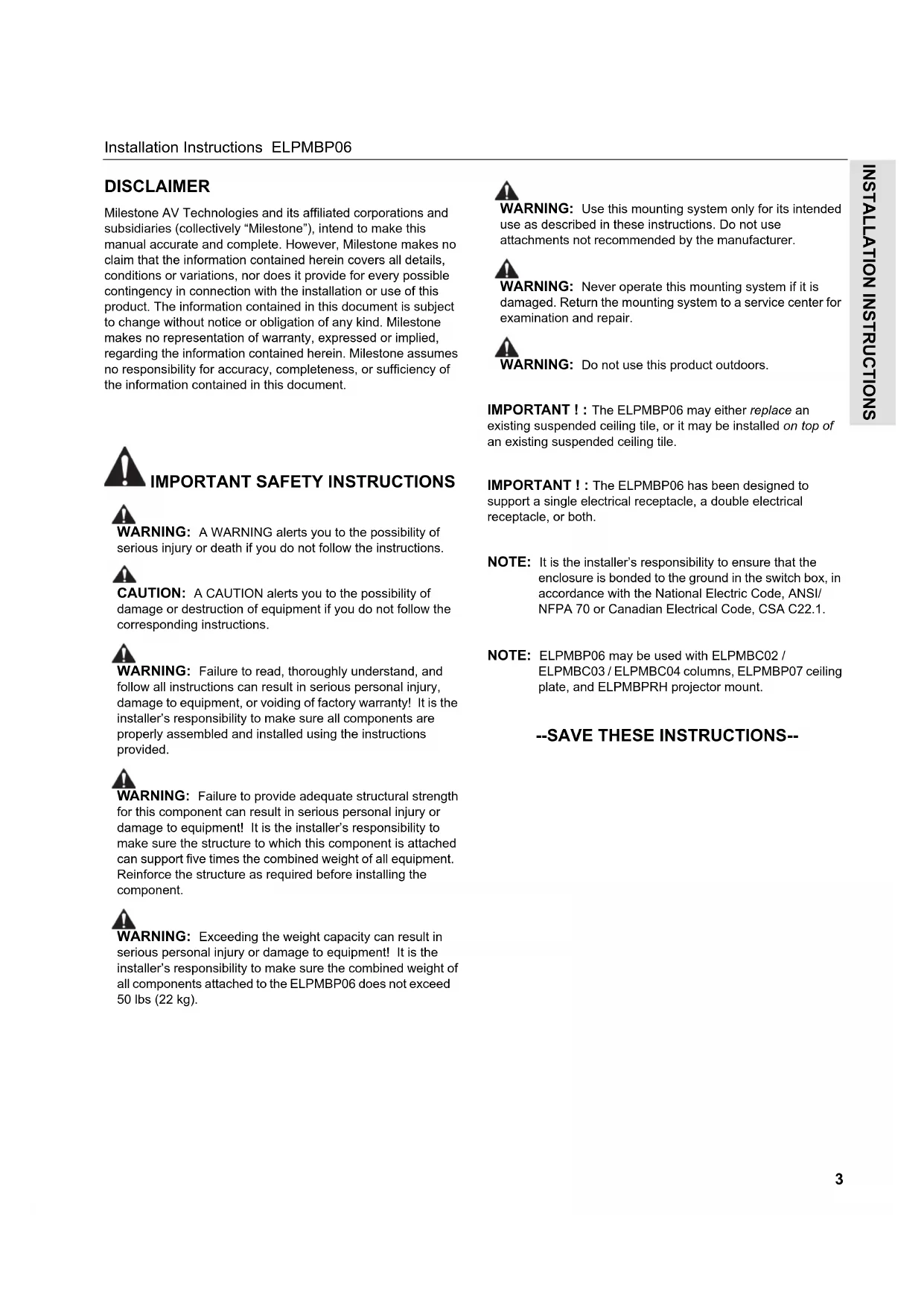

IMPORTANT SAFETY INSTRUCTIONS

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached to the ELPMBP06 does not exceed 50 lbs (22 kg).

WARNING: Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is damaged. Return the mounting system to a service center for examination and repair.

WARNING: Do not use this product outdoors.

IMPORTANT ! : The ELPMBP06 may either replace an existing suspended ceiling tile, or it may be installed on top of an existing suspended ceiling tile.

IMPORTANT ! : The ELPMBP06 has been designed to support a single electrical receptacle, a double electrical receptacle, or both.

NOTE: It is the installer's responsibility to ensure that the enclosure is bonded to the ground in the switch box, in accordance with the National Electric Code, ANSI/NFPA 70 or Canadian Electrical Code, CSA C22.1.

NOTE: ELPMBP06 may be used with ELPMBC02 / ELPMBC03 / ELPMBC04 columns, ELPMBP07 ceiling plate, and ELPMBPRH projector mount.

--SAVE THESE INSTRUCTIONS--

DIMENSIONS

R 8.50 216 ADJUSTABLE IN THIS RADIUS 1.13 29 1.13 29 3.25 83 3.69 94 4.00 102 2.25 57 1.5" NPSM THREADS 4X 1.13 29 23.63 600 23.63 600 DIMENSIONS: INCHES [MILLIMETERS]

TOOLS REQUIRED FOR INSTALLATION

1/4" 5/32" T 1 2 3 4 5 #2

PARTS

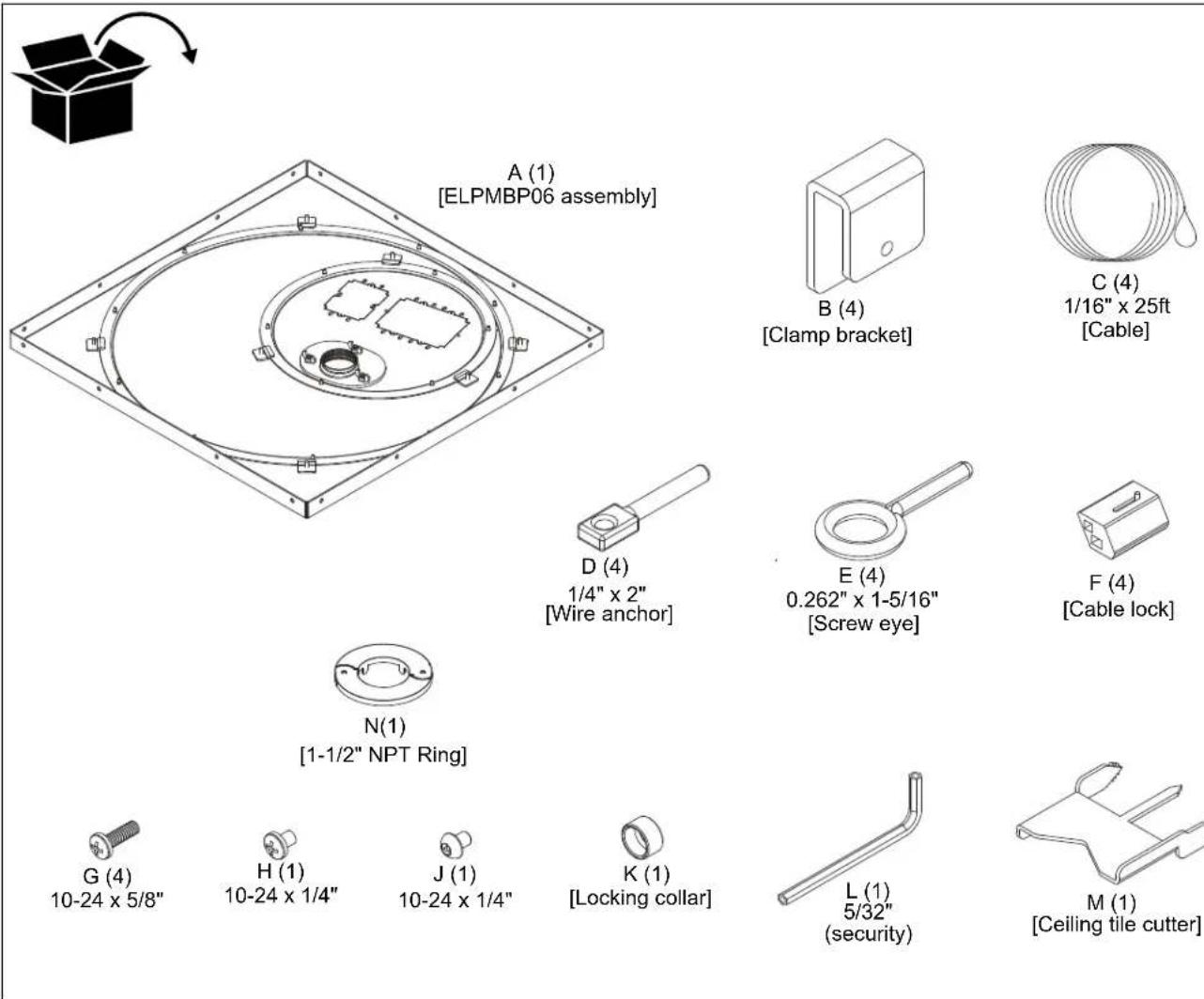

A (1) [ELPMBP06 assembly] B (4) [Clamp bracket] C (4) 1/16" x 25ft [Cable] D (4) 1/4" x 2" [Wire anchor] E (4) 0.262" x 1-5/16" [Screw eye] F (4) [Cable lock] N(1) [1-1/2" NPT Ring] G (4) 10-24 x 5/8" H (1) 10-24 x 1/4" J (1) 10-24 x 1/4" K (1) [Locking collar] L (1) 5/32" (security) M (1) [Ceiling tile cutter]

PREPARATION

NOTE: The ELPMBP06 may either replace an existing suspended ceiling tile, or it may be installed on top of an existing suspended ceiling tile. Procedural differences are called out as applicable.

1. Determine exact location of extension column (not included) on suspended ceiling. Ensure column centerline falls within 8-1/2" radius of tile center point. (See Figure 1)

Be sure to consider the following items when determining column location (See Figure 2):

- Dimensional offset of display/projector relative to column (due to mount and/or interface).

- For Projectors: Any recommended dimensions of projector relative to target (See installation instructions included with the projector).

1 8-1/2" (216mm) 2A 2B

Figure 1

1 2 3 4 5 1 2 3 4 5

Figure 2

1. Mark location of column determined in Step 1 with pencil (See Figure 1):

A. REPLACEMENT OF EXISTING TILE: Mark location on ceiling tile framework (4 places).

B. INSTALLATION ON TOP OF EXISTING TILE: Mark location on lower (finished) side of ceiling tile (1 place).

1. Remove affected ceiling tile and any adjacent tiles required for access.

2. If you are replacing an existing tile, proceed to Step 7. Otherwise, continue below.

3. Press center tip of ceiling tile cutter (M) into finished side of ceiling tile at marked location. Cut extension column hole through tile using back and forth hand twisting motion.

4. Reinstall ceiling tile with extension column hole. Ensure tile is oriented for proper location of hole.

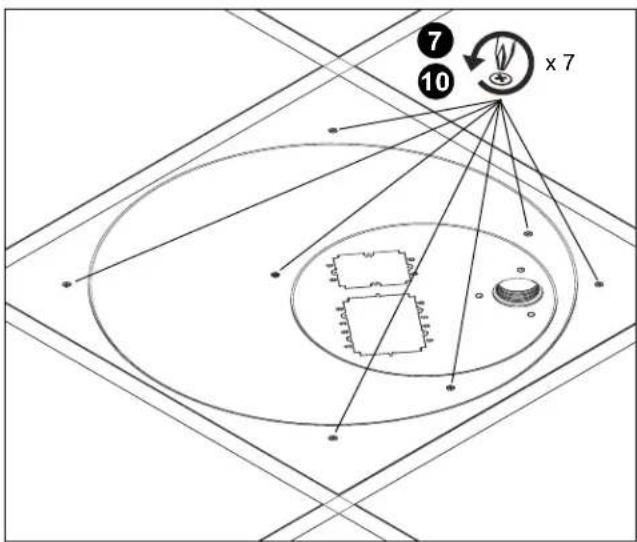

5. Loosen seven clamp screws in lower (finished) side of ELPMBP06 assembly (A). (See Figure 3)

7 10 x 7

Figure 3

1. Insert ELPMBP06 assembly (A) into suspended ceiling:

A. REPLACEMENT OF EXISTING TILE: Lay directly on suspended ceiling framework.

B. INSTALLATION ON TOP OF EXISTING TILE: Lay on top of suspended ceiling tile.

1. Rotate large and small circular plates to position extension column support to the following location (See Figure 4):

A. REPLACEMENT OF EXISTING TILE:

Position according to marked framework.

B. INSTALLATION ON TOP OF EXISTING TILE:

Position over ceiling tile hole.

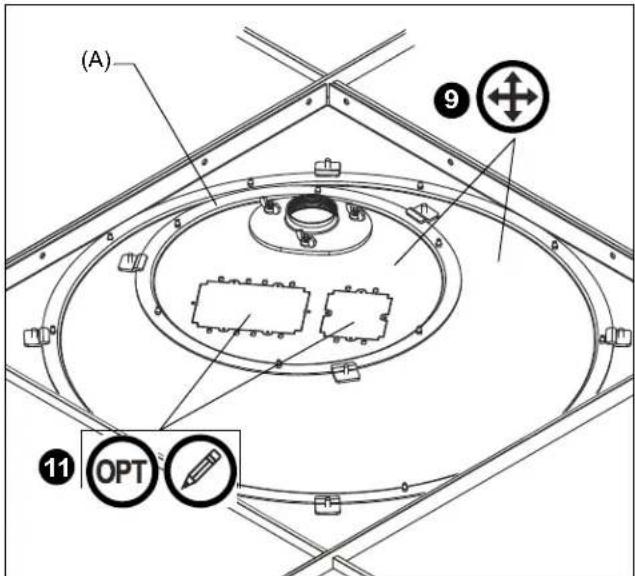

(A) ⑨ ⑪ OPT

Figure 4

1. Tighten clamp screws (loosened in Step 7).
2. OPTIONAL STEP FOR INSTALLATION ON TOP OF EXISTING TILE: Mark location of electrical cutout on ceiling tile with pencil. (See Figure 4)
3. Examine ceiling structure (concrete, steel truss, or wood) above ELPMBP06 assembly (A) to identify four support cable anchor locations. Each location should be approximately 15^ outboard of support holes in tray (A). (See Figure 5) Mark locations with pencil.

15° x 4 12 x 4 15° x 4 (A)

Figure 5

1. Remove ELPMBP06 assembly (A) and ceiling tile (if installed).
2. OPTIONAL STEP FOR INSTALLATION ON TOP OF EXISTING TILE: Cut electrical box opening in ceiling tile at marked location. Install UL Listed Raco 560 or equivalent UL Listed electrical box (not included) to ELPMBP06 (A) following instructions included with electrical box.

SUPPORT CABLE INSTALLATION

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

Solid Concrete Ceiling Structure

WARNING: Anchors must be installed into structurally sound solid concrete with a minimum thickness of 1.75" (44.5mm) or greater. Installation into hollow concrete block, mortar, or concrete that exhibits cracking, spalling, or other defects may result in failure of anchor and serious personal injury or damage to equipment!

1. Drill 1/4" diameter x 1-3/8" deep hole at each marked cable anchor support location (See Figure 6). Ensure hole is at least 2-1/2" from nearest concrete edge. Remove debris from hole.

2-1/2" (64mm) 1-3/8" (35mm) >1" (>25mm) 1/4" (6.4mm) ① ② ③ ④ ⑤ 1/4" (D) (C)

Figure 6

1. Tap anchor (D) into each hole to a depth of at least 1". (See Figure 6).

WARNING: Failure to properly set anchor may result in failure of anchor and serious personal injury or damage to equipment!

1. Using claw portion of hammer, set each anchor (D) by pulling it out of hole approximately 1/4". (See Figure 6)
2. Insert portion of manufactured loop on cable (C) through hole in anchor (D) (See Figure 6). Insert end of cable (C) through loop. Repeat for remaining support locations.

Steel Truss Ceiling Structure

1. Route end of cable (C) over truss at marked cable anchor support location and then through cable loop. (See Figure 7) Repeat for remaining support locations.

(C)

Figure 7

Wood Ceiling Structure

WARNING: Anchors must be installed into wood with a minimum thickness of 1-1/2" (38.1 mm) or greater.

1. Drill 5/32" (4.0mm) diameter x 2" (51mm) deep hole at each marked cable anchor support location. (See Figure 8) Remove debris from hole.

2" (51mm) ① 5/32" (4.0mm) ② (E) ③ (C)

Figure 8

1. Fully thread eye lag (E) into each hole. (See Figure 8)
2. Route end of cable (C) through eye lag (E) and then through cable loop. (See Figure 8) Repeat for remaining support locations.

TRAY INSTALLATION

1. If you are replacing an existing tile, proceed to Step 3. Otherwise, continue below.
2. Reinstall ceiling tile with extension column hole. Ensure tile is oriented for proper location of hole.

3. Reinstall ELPMBP06 assembly (A).

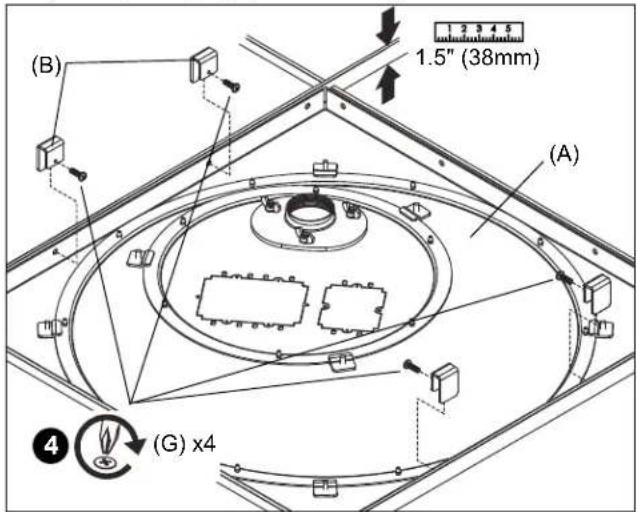

4. Install four clamp brackets (B) with four Phillips head 10-24 x 5/8" screws (G). (See Figure 4) Ensure brackets (B) engage flanges on ELPMBP06 assembly (A) and primary (1-1/2" (38mm) high) rails of ceiling framework.

(B) 1.5" (38mm) (A) (G) x4 4

Figure 9

CAUTION: Failure to properly tension cables (C) may result in damage to ceiling tile framework!

1. Thread each cable (C) completely through cable lock (F), corresponding hole(s) in corner of ELPMBP06 assembly (A), and completely through opposite side of cable lock (F) (See Figure 10). Adjust cable tension until ELPMBP06 assembly (A) is supported entirely and evenly by all four support cables, but not so tight as to distort ceiling tile framework.
   NOTE: Cables (C) can be threaded through either or both holes in corners of ELPMBP06 assembly (A).
   NOTE: Cable lock (F) will allow cable to enter from only one direction per side, indicated by arrows on lock. Depress spring loaded pins on cable lock (F) to release cable tension.

A C F ⑤ (C, F) x 4

Figure 10

EXTENSION COLUMN INSTALLATION

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached to the ELPMBP06 up to (and including) the display/projector, does not exceed 50 lbs (22 kg).

1. Install 1-1/2" NPT or NPSM following ANSI/ASME B1.20.1 (Schedule 40, 0.154" minimum thickness aluminum - ASTM B221) threaded extension column (not included) into extension collar support until tight, with a minimum of four threads engaged.

NOTE: If installation instructions are not available, contact Chief for assistance.

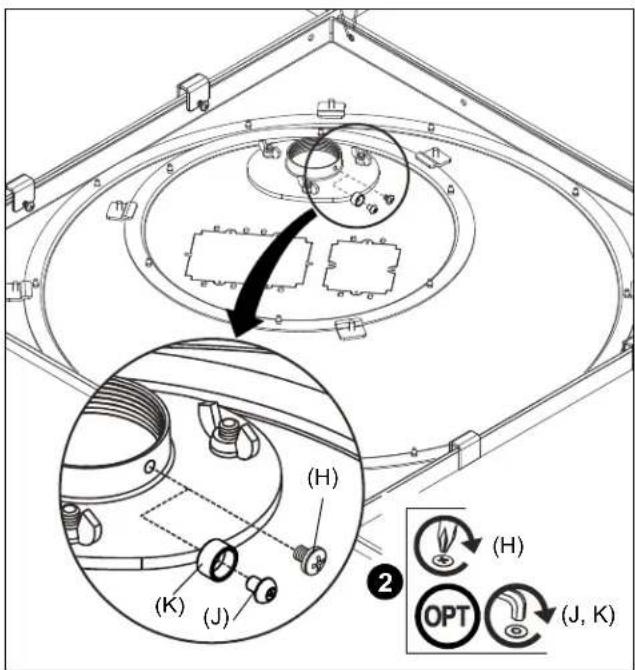

1. Using hex key (L), secure extension column by one of the following methods (See Figure 3):

• Install screw (H) into extension column support, tightening firmly against column.
- OPTIONAL: Install security screw (J) through locking collar (K) into extension column support, tightening firmly against column.

NOTE: Locking collar (K) is designed to spin, even when screw (J) is tight.

Technical diagram showing mechanical assembly with labeled components and directional arrows, including (H), (J), and (J, K) annotations.

Figure 11

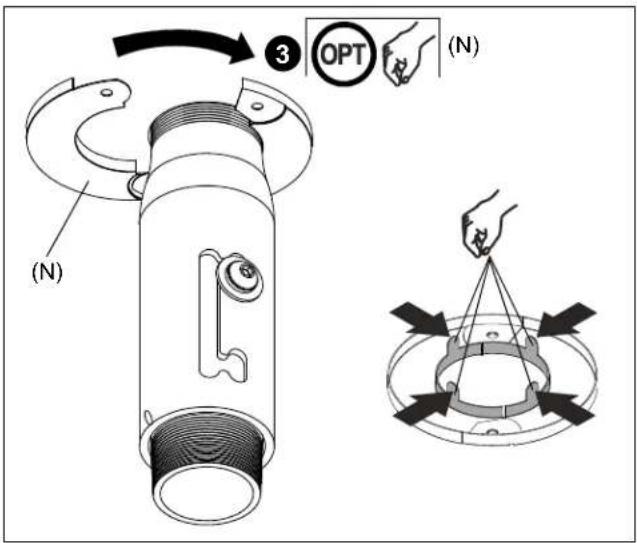

1. OPTIONAL FOR INSTALLATION ABOVE EXISTING TILE: Install NPT ring (N) on extension column below ceiling tile. (See Figure 12) If necessary, bend four tabs inward to secure ring to column.

3 (N) (N) OPT (N)

Figure 12

1. Reinstall remaining ceiling tiles as required.

LIMITED WARRANTY

With the exception of electrical products, Milestone warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Milestone. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Milestone disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Milestone also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty. Milestone's sole warranty obligation to the owner of its products is to repair or replace (at Milestone's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Milestone via prepaid shipping. To the maximum extent permitted by applicable law, Milestone disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Milestone will not be liable for any damages whatsoever arising out of the use or inability to use Milestone products, even if Milestone has been advised of the possibility of such damages. Milestone bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Milestone products performed by someone other than a Milestone employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Milestone will not be responsible for damage to Milestone products caused by misuse, abuse, failure to properly package the product for return to Milestone or for damage caused by carriers during shipment to or from Milestone. Any repairs to Milestone products required due to misuse, abuse or shipping damage or repairs of defective Milestone product outside the warranty period will be performed at the current rates established by Milestone for factory service.

Distributed by:

Epson America, Inc.

3840 Kilroy Airport Way

Long Beach, CA 90806

Manufactured by:

Milestone AV Technologies

A 6436 City West Parkway, Eden Prairie, MN 55344

P 800.582.6480

F 877.894.6918

E [e-mail] (Tech Support 7:00am - 7:00pm CST)

www.milestone.com

8800-002777 Rev01

09/15
