Product Type	Ceiling plate for projector
Brand	Epson
Model	ELPMBP07
Use	Ceiling mounting of projectors
Dimensions	152.4 mm (6 in) diameter (plate); detailed dimensions: 129.4 x 45.8 mm
Maximum load capacity	227 kg (500 lb)
Material	Steel
Installation	On wood ceiling joists 50.8 x 101.6 mm (2 x 4 in) with drywall max. 15.8 mm (5/8 in)
Attachment	1½ in NPT or NPSM threaded extension column (not included)
Required tools	9/16 in socket wrench, hex key, drill with 1/4 in bit
Supplied parts	Ceiling plate, 5/16 x 1/4 in set screws (x2), 3/8 in washers (x4), hex key
Warranty	10 years (excluding electrical mechanisms)
Safety	Structural support 5x total weight; do not exceed 227 kg; indoor use only
Distributor	Epson America, Inc.
Manufacturer	Milestone AV Technologies
Compatibility	ELPMBC02/03/04 columns, ELPMBP04/05/06 ceiling tile kits, ELPMBPRH projector mount
Manufacturer reference	8800-002774 Rev01
Revision date	09/15

Frequently Asked Questions - ELPMBP07 EPSON

What is the maximum weight supported by the ELPMBP07 plate?

The ELPMBP07 plate supports a maximum combined weight of 227 kg (500 lb). It is imperative not to exceed this capacity to avoid any risk of injury or damage.

On what type of ceiling can I install this plate?

The plate is designed to be mounted on wood ceiling joists 50.8 x 101.6 mm (2 x 4 in) covered with drywall up to 15.8 mm (5/8 in) thick.

What tools are required for installation?

You will need a 9/16 in socket wrench, a hex key, and a drill with a 1/4 in bit for pilot holes.

Is the ELPMBP07 plate compatible with other accessories?

Yes, it is compatible with ELPMBC02/03/04 columns, ELPMBP04/05/06 ceiling tile kits, and the ELPMBPRH projector mount.

Can I use this plate outdoors?

No, this product is intended for indoor use only. Outdoor use voids the warranty and may present safety risks.

How long is the warranty?

The warranty is 10 years for non-electric products from the invoice date. Electrical mechanisms (such as motorized columns) have a limited warranty of 1 year.

How to attach the extension column to the plate?

Screw the 1½ in NPT or NPSM threaded extension column into the threaded collar of the plate until it is tightened for at least four threads. Then use a set screw to lock it.

What to do if the plate is damaged?

Do not use the device if damaged. Return it to an authorized service center for inspection and repair.

Are ceiling screws included with the plate?

No, 3/8 x 2-1/2 in lag screws (minimum gauge 2) for fixing into the joist are not included. You must purchase them separately.

Where can I find the full manual?

The user manual is available for free download in PDF format on the website notice-facile.com. You can also request a translation by email.

USER MANUAL ELPMBP07 EPSON

INSTALLATION INSTRUCTIONS

Technical line drawing of a mechanical component with no visible text or symbols

6" (152mm) Speed Connect Ceiling Plate

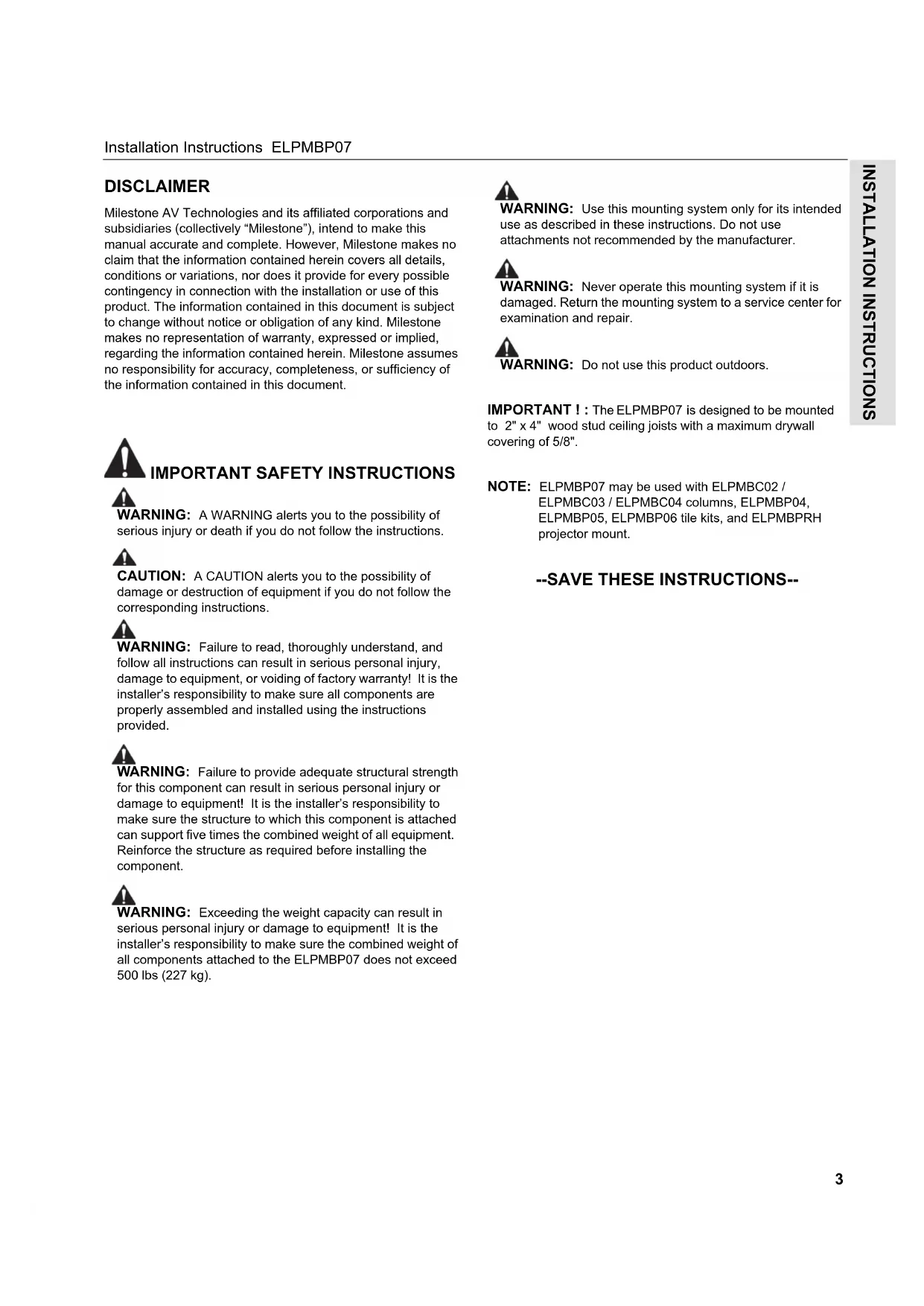

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively “Milestone”), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness, or sufficiency of the information contained in this document.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached to the ELPMBP07 does not exceed 500 lbs (227 kg).

WARNING: Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is damaged. Return the mounting system to a service center for examination and repair.

WARNING: Do not use this product outdoors.

IMPORTANT ! : The ELPMBP07 is designed to be mounted to 2" x 4" wood stud ceiling joists with a maximum drywall covering of 5/8".

NOTE: ELPMBP07 may be used with ELPMBC02 / ELPMBC03 / ELPMBC04 columns, ELPMBP04, ELPMBP05, ELPMBP06 tile kits, and ELPMBPRH projector mount.

--SAVE THESE INSTRUCTIONS--

DIMENSIONS

Ø5.094 BOLT PATTERN [129.4] 4X Ø0.415 [10.5] 4X Ø0.857 [21.8] 1 1/2" NPSM THREADS 6.50 [165.0] 0.625 [15.9] 1.805 [45.8] 5.09 [129.4] 3.60 [91.5] 2.55 [64.7] 2.860 [72.6] 1.538 [39.1] 5.09 [129.4] 2.55 [64.7] 90° DIMENSIONS: INCHES [MILLIMETERS]

TOOLS REQUIRED FOR INSTALLATION

79/8 1/4" 9/16"

PARTS

A (1) [Ceiling plate] B (1) 5/16" x 1/4" C (1) 5/16" x 1/4" (security) E (4) 3/8" D (1) 5/32" (security)

INSTALLATION

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

1. Using ceiling plate (A) as a template, mark locations of two pilot holes (See Figure). Ensure the following:

• OPPOSITE holes are used in plate (A), and
- Marks are in the center of wood joist.

NOTE: Drywall not shown for clarity.

(A) ① x 2

Figure 1

1. Drill 1/4" diameter pilot holes into wood joist (See Figure 2). Ensure pilot holes are straight.


(A) (E) x 2 ② x 2 ③ x 2 ⑤

Figure 2

1. Using 9/16" socket wrench, loosely install two (minimum) Grade 2 (not included) 3/8" x 2-1/2" lag screws through 3/8" washers (E), ceiling plate (A), into wood joist (See Figure 2). Do not tighten plate (A) against ceiling at this time to accommodate cable installation.

NOTE: Two additional washers are provided.

1. Route cables through channel in ceiling plate (A) (See Figure 3).

(A) ④

Figure 3

1. Tighten lag screws (See Figure 2).

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached to the ELPMBP07 does not exceed 500 lbs (227 kg).

1. Route cables through extension column (not included).
2. install 1-1/2" NPT or NPSM following ANSI/ASME B1.20.1 (Schedule 40, 0.154" minimum thickness aluminum or steel - ASTM B221) threaded extension column (not included) into threaded collar of ceiling plate (A) until tight, with a minimum of four threads engaged.

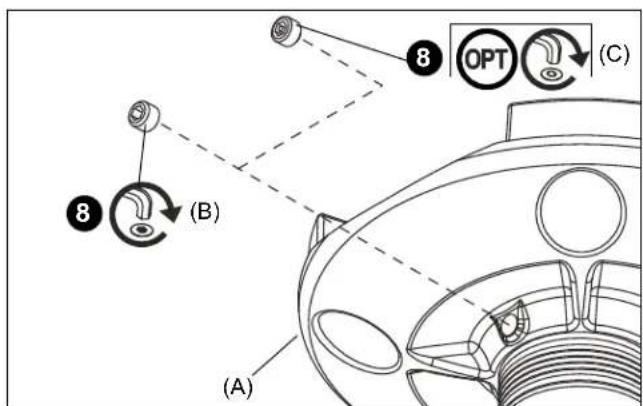

3. Using hex key (D), secure extension column by one of the following methods (See Figure 4):

• Install one 5/16" x 1/4" set screw (B) into threaded hole, tightening firmly against column.
• OPTIONAL: Install one 5/16" x 1/4" security set screw (C) into threaded hole, tightening firmly against column.

8 OPT (C) (B) (A)

Figure 4

LIMITED WARRANTY

With the exception of electrical products, Milestone warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Milestone. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Milestone disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Milestone also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty. Milestone's sole warranty obligation to the owner of its products is to repair or replace (at Milestone's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Milestone via prepaid shipping. To the maximum extent permitted by applicable law, Milestone disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Milestone will not be liable for any damages whatsoever arising out of the use or inability to use Milestone products, even if Milestone has been advised of the possibility of such damages. Milestone bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Milestone products performed by someone other than a Milestone employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Milestone will not be responsible for damage to Milestone products caused by misuse, abuse, failure to properly package the product for return to Milestone or for damage caused by carriers during shipment to or from Milestone. Any repairs to Milestone products required due to misuse, abuse or shipping damage or repairs of defective Milestone product outside the warranty period will be performed at the current rates established by Milestone for factory service.

Distributed by:

Epson America, Inc.

3840 Kilroy Airport Way

Long Beach, CA 90806

Manufactured by:

Milestone AV Technologies

A 6436 City West Parkway, Eden Prairie, MN 55344

P 800.582.6480

F 877.894.6918

E [e-mail] (Tech Support 7:00am - 7:00pm CST)

www.milestone.com

8800-002774 Rev01

09/15
