Product Type	Wall mount for projector
Brand	Epson
Model	ELPMB43
Total weight (complete mount)	Approx. 8.4 kg (18.5 lb)
Mounting bracket weight	3.0 kg (6.6 lb)
3-axis adjustment device weight	1.2 kg (2.6 lb)
Sliding plate weight	0.8 kg (1.8 lb)
Wall plate weight	2.7 kg (6.0 lb)
Maximum load capacity	7 kg (15.4 lb)
Vertical sliding adjustment range	38 mm (±1.5 in)
Horizontal sliding adjustment range	45 mm (±1.8 in)
Front/back sliding adjustment range	360 mm (0 to 14.2 in)
Horizontal roll adjustment range	±3°
Horizontal rotation adjustment range	±8°
Vertical tilt adjustment range	±3°

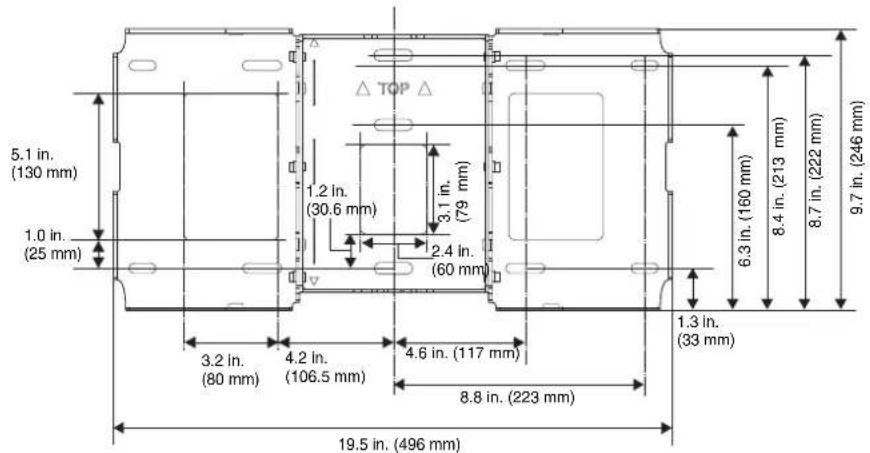

Wall plate dimensions (assembled)	496 x 246 mm (19.5 x 9.7 in)

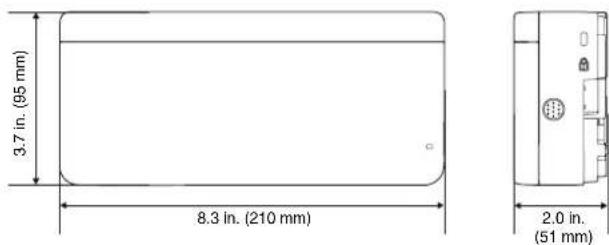

Touch unit dimensions (optional)	210 x 95 x 51 mm (8.3 x 3.7 x 2.0 in)
Touch unit weight	Approx. 450 g (16 oz)

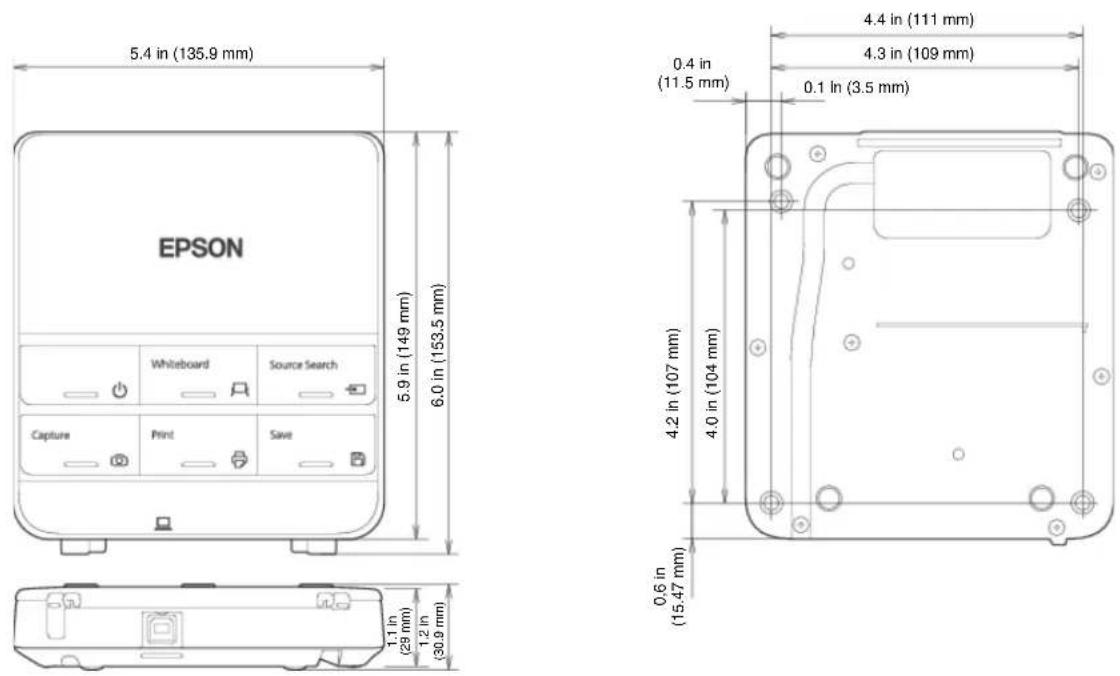

Control box dimensions (optional)	153.5 x 149 x 29 mm (6.0 x 5.9 x 1.1 in)
Control box weight	Approx. 240 g (8.5 oz)
Material	Steel and plastic
Wall mounting type	Screwed, M10 bolts (not included)
Projector compatibility	BrightLink 475Wi/480i/485Wi/575Wi/585Wi/595Wi, 575Wi+/585Wi+/595Wi+, PowerLite 470/475W/480/485W/570/575W/580/585W, BrightLink Pro 1410Wi/1420Wi/1430Wi
Package contents	Wall plate (3 pieces), mounting bracket, 3-axis adjustment device, sliding plate, wall plate cover, protective cap, cover extension, touch unit connection cable, screws and bolts, keys, model sheet
Safety	Installation by two qualified technicians on concrete wall; regular inspection of screws; do not modify or lubricate
Optional accessories	Interactive table stand ELPMB29, fixing plate ELPPT05, remote control cable set ELPKC28, cable management system ELPCK01
Warranty	Refer to standard Epson warranty

Frequently Asked Questions - ELPMB43 EPSON

Which projectors are compatible with the ELPMB43 mount?

The ELPMB43 mount is compatible with the following projectors: BrightLink 475Wi/480i/485Wi/575Wi/585Wi/595Wi, 575Wi+/585Wi+/595Wi+, PowerLite 470/475W/480/485W/570/575W/580/585W, and BrightLink Pro 1410Wi/1420Wi/1430Wi.

What is the maximum weight the ELPMB43 mount can support?

The maximum load capacity of the mount is 7 kg (15.4 lb). The total weight of the mount and projector must not exceed 14.8 kg (32.6 lb).

Do you need to drill holes in the wall to install the mount?

Yes, installation requires drilling holes (diameter 10.5 mm, depth 45 mm) for M10 fixing bolts. The mount must be installed on a sufficiently solid concrete wall.

What tools are needed for installation?

You will need a #3 Phillips screwdriver, a 13 mm wrench (for M8 and M6), a hex key (for M4), a drill, a hammer, and a dust pump. Screws and bolts are supplied, but M10 x 60 mm fixing bolts must be purchased separately.

Can the projector position be adjusted after installation?

Yes, the mount offers several adjustments: vertical sliding (38 mm), horizontal sliding (45 mm), front/back sliding (360 mm), horizontal roll (±3°), horizontal rotation (±8°), and vertical tilt (±3°). The adjustment handles allow precise adjustment.

How to install the touch unit on the mount?

The touch unit is fixed above the image area. For magnetic screens, it is placed directly; for non-magnetic screens, use three M4 screws (not included). An angle adjustment is required via the projector menu to align the laser beams.

Can I install the mount on a non-concrete wall?

No, the mount is designed for installation on a concrete wall. Installation on an unsuitable wall may cause the mount to fall and cause injury. If necessary, reinforce the wall before installation.

What to do if screws loosen after installation?

Regularly inspect the mount and tighten all screws firmly if you notice any play. Never loosen nuts and bolts after installation. If parts are damaged, stop using the mount immediately.

Where to find the exact dimensions for positioning the mount?

The installation manual provides detailed tables with projection distance measurements, slide markers, and wall plate height based on image size and aspect ratio (WXGA, XGA, 16:9). Use the provided worksheets.

Is the mount supplied with all necessary cables?

The mount includes a connection cable for the touch unit. Other cables (HDMI, VGA, USB, power) are not supplied and must be purchased separately. A cable management system is available as an option (ELPCK01).

USER MANUAL ELPMB43 EPSON

Line drawing of a mechanical device with internal components and housing (no text or symbols)

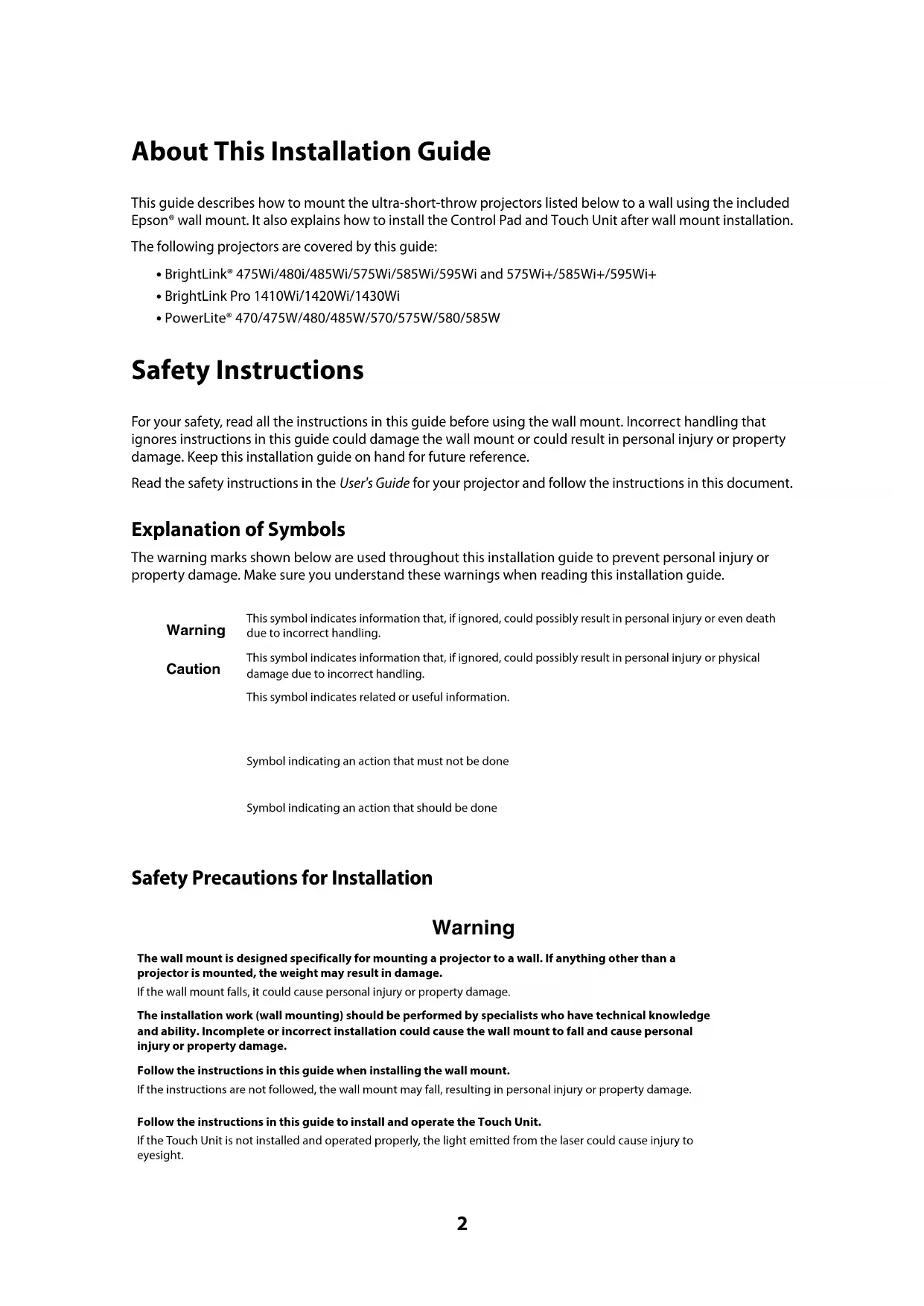

About This Installation Guide

This guide describes how to mount the ultra-short-throw projectors listed below to a wall using the included Epson® wall mount. It also explains how to install the Control Pad and Touch Unit after wall mount installation.

The following projectors are covered by this guide:

• BrightLink® 475Wi/480i/485Wi/575Wi/585Wi/595Wi and 575Wi+/585Wi+/595Wi+
  • BrightLink Pro 1410Wi/1420Wi/1430Wi
  • PowerLite® 470/475W/480/485W/570/575W/580/585W

Safety Instructions

For your safety, read all the instructions in this guide before using the wall mount. Incorrect handling that ignores instructions in this guide could damage the wall mount or could result in personal injury or property damage. Keep this installation guide on hand for future reference.

Read the safety instructions in the User's Guide for your projector and follow the instructions in this document.

Explanation of Symbols

The warning marks shown below are used throughout this installation guide to prevent personal injury or property damage. Make sure you understand these warnings when reading this installation guide.

Warning

This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.

Caution

This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.

This symbol indicates related or useful information.

Symbol indicating an action that must not be done

Symbol indicating an action that should be done

Safety Precautions for Installation

Warning

The wall mount is designed specifically for mounting a projector to a wall. If anything other than a projector is mounted, the weight may result in damage.

If the wall mount falls, it could cause personal injury or property damage.

The installation work (wall mounting) should be performed by specialists who have technical knowledge and ability. Incomplete or incorrect installation could cause the wall mount to fall and cause personal injury or property damage.

Follow the instructions in this guide when installing the wall mount.

If the instructions are not followed, the wall mount may fall, resulting in personal injury or property damage.

Follow the instructions in this guide to install and operate the Touch Unit.

If the Touch Unit is not installed and operated properly, the light emitted from the laser could cause injury to eyesight.

Warning
Handle the power cord carefully.Incorrect handling may cause fire or electric shock. Observe the following precautions when handling:Do not handle the power plug with wet hands.Do not use a power cord that is damaged or modified.Do not pull the power cord with too much force when routing the cable through the wall mount.
Do not install the wall mount in a place where it might be subjected to vibration or shock.Vibration or shock could cause damage to the projector or mounting surface. It could also cause the wall mount or projector to fall and cause personal injury or property damage.
The installation work should be performed by at least two qualified service personnel. If you need to loosen any screws during installation, be careful not to drop the wall mount.If the wall mount or projector falls, it could cause personal injury or property damage.
Install the wall mount so that it can sufficiently support the weight of the projector and wall mount, and resist any horizontal vibration. Use M10 nuts and bolts and make sure to use appropriate wall anchors for your wall type.Nuts and bolts smaller than M10 could cause the wall mount to fall. Epson accepts no responsibility for any damage or injury caused by lack of wall strength or inadequate installation.
When you mount the projector on the wall with the wall mount, the wall must be strong enough to hold the projector, the wall mount, as well as the Control Pad and the Touch Unit, if necessary.This wall mount should be installed on a concrete wall. Confirm the weight of the projector, the wall mount, the Control Pad, and the Touch Unit before installation, and maintain the strength of the wall. If the wall is not strong enough, reinforce the wall before installation.
Inspect the wall mount on a regular basis to ensure there are no broken parts or loose screws.If there are any broken parts, stop using the wall mount immediately. If the wall mount or projector falls, it could cause personal injury or property damage.
Never modify the wall mount, Control Pad, or Touch Unit.
Do not hang on the wall mount or hang a heavy object on the wall mount.If the projector or wall mount falls, it could cause personal injury or property damage.
Do not use adhesives, lubricants, or oils to install or adjust the wall mount.If you use adhesives to prevent the screws from loosening or things such as lubricants or oils on the part of the projector attached to the slide plate, the case may crack and cause the projector to fall, resulting in personal injury or property damage.
Tighten all screws firmly after adjustment.Otherwise, the projector or wall mount may fall and cause personal injury or property damage.
Never loosen the bolts and nuts after installation.Confirm that the screws have not become loose on a regular basis. If you find any loose screws, tighten them firmly. Otherwise, the projector or wall mount may fall and cause personal injury or property damage.
When performing wiring, make sure the cable does not come into contact with any screws or bolts.Handling the cable incorrectly may cause fire or electric shock.
Do not apply optical devices such as a magnifying glass or telescope to the laser light diffused from the Touch Unit.If such optical devices are applied, it could cause personal injury or fire.

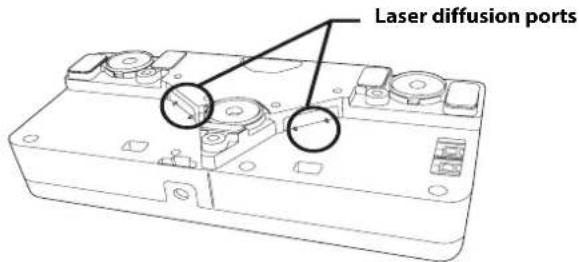

Do not look into the Touch Unit's laser diffusion ports.This could cause injury to eyesight. Extra care should be taken when children are present.
Do not view the laser light using optical devices such as a magnifying glass within a range of 2.75 inches (70 mm).Viewing at close range could cause injury to eyesight.
Connect the Touch Unit to BrightLink 595Wi/595Wi+ and BrightLink Pro 1430Wi models only. Do not connect it to any other projectors or devices.

Warning

Do not use the Touch Unit if you are using or near medical equipment such as a pacemaker.

The magnet within the Touch Unit generates electromagnetic interference which could cause medical equipment to malfunction.

Caution

Do not install the wall mount in a location where the operating temperature for your projector model may be exceeded. Such an environment may damage the projector.

Install the wall mount in a place free from excessive dust and humidity to prevent the lens or optical components from becoming dirty.

Do not use excessive force when adjusting the wall mount.

The wall mount may break, resulting in personal injury.

Keep magnetic storage media (for example, magnetic cards or electronic devices such as computers, digital watches, or cell phones) away from the Touch Unit.

The magnet within the Touch Unit generates electromagnetic interference which could corrupt data or cause the media or device to malfunction.

Installation Location

• Before installing the projector, verify the power supply wiring for the installation location.
- Install the projector away from other electric devices such as fluorescent lights or air conditioners. Some kinds of fluorescent lights could interfere with the remote control of the projector.
• Install the projector away from direct sunlight and other bright light sources.
- It is recommended to keep VGA computer cable length less than 65 ft (20 meters) to reduce external noise.
• Install the projector in a location where the projected image is within reach.

- The projector must be installed in one of the following locations in order for the Touch Unit to function properly:

• Mounted on a wall or suspended from the ceiling with images projected from in front of the screen.
• Mounted vertically on a table with images projected from the front of the table. If using this installation method, you need the optional interactive table mount (ELPMB29) and attachment plate (ELPPT05).

- When powering the Control Pad using batteries, verify that the installation location meets the following conditions:

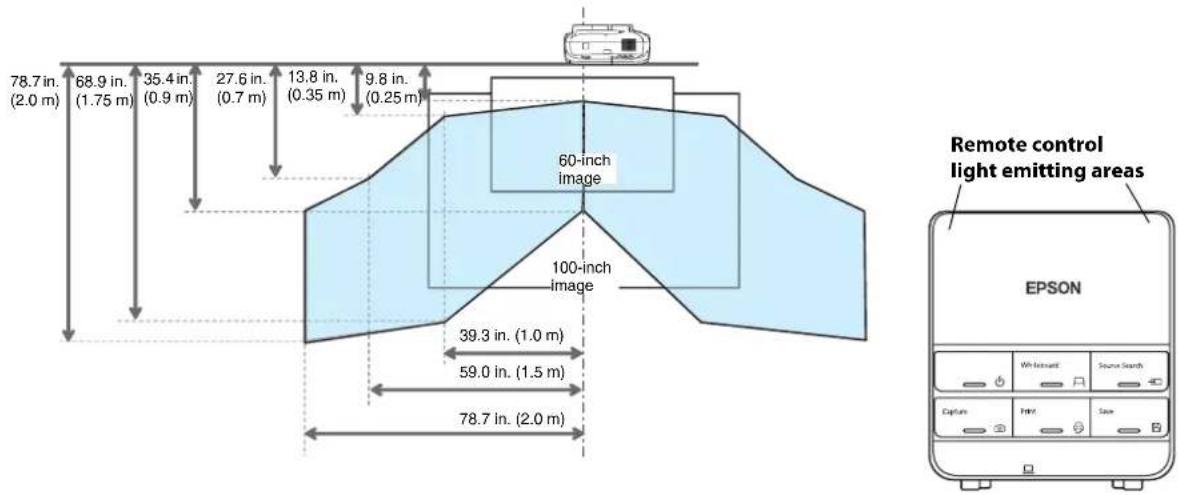

• Install the Control Pad on the same surface as the projection screen. If the projection screen and the Control Pad installation point are uneven, install the Control Pad approximately 8 in (20 cm) from the edge of the screen.
- Make sure there are no obstacles between the Control Pad and the projector (not including the Touch Unit).

- Use the optional Remote Control Cable Set (model ELPKC28, part number V12H005C28) to supply power to the Control Pad in the following situations:

• The required conditions above are not met.
- The projection screen and the Control Pad installation point are uneven and the difference in height is more than 2 inches (5 cm).
- The projector is placed on a table and projecting to the screen.
- Multiple projectors are being used.

• Before installing the Touch Unit, verify that the installation location meets the following conditions:

• The Touch Unit can be secured to the surface with magnets or screws.

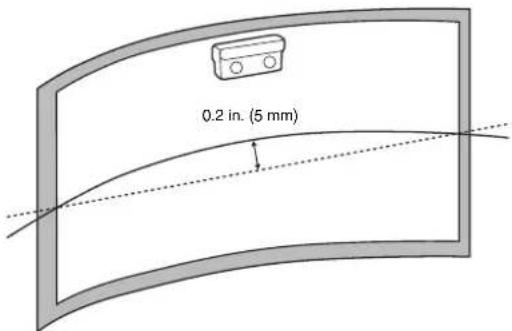

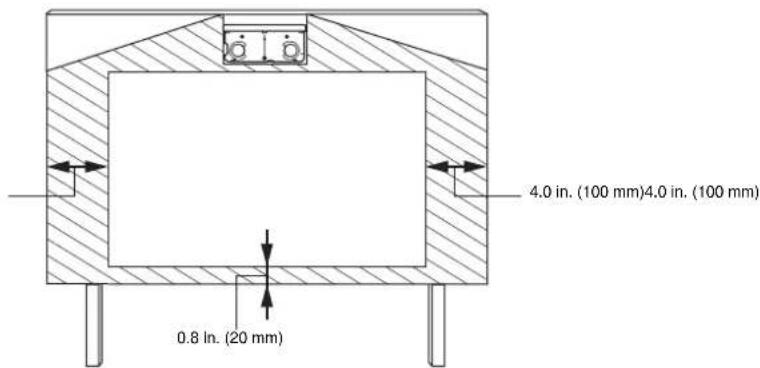

- The surface is flat, smooth, and unwarped with no more than 0.2 inches (5 mm) of unevenness in any direction on the screen surface.

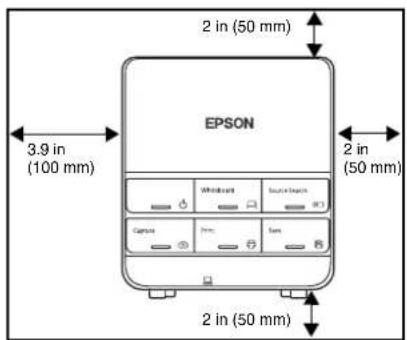

- When installing on a whiteboard, install the Touch Unit within the frame of the whiteboard.

Diagram of a printer mounted on a table with a control panel, no text or symbols present

Simple line drawing of a printer on top of a rectangular base (no text or symbols)

Correct position Incorrect position

Make sure there are no obstacles, such as cables, or protruding objects such as whiteboard trays, pen holders, or thick frames in the shaded areas in the following figure. The Touch Unit will not operate correctly if anything is obstructing the infrared signal.

1 Package Contents

2 Specifications

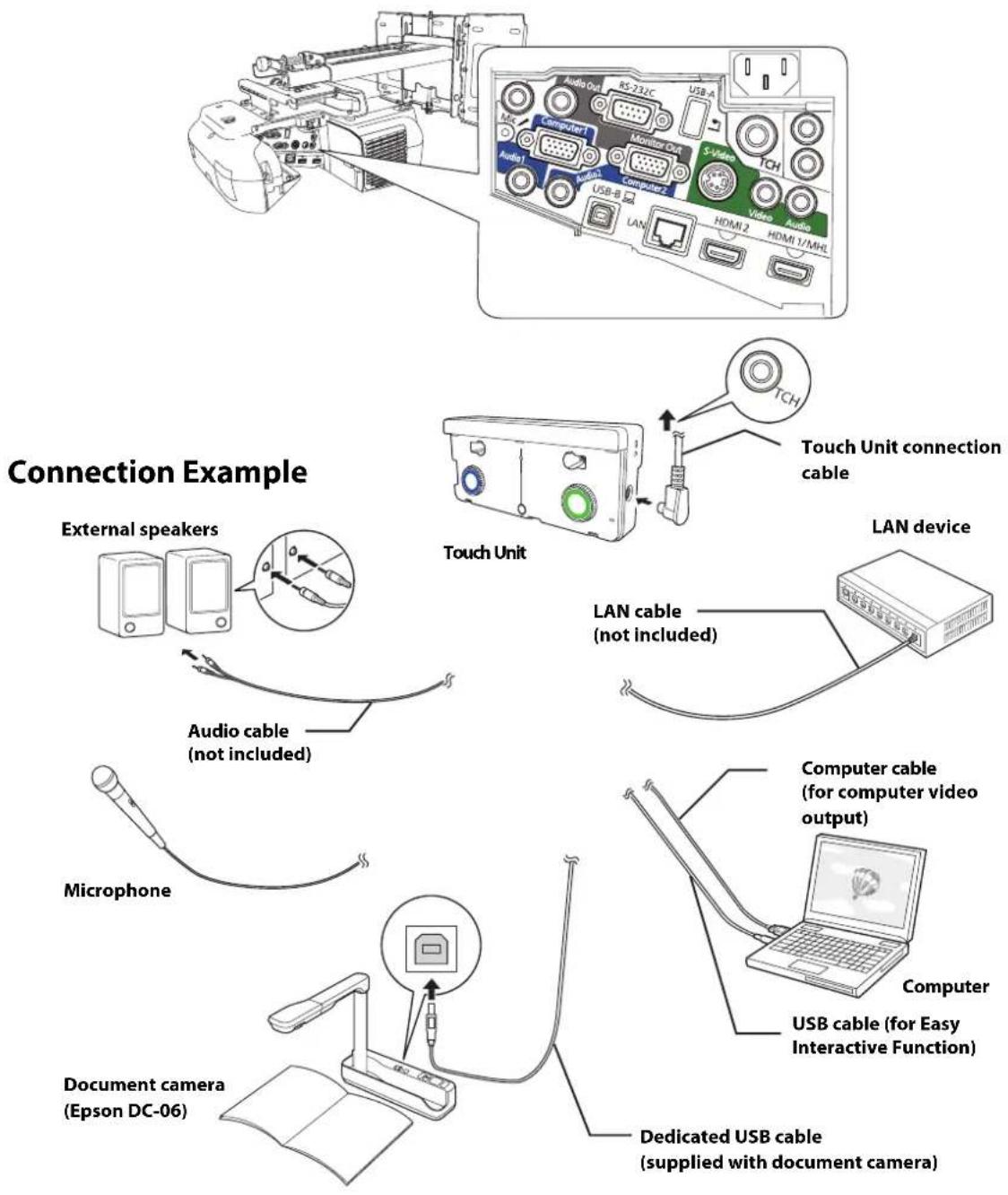

3 Connecting Devices

4 Positioning the Projector

1. Installation worksheet for projecting on a pre-installed wall-mounted board
2. Installation worksheet for projecting on a plain wall

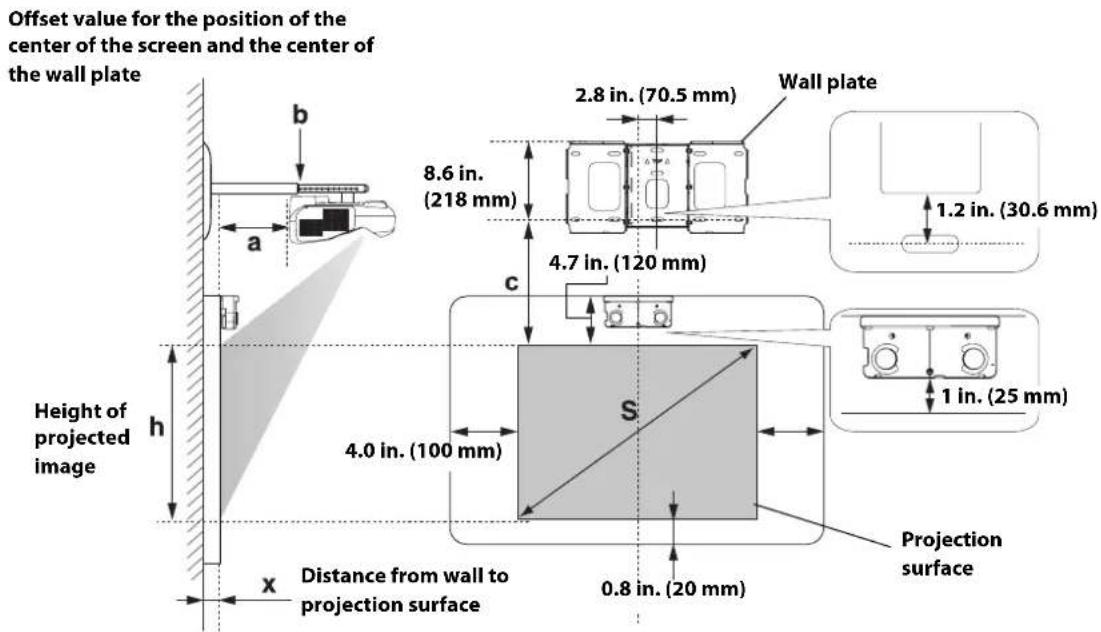

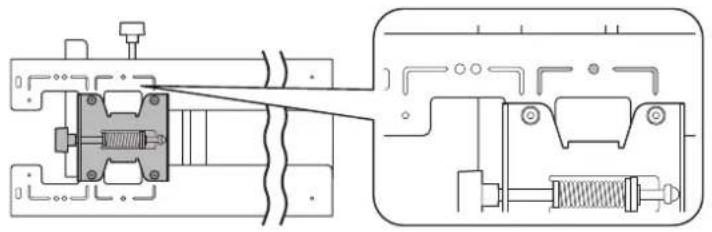

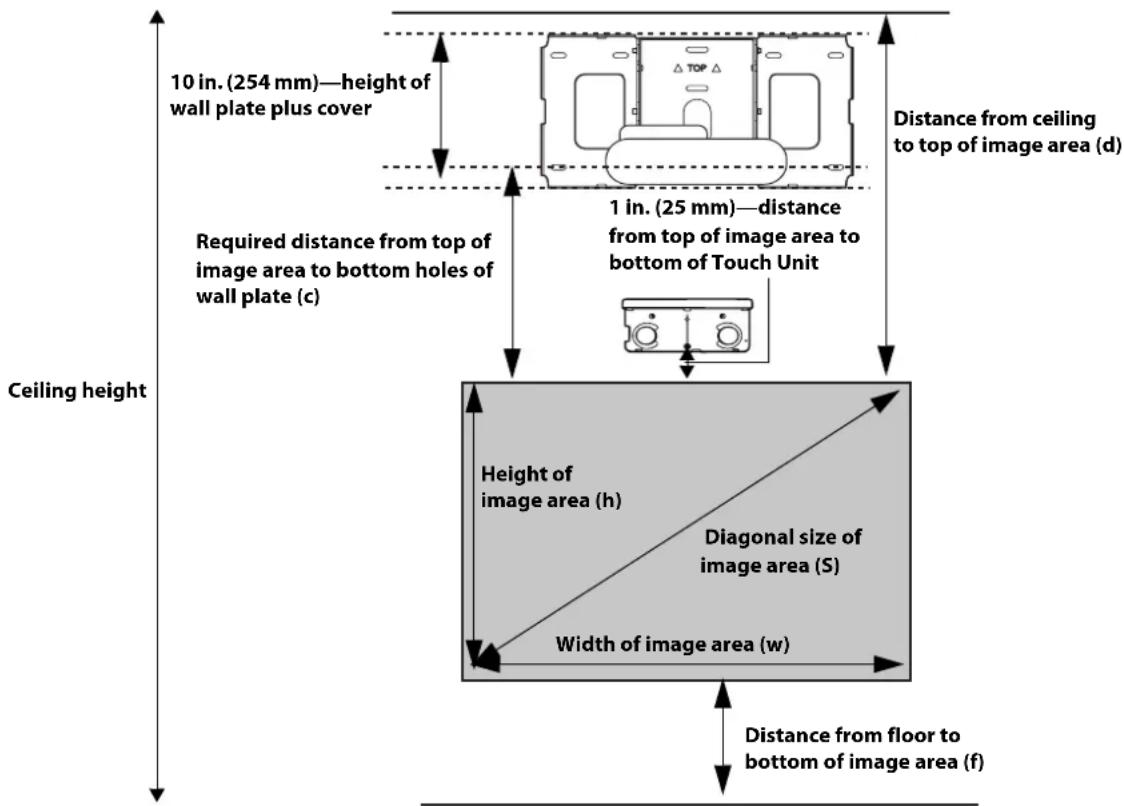

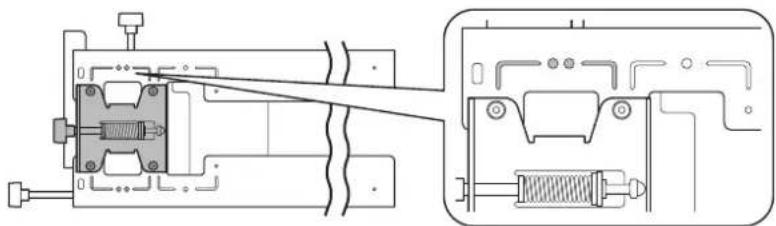

3. Diagonal image size and mounting position

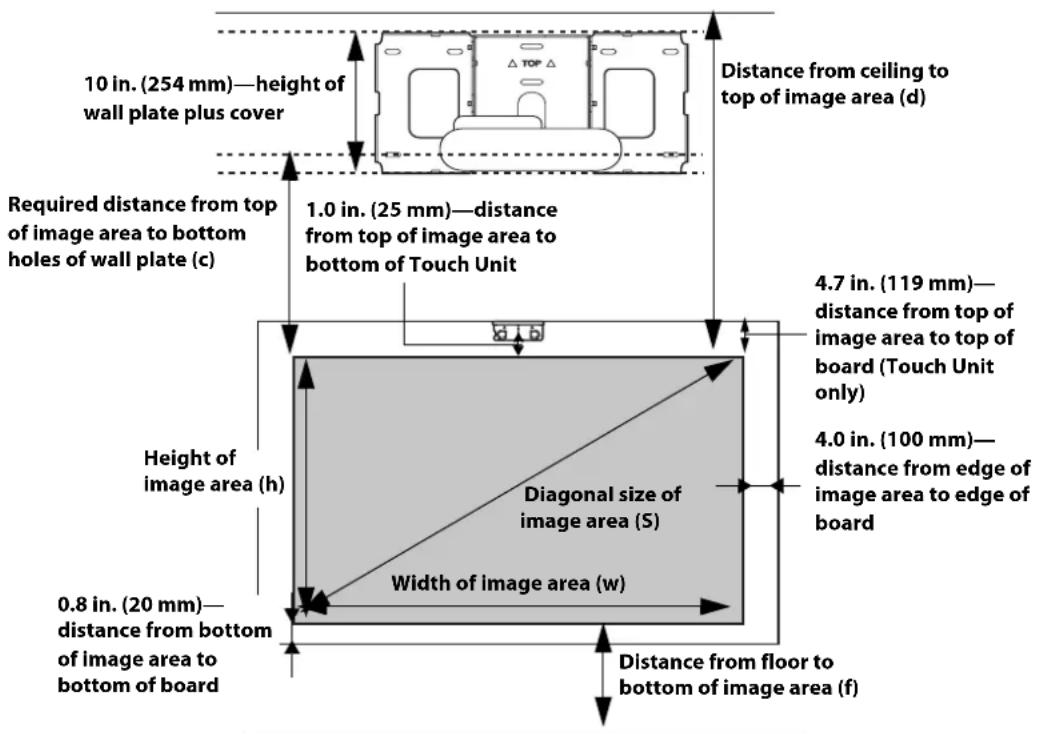

4. Distance from projection surface to wall plate
5. Installation measurement tables
6. Installation Measurements in Inches for WXGA Projectors
7. Installation Measurements in Inches for XGA Projectors
8. Installation Measurements in Millimeters for WXGA Projectors
9. installation Measurements in Millimeters for XGA Projectors

5 Installing the Projector

1. Disassemble the parts
2. Assemble the parts

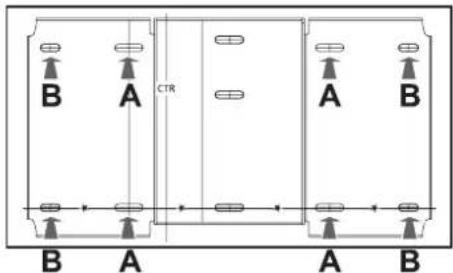

3. Install the wall plate on the wall
4. Determine the projection distance and pull out the slider

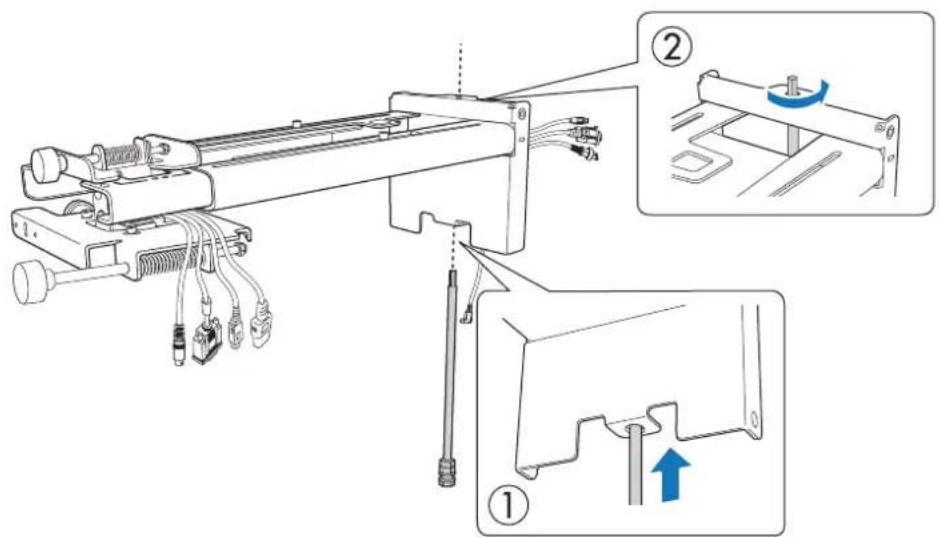

5. Route the cables through the wall mount arm

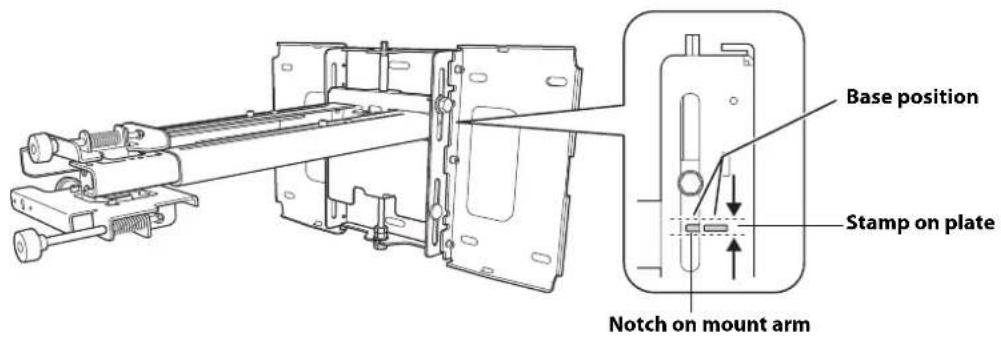

6. Attach the mount arm to the wall plate

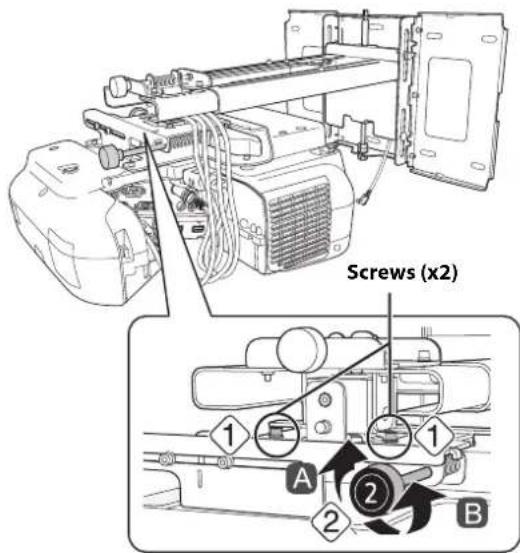

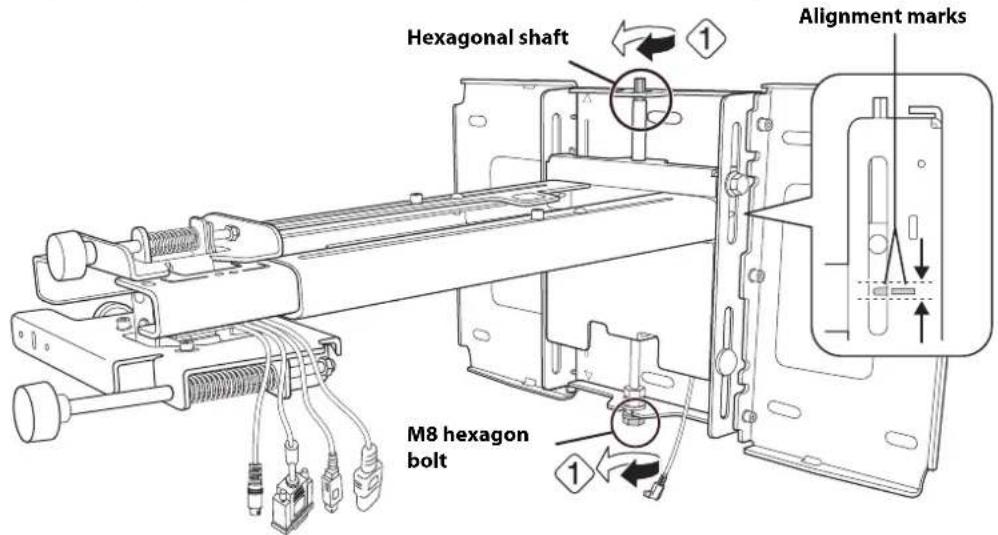

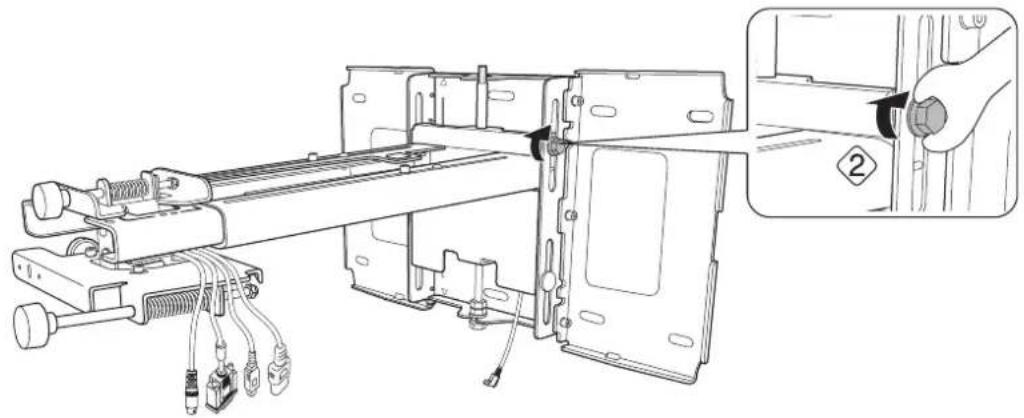

7. Adjust the vertical slide position of the arm

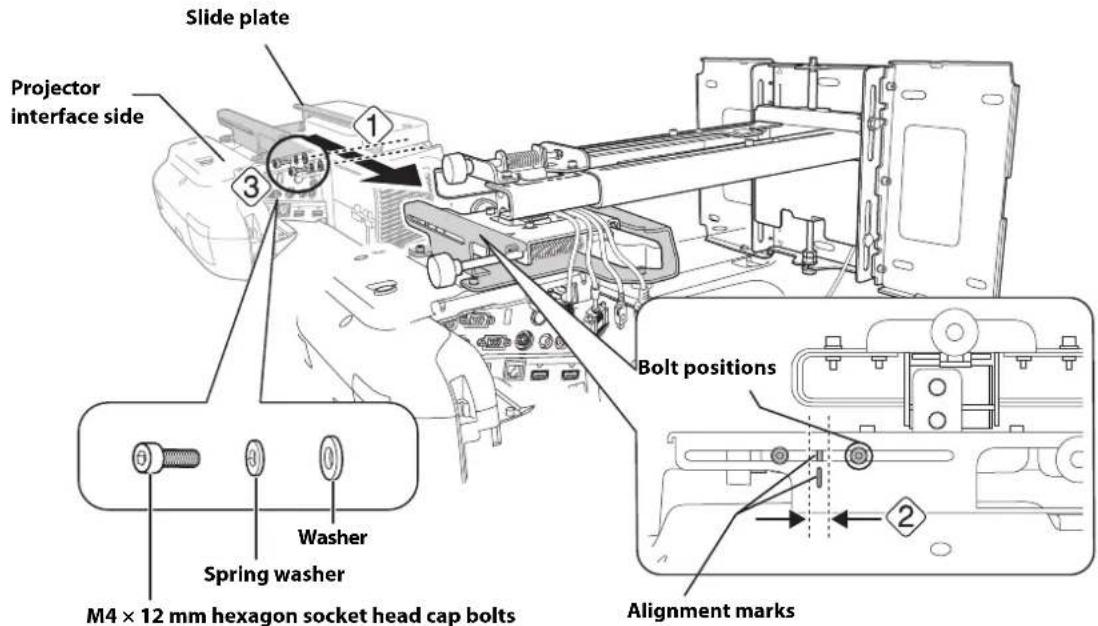

8. Attach the projector to the wall mount
9. Connect the power cord and other cables to the projector

6 Adjusting the Image

41

1. Turn on the projector
2. Display the test pattern
3. Change the aspect ratio if necessary

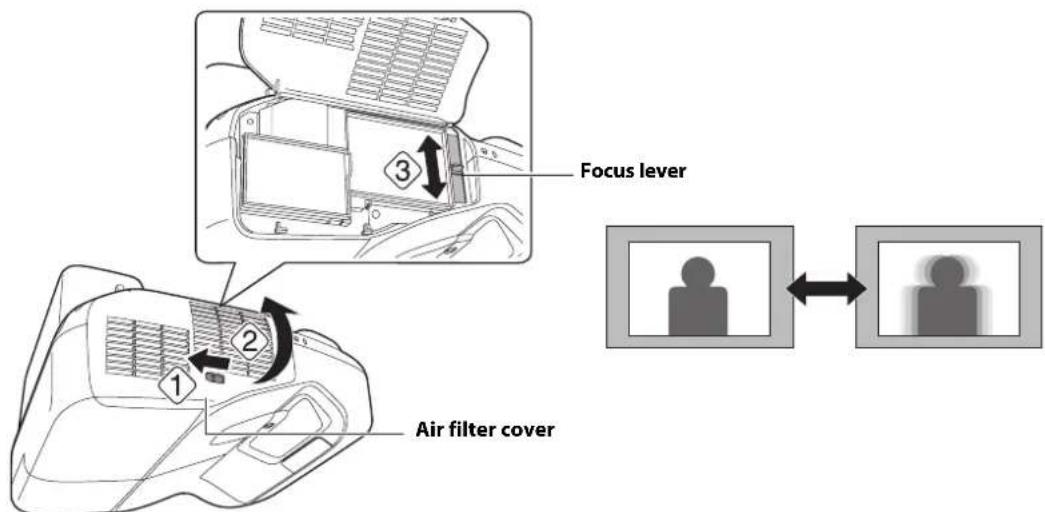

4. Adjust the focus

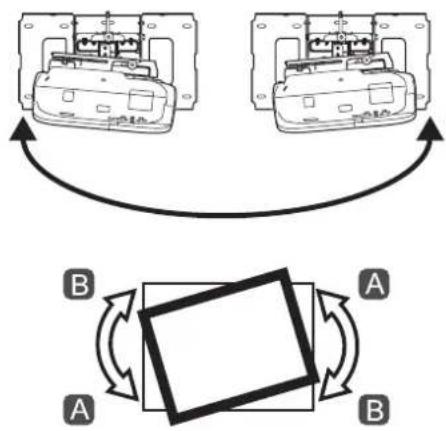

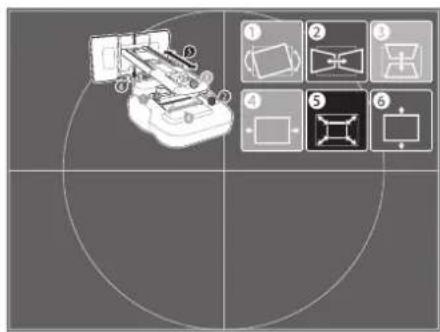

5. Use the adjustment knob on the left side to adjust the horizontal roll
6. Use the adjustment knob on the right side to adjust the horizontal rotation
7. Use the adjustment knob on the top to adjust the vertical tilt

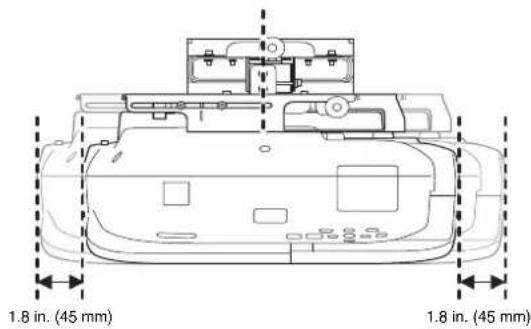

8. Adjust the horizontal slide

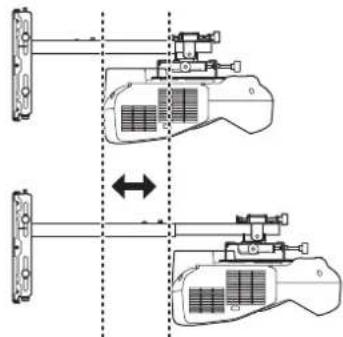

9. Adjust the forward/backward slide
10. Adjust the vertical slide
11. Turn off the display of the test pattern

7 Attaching the Covers

47

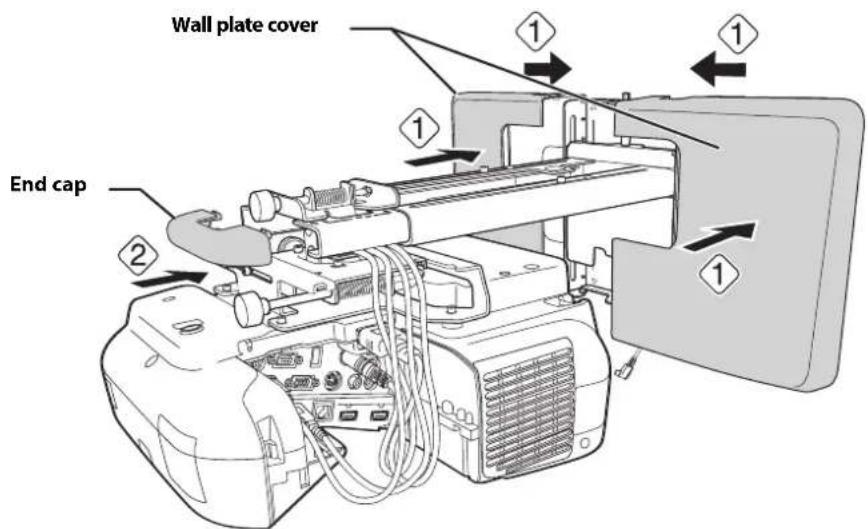

1. Attach the wall plate cover and end cap

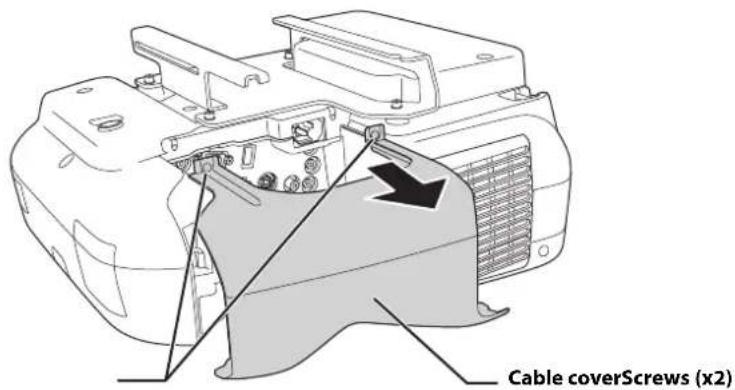

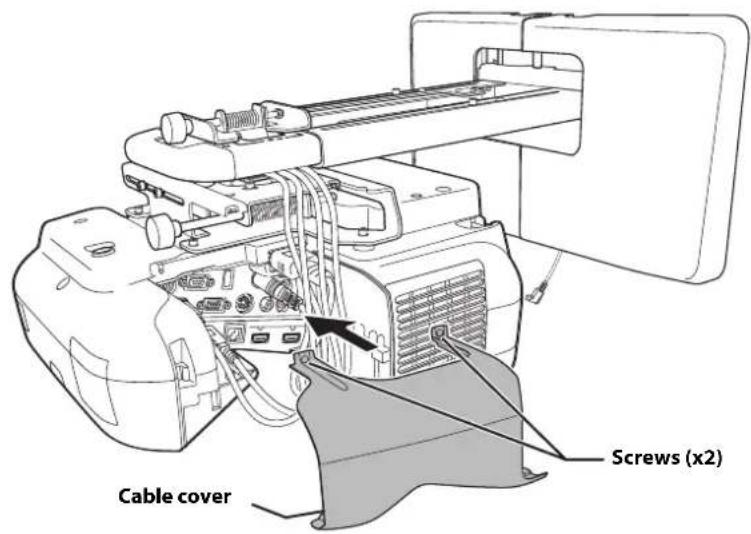

2. Attach the cable cover to the projector

8 Installing the Touch Unit

49

1. Turn on the projector

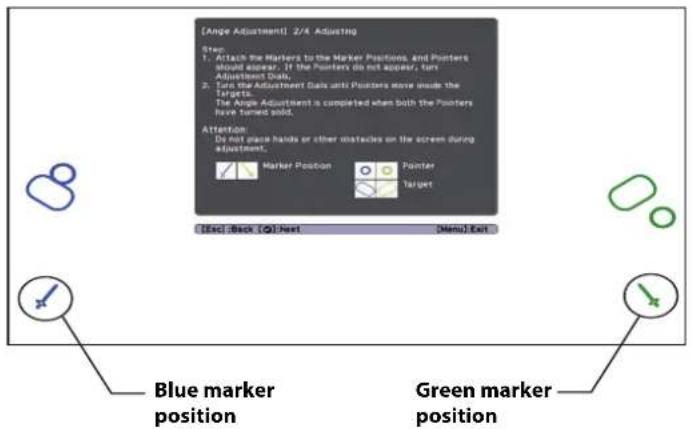

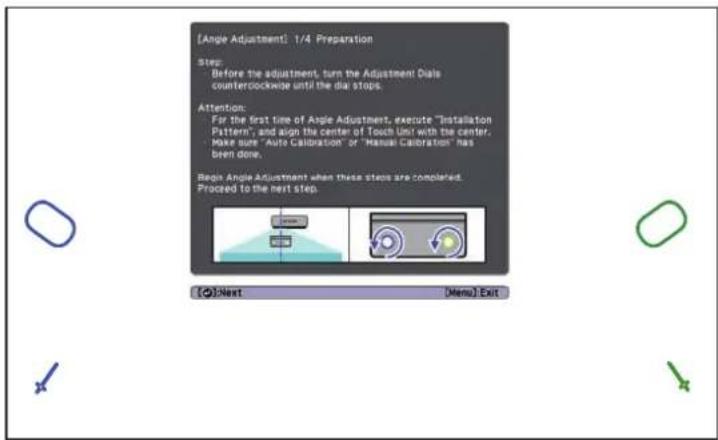

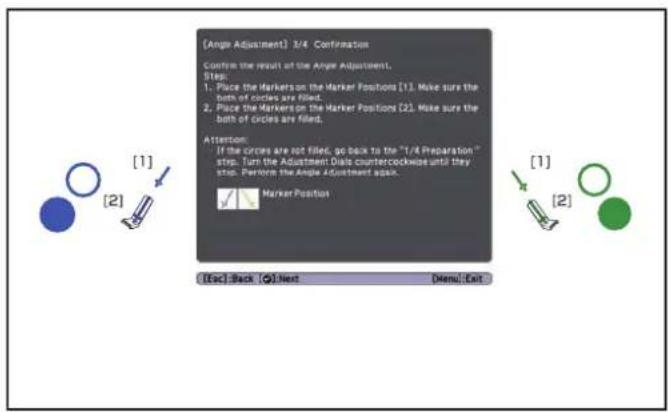

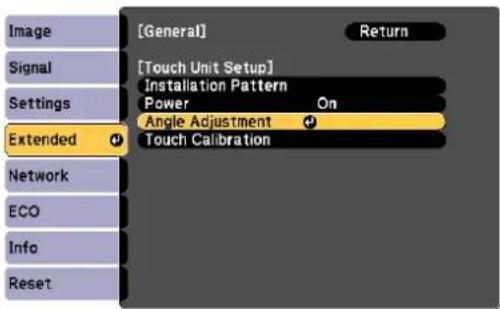

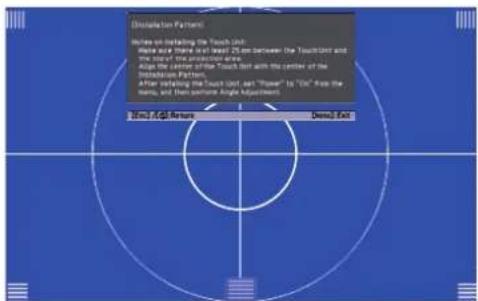

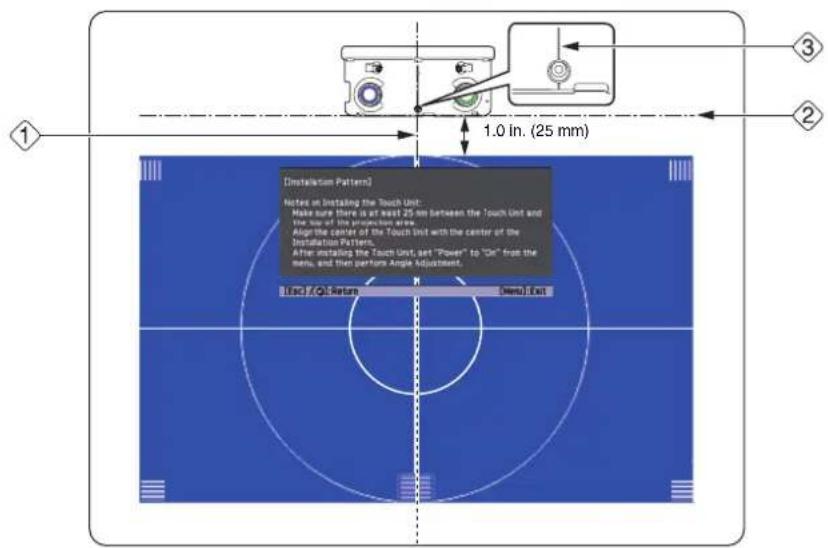

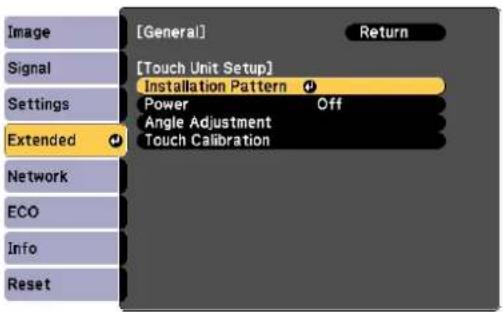

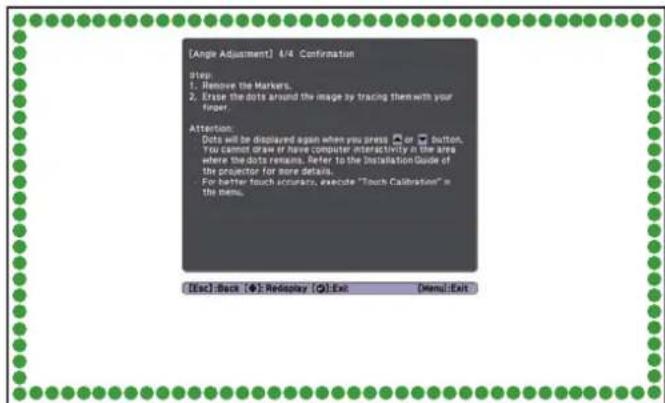

2. Display the installation pattern

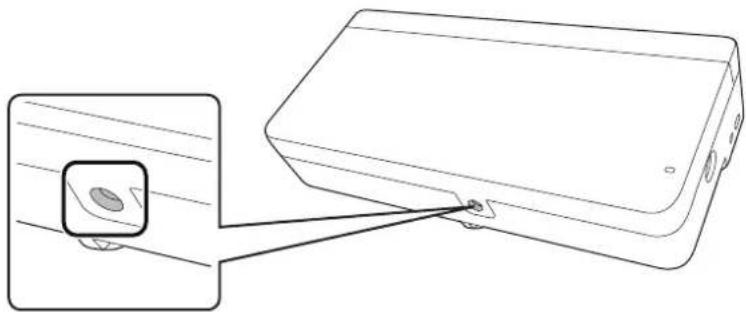

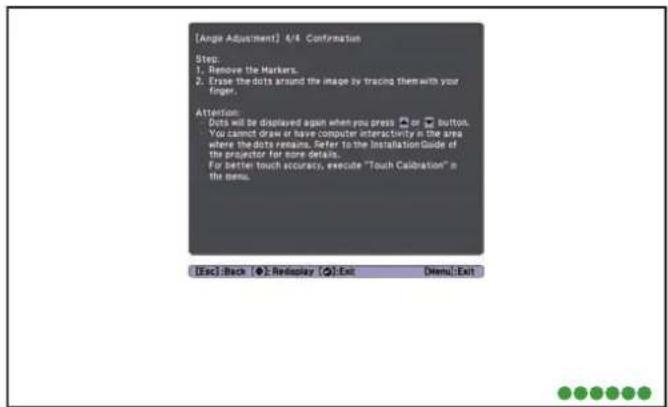

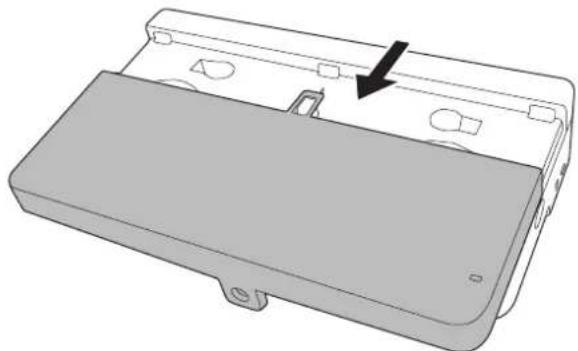

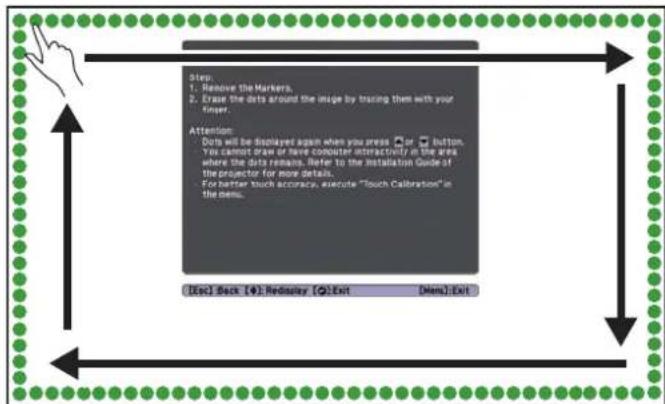

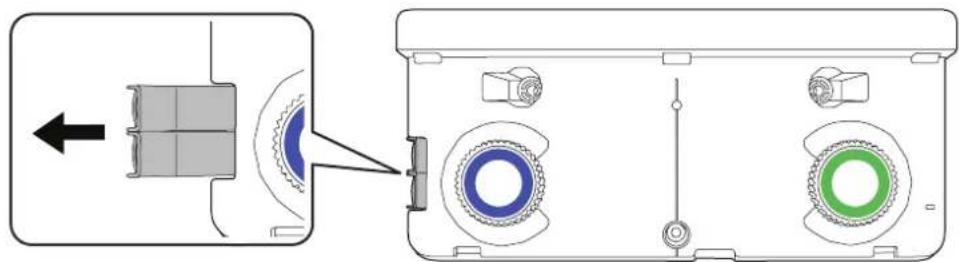

3. Remove the markers

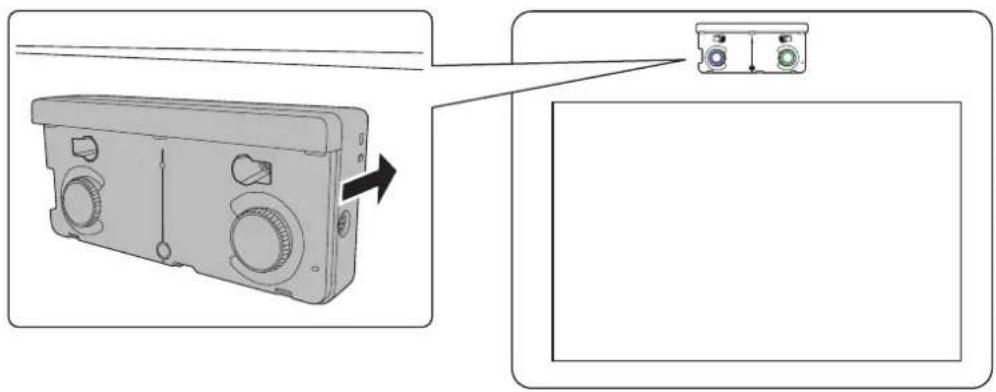

4. Determine the installation position for the Touch Unit

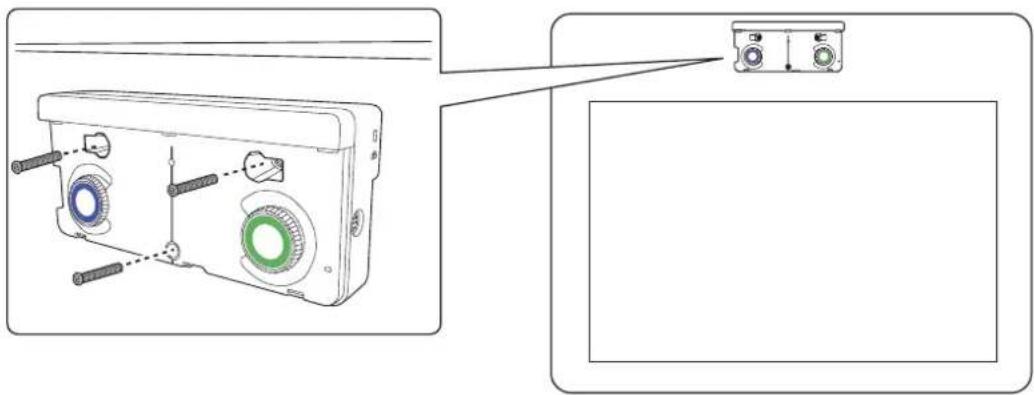

5. Install the Touch Unit

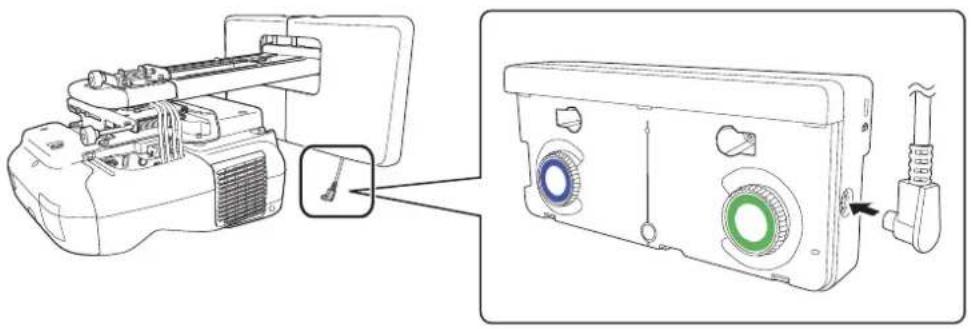

6. Connect the cable

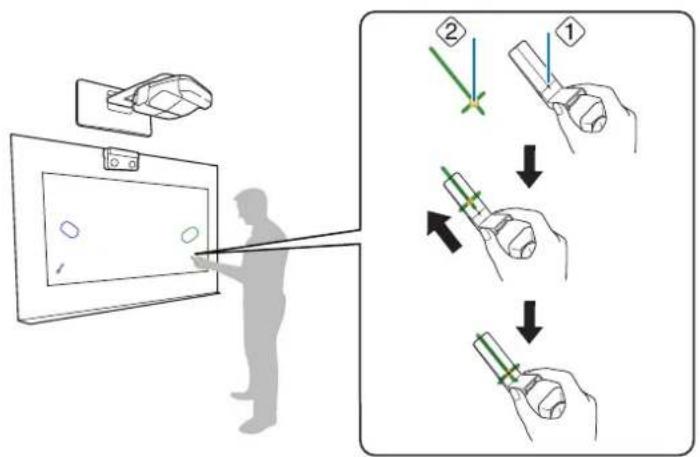

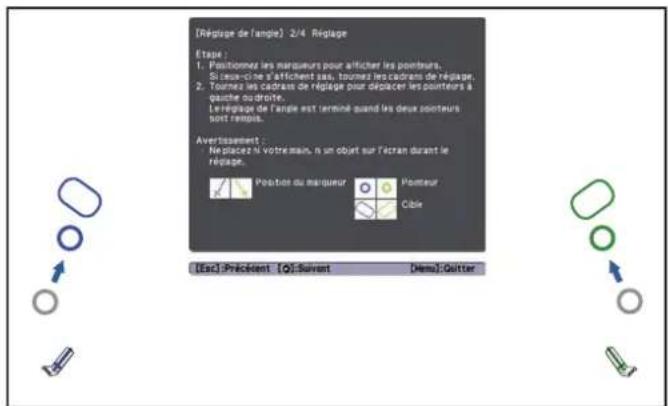

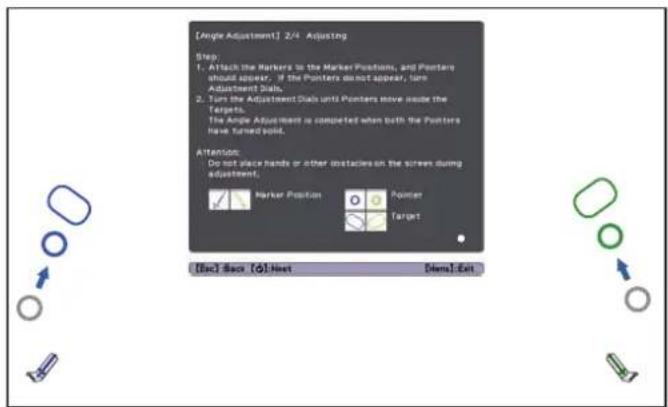

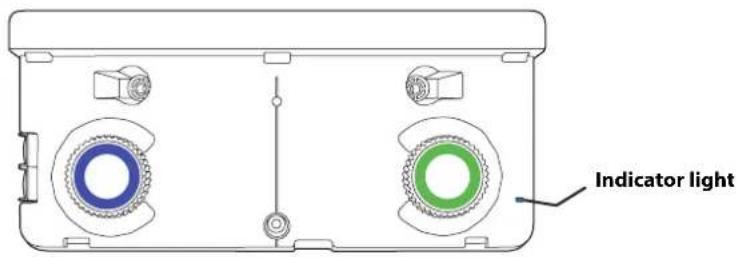

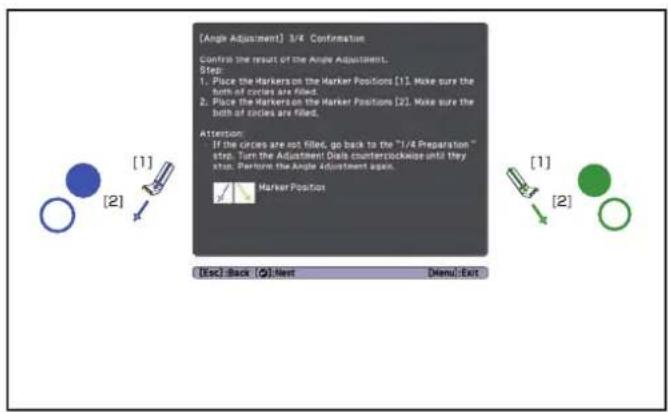

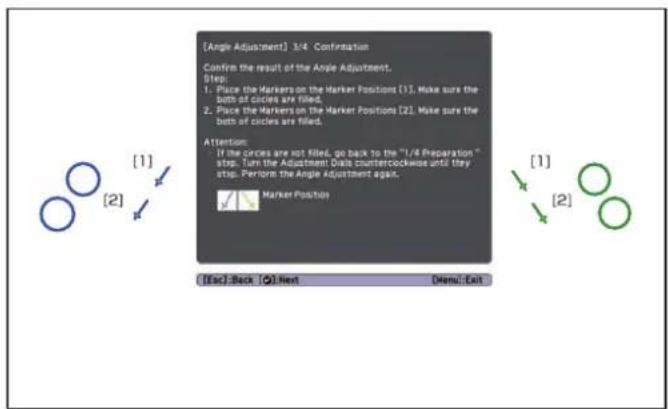

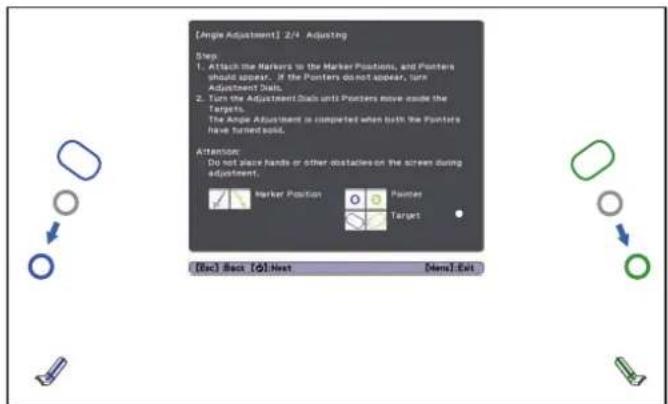

7. Adjust the angle

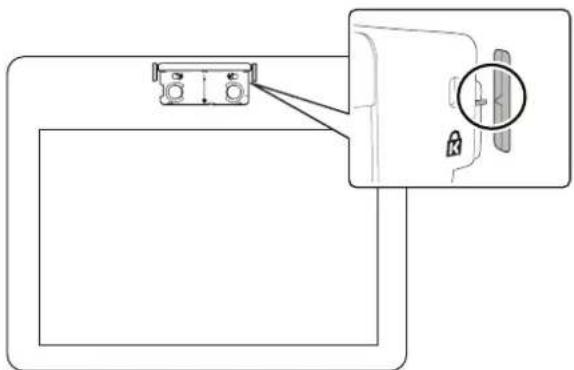

8. Store the markers and attach labels

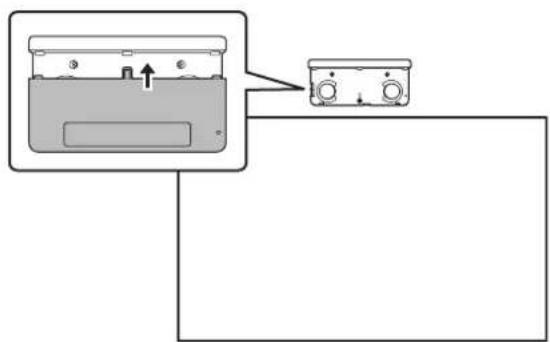

9. Attach cover

9 Installing the Control Pad

62

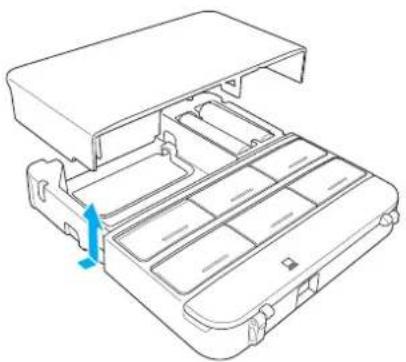

1. Remove the cable cover

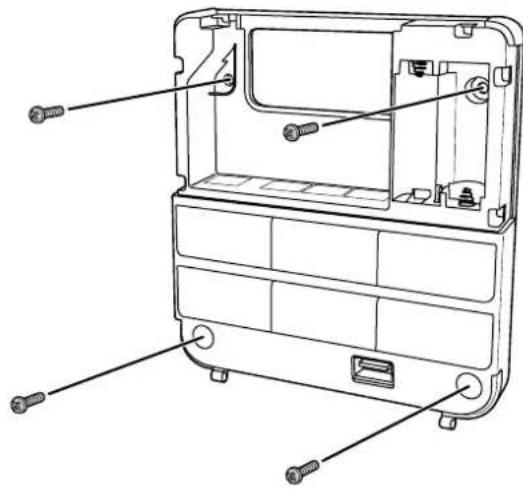

2. Attach the Control Pad

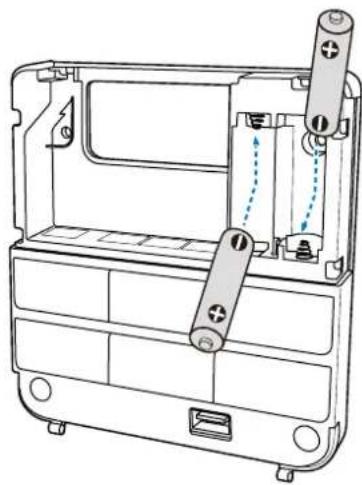

3. Install the batteries

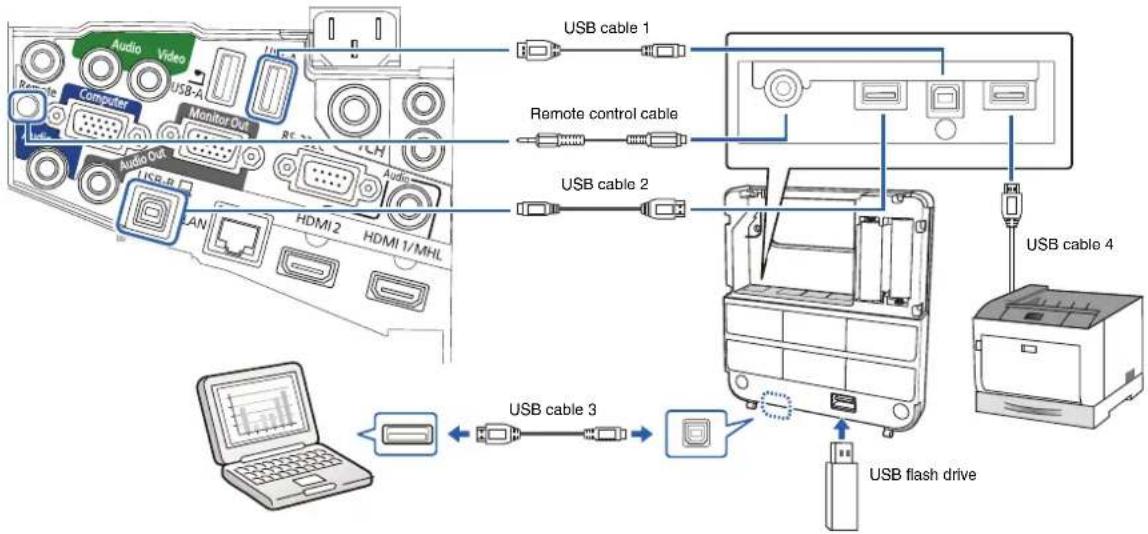

4. Connect the projector cables to the Control Pad

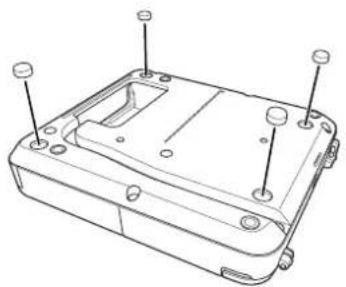

5. Attach the port protection stickers

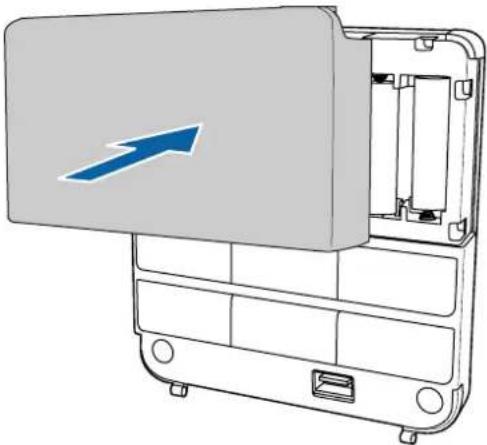

6. Attach the cable cover

10 Appendix

66

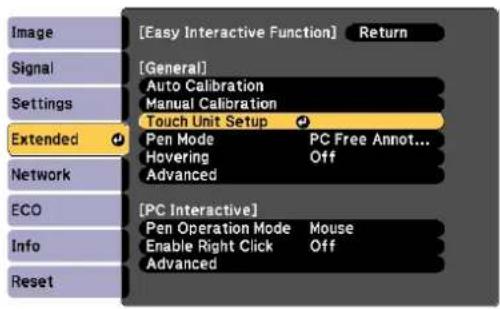

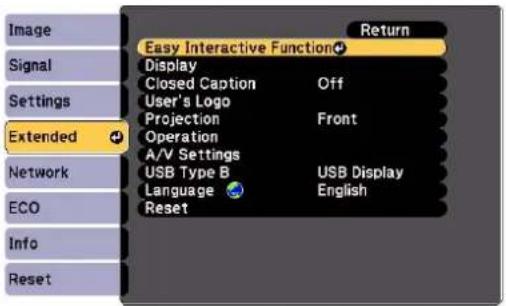

1. Using the Easy Interactive Function

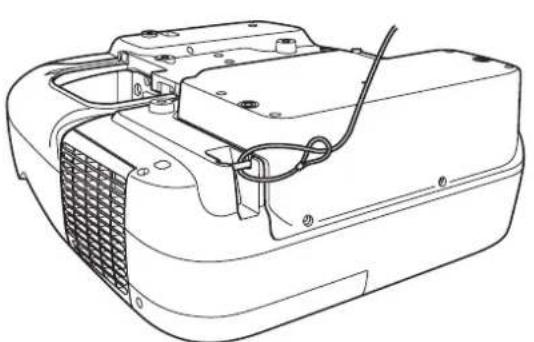

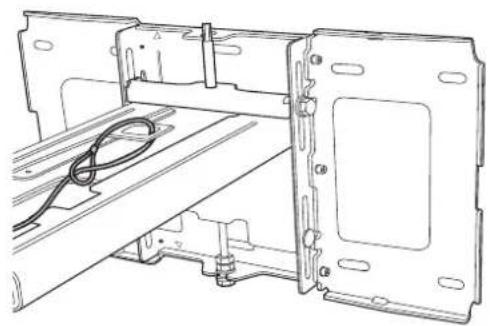

2. Attaching a Security Cable

Wall Mount

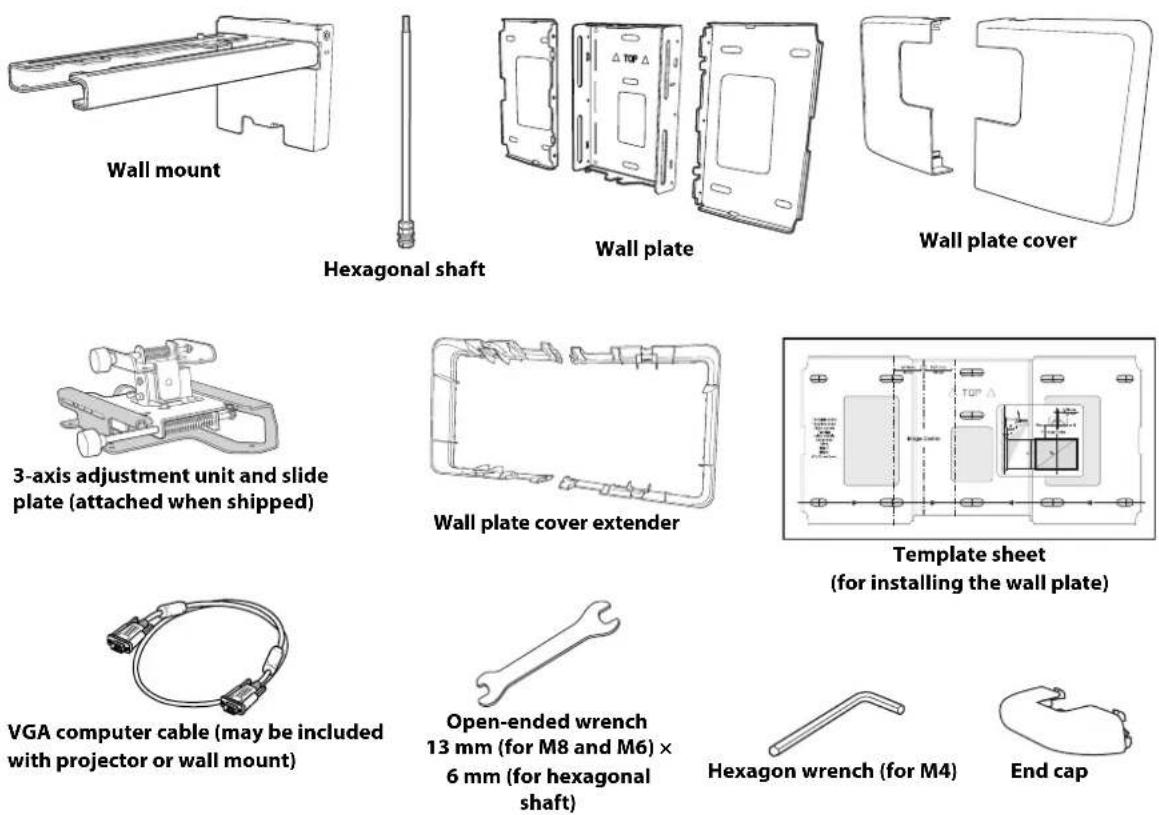

Shape Name	Quantity Application

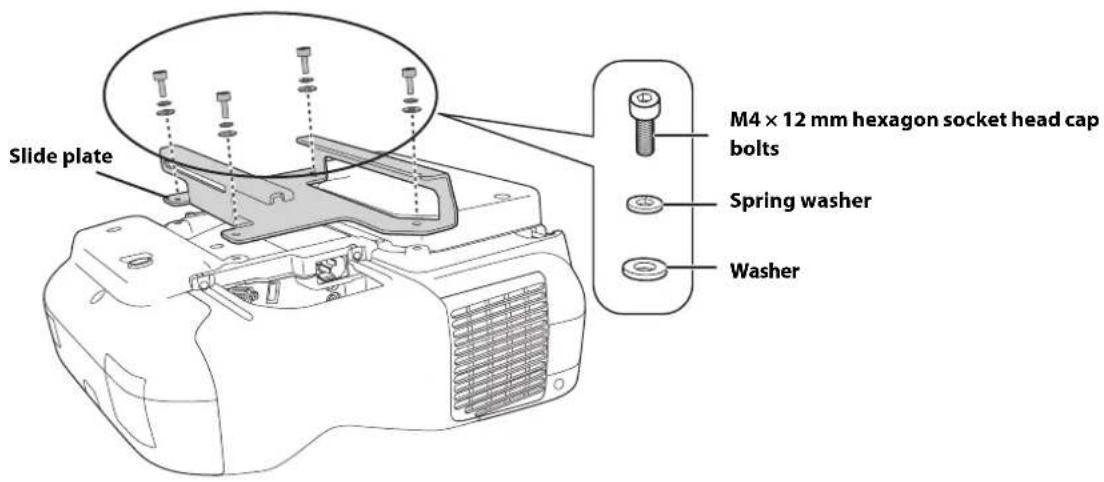

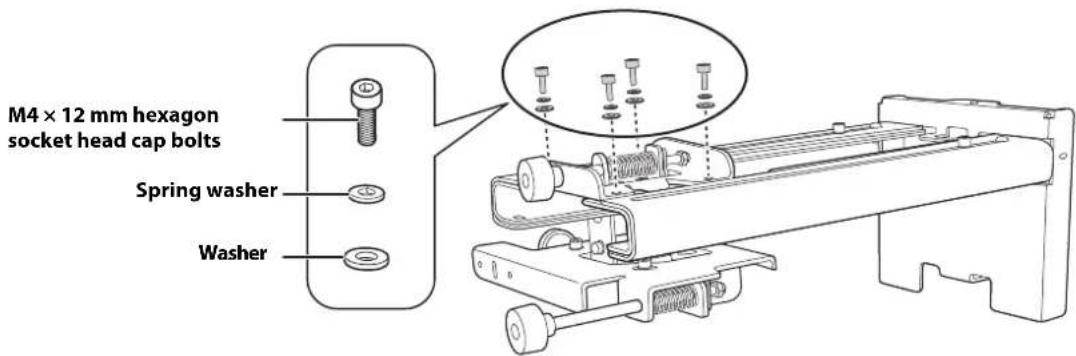

	M4 × 12 mm hexagon socket head cap bolt with washer/spring washer	6 For wall	plate assembly
		4 For 3-axis is adjustment unit/wall mount installation

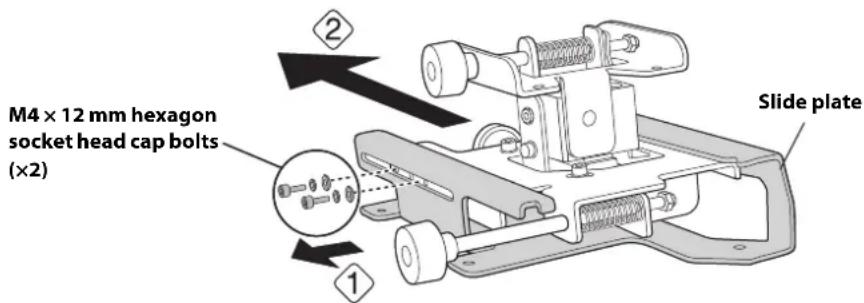

		4 For slide plate/projector installation
		2 For slide plate/3-axis adjustment unit installation (secured when shipped)

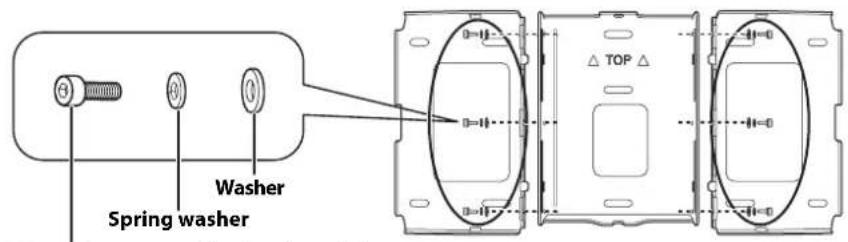

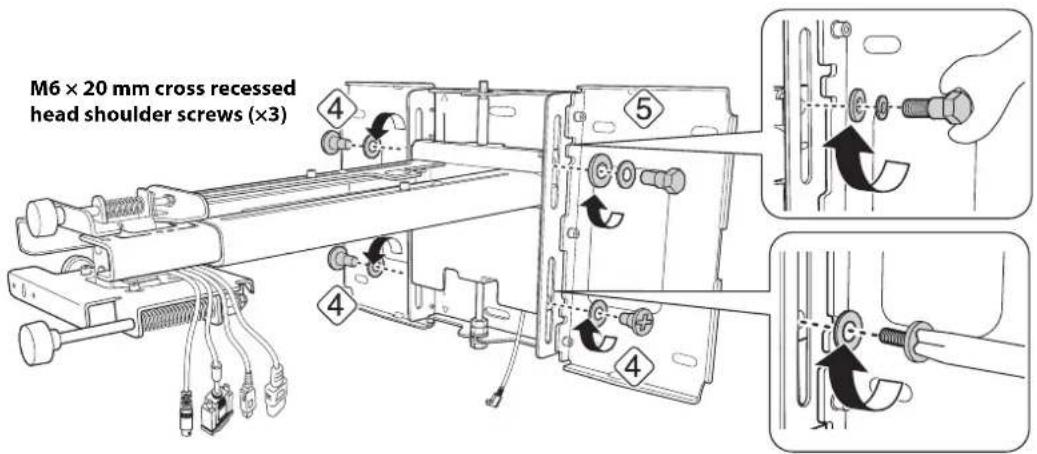

	M6 × 20 mm hexagon shoulder bolt with washer/spring washer	1 For wall	mount/wall plate installation
	M6 × 20 mm cross recessed head shoulder screw with plastic washer	3

• Use the bolts or screws supplied with the wall mount to install it as directed in this guide. Do not substitute these bolts with any other types.

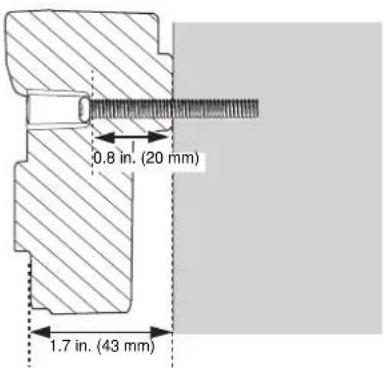

• You need to use commercially available M10 × 60 mm anchors (at least 3) to attach the wall plate to the wall.
  • Gather the tools and parts you need before you begin installation, including a #3 cross-head screwdriver.

Touch Unit

The following parts are packaged with your projector and are necessary when attaching the Touch Unit. When installing the Touch Unit on a non-magnetic surface, you will also need three M4 screws.

Diagram showing a device with three L-shaped connectors connected to a rectangular box (no text or symbols)

Touch Unit and markers (markers are inside the unit)

Spacer for screw hole (×3)

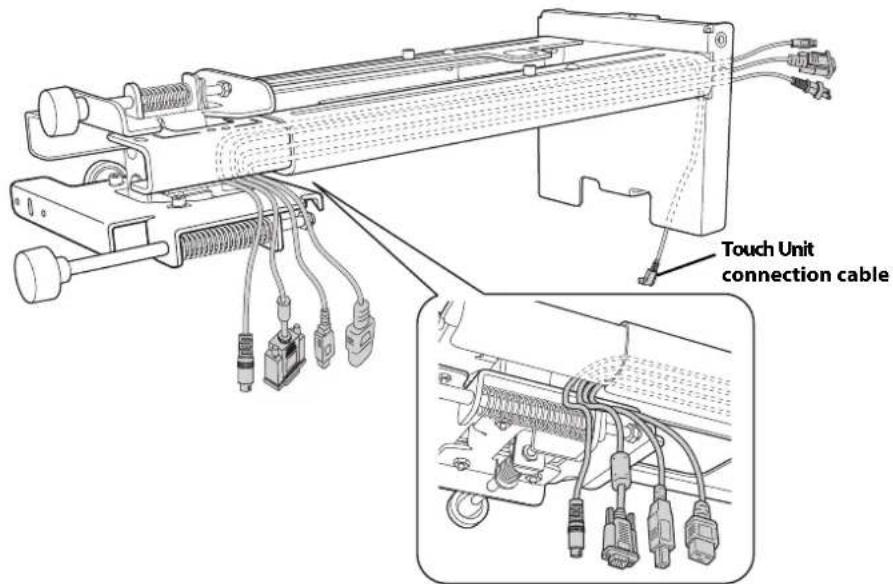

Touch Unit connection cable

Label (×4)

Tape (approx. 2.4 inches [6 cm]) for securing the markers (×12)

Line drawing of a long, thin, cylindrical object with no text or symbols

Infrared deflector (approx. 11.2 inches [28.5 cm]) (×8)

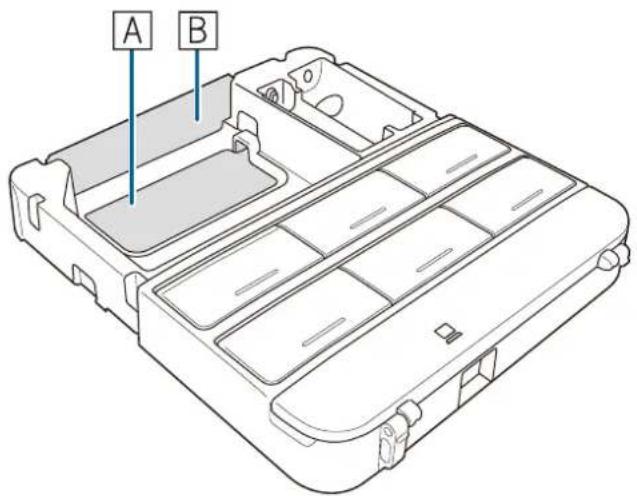

Control Pad

The following parts are packaged with your projector and are necessary when attaching the Control Pad. When installing the Control Pad on a wall, you will also need four M4 × 20 mm screws.

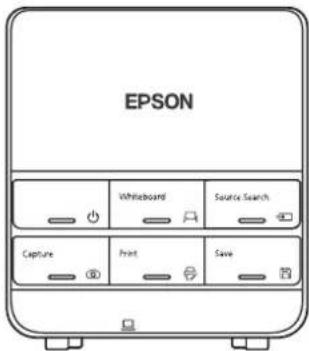

Control Pad

AA size batteries (× 2) Port prot octider feet

stickers

Item	Specification	Additional information	Reference Page
Wall mount weight (including the 3-axis adjustment unit, slide plate, wall plate, wall plate cover, wall plate cover extender, and end cap)	Approx. 18.5 lb (8.4 kg)	Wall mount: 6.6 lb (3.0 kg)3-axis adjustment unit: 2.6 lb (1.2 kg)Slide plate: 1.8 lb (0.8 kg)Wall plate: 6.0 lb (2.7 kg)Wall plate cover and end cap: 0.9 lb (0.4 kg)Wall plate cover extender: 0.6 lb (0.3 kg)	—
Maximum load capacity 15.4 lb (7 kg) — —
Vertical slide adjustment range ± 1.5 in. (38 mm) — Refer to the			illustration below
Horizontal slide adjustment range ± 1.8 in. (45 mm) — Refer to the			illustration on page 11
Forward/backward slide adjustment range	0 to 14.2 in. (360 mm)	Arm slide adjustment range: 0 to 10.7 in. (273 mm)Adjustment from 3-axis adjustment unit installation position: 3.4 in. (87 mm)	Refer to the illustration on page 11
Horizontal roll adjustment range ± 3° Fine adjustments possible with adjustment knob			p. 44
Horizontal rotation adjustment range	± 8° Fine adjustments possible with adjustment knob		p. 44
Vertical tilt adjustment range	± 3° Fine adjustments possible with adjustment knob		p. 45

Wall plate

The wall plate is in three pieces when shipped. Use the included M4 × 12 mm bolts (×6) to attach the separate pieces together before mounting the projector. See page 31 for instructions.

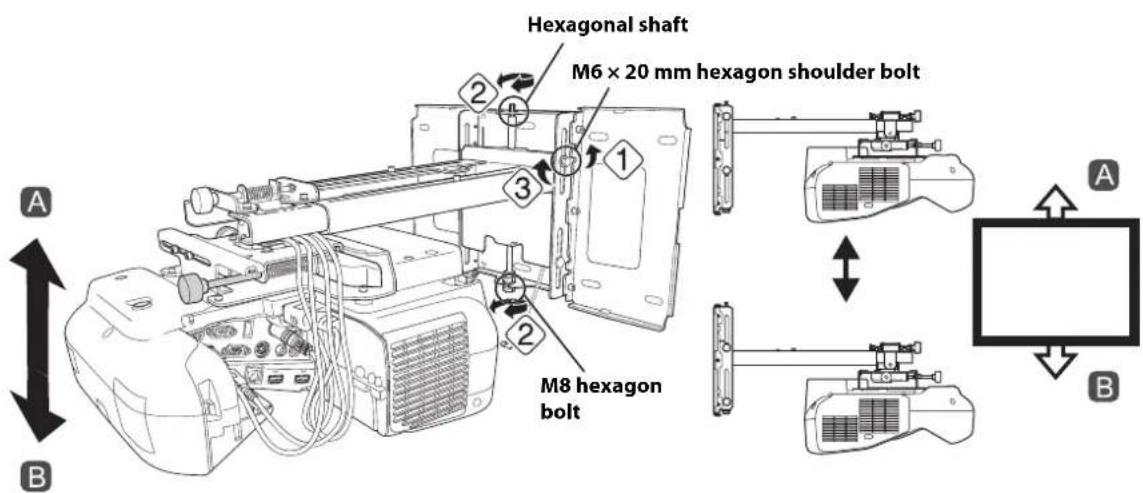

Vertical slide adjustment range

Horizontal slide adjustment range

Forward/backward slide adjustment range

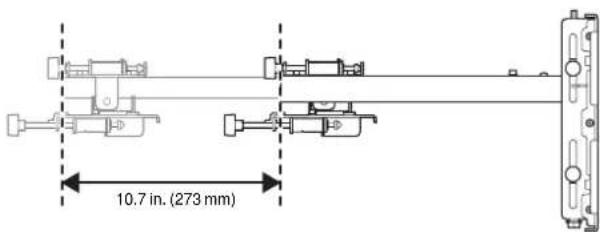

Arm slide adjustment range

Adjustment from 3-axis adjustment unit installation position

By changing the installation position of the 3-axis adjustment unit to the front or back, you can adjust the installation position of the projector.

When the screen size is less than 75 inches, install it at the position marked with a ○ stamp on the mount arm.

When the screen size is 75 inches or more, install it at the position marked with a ○○ stamp on the mount arm.

To see these stamps, you need to remove the two top screws and slide out the arm extension.

Touch Unit

External dimensions and weight

The Touch Unit weighs approximately 16 ounces (450 g).

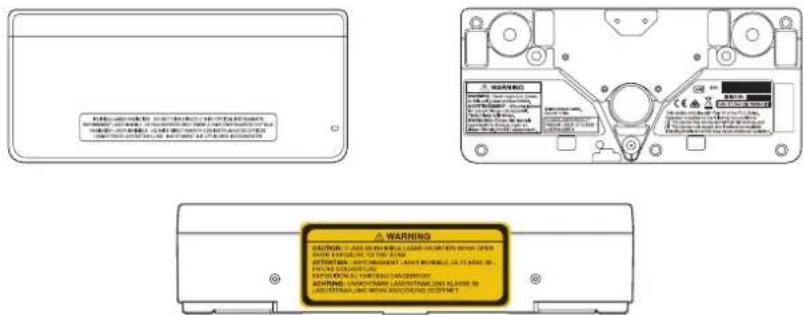

Attached labels

The Touch Unit is a Class 1 laser product that conforms to the JIS C 6802:2011 standard. There are warning labels affixed to the Touch Unit to indicate that it is a Class 1 laser product. The labels contain the following information:

• Invisible laser radiation
  • Do not view the beam directly with optical instruments
  • Class 1 laser product

The laser beam is diffused from the laser diffusion ports on the back of the Touch Unit.

Control Pad

External dimensions and weight

The Control Pad weighs approximately 8.5 ounces (240 g).

Cable routing holes

When routing cables through a wall, use the position (A) in the following figure as the cable routing hole. Otherwise, remove the cable cover (B) and route the cables through the opening. Route the printer cable along the groove on the back of the Control Pad.

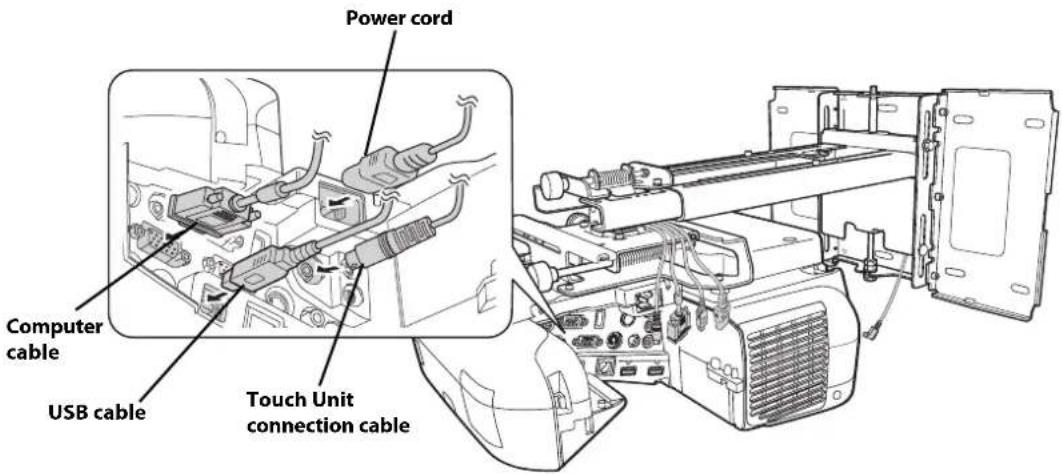

Make sure you have the power cord, computer cable, and other parts at the location where the wall mount is to be installed.

Make sure you also have all necessary cables for the Touch Unit and other devices, such as a document camera or microphone, that you will connect to the projector. Your projector's connection panel may differ slightly from the displayed model. For details, refer to the online User's Guide for your projector.

For Interactive Use

When interacting with a computer, you need a USB cable. However, when using the projector's built-in toolbar, you do not need a USB cable.

Connecting the Control Pad

The Control Pad is included with the BrightLink Pro 1410Wi/1420Wi/1430Wi projectors. It provides a convenient alternative to the remote control for turning on the projector, changing the source, and selecting whiteboard mode. You can also use the control pad to capture, print, and save your projected images.

You must install the control pad on the same surface as the projector, within the range specified in the installation instructions. You can use the included batteries to power the control pad, or the optional remote control cable set (model ELPKC28, part number V12H005C28).

See "Installing the Control Pad" on page 62 for instructions.

BrightLink Pro 1410Wi/1420Wi/1430Wi, BrightLink 475W/485W, BrightLink 575Wi/585Wi/595Wi, BrightLink 575Wi+/585Wi+/595Wi+ and PowerLite 475W/485W/575W/585W can project up to 100 inches diagonally for a WXGA image or 88 inches diagonally for an XGA image. The BrightLink 480i and PowerLite 470/480/570/580 can project up to 93 inches diagonally for an XGA image.

You can project onto a pre-installed whiteboard or directly onto a plain wall. When installing the Touch Unit, install it on the screen that is being used for projection; you need at least 4.7 inches (120 mm) between the top edge of the projected image and the top edge of the screen. The height of the included wall mount determines the maximum image size and how high the image appears on the wall or whiteboard. The distance of the projector from the wall (once it is mounted on the adjustable arm of the wall mount) also affects image size and position.

If you are planning to project on a whiteboard, the image may not fill the entire board, depending on the aspect ratio. If you match the image height to the board's height, gaps may appear on the sides of the board.

Use the following worksheets to determine the proper location of the wall plate on the wall. If you are projecting onto a pre-installed whiteboard, use the worksheet on page 17. If you are projecting on a plain wall, use the worksheet on page 18.

When installing on a whiteboard, make sure to leave the following gaps around the edge of the board:

From the top of the projected image to the bottom of the Touch Unit: 1 inch (25 mm)

☐ From the edges of the projected image to the edges of the board: at least 4 inches (100 mm) left and right

☐From the bottom of the projected image to the bottom of the board: 0.8 inches (20 mm)

If there are obstacles such as cables, whiteboard trays, pen holders, or frames within the areas listed above, the Touch Unit will not operate properly.

Installation worksheet for projecting on a pre-installed wall-mounted board

1. Measure the ceiling height (distance from the floor to the ceiling). ____
2. Measure the height of the board's image area (h). ____ (h)
3. Measure the width of the board's image area (w). ____ (w)
4. Measure the distance from the floor to the bottom of the board's image area (f). ____ (f)
5. Measure the distance from the ceiling to the top of the board's image area (d). ____ (d)
6. Measure the thickness of the board (distance from the projection surface to the wall) (x). ____ (x)

1. Determine the aspect ratio of the board or of the images that will be projected. For new computers or laptops, this will most likely be WXGA (16:10). For older equipment, this will most likely be XGA (4:3). You may need to consult your IT department for this information.

4:3 XGA

16:10 WXGA

16:9 Widescreen

1. Using the tables on pages 21 to 28 for your aspect ratio and desired image height (h), find the required distance between the top of the image area and the bottom holes of ____ (c) the wall plate (c).
2. Determine the position for your projector installation by adding the values for (f), (h), and (c), plus an additional 10 inches for the height of the wall plate plus the cover. If the ceiling height of your room (as noted in step 1) does not meet the minimum ceiling height required for your board, you may need to select a smaller image size or move the board to a lower position on the wall. ____(f) ____(h) ____(c) +10 inches ____ total
3. After confirming your image size, use tape or a pencil to mark the distance (c) from the top of the image area on the board to the bottom holes of the wall plate.

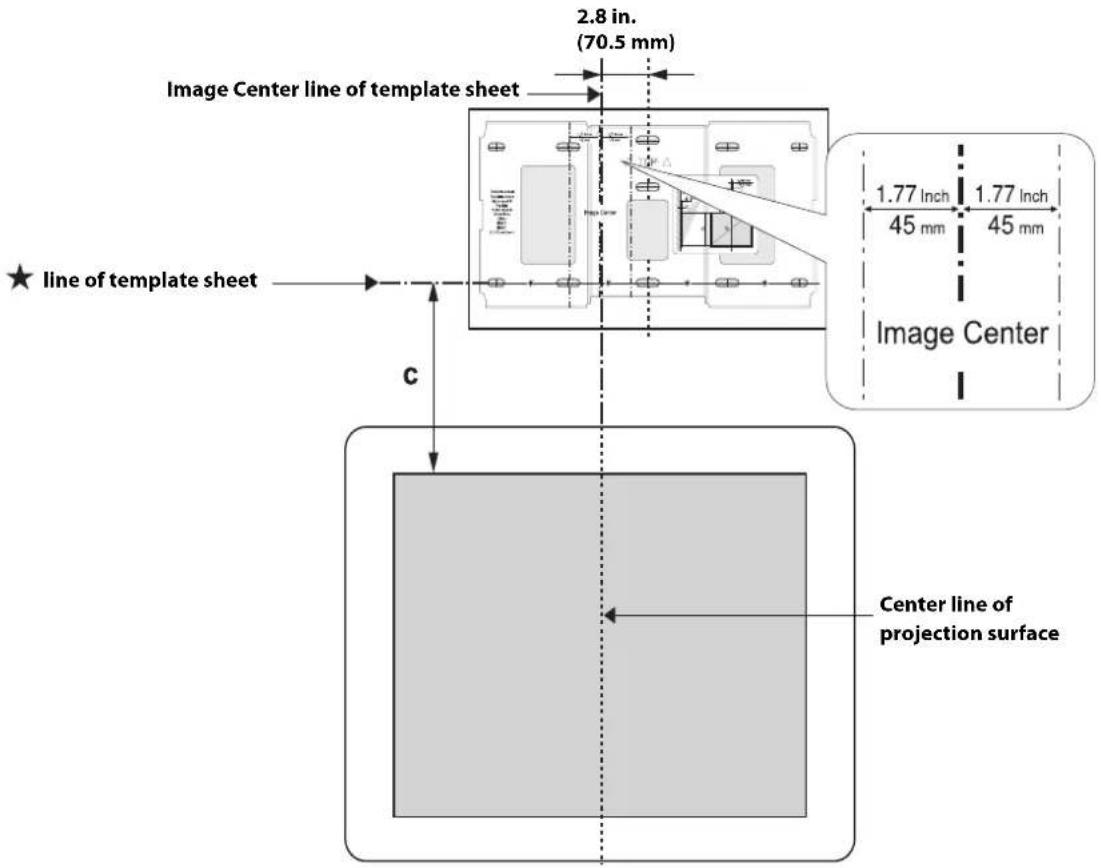

4. Align the ★ line (horizontal) on the template sheet with the (c) mark, then align the center line on the template sheet with the center of the image area. Follow the instructions on page 30 to install the projector.

Installation worksheet for projecting on a plain wall

1. Measure the ceiling height (distance from the floor to the ceiling). ____
2. Determine the desired aspect ratio of the image. For new computers or laptops, this will most likely be WXGA (16:10). For older equipment, this will most likely be XGA (4:3). You may need to consult your IT department for this information.

4:3 XGA

16:10 WXGA

16:9 Widescreen

1. Using the tables on pages 21 to 25 for your aspect ratio, select the largest image size available for your ceiling height.

Image height (h) ____ (h)

Image width (w) ____ (w)

1. Determine the desired distance from the floor to the bottom of the image area (f). ____ (f)

The recommended minimum distance is 30 inches. Images appearing less than 28 inches from the floor may be obstructed for some viewers.

1. Find the top of the projected image area by adding distances (f) and (h).
2. Use the tables on pages 21 to 28 to determine the required distance from the top of the image area to the bottom holes of the wall plate (c). ____ (c)
3. Add:

Required distance from top of image area to bottom holes of wall plate (c) ____ (c)

Height of image area (h) ____ (h)

Distance from floor to bottom of image area (f) ____ (f)

Height of wall plate plus cover +10 inches

If the total exceeds the ceiling height, you will need to reduce the image size or reduce ____ total the distance from the floor to the bottom of the image area.

1. After confirming your image size, use tape or a pencil to mark the distance (c) from the top of the image area on the board to the bottom holes of the wall plate.
2. Align the line (horizontal) on the template sheet with the (c) mark, then align the center line on the template sheet with the center of the image area. Follow the instructions on page 30 to install the projector.

The tables on the following pages provide installation information for all supported image sizes. The minimum ceiling height is based on an image 30 inches from the floor; if the image is lower, the minimum ceiling height is reduced by the corresponding measurement.

Use the worksheets, the illustrations, and the information in the tables on the following pages to determine the projection distance and placement of the wall plate. The recommended range for projection distance (a) as shown on the following pages is 2.5 to 12.2 inches (62 to 311 mm).

Diagonal image size and mounting position

The numbers on the slider measure (b) are the same as the projection distance (a) when the diagonal image size (S) is 75 inches or more. Because the installation position of the projector changes when (S) is less than 75 inches, the numbers for (a) and (b) differ.

In order to see the stamp and the numbers on the slider scale, you need to slide out the arm extension.

When the diagonal image size is 75 inches or more, mount the 3-axis adjustment unit at the position marked with a Stamp.

Technical diagram of a mechanical assembly with internal components and a close-up view (no text or labels)

When the diagonal image size is less than 75 inches, mount the 3-axis adjustment unit at the position marked with a ©stamp.

Technical diagram of a mechanical assembly with no visible text or symbols

Distance from projection surface to wall plate

The distance (c) from the projection surface to the bottom mounting holes on the wall plate is the number given when the vertical slide is set to the base position, as shown below.

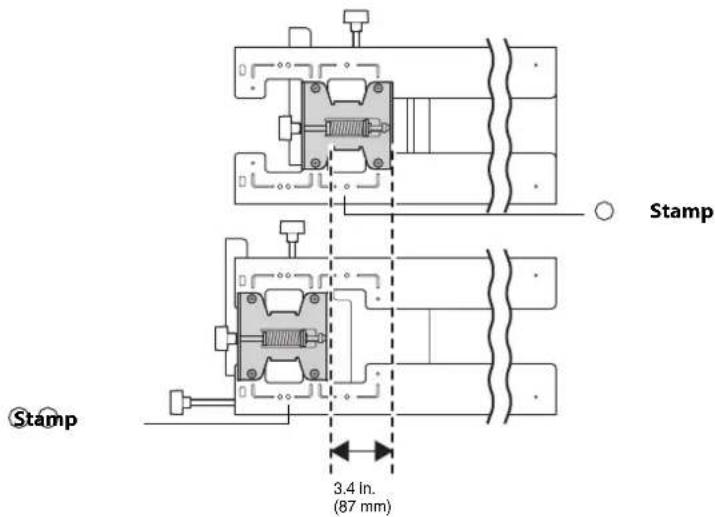

Match the notch on the wall mount to the position of the stamp on the wall plate.

Installation measurement tables

Use the following table to determine which installation measurement table to use for your projector.

Projector model Maximum image	size (diagonal)	Installation measurement table
BrightLink Pro 1410Wi/1420Wi/1430Wi	100 WXGA
BrightLink 475W/485W/575Wi/585Wi/595Wi
BrightLink 575Wi+/585Wi+/595Wi+
PowerLite 475W/485W/575W/585W
BrightLink 480i	93 XGA
PowerLite 470/480/570/580

The measurements may differ depending on the location where you place the projector.

When projecting in Tele, the quality of the projected images may decrease.

When using a WXGA projector to project images at a 4:3 aspect ratio, the images are resized automatically and the quality of the projected images may decrease.

When the wall plate cover extender is installed, the minimum diagonal image size is increased to: WXGA 67" (16:10), 65" (16:9), 59" (4:3); XGA 62" (4:3), 57" (16:9), 59"(16:10).

Installation Measurements in Inches for WXGA Projectors

Diagonal image size (S)	16:10 WXGA 4:3 XGA 16:9 Widescreen
	Min. ceiling height*	Image width (w)	Image height (h)	Min. projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)	Min. ceiling height*	Image width (w)	Image height (h)	Min. projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)	Min. ceiling height*	Image width (w)	Image height (h)	Min. projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)
53" —	—	—	—		—	—	78.7	42.4	31.8	2.5	5.9	6.9	—	—	—	—	—
54" —	—	—	—		—	—	79.4	43.2	32.4	2.7		6.1	7.0	—	—	—	—	—
55" —	—	—	—		—	—	80.1	44.0	33.0	3.0	6.4	7.1	—	—	—	—	—
56" —	—	—	—		—	—	80.8	44.8	33.6	3.3	6.7	7.2	—	—	—	—	—
57" —	—	—	—		—	—	81.5	45.6	34.2	3.6	7.0	7.3	—	—	—	—	—
58"	—	—	—	—		—	82.3	46.4	34.8	3.8		7.3	7.5	—	—	—	—	—
59"	—	—	—	—		—	83.0	47.2	35.4	4.1		7.6	7.6	77.5	51.4	28.9	2.6	6.0
60"	78.7	50.9	31.8	2.5	5.9	6.9	83.7	48.0	36.0	4.4		7.8	7.7	78.1	52.3	29.4	2.9	6.3
61"	79.3	51.7	32.3	2.7	6.1	7.0	84.4	48.8	36.6	4.7		8.1	7.8	78.7	53.2	29.9	3.1	6.5
62"	79.9	52.6	32.9	3.0	6.4	7.1	85.1	49.6	37.2	5.0		8.4	7.9	79.3	54.0	30.4	3.4	6.8
63"	80.6	53.4	33.4	3.2	6.6	7.2	85.8	50.4	37.8	5.2		8.7	8.0	80.0	54.9	30.9	3.6	7.0
64"	81.2	54.3	33.9	3.4	6.9	7.3	86.6	51.2	38.4	5.5		8.9	8.2	80.6	55.8	31.4	3.9	7.3
65"	81.8	55.1	34.4	3.7	7.1	7.4	87.3	52.0	39.0	5.8		9.2	8.3	81.2	56.7	31.9	4.1	7.6
66"	82.5	56.0	35.0	3.9	7.4	7.5	88.0	52.8	39.6	6.1		9.5	8.4	81.8	57.5	32.4	4.4	7.8
67"	83.1	56.8	35.5	4.2	7.6	7.6	88.7	53.6	40.2	6.3		9.8	8.5	82.5	58.4	32.9	4.6	8.0
68"	83.7	57.7	36.0	4.4	7.8	7.7	89.4	54.4	40.8	6.6		10.0	8.6	83.1	59.3	33.3	4.9	8.3
69"	84.4	58.5	36.6	4.7	8.1	7.8	90.2	55.2	41.4	6.9		10.3	8.8	83.7	60.1	33.8	5.1	8.5
70"	85.0	59.4	37.1	4.9	8.3	7.9	90.9	56.0	42.0	7.2		10.6	8.9	84.3	61.0	34.3	5.4	8.8
71"	85.6	60.2	37.6	5.1	8.6	8.0	91.6	56.8	42.6	7.4		10.9	9.0	85.0	61.9	34.8	5.6	9.1
72"	86.3	61.1	38.2	5.4	8.8	8.1	92.3	57.6	43.2	7.7		11.1	9.1	85.6	62.8	35.3	5.9	9.3
73"	86.9	61.9	38.7	5.6	9.1	8.2	93.0	58.4	43.8	8.0		11.4	9.2	86.2	63.6	35.8	6.1	9.6
74"	87.5	62.8	39.2	5.9	9.3	8.3	93.8	59.2	44.4	8.3		11.7	9.4	86.8	64.5	36.3	6.4	9.8
75"	88.2	63.6	39.7	6.1	6.1	8.4	94.5	60.0	45.0	8.5		8.5	9.5	87.5	65.4	36.8	6.6	6.6
76"	88.8	64.4	40.3	6.4	6.4	8.5	95.2	60.8	45.6	8.8		8.8	9.6	88.1	66.2	37.3	6.9	6.9
Diagonal image size (S)	16:10 WXGA						4:3 XGA						16:9 Widescreen
	Min. ceiling height*	Image width (w)	Image height (h)	Min. projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)	Min. ceiling height*	Image width (w)	Image height (h)	Min. projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)	Min. ceiling height*	Image width (w)	Image height (h)	Min. projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)
77"	89.5	65.3	40.8	6.6	6.6	8.6	95.9	61.6	46.2	9.1	9.1	9.7	88.7	67.1	37.8	7.1	7.1	11.0
78"	90.1	66.1	41.3	6.9	6.9	8.8	96.6	62.4	46.8	9.4	9.4	9.8	89.3	68.0	38.2	7.4	7.4	11.1
79"	90.7	67.0	41.9	7.1	7.1	8.9	97.4	63.2	47.4	9.7	9.7	10.0	90.0	68.9	38.7	7.6	7.6	11.2
80"	91.4	67.8	42.4	7.3	7.3	9.0	98.1	64.0	48.0	9.9	9.9	10.1	90.6	69.7	39.2	7.9	7.9	11.4
81"	92.0	68.7	42.9	7.6	7.6	9.1	98.8	64.8	48.6	10.2	10.2	10.2	91.2	70.6	39.7	8.1	8.1	11.5
82"	92.6	69.5	43.5	7.8	7.8	9.2	99.5	65.6	49.2	10.5	10.5	10.3	91.8	71.5	40.2	8.4	8.4	11.6
83"	93.3	70.4	44.0	8.1	8.1	9.3	100.2	66.4	49.8	10.8	10.8	10.4	92.5	72.3	40.7	8.6	8.6	11.8
84"	93.9	71.2	44.5	8.3	8.3	9.4	100.9	67.2	50.4	11.0	11.0	10.5	93.1	73.2	41.2	8.9	8.9	11.9
85"	94.5	72.1	45.0	8.6	8.6	9.5	101.7	68.0	51.0	11.3	11.3	10.7	93.7	74.1	41.7	9.1 9.1	12.0
86"	95.2	72.9	45.6	8.8	8.8	9.6	102.4	68.8	51.6	11.6	11.6	10.8	94.3	75.0	42.2	9.4 9.4	12.2
87"	95.8	73.8	46.1	9.1	9.1	9.7	103.1	69.6	52.2	11.9	11.9	10.9	95.0	75.8	42.7	9.6 9.6	12.3
88"	96.4	74.6	46.6	9.3	9.3	9.8	103.8	70.4	52.8	12.1	12.1	11.0	95.6	76.7	43.1	9.9 9.9	12.5
89"	97.1	75.5	47.2	9.5	9.5	9.9	—	—	—	—	—	—	96.2	77.6	43.6	10.2	10.2 12.6
90"	97.7	76.3	47.7	9.6	9.6	10.0	—	—	—	—	—	—	96.8	78.4	44.1	10.4	10.4 12.7
91"	98.3	77.2	48.2	10.0	10.0	10.1	—	—	—	—	—	—	97.5	79.3	44.6	10.7	10.7 12.9
92"	99.0	78.0	48.8	10.3	10.3	10.2	—	—	—	—	—	—	98.1	80.2	45.1	10.9	10.9	13.0
93"	99.6	78.9	49.3	10.5	10.5	10.3	—	—	—	—	—	—	98.7	81.1	45.6	11.2	11.2	13.1
94"	100.3	79.7	49.8	10.8	10.8	10.4	—	—	—	—	—	—	99.3	81.9	46.1	11.4	11.4	13.3
95"	100.9	80.6	50.3	11.0	11.0	10.5	—	—	—	—	—	—	100.0	82.8	46.6	11.7	11.7	13.4
96"	101.5	81.4	50.9	11.3	11.3	10.6	—	—	—	—	—	—	100.6	83.7	47.1	11.9	11.9	13.5
97"	102.2	82.3	51.4	11.5	11.5	10.7	—	—	—	—	—	—	101.2	84.5	47.6	12.2	12.2	13.7
98"	102.8	83.1	51.9	11.7	11.7	10.9	—	—	—	—	—	—	—	—	—	—	—	—
99"	103.4	84.0	52.5	12.0	12.0	11.0	—	—	—	—	—	—	—	—	—	—	—	—
100"	104.1	84.8	53.0	12.2	12.2	11.1	—	—	—	—	—	—	—	—	—	—	—	—

* Based on an image 30 inches from the floor; if the image is lower, the minimum ceiling height is reduced by the corresponding measurement.

Installation Measurements in Inches for XGA Projectors

Diagonal image size (S)	4:3 XGA 16:10 WXGA 16:9 Widescreen
	Min. ceiling height*	Image width (w)	Image height (h)	Min. projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)	Min. ceiling height*	Image width (w)	Image height (h)	Min. projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes(c)	Min. ceiling height*	Image width (w)	Image height (h)	Min. projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)
52" —		—	—	—		—	—		—		—	—	75.8 —	45.3	25.5	2.6	6.1	10.3
53"	—	—	—	—	—	—	76.9	44.9	28.1	2.5	5.9	8.8	76.4	46.2	26.0	2.9	6.3	10.5
54"	—	—	—	—	—	—	77.6	45.8	28.6	2.8	6.2	9.0	77.1	47.1	26.5	3.2	6.6	10.7
55"	—	—	—	—	—	—	78.2	46.6	29.2	3.1	6.5	9.1	77.8	47.9	27.0	3.5	6.9	10.8
56"	79.6	44.8	33.6	2.5	5.9	6.0	78.9	47.5	29.7	3.4	6.8	9.3	78.5	48.8	27.5	3.8	7.2	11.0
57"	80.3	45.6	34.2	2.7	6.1	6.1	79.6	48.3	30.2	3.6	7.0	9.4	79.2	49.7	27.9	4.1	7.5	11.2
58"	80.9	46.4	34.8	3.0	6.4	6.2	80.3	49.2	30.7	3.9	7.3	9.6	79.8	50.6	28.4	4.4	7.8	11.4
59"	81.7	47.2	35.4	3.3	6.7	6.3	81.0	50.0	31.3	4.2	7.6	9.7	80.5	51.4	28.9	4.6	8.1	11.6
60"	82.3	48.0	36.0	3.5	6.9	6.4	81.7	50.9	31.8	4.5	7.9	9.9	81.2	52.3	29.4	4.9	8.3	11.8
61"	83.1	48.8	36.6	3.8	7.2	6.5	82.4	51.7	32.3	4.7	8.1	10.0	81.9	53.2	29.9	5.2	8.6	12.0
62"	83.7	49.6	37.2	4.1	7.5	6.6	83.1	52.6	32.9	5.0	8.4	10.2	82.6	54.0	30.4	5.5	8.9	12.2
63"	84.4	50.4	37.8	4.3	7.7	6.6	83.7	53.4	33.4	5.3	8.7	10.4	83.2	54.9	30.9	5.8	9.2	12.3
64"	85.1	51.2	38.4	4.6	8.0	6.7	84.4	54.3	33.9	5.6	9.0	10.5	83.9	55.8	31.4	6.1	9.5	12.5
65"	85.9	52.0	39.0	4.8	8.2	6.8	85.1	55.1	34.4	5.8	9.3	10.7	84.6	56.7	31.9	6.4	9.8	12.7
66"	86.5	52.8	39.6	5.1	8.5	6.9	85.8	56.0	35.0	6.1	9.5	10.8	85.3	57.5	32.4	6.6	10.0	12.9
67"	87.2	53.6	40.2	5.4	8.8	7.0	86.5	56.8	35.5	6.4	9.8	11.0	85.9	58.4	32.9	6.9	10.4	13.1
68"	87.9	54.4	40.8	5.6	9.0	7.1	87.2	57.7	36.0	6.7	10.1	11.1	86.6	59.3	33.3	7.2	10.6	13.3
69"	88.6	55.2	41.4	5.9	9.3	7.2	87.9	58.5	36.6	7.0	10.4	11.3	87.3	60.1	33.8	7.5	10.9	13.5
70"	89.3	56.0	42.0	6.1	9.6	7.3	88.5	59.4	37.1	7.2	10.7	11.4	88.0	61.0	34.3	7.8	11.2	13.7
71"	90.0	56.8	42.6	6.4	9.8	7.4	89.2	60.2	37.6	7.5	10.9	11.6	88.6	61.9	34.8	8.1	11.5	13.8
72"	90.7	57.6	43.2	6.7	10.1	7.5	89.9	61.1	38.2	7.8	11.2	11.8	89.3	62.8	35.3	8.3	11.6	14.0
73"	91.4	58.4	43.8	6.9	10.4	7.6	90.6	61.9	38.7	8.1	11.5	11.9	90.0	63.6	35.8	8.6	12.0	14.2
74"	92.1	59.2	44.4	7.2	10.6	7.7	91.3	62.8	39.2	8.3	11.8	12.1	90.7	64.5	36.3	8.9	12.3	14.4

Diagonal image size (S)	4:3 XGA						16:10 WXGA						16:9 Widescreen
	Min. ceiling height*	Image width (w)	Image height (h)	Min. projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)	Min. ceiling height*	Image width (w)	Image height (h)	Min. projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)	Min. ceiling height*	Image width (w)	Image height (h)	Min. projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)
75"	92.8	60.0	45.0	7.4	7.4	7.8	92.0	63.6	39.7	8.6	8.6	12.2	91.4	65.4	36.8	9.2	9.2	14.6
76"	93.5	60.8	45.6	7.7	7.7	7.9	92.6	64.4	40.3	8.9	8.9	12.4	92.0	66.2	37.3	9.5	9.5	14.8
77"	94.2	61.6	46.2	8.0	8.0	8.0	93.3	65.3	40.8	9.2	9.2	12.5	92.7	67.1	37.8	9.8	9.8	15.0
78"	94.9	62.4	46.8	8.2	8.2	8.1	94.0	66.1	41.3	9.5	9.5	12.7	93.4	68.0	38.2	10.1	10.1	15.1
79"	95.6	63.2	47.4	8.5	8.5	8.2	94.7	67.0	41.9	9.7	9.7	12.8	94.1	68.9	38.7	10.3	10.3	15.3
80"	96.3	64.0	48.0	8.8	8.8	8.3	95.4	67.8	42.4	10.0	10.0	13.0	94.7	69.7	39.2	10.6	10.6	15.5
81"	97.0	64.8	48.6	9.0	9.0	8.4	96.1	68.7	42.9	10.3	10.3	13.2	95.4	70.6	39.7	10.9	10.9	15.7
82"	97.7	65.6	49.2	9.3	9.3	8.5	96.8	69.5	43.5	10.6	10.6	13.3	96.1	71.5	40.2	11.2	11.2	15.9
83"	98.4	66.4	49.8	9.5	9.5	8.6	97.4	70.4	44.0	10.8	10.8	13.5	96.8	72.3	40.7	11.5	11.5	16.1
84"	99.1	67.2	50.4	9.8	9.8	8.7	98.1	71.2	44.5	11.1	11.1	13.6	97.5	73.2	41.2	11.8	11.8	16.3
85"	99.8	68.0	51.0	10.1	10.1	8.8	98.8	72.1	45.0	11.4	11.4	13.8	98.1	74.1	41.7	12.1 12.1	16.5
86"	100.5	68.8	51.6	10.3	10.3	8.9	99.5	72.9	45.6	11.7	11.7	13.9	—	—	—	—	—	—
87"	101.2	69.6	52.2	10.6	10.6	9.0	100.2	73.8	46.1	12.0	12.0	14.1	—	—	—	—	—	—
88"	101.9	70.4	52.8	10.9	10.9	9.1	100.9	74.6	46.6	12.2	12.2	14.2	—	—	—	—	—	—
89"	102.6	71.2	53.4	11.1	11.1	9.2	—	—	—	—	—	—	—	—	—	—	—	—
90"	103.3	72.0	54.0	11.4	11.4	9.3	—	—	—	—	—	—	—	—	—	—	—	—
91"	104.0	72.8	54.6	11.6	11.6	9.4	—	—	—	—	—	—	—	—	—	—	—	—
92"	104.6	73.6	55.2	11.9	11.9	9.5	—	—	—	—	—	—	—	—	—	—	—	—
93"	105.3	74.4	55.8	12.2	12.2	9.6	—	—	—	—	—	—	—	—	—	—	—	—

* Based on an image 30 inches from the floor; if the image is lower, the minimum ceiling height is reduced by the corresponding measurement.

Installation Measurements in Millimeters for WXGA Projectors

Diagonal image size (S)	16:10 WXGA 4:3 XGA 16:9 Widescreen
	Min. ceiling height*	Image width (w)	Image height (h)	Min. projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)	Min. ceiling height*	Image width (w)	Image height (h)	Min. projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)	Min. ceiling height*	Image width (w)	Image height (h)	Min. Projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)
53" —	—		—	—		— —	1998 1077	808 62	149 174	— —	—	—	—
54" —	—		—	—		— —	2016 1097	823 69	156 177	— —	—	—	—
55"	—	—	—	—		—	2034 1118	838 76	163 180	— —	—	—	—
56"	—	—	—	—		—	2052 1138	853 83	170 183	— —	—	—	—
57"	—	—	—	—		—	2071 1158	869 91	178 186	— —	—	—	—
58"	—	—	—	—		—	2089 1179	884 98	185 189	— —	—	—	—
59"	—	—	—	—		—	2107	1199	899	105	192	192	1968	1306	735	66	153	217
60"	1998	1292	808	62	149	174	2125	1219	914	112	199	195	1983	1328	747	73	160	220
61"	2014	1314	821	69	156	177	2144	1240	930	119	206	198	1999	1350	760	79	166	223
62"	2030	1335	835	75	162	179	2162	1260	945	126	213	201	2015	1373	772	86	173	227
63"	2046	1357	848	81	168	182	2180	1280	960	133	220	204	2031	1395	785	92	179	230
64"	2063	1379	862	87	174	185	2198	1300	975	140	227	207	2047	1417	797	98	185	234
65"	2078	1400	875	93	180	187	2217	1321	991	147	234	210	2062	1439	809	105	192	237
66"	2094	1422	888	100	187	190	2235	1341	1006	154	241	213	2079	1461	822	111	198	241
67"	2111	1443	902	106	193	193	2253	1361	1021	161	248	216	2094	1483	834	117	204	244
68"	2126	1465	915	112	199	195	2271	1382	1036	168	256	219	2111	1505	847	124	211	248
69"	2143	1486	929	118	205	198	2290	1402	1052	175	262	222	2126	1528	859	130	217	251
70"	2159	1508	942	124	211	201	2308	1422	1067	182	269	225	2142	1550	872	137	224	254
71"	2175	1529	956	131	218	203	2326	1443	1082	189	276	228	2158	1572	884	143	230	258
72"	2191	1551	969	137	224	206	2345	1463	1097	196	283	232	2174	1594	897	149	236	261
73"	2208	1572	983	143	230	209	2364	1483	1113	203	290	235	2190	1616	909	156	243	265
74"	2223	1594	996	149	236	211	2382	1504	1128	210	297	238	2205	1638	921	162	249	268
75"	2240	1615	1010	155	155	214	2400	1524	1143	217	217	241	2222	1660	934	168	168	272
76"	2256	1637	1023	162	162	217	2418	1544	1158	224	224	244	2237	1682	946	175	175	275

Diagonal image size (S)	16:10 WXGA						4:3 XGA						16:9 Widescreen
	Min. ceiling height*	Image width (w)	Image height (h)	Min. projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)	Min. ceiling height*	Image width (w)	Image height (h)	Min. projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)	Min. ceiling height*	Image width (w)	Image height (h)	Min. Projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)
77"	2272	1659	1037	168	168	219	2436	1565	1173	231	231	247	2253	1705	959	181	181	278
78"	2288	1680	1050	174	174	222	2455	1585	1189	238	238	250	2269	1727	971	188	188	282
79"	2304	1702	1063	180	180	225	2473	1605	1204	245	245	253	2285	1749	984	194	194	285
80"	2320	1723	1077	187	187	227	2491	1626	1219	252	252	256	2301	1771	996	200	200	289
81"	2336	1745	1090	193	193	230	2509	1646	1234	259	259	259	2317	1793	1009	207	207	292
82"	2353	1766	1104	199	199	233	2528	1666	1250	266	266	262	2333	1815	1021	213	213	296
83"	2368	1788	1117	205	205	235	2546	1687	1265	273	273	265	2349	1837	1034	219	219	299
84"	2385	1809	1131	211	211	238	2564	1707	1280	280	280	268	2365	1860	1046	226	226	303
85"	2401	1831	1144	218	218	241	2582	1727	1295	287	287	271	2380	1882	1058	232	232	306
86"	2417	1852	1158	224	224	243	2601	1748	1311	294	294	274	2396	1904	1071	239	239	309
87"	2433	1874	1171	230	230	246	2619	1768	1326	301	301	277	2412	1926	1083	245	245	313
88"	2450	1895	1185	236	236	249	2637	1788	1341	308	308	280	2428	1948	1096	251	251	316
89"	2466	1917	1198	242	242	252	—	—	—	—	—	—	2444	1970	1108	258	258	320
90"	2482	1939	1212	249	249	254	—	—	—	—	—	—	2460	1992	1121	264	264	323
91"	2498	1960	1225	255	255	257	—	—	—	—	—	—	2476	2015	1133	270	270	327
92"	2515	1982	1239	261	261	260	—	—	—	—	—	—	2492	2037	1146	277	277	330
93"	2530	2003	1252	267	267	262	—	—	—	—	—	—	2507	2059	1158	283	283	333
94"	2546	2025	1265	273	273	265	—	—	—	—	—	—	2524	2081	1171	290	290	337
95"	2563	2046	1279	280	280	268	—	—	—	—	—	—	2539	2103	1183	296	296	340
96"	2578	2068	1292	286	286	270	—	—	—	—	—	—	2555	2125	1195	302	302	344
97"	2595	2089	1306	292	292	273	—	—	—	—	—	—	2571	2147	1208	309	309	347
98"	2611	2111	1319	298	298	276	—	—	—	—	—	—	—	—	—	—	—	—
99"	2627	2132	1333	304	304	278	—	—	—	—	—	—	—	—	—	—	—	—
100"	2643	2154	1346	311	311	281	—	—	—	—	—	—	—	—	—	—	—	—

* Based on an image 762 mm from the floor; if the image is lower, the minimum ceiling height is reduced by the corresponding measurement.

installation Measurements in Millimeters for XGA Projectors

Diagonal image size (S)	4:3 XGA 16:10 WXGA 16:9 Widescreen
	Min. ceiling height*	Image width (w)	Image height (h)	Min. projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)	Min. ceiling height*	Image width (w)	Image height (h)	Min. projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)	Min. ceiling height*	Image width (w)	Image height (h)	Min. Projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)
52"	—	—	—	—	—	—	—	—	—	—	—	—	1925	1151	648	67	154	261
53"	—	—	—	—	—	—	1952	1142	713	64	151	223	1942	1173	660	74	161	266
54"	—	—	—	—	—	—	1970	1163	727	71	158	227	1959	1195	672	81	168	271
55"	—	—	—	—	—	—	1987	1185	740	78	165	231	1976	1218	685	89	176	275
56"	2021	1138	853	63	150	152	2005	1206	754	85	172	235	1993	1240	697	96	183	280
57"	2039	1158	869	69	156	154	2022	1228	767	92	179	239	2011	1262	710	103	190	285
58"	2056	1179	884	76	163	156	2040	1249	781	99	186	243	2028	1284	722	110	197	290
59"	2074	1199	899	83	170	159	2057	1271	794	106	193	247	2045	1306	735	118	205	294
60"	2091	1219	914	89	176	161	2075	1292	808	113	200	251	2062	1328	747	125	212	299
61"	2110	1240	930	96	183	164	2092	1314	821	120	207	255	2080	1350	760	132	219	304
62"	2127	1260	945	103	190	166	2110	1335	835	127	214	259	2097	1373	772	139	226	309
63"	2145	1280	960	109	196	169	2127	1357	848	134	221	263	2114	1395	785	147	234	313
64"	2162	1300	975	116	203	171	2145	1379	862	141	228	267	2131	1417	797	154	241	318
65"	2181	1321	991	122	209	174	2162	1400	875	148	235	271	2148	1439	809	161	248	323
66"	2198	1341	1006	129	216	176	2179	1422	888	155	242	275	2166	1461	822	168	255	328
67"	2216	1361	1021	136	223	179	2197	1443	902	163	250	279	2182	1483	834	176	263	332
68"	2233	1382	1036	142	229	181	2214	1465	915	170	257	283	2200	1505	847	183	270	337
69"	2251	1402	1052	149	236	183	2232	1486	929	177	264	287	2217	1528	859	190	277	342
70"	2269	1422	1067	156	243	186	2249	1508	942	184	271	291	2235	1550	872	197	284	347
71"	2286	1443	1082	162	249	188	2266	1529	956	191	278	294	2251	1572	884	205	292	351
72"	2304	1463	1097	169	256	191	2283	1551	969	198	285	298	2269	1594	897	212	294	356
73"	2322	1483	1113	176	263	193	2301	1572	983	205	292	302	2286	1616	909	219	306	361
74"	2340	1504	1128	182	269	196	2318	1594	996	212	299	306	2303	1638	921	226	313	366

Diagonal image size (S)	4:3 XGA						16:10 WXGA						16:9 Widescreen
	Min. ceiling height*	Image width (w)	Image height (h)	Min. projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)	Min. ceiling height*	Image width (w)	Image height (h)	Min. projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)	Min. ceiling height*	Image width (w)	Image height (h)	Min. Projection distance (a)	Slider scale mark (b)	Distance from top of image to wall plate holes (c)
75"	2357	1524	1143	189	189	198	2336	1615	1010	219	219	310	2320	1660	934	234	234	370
76"	2375	1544	1158	196	196	201	2353	1637	1023	226	226	314	2337	1682	946	241	241	375
77"	2392	1565	1173	202	202	203	2371	1659	1037	233	233	318	2355	1705	959	248	248	380
78"	2411	1585	1189	209	209	206	2388	1680	1050	240	240	322	2372	1727	971	255	255	385
79"	2428	1605	1204	216	216	208	2405	1702	1063	247	247	326	2389	1749	984	263	263	389
80"	2446	1626	1219	222	222	211	2423	1723	1077	254	254	330	2406	1771	996	270	270	394
81"	2463	1646	1234	229	229	213	2440	1745	1090	261	261	334	2424	1793	1009	277	277	399
82"	2481	1666	1250	236	236	215	2458	1766	1104	268	268	338	2441	1815	1021	284	284	404
83"	2499	1687	1265	242	242	218	2475	1788	1117	275	275	342	2458	1837	1034	292	292	408
84"	2516	1707	1280	249	249	220	2493	1809	1131	282	282	346	2475	1860	1046	299	299	413
85"	2534	1727	1295	256	256	223	2510	1831	1144	289	289	350	2492	1882	1058	306	306	418
86"	2552	1748	1311	262	262	225	2528	1852	1158	297	297	354	—	—	—	—	—	—
87"	2570	1768	1326	269	269	228	2545	1874	1171	304	304	358	—	—	—	—	—	—
88"	2587	1788	1341	275	275	230	2563	1895	1185	311	311	362	—	—	—	—	—	—
89"	2605	1808	1356	282	282	233	—	—	—	—	—	—	—	—	—	—	—	—
90"	2623	1829	1372	289	289	235	—	—	—	—	—	—	—	—	—	—	—	—
91"	2641	1849	1387	295	295	238	—	—	—	—	—	—	—	—	—	—	—	—
92"	2658	1869	1402	302	302	240	—	—	—	—	—	—	—	—	—	—	—	—
93"	2675	1890	1417	309	309	242	—	—	—	—	—	—	—	—	—	—	—	—

* Based on an image 762 mm from the floor; if the image is lower, the minimum ceiling height is reduced by the corresponding measurement.

If you have a pre-existing interactive whiteboard, refer to the table below to identify common models and sizes. If your board is listed here, use the dimensions to reference the installation requirements found on pages 21 to 28.

Interactive whiteboard sizes

Diagonal size	16:10 WXGA	4:3 XGA	16:9 Widescreen
57 inches — PolyVision	TS410 —
60 inches — Hitachi®	Cambridge board 60	RM ClassBoard2 60INTERWRITE BOARD 1060INTERWRITE Dual board 1260	—
63 inches — Hitachi®	StarBoard FX-63 —
64 inches — SMART Board	660	Promethean ActivBoard 164	—
66 inches — TeamBoard	RT TMWM5422CL/EM —
71 inches — INTERWRITE BOARD	1071
75 inches PolyVision®	eno2650 — —
77 inches — Hitachi	Cambridge Board 77	Hitachi StarBoard FX DUO 77SMART Board 680SMART BoardX880INTERWRITE® BOARD 1077TeamBoard RT TMWM6250CL/EM	INTERWRITE Dual board 1277
77.5 inches — RM ClassBoard	2 77.5 —
78 inches PolyVision	TS 600/ TS620 / TSL620 PolyVision TS610	Promethean ActivBoard 178 / 378	—
79 inches — INTERWRITE Dual Board	1279 —
80 inches — RM Classboard	85
82 inches — Hitachi	StarBoard FX-82W
85 inches TeamBoard	RT TMWM7450EM — INTERWRITE BOARD	1085	INTERWRITE Dual Board 1285
87 inches	SMART BoardTM 685SMART BoardX 885Promethean ActivBoard 387Promethean ActivBoard 587 pro	—	—
88 inches Hitachi Star	Board FX DUO-88W — —
89 inches — INTERWRITE Dual Board	1289 —
93 inches — PolyVision ENO	2810
94 inches — SMART Board	690
95 inches — INTERWRITE BOARD	1095		INTERWRITE Dual Board 1295Promethean ActivBoard 395Promethean ActivBoard 595 pro

Make sure to follow the steps below to install the wall mount. If you ignore these steps, the wall mount could fall and cause personal injury or property damage.

Warning

☐ When you mount the projector on the wall with the wall mount, the wall requires enough strength to hold the projector and the wall mount.
This wall mount should be installed on a concrete wall. Confirm the weight of the projector and the wall mount before installation, and maintain the strength of the wall. If the wall is not strong enough, reinforce the wall before installation.
☐ The maximum combined weight of the projector and the wall mount is 32.6 lb (14.8 kg).
☐Do not hang the rest of the cable over the wall mount.
☐ Install the wall mount so that it can sufficiently support the weight of the projector and wall mount, and resist any horizontal vibration. Use M10 nuts and bolts and make sure to use appropriate wall anchors for your wall type. Nuts and bolts smaller than M10 could cause the wall mount to fall.
☐ Epson accepts no responsibility for any damage or injury caused by lack of wall strength or inadequate installation.

Disassemble the parts

Remove the slide plate from the 3-axis adjustment unit.

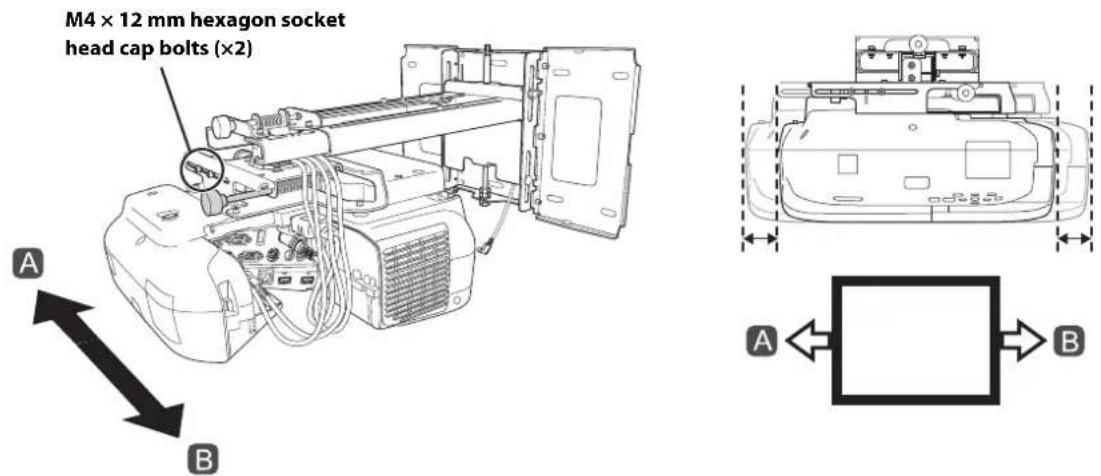

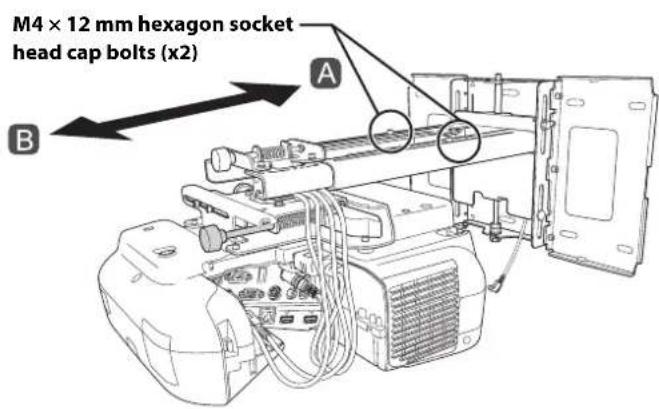

• Remove the M4 × 12 mm hexagon socket head cap bolts (x2) ().1
• Remove the slide plate from the 3-axis adjustment unit (.2)

Assemble the parts

1. Assemble the wall plate.

Assemble the three plates into one unit, and secure them with the M4 × 12 mm hexagon socket head cap bolts (×6) supplied.

M4 × 12 mm hexagon socket head cap bolts

2. Attach the slide plate to the projector.

Attach the slide plate to the projector using the M4 × 12 mm hexagon socket head cap bolts (×4) supplied.

1. Attach the 3-axis adjustment unit to the wall mount.

- Decide which position you want to use for installing the 3-axis adjustment unit.

Mount it at the ○ stamp when the image is less than 75 inches (diagonally), or at the ○ ○ stamp when the projected image is 75 inches or more (diagonally).

○: Less than 75 inches

Pure mechanical assembly diagram without any text, numbers, or symbols

○ ○: 75 inches or more

Pure mechanical assembly diagram without any text, numbers, or symbols

- Tighten the M4 × 12 mm hexagon socket head cap bolts (×4) supplied to install the 3-axis adjustment unit.

Bolt installation positions

When the diagonal image is less than 75 inches

Pure mechanical assembly diagram without any text, numbers, or symbols

When the diagonal image is 75 inches or more

Pure mechanical assembly diagram without any text, numbers, or symbols

Install the wall plate on the wall

1. Determine the template sheet position.

2. From the projection distance table, confirm the screen size (S) and the distance between the projection surface and wall plate bottom holes (c).

3. Align the Image Center line (vertical) of the template sheet with the center line (vertical) of the projection surface.

Confirm where the beams or studs are within the wall, and shift the position of the template left or right as necessary.

The position can be shifted horizontally left or right from the center line of the projection surface up to a maximum of 1.77 in. (45 mm.)

- Align the line (horizontal) on the template with the height of (c).

1. Attach the template sheet to the wall.

If you need to install a junction box, you can use the cutout areas in the wall plate for the box. The junction box needs to be recessed into the wall if you want to use the wall plate cover, or you can use the wall plate cover extender.

1. Determine the position of the wall plate's mounting holes.

Use at least three mounting holes.

• If you are securing the wall plate in four places, drill the holes indicated by A or B in the illustration below.
• If you are securing the wall plate in three places, drill the holes indicated by C in the illustration below.

Three mounting holes

Steps 4 to 8 below provide instructions for attaching the wall plate to a concrete wall.

1. Drill holes of the following diameters and depths.

Drill diameter 0.41 in. (10.5 mm)
Pilot hole depth 1.8 in. (45 mm)
Anchor hole depth 1.6 in. (40 mm)

Diagram of a twisted rope or cable with no text or symbols

1. Remove the template sheet.
2. Use a device such as a dust pump to clean out concrete dust from the hole.

Diagram of a funnel emitting particles through a pipe with directional arrows indicating flow (no text or labels)

1. Position the wall plate on the wall and insert M10 × 60 mm expansion anchors into the holes. Attach the nut and tap it with a hammer until the core touches the top of the anchor.

Diagram showing a mechanical assembly with a bolt and nut, no text or symbols present

1. Tighten the nut with a wrench to secure the wall plate to the wall.

4 Determine the projection distance and pull out the slider

1. Using the tables on pages 21 to 28, check the number for the slider measure (b).
2. Loosen the M4 × 12 mm hexagon socket head cap bolts (×2), and then pull out the slider on the wall mount.

Align the slider with the measure (b+x) that is equal to the slider measure (b) plus the thickness of the projection screen (x) .

For an illustration of how to measure the thickness of the projection screen (x), see page 19.

M4 × 12 mm hexagon socket head cap bolts (×2)

Slider measure

Route the cables through the wall mount arm

BrightLink 595Wi/595Wi+ and BrightLink Pro 1430Wi: Make sure to route the Touch Unit connection cable through the wall mount arm. Route the Touch Unit connection cable so that the end that connects to the Touch Unit appears from the lower part of the wall mount as shown.

Attach the mount arm to the wall plate

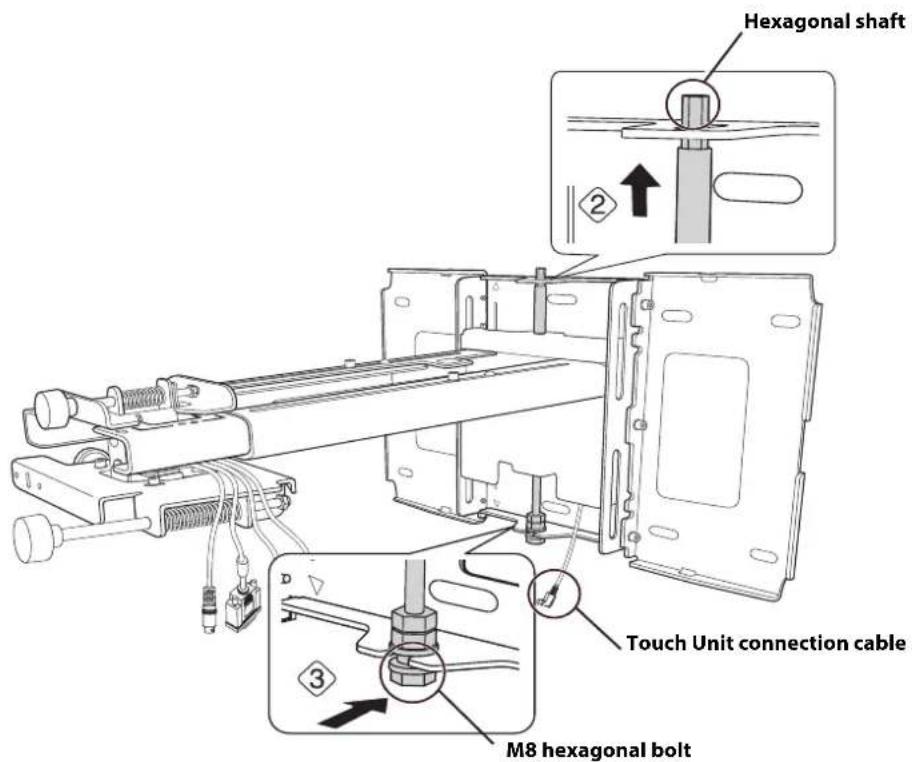

1. Insert the hexagonal shaft into the wall mount (). ①

1. Insert and turn the hexagonal shaft at the top of the mount arm into the slot on the wall plate (②).
2. Insert and turn the M8 hexagon bolt at the bottom of the mount arm into the wall plate (3).

Caution

☐ Make sure the Touch Unit connection cable is not wired into the wall with the other cables. ☐ Take care not to trap the cables between the mount arm and wall plate.

1. Secure the mount arm to the wall plate by tightening the supplied M6 × 20 mm cross recessed head shoulder screws (×3) with the No.3 cross-head screwdriver (4). Then, loosely tighten the M6 × 20 mm hexagon shoulder bolt supplied (5)

Adjust the vertical slide position of the arm

1. Adjust the vertical slide with the M8 hexagon bolt at the bottom of the wall mount, or the hexagonal shaft at the top of the wall mount (1). Start by aligning the notch on the arm with the stamp on the wall plate as shown below.

Tightening the M8 hexagon bolt lowers the wall mount, and loosening the bolt raises it. Tightening the hexagonal shaft raises the wall mount, and loosening the shaft lowers it.

1. Tighten the M6 × 20 mm hexagon shoulder bolt to secure the wall mount ().

Technical line drawing of a mechanical assembly with labeled parts, showing internal components and a close-up inset of a hand holding a knob (no text or symbols present)

Attach the projector to the wall mount

1. Loosen the two screws with a Phillips head screwdriver and remove the cable cover from the projector.

1. Insert the slide plate into the wall mount from the interface side of the projector ( ). 1

Align the 3-axis adjustment unit with the slide plate's alignment mark (2)

1. Tighten the M4 × 12 mm hexagon socket head cap bolts (×2) ().

Warning

When installing or adjusting the wall mount, do not use adhesives to prevent the screws from loosening and do not use lubricants or oils on the projector slide plate. This may cause the case to crack and the projector to fall, resulting in personal injury or property damage.

Connect the power cord and other cables to the projector

Connect any necessary cables such as the computer cable, HDMI cable, USB cable, Touch Unit connection cable, Control Pad cables, and power cord to the projector. See your projector's User Guide for detailed connection information.

Connect the power cord last.

BrightLink 595Wi/595Wi+: When connecting to the Audio1, Audio2, and Computer1 ports, it is recommended that you connect the cables to the ports in the following order: Audio1, Audio2, and then Computer1.

BrightLink Pro 1420Wi/1430Wi: When connecting to the Audio1, Audio Out, and Computer1 ports, it is recommended that you connect the cables to the ports in the following order: Audio1, Audio Out, and then Computer1.

If you are planning to run the cables inside the wall, make sure you follow all local electrical codes. If you are running the cables outside the wall, use a cable management system to keep the cables from obstructing the image. An optional cable management system is available from Epson (part # ELPCK01).

6 Adjusting the Image

To ensure the best image quality, follow the steps below to adjust the projected image.

Do not make adjustments with the Quick Corner or Keystone functions of the projector. Doing so may result in a reduction in image quality and pen calibration.

Follow these guidelines for setting up the projector:

• Make sure the image is evenly rectangular, without distortion.
• Make sure the projector is tilted no more than ± 3^ vertically and horizontally in relation to the projected image.

Projector model Remote control column
PowerLite 470/480/570/580	A
BrightLink 475W/480i/485W/575Wi/585Wi/595Wi
BrightLink 575Wi+/585Wi+/595Wi+
PowerLite 475W/485W/575W/585W
BrightLink Pro 1410Wi/1420Wi/1430Wi B

Turn on the projector

Using the Remote Control A

Using the Remote Control B

Using the Control Panel

Display the test pattern

1. Press the [Help] button.

Using the Remote Control A

Using the Remote Control B

Using the Control Panel

1. Press the button on the remote control, or the [Wide] button on the control panel.

The test pattern is displayed.

Using the Remote Control A/B

Using the Control Panel

The test pattern contains a guide to help you adjust the displayed image if your screen's aspect ratio is the same as the projector's native aspect ratio.

Change the aspect ratio if necessary

Each time you press the [Aspect] button on the remote control, the aspect name is displayed on the screen and the aspect ratio changes. You will need to re-display the test pattern after changing the aspect ratio.

Change the setting according to the signal for the connected equipment.

You may need to project content from a connected device in order to change the aspect ratio.

Alternatively, set the aspect ratio from the Signal menu - Aspect. Following is a list of available aspect settings:

BrightLink 480i and PowerLite 570/580

• Auto: Automatically sets the aspect ratio according to the input signal and the Resolution setting (available only for HDMI image sources).
• Normal: Displays images using the full projection area and maintains the aspect ratio of the image. Choose this setting or Auto to automatically resize the image and make the best use of the display area.
  • 4:3: Displays images using the full projection area at 4:3 aspect ratio.
  • 16:9: Converts the aspect ratio of the image to 16:9. 4:3 ratio images are elongated horizontally to fit.

BrightLink Pro 1410Wi/1420Wi/1430Wi, BrightLink 575Wi/575Wi+/585Wi/585Wi+/595Wi/595Wi+, and PowerLite 575W/585W

• Auto: Automatically sets the aspect ratio according to the input signal and the Resolution setting (available only for HDMI image sources).
• Normal: Displays images using the full projection area and maintains the aspect ratio of the image. Choose this setting or Auto to automatically resize the image and make the best use of the display area.
  • 16:9: Converts the aspect ratio of the image to 16:9. 4:3 ratio images are elongated horizontally to fit.
• Full: Displays images using the full width of the projection area, but does not retain the aspect ratio. 4:3 ratio images are elongated horizontally.
• Zoom: Displays images using the full width of the projection area and maintains the aspect ratio of the image. The image may be cut off on the top and bottom depending on its aspect ratio.
• Native: Displays images as is (aspect ratio and resolution are maintained). Black bands may appear or images may be cut off, depending on the resolution.

Projector User's Guide: Signal Menu

4 Adjust the focus

1. Slide the air filter cover switch () to open the air filter cover ().

1. Use the focus lever to adjust the focus (). ③

1. After you finish making the adjustment, close the air filter cover.

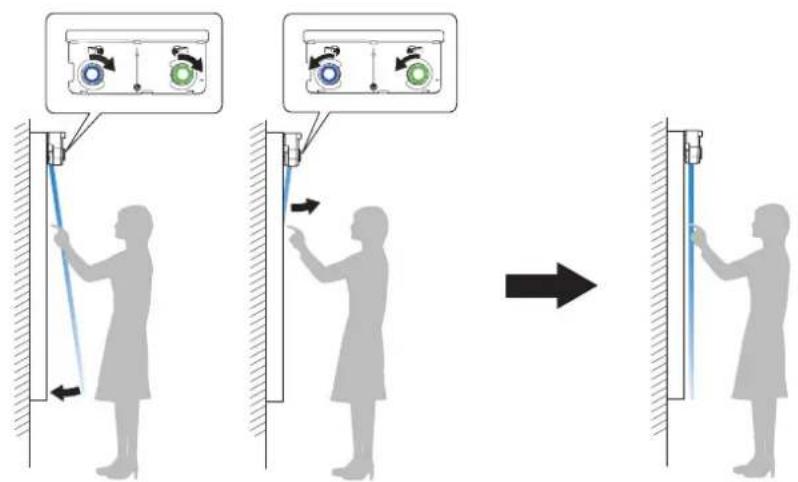

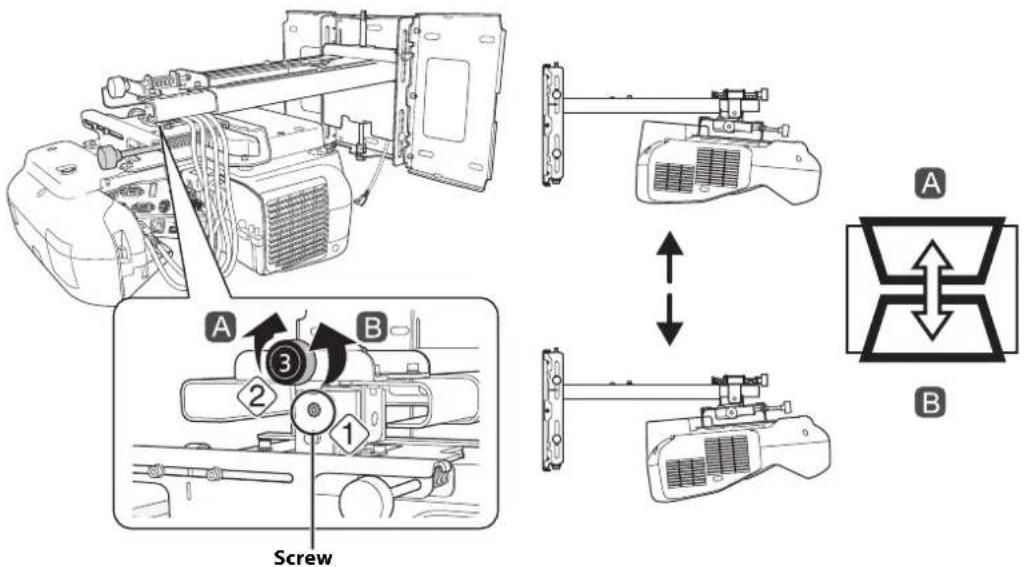

Use the adjustment knob on the left side to adjust the horizontal roll

Repeat steps 5 to 10 as necessary. For each step, you may need to re-display the test pattern as shown in step 2.

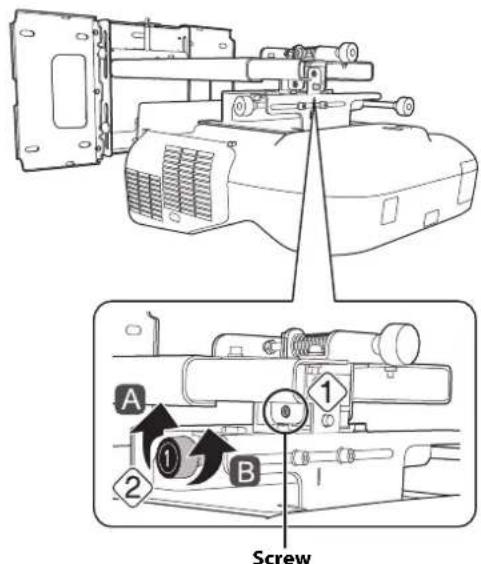

1. Loosen the screw () to unlock the adjustment knob.


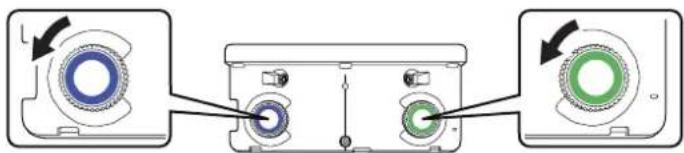

1. Turn the orange knob () in adjust the horizontal roll ().

1. After you finish making all of the adjustments in steps

⑤ to ⑩, tighten the screw you loosened in

Use the adjustment knob on the right side to adjust the horizontal rotation

1. Loosen the screws (x2) to unlock the adjustment knob().

1. Turn the dark blue knob () ② adjust the horizontal rotation ().

1. After you finish making all of the adjustments in steps

⑤ to ⑩, tighten the screws (x2) you

loosened in 1

⑦ Use the adjustment knob on the top to adjust the vertical tilt

1. Loosen the screw () to unlock the adjustment knob.

1. Turn the light blue knob () to adjust the vertical tilt ().

1. After you finish making all of the adjustments in steps

⑤ to ⑩, tighten the screw you loosened in

8 Adjust the horizontal slide

1. Loosen the M4 × 12 mm hexagon socket head cap bolts (×2), and then adjust the slider for the slide plate.

1. After you finish making all of the adjustments in steps ⑤ to ⑩, tighten the M4 × 12 mm hexagon socket head cap bolts (×2).

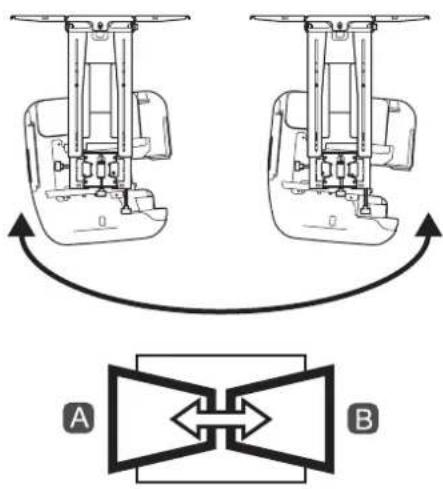

Adjust the forward/backward slide

1. Loosen the M4 × 12 mm hexagon socket head cap bolts (×2), and then adjust the slider for the wall mount.

Diagram showing two mechanical device configurations with arrows indicating alignment or movement (no text or symbols present)

B

1. After you finish making all of the adjustments in steps socket head cap bolts (×2).

⑤ to ⑩, tighten the M4 × 12 mm hexagon

Adjust the vertical slide

1. Loosen the M6 × 20 mm hexagon shoulder bolt ().
2. Adjust the vertical slide with the M8 hexagon bolt at the bottom of the wall mount, or the hexagonal shaft at the top of the wall mount ( )②
   Tightening the M8 hexagon bolt lowers the wall mount, and loosening the bolt raises it. Tightening the hexagonal shaft raises the wall mount, and loosening the shaft lowers it.

1. Tighten the M6 × 20 mm hexagon shoulder bolt you loosened in the first step (). 3

Turn off the display of the test pattern

Press the [Esc] button on the remote control or control panel to turn off the test pattern.

Warning

Tighten all screws firmly. Otherwise, the projector or wall mount may fall and cause personal injury or property damage.

7 Attaching the Covers

Attach the wall plate cover and end cap

If you need to use a security cable, make sure you attach it before installing the wall plate cover. See page 66 for instructions.

You can use the wall plate cover extender (if included) to increase the depth of the wall plate cover and accommodate larger cables and plugs.

To add the extender, clip each half of the extender to the wall plate cover pieces before you attach the cover to the mount.

Adding the wall plate cover extender limits the minimum size of the projected image. See page 20 for more information.

1. Attach the wall plate cover (1). Snap the tabs on the cover into the holes on the wall plate. (If you need to remove the cover, press the tabs.)

Depending on how the cables are wired, you may need to cut out parts of the wall plate cover to allow the cables to be passed through it.

When cutting the thin section of the wall plate cover and passing the cables through, make sure you perform deburring to smooth off any sharp edges to prevent damaging the cables.

Also, make sure you operate the cutter safely.

1. Place the end cap with the concave portion facing up (). ②

Attach the cable cover to the projector

Attach the cable cover and use a Phillips head screwdriver to tighten the screws (x2) and secure the cable cover.

Caution

Only a specialist should remove or reinstall the projector, including for maintenance and repairs. Refer to your projector's User's Guide for instructions on maintenance and repairs.

Warning

☐ Never loosen the bolts and nuts after installation. If you find any loose screws, tighten them firmly. Otherwise, the projector or wall mount may fall and cause personal injury or property damage.
☐ Do not hang on the wall mount or hang a heavy object on the wall mount. If the projector or wall mount falls, it could cause personal injury or property damage.

The following procedures must have been completed before installing the Touch Unit:

• Installing the projector (see page 30)
- Adjusting the projected image (see page 41)

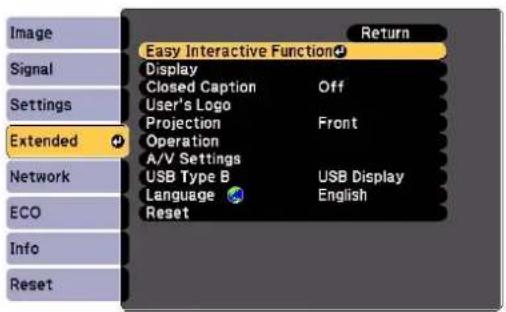

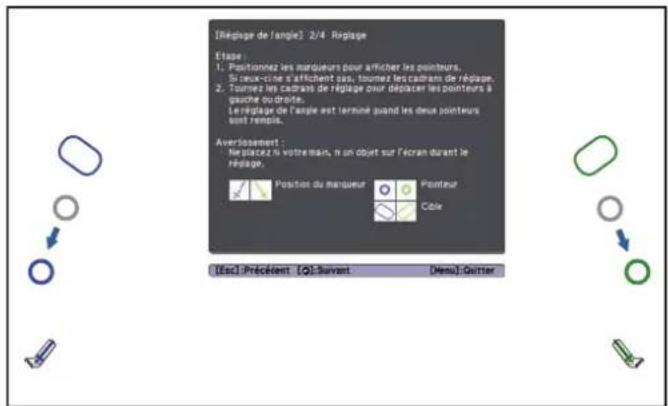

• Calibrating the interactive pen(s)

Refer to your projector User's Guide or Start Here folder for detailed instructions.

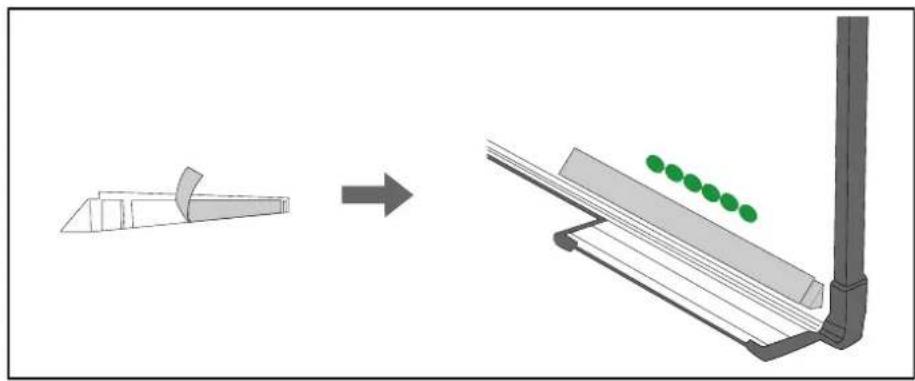

☐ There are magnets built in to the back of the Touch Unit. Typically, the Touch Unit should be installed by attaching the magnets to the screen or whiteboard.

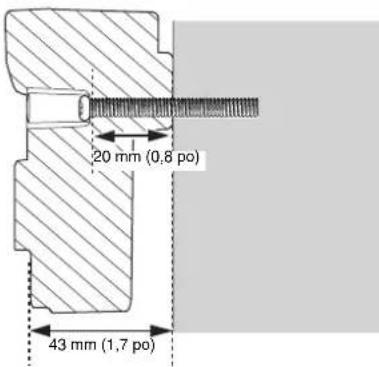

☐If the magnets cannot be attached, use commercially available M4 screws (×3).
☐ Install the Touch Unit on a flat, smooth, unwarped surface that is the same level surface as the screen surface. If there is unevenness on the screen surface of more than 0.2 inches (5 mm) in any direction, your fingers may not be detected and finger touch operations may not be performed correctly.

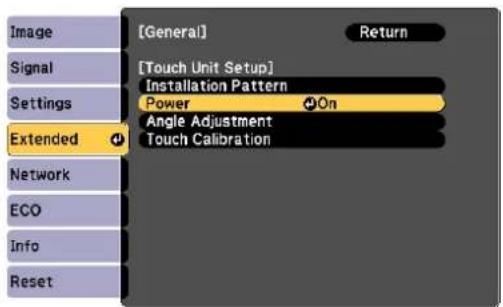

Follow the steps below to install the Touch Unit and connect to the projector. Some menus may differ slightly from the illustrations, but the installation instructions are the same.

Caution

The Touch Unit should only be connected to the BrightLink 595Wi/595Wi+ or BrightLink Pro 1430Wi models. Do not connect the Touch Unit to any other projectors or devices.

Turn on the projector

Using the Remote Control BrightLink 595Wi/595Wi+

Using the Remote Control BrightLink Pro 1430Wi

Using the Control Panel

Display the installation pattern

1. Select Easy Interactive Function from the Extended menu.

2. Select Touch Unit Setup.

3. Select Installation Pattern.

The Installation pattern is displayed on the projected image.

Remove the markers

1. Loosen the screw at the bottom of the dial cover.

Line drawing of a device with an inset showing a small circular feature on its surface (no text or symbols)

1. Slide the dial cover down to remove it.

3D rendering of a device casing with a black arrow pointing to a component (no text or symbols)

1. Remove the two markers from inside the Touch Unit.

Diagram showing a device with a left-side component and a close-up view of its internal components (no text or symbols)

Use the markers to perform the angle adjustment (p. 53) after installing the Touch Unit.

Determine the installation position for the Touch Unit

Mark the following installation positions:

• (1): The center line of the installation pattern; align it with the center line of the Touch Unit (3).
- (2): 1 inch (25 mm) from the top edge of the projected image; align with the bottom edge of the Touch Unit.

The Touch Unit must be installed above the image area.

Install the Touch Unit

- For magnetic screens, place the back of the Touch Unit on the screen surface to secure it.

Caution

When installing the Touch Unit on a magnetic surface, be careful not to trap your fingers or any other part of your body between the magnets and the installation surface.

- For non-magnetic screens, secure the Touch Unit with three (3) M4 screws (not included).

Connect the cable

Connect the Touch Unit connection cable that is connected to the projector to the port on the Touch Unit.

Technical line drawing of a sewing machine with a close-up view of its internal components (no text or symbols present)

Adjust the angle

Adjust the angle of the laser light coming from the Touch Unit so that the Touch Unit can detect the position of your fingers.

Make sure to calibrate the interactive pen(s) before adjusting the angle. Press the User button on the remote control and select Yes to perform an auto-calibration. Refer to the projector's User's Guide for detailed instructions on calibrating the pen(s).

1. Select Easy Interactive Function from the Extended menu.

2. Select Touch Unit Setup.

3. Select Power and set to On.

The Touch Unit power turns on and the indicator light turns blue.

Warning

Do not look into the projector's projection window or the Touch Unit's laser diffusion ports (located on the back of the Touch Unit); this could cause injury to eyesight.

When Power is set to On, the Touch Unit automatically powers up the next time the projector is turned on.

4. Select Angle Adjustment.

The Angle Adjustment screen is displayed.

1. Turn the adjustment dials on the Touch Unit counterclockwise until you hear a click. Then, press the button on the remote control.

Diagram showing three circular components with arrows indicating rotation or movement, no text or symbols present

When adjusting the dials, make sure to stop turning when you hear the click.

1. Attach the two markers you removed from the Touch Unit to the marker positions shown on the

projected screen ( ).

Match the positions so that the crosses (1) overlap with the points (2) on the marker positions

( ).Move the marker over the projected cross until the lines of the cross align with the lines on the marker.

When pointers ( )() with the same color (blue and green) as the marker positions are displayed on the left and right of the projection screen, attach the markers to the projection screen as follows:

• For magnetic screens: Place the bottom of the markers onto the screen.
• For non-magnetic screens: Use the supplied tape to secure the markers. Attach the tape so that each end of the marker is secure on the screen.

Two technical line drawings of a mechanical component with cross-shaped and rectangular features, no text or symbols present.

Correct position Incorrect position

Do not place anything other than the markers near the projected image during angle adjustment. If other objects are on the projected image, angle adjustment may not be performed correctly.

1. Turn the adjustment dials on the Touch Unit to move the pointers (○) (○) so that they move

inside of the target ( ) ()

of the same color (blue and green) on either side.

Turning an adjustment dial clockwise moves the pointer diagonally up towards the center of the projected image.

Diagram showing two connected devices with circular components and directional arrows, no text or symbols present

Turning an adjustment dial counterclockwise moves the pointer diagonally down away from the center of the projected image.

Diagram showing two identical devices connected by a central panel with directional arrows indicating rotation (no text or symbols present)

When the pointers are inside the target, the colors become solid ( ) ( ).

☐If a dial makes a clicking sound, the pointer will not move any further.

□When turning the dials, make sure shadows from your arm and body do not cover the markers.

1. When the pointers on the left and right become solid colors (●) (●), press the ↙ button on the remote control. The following screen is displayed:

1. Place the markers at the top marker positions [1]. When angle adjustment is performed correctly, the upper pointers become solid colors (●) (●). If the upper pointers do not become solid colors (●), start again from step 4.

1. Place the markers at the bottom marker positions [2]. When angle adjustment is performed correctly, the bottom pointers become solid colors (●) (●). If the bottom pointers do not become solid colors (●), start again from step 4.

1. When you have finished checking the marker positions, remove the markers and press the button on the remote control. The following confirmation screen is displayed:

1. Trace the dots with your finger as shown. When angle adjustment is performed correctly, the traced dots disappear.

Finger touch operations may not function correctly if you are wearing bandages, artificial nails, nail polish, or anything else that may obstruct your fingers.

When all of the dots have disappeared, press the button on the remote control and then go to step 13.

If any dots remain (as shown below), do the following:

• Remove any obstacles from around the projected screen. When you are finished, press the 🙏 or 🚗 button on the remote control and repeat step 12.
• If the dots still remain after removing obstacles, turn the adjustment dials about a quarter turn counterclockwise. Next, press the or button on the remote control and repeat step 12.
• If the dots still remain or there are obstacles that cannot be removed, such as whiteboard trays or frames, go to step 13.

1. If there is an obstacle that cannot be removed, such as a whiteboard tray or frame, remove the tape from the back of the supplied infrared deflectors and stick them to the screen so that the laser is not reflected by the obstacle.

Make sure to stick the deflectors between the dots and the obstacle and adjust the number of deflectors according to the number of dots.

Diagram showing a mechanical component before and after processing, with green dots indicating particle positions on a sloped surface (no text or symbols present)

☐Do not remove an infrared deflector once it has been stuck in place.

☐ Do not stick tape or place anything on the infrared deflectors. The deflectors will not function properly if anything is placed on them.

After placing the infrared deflectors, press the ⏻ or ⏱ button on the remote control, and then repeat step 12.

If the dots do not disappear even after attaching the infrared deflectors, turn the adjustment dials about a quarter turn counterclockwise. Next, press the 🔒 or 🍐 button on the remote control, and then repeat step 12 again.

If the dots do not disappear even after performing the above procedures, contact Epson.

1. Perform touch calibration by pressing Menu on the remote control. On the Extended menu, select Easy Interactive Function, then Touch Unit Setup. Select Touch Calibration and follow the instructions.

Store the markers and attach labels

1. Store the markers inside the Touch Unit.

Diagram showing a device connected to a control panel with two circular indicators (no text or symbols present)

1. Attach the labels to the tabs on either side of the Touch Unit. Match the centers of the labels with the tabs on the Touch Unit.

Diagram showing a device with a connector and a close-up view of its internal components (no text or symbols)

If the Touch Unit moves out of position, use the position of the labels to determine where to reposition the Touch Unit.

Attach cover

Attach the dial cover. Make sure to tighten the screw at the bottom of the cover.

Diagram showing a device with a switch and control panel connected to a rectangular box (no text or symbols)

9 Installing the Control Pad

You must have completed the steps in "Installing the Projector" on page 30 before installing the Control Pad. Follow the steps below to install the Control Pad and connect to the projector.

Caution

The Control Pad should only be connected to the BrightLink Pro 1410Wi/1420Wi/1430Wi. Do not connect the Control Pad to any other projectors.

Check the installation location

The Control Pad must be installed in the area specified in the diagram below.

Make sure there is enough space surrounding the Control Pad. Because the top panel opens from the left, there must be additional space to the left of the Control Pad.

① Remove the cable cover

Technical line drawing of a mechanical device with internal compartments and a blue arrow indicating a specific component (no text or symbols present)

② Attach the Control Pad

Attach the Control Pad with commercially available M4 × 20 mm screws (×4).

Technical line drawing of a device rear panel with screws and mounting holes (no text or labels)

Warning

□Make sure the screws are not angled.
□Make sure the Control Pad is firmly attached.
☐Do not attach the Control Pad with double-side tape or magnets.

☐Check that the Control Pad is operating correctly before attaching it with the screws.
☐ When installing the Control Pad on a table, attach the supplied rubber feet (x4) to the base of the Control Pad to prevent it from slipping.

Technical line drawing of a mechanical housing component with mounting holes and mounting points (no text or symbols)

Install the batteries

Technical line drawing of a mechanical device casing with battery terminals and internal components (no text or symbols)

Caution

Before handling the batteries, read the safety instructions in your projector's User's Guide.

☐ Use two AA manganese or alkaline (recommended) batteries. Do not use any other type of battery. Rechargeable batteries cannot be used.

In order to use the projector to power the Control Pad, connect the optional Remote control cable set (model ELPKC28, part number V12H005C28) to the projector's Remote port and the Control Pad's Remote port. Do not install batteries.

Connect the projector cables to the Control Pad

To perform the functions listed below, you will need to connect the appropriate cables:

Projector function Required cables
Projecting images from a USB flash drive	USB cable 1
Saving data to a USB flash drive
Supplying power from the projector Remote control	cable set(model ELPKC28; part number V12H005C28)
Projecting computer images with USB Display or performing mouse functions using the Easy Interactive Function	USB cable 2USB cable 3
Printing a projected image USB cable 1	USB cable 4

Attach the port protection stickers

Cover the Control Pad ports that are not being used.

Attach the cable cover

Diagram of an open device casing with a blue arrow indicating direction (no text or symbols present)

Using the Easy Interactive Function

After you install your BrightLink model (and the Touch Unit, if applicable), you need to perform calibration to align the positions of the cursor and your interactive pen(s) (and finger, if the Touch Unit is installed). See the projector's online User's Guide or Start Here folder for detailed instructions.

In order to use the Easy Interactive Tools software, you must first install the software on the computer. OS X users also need to install a driver that enables pen or finger touch interactivity to work. Both software programs are included with the BrightLink projector.

For details, see the online User's Guide or visit:

U.S.: epson.com/support/brightlinkdownloads

Canada: epson.ca/support/brightlinkdownloads

Latin America: global.latin.epson.com/Soporte (website available only in Spanish)

Attaching a Security Cable

If the projector is to be installed in a room where it will be left unattended, you can use a commercially available theft-prevention wire lock to secure the projector to a post or other object to prevent someone from taking it.

Pass the wire for the theft-prevention wire lock through the security cable installation point.

For details on how to lock the wire lock, refer to the User's Guide supplied with the wire lock.

Line drawing of a mechanical device with internal components and wiring (no text or symbols)

Technical line drawing of an open electrical enclosure with a coiled cable inside (no text or symbols)

Make sure you leave the remote control, batteries, CDs, interactive pen(s), pen batteries, pen tray, and battery charger in the room with the projector. If your projector came with a product-specific installation guide or an installation leave-behind list, use that list instead of this one. The accessories included with the projector vary by model and region.

Diagram of a printer setup with a screen and base, no text or symbols present

Simple line drawing of a mechanical device mounted on a table, no text or symbols present

Position correcte Position incorrecte

Pure technical line drawing of a rectangular frame with internal connectors (no text or symbols)

Diagram showing a device with three L-shaped components connected to a rectangular box (no text or symbols)

Line drawing of a long rectangular object with internal grid lines, no text or symbols present

Boîtier de commande

Technical diagram of a mechanical assembly with internal components and a close-up view (no text or labels)

Technical diagram of a mechanical assembly with no visible text or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Diagram of a twisted rope or cable with no text or symbols

Diagram of a funnel emitting particles through a pipe with directional arrows indicating flow (no text or labels)

Diagram of a mechanical assembly showing a shaft, bolt, and threaded component (no text or symbols)

Technical diagram showing a wrench inserted into a bolt, with directional arrows indicating movement or force (no text or symbols present)

Technical line drawing of a mechanical assembly with labeled parts, showing internal components and a hand holding a knob (no text or symbols present)

Line drawing of a device with a close-up inset showing a small circular feature on its surface (no text or symbols)

3D rendering of a device casing with a black arrow pointing to a component (no text or symbols)

Diagram showing a device with a left-side component and a close-up view of its internal components (no text or symbols)

Branchez le câble

Technical line drawing of a sewing machine with a close-up view showing the internal components (no text or symbols present)

Réglez l'angle

Diagram showing three circular components with arrows indicating rotation or movement, no text or symbols present

Technical line drawing of two mechanical components with cross-sectional views (no text or symbols)

Position correcte Position incorrecte

Diagram showing three connected devices with circular indicators and directional arrows, no text or symbols present.

Diagram showing three connected devices with circular indicators and directional arrows, no text or symbols present.

Diagram showing a mechanical component before and after assembly, with green dots indicating motion or alignment (no text or symbols present)

Diagram showing a device with a sensor input and two labeled control panels connected to a line (no text or symbols present)

Diagram showing a device with a connector and a close-up view of its internal components (no text or symbols)

Diagram showing a device with a labeled component and connection point (no text or symbols present)

Technical line drawing of a mechanical device with internal compartments and housing (no text or symbols)

Technical line drawing of a device rear panel with screws and mounting holes (no text or symbols)

Avertissement

Technical line drawing of a mechanical housing component with mounting holes and mounting points (no text or symbols)

Technical line drawing of a mechanical device with battery and housing components (no text or symbols)

Mise en garde

Diagram of an open electronic device casing with a blue arrow indicating direction (no text or symbols present)

Canada: epson.ca/support/brightlinkdownloads

Line drawing of a mechanical device with internal components and wiring (no text or symbols)

Technical line drawing of a mechanical assembly with mounting flanges and a coiled cable (no text or symbols)
