USER MANUAL UM600D MAKITA

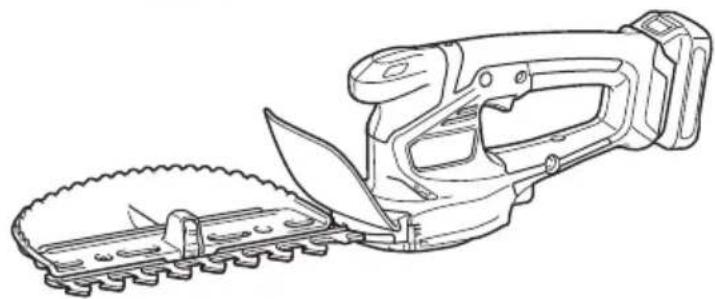

Cordless Grass Shear / Cordless Hedge Trimmer INSTRUCTION MANUAL 10

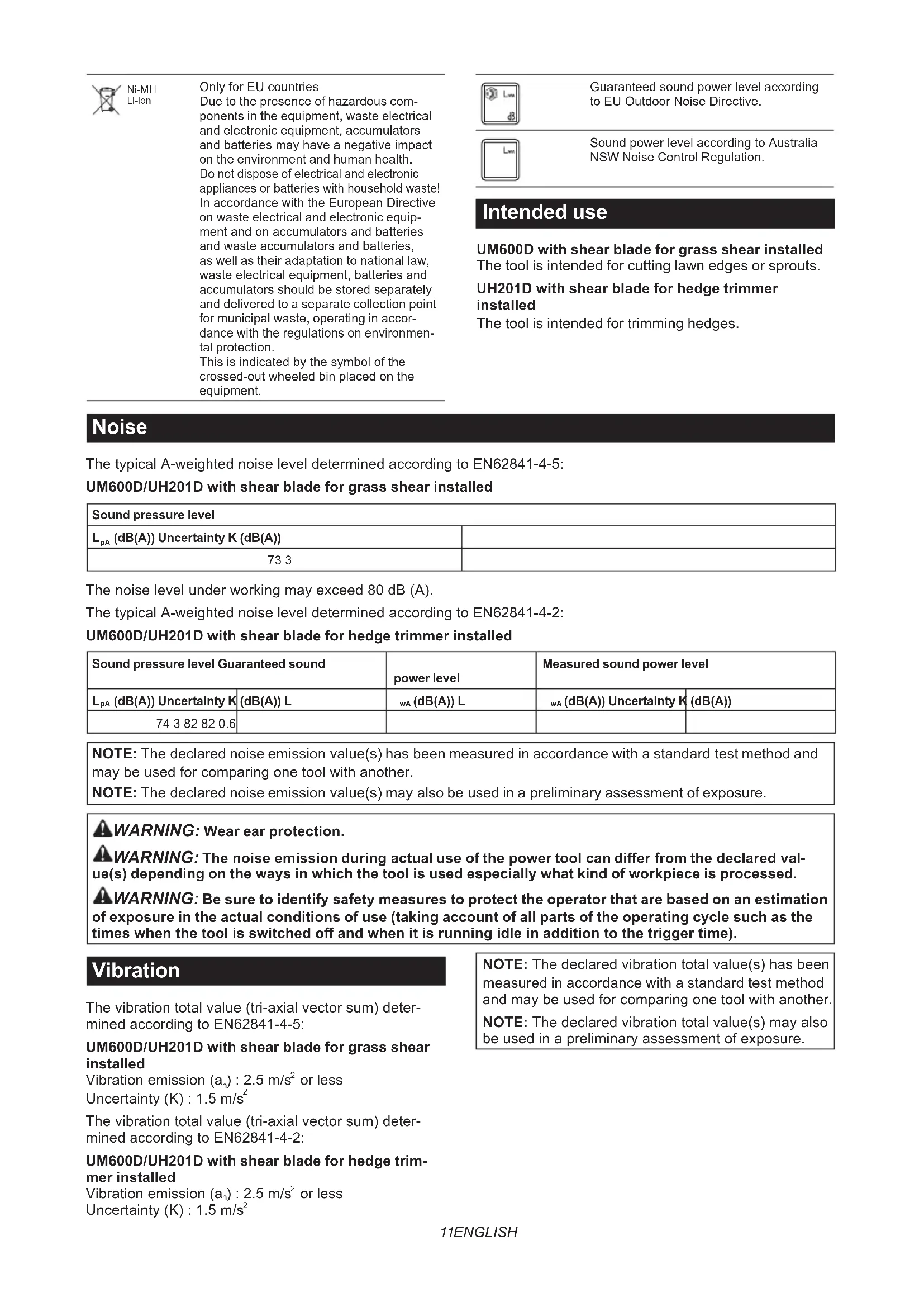

Fig.5610 ENGLISH ENGLISH (Original instructions) SPECIFICATIONS UM600D with shear blade for grass shear installed Model: UM600D Cutting width 160 mm Strokes per minute 2,500 min

• Specicationsmaydi󰀨erfromcountrytocountry. *1:Weightwithoutanyaccessoriesorbatterycartridge(s) *2:Theweightmaydi󰀨erdependingontheattachment(s),includingthebatterycartridge.Thelightestandheaviest combinations,accordingtoEPTA-Procedure01/2014,areshowninthetable. Applicable battery cartridge and charger Batterycartridge BL1016/BL1021B/BL1041B Charger DC10SA/DC10SB/DC10WC/DC10WD/DC18RE

• Someofthebatterycartridgesandchargerslistedabovemaynotbeavailabledependingonyourregionof residence.

WARNING: Only use the battery cartridges and chargers listed above.Useofanyotherbatterycartridges

andchargersmaycauseinjuryand/orre. Symbols Thefollowingsshowthesymbolswhichmaybeused fortheequipment.Besurethatyouunderstandtheir meaningbeforeuse. Take particular care and attention. Read instruction manual. Weareyeprotection. Weareyeandearprotection. DANGER-Keephandsawayfromblade. Danger;beawareofthrownobjects. Keepbystandersaway. Cutting means continues to run after the motorisswitchedo󰀨. Do not expose to moisture. Do not expose to rain.11 ENGLISH Ni-MH Li-ion OnlyforEUcountries Due to the presence of hazardous com- ponents in the equipment, waste electrical and electronic equipment, accumulators andbatteriesmayhaveanegativeimpact on the environment and human health. Do not dispose of electrical and electronic appliancesorbatterieswithhouseholdwaste! InaccordancewiththeEuropeanDirective on waste electrical and electronic equip- mentandonaccumulatorsandbatteries andwasteaccumulatorsandbatteries, as well as their adaptation to national law, wasteelectricalequipment,batteriesand accumulatorsshouldbestoredseparately and delivered to a separate collection point for municipal waste, operating in accor- dance with the regulations on environmen- tal protection. Thisisindicatedbythesymbolofthe crossed-outwheeledbinplacedonthe equipment. Guaranteedsoundpowerlevelaccording toEUOutdoorNoiseDirective. SoundpowerlevelaccordingtoAustralia NSW Noise Control Regulation. Intended use UM600D with shear blade for grass shear installed The tool is intended for cutting lawn edges or sprouts. UH201D with shear blade for hedge trimmer installed The tool is intended for trimming hedges. Noise ThetypicalA-weightednoiseleveldeterminedaccordingtoEN62841-4-5: UM600D/UH201D with shear blade for grass shear installed Sound pressure level

WARNING: Wear ear protection.

WARNING: The noise emission during actual use of the power tool can di󰀨er from the declared val-

ue(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety measures to protect the operator that are based on an estimation

of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Vibration Thevibrationtotalvalue(tri-axialvectorsum)deter- minedaccordingtoEN62841-4-5: UM600D/UH201D with shear blade for grass shear installed Vibrationemission(a

NOTE:Thedeclaredvibrationtotalvalue(s)hasbeen measured in accordance with a standard test method andmaybeusedforcomparingonetoolwithanother. NOTE:Thedeclaredvibrationtotalvalue(s)mayalso beusedinapreliminaryassessmentofexposure.12 ENGLISH

WARNING: The vibration emission during

actual use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Declarations of Conformity For European countries only TheDeclarationsofconformityareincludedinAnnexA to this instruction manual. SAFETY WARNINGS General power tool safety warnings WARNING Read all safety warnings, instruc- tions, illustrations and specications provided with this power tool. Failure to follow all instructions listed belowmayresultinelectricshock,reand/orserious injury. Save all warnings and instruc- tions for future reference. Theterm"powertool"inthewarningsreferstoyour mains-operated(corded)powertoolorbattery-operated (cordless) power tool. Cordless grass shear safety warnings

1. Do not use the grass shear in bad weather

conditions, especially when there is a risk of lightning.Thisdecreasestheriskofbeingstruck bylightning.

2. Keep all power cords and cables away from

ment will reduce the risk of hearing loss.

4. Hold the grass shear by insulated gripping

surfaces only, because the blade may contact hidden wiring. Blades contacting a "live" wire maymakeexposedmetalpartsofthegrassshear "live" and could give the operator an electric shock.

5. Keep all parts of the body away from the blade.

Do not remove cut material or hold material to be cut when blades are moving. Blades continuetomoveaftertheswitchisturnedo󰀨.A moment of inattention while operating the grass shearmayresultinseriouspersonalinjury.

6. When clearing jammed material or servicing

the grass shear, make sure the power switch is o󰀨 and the battery pack is removed or discon- nected. Unexpected actuation of the grass shear whileclearingjammedmaterialorservicingmay resultinseriouspersonalinjury.

7. Carry the grass shear by the handle with the

blade stopped and taking care not to operate the power switch.Propercarryingofthegrass shear will decrease the risk of inadvertent starting andresultantpersonalinjuryfromtheblades.

8. When transporting or storing the grass shear,

always use the blade cover.Properhandlingof the grass shear will decrease the risk of personal injuryfromtheblades. Additional safety warnings General instructions

1. To ensure correct operation, user has to read

this instruction manual to make himself famil- iar with the handling of the equipment. Users insu󰀩cientlyinformedwillriskdangertothem- selves as well as others due to improper handling.

2. Never allow children, persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator.

Use the equipment with the utmost care and attention.

4. Operate the equipment only if you are in good

physical condition. Perform all work calmly and carefully. Use common sense and keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

5. Never operate the machine while people, espe-

cially children, or pets are nearby.

6. The motor is to be switched o󰀨 immediately in

case that the equipment shows any problem or abnormal sign.

7. Switch o󰀨 and remove the battery cartridge

when resting and when leaving the equipment unattended, and place it in a safe location to prevent danger to others or damage to the equipment.

Avoid using the machine in bad weather condi- tions especially when there is a risk of lightning. Personal protective equipment

1. Wear eye protection and stout shoes at all

times while operating the machine.

2. Always wear substantial footwear and long

trousers while operating the machine. Starting up the equipment

1. Make sure that there are no children or other

people nearby, also pay attention to any ani- mals in the working vicinity. Otherwise stop using the equipment.

2. Before use always check that the equipment

is safe for operation. Check the security of the cutting tool and the guard and the switch trig- ger/lever for easy and proper action. Check for clean and dry handles and test the function of the start/stop.13 ENGLISH

Check damaged parts before further use of the equipment. A guard or other part that is dam- aged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of mov- ing parts, binding of moving parts, breakage of parts, mounting, and any other condition that may a󰀨ect its operation. A guard or other part that is damaged should be properly repaired or replaced by our authorized service center unless indicated elsewhere in this manual.

4. Switch on the motor only when the hands and

feet are away from the cutting tool.

5. Before starting make sure that the cutting tool

has no contact with any objects.

6. Check the grass for foreign objects, such as

wire fences or hidden wiring before operating the tool.

7. If a long handle attachment is available, make

sure that the attachment is secured on the tool before operation. Method of operation

1. Only use the equipment in good light and

visibility. During the winter season beware of slippery or wet areas, ice and snow (risk of slipping). Always ensure a safe footing on slopes and be sure to walk and never run.

2. Take care against injury to feet and hands from

3. Never stand on a ladder and run the

4. Never climb up into trees to perform cutting

operation with the equipment.

5. Never work on unstable surfaces.

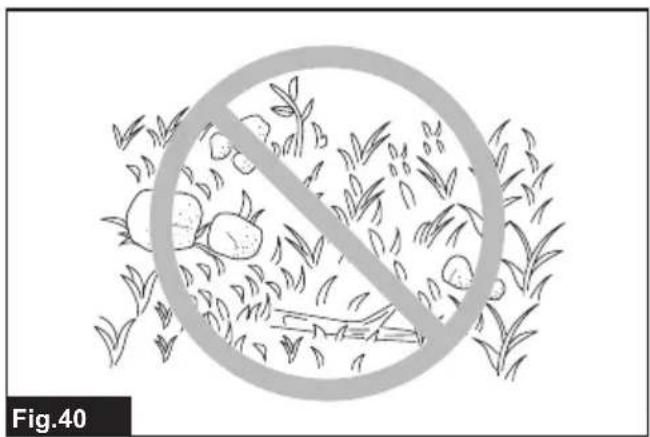

6. Remove sand, stones, nails etc. found within

the working range.Foreignparticlesmaydam- age the cutting tool and can cause dangerous kick-backs.

7. Should the cutting tool hit stones or other hard

objects, immediately switch o󰀨 the motor and inspect the cutting tool.

8. Inspect the cutting tool at short regular inter-

vals for damage (detection of hairline cracks by means of tapping-noise test).

9. Before commencing cutting, the cutting tool

must have reached full working speed.

10. The cutting tool has to be equipped with the

appropriate guard. Never run the equipment with damaged guards or without guards in place!

11. All protective installations and guards sup-

plied with the equipment must be used during operation.

12. Always remove the battery cartridge from the

equipment: — whenever leaving the equipment unattended; — before clearing a blockage; — before checking, cleaning or working on the equipment; — after striking a foreign object; — whenever the equipment starts vibrating abnormally.

13. Always ensure that the ventilation openings

are kept clear of debris.

14. Cutting means continues to run after the motor

15. If the blades stop moving due to the stuck of

foreign objects between the blades during operation, switch o󰀨 the tool and remove the battery cartridge, and then remove the foreign objects using tools such as pliers. Removing theforeignobjectsbyhandmaycauseaninjury forthereasonthatthebladesmaymoveinreac- tiontoremovingtheforeignobjects.

16. Never stand on a ladder and run the equip-

ment. Never climb up into trees to perform cutting operation with the equipment. Never work on unstable surfaces. Cutting Tools Employ only the correct cutting tool for the job in hand. Maintenance instructions

1. The condition of the equipment, in particular of

the cutting tool of the protective devices must be checked before commencing work.

2. Turn o󰀨 the motor and remove the battery

cartridge before carrying out maintenance, replacing cutting tools or cleaning the equip- ment or cutting tool.

When not in use, store the equipment indoors in dry and high or locked-up place - out of the reach of children. Clean and maintain before storage. SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity

with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. Cordless hedge trimmer safety warnings

1. Do not use the hedge trimmer in bad weather

conditions, especially when there is a risk of lightning.Thisdecreasestheriskofbeingstruck bylightning.

2. Keep all power cords and cables away from

ment will reduce the risk of hearing loss.

Hold the hedge trimmer by insulated gripping surfaces only, because the blade may contact hidden wiring.Bladescontactinga"live"wiremay make exposed metal parts of the hedge trimmer "live" and could give the operator an electric shock.

5. Keep all parts of the body away from the blade.

ing the hedge trimmer, make sure all power switches are o󰀨 and the battery pack is removed or disconnected. Unexpected actua- tionofthehedgetrimmerwhileclearingjammed materialorservicingmayresultinseriousper- sonalinjury.

7. Carry the hedge trimmer by the handle with the

blade stopped and taking care not to operate any power switch.Propercarryingofthehedge trimmer will decrease the risk of inadvertent start- ingandresultantpersonalinjuryfromtheblades.

8. When transporting or storing the hedge trim-

mer, always use the blade cover.Properhan- dling of the hedge trimmer will decrease the risk of personalinjuryfromtheblades. Additional Safety Warnings:

DANGER - Keep hands away from blade. Contact withbladewillresultinseriouspersonalinjury.

Overreaching with a hedge trimmer, particularly from a ladder, is extremely dangerous. Do not workwhilestandingonanythingwobblyorinrm.

3. Do not use the hedge trimmer in the rain or in

wet or very damp conditions. The electric motor is not waterproof.

First-time users should have an experienced hedge trimmer user show them how to use the trimmer.

5. The hedge trimmer must not be used by

children or young persons under 18 years of age.Youngpersonsover16yearsofagemaybe exemptedfromthisrestrictioniftheyareundergo- ing training under the supervision of an expert.

6. Use the hedge trimmer only if you are in good

physical condition.Ifyouaretired,yourattention willbereduced.Beespeciallycarefulattheendof aworkingday.Performallworkcalmlyandcare- fully.Theuserisresponsibleforalldamagesto third parties.

7. Never use the trimmer when under the inu-

ence of alcohol, drugs or medication.

8. Work gloves of stout leather are part of the

basic equipment of the hedge trimmer and must always be worn when working with it. Also wear sturdy shoes with anti-skid soles.

9. Before starting work check to make sure

that the trimmer is in good and safe working order. Ensure guards are tted properly. The hedge trimmer must not be used unless fully assembled.

10. Make sure you have a secure footing before

Do not operate the tool at no-load unnecessarily.

13. Immediately switch o󰀨 the motor and remove

the battery cartridge if the cutter should come into contact with a fence or other hard object. Check the cutter for damage, and if damaged repair immediately.

14. Before checking the cutter, taking care of

faults, or removing material caught in the cut- ter, always switch o󰀨 the trimmer and remove the battery cartridge.

15. Switch o󰀨 the trimmer and remove the battery

cartridge before doing any maintenance work.

16. When moving the hedge trimmer to another

location, including during work, always remove the battery cartridge and put the blade cover on the cutter blades. Never carry or transport the trimmer with the cutter running. Never grasp the cutter with your hands.

17. Clean the hedge trimmer and especially the

cutter after use, and before putting the trimmer into storage for extended periods. Lightly oil the cutter and put on the cover. The cover sup- pliedwiththeunitcanbehungonthewall,pro- vidingasafeandpracticalwaytostorethehedge trimmer.

18. Store the hedge trimmer with the cover on, in

a dry room. Keep it out of reach of children. Never store the trimmer outdoors.

Never point the shear blades to yourself or others.

20. If the blades stop moving due to the stuck of

foreign objects between the blades during operation, switch o󰀨 the tool and remove the battery cartridge, and then remove the foreign objects using tools such as pliers. Removing theforeignobjectsbyhandmaycauseaninjury forthereasonthatthebladesmaymoveinreac- tiontoremovingtheforeignobjects.

21. Avoid dangerous environment. Don't use the

tool in damp or wet locations or expose it to rain. Water entering the tool will increase the risk of electric shock.

22. Do not dispose of the battery(ies) in a re. The

cell may explode. Check with local codes for possible special disposal instructions.

23. Do not open or mutilate the battery(ies).

Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.

24. Do not charge battery in rain, or in wet

25. Check the hedges and bushes for foreign

objects, such as wire fences or hidden wiring before operating the tool. SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity

with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. Important safety instructions for battery cartridge

1. Before using battery cartridge, read all instruc-

tions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble or tamper with the battery

cartridge.Itmayresultinare,excessiveheat, or explosion.

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.15 ENGLISH

If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any con- ductive material. (2) Avoid storing battery cartridge in a con- tainer with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current ow, overheating, possible burns and even a breakdown.

6. Do not store and use the tool and battery car-

tridge in locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if

it is severely damaged or is completely worn out. The battery cartridge can explode in a re.

8. Do not nail, cut, crush, throw, drop the battery

cartridge, or hit against a hard object to the battery cartridge.Suchconductmayresultina re,excessiveheat,orexplosion.

9. Do not use a damaged battery.

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. Forcommercialtransportse.g.bythirdparties, forwarding agents, special requirement on pack- agingandlabelingmustbeobserved. Forpreparationoftheitembeingshipped,consultingan expertforhazardousmaterialisrequired.Pleasealso observepossiblymoredetailednationalregulations. Tapeormasko󰀨opencontactsandpackupthe batteryinsuchamannerthatitcannotmove around in the packaging.

11. When disposing the battery cartridge, remove

it from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

12. Use the batteries only with the products

specied by Makita.Installingthebatteriesto non-compliantproductsmayresultinare,exces- siveheat,explosion,orleakofelectrolyte.

13. If the tool is not used for a long period of time,

the battery must be removed from the tool.

14. During and after use, the battery cartridge may

take on heat which can cause burns or low temperature burns. Pay attention to the han- dling of hot battery cartridges.

Do not touch the terminal of the tool immediately after use as it may get hot enough to cause burns.

16. Do not allow chips, dust, or soil stuck into the

terminals, holes, and grooves of the battery cartridge.Itmaycauseheating,catchingre, burstandmalfunctionofthetoolorbatterycar- tridge,resultinginburnsorpersonalinjury.

17. Unless the tool supports the use near

high-voltage electrical power lines, do not use the battery cartridge near high-voltage electri- cal power lines.Itmayresultinamalfunctionor breakdownofthetoolorbatterycartridge.

18. Keep the battery away from children.

Charge the battery cartridge before completely dis- charged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.

Charge the battery cartridge with room tempera- ture at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

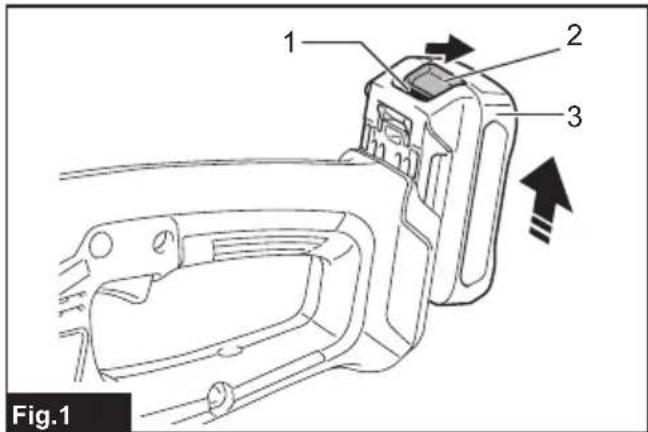

WARNING: Before installing the battery car-

tridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.

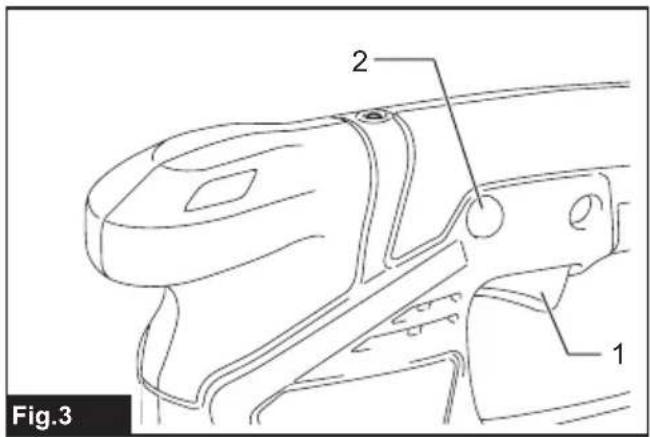

WARNING: For your safety, this tool is

equipped with the lock-o󰀨 button which prevents the tool from unintended starting. Never use the tool if it starts when you pull the switch trigger without pressing the lock-o󰀨 button.Askyourlocal Makita Service Center for repairs.

WARNING: Never disable the lock function or

tape down the lock-o󰀨 button. NOTICE: Do not pull the switch trigger forcibly without pressing the lock-o󰀨 button. The switch maybreak. ►Fig.3: 1. Switch trigger 2.Lock-o󰀨button Topreventtheswitchtriggerfrombeingaccidentally pulled,alock-o󰀨buttonisprovided. Tostartthetool,pressthelock-o󰀨buttonandpullthe switch trigger. Release the switch trigger to stop. The lock- o󰀨buttoncanbepressedfromeithertherightorleftside. Indicator lamp Theindicatorlampblinksorlightsupwhentheremain- ingbatterycapacityisloworempty.Theindicatorlamp alsolightsupwhenthetoolbecomesoverloaded. ►Fig.4: 1. Indicator lamp Lamp status and action to be taken Indicator lamp Status Actiontobetaken Thelampblinks red. The remaining batterycapacity is low. Chargethebattery. The lamp lights up red. * The tool has stopped becausetheremain- ingbatterycapacity isempty. Chargethebattery. The tool has stopped due to overload. Turno󰀨thetool.

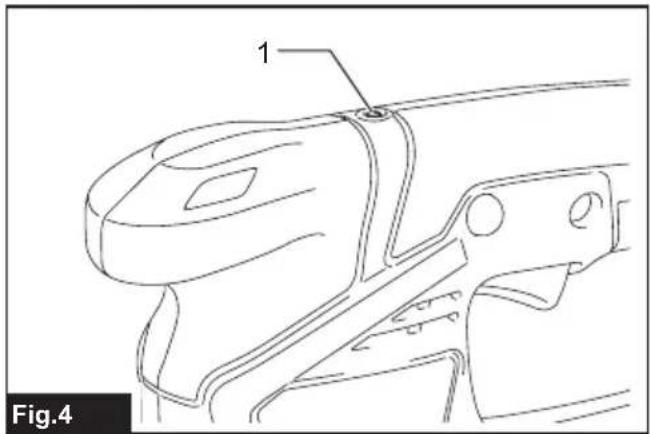

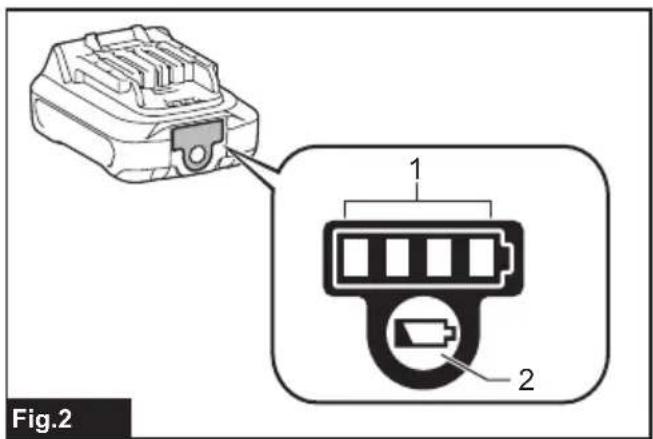

• The time at which the indicator lamp lights up varies depending onthetemperaturearoundtheworkareaandthebatterycar- tridge conditions. Adjusting the shearing height (for grass shear) CAUTION: When changing the shearing height, be sure to attach the blade cover and be careful not to trap ngers between the tool and grass receiver. Theshearingheightcanbesettothreelevels(15mm, 20mm,and25mm)bychangingthexedpositionof the grass receiver. The shearing height without the grassreceiverisabout10mm.

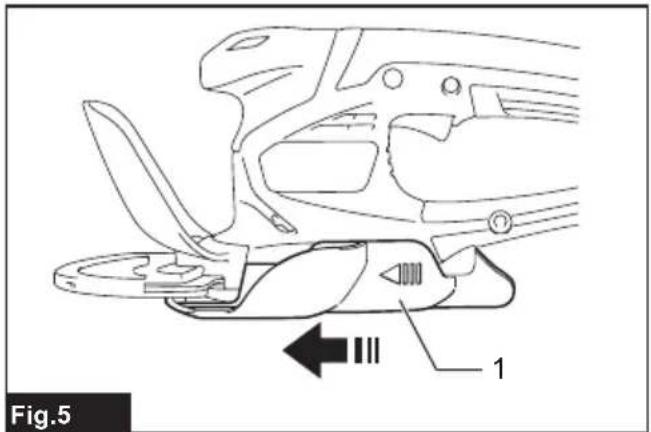

Slide the grass receiver toward the front of the tool. ►Fig.5: 1.Grassreceiver17 ENGLISH

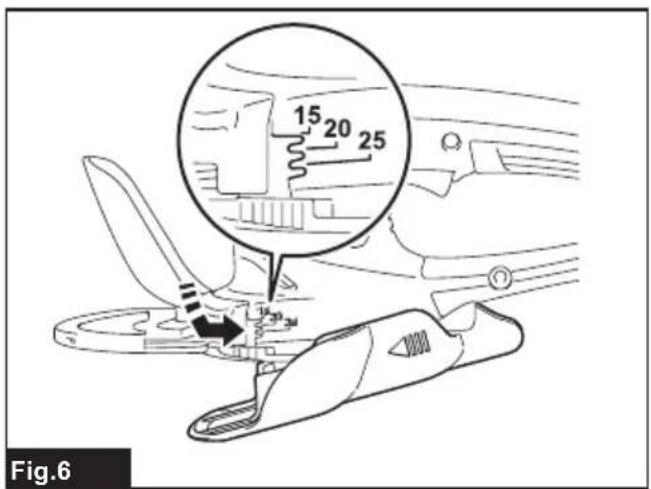

2. Changethexedpositionofthegrassreceiverby

moving it in the direction of the arrow. ►Fig.6 NOTE: The shearing height value is a guideline. The actualshearingheightmayvarydependingonthe condition of the lawn or the ground. NOTE:Tryatestshearinginalessconspicuous placetogetyourdesiredheight. ASSEMBLY CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before carrying out any work on the tool. CAUTION: When replacing the shear blades, always wear gloves and attach the blade cover so that your hands and face do not directly contact the blades. NOTICE: When replacing the shear blades, do not wipe o󰀨 grease from the gear and crank. Installing or removing the blade cover for grass shear CAUTION: Be careful not to touch the blades when installing or removing the blade cover. Toremovethebladecover,pullitslightly,andthenslideitside- ways.Toinstallthebladecover,performthestepsinreverse. ►Fig.7 Installing or removing the grass receiver CAUTION: When installing or removing the grass receiver, be sure to attach the blade cover and be careful not to trap your ngers between the tool and grass receiver. Removing the grass receiver

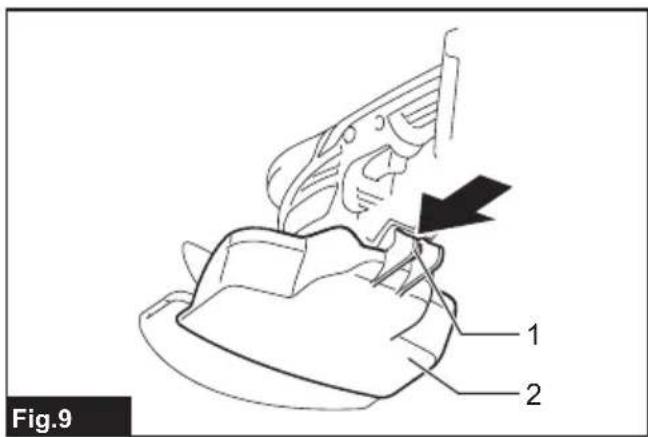

1. Release the protrusions on the grass receiver

from the grooves on the tool while sliding the grass receiver toward the front of the tool. ►Fig.8: 1.Grassreceiver

Release the hinge of the grass receiver from the tool. Installing the grass receiver

Hook the hinge of the grass receiver on the groove of the tool. ►Fig.9: 1. Hinge 2.Grassreceiver

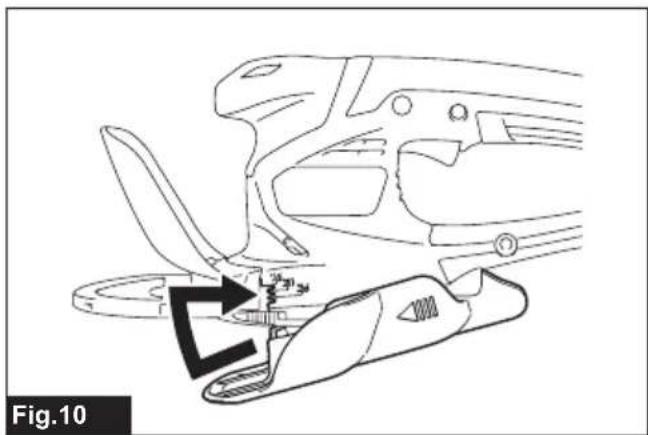

Aligntheprotrusionsonthegrassreceiverwiththe groovesonthetoolbyslidingthegrassreceivertowardthe front of the tool and moving it in the direction of the arrow. ►Fig.10 NOTICE: Do not attach the hinge of the grass receiver to the tool forcibly after aligning the protrusions on the grass receiver with the grooves on the tool. Installing or removing the shear blades for grass shear NOTICE: If the parts other than the shear blades such as the crank are worn out, ask Makita Authorized Service Centers for parts replacement or repairs. Removing the shear blades

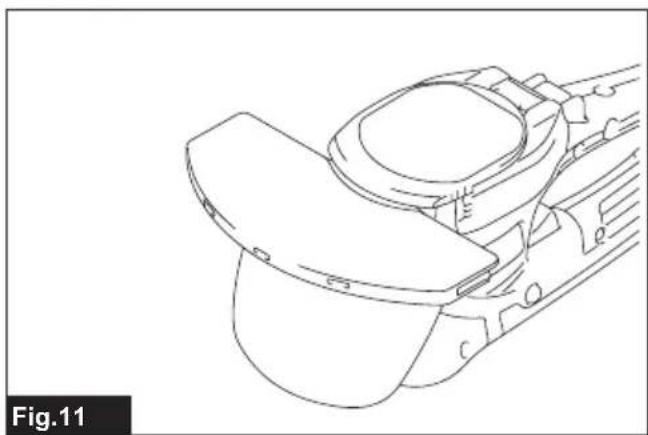

1. Remove the grass receiver and place the tool

upside down. ►Fig.11

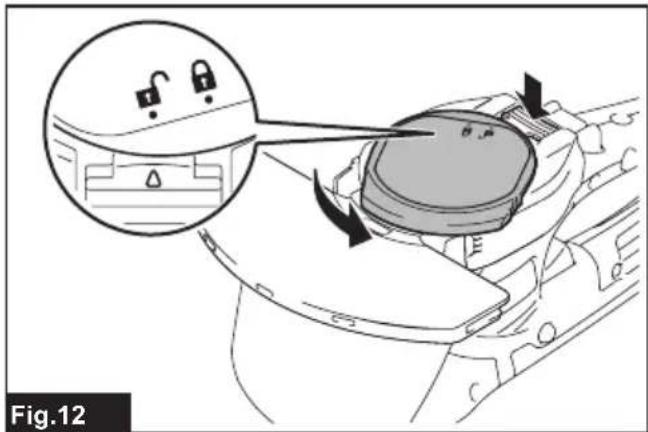

2. While pressing the lock lever, turn the undercover

counterclockwise until on the undercover is aligned with on the lock lever. ►Fig.12

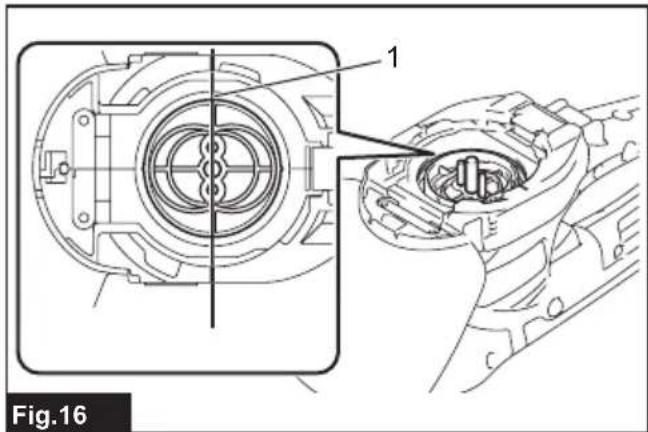

the alignment line. ►Fig.16: 1.Alignmentline

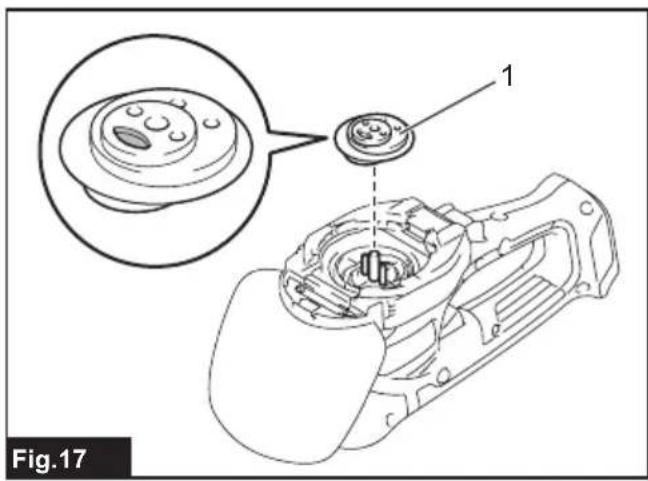

4. Applyasmallamountofgreasetotheperiphery

ofthecrank.Attachthecranktothepinswiththesmall and large rounds facing up. ►Fig.17: 1. Crank

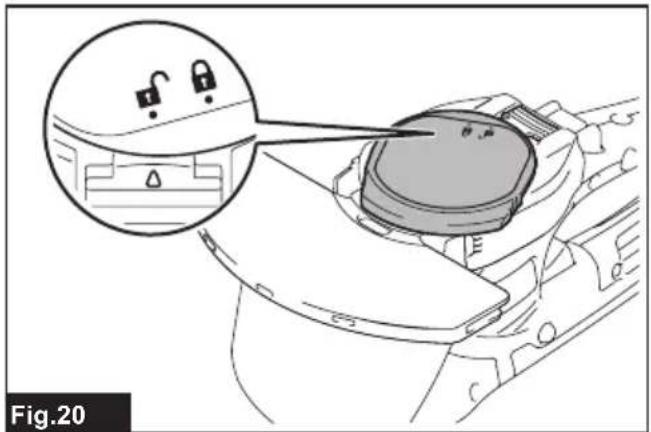

on the under- cover is aligned with on the lock lever. ►Fig.20

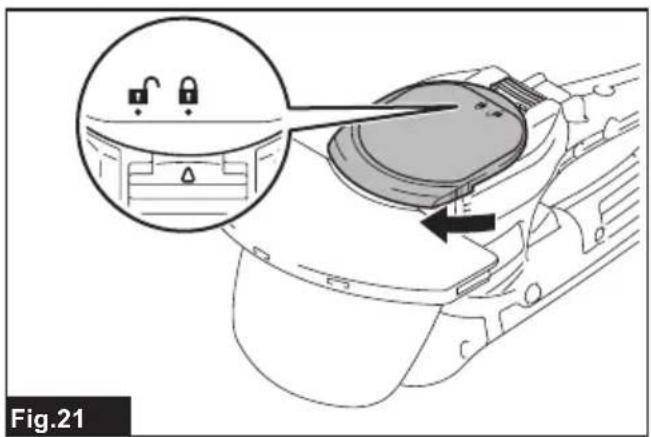

8. While pressing the undercover, turn the under-

cover clockwise until on the undercover is aligned with on the lock lever. ►Fig.21

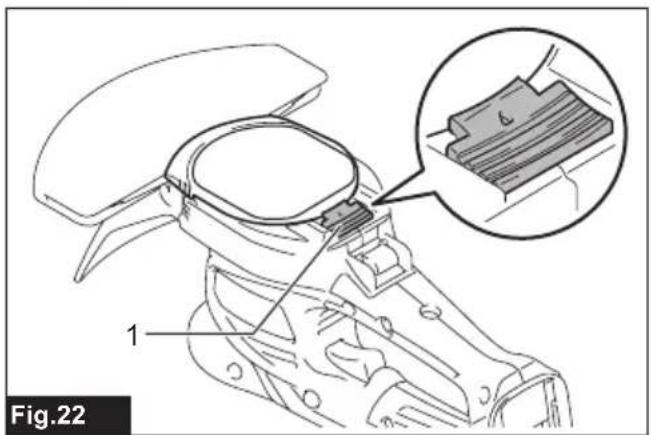

9. Makesurethatthelocklevertsinthegrooveon

the undercover. ►Fig.22: 1. Lock lever18 ENGLISH CAUTION: Never use the tool without install- ing the undercover.

10. Removethebladecover,andthenturnonthetool

tocheckthatitworksproperly. NOTICE: If the shear blades do not operate prop- erly, the blades are not engaging the crank prop- erly. Remove the blades and install them again. Installing or removing the shear blades for hedge trimmer CAUTION: Attach the blade cover before removing or installing the shear blades. NOTICE: If the parts other than the shear blades such as the crank are worn out, ask Makita Authorized Service Centers for parts replacement or repairs. Removing the shear blades

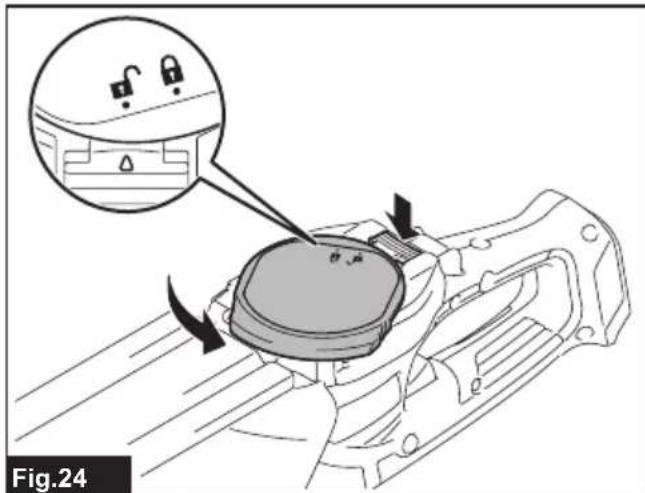

2. While pressing the lock lever, turn the undercover

counterclockwise until on the undercover is aligned with on the lock lever. ►Fig.24

3. Remove the undercover.

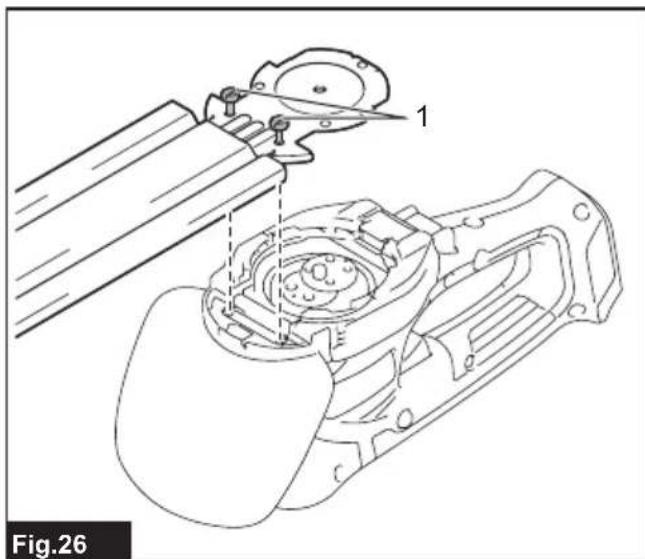

4. Loosen the two screws with a screwdriver and

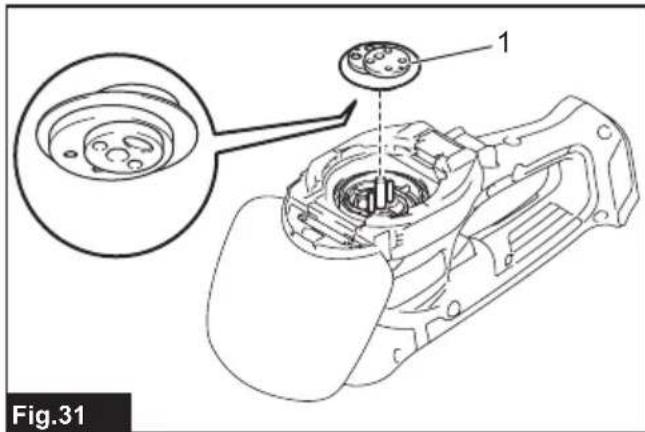

ofthecrank.Attachthecranktothepinswiththesmall and large rounds facing down. ►Fig.31: 1. Crank

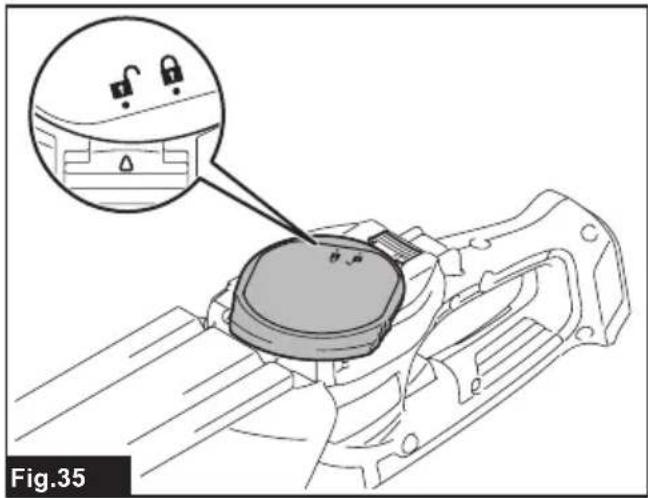

on the under- cover is aligned with on the lock lever. ►Fig.35

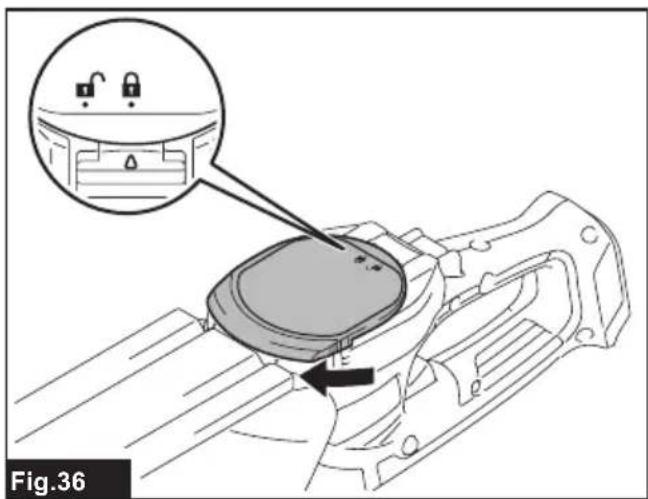

9. While pressing the undercover, turn it clockwise

until on the undercover is aligned with on the lock lever. ►Fig.36

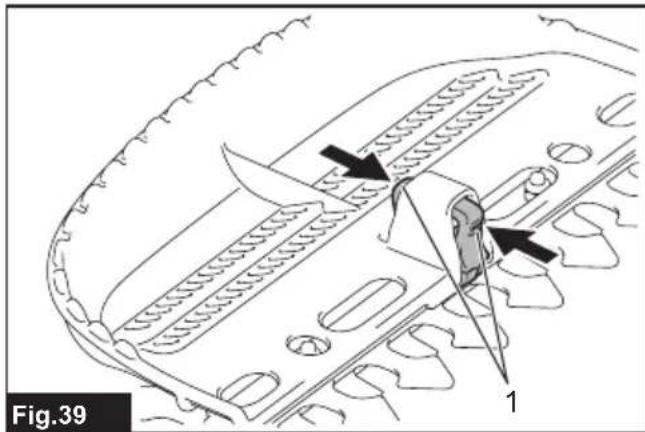

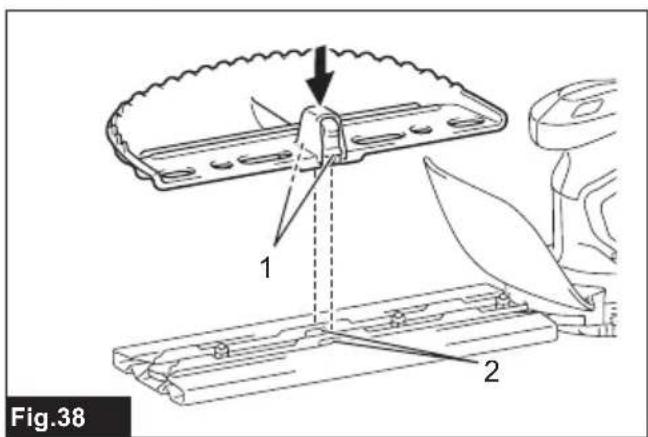

tocheckthatitworksproperly. NOTICE: If the shear blades do not operate prop- erly, the blades are not engaging the crank prop- erly. Remove the blades and install them again. Installing or removing the chip receiver Optional accessory CAUTION: When installing or removing the chip receiver, always wear gloves and attach the blade cover so that your hands and face do not directly contact the blade. The chip receiver gathers discarded leaves and makes clean-upafterwardmucheasier.Itcanbeinstalledon either side of the tool. To install the chip receiver, press it against the shear bladessothatthehookstintotheholesoftheshear blades. ►Fig.38: 1. Hooks 2. Holes Toremovethechipreceiver,presstheleversonboth sides to release the hooks. ►Fig.39: 1. Levers NOTICE: Never try to remove the chip receiver by an excessive force with its hooks locked in the holes of the blades.19 ENGLISH OPERATION

WARNING: Before shearing, clear away sticks

and stones from the shearing area. Furthermore, clear away any weeds from the shearing area in advance. ►Fig.40

WARNING: Keep hands away from blades.

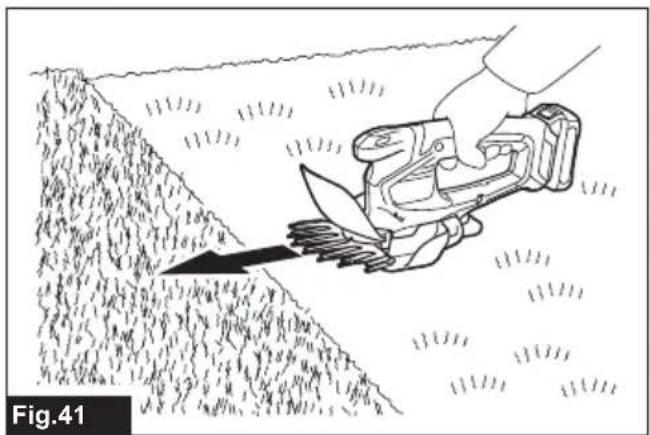

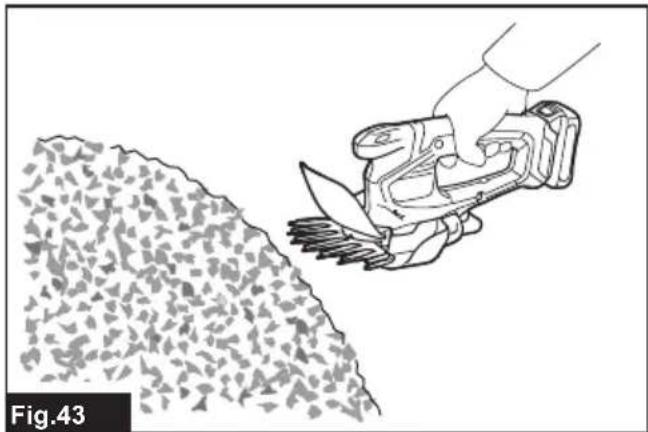

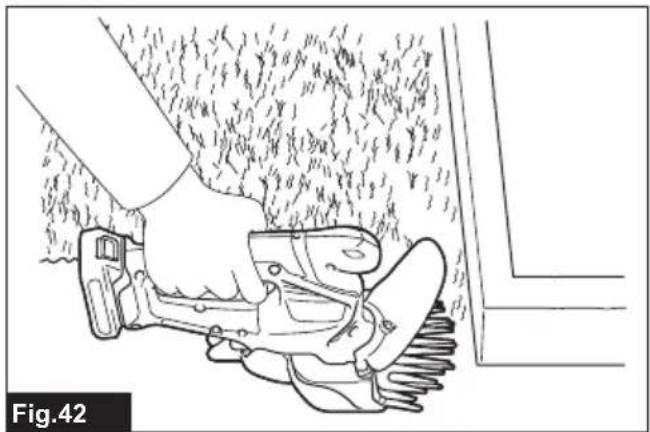

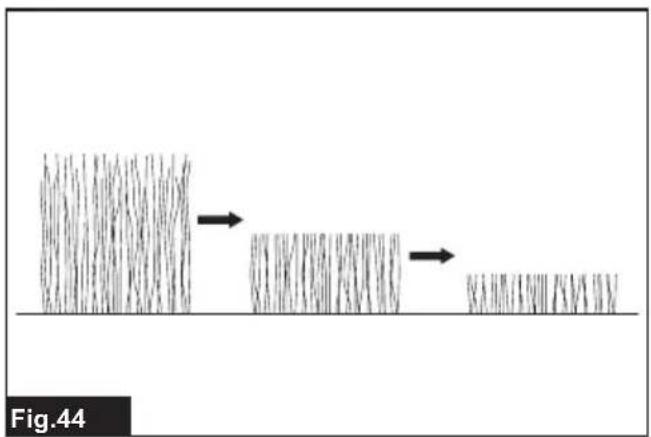

CAUTION: Avoid operating the tool in very hot weather as much as practicable. When operat- ing the tool, be careful of your physical condition. Shearing (for grass shear) Turnthetoolonafteradjustingtheshearingheightand holditsothatthebottomofthetoolrestsontheground. Gentlymovethetoolforward. ►Fig.41 Whentrimmingaroundcurbs,fencesortrees,movethe toolalongthem.Becarefulthatthebladesdonotcome into contact with them. ►Fig.42 Whentrimmingsproutsorfoliageofasmalltree,trimlittlebylittle. ►Fig.43 Trimlargebranchestothedesiredheightusingbranch cuttersbeforeusingthistool. NOTICE: Do not use the tool in a way that causes the motor to stop or to rotate extremely slowly. NOTICE: Do not attempt to cut thick branches. NOTICE: Do not allow the shear blades to con- tact the ground during operation. The blades will be dulled, causing poor performance. NOTICE: Do not trim the wet grass or foliage of small trees. Cutting long lawn Donottrytocutlonggrassallatonce.Instead,cutthe lawninsteps.Leaveadayortwobetweencutsuntilthe lawnbecomesevenlyshort. ►Fig.44 NOTE: Cutting long grass to a short length all at once maycausethegrasstodie. Trimming (for hedge trimmer) CAUTION: Be careful not to accidentally contact a metal fence or other hard objects while trimming.Thebladesmaybreakandcauseaninjury. CAUTION: Be careful not to allow the shear blades to contact the ground.Thetoolmayrecoil andcauseaninjury. CAUTION: Overreaching with a hedge trim- mer, particularly from a ladder, is extremely dangerous.Donotworkwhilestandingonanything wobblyorinrm. NOTICE: Do not attempt to cut branches thicker than 10 mm in diameter with the tool.Cutbranches to10cmlowerthanthecuttingheightusingbranch cuttersbeforeusingthetool. ►Fig.45: (1) Cutting height (2) 10 cm NOTICE: Do not cut down dead trees or similar hard objects.Doingsomaydamagethetool. NOTICE: Do not trim the grass or weeds while using the shear blades.Thebladesmaybecome tangled in the grass or weeds. Hold the tool with one hand, pull the switch trigger while pressingthelock-o󰀨button,andthenmoveitforward. ►Fig.46 Forbasicoperation,tiltthebladestowardthetrimming directionandmoveitcalmlyandslowlyatthespeed rate of 3 to 4 seconds per meter. ►Fig.47 To tie a string at the desired height and to trim along it helpyoutocutahedgetopevenly. ►Fig.48 Ifthechipreceiverisattachedtotheblades,itgathers discarded leaves and makes clean-up afterward much easier. Tocutahedgesideevenly,cutfromthebottomtotop. ►Fig.49 Whentrimmingtomakearoundshape(trimmingbox- wood or rhododendron, etc.), trim from the root to the topforabeautifulnish. ►Fig.50 MAINTENANCE CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before attempting to perform inspection or maintenance. TomaintainproductSAFETYandRELIABILITY, repairs,anyothermaintenanceoradjustmentshould beperformedbyMakitaAuthorizedorFactoryService Centers,alwaysusingMakitareplacementparts. Cleaning the tool Cleanthetoolbywipingo󰀨dustwithadryclothorone dippedinsoapywaterandwrungout. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.20 ENGLISH Blade maintenance Before the operation or once per hour during operation, applylow-viscosityoil(machineoil,orspray-typelubri- catingoil)totheblades. ►Fig.51 ►Fig.52 Afteroperation,removedustfrombothsidesofthe bladeswithawiredbrush,wipeito󰀨withaclothand thenapplylow-viscosityoil(machineoil,orspray-type lubricatingoil)totheblades. ►Fig.53 ►Fig.54 NOTICE: Do not wash the blades in water. Doing somaycauserustordamagetothetool. NOTICE: Dirt and corrosion cause excessive blade friction and shorten the operating time per battery charge. Storage Thehookholeinthetoolbottomisconvenientforhang- ing the tool from a nail or screw on the wall. Attachthebladecovertotheshearbladessothatthe bladesarenotexposed.Storethetooloutofthereach of children. Store the tool in a place not exposed to moisture or rain. ►Fig.55: 1. Hole ►Fig.56: 1. Hole OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specied in this manual.Theuseofanyother accessories or attachments might present a risk of injurytopersons.Onlyuseaccessoryorattachment for its stated purpose. Ifyouneedanyassistanceformoredetailsregard- ingtheseaccessories,askyourlocalMakitaService Center.

• Grassreceiver(forgrassshearuse)

• Long handle attachment (for grass shear use)

• Chip receiver (for hedge trimmer use)
