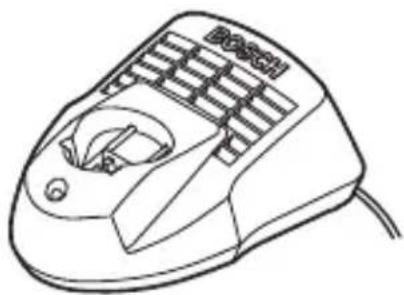

Line drawing of a small electric shaver with ventilation slots and a base (no text or symbols)

AL 1130 CV

(10,8 V)

2 607 225 134 (EU)

2 607 225 136 (UK)

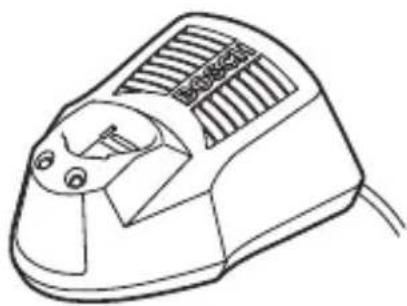

Line drawing of a portable air conditioner with control panel and buttons (no text or symbols)

AL 1115 CV

(10,8 V)

2 607 225 514 (EU)

2 607 225 516 (UK)

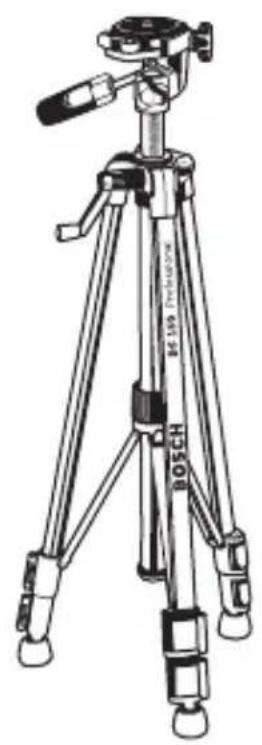

Line drawing of a tripod-mounted camera with adjustable legs and a top-mounted head (no text or symbols)

BS 150

0 601 096 974

BT 250

0 601 096 A00

Deutsch

Sicherheitshinweise

Icon of a person reading a document inside a circle (no text or symbols)

Prohibition sign with heart symbol and crossed-out arrow, indicating no prohibition or social protection

Symbol of a trash bin with no accompanying text or labels

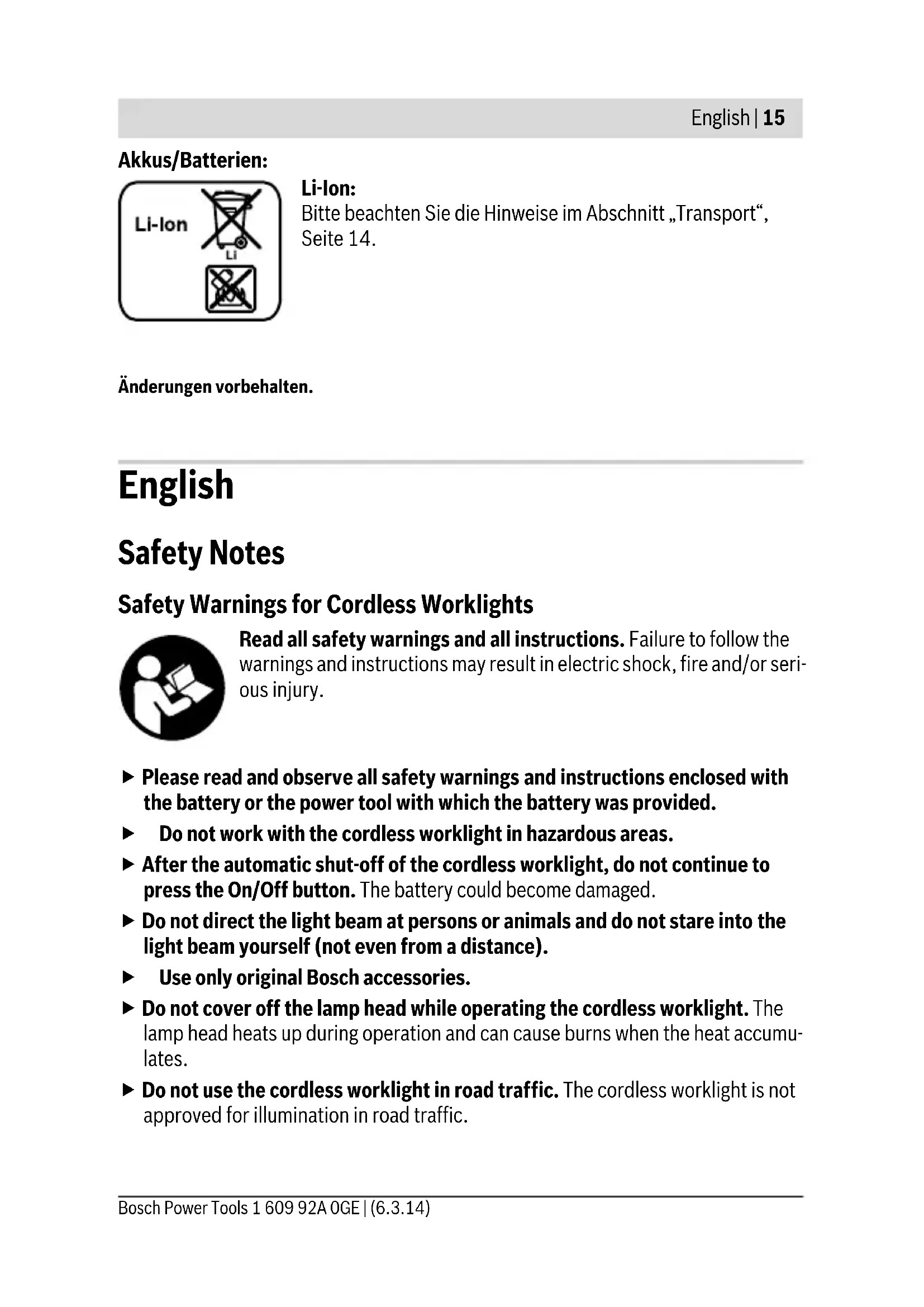

Safety Warnings for Cordless Worklights

Silhouette of a person reading a book inside a circle (no text or symbols)

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

▶ Please read and observe all safety warnings and instructions enclosed with the battery or the power tool with which the battery was provided.
▶ Do not work with the cordless worklight in hazardous areas.
▶ After the automatic shut-off of the cordless worklight, do not continue to press the On/Off button. The battery could become damaged.
▶ Do not direct the light beam at persons or animals and do not stare into the light beam yourself (not even from a distance).
▶ Use only original Bosch accessories.
▶ Do not cover off the lamp head while operating the cordless worklight. The lamp head heats up during operation and can cause burns when the heat accumulates.
▶ Do not use the cordless worklight in road traffic. The cordless worklight is not approved for illumination in road traffic.

Before any work on the cordless worklight itself (e.g. assembling, maintenance, etc.), as well as when transporting and storing, remove the battery from the cordless worklight.
▶ Do not allow children to use the cordless worklight. It is intended for professional use. Children can unintentionally blind themselves or other persons.
▶ Do not open the battery. Danger of short-circuiting.

Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritations or burns.
In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use the battery only in conjunction with your Bosch product. This measure alone protects the battery against dangerous overload.
▶ Use only original Bosch batteries with the voltage listed on the nameplate of your cordless worklight. When using other batteries, e. g. imitations, reconditioned batteries or other brands, there is danger of injury as well as property damage through exploding batteries.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.

Prohibition sign with heart symbol and crossed-out arrow, indicating no smoking or cardiac medication use

Keep the cordless worklight away from cardiac pacemakers.

The magnet inside the cordless worklight generates a field that can impair the function of cardiac pacemakers.

• Keep the cordless worklight away from magnetic data carriers and magnetically sensitive devices. The effect of the magnet can lead to irreversible data loss.
  ▶ Do not fix the cordless worklight overhead using the magnetic mount. There is a risk of injury if it falls down.
  ▶ Check whether the magnetic mount can permanently carry the cordless worklight. There is a risk of injury if it falls down.

Product Description and Specifications

Intended Use

The cordless worklight is intended for mobile illumination in limited space and for limited time in dry indoor and outdoor areas and is not suitable for general room lighting.

Product Features

The numbering of the product features refers to the illustration of the cordless worklight on the graphics page.

1 Lamp head
2 Battery pack*
4 Carabiner
5 Support stand
6 Magnetic mount
7 Utility hook
8 Tripod mount 1/4"
9 On/Off switch
10 Heat sink

3 Battery unlocking button*

* Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.

Technical Data

Cordless Worklight GLI DeciLED
Article number	3 601 DA0 0..
Rated voltage	V= 10.8
Lighting duration, approx.	min/Ah 180
Weight according to EPTA-Procedure 01/2003	kg 0.3
The colour rendition of illuminated objects can be distorted.

Battery

Permitted ambient temperature
- when charging	°C	0...+45
- during operation*	°C	-10...+40
- during storage	°C	-20...+60
Recommended batteries		GBA 10,8 V x,xAh O-.
* Limited performance at temperatures <0 °C

Assembly

Battery Charging (Accessory)

▶ Use only the battery chargers listed on the accessories page. Only these battery chargers are matched to the lithium ion battery of your cordless worklight.

Note: The battery is supplied partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time.

The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.

The lithium ion battery is protected against deep discharging by the “Electronic Cell Protection (ECP)”. When the battery is empty, the cordless worklight is switched off by means of a protective circuit.

▶ Do not continue to press the On/Off switch after the cordless worklight has been automatically switched off. The battery can be damaged.

To remove the battery 2, press the unlocking button 3 and pull the battery out of the cordless worklight. Do not exert any force.

Observe the notes for disposal.

Operation

Initial Operation

Inserting the battery

Insert the charged battery 2 into the lamp head 1 until you feel it engage.

Switching On and Off

To start the cordless worklight, press the On/Off switch 9.

To switch off the cordless worklight, press the On/Off switch 9 again.

To save energy, only switch the cordless worklight on when using it.

Adjusting the Brightness

Press the On/Off switch 9 briefly to switch on the cordless worklight at maximum brightness. To adjust the brightness in 2 stages, hold down the On/Off switch 9 until the required brightness is obtained.

Temperature Dependent Overload Protection

When exceeding the allowable heat-sink temperature of 50^ C, the cordless worklight switches off. Allow the cordless worklight to cool down, then switch the cordless worklight on again.

Working Advice

The cordless worklight runs at reduced brightness when the battery capacity is at approx. 1.3 %. The cordless worklight flashes 3 times before the brightness decreases.

Swivelling the Lamp Head (see figure A)

The lamp head 1 can be swivelled up to 200^ to suit the application.

• As an uplight with the lamp head aimed upwards.
• Swivelled 90^ to shine light into the room.
• With lamp head tilted approx. 120^ for glare-free lighting of the work area, e.g. a desk.
• With lamp head tilted approx. 200^ to illuminate the floor.

Note: At a tilt of more than 90^ the cordless worklight has to be fixed.

Utility Hook (see figure B)

You can use the utility hook 7 to attach the cordless worklight to an object.

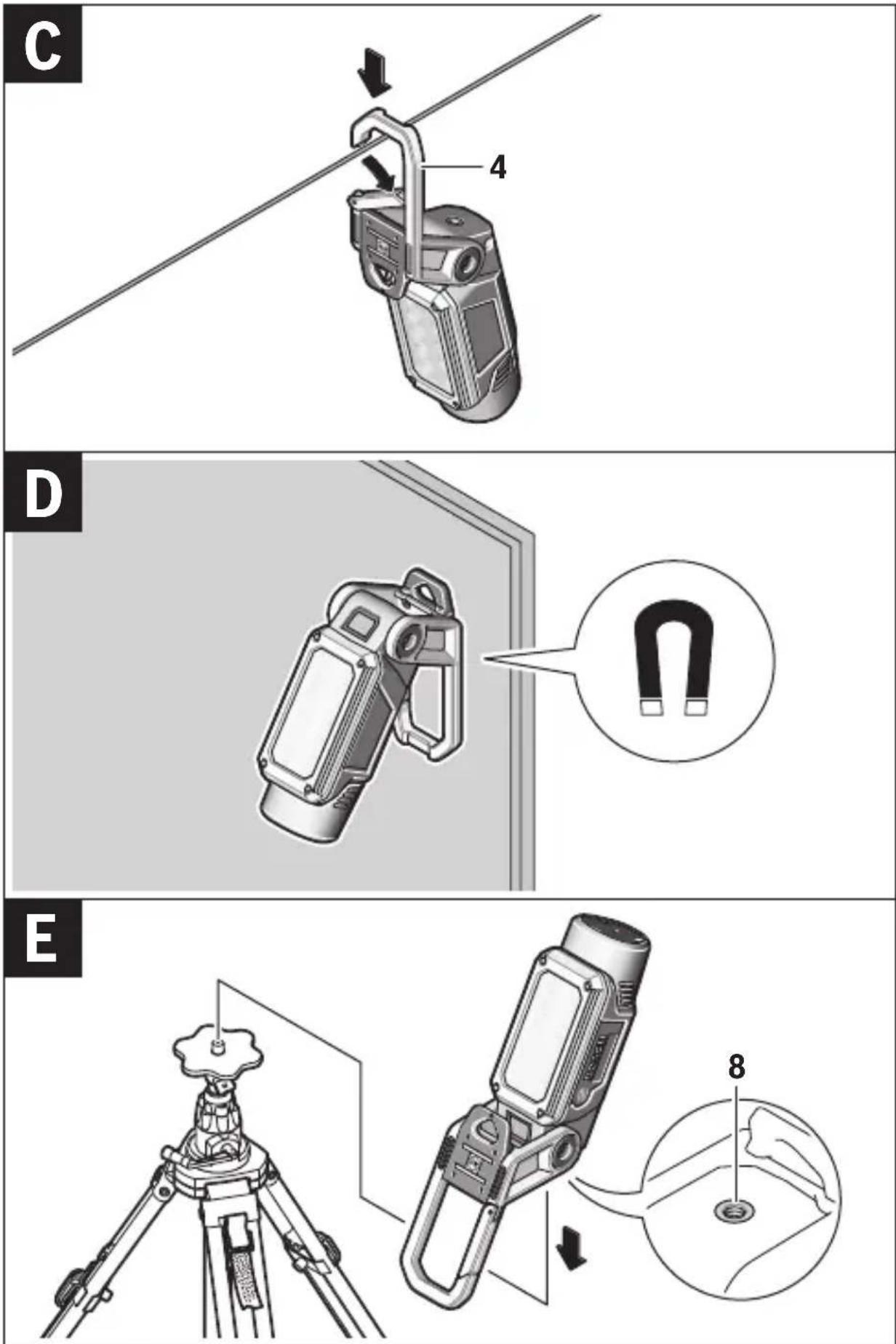

Carabiner (see figure C)

You can use the carabiner 4 to attach the cordless worklight e. g. to a rope or belt.

Magnetic Mount (see figure D)

You can use the magnetic mount 6 to attach the cordless worklight to ferromagnetic surfaces. Do so carefully in order to avoid scratching delicate surfaces.

Tripod Mount (1/4") (see figure E)

You can use the tripod mount 8 to screw the cordless worklight onto a tripod.

Maintenance and Service

Maintenance and Cleaning

When the battery is no longer operative, please refer to an authorised after-sales service agent for Bosch power tools.

The cordless worklight is maintenance-free and contains no components that must be replaced or maintained.

To avoid damage, clean the plastic lens of the cordless worklight only with a dry, soft cloth. Do not use cleaning agents or solvent.

After-sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Bosch's application service team will gladly answer questions concerning our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the cordless worklight.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape – BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Transport

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements.

When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

Please also observe possibly more detailed national regulations.

Disposal

Cordless worklights, battery packs, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of cordless worklights and batteries/rechargeable batteries into household waste!

Only for EC countries:

Symbol of a trash bin with no text or numbers present

According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment, cordless worklights that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Batteries no longer suitable for use can be directly returned at:

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Battery packs/batteries:

Li-Ion Li Li-Ion

Li-ion:

Please observe the instructions in section "Transport", page 22.

Subject to change without notice.
