USER MANUAL UM22VYST HiKOKI

00BookUM22VYST.indb300BookUM22VYST.indb3 2019/05/3115:57:132019/05/3115:57:134 English c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off . Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aff ect the power toolʼs operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations diff erent from those intended could result in a hazardous situation.

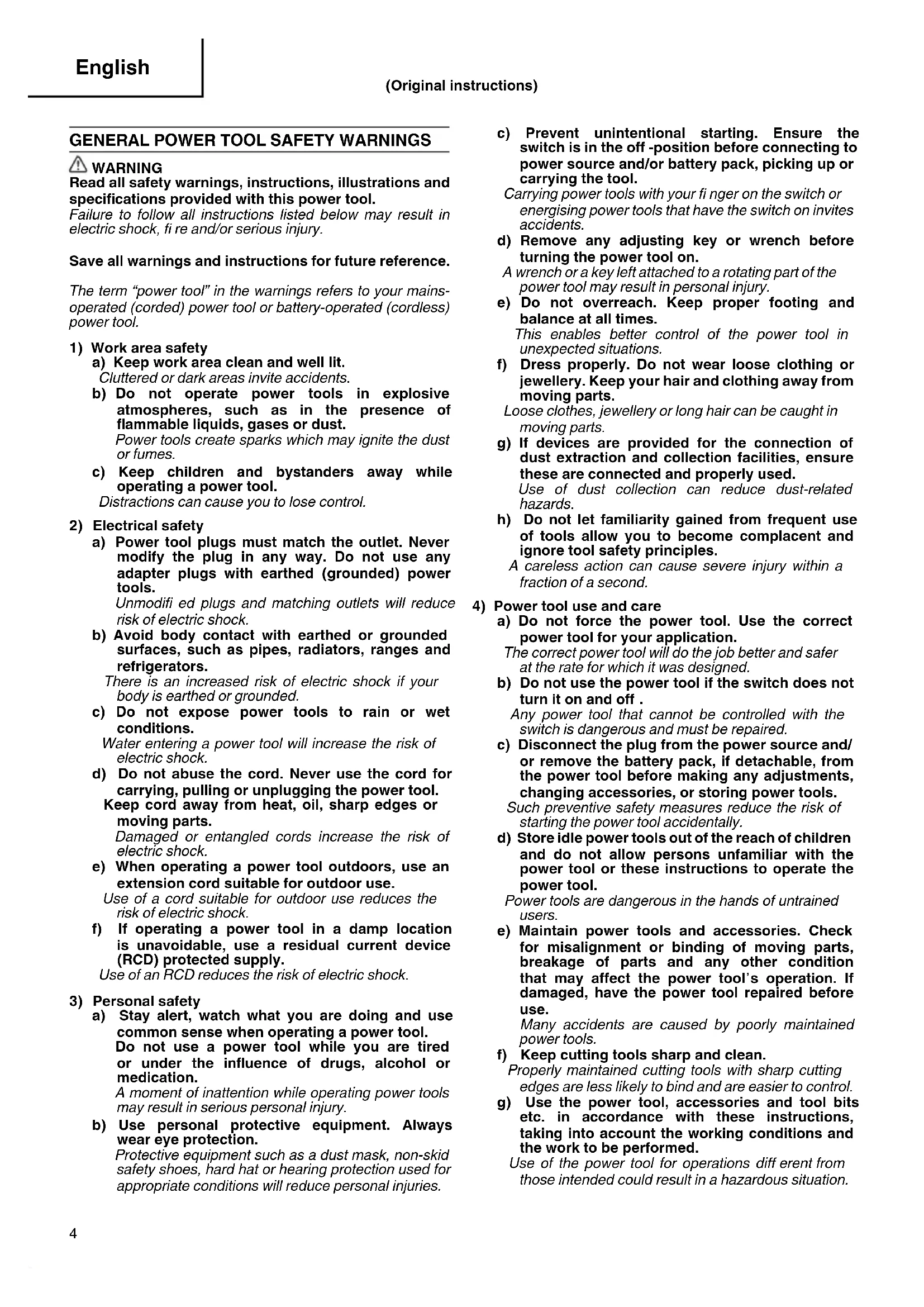

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings, instructions, illustrations and specifi cations provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the infl uence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. (Original instructions) 00BookUM22VYST.indb400BookUM22VYST.indb4 2019/05/3115:57:142019/05/3115:57:145 English h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

a) Have your power tool serviced by a qualifi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. PRECAUTION Keep children and infi rm persons away. When not in use, tools should be stored out of reach of children and infi rm persons.

MIXER SAFETY INSTRUCTIONS

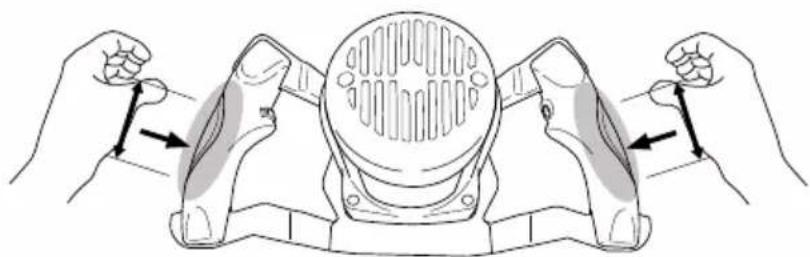

a) Hold the tool with both hands at the intended handles. (Fig. 6) Loss of control can cause personal injury. b) Ensure suffi cient ventilation when mixing fl ammable materials to avoid a hazardous atmosphere. Developing vapour may be inhaled or be ignited by the sparks the power tool produces. c) Do not mix food. Power tools and their accessories are not designed for processing food. d) Keep the cord away from the working area. The cord may be entangled by the mixer basket. e) Ensure that the mixing container is placed in a fi rm and secure position. A container that is not properly secured may move unexpectedly. f) Ensure that no liquid splashes against the housing of the power tool. Liquid that has penetrated the power tool can cause damage and lead to electric shock. g) Follow the instructions and warnings for the material to be mixed. Material to be mixed may be harmful. h) If the power tool falls into the material to be mixed, unplug the tool immediately and have the power tool checked by a qualifi ed repair person. Reaching into the bucket with the tool still plugged in can lead to electric shock.

i) Do not reach into the mixing container with your

hands or insert any other objects into it while mixing. Contact with the mixer basket may lead to serious personal injury. j) Start up and run down the tool in the mixing container only. The mixer basket may bend or spin in an uncontrolled manner.

PRECAUTIONS ON USING THE MACHINE

1. Do not use the power tool for explosive materials

(e. g., easily infl ammable solvents). Power tools produce sparks which could ignite developing vapours.

2. In case the power tool should fall into the material

to be stirred, pull the plug immediately and have the power tool checked by an after-sales service agent. Material that has penetrated the power tool can cause damage and lead to an electric shock.

3. When working with the machine, always hold it

fi rmly with both hands and provide for a secure stance. The power tool is guided more secure with both hands.

4. Do not work materials containing asbestos.

Asbestos is considered carcinogenic.

5. Take protective measures when dust can develop

during working that is harmful to one's health, combustible or explosive. Example: Some dusts are regarded as carcinogenic. Wear a dust mask and work with dust/chip extraction when connectable.

6. Always wait until the machine has come to a

complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool.

7. Never use the machine with a damaged cable. Do

not touch the damaged cable and pull the mains plug when the cable is damaged while working. Damaged cables increase the risk of an electric shock.

8. When operating a mixer with wet material avoid

splashes up to the motor part.

9. Connect machines that are used in the open via a

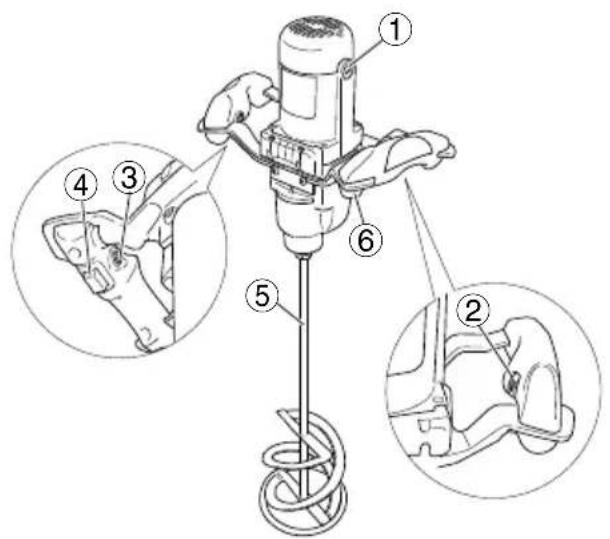

residual current device (RCD). NAMES OF PARTS (Fig. 1 – Fig. 6)

Stirrer (R) SYMBOLS WARNING The following show symbols used for the machine. Be sure that you understand their meaning before use. UM 22VYST / UM 16VST2 / UM 12VST2: Mixer To reduce the risk of injury, user must read instruction manual. 00BookUM22VYST.indb500BookUM22VYST.indb5 2019/05/3115:57:142019/05/3115:57:146 English Only for EU countries Do not dispose of electric tools together with household waste material! In observance of European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. Switching ON Switching OFF Disconnect mains plug from electrical outlet Class II tool (Double insulation) SPECIFICATIONS Model UM 22VYST UM 16VST2 UM 12VST2 Voltage (by areas)*

*1 Be sure to check the nameplate on product as it is subject to change by areas. *2 Weight: According to EPTA-Procedure 01/2014 Electronic control ○ Soft start Reduces recoil against the operator by managing the number of rotations during startup. ○ 0 Voltage Re-start Protection The 0 voltage restart protection feature prevents the power tool from restarting after the power has been temporarily cut off during operation. ○ Variable speed ○ Overload protection This protection feature cuts off the power to the motor in the event of overloading of motor or a conspicuous reduction in rotational speed during operation. When the overload protection feature has been activated, the motor may stop. In this case, release the tool switch and eliminate causes of overloading. After that you can use it again. NOTE Due to HiKOKI’s continuing program of research and development, the specifi cations herein are subject to change without prior notice. STANDARD ACCESSORIES

UM 22VYST UM 16VST2 UM 12VST2

Stirrer paddle (mm) ∅ 135 × 2 ∅ 160 × 1 ∅ 120 × 1 Extension bar (mm) — L185 — Standard accessories are subject to change without notice. APPLICATIONS Mixing pulverised building materials such as mortar, plaster, adhesives, as well as solvent-free paint, varnish and similar substances.

Ensure that the power source to be utilized conforms to the power requirements specifi ed on the product nameplate.

Ensure that the trigger is in the OFF position. If the plug is connected to a receptacle while the trigger is in the ON position, the power tool will start operating immediately, inviting serious accident.

When the work area is removed from the power source, use an extension cord of suffi cient thickness and rated capacity. The extension cord should be kept as short as practicable. 00BookUM22VYST.indb600BookUM22VYST.indb6 2019/05/3115:57:142019/05/3115:57:147 English

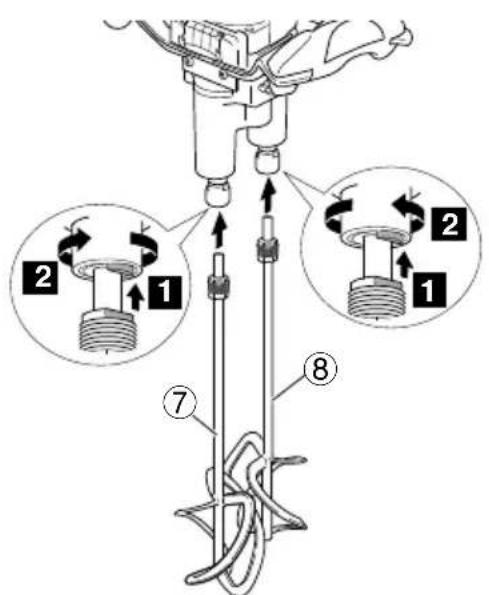

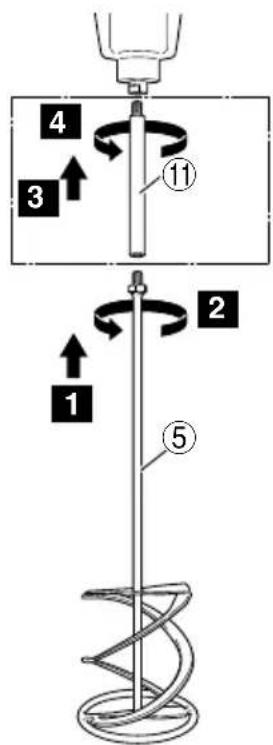

4. Mounting and dismounting of the stirrer paddle

(Fig. 2) CAUTION To avoid serious accident, ensure the trigger is in the OFF position, and the power source is disconnected. Disconnect the main plug! (1) Screw the stirrer paddle onto the spindle. Hold the spindle in place with wrench and turn the stirrer paddle with another wrench in the clockwise direction (viewed from the front side). Tighten securely. A wrench with the measurements below is required. ⎡UM 22VYST: 22 mm, 28 mm ⎤ ⎢UM 16VST2: 22 mm × 2, 19 mm (for extension bar) ⎥ ⎣UM 12VST2: 22 mm × 2 ⎦ (2) The stirrer paddle is disassembled in reverse order.

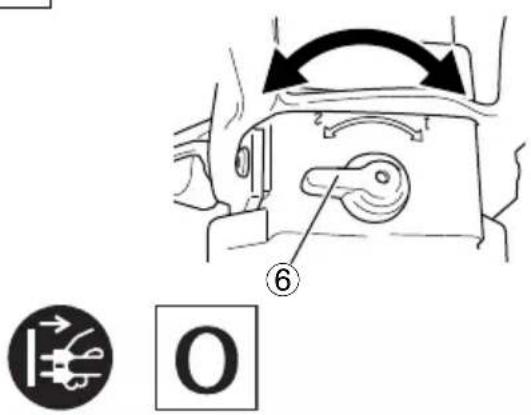

5. High-speed/Low-speed changeover

Prior to changing speed, ensure that the trigger is in the OFF position, and the machine has come to a complete stop. To change speed, rotate the gear shift dial as indicated by the arrow in Fig. 3. The numeral “1” engraved on the machine body denotes low speed, the numeral “2” denotes high speed. If it is hard to turn the gear shift dial, turn the spindle slightly in either direction and then turn the gear shift dial again.

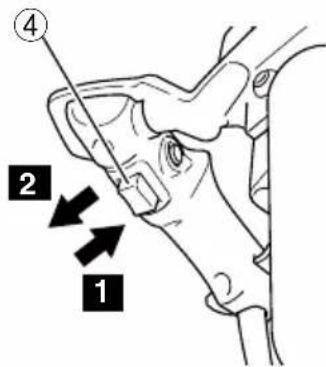

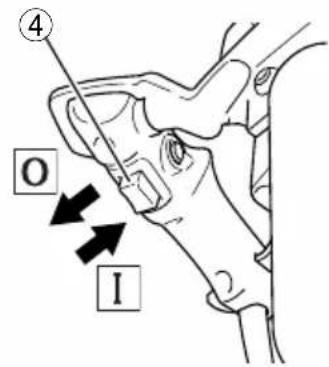

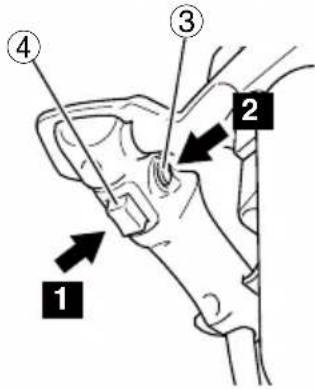

○ When the trigger is depressed, the tool rotates. When the trigger is released, the tool stops. ○ Pulling the trigger and pushing the Lock for ON, it keeps the switched-on condition which is convenient for continuous running. When switching off , the Lock for ON can be disconnected by pulling the trigger again.

2. Adjusting the speed (Fig. 5)

The desired rotation speed can be pre-selected with the speed control dial.

MAINTENANCE AND INSPECTION

The plug must be fi rst pulled out before maintenance and cleaning.

1. Storage and cleaning

When a mixer is not in use store it in dry locations the motor part upwards. When cleaning a mixer avoid entrance of any water or liquid to the motor part.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

3. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

4. Inspecting the carbon brushes

The motor employs carbon brushes which are consumable parts. Since an excessively worn carbon brush can result in motor trouble, replace the carbon brushes with new ones having the same carbon brush No.. In addition, always keep carbon brushes clean and ensue that they slide freely within the brush holders. CAUTION When replacing the new carbon brushes, always use genuine HiKOKI carbon brushes with the number specifi ed in the drawing.

5. Replacing carbon brushes

Disassemble the brush caps with a slotted-head screwdriver. The carbon brushes can then be easily removed. Contact the HiKOKI Authorized Service Center when repurchasing carbon brushes.

6. Replacing supply cord

If the supply cord of Tool is damaged, the Tool must be returned to HiKOKI Authorized Service Center for the cord to be replaced. If it becomes necessary to replace the connecting cable, then this is to be undertaken by the manufacturer or his representative in order to avoid any safety risks. CAUTION In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. GUARANTEE We guarantee HiKOKI Power Tools in accordance with statutory/country specifi c regulation. This guarantee does not cover defects or damage due to misuse, abuse, or normal wear and tear. In case of complaint, please send the Power Tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, to a HiKOKI Authorized Service Center. IMPORTANT Correct connection of the plug The wires of the mains lead are coloured in accordance with the following code: Blue: — Neutral Brown: — Live As the colours of the wires in the mains lead of this tool may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire coloured blue must be connected to the terminal marked with the letter N or coloured black. The wire coloured brown must be connected to the terminal marked with the letter L or coloured red. Neither core must be connected to the earth terminal. NOTE This requirement is provided according to BRITISH STANDARD 2769: 1984. Therefore, the letter code and colour code may not be applicable to other markets except United Kingdom. 00BookUM22VYST.indb700BookUM22VYST.indb7 2019/05/3115:57:142019/05/3115:57:148 English Information concerning airborne noise and vibration The measured values were determined according to EN62841 and declared in accordance with ISO 4871. Measured A-weighted sound power level:

Measured A-weighted sound pressure level:

– The stipulated vibration total values and the stipulated noise emission values have been measured according to a standardized test procedure and they can be used to compare one power tool against another. – The stipulated vibration total values and the stipulated noise emission values can also be used for a preliminary load assessment.

– The vibration and noise emissions generated during actual use of the power tool may deviate from the indicated values, as they will depend on the way in which the power tool is being used, especially with regard to the type of workpiece being processed. – Try to keep the load caused by the vibrations as low as possible. Wearing gloves when using the tool and limiting working time are examples of measures that can be taken to reduce vibrations. All parts of the operating cycle are to be taken into consideration (e.g. times when the power tool is switched off and those when it is switched on, but is running without a load). 00BookUM22VYST.indb800BookUM22VYST.indb8 2019/05/3115:57:142019/05/3115:57:149 Deutsch f) Wenn der Betrieb des Elektrowerkzeugs in feuchter Umgebung nicht vermeidbar ist, verwenden Sie einen Fehlerstromschutzschalter. Der Einsatz eines Fehlerstromschutzschalters vermindert das Risiko eines elektrischen Schlages.

EC DECLARATION OF CONFORMITY

We declare under our sole responsibility that Mixer, identifi ed by type and specifi c identifi cation code *1), is in conformity with all relevant requirements of the directives *2) and standards *3). Technical fi le at *4) – See below. The European Standard Manager at the representative offi ce in Europe is authorized to compile the technical fi le. The declaration is applicable to the product affi xed CE marking.
