USER MANUAL KG756E.9 KRESS

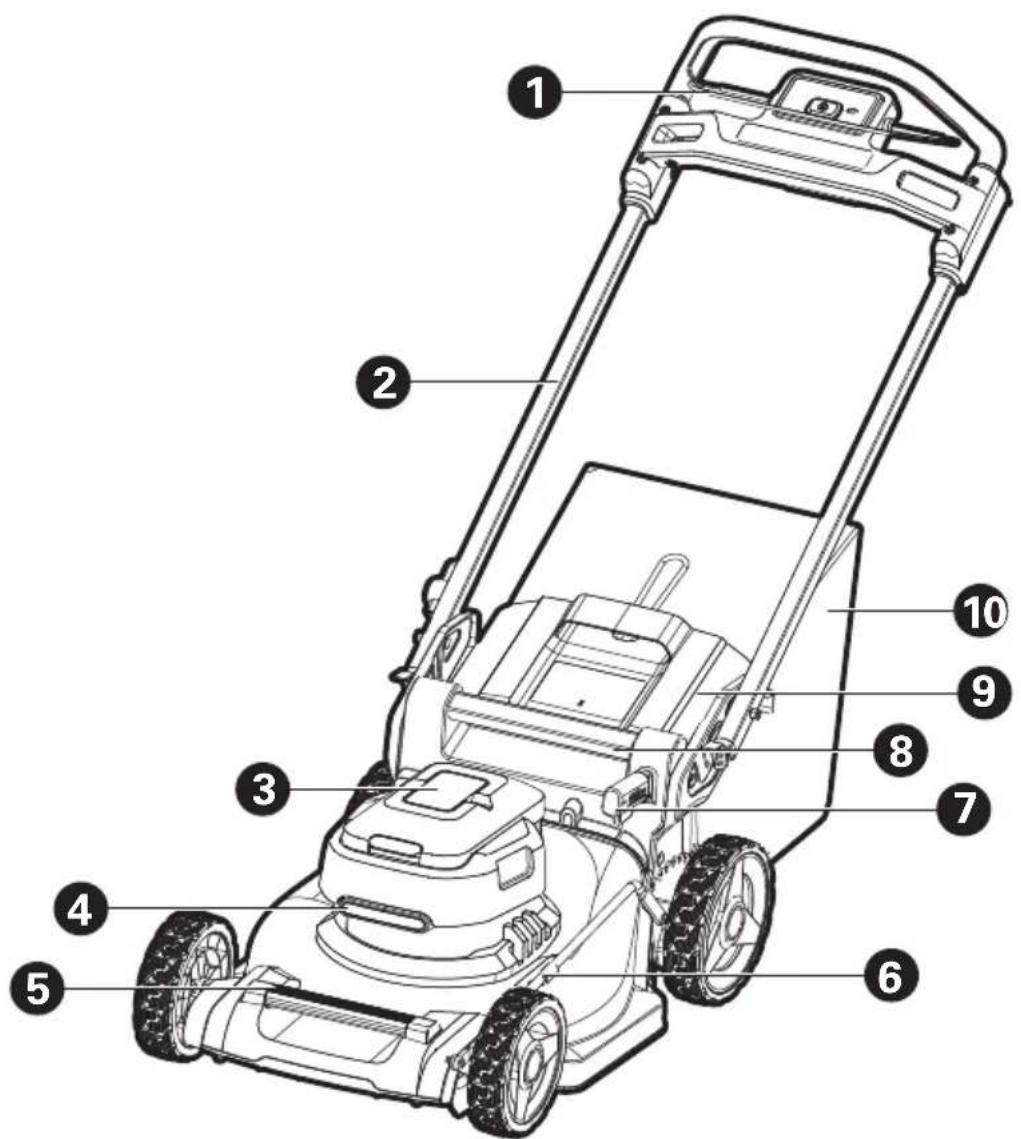

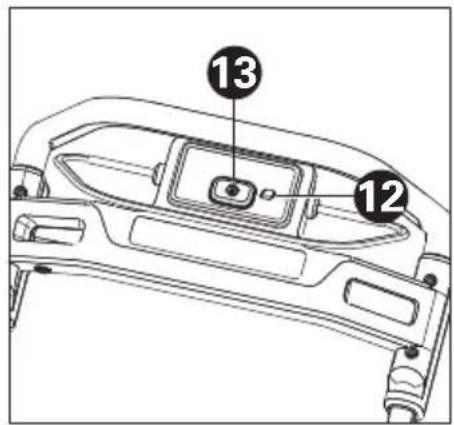

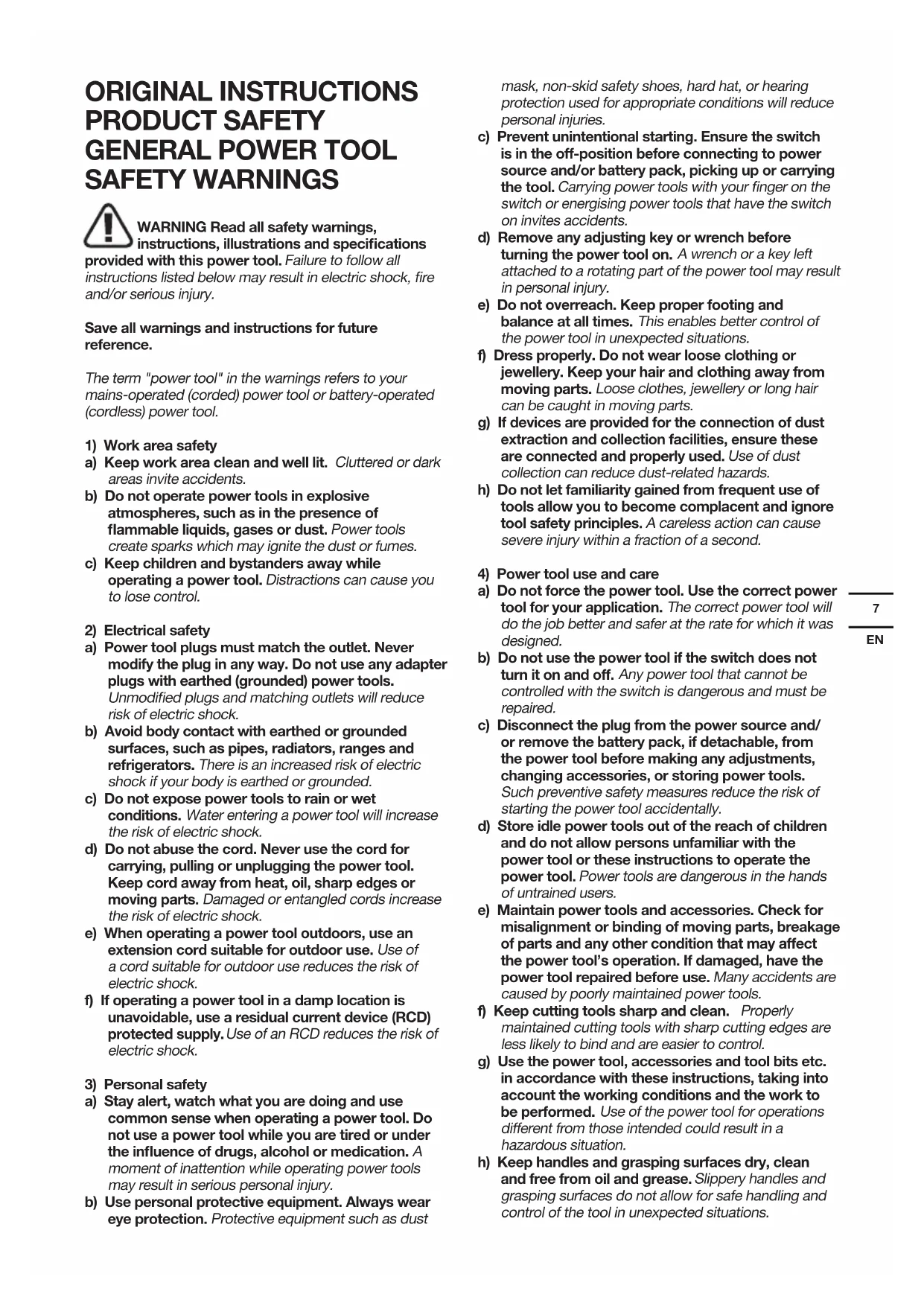

SAFETY WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, re and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.8

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and re. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modified. Damaged or modied batteries may exhibit unpredictable behaviour resulting in re, explosion or risk of injury. f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to re or temperature above 130 °C may cause explosion. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specied range may damage the battery and increase the risk of re.

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. LAWNMOWER SAFETY WARNINGS a) Do not use the lawnmower in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning. b) Thoroughly inspect the area for wildlife where the lawnmower is to be used. Wildlife may be injured by the lawnmower during operation. c) Thoroughly inspect the area where the lawnmower is to be used and remove all stones, sticks, wires, bones, and other foreign objects. Thrown objects can cause personal injury. d) Before using the lawnmower, always visually inspect to see that the blade and the blade assembly are not worn or damaged. Worn or damaged parts increase the risk of injury. e) Check the grass catcher frequently for wear or deterioration. A worn or damaged grass catcher may increase the risk of personal injury. f) Keep guards in place. Guards must be in working order and be properly mounted. A guard that is loose, damaged, or is not functioning correctly may result in personal injury. g) Keep all cooling air inlets clear of debris. Blocked air inlets and debris may result in overheating or risk of fire. h) While operating the lawnmower, always wear non-slip and protective footwear. Do not operate the lawnmower when barefoot or wearing open sandals. This reduces the chance of injury to the feet from contact with the moving blade.

i) While operating the lawnmower, always wear long

trousers. Exposed skin increases the likelihood of injury from thrown objects. j) Do not operate the lawnmower in wet grass. Walk, never run. This reduces the risk of slipping and falling which may result in personal injury. k) Do not operate the lawnmower on excessively steep slopes. This reduces the risk of loss of control, slipping and falling which may result in personal injury. l) When working on slopes, always be sure of your footing, always work across the face of slopes, never up or down and exercise extreme caution when changing direction. This reduces the risk of loss of control, slipping and falling which may result in personal injury. m) Use extreme caution when reversing or pulling the lawnmower towards you. Always be aware of your surroundings. This reduces the risk of tripping during operation. n) Do not touch blades and other hazardous moving parts while they are still in motion. This reduces the risk of injury from moving parts. o) When clearing jammed material or cleaning the lawnmower, make sure all power switches are off and the battery pack is disconnected. Unexpected operation of the lawnmower may result in serious personal injury.

BATTERY PACK a) Do not dismantle, open or shred cells or battery pack. b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re. c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight. d) Do not subject battery pack to mechanical shock. e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. f) Keep battery pack clean and dry.9

g) Wipe the battery pack terminals with a clean dry cloth if they become dirty. h) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.

i) Do not maintain battery pack on charge when

not in use. j) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance. k) Recharge only with the charger specified by Kress. Do not use any charger other than that specifically provided for use with the equipment. l) Do not use any battery pack which is not designed for use with the equipment. m) Keep battery pack out of the reach of children. n) Retain the original product literature for future reference. o) Remove the battery from the equipment when not in use. p) Dispose of properly. q) Do not mix cells of different manufacture, capacity, size or type within a device. r) Keep the battery away from microwaves and high pressure. SYMBOLS To reduce the risk of injury, user must read instruction manual WARNING – Beware of thrown objects – keep bystanders away WARNING – Keep hands and feet away from the blades WARNING – Disconnect battery before maintenance Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste. Do not burn Li-Ion battery This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. Wear protective gloves. Remove battery from the socket before carrying out any adjustment, servicing or maintenance. Remove the key Blade continues to rotate after the machine is switched off. Wait until all machine components have completely stopped before touching them COMPONENT LIST

Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA Type KG756E KG756E.X (7- designation of machinery, representative of Cordless Lawn Mower) KG756E KG756E.X** Voltage 60V Max *** No load speed 2800 /min Deck width 48 cm Cutting width 46 cm Front wheel diameter 200 mm Rear wheel diameter 230 mm Cutting height 20 – 80 mm Cutting height positions

Grass collection capacity 55 L Battery type Lithium-Ion Machine Weight 24.1 kg ** X=1-999, A-Z, M1-M9 there are only used for different customers, there are no safe relevant changes between these models. *** Voltage measured without workload. Initial battery voltage reaches maximum of 60 volts. Nominal voltage is 54 volts. SUGGESTED BATTERIES AND CHARGERS Category Model Capacity 60V Battery KA3002 4.0Ah KA3008 5.0Ah 60V Charger KA3714 5.0A We recommend that you purchase your accessories from the same store that sold you the tool. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice. NOISE DATA A weighted sound pressure L

A weighted sound power L

WARNING: The vibration emission value during

actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used: How the tool is used and the materials being cut or drilled. The tool being in good condition and well maintained. Using the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles and if any anti vibration accessories are used. And the tool is being used as intended by its design and these instructions. This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of

exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may signicantly reduce the exposure level over the total working period. Helping to minimise your vibration exposure risk. ALWAYS use sharp chisels, drills and blades. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate). If the tool is to be used regularly then invest in anti vibration accessories. Plan your work schedule to spread any high vibration tool use across a number of days.11

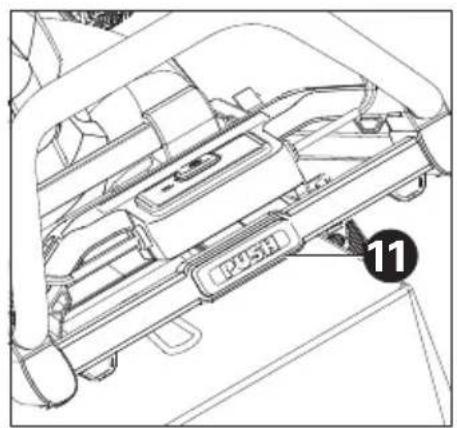

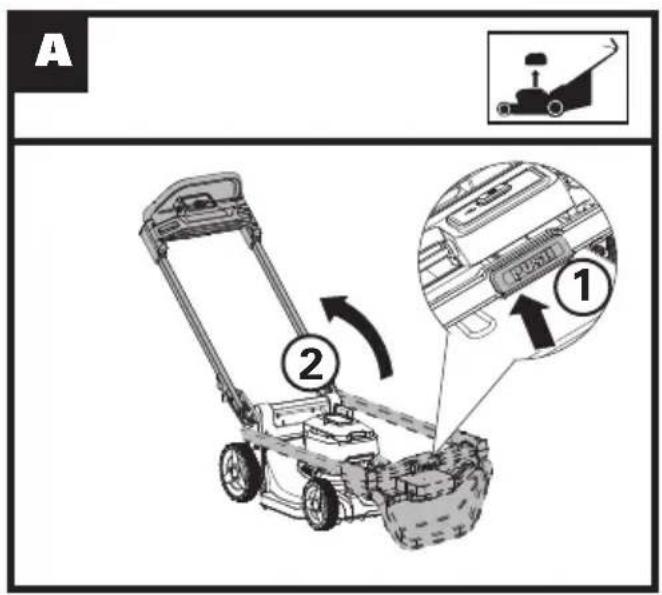

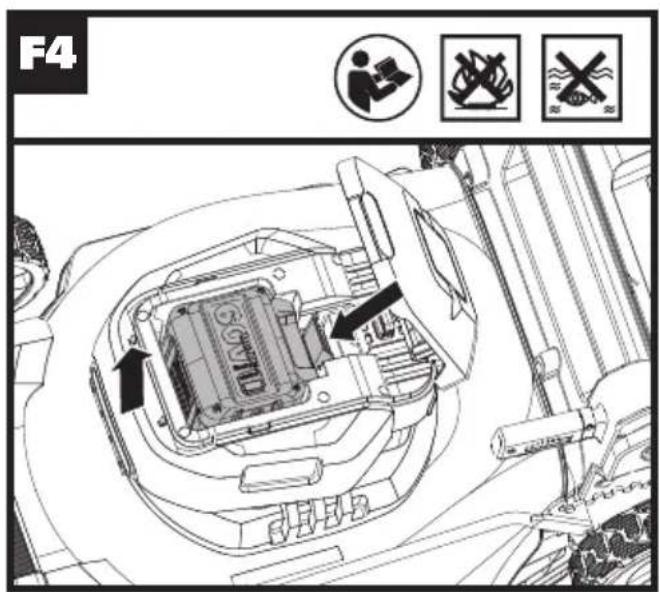

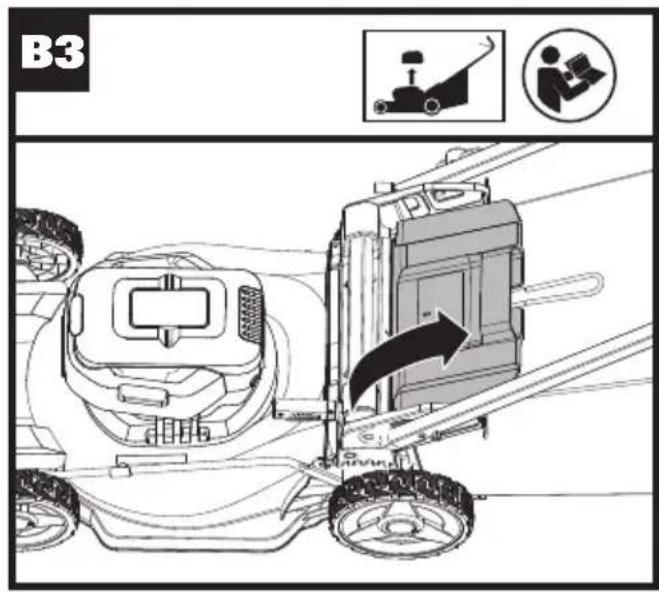

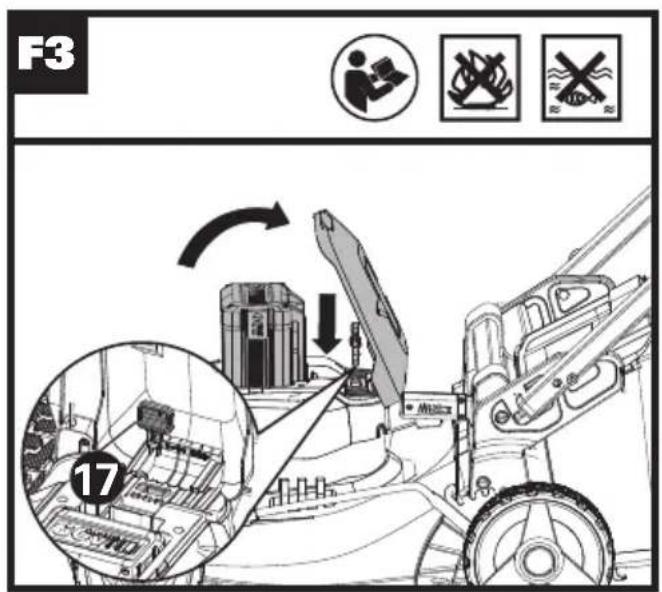

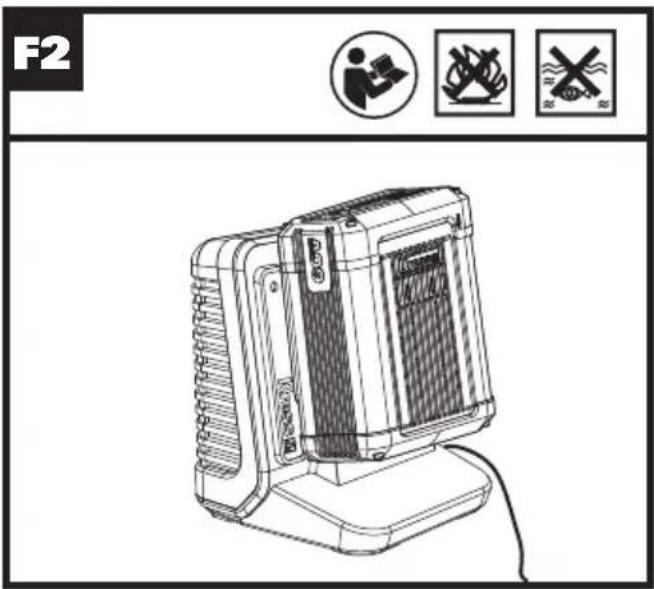

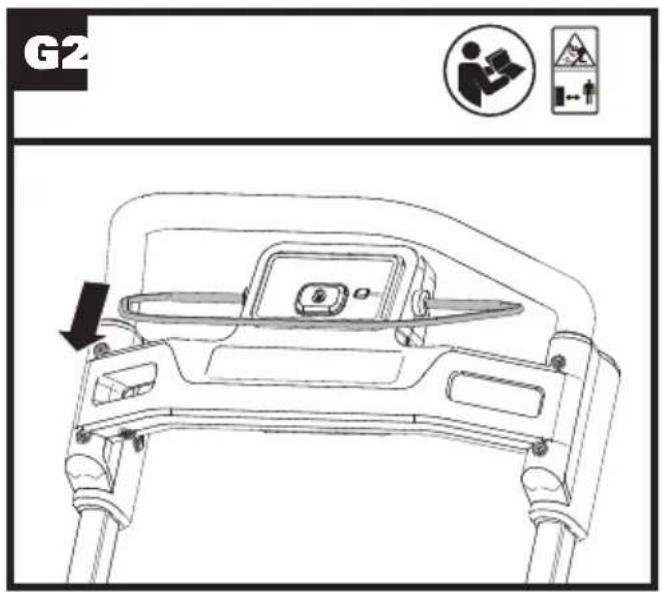

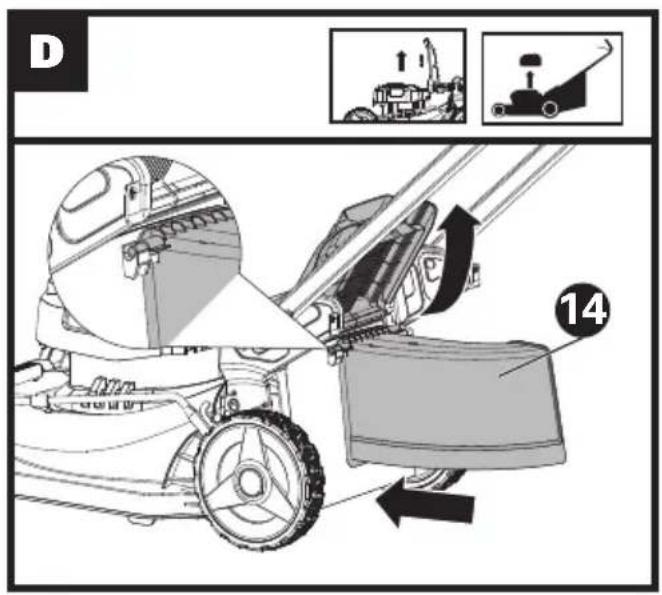

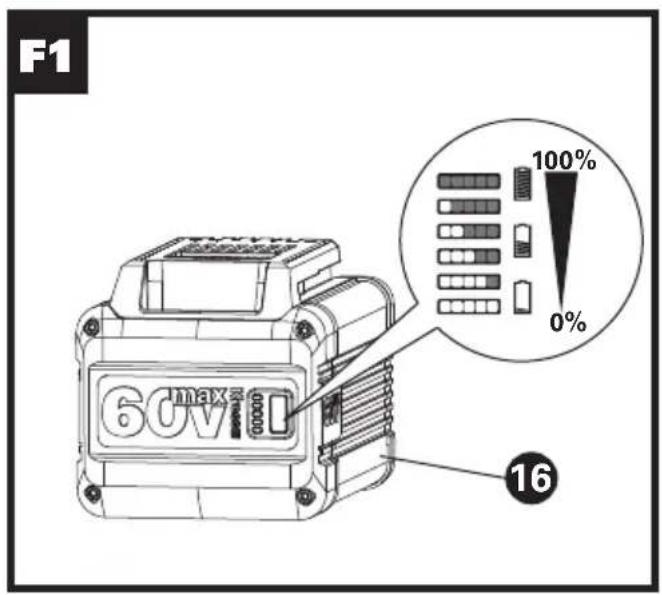

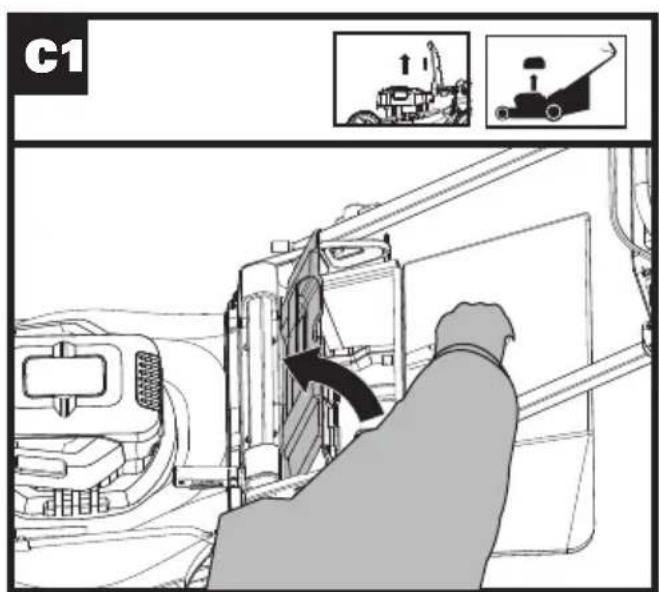

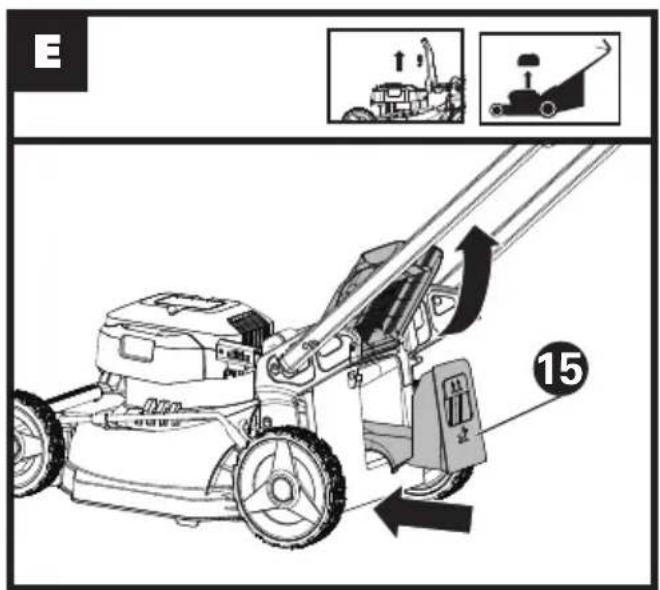

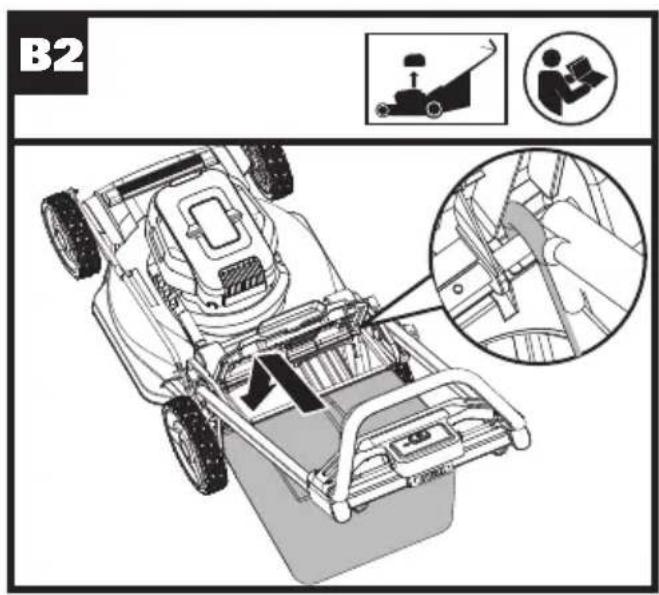

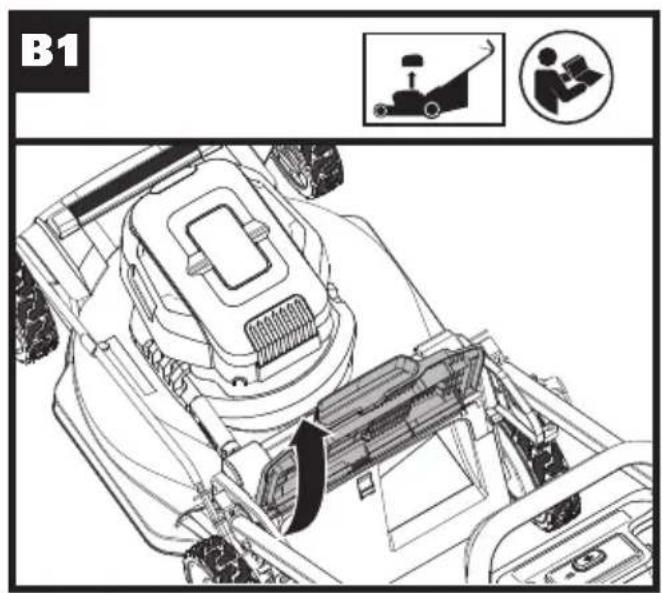

OPERATION INSTRUCTION NOTE: Read instruction handbook before operation this machine. INTENDED USE This product is intended for domestic lawn mowing. BEFORE OPERATION: Lifting the Handle bar (See Fig. A) Press and hold quick-release button during operation. Assembling the grass collection bag to the lawn mower (See Fig. B1, B2, B3) NOTE: Depress the grass collection bag slightly to ensure that it is completely installed. Removing/emptying grass collection bag (See Fig. C1, C2) WARNING! Always check the safety ap close the discharge outlet before using. Never lift the safety ap when the lawn mower is being used without tted grass collection bag. Installing the rear side-discharge chute (Sold Separately) (See Fig. D) Removing grass collection bag, then install rear side- discharge chute in. Installing the mulching insert (See Fig. E) Removing grass collection bag or rear side-discharge chute, then install the mulching insert in. Checking the battery charge condition (See Fig. F1) NOTE: Fig. F1 only applies for the battery pack with battery indicator light. The battery level can be determined by pressing the power indicator button beside the battery lights. Press the button before and after each use to check the battery. Remarks LED-light Battery condition Five green lights are illuminated. 70% ≤ Power level Four green lights are illuminated. 50% ≤ Power level < 70% Three green lights are illuminated. 35% ≤ Power level < 50% Two green lights are illuminated. 20% ≤ Power level < 35% One green light are illuminated. 10% ≤ Power level < 20% No light is illuminated. Power level < 10% Charging the battery pack (See Fig. F2) - Your battery pack is partly charged and needs to be fully charged before rst use. - More details can be found in charger’s manual. Installing & removing the battery pack (See Fig. F3, F4) Insert the safety key before installing the battery pack. NOTE: Depress the battery release button to release battery pack from your tool. After recharging, insert the battery pack into tool’s battery port until you hear a “click”. A simple push and slight pressure will be sufcient. OPERATION Starting and Stopping (See Fig. G1, G2) Press the Safety lock-out button, then the push Operating bail to start. Release the operating bail to stop. NOTE: For starting, press both the Safety lock-out button and the Operating bail at the same time.

MULCHING MOWING TIPS

While mulching, your new mower is designed to cut the grass clippings into small pieces and distribute them back into the lawn. Under normal conditions, the mulched grass will biodegrade quickly and deliver nutrients to the lawn. Please review the following recommendations for optimum mulching performance.

1) Avoid mowing when the grass is wet from rain or dew.

Wet grass may form clumps which interfere with the mulching action and reduce the runtime. The best time to mow the grass is in the late afternoon when the grass is dry and the newly cut area will not be exposed to direct sunlight.

2) For the best mulching performance, set the cutting

height to remove about one third of the grass blade length, ideally no more than 40mm at one time. If the lawn is overgrown, it may be necessary to increase the cutting height to reduce the pushing effort and prevent overloading the motor. For extremely heavy mulching, it is advisable to rst cut at a high cut height setting, and then re-cut to the nal cut height. Otherwise, make narrower cuts and mow slowly.

3) For the best performance, keep the mower housing

free of built-up grass. From time to time turn off mower and wait for the blades to come to a complete stop. Then unplug the safety key, remove the batteries and turn mower on its side. Using an object such as12

a stick, wipe out any accumulation of grass around the blade area. Be careful of the sharp edges of the blade. Ensure to clean the blade area often when cutting wet or new grass and every time after the machine is used.

4) Certain types of grass or grass conditions may

require that an area be mulched a second time to fully disperse the grass throughout the lawn. If cutting a second time, it is advisable to cut perpendicular (across) the rst cut pattern. DO NOT CHANGE CUT PATTERN IN ANY WAY THAT WOULD CAUSE MOWING DOWN A HILL.

5) Change your cutting pattern from week to week. This

will help prevent matting and graining of the lawn.

6) Do not mow on a slope that has an angle of greater

CUTTING AREA The cutting area can be affected by several factors, such as cutting height, lawn humidity, grass length and density. Besides, starting and stopping the mower too many times during operation will reduce the cutting area. It is ideal for mowing up to 1200m² lot sizes. TIPS:

1) It is recommended to mow your lawn more frequently,

walk at normal pace, and not to start/stop the mower too often during operation.

2) For best performance, please ensure use two fully

charged battery packs at the same time and always cut off 1/3 or less of the grass height.

3) Walk slowly when cutting long grass, so as to have

more effective cutting and properly discharge the clippings.

4) Avoid cutting wet grass, otherwise it will stick to the

underside of the deck and the clippings cannot be collected or discharged properly.

5) A higher cutting height shall be applied to new or

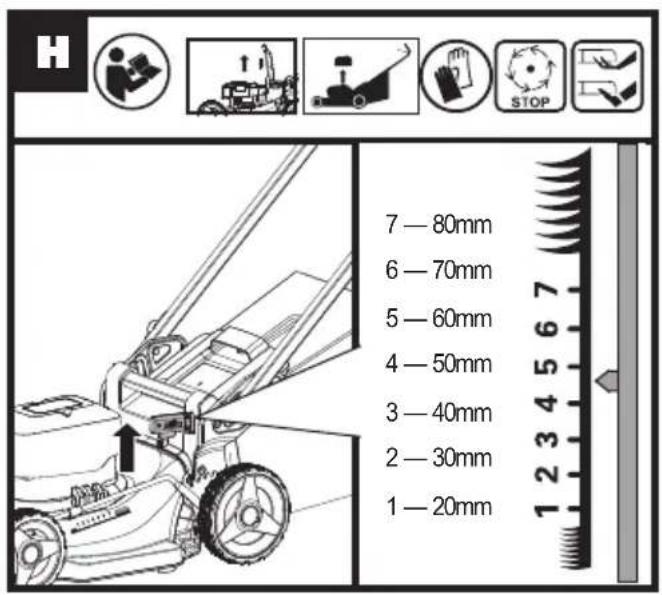

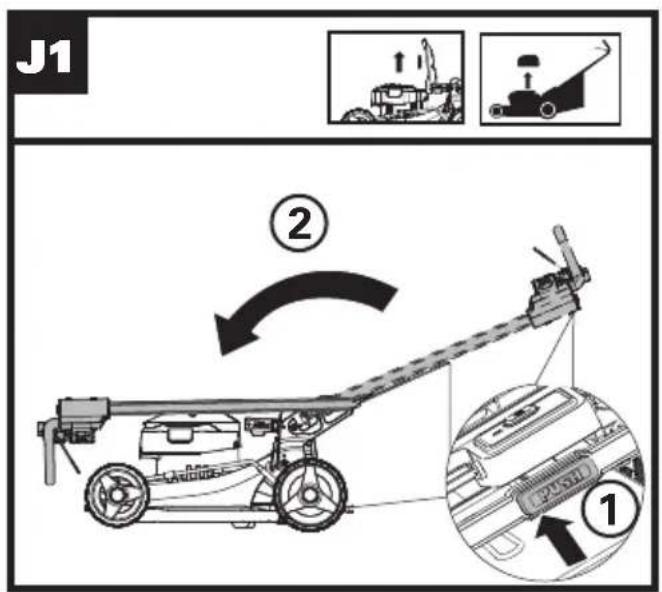

thick grass and it will extend the battery duration. Adjusting the cutting height (See Fig. H) Press and hold Cutting-height adjustment lever. Adjust the cutting height up and down. WARNING! Stop, release operating bail and wait until the motor stops before adjusting height. The blades continue to rotate after the machine is switched off, a rotating blade can cause injury. Do not touch rotating blades. Opening the LED headlight (See Fig. I) Press the switch button for LED headlight. AFTER OPERATION: STORAGE (See Fig. J1, J2) Stop the mower and always unplug the safety key and remove the batteries. Clean the exterior of the machine thoroughly using a soft brush and cloth. Do not use water, solvents or polishes. Remove all grass and debris, especially from the ventilation slots. Turn the machine on its side and clean the blade area. If grass cuttings are compacted in the blade area, remove with a wooden or plastic implement. Store the machine in a dry place. Do not place other objects on top of the machine. To aid storage, Press and hold quick-release button and fold the handle bar. MAINTENANCE

WARNING: Stop the mower and unplug the safety

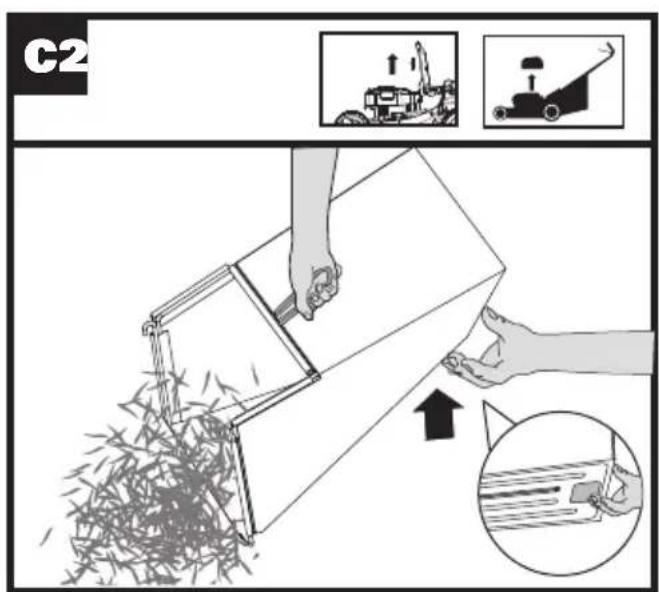

key and remove the batteries before removing the grass collection bag. NOTE: To ensure long and reliable service, perform the following maintenance procedures regularly. Check for obvious defects such as a loose, dislodged or a damaged blade, loose ttings, and worn or damaged components. Check that the covers and guards are all undamaged and are correctly attached to mower. Carry out any necessary maintenance or repairs before operating mower. If the mower should happen to fail despite regular maintenance, please call our customer helpline for advice. BLADE SHARPENING

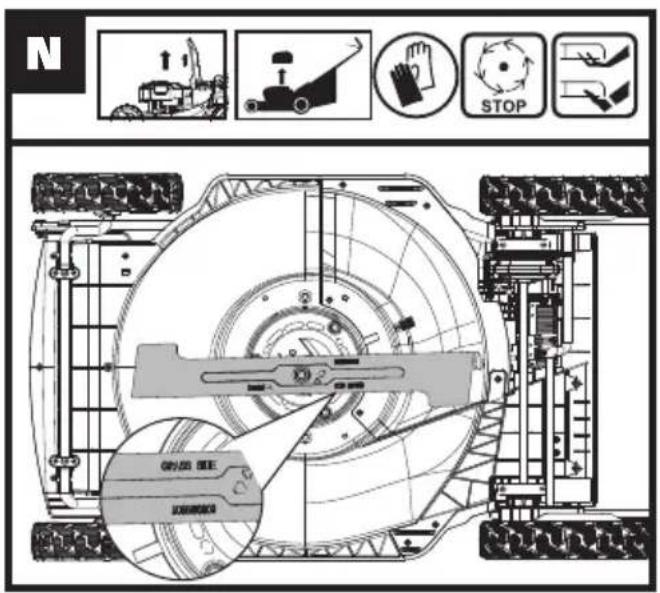

REMOVING, SHARPENING, AND INSTALLING BLADE. ENSURE THAT SAFETY KEY IS REMOVED. Sharpening the blade twice during a mowing season is usually sufcient under normal circumstances. Sand causes the blade to dull quickly. If your lawn has sandy soil, more frequent sharpening may be required.

REPLACE BENT OR DAMAGED BLADE

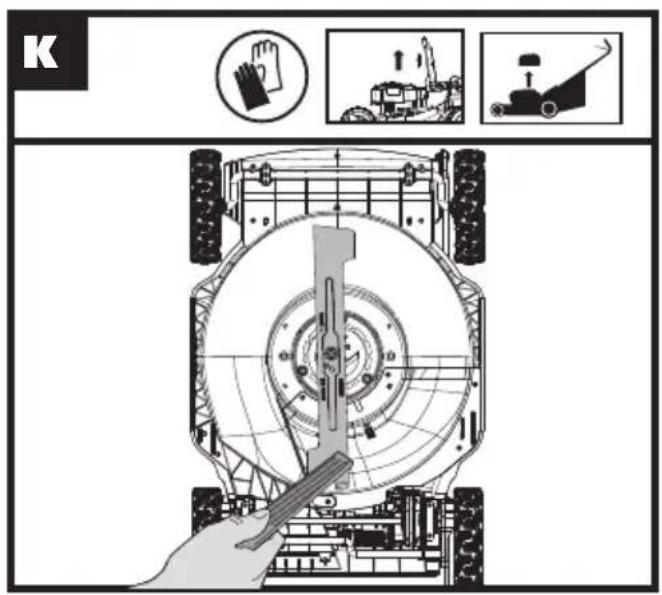

IMMEDIATELY. WHEN SHARPENING THE BLADE (See Fig. K)

1. Make sure blade remains balanced.

2. Sharpen blade at the original cutting angle.

3. Sharpen cutting edges on both ends of blade to keep

it balanced, removing equal amounts of material from both ends. NOTE:

1. Be sure the mower is turned off and unplug the safety

key, remove the batteries.

2. Place the mower in stand up storage mode.

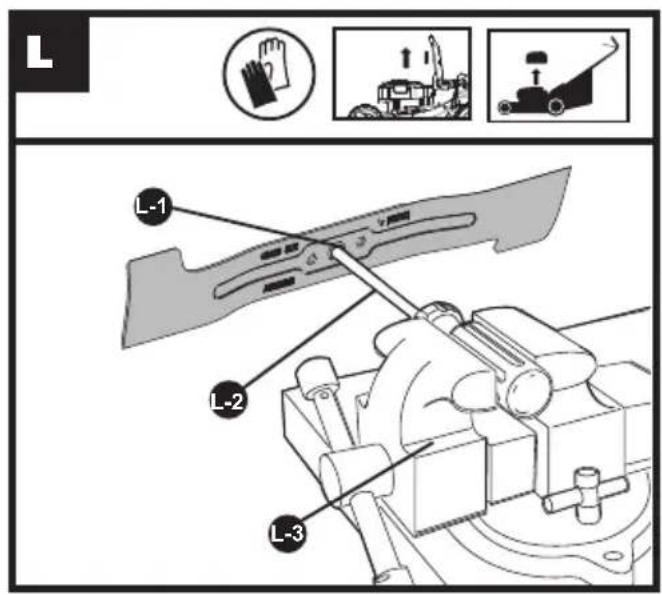

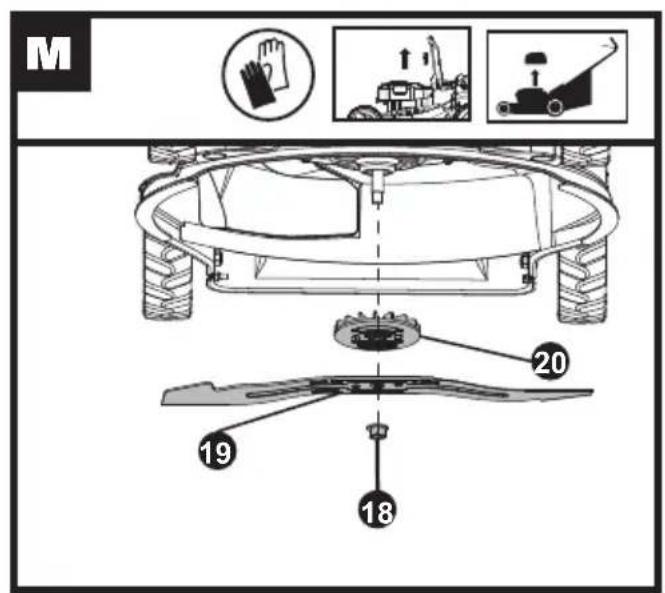

BLADE BALANCING (See Fig. L) Check balance of blade by placing center hole in blade L-1 over a screwdriver shank L-2, clamped horizontally in a vise L-3. If either end of the blade rotates downward, le that end. Blade is properly balanced when neither end drops. BLADE MAINTENANCE (See Fig. M, N) Replace your Mower Blade after 50 hours mowing or 2 years, which ever is the sooner-regardless of condition. Follow these procedures to remove and replace the Blade. You will need garden gloves (not provided) and a spanner wrench (not provided) to remove the Blade. Make sure safety key and batteries are not installed. Wedge a block of wood between the blade and the mower deck to prevent the blade from turning and unscrew the Blade Bolt counter-clockwise using a spanner wrench, and then remove the Blade. To re-assemble, position the Blade with the cutting edges towards the ground. Then securely tighten the Blade Bolt.13

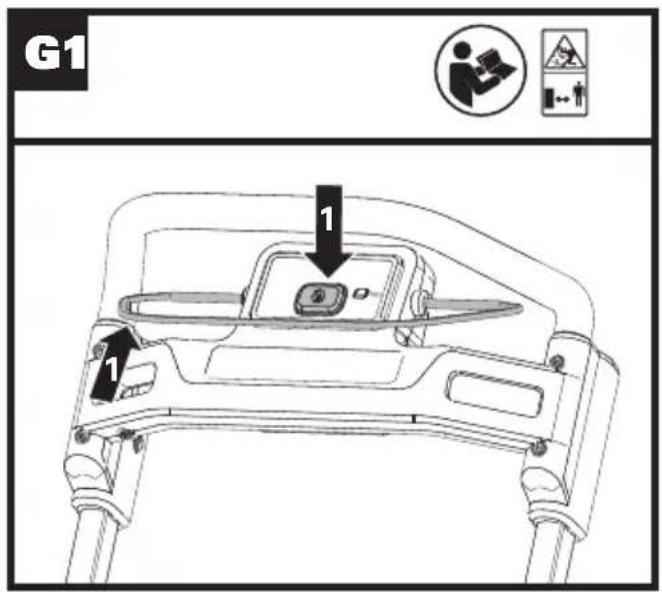

run when Operating Bail is activated. A. Check to make sure safety key has been installed and is fully seated and thatSafety lock-out button is being completely pushed. B. Release Operating Bail to turn mower off. Unplug the safety key and remove the batteries, turn mower over and check that blade is free to turn. If not free, return to an authorized servicer. Blade should turn freely. C. Has battery been fully charged? Plug in charger and wait for green light to come on. For starting, press both the Safety lock-out button and the Operating bail at the same time. (See Fig. G1)

2. Motor stops while

mowing. A. Release Operating Bail to turn mower off. Unplug the safety key and remove the batteries,turn mower over and check that blade is free to turn. If not free, return to an authorized servicer. Blade should turn freely. B. Raise cutting height of wheels to highest position and start mower. C. Has battery been fully charged? Plug in charger and wait for green light to come on. D. Avoid overloading the mower. Slow down the cutting pace by pushing mower slower or raise the cut height. Or both.

cutting performance is unsatisfactory, or does not cut entire lawn. A. Has battery been fully charged? Plug in charger and wait for green light to come on.” B. Release Operating Bail to turn mower off. Unplug the safety key and remove the batteries. Turn mower over and check: Blade for sharpness - Keep blade sharp. Deck and discharge chute for clogging. C. Wheel height adjustment may be set too low for grass condition. Raise cutting height.

4. Mower is too hard

to push. A. Raise cutting height to reduce deck drag on grass. Check each wheel for free rotation.

abnormally noisy and vibrates. A. Release Operating Bail to turn mower off. Unplug the safety key and remove the batteries. Turn mower on side and check blade to ensure it has not been bent or damaged. If blade is damaged, replace with a replacement blade. If the underside of the deck is damaged return mower to an Authorized service center. B. If there is no visible damage to the blade and the mower still vibrates: Release Operating Bail to turn mower off, Unplug the safety key and remove the batteries, and remove blade. Rotate blade 180 degrees and retighten. If mower still vibrates, return the mower to an authorized service center.

LED’s not on. A. Check plug connection. B. Replace charger.

LED does not ip to green. A. Battery needs to be diagnosed. Take to authorized service center.

picking up clippings with the Grass Collection Bag. A. Remove mulch plate when bagging. B. Chute clogged. Release Operating Bail to turn mower off. Unplug the safety key and remove the batteries. Clear chute of grass clippings. C. Too much cut grass. Raise cutting height of wheels to shorten length of the cut. D. Bag full. Empty bag more often.

there are clippings visible. A. Too much cut grass. Raise cutting height of wheels to shorten length of the cut. Do not cut off more than 1/3 of total length. B. Check blade for sharpness. Always keep blade sharp.

diminished run-time after many uses A. Return to Authorized Service location - may need new battery.

charger LED ashes red and the battery can’t be charged. A. The battery overheats after continuous use. Remove battery from the charger and allow it to cool to 42°C or less. ENVIRONMENTAL PROTECTION Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.14

The ambient temperature range for the use and storage of tool and battery is 0

The recommended ambient temperature range for the charging system during charging is 5

Details regarding safe disposal of used batteries At the end of the life of the appliance, remove the battery pack safely before disposing of the appliance. Do not throw batteries away or throw them in the normal trash can. Also do not dispose of the battery with the machine. Remove the used battery pack from the appliance and dispose of it at the nearest or convenient dedicated recycling facility. If in doubt, consult your local environmental protection department. Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste. DECLARATION OF CONFORMITY We, Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany On behalf of Positec declare that the product Description Battery powered Lawn Mower Type KG756E KG756E.X (7- designation of machinery, representative of Battery- powered Lawn Mower) Function cutting grass Complies with the following Directives: 2006/42/EC, 2014/30/EU, 2011/65/EU&(EU)2015/863, 2000/14/EC amended by 2005/88/EC The notied body involved Name: TÜV Rheinland LGA Products GmbH (Notified body 0197) Address: Tillystraße 2-90431 Nürnberg 2000/14/EC amended by 2005/88/EC: - Conformity Assessment Procedure as per Annex VI - Measured Sound Power Level 93.1 dB(A) - Declared Guaranteed Sound Power Level 96 dB(A) Standards conform to EN 62841-1, EN IEC 62841-4-3, EN ISO 3744, EN IEC

55014-1, EN IEC 55014-2, EN IEC 63000

The person authorized to compile the technical le, Name: Marcel Filz Address: Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany 2021/03/16 Allen Ding Deputy Chief Engineer, Testing & Certication Positec Technology (China) Co., Ltd. 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R.15
