USER MANUAL Evolution Cocoon Kindercraft

• Never leave the child unattended

• Ensure that all the locking devices are engaged before use

• To avoid injury ensure that the child is kept away when unfolding and folding this product

• Do not let the child play with this product

• Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use

• This product is not suitable for running or skating

• Age and weight usage: from 0 months up to 15 kg.

• The product is designed to transport one child at a time. The maximum basket load is 5 kg.

• Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.

• Maximum weight of a bag attached to the adjustable handle is 2 kg.

• The maximum load carried in the cup holder must never exceed 1 kg.

• Lift the front suspension when going up a curb or step.

• The brakes should be locked when the child is placed in or taken out of the buggy.

• Use only parts and accessories supplied or recommended by the manufacturer. Do not use other parts or accessories.

• Do not place the product near open flame or other heat sources.

• Do not use with an additional platform. The following applies to the bassinet: WARNING! WARNING! This product is suitable for a child who cannot sit up unaided, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 9 kg

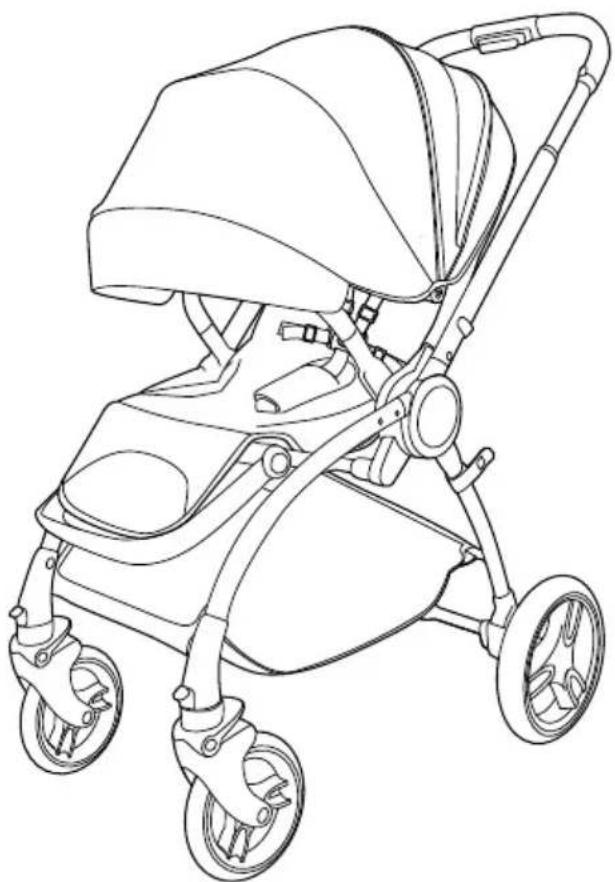

• Do not insert an extra mattress apart from that supplied with the product. The following applies to the buggy: WARNING! Always use the restraint system The product is intended for children from 0 months old to 15 kg I Baby stroller components A. Frame with seat D. Armrest G. Footrest cover J. Mosquito net B. Fron wheels x2 E. Soft carrycot H. Rain cover K. Longer side insert for carrycot C. Rear wheels x2 F. Canopy

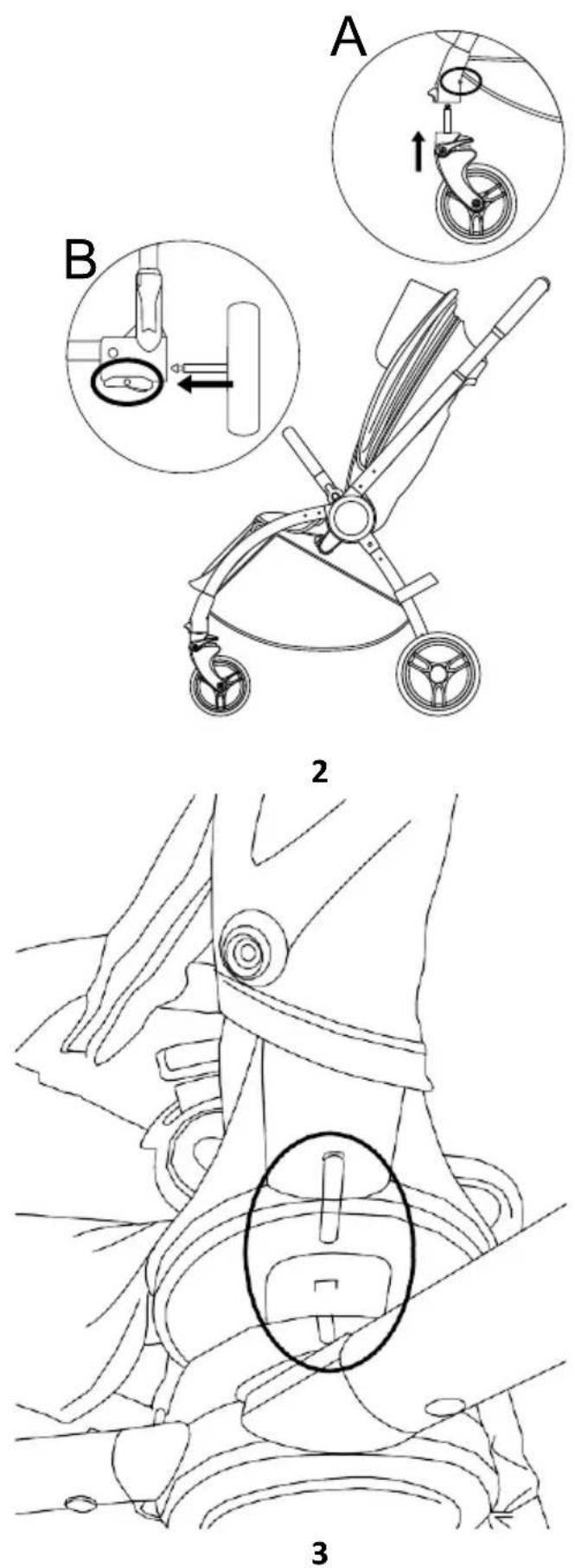

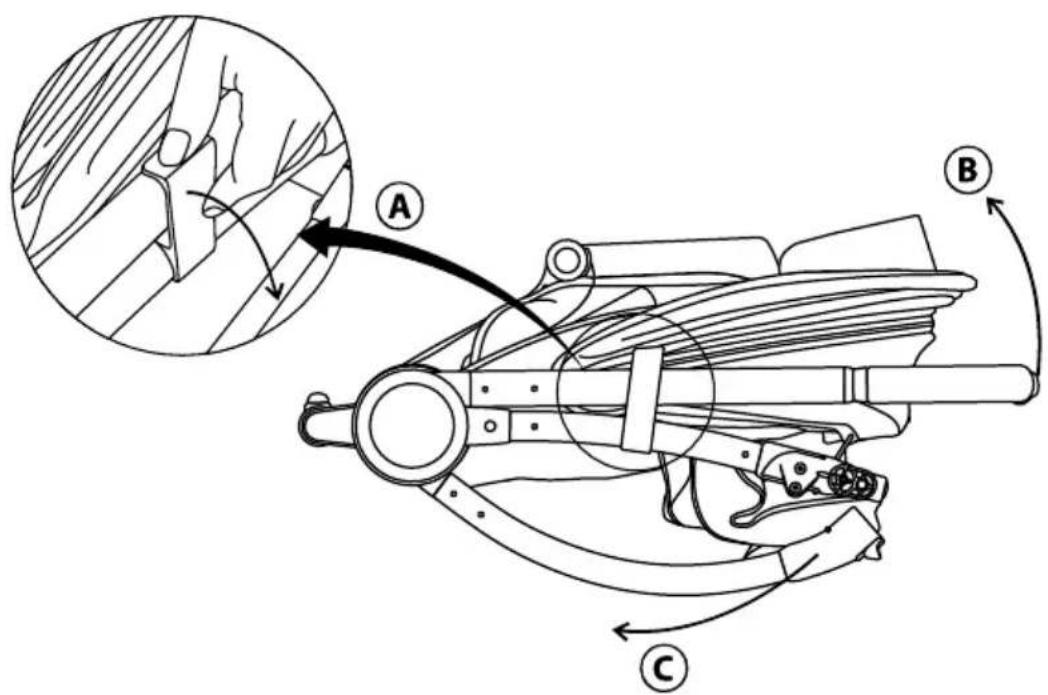

L. Shorter side insert for carrycot II FOLDING THE BABY STROLLER FRAME, MOUNTING AND DISMOUNTING THE WHEELS Place the frame (A) on a flat surface. Unlock the lock on the left side of the baby stroller, grasp the parent's handlebar and lift the frame up (Fig. 1), the frame should lock. Then mount the front wheels (B) (Fig. 2, A) and rear wheels (C) (Fig. 2, B) until you hear a distinctive click sound. The buttons for dismounting the front and rear wheels are marked in Fig. 2, A and Fig. 2, B WARNING! Before using the buggy, make sure that all the wheels are properly installed.24

III MOUNTING THE CARRYCOT

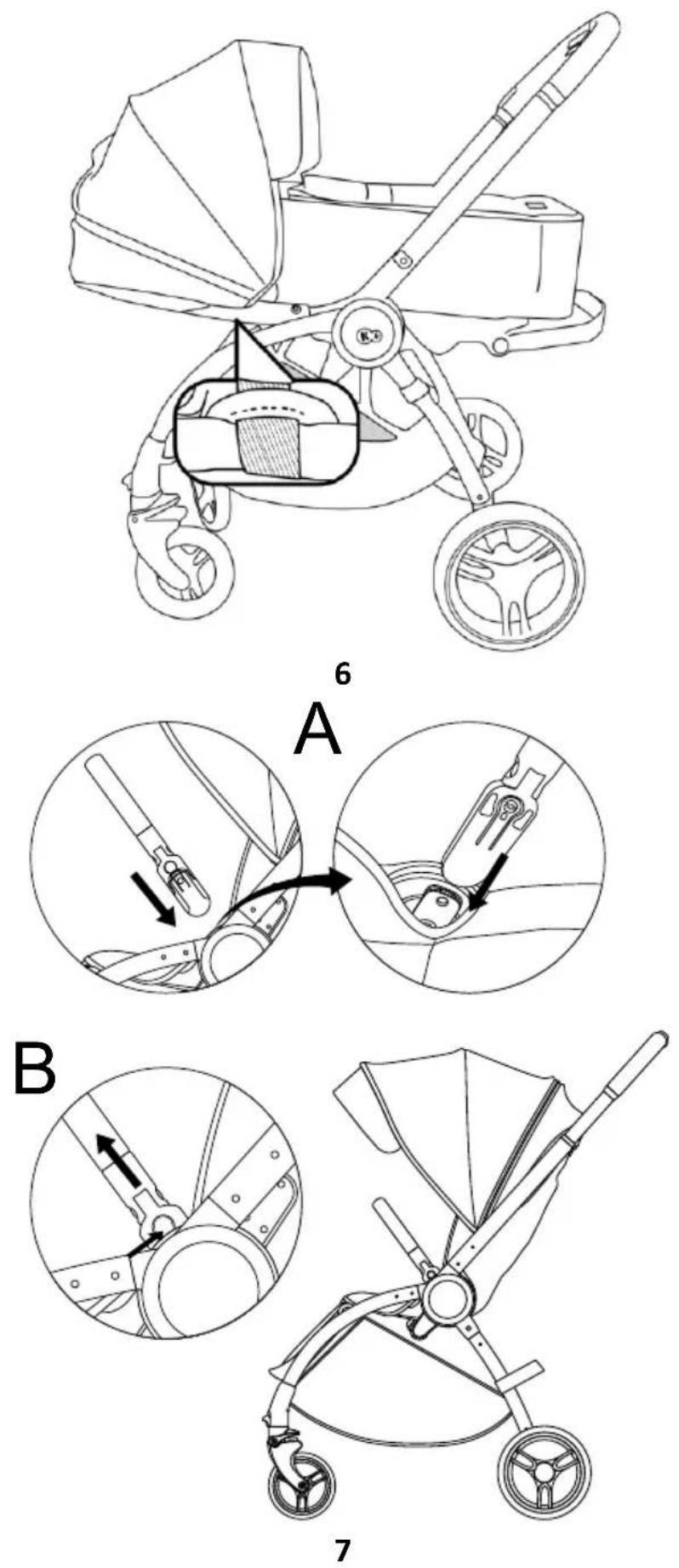

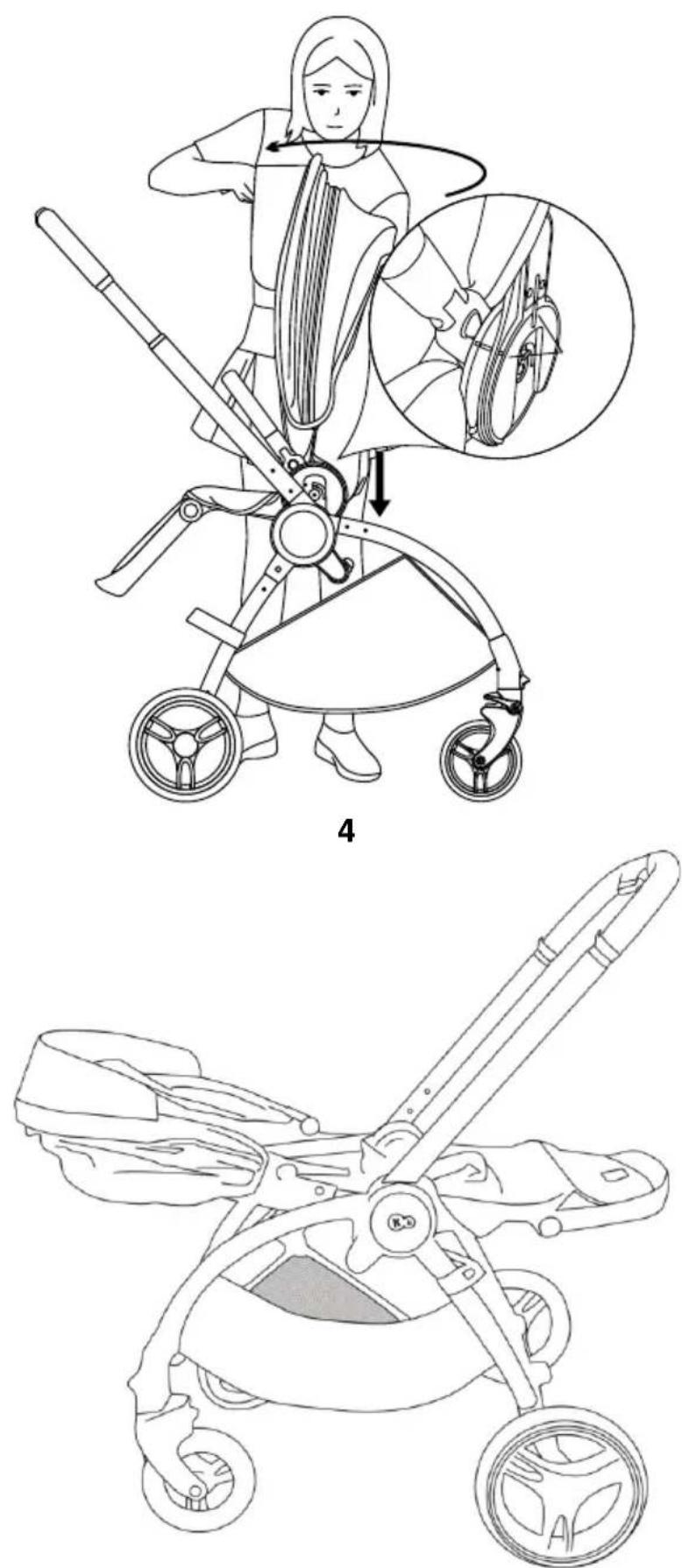

ATTENTION: There are grey straps on the sides of the carrycot and on the frame of the baby stroller, which improve the safety of the correctly mounted seat. ATTENTION! When mounting the carrycot, the seat must be mounted in such a way that it faces the parent! The first step is to unfasten the seat from the baby stroller frame. To do this, lift the lever on top of the backrest and adjust the backrest to the seat so that the grey stripes form a single line (Fig. 3), then slide the seat out of the baby stroller frame, then turn the seat forward to the parent and slide the seat onto the frame, keeping the grey stripes in place (Fig. 4). Lower the backrest to the lowest level with the lever and lift the footrest up (Fig. 5). Place the soft carrycot (E) on the seat (no need to unfasten the straps from the seat) and then clip the straps from the carrycot under the seat. ATTENTION! There are loops around the canopy, through which the straps must be pulled to stabilize the carrycot (Fig. 6). WARNING! THE BASSINET CAN ONLY BE MOUNTED FACING BACKWARDS (the child faces the person pushing the buggy). IV ASSEMBLY/DISASSEMBLY OF THE ARMREST, CANOPY, FOOTREST COVER AND CUP HOLDER Once the soft carrycot has been removed, mount the armrest (D) by sliding it into the guides on the sides of the frame, as shown in Fig. 7, A. The armrest can be removed by pressing the buttons on its sides (Fig. 7, B). The canopy (F) is mounted by sliding its ends into the guides located in the frame of the baby stroller, as shown in figure 8, and then the back of the canopy is fixed to the straps and velcro on the backrest. The canopy can be adjusted in several positions. The canopy is dismantled by pushing the buttons and ejecting the canopy (Figure 9). Place the footrest cover (G) on the seat and fasten it with the clips. To install the cup holder (I), slide it on the pin protruding from the frame (Fig. 10). V INSTALLATION OF THE MOSQUITO NET AND RAIN COVER Put the mosquito net on the seat and secure it with the straps at the back of the seat (Fig. 11). Put the rain cover on the seat and secure it with the straps on the sides of the seat.

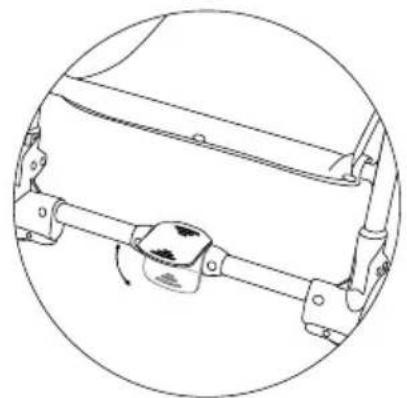

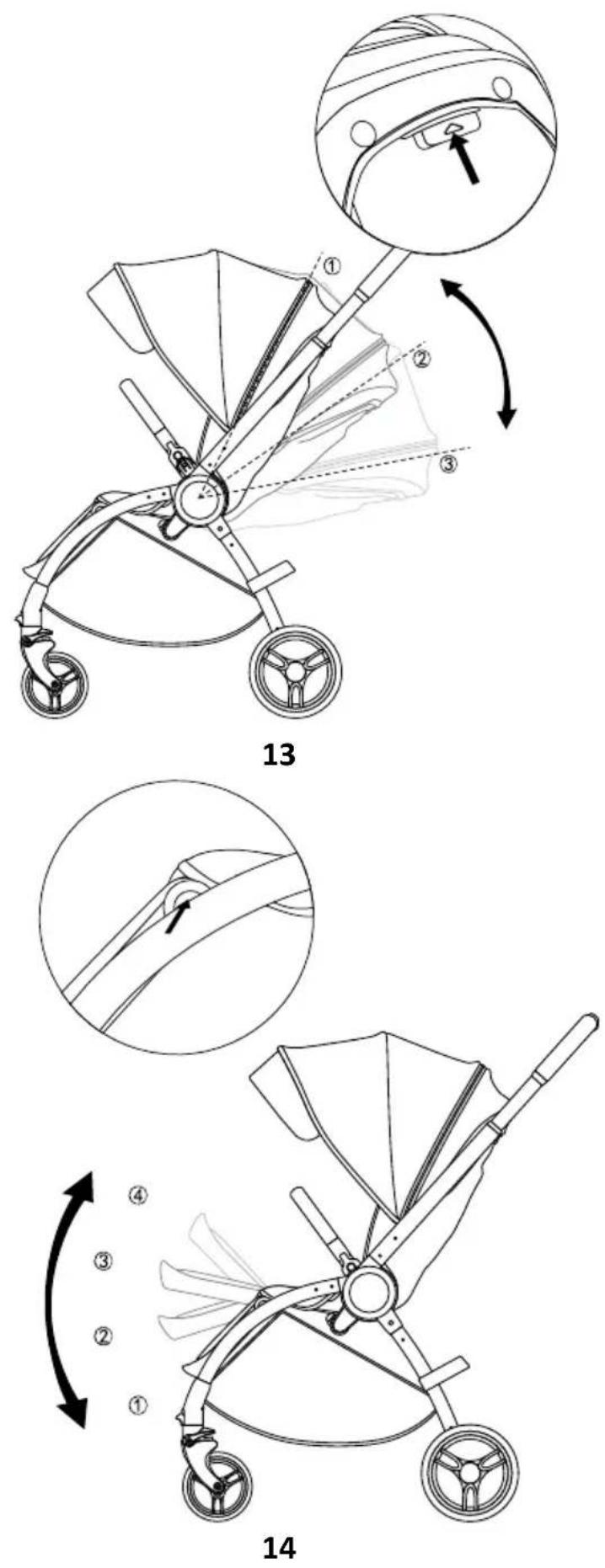

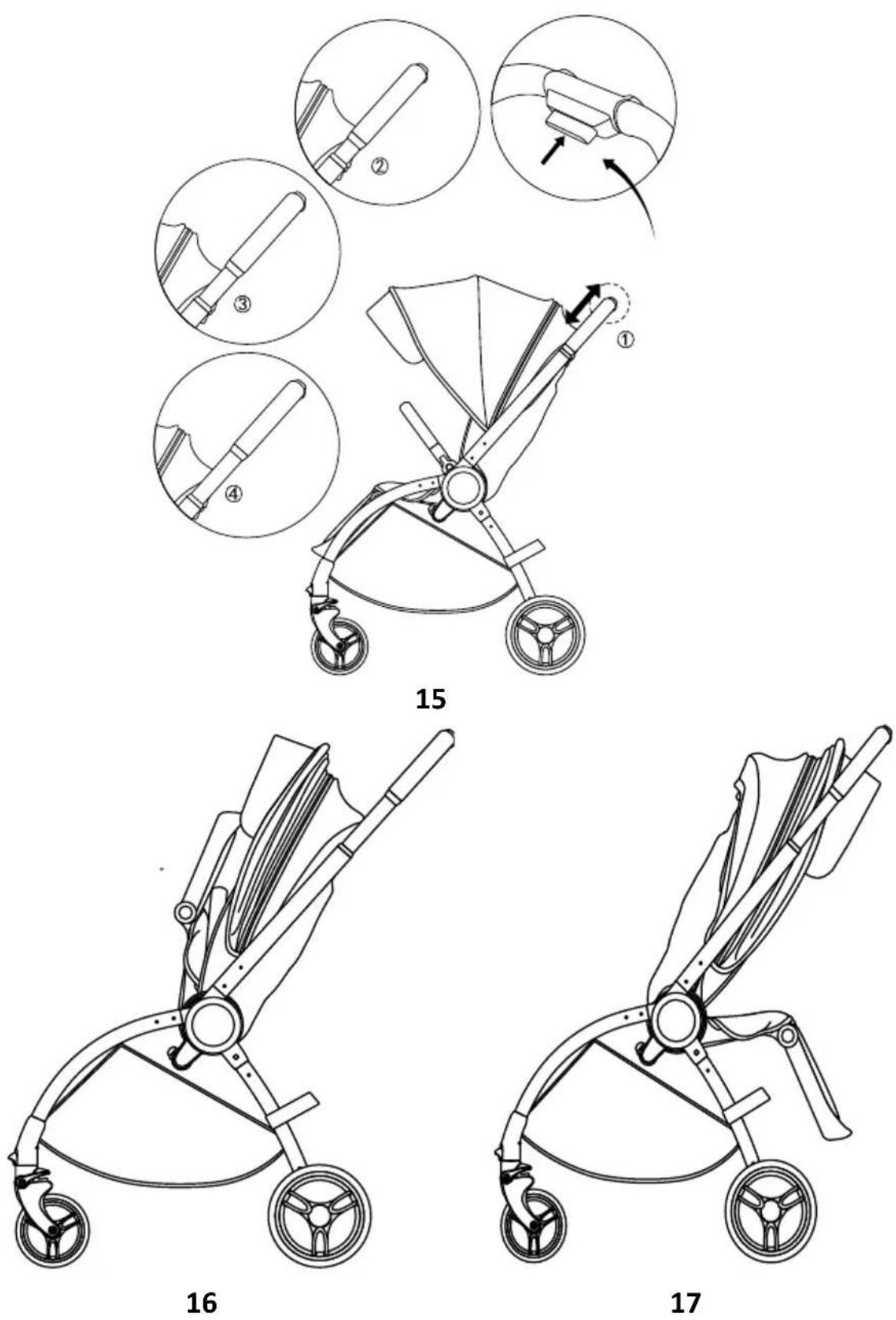

The baby stroller is equipped with a foot brake on the rear axle. Press the pedal to activate the brake. Unlock by lifting the pedal up (Fig. 12). VII ADJUSTMENT OF THE BACKREST, FOOTREST AND PARENT'S HANDLEBAR It is possible to adjust the baby stroller backrest in 3 different positions (Fig. 13). To do this, pull the lever on top of the backrest and place it in a position comfortable for the child. The backrest locks automatically. ATTENTION! The seat in the baby stroller version can be installed both backwards and forwards to the parent. The footrest can be adjusted in 4 positions (Fig. 14). Press the buttons on both sides of the footrest at the same time and set it to the desired position. The parent's handlebar is adjusted by pressing the button in the middle of the handlebar and pulling the handlebar up or down. You can adjust the handle height to one of 4 different levels (Fig. 15).

VIII FOLDING THE BABY STROLLER

Attention! The baby stroller cannot be folded when the carrycot is mounted! The baby stroller can be folded in two ways:

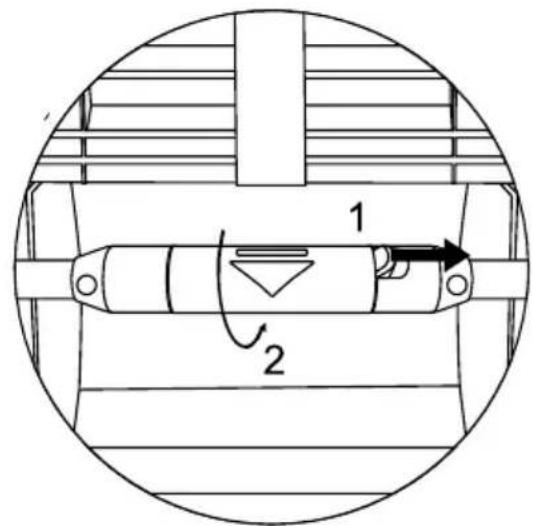

• Seat mounted backwards to the parent - set the backrest in position 1 and raise the seat and footrest as much as possible for easy access to the folding mechanism under the seat (Fig. 16). To fold the baby stroller, move the button on the mechanism, turn the folding mechanism according to the arrow and lift the mechanism up (Fig. 18). The baby stroller will fold and the lock on the left side of the frame will prevent the baby stroller from unfolding again.

• Seat mounted forward to the parent - adjust the backrest as shown in figure 17 and then fold the baby stroller as shown in figure 18.

IX REMOVING THE SEAT COVER

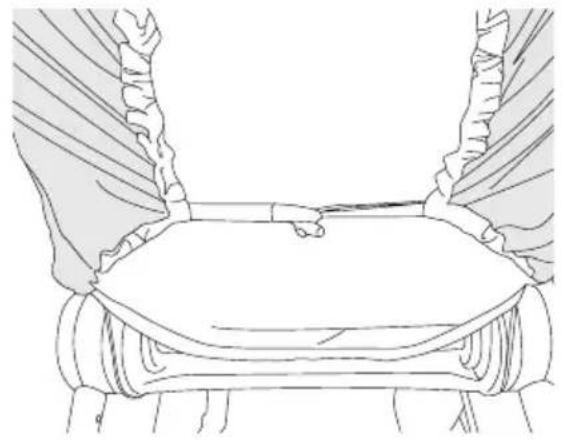

To start removing the cover, remove the canopy. In the next step, remove the cover from the hooks on the sides of the seat and the Velcro under the seat and under the footrest. Push the crotch strap buckle in the bottom of the seat through the hole. Remove the cover by pulling it from the backrest

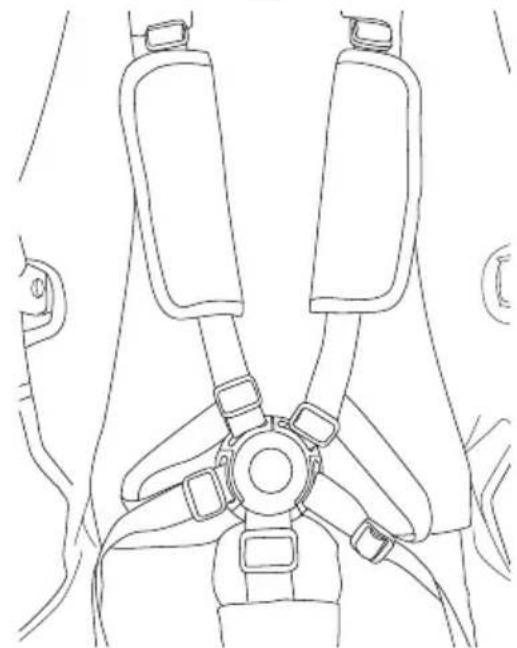

Press the buckle to unfasten the belts. To secure your child, connect the shoulder strap hooks to the hip belts and then slide them into the centre buckle until they lock (Fig 19). Remember to always adjust the seat belts. It is possible to remove the cleaning straps. To do this, remove the shoulder, waist and crotch straps from the openings in the backrest and seat.

XI CARE AND MAINTENANCE

The buyer is responsible for proper installation of all functional elements as well as for carrying out all required maintenance and adjustments in order to keep the buggy in good technical condition. The buggy must be periodically checked for potential problems. Significant measures to be applied to ensure the child's safety and prevent shortening of the product life have been presented below:

• Check the strength and safety of all rivets and connections.25

• Check all wheel locking equipment and tyres. If necessary, replace or repair.

• Check if all safety devices work properly, particularly the main and additional fasteners that should move freely at any time. Please, stop using the buggy if there are doubts as to its proper use or a suspicion of any danger. If the wheels squeak, apply a thin layer of silicone. Do not use oil or grease based products as they attract dirt, which makes buggy movement difficult. XII CLEANING If the elements of the buggy chassis have been exposed to saltwater, rinse with tap water as soon as possible. Do not fold or store the product when it is wet and never store it in wet conditions, as it can lead to mould growth. XIII WARRANTY

1. All Kinderkraft products are covered by a 24-month warranty. The warranty period begins on the date of

releasing the product to the Buyer.

2. The warranty is valid for products sold in the following countries: France, Spain, Germany, Poland, United Kingdom,

3. In countries not listed above warranty terms and conditions are determined by the Seller.

4. It is possible to extend the warranty period to 120 months (10 years). Full text of the terms and conditions and warranty extension registration form are available at WWW.KINDERKRAFT.COM

5. The warranty is valid only in the country where the purchase was made.

6. Complaints should be submitted by completing the form available at WWW.RMA.KINDERKRAFT.COM

7. The warranty shall not cover:

a. claims arising from product specifications, as long as they comply with those specified by the manufacturer in the instruction manual or other documents of a legislative nature; b. product damage caused by improper maintenance or use of inadequate chemicals; c. colour change (discolouration) when the product has been exposed to direct sunlight against the instructions provided in the instruction manual; d. tear, wear, crack of fabric/plastic that is the fault of the Customer; e. reduction in the quality of the product and consumables due to normal wear and tear; f. products which have not been used according to specifications;

8. The warranty period for accessories attached to the device is 6 months from the date of sale, with the exception of

9. These guarantee terms and conditions are complementary to the Customer's rights in relation to 4KRAFT sp. z o.o. The

warranty shall not exclude, limit or suspend the rights of the Customer arising from the provisions on the warranty for defects in the goods sold.

10. Full text of Warranty Terms and Conditions is available at WWW.KINDERKRAFT.COM
