USER MANUAL Realimove AC9000 AGFAPHOTO

1. This action camera is a high-

precision product to be handled with care, do not drop or damage it in any way.

2. Keep the camera apart from

anything having strong magnetism or emitting strong radio waves. A strong magnetic field could cause the product to malfunction or damage the image and sound quality.

3. Do not expose the camera to

high temperatures or direct sunlight.

4. Select well-known micro SD

card brand, basic cards do not guarantee the proper functioning of the camera.

5. Do not use micro SD card in or

near magnetic place to avoid losing its data storage.

6. During the charging process, if

there is overheating, smoke, or odor, please plus out the USB cable immediately and stop power supply to avoid fire.

7. When charging, keep the

USB cable out of the reach of children to avoid the risk of suffocation or electric shock.

8. Put the product in a cool and

9. If there are product upgrades,

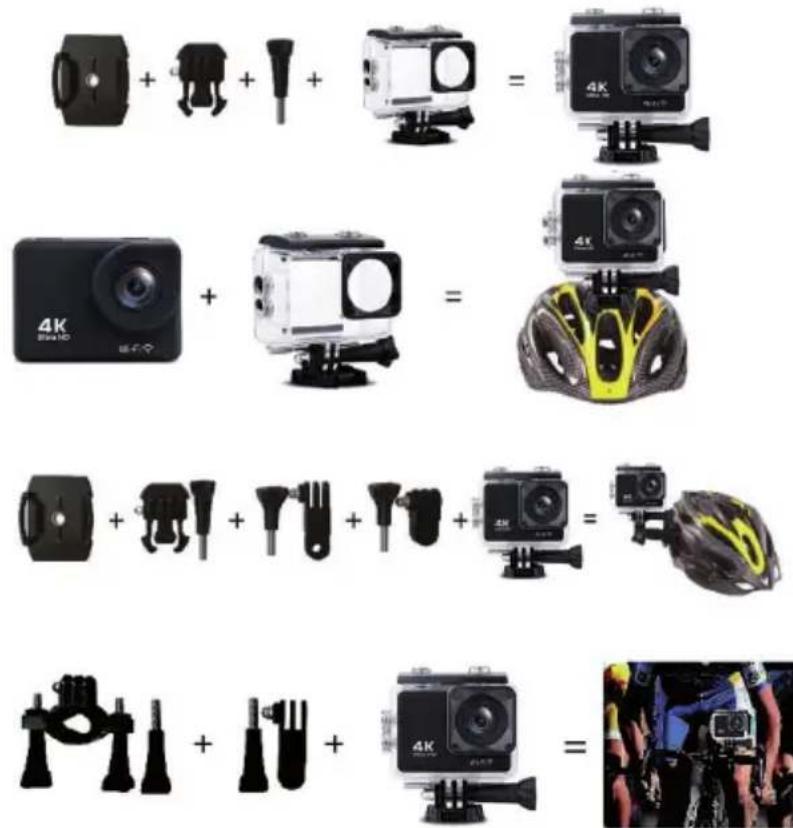

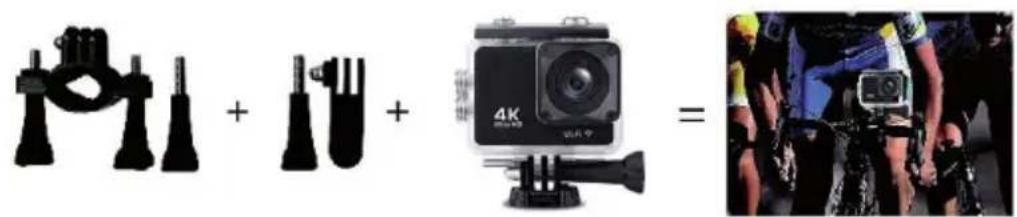

please contact customer service for an exchange. PRODUCT FEATURES - Waterproof action camera up to 30 meters depth thanks to its waterproof shell. - 4K UHD high-speed shooting function. - 2.0-inch ultra HD display screen for real-time display and quality video playback. - Easy battery removal and replacement. - 13 million high-definition wide-angle lens. - HDMI HD output. - Web camera function. - Support up to 128GB memory cards. - Multiple video recording resolutions. - MOV video recording format. - H.264 video decoding format. - Various shooting modes: single shot, automatic, continuous, time-lapse. - Ultra-small and sober design. - Wi-Fi latest remote-control technology via Android or iOS smartphone with iSmart DV app (available on Google Play Store and App Store).ACCESSORIES ASSEMBLY DIAGRAM

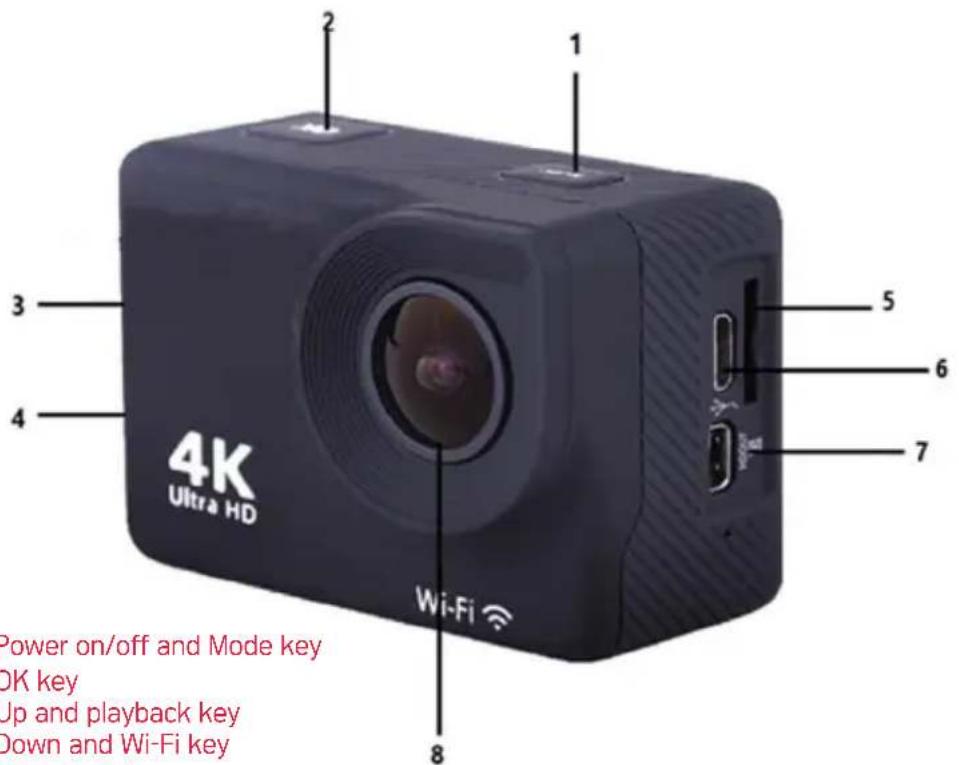

1. Power on/off and Mode key

3. Up and playback key

4. Down and Wi-Fi key

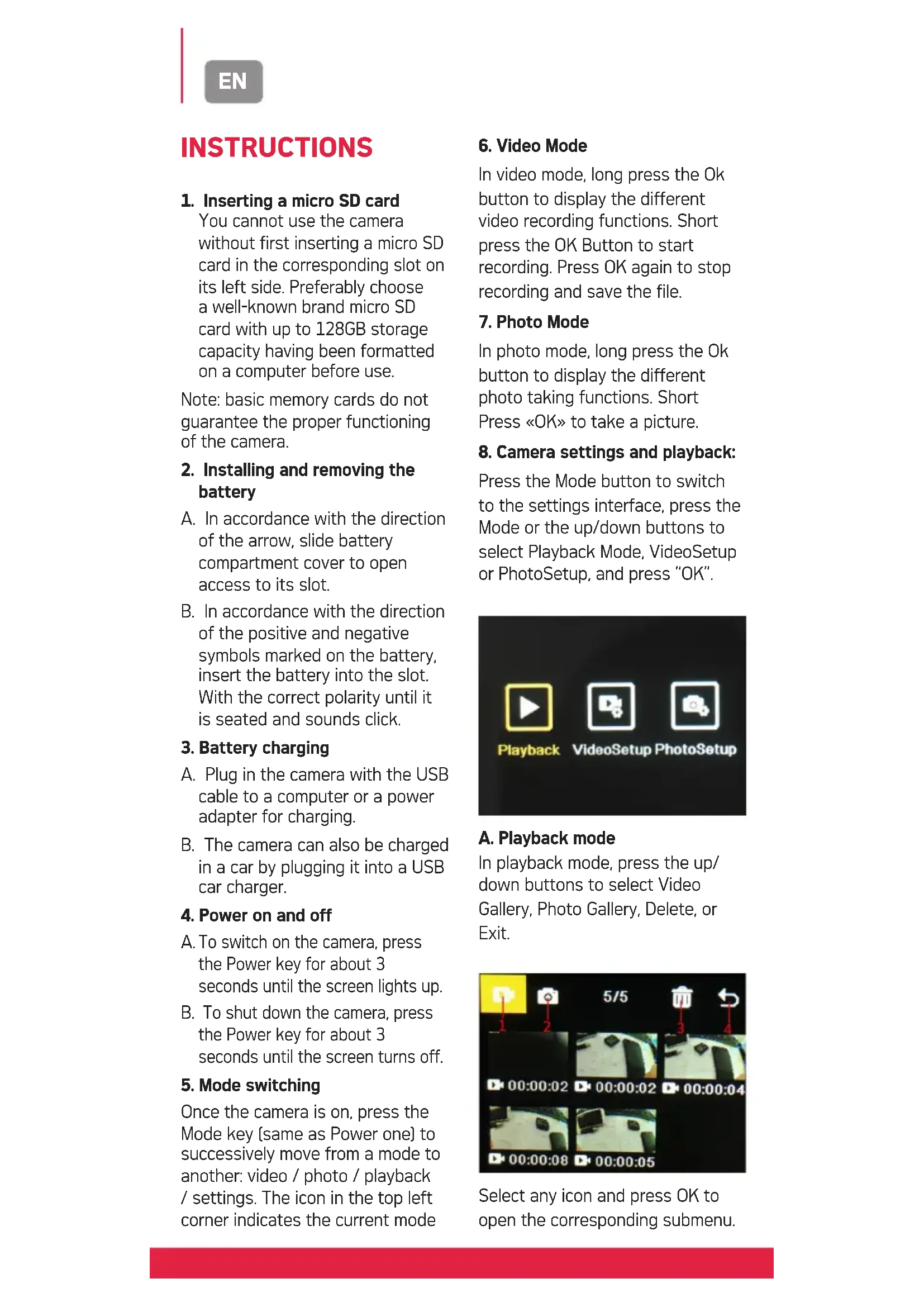

You cannot use the camera without first inserting a micro SD card in the corresponding slot on its left side. Preferably choose a well-known brand micro SD card with up to 128GB storage capacity having been formatted on a computer before use. Note: basic memory cards do not guarantee the proper functioning of the camera.

2. Installing and removing the

battery A. In accordance with the direction of the arrow, slide battery compartment cover to open access to its slot. B. In accordance with the direction of the positive and negative symbols marked on the battery, insert the battery into the slot. With the correct polarity until it is seated and sounds click.

A. Plug in the camera with the USB cable to a computer or a power adapter for charging. B. The camera can also be charged in a car by plugging it into a USB car charger.

To switch on the camera, press the Power key for about 3 seconds until the screen lights up.

To shut down the camera, press the Power key for about 3 seconds until the screen turns off.

Once the camera is on, press the Mode key (same as Power one) to successively move from a mode to another: video / photo / playback / settings. The icon in the top left corner indicates the current mode

In video mode, long press the Ok button to display the different video recording functions. Short press the OK Button to start recording. Press OK again to stop recording and save the file.

In photo mode, long press the Ok button to display the different photo taking functions. Short Press «OK» to take a picture.

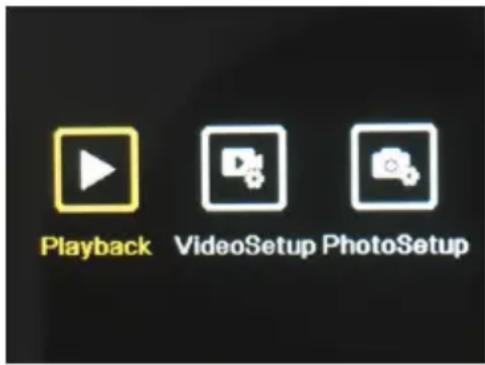

8. Camera settings and playback:

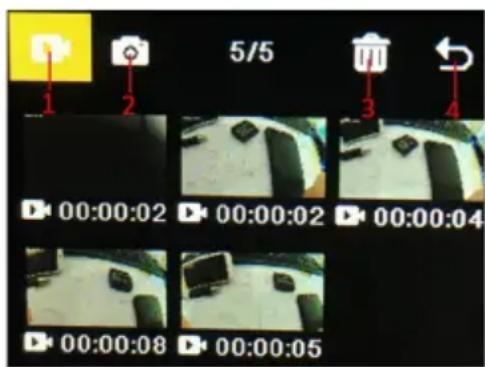

Press the Mode button to switch to the settings interface, press the Mode or the up/down buttons to select Playback Mode, VideoSetup or PhotoSetup, and press “OK”. A. Playback mode In playback mode, press the up/ down buttons to select Video Gallery, Photo Gallery, Delete, or Exit. Select any icon and press OK to open the corresponding submenu.EN

1. Video Gallery In the Video

Gallery press Mode button to select the video file, press up/ down button to select, and press OK button to play the video. When a video is playing, press the OK button to play/ pause it, and press the mode button to exit. Press the Mode button to return to album selection.

2. Photo Gallery: In the photo

album, press mode button to enter the photo file selection, press upper and Down button to select, press OK button to display photos in full screen, press up/down button to browse. Press the Mode button to return to album selection.

3. Delete: press the up/down

buttons to select the deletion function, then press the mode button to enter the corresponding album and select a file, press up/down button to select, press OK button to confirm, and finally press Mode button to enter the deletion operation, select and delete all.

4. Exit playback Mode

B. Video and Photo Setup: Whether you select Video Setup or Photo Setup Press the up/down buttons to switch between the different Settings. Press the OK button to confirm selection. Press the Mode button to return or exit.

Once the camera is connected to the computer with the USB cable, “MSCD” and “PCCAM” will be displayed on the screen. Press the OK key to confirm your selection. A. After choosing “MSDC”, the computer will display a removable disk window to transfer data saved on the memory card. B. After choosing “PCCAM”, the device can be used as a web camera for any video communication on computer.

10. Wi-Fi connection

The camera can be connected in Wi-Fi to Android or iOS smartphone or tablet by following these steps: A. First install the « iSmart DV » application on your smartphone/ tablet via Google Play Store for Android or App Store for iOS. B. Turn on the camera and press the Wi-Fi key (also the down key). The Wi-Fi logo will then appear on the screen and then the AGFA_xxxxxx SSID (Wi-Fi name) will be displayed along with the PWA2 (password)

C. Enter the Wi-Fi settings of your smartphone/tablet and search the camera Wi-Fi SSID to connect it. D. Open the « iSmart DV » application on your smartphone/ tablet to control the camera remotely and download your videos or photos.

If you plug in the camera with a special HDMI cable on TV input, it automatically switches to HDMI mode, so that you can play back the files recorded on the memory card on your TV.EN SPECIFICATIONS LCD Screen

Camera shot 170 degrees A + grade high-resolution wide-angle lens Languages English/French/German/Spanish/Italian/ Portuguese/Dutch/Polish/Czech/Hungarian/ Russian Video resolution

Video format MOV Video compression formats H.264 Photo resolution 20M/16M/14M/10M/8M/5M/2M Storage card Micro SD(TF) Camera mode Single shot/Self-timer (2/5/10 seconds) Frequency of the light source 50Hz/60Hz USB port

Battery capacity 1050MAH Power consumption 400mA@4.2V Recording time About 70 minutes Charging time About 3 hours Operating system Windows/Linux/Unix/Win7/Mac OS Dimensions

59.27 x 41.13 x 29.28 mm

Note: Specifications may vary depending on product upgrades, updates and other reasons requiring changes to the camera.EN FAQ

1. The camera bugs and the screen

crashes suddenly switching to black/white during use Certain practices or environments may affect the proper operation of the camera. Occasional breakdowns are so likely to occur after sustained activity. If this happens, remove the battery and wait for it to cool before reinserting it into the camera.

2. The camera does not turn on

because the battery does not seem to have been recharged Make sure that the camera recharges the battery when it is connected to your computer or a power source via the USB cable. If charging starts but the battery remains discharged then it needs to be changed. Otherwise, check that the camera is properly connected or that the USB cable is not damaged.

3. Camera overheating during use

It is normal for the camera to overheat a little during prolonged use because its design does not allow it to dissipate the heat emitted.

4. No or very little sound during

video recording and playback Please note that when the camera is equipped with its waterproof shell, the sound is lower as it is airtight. Also check that the sound has not been muted in the menu setting options.

5. Video is not smooth, sometimes

blurred and red and green spots appear on the screen Make sure to use genuine high-speed recording TF card which has been previously formatted on your computer or in the camera.

6. The keys no longer respond

after a few uses When using the camera with its waterproof shell, avoid pressing the buttons too hard as this may damage them and cause the internal system to malfunction. If this problem occurs, we recommend you to contact our after-sales service for a better expertise of the repair to be carried out.

7. Wi-Fi signal instability

Other signals transmissions can interfere in the Wi-Fi connection of the camera. It is therefore best to hold your smartphone/ tablet close to the camera so that no obstacles hinder the Wi-Fi connection.
