USER MANUAL FT23-21M MIDEA

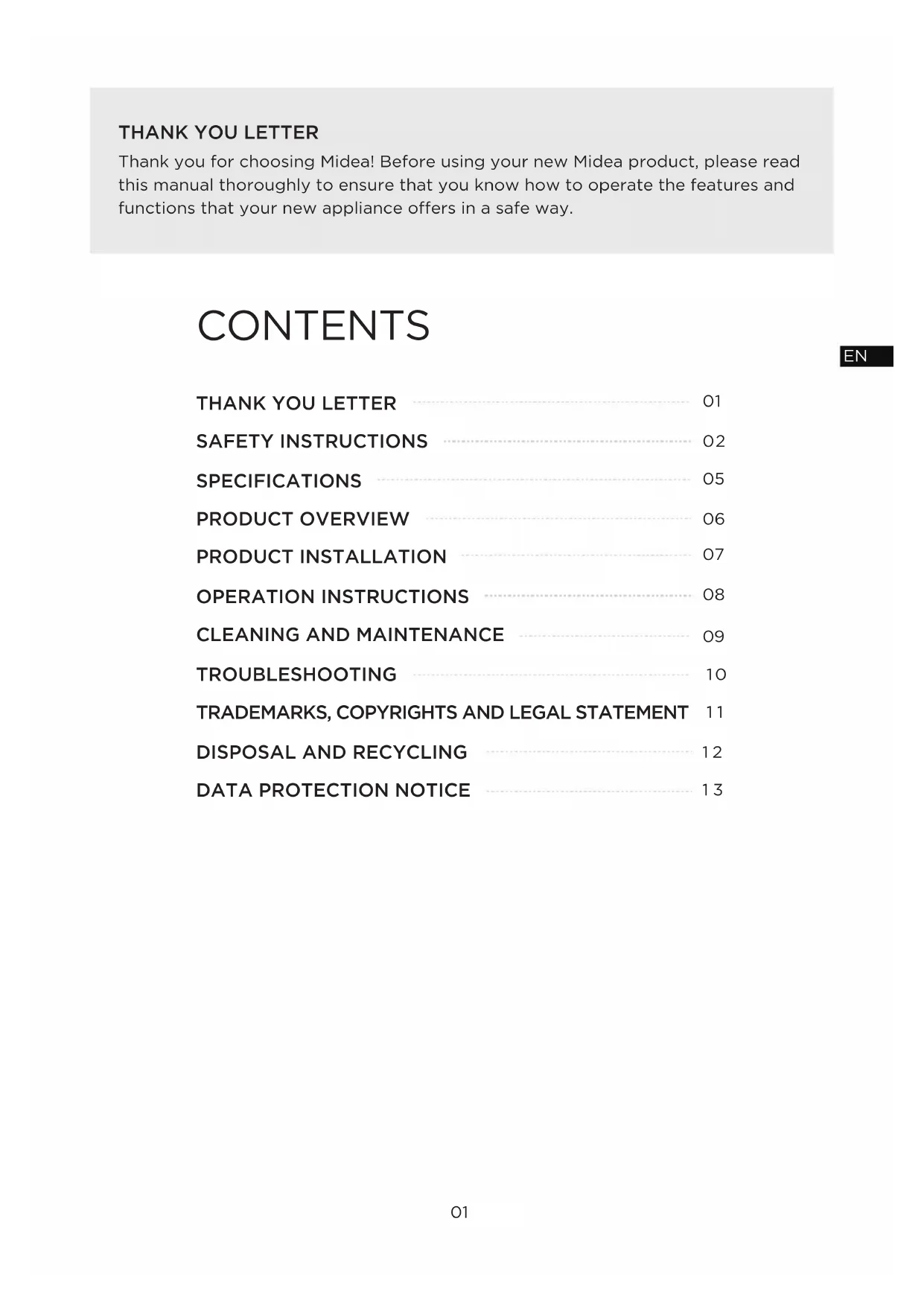

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way. CONTENTS

PRODUCT INSTALLATION

CLEANING AND MAINTENANCE

DISPOSAL AND RECYCLING

ENDanger This symbol indicates that there are dangers to the life and health of Warning of electrical voltage This symbol indicates that there is a danger to life and health of persons due to voltage. Warning The signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury. Caution The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury. Attention The signal word indicates important information (e.g. damage to property), but not danger. Observe instructions This symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions. Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use! Intended Use Explanation of Symbols SAFETY INSTRUCTIONS

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. Please note modifications or alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims. persons due to extremely flammable gas. EN03 CAUTION

• Read Rules for Safe Operation and Instructions Carefully. Never insert fingers, pencils, or any other object through the grille when fan is running.

• Disconnect fan when moving from one location to another. Be sure fan is on a stable surface when operating to avoid overturning.

• DO NOT use fan in window, rain may create electrical hazard.

• Household use only. EN04

• If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

• To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• When the appliance is not in use and before cleaning, unplug the appliance from the outlet.

• Keep electrical appliances out of reach from Children or infirm persons. Do not let them use the appliances without supervision.

• Indoor and household use only.

• When the fan was assembled, the rotor blade guard shall not be taken off anymore. - Prior cleaning unplug the fan. - The rotor guard shall not be dissembled/opened to clean the rotor blades. - Wipe the fan enclosure and rotor blade guard with a slightly damp cloth. WARNING EN05 SPECIFICATIONS FT23-21MProduct Model Voltage Frequency 220-240V~ 50Hz 25W Service value Off power consumption Standby power consumption Maximum air Fan sound power level Seasonal electricity velocity consumption Description Symbol Value Unit Maximum fan flow rate Fan power input

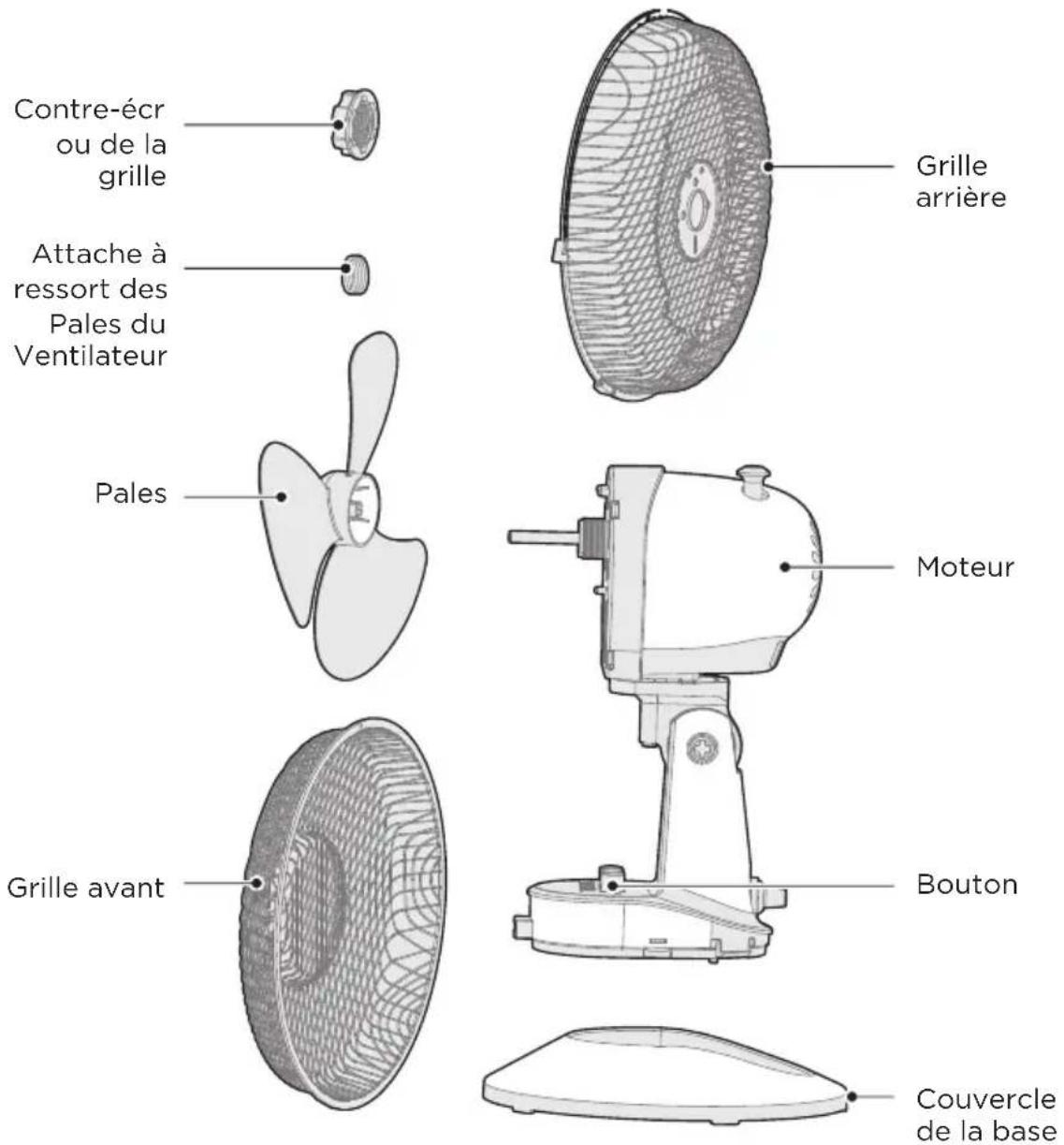

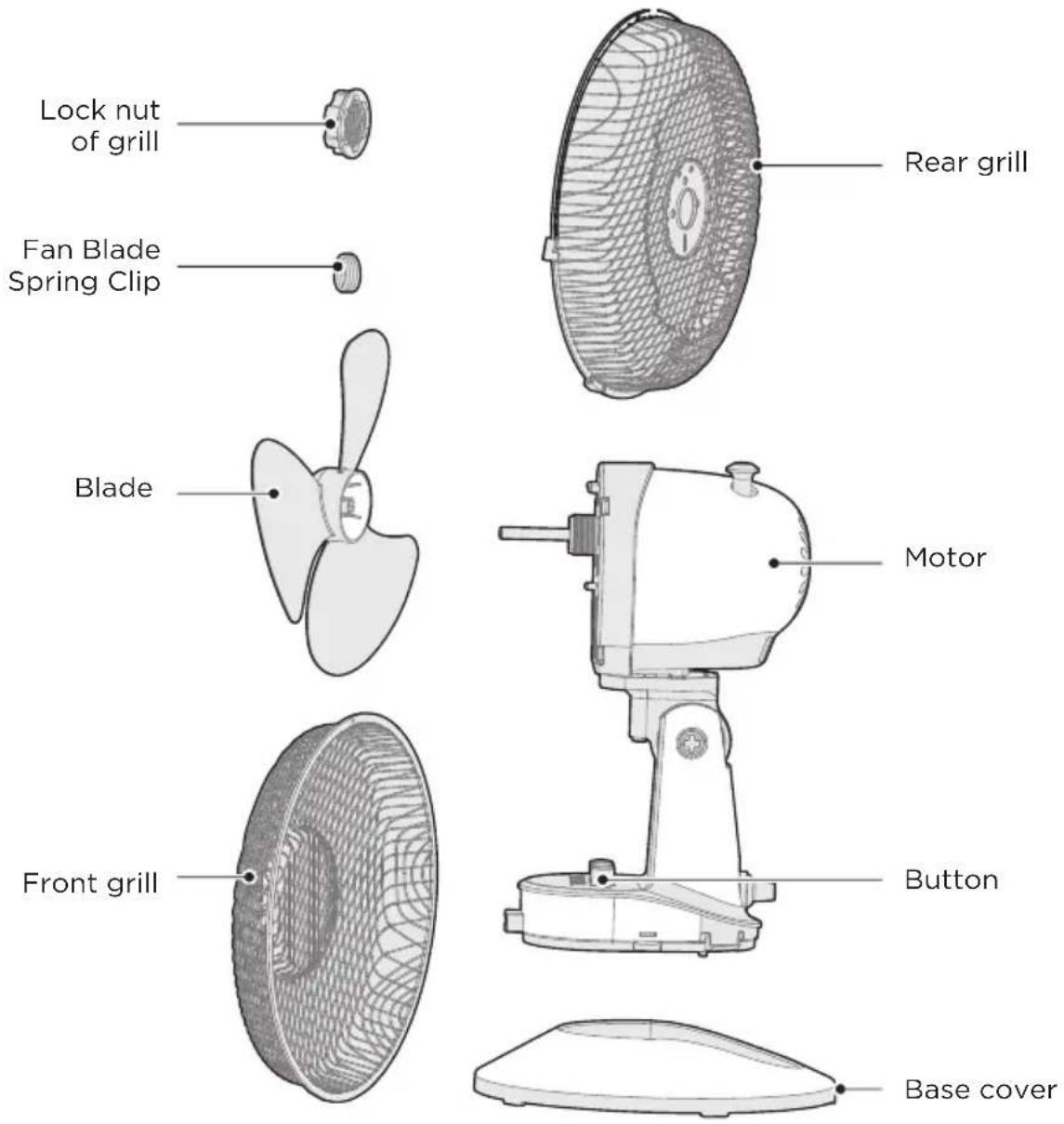

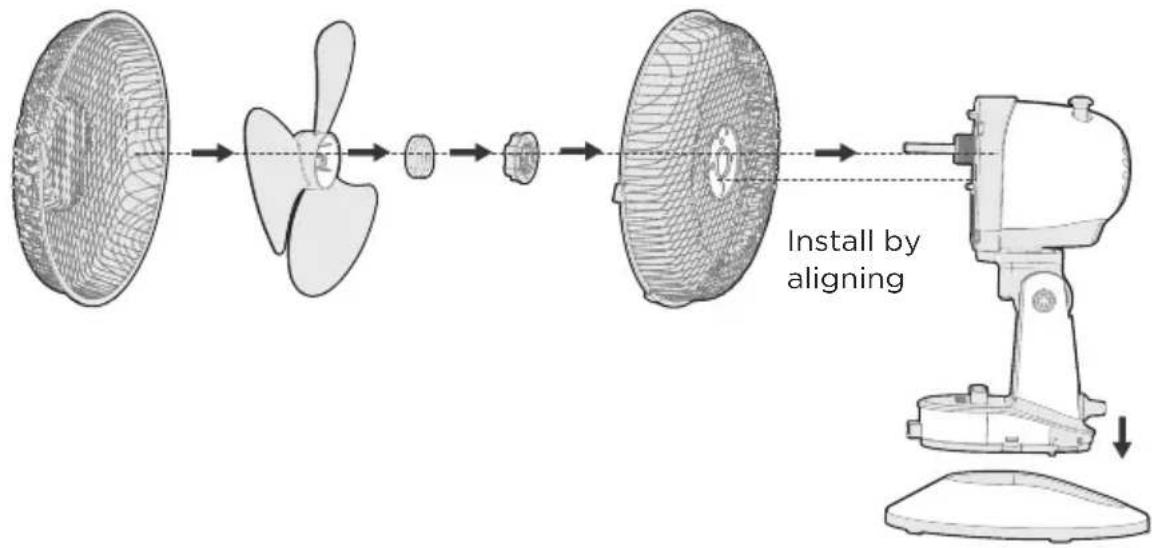

/min Power EN06 PRODUCT OVERVIEW Parts Name NOTE All the pictures in this manual are for explanation purpose only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the real subject. Lock nut of grill Fan Blade Spring Clip Front grill Blade Rear grill Motor Base cover Button EN07 PRODUCT INSTALLATION Front and Rear Guard Installation

• Screw the lock nut of grill clockwise, and in the meantime, fix the rear grill.

• The Spring Clip is already attached 2-3mm away from edge of shaft bush; the user does not need to install it.

• Pull the blade to rotate after installing, so as to ensure that the blade can be normally rotated.

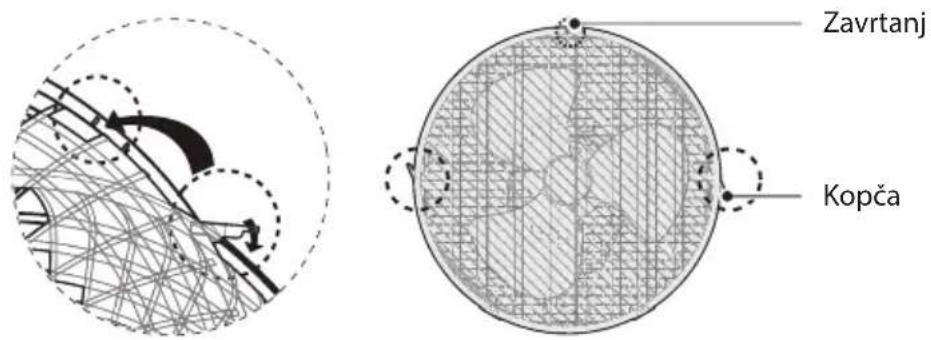

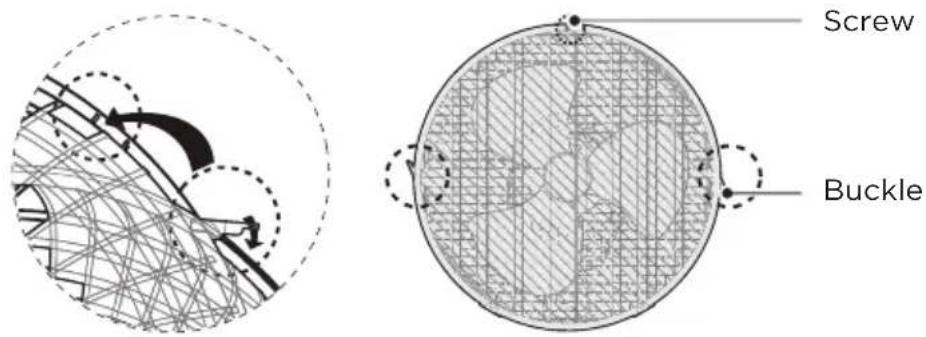

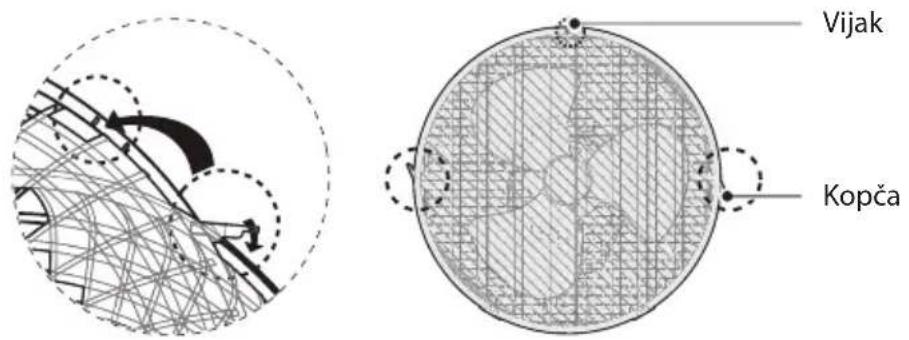

1. Align Screw Holes on the outer ring of both the Front and Rear Guards, with the

Positioning Clip aligned as illustrated.

2. Press down all the Buckles to fasten the Front Guard with the Rear Guard. At the

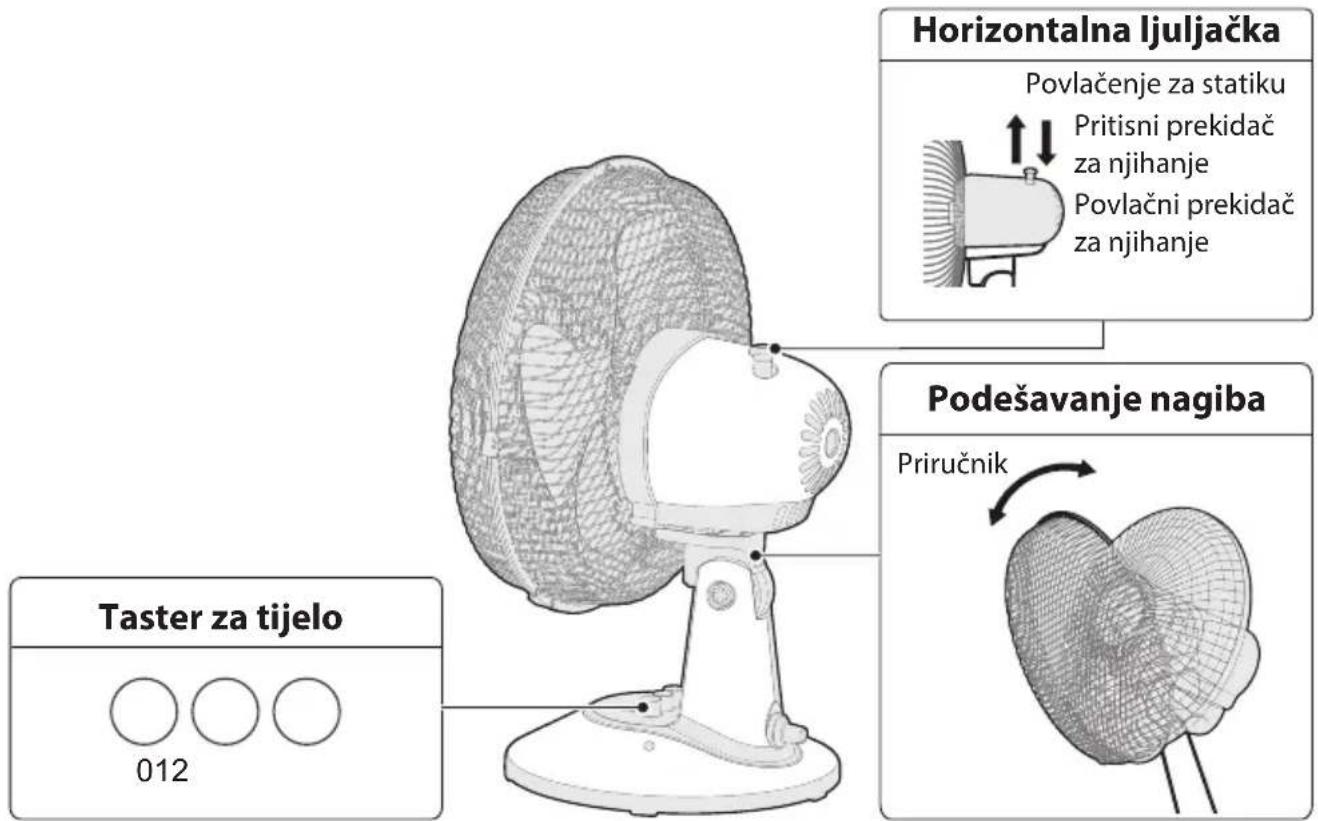

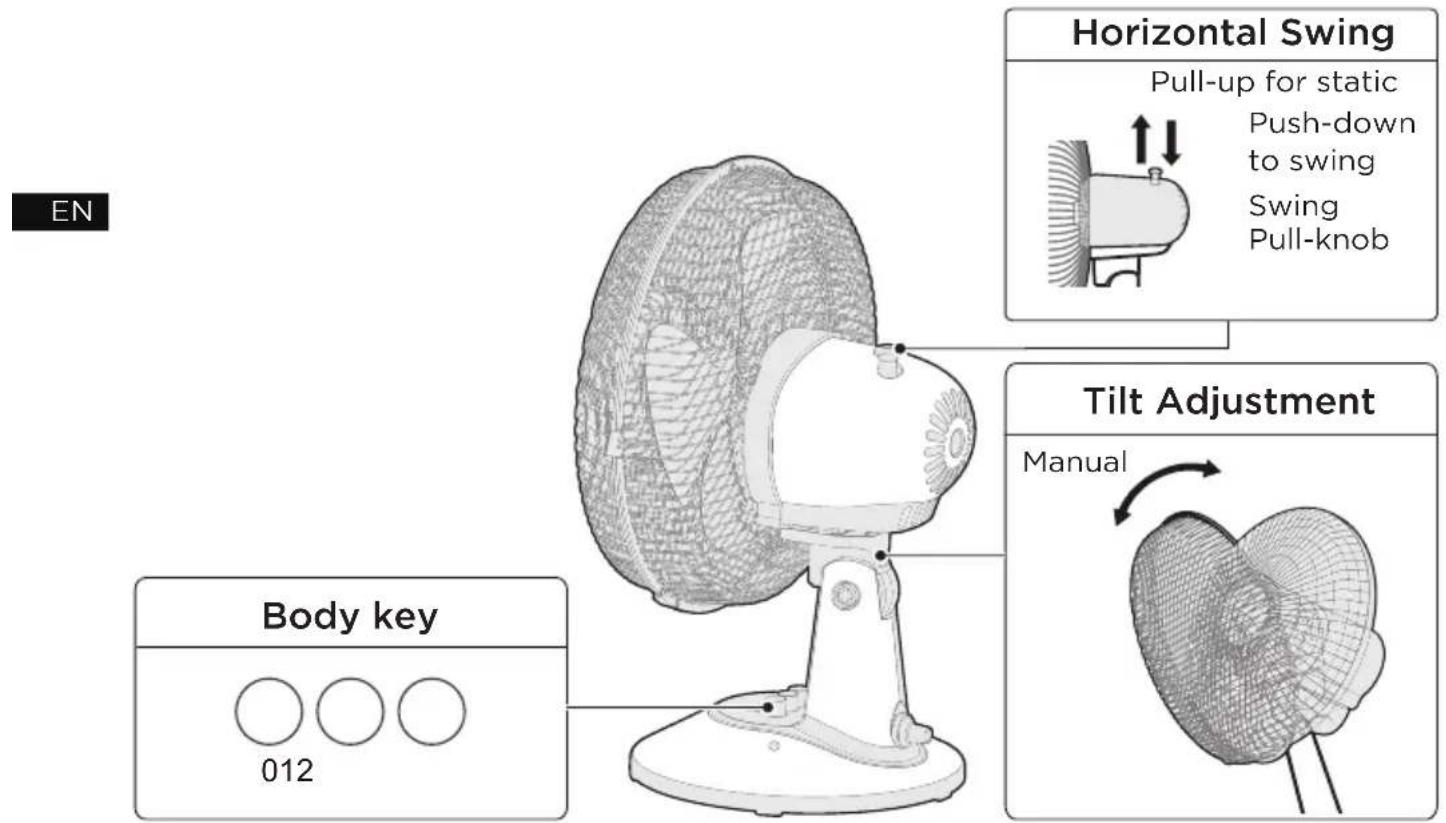

Screw Holes, tighten the separated screw and nut. Install by aligning Screw Buckle EN08 OPERATION INSTRUCTIONS Instructions for Operation of Body Pull-up for static Push-down to swing Swing Pull-knob Horizontal Swing Tilt Adjustment Manual Body key

CLEANING AND MAINTENANCE

The fan requires minimal maintenance. Do not try to fix it by yourself. Refer it to qualified service personnel if service is needed.

1. Before cleaning and assembling, unplug the fan power.

2. To ensure adequate air circulation to the motor, keep vents at the rear of the motor

free of dust. Do not disassemble the fan to remove dust. Please wipe the exterior parts with a soft cloth soaking a mild detergent.

3. Do not use any abrasive detergent or solvents to avoid scratching the surface.

4. Do not use any of the following as a cleaner: gasoline, thinner.

5. Do not allow water or any other liquid entering into the motor housing or interior

6. Be sure to unplug from the electrical supply source before cleaning.

7. Plastic parts should be cleaned with a soft cloth moisten with mild soap Thoroughly

remove soapsuds with dry cloth. EN10 TROUBLESHOOTING Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to the service center. Cause SolutionProblem The machine does not work properly after installed

• The power cable is not plugged in or has poor contact. Make sure the plug is properly inserted into the socket.

• The switch on the body is not turned on. Turn on the switch on the body. EN11 logo, word marks, trade name, trade dress and all versions there of are trademarks, copyrights and other intellectual property rights, and all goodwill derived valuable assets of Midea Group and/or its affiliates (“Midea”), to which Midea owns from using any part of an Midea trademark. Use of Midea trademark for commercial purposes without the prior written consent of Midea may constitute trademark infringement or unfair competition in violation of relevant laws. This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea. All the described functions and instructions were up to date at the time of printing this manual. However, the actual product may vary due to improved functions and designs. TRADEMARKS, COPYRIGHTS

DISPOSAL AND RECYCLING

Important instructions for environment Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used recycling of electrical electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health. Compliance with RoHS Directive The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive. Package information Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environ- ment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities. device must be returned to official collection point for EN13

DATA PROTECTION NOTICE

For the provision of the services agreed with the customer, we agree to comply without restriction with all stipulations of applicable data protection law, in line with agreed countries within which services to the customer will be delivered, as well as, where applicable, the EU General Data Protection Regulation (GDPR). Generally, our data processing is to fulfil our obligation under contract with you and for product safety reasons, to safeguard your rights in connection with warranty and product registration questions. In some cases, but only if appropriate data protection is ensured, personal data might be transferred to recipients located outside of the European Economic Area. Further information are provided on request. You can contact our Data Protection Officer via [e-mail]. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via [e-mail]. To find further information, please follow the QR Code.

INSTALLATION DU PRODUIT

INSTALLATION DU PRODUIT

PLZNAKI HANDLOWE, PRAWA

DISPOSAL AND RECYCLING

SKDISPOSAL AND RECYCLING

Zemljka porekla󵿎 KINA Uvoznik󵿎 AVTERA SR d.o.o , Autoput za zagreb 41L ,Beograd Godina uvoza󵿎 2024Welcome to MIDEA Service Dear Customer, Thank you for purchasing Midea products. Please attach your purchase certificate (invoice or sales slip) to this warranty and keep it properly. If service is required during the warranty period, proof of purchase must be provided. If can’t provide, in/out of warranty will be defined by Manufacturer. Midea product warranty applies to inherent defects in materials and workmanship from the date of initial purchase. For warranty period, please visit www.midea-group.com or your local call center. Warranty service must be obtained from Midea Consumer Services or an authorized Midea servicer. Warranty terms and conditions

NORMAL RESPONSIBILITIES OF THE CONSUMER

This warranty applies only to products in ordinary household use, and the consumer is responsible for the items listed below:

1. Proper use of the appliance in accordance with instructions provided with the product.

2. Routine maintenance and cleaning necessary to keep in good working condition.

3. Proper installation by an authorized service professional in accordance with instructions provided with the

appliance and in accordance with all local plumbing, electrical and / or gas codes.

4. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of

loosened connections or defects in house wiring.

5. Expenses for making the appliance accessible for servicing.

6. Damages to finish after installation.

1. Damage due to mishandling or fire and becomes invalid if repair has been attempted by unauthorized persons.

2. Any failure to follow the instructions as mentioned in the user manual.

3. Fluctuation in voltage or any modifications/adjustments made to comply with local electrical, safety and technical

4. Damages caused by fire, accident or any natural disaster, damage due to mishandling, wear & tear, voltage
