Product type	Steam iron
Brand	Beko
Model	SPA9130B
Power	2520-3000 W
Voltage	220-240 V ~ 50-60 Hz
Steam shot	280 g
Continuous steam	63 g/min
Water tank	With lid, capacity not specified
Display	LED with mode and auto-off indicators
Ironing modes	SMART, ECO, MAX, Turbo Steam
Functions	Water spray, steam shot, continuous steam, anti-drip system, auto-off
Cleaning	Automatic Calc-clean function, on-screen warning
Safety	Auto shut-off, motion sensor, anti-drip system, overheat protection
Soleplate type	Not specified, likely ceramic or stainless steel
Cord length	Not specified, with cord storage compartment
Maintenance	Automatic Calc-clean recommended every 10-15 days
Weight	Not specified
Dimensions	Not specified

Frequently Asked Questions - SPA9130B BEKO

How to fill the water tank?

Open the water tank lid and fill with tap water or a mixture of tap water/demineralized water if the water is very hard. Do not add perfume, vinegar, or starch.

What to do if the iron does not produce steam?

Check the water level in the tank (fill to the MAX mark) and ensure the steam mode is selected. The iron only produces steam when moved (motion sensor).

How to use the turbo steam function?

Set the temperature to MAX. Press the steam shot button to get a large amount of steam suitable for thick fabrics.

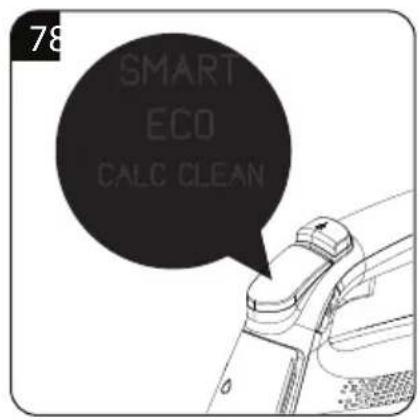

What does the CALC CLEAN symbol on the screen mean?

It indicates that automatic descaling is needed. Fill the water tank to MAX level, place the iron on the Calc-clean tank, and follow the procedure described in the manual.

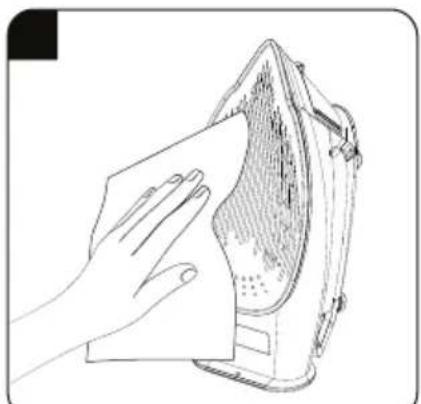

How to clean the soleplate?

Wait for the iron to cool down, then wipe the soleplate with a slightly damp cloth. Do not use abrasive products. For limescale residues, use the Calc-clean function.

The iron turns off by itself, is that normal?

Yes, the iron is equipped with a safety auto shut-off. It turns off after a few minutes of inactivity. To turn it back on, simply move it.

Can I iron all fabrics in SMART mode?

SMART mode is suitable for most ironable fabrics. For delicate fabrics like silk, use ECO mode and iron inside out. Always check the garment label.

Why are water drops coming out of the soleplate?

This can happen if the temperature is too low. The anti-drip system normally prevents this. Wait for the thermostat light to go out before using the steam shot.

How to wind the power cord?

Use the cord storage compartment located at the back of the iron. Never wind the cord around the appliance itself.

Can I use tap water in the iron?

Yes, tap water is suitable. If it is very hard, mix it with demineralized water to reduce deposits. Never use chemicals.

USER MANUAL SPA9130B BEKO

Simple line icon of a shirt collar with dotted lines indicating measurement (no text or symbols)

SPA 9130 B

SPA 9230 C

EN - FR - ES - RO - IT - PL - NL - RU

CONTENTS

ENGLISH	8-17
FRANÇAIS	18-28
ESPAÑOL	29-40
ROMÂNĂ	41-54
ITALIANO	55-66
POLSKI	67-79
NEDERLANDS	80-90
РУССКИЙ	91-108

EN FIRST USE SHOCK STEAM DRY IRONING STEAM IRONING
FR PREMIÈRE UTILISATION		FONCTION PRESSING REPASSAGE À SEC		REPASSAGE À LA VAPEUR
ES PRIMER USO DESCARGA DE VAPOR			PLANCHADO EN SECO	PLANCHADO CON VAPOR
RO PRIMA UTILIZARE		JET DE ABUR	CĂLCARE USCATA	CĂLCARE CU ABUR
IT USO INIZIALE		PULIZIA E MANUTENZIONE	STIRATURA A SECCO	STIRATURA A VAPORE
PL PIERWSZE UŽYCIE UDERZENIE PARY			PRASOWANIE NA SUCHO	PRASOWANIE PAROWE
NL EERSTE GEBRUIK		SCHOK STOOM	DROOG STRIJKEN	STOOM STRIJKEN
RU ПЕРВОЕ ВКЛЮЧЕНИЕ		УДАР ПАРОМ	СУХАЯ ГЛАЖКА	ПАРОВАЯ ГЛАЖКА

EN	TURBO STEAM	AUTOMATIC SHUTDOWN	CLEANING AND CARE	SELF-CLEAN
FR	VAPEUR TURBO	ARRÊT AUTOMATIQUE	NETTOYAGE ET ENTRETIEN	AUTO-NETTOYAGE
ES	TURBO VAPOR	APAGADO AUTOMÁTICO	LIMPIEZA Y CUIDADOS	AUTOLIMPIEZA
RO	JET DE ABUR	OPRIRE AUTOMATÃ	CURÃ AREA ŞI İNGRIJIREA	AUTOCURÃTARE
IT	TURBO VAPORE	SPEGNIMENTO AUTOMATICO	PULIZIA E CURA AUTO	PULITURA
PL	PARA TURBO	AUTOMATYCZNE WYLACZANIE	CZYSZCZENIE I KONSERWACJA	SAMOCZYSZCZENIE
NL	TURBOSTOOM	AUTOMATISCHE UITSCHAKELING	REINIGING EN ONDERHOUD	ZELFREINIGING
RU	ТУРБО ПАР	АВТОМАТИЧЕСКОЕ ОТКЛЮЧЕНИЕ	ОЧИСТКА И УХОД	САМООЧИСТКА

12

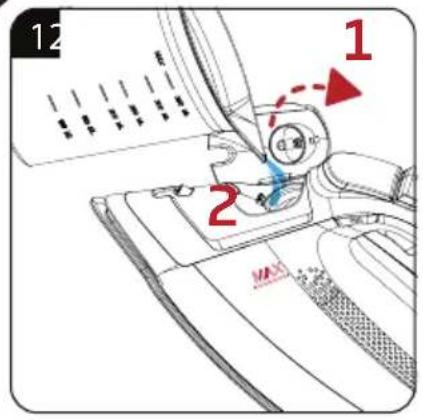

1 2 MAX

Line drawing of a steam iron with a red arrow indicating motion (no text or symbols)

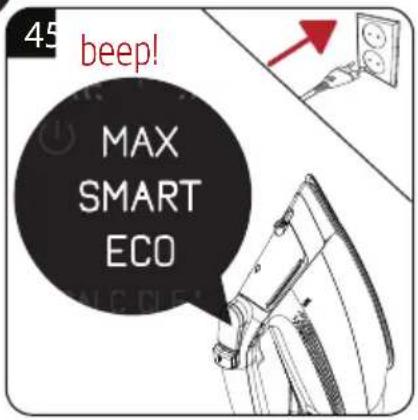

45 beep! MAX SMART ECO

beep! MAX SMART ECP

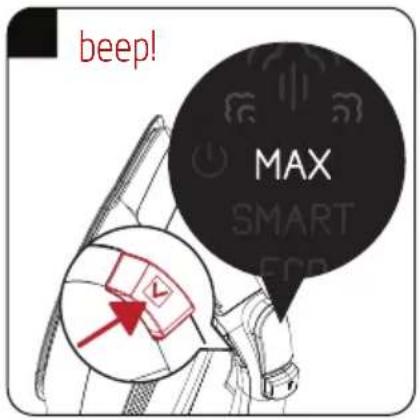

After the "beep", the iron is ready. MAX SMART

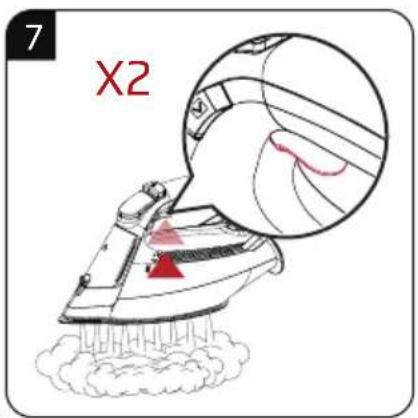

7 X2

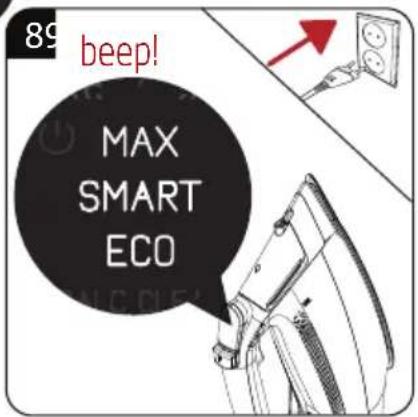

89 beep! MAX SMART ECO

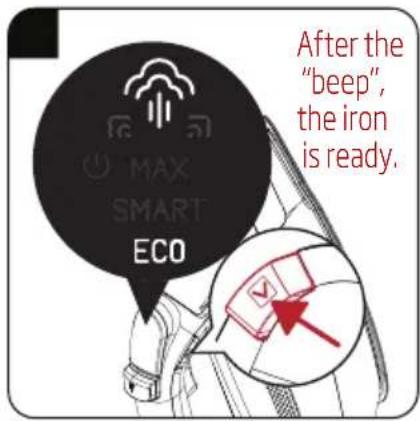

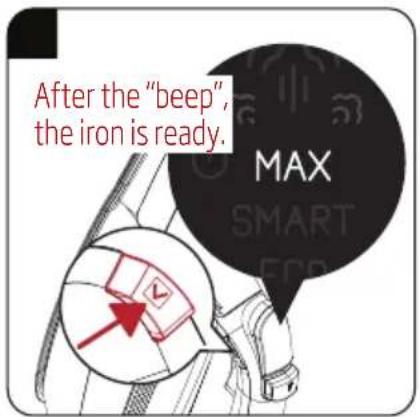

After the "beep", the iron is ready. MAX SMART ECP

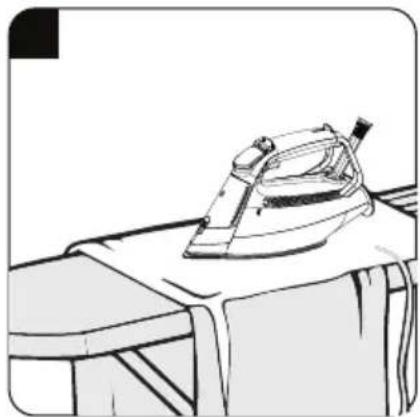

Line drawing of a steam iron resting on a bed (no text or symbols)

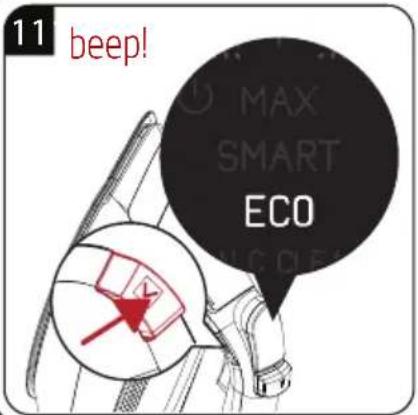

11 beep! ① MAX SMART ECO LPG CLE

After the "beep", the iron is ready. MAX SMART ECO

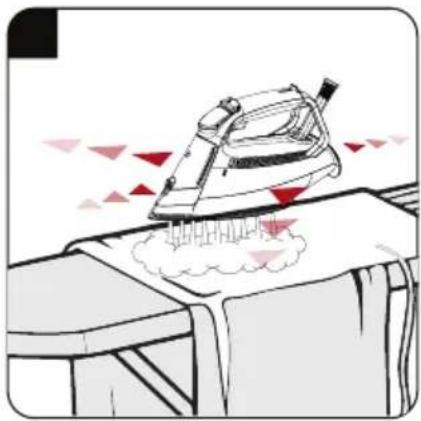

Illustration of a steam iron on a bed with red triangular spray effects (no text or symbols)

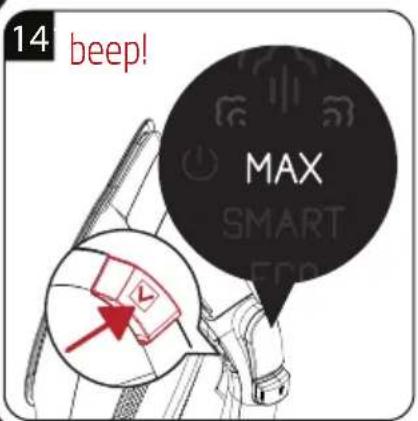

14 beep! MAX SMART ECP

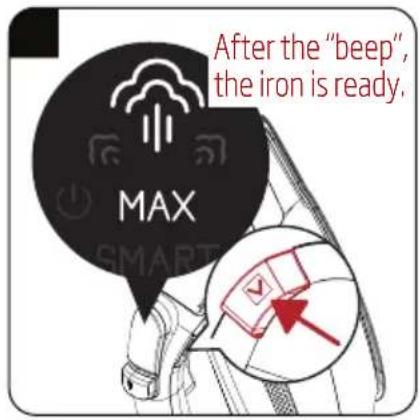

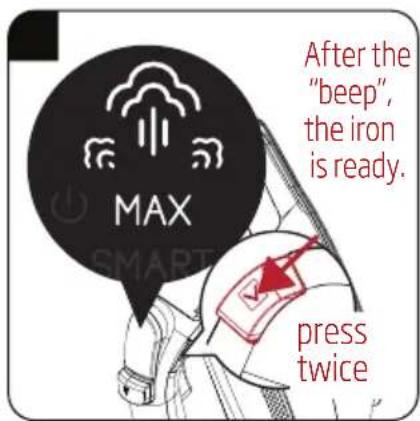

MAX After the "beep", the iron is ready. press twice

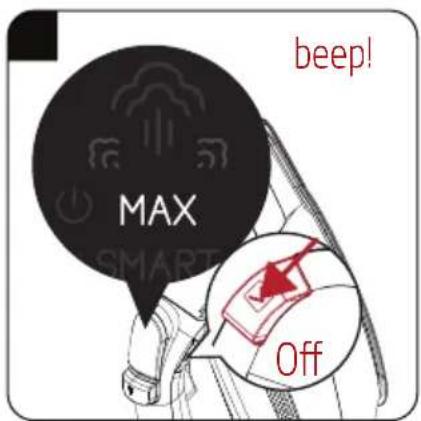

beep! MAX SMART Off

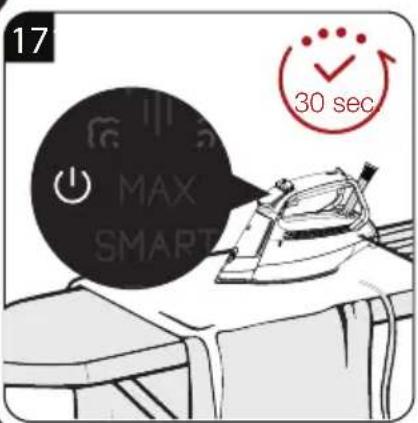

17 MAX SMART 30 sec

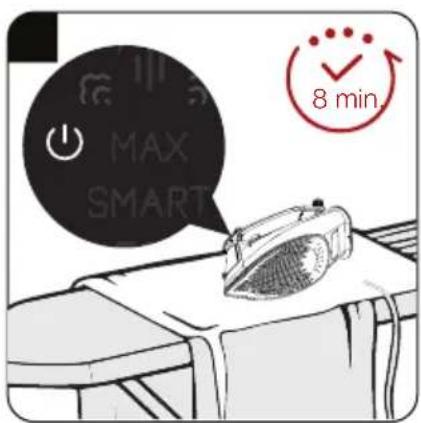

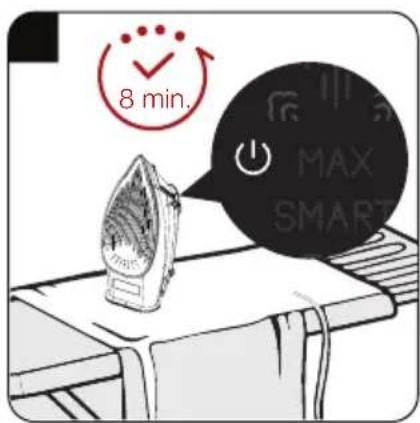

8 min. MAX SMART

MAX SMART 8 min

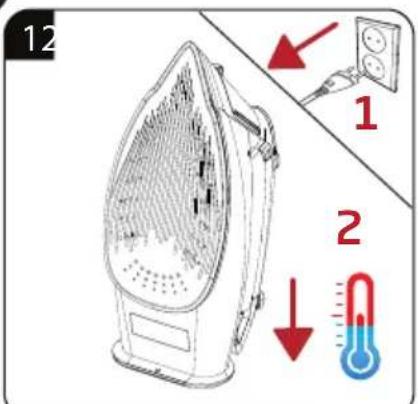

12 1 2 ↓

Illustration of two iron iron hangers with a blue tool inserted, shown from different angles (no text or symbols)

Line drawing of a hand cleaning a textured surface with a cloth (no text or symbols)

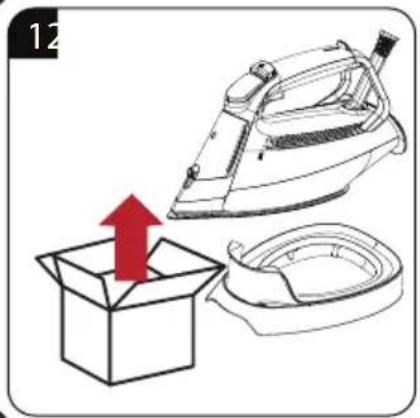

12 1 2 MAX

Line drawing of a steam iron with a red arrow indicating motion (no text or symbols)

Line drawing of a steam iron with a magnified inset showing internal components (no text or symbols)

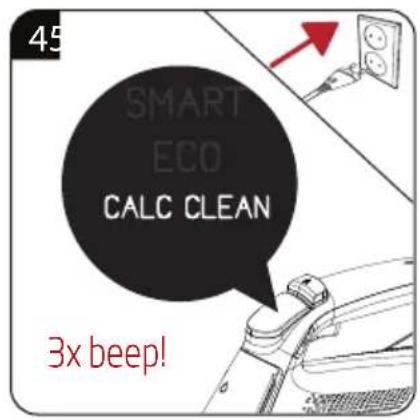

45 SMART ECO CALC CLEAN 3x beep!

SMART ECO CALC CLEAN Press for 5 sec.

3 min beep!

SMART ECO CALC CLEAN

MAX SMART ECO

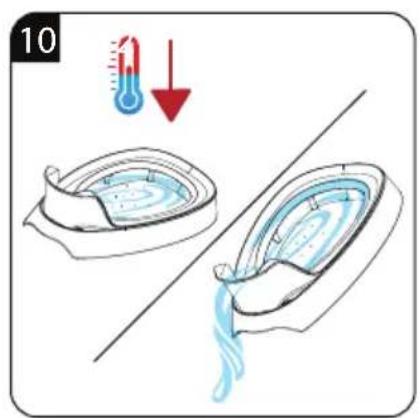

Diagram illustrating three steps of a steam ironing machine: cooling, heating, and cleaning, with numbered annotations.

10

Illustration of two different iron iron holders, one with a handle and the other with a blue tool inserted (no text or symbols)

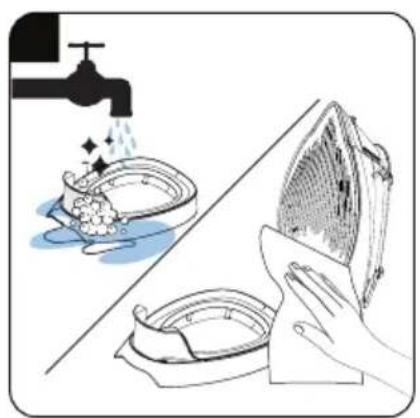

Illustration of a kitchen scene with a faucet, a bowl of water, and a cloth cleaning the dish (no text or symbols)

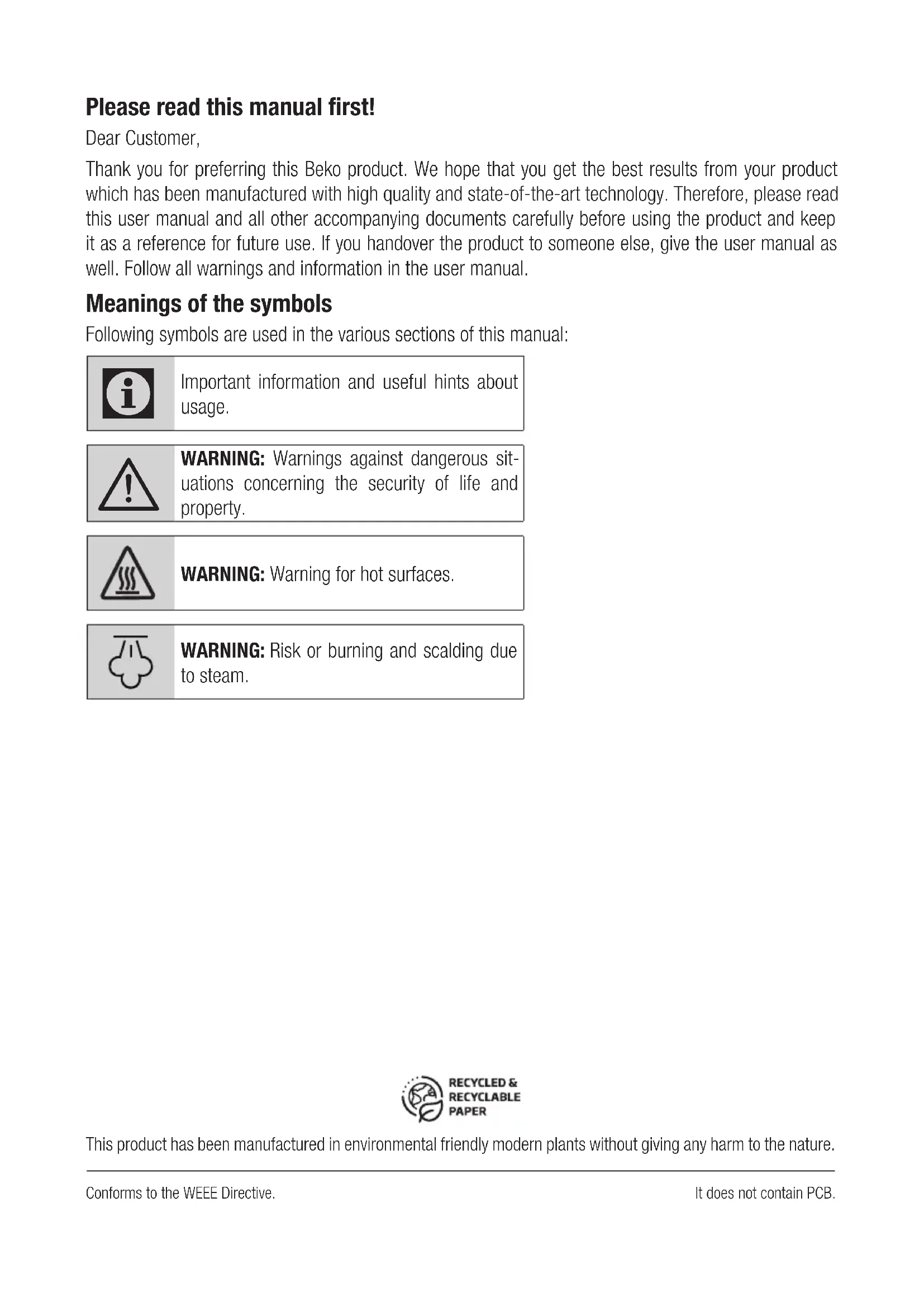

Please read this manual first!

Dear Customer,

Thank you for preferring this Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

WARNING: Warning for hot surfaces.

WARNING: Risk or burning and scalding due to steam.

This product has been manufactured in environmental friendly modern plants without giving any harm to the nature.

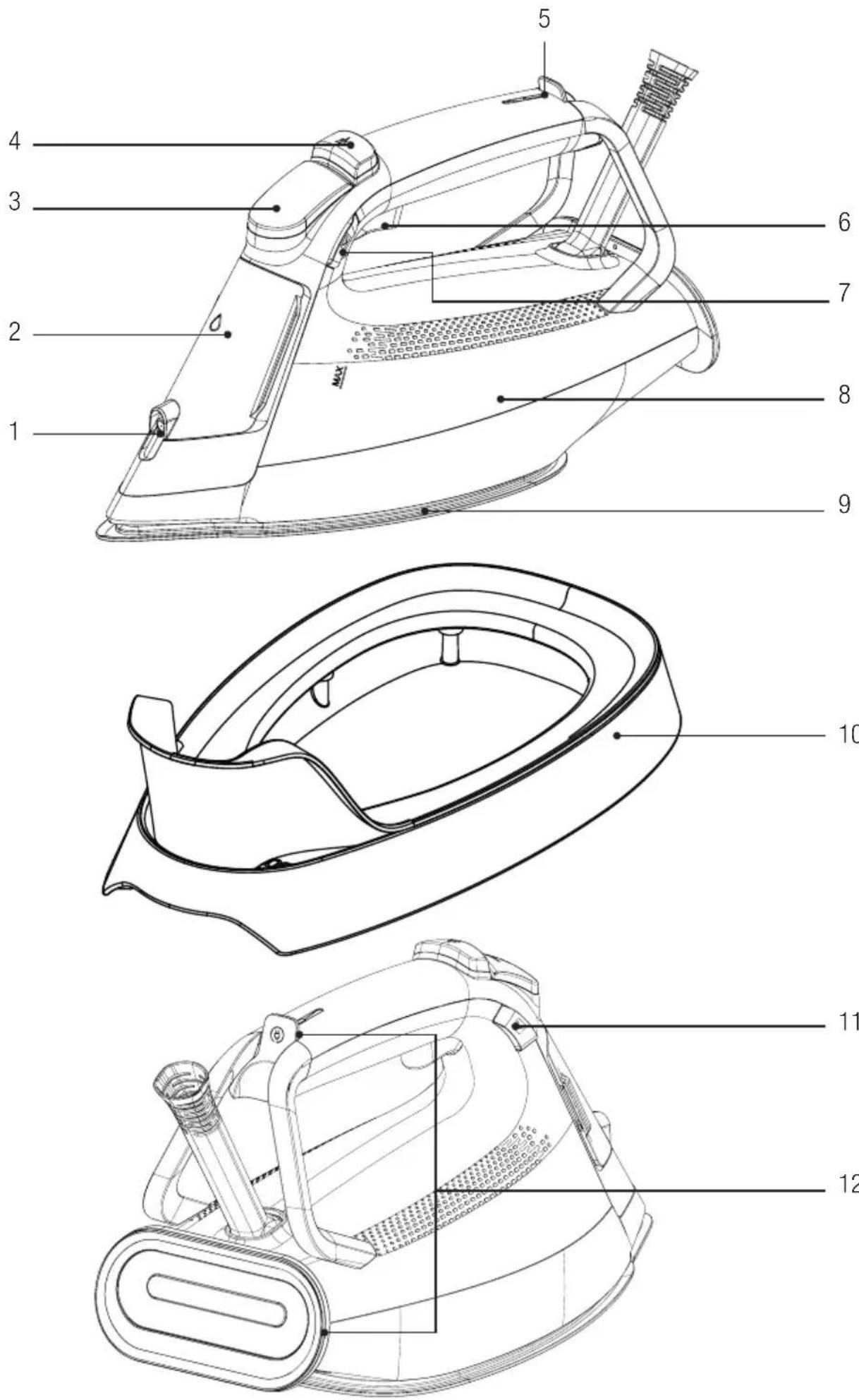

Control and parts

1. Water spray nozzle
2. Water refill lid
3. LED display
4. Water spray button
5. Thermostat indicator and Auto-Off light
6. Shock steam button
7. Temperature setting button
8. Water tank
9. Soleplate
10. Calc-clean reservoir
11. Steam adjustment button
12. Cable winding bay

Technical data

Voltage 220-240V~50-60Hz
Power consumption	2520-3000W
Shock steam 280 g*
Continuous steam 63 g/min
Insulation class I

*Measured at maximum temperature level, when shock steam is applied with 3-second intervals for an operating period of 30 minutes.

Rights to make technical and design changes are reserved.

LED display;

Control panel Symbols Remarks
		Steam mode
		Turbo-steam mode
		Auto-Off indicator
	MAX	Maximum temperature mode
	SMART	Smart mode
	ECO	Eco mode
	CALC CLEAN	Calc-clean warning/mode

The values which are declared in the markings affixed on your appliance or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

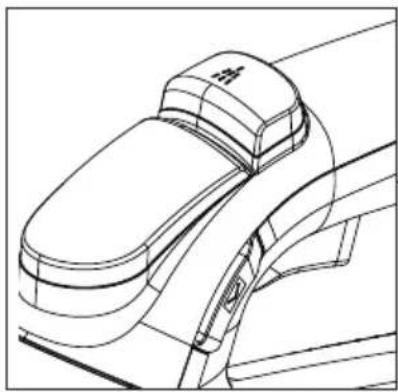

Button descriptions

Technical line drawing of a mechanical component or bracket (no text or symbols)

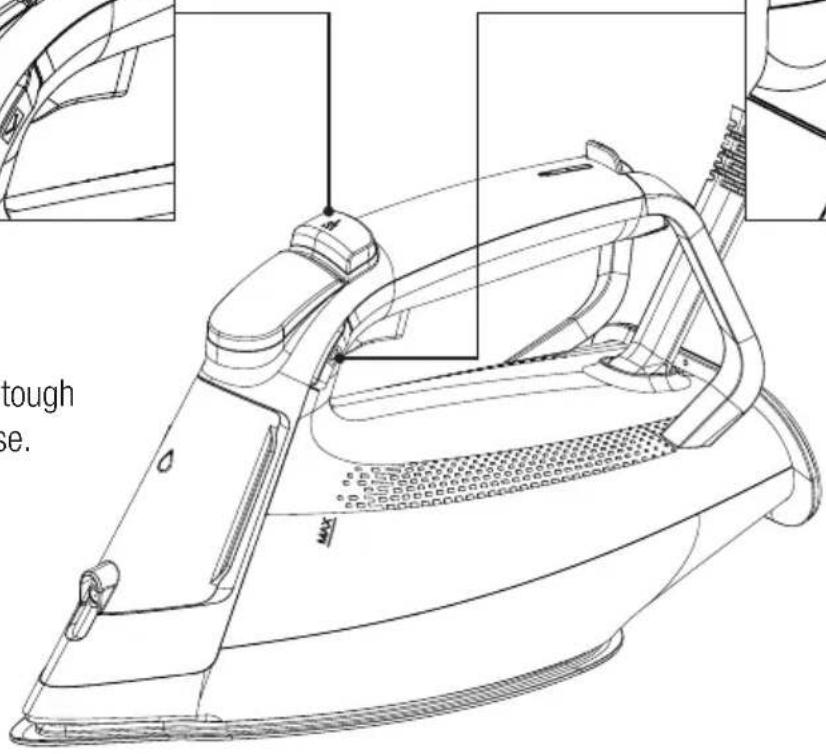

Water spray button (4);

You can remove tough wrinkles with ease.

tough se.

MAX-SMART-ECO

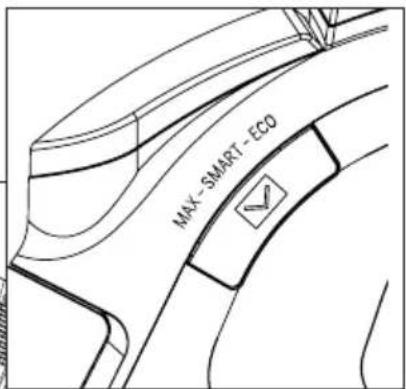

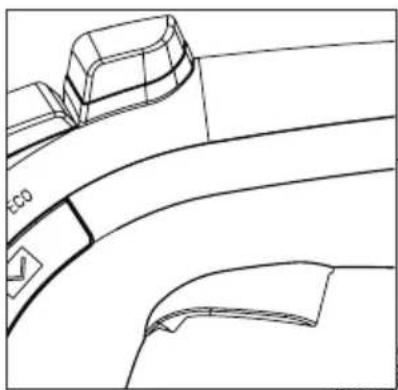

Temperature adjustment button (7);

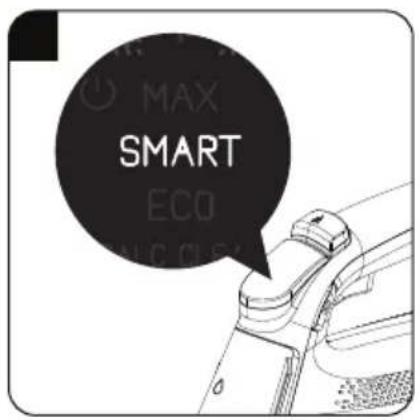

Select the SMART mode applicable for each fabric type or ECO or MAX modes for professional use with temperature adjustment button.

Technical line drawing of a car's side profile showing front and rear sections with no text or symbols

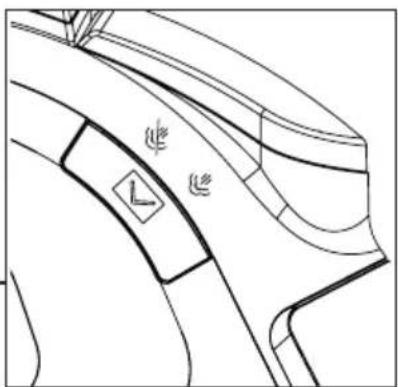

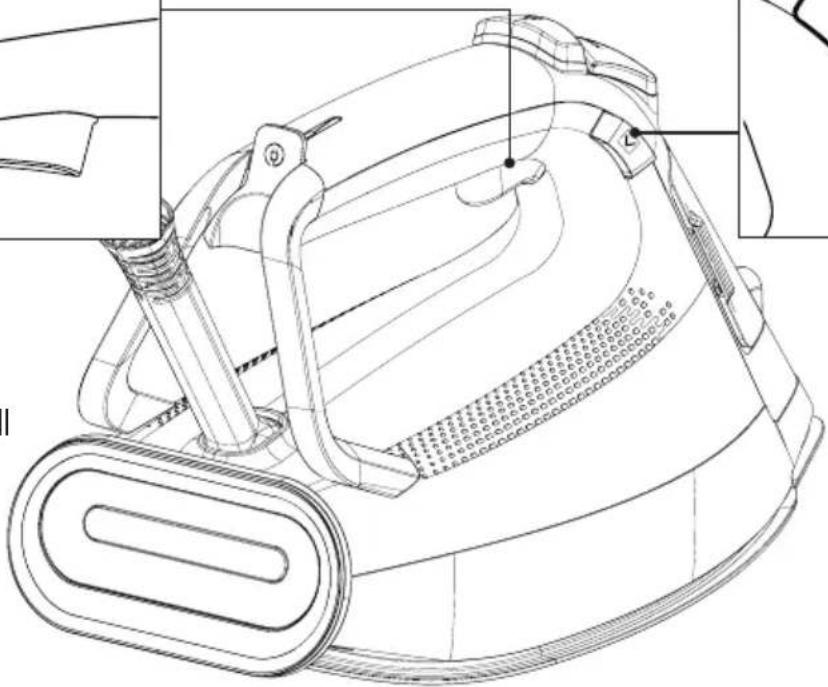

Steam boost button (6);

It provides steam boost feature in all modes.

Technical line drawing of a vacuum cleaner device (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

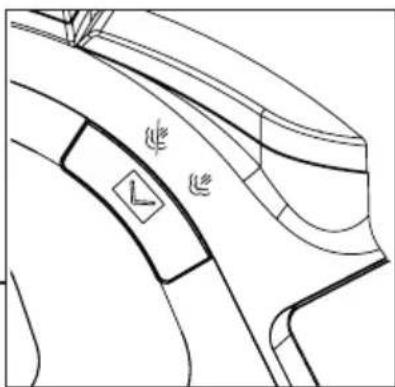

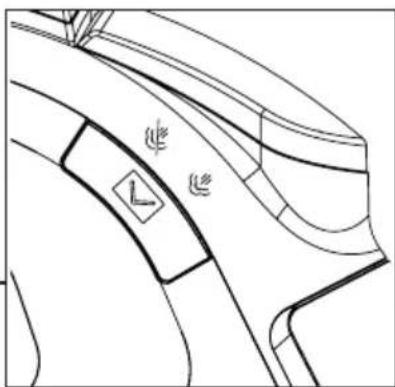

Steam setting button (11);

You can iron with or without steam.

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies with the international safety standards.

• This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;

• Farm houses
• By clients in hotels, and other residential type environments;
• Bed and Breakfast type environments.

It is not fit for industrial use.

• This appliance may be used by children who are at the age of 8 or over and the people whose physical, perceptive or mental skills are impaired or who are inexperienced or not knowledgeable about the appliance as long as they are supervised or informed and made understood the safe use of the appliance and the encountered dangers. Children should not play with the appliance. Cleaning and user maintenance procedures should not be performed by children unless they are controlled by their elders.

- Do not leave the product unattended while it is plugged in.

- Unplug the product before filling the water reservoir with water. - Operate and store the appliance on a stable surface.

- When the appliance is placed on its base plate, ensure that the surface beneath the plate is level.

1 Important safety and environmental instructions

• Do not use the appliance if the power cable or the appliance itself is damaged. Contact an authorised service.
• If the appliance is dropped or leaks water or has other failures, contact the authorised service. Do not use the appliance until it is repaired.
• When the appliance is not in use or left to cool down keep the appliance and power cable out of reach of children under 8 years old.
• The appliance is not suitable for using outdoors.
• Only use the original parts or parts recommended by the manufacturer.
• Do not attempt to dismantle the appliance.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.

• The mains supply of the appliance must be secured with a minimum 16 A fuse.

• Use the appliance with a grounded outlet only.

• Do not use the appliance with an extension cord.
• Do not pull the power cable when unplugging the appliance.
• Unplug the appliance before cleaning it.
• Do not wrap the cable around the appliance. Wrap the cable around the cable wrapping section provided at the rear of the appliance only.
• Do not touch the appliance or its plug with wet or damp hands when the appliance is plugged in.
• The soleplate and its surrounding area can be extremely hot. Contacting hot surfaces may cause burns. Therefore while or just after using the appliance, pay attention not to touch the hot surfaces.
• Never use the appliance in or near to combustible or inflammable places and materials.

1 Important safety and environmental instructions

• If you keep the packaging materials, store them out of the reach of children.
• Do not open the water filling cover during use.

1.2 Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance.

Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Operation

2.1 Intended use

This appliance is intended only for household use and ironing; it is not suitable for professional use.

2.2 Initial use

Remove the protective film on the LED screen (3).

During initial use, fill the water reservoir and vaporize the water to remove the manufacturing residues. Meanwhile, use shock steam button (6) frequently.

You can smell a mild odour or see white sediments coming out of the soleplate holes during initial use. After performing vaporizing process twice, such odours and sediments will disappear. Also water droplets may form within the water reservoir; this is normal.

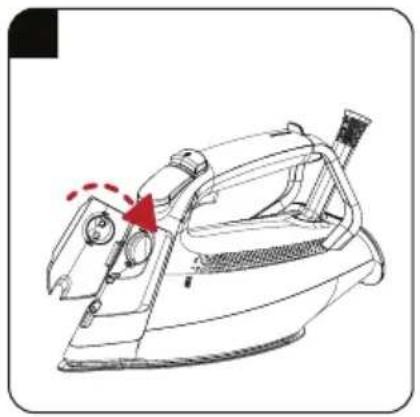

2.3 Refilling the water reservoir

WARNING: Do not fill the water reservoir (8) with perfume, vinegar, laundry starch, calc-cleaners or other products or chemicals which can facilitate the ironing process.

Your appliance is suitable for using with tap water. If your tap water is excessively hard, we recommend you to use a mixture of tap water and potable water.

2.4 Temperature setting and dry ironing

When setting the temperature of the appliance, consider the following table.

Fabric Type	Temperature Setting	Steam Setting
Silk ECO-SMART		With/Without Steam
Wool SMART		With/Without Steam
Cotton SMART-MAX		With/Without Steam
Linen-Jean	SMART-MAX	With/Without Steam

WARNING: Take the ironing instructions specified on the label of the fabric into consideration for ironing.

• Your appliance starts in "SMART" mode when it is switched on.
• You can safely iron all fabrics suitable for ironing in "SMART" mode.
• If you don't know the fabric of your garment, first iron an invisible part of your garment and determine a correct ironing temperature for it.
• In order to prevent the bright stains that may form on the synthetic fabrics such as silk, iron on the reverse side of the fabric. Do not use the water spraying feature in order to prevent the stain formation.

2 Operation

2.5 Steam ironing

WARNINGS

• When you set the appliance to steam mode, it will not give out steam unless you move it. The appliance will give out steam when you move it. Appliance is equipped with a movement sensor.
• Noise coming from the appliance may increase if the water level in the water tank decreases. In this case, fill the tank up to the "MAX" level.

2.6 Turbo-steam

You can use the turbo steam function when the temperature is set to "MAX" position.

Use turbo steam function to obtain higher amounts of steam and for fast ironing on thick fabrics.

WARNING: When you set the appliance to steam mode, it will not give out steam unless you move it. The appliance will give out steam when you move it. Appliance is equipped with a movement sensor.

2.7 Shock steam

You may use the shock steam feature in all modes.

WARNINGS

- Wait for a few seconds before pressing the shock steam button (6) again. If you keep pressing the shock steam button (6) repeatedly, water may come through the sole-plate (9) together with steam. - At the beginning of ironing, iron may not produce shock-steam during first couple of trials.

WARNING: Thermostat indicator light (5) must go out in order to be able to use the shock steam function.

WARNING: Never direct the steam to people or pets.

WARNING: If the thermostat indicator light (5) turns on during ironing, wait for the light (5) to go out before proceeding with the shock steam process.

2.8 Spraying water

- Make sure that there is sufficient water in the reservoir (8) before spraying water. - You can easily remove creases using the water spraying feature.

2.9 Anti-dripping system

The appliance is equipped with an anti-dripping system. Iron stops vaporization automatically when the temperature is too low in order to prevent water coming out of the soleplate (9).

Anti-dripping system allows for ironing even the most delicate fabrics.

2.10 Auto-Off

- If the iron is switched off automatically, symbol flashes. - It may take around 60 seconds for the soleplate (9) to reach the previous temperature level. - If the appliance is moved in horizontal position it will be switched on.

3.1 Cleaning

WARNINGS

• Do not use gasoline, solvent or abrasive cleaning agents or hard brushes to clean the appliance.
• Never put vinegar, descaling agent, laundry starch, perfume or other auxiliary products that help ironing into the appliance.
• Do not wash your appliance under running water or do not soak it in water or other liquids.
• Do not use abrasive cleaning agents to clean the soleplate (9).

3.2 Auto calc-clean

• This process allows for cleaning the calc particles that accumulate in the appliance.
• Use this feature when "CALC-CLEAN" warning appears on the display.

- Fill the water reservoir until (8) MAX level.

• Do not move the appliance during cleaning. In such a case, cleaning procedure must be repeated.
• You may perform this procedure by following the same steps without waiting for the “CALC-CLEAN” warning.

WARNINGS

• As the descaling reservoir (10) shall heat up and as hot condensing water shall be collected during operation, do not touch the reservoir and the iron, and drain when it is cooled down.
• A high amount of steam shall come out the appliance and the descaling reservoir during the descaling procedure.

Self-cleaning function removes the dirt inside the soleplate. We recommend using this feature every 10-15 days.

3.3 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Before lifting the appliance unplug it and then let it cool completely.
• Empty the water reservoir.
• Keep the appliance and its accessories in their original packages.
• Store it in a cool, dry place.
• Always keep the appliance out of the reach of children.

3.4 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy items on the appliance or on the packaging. The appliance may get damaged.
  Dropping the appliance may render it non-operational or cause permanent damage.

For commissioning, general use and cleaning, please observe the instructions on pages 5 - 6 and 7 of this operating manual.

4 Troubleshooting

Problem Possible reason Solution
Although the appliance is plugged in, soleplate (9) does not heat up.	The plug or power cord of the appliance may be faulty.	Contact the authorized service if the appliance does not operate although the appliance is plugged in.
The appliance does not generate steam.	Amount of the water in the water reservoir (8) might be insufficient.	Fill the water reservoir (8) with water up to MAX level.
		Operate the appliance in steam mode.
Sediments and residues fall of from the base (9) while ironing.	If the water you use for your appliance is too limy, such sediments may form.	Fill the water reservoir of the appliance by mixing the tap water and drinking water for your next ironing operations.
		Use the auto descaling feature more frequently if the water in your area is hard.
There are stains at the soleplate (9).	Wet clothes are ironed / scale stains have occurred on the base (9).	Wipe the sediments and residues with a lightly dampened cloth after the appliance is cooled down adequately.
The “CALC CLEAN” symbol flashes on the LED display (3).	The time for descaling has been reached.	Perform the descaling procedure.
Icons on the led screen (3) are not clear.	Protective film on the led screen may be still on.	Remove the protective film on the led screen (3).
Noise from the appliance. Water level in the water tank (8) may be reduced. Noise occurrence due to decrease in the water tank is normal.		Fill the water up to MAX line in the water tank (8).

Technical line drawing of a mechanical component or bracket (no text or symbols)

MAX-SMART-ECO

Technical line drawing of a car's side profile showing front and rear sections (no text or symbols)

Technical line drawing of a vacuum cleaner device (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

PAPEL RECICLADO Y RECIBLABLE

Technical line drawing of a mechanical component or bracket (no text or symbols)

MAX-SMART-ECO

Technical line drawing of a car's front and side profiles (no text or symbols)

Technical line drawing of a vacuum cleaner device (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component or bracket (no text or symbols)

Buton de pulverizare a apei (4):

MAX-SMART-ECO

Technical line drawing of a car's side profile showing front and rear sections (no text or symbols)

Technical line drawing of a vacuum cleaner device (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

□ Convector electric

Model / Serie:

VÂNZĂTOR

Nr. factură:......Data:......

Technical line drawing of a mechanical component or bracket (no text or symbols)

MAX-SMART-ECO

Technical line drawing of a car's side profile showing front and rear sections with no text or symbols

Technical line drawing of a vacuum cleaner device (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component or bracket (no text or symbols)

Przycisk spryskiwania (4):

MAX-SMART-ECO

Technical line drawing of a car interior showing curved surfaces and a labeled component (no text or symbols present)

Technical line drawing of a vacuum cleaner device (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a car interior component (no text or symbols)

Stoomboostknop (6):

Technical line drawing of a vacuum cleaner device (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Simple line icon of a shirt collar with dotted lines indicating measurement (no text or symbols)

SPA9130B

RU

Technical line drawing of a mechanical component or bracket (no text or symbols)

MAX-SMART-ECO

Technical line drawing of a car interior component (no text or symbols)

Technical line drawing of a vacuum cleaner device (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols
