USER MANUAL Naxos PANADERO

P O Ê L E A B O I S E S T U F A D E L E Ñ A H O U T K A C H E L

S T U F A A L E G N A K A M I N O F E N P I E C Y K K O M I N K O W Y

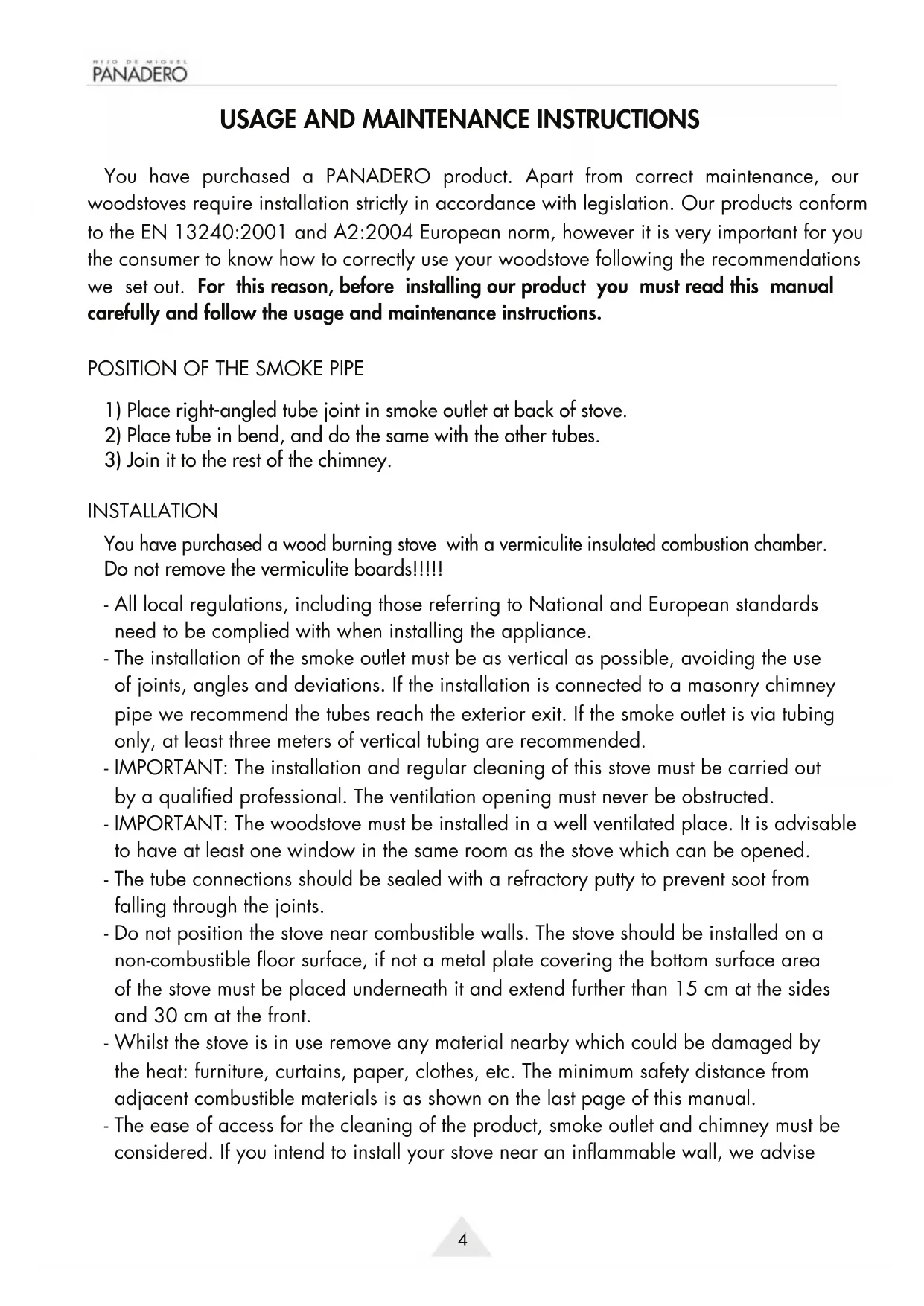

You have purchased a PANADERO product. Apart from correct maintenance, our woodstoves require installation strictly in accordance with legislation. Our products conform to the EN 13240:2001 and A2:2004 European norm, however it is very important for you the consumer to know how to correctly use your woodstove following the recommendations we set out. For this reason, before installing our product you must read this manual carefully and follow the usage and maintenance instructions.

POSITION OF THE SMOKE PIPE

INSTALLATION - All local regulations, including those referring to National and European standards need to be complied with when installing the appliance. - The installation of the smoke outlet must be as vertical as possible, avoiding the use of joints, angles and deviations. If the installation is connected to a masonry chimney pipe we recommend the tubes reach the exterior exit. If the smoke outlet is via tubing only, at least three meters of vertical tubing are recommended. - IMPORTANT: The installation and regular cleaning of this stove must be carried out by a qualified professional. The ventilation opening must never be obstructed. - IMPORTANT: The woodstove must be installed in a well ventilated place. It is advisable to have at least one window in the same room as the stove which can be opened. - The tube connections should be sealed with a refractory putty to prevent soot from falling through the joints. - Do not position the stove near combustible walls. The stove should be installed on a non-combustible floor surface, if not a metal plate covering the bottom surface area of the stove must be placed underneath it and extend further than 15 cm at the sides and 30 cm at the front. - Whilst the stove is in use remove any material nearby which could be damaged by the heat: furniture, curtains, paper, clothes, etc. The minimum safety distance from adjacent combustible materials is as shown on the last page of this manual. - The ease of access for the cleaning of the product, smoke outlet and chimney must be considered. If you intend to install your stove near an inflammable wall, we advise You have purchased a wood burning stove with a vermiculite insulated combustion chamber. Do not remove the vermiculite boards!!!!!

1) Place right-angled tube joint in smoke outlet at back of stove.

2) Place tube in bend, and do the same with the other tubes.

3) Join it to the rest of the chimney.55

you to leave a minimum distance to facilitate cleaning. - This stove is not suitable for installation in any chimney system shared by other sources. - The stove should be installed on flooring with adequate support. If your current floor does not comply with this criterion, it should be adapted with appropriate measures (for example, a weight distribution plate). FUEL - Use only dry wood with a maximum moisture content of 20%. Wood with a moisture content higher than 50 or 60% does not heat and combusts very badly, and creates a lot of tar, releases excessive amounts of vapour and deposits excess sediments onto the stove, glass and smoke outlet. - The fire should be lit using special fire lighters, or paper and small pieces of wood. Never try to light the fire using alcohol or similar products. - Do not burn domestic rubbish, plastic materials or greasy products that can pollute the environment and lead to risks of fire due to obstruction of the pipes. FUNCTION - It is normal for smoke to appear during the first few uses of the stove, as certain components of the heat-resistant paint burn whilst the pigment of the actual stove is fixed. Therefore the room should be aired until the smoke disappears. - The woodstove is not designed to function with the door open under any circumstances. - The stove is intended to function intermitently with intervals for recharging the fuel. - For the lighting process of the stove it is recommended you use paper, fire lighters or small sticks of wood. Once the fire starts to burn, add to it two logs of wood each weighing 2 to 2.5 kg as a first initial charge. In this lighting process the air inlets of the stove must be kept completely open. If necessary the drawer for removing ashes can also be opened to begin with. Once the fire is more intense, close the drawer completely (if open) and regulate the intensity of the fire by closing and opening the air inlets. - In order to achieve the stated nominal heat output of this stove a total quantity of 2.5kg of wood (roughly two logs weighing a little over 1 kg each) must be placed inside at intervals of one hour. The logs should be positioned horizontally and separate from one another, to assure a correct combustion. In any instance a charge of fuel must not be added to the stove until the previous charge has been burnt, leaving only a basic fire bed which is enough to light the next charge but no stronger. - To achieve a slow combustion you should regulate the fire with the air draughts, which must be kept permanently unblocked to allow the combustion air to be distributed. - After the first initial lighting, the brass pieces of the stove may become a coppery colour. - It is normal for the seal of the glass door panel to melt with use. Even though the stove can function without this seal, it is recommended that you replace it seasonally. - The lower drawer can be removed in order to clear out ash. Empty it regularly without Mod. N A X O S - Only use recommended fuels. waiting for it to fill up too much, to avoid the grill becoming damaged. Take care with66 the ash which may still be hot up to 24 hours after the stove has been used. - Do not open the door abruptly in order to avoid smoke being released, and never open it without opening the air draught beforehand. Open the door only in order to put in the appropriate fuel. - The glass, brass pieces and stove in general may reach very high temperatures. Do not expose yourself to risks of burns. When handling metal pieces, use the glove provided with the stove. - Keep children away from the stove. - If you have trouble lighting the stove (due to cold weather, etc.) it can be lit with folded or scrunched up paper which is easier to light. - In case of the stove becoming too hot, close the air draughts to reduce the intensity of the fire. - In case of malfunction, contact us the manufacturers. MAINTENANCE - It is advisable to clean the glass door panel periodically to avoid blackening by soot deposits. Professional cleaning products are available for this. Never use water. Never clean the stove while it is in use. - It is also important to clean the smoke outlet tubing periodically and check there are no blockages before relighting fuel after a long period of non-use. At the start of each season a professional should carry out a revision of the installation. - In the event of a fire in the smoke outlet, close all air draughts if possible and contact the authorities immediately. - Any replacement part which you may need must be recommended by us. GUARANTEE This is a high quality stove, manufactured with great care. Even so, if any defect is found please first contact your distributor. If they are unable to solve the problem they will contact us and send us the stove if necessary. Our company will replace any faulty parts free of charge up to five years from the date of purchase. We will not charge for repair work, however any transport costs must be paid by the client. In the interior of the packaging, you will find a quality control slip. We request that you send this to your distributor in case of any claim. -Glass -Internal grate Since this apparatus has been tested by a homologated laboratory the following parts are NOT covered by warranty: -Vermiculite -Door handle, air-inlet knobs, etc. - The fiberglass cord used for the oints may degrade over time. If this happens, you will have to replace it with a new fiberglass tape. If any deformation occurs inside the combustion chamber, this is due to overheating of the device and therefore NOT covered by the warranty.7

Energy efficiency 80,7% Emission of CO in combustion products 0.10% Flue gas temperature

Distance to adjacent combustible materials 60 cm Fuel types Firewood and briquetted wood Dust concentration at 13% O2 30 mg/Nm
