USER MANUAL Humpop OKOIA

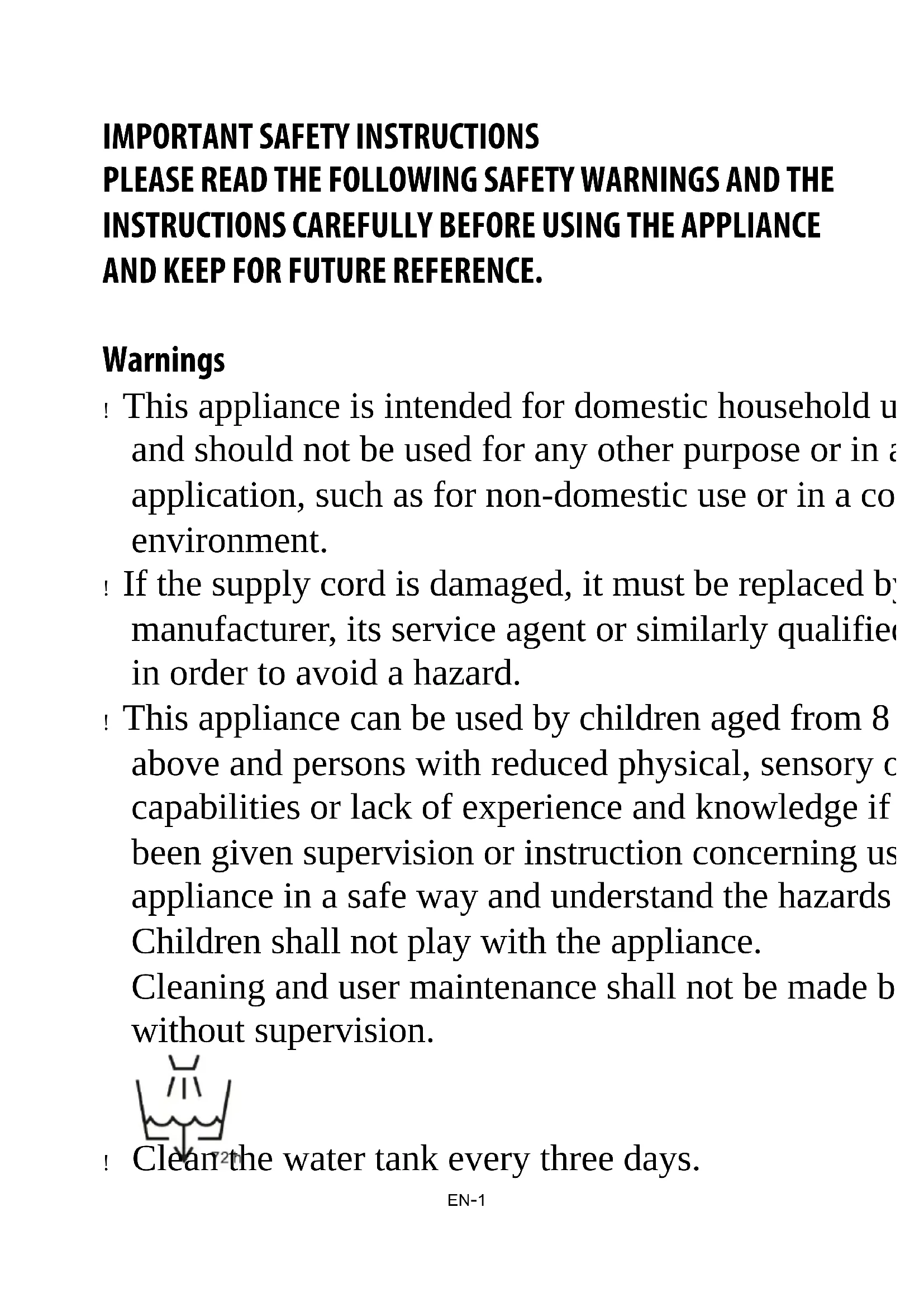

AND KEEP FOR FUTURE REFERENCE. Warnings ! This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment. ! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. ! This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. ! Clean the water tank every three days.EN-2 ! Regarding the detailed information of filling, cleaning and descaling, refer to the section “OPERATION, CLEANING AND MAINTENANCE” on pages EN-8~EN-10 of the manual. ! Be aware that high humidity levels may encourage the growth of biological organisms in the environment. ! Do not permit the area around the humidifier to become damp or wet. If dampness occurs, turn the output of the humidifier down. If the humidifier output volume cannot be turned down, use the humidifier intermittently. Do not allow absorbent materials, such as carpeting, curtains, drapes, or tablecloths, to become damp. ! Unplug the appliance during filling and cleaning. ! Never leave water in the reservoir when the appliance is not in use. ! Empty and clean the humidifier before storage. Clean the humidifier before next use. ! Warning: Micro-organisms that may be present in the water or in the environment where the appliance is used or stored, can grow in the water reservoir and be blown in the air causing very serious health risks when the water is not renewed and the tank is not cleaned properly every 3 days. ! Empty the tank and refill every third day. Before refilling, clean it with fresh tap water or cleaning agents if required by the manufacturer. Remove any scale, deposits, or film thatEN-3 has formed on the sides of the tank or on interior surfaces, and wipe all surfaces dry. Safety Information ! Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cord under rugs or near heat registers. ! Do not place humidifier near heat sources such as stoves, radiators, and heaters. Locate your humidifier on an inside wall near an electrical outlet. The humidifier should be at least 10 cm away from the wall for best results. ! Never place humidifier in an area where it is accessible to children. NEVER use humidifier in a closed room, particularly where a child may be sleeping, resting, or playing (a closed room may result in excessive humidity). ! Turn off and unplug the humidifier from the mains socket when not in use, before refilling or cleaning. Be sure to unplug the appliance by pulling on the plug and not the cord. ! Never place anything over mist outlet when the humidifier is running. ! Never drop or insert any object into any openings. Do not place hands, face or body directly over or near mist outlet while the humidifier is in operation. Do not cover mist outlet while the humidifier is operating. ! Use appliance only for intended household use as described inEN-4 this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. The use of attachments not recommended by the manufacturer may cause hazards. ! Do not use the humidifier outdoors or on wet surfaces. ! Always place humidifier on a firm, flat, level surface. A waterproof mat or pad is recommended for use under the humidifier. NEVER place it on a rug or carpet, or on a finished floor that may be damaged by exposure to water or moisture. ! Do not allow the mist outlet to directly face the wall. Moisture could cause damage, particularly to wall paper. ! Never tilt, move, or attempt to empty the humidifier while it is operating. Shut off and unplug before removing the water tank and moving the appliance. ! This humidifier requires daily and weekly maintenance to operate appropriately. Refer to daily and weekly cleaning procedures. Use only cleaners and additives recommended by the manufacturer. Never use gasoline, glass cleaner, furniture polish, paint thinner, or other household solvents to clean any part of the humidifier. ! Excessive humidity in a room can cause water condensation on windows and some furniture. If this happens, turn the humidifier OFF. ! Do not use humidifier in an area where humidity level is inEN-5 excess of 50%. Use a hygrometer, available at your local retailer or through the manufacturer, to measure the humidity. ! Do not attempt to adjust or repair the humidifier. Servicing must be performed by professional or qualified personnel. ! Never place housing under running water, or immerse in liquids. ! Do not plug in the cord with wet hands. ! Do not pour water in any openings other than the water tank. ! Do not use the humidifier without water in the water tank. ! Use both hands when carrying full tank of water. ! Failure to clean the appliance as per the cleaning instructions in the instruction book may result in overheating or fire.EN-6 PRODUCT OVERVIEW

OPERATION Filling the Water Tank CAUTION: Before filling the tank with water, turn off and unplug the humidifier from the mains socket.

1. Place the humidifier on a flat stable surface, at least 10 cm away from the wall.

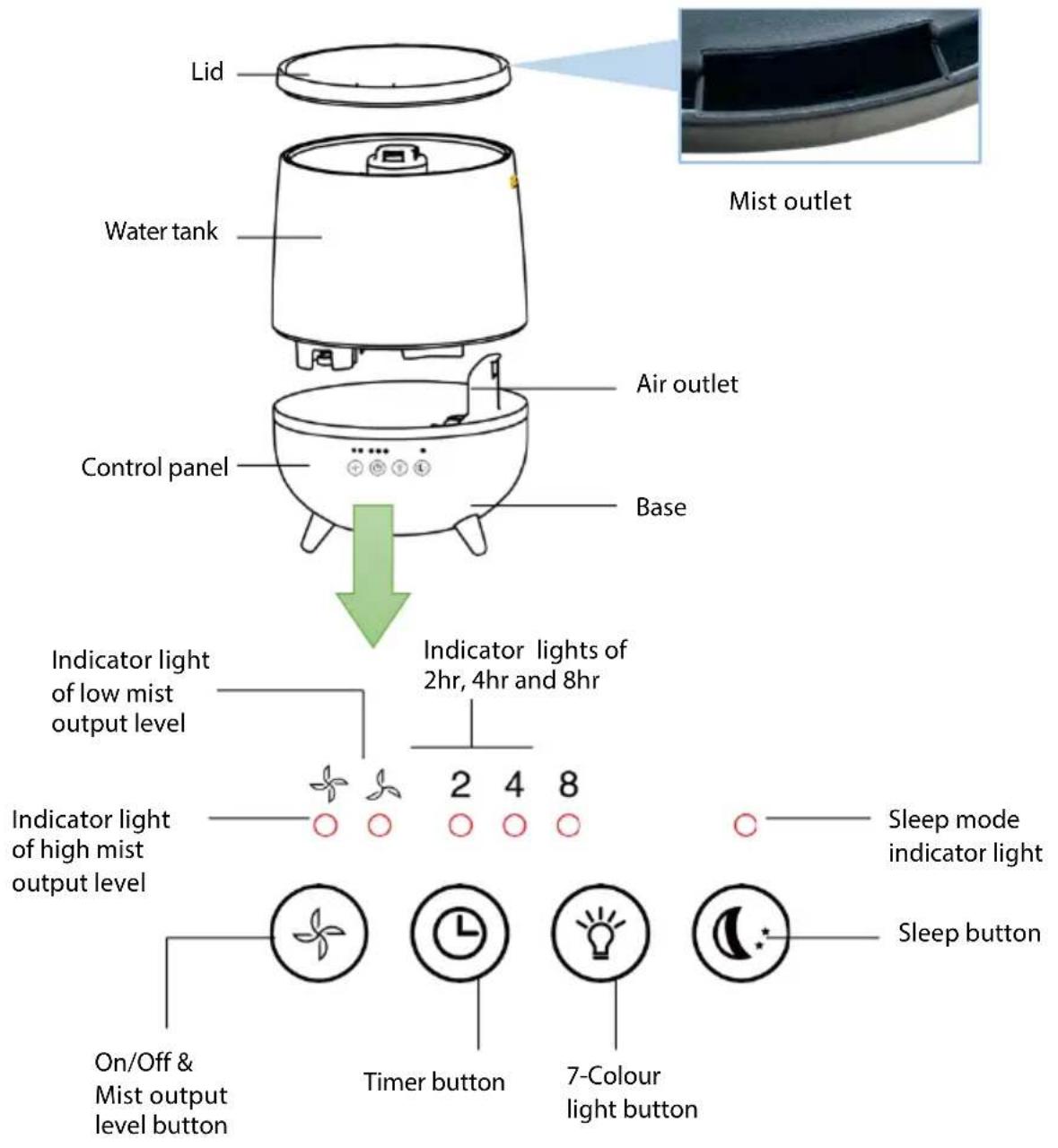

! DO NOT place the humidifier on a finished floor or near furniture which can be damaged by too much moisture or water. ! Place on a moisture resistant surface. Lid Mist outlet Water tank Base Control panel Air outlet On/Off & Mist output level button Indicator light of high mist output level Indicator light of low mist output level Timer button Indicator lights of 2hr, 4hr and 8hr 7-Colour light button Sleep button Sleep mode indicator lightEN-7

3. Fill the water tank with cold clean water.

When the humidifier runs out of water, the indicator lights will flash and beeps will be heard. Before refilling, unplug the humidifier from the mains socket. Then follow the steps above to refill the tank. NOTE : Do not operate the humidifier without water.

Operating instructions

1. Plug in the humidifier.

Do not exceed the maximum water level. It is recommended to use distilled water if you live in a hard water area.EN-8

2. Press to turn on the humidifier.

! The Humidifier will start by operating at high mist output level. ! The corresponding indicator light will illuminate.

3. Mist will disperse from top.

4. Press again to select the low mist output level.

! The corresponding indicator light will illuminate.

5. Press and hold for about 2 seconds to turn off the humidifier.

! The humidifier will stop mist output. ! The mist output level indicator light will go out. Timer The humidifier has a timer feature that will turn the humidifier off after a chosen number of hours.

1. Repeatedly press to select 2, 4 or 8 hours.

! The corresponding indicator light will illuminate.

2. The humidifier will automatically turn off once the chosen time has elapsed.

To cancel this timer feature, repeatedly press until the timer indicator light goes out.

Colourful light Press once to turn on the light and cycle through 7 colours changing automatically. Press again to select the desired colour. Press a third time to turn off the light.

Sleep mode Press to activate this mode and the corresponding indicator light will illuminate. In this mode, the mist setting will be changed to low output level. The indicator lights of other buttons and colourful light will be turned off. To deactivate this mode, press again and the corresponding indicator light will go out.

CLEANING AND MAINTENANCE

Cleaning and descaling on a regular basis are important for maintaining the performance of the humidifier. Before cleaning, always turn off and unplug the humidifier from the mains socket. Clean the base with a slightly damp cloth. Never immerse the base in water.EN-9 Never use any abrasive or chemical cleaning agent. Daily Maintenance

2. Carry the water tank to a sink, then drain and rinse the water tank thoroughly to

remove any sediment and dirt. ! NOTE: Always use 2 hands to carry the water tank.

3. Wipe clean and dry with a clean soft cloth or paper towel.

4. Refill the water tank with cool tap water. Do not overfill.

Weekly Maintenance To remove scale :

1. Repeat steps in Daily Maintenance.

2. Fill the water tank with white vinegar and water solution. Leave this solution in the

base for 20 minutes, while cleaning all the interior surfaces with a soft brush. Gently scrub the area around the transducer with a soft brush. Remove base scale by wiping the base with a cloth dampened with undiluted white vinegar.

3. Rinse with clean warm water to remove the cleaning solution before disinfecting the

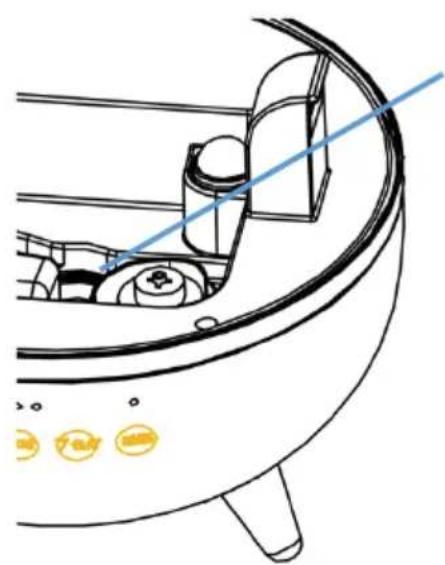

Transducer : Brush off the scale from the surface.EN-10 To disinfect humidifier base and tank :

1. Fill tank 1/2 full with water and 15ml chlorine bleach.

2. Let the solution stand for 20 minutes, swishing every few minutes. Wet all surfaces.

3. Empty the tank after 20 minutes, and rinse well with water until the bleach smell is

gone. Dry with a clean cloth or paper towel.

4. Refill the water tank with cool water and replace on base.

5. To clean the humidifier base, pour out all excess water. Wipe clean and dry with a

clean cloth or paper towel. Do not use metal cleaning utensils or abrasive cleansers. STORAGE INSTRUCTIONS When not using your humidifier for an extended period of time :

1. Clean, rinse and thoroughly dry the humidifier as described in weekly maintenance.

DO NOT leave any water in the appliance when storing.

2. Place the humidifier in the original carton and store in a cool, dry place.

SPECIFICATIONS Ratings: 220-240V~ 50-60Hz 20W DISPOSAL As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment. You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life. Contact your local authority to learn about disposal and recycling. The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

2009/125/EC Eco design requirements for energy-related products (ErP)
