HAIRSTEAMR200 - Hair Straightener OKOIA - Free user manual and instructions

Product type	Steam straightener
Brand	OKOIA
Model	HAIRSTEAMR200
Power supply	100-240 V~ 50/60 Hz, 33-36 W
Heating temperatures	120°C, 140°C, 160°C, 180°C, 200°C
Plate type	Floating plates
Steam function	Cold mist activation by button (2 sec)
Water tank	Removable, with wick, distilled water recommended
Automatic shut-off	Yes, after 45 minutes
Power cord	360° swivel
Hinge lock	Yes, for storage
Dimensions (approx.)	30 x 4 x 4 cm (estimation)
Weight (approx.)	400 g (estimation)
Care and cleaning	Wipe with damp cloth, do not immerse
Safety	Do not use near water, keep out of reach of children, do not leave unattended
Usage	Household only
Warranty / Customer service	Hotline Darty: 0 978 970 970, Vanden Borre: [phone], Fnac: 0 969 324 334

Frequently Asked Questions - HAIRSTEAMR200 OKOIA

How to fill the water tank of the OKOIA HAIRSTEAMR200 straightener?

Remove the tank from the bottom of the device, unscrew the cap, fill with distilled water (do not remove the wick), then replace the cap and snap the tank back into place.

What temperatures are available and for which hair type?

Temperatures are: 120°C (damaged hair), 140°C, 160°C, 180°C (default), 200°C (straight hair). Adjust according to your hair type.

How to activate the steam function?

Press and hold the cold mist button for 2 seconds. The LED indicator lights up. Steam is only released when the plates are closed on a section of hair.

What to do if the device does not heat up?

Check that the device is plugged in and the outlet works. Press the power button for 2 seconds. Wait for the temperature indicator to stop blinking (heating). If the problem persists, contact customer service.

How to clean the HAIRSTEAMR200 straightener?

Unplug and let cool. Wipe with a slightly damp cloth, then dry with a soft cloth. Do not use abrasive products and do not immerse the device.

Can the straightener be used on wet hair?

No, hair must be dry and detangled before use. Steam is produced only by the tank during straightening.

What does automatic shut-off mean?

After 45 minutes of inactivity, the device automatically turns off for safety reasons. To turn it back on, press and hold the power button for 2 seconds.

How to lock the straightener for storage?

Press the plates together and slide the hinge lock switch to the locked position. Never heat the device in the closed position.

What type of water to use in the tank?

It is recommended to use distilled water to prevent limescale and extend the life of the device.

Is the device suitable for children?

The device can be used by children aged 8 and above under supervision. Children must not play with it. Keep out of reach of young children during use and cooling.

USER MANUAL HAIRSTEAMR200 OKOIA

Black hair styling iron on a bathroom sink, with blurred background of bathroom fixtures and a wall-mounted shower (no text or symbols visible)

MANUEL D'UTILISATION HANDLEIDING

TABLE DES MATIÈRES

MISES EN GARDE IMPORTANTES....p. 02
DESCRIPTION DU PRODUIT....p. 05
FONCTIONNEMENT....p. 06
NETTOYAGE ET ENTRETIEN....p. 08
SPÉCIFICATIONS....p. 08
MISE AU REBUT....p. 09

FR

NL

ES

PT

EN

MISES EN GARDE IMPORTANTES

MERCI DE BIEN VOULOR LIRE LES CONSIGNES DE SÉCURITÉ ATTENTIVEMENT AVANT D'UTILISER L'APPAREIL ET DE LES CONSERVER POUR RÉFÉRENCE ULTÉRIEURE.

Attention

Hotline Darty France

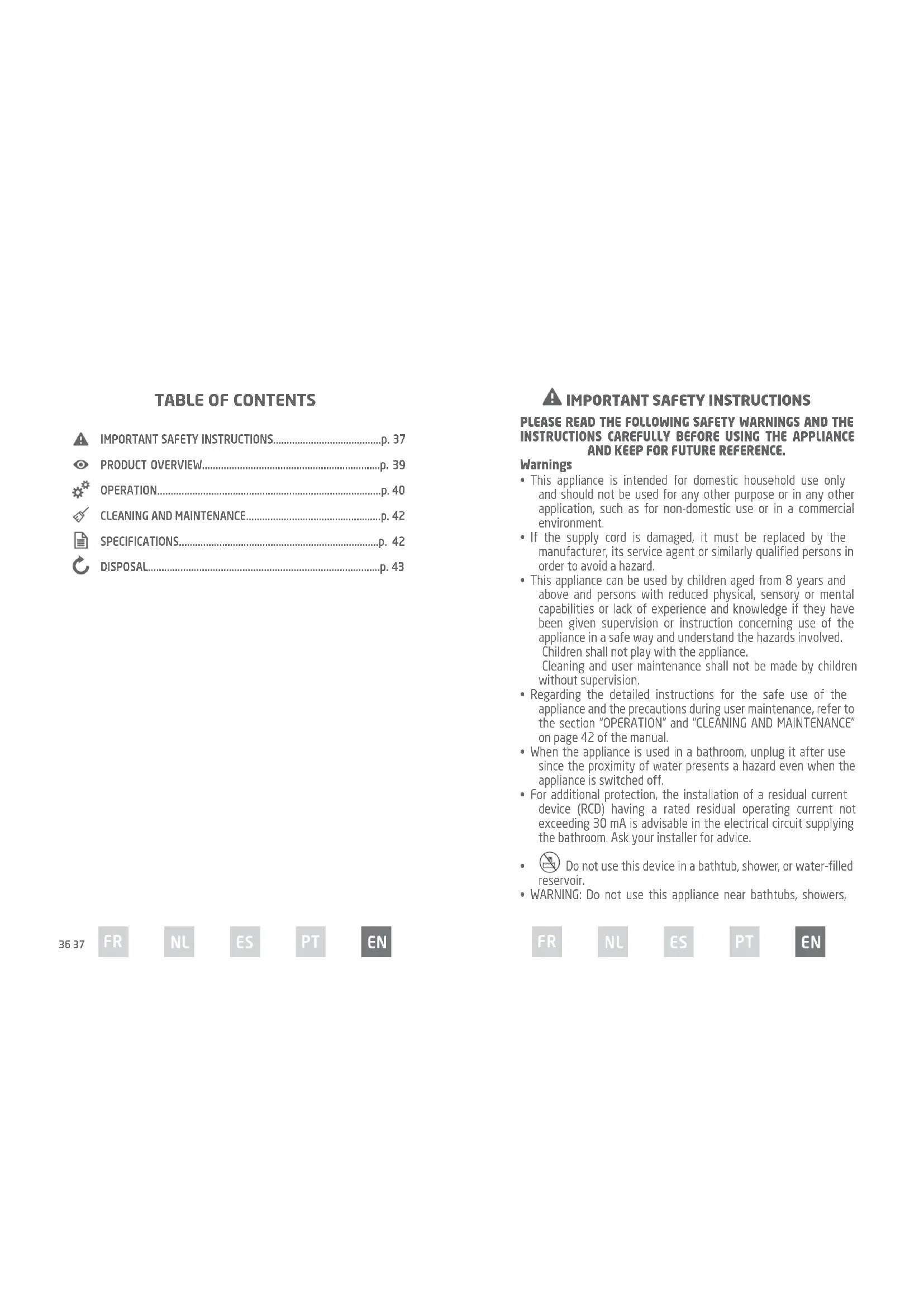

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ THE FOLLOWING SAFETY WARNINGS AND THE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.

Warnings

• This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

• Regarding the detailed instructions for the safe use of the appliance and the precautions during user maintenance, refer to the section "OPERATION" and "CLEANING AND MAINTENANCE" on page 42 of the manual.
• When the appliance is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the appliance is switched off.
• For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

• Do not use this device in a bathtub, shower, or water-filled reservoir.
• WARNING: Do not use this appliance near bathtubs, showers,

FR

NL

ES

PT

EN

basins or other vessels containing water.

• Burn hazard. Keep appliance out of reach from young children, particularly during use and cool down. When the appliance is connected to the power supply, never leave it unattended. Always place the appliance with the stand, if any, on a heat-resistant, stable flat surface.
• WARNING: Do not use this appliance near water.

Safety Precautions

• Before you connect the appliance, ensure that the voltage indicated on the appliance corresponds to the local power voltage.
  • Always turn off and unplug the appliance when not in use, or before cleaning.
• Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
• Do not leave the appliance unattended when in operation.
• To protect against the risk of electric shock, do not immerse the appliance in water or in any other liquid.
• Keep the cord away from heated surfaces. Do not pull, twist, or wrap cord around appliance.
• Do not leave or store the hair straightener near a tub, sink or other place where it will be exposed to water and other liquids or high humidity.
• Be careful heating plate has a high temperature, do not touch it.
• Do not use the hair straighter for any purpose other than its intended use.
• Never block the air openings of the device or place it on a soft surface, such as a bed or couch, where the air openings may be blocked. Keep the air openings free of lint, hair and the like.
• Never drop or insert any object into any of the openings of the appliance.

PRODUCT OVERVIEW

Cool mist button Temperature indicator lights Hinge lock 360° Swivel cord Floating plates Mist outlet Temperature control buttons + - Power button Water tank Wick Tank cap (rubber seal)

OPERATION

1. Make sure to fill the water tank before using the steam function.

2. Remove the water tank from the bottom of the appliance.

3. Remove the tank cap.
   NOTE: DO NOT remove wick from tank as it aids the cool mist.
   • Fill the tank with distilled water.
4. Re-insert the tank cap and make sure the tank does not leak.

5. Attach the water tank back to the appliance until it clicks in place.

6. Wash your hair cleanly with appropriate shampoo.

7. Hair should be dry and free of tangles before using the appliance.

8. Plug the appliance into the mains socket.
9. Press and hold the power button for 2 seconds to turn on the appliance.

• The default temperature 180°C will flash.

1. You can repeatedly press + / - to select your desired temperature according to your hair type and condition.
2. During the heat-up time, the temperature indicator light will flash.

Temperature Indicator light Hair Type Hair condition
200°C
180°C	[KAST]
160°C
140°C
120°C	Straight	Damaged

1. When the appliance reaches the set temperature, the indicator light will stop flashing, and your appliance is ready for use.
2. Press and hold the cool mist button for 2 seconds to activate the steam function.

• The LED on the cool mist button will illuminate.
- To deactivate the steam function, press and hold the cool mist button for 2 seconds and the LED on this button will go out.
9. Use a comb to divide your hair into several strands. Do not put too much hair in one strand.

1. Place one strand of hair between the straightening plates and press the handles of the appliance firmly together.
2. Cool mist will only dispense when the appliance is in use with the plates closed.
3. Slide the straightener down the length of the hair for a few seconds, from root to hair end.
4. Do not hold the appliance in one area for a long period of time or damage to hair may occur.
5. Repeat this process with all the sections of your hair.
6. When you have finished styling, press and hold the power button for 2 seconds to turn off the appliance.

Auto Shut-off after 45 Mins

The appliance is fitted with an automatic switch-off function. After approx. 45 minutes the appliance will switch off automatically. If you want to continue using the appliance, press and hold the power button for 2 seconds to switch it on again.

CLEANING AND MAINTENANCE

• Before cleaning or storage, unplug the appliance from the mains socket and allow it to cool down completely.
• Clean the appliance with a slightly damp cloth.
• Ensure all parts are wiped dry with a soft dry cloth.
• Do not let water or any other liquid to enter the appliance.
• Never use abrasive or chemical cleaning agents.
• Do not wrap the power cord around the appliance.

Hinge lock

Your appliance has a hinge lock to make plates lockable for storage.

- To lock the appliance, squeeze the plates together, and push the switch to the locked position.

- To unlock the appliance, pull the switch to the unlock position.

NOTE: Do not heat the appliance in the locked position.

SPECIFICATIONS

Ratings: 100-240 V\~ 50-60 Hz

33-36 W

DISPOSAL

responsible retailer we care about the environment. As such we

urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations.

Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.
