Cocoon - Aroma diffuser OKOIA - Free user manual and instructions

Product type	Ultrasonic aroma diffuser
Brand	OKOIA
Model	Cocoon
Power supply	24V, 500mA AC adapter
Water tank capacity	160 ml
Maximum water level	"Max" line inside tank
Mist modes	Continuous (on/off via button)
LED lighting modes	Changing, fixed, off
Auto shut-off	Yes, when tank is empty or water level too low
Recommended essential oil type	100% natural and water-soluble
Recommended oil amount	3 to 6 drops per 160 ml water
Operating ambient temperature	10°C to 30°C
Cleaning the ceramic disc	Using a clean cotton swab
Cleaning the tank	Damp clean cloth, do not immerse
Safety: do not cover while operating	Yes, do not block mist outlet
Safety: do not touch ceramic disc while on	Yes, unpleasant ultrasonic vibrations
Intended use	Household use only, ambient diffusion
Disposal	Do not dispose with household waste, recycle at collection point

Frequently Asked Questions - Cocoon OKOIA

How to turn on the OKOIA Cocoon diffuser?

Press the on/off button on the base. A first press turns on the mist and light in changing mode. Each subsequent press changes the light mode (fixed, off, then full stop).

How much water and essential oil to use?

Fill the tank to the 'Max' line with 160 ml of water (tap or bottled). Add 3 to 6 drops of natural water-soluble essential oil. Do not exceed the maximum level.

How to clean the diffuser?

Turn off and unplug the device. Remove the lid and splash guard, wash them under the tap. Clean the inside of the tank with a damp cloth, and the ceramic disc with a clean cotton swab. Never immerse the base in water.

Can I use any essential oil?

No, use only 100% natural and water-soluble essential oils. Non-water-soluble oils can damage the device or pose a risk.

What to do if the diffuser stops on its own?

This is normal: the device automatically turns off when the tank is empty or water level too low. Refill it and turn it on again.

Can the diffuser be used continuously?

Yes, it can run continuously as long as there is water. Be sure to check the water level regularly and do not let it run dry.

How to change essential oil?

Turn off and unplug the device. Empty the tank, clean it with a damp cloth, then fill with clean water and add the new oil. You can also clean the ceramic disc to avoid mixing scents.

Can I move the diffuser while it is running?

Avoid tilting or inclining the device while running as water may spill. Place it on a flat, stable surface before turning it on.

What is the power supply voltage of the diffuser?

The provided AC adapter delivers a voltage of 24V with a current of 500 mA. Use only the original adapter.

How to maintain the ceramic disc?

Clean it regularly with a clean cotton swab to remove deposits. Avoid contact with hard objects that could scratch it.

USER MANUAL Cocoon OKOIA

White spherical water purifier with a small digital display at the base (no text or symbols visible)

Downloaded from www.vandenborre.be

Catalogue

Language of Introduction Page

English GB 1 – GB 5

French FR 6 - FR 11

Dutch NL 12 - NL 17

GB

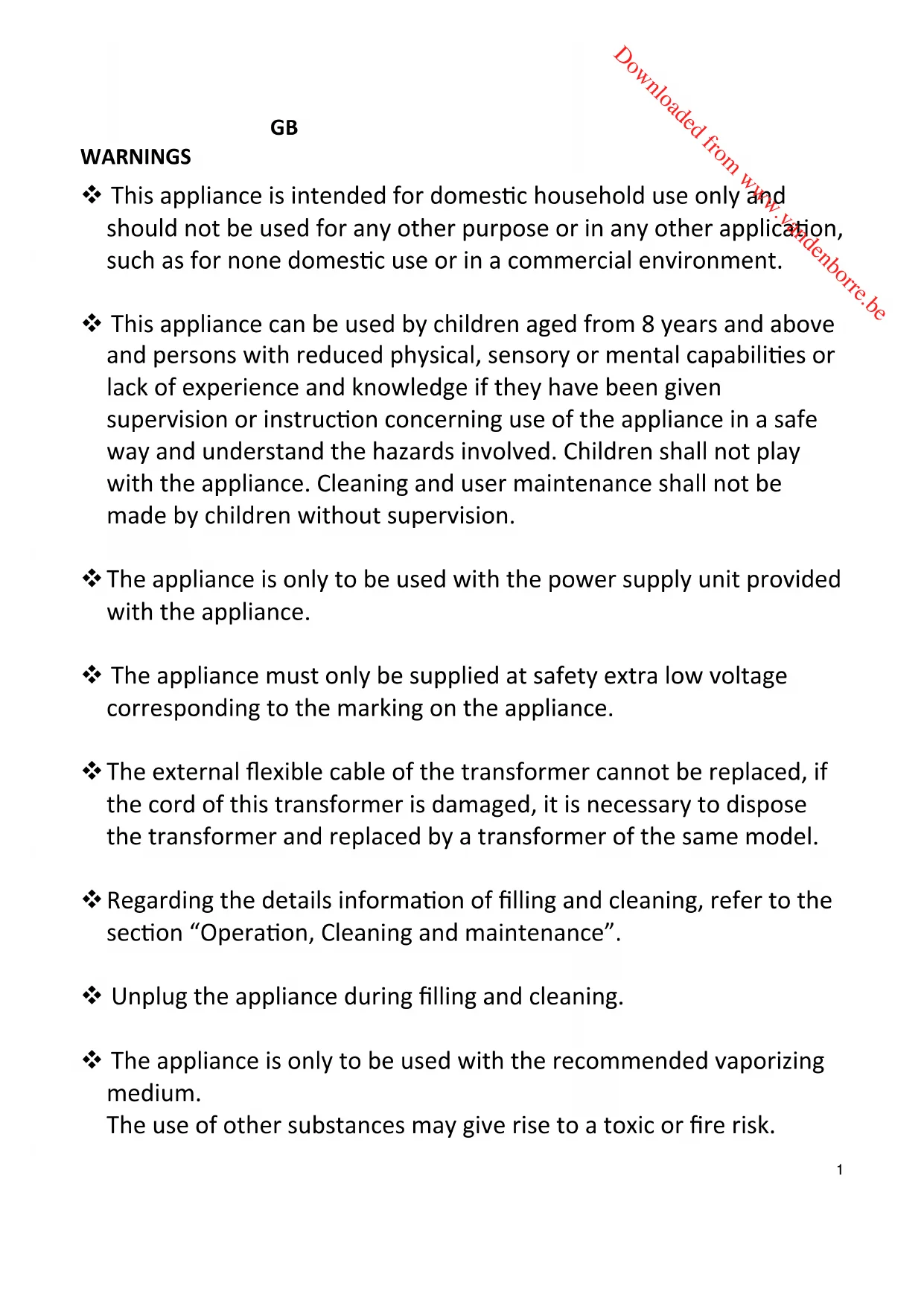

WARNINGS

This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for none domestic use or in a commercial environment.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

The appliance is only to be used with the power supply unit provided with the appliance.

The appliance must only be supplied at safety extra low voltage corresponding to the marking on the appliance.

The external flexible cable of the transformer cannot be replaced, if the cord of this transformer is damaged, it is necessary to dispose the transformer and replaced by a transformer of the same model.

◆ Regarding the details information of filling and cleaning, refer to the section “Operation, Cleaning and maintenance”.

◆ Unplug the appliance during filling and cleaning.

- The appliance is only to be used with the recommended vaporizing medium.

The use of other substances may give rise to a toxic or fire risk.

IMPORTANT SAFETY INSTRUCTIONS

• Only use the appliance as an ambience diffuser; not to be inhaled.
• Use the appliance in an environment between 10^ C and 30^ C .
• Turn off and disconnect the appliance from the mains socket when not in use, during filling or before cleaning.
• Do not place the aroma diffuser directly on wooden furniture or other surfaces that could be damaged by water.
• Do not place the appliance where water spillage or condensation may cause damage to furniture, electronic products or floors.
• Do not operate the appliance without water.
• Do not cover the appliance when it is in operation.
• Do not place anything over mist outlet when the appliance is operating.
• Do not remove the cover from the diffuser when it is in operation.
• Do not touch the ceramic disc while the appliance is in operation as ultrasonic vibrations may cause a stinging sensation.
• Do not lean or tilt the diffuser during operation.

Simple line drawing of two egg-shaped objects with a cross mark, no text or symbols present

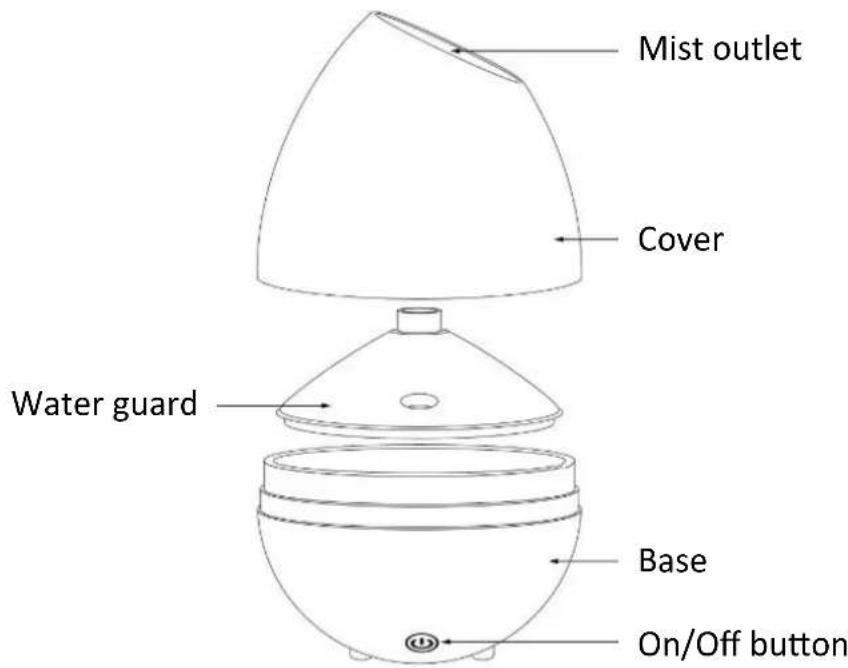

PARTS

Mist outlet Cover Water guard Base On/Off button

Power adapter Water tank Air outlet Ceramic disc Max Line marking – Maximum water level Water spout Downloaded from www.vandenborre.be

OPERATION

The aroma diffuser is powered by connecting the supplied power adapter.

1. Place the aroma diffuser on a firm, flat surface, at least 10 cm away from walls or objects.
2. Remove the cover and water guard. Fill the tank with up to 160 ml bottled or tap water.

- Do not exceed the maximum water level.

Line drawing of a device with a lid and base, showing internal components and directional arrows (no text or symbols)

Simple line drawing of a bottle pouring liquid into a container (no text or symbols)

Max

1. If desired, add 3-6 drops of the desired essential oil into the water.

INFORMATION ON THE USE OF ESSENTIAL OIL

• Use 100% natural essential oil.
• Use water soluble essential oil only.
• Do not apply undiluted essential oils onto skin.
• Do not ingest essential oils.

- If you want to change the essential oil, turn off and disconnect the diffuser from the power adapter. Remove the cover and water guard, and then empty the water tank. Clean the inside of the water tank with a soft clean cloth or paper towel. Fill the water tank with water again and add drops of a new essential oil into the glass tank. Follow the instructions to operate the diffuser.

Simple line drawing of a container with liquid being poured into it (no text or symbols)

1. Replace the water guard and cover on the water tank.

Line drawing of a lamp with a lid and base, showing internal components and directional arrows (no text or symbols)

1. Insert the small end of the power adapter into the power socket of the diffuser and plug the power adapter into the mains socket.

Line drawing of a water heater with attached piping and base (no text or symbols)

1. Repeatedly press the on/off button to select the desired mist and light colour mode.

Time of pressing the on/off button	Mist	Light colour
Once	On	Changing
Twice	On	Fixed
Three times	On	Off
Four times	Off	Off

Simple line drawing of a teardrop-shaped object with a handle and base, no text or symbols present

NOTE: When the water runs out or the water level is too low, the appliance will shut off automatically. It is recommended to check regularly to see whether the diffuser needs a top up.

CLEANING AND MAINTENANCE

Turn off and disconnect the appliance from the power adapter and then unplug the power adapter from the mains socket.

Carefully remove the cover and water guard. Clean them under running water.

If you do not use the appliance for an extended period, please pour out any remaining water out of the water tank from the water spout.

Diagram of a rotating sphere with a red arrow indicating rotation direction (no text or symbols)

Do not empty the water from the air outlet, which will cause damage to the diffuser.

Diagram of a rotating disk with intersecting lines and a central arrow, no text or symbols present

Clean the outside of the water tank and base with a damp cloth. Dry thoroughly. DO NOT IMMERSE THE WATER TANK AND BASE IN WATER.

It is recommended to regularly clean the inside of the water tank with a clean soft damp cloth.

Regularly clean the ceramic disc using a clean swab.

Do not touch or scratch the ceramic disc with sharp objects.

Do not use any abrasive or chemical cleaning agent.

Hand placing a small object into a circular basin with a red arrow indicating direction (no text or symbols)

Hand holding a tool inside a circular basin with a red arrow indicating direction (no text or symbols)

Storage

Make sure the diffuser is completely dry before storing.

Store it in a cool dry place.

SPECIFICATIONS

Ratings: 24V\~500mA

Water tank capacity: 160 ml

DISPOSAL

As a responsible retailer we care about the environment.

As such we urge you to follow the correct disposal procedure for the appliance and packaging materials.

This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations.

Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

ATTENTION

Simple line drawing of an egg with a cross mark on its side (no text or symbols)

DESCRIPTION

Line drawing of a lamp or lamp with a lid and base, showing internal components and airflow direction (no text or symbols)

Simple line drawing of a bottle pouring liquid into a container (no text or symbols)

Max

Line drawing of a kitchen appliance with lid and side legs, showing internal components and arrows indicating movement (no text or symbols)

Line drawing of a water heater with attached piping and wall-mounted unit (no text or symbols)

Simple line drawing of a teardrop-shaped object with a handle and small mark at the base (no text or symbols)

Diagram of a rotating sphere with a red arrow indicating rotation direction (no text or symbols)

Diagram of a spherical object with intersecting lines and arrows, no readable text or symbols present

Two-step diagram showing a hand holding a circular object with a red arrow indicating direction, no text or symbols present.

Stockage

Hotline Darty France

Simple line drawing of two egg-shaped objects with a cross mark on one (no text or symbols)

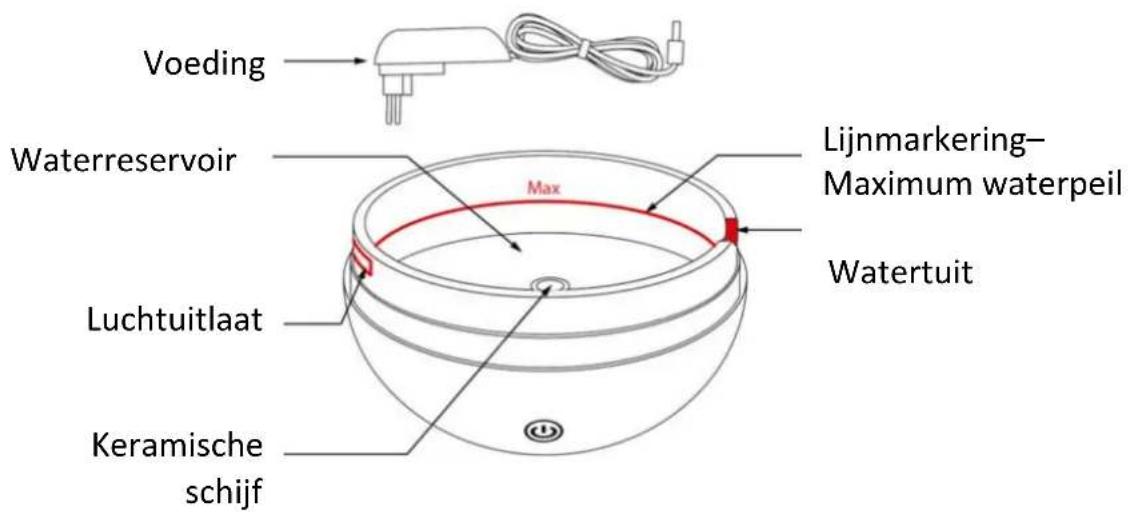

ONDERDELEN VAN HET APPARAAT

Mistuitlaat Kap Waterscherm Basis Aan/uit-toets

Simple line drawing of a bowl with liquid being poured into it (no text or symbols)

Diagram of a device with a conical top and base, showing internal components and directional arrows (no text or symbols)

Line drawing of a water heater with attached piping and base (no text or symbols)

Simple line drawing of a teardrop-shaped object with a handle and small mark, no text or symbols present.

Diagram of a rotating sphere with red arrows indicating rotation direction (no text or symbols)

Diagram of a rotating sphere with intersecting black lines and red arrows, no text or symbols present

Hand placing a small object into a circular basin with a red arrow indicating direction (no text or symbols)

Line drawing of a hand holding a tool near a circular object, with a red arrow indicating direction (no text or symbols)

Wegbergen
