Setting Up the Printer

1. Box Contents

- Print Heads

• Ink Bottles
  Power Cord
• Setup CD-ROM
  • Safety and Important Information
  • Getting Started (this manual)

2. Turning on the Printer

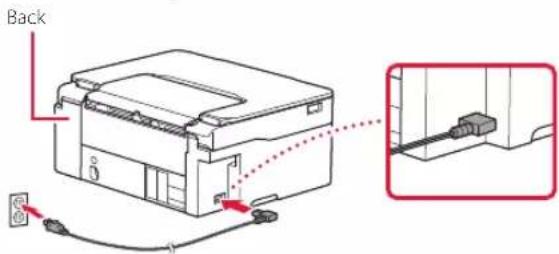

1 Connect the power cord.

Back

2 Press the ON button.

• The ON lamp lights.

Lit

Setting Up the Printer

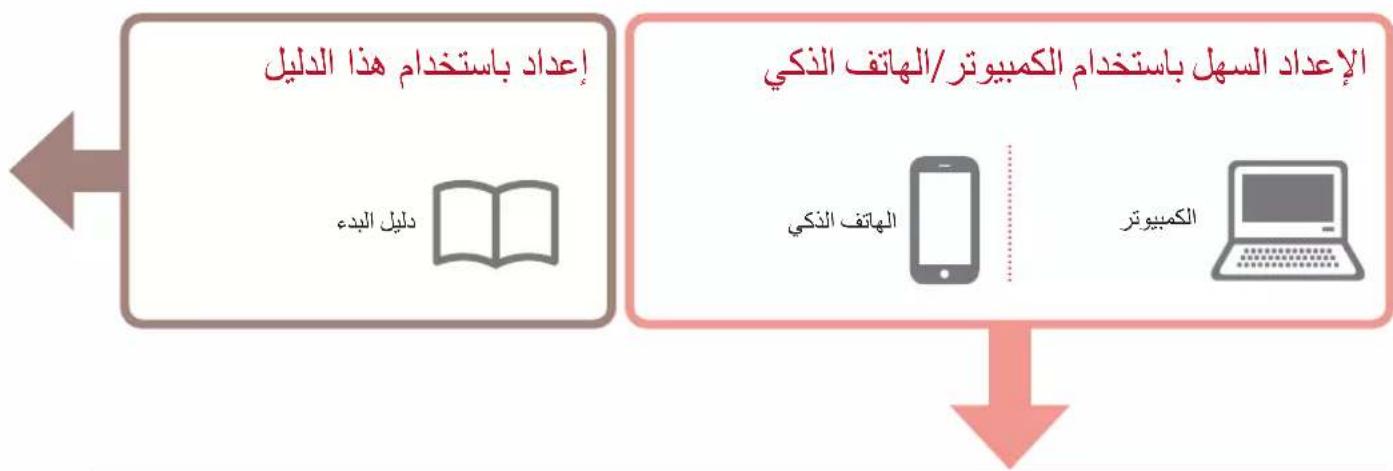

Easy Setup Using Computer/Smartphone Setup Using this Manual

Computer Smartphone

Getting Started

3 Easy Setup Using Computer/Smartphone

Simple, easy-to-follow instructions are displayed on your computer or smartphone.

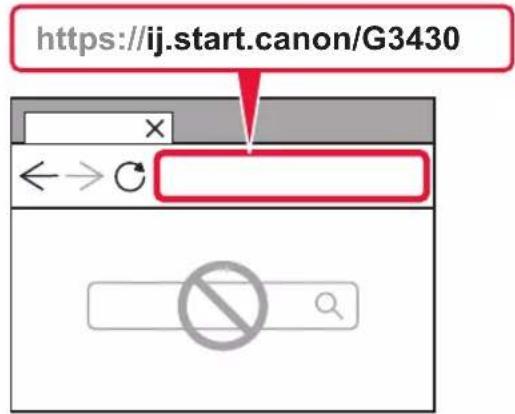

1 Visit the URL below to start setup.

https://ij.start.canon/G3430

2 Follow the instructions to complete setup and print.

1

Illustration of a printer with three speech bubbles containing icons: power button, documents, and a document (no text or symbols)

2

4. Installing the Print Heads

1 Open the scanning unit / cover.

Caution

Do not touch the print head holder until it stops moving.

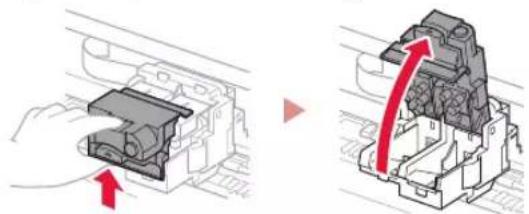

2 Open the print head locking cover.

Mechanical assembly diagram showing a component being inserted into a housing, with red arrows indicating direction (no text or symbols present)

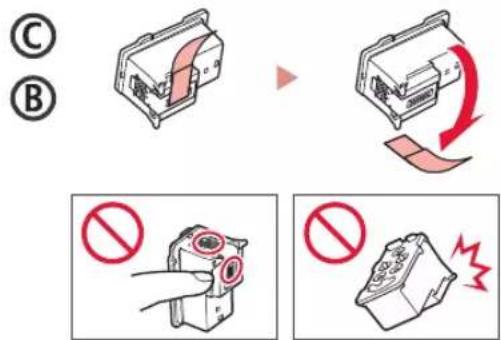

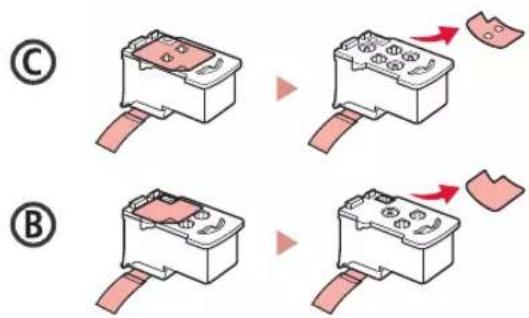

3 Take out each print head from the package and remove the label.

(C) (B)

4 Remove the orange tape.

Diagram illustrating a mechanical device operation with labeled parts and prohibition signs

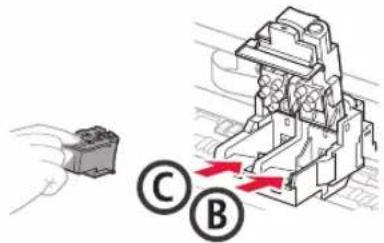

5 Insert the C (color) print head on the left and the B (black) print head on the right.

Diagram showing a device with labeled parts C and B, indicating a process or operation with red arrows indicating direction.

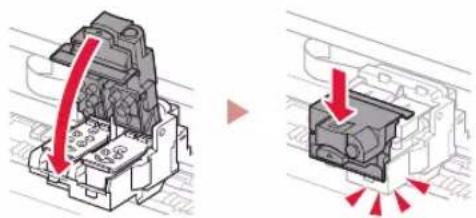

6 Close the print head locking cover and press down until it clicks.

Technical diagram showing mechanical assembly with red arrows indicating motion or force direction, likely illustrating a process or assembly step.

Setting Up the Printer

5. Pouring Ink

Important

This product requires careful handling of ink. Ink may splatter when the ink tanks are filled with ink. If ink gets on your clothes or belongings, it may not come off.

1 Open the tank cap on the left of the printer.

Mechanical assembly diagram showing a lever mechanism with red arrow indicating motion (no text or symbols)

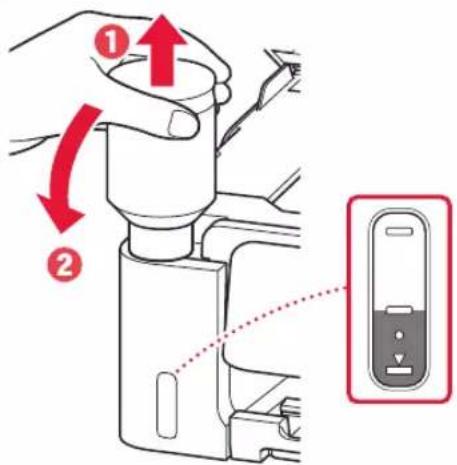

2 Hold the ink bottle upright and gently twist the bottle cap to remove.

Check!

PGBK

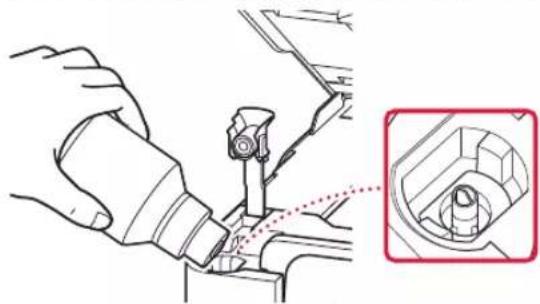

3 Align the nozzle of the ink bottle with the inlet.

Illustration of a mechanical assembly with tool and component details (no text or symbols)

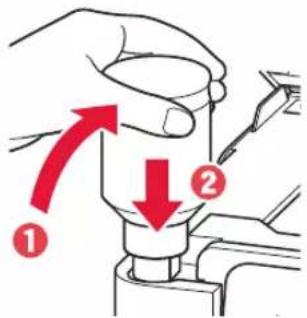

4 Slowly stand the ink bottle upside down and push down to pour the ink.

- If the ink does not pour, gently remove the ink bottle and try again.

Diagram showing a hand operating a tool with two red arrows indicating direction of movement or force, labeled ① and ②.

5 Gently remove the ink bottle from the inlet.

- Be careful not to spill the ink.

Diagram showing hand operating a device with red arrows indicating rotation and movement, labeled with step numbers ① and ②.

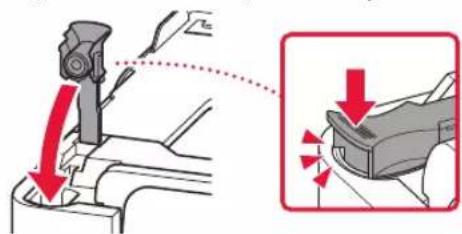

6 Replace the tank cap securely.

Diagram illustrating a mechanical assembly with red arrows indicating force or direction, showing a lever mechanism and a close-up of the lever's motion.

7 Repeat steps 1 through 6 to pour all ink into the corresponding ink tanks on the right.

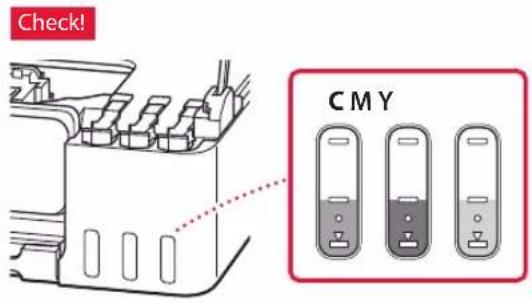

Check! CMY

8 Close the scanning unit / cover.

- If you lift the scanning unit / cover slightly and release it, it will close by itself.

Diagram of a printer with labeled parts and red arrows indicating downward movement or transformation

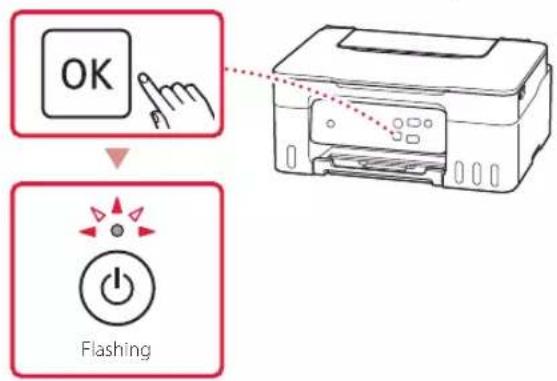

9 Press the OK button.

- The ON lamp flashes and the ink system preparation starts. It takes about 6 minutes to complete.

OK Flashing

If the Alarm lamp flashes or lights

Count the number of flashes.

• 4 times

Print heads are not installed correctly.

→ "4. Installing the Print Heads" on page 3

- 5 times

Print heads cannot be recognized.

→ "4. Installing the Print Heads" on page 3

For all other cases, refer to the Online Manual.

6. Connecting to a Computer or Smartphone

If you are using multiple computers/smartphones, perform these steps on each device.

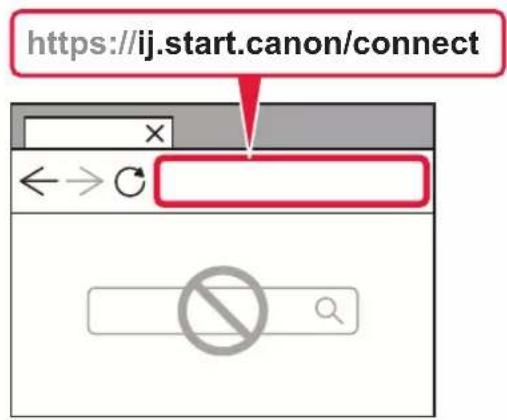

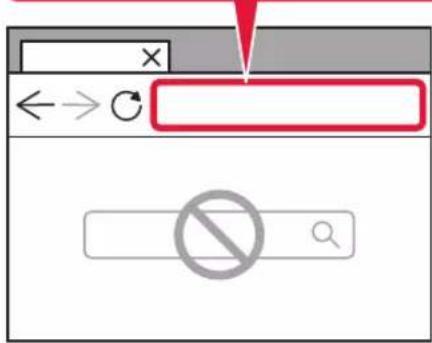

1 Access the Canon website directly. No need to search.

https://ij.start.canon/connect

2 Enter your printer's model name and click Go.
3 Follow the on-screen instructions.

Using the Setup CD-ROM

1. Double click EasySetup.exe on the screen that appears.
2. If the printer selection screen appears, select G3430. If the installation screen appears, click Next.
3. Follow the on-screen instructions.

If nothing appears, start Explorer and then run EasySetup.exe in the CD-ROM.

Loading Paper

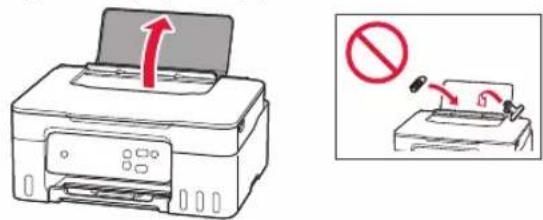

1 Open the paper support.

Diagram showing printer printing process with red upward arrow and prohibition symbol indicating no printing or disassembly

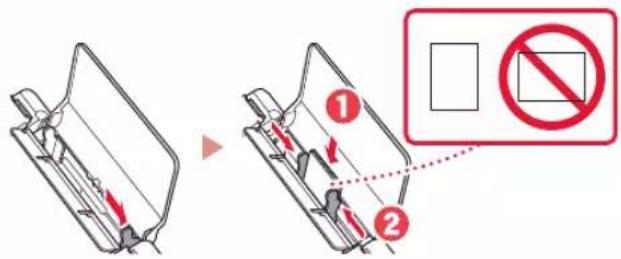

2 Slide the right-hand side paper guide to the far right.
3 Load several sheets of paper with the print side facing up and slide the side paper guide against the edge of the paper stack.

Diagram illustrating a mechanical assembly process with labeled parts and a prohibition symbol in Chinese.

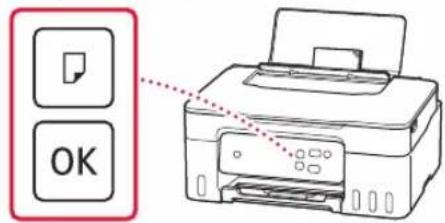

4 Press the Paper Select button, select a paper size, and then press the OK button.

OK

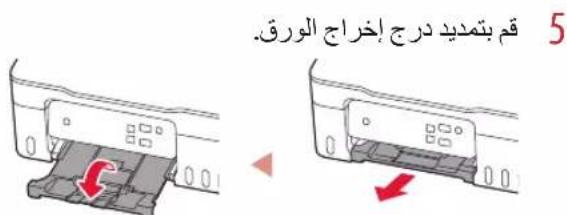

5 Extend the paper output tray.

Diagram showing two views of a printer's internal structure, one with a red arrow indicating compression or disassembly (no text or symbols present)

Transporting Your Printer

When relocating the printer, check the following. Refer to the Online Manual for details.

Check if the tank caps are completely closed.

Diagram of a mechanical component with red arrows indicating motion or force direction (no text or symbols)

If the print head holder is in the center of the printer, check that the cover is closed.

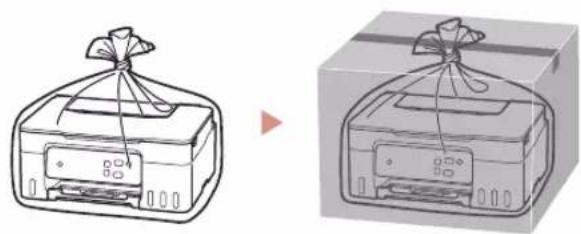

Pack the printer in a plastic bag in case ink leaks.

• Pack the printer in a sturdy box so that it is placed with its bottom facing down, using sufficient protective material to ensure safe transport.
  • Do not tilt the printer. Ink may leak.
• Please handle with care and ensure the box remains flat and NOT turned upside down or on its side, as the printer may be damaged and ink in the printer may leak.
• When a shipping agent is handling transport of the printer, have its box marked "THIS SIDE UP" to keep the printer with its bottom facing down. Mark also with "FRAGILE" or "HANDLE WITH CARE".

Illustration of a printer with a cloth and paperclip, shown from front and side views (no text or symbols)

https://ij.start.canon/G3430

Illustration of a printer with three speech bubbles containing icons: power button, documents, and a printer (no text or symbols)

2

Mechanical assembly diagram showing a component being inserted into a housing, with red arrows indicating direction (no text or symbols present)

Diagram illustrating a printer's internal structure and its prohibition signs, labeled with circled and letter B.

Diagram showing a hand holding a small electronic component and a mechanical device with red arrows labeled B and C indicating motion or signal flow.

Technical diagram showing mechanical assembly with red arrows indicating force direction and detail views

Mechanical assembly diagram showing a lever mechanism with red arrow indicating motion (no text or symbols)

Illustration showing a hand performing a PGBK technique with a red arrow indicating motion direction, labeled '¡Comprobar!'

Technical illustration of a mechanical assembly with tool and component detail (no text or symbols)

Diagram showing a hand holding a tool with two red arrows labeled ① and ② indicating direction of movement or process.

Diagram showing a hand operating a device with labeled parts and directional arrows, including a zoomed-in view of the device.

Diagram illustrating a mechanical assembly process with red arrows indicating direction of motion, including a magnified inset showing the hand's rotation.

Diagram showing a computer interface with a CMY battery labeled 'iComprobar!' and three connected devices below it.

Diagram showing printer operation with labeled parts and red arrows indicating downward movement

https://ij.start.canon/connect

Diagram showing printer printing process with red upward arrow and prohibition symbol indicating no printing or disassembly

Technical diagram showing mechanical assembly with numbered components and a prohibition symbol in Chinese

Diagram showing printer operation with 'OK' button and printer icon, likely illustrating print or printing process

Two-step diagram showing a printer's internal structure before and after, with red arrows indicating the process (no text or symbols present)

Diagram of a mechanical component with red arrows indicating force or direction (no text or symbols)

Illustration of a printer with a wrapped cloth, shown from front and side views (no text or symbols)

Configurando a impressora

https://ij.start.canon/G3430

Illustration of a printer with three speech bubbles containing icons: power button, documents, and a document (no text or symbols)

2

Diagram showing a hand inserting a component into a device, with no visible text or symbols.

Diagram illustrating a printer's internal structure and its prohibition signs, labeled with circled and letter B.

Diagram showing a device with labeled components (C and B) and red arrows indicating motion or flow, possibly illustrating a mechanical or electrical process.

Technical diagram showing mechanical assembly with red arrows indicating force or direction changes, likely illustrating a process or assembly step.

Configurando a impressora

5. Colocando tinta

Importante

Mechanical assembly diagram showing a lever mechanism with red arrow indicating motion (no text or symbols)

Illustration of a mechanical assembly with a close-up inset showing a component detail (no text or symbols)

Diagram showing a hand operating a tool with two red arrows labeled ① and ② indicating direction of movement or process.

5 Remova lentamente a garrafa de tinta da entrada.

Diagram showing a hand operating a device with labeled parts and directional arrows, including a zoomed-in view of the device.

6 Recoloque firmemente a tampa do cartucho.

Diagram illustrating a mechanical assembly with red arrows indicating force or direction, showing a lever mechanism and a close-up of the lever's motion.

Verificar! CMY

Diagram showing printer operation with numbered arrows indicating process steps

9 Pressione o botão OK.

https://ij.start.canon/connect

Diagram showing printer printing process with red upward arrow and prohibition symbol indicating no printing or disassembly

Diagram illustrating a mechanical assembly process with labeled parts and a prohibition symbol in Chinese.

Diagram showing printer operation with 'OK' button and printer icon, likely illustrating print or printing process

5 Abra a bandeja de saída do papel.

Two-step diagram showing a printer's internal structure before and after assembly, with no visible text or symbols.

Transportando a Impressora

Diagram of a mechanical component with red arrows indicating force or direction (no text or symbols)

Illustration of a printer with a wrapped cloth, shown from front and side views (no text or symbols)

Configuration de l'imprimante

https://ij.start.canon/G3430

Illustration of a printer with three speech bubbles containing icons: power button, money bag, and document (no text or symbols)

2

Diagram of a printer with an open lid and red arrow indicating rotation (no text or symbols)

Attention

Diagram showing a hand inserting a component into a device, with red arrows indicating direction (no text or symbols present)

Diagram showing two electrical connector blocks with a red arrow indicating transformation or change, labeled with copyright ©

Diagram showing two battery terminal blocks with red connectors and a directional arrow indicating movement or change.

4 Retirez la bande orange.

Diagram showing two labeled components (C and B) with a red arrow indicating rotation or movement, likely illustrating a process or transformation.

Two safety warning signs: one indicating no protection, the other showing a device with a lightning bolt.

Diagram showing a device with labeled parts C and B, indicating a process or operation with red arrows indicating direction.

Technical diagram showing mechanical assembly with red arrows indicating direction of motion or force, likely illustrating a process or assembly step.

Configuration de l'imprimante

Mechanical assembly diagram showing a lever mechanism with a red arrow indicating motion (no text or symbols present)

Illustration of a mechanical assembly with a close-up inset showing a component detail (no text or symbols)

Diagram showing a hand holding a tool with two red arrows indicating direction of movement or force, labeled ① and ②.

Diagram showing a hand operating a device with labeled parts and directional arrows, including a zoomed-in view of the device.

Diagram illustrating a mechanical assembly process with red arrows indicating force direction and a magnified inset showing the motion of a hand.

Diagram showing printer internal structure with numbered arrows indicating assembly or process steps

https://ij.start.canon/connect

Diagram showing printer printing process with red upward arrow and prohibition symbol indicating no printing or disassembly

Technical diagram showing a mechanical component before and after disassembly, with a red prohibition symbol indicating no disassembly.

Diagram showing printer operation with 'OK' button and printer icon, likely illustrating print or printing process

Two-step diagram showing a printer's internal structure before and after assembly, with red arrows indicating the process (no text or symbols present)

Diagram of a mechanical component with red arrows indicating force or direction (no text or symbols)

Illustration of a printer with a wrapped bag, shown from front and side views (no text or symbols)

Настройка принтера

https://ij.start.canon/G3430

Illustration of a printer with three speech bubbles containing icons: power button, documents, and phone (no text or symbols)

2

Diagram of a printer with an open lid and red arrow indicating rotation (no text or symbols)

Осторожно

Diagram showing a hand inserting a component into a device, with red arrows indicating the process (no text or symbols present)

Diagram showing two battery compartments with labeled parts and directional arrows indicating process flow

Diagram showing two labeled components (C and B) with a red arrow indicating rotation or movement, likely illustrating a process or transformation.

Two safety warning signs: one indicating no hazard, the other showing a broken device with red lightning bolts.

Diagram showing a connector pinout and a mechanical assembly with labeled parts C and B, indicating a process or component.

Technical diagram showing mechanical assembly with red arrows indicating direction of motion or force, likely illustrating a process or component movement.

Настройка принтера

5. Заливка чернил

Внимание!

Mechanical assembly diagram showing a lever mechanism with red arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing tool path and component detail (no text or symbols)

Diagram showing a hand operating a tool with two red arrows indicating direction of movement or force, labeled ① and ②.

Diagram showing a hand operating a device with red arrows indicating direction and a labeled component box.

Diagram illustrating the step-by-step instructions for using a mechanical device to adjust the seatbelt, with red arrows indicating motion and rotation.

Diagram showing printer internal structure with numbered arrows indicating assembly or process steps

https://ij.start.canon/connect

Diagram showing printer printing process with red upward arrow and prohibition symbol indicating no printing or disassembly

Technical diagram showing a mechanical component before and after disassembly, with a red prohibition symbol indicating no disassembly.

Two-step diagram showing a printer's internal structure before and after assembly, with no visible text or symbols.

Diagram of a mechanical component with red arrows indicating motion or force direction (no text or symbols)

Illustration of a printer with a cloth cover and its 3D model showing the same device (no text or symbols present)

https://ij.start.canon/G3430

Illustration of a printer with three speech bubbles containing icons: power button, documents, and phone (no text or symbols)

2

Diagram of a printer with an open lid and red arrow indicating rotation (no text or symbols)

Увага

Diagram showing two mechanical components with red arrows indicating motion or assembly (no text or symbols present)

Diagram showing two steps (C and B) of a battery pack being inserted, with arrows indicating process direction.

Diagram illustrating three steps of a printer or scanner operation: no protection, no impression, and no impression.

Diagram showing a device with labeled parts C and B, indicating a process or operation with red arrows indicating direction.

Technical diagram showing mechanical assembly with red arrows indicating force directions, likely illustrating a process or component shift.

Mechanical assembly diagram showing a lever mechanism with red arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing tool path and component detail (no text or symbols)

Diagram showing a hand operating a tool with two red arrows indicating direction of movement or force, labeled ① and ②.

Diagram showing a hand holding a device with two red arrows labeled ① and ② indicating movement or change, alongside a zoomed-in view of the device.

Diagram illustrating a mechanical assembly with red arrows indicating force or motion, showing a lever mechanism and a close-up of the lever's movement.

Diagram showing printer internal structure with numbered arrows indicating assembly steps

https://ij.start.canon/connect

Diagram showing printer operation with OK button and printer icon, connected by dotted line to printer

Illustration of a printer with a red arrow indicating compression or shift (no text or symbols)

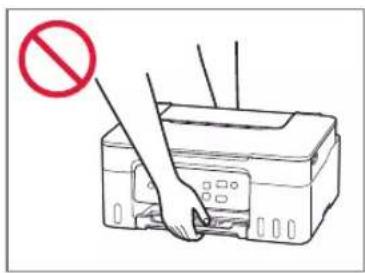

Diagram illustrating a mechanical or safety violation with numbered components and a prohibition symbol

Illustration of two different printer devices with paper clips, shown from front and side views (no text or symbols)

Diagram of a mechanical component with red arrows indicating force or direction (no text or symbols)

https://ij.start.canon/connect

Screenshot of a software interface with a red arrow pointing to a button labeled '←→ C', accompanied by a prohibition symbol and a magnifying glass icon.

Technical line drawing of a mechanical component with no visible text or symbols

CMY

Diagram showing printer internal structure with numbered arrows indicating assembly or process steps

Line drawing of a printer with paper feed and paper tray (no text or symbols)

بومض

Diagram showing a hand holding a tool with two red arrows labeled ① and ② indicating direction of movement or process.

Diagram showing hand operating a device with red arrows indicating rotation and movement, labeled with step numbers ① and ②.

Diagram illustrating a mechanical assembly with red arrows indicating force or direction, alongside a magnified view of the component being adjusted.

5. صب الحبر

三

Mechanical assembly diagram showing a lever mechanism with red arrows indicating motion direction (no text or symbols)

Illustration of a mechanical assembly with tool and component details (no text or symbols)

Diagram showing a hand holding a small component and a mechanical assembly with circled annotations C and B indicating specific parts.

Diagram showing a mechanical component with red arrows indicating direction, no text or symbols present

4. retirement رؤس الطباعة

Diagram of a printer with a red arrow indicating rotation and warning symbol in Chinese

Mechanical assembly diagram showing a component being inserted into a housing, with red arrows indicating direction (no text or symbols present)

Diagram showing two printer printing process steps with red arrow indicating rotation and labeled parts C and B

Two safety warning signs: one pointing to a device with a red circle, the other showing a device emitting smoke.

https://ij.start.canon/G3430

Illustration of a smartphone, laptop, and printer with wireless signal icons (no text or symbols)

Illustration of a printer with three speech bubbles containing icons: power button, documents, and folder (no text or symbols)

1

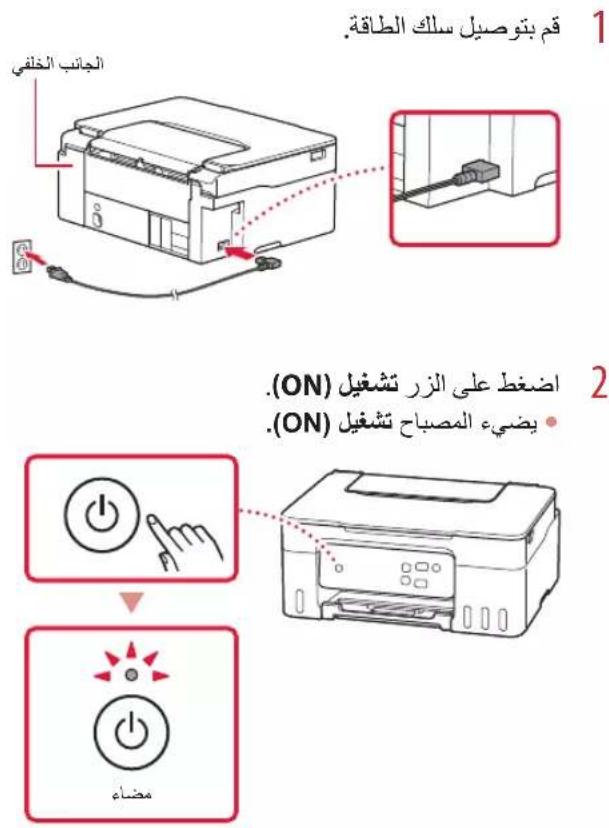

2. تشغيل الطابعة

1 Tajajib alclafii Tajajib alclafii Tajajib alclafii Tajajib alclafii Tajajib alclafii Tajajib alclafii Tajajib alclafii Tajajib alclafii Tajajib alclafii Tajajib alclafii Tajajib alclafii Tajajib alclafii Tajajib alclafii Tajajik Tajajik Tajajik Tajajik Tajajik Tajajik Tajajik Tajajik Tajajik Tajajik Tajajik Tajajik Tajajik Tajajik Tajajik Tajajik Tajajik Tajajik Tajajik Tajajik Tajajik Tajajik Tajajik Tajajik Tajajik Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajok Tajajok Tajajok Tajajok Tajajok Tajajok Tajajok Tajajok Tajajok Tajajok Tajajok Tajajok Tajajok Tajajok Tajajok Tajajok Tajajok Tajajok Tajajok Tajajok Tajajok Tajajok Tajajok Tajajok Tajajok Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajajuk Tajaj UK Tajaj UK Tajaj UK Tajaj UK Tajaj UK Tajaj UK Tajaj UK Tajaj UK Tajaj UK Tajaje UK Tajaje UK Tajaje UK Tajaje UK Tajaje UK Tajaje UK Tajaje UK

1. محتويات العليا

https://ij.start.canon

Frequently Asked Questions
