USER MANUAL X31S Uebler

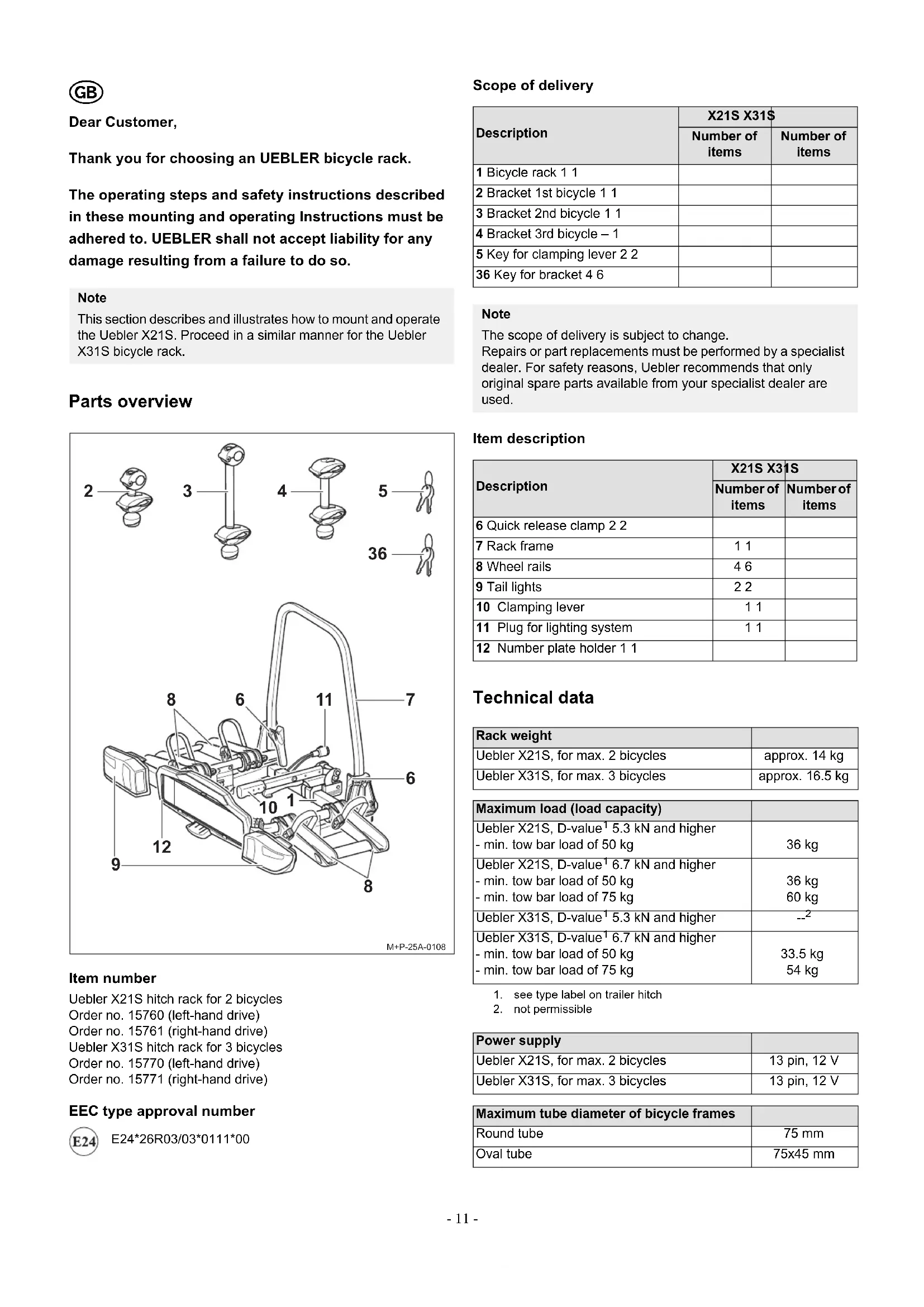

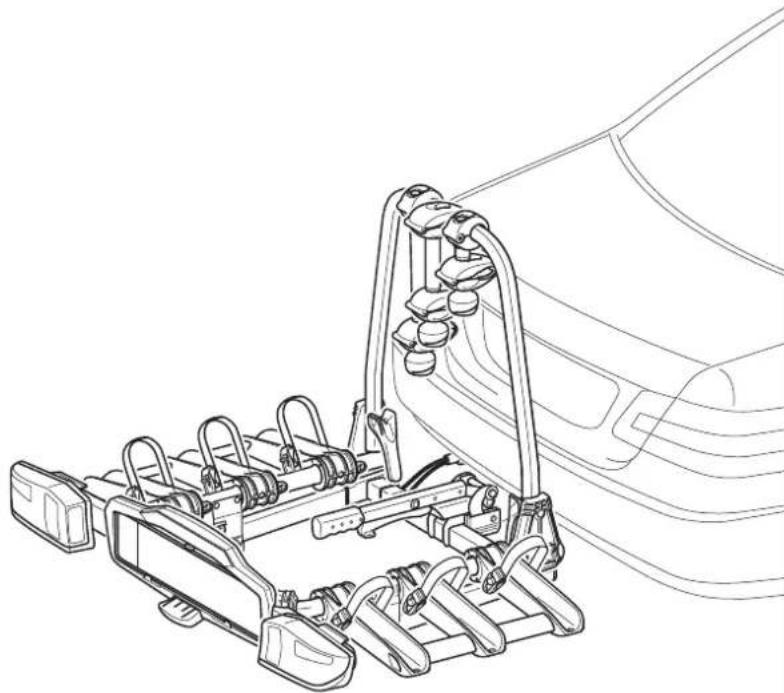

Trailer hitch bicycle rack Page 11

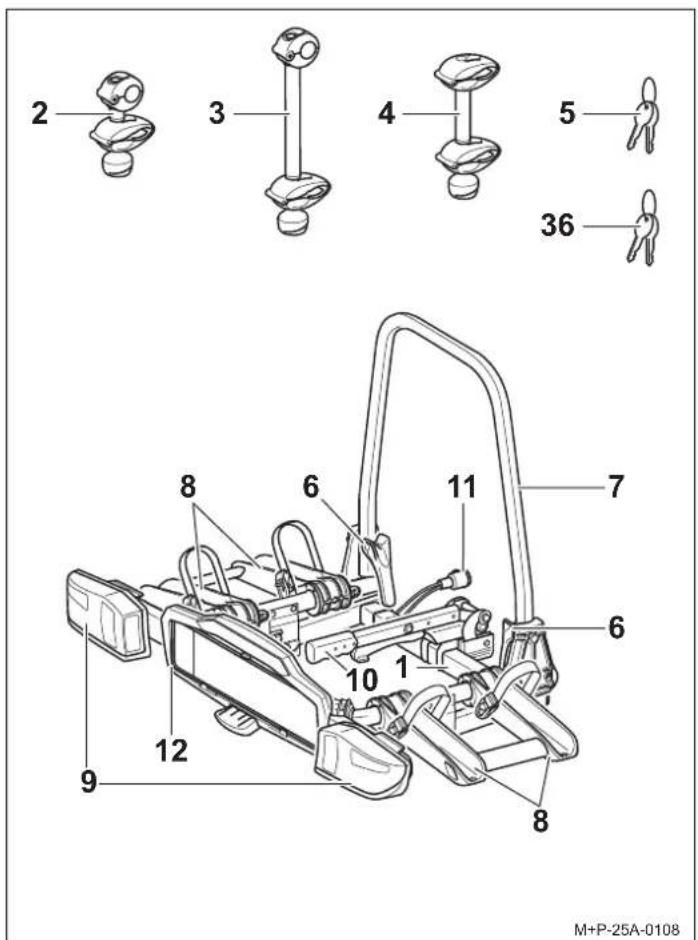

Dear Customer, Thank you for choosing an UEBLER bicycle rack. The operating steps and safety instructions described in these mounting and operating Instructions must be adhered to. UEBLER shall not accept liability for any damage resulting from a failure to do so. Parts overview Item number Uebler X21S hitch rack for 2 bicycles Order no. 15760 (left-hand drive) Order no. 15761 (right-hand drive) Uebler X31S hitch rack for 3 bicycles Order no. 15770 (left-hand drive) Order no. 15771 (right-hand drive) EEC type approval number E24*26R03/03*0111*00 Scope of delivery Item description Technical data Note This section describes and illustrates how to mount and operate the Uebler X21S. Proceed in a similar manner for the Uebler X31S bicycle rack.

M+P-25A-0108 Description X21S X31S Number of items Number of items 1 Bicycle rack 1 1 2 Bracket 1st bicycle 1 1 3 Bracket 2nd bicycle 1 1 4 Bracket 3rd bicycle – 1 5 Key for clamping lever 2 2 36 Key for bracket 4 6 Note The scope of delivery is subject to change. Repairs or part replacements must be performed by a specialist dealer. For safety reasons, Uebler recommends that only original spare parts available from your specialist dealer are used. Description X21S X31S Number of items Number of items 6 Quick release clamp 2 2 7 Rack frame 1 1 8 Wheel rails 4 6 9 Tail lights 2 2 10 Clamping lever 1 1 11 Plug for lighting system 1 1 12 Number plate holder 1 1 Rack weight Uebler X21S, for max. 2 bicycles approx. 14 kg Uebler X31S, for max. 3 bicycles approx. 16.5 kg Maximum load (load capacity) Uebler X21S, D-value

5.3 kN and higher --

54 kg Power supply Uebler X21S, for max. 2 bicycles 13 pin, 12 V Uebler X31S, for max. 3 bicycles 13 pin, 12 V Maximum tube diameter of bicycle frames Round tube 75 mm Oval tube 75x45 mm- 12 - Lights

3. Bulb is commercially available.

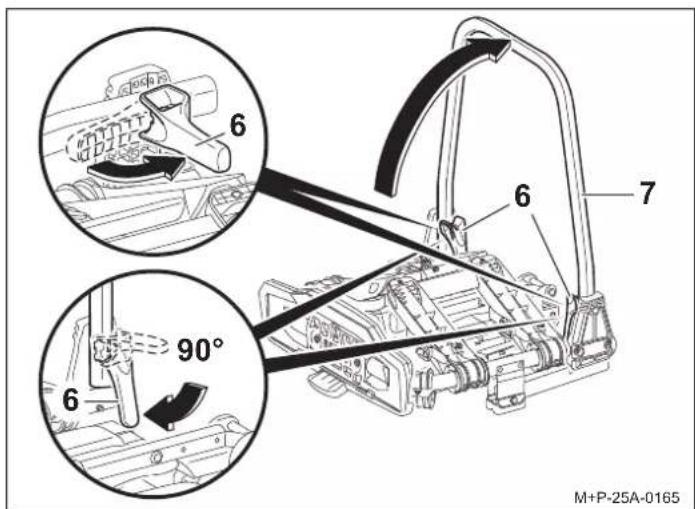

Folding out / collapsing the bicycle rack Folding out the bicycle rack

1. Open the quick release clamp (6) to approx a 90° position.

2. Fold up the rack frame (7) and fully close the quick release

clamp (6) so that the rack frame (7) is fixed.

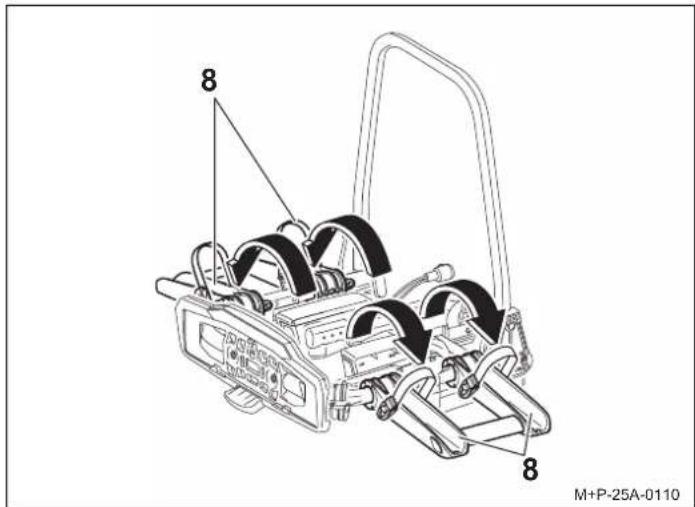

3. Fold out the wheel rails (8) and engage.

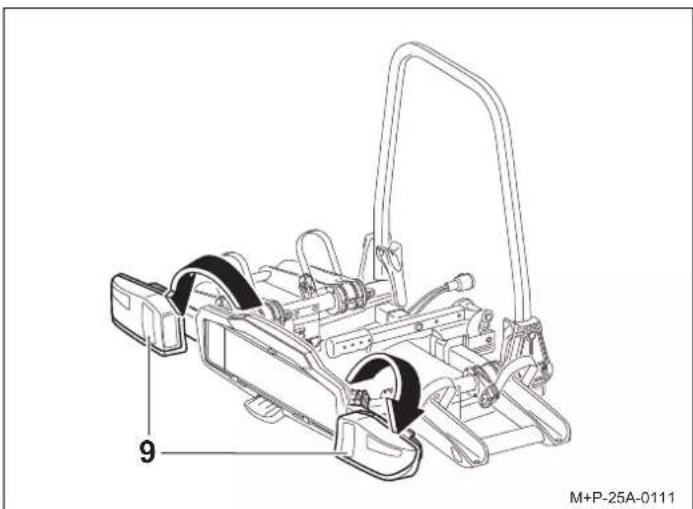

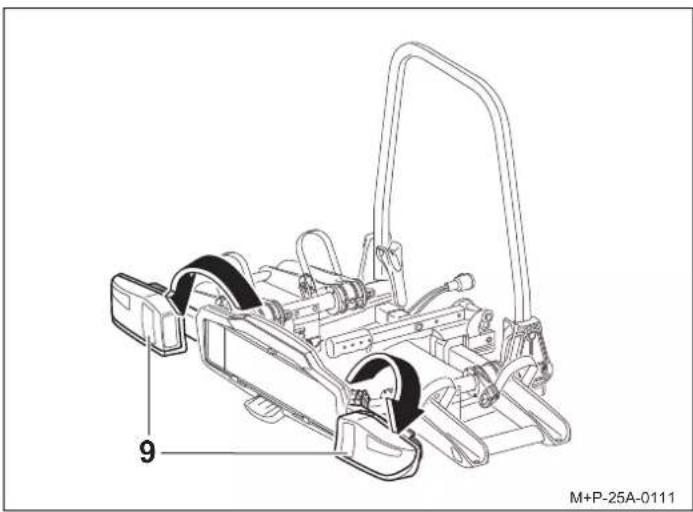

4. Fold out the tail lights (9) and engage.

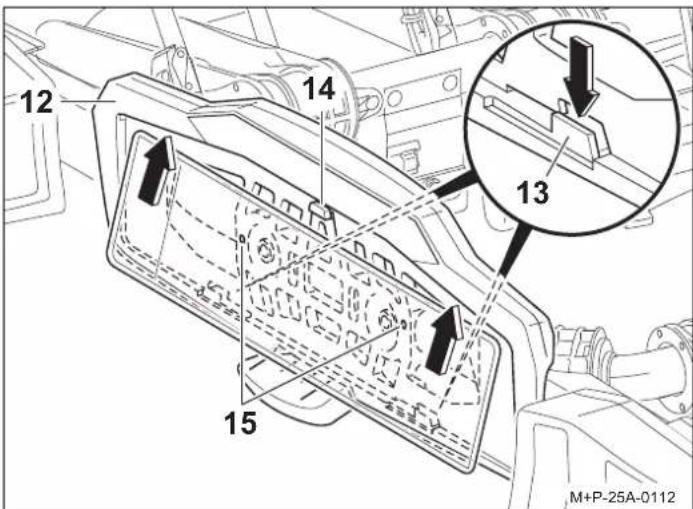

5. Press the holder (13) down. Insert the number plate in the

number plate holder (12), push upwards and insert fully.

6. Release holder (13) and check the number plate sits securely.

BL C5W 12V (35 mm long) white see no. 33, Page 18

for right tail light BL PR21W 12V white see no. 34, Page 18

BL P21/5W 12V white see no. 35, Page 18

M+P-25A-0110 Attention The registration number on the bicycle rack must match the registration number of the vehicle and be clearly legible. Note To insert taller number plates, press the stoppers (14) back and push the number plate fully into the number plate holder (12). The drilling points (15) must be used for fixing smaller number plates.

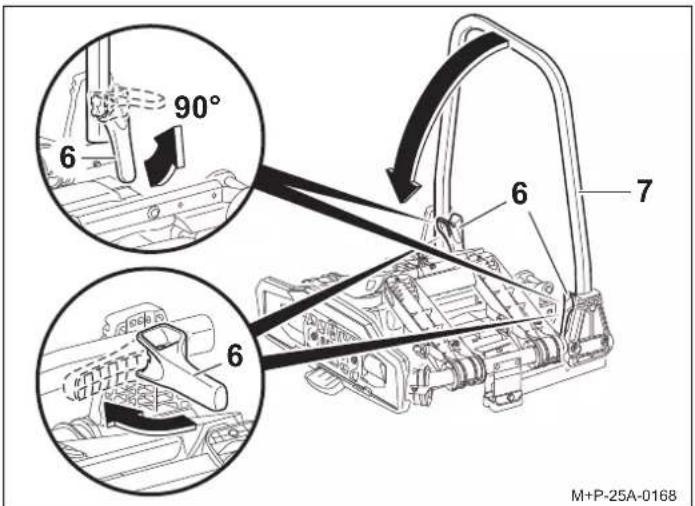

M+P-25A-0112- 13 - Collapsing the bicycle rack

1. Folding up the tail lights and wheel rails is carried out in

2. Open the quick release clamp (6) to approx a 90° position.

3. Fold down the rack frame (7).

4. Close the quick release clamp (6) into the transport position.

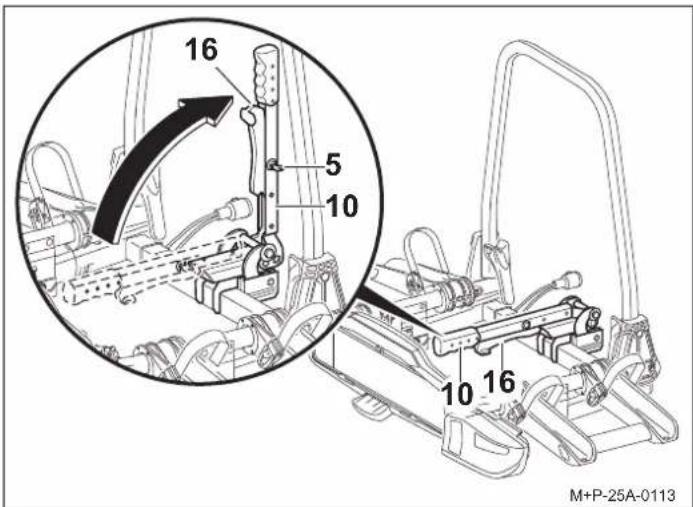

Attaching/removing the bicycle rack to/from the vehicle Attaching the bicycle rack to the vehicle

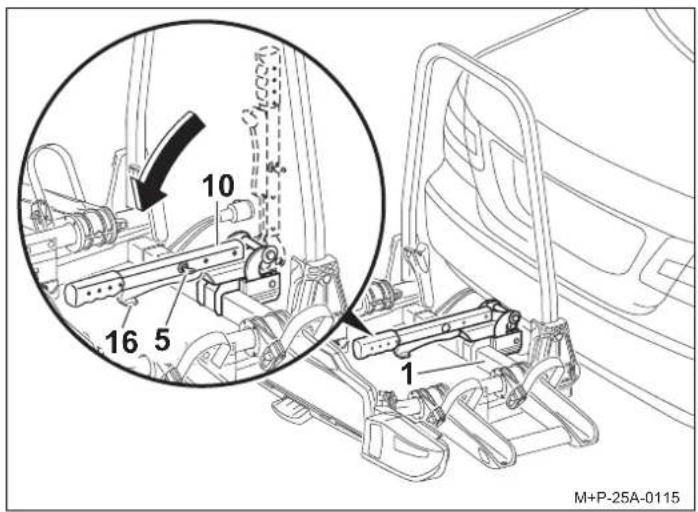

1. Unlock the clamping lever (5) with the key.

2. Press the safety lever (16) and swing the clamping lever (10)

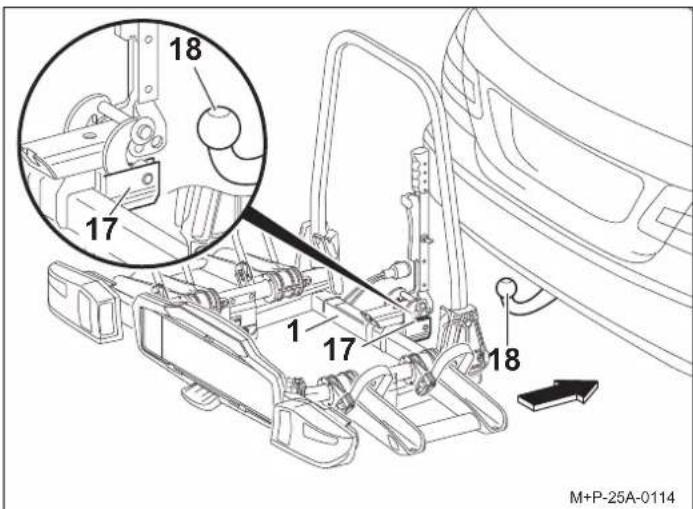

3. Slide the attachment (17) horizontally onto the ball head (18)

and secure the bicycle rack (1) against tilting. Attention If the position of the rear lights (9) was adjusted when using the bicycle rack, then the tail lights (9) must be returned to their original position when collapsing the bicycle rack. Failure to do so can lead to damage. The steps in the section “Adjusting lighting” on page 17 must be performed in reverse order. Note The quick-release clamps (6) and rack frame (7) must be regularly cleaned with soapy water, especially if they are dirty or stiff. Attention The trailer hitch must be suitable for mounting a bicycle rack:

• D-value of the ball head (see “Technical data” on page 11)

• Material of trailer hitch at least St 52-3 (see type label on trailer hitch) If these instructions are not followed, the bicycle rack together with the mounted bicycles may free themselves from the vehicle and cause injury to you and other persons, or may result in an accident. The ball head must be cleaned and degreased prior to mounting. Attention The tail lights must always be folded out whenever the bicycle rack is attached to the vehicle. The bicycle rack is not permitted for use with the tail lights folded in, this may otherwise cause an accident. The lighting system must be checked to ensure it is positioned correctly and working properly before every trip.

90° M+P-25A-0168 Attention Failure to note changed vehicle dimensions (width, height, depth) with the bicycle rack attached may cause injury to you and other persons and/or cause damage to property. Please note the changed vehicle dimensions when driving through entrances and narrow passages. Exercise care when reversing. Note Remove the bicycle rack from the vehicle when not in use. This saves fuel.

4. Align the bicycle rack (1) parallel to the bumper and move the

clamping lever (10) down so that the safety lever (16) engages.

5. Lock the clamping lever (10) with the key (5). Pull out the

6. Jiggle the bicycle rack (1) to ensure it is sitting firmly.

Remove the bicycle rack (1) if necessary and reattach.

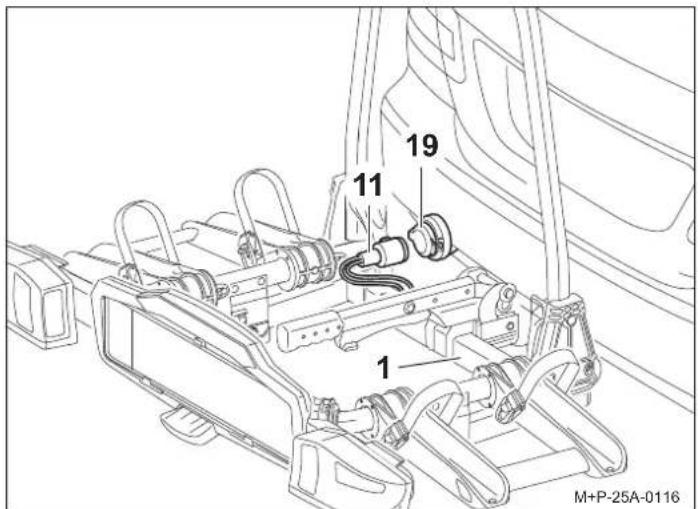

7. Remove the plug for the lighting system (11) from the bracket,

insert in the socket (19) and turn clockwise as far as it will go.

8. Check that the lighting system functions correctly.

Removing the bicycle rack Remove the bicycle rack (1) from the vehicle in reverse order. Mounting/removing bicycles

M+P-25A-0116 Attention The bicycle rack for the trailer hitch is only intended for transporting bicycles. Only bicycles, each with a max. weight of 30 kg, may be transported on the bicycle rack. The maximum allowable load capacity of the bicycle rack, the tow bar load of the trailer hitch, the allowable total vehicle weight and the maximum allowable vehicle axle load (see vehicle owner’s manual) must not be exceeded. If these instructions are not followed, the bicycle rack together with the mounted bicycles may free themselves from the vehicle and cause injury to you and other persons, and/or may result in an accident. Attention The bicycles must be mounted evenly and with a low centre of gravity on the bicycle rack. Each must be secured against falling off using a bracket on the bicycle frame and lashing straps on front and rear wheels. If this is not adhered to, bicycles and/or the loose parts could free themselves from the vehicle and lead to an accident and associated injury and property damage other road users. Before mounting, remove child seats and all loose parts, such a s water bottles, saddlebags, batteries from E bikes etc., from the bicycles and stow them. Attention A risk of injury exists if bicycles slip or tilt. Secure the bicycles against slipping off/tilting. Mount and dismount the bicycles together with another person. Attention On some types of vehicle, the rack and the bicycles may be positioned too close to the vehicle’s exhaust system. The hot exhaust pipe and fumes can damage the rack and/or the bicycles. In this case, the bicycle rack is not suitable for use. For bicycles with carbon parts, consult the manufacturer/dealer to find out whether they are suitable for transport on the bicycle rack.- 15 - Arrangement of the bicycles Please note arrangement of the bicycles in the direction of travel (arrow) as presented here. Mounting the first vehicle

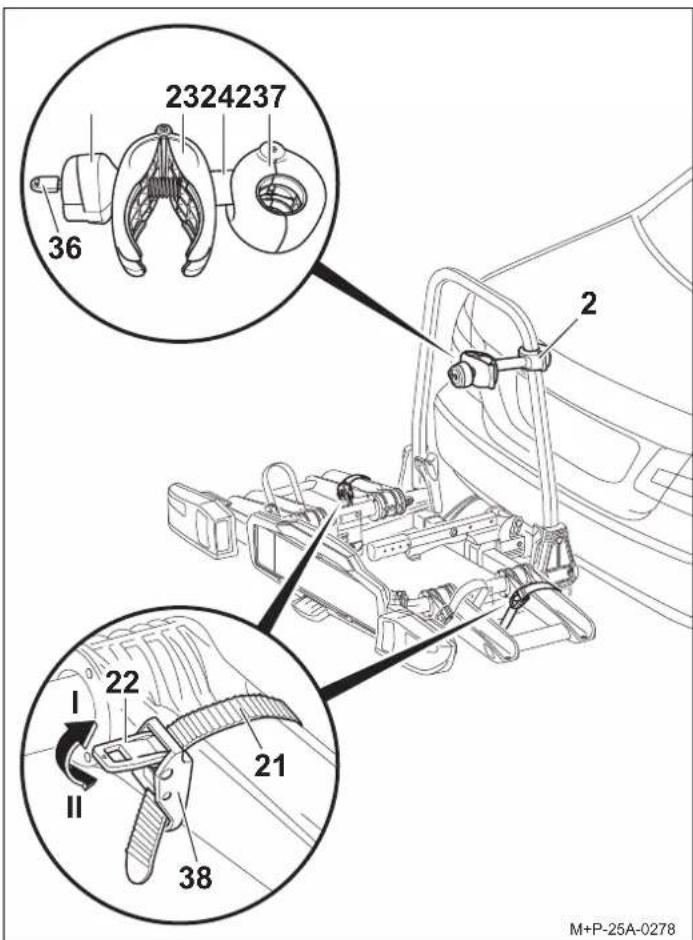

1. Remove the holder (2) from the packaging and prepare it for

mounting the bicycle.

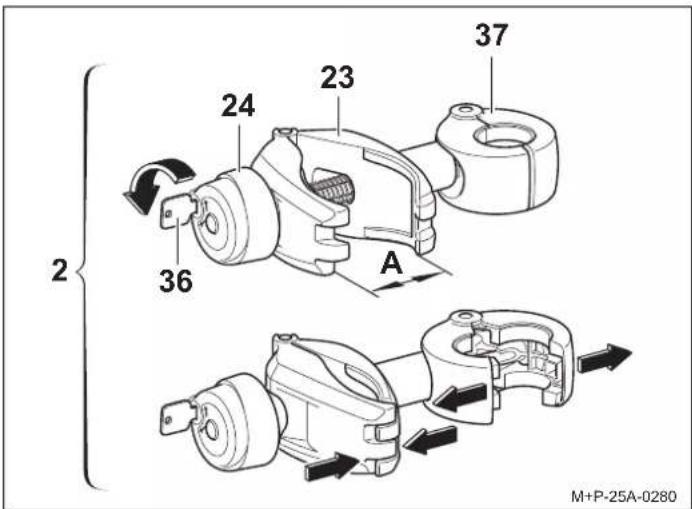

2. If necessary, unlock the twist grip (24) with the key (36).

3. Unscrew the clamp (23) with the twist grip (24) until the

clamp (23) is open (A).

4. Press the clamp (23) together and hold it.

The clamp (37) opens.

5. Position the open clamp (37) around the rack frame and release

the clamp (23) to close it around the rack frame.

6. Press the tensioner (22) (arrow II) and pull out the lashing

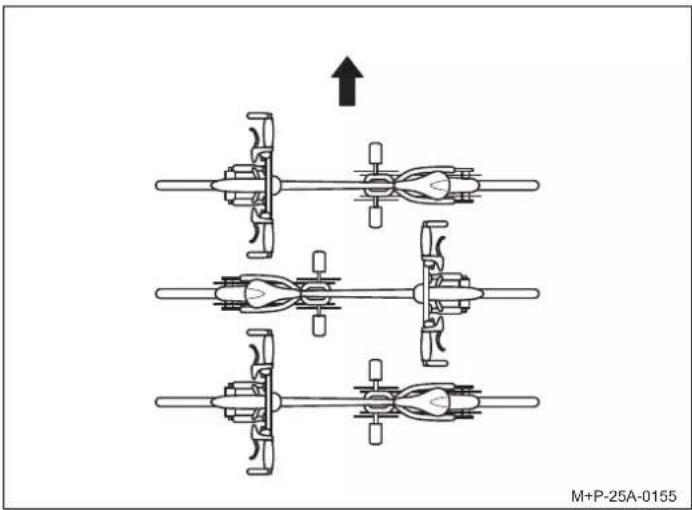

strap (21). Attention Mount heavy bicycles close to the vehicle and light bicycles (e.g. children’s bikes) further out on the bicycle rack. Mount the first bicycle with the toothed gear wheel facing the vehicle. M+P-25A-0155

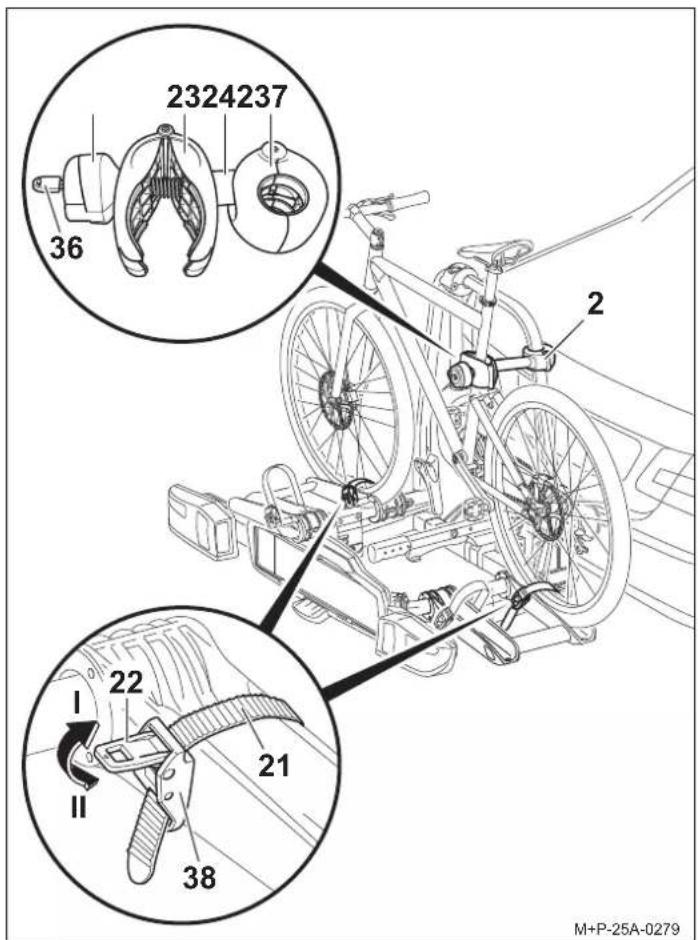

7. Place the bicycle on the wheel rails and position the clamp (23)

of the holder (2). Secure the bicycle against tipping.

8. Screw the clamp (23) to the bicycle frame with the twist

9. Lock the holder (2) with the key (36) and remove the key (36).

10. Pass the lashing strap (21) centrally between two spokes,

thread it into the buckle (38) and tighten it.

11. Use the tensioners (22) to tighten the lashing straps (21)

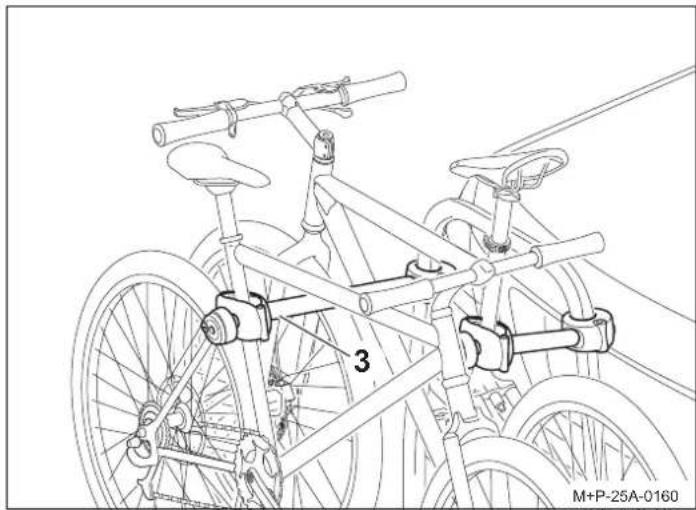

(arrow I). Mounting the second bicycle The second bicycle is mounted in the same manner as the first. Note that the bicycles are mounted in opposite directions. The second bicycle is attached using the long bracket (3). Mounting the third bicycle

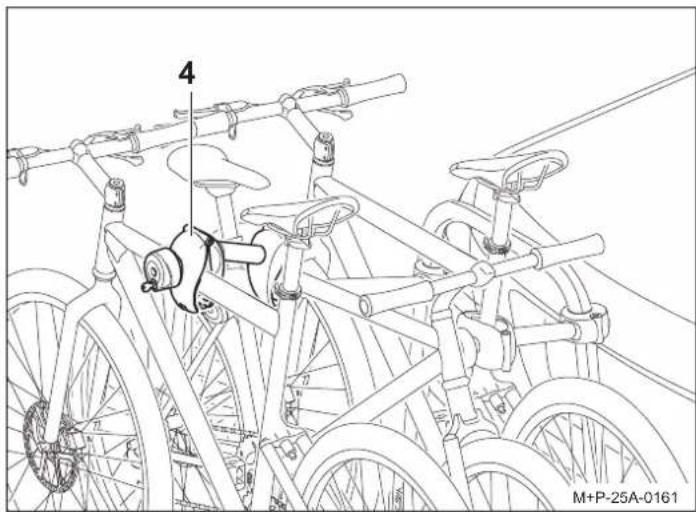

The third bicycle is mounted in the same manner as the first. Note the opposite arrangement of all bicycles. The third bicycle is attached to the second bicycle with an additional bracket (4). Attention Only attach the bracket (2) to the bicycle frame, as other parts of the bicycle could be damaged. Do not pinch components such as gear or brake cables. Faulty clamps must be replaced immediately. Attention Do not tighten the lashing straps (21) too firmly, otherwise the tyres or rims could be damaged. Note The screw threads in the holders must be regularly cleaned and greased to prevent the twist grips from seizing up.

M+P-25A-0279 Attention Only attach the bracket (3) to the bicycle frame, as other parts of the bicycle could be damaged. Do not pinch components such as gear or brake cables. Faulty clamps must be replaced immediately.

4. Uebler X31S hitch rack for 3 bicycles (Order no. 15770)

Attention Only attach the bracket (4) to the bicycle frame, as other parts of the bicycle could be damaged. Do not pinch components such as gear or brake cables. Faulty clamps must be replaced immediately.

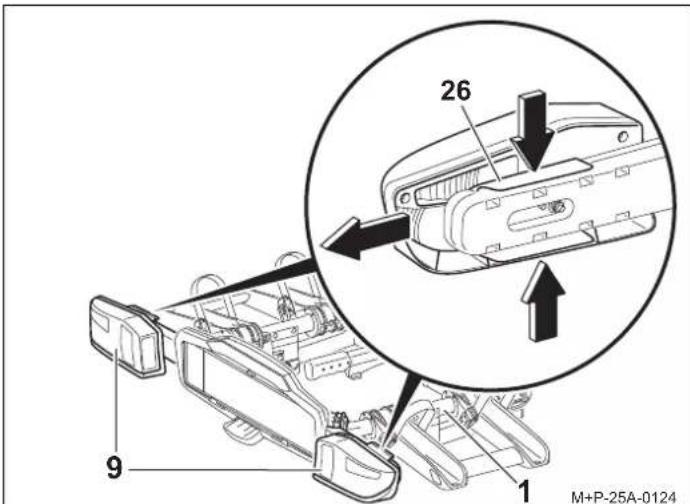

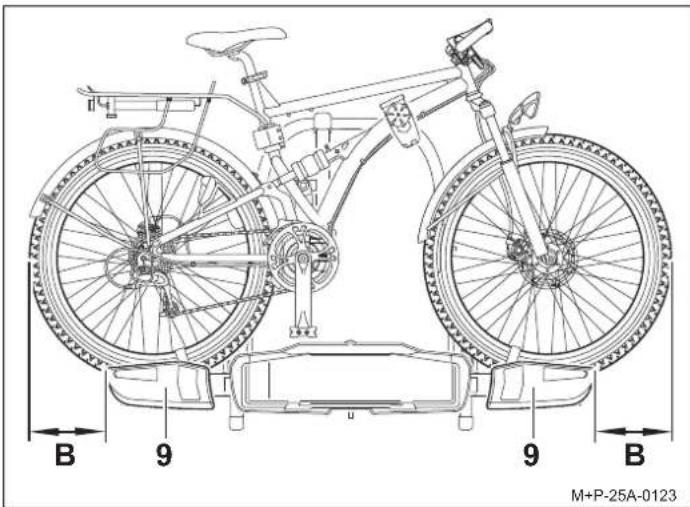

M+P-25A-0161- 17 - Removing bicycles Bicycles are removed and brackets (2), (3) and (4) released in reverse order. Adjusting lighting If the vehicle

or the load of the bicycle rack protrude at the side more than 40 cm over the outer edge of the tail lights (9) (distance B), move the tail lights (9) outwards.

1. Squeeze the locking mechanism (26), move the tail lights (9)

to the outer position and release the locking mechanism (26).

2. Check that the tail lights (9) sit firmly.

3. Prior to collapsing the bicycle rack (1), return the tail lights (9)

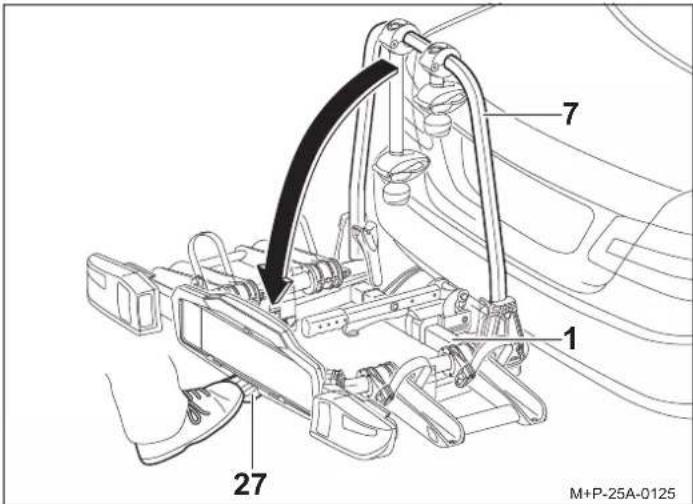

to the starting position in the reverse order. Tilting/collapsing the bicycle rack Tilting the bicycle rack back The bicycle rack can be tilted back for loading and unloading the vehicle. Activate the foot lever (27) and tilt the bicycle rack (1) back by pulling on the rack (7) or the bicycle frame. Folding back the bicycle rack

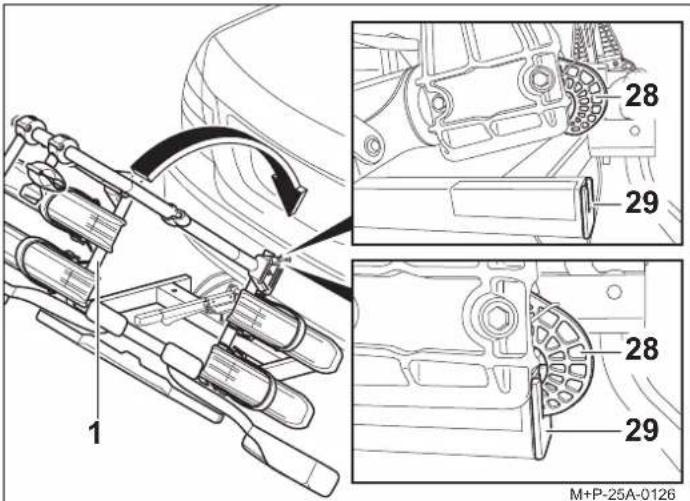

1. Fold back the bicycle rack (1) so that both hooks (28) are fully

engaged and located in the frame (29).

2. Jiggle the bicycle rack (1) to ensure it is seated firmly.

If necessary, tilt back the bicycle rack (1) again and fold back a second time.

5. without wing mirror

M+P-25A-0124 Attention Slowly tilt the bicycle rack back while ensuring that no persons or objects are located in the tilting area. There is a danger of crushing for people and objects in the tilting area. Ensure that the bicycle rack fully engages with both hooks and locks when folded back. Otherwise, the bicycle rack could tilt back during a trip and result in injury to you or others and/or in property damage M+P-25A-0125

M+P-25A-0126- 18 - Preparation before driving If the bicycle is not fully loaded, it must ensured that:

• brackets not in use are removed from the rack frame and stowed in the car boot,

• all keys are removed and stored,

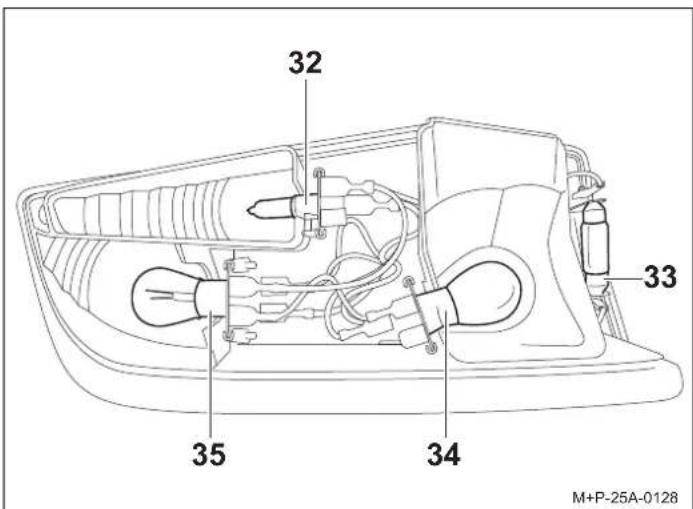

• all wheel rail lashing straps are closed. Replacing bulbs

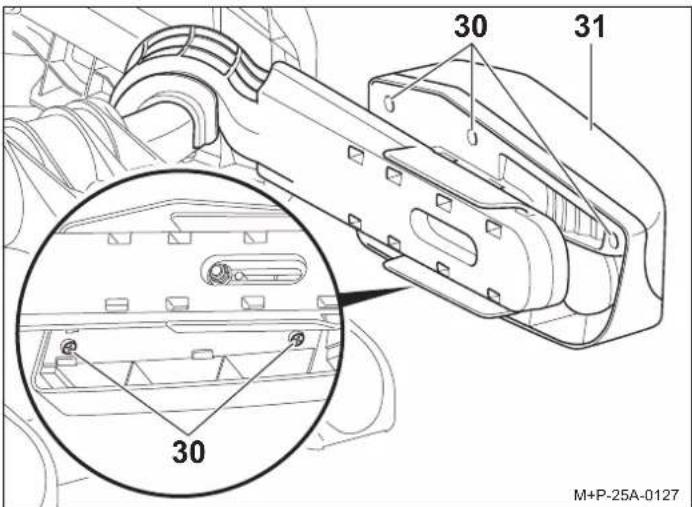

1. Undo the screws (30) and remove the lens (31).

2. Gently press defective bulbs into the sockets (32), (33), (34)

or (35). Unscrew the bulb from the socket (33). Turn the bulbs in sockets (32), (34) or (35) approx. 90° anti- clockwise and remove.

3. Gently push new bulbs into sockets (32), (33), (34) or (35).

Turn the bulbs in sockets (32), (34) or (35) additionally approx. 90° clockwise. Bulbs required, see page 12.

4. Replace the lens (31) and fasten hand tight in place using

screws (30). Attention All screw connections and attachments of the bicycle rack and the bicycles must be checked before assembly, before every trip and during lengthy trips to ensure they are sitting firmly, and they must be retightened if necessary. The lighting system must be checked to ensure it is working properly before every trip. If these instructions are not followed, the bicycle rack together with the mounted bicycles may free themselves from the vehicle and cause injury to you and other persons, and/or may result in an accident. This check must be repeated at regular intervals regardless of road conditions. Attention The bicycle rack license plate and the lighting system must not be covered. Attention When replacing bulbs the vehicle ignition must be switched off and the plug for the lighting system removed from the trailer hitch electrical system. Failure to do so can result in a short circuit or damage to property. If you are not sure, the bulbs should be replaced by a specialist dealer.

M+P-25A-0127 Attention Always handle new bulbs with a clean cloth and insert in sockets (32), (33), (34) or (35)

M+P-25A-0128- 19 - General safety instructions The vehicle owner is responsible for ensuring that his or her field of view and hearing are not impaired by the load or the condition of the vehicle. It must be ensured that the vehicle and load are in accordance with regulations and that vehicle road safety is not impaired by the load. The required lighting and lighting systems must also be present and operational during the day. These mounting and operating Instructions contain the general approval of the bicycle rack for trailer hitches and must always the kept in the vehicle when the rack is mounted. Observe the legal regulations regarding use of the bicycle rack in the country of use. Attention The operating steps and safety instructions described in these mounting and operating Instructions must be adhered to. The bicycle rack for the trailer hitch is intended only for transporting bicycles. The bicycle rack is not suitable for use on rough terrain. All screw connections and attachments of the bicycle rack and the bicycles must be tested before assembly, before every trip and during lengthy trips to ensure they are sitting firmly, and they must be retightened if necessary. This check must be repeated at regular intervals regardless of road conditions. During the trip, the driver should check the bicycle rack and bicycles for any shifting/changes in position by glancing in the rear view mirror. If changes are noticed, proceed to the next possible stopping area at reduced speed and retighten the screw connections and attachments of the bicycle rack or bicycles. If these instructions are not followed, the bicycle rack and/or the load may free themselves from the vehicle and cause injury to you and other persons, or may result in an accident. Attention Do not use lubricants on the pre-mounted screw connections. This could cause the screw connections to loosen and the bicycle rack together with the mounted bicycles may free themselves from the vehicle; this may cause injury to you and other persons, or may result in an accident. Attention If the load (the bicycles) extends more than 40 cm beyond the outer edge of the lit area of the side-marker lights or tail lights of the rear rack system, the load must be marked at most 40 cm from the edge and at most 150 cm above the road surface, at the front by a white light and at the back by a red light. Separately mark the bicycle wheels extending out laterally during transport. When driving at night, cover the rear lights and reflectors of the bicycles to prevent confusion with the rearward- facingvehicle lighting and to avoid hindering or confusing other road users. Failure to do so could result in an accident Attention Before starting a trip, check that the lighting system is functioning correctly. When the rear fog light on the bicycle rack is switched on, the rear fog light of the vehicle must be switched off, i.e they must be illuminated at the same time. In vehicle models whose type approval was initially issued after 1 October 1998, the mounted rearrack system and the load must not cover the third brake light of the vehicle. The third brake light of the vehicle must be visible: on the left and right, relative to the longitudinal vehicle axis, at a horizontal angle of 10°; at the top relative to the top edge of the lamp, at a verticalangle of 10°; and at the bottom, relative to the lower edge of the lamp, at a vertical angle of 5°. If these values are not met, a “third” replacement brake light must be installed. Failure to do so could result in an accident Attention The mounted bicycle rack and bicycles alter the driving and braking characteristics as well as the lateral wind sensitivity of the vehicle. A maximum speed of 130 km/h must not be exceeded. Do not cover the bicycles with tarps, protective covers or s imilar as this greatly influences both areas exposed to the wind and driving behaviour. Slide any heavy cargo in the luggage compartment as far forward as possible to avoid excessively loading down the rear of the vehicle. Always adjust your driving style to the road, traffic and weather conditions and exercise special care when driving with a loaded bicycle rack. If these instructions are not followed, the bicycle rack and/or the load may free themselves from the vehicle and cause injury to you and other persons, or may result in an accident. Attention If the vehicle is equipped with an electrical luggage compartment lid, allow for the necessary clearance when mounting the bicycle rack. If possible, the electrical luggage compartment lid should be de-activated and operated manually. Remove the bicycle rack before using automatic car washes. Otherwise, the bicycle rack, the vehicle and/or the carwash could be damaged.- 20 - Note on disposal Dispose of components, accessories and packaging for environmentally sound recycling. Do not dispose of the lamp unit with household or residual waste. According to the European Directive 2012/19/EU and national laws, electrical equipment that is no longer usable must be collected separately and recycled in an environmentally friendly manner. Separate the lamps from the rack and take the components that are no longer usable to a suitable collection point. Ask your specialist dealer for advice.- 21 -
