Brand	Barbecook
Model	Magnus Premium
Product Type	Charcoal BBQ
Fuel	Traditional charcoal or briquettes
Maximum Fuel Capacity	1.2 kg (charcoal or briquettes)
Cooking Methods	Direct (direct heat) and indirect (indirect heat)
Tub Material	Enameled steel, stainless steel, cast iron
Grid Material	Cast iron (charcoal grid) / Chrome-plated steel (cooking grid)
Air Adjustment	Continuously adjustable air intake (positions 0 to 5)
Cooking Temperature	Up to over 250 °C (direct zone)
Side Tables	Yes, removable (max load 7.5 kg each)
Charcoal Baskets	Optional (sold separately)
Included Accessories	Grid lifter, chimney starter (on some models)
Cleaning	After each use: grid with mild detergent, tub with brush
Maintenance	Enamel: avoid impacts; Stainless steel: mild detergent; Cast iron: oil after use
Safety	Outdoor use only, do not move when hot, keep out of reach of children
Lighting	Use only fire lighters compliant with EN 1860-3
Warranty	2 years (parts and labor)
Spare Parts	Available at www.barbecook.com or from your dealer
Recommended Registration	Yes, online for benefits and personalized service

Frequently Asked Questions - Magnus Premium BARBECOOK

How to light the Magnus Premium BBQ?

Use a chimney starter or fire starter cubes compliant with EN 1860-3. Fill the chimney with charcoal, place it on the charcoal grid, and light from below. Wait 15 to 20 minutes until a gray layer forms on the coals. Never use alcohol or gasoline.

What is the difference between direct and indirect cooking?

Direct cooking is done directly above the glowing coals, ideal for small pieces cooking in less than 20 minutes (temperature >250°C). Indirect cooking uses heat distributed on the sides, for large pieces requiring more than 20 minutes (temperature 150-250°C). Food is placed on the unlit part of the grid.

How to clean the cooking grid?

After each use, clean the grid with Barbecook cleaning product, mild detergent, or baking soda. Never use oven cleaner. For deep cleaning, use a steel brush or steel wool on cast iron parts.

What to do if food burns or sticks to the grid?

To prevent food from burning, wait until the coals are covered with a thin layer of gray ash before cooking. Always provide a direct and indirect zone to move food. To prevent sticking, lightly oil the food or the grid before cooking, and do not turn food too quickly.

How to extinguish the BBQ?

Completely close the ventilation holes at the top and bottom of the appliance. The lack of oxygen will extinguish the fire. Never pour water on hot coals. Let it cool completely before storing.

Can I use the BBQ indoors?

No, the BBQ must be used exclusively outdoors. Indoor use, even in a garage or shed, can cause carbon monoxide poisoning. Place it at least 3 meters from buildings and under no overhead structure.

What is the maximum amount of charcoal to use?

The maximum fuel weight is 1.2 kg for charcoal and briquettes. Overfilling can damage the BBQ due to excessive temperature. Preferably use Barbecook Premium Charcoal (BC-ACC-7421).

How to maintain the enamel parts?

Enamel parts are rust-resistant but can chip from impact. Avoid sharp objects and impacts with hard surfaces. Do not pour cold liquids on hot enamel. Use metal sponges and abrasive detergents without issue.

Where can I order spare parts?

Spare parts are available on the website www.barbecook.com or from your dealer. For warranty parts, order only from the dealer. You will need the device's serial number (16 digits) to identify the correct parts.

What is the warranty period?

The BBQ has a 2-year warranty from the date of purchase. The warranty covers manufacturing defects provided that the product is used, assembled, and maintained according to instructions. Damage due to normal wear (rust, deformation), improper use, or inadequate storage is not covered.

USER MANUAL Magnus Premium BARBECOOK

Register your Barbecook® on www.barbecook.com and enjoy the full Barbecook® experience!

THIS IS YOUR UNIQUE SERIAL N°

Warning sign with pictograms and symbols for outdoor activities including a person, a van, a house, a tent, and trees.

EN WARNING! Do not use spirit or petrol for lighting or re-lighting! Always use the barbecue on a safe, flat surface.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a heating furnace with heat dissipation inside (no text or labels)

Line drawing of a cooking pot with steam rising from its side (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with a flame symbol and 'OPEN' label (no readable text or symbols beyond the label)

- 0 1 2 3 4 5 +

Technical line drawing of a car interior panel with ventilation ducts and control panels (no text or symbols)

Technical line drawing of a vehicle interior showing structural components and wiring (no text or symbols)

Line drawing of a vehicle front view with dashboard and side-mounted sensors (no text or symbols)

Line drawing of a kitchen appliance with a bowl and side gauges (no text or symbols)

Line drawing of a steaming hot pot with control panel and side dish (no text or symbols)

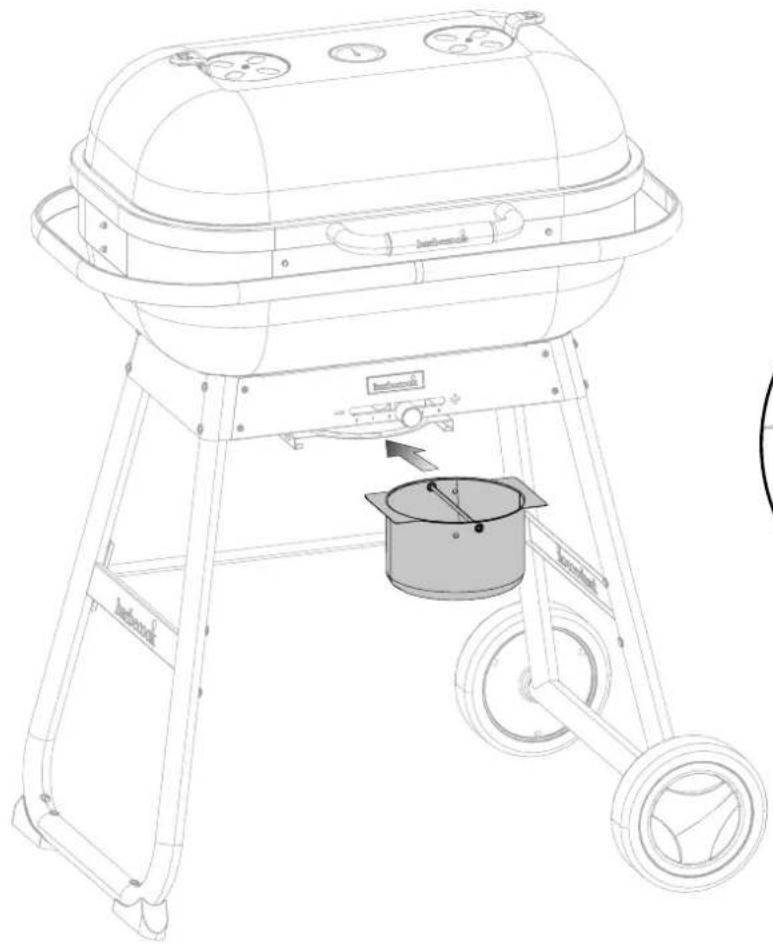

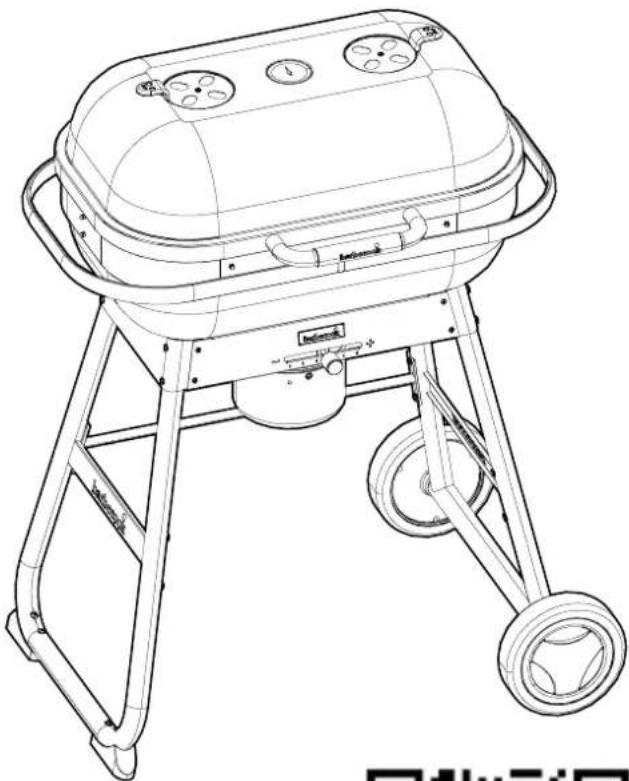

8. HET TOESTEL ONDERHOUDEN

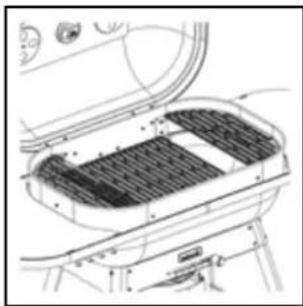

8.1. De kuip reinigen

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a heating furnace with heat transfer from a vertical stove to a cylindrical chamber (no text or labels)

Line drawing of a cooking pot with steam rising from its side (no text or symbols)

Technical line drawing of a stadium structure with no visible text or symbols

Technical line drawing of a mechanical component with a flame symbol and 'OPEN' label (no readable text or symbols beyond the label)

- 0 1 2 3 4 5 +

Technical line drawing of a car interior with ventilation duct and roof (no text or symbols)

Technical line drawing of a car interior panel with ventilation grilles and wiring (no text or symbols)

Technical line drawing of a vehicle dashboard with front and side views (no text or symbols)

Line drawing of a stylized steaming vessel with three plates and circular gauges (no text or symbols)

Line drawing of a bowl with a side table and decorative items (no text or symbols)

8. ENTRETIEN DE L'APPAREIL

Technical line drawing of a mechanical component with a flame symbol and 'SPR' label (no readable text or symbols beyond basic diagram)

Technical line drawing of a mechanical assembly with no visible text or symbols

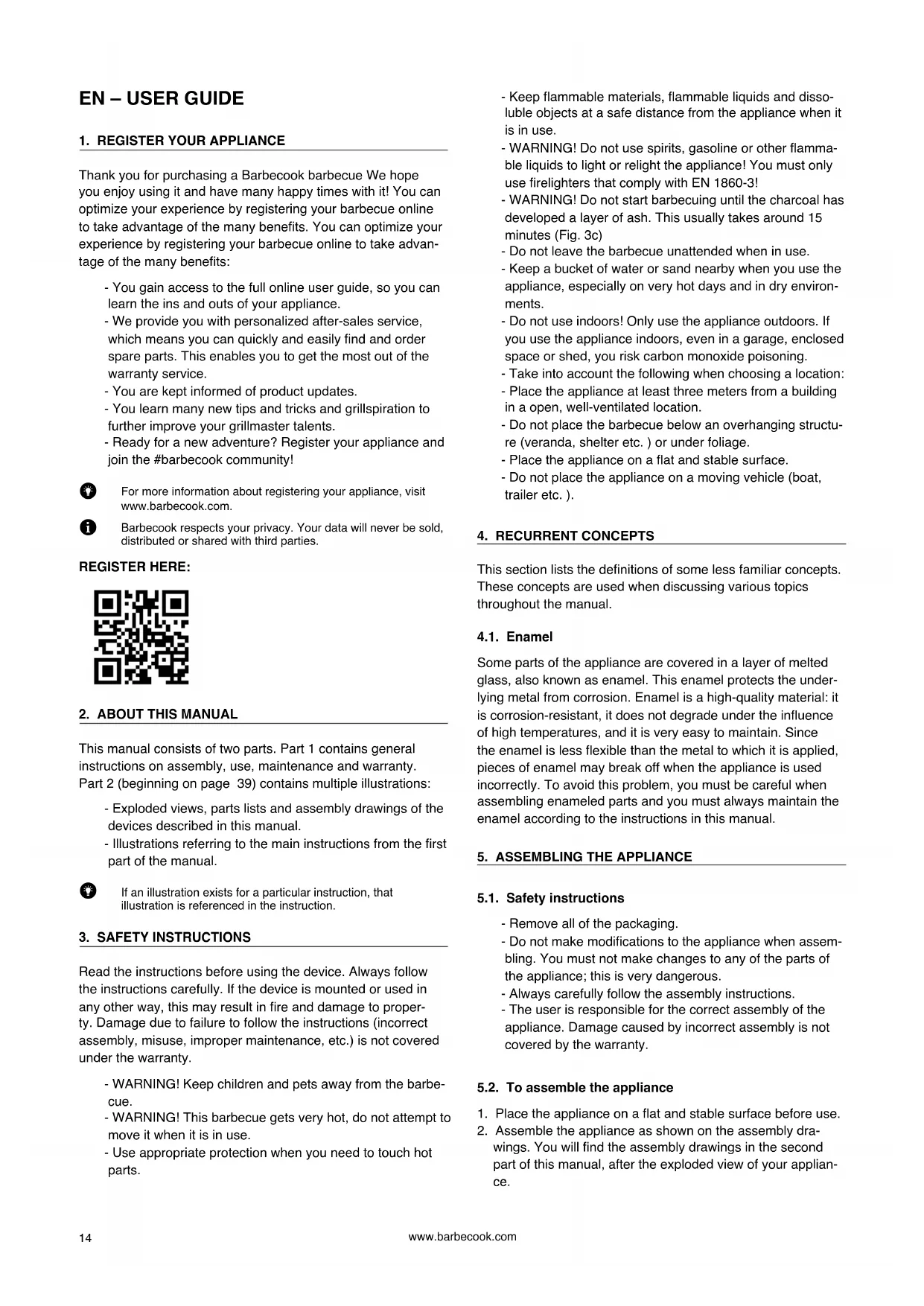

Thank you for purchasing a Barbecook barbecue We hope you enjoy using it and have many happy times with it! You can optimize your experience by registering your barbecue online to take advantage of the many benefits. You can optimize your experience by registering your barbecue online to take advantage of the many benefits:

• You gain access to the full online user guide, so you can learn the ins and outs of your appliance.
• We provide you with personalized after-sales service, which means you can quickly and easily find and order spare parts. This enables you to get the most out of the warranty service.
• You are kept informed of product updates.
• You learn many new tips and tricks and grillspiration to further improve your grillmaster talents.
• Ready for a new adventure? Register your appliance and join the #barbecook community!

For more information about registering your appliance, visit www.barbecook.com.

Barbecook respects your privacy. Your data will never be sold, distributed or shared with third parties.

REGISTER HERE:

2. ABOUT THIS MANUAL

This manual consists of two parts. Part 1 contains general instructions on assembly, use, maintenance and warranty. Part 2 (beginning on page 39) contains multiple illustrations:

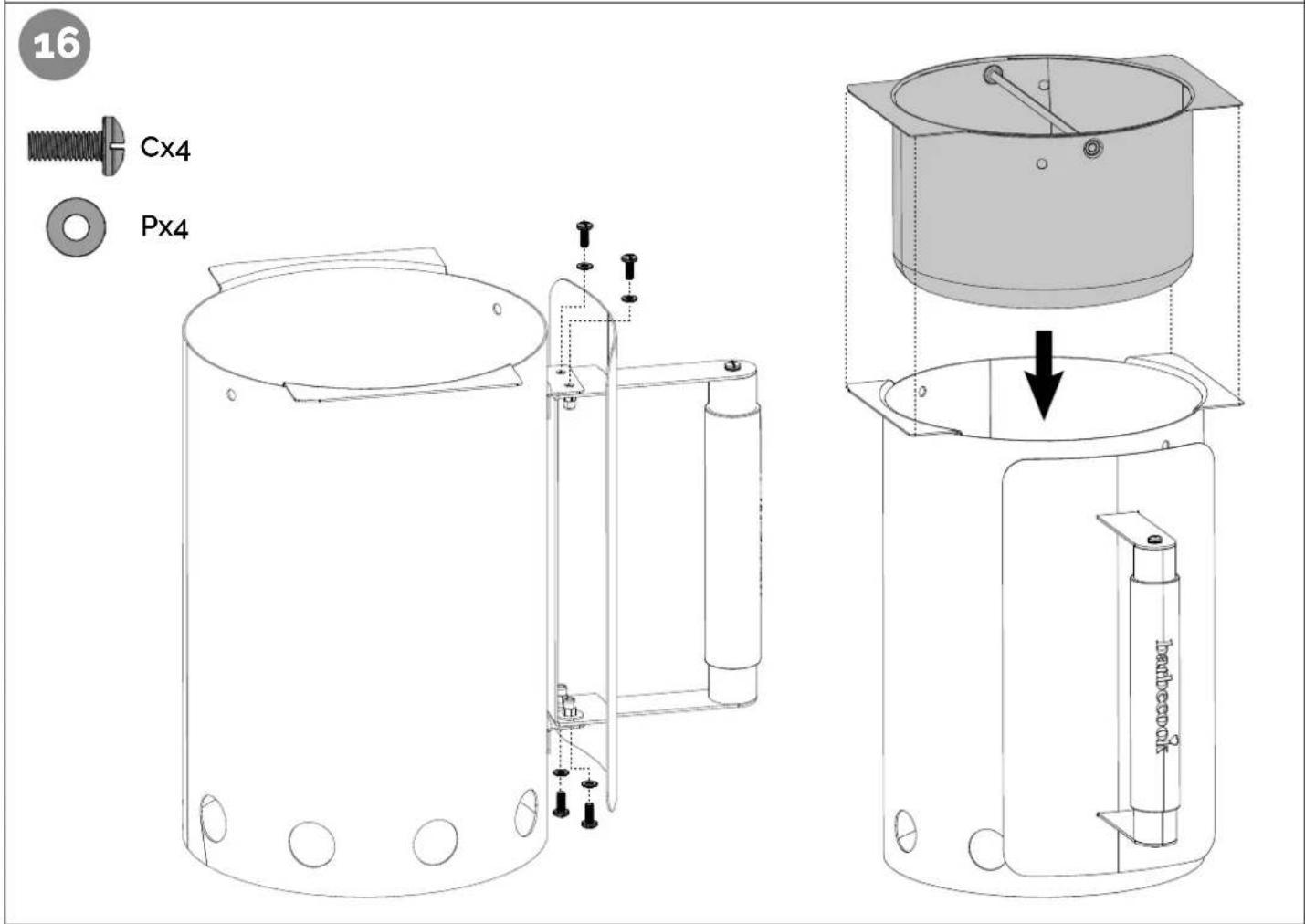

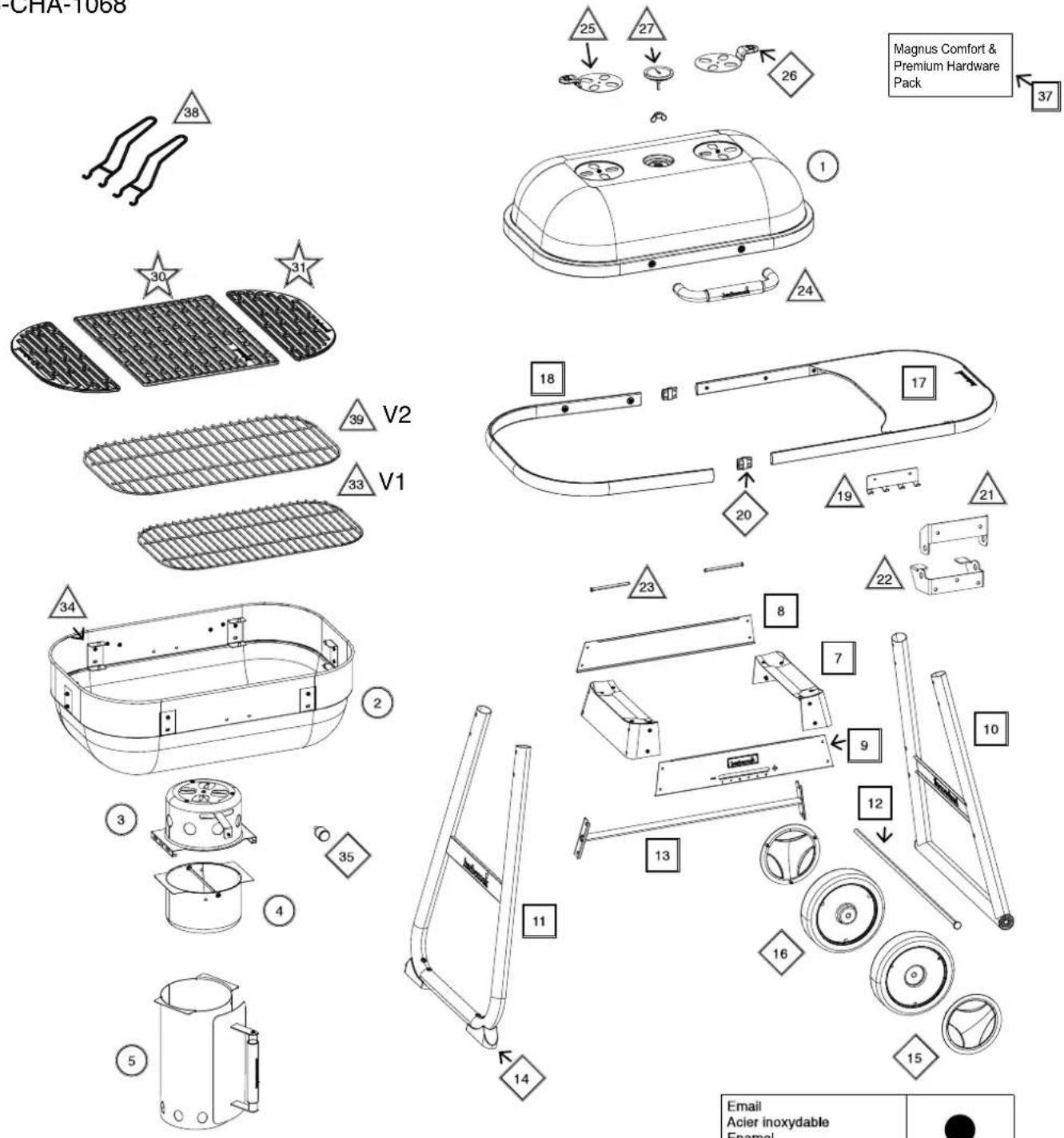

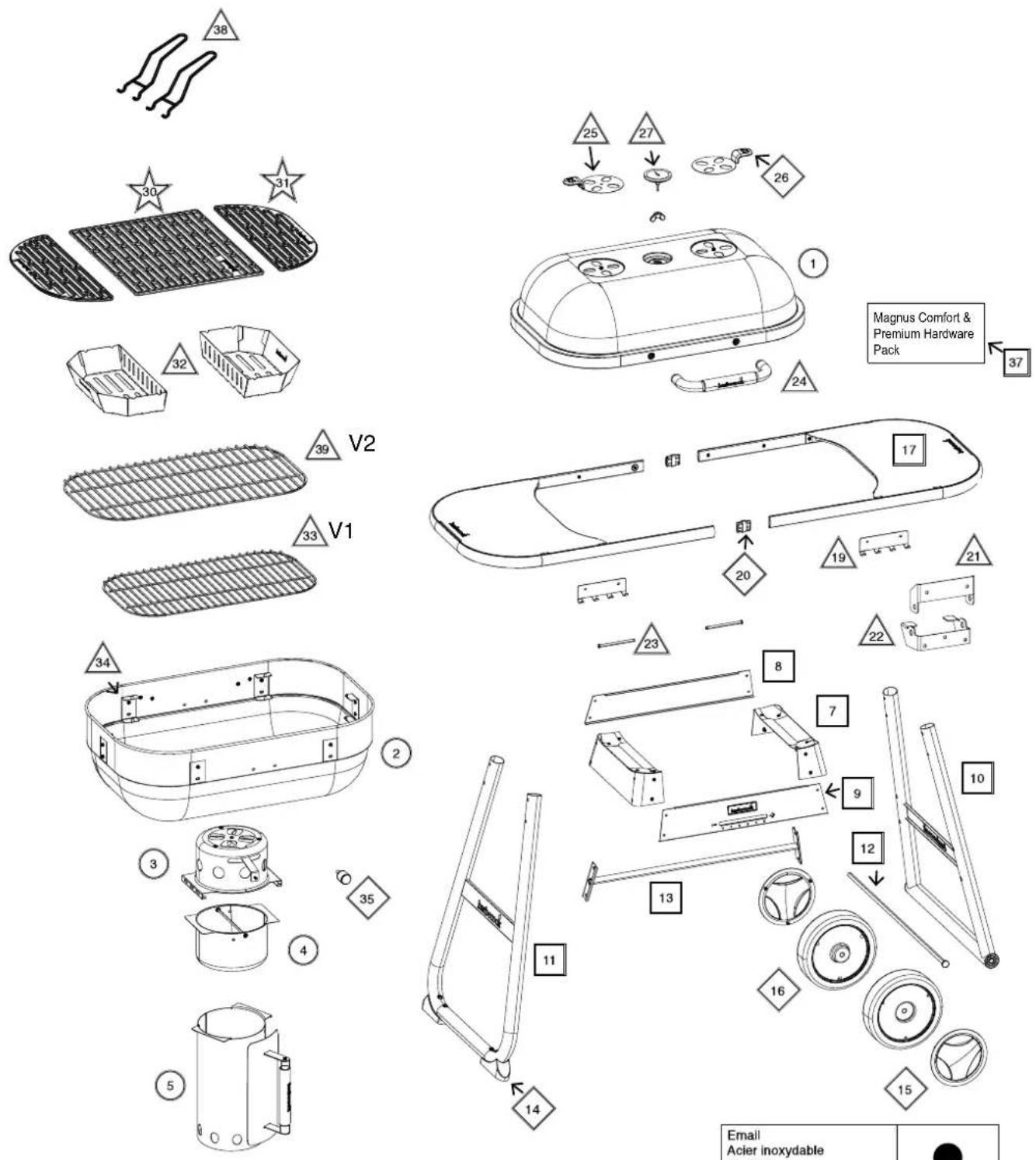

• Exploded views, parts lists and assembly drawings of the devices described in this manual.
• Illustrations referring to the main instructions from the first part of the manual.

If an illustration exists for a particular instruction, that illustration is referenced in the instruction.

3. SAFETY INSTRUCTIONS

Read the instructions before using the device. Always follow the instructions carefully. If the device is mounted or used in any other way, this may result in fire and damage to property. Damage due to failure to follow the instructions (incorrect assembly, misuse, improper maintenance, etc.) is not covered under the warranty.

• WARNING! Keep children and pets away from the barbecue.
• WARNING! This barbecue gets very hot, do not attempt to move it when it is in use.

• Use appropriate protection when you need to touch hot parts.

• Keep flammable materials, flammable liquids and disso-luble objects at a safe distance from the appliance when it is in use.

• WARNING! Do not use spirits, gasoline or other flammable liquids to light or relight the appliance! You must only use firelighters that comply with EN 1860-3!
• WARNING! Do not start barbecuing until the charcoal has developed a layer of ash. This usually takes around 15 minutes (Fig. 3c)
• Do not leave the barbecue unattended when in use.
• Keep a bucket of water or sand nearby when you use the appliance, especially on very hot days and in dry environments.
• Do not use indoors! Only use the appliance outdoors. If you use the appliance indoors, even in a garage, enclosed space or shed, you risk carbon monoxide poisoning.
• Take into account the following when choosing a location:
• Place the appliance at least three meters from a building in a open, well-ventilated location.
• Do not place the barbecue below an overhanging structure (veranda, shelter etc.) or under foliage.
• Place the appliance on a flat and stable surface.
• Do not place the appliance on a moving vehicle (boat, trailer etc.).

4. RECURRENT CONCEPTS

This section lists the definitions of some less familiar concepts. These concepts are used when discussing various topics throughout the manual.

4.1. Enamel

Some parts of the appliance are covered in a layer of melted glass, also known as enamel. This enamel protects the underlying metal from corrosion. Enamel is a high-quality material: it is corrosion-resistant, it does not degrade under the influence of high temperatures, and it is very easy to maintain. Since the enamel is less flexible than the metal to which it is applied, pieces of enamel may break off when the appliance is used incorrectly. To avoid this problem, you must be careful when assembling enameled parts and you must always maintain the enamel according to the instructions in this manual.

5. ASSEMBLING THE APPLIANCE

5.1. Safety instructions

• Remove all of the packaging.
• Do not make modifications to the appliance when assembling. You must not make changes to any of the parts of the appliance; this is very dangerous.
• Always carefully follow the assembly instructions.
• The user is responsible for the correct assembly of the appliance. Damage caused by incorrect assembly is not covered by the warranty.

5.2. To assemble the appliance

1. Place the appliance on a flat and stable surface before use.

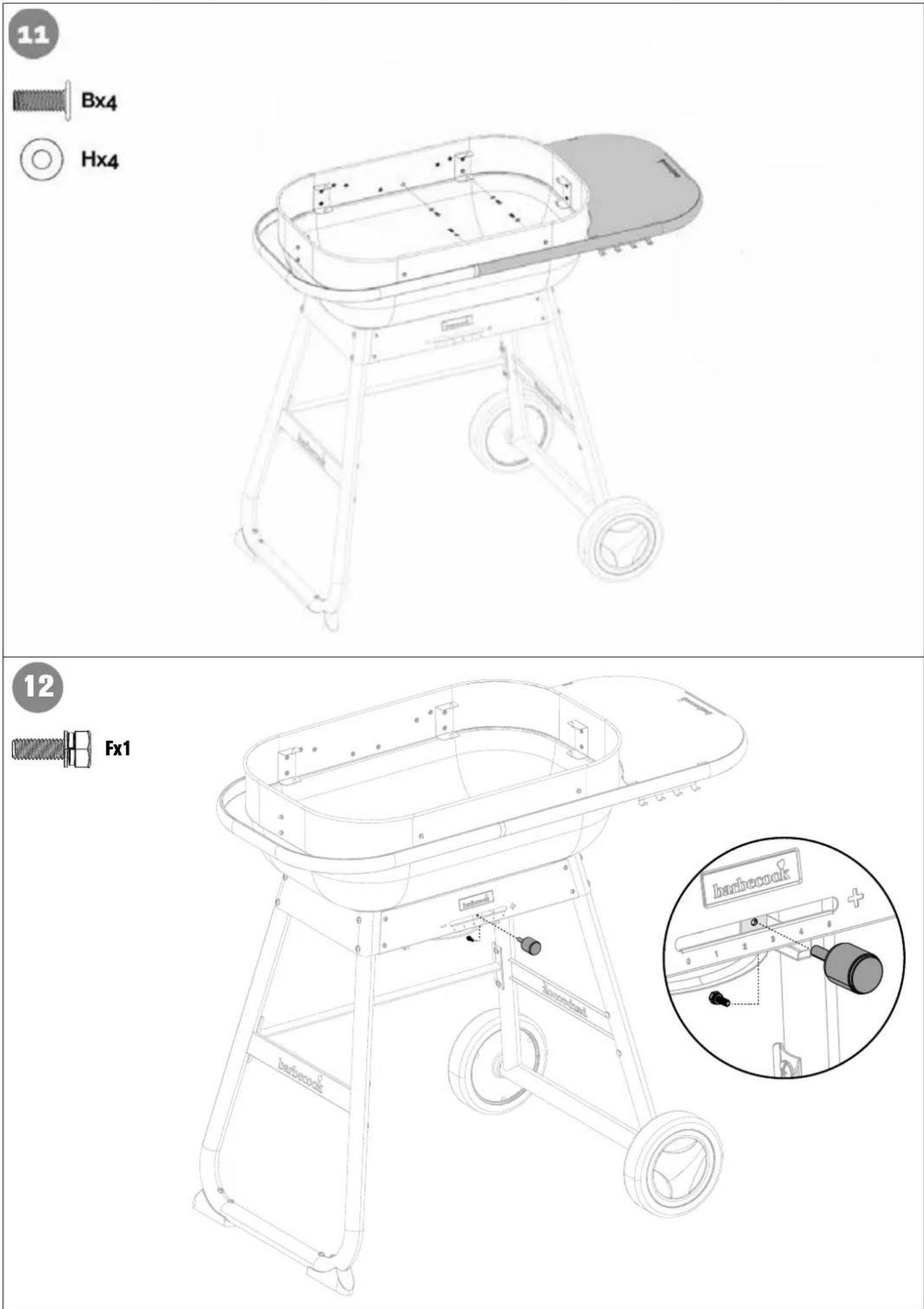

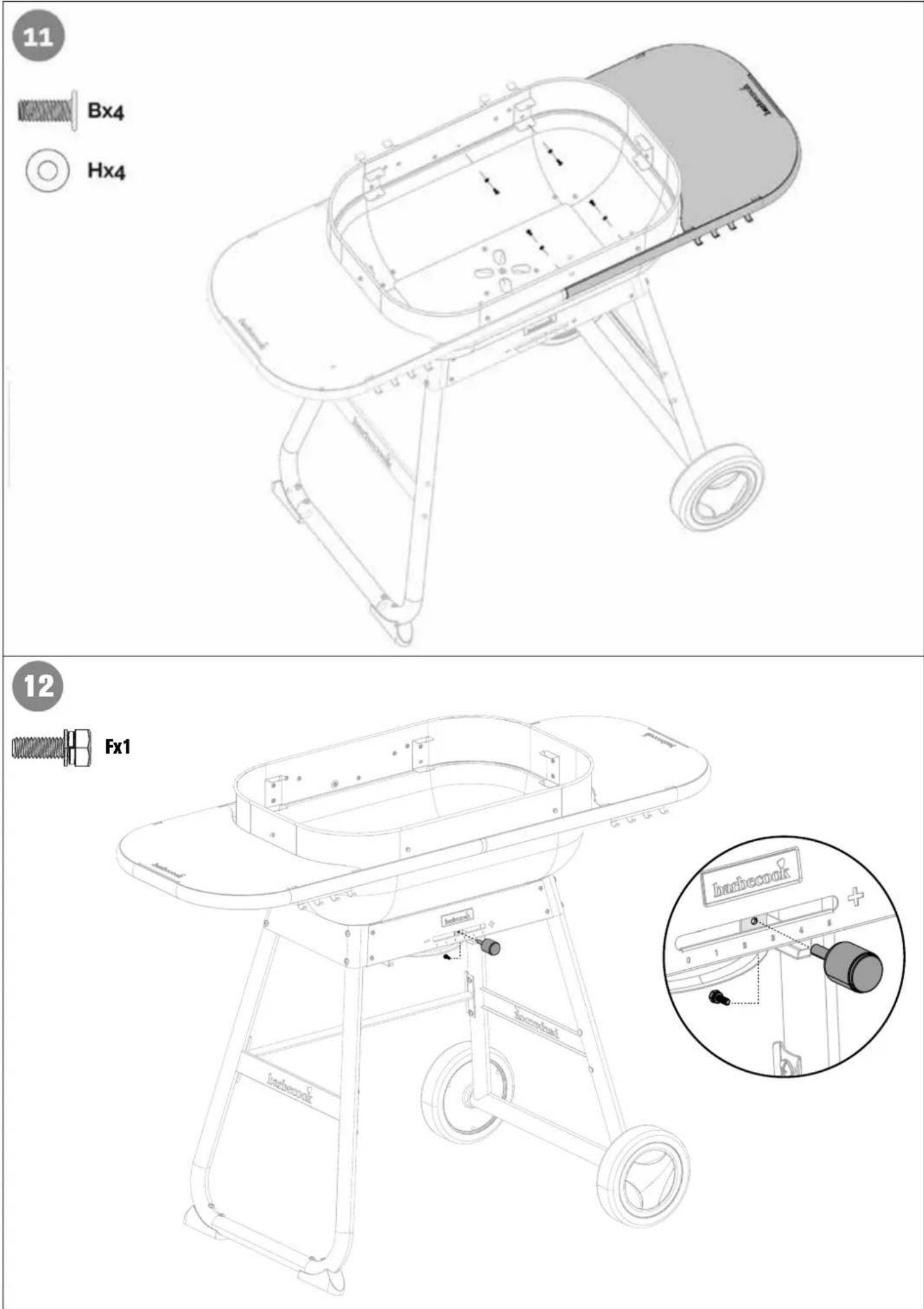

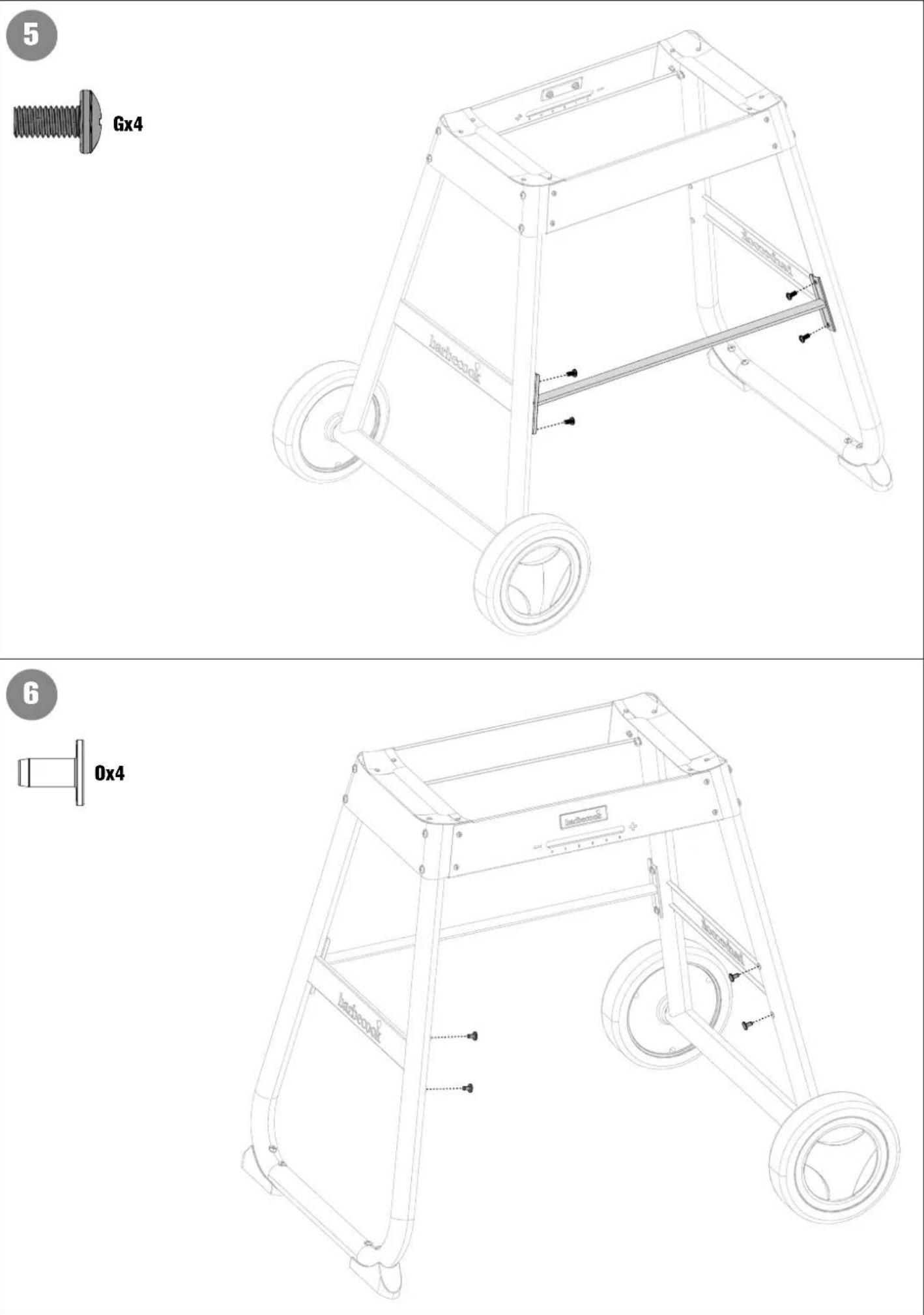

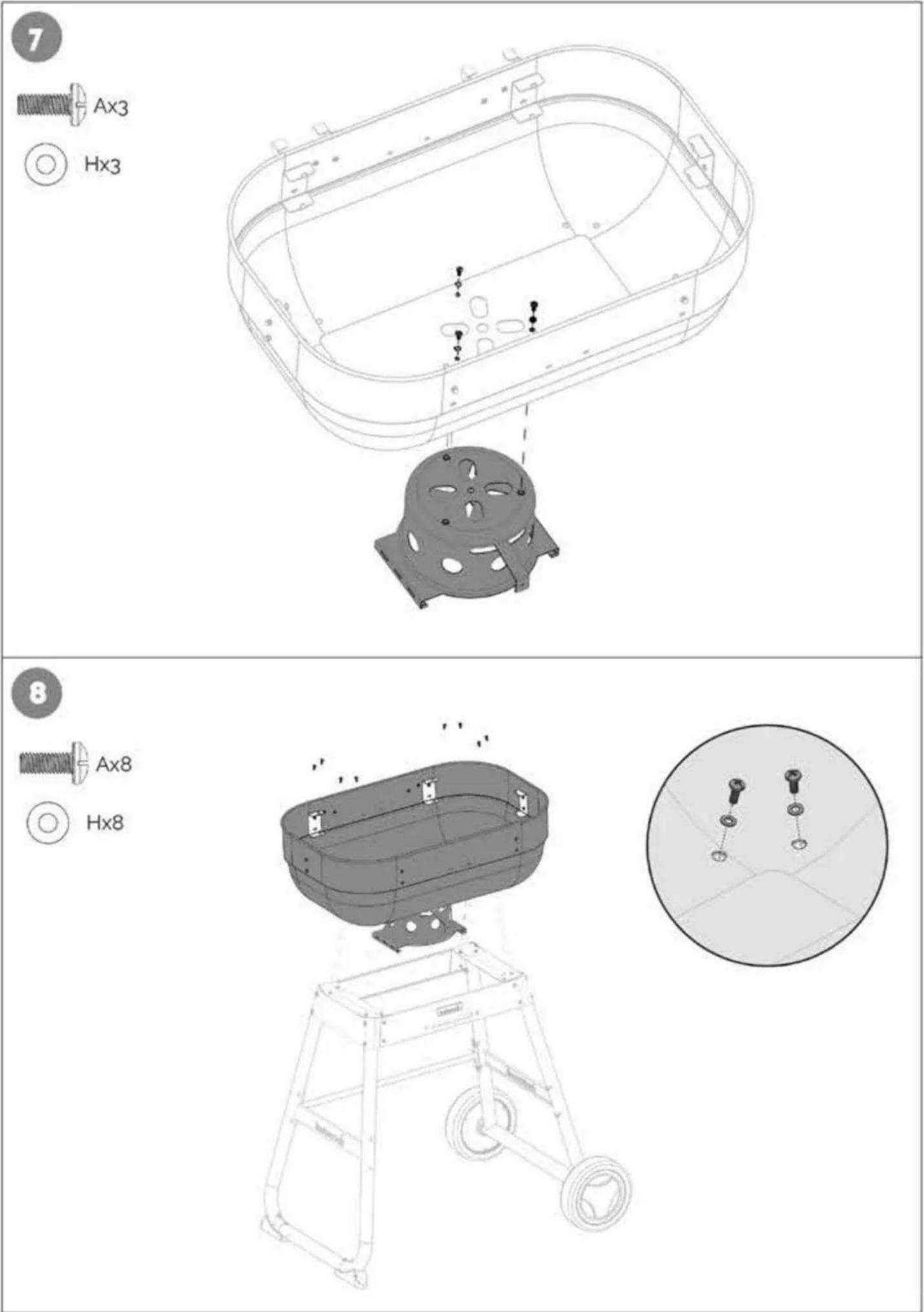

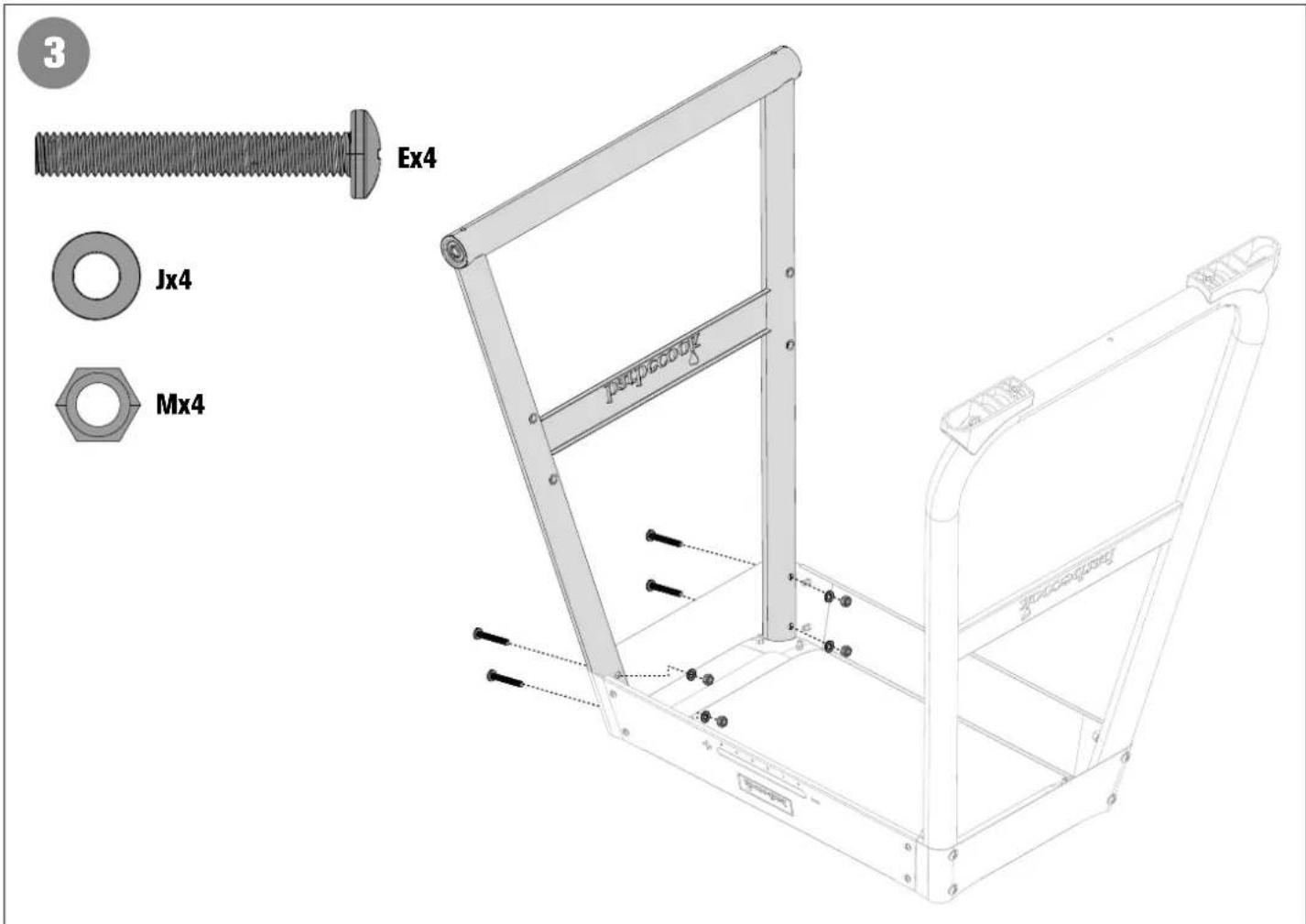

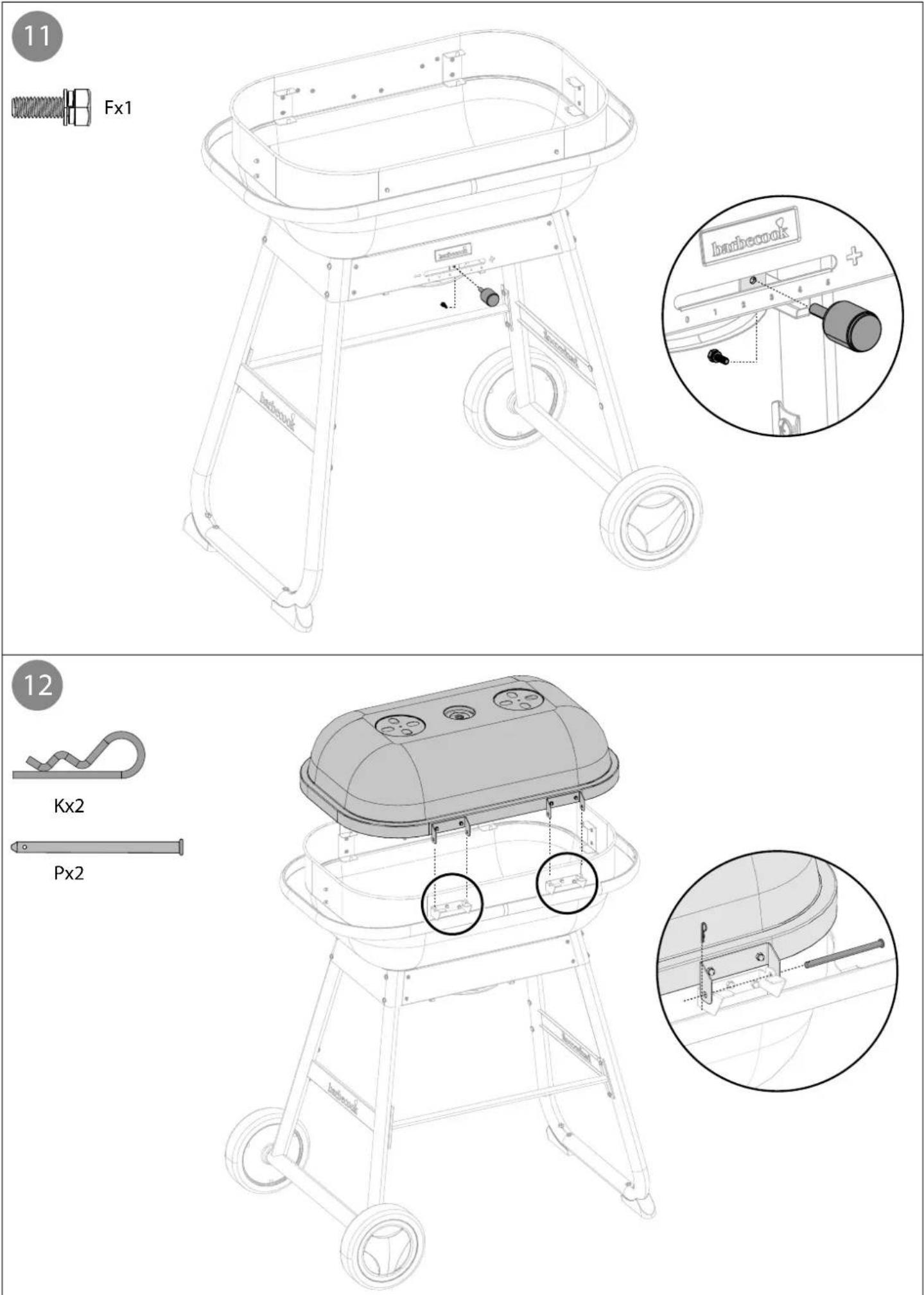

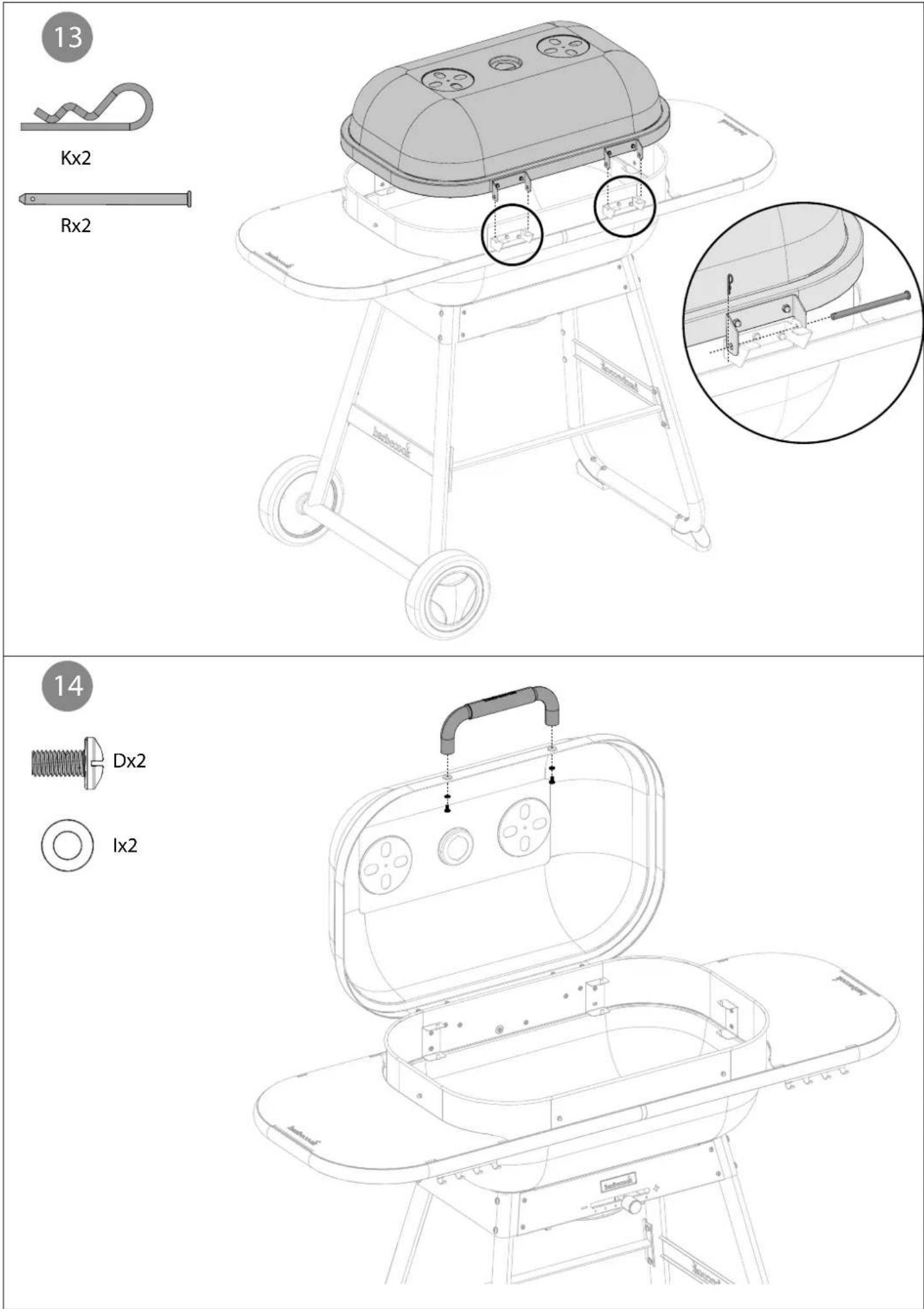

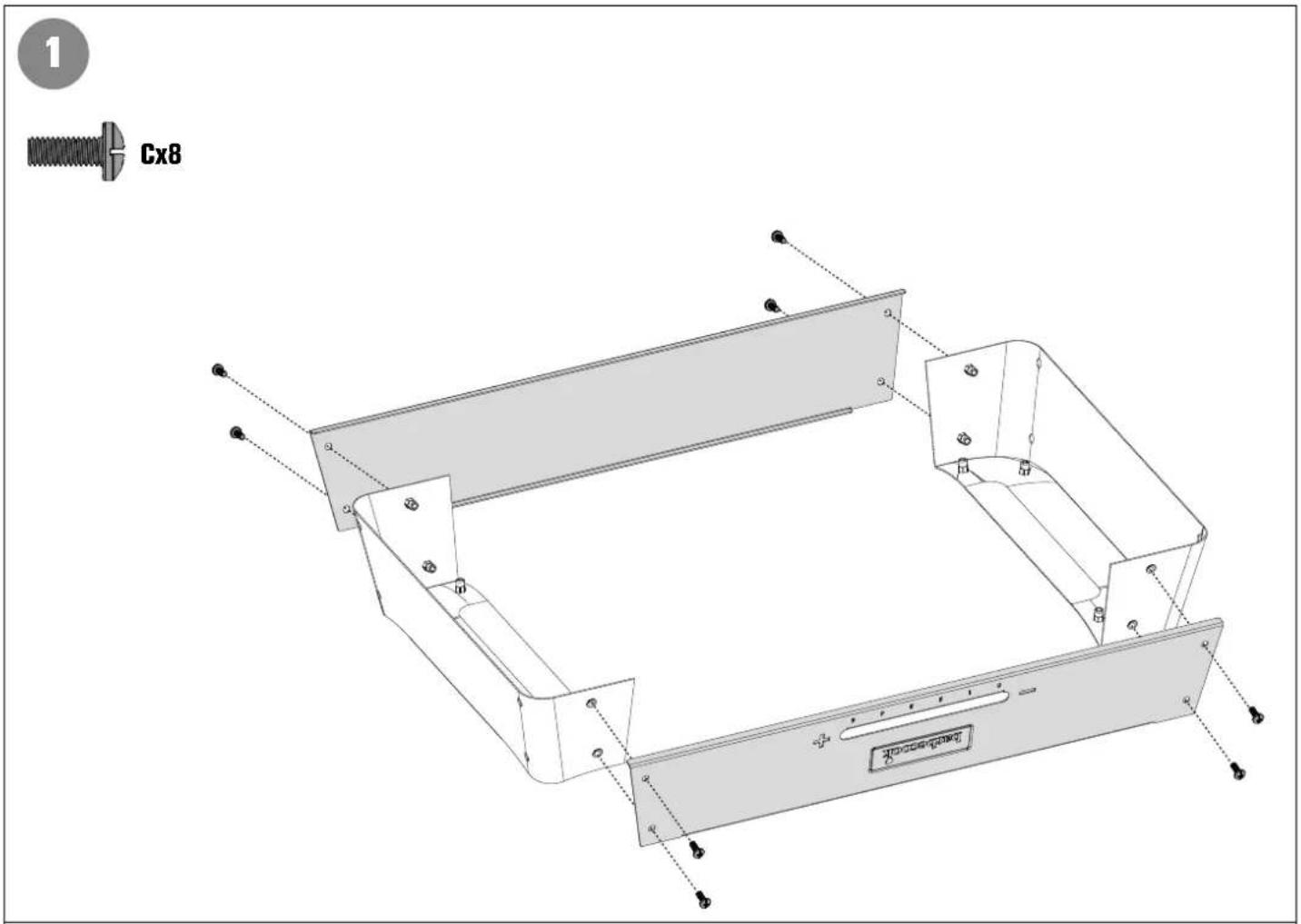

2. Assemble the appliance as shown on the assembly drawings. You will find the assembly drawings in the second part of this manual, after the exploded view of your appliance.

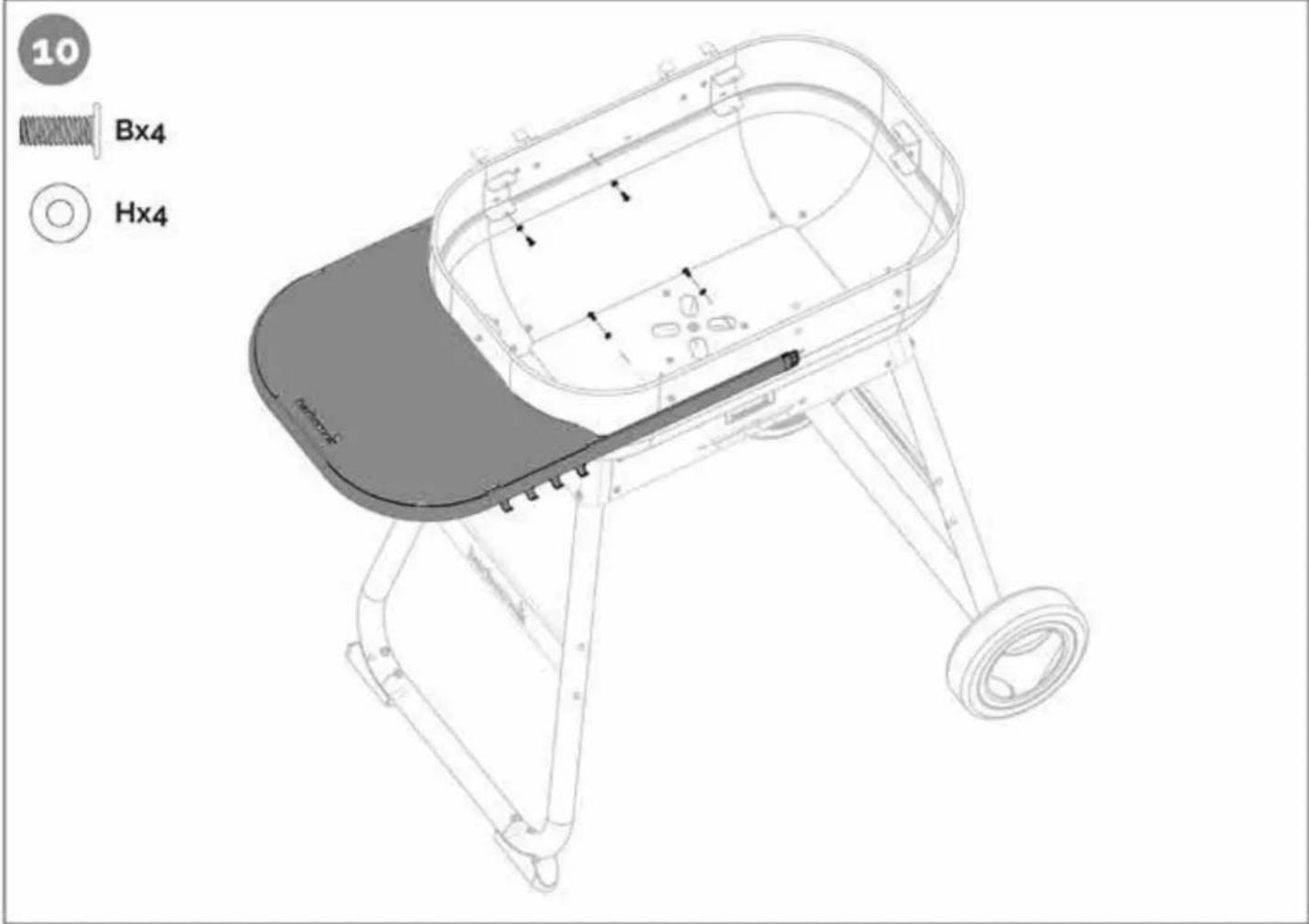

3. For each model you can decide whether to mount your wheels and/or side table on the left or right. In this way, the Magnus adapts flexibly to your preferences.

Be careful when assembling enameled parts. Use the fiber washers supplied to protect the enamel around the screws. You only need a cross head screwdriver and a spanner to adjust the tension on the clips at the bottom of the device.

For units equipped with one or more side tables: never lean on them. Max. weight that these tables can carry is 7.5 kg.

6. PREPARING THE APPLIANCE FOR USE

6.1. First time use

It is recommended that the grill be heated up and the fuel kept red hot, with the lid on, for at least 30 minutes before cooking for the first time.

6.2. Which type of charcoal should I use and how much?

Always light your appliance with traditional charcoal, never with briquettes. When your appliance is lit, you can add briquettes. Use good quality charcoal to light the appliance, preferably charcoal that complies with EN 1860-2. Good- quality charcoal consists of large, shiny pieces and does not give off much dust. Preferably use Barbecook Premium charcoal (BC-ACC-7421) Close the bag of charcoal properly before storing it. Always store charcoal in a dry location, do not store charcoal in a basement. Make sure not to overfill your appliance. Overloading the bowl with charcoal/briquettes can seriously damage your barbecue due to the extreme heat. Use the maximum following maximum amounts of fuel:

- Charcoal: 1,2 kg

6.3. Preparing the appliance for use

1. Open the lid.

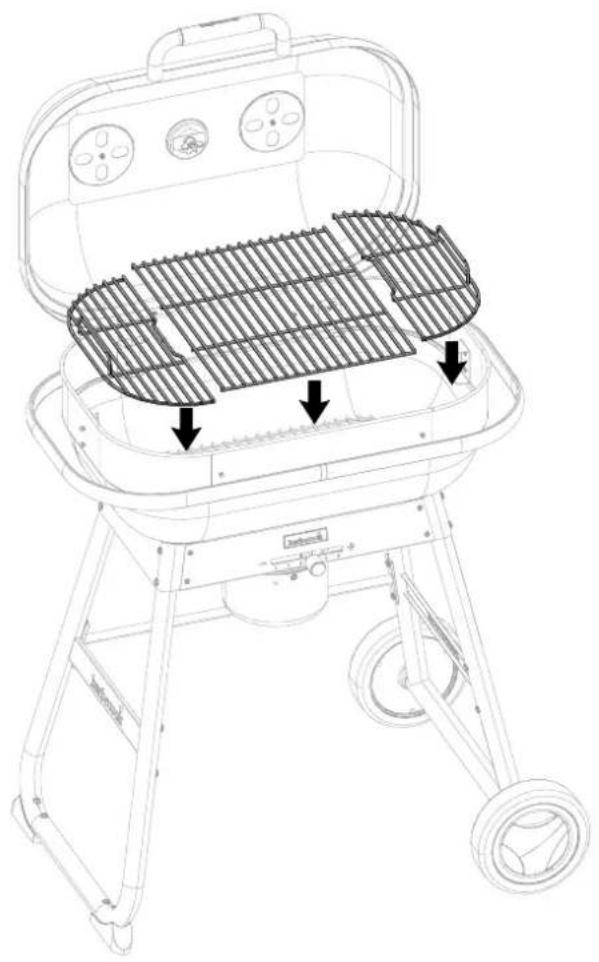

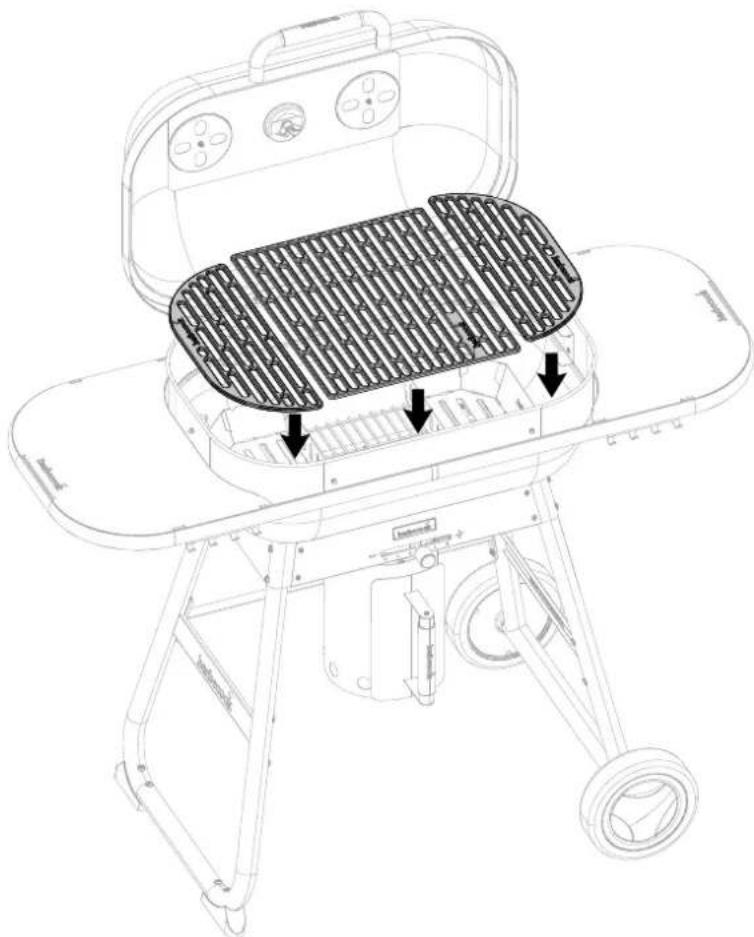

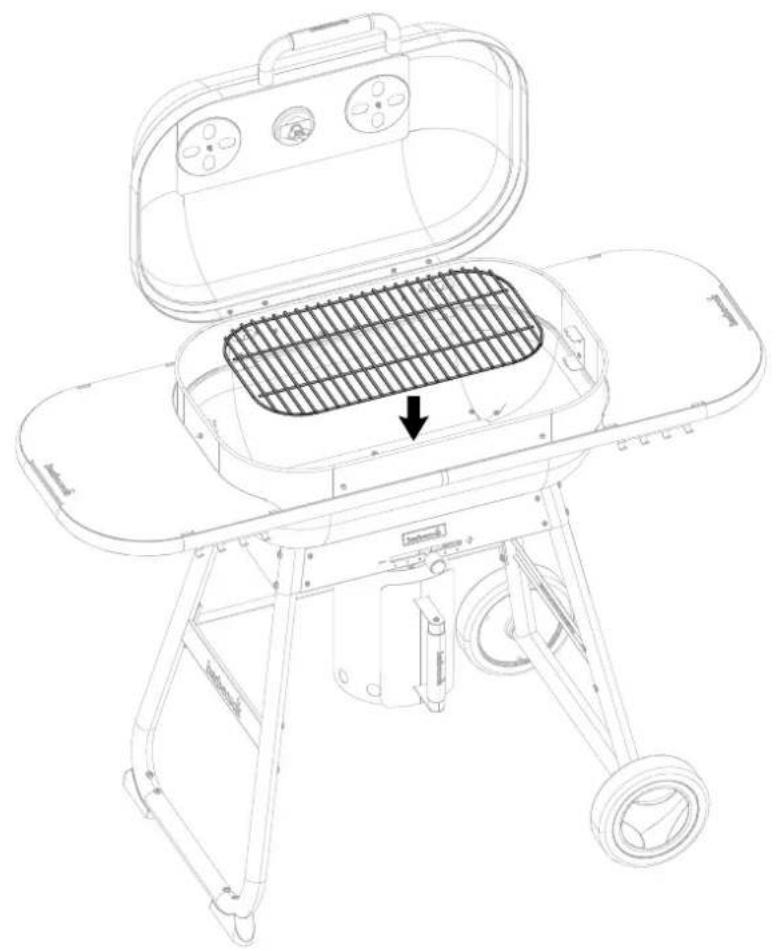

2. Remove the cooking top grate from your grill. Start with the middle grate (use the supplied grill lifters).

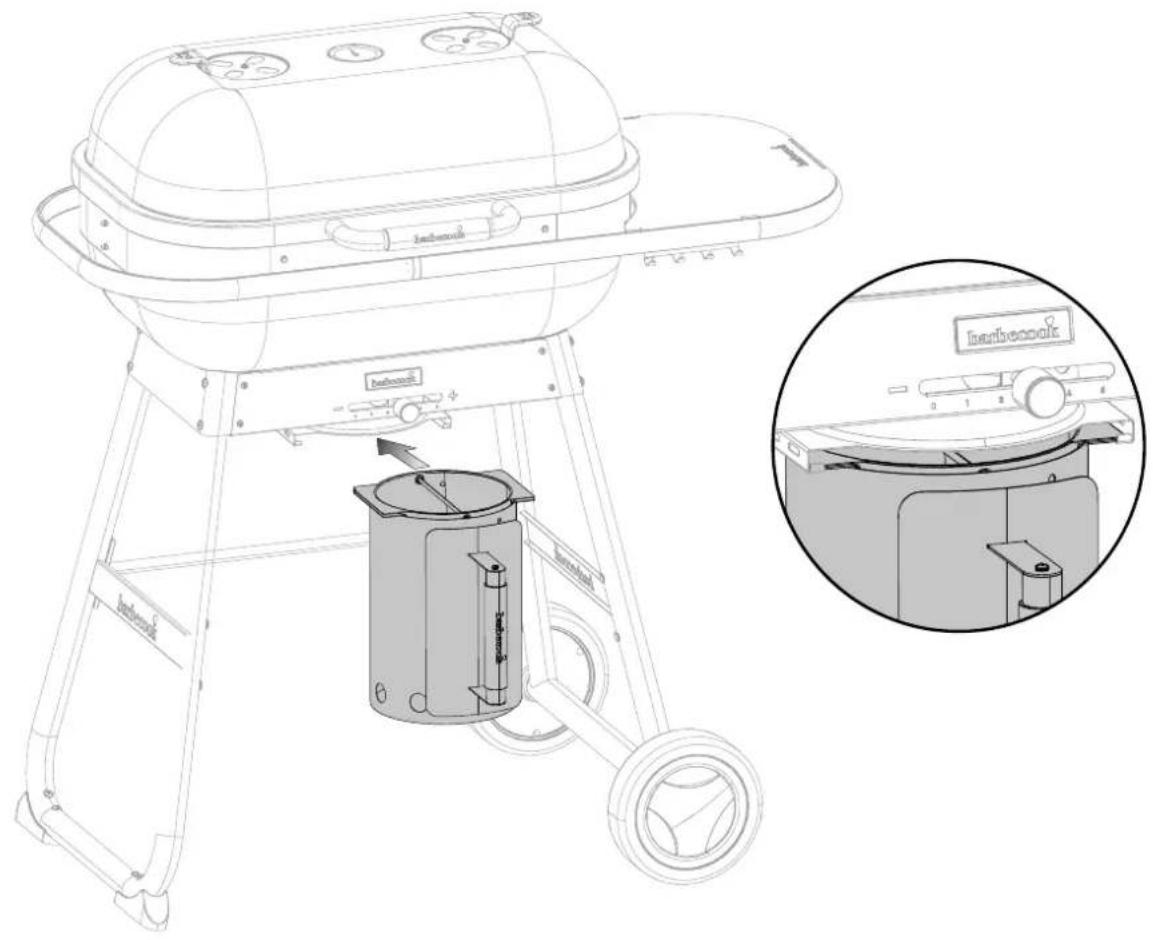

3. Remove the charcoal (bottom) grate and clear ashes or chunks of old charcoal from the bottom of the bowl. Charcoal requires oxygen to burn, so be sure that nothing clogs the vents. (use the ventilation control at the front of the unit for this. The ashes then fall neatly into the ash catcher at the bottom of the bowl).

4. Replace charcoal (bottom) grate.

ATTENTION! Never place charcoal directly into the bowl.

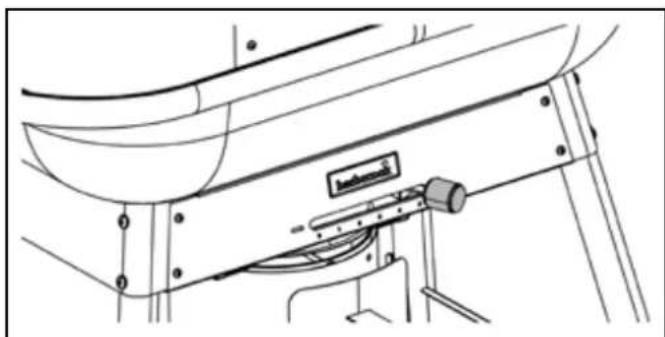

1. Make sure the air supply is fully open (position 5)

Technical line drawing of a mechanical assembly with no visible text or symbols

6.4. Lighting charcoal

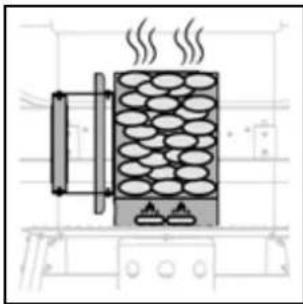

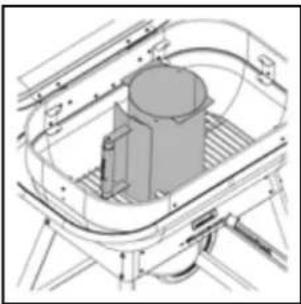

Lighting charcoal with a chimney starter

The easiest way to light any kind of charcoal is to use a chimney starter; (included with certain models, but also sold separately). Always leave the lid open when using a chimney starter.

1. Put a few sheets of wadded up newspaper in the bottom of the chimney starter and set the chimney starter on the charcoal grate; or put a few lighter cubes in the centre of the charcoal grate and place the chimney starter over them.
2. Fill the chimney starter with charcoal (max. up to the rim on top, certainly not more).
3. Leave the chimney starter in place until the charcoal is completely covered with a white layer of ash. This takes about 15 to 20 minutes.
4. Next, pour the glowing coals into the desired place on the coal grid. Always wear heat-resistant gloves when doing so.
5. Add a few more fresh coals on top of the already hot coals. Wait again until these are covered with a white layer of ash.
6. You are ready for the next steps

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a heating furnace with heat dissipation and cooling unit (no text or labels)

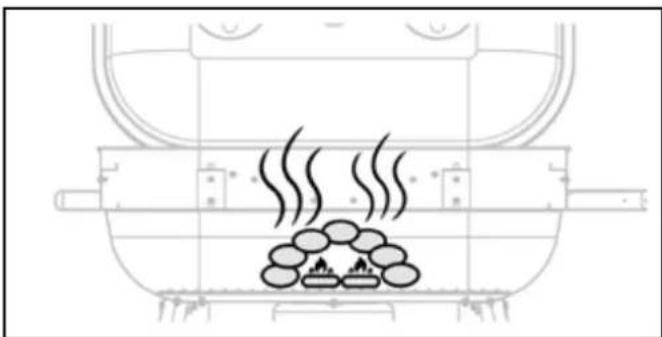

Lighting Charcoal Using lighter cubes or wood wool
