USER MANUAL BlackMask Auna

• AUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type Batteriehinweise

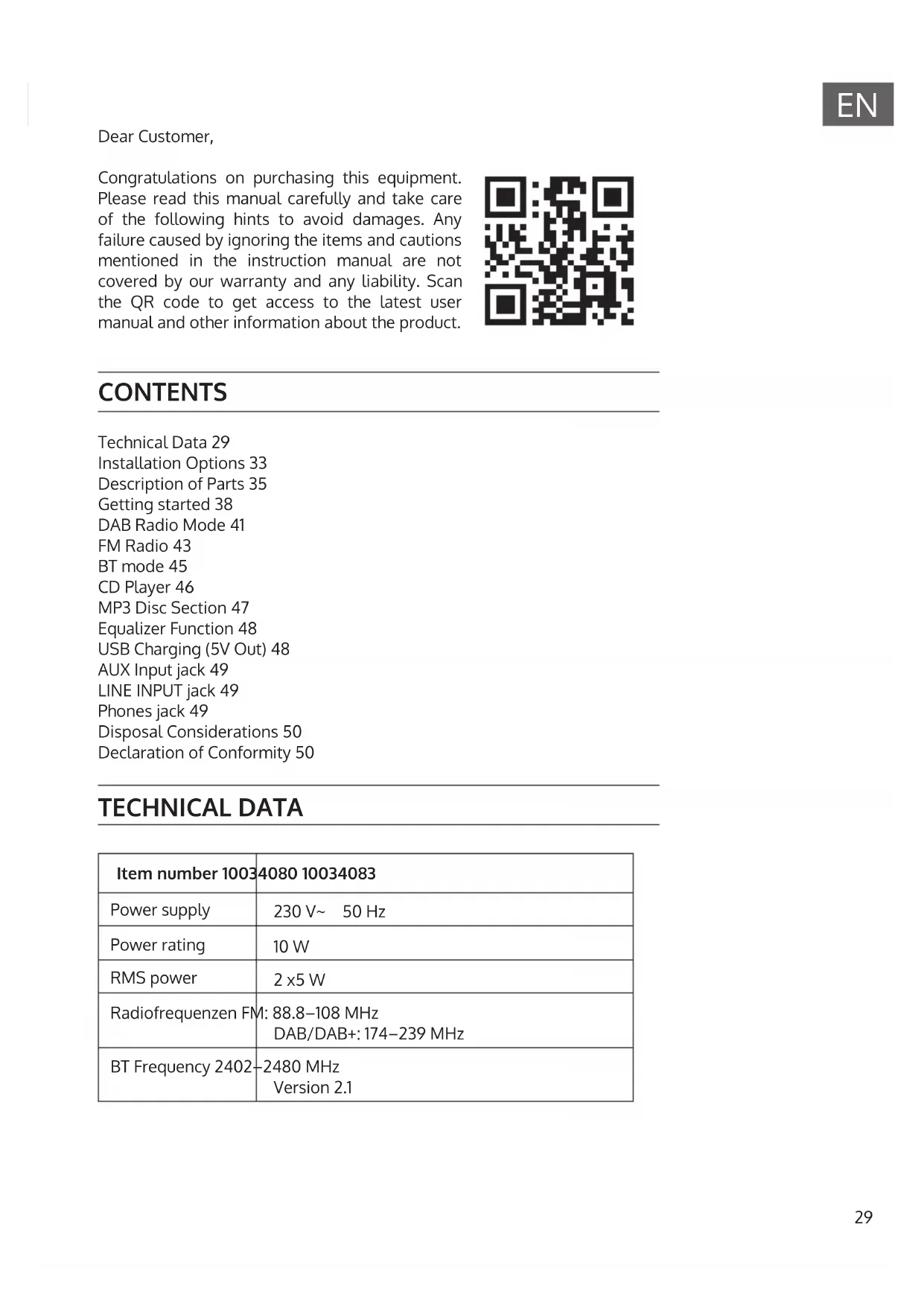

CONTENTS Technical Data 29 Installation Options 33 Description of Parts 35 Getting started 38 DAB Radio Mode 41 FM Radio 43 BT mode 45 CD Player 46 MP3 Disc Section 47 Equalizer Function 48 USB Charging (5V Out) 48 AUX Input jack 49 LINE INPUT jack 49 Phones jack 49 Disposal Considerations 50 Declaration of Conformity 50 TECHNICAL DATA Item number 10034080 10034083 Power supply 230 V~ 50 Hz Power rating 10 W RMS power 2 x5 W Radiofrequenzen FM: 88.8–108 MHz DAB/DAB+: 174–239 MHz BT Frequency 2402–2480 MHz Version 2.1 Dear Customer, Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.30

WARNINGS CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK AND SERIOUS PERSONAL INJURY, DO NOT REMOVE ANY COVER. NO USER-SERVICABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY. WARNING. TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS PRODUCT TO WATER, RAIN OR MOISTURE. Triangle with lightning plus explanation as follows: DANGEROUS VOLTAGE: The lightning ash with arrowhead symbol within the equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product‘s enclosure that may be of su icient magnitude to constitute a risk of electric shock to persons. Triangle with exclamation point plus explanation as follows: ATTENTION: The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying this product. CAUTION: Danger of personal injury Never touch or look into the optical lens within the CD compartment. This is a CLASS-1 laser product. CAUTION: Danger of hearing damage To avoid possible hearing damage, do not listen to this Retro turntable at high volume levels for long periods of time. Always keep the volume within reasonable limits.31

• Read these instructions.

• Keep these instructions.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the Point where they exit from the apparatus.

• Only use attachments/accessories specied by the manufacturer.

• Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in anyway, such as power- supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, apparatus has been exposed to ratin or moisture, does not operate normally, or has been dropped.

• Apparatus shall not be exposed to dripping or splashing.

• Do not place any sources of danger on the apparatus (e.g. liquid lled objects, lighted candles).

• Where the MAINS plug (or AC/DC adaptor) or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

• Make sure there is enough free space around the product for ventilation.

• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, re or the like.

• The rating label is placed on the back side of apparatus. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type32

• Do not ingest the battery (chemical burn hazard)

• The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

• Keep new and used batteries away from children.

• If the battery compartment does not close securely, stop using the product and keep it away from children.

• If you think batteries may have been swallowed or placed inside any part of the body, seek immediate medical attention. Special safety instructions

• Never place this apparatus on other electrical equipment.

• Keep this apparatus away from direct sunlight, naked Fames or heat.

• Never look into the laser beam inside this apparatus.

• Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this apparatus from the power

• The apparatus shall not be exposed to dripping or splashing and no liquid-lled objects, such as vases, shall be placed on the apparatus.

• To ensure complete disconnection from the power input, the mains plug of the apparatus shall be disconnected from the mains.

• The mains plug of the apparatus must not be obstructed OR must be easily accessed during intended use.

• Minimum distances 10 cm around the apparatus for suicient ventilations

• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

• No naked ame sources such as lighted candles should be placed on the apparatus

• Attention should be drawn to environmental aspects of battery disposal

• The use of apparatus in moderate climates.33

INSTALLATION OPTIONS Attaching the stand Align the top portion of the stand with the mounting area located on the bottom of the main unit. Once in place, the round mounting on the stand will align with the circular mounting tab located on the back of the unit. A “click” sound is heard when the stand is attached. Check that the base is locked rmly in place and does not come o . To remove the stand, press on the mounting tab to unlock the stand, and pull down to remove the stand, see illustration below:34

For wall mounting (stand removed) It is important to be sure there are no electric, gas or water lines located behind the wall where you are attaching the unit. We recommend having this speaker professionally installed. Use the included wall mounting accessories and template to attach the sound bar to the wall.

1. Use the supplied wall mounting instruction sheet to make marks on

the wall for the plastic anchors. Make sure the marks are level before drilling.

2. Drill ¼” holes on the marks.

3. Insert the included plastic anchors into the holes until they are ush with

4. Attach the 2 included spacer sleeves to the wall using the included

screws, and tighten the screws.

5. When the screws are tightened, the screw heads should be about ¼”

away from the spacer sleeves. Line up the keyhole slots located on the back of the main unit with screws in the wall, see illustration below: Screw Wall plugs plastic Spacer Sleeves35

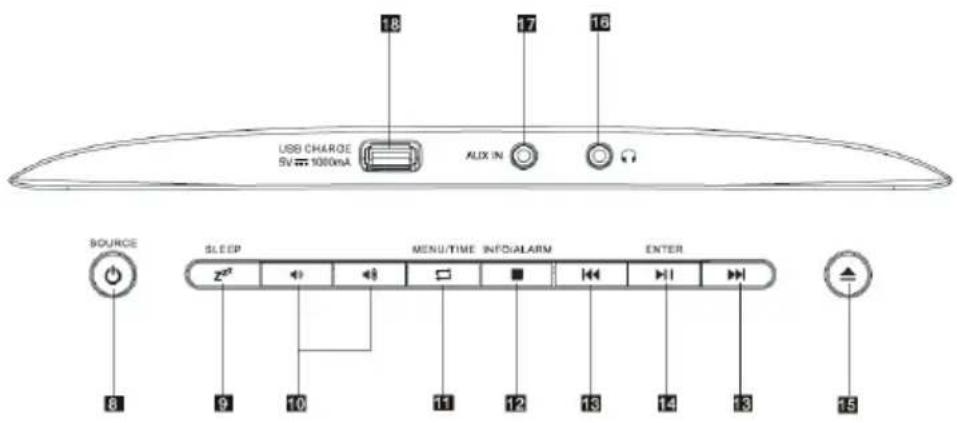

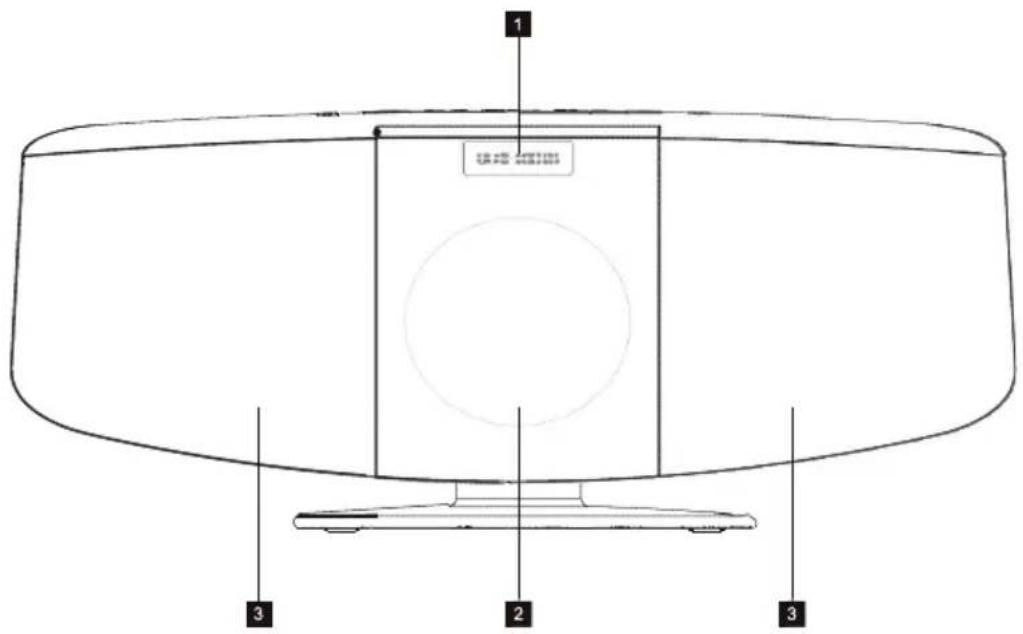

Sleep timer button Snooze button 10 Volume Down / Up Button 11 Menu / Time: Select CD repeat Press to DAB menu Setting the clock 12 /Info/Alarm In CD mode: Stop CD playing. In DAB mode: View the DAB information In standby mode: Setting the ALARM

In CD / BT mode: Skip to the previous or next track. In CD mode: Press & hold to fast backward/forward. In DAB/FM mode: Tuning Down / Up. 14 : In CD / BT mode: Play/Pause

In CD / BT mode: stop. 16 Headphone jack 17 USB charging: charging port Top view37

GETTING STARTED Place the unit in the desired position and unravel the mains cable. Insert the cable into the supply socket and switch on if applicable. Auto standby When playing media from a connected device, the Tower automatically switches to standby if:

• No button is pressed for 10 minutes,

• No audio from a connected device for 10 minutes. Battery power

• Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.

• Use batteries of the same type. Never use dierent types of batteries together.

• Do not throw the battery into the re, or exposed to sunshine or the like.

• If the liquid contained in the batteries comes in contact with eyes or skin, wash the area immediately and carefully with clear water and consult a doctor. Notes:

• Before using the unit, check that the local mains supply is compatible with the unit 230V (50Hz).

• Do not plug or unplug the power cable when your hands wet.

• When planning not to use this unit for long periods of time (i.e., Vacation etc.) disconnect the plug from the wall outlet.

• When disconnecting the power cord from the wall outlet, grasp the plug; do not pull the cord in order to avoid shock risks caused by the damaged cable. Operation Press the POWER button to turn ON/OFF the unit. Adjusting the volume Rotate the Volume knob clockwise to increase the volume. Rotate the Volume knob anti-clockwise to decrease the volume. Check the display, which will conrm the volume setting.39

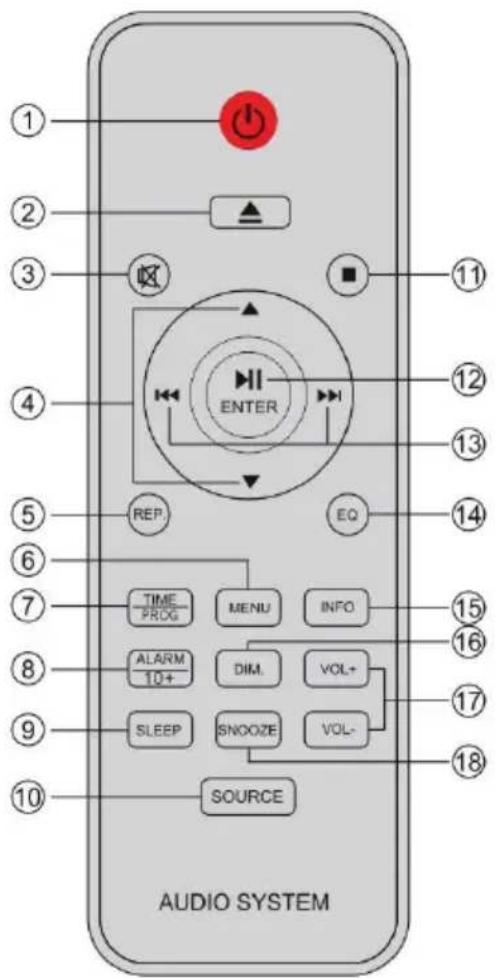

Mute Function Press the MUTE button on remote control, The volume is muted and the “Volume Muted” will appear on LCD display. Press this button again to cancel the mute function. Clock and Timers Setting the clock and date After the unit is plugged into a mains supply or following a mains power failure, the display will show the current time and date on the LCD display. The unit should be in standby mode to set the current clock.

1. Press CLOCK button, “Time setup” displayed, press ENTER to

conrm,”time wizard interval”displayed.

“YES/NO” Setting Alarm Note: Check that the radio has the correct time and date before you set an alarm. This unit may be used as an alarm clock. The BT device, CD device or DAB/ FM radio is activated to play at a preset time.

1. Press POWER button to switch the unit to standby mode.

2. Make sure that you have set the clock correctly.

3. Press ALARM button in shutdown state; press ALARM twice to set Alarm

4. “Alarm 1 (or 2) Setup” is displayed. Press the ENTER button to select.

5. “Alarm 1 (or 2) Wizard On time” is displayed and the hour digits for the

6. Press / repeatedly to set hour. Press ENTER to conrm.40

7. Press / to set minute,Press ENTER to conrm.

8. Press / select the Alarm volume from 0 to 30,Press ENTER to

10. Press / button to scroll to the duration for the alarm. You can choose

from 15, 30, 45, 60, minutes. Press the ENTER button to select. Press / to select YES and press ENTER to save the alarm,

11. The display will show the current time and Alarm 1 (or Alarm 2 or at the

1. Whenever the alarm (alarm 1, alarm 2) comes on, it can be temporarily

suspended for a short period of approximately 9 minutes, by pressing the “SNOOZE” key once.

2. The alarm (alarm 1, alarm 2) will then automatically come on again after

approximately 9 minutes “snooze” period has ended.

3. And the “snooze” symbol will show on the display to remind that the

snooze function is active.

4. To deactivate the snooze, press and release the “POWER”key once.

1. Repeatedly press the SLEEP button,you can set 90/80/70/60/50/40/

30/20/10 minutes.this is useful for sleeping to music at night.

2. If you want to cancel the sleep mode, repeatedly press SLEEP to select

OFF, the sleep mode will cancel. Display Backlight You can press the DIM button adjust the display backlight brightness, there are 3 options available, High, Medium and Low.41

Carefully extend the telescopic aerial. Press the POWER button to turn on the unit, it will auto into DAB mode. Auto Scan

1. Rotate the SOURCE knob to select “DAB MODE”.( if unit not in DAB

mode).If this is the rst time the unit has entered DAB Mode, it will automatically start an ‘Auto Scan’ to search for available stations. (Once DAB Mode has been used before, the unit will automatically select the previously played station)

2. Press ENTER button to automatically start auto scan to search for

available station. During the scanning process, the lower line of the display shows a bar graph indicating the progress of the scan. Manual Scan

1. Rotate the SOURCE key on main unit to select “DAB MODE”.

3. Press or to tune in the desired channel. The graph will indicate the

4. Press MENU or [ ] to exit scan.

5. If no stations are found, please ensure the aerial is extended and test the

reception by doing another auto scan in a dierent location. DRC(Dynamic Range Control) Dynamic Range Control (also known as DRC) is a technology used to help make quieter sounds easier to hear in a noisy environment.

1. In DAB mode, press the / button to select “DRC”, press the ENTER

button to display “*” to the top right.

2. Press MENU to conrm the setting. The display will return to normal.

DRC OFF - DRC is switched o, broadcast DRC will be ignored. DRC LOW - DRC level is set to 1/2 that sent by broadcaster. DRC HIGH - DRC level is used as sent by broadcaster. Prune (To Remove Stations That are Listed But Unavailable) In DAB mode, press or to display the “Prune” submenu, press ENTER button to select the Prune option.42

Press ENTER to go to language selection; the default source language is English, the selected language will have ”*” displayed at the top right. Users may choose between “Deutsch”, “Italiano” and ”Français”.

Press ENTER to go to factory reset. If you wish to perform the reset operation, push the / until “YES” is highlighted on the display and press. A full reset of your radio will be performed. All presets and station lists will be erased.

Press ENTER to view DAB software version. Press Menu or . The display will return to normal. Note: If there are no operations after 30 seconds, the display will return to normal. Preset

1. Preset Recall: In DAB mode, press / to select “Preset Recall”, then

press [ENTER] to tune to the station stored in preset memory. Note: If you have not previously stored a preset station and the preset button is pressed, “Empty preset” will be displayed.

2. Preset Store: You may store your preferred DAB stations to the preset

station memories. There are 20 memory presets in your radio. Presets are remembered by your radio in the event of a power failure. The procedure for setting presets and using them to tune stations is the same for DAB modes: In DAB mode, select the desired wave band. Press to view the stored stations, press or to tune to the required station as previously described, and then press ENTER to select the desired preset number under which you will store the station. Press ENTER to conrm.43

FM RADIO Carefully extend the telescopic aerial to its full length. Auto Scan

1. Rotate the SOURCE knob to select “FM Mode”.

button, and your radio will scan and stop automatically when it nds a station of suicient signal strength.

3. After a few seconds, the display will update. The display will show the

station frequency. If the signal is strong enough and the station signal contains RDS data, then the radio will display the station name.

4. To nd other stations, press and hold the button as before.

5. To scan the FM band in the opposite direction (high frequencies to low

frequencies), press the button and hold for 2 seconds.

6. When the waveband end is reached, your radio will recommence tuning

from the opposite waveband end. Manual Scan

1. Rotate the SOURCE knob on the main unit to select “FM Mode’’.

2. Select FM mode as previously decribed, if required.

3. Press / to tune to a station. Each press of the tuning button will

change the frequency up or down by 100 kHz.

4. When the waveband end is reached, the radio will recommence tuning

from the opposite waveband end. If no stations are found, please ensure the aerial is extended and test the reception by doing another auto scan in a dierent location. Menu

to select [Scan setting], then press ENTER to select the sensitivity setting:44

1.1 All stations: ~15dB

Press ENTER, tune to the station stored in preset memory Preset Recall <1:90.5MHz> 90.5MHz

You may store your preferred FM stations to the preset station memories. There are 20 memory presets in your radio. Presets are remembered by your radio in the event of a power failure. The procedure for setting presets and using them to tune stations is the same for DAB modes: In FM mode, select the desired wave band. Press to view the stored stations, press or to tune to the required station as previously described, and then press ENTER to select the preset number under which you will store the station. Press ENTER to conrm. Preset Store <1:90.5MHz> Preset 1 stored BT MODE You must follow several steps to connect your mobile phone:

1. Activate BT from your mobile phone (please refer to your phone’s user

2. Press the POWER button to turn on the unit,

3. Rotate the SOURCE knob to select the BT mode It will be ready to pair

4. Use your mobile phone to search for the BT device named “BlackMask”.

5. Your mobile phone will nd “Auna Northfolk” and will present the option

to connect or not. Please connect to it using the password “0000” (if any). When you are successfully connected, the BT indicator “BT connected” appears on the LCD display. Automatically Connecting with Your Phone Pairing is only needed the rst time the unit and phone are used together. When the unit and phone have been paired once, they will automatically connect when the unit is on and BT is activated on the phone. The next time you power on, the unit will automatically connect to the most recently connected mobile phone. Play from BT Device After successful BT connection, press the button to play. Press the or button to skip the tracks backwards or forwards. To pause or resume play, press the button again. Press and hold the button to disconnect BT.46

CD PLAYER NOTE: Never touch the laser lens inside the CD compartment. Clean the laser lens using a CD cleaner disc if it becomes dirty.

1. Press the POWER button to turn on the unit.

2. Rotate the SOURCE knob to select the CD function.

button to open the CD door and insert a CD into the tray (with printed label side facing up).

button again to close the CD DOOR and the disc will rotate for a few seconds, then play the 1st track automatically.

5. To temporarily stop playback, press the

button, and to resume playback, press it again.

button to STOP play. Reverse/forward

1. The and buttons are used to jump to a dierent track number or to

scan disc tracks at high speed.

2. Press the button once to hear the beginning of the current track. Press

it two or more times to hear previous tracks on the disc.

3. Press the button to hear the next tracks on the disc.

4. Press and hold the button. The current track will be scanned and

move backwards to the previous track(s); When the desired track section is found, release the button and normal play will resume.

5. Press and hold the button, the current track will be scanned and move

forward to the next track(s). When the desired track section is found, release the selected button and normal playback will resume. Repeat function The CD REPEAT button may be used to repeat a single track or repeat all tracks on a compact disc.

1. Press the REPEAT button once during playback, the “REPEAT ONE” sign

will appear on the LCD display for about 2 seconds. The same track will be repeated over and over.

2. Press the REPEAT button a second time to repeat all tracks. The “REPEAT

ALL” sign will appear on the LCD display for about 2 seconds.

3. To cancel REPEAT PLAY, press the REPEAT button repeatedly until

“REPEAT OFF” appears on the LCD display for about 2 seconds.47

Program Function The Program feature may be used to program up to 20 tracks to play in a selected order.

1. While in the stop mode only (CD is not playing), press the PROG button,

and the LCD display will show the wording “P 01” and “T 01” starts to ash.

2. Press the and buttons to allocate the desired track.

3. Press the PROG button to select and store the track into memory.

4. Repeat step 2 to 3 to select up to 20 tracks.

5. To play the selected tracks (in the program mode), press the

6. Press the button to hear the previous program track or press the

button to hear the next program track. Note: After all programmed tracks have been played, the CD player will return to the stop mode.

button to exit program play mode.

1. Press the POWER button to turn on the unit.

2. Rotate the SOURCE knob to select CD Mode.

3. Close the CD Door. The disc will rotate for a few seconds and then play

the 1st track automatically.

4. Press the and buttons to choose a track .

button to stop play. Note: Because MP3 discs have a large capacity, disc access times are a little longer. Repeat Playing Function Single track repeat: Press the REPEAT button once to repeat a single track. The display appears as “Repeat one”. Whole Disc Repeat: In Play mode, press the REPEAT button 2 times to repeatedly play all tracks on the disc. The display will show “Repeat All”. To cancel repeat play, press the REPEAT button repeatedly until the “Repeat o” sign appears.48

Programmed play The tracks on the disc can be programmed to play in any order (up to 20 tracks can be programmed). Note: this can only be done while in Stop mode

1. Press the PROG button while in Stop mode. “P01” “F01” will appear on

the display and “T001” will ash.

2. Press either the or button to select the desired tracks in the album,

then press the PROG button to store in the memory.

3. The rst track number is now stored in memory, and the program

number changes to “P02”, waiting for your next selection.

4. Repeat Steps 1 – 3 to program additional tracks.

After programming is nished, press the button, and programmed play begins from the rst programmed track. The player stops automatically after all programmed tracks have been played. (Press the button twice to cancel the programmed tracks memory). EQUALIZER FUNCTION With your unit switched on (not in Standby mode):

Classic, Jazz, Pop, Rock ) according to your individual preferences.

3. Press EQ button twice, use the / button to scroll the Bass setting.

4. Press EQ button three times, uss the the / button to scroll the Treble

setting. USB CHARGING (5V OUT) The USB port is designed for charging external devices, such as smart phones. Output power is 5 V 2.1 A.49

1. Press the POWER button to turn on the unit.

3. Connect the AUX connect wire from the AUX out jack of your personal

player (e.g. portable MP3 player) to the AUX input jack.

4. Start playback from your personal player.

1. Press the POWER button to turn on the unit.

2. Rotate SOURCE knob to select the Line-In mode. ‘Line-In’ will appear on

3. Connect the Line in connect wire from the line out jack of your personal

player (e.g. portable MP3 player) to the Line input jack.

4. Start playback from your personal player.

1. Rotate the volume to set a low volume

2. Inset the headphones to the Phone jack.

Caution: Risk of hearing impairment Set a low volume on the playback device before connecting the headphones to the sound source. Avoid excessive volume, particularly over extended periods or frequent use.50

DISPOSAL CONSIDERATIONS If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

DECLARATION OF CONFORMITY

Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom Hereby, Chal-Tec GmbH declares that the radio equipment type BlackMask is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10034080 For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type BlackMask is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/1003408051
