USER MANUAL Pitstop i-Size Foppapedretti

Exterior view of a modern baby car seat with beige and gray sections, featuring a green accent (no text or symbols visible)

ISO/B2

Simple black-and-white icon of a person sitting in a car seat, enclosed in a rounded square frame (no text or symbols)

ECE R129-03

IT SEGGIOLINO AUTO - Istruzioni di montaggio
EN CAR SEAT - Assembly instructions
FR SIÈGE-AUTO - Notice d'utilisation
ES SILLA DE COCHE - Manual de instrucciones
PT CADEIRA AUTO - Manual de instruções
EL ΠΑΙΔΙΚΟ ΚΑΘΙΣΜΑ ΑΥΤΟΚΙΝΗΤΟΥ - Οδηγιεσ χρησησ
RU АВТОКРЕСЛО - Инструкция по установке

IT. IMPORTANTE - LEGGERE ATTENTAMENTE E CONSERVARE PER FUTURO RIFERIMENTO

EN. IMPORTANT! READ THE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE

FR. IMPORTANT! LIRE ATTENTIVEMENT ET CONSERVER SOIGNEUSEMENT A PORTEE DE MAIN POUR UNE UTILISATION ULTERIEURE

ES. IMPORTANTE! LEER ATENTAMENTE Y CONSERVAR PARA FUTURAS REFERENCIAS

PT. IMPORTANTE! LER ATENTAMENTE E GUARDAR PARA FUTURA CONSULTA

Line drawing of a baby car seat with a green seat and orange arrow indicating the seat (no text or symbols)

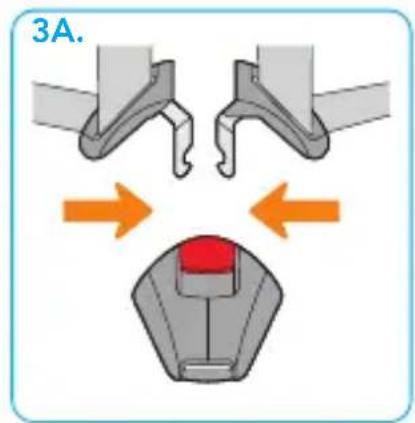

3A.

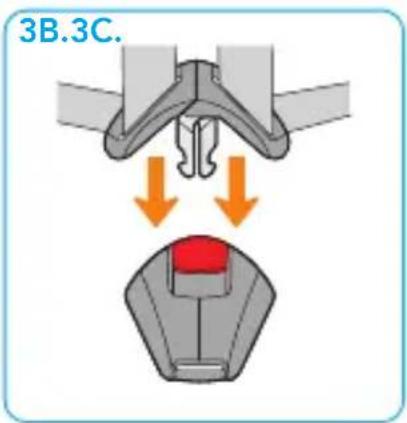

3B.3C.

click

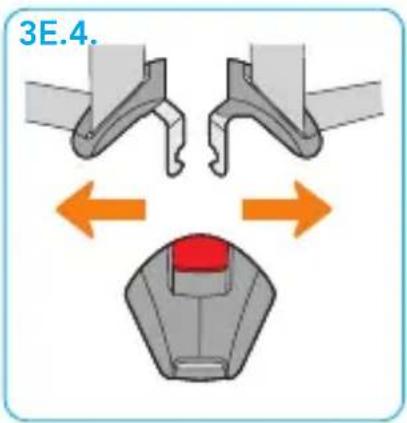

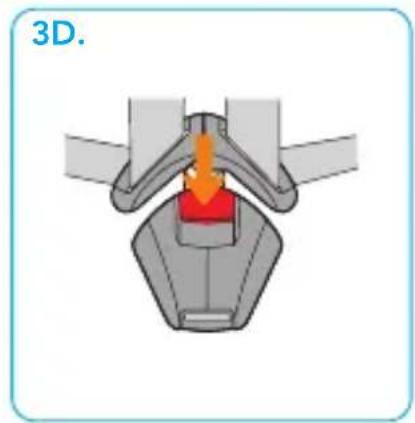

Diagram of a mechanical component with an orange arrow indicating force or direction, labeled '3D.' (no text or symbols on the diagram itself)

3E.4.

Line drawing of a hand pressing down on a car seatbelt, with an orange double-headed arrow indicating the angle (no text or symbols)

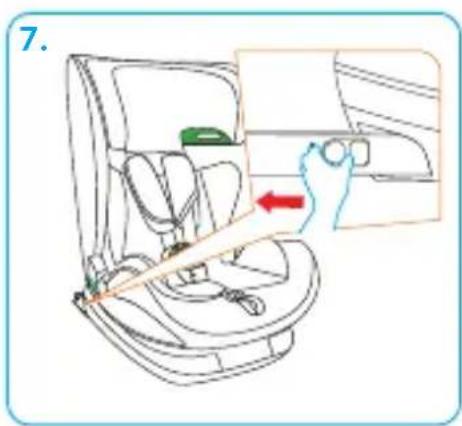

7.

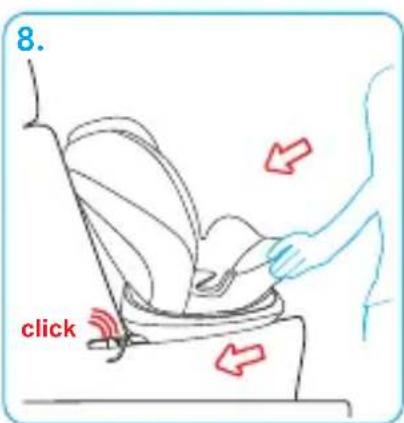

8. click

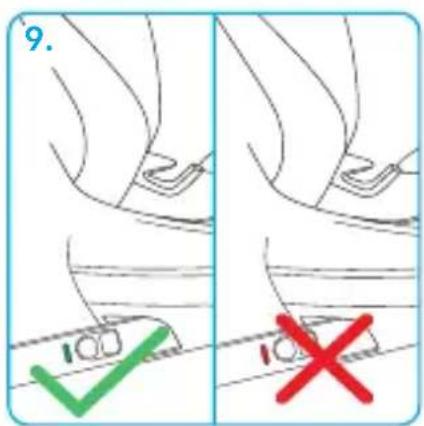

9.

Line drawing of a car seat with a red arrow indicating direction (no text or symbols)

Illustration of a hand using a blue belt to lift a car seatbelt, with red arrows indicating force direction (no text or symbols)

Simple line drawing of a mechanical device with no text or symbols

A B C click

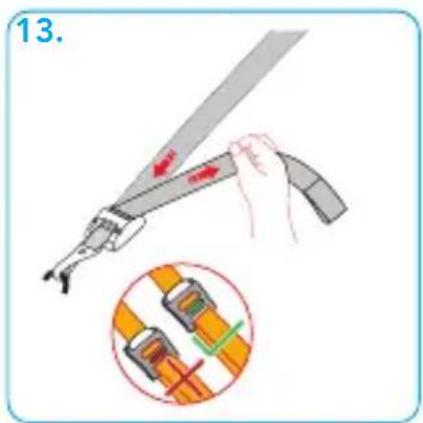

13.

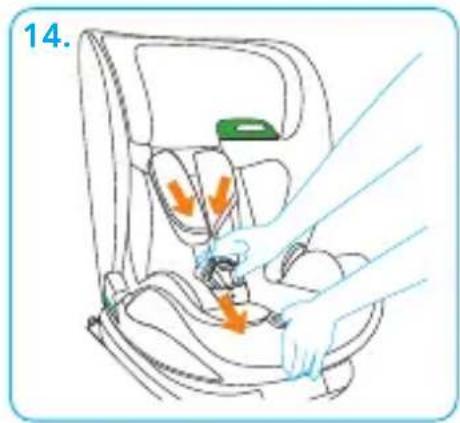

14.

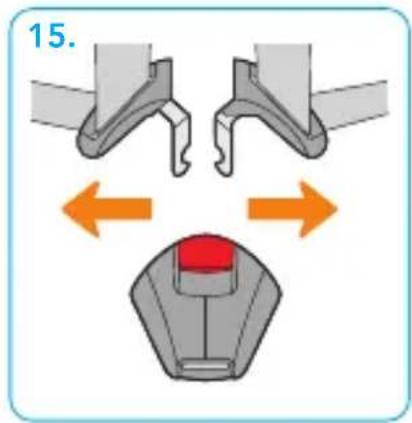

15.

Line drawing of a car seat with orange arrows indicating seat positions (no text or symbols)

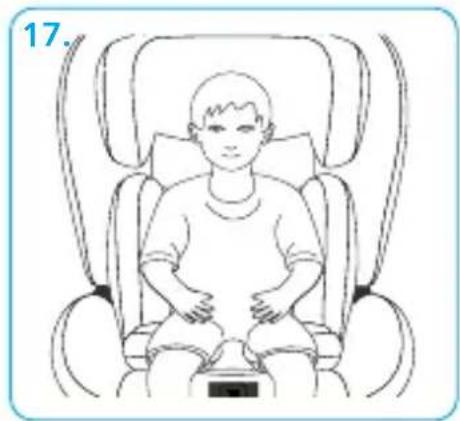

Line drawing of a child seated in a car seat (no text or symbols)

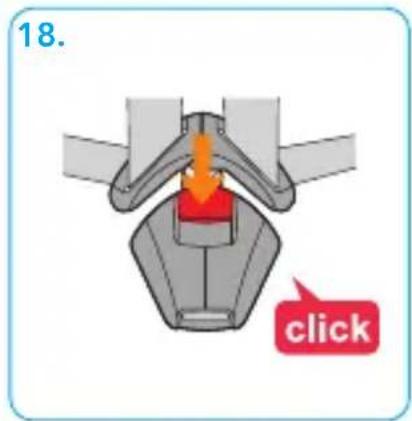

18. click

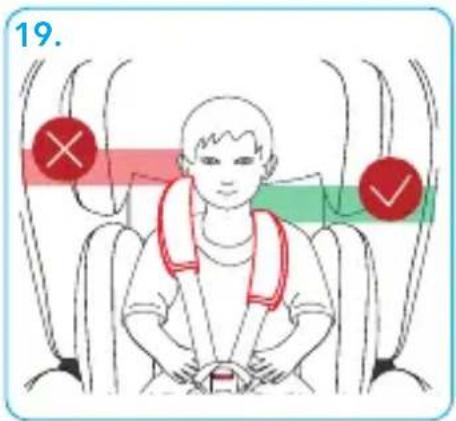

19.

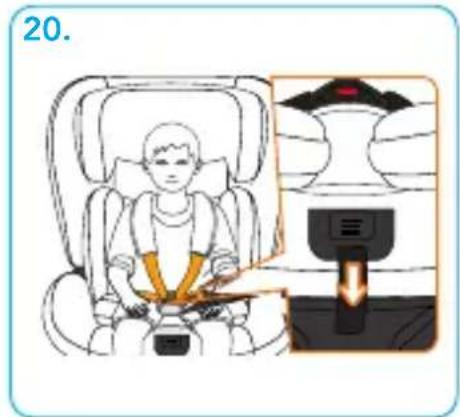

20.

Line drawing of a car seatbelt with a tool inserted, showing no text or symbols

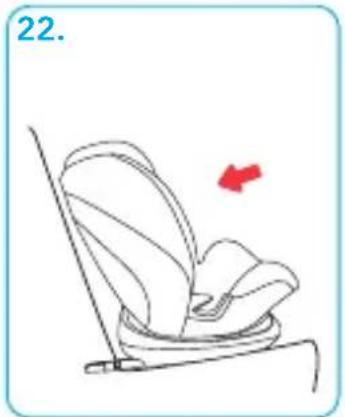

Line drawing of a car seat with a red arrow indicating direction (no text or symbols)

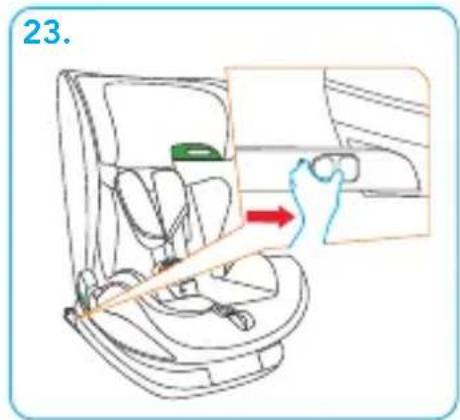

23.

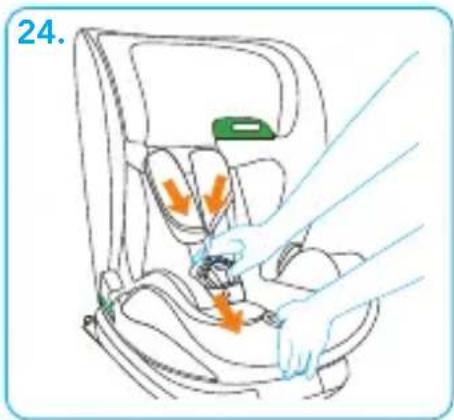

24.

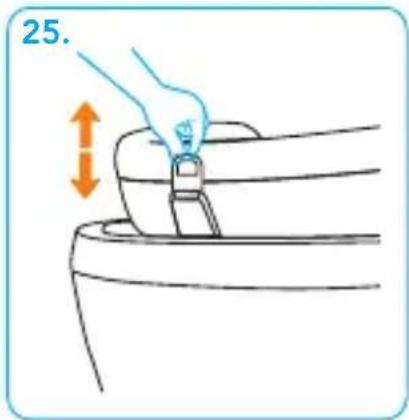

25.

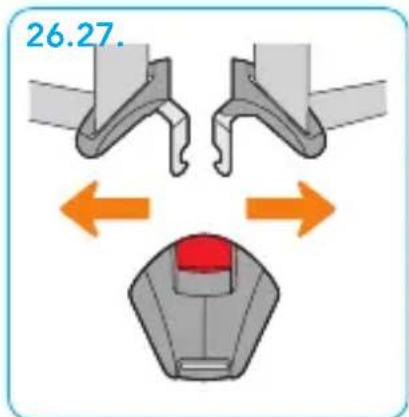

26.27.

Line drawing of a car seat with orange connectors at the bottom (no text or symbols)

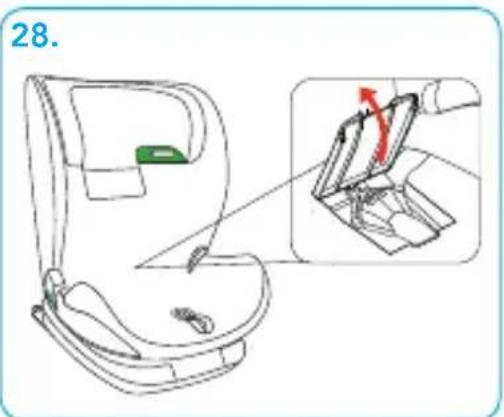

28.

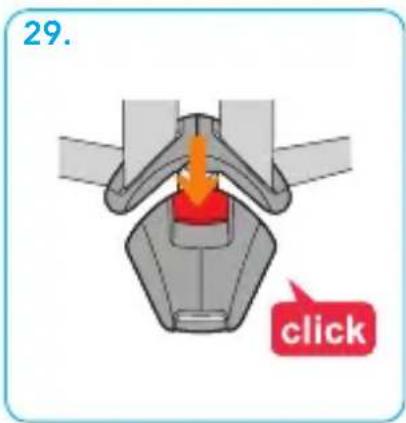

29. click

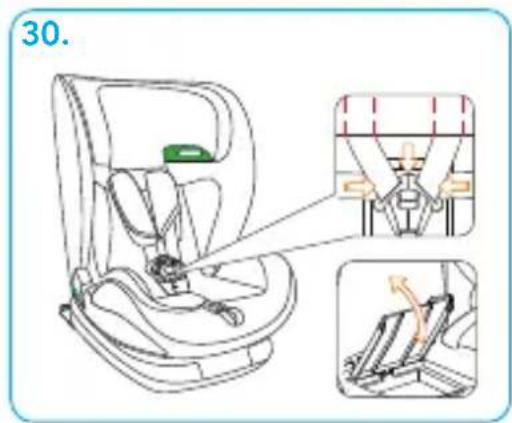

30.

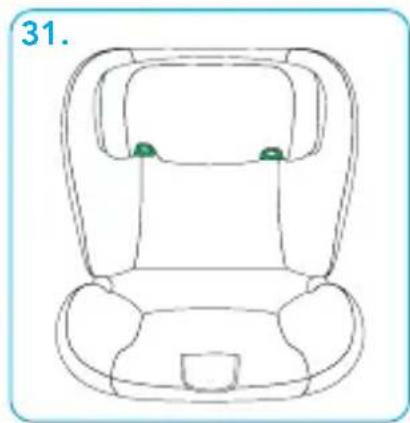

Line drawing of a car seat with two green buttons and a small square base (no text or symbols)

Line drawing of a car seat with straps and seatbelt (no text or symbols)

Line drawing of a baby car seat with a hand adjusting the seat (no text or symbols)

Line drawing of a baby car seat with straps and seatbelt (no text or symbols)

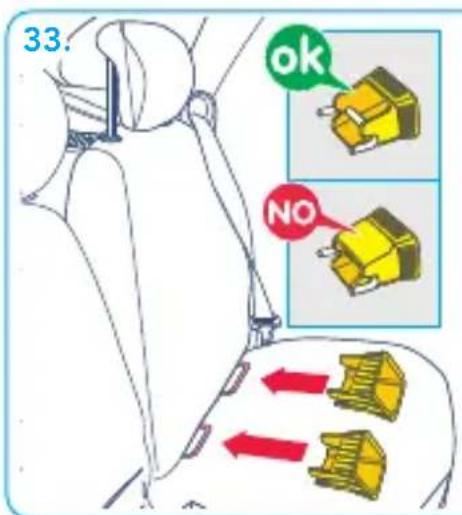

33. ok NO

Diagram showing correct and incorrect car seat replacement rules with checkmark and no-noise symbol

click

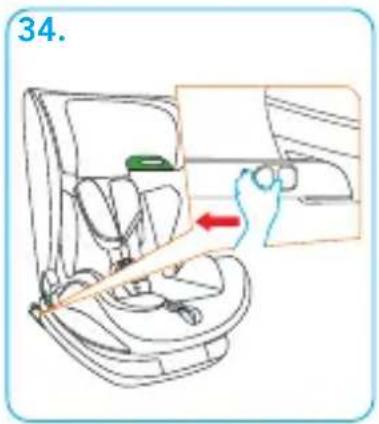

34.

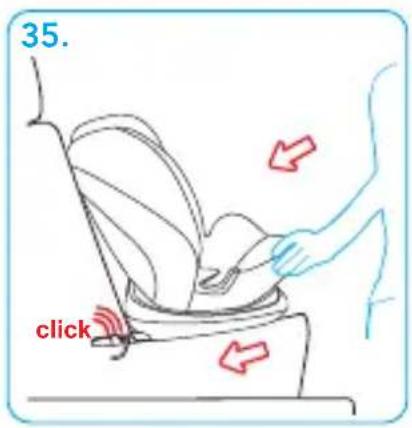

35. click

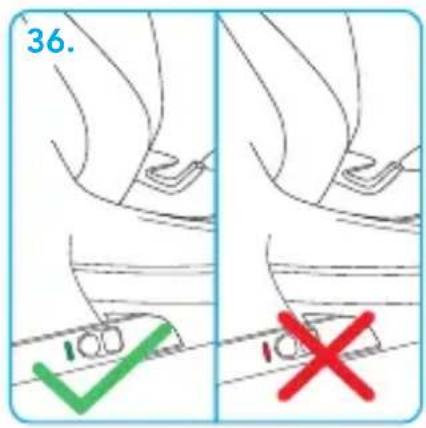

36.

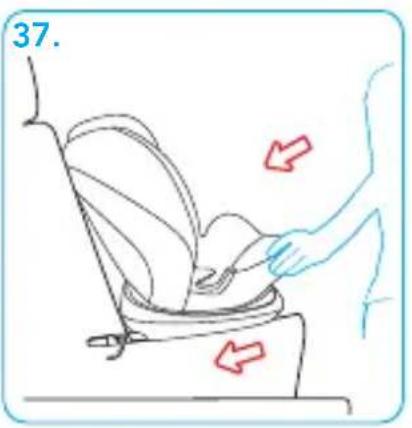

37.

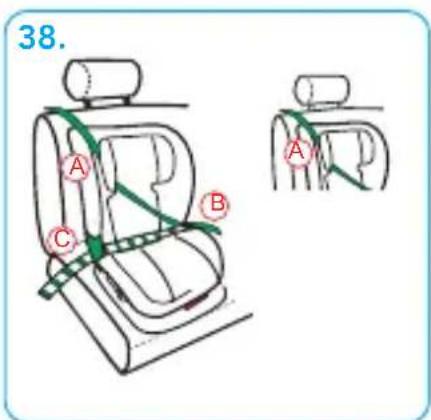

38. A B C

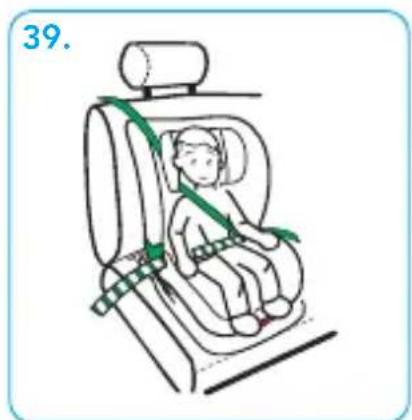

Illustration of a child seated in a car seat with green safety belt (no text or symbols)

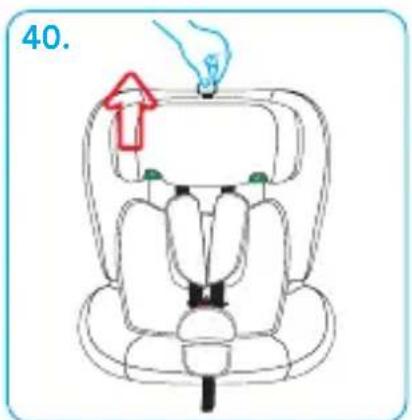

40.

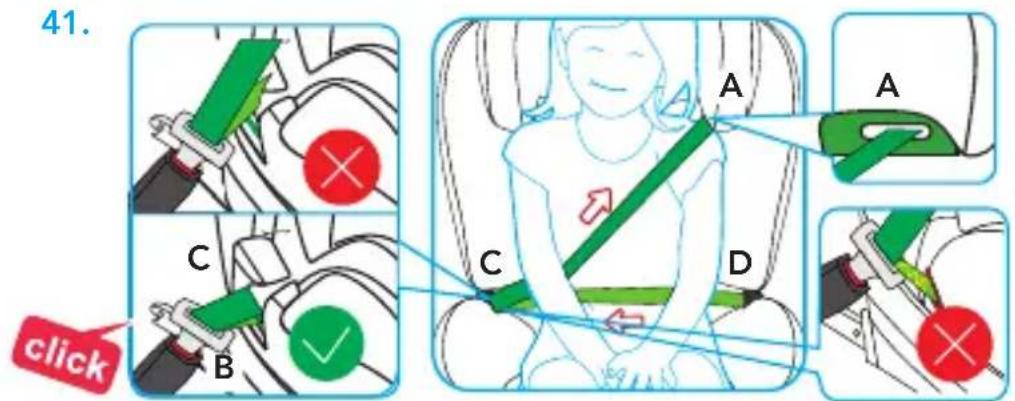

41. A C B C D A click

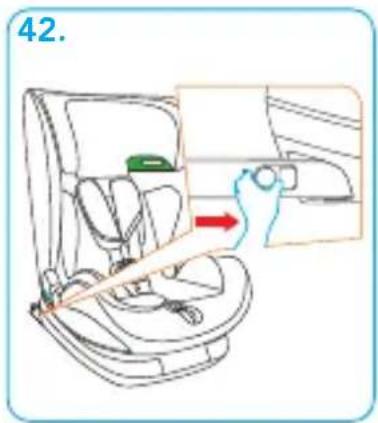

42.

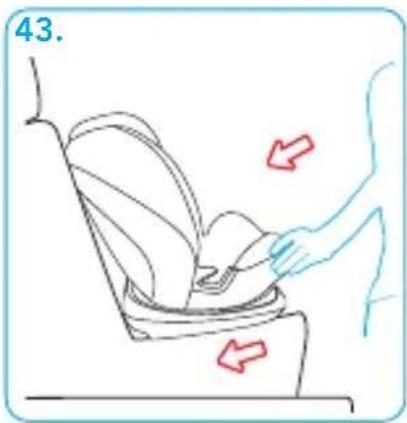

43.

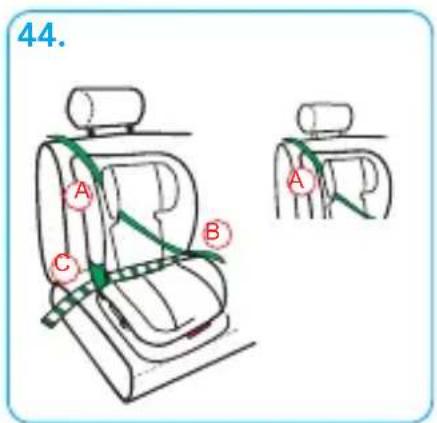

44. A B C

Illustration of a child seated in a car seat with a green safety belt, no text or symbols present

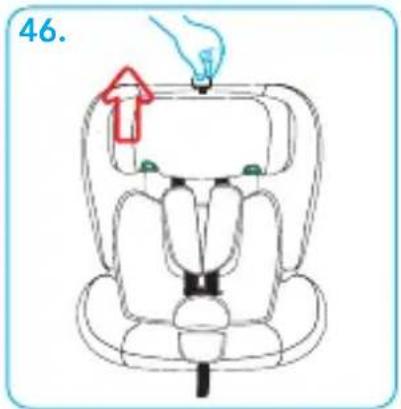

46.

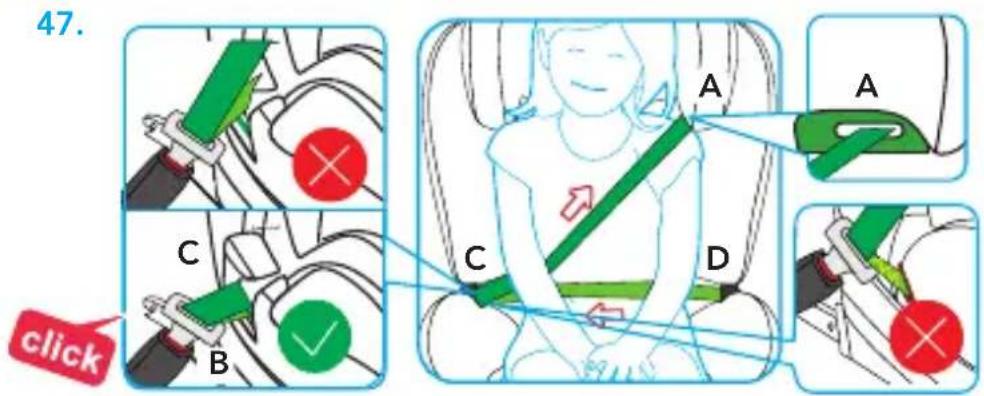

47. A A C B C D click

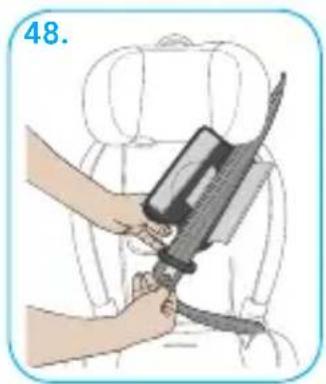

Illustration of a hand using a cable to lift a car seatbelt, no text or symbols present

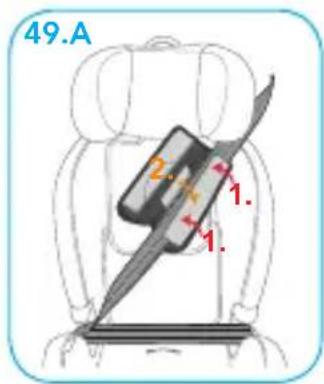

49.A 2. 1. 1.

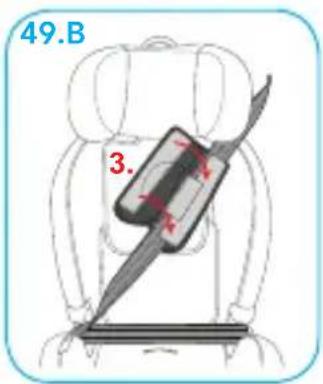

49.B 3.

Line drawing of a car seatbelt with a diagonal band and seat, no text or symbols present

50.

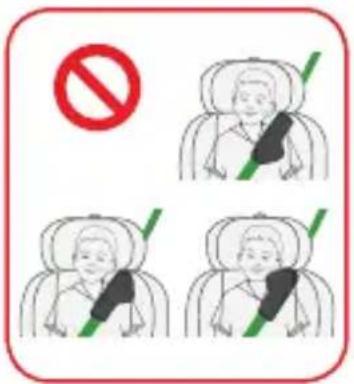

Safety warning illustration showing four scenarios of car seatbelt usage, with a red prohibition symbol indicating no used seats.

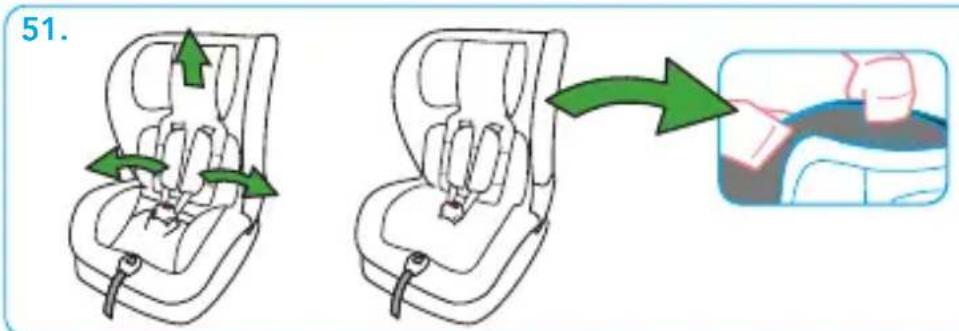

51.

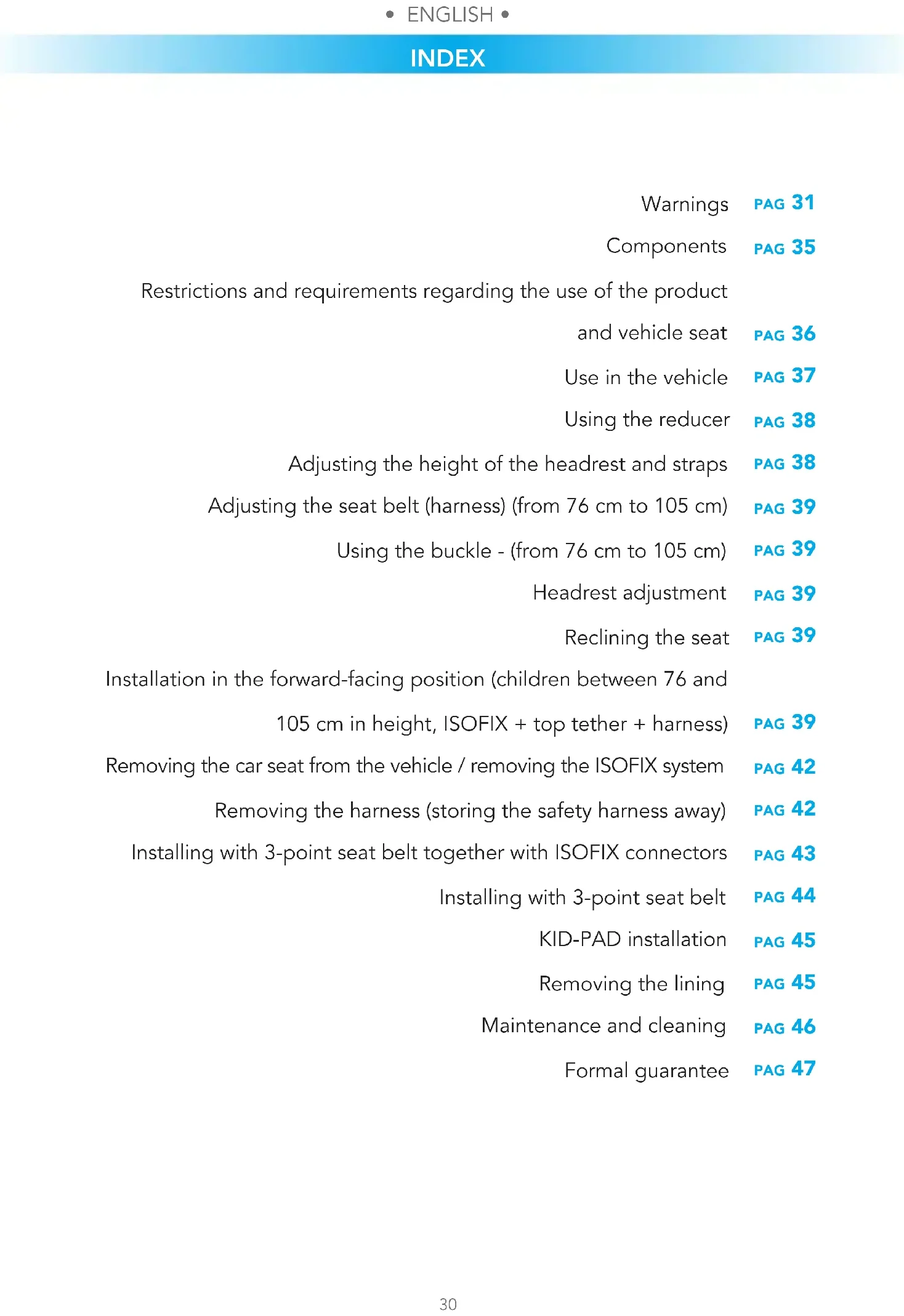

INDICE

Diagram of a car comfort seat with numbered labels pointing to different compartments

Technical diagram of a car seat assembly with numbered parts labeled 12, 13, and 14

Diagram of a car seatbelt with a green checkmark and arrow indicating direction (no text or symbols)

Diagram showing a cross symbol with red X and two crossed lines, indicating a medical or surgical procedure.

Diagram showing car safety symbols: no sign, red circle, and warning sign inside a vehicle

Front view of a car with a red prohibition symbol on the seat (no text or numbers present)

Diagram showing vehicle safety warning signs with red prohibition symbols and numbered warning labels

Circular icon showing two orange belt buckle clips with a green checkmark and red X mark (no text or symbols)

Diagram showing a hand pressing down on a device with blue arrows indicating motion or force (no text or symbols)

UTILIZZO A BORDO DEL VEICOLO

Warnings PAG 31
Components PAG 35
Restrictions and requirements regarding the use of the product
and vehicle seat PAG 36
Use in the vehicle PAG 37
Using the reducer PAG 38
Adjusting the height of the headrest and straps PAG 38
Adjusting the seat belt (harness) (from 76 cm to 105 cm) PAG 39

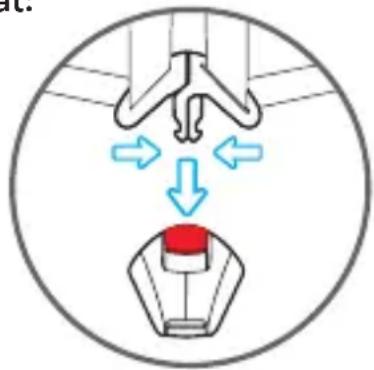

Using the buckle - (from 76 cm to 105 cm) PAG 39
Headrest adjustment PAG 39
Reclining the seat PAG 39
Installation in the forward-facing position (children between 76 and
105 cm in height, ISOFIX + top tether + harness) PAG 39
Removing the car seat from the vehicle / removing the ISOFIX system
Removing the harness (storing the safety harness away) PAG 42

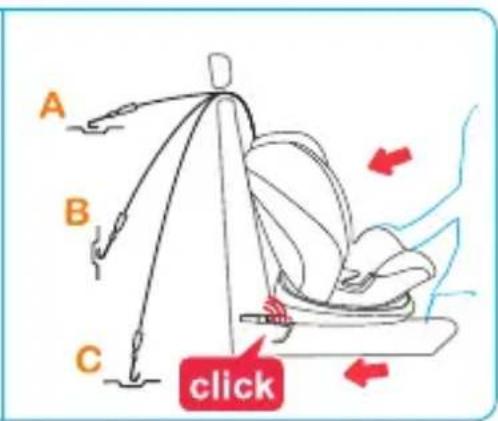

Installing with 3-point seat belt together with ISOFIX connectors PAG 43
Installing with 3-point seat belt PAG 44
KID-PAD installation PAG 45
Removing the lining PAG 45
Maintenance and cleaning PAG 46
Formal guarantee PAG 47

WARNINGS

ATTENTION:

• Before use, it is recommended that you carefully read the instructions, which you will need to follow strictly in order to have the highest levels of product safety.
• Store these instructions carefully for future reference. These instructions can be stored in the special compartment on the car seat during the period of use.
• Failure to follow the car seat installation instructions carefully could pose a risk to your baby.
• Do not use a car seat on the front seat where active airbags are fitted, as this can be
  • dangerous. This risk does not apply to the side airbags.

• This car seat is approved according to the ECE R129/03 regulation for the transport
  • of children between 76 cm and 150 cm in height, and can be installed:

• In the forward-facing position (children between 76 and 105 cm in height), with the ISOFIX anchoring system + Top Tether.

• In the forward-facing position (children between 100 and 150 cm in height), with the ISOFIX anchoring system + the vehicle 3-point seat belt or with the vehicle 3-point seat belt only.

• IMPORTANT: Do not use forward facing before the child's age exceeds 15 months.

• The car seat can be installed facing forward once the child is at least 76 cm tall.
• NOTICE: This is an i-Size Enhanced Child Restraint System. It is approved according to UN Regulation No. 129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users' manual. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.
• NOTICE: This is a i-Size booster seat Enhanced Child Restraint System. It is approved according to UN Regulation No. 129. for use primarily in “i-Size seating positions” as indicated by vehicle manufacturers in the vehicle user’s manual. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.
• WARNING: NEVER leave your child unattended – your child's safety is your responsibility.
• WARNING: Adult assembly required.
• WARNING: The child car seat must be fitted in accordance with the manufacturer's instructions. Incorrect installation could be dangerous.
• WARNING: Always ensure that new or occasional users [e.g. grandparents] have read the instructions or been taught the correct installation by someone who has read and understood the instructions.
• WARNING: Always keep this instruction manual with the child car seat, or in the vehicle in which you are carrying the child car seat. Some models of child car seat have a pocket to store the instructions.
• WARNING: If in doubt regarding the installation and correct use of the car seat, contact the manufacturer of the child restraint device.

WARNINGS

BEFORE STARTING

• WARNING: Do not fit the child car seat in a rearward facing position
• WARNING: Before installing the child car seat ensure that the passenger seat you are using is locked in the upright position.
• WARNING: Do not use the child car seat in the home - it has only been designed to be used in the car.
• WARNING: Do not leave loose/unsecured objects on the back seat of your car or the parcel shelf. They may be dangerous to your child if you are forced to brake suddenly.

WHEN USING THE CHILD CAR SEAT

• WARNING: WARNING: Make sure that the child car seat is placed somewhere so that rigid items and plastic parts do not become trapped in doors or movable seat units when the seat is in everyday use.
• WARNING: Always use the vehicle's door child safety lock system, if one is available, to make it impossible for the child to open the car doors from inside.
• WARNING: Allow the child a break during long car journeys and make sure they don't get out of the car seat unaided and without supervision.
• WARNING: NEVER leave your child unattended – your child's safety is your responsibility.
• WARNING: Ensure that the child car seat is secured to the car seat at all times even when not in use.
• WARNING: The child car seat must be fitted securely to the passenger seat. Ensure that it is not loose or wobbly after you have fitted it.
• WARNING: The child seat shall not be used without the cover.
• WARNING: The seat cover should not be replaced with any other than the one recommended by the manufacturer, because the cover constitutes an integral part of the restraint performance.
• WARNING: Allow the child a break during long car journeys and make sure they don't get out of the car seat unaided and without supervision.
• WARNING: In the event of an emergency it is important to be able to release the child quickly (as defined by British Standards). This means that seat buckle cannot be fully tamper proof and you should actively discourage your child from playing with or using the buckle.
• You should actively discourage your child from playing with or using the buckle.

SEAT BELT

• WARNING: NEVER use any load bearing contact points other than those described in these instructions.
• WARNING: Ensure that the lap section of the seatbelt or harness is worn low down, so that pelvis is firmly engaged. The harness must be tight enough, the space between the pectoral belt and the child's chest must not be more than two fingers thick. The abdominal belt of the harness should be in the lowest possible position to adequately restrain the child's pelvis.

WARNINGS

• WARNING: Make sure that ALL the passengers in your vehicle have their seatbelts fastened, as unrestrained people can be very dangerous to the child in an accident..
• WARNING: NEVER use a seatbelt routing scheme that differs from these instructions.
• WARNING: The lap and diagonal seatbelt must be used at all times when your child is in the child car seat.

SUNLIGHT/HOT DAYS

• WARNING: Do not leave your child in the child car seat while parked in direct sunlight or on a hot day.
• WARNING: Do not subject the child car seat to prolonged direct sunlight as this may be dangerous for your child (the metal and plastic fittings could become hot) and may cause the fabric to fade. You can reduce this problem by covering the child car seat with a sheet when not in use.

SECOND HAND OR DAMAGED CHILD CAR SEATS AND SEATBELTS

• WARNING: Never buy a second hand child car seat. It may have unseen damage.
• WARNING: The manufacturer only guarantees this product when the original owner uses it.
• WARNING: You MUST replace the child car seat and your vehicles seatbelts if they become badly worn or amazed.
• WARNING: You MUST replace the child car seat if it is involved in an accident it may have unseen damage and may not protect your child as well as it should. At the very least send the child car seat to your retailer for inspection, together with the accident report.
• The FOPPAPEDRETTI company declines all responsibility for improper use of the product and for any use that does not comply with these instructions.

IMPORTANT WARNING

from 76 to 105 cm (i-Size universal ISOFIX)

This is an i-Size Enhanced Child Restraint System. It is approved according to UN Regulation No. 129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users' manual. "Pitstop i-Size" can be used in all i-Size seating positions and in any ISOFIX seating positions.

If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

From 76 cm to 105 cm it must be installed on seats equipped with the ISOFIX System and Top Tether.

From 100 cm to 150 cm (i-Size booster seat).

This is a i-Size booster seat Enhanced Child Restraint System. It is approved according to UN Regulation No. 129, for use primarily in "i-Size seating positions" as indicated by vehicle manufacturers in the vehicle user's manual. "Pitstop i-Size" can be used in all i-Size seating positions and, it can be used also in any UNIVERSAL seating position

WARNINGS

provided that it does not conflict with the interior of the car. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

WARNING! DO NOT use the Top Tether from 100 to 150 cm.

- If the vehicle is not fitted with Isofix anchorage, the "Pitstop i-Size" can be installed (in the 100-150 cm configuration) front-facing with a 3-point adult safety belt, approved according to UN/ECE Regulation No. 16 or equivalent.

- WARNING! When using the 3-point adult safety belt, make sure that the lap portion is positioned correctly on the pelvic area.

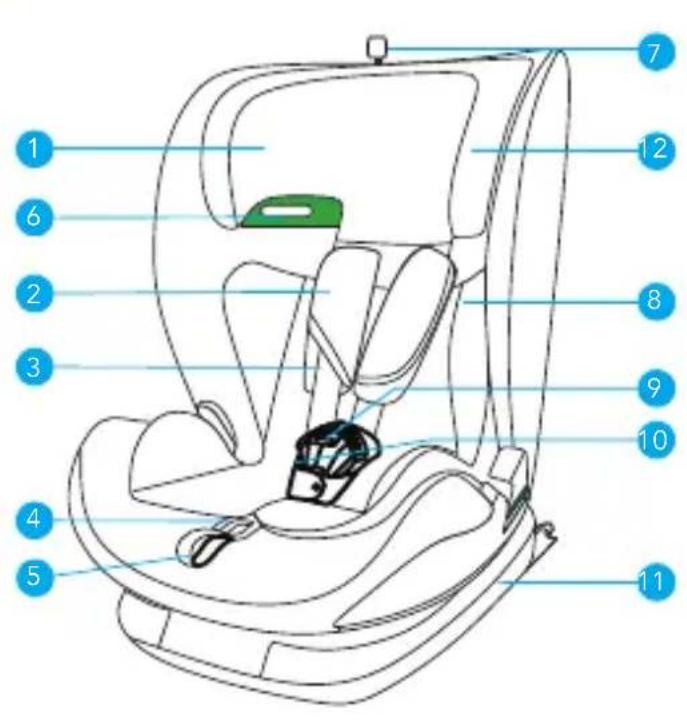

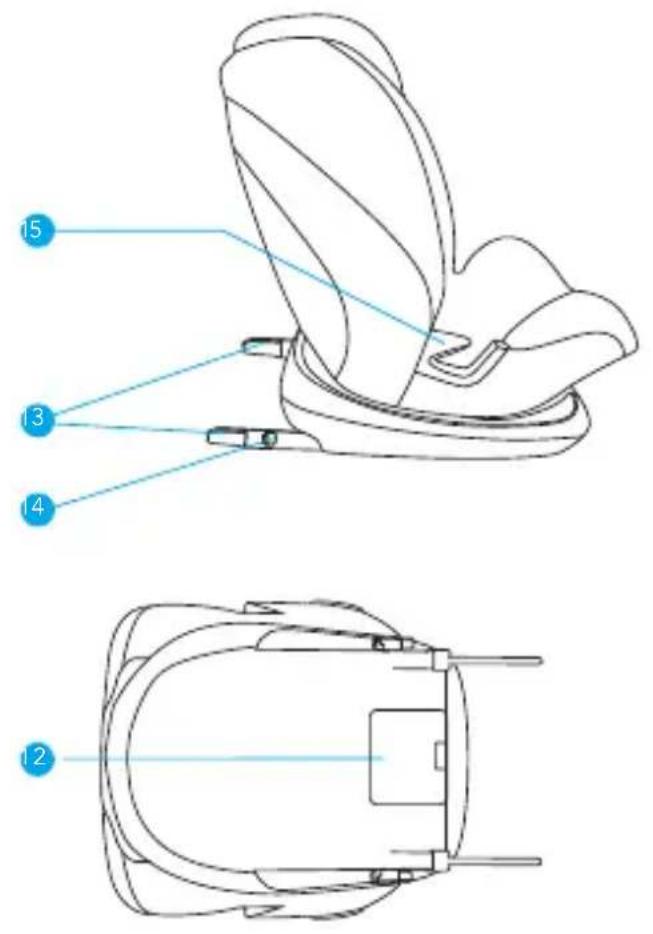

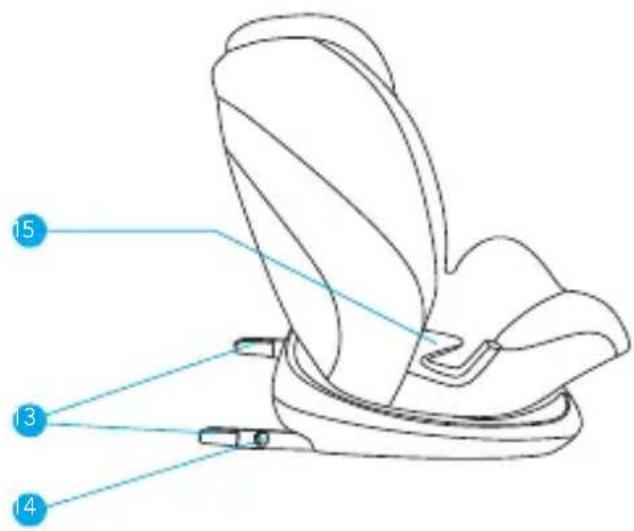

COMPONENTS

Diagram of a car comfort seat with numbered labels pointing to different compartments

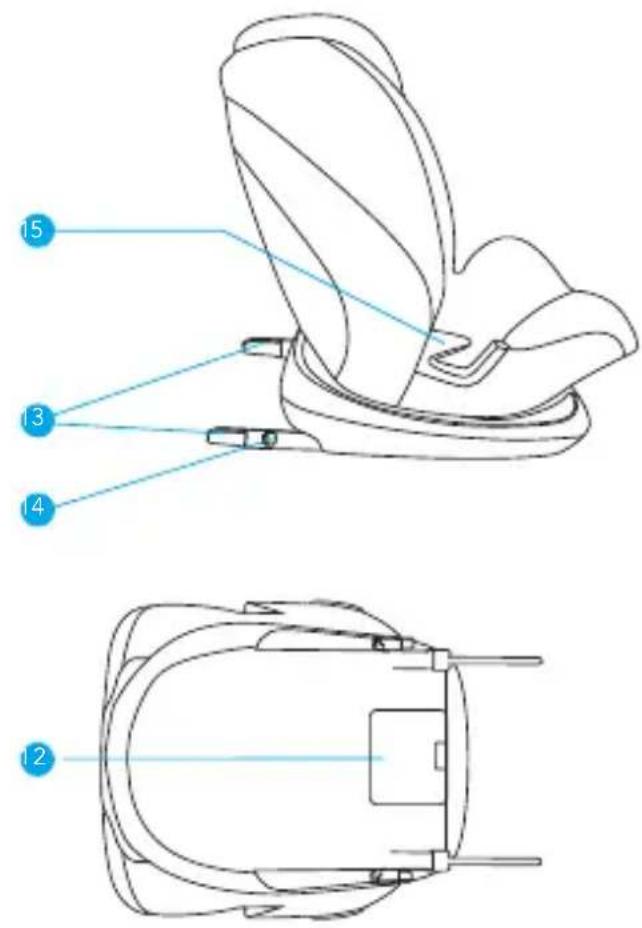

Technical diagram of a car seat assembly with numbered parts labeled 12, 13, and 14

1. Headrest
2. Chest belt protection
3. 5-point seat belt
4. Shoulder strap adjustment belt
5. Lever to recline the seat
6. Diagonal belt guide
7. Headrest adjustment handle

8. Reducer

9. Buckle

10. Crotch protection
11. Base

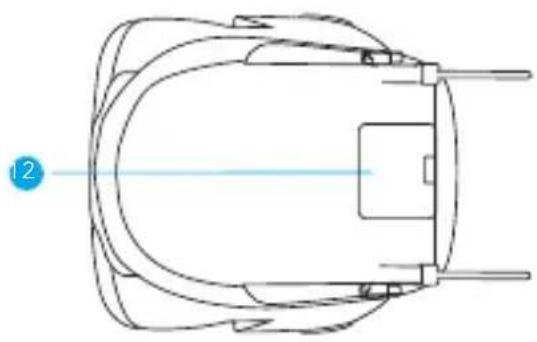

12. Instruction compartment
    13.ISOFIX connectors
13. ISOFIX release button
14. Lap belt guide

It is recommended to use the car seat with ISOFIX connectors if the vehicle is equipped with ISOFIX anchorage.

USE IN THE VEHICLE

RESTRICTIONS AND REQUIREMENTS REGARDING THE USE OF THE PRODUCT AND VEHICLE SEAT

WARNING! Follow the restrictions at all times:

• The car seat can be installed facing forward once the child is at least 76 cm tall.
• IMPORTANT! Do not use forward facing before the child's age exceeds 15 months.
• The car seat can be used on all i-Size approved vehicle seats (check the vehicle's instruction manual) and on seats of vehicles included in the "Vehicle compatibility list" given with the car seat.

- The vehicle seat must be forward facing. Never use this car seat on vehicle seats facing the sides or opposite to the direction of the driver's seat.

CAR SEAT	GROUP INSTALLATION METHODS TYPE
Pitstop i-Size 76	-105 cm i-SizeISOFIX + Top Tether
Pitstop i-Size 10	0-150 cm i-Size booster seatISOFIX + 3-point Seat Belt
Pitstop i-Size 10	0-150 cm i-Size booster seat Point Seat Belt

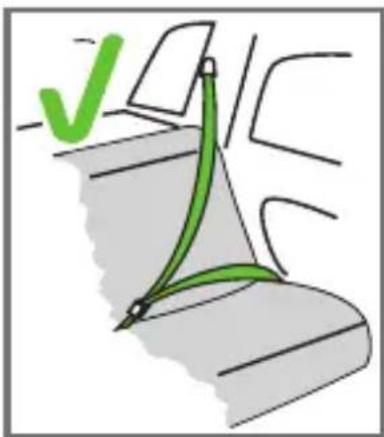

Diagram showing a green checkmark and a blue checkmark on a mechanical component with labeled parts and arrows indicating motion or force.

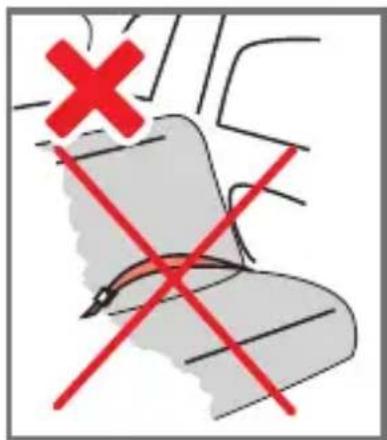

Diagram showing a crosshair symbol with red X and diagonal lines, likely indicating a warning or error in a technical context.

The car seat can be fitted only if the vehicles considered as suitable are equipped with 3-point seat belts approved pursuant to Regulation UN/ECE n.16 or other equivalent standards.

USE IN THE VEHICLE

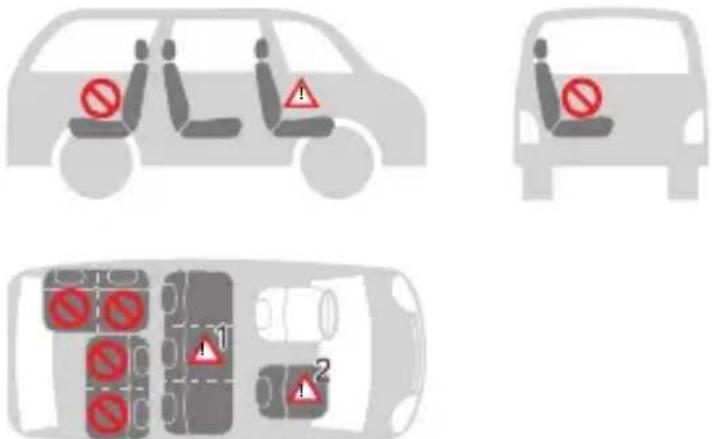

The car seat can be installed as shown in the figure:

Diagram showing three car safety zones with no-dominant traffic signs, including warning symbols and hazard signs.

• Forward-facing	YES
• Rear-facing	NO
• With a 2-point seat beltThe use of two-point seat belts significantly increases the risk of injury to the child in the event of an accident.	NO
• With 3-point seat beltsThe seat belt must be approved according to the ECE R16 regulation or other equivalent standards	YES
• With the ISOFIX anchoring system and Top Tether If a front airbag is fitted: slide the passenger seat very far back and check the instructions contained in the vehicle manual.	YES
• On the front passenger seatDO NOT USE ON PASSENGER SEATS EQUIPPED WITH ACTIVE FRONT AIRBAGS!The car seat can be attached to the front passenger seat using the ISOFIX systems, or alternatively without these, by following the same warnings as for these systems (slide the passenger seat backwards and consult the instructions in the vehicle user manual).	YES
• On the two rear side passenger seat	YES
• On the rear centre passenger seatThe car seat can be used on the central rear passenger seat if it is equipped with a three-point seat belt.	[VA2C]

(You must comply with local regulations in force in your country of residence).

USE IN THE VEHICLE

USING THE REDUCER

The seat reducer is designed for use with children, to ensure greater comfort and stability and provide a more reclined position, preventing their head from falling forwards.

The reducer must be used until the child reaches 87 cm (fig 1).

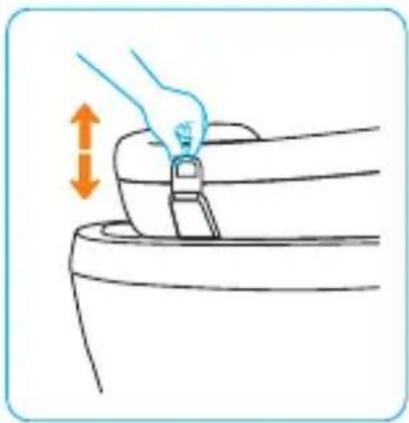

ADJUSTING THE HEIGHT OF THE HEADREST AND STRAPS

Adjusting the headrest correctly ensures maximum protection for your child when inside the car seat.

From 76 to 105 cm: When using the 5-point harness, the headrest must be adjusted so that there is a 1-finger (1 cm) space between the shoulder straps and the top of the shoulders.

IMPORTANT: Loosen the shoulder straps before adjusting the headrest. Adjusting the straps to a position lower or higher than the child's shoulders can compromise your child's safety.

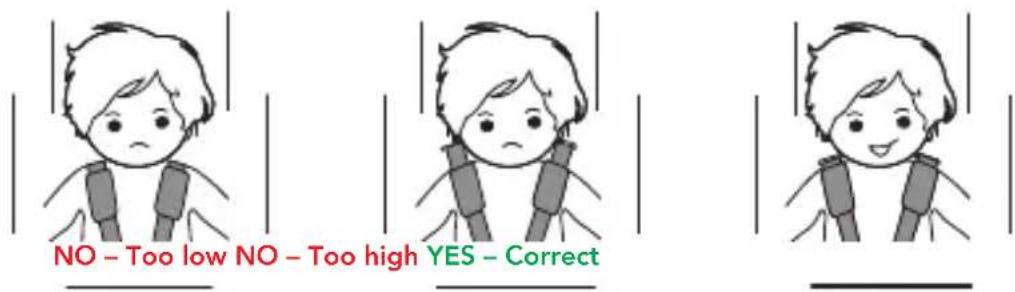

NO - Too low NO - Too high YES - Correct

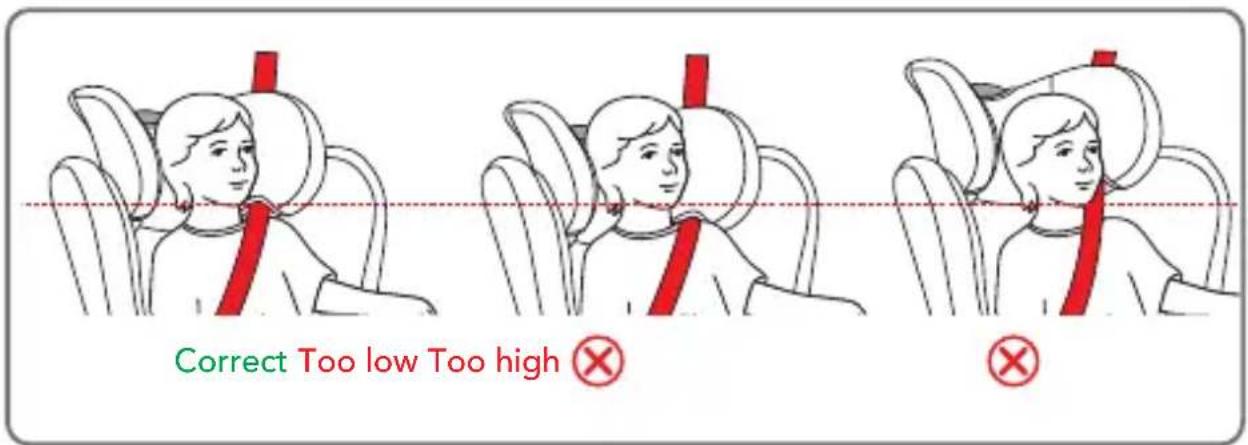

From 100 to 150 cm: When using the 3-point vehicle seat belt, the headrest must be adjusted so that there is a two-finger space between the headrest and the child's shoulders. Make sure that the diagonal belt, when passing through the "diagonal belt guide loop" on the side of the headrest, is positioned at the shoulders and not at the child's neck.

Correct Too low Too high ✗ ✕

USE IN THE VEHICLE

ADJUSTING THE SEAT BELT (HARNESS) (From 76 cm to 105 cm)

To loosen the harness: Press the adjustment button and at the same time grip the straps (chest belts) at the bottom, under the pads of the chest protectors, and pull them forwards to loosen them (fig. 2A).

IMPORTANT: Do not pull on the shoulder pads.

Tightening the harness: Pull the harness adjustment strap so as to tighten it properly against the body of the child (fig. 2B). The harness is correctly tightened when the gap between the harness and the child is no greater than the thickness of your finger (1 cm).

NOTE: check that the buckle is secured by tugging the shoulder and waist straps.

ATTENTION: Do not twist or overlap the harness straps.

USING THE BUCKLE - (From 76 cm to 105 cm)

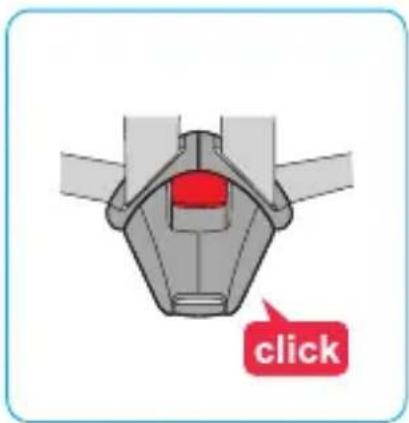

To attach the buckle: Hold together the central buckle tabs (fig. 3A, 3B) and insert them in the special slot inside the harness buckle. A “click” will indicate that it has attached correctly (fig. 3C).

NOTE: to attach the buckle, it is necessary to insert both tabs.

To release the buckle: Press the red button to remove the tabs from the central buckle (fig. 3D, 3E).

HEADREST ADJUSTMENT

The headrest can be adjusted to different heights (n.12). Pull the ring of the adjustment strap (6) and raise or lower the headrest to the correct position (fig.4).

In group 76-105cm, the adjustment of the headrest also changes the height of the shoulder straps.

RECLINING THE SEAT

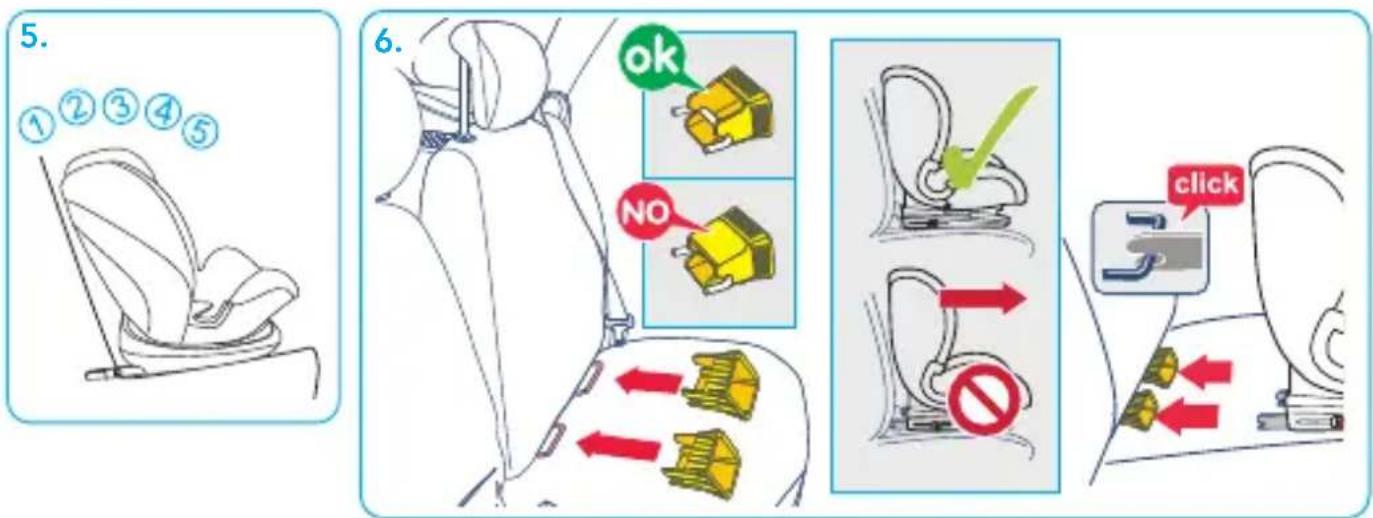

The seat of the car seat can be reclined in 5 different positions (pos. 1, 2, 3, 4, 5).

To adjust the tilt: Press the adjustment handle located under the front of the car seat and, holding it down, pull or push the seat forwards or backwards. Release the handle when the seat is in the desired position and make sure that it is locked correctly; you will hear a "click" when the seat has attached (fig. 5).

INSTALLATION IN THE FORWARD-FACING POSITION

(Children between 76 and 105 cm in height, ISOFIX + Top Tether + harness)

Installation only on vehicles equipped with an ISOFIX anchoring system and Top Tether

attachment.

WARNING! Using the car seat in the rear-facing position is mandatory for a child up to 15 months of age and 76 cm in height.

If your car does not have standard ISOFIX connector guides, insert those supplied with the car seat (fig 6).

USE IN THE VEHICLE

SUGGESTION: The ISOFIX anchoring points are located between the seat and the backrest of the passenger seat.

Press both sides of the adjustment/release button on the ISOFIX connectors simultaneously and extend the ISOFIX connectors (fig. 7).

Locate the ISOFIX attachments supplied with the vehicle.

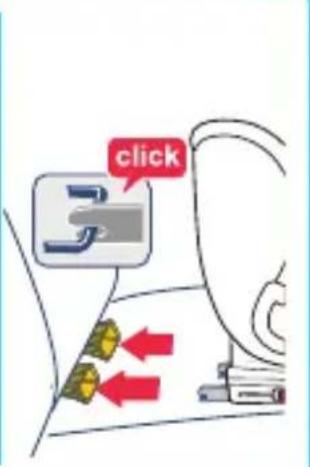

Align the ISOFIX connectors with the anchoring points fixed to the vehicle passenger seat and press until you hear a "click" (fig. 8). The indicator on both brackets will turn green, confirming that they have attached. (fig.9).

Ensure that both brackets are correctly fastened. Shake the car seat to be sure it is correctly fixed in place.

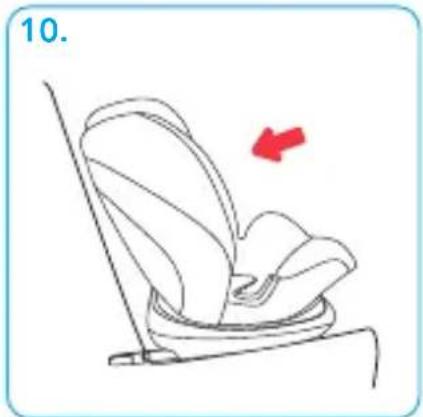

Push the car seat against the passenger seat, making sure that both ISOFIX connectors are extended in the same position. There must not be any space between the backrest of the passenger seat and the car seat (fig. 10).

Grasp the Top Tether belt and, if necessary, lengthen the strap by pressing the appropriate locking button, extending it to the desired length (fig.11).

Attach the upper fixing device of the "Top Tether" to the anchoring point indicated in the vehicle user manual (fig. 12). Check that this icon is present inside the passenger compartment.

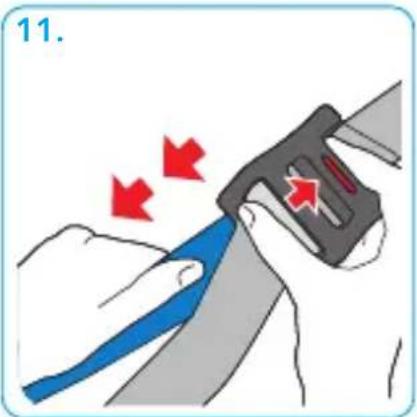

Tighten the Top Tether belt until the indicator turns green (fig. 11). This indicates that the belt is tightened correctly. The Top Tether belt must pass over the backrest of the vehicle passenger seat, it must never pass over the headrest. If necessary, lift up or remove the headrest from the passenger seat.

ROLL UP THE EXCESS TOP TETHER BELT AND HIDE IT AWAY, TO PREVENT YOUR CHILD FROM PICKING IT UP AND PLAYING WITH IT, AS IT COULD BE EXTREMELY DANGEROUS.

ATTENTION

If the Top Tether anchoring strap has been correctly attached and tightened, the indicator will turn green.

Circular icon showing two orange belt buckle clips with a green checkmark and red X mark (no text or symbols)

Press the adjustment button and at the same time grip the straps (chest belts) at the bottom, under the pads of the chest protectors, and pull them forwards to loosen them (fig. 14).

IMPORTANT: Do not pull on the shoulder pads.

See paragraph "Adjusting the seat belt (harness)".

USE IN THE VEHICLE

Press the red button on the central buckle to release the shoulder straps (fig. 15).

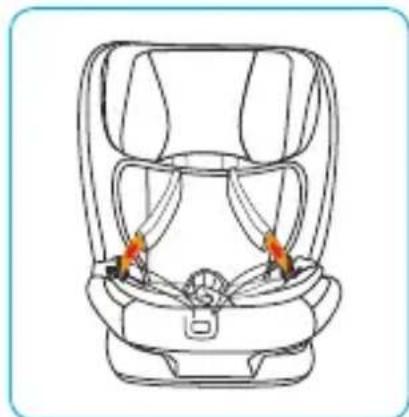

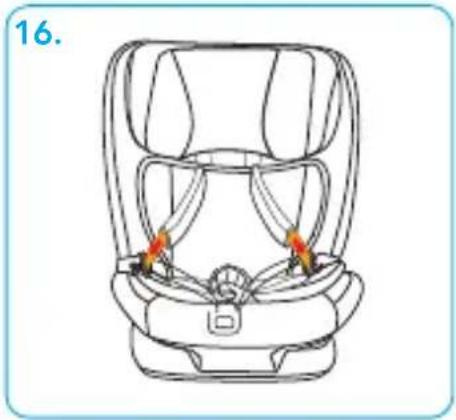

Place the shoulder straps on the sides of the car seat (fig. 16).

Place the child into the car seat (fig. 17). Place the straps over the child's shoulders, join together the two belt tabs and hook them to the buckle (fig. 18).

IMPORTANT! Correct adjustment of the headrest ensures maximum protection for your child when they are inside the car seat. When using the 5-point harness, the headrest must be adjusted so that there is 1 finger (1 cm) gap between the shoulder straps and the top of the shoulders. fig. 19.

IMPORTANT: Loosen the shoulder straps before adjusting the headrest.

To attach the buckle: See paragraph "Using the buckle".

Tightening the harness: (fig. 20) See paragraph "Adjusting the seat belt (harness)".

PRECAUTIONS TO MAKE SURE YOU HAVE CORRECTLY FASTENED THE CAR SEAT HARNESS

IMPORTANT

For the safety of your child, always make sure that:

• The harness belts are correctly adjusted according to the child's height, and are correctly tightened;
• The chest straps are adjusted in the correct position;
• The harness belts are not twisted;
• The tabs are properly engaged in the buckle

Diagram showing a mechanical component with directional arrows indicating motion or force (no text or symbols)

USE IN THE VEHICLE

REMOVING THE CAR SEAT FROM THE VEHICLE / REMOVING THE ISOFIX SYSTEM

Releasing the Top Tether: To release the Top Tether belt, press the button on the Top Tether belt-tightening adjuster and loosen the belt to reduce the tension (fig. 21). Unhook the belt anchoring carabiner. Push the car seat against the backrest of the passenger seat (fig. 22).

At the same time press the ISOFIX release buttons and retract the ISOFIX connectors (fig. 23).

Remove the car seat from the vehicle.

REMOVING THE HARNESS (Storing the safety harness away)

• (Fig 24) - Completely loosen the shoulder straps, see paragraph "ADJUSTING THE SEAT BELT (HARNESS) (From 76 cm to 105 cm)".

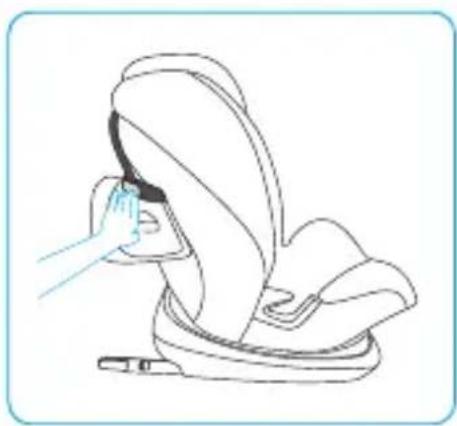

• (Fig. 25) - Pull the handle on the headrest and, keeping it pulled, raise or lower the headrest, adjusting it according to the child's height.
  • (Fig. 26) Press the red button on the central buckle to release the shoulder straps.
• Unhook the press studs on the sides of the backrest fabric.
• Lift up the seat cover fabric, pulling it out of the harness adjustment device and lift up the inner padding, pulling it out of the harness adjustment device, pulling carefully and gently.
• Unthread the buckle inwards from the slots in the fabric and padding, open up the container compartment door and put the buckle back inside (fig. 28).
• Hook the tips to the buckle and insert the buckle into the internal compartment, then close the compartment again (fig. 29, 30).
• Reposition the internal padding correctly on the seat.
• Put the fabric back onto the seat and backrest, then attach the press studs fig.31.

INSTALLATION IN THE FORWARD-FACING POSITION (Children between 100 and 150 cm in height, 3-point seat belt or ISOFIX + 3-point seat belt)

It is recommended that you use the 5-point harness for as long as possible. When the growing child reaches a height of 100 cm, the car seat must be transformed for use with children between 100 and 150 cm in height. In this configuration, it is necessary to remove the 5-point seat belt (harness) supplied with the car seat.

See paragraph "REMOVING THE HARNESS (Storing the safety harness away)".

Only suitable for use in vehicles equipped with 3-point static or retractor seat belts, approved according to regulation UN/ ECE no.16 or other equivalent standards.

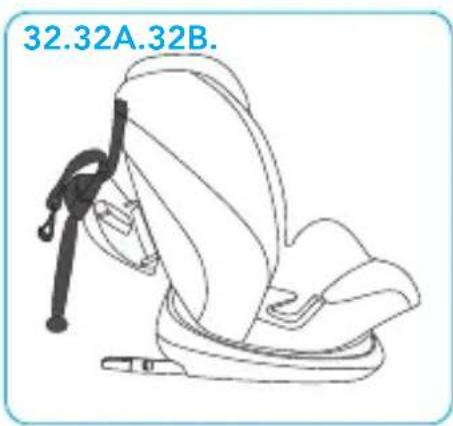

As shown in figure 32, open the rear compartment door and insert the Top Tether belt.

Close the compartment.

USE IN THE VEHICLE

Modalità A - INSTALLING WITH 3-POINT SEAT BELT TOGETHER WITH ISOFIX CONNECTORS

If your car does not have standard ISOFIX connector guides, insert those supplied with the car seat with the recess facing upwards in the two ISOFIX anchoring points in the car (fig 33).

SUGGESTION: The ISOFIX anchoring points are located between the seat and the backrest of the passenger seat.

Press both sides of the adjustment/release button on the ISOFIX connectors simultaneously and extend the ISOFIX connectors ( (fig. 34).

Locate the ISOFIX attachments supplied with the vehicle.

Align the ISOFIX connectors with the anchoring points fixed to the vehicle passenger seat and press until you hear a "click" (fig.35). The indicator on both brackets will turn green, confirming that they have attached (fig.36).

Ensure that both brackets are correctly fastened. Shake the car seat to be sure it is correctly fixed in place.

Push the car seat against the passenger seat, making sure that both ISOFIX connectors are extended in the same position. There must not be any space between the backrest of the passenger seat and the car seat (fig. 37).

Pass the diagonal part of the 3-point seat belt behind the headrest of the car seat and through the green diagonal belt guide (A) located on the lower part of the headrest, on the retractor side (fig. 38).

Place the child into the car seat (fig. 39). Press the button and raise or lower the headrest, adjusting it according to the child's height (fig. 40). Make sure that it is correctly locked in the chosen position (see par. "Headrest adjustment").

Pull out the 3-point seat belt of the vehicle and, passing it over the front of your child, attach the vehicle's seat belt by inserting the tip into the buckle (B). A "click" will indicate that it is attached correctly (fig. 41).

WARNING! The vehicle's seat belt buckle must not be placed in the lower guide of the lap belt passage. Insert the diagonal belt and the lap belt into the lower loop from the side near the fastening buckle of the vehicle's seat belt (C) (fig. 41). Thread the lap belt on the opposite side of the car seat into the lap belt loop (D) (fig. 41).

WARNING! The lap belt must run as low as possible over your baby's pelvis. Insert the diagonal belt into the belt guide loop (A), making sure it is not twisted.

USE IN THE VEHICLE

Correct Too low Too high ✗ ✕

NOTE: When using the 3-point vehicle seat belt, the headrest must be adjusted so that there is a two-finger space between the headrest and the child's shoulders. Make sure that the diagonal belt, when passing through the "diagonal belt guide loop" on the side of the headrest, is positioned at the shoulders and not at the child's neck.

Tighten the belt as shown in the figure 41. Make sure that you have positioned the lap belt as low as possible on the child's pelvis, and that it has been inserted in the belt guides of the lap seat belt and that you have correctly attached the buckle. The diagonal belt must pass through the diagonal belt guide.

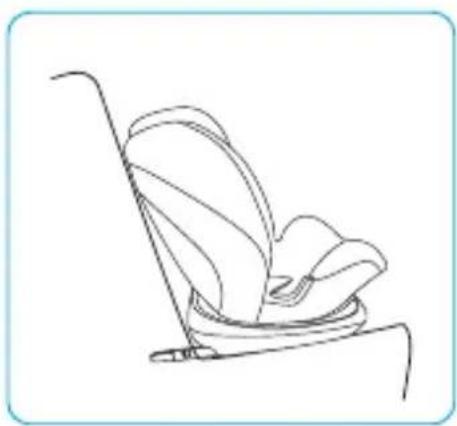

Place the car seat on the car's seat.

Push the car seat against the backrest of the passenger seat. There must not be any space between the backrest of the passenger seat and the car seat. (fig. 43).

Pass the diagonal part of the 3-point seat belt behind the headrest of the car seat and through the green diagonal belt guide (A) located on the lower part of the headrest, on the retractor side (fig. 44).

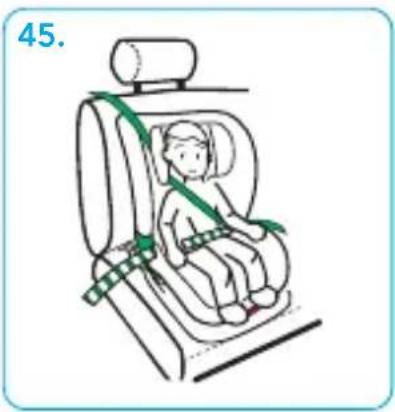

Place the child into the car seat (fig. 45). Press the button and raise or lower the headrest, adjusting it according to the child's height (fig. 46). Make sure that it is correctly locked in the chosen position (see par. "Headrest adjustment").

Pull out the 3-point seat belt of the vehicle and, passing it over the front of your child, attach the vehicle's seat belt by inserting the tip into the buckle (B). A "click" will indicate that it is attached correctly (fgi. 47).

WARNING! The vehicle's seat belt buckle must not be placed in the lower guide of the lap belt passage. Insert the diagonal belt and the lap belt into the lower loop from the side near the fastening buckle of the vehicle's seat belt (C) (fig. 47). Thread the lap belt on the opposite side of the car seat into the lap belt loop (D) (fig. 47).

WARNING! The lap belt must run as low as possible over your baby's pelvis. Insert the diagonal belt into the belt guide loop (A), making sure it is not twisted.

USE IN THE VEHICLE

Correct Too low Too high ✗ ✕

NOTE: When using the 3-point vehicle seat belt, the headrest must be adjusted so that there is a two-finger space between the headrest and the child's shoulders. Make sure that the diagonal belt, when passing through the "diagonal belt guide loop" on the side of the headrest, is positioned at the shoulders and not at the child's neck.

Tighten the belt as shown in the figure 47. Make sure that you have positioned the lap belt as low as possible on the child's pelvis, and that it has been inserted in the belt guides of the lap seat belt and that you have correctly attached the buckle. The diagonal belt must pass through the diagonal belt guide.

KID-PAD INSTALLATION

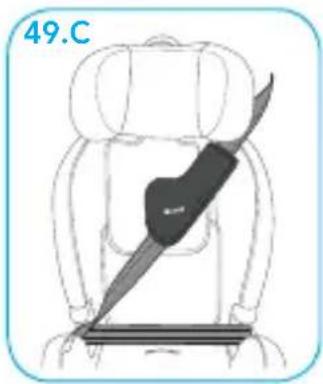

The KID-PAD is a device that must ALWAYS be installed on the diagonal vehicle seat belt to ensure proper protection in the event of an impact.

Position the diagonal belt under the two Velcro straps of the KID-PAD (fig. 48), close the KID-PAD on itself (fig. 49) making sure that the shaped part is positioned between the chin and the chest of the child (fig. 50).

WARNING! The KID-PAD must ALWAYS be used.

REMOVING THE LINING (fig. 42)

Loosen the harness and remove the reducer if it is being used.

Lift up the headrest to the highest position.

Remove it, carefully pulling the fabric off from the headrest.

Remove it, carefully pulling the fabric off from the frame, starting from one side, being careful while removing the fabric from the lap belt guide.

Remove the leg separator harness from the lining and take off the fabric.

To put the lining back on, follow the reverse procedure.

MAINTENANCE AND CLEANING

MAINTENANCE AND CLEANING

Only use original linings, as these components are of fundamental importance for the device to function correctly. Do not use the car seat without the lining.

Cleaning

The lining can be removed and washed in a washing machine with a mild detergent, using the delicate fabric cycle (30°C). Follow the washing instructions shown on the label. The colours may fade if washed at temperatures above 30°C. Never spin dry or tumble dry (as the fabric could become detached from the padding).

The plastic parts may be cleaned with water and soap. Do not use harsh detergents (such as solvents).

The harness may be removed and washed with soap and warm water.

MAINTENANCE AND CLEANING

IMPORTANT: The lining is a fundamental component for your child's safety. Never use the car seat without the lining, nor replace it with other products which have not been approved, so as to avoid endangering the child's safety or compromising the proper functioning of the device.

Washing instruction:

The lining can be removed, washed at 30^ C and hung out to dry.

Washing machine cold water

Do not bleach

No dry cleaning

tumble dry

Do not ironDo not

FORMAL GUARANTEE

The contents of this document as stated below will come into effect as from 01.01.2005 and replace, on every account and in full, any previous message referring to the guarantee provided by Foppa Pedretti S.p.A.

FORMAL GUARANTEE

Foppa Pedretti S.p.A. the head office of which is located at n. 11 Via Volta, Grumello del Monte (Italy), guarantees directly to the Consumer that this brand new product is free of faults with regard to the materials, design and manufacture and that it complies with the characteristics as declared by the manufacturer. This formal guarantee is valid in all Member Countries of the European Union and it neither excludes nor limits the Consumer's rights in accordance with mandatory measures provided for by the law with regard to the Retailer of the Product.

To take advantage of this formal guarantee, the Consumer must return the faulty product to the Retailer, presenting to the same the proof of purchase of the Product which must clearly show the Retailer's address, the date of purchase of the Product with the Retailer's stamp and signature and an indication of the Product itself or, alternatively, the receipt which must not have been altered and which must clearly show the same information as that referred to above.

The formal guarantee is valid for twelve (12) months from the date of purchase of the Product. During this period, Foppa Pedretti S.p.A. will repair or replace the faulty product, at its own discretion. The formal guarantee is granted to the end buyer of the Product (Consumer) and it neither excludes nor limits the mandatory rights of the Consumer as provided for by the law and/or the rights that the Consumer may have with regard to the Dealer/Retailer of the Product.

EXCLUSIONS TO THE FORMAL GUARANTEE.

The formal guarantee is excluded in the case of damage caused to the Product for the following reasons: if the product is used in a way that does not comply with the information contained in the use and assembly instruction sheet, if the product is knocked or dropped, if the Product is exposed to humidity or extreme heat or environmental conditions, or to sudden changes in the same, corrosion, oxidization, unauthorized alterations or repairs to the Product, repairs using unauthorised spare parts, improper use, improper maintenance or failure to carry out the same, improper maintenance compared to the information given on the use and assembly instruction sheet, incorrect assembly, accidents, damage caused by food or drink, damage caused by chemical products, cases of force majeure.

In any case, Foppa Pedretti S.p.A. declines all responsibility for damage caused to persons or to property, other than the Product, when such damage is caused by a failure to comply with the instructions/advice/warnings cont a ined in the manua I or, alternatively, in the use and assembly instruction sheet provided with each Product for the owner/user. (Purely as an example, in the case of a cot: "Check your baby constantly. Make sure that the sheets and blankets do not cover the baby's head...").

Furthermore, Foppa Pedretti S.p.A. declines all responsibility for damage to persons and to property when the breakage of its products is due to a deterioration in the components of the Product that are subject to wear. All the components of the Product made of plastic are considered to be components subject to wear.

TABLE DES MATIÈRES

Avertissements PAG 49

Diagram of a car comfort seat with numbered labels pointing to different compartments

Technical diagram of a car seat assembly with numbered parts labeled 12, 13, and 14

Diagram showing a green checkmark on a curved surface with no text or symbols

Diagram showing a cross symbol with red X and red X lines intersecting, indicating a crossed-out or blocked operation.

Diagram showing three car safety zones with no-dominant symbols and warning signs, likely for vehicle safety or traffic hazard detection.

Circular icon showing two orange belt buckle clips with a green checkmark and red X (no text or symbols)

Diagram showing airflow or movement between two mechanical components, one with red center and blue arrows indicating direction (no text or symbols)

UTILISATION DU SIÈGE-AUTO

RETIRER LE SIÈGE-AUTO DU VÉHICULE / RETIRER DU SYSTÈME ISOFIX

EXCLUSIONS DE LA GARANTIE CONVENTIONNELLE.

Diagram of a car comfort seat with numbered labels pointing to different compartments

Technical diagram of a car seat with numbered labels pointing to different components

Diagram showing a green checkmark and a blue checkmark on a mechanical component with labeled parts and arrows indicating motion or force.

Diagram showing a cross symbol with red X and red diagonal lines intersecting, possibly indicating a medical or safety hazard.

Diagram showing car safety symbols: no sign, red circle, and warning sign inside a vehicle

Front view of a car with a red prohibition symbol on the seat (no text or numbers present)

Diagram showing traffic hazard zones with red symbols and warning signs, labeled 1 and 2 on a vehicle ahead.

Circular icon showing two orange belt buckle clips with a green checkmark and red X (no text or symbols)

USO DE LA SILLA DE COCHE

Dos 100 cm ate os 150 cm (i-Size booster seat)

Diagram of a car comfort seat with numbered labels pointing to different compartments

Technical diagram of a car seat assembly with numbered parts labeled 12, 13, and 14

Diagram showing a green checkmark on a gray curved surface with no readable text or symbols

Diagram showing a cross symbol with red X and diagonal lines intersecting, likely indicating a warning or rejection point.

Circular diagram showing two orange belt buckle clips with a green checkmark and red X mark (no text or symbols)

Diagram of a car comfort seat with numbered labels pointing to different compartments

Diagram of a car seat with numbered labels pointing to different seat components

Top-down schematic of a vehicle or car with no visible text, numbers, or symbols

Diagram showing a green checkmark and a curved green line on a gray surface, with no readable text or symbols.

Diagram showing a crosshair symbol with red X and black X lines intersecting, indicating a threshold or exclusion point.

Diagram showing three car safety zones with no-dominant traffic signs and warning symbols, including numbered zones 1 and 2.

Circular icon showing two orange belt buckle clips with a green checkmark and red X mark (no text or symbols)

Diagram showing a hand holding a device with blue arrows indicating direction, no text or symbols present

Diagram of a car comfort seat with numbered labels pointing to different compartments

Diagram of a car seat with numbered labels pointing to different seat positions

Top-down schematic of a vehicle or car with no visible text, numbers, or symbols

Diagram showing a green checkmark and a curved green line on a gray surface, with no readable text or symbols.

Safety warning symbol with red X mark and crossed lines, indicating incorrect safety rules

Diagram showing three car parking scenarios with no-dominant seat and warning symbols, including numbered zones 1 and 2.

Circular icon showing two orange belt buckle clips with a green checkmark and red X mark (no text or symbols)

Diagram showing airflow or movement between a device component and a ceiling structure (no text or symbols)

Icon depicting a person sitting in a car seat, enclosed in a rounded square frame (no text or symbols)

ECE R129-03

IT LISTA AUTOVETTURE
EN VEHICLE LIST
FR LISTE DES VOITURES
ES LISTA AUTOMÓVILES
PT LISTA DE VEÍCULOS
EL KATAΛΟΓΟΣ ΑΥΤΟΚΙΝΗΤΩΝ
RU СПИСОК АВТОТРАНСПОРТНЫХ СРЕДСТВ

Simple icon of a person sitting in a car seat, enclosed in a rounded square frame (no text or symbols)

Simple icon of a person sitting in a car seat, enclosed in a rounded rectangle (no text or symbols)

Cars approved for the Pitstop i-Size car seat, provided the car is equipped with the ISOFIX system.

• Pitstop i-Size is a universal child restraint device. It is approved under the R129 regulation for use in all vehicle positions marked with the i-Size logo.

• Refer to the list of vehicles if the vehicle equipped with Isofix car positions that are not i-Size: the Pitstop i-Size car seat is also suitable for attachment in the seating positions of the cars listed below, provided that the approved ISOFIX points are present and available. The seating positions in other cars may also be suitable to accommodate this child restraint device, however we have not yet tested these cars in conjunction with the Pitstop i-Size. If in doubt, consult either the enhanced child restraint system manufacturer or the retailer.

• The ISOFIX anchoring points on the passenger seat (position 1) are normally available as an option, therefore, this may or may not be the case for this position, depending on the model. Installation on the rear passenger seat of the car may limit the space for the passenger in the front seat.

• Always check the compatibility of the "Pitstop i-Size" car seat with your car to verify that the available space is adequate.
• Please note that this list undergoes ongoing revision procedures, with changes and additions of vehicles accordingly.
• The up to date list can be consulted on our web site: www. foppapedretti.it

Warning: Do NOT use on a passenger seat fitted with an activated front airbag.

INFORMATION

Please consult with the vehicle manufacturer regarding access to ISOFIX points.

WARNING: before purchasing, consult the vehicle Use and Maintenance Guide to ensure the ISOFIX anchor is present, as this could be an optional.

7 4 6 3 5 2 1

Simple icon of a person sitting in a car seat, enclosed in a rounded square frame (no text or symbols)

Simple icon of a person sitting in a car seat, enclosed in a rounded square frame (no text or symbols)

Simple icon of a person sitting in a car seat, enclosed in a rounded square frame (no text or symbols)

Icon of a person sitting in a car seat, enclosed in a rounded square frame (no text or symbols)

Simple icon of a person sitting in a car seat, enclosed in a rounded square frame (no text or symbols)

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
X3	2004	2 4	2 4
X6	2008	2 4	2 4
X6 FL	2012	2 4	2 4
HINI MINI cooper	1994-1997	2 4	2 4
HINI MINI cooper cabrio	2006	2 4	2 4
HINI MINI club man	2007	2 4	2 4
HINI MINI 2nd gen.	2006	2 4	2 4

Cadillac

CTS

2007

2 4

2 4

Chevrolet

Aveo	2006	2 4	2 4
Aveo hatchback	2011	2 4	2 4
Captiva	2006-2011	2 4	2 4
Matiz	2005	2 4 2 4
Captiva FL	2011	2 4	2 4
Captiva FL2	2013	2 4	2 4
Cruze	2009	2 4	2 4
Cruze SW	2012	2 4	2 4
Epica	2006-2010	2 4	2 4
Malibu	2012	2 4	2 4
Orlando	2011	2 4	2 4
Spark	2010-2013	2 4	2 4
Spark FL	2013	2 4	2 4
TRAX	2010-2013	2 4	2 4
Volt	2011	2 4	2 4
Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX

Chrysler

300	2004	2 4	2 4
300 C	2008	2 4	2 4
Donge calibre	2006	2 4	2 4
Donge journey	2008	2 4	2 4
Donge nitro	2006	2 3 4	2 4
Donge eam(1500)	2006-2008	2 4	2 4
Jeep cherokee	2002	2 4	2 4
Jeep grand ch.	2005	2 4	2 4
PT Cruiser	2000	2 4	2 3 4
Sebring cabrio	2007	2 4	2 4

Citroen

C-Crosser	2007-2013	2 4	2 4
C1	2005	2 4 2 4
C1	2014	2 4 2 4
C3	2009	2 4 2 4
C4	2010	2 4 2 4
C5	2008	2 4 2 4
C5 Tourer	2008	2 4 2 4
C3 Picasso	2008	2 4 2 4
Berlingo	2008	2 4 2 4
C4 Picasso	2006	2 4 2 4
C4 Picasso	2013	2 4 2 4
Grand C4 Picasso	2013	2 4 2 4
C3 FL	2013	2 4	2 4
C3 FL 5 door	2005-2009	2 4	2 4
C4	2004-2010	2 4	2 4
Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
C4 3 door	2004-2010	2 4	2 4
C4 Aircross	2012	2 4	2 4
C5 FL	2010-2012	2 4	2 4
C5 Tourer FL	2010	2 4	2 4
C6	2005-2012	2 4	2 4
Ds3 Cabrio	2013	2 4	2 4
Ds3	2010	2 4	2 4
Ds4	2011	2 4	2 4
Ds5	2012	2 4	2 4

Dacia

Logan	2013	2 4	2 4
Dokker	2012	2 3 4	2 4
Duster	2010	2 4	2 4
Duster FL	2014	2 4	2 4
Lodgy	2012	2 3 4	2 4
Lodgy MCV	2013	2 4	2 4
Lodgy MCV FL	2009-2013	2 4	2 4
Sandero	2008	2 4	2 4
Sandero II	2012	2 4	2 4
Sandero StepWay	2013	2 4	2 4

Daihatsu

Cuore	2007	2 4	2 4
Materia	2006	2 4	2 4
Sirion	2005-2012	2 4	2 4
Terios	2005	2 4	2 4
Trevis	2005	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
3	2009	2 4 2 4
4	2011	2 4 2 4
5	2011	2 4 2 4

FIAT

500	2007	2 4 2 4
500L	2012	2 4	2 4
500L Living	2013	2 4	2 4
500X	2014	2 4 2 4
Bravo	2007	2 4	2 4
Croma II	2005-2008	2 4	2 4
Croma II FL	2008-2010	2 4	2 4
Doblo	2009	2 4	2 4
Grande Punto	2006	2 4	2 4
Idea	2003	2 4	2 4
Panda	2012	2 4	2 4
Punto 3door FL2	2012	2 4	2 4
Punto Evo	2010-2011	2 4	2 4
Tipo	2015	2 4 2 4
Tipo 5 porte	2016	2 4 2 4
Tipo station wagon	2016	2 4 2 4
Freemont	2011	2 4 2 4
Qubo	2008	2 4	2 4

Ford

B-max	2012	2 4	2 4
EcoSport	2014	2 4	2 4
Focus hatchback	2011	2 4	2 4
Mondeo FL	2010	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
Mondeo Turnier	2007-2010	2 4	2 4
Mondeo Turnier FL	2010	2 4	2 4
S-Max FL	2010	2 3 4 2 3 4
Tourneo Connect	2009-10.2009	2 4 2 4
Ka	2008	2 4	2 4
Fiesta	2008	2 4 2 4
Focus	2004	2 4 2 4
Focus Wagon	2004	2 4 2 4
Focus Wagon	2011	2 4 2 4
Mondeo	2007	2 4 2 4
C-max	2003	2 4 2 4
C-max	2010	2 4 2 4
C-max 7	2010	2 4 2 4
S-max	2006	2 4 2 4
S-max	2015	2 4 2 4
Galaxy	2015	2 4 2 4
Ecosport	2013	2 4 2 4
Kuga	2008	2 4 2 4
Kuga	2012	2 4 2 4
Edge	2016	2 4 2 4
Tourneo Custom	2012	2 3	2 3
Transit Kombi	2013	2 3	2 3

Honda

Accord(5 doors)	2003	2 4	2 4
Accord tourer	2002-2008	2 4	2 4
Accord	2008	2 4	2 4
City	2009	2 4	2 4
Civic	2012	2 4	2 4
Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
CR-V	2012	2 3 4	2 4
FR-V	2004	2 4	2 4
Insight	2009	2 4	2 4
Jazz	2015	2 4	2 4

Hyundai

Grand Santa Fe 6-seater	2013	2 3 4	2 4
Grand Santa Fe 7-seater	2010	2 4	2 4
H1-Travel	2008	2 4	2 4
i10	2013	2 3 4	2 4
i10FL	2011	2 4	2 4
	2014i20	2 4	2 4
i20FL3door	2012	2 4	2 4
i20FL5door	2012	2 4	2 4
i30	2013	2 4	2 4
i30 cw	2012	2 4	2 4
	2012i30 Wagon	2 4	2 4
i40	2011	2 4	2 4
i40 cw	2011	2 4	2 4
	2011i40 Wagon	2 4	2 4
	2014Genesis	2 4	2 4
	2015Tucson	2 4	2 4
ix20	2010	2 4	2 4
ix35	2009	2 4	2 4
ix35 FL	2013	2 4	2 4
Santa Fe	2012	2 4	2 4

Jaguar

2014XE 24 24

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
XF	2008	2 4	2 4
	2015XF	2 4	2 4
XF FL	2011	2 4	2 4
XJ	2009	2 4	2 4

Jeep

Compass FL	2013	2 4	2 4
	2014Renegade	2 4	2 4
Grand cherokee	2010	2 3 4	2 4
Grand cherokee FL	2013	2 4	2 4

Kia

Cee'd	2012	2 4	2 4
Cee'd FL	2000	2 4	2 4
Cee'd sw	2007	2 4	2 4
Cee'd Sportswagon	2012	2 4	2 4
Optima	2012-2013.11	2 4	2 4
Optima FL	2013	2 4	2 4
Optima hybrid	2013-2014	2 4	2 4
Pro Cee'd FL	2011-2013	2 4	2 4
Pro Cee'd GT	2013	2 4	2 4
Sorento	2015	2 4	2 4
Sorento FL	2012	2 4	2 4
Soul	2014	2 4	2 4
Soul FL	2011	2 4	2 4
Picanto	2011	2 4	2 4
Rio	2011	2 4	2 4
Venga	2010	2 4	2 4
Carens	2013	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
Sportage	2010	2 4	2 4
Sportage	2016	2 4	2 4
Sportage FL	2014	2 4	2 4

Lancia

Delta	2008-2011	2 4	2 4
Delta FL	2011	2 4	2 4
Flavia Cabrio	2012	2 4	2 4
Thema	2011	2 4	2 4
Voyager	2011	2 4	2 4
Ypsilon	2011	2 4	2 4
Ypsilon 4seater	2011	2 4	2 4
Ypsilon 5seater	2011	2 4	2 4

Land Rover

Discovery FL	2011	2 4	2 4
Discovery Sport	2014	2 4	2 4
Freelander	2006-2011	2 4	2 4
Freelander2 FL	2011	2 4	2 4
Freelander2 FL2	2013	2 4	2 4
Range Rover	2012	2 4	2 4
Range Rover Evoque	2011	2 4	2 4
Range Rover Sport	2012	2 4	2 4
Range Rover Sport	2013	2 4	2 4

Mazda

20142	2 4	2 4
20126 Wagon	2 4	2 4
2015CX-3	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
	2012CX-5	2 4	2 4
3 (BL)	2009-2011	2 4	2 4
3 (BM)	2013	2 4	2 4
3 FL (BL)	2011	2 4	2 4
3 saloon	2013	2 4	2 4
3 saloon FL2	2011-2013	2 4	2 4
5	2010	2 4	2 4
5 FL	2013	2 4	2 4
6 estate	2013	2 4	2 4
6 estate FL	2010	2 4	2 4
6 Hatchback FL	2010	2 4	2 4
6 saloon	2013	2 4	2 4
CX-5	2012	2 4	2 4
CX-7	2007-2009	2 4	2 4
CX-7 FL	2009	2 4	2 4

Mercedes

	2004A	2 4	2 4
	2013C	2 4	2 4
	2014C SW	2 4	2 4
	2016E	2 4	2 4
	2016E SW	2 4	2 4
A(176)	2012	2 4	2 4
B(246)	2011	2 4	2 4
C(204)	2007	2 4	2 4
C(205)	2014	2 4	2 4
C Coup FL (204)	2011	2 4	2 4
C FL(204)	2011	2 4	2 4
C model T (204)	2007-2011	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
C model T FL (204)	2011	2 4	2 4
GLA	2013	2 4	2 4
GL (164G)	2006	2 4	2 4
GLA (245G)	2014	2 4	2 4
GLK (X 204)	2008	2 4	2 4
GLK FL	2012	2 4	2 4
ML	2005-2011	2 4	2 4
R	2010	2 4	2 4
CLS	2010	2 4	2 4
E (212)	2009	2 4	2 4
E Cabrio (207)	2010	2 4	2 4
E Coupe (207)	2009	2 4	2 4
E FL	2013	2 4	2 4
E model T (212)	2009	2 4	2 4
E model T FL (212)	2013	2 4	2 4
G FL	2012	2 4	2 4
	2013CLA	2 4	2 4
	2015CLA Shooting Brake		2 4
	2013CLS Shooting Brake		2 4
	2013S	2 4	2 4
	2015GLC	2 4	2 4
	2015GLE	2 4	2 4
	2015GLS	2 4	2 4

Mini

2013Mini	2 4	2 4
2014Mini 5 Doors	2 4	2 4
2015Mini Clubman	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
	2010Mini Countryman	4	2 4

Mitsubishi

ASX	2010	2 4	2 4
ASX FL	2012	2 4	2 4
Outlander	2012	2 4	2 4
Outlander	2006	2 4	2 4
Outlander PHEV	2013	2 4	2 4
	2013Space Star	2 4	2 4

Nissan

Juke	2010	2 4	2 4
Leaf	2011	2 4	2 4
Micra	2010	2 4	2 4
Micra FL	2013	2 4	2 4
Note	2013	2 4	2 4
Pixo	2009	2 4	2 4
	2014Pulsar	2 4	2 4
	2006Qashqai	2 4	2 4
	2013Qashqai	2 4	2 4
	2014X Trail	2 4	2 4

Opel/Vauxhall

Adam	2012	2 4	2 4
Agila	2008	2 4	2 4
Ampera	2011	2 4	2 4
Antara FL	2010	2 4	2 4
Astra H Caravan FL	2007-2010	2 4	2 4
Astra	2009	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
Astra	2015	2 4	2 4
Astra Sports Tourer	2009	2 4	2 4
Astra Sports Tourer	2015	2 4	2 4
Astra J	2009	2 4	2 4
Astra J GTC	2012	2 4	2 4
Astra J sedan	2012	2 4	2 4
Astra J Sports Tourer	2010	2 4	2 4
Cascada	2013	2 4	2 4
Insignia	2008	2 4	2 4
Insignia	2008Sport Tourer	2 4	2 4
Insignia 5door FL I	2011	2 4	2 4
Insignia 5door FL II	2013	2 4	2 4
Insignia Country Tourer FL II	2009	2 4	2 4
Insignia FL I	2011	2 4	2 4
Insignia FL II	2013	2 4	2 4
Insignia Sports Tourer FL I	2011	2 4	2 4
Insignia Sports Tourer FL II	2013	2 4	2 4
Meriva	2010	2 4	2 4
Meriva B	2010	2 4	2 4
Meriva B FL	2014	2 4	2 4
	2010Zafira	2 4	2 4
Zafira C Tourer	2012	2 4	2 4
	2012Mokka	2 4	2 4
	2006Antara	2 4	2 4

Peugeot

2014108 24 24

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
	2007308	2 4	2 4
	2013308	2 4	2 4
	2007308 SW	2 4	2 4
308 SW	2014	2 4	2 4
207	2006-2009	2 4	2 4
2008	2013	2 4	2 4
207 CC	2007	2 4	2 4
207 SW	2006-2009	2 4	2 4
207 SW FL	2009-2013	2 4	2 4
208 3 doors	2012	2 4	2 4
208 5 doors	2012	2 4	2 4
4007	2007	2 4	2 4
	2010508	2 4	2 4
508 RXH sw	2012	2 4	2 4
508 sw	2011	2 4	2 4
3008	2016	2 4	2 4
4008	2012	2 4	2 4
5008	2009	2 4	2 4
5008 FL	2014	2 4	2 4
	2008Partner Tepee2	4	2 4
Expert tepee	2007-2012	2 4	2 4
Expert tepee FL 8seater	2012	2 4	2 4
Expert tepee FL 9seater	2012	2 4	2 4
RCZ	2010	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
Porsche
Cayenne	2009	2 4	Airbag off
Cayenne II	2010	2 4	Airbag off
Cayenne II Turbo S	2013	2 4	Airbag off
Macan	2013	2 4	Airbag off
Panamera	2010	2 4	Airbag off
Panamera 4	2009-2013	2 4	Airbag off
Panamera Executive FL	2013	2 4	Airbag off
Renault
Captur	2013	2 4	2 4
Clio	2005	2 4	2 4
Clio 3door	2009-2012	2 4	2 4
Clio 5door	2009	2 4	2 4
	2013Clio Sporter	2 4	2 4
Clio Grandtour	2008	2 4	2 4
Clio Grandtour FL	2008-2013	2 4	2 4
Clio 4	2012	2 4	2 4
Clio 4 Grandtour	2013	2 4	2 4
Clio 4 RS	2013	2 4	2 4
	2008Megane Sporter	2 4	2 4
	2015Megane Sporter	2 4	2 4
	2015Espacer	2 4	2 4
	2015Kadjar	2 4	2 4
Espace 4	2006-2010	2 4	2 4
Espace 4 FL	2010-2012	2 4	2 4
Fluence	2010	2 4	2 4
Grand Espace 4 FL4	2012	2 4	2 4
Grand Modus	2008-2012	2 4	2 4
Grand Scenic	2009-2013	2 4	2 4
Grand Scenic FL	2012-2013	2 4	2 4
Kangoo	2008-2012	2 4	Airbag off
Kangoo FL	2013	2 4	2 4
Laguna 3 FL	2010	2 4	2 4
Laguna 3 Grandtour	2008-2010	2 4	2 4
Laguna 3 Grandrout FL	2010	2 4	2 4
Megane 2 CC	2006-2010	2 4	2 4
Megane 3 5door	2008-2012	2 4	2 4
Megane 3 CC	2010	2 4	2 4
Megane 3 Coupe	2006-2009	2 4	2 4
Megane 3 Coupe FL	2012	2 4	2 4
Megane 3 FL	2014	2 4	2 4
Megane 3 FL Grandtour	2014	2 4	2 4
Modus	2005	2 4	Airbag off
Scenic 3	2009	2 4	2 4
Scenic 3 FL	2012	2 4	2 4
Scenic XMOD	2013	2 4	2 4
Twingo	2014	2 4	2 4
Twingo 2	2007-2012	2 4	Airbag off
Twingo 2 FL	2012	2 4	Airbag off
Twingo 2 FL seatbench	2012	2 4	Airbag off
ZOE	2013	2 4	2 4
SEAT
Alhambra	2010	2 3 4 5 7	2 3 4 5 7
	2016Ateca	2 4	2 4
Leon	2012	2 4	2 4
Leon SC	2013	2 4	2 4
Leon ST	2013	2 4	2 4
Mii	2012	2 4	2 4
Mii 3door	2012	2 4	2 4
Mii 5door	2012	2 4	2 4
Skoda
Octavia 3	2013	2 4	Airbag off
Octavia 3 Combi	2013	2 4	Airbag off
Superb	2015	2 4	Airbag off
Superb Wagon	2015	2 4	Airbag off
Superb Combi FL	2013	2 4	Airbag off
Super FL	2013	2 4	Airbag off
	2014Fabia	2 4	2 4
Fabia Wagon	2015	2 4	2 4
	2013Rapid Spaceback		2 4
	2007Roomster	2 4	2 4
Yeti	2009	2 4	2 4
Yeti FL2	2013	2 4	Airbag off
Smart
ForTwo	2014	1	Airbag off
ForTwo 2 FL	2010	1	Airbag off
Subaru
Forester	2013	2 4	2 4
Forester (SH)	2008-2013	2 4	2 4
Forester (SJ)	2013	2 4	2 4
Impre WRX STI	2008	2 4	2 4
Suzuki
Alto	2008	2 4	2 4
Grand Vitara 5door FL	2013	2 4	2 4
Jimny FL	2012	2 4	2 4
	2014Celerio	2 4	2 4
	2010Swift	2 4	2 4
	2016Baleno	2 4	2 4
	2013S-Cross	2 4	2 4
	2015Vitara	2 4	2 4
Kizashi	2010	2 4	2 4
Splash	2008-2012	2 4	2 4
Splash FL	2012	2 4	2 4
Sx4	2010	2 4	2 4
Sx4 S-Cross	2013	2 4	2 4
Tesla
Model S	2013-2014	2 4	2 4
Model S FL	2014	2 4	2 4
Toyota
Auris	2012	2 4	2 4
Auris Touring Sports	2013	2 4	2 4
Auris 5door	2013	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
Land Cruiser FL2	2014	2 4	2 4
Prius	2016	2 4	2 4
Prius+	2012	2 4	2 4
Yaris	2011	2 4	2 4
Corolla verso	2004	2 4	2 4
	2014Aygo	2 4	2 4
	2009Verso	2 4	2 4
	2013Rav4	2 4	2 4
	2003Lanc Cruiser	2 4	2 4

Volvo

C70 FL	2009-2013	2 4	2 4
S60	2010	2 4	2 4
S80 FL2	2013	2 4	2 4
V40	2012	2 4	2 4
V40 Cross Country	2013	2 4	2 4
V50	2011-2012	2 4	2 4
V60	2010	2 4	2 4
V60 FL	2013	2 4	2 4
V70	2007-2011	2 4	2 4
V70 FL	2011-2013	2 4	2 4
	2008Xc60	2 4	2 4
Xc60 FL	2013	2 4	2 4
Xc70	2007-2011	2 4	2 4
Xc 70 FL	2011-2013	2 4	2 4
Xc 90	2014	2 4	2 4
Xc90 FL	2011	2 4	2 4

Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX

VW
Amarok	2010	2 4	2 4
Beetle	2011	2 4	2 4
Beetle Cabrio	2012	2 4	2 4
CC	2012	2 4	2 4
E-UP	2013	2 4	2 4
Eos FL	2010	2 4	2 4
Golf 6	2008	2 4	2 4
Golf 6 Cabrio	2011	2 4	2 4
Golf 6 plus	2009	2 4	2 4
Golf 6 R	2009	2 4	2 4
Golf 7	2012	2 4	2 4
Golf GTI	2013	2 4	2 4
Golf 7 Sportsvan	2014	2 4	2 4
Golf 7 Variant	2013	2 4	2 4
Jetta 6	2011	2 4	2 4
Jetta Hybrid	2013	2 4	2 4
Passat B6	2005-2010	2 4	2 4
Passat B6 Variant	2005-2010	2 4	2 4
Passat B7	2010	2 4	2 4
Passat B7 Alltrack	2012	2 4	2 4
Passat B7 Variant	2010	2 4	2 4
Passat CC	2008-2012	2 4	2 4
Phaeton FL 2	2010	2 4	2 4
Polo 5	2009-2014	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
Polo 5 Crosspolo	2010	2 4	2 4
Scirocco	2008	2 4	2 4
Sharan 2	2010	2 4	2 4
T5	2009	2 4	2 4
Tiguan	2007-2011	2 4	2 4
Tiguan FL	2011	2 4	2 4
Touareg 2	2010	2 4	2 4
Up 3door	2011	2 4	2 4
Up 5door	2012	2 4	2 4
Passat	2013	2 4	2 4
Passat Variant	2004	2 4	2 4
	2004Caddy	2 4	2 4
Touran	2003	2 4	2 4
Touran	2015	2 4	2 4

Importato da:
