Product Type Wall mount for speaker
Brand Sanus
Model WSWME12
Compatibility Sonos Era 100 speakers
Main Material Steel
Maximum Supported Weight 5 kg
Wall Plate Dimensions Approximately 100 x 100 mm
Support Dimensions (assembled) Approximately 120 x 100 x 100 mm
Product Weight 0.5 kg
Mounting Types Wood studs, solid concrete/block, drywall with screws
Required Tools Drill, screwdriver (electric or manual), hammer, spirit level
Kit Contents Wall plate, mounting brackets, screws, wall anchors, adjustment tool
Warranty 5 years
Maintenance and Cleaning Clean with a soft, dry cloth. Do not use abrasive products.
Safety The wall must support 5 times the total weight. Follow installation instructions.
Spare Parts and Repairability Parts available on request from customer service. Repair possible by a professional.
Adjustments Tilt and swivel possible after installation

Frequently Asked Questions - WSWME12 SANUS

Is this mount compatible with all speakers?
No, the Sanus WSWME12 mount is designed only for Sonos Era 100 speakers. Consult your speaker manual to verify compatibility.
What type of wall is required to install this mount?
The mount can be fixed on wood studs (minimum 51x102 mm), solid concrete (minimum thickness 203 mm) or concrete blocks (minimum dimensions 203x203x406 mm), as well as on drywall (thickness between 12.7 and 16 mm) with appropriate anchors.
What tools are provided with the mount?
The kit contains screws, wall anchors, mounting brackets, and a wall plate. Required tools (drill, screwdriver, hammer) are not included.
What is the maximum supported weight?
The recommended maximum weight is 5 kg. Make sure the wall can support at least 5 times the total weight of the speaker and mount.
Can I tilt or swivel the speaker once installed?
Yes, after installation, you can adjust the tilt and swivel of the speaker using the provided adjustment screws.
How do I remove the speaker from the mount?
To remove the speaker, loosen the mounting bracket screws (steps described on page 19 of the manual). Gently pull the speaker upward to release it.
Is the mount suitable for ceiling installation?
No, this mount is designed only for wall mounting. Do not install it on the ceiling.
What if a part is missing or damaged?
Contact Sanus customer service directly (not the retailer) to obtain a replacement part. Never use damaged parts.
Can I use this mount with a power cable?
Yes, the mount is designed to allow cable routing for a clean installation. No interference with speaker connection.
How to clean the mount?
Use a soft, dry cloth to dust. Avoid chemical or abrasive products that could damage the finish.

User questions about WSWME12 SANUS

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Speaker stands in PDF format for free! Find your manual WSWME12 - SANUS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WSWME12 by SANUS.

USER MANUAL WSWME12 SANUS

natural_image Technical line drawing of a mechanical device with a circular base and handle (no text or symbols)

We'll Make It Stress-Free

If you have any questions along the way, just give us a call.

US: +1 (800) 359-5520 · EMEA: +31 (0) 495 580 852 · UK: +44 (0) 800 056 2853

We're ready to help!

IMPORTANT SAFETY INSTRUCTIONS

— PLEASE READ ENTIRE MANUAL PRIOR TO USE — SAVE THESE INSTRUCTIONS

Before getting started, let's make sure this product is perfect for you!

This mount is designed to support only Sonos® Era 100™ speakers.

CAUTION: Avoid potential personal injuries and property damage!

  • Check your speaker owner's manual to see if there are any special requirements for mounting your speaker.
  • Please read through these instructions completely to be sure you're comfortable with this easy install process.
  • Do not use this product for any purpose not explicitly specified by manufacturer.
    ■ Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
  • The wall must be capable of supporting five times the weight of the speaker and mount combined.
  • If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service at +1 (800) 359-5520 (EMEA: +31 (0) 495 580 852; UK: +44 (0) 800 056 2853).

Speaker Weight Limit DO NOT EXCEED

SANUS WSWME12 - Speaker Weight Limit DO NOT EXCEED - 1

Tools Needed

SANUS WSWME12 - Tools Needed - 1
Pencil Level

SANUS WSWME12 - Tools Needed - 2
Electric Drill

Wood Stud Install

SANUS WSWME12 - Wood Stud Install - 1
Stud Finder

SANUS WSWME12 - Wood Stud Install - 2
Awl

Concrete Install

SANUS WSWME12 - Concrete Install - 1
Hammer Drill Bit

Drywall Install

SANUS WSWME12 - Drywall Install - 1
Hammer Drill Bit

Dimensions

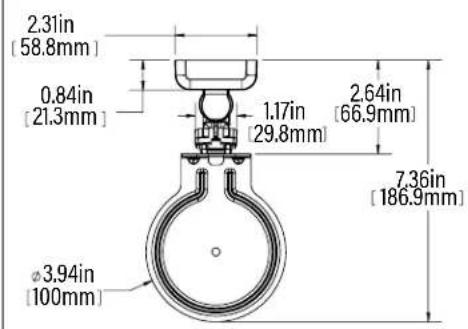

TOP VIEW
2.31in [58.8mm] 0.84in [21.3mm] 1.17in [29.8mm] 2.64in [66.9mm] 7.36in [186.9mm] Ø3.94in [100mm]

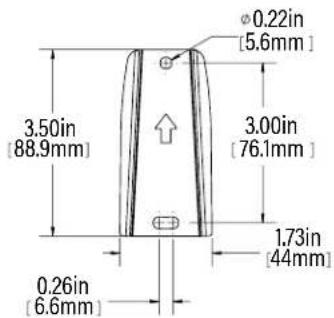

WALL PLATE
0.22in [5.6mm] 3.50in [88.9mm] 3.00in [76.1mm] 1.73in [44mm] 0.26in [6.6mm]

3-D
SANUS WSWME12 - Dimensions - 3

natural_image Technical line drawing of a mechanical device with a circular base and lever mechanism (no text or symbols)

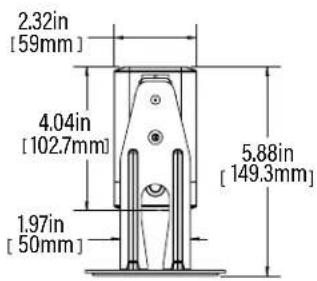

FRONT VIEW
2.32in [59mm] 4.04in [102.7mm] 1.97in [50mm] 5.88in [149.3mm]

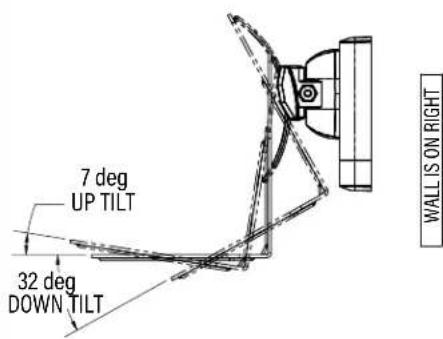

SIDE VIEW - TILT
7 deg UP TILT 32 deg DOWN TILT WALL IS ON RIGHT

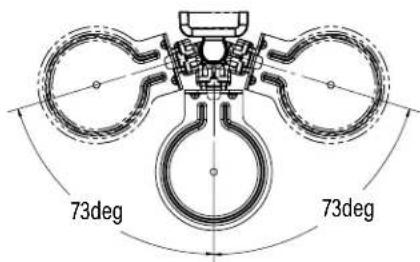

TOP VIEW - SWIVEL
WALL IS ON TOP
73deg 73deg

Supplied Parts and Hardware

⚠ WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

Quantities shown are for one speaker mount.

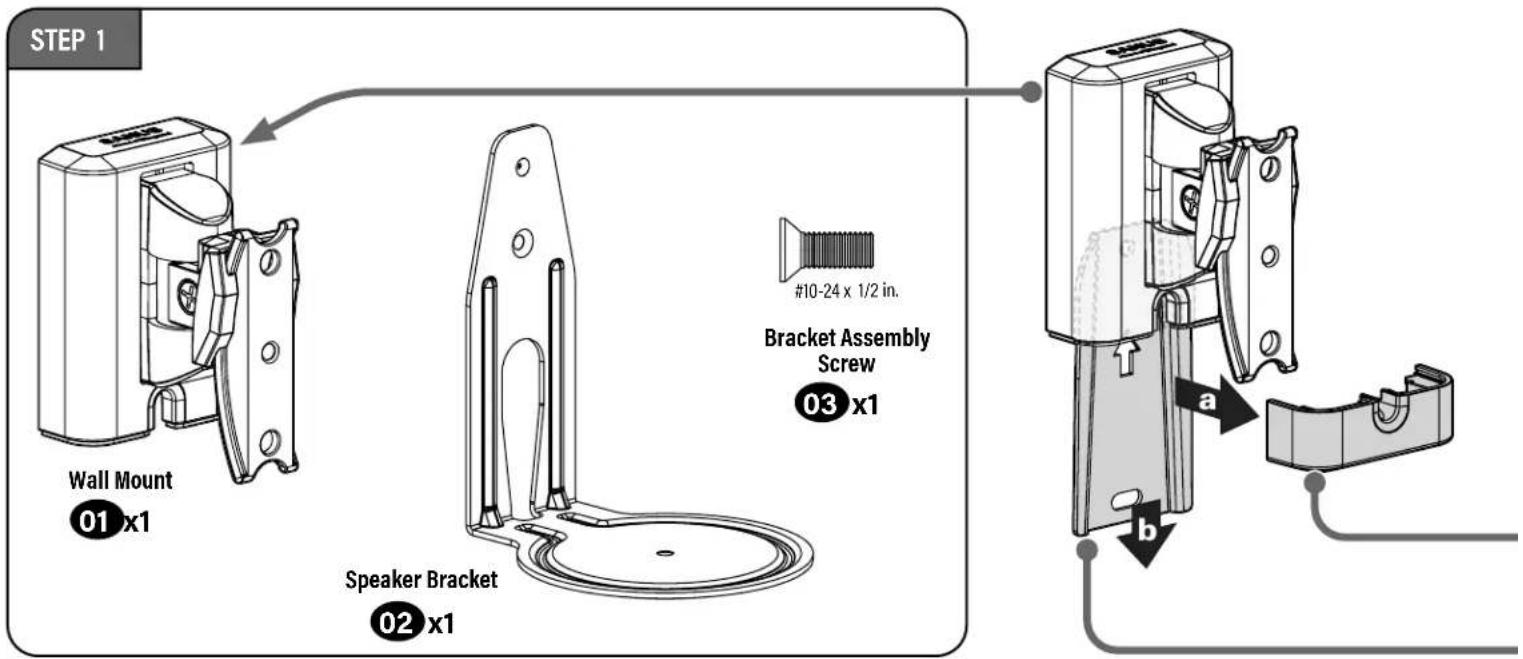

STEP 1 Wall Mount 01 x1 Speaker Bracket 02 x1 #10-24 x 1/2 in. Bracket Assembly Screw 03 x1 a b

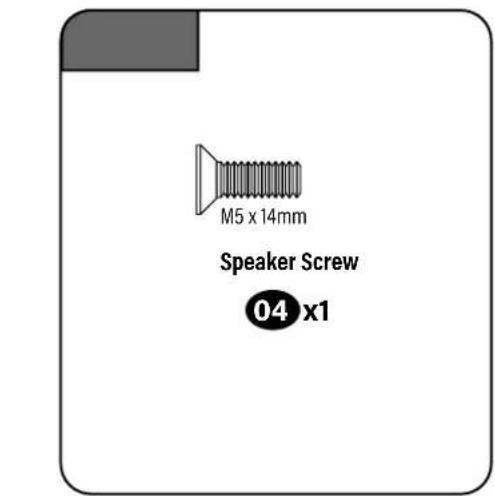

M5 x 14mm Speaker Screw 04 x1

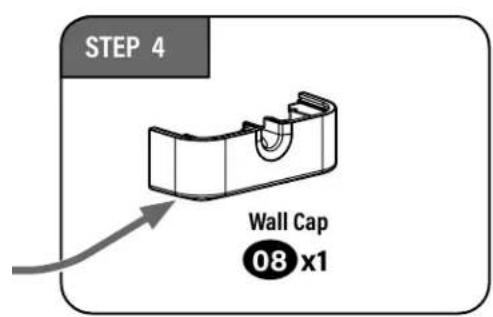

STEP 4 Wall Cap 08 x1

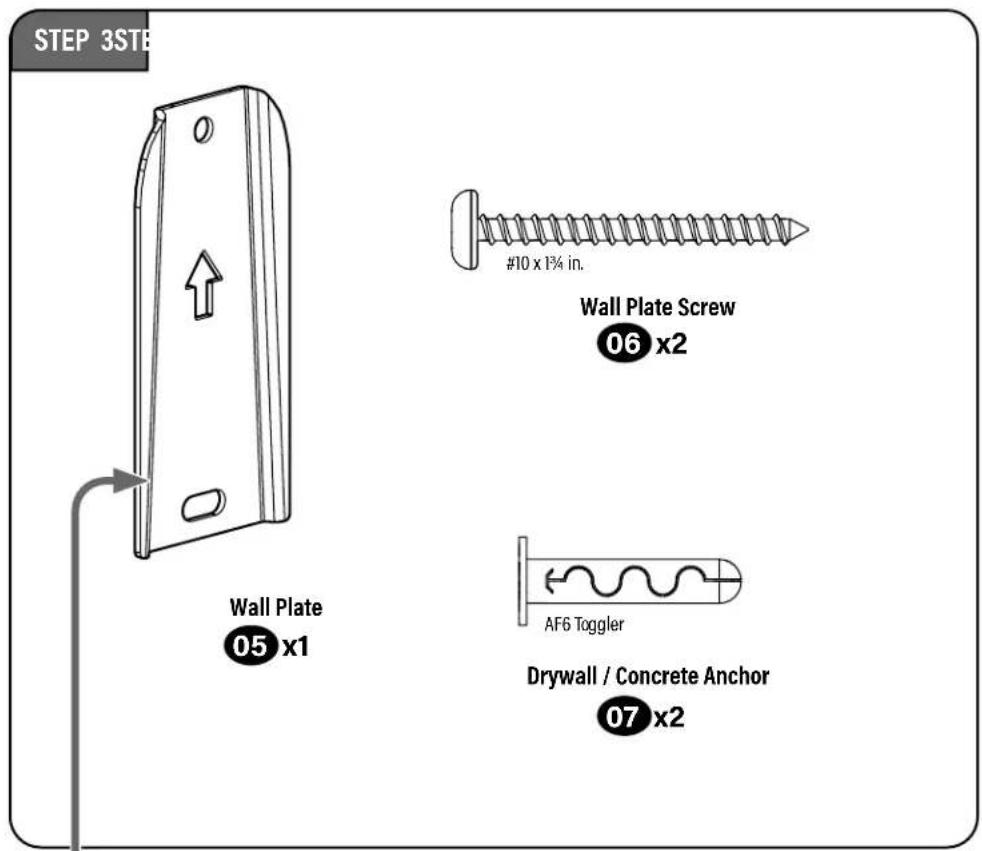

STEP 3STB Wall Plate 05 x1 #10 x 1¾ in. Wall Plate Screw 06 x2 AF6 Toggler Drywall / Concrete Anchor 07 x2

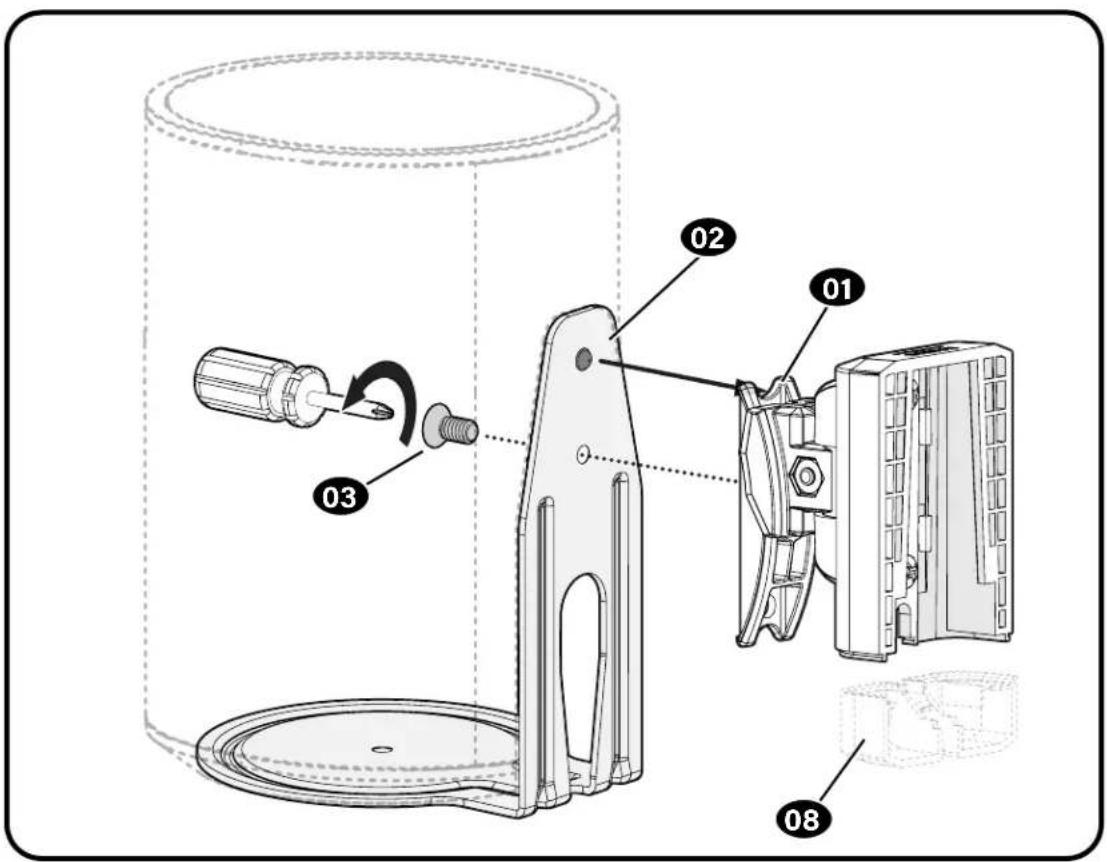

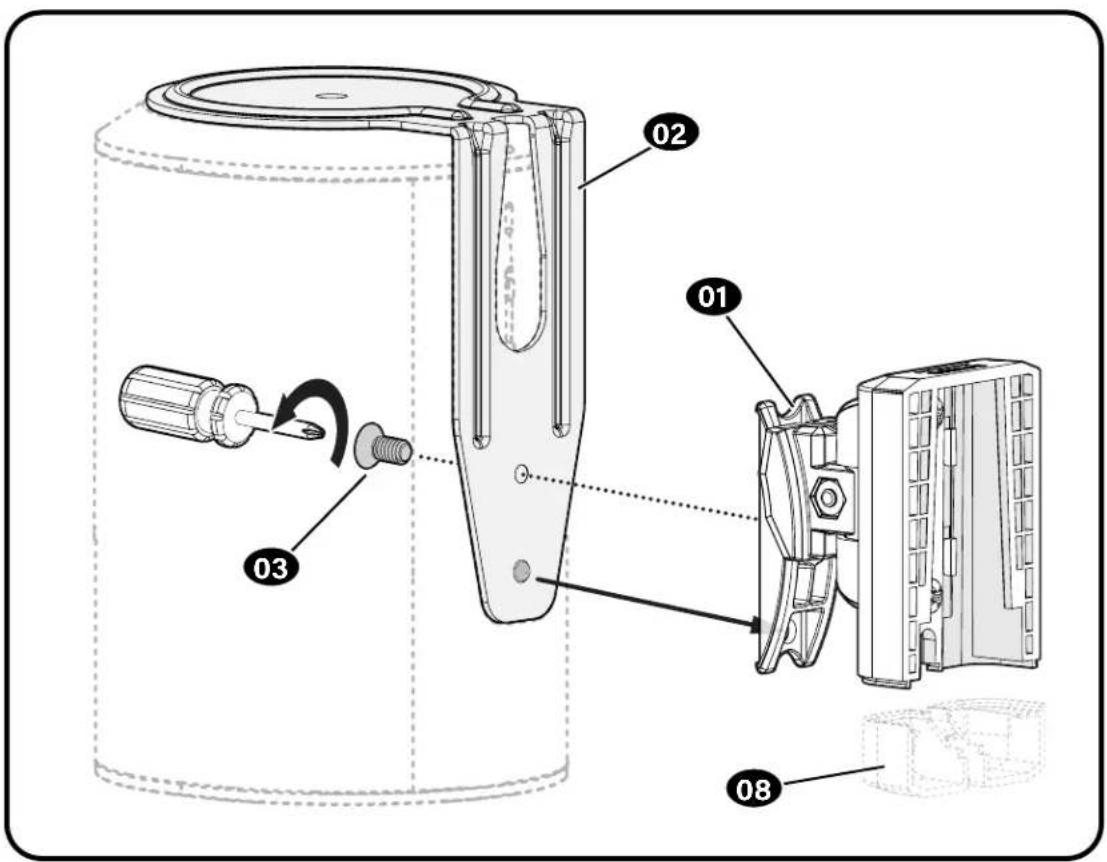

STEP 1

Assemble Brackets

BELOW

Eye Level

Installation

Diagram showing an eye icon pointing to a mug, with a magnifying glass nearby, likely illustrating visual perception or lighting concepts.

Technical diagram of a mechanical device with labeled parts including pin, screw, and housing components

ABOVE

Eye Level

Installation

(Speaker Upside Down)
Diagram showing a camera mounted on a wall-mounted device with an eye icon and directional arrow indicating light or perspective.

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

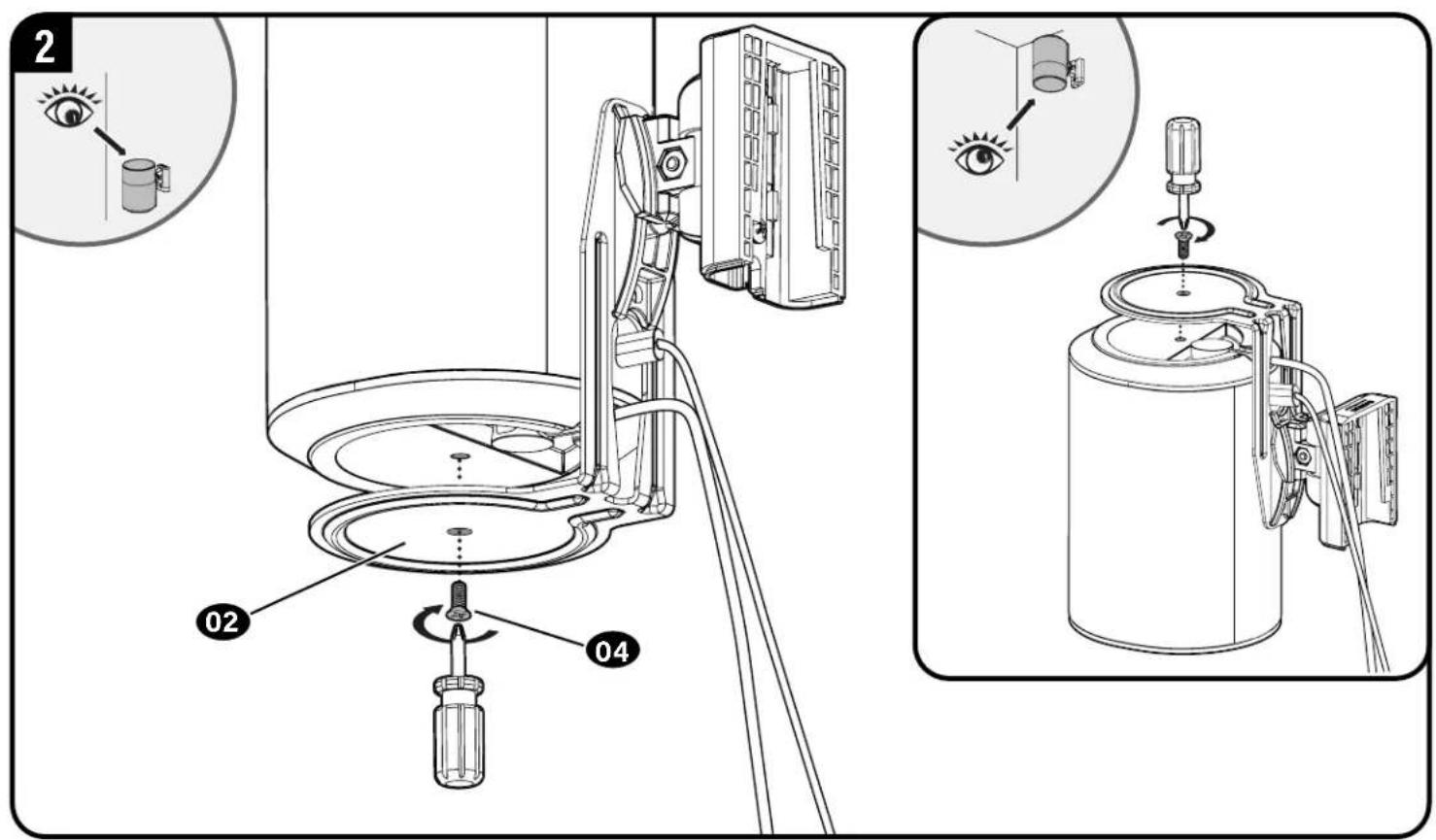

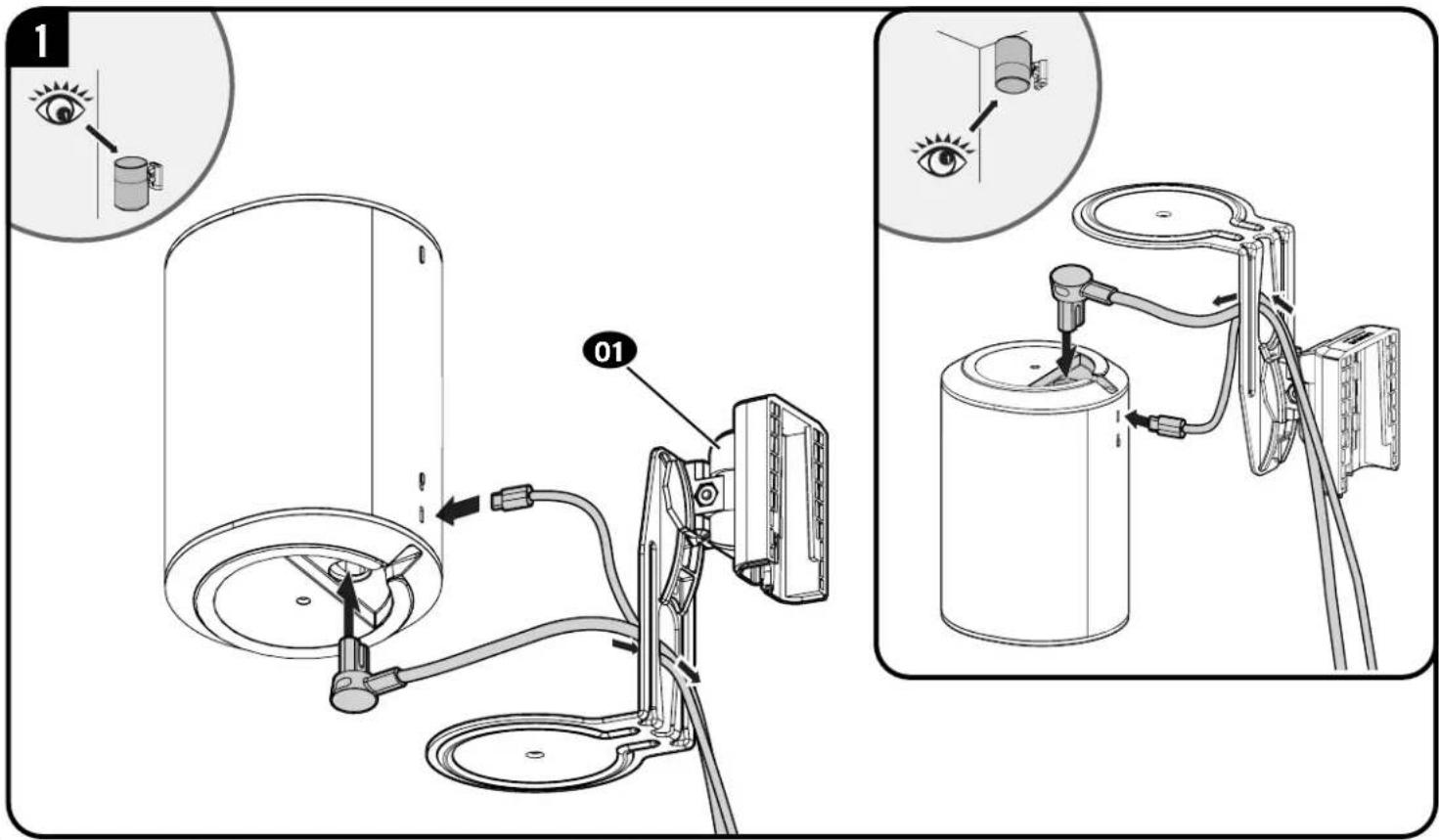

STEP 2

Attach Speaker to Bracket

Technical diagram illustrating eye measurement setup with labeled components and instructions for eye alignment

2 02 04

STEP 3-A

Drywall Only InstallationAttach Wall PI

CAUTION: Avoid potential personal injury or property damage!

● Drywall covering the wall, must not be less than 1/2 in. (12.7 mm)

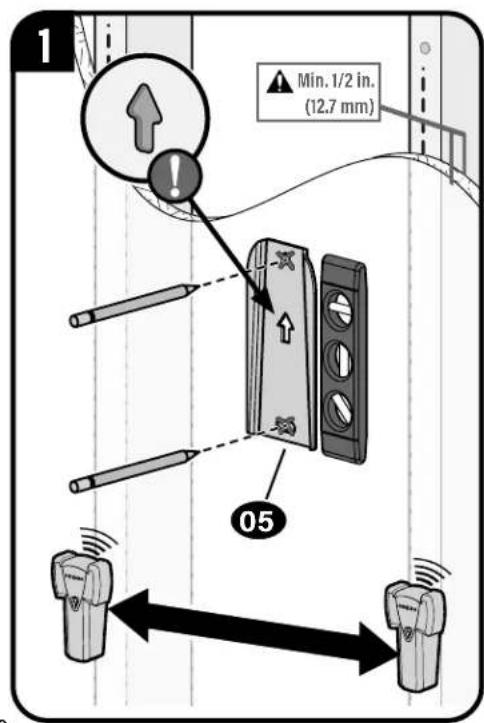

1 Min. 1/2 in. (12.7 mm) 05

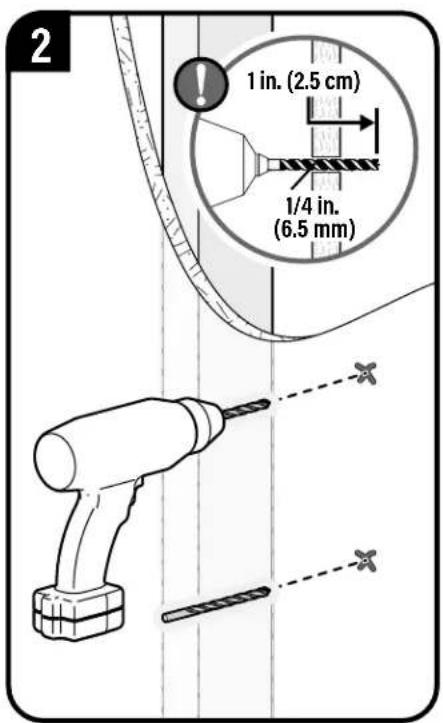

2 1 in. (2.5 cm) 1/4 in. (6.5 mm)

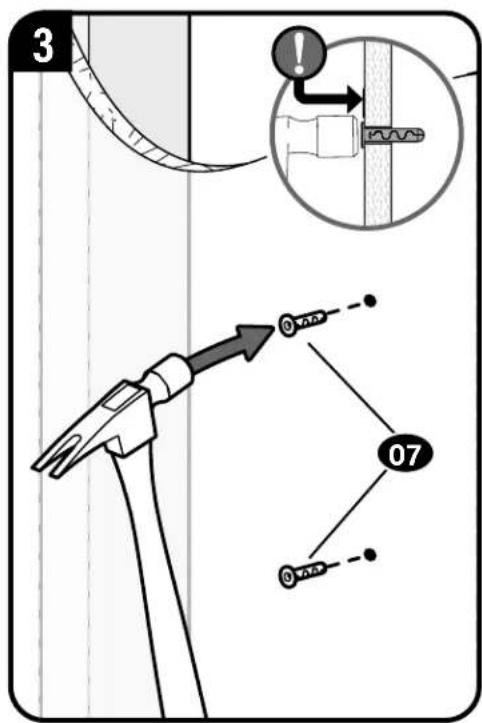

3 07 07

CAUTION: Avoid potential personal injury or property damage!

DO NOT use power tools for this step.

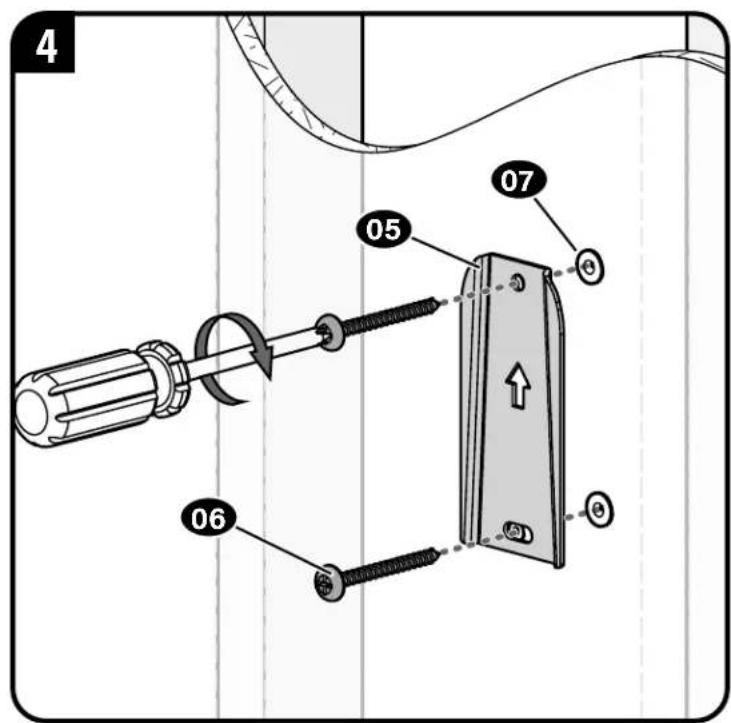

Both screws 06 MUST BE firmly tightened to prevent unwanted movement of the wall plate 05. Ensure the wall plate is securely fastened to the wall before continuing on to the next step, but DO NOT overtighten the screws.

4 05 07 06

06 05 Go to STEP 4, PAGE 16.

STEP 3-B

Wood Stud InstallationAttach Wall Plate t

SANUS WSWME12 - Wood Stud InstallationAttach Wall Plate t - 1

CAUTION: Avoid potential personal injury or property damage!

● Drywall covering the wall, must not exceed 5/8 in. (16 mm)
Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1½ x 3½ in. (38 x 89 mm)
• Stud center must be verified

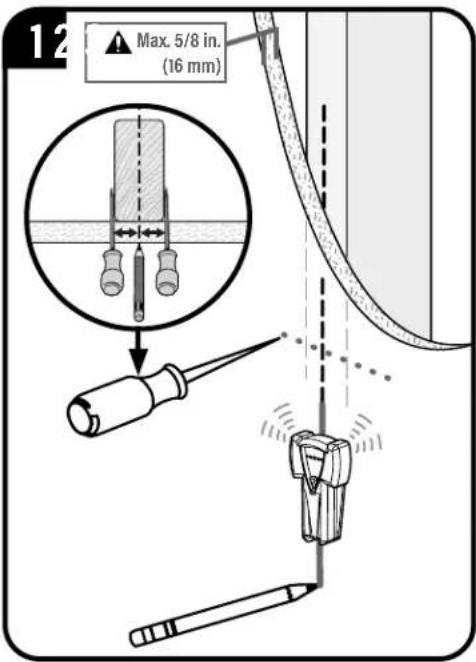

12 Max. 5/8 in. (16 mm)

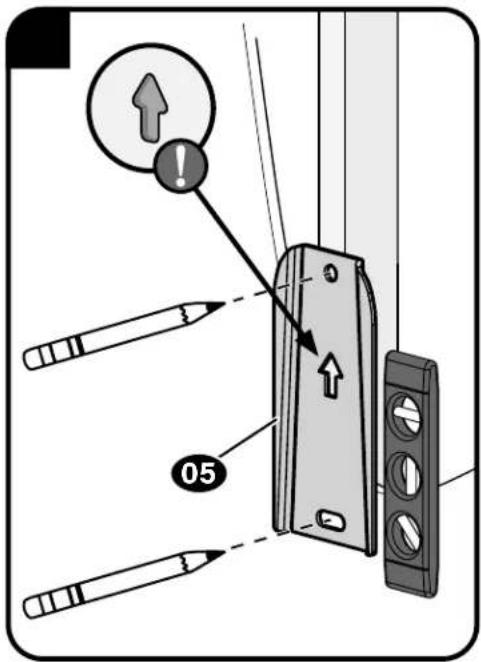

Diagram showing a device lock switch with labeled components and an alert icon, including pencil and pencil tip functions.

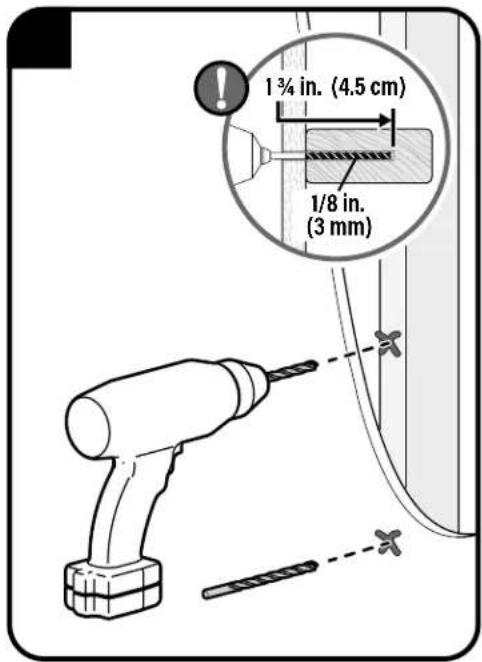

1¾ in. (4.5 cm) 1/8 in. (3 mm)

CAUTION: Avoid potential personal injury or property damage!

DO NOT use power tools for this step.

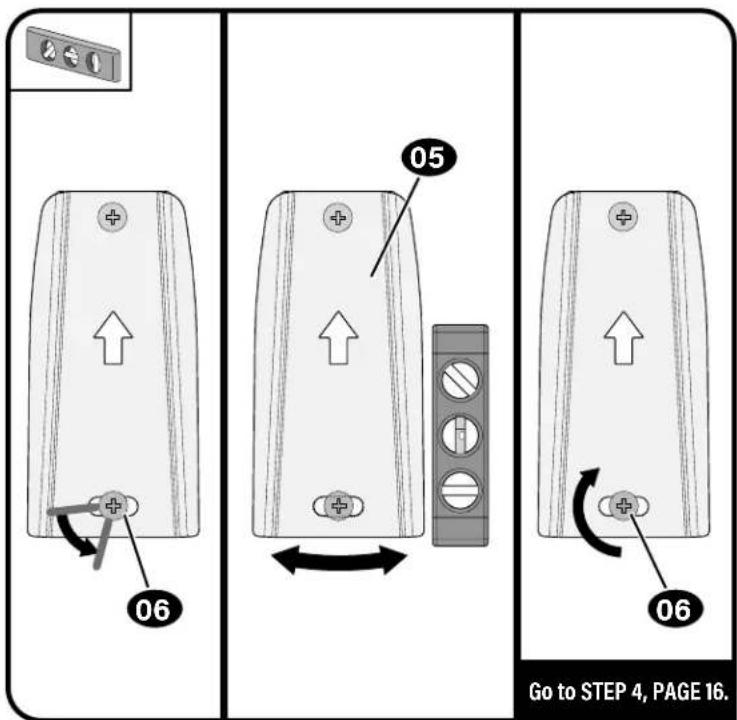

Both screws 06 MUST BE firmly tightened to prevent unwanted movement of the wall plate 05. Ensure the wall plate is securely fastened to the wall before continuing on to the next step, but DO NOT overtighten the screws.

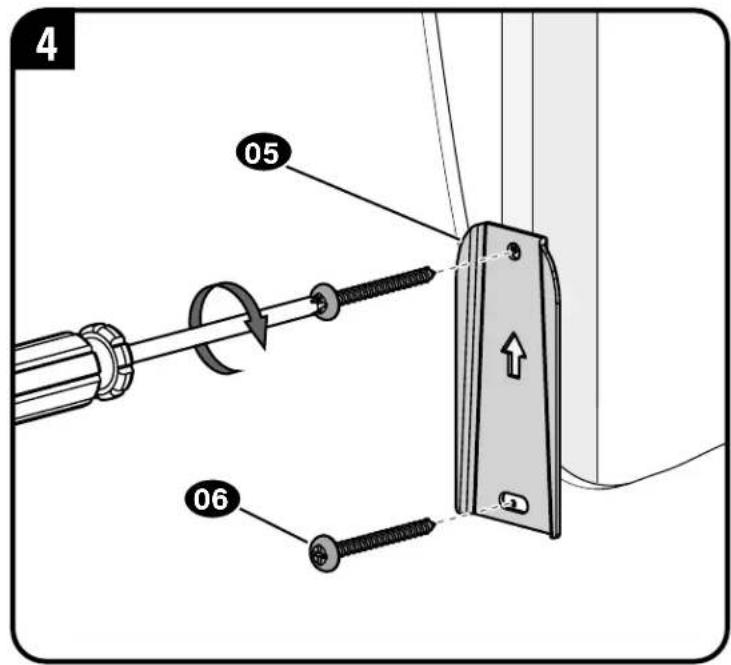

4 05 06

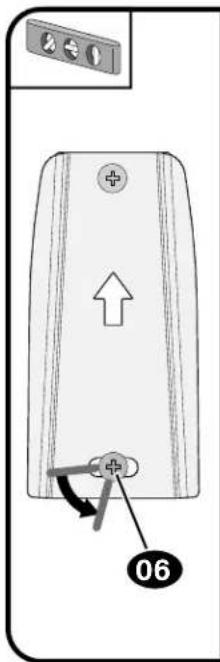

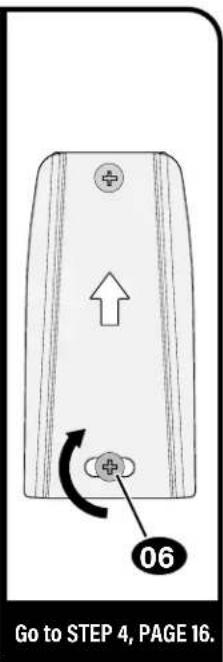

Diagram of a device rear panel with labeled components and directional arrows, marked as 06

05

Go to STEP 4, PAGE 16.

STEP 3-C

Attach Wall Plate to Wall

Solid Concrete or Concrete Block Installation

SANUS WSWME12 - Solid Concrete or Concrete Block Installation - 1

CAUTION: Avoid potential personal injury or property damage!

  • Mount the wall plat 05 directly onto the concrete surface (no wall covering)
    ● Minimum solid concrete thickness: 8 in. (203 mm)
    ● Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm)

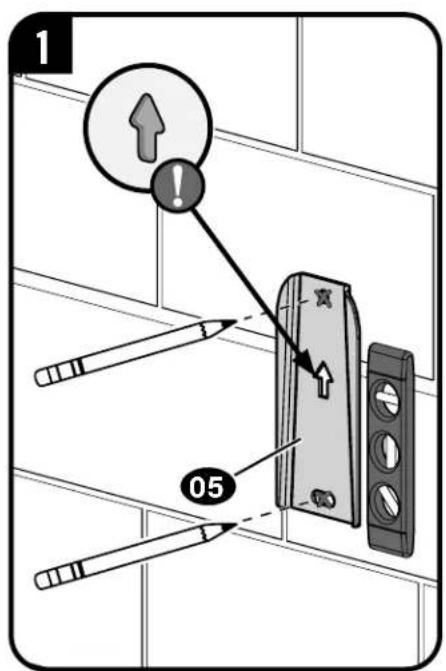

1 05

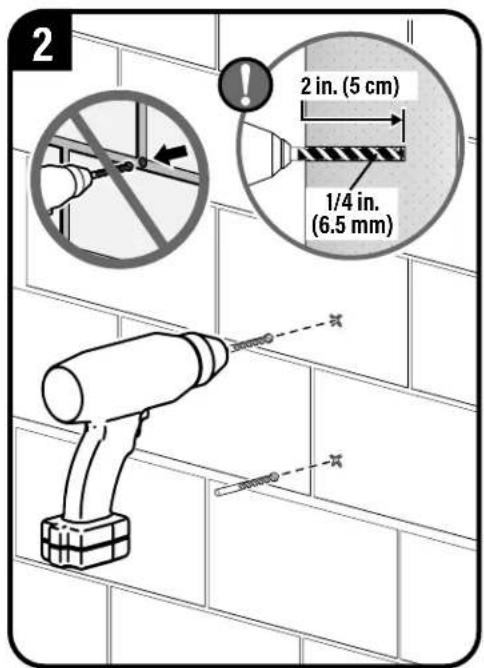

2 2 in. (5 cm) 1/4 in. (6.5 mm)

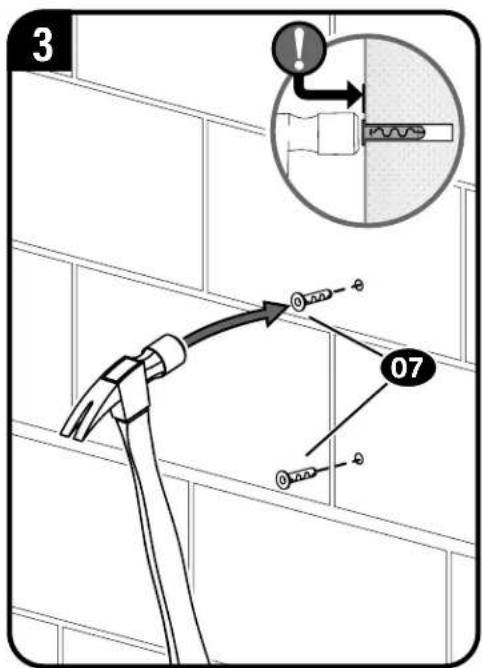

3 07

CAUTION: Avoid potential personal injury or property damage!

DO NOT use power tools for this step.

Both screws 06 MUST BE firmly tightened to prevent unwanted movement of the wall plate 05. Ensure the wall plate is securely fastened to the wall before continuing on to the next step, but DO NOT overtighten the screws.

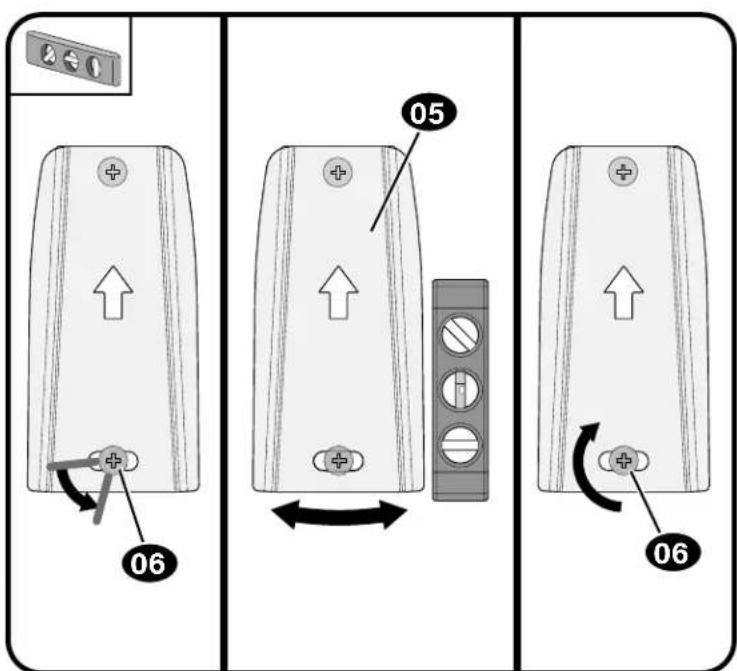

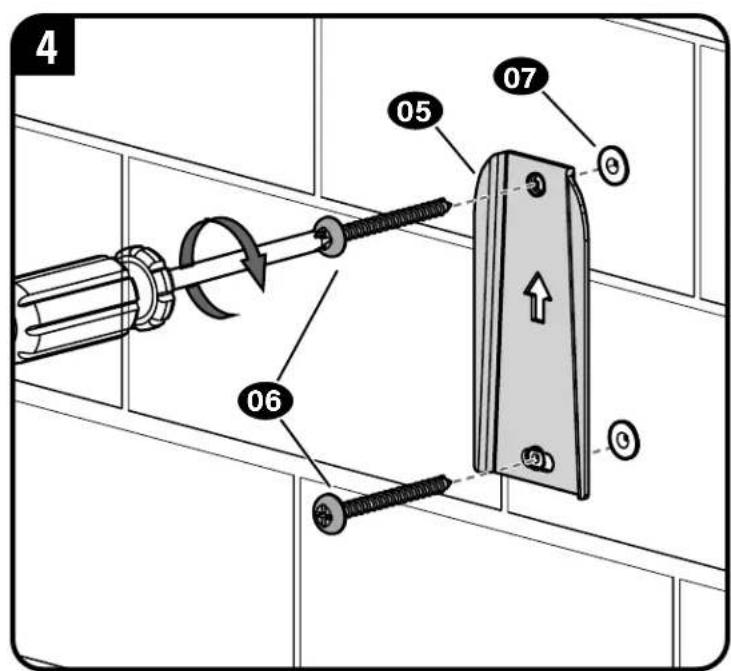

4 05 07 ⑧ 06 ⑨

Diagram showing three-step device state changes with labeled buttons and directional arrows, likely illustrating a device state transition or adjustment.

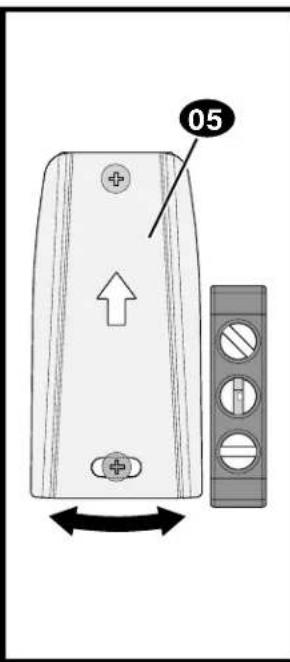

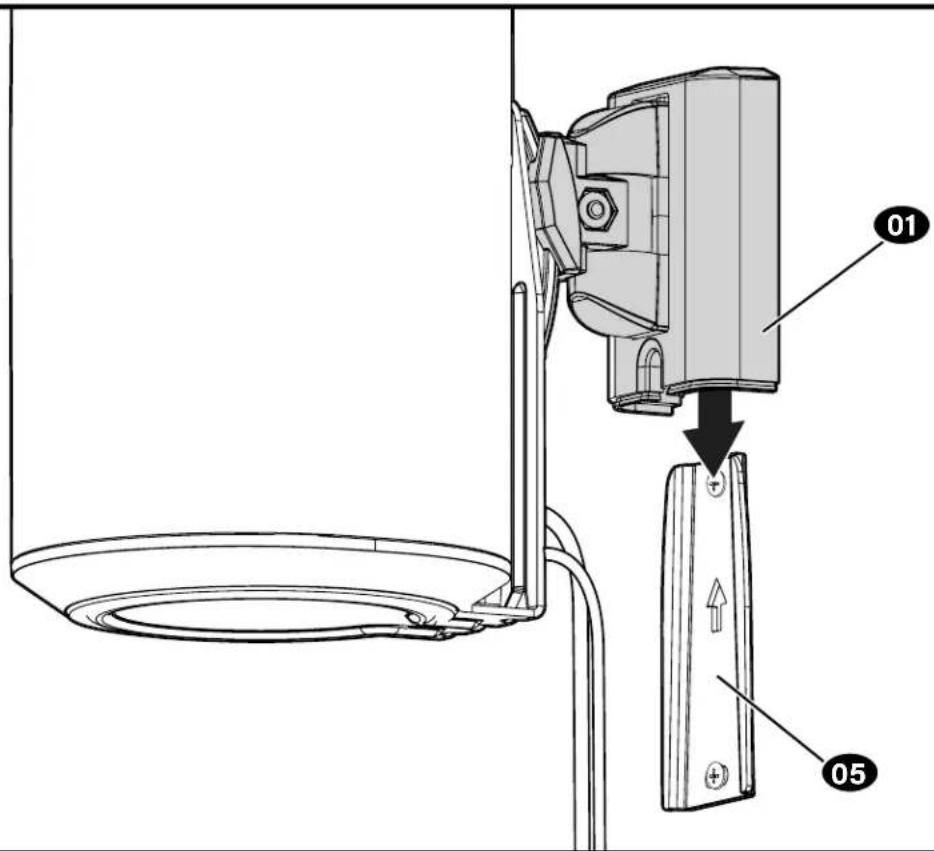

STEP 4

Mount Assembly to Wall Plate

1

Technical diagram showing a device with labeled parts 01 and 05, indicating assembly or installation steps.

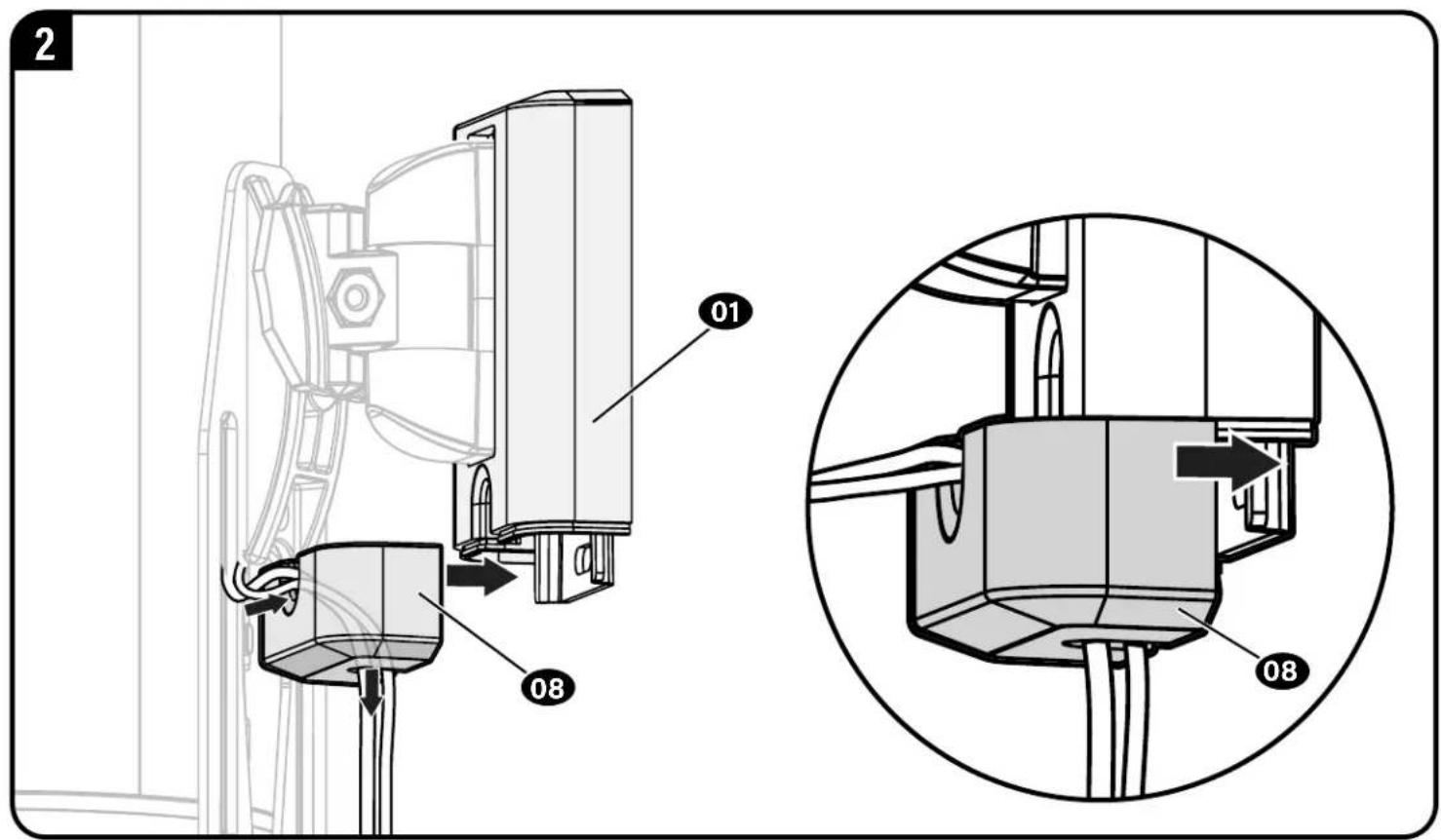

2 01 08 08

Adjustments

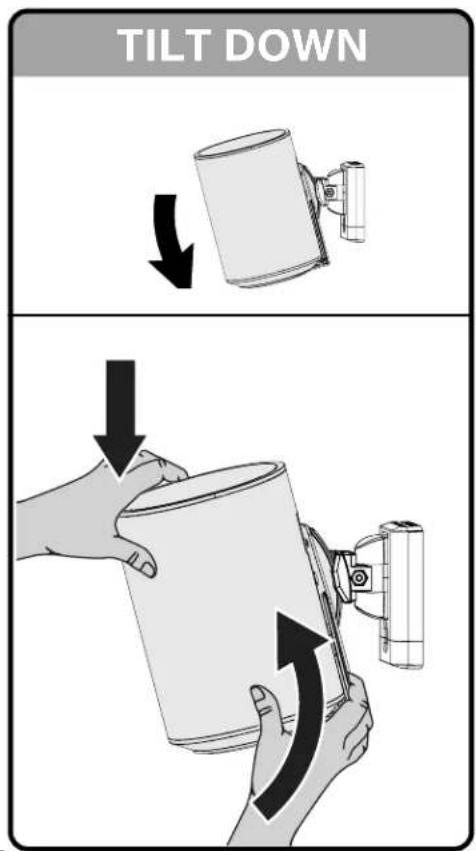

TILT DOWN

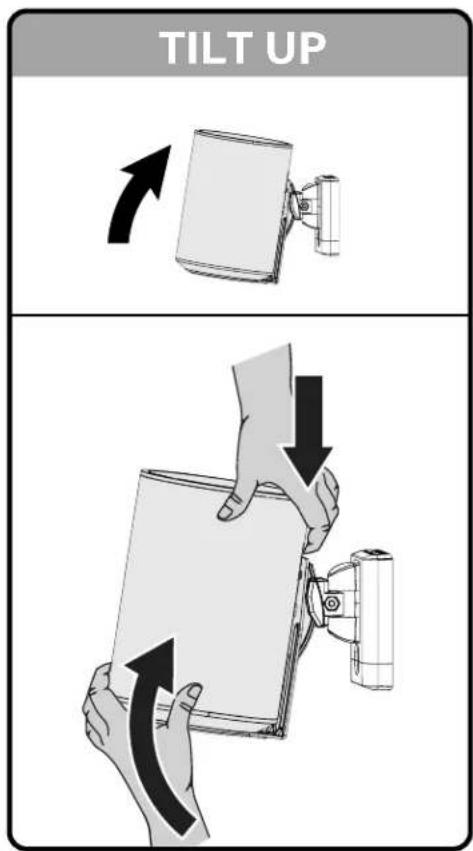

TILT UP

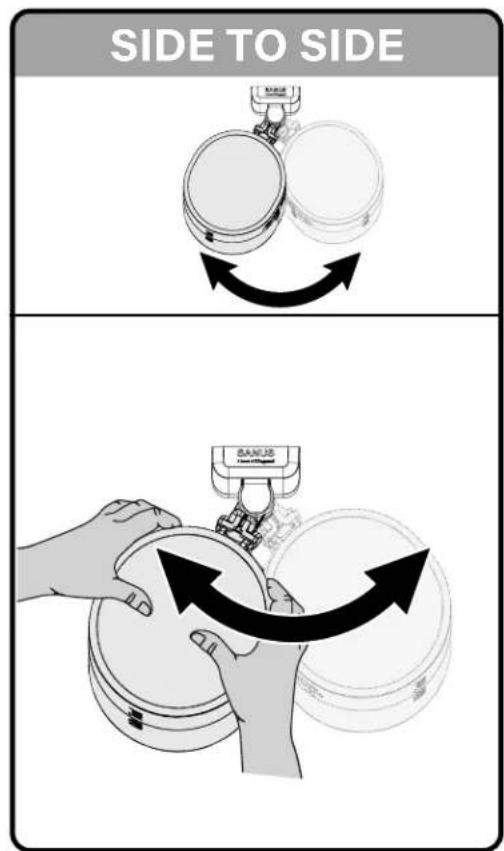

SIDE TO SIDE BANJIS Frost Stabilized

To Remove

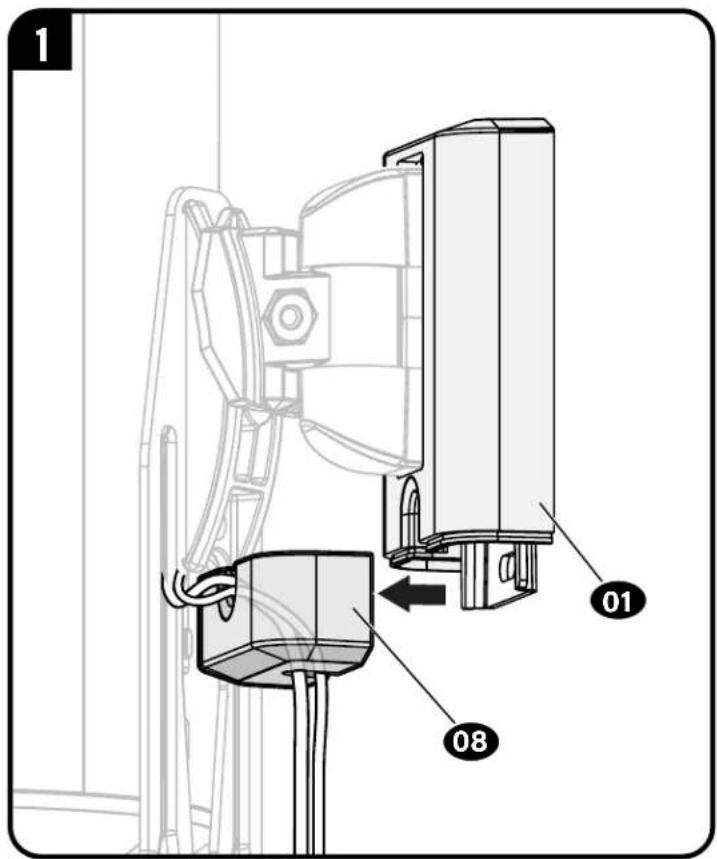

1 01 08

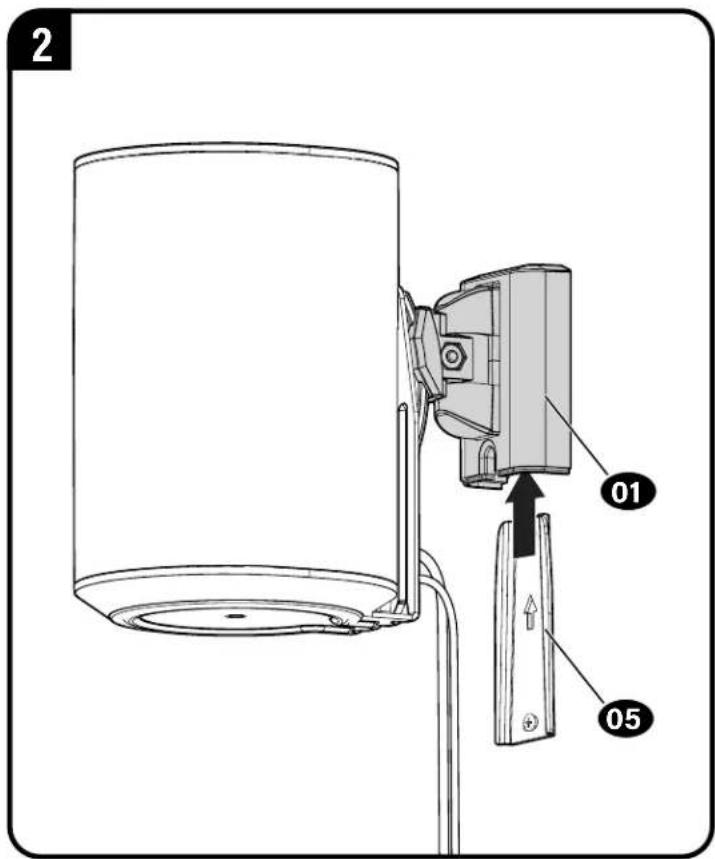

2 01 05

ESPAÑOL

natural_image Four different types of electrical tools: a pencil, a push-button switch, a screwdriver, and a variable resistor (no text or symbols present)

铅笔 水平仪 螺丝刀 电钻

木墙柱安装

SANUS WSWME12 - 木墙柱安装 - 1
墙柱 查找器

SANUS WSWME12 - 木墙柱安装 - 2
尖钻 木钻头 石钻头

混凝土安装

SANUS WSWME12 - 混凝土安装 - 1
(17) 100

壁板安装

SANUS WSWME12 - 壁板安装 - 1
壁板钻头

SANUS WSWME12 - 壁板安装 - 2
锤子

尺寸

第3页

中文

配套零件和配件

第4页

Thank you for choosing SANUS! Please take a moment to let us know how we did:

Legrand AV Inc.

6436 City West Parkway

Eden Prairie, MN 55344 USA

US: +1 (800) 359-5520

Legrand AV Netherlands B.V.

Franklinstraat 14

6003 DK Weert Netherlands

UK: +44 (0) 800 056 2853

EMEA: +31 (0) 495 580 852

Authorized Representative for the UK

Starline Holding Technology Ltd.

Unit C Island Road

Reading RG2 ORP UK

Legrand AV Inc. and its affiliated corporations and subsidiaries (collectively, "Legrand"), intend to make this manual accurate and complete. However, Legrand AV makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Legrand AV makes no representation of warranty, expressed or implied, regarding the information contained herein. Legrand AV assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

©2023 Legrand AV Inc. All rights reserved. SANUS is a brand of Legrand.

All other brand names or marks are used for identification purposes and are trademarks of their respective owners.

Legrand AV Inc. · 6436 City West Parkway · Eden Prairie, MN 55344 USA

6901-603142 00
