Bavaria BSM 850 E - Drill EINHELL - Free user manual and instructions

Product type	Hammer drill
Brand	Einhell
Model	Bavaria BSM 850 E
Supply voltage	230 V - 50 Hz
Power consumption	850 W
Drilling capacity (concrete)	16 mm
Drilling capacity (steel)	13 mm
Drilling capacity (wood)	30 mm
No-load speed (1st gear)	0 - 900 min⁻¹
No-load speed (2nd gear)	0 - 2700 min⁻¹
Impact rate	0 - 26 500 min⁻¹
Weight	2.75 kg
Sound pressure level (LPA)	92.9 dB(A)
Sound power level (LWA)	105.9 dB(A)
Vibration (handle)	10.2 m/s²
Chuck type	Keyless chuck (2 to 13 mm)
Functions	Drilling, hammer drilling, two speeds, reversible rotation direction, electronic speed control
Speed switch	2 mechanical speeds
Auxiliary handle	Yes, with depth stop
Switch lock	For continuous operation
Double insulation	Yes
Maintenance	Clean with a dry cloth, check brushes if excessive sparking, keep ventilation slots clear
Safety	Disconnect before any intervention, use safety goggles and dust mask, auxiliary handle mandatory near electrical conduits
Warranty	24 months from date of purchase

Frequently Asked Questions - Bavaria BSM 850 E EINHELL

How to change the speed of my Bavaria BSM 850 E drill?

To change speed, make sure the device is stopped. Use switch 5 (Speed 1 - Speed 2) located on top of the motor. Position 1 for low speed (0-900 rpm) and position 2 for high speed (0-2700 rpm).

How to use the hammer function?

Turn rotary switch 4 to 'hammer drilling' position (hammer symbol) only when the drill is stopped. For drilling tiles or slabs, use 'drilling' position (drill symbol).

What is the maximum drilling diameter in concrete?

The maximum drilling capacity in concrete is 16 mm. For steel, it's 13 mm and for wood, 30 mm.

How to adjust the rotation speed?

The speed is electronically adjustable by pressing the on/off switch 9 more or less. You can also preselect a speed by turning the knurled screw located in the switch.

Can I use accessories other than drill bits?

No, according to the manual, the BSM 850 E is not intended for driving adaptable tools. Use only sharp drill bits and appropriate screwdriver bits.

How to clean my drill?

First unplug the device. Clean with a dry cloth and do not use corrosive products on plastic. Keep ventilation slots clear. If excessive sparking occurs, have the carbon brushes checked by a specialist.

What is the power of the drill?

The Bavaria BSM 850 E drill has a power consumption of 850 W under 230 V - 50 Hz.

How to reverse the rotation direction?

Use the rotation direction switch (mark 6) located above the trigger. Push it left for clockwise rotation, right for counterclockwise. Only switch when stopped.

What safety measures should be observed?

Always wear safety goggles and a dust mask. Use the auxiliary handle, especially near electrical conduits. Unplug before any adjustment or cleaning. Do not work near flammable vapors or liquids.

Where can I get spare parts?

Contact your dealer or Einhell after-sales service. Use only original spare parts. The 24-month warranty covers material and manufacturing defects, but not subsequent damages.

USER MANUAL Bavaria BSM 850 E EINHELL

Please read the operating instructions carefully before assembling and using

White electric drill bit with labeled parts A and B, no visible text or symbols beyond labels

Ein/Ausschalter:

Einschalten:

Schalter A drücken

Dauerbetrieb:

White cylindrical device with black handle and ventilation slots, no visible text or symbols

Top-down view of a white and black handheld device with ventilation slots (no visible text or symbols)

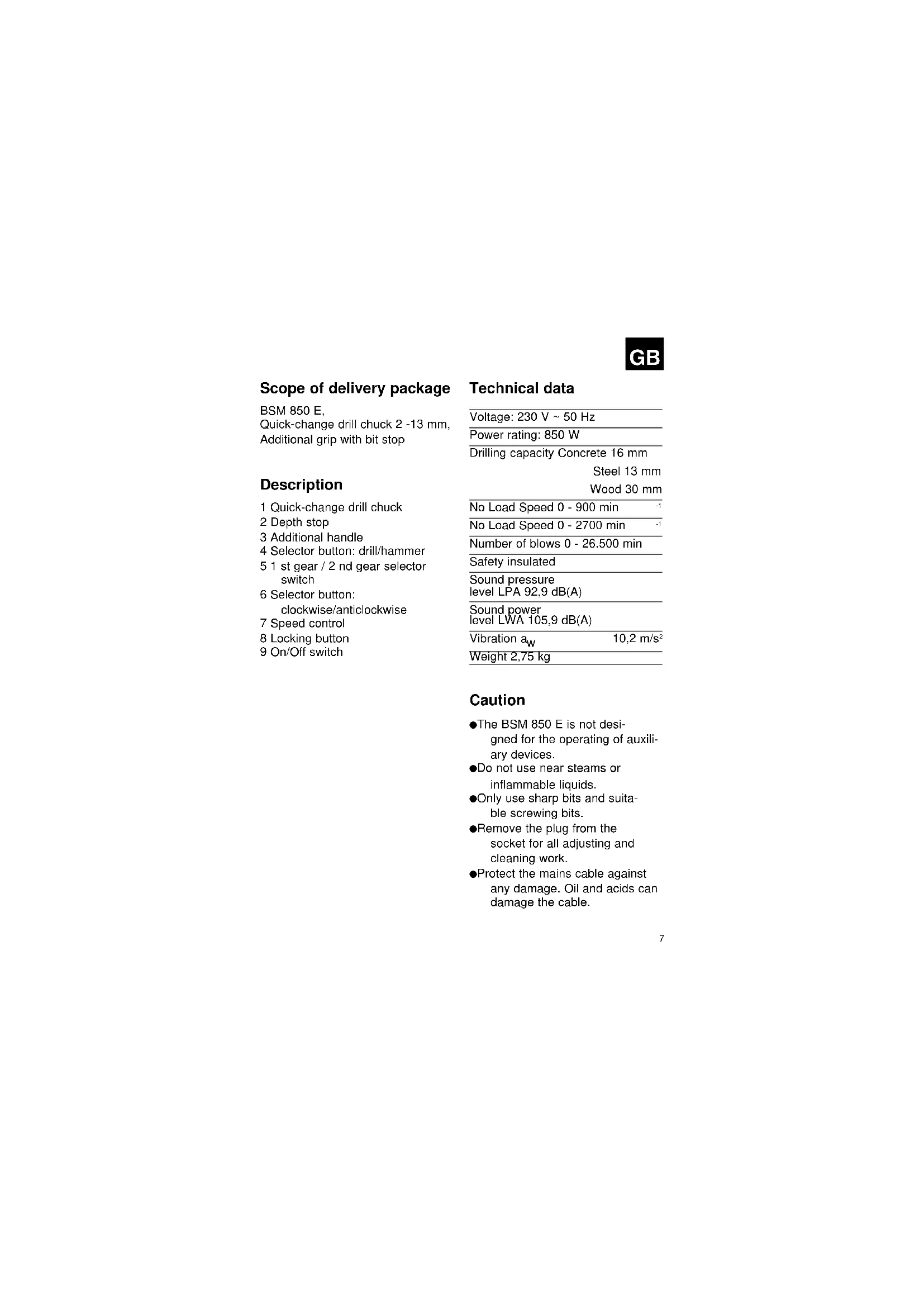

Scope of delivery package

BSM 850 E,

Quick-change drill chuck 2 -13 mm,

Additional grip with bit stop

Description

1 Quick-change drill chuck

2 Depth stop

3 Additional handle

4 Selector button: drill/hammer

5 1 st gear / 2 nd gear selector switch

6 Selector button:

clockwise/anticlockwise

7 Speed control

8 Locking button

9 On/Off switch

Technical data

Voltage: 230 V \~ 50 Hz

Power rating: 850 W

Drilling capacity Concrete 16 mm

Steel 13 mm

Wood 30 mm

No Load Speed 0 - 900 min

No Load Speed 0 - 2700 min

Number of blows 0 - 26.500 min

Safety insulated

Sound pressure

level LPA 92,9 dB(A)

Sound power

level LWA 105,9 dB(A)

Vibration a_w

10,2 m/s²

Weight 2,75 kg

Caution

●The BSM 850 E is not designed for the operating of ary devices.
●Do not use near steams or inflammable liquids.
●Only use sharp bits and suitable screwing bits.
- Remove the plug from the socket for all adjusting and cleaning work.
●Protect the mains cable against any damage. Oil and acids can damage the cable.

GB

• Do not carry the device by the mains cable.
  ●Do not remove the plug from the socket by pulling the mains cable.
  ●Make sure before inserting the plug that the operating switch is not locked.
• When using a cable drum uncoil the cable completely. Cross-section of wire at least 1.5 mm ^2 .
  ●Do not overload machine.
• Secure all workpieces to be processed sufficiently.
  ●Do not allow children to have access.
  ●Make sure you have a secure stance on ladders or scaffolding when using the drill free-hand.
  ●Localise lines with a line detector in walls where power, water or gas lines are laid invisibly.
  ●Wear protection goggles and use a dust mask for dust-producing work.
  ●Always arrange for a qualified electrician to carry out repairs
  ●Use only original replacement parts
  ●The level of noise at the workplace may exceed 85 dB(A). In this case you will need to introduce noise protection measures for the user. The noise

generated by this electric tool was measured in accordance with EN 50114-1.

●Vibration measured on the handle acc. to EN 50144-1.

Maintenance

●Always keep the drill clean.
●Do not use corroding agents for cleaning plastic.
- Check carbon brushes in the case of excessive sparking.
- Keep ventilation channels free.

GB

850 E 11 A B

On/Off switch:

To switch on: Press switch A

Continuous operation: Lock switch A with

locking button B

To switch off: Press switch A briefly

The speed is varied by applying more or less

pressure on switch A. You can preselect the

speed by turning the knurled screw in switch A.

Gear selector switch Position for 1st gear

Gear selector switch Position for 2nd gear

White handheld electronic device with black ports and ventilation slots (no visible text or symbols)

Rotary switch set for hammer mode. Wait for

the drill to stop before changing!

Please note: This switch should be

in 'drill' position when drilling holes in tiles.

White handheld device with black handle and ventilation slots (no visible text or symbols)

Rotary switch set for drilling mode. Wait for the

drill to stop before changing!

F

White electric drill bit with labeled parts A and B, no visible text or symbols beyond labels

Top-down view of a white cylindrical device with black connectors and a central rectangular component (no visible text or symbols)

Top-down view of a white and black handheld device with ventilation slots (no visible text or symbols)

Top-down view of a white and black handheld device with control buttons (no visible text or symbols)

White and black handheld device with ventilation slots and a black handle (no visible text or symbols)

Gearomkobling position 1. gear Gearomkobling position 2. gear

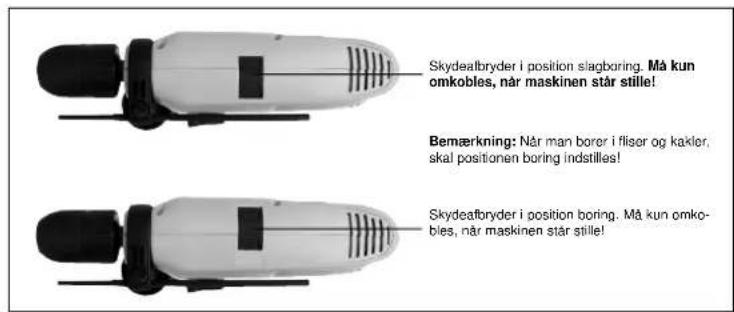

Skydealtbryder i position slagboring. Må kun omkobles, när maskinen står stille! Bemærkning: Når man borer i fliser og kaklor, skal positionen boring indstilles! Skydeafbryder i position boring. Må kun omkobles, när maskinen står stille!

PL

WYPOSAŻENIE

BSM 850 E

White electric drill bit with black handle and labeled parts A and B (no text or symbols on the device itself)

White and black handheld device with a circular button and handle, no visible text or symbols

White and black handheld device with ventilation slots (no visible text or symbols)

White electric drill bit with labeled parts A and B, no visible text or symbols beyond labels

Ki-/bekapcsoló:

Bekapcsolni:

White and black handheld device with a circular button and handle (no visible text or symbols)

White and black handheld device with black handle and ventilation slots (no visible text or symbols)

The guarantee period begins on the sales date and is valid for 2 years.

Responsibility is assumed for faulty construction or material or functional defects.

Any necessary replacement parts an necessary repair work are free of charge.

We do not assume responsibility for consequential damage.

Your customer service partner

① CERTIFICATO DI GARANZIA

Eschenstraße 6 · D-94405 Landau/Isar (Germany)

Info-Tel. [phone] (62 CI/Min.) • Telefax 0 99 51-26 10 und 52 50

Technical changes subject to change
