USER MANUAL 67805 Lund

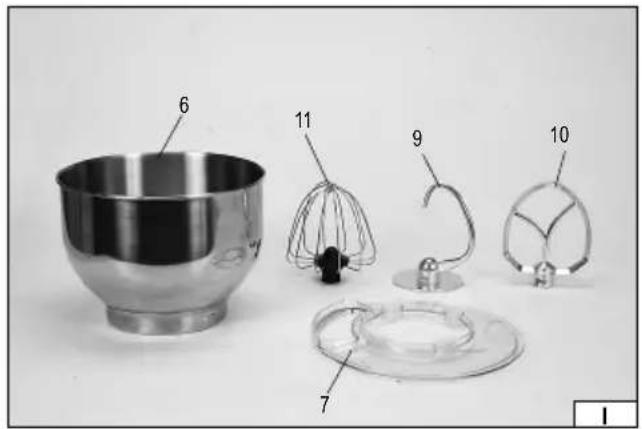

4. power cord with a plug

5. lever of the head latch

7. cover of the bowl

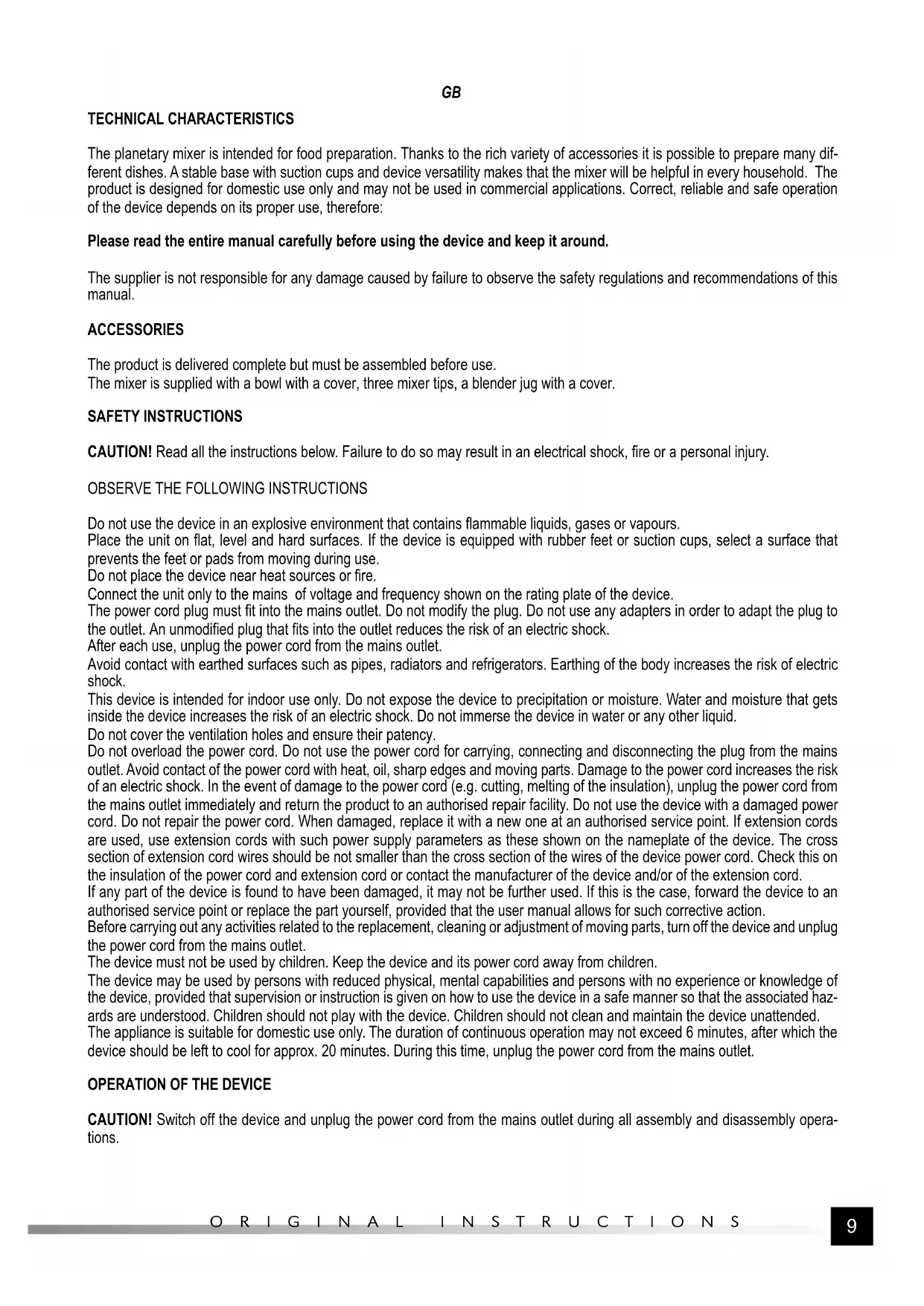

ORIGINAL INSTRUCTIONS TECHNICAL CHARACTERISTICS The planetary mixer is intended for food preparation. Thanks to the rich variety of accessories it is possible to prepare many dif- ferent dishes. A stable base with suction cups and device versatility makes that the mixer will be helpful in every household. The product is designed for domestic use only and may not be used in commercial applications. Correct, reliable and safe operation of the device depends on its proper use, therefore: Please read the entire manual carefully before using the device and keep it around. The supplier is not responsible for any damage caused by failure to observe the safety regulations and recommendations of this manual. ACCESSORIES The product is delivered complete but must be assembled before use. The mixer is supplied with a bowl with a cover, three mixer tips, a blender jug with a cover. SAFETY INSTRUCTIONS CAUTION! Read all the instructions below. Failure to do so may result in an electrical shock, fire or a personal injury.

OBSERVE THE FOLLOWING INSTRUCTIONS

Do not use the device in an explosive environment that contains flammable liquids, gases or vapours. Place the unit on flat, level and hard surfaces. If the device is equipped with rubber feet or suction cups, select a surface that prevents the feet or pads from moving during use. Do not place the device near heat sources or fire. Connect the unit only to the mains of voltage and frequency shown on the rating plate of the device. The power cord plug must fit into the mains outlet. Do not modify the plug. Do not use any adapters in order to adapt the plug to the outlet. An unmodified plug that fits into the outlet reduces the risk of an electric shock. After each use, unplug the power cord from the mains outlet. Avoid contact with earthed surfaces such as pipes, radiators and refrigerators. Earthing of the body increases the risk of electric shock. This device is intended for indoor use only. Do not expose the device to precipitation or moisture. Water and moisture that gets inside the device increases the risk of an electric shock. Do not immerse the device in water or any other liquid. Do not cover the ventilation holes and ensure their patency. Do not overload the power cord. Do not use the power cord for carrying, connecting and disconnecting the plug from the mains outlet. Avoid contact of the power cord with heat, oil, sharp edges and moving parts. Damage to the power cord increases the risk of an electric shock. In the event of damage to the power cord (e.g. cutting, melting of the insulation), unplug the power cord from the mains outlet immediately and return the product to an authorised repair facility. Do not use the device with a damaged power cord. Do not repair the power cord. When damaged, replace it with a new one at an authorised service point. If extension cords are used, use extension cords with such power supply parameters as these shown on the nameplate of the device. The cross section of extension cord wires should be not smaller than the cross section of the wires of the device power cord. Check this on the insulation of the power cord and extension cord or contact the manufacturer of the device and/or of the extension cord. If any part of the device is found to have been damaged, it may not be further used. If this is the case, forward the device to an authorised service point or replace the part yourself, provided that the user manual allows for such corrective action. Before carrying out any activities related to the replacement, cleaning or adjustment of moving parts, turn off the device and unplug the power cord from the mains outlet. The device must not be used by children. Keep the device and its power cord away from children. The device may be used by persons with reduced physical, mental capabilities and persons with no experience or knowledge of the device, provided that supervision or instruction is given on how to use the device in a safe manner so that the associated haz- ards are understood. Children should not play with the device. Children should not clean and maintain the device unattended. The appliance is suitable for domestic use only. The duration of continuous operation may not exceed 6 minutes, after which the device should be left to cool for approx. 20 minutes. During this time, unplug the power cord from the mains outlet.

OPERATION OF THE DEVICE

CAUTION! Switch off the device and unplug the power cord from the mains outlet during all assembly and disassembly opera- tions.10

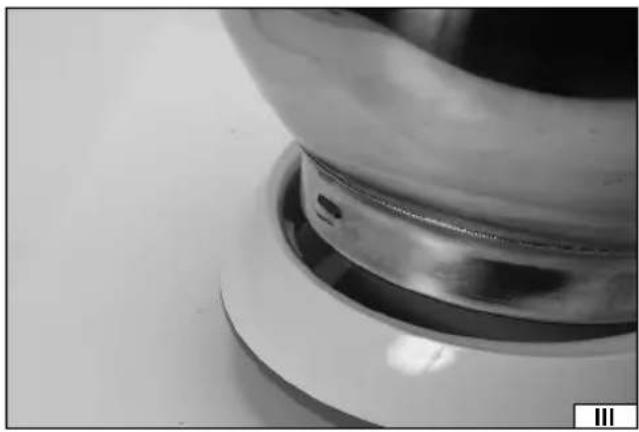

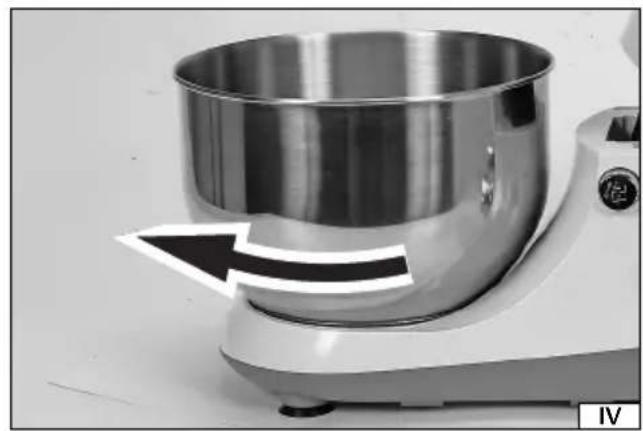

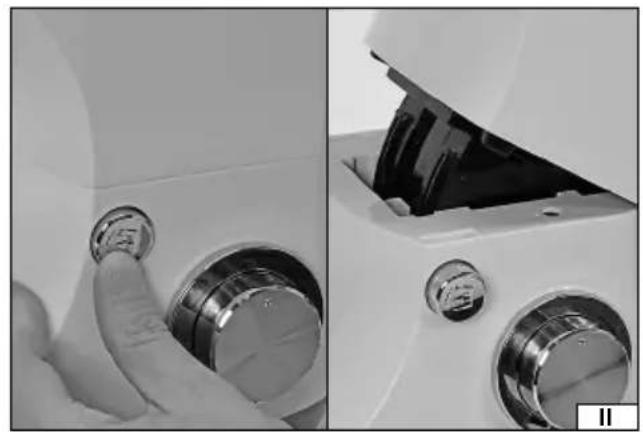

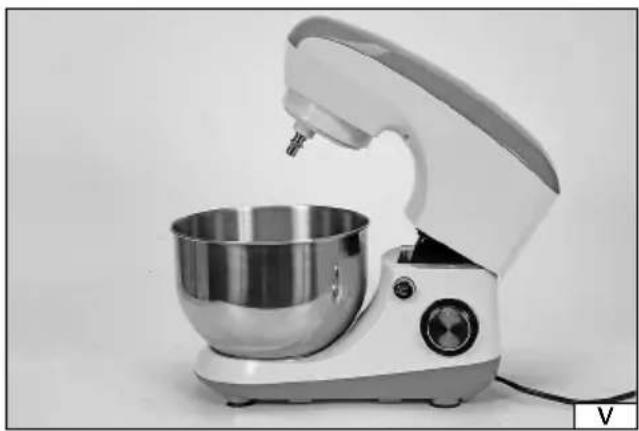

ORIGINAL INSTRUCTIONS Installing and removing the mixer Place the mixer on a level and stable surface. Make sure that all the suction cups at the base have gripped the ground. Press the lever (II) according to the arrow direction, this lever releases the latch of the working head and causes it to lift. The head lifts up automatically with the spring, but lift it by hand and make sure that the top position of the mixer head is locked. It is not possible to lower the head without pressing the lever again. Install the bowl in the base opening. Insert the tongues in the base of the bowl into the grooves on the circumference of the base opening (III) and then turn the bowl in the direction indicated by the arrow in the base (IV). This will block the bowl at the base of the mixer. Check that installation is correct, if the bowl is secured evenly and cannot be lifted, this means correct installation (V). Around the mixer handle tip you should install the bowl cover. Put the head cover so that the arrow, which is visible on the cover, points to the open padlock symbol on the mixer head (VI). Make sure that the cover evenly adheres to the head and turn it, so that the arrow points to the closed padlock icon (VI). At the end of the spindle you should install the appropriate tip. The spindle tongues must cover the grooves around the tip hole (VII). Push the tip upwards and turn it in the direction of the locked padlock symbol visible on the upper part of the tip flange (VIII). Press the lever and lower the mixer head, the device is ready for operation (IX). Remove the mixer in reverse sequence to the assembly procedure. Use of the device CAUTION! Wash and dry all food contact parts thoroughly before using the machine for the first time. You must first learn the method of device maintenance. The device has a switch that allows you to set several rotational speeds and the turbo gear. By setting the switch to the desired position you can determine the rotation speed of the agitator and blender. The turbo position allows to use the maximum rotational speed. To use it, turn the control switch and hold it in the position described as “Turbo”. After releasing the pressure, the switch will automatically return to the “0” position, and device will shut down the engine speed. The positions described as 0 - 6 do not require the switch to be held. CAUTION! Before connecting the plug, make sure that the power switch is in position “0” – OFF. When the plug of the power cord is plugged into the mains outlet, a control light flashes around the switch when the “0” setting is set. Any other setting in the range 1-6 and “Turbo” causes the control light to illuminate with a standby light. Due to the exchangeable tips, the mixer can be used to mix different food products. The dough agitator is used to mix ingredients into medium density mixtures (e.g. yeast dough), it is recommended to use the switch settings from the 1 – 2 range during operation with this tip. The whipping agitator is used to mix ingredients into low density mixtures (e.g. sponge cake), it is recommended to use the switch settings from the 1 – 4 range during operation with this tip. The beating agitator is used for whipping foam and whipped cream, it is recommended to use the switch settings from the 5-6 range during operation with this tip. It is advisable to gradually increase the tip rotational speed in order to avoid excessive splashing of the mixed components. The cover of the bowl has an opening, thanks to which you can add further components without lifting the mixer head. Do not exceed the maximum operating time of 6 minutes. Longer operating time can lead to overheating and irreparable damage of the device. The device is equipped with safety switches which do not allow to start the device when the head is lifted or when the blender or the blender slot cover is not properly installed. This minimises the risk of user exposure to moving parts of the device. However, it should be taken into account that after switching the engine off, moving parts may still rotate for some time. Do not exceed the maximum capacity of the bowl and jug, and take into account that ingredients can increase their volume when mixed with air. It is advisable to prepare several smaller portions instead of one large.

CONSERVATION AND STORAGE

CAUTION! Never immerse the housing and head in water or any other liquid. This may cause an electric shock. The parts that are suitable for immersion are: the bowl, the bowl cover, all the agitators, the jug cover. After use, turn off the unit, wait until the moving parts have come to a complete stop, unplug the power cord from the mains outlet, disassemble the device, empty the bowl or the jug from its contents, and proceed with maintenance. Clean the parts of the device that have come into contact with food immediately after use. Dry food residues can jam agitators and blades, which can lead to a decrease in the efficiency of the device or even damage it. However, if such a case occurs, immerse those parts which are described as being capable of being immersed in warm water with the addition of dishwashing liquid and allow them to soak, then clean with a soft sponge or brush and water with dishwashing liquid. None of the device parts is suitable for washing in a dishwasher. This may lead to the loss of shape, colour, texture of the materials from which they are made. Clean the device housing and jug external surfaces with a soft cloth, moistened with solution of water and mild cleanser. Wipe it11

ORIGINAL INSTRUCTIONS dry. Do not use abrasive cleaning agents . Make sure that all parts have been cleaned and dried before connecting the device to the power supply. Store the product in dry and shaded places. Protect the storage area from unauthorised access, especially from children. Store the product in unit packs supplied with the product. TECHNICAL PARAMETERS Parameter Measurement unit Value Catalogue number 67805 Rated voltage [V~] 220 – 240 Rated Frequency [Hz] 50 Rated power [W] 800 Maximum power [W] 1400 Electrical protection class II Operating mode: S2 (KB) short-time duty [min] 6 Bowl capacity [l] 4,5 External dimensions of the device ready for use as a mixer (width x depth x height) [mm] 375 x 225 x 315 Weight [kg] 3,812 ORIGINALANLEITUNG
