Product type	Electric all-terrain bike (electric mountain bike)
Brand	Trek
Model	Rail 9 GX
Motorization	Bosch Performance CX (250 W, 75 Nm torque)
Battery	Lithium-ion, 500 Wh capacity (typical)
Range	Varies depending on assistance, terrain, and rider weight
Assistance modes	OFF, ECO, TOUR, SPORT/E-MTB, TURBO
Maximum assisted speed	25 km/h
Weight	Approximately 23 kg
Drivetrain	SRAM GX Eagle 12-speed
Brakes	Hydraulic disc brakes (4-piston)
Front suspension	Telescopic fork (150 mm travel typical)
Rear suspension	Shock absorber (140 mm travel typical)
Charger	Specific Bosch charger, included
Lighting	Integrated with brightness sensor (depending on model)
Battery maintenance	Charge to 60% for storage, check every 6 months
Safety	Anticipatory braking, walk assistance, battery lock
Spare parts	Battery, charger, keys, display available at dealer
Repairability	Entrust to a certified electric bike technician

Frequently Asked Questions - Rail 9 GX TREK

Can I ride my new electric bike without the battery installed?

Yes, you can ride without the battery, but the lights will not work and it is recommended to protect the electrical components from water and debris. Consult a dealer for appropriate parts.

Why do I need keys? What to do in case of loss?

The keys protect your bike and battery from theft. Note your key number. In case of loss, order replacement keys from an authorized dealer.

What to do in case of a malfunction on my electric bike?

Always entrust repairs to certified professionals. Your local bike shop technicians are best equipped to diagnose and repair electrical systems.

Can I replace the display screen with a newer model?

It is possible to replace the original screen with an aftermarket screen, but this operation must be carried out only by a certified electric bike technician.

How to start smoothly with my new electric bike?

Start with the lowest assistance setting (ECO) on your first rides to get used to the feeling of speed and progress smoothly.

Why do I need to brake earlier on an electric bike?

Electric bikes are heavier and faster than regular bikes. This increases braking distance, so you need to anticipate more and slow down earlier.

How to use the brakes of my electric bike effectively?

Brake progressively by applying even pressure to both front and rear brakes. Avoid squeezing only the front brake to prevent tipping over.

Do other road users expect my speed?

No, electric bikes look like normal bikes, so drivers and pedestrians do not expect your speed. Ride with extra caution.

Do traffic rules still apply with an electric bike?

Yes, you must know and obey the traffic laws as well as local regulations for trails and bike lanes. Higher speed comes with greater responsibility.

How to correctly charge the battery of my electric bike?

Plug the supplied charger into the frame's charging port or onto the removed battery. Do not leave the battery charging unattended and unplug it immediately after full charge.

USER MANUAL Rail 9 GX TREK

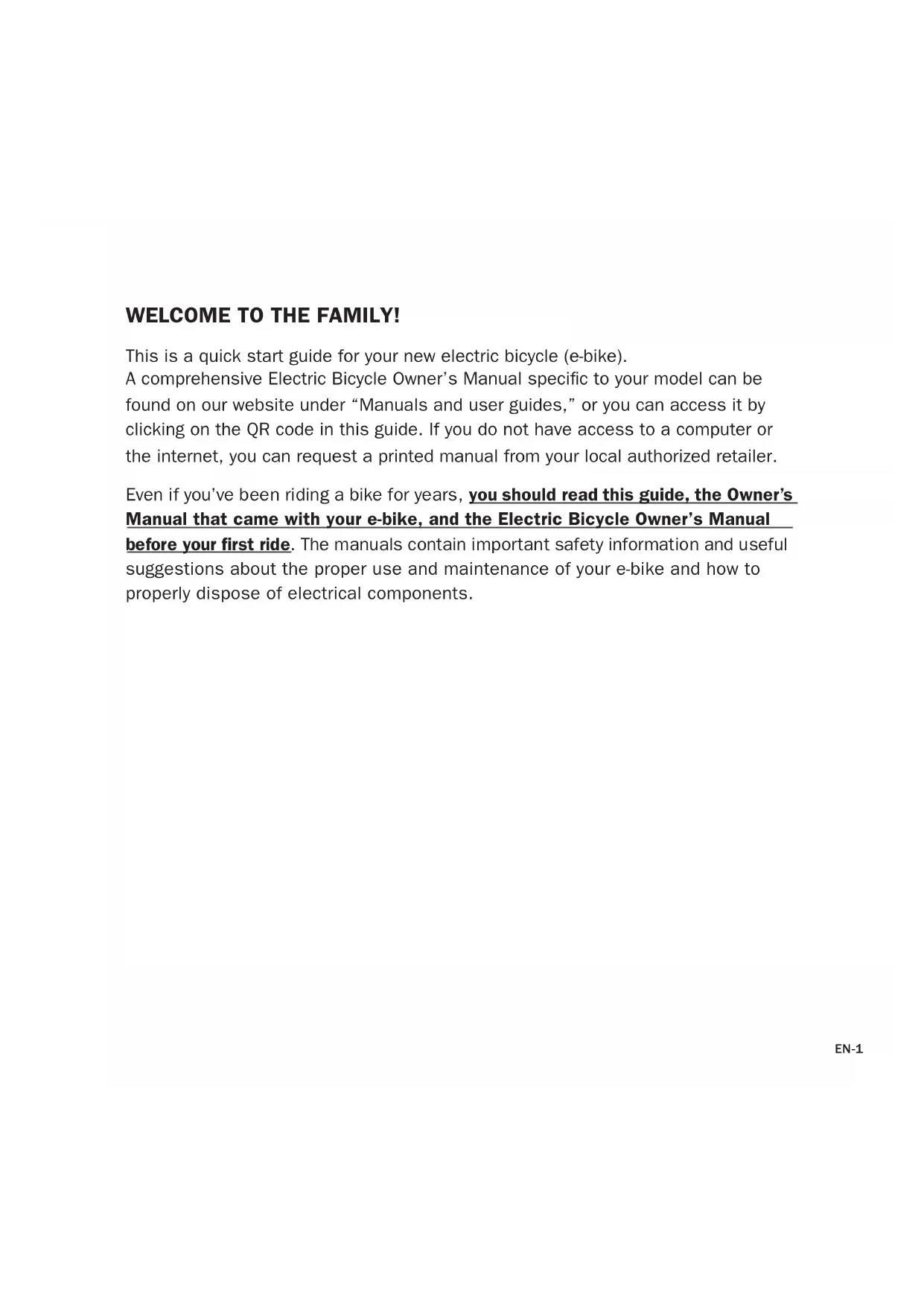

This is a quick start guide for your new electric bicycle (e-bike).

A comprehensive Electric Bicycle Owner's Manual specific to your model can be found on our website under "Manuals and user guides," or you can access it by clicking on the QR code in this guide. If you do not have access to a computer or the internet, you can request a printed manual from your local authorized retailer.

Even if you've been riding a bike for years, you should read this guide, the Owner's

Manual that came with your e-bike, and the Electric Bicycle Owner's Manual

before your first ride. The manuals contain important safety information and useful suggestions about the proper use and maintenance of your e-bike and how to properly dispose of electrical components.

FIVE THINGS YOU NEED TO KNOW ABOUT RIDING YOUR NEW E-BIKE

1. Start slow

We know—fast is fun. But e-bikes take a bit of getting used to. It may be tempting to ramp your e-bike up to the fastest setting right away, but we recommend taking it nice and easy the first few rides. Start on the low assist setting and learn the feel of free speed.

2. Brake sooner

E-bikes are heavier than normal bikes, and they move faster. More power, more speed, and more weight mean once you get moving, you'll need more time to react, so you should start slowing down sooner on your e-bike than you would on a normal bike.

3. A faster bike gets stronger brakes

We put the latest brake technology on your e-bike, and it works really well—maybe even better than you expect. When you're getting used to your new e-bike, start braking with a lighter hand and a gradual pull of the brake levers.

And never grab just your front brake lever—brake with both front and rear evenly.

4. You're faster than you look

E-bikes look just like regular bikes, so drivers and pedestrians might not expect you to be riding as fast as your e-bike allows. Until everyone is accustomed to the look and speed of e-bikes, ride with extra care and pay greater attention to your surroundings.

5. All bike rules still apply

While your new e-bike will bring you a new level of freedom and fun, you're still responsible for knowing and following all the rules of the road, paths, and trails in your area. Have fun out there, but with greater speed, there is greater responsibility!

See the first pages of this guide for the Figures referenced below.

1. Turn the e-bike on/off (Figure A)

• Briefly press the on/off button to switch the assist system on or off after use.
• Riding with the assist system turned off is like riding a normal, non-electric powered bicycle.
  The assist system must be turned on to use the lights, if equipped.

2. Selection of an assist level (Figure B)

• Briefly press one of the +/- buttons to increase/decrease the assist level while riding.
• Select between five levels: OFF (0%), ECO (40%), TOUR (100%), SPORT/E-MTB (150%), TURBO (250%).

The E-MTB assist level provides improved performance dedicated for use on e-MTBs only. It replaces the SPORT assist level.

• When learning to ride an e-bike, start at the lowest assist level and gradually increase levels.
• While riding, the display will show your actual speed in km/h or mph.
• To get the most use of your battery, in addition to adjusting assist modes, change gears appropriately.

3. Activation of walk assist (if equipped) (Figure C)

• Walk assist has a two-step process and can be used to lighten the load any time you are pushing your e-bike:

• Briefly push the "Walk" button.
  Press and hold the "+" button while the display is showing "Walk +".

• Your e-bike will be propelled forward at a slow speed while you are holding the "+" button.

• Walk assist cannot be activated if the assist system is off.

4. Controlling integrated lights (if equipped) (Figure D)

• Some e-bikes are programmed to have the lights always running.

These "always on" models are fitted with a light sensor that automatically adjusts the lighting pattern (flash or steady) based on the riding conditions. The lighting system will be on when you power on your e-bike.

• To turn the lights off or on, press and briefly hold the "+" button.

The controller will display a light icon when the lights are running.

• If your e-bike is equipped with a hi/low beam switch, be courteous of oncoming bikers and motorists and switch to the low beam setting.

5. Charge level

• When your battery will not be used for a longer period of time, charge the battery to approximately 60% before storing it and check the charge condition of the battery at least every 6 months.

• When only one LED of the charge-control indicator lights up, recharge the battery again to approximately 60% .

Charge level indicator on the controller Charge level indicator on the battery

100% charged, maximum range.

Charge the battery. Press the button on the battery to check the charge level. •0-1 LED on: charge the battery. •5 LEDs on: 100% charged, maximum range.

•Battery is almost empty, charge the battery immediately. •No assist power (flashing indicator). •Lighting powered for maximum 2 hours.

6. Charging the battery (Figure E and F)

• Your e-bike is equipped to support one or both of the following methods for charging the battery:

Battery on the e-bike (Figure E)

• Connect the supplied charger cable to the charging port integrated in the frame. Once the power is connected, a charging symbol will display to indicate that the charging is active. When the battery is fully charged, the display will shut off automatically.

Battery off the e-bike (Figure F)

Using the supplied key, unlock and detach the e-bike battery.
- Connect the supplied charger cable to the battery's integrated charge port. Once the power is connected, the LEDs on the battery charge indicator will flash during the charging process. Once the battery is fully charged, the LEDs go out immediately.

• Do not leave a charging battery unattended. Once the battery is fully charged, disconnect it from the charge cable right away.

FUNDAMENTALS FOR CARE AND MAINTENANCE

1. Handle the battery pack with care

• Be gentle with your battery. There is a lot of power packed in there.

Damage or punctures to the internal part of the battery could have serious repercussions. If you suspect damage to your battery pack, visit your local bike shop immediately for inspection.

• Consult with a certified e-bike technician before installing accessories.

Using the wrong bolt in the wrong place could damage your e-bike's electrical system.

WARNING.

A short circuit in the electrical system and/or damage to the battery might lead to over-heating. A battery pack that has been severely impacted could catch fire.

2. Properly maintain the battery pack

• Only charge the battery pack with the charger that came with your e-bike. Using the wrong charger risks the life of the battery pack and presents a potential fire hazard.
• Do not leave a battery unattended while charging. Choose an outlet with grounded, circuit breaker protection, if possible. Disconnect the charger immediately after charging.
• Store your e-bike battery in a dry, ventilated location that is away from moisture, heat sources, and combustible or easily flammable objects.
• Check the charge condition on your battery at least every 6 months. Recharge to at least 60% when necessary. The battery can be damaged by deep discharge.

3. Take care when transporting your e-bike

When transporting your e-bike on a car rack, remove the controller and battery from the e-bike and put them in the passenger cabin. It's more secure and will lighten the load on your rack.

4. Ensure correct suspension set-up on your electric mountain bike (e-MTB)

To get the most out of your e-MTB's off-road performance, make sure that the suspension is setup correctly before riding.

Go to https://suspension.trekbikes.com for our online suspension calculator.

FREQUently ASKED QUESTIONS ABOUT YOUR E-BIKE

Q: Can I ride my new e-bike without a battery installed?

A: Yes, you can ride your e-bike without the battery installed, but you may want to take steps to protect electrical components from water or debris.

Your local bike shop can help you order the appropriate parts. Be aware that without a battery, the lighting on your e-bike, if equipped, does not work.

If you ride in the dark without the battery installed, you must use additional lighting.

Q: Why do I need the keys? What are my options if I lose them?

A: The locks protect your e-bike and battery from theft. If your e-bike has a ring lock, the key matches on both ring lock and battery. Document the key number in your records. If your keys are lost, replacement keys can be ordered from an authorized retailer.

Q: What should I do if something isn't working with my e-bike?

A: Your e-bike is a finely tuned machine. Always trust your repairs to certified professionals. The technicians at your local bike shop are the best resource to troubleshoot and repair the systems on your e-bike.

Q: Can I change or upgrade the display components on my e-bike?

A: It is possible to replace the original display with an aftermarket display.

This type of repair should only be undertaken by a certified e-bike technician.

WILLKOMMEN IN DER FAMILIE!

Customer Service 801

W Madison street

Waterloo, Wisconsin 53594

USA

Tel.: [phone]

European Head Office

Bikeurope B.V.

Ceintuurbaan 2-20C

3847 LG Harderwijk

The Netherlands

Tel.: [phone]

Australia & New Zealand

Trek Australia & New Zealand

Customer Service

PO Box 1747

Fyshwick, ACT2609

Australia

For Australia:

Tel.: [phone]

E-mail: customerservice_

[e-mail]

For New Zealand:

Tel.: [phone]

E-mail: customerservice_

[e-mail]

www.trekbikes.com

https://www.trekbikes.com/manuals/

Diamant

European Head Office
Trek Fahrrad GmbH
Auenstrasse 10
CH-8600 Dubendorf
Switzerland

Electra

US Head Office
Electra Bicycle Company
1010 South Coast Highway 101
Suite 101, Encinitas
CA 92024
USA

Electra

European Head Office
Bikeurope B.V.
Ceintuurbaan 2-20C
3847 LG Harderwijk
The Netherlands

Tel.: [phone]

Tel.: [phone]

Tel.: [phone]

www.diamantrad.com

www.electrabike.com

https://www.diamantrad.com/ https://electra.trekbikes.com/electra-manuals/bike-handbuecher/

PN 5257278 - 5257279 Rev. 3, June 2021

© 2021 Trek Bicycle Corporation. All rights reserved.

EN To see this guide and the comprehensive E-Bike Owner's Manual in your language, use the QR code in this guide or go to the website.
CS Chcete-li zobrazit tento manu a obsahlou prruku pro majitele jizdnich kol ve vaem jazyce, pouijte QR kod v teto prruce nebo prejdete na web.
DA Hvis du vil se donne vejledning og den omfattende E-Bike-brugervelledning pa dit sprog, skal du bruge QR-koden I donne vejledning ell er g til hjemmesiden.
DE Um dieses Handbuch und das umfassende E-Bike-Benutzerhandbuch in Ihrer Sprache zu erhalten, scannen Sie den QR-Code in thisem Handbuch oder besuchen Sie unsere Website.
EL Tva a ute autov tov osnyo kai to avautikoy Exyepidio 10kntn nAekptikou noa oac, xnoa oac, xnoaonote tv Kwdiko QR TOU npalauabavet otov npovta onyohuokteite tov iototo.
ES Para ver esta guia y el Manual de usuario de e-bike completo en tu idioma, utilize el numero QR que encontraras en esta guia o visita el situo web.
Fl Voit lukea koko oppaan ja Sahkopyoromistajan kasikirjan skannaamalla oheisen QR-koodin tai menemallvverkosivuillemm.
FR Pour voir ce guide et le manuel d'utilisateur des velos electriques dans votre langue, utilisez le QR code dans ce guide ou visitez notre site Web.
HE 1n nnnn nn nnnn E-Bike nn nnnn nn nnnn nnnn nn nnnn nn
HR Da biste pogledali ovaj vodič i opsežni prisirucnik za vlasnike elektrcih bicikala na vašem jeziku, koristite QR k od u ovom vodiču ili posjetite web stranicu.
HU Ennek a hasznalati utasitasnak es az elektromos kerekpaprokra vonatkoz rzesletes hasznalati utasitasnak az On nyelven valo megtekintesehez hasznalja a jelen hasznalati utasitjasban talalhato QR-kodot, vagy keresse fel a webhelyet.
IT Per visualizzare queste istruzioni e il Manuale d'uso della E-Bike nella tua lingua, usa il codice QR presente in questa guida o vai sul site web.
JP e-bike才一纳一斯卡二尔（日本語版）は、こらのQRコードもしはトレクのは一ム巴一约入手てきま。
KO 1
NL Gebruik de QR code in deze handleiding of ga waar de website voor deze Quick Start handleiding of de uitgebreide E-BiKe Gebruikershandleiding.
NO For a lese brukermanualen pa ditt sprak til din elsykkel, skann QR-koden i donne veiledningen eller besok var nettable.
PL Aby zobaczyc niniejszy przywodnik i zwiazana z nim, Instrukcje Obslugi roweru elektryczneo" w jejzku polskim, przyjdź do naszej strony internetowej, lub zeskanuj kod QR z tego przywodnika.
PT Para ver este guia e o Manual do Propietario de E-Bike completo no seu idioma, use this cdo grio QR deste guia ou visite o site.
SK Ak si chcete pozriet tuto prirucku a uplny manual pre majitelov E-bicyklov vo va som jazyku, pouzte QR k od v tejto prirucke alebo navstivte webov stranku.
SL Da vidite ta vodič in priročnik o uporabi elektrčega kolesa za lastnika vvašem jeziku, uporabite kodo QR ali pojdite na internetno stran.
SV For att f d nna guld och den overgripande E-bike agarmanualen I ditt sprak, anvand QR koden I gulden erer ga till hemsidan.

TREK

Diamant

Electra

CUSTOMER SERVICE

Ph. +1.920.478.4678 | trekbikes.com | 801 W Madison Street, Waterloo, WI 53594, USA

Bikeurope BV | Ceintuurbaan 2-20C | 3847 LG Harderwijk, The Netherlands

© 2021 Trek Bicycle Corporation | PN 5257278 - 5257279 Rev. 3
