DFL400F - Screwdriver MAKITA - Free user manual and instructions

Product type	Cordless angle screwdriver
Brand	Makita
Model	DFL400F
Tightening torque (hard joint)	25-40 N·m
Tightening torque (soft joint)	25-40 N·m
Square drive	9.5 mm
No load speed	260 min⁻¹
Overall length	460-477 mm (depending on battery)
Net weight	1.8-2.1 kg (depending on battery)
Rated voltage	14.4 V DC
Compatible batteries	BL1415N, BL1415NA, BL1430, BL1430B, BL1440, BL1450, BL1460A, BL1460B
Compatible chargers	DC18RC, DC18RD, DC18RE, DC18SD, DC18SE, DC18SF
Sound pressure level	73 dB(A) (uncertainty 3 dB)
Vibration level (impactless screwing)	≤ 2.5 m/s² (uncertainty 1.5 m/s²)
Main functions	Automatic stop, reverse switch, LED light, LED indicator, sound alarm, torque adjustment
Safety	Anti-restart system, overheat protection, low voltage protection
Intended use	Screwing in wood, metal and plastic
Maintenance	Clean with a dry cloth, do not use solvents
Optional accessories	Adjusting handle, authentic battery and charger, regeneration adapter, protectors, anti-kickback accessory

Frequently Asked Questions - DFL400F MAKITA

How to install the battery on the DFL400F screwdriver?

To install the battery, align its tongue with the groove inside the housing and slide it into place until it locks with a click. Check that the red indicator on the button is no longer visible. To remove, slide the battery while pushing the front button.

What is the tightening torque range of the DFL400F?

The tightening torque for hard joint and soft joint is 25 to 40 N·m. Use the tool within this range to ensure proper clutch operation.

How to adjust the tightening torque?

Remove the battery, loosen the ring screw, turn the ring to expose the hole. Reinsert the battery, press the trigger then release. Remove the battery, insert the optional adjusting handle into the hole and turn it to adjust the torque. Align the ring edge with the desired scale, then tighten the screw.

What to do if the LED indicator flashes red?

A slow red flash indicates a low battery. Replace the battery with a fully charged one. A fast flash indicates overheating: remove the battery and let the tool cool down.

How to change the rotation direction?

Use the reverser located near the trigger. Push the lever to side A for clockwise rotation, to side B for counterclockwise. Only change direction when the tool is completely stopped. In neutral position, the trigger is locked.

What accessories are recommended for the DFL400F?

Recommended accessories include: authentic Makita batteries and chargers, adjusting handle, automatic regeneration adapter, protectors (yellow, blue, red, transparent), and anti-kickback accessory. Use only Makita accessories.

How to maintain the DFL400F screwdriver?

Before any maintenance, remove the battery. Clean the tool with a dry cloth. Never use gasoline, benzine, thinner, or alcohol. For repairs, contact an authorized Makita service center with genuine replacement parts.

What batteries and chargers are compatible?

Compatible batteries: BL1415N, BL1415NA, BL1430, BL1430B, BL1440, BL1450, BL1460A, BL1460B. Compatible chargers: DC18RC, DC18RD, DC18RE, DC18SD, DC18SE, DC18SF. Use only listed Makita batteries and chargers.

How to use the automatic stop function?

The automatic stop activates when the preset tightening torque is reached. The motor stops and the LED indicator lights green for about 1 second. Then release the trigger. A restart delay of about 1 second is active.

What to do in case of tool overheating?

If the LED flashes rapidly red and a series of short beeps sound, this indicates overheating. Immediately remove the battery and let the tool cool before reuse.

USER MANUAL DFL400F MAKITA

GB Cordless Angle Screwdriver Instruction Manual

Technical line drawing of a mechanical tool or device with multiple ports and mounting holes (no text or symbols visible)

1
983102

0983501

3
005737

005738

5
005739

005750

7
005740

Technical line drawing of a mechanical valve assembly (no text or symbols)

Technical line drawing of a mechanical valve assembly (no text or symbols)

005741

005742 015947 10

9

11
10

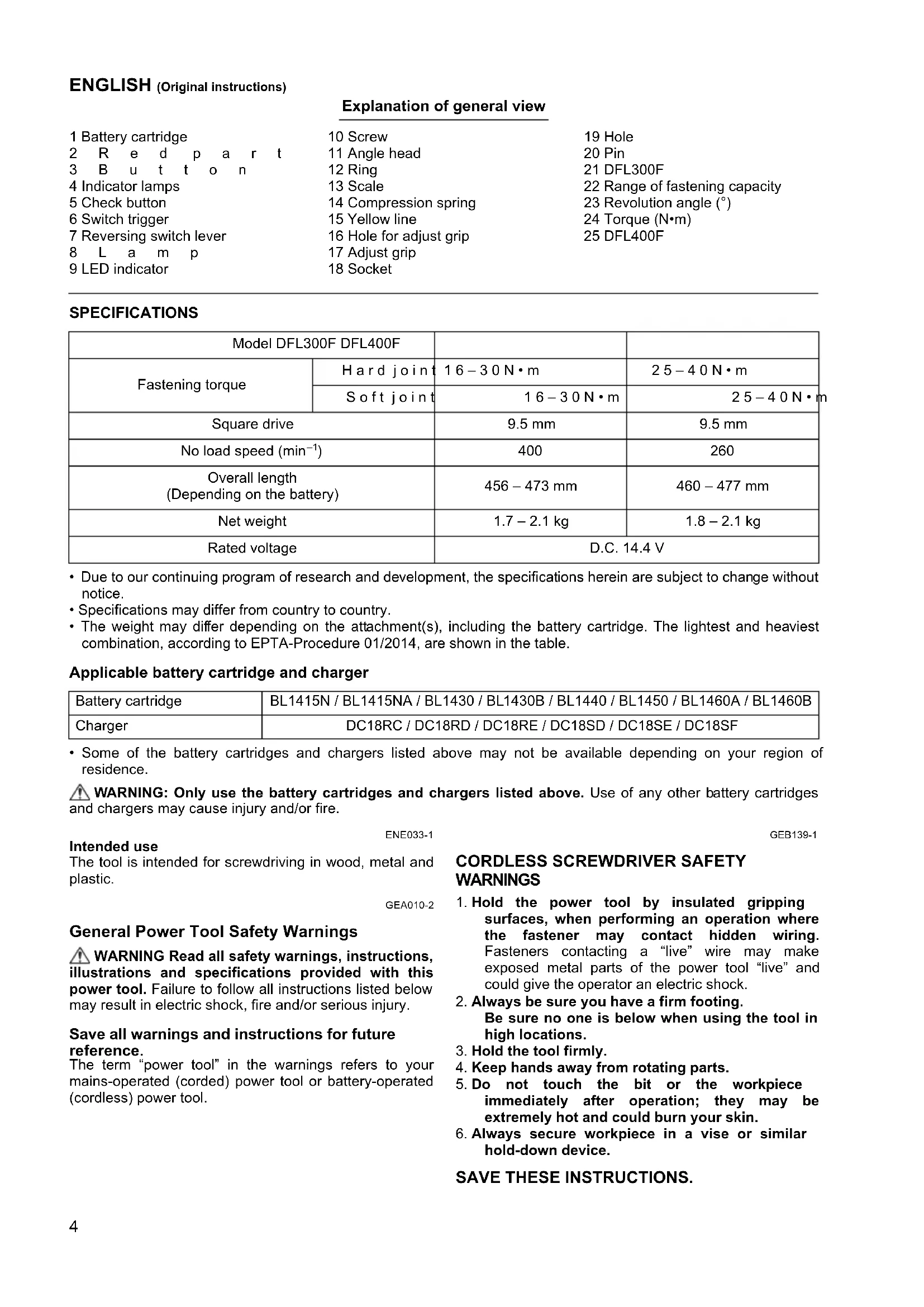

ENGLISH (Original instructions)

	Explanation of general view
1 Battery cartridge	10 Screw	19 Hole
2 Red part	11 Angle head	20 Pin
3 Button	12 Ring	21 DFL300F
4 Indicator lamps	13 Scale	22 Range of fastening capacity
5 Check button	14 Compression spring	23 Revolution angle (°)
6 Switch trigger	15 Yellow line	24 Torque (N•m)
7 Reversing switch lever	16 Hole for adjust grip	25 DFL400F

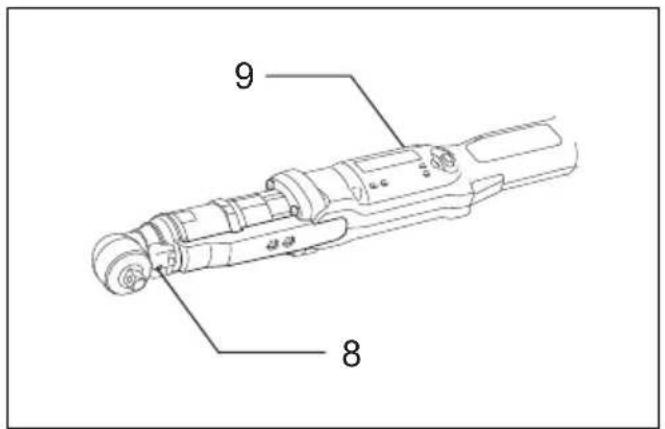

8 L am p	17 Adjust grip
9 LED indicator	18 Socket

SPECIFICATIONS

Model DFL300F DFL400F
Fastening torque	Hard joint	16-30N·m	25-40N·m
	Soft joint	16-30N·m	25-40N·m
Square drive		9.5 mm	9.5 mm
No load speed (min ^-1 )		400	260
Overall length(Depending on the battery)		456-473 mm	460-477 mm
Net weight		1.7-2.1 kg	1.8-2.1 kg
Rated voltage		D.C. 14.4 V

- Due to our continuing program of research and development, the specifications herein are subject to change without notice.

- Specifications may differ from country to country.

- The weight may differ depending on the attachment(s), including the battery cartridge. The lightest and heaviest combination, according to EPTA-Procedure 01/2014, are shown in the table.

Applicable battery cartridge and charger

Battery cartridge	BL1415N / BL1415NA / BL1430 / BL1430B / BL1440 / BL1450 / BL1460A / BL1460B
Charger	DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF

• Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.

WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges and chargers may cause injury and/or fire.

ENE033-1

GEB139-1

Intended use

The tool is intended for screwdriving in wood, metal and plastic.

GEA010-2

General Power Tool Safety Warnings

WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

CORDLESS SCREWDRIVER SAFETY WARNINGS

1. Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
2. Always be sure you have a firm footing. Be sure no one is below when using the tool in high locations.
3. Hold the tool firmly.
4. Keep hands away from rotating parts.
5. Do not touch the bit or the workpiece immediately after operation; they may be extremely hot and could burn your skin.
6. Always secure workpiece in a vise or similar hold-down device.

SAVE THESE INSTRUCTIONS.

WARNING:

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product.

MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

ENC007-12

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CARTRIDGE

1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble battery cartridge.

3. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain.

A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

1. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50°C (122°F).

2. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.

3. Be careful not to drop or strike battery.

4. Do not use a damaged battery.

5. The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements.

For commercial transports e.g. by third parties, forwarding agents, special requirement on packaging and labeling must be observed.

For preparation of the item being shipped, consulting an expert for hazardous material is required. Please also observe possibly more detailed national regulations.

Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

1. Follow your local regulations relating to disposal of battery.

2. Use the batteries only with the products specified by Makita. Installing the batteries to non-compliant products may result in a fire, excessive heat, explosion, or leak of electrolyte.

SAVE THESE INSTRUCTIONS.

CAUTION: Only use genuine Makita batteries.

Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger.

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.

3. Charge the battery cartridge with room temperature at 10^ C – 40^ C ( 50^ F – 104^ F). Let a hot battery cartridge cool down before charging it.
4. Charge the battery cartridge if you do not use it for a long period (more than six months).

FUNCTIONAL DESCRIPTION

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool.

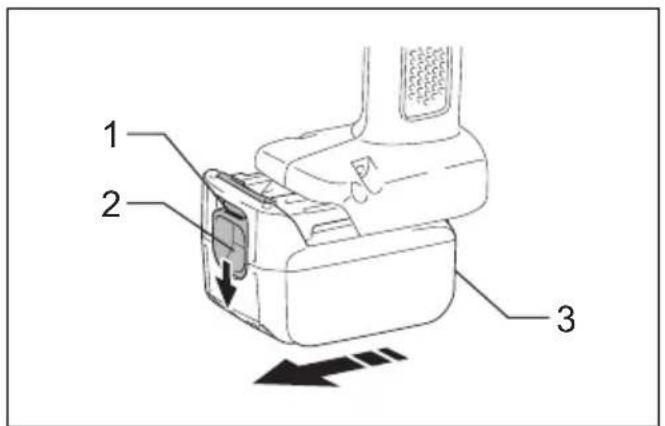

Installing or removing battery cartridge (Fig. 1)

CAUTION:

• Always switch off the tool before installing or removing of the battery cartridge.
• Hold the tool and the battery cartridge firmly when installing or removing battery cartridge. Failure to hold the tool and the battery cartridge firmly may cause them to slip off your hands and result in damage to the tool and battery cartridge and a personal injury.

To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge.

To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely.

CAUTION:

• Always install the battery cartridge fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.
• Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly.

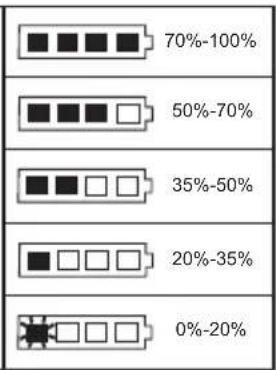

Checking the remaining battery capacity (BL1460A) (Fig. 2)

NOTE:

- Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity.

When charging

When the charging begins, the first (far left) indicating lamp begins to flicker. Then, as charging proceeds, the other lamps light, one after the other, to indicate the battery capacity.

NOTE:

- If the indicator lamp does not turn on or flicker when charging, the battery may be faulty. In this case, ask your local service center.

When using

When the tool is switched on, the lamps will light to indicate the remaining battery capacity. When the tool is switched off, the light goes out after approx. 5 seconds.

When pushing the check button with the tool switched off, the indicator lamps turn on for approx. 5 seconds to show battery capacity.

If the orange lamp flickers, the tool stops because of little remaining battery capacity (Auto-stop mechanism). Charge the battery cartridge or use a charged battery cartridge at this time.

When the tool is used with the battery that has not been used for a long time and is switched on, no lamps may light up. The tool stops because of little remaining battery capacity at this time. Charge the battery properly.

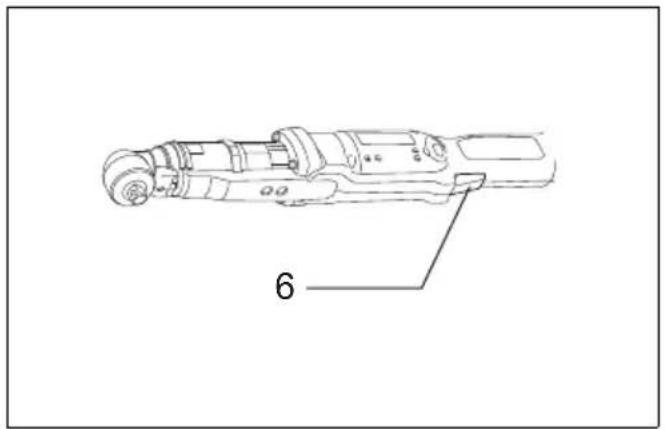

Switch action (Fig. 3)

CAUTION:

- Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.

To start the tool, simply pull the switch trigger. Release the switch trigger to stop.

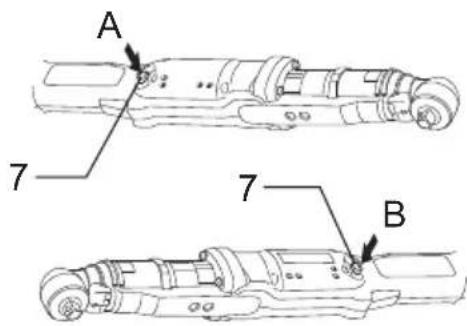

Reversing switch action (Fig. 4)

CAUTION:

- Always check the direction of rotation before operation.

- Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool.

- When not operating the tool, always set the reversing switch lever to the neutral position.

This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for counterclockwise rotation.

When the reversing switch lever is in the neutral position, the switch trigger cannot be pulled.

Lighting up the lamps (Fig. 5)

CAUTION:

- Do not look in the light or see the source of light directly.

Pull the switch trigger to light up the lamp. The lamp keeps on lighting while the switch trigger is being pulled. The light automatically goes out 10 seconds after the switch trigger is released.

NOTE:

- Use a dry cloth to wipe the dirt off the lens of lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination.

LED indicator / Beeper

LED indicator / Beeper on the tool shows the following functions.

Function Status		Status of the LED indicator/beeper		Action to be taken
		LED indicator	Beeper
Auto-stop fastening	This function works when the tool has reached the preset fastening torque and normal tightening has been completed. This helps overtightening to be avoided.	Lights up in green for approximately one second.	—	—
Delayed re-start	For approximately one second after auto-stop fastening, the tool does not start even if the switch trigger is pulled.
Warning against insufficient fastening	Insufficient fastening has been performed when the switch trigger has released before reaching the preset fastening torque.	Lights up in red.	A long beep	Retighten the screw.
Warning for battery cartridge capacity	This indicates the appropriate time to replace the battery cartridge when the battery power becomes low.	Flickers in red slowly.	A series of long beeps	Replace the battery with fully charged one.
Checking the remaining battery capacity, Auto-stop	This function works when the battery power is almost used up. At this time, tool stops immediately.	Lights up in red.	A long beep	Replace the battery with fully charged one.
Check the LED indicator, light and beeper operation	This function works to check the proper operation of the LED indicator, light and beeper when a battery cartridge has been inserted into the tool.	Lights up first in green, next red. (And then the light comes on.)	A series of very short beeps	—
Anti-reset of controller	This function works when an abnormal drop of the battery voltage occurs for some reason and the tool stops.	Flickers in red and green alternatively.	A series of short beeps	Replace the battery with fully charged one.
Overheat	This function works if the temperature of the controller or motor increases to a high level and the tool stops.	Flickers in red quickly.	A series of short beeps	Remove the battery cartridge immediately and cool the tool down.
Operation error of the switch trigger	This function works to avoid the tool's immediate start upon insertion of battery cartridge into the tool with the switch trigger being pulled.	Flickers in red and green alternatively.	A series of short beeps	Release the switch trigger.

006388

Adjusting the fastening torque

When you wish to drive machine screws, wood screws, hex bolts, etc. with the predetermined torque, adjust the fastening torque as follows.

1. First remove the battery cartridge from the tool.

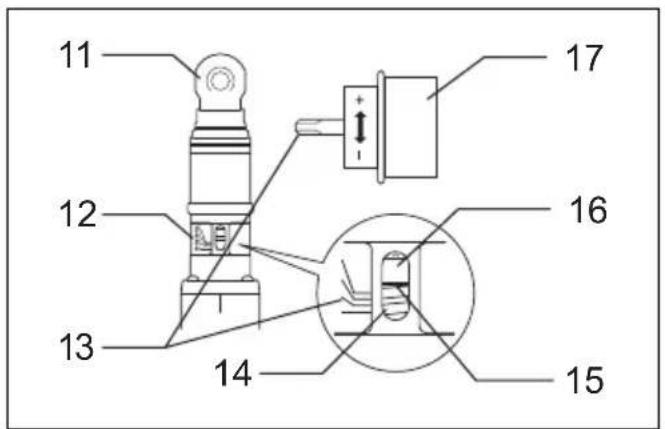

2. Loosen and remove the screw that secures ring. (Fig. 6)

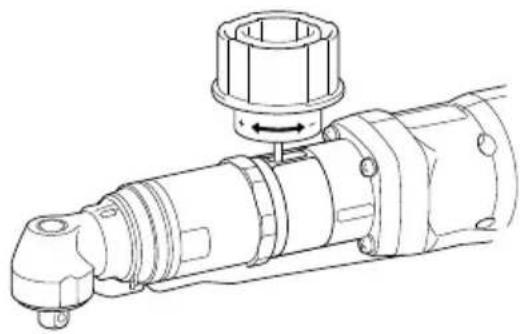

3. Rotate the ring in the front of the tool by hand so that a hole can be seen below the ring. (Fig. 7)
4. Place the battery cartridge in place and pull the switch trigger. Release it so that the adjust ring rotates and becomes visible in the hole. And then remove the battery cartridge.
5. Use an optional adjust grip to adjust the fastening torque. Insert the pin of the adjust grip into the hole in the front of the tool. And then, turn the adjust grip clockwise to set a greater fastening torque, and counterclockwise to set a smaller fastening torque. (Fig. 8)
6. Align the edge of the adjust ring with your desired number on the fastening torque scale.
7. Insert the battery cartridge and be sure that a fastening torque has been set up by using a fastening torque tester.
8. Rotate the ring in front of the tool and then tighten the screw to secure the ring.

NOTE:

- Numbers on the fastening torque scale is a guideline to set up your desired fastening torque.

ASSEMBLY

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool.

Selecting correct socket

There are different types of sockets for some models depending on applications. Choose and install a correct socket for your application.

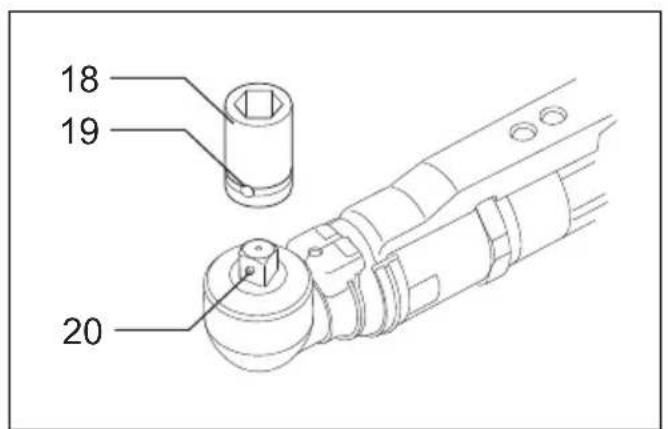

Installing or removing socket (Fig. 9)

To install the socket, push it onto the square drive of the tool with one hand by depressing a pin on the square drive with another hand until it locks into place. To remove the socket, simply pull it off depressing the pin on the square drive.

OPERATION

Hold the tool firmly and place the socket over the bolt or nut. Then switch the tool on. When the clutch cuts in, the motor will stop automatically. Then release the switch trigger.

NOTE:

- Hold the tool with its square drive pointed straight at the bolt or nut, or the bolt or nut will be damaged.

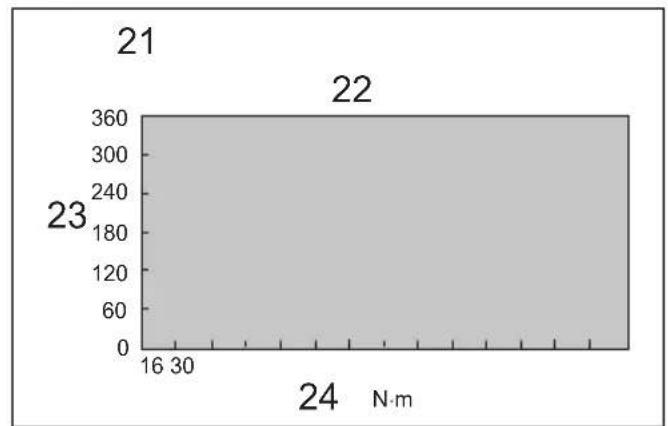

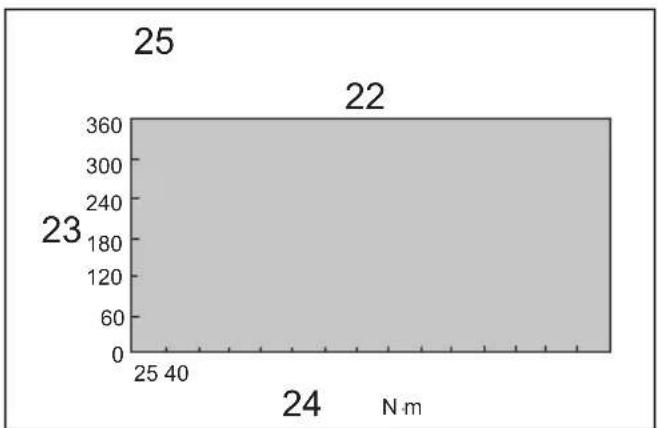

Limits of fastening capacity (Fig. 10 & 11)

Use the tool within the limits of fastening capacity. If you use the tool beyond the limits, the clutch does not work. And the tool cannot deliver enough fastening torque.

NOTE:

• The revolution angle means the angle which a screw/bolt revolves when the tool attains to 100% from 50% of desired torque.
• Use of a low temperature conditioned battery cartridge may sometimes give warning for battery cartridge capacity by warning lamp and beeper which makes the tool stop immediately. In this case, the range of fastening capacity may be inferior to those shown in the Fig. 10 and 11 even if a charged battery cartridge is used.

MAINTENANCE

CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance.
• Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centres, always using Makita replacement parts.

OPTIONAL ACCESSORIES

CAUTION:

- These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita service center.

• Makita genuine battery and charger
  • Automatic refreshing adapter
  • Protector (Yellow, Blue, Red, Clear)
• Adjust grip
• Switch lever set
  • Spindle complete 12.7
• Anti kickback attachment

NOTE:

- Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.

For Model DFL300F

ENG905-1

Noise

The typical A-weighted noise level determined according to EN62841-2-2:

Sound pressure level ( L_pA ): 72 dB (A)

Uncertainty (K): 3 dB (A)

The noise level under working may exceed 80 dB (A).

ENG907-1

NOTE:

• The declared noise emission value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another.
• The declared noise emission value(s) may also be used in a preliminary assessment of exposure.

WARNING:

• Wear ear protection.
• The noise emission during actual use of the power tool can differ from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.
• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

ENG900-1

Vibration

The vibration total value (tri-axial vector sum) determined according to EN62841-2-2:

Work mode: screwdriving without impact Vibration emission ( a_h ): 2.5 m/s ^2 or less Uncertainty (K): 1.5 m/s ^2

ENG901-2

NOTE:

• The declared vibration total value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another.
• The declared vibration total value(s) may also be used in a preliminary assessment of exposure.

WARNING:

- The vibration emission during actual use of the power tool can differ from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

For Model DFL400F

ENG905-1

Noise

The typical A-weighted noise level determined according to EN62841-2-2:

Sound pressure level ( L_nA ): 73 dB (A)

Uncertainty (K): 3 dB (A)

The noise level under working may exceed 80 dB (A).

ENG907-1

NOTE:

• The declared noise emission value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another.
• The declared noise emission value(s) may also be used in a preliminary assessment of exposure.

WARNING:

- Wear ear protection.

• The noise emission during actual use of the power tool can differ from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.
• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

ENG900-1

Vibration

The vibration total value (tri-axial vector sum) determined according to EN62841-2-2:

Work mode: screwdriving without impact Vibration emission ( a_h ): 2.5 m/s ^2 or less Uncertainty (K): 1.5 m/s ^2

ENG901-2

NOTE:

• The declared vibration total value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another.
• The declared vibration total value(s) may also be used in a preliminary assessment of exposure.

WARNING:

• The vibration emission during actual use of the power tool can differ from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.
• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

EC DECLARATION OF CONFORMITY

For European countries only

The EC declaration of conformity is included as Annex A to this instruction manual.

Descriptif

DÉCLARATION DE CONFORMITÉ CE

VEILIGHEIDSWAARSCHUWINGEN VOOR EEN ACCUSCHROEFMACHINE

LED-indicator/Pieptoon

OPTIONELE ACCESSOIRES

LET OP:

Acender as lâmpadas (Fig. 5)

PRECAUÇÃO:

Äänenpainetaso (L _pA ): 73 dB (A)

Epävarmuus (K): 3 dB (A)
