CMW20SMSLI - Built-in oven CANDY - Free user manual and instructions

Product type	Built-in microwave oven
Brand	Candy
Model	CMW20SMSLI
Capacity	20 liters
Microwave power	700 W
Power levels	5 (Low 120 W, M.Low 200 W, Medium 390 W, M.High 550 W, High 700 W)
Control type	Rotary knobs (power and timer)
Timer	0 to 35 minutes with beep
Microwave frequency	2450 MHz
Power supply	230 V ~ 50 Hz
Appliance class	Group 2 Class B
Usage	Household only
Interior lighting	Yes
Turntable	Glass, removable
Included accessories	Glass turntable, rotation ring, waveguide cover
Locking system	Door latch
Cleaning	Damp soft cloth; do not use steam cleaner or abrasive detergents
Safety	Automatic stop when door opens; instructions to avoid explosions (eggs, sealed containers)
Ventilation	Do not block openings; minimum clearance required (5 cm sides, 10 cm rear, 20 cm top)

Frequently Asked Questions - CMW20SMSLI CANDY

How to install the built-in microwave oven?

Place the oven on a flat, stable surface at least 85 cm above the floor. Respect minimum clearances: 5 cm on sides, 10 cm at rear, 20 cm above. Do not install in a cabinet. Plug into a grounded outlet.

What utensils can I use in this oven?

Only use microwave-safe utensils: heat-resistant ceramic, microwave-safe plastic, heat-resistant glass. Never use metal containers or those with metal rims. Avoid sealed containers.

How to clean the interior of the oven?

Unplug the oven. Clean the cavity and turntable with a damp soft cloth. Do not use abrasive detergents, gasoline, or metal brush. Never remove the waveguide cover.

Why is the oven not heating?

Check that the timer is set to a non-zero duration, the door is properly closed, and the oven is plugged in. If the issue persists, test with a cup of water: if the water does not heat after 1 minute, contact after-sales service.

How to defrost food?

Place food in a suitable dish. Select power level M.Low (200 W) or Low (120 W). Set timer according to weight (e.g., 1:30 for 0.1 kg of meat). Turn food halfway if necessary.

Can I heat liquids?

Yes, but be aware of the risk of delayed boiling. Stir the liquid before and after heating. Use an open container and do not heat too long. Monitor the oven.

What to do if the door is damaged?

Do not use the oven if door or seals are damaged. Contact an approved repairer. Do not attempt to repair yourself, as you could be exposed to microwaves.

How to set the clock?

This model does not have a digital clock. The timer is adjusted with the rotary knob from 0 to 35 minutes. For durations less than 10 minutes, first turn to 10 then back to the desired time.

The turntable does not turn, what to do?

Check that the glass plate is correctly positioned on the rotating shaft and that the rotation ring is in place. Make sure no food obstructs the rotation. If the problem persists, contact after-sales service.

Can I use aluminum foil?

No, aluminum foil and any metal are prohibited in a microwave oven. They can cause sparks and damage the appliance. Use appropriate plastic wrap, but not for fatty meats.

USER MANUAL CMW20SMSLI CANDY

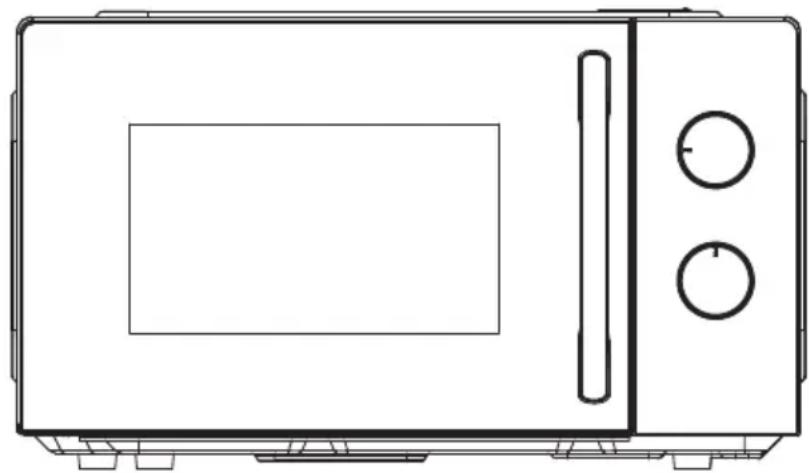

Line drawing of a microwave oven with two circular control knobs (no text or symbols)

CMW20SMSLI

PAP

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

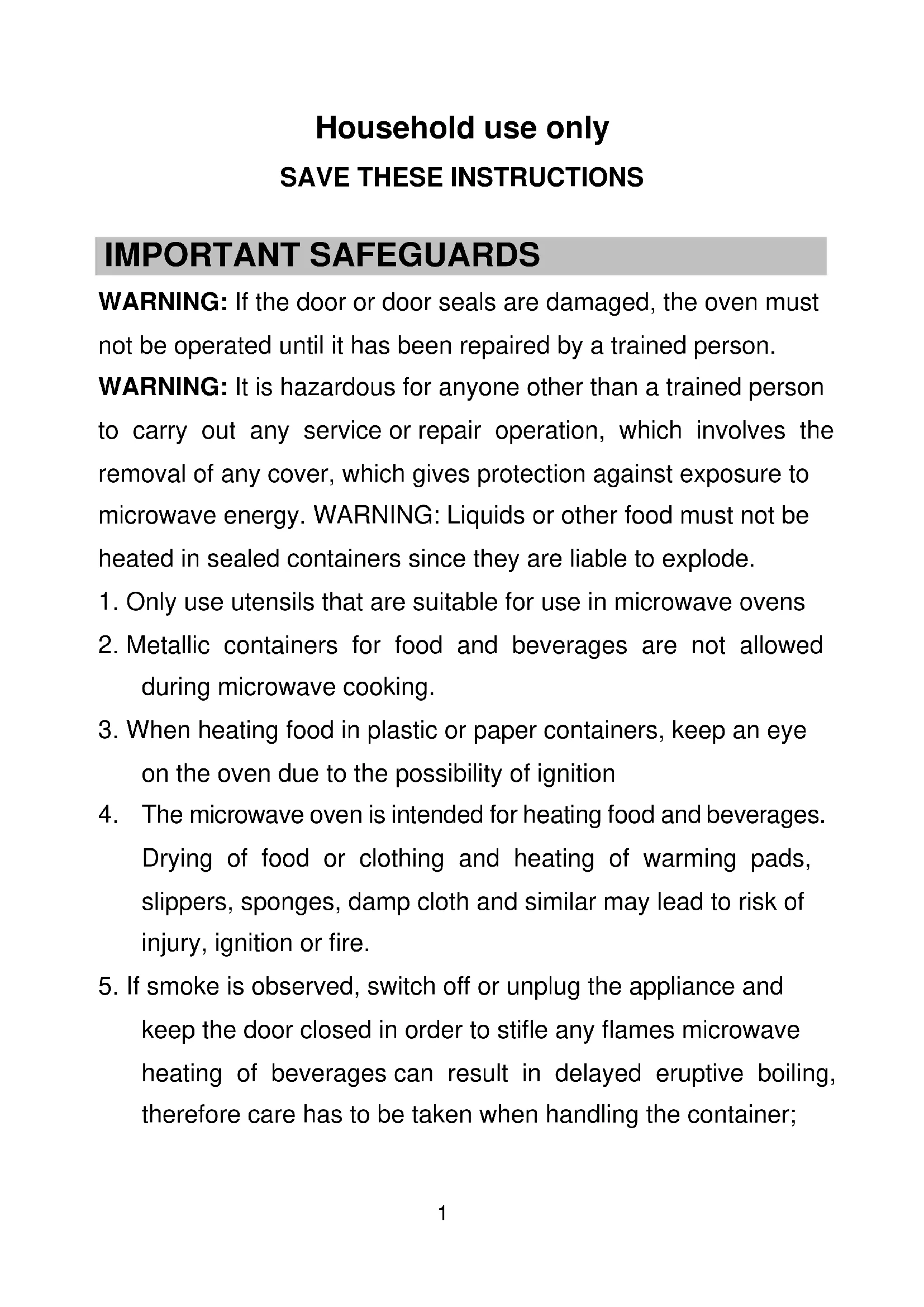

Household use only

SAVE THESE INSTRUCTIONS

IMPORTANT SAFEGUARDS

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a trained person.

WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation, which involves the removal of any cover, which gives protection against exposure to microwave energy. WARNING: Liquids or other food must not be heated in sealed containers since they are liable to explode.

1. Only use utensils that are suitable for use in microwave ovens
2. Metallic containers for food and beverages are not allowed during microwave cooking.
3. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition
4. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

5. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container;

6. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns;

7. Eggs in their shell and whole hard-boiled eggs shall not be heated in microwave ovens since they may explode, even after microwave heating has ended;
8. Failure to maintain the oven in a clean condition could lead to deterioration of The surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. The microwave oven is intended to be used freestanding or built-in or in a cabinet.
9. The appliance must not be placed in a cabinet
10. Care should be taken not to displace the turntable when removing containers from the appliance.
11. The appliance shall not be cleaned with a steam cleaner.

Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

CAUTION: HOT SURFACE

1. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

1. Children shall not play with the appliance.
2. Cleaning and user maintenance shall not be made by children without supervision.
3. Group 2 Class B appliance

Group 2 ISM equipment: group 2 contains all ISM equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment. Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

INSTALLATION

1. Remove the package from the microwave and carefully check the microwave for damage. Such as:

Whether the furnace body is shocked and shows signs of heavy pressure.

Whether the furnace door is flat and the switch is smooth and flexible.

Whether the metal insulation mesh on the furnace door is bent or deformed.

Whether the power cord is loose.

If you find any of the above, please contact your dealer or our special maintenance department immediately.

1. The microwave oven must be placed flat in a ventilated, dry, non-corrosive environment, away from high temperatures and vapors.

2. Do not place any objects on the top of the stove. In order to have sufficient air circulation space, the product should be placed 85cm above the ground. The distance between the sides of the microwave oven and the wall should be no less than 5cm, the distance between the back of the furnace and the wall should be no less than 10cm and the distance from the top wall cabinet should be no less than 20cm.

3. The microwave oven should be away from the TV, radio and antenna (generally greater than 5m), otherwise it will cause interference.

4. The microwave oven should be placed in the place where the power cable is convenient to plug in, and the grounding is guaranteed to be good. In case of leakage, the grounding wire can be formed.

The current loop avoids electric shock.

1. Be sure to operate the microwave oven with the door closed.
2. Do not place the microwave in the cabinet.
3. When using the microwave oven for the first time, since the residue or grease in the manufacturing process exists in the furnace cavity or on the heating pipe, there may often be odor and even white smoke during heating. This is a normal phenomenon and has been used several times. After this, this will not happen, pay attention to open the doors and windows to maintain good ventilation.

CLEANING

MICROWAVE OVEN CARE

CAUTION

The oven should be cleaned regularly and any food deposits removed.

WARNING

1. Remove the power cord from the wall outlet before cleaning.
   Don't immerse the appliance in water or other fluids when cleaning.

2. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation

3. Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance

4. Do not remove the waveguide cover
5. When the microwave oven has been used for a long time, there may be some strange odors exist in oven, Following 3 methods can get rid of them:

a. Place several lemon slices in a cup, then heat with high Micro Power for 2-3 min.
b. Place a cup of red tea in oven, then heat with high micro power.
c. Put some orange peel into oven, and then heat them with high Micro Power for 1 minute.

1. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

TIPS FOR CLEANING

Details for cleaning door seals, cavity and adjacent parts:

Exterior:

Wipe the enclosure with a dampened soft cloth

Door:

Using a dampened soft cloth, wipe clean the door and window Wipe the door seals and adjacent parts to remove any spill or spatter

Wipe the control panel with a slightly dampened soft cloth Interior walls:

Wipe clean the cavity with a dampened soft cloth

Wipe clean the waveguide cover to remove any food splashed

Turntable/ Rotation ring/ Rotation axis:

Wash with mild soap water

Rinse with clean water and allow drying thoroughly

PRODUCT INSTRUCTION

1 2 3 4 5 6 7 8

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Microwave oven door must be properly closed in order for it to operate

2) Viewing window

Allow user to see the cooking status

3) Rotating ring

The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating

4) Rotating axis

The glass turntable sits on the axis; the motor underneath it drives the turntable to rotate

5) Turntable

The food sits on the turntable, its rotation during operation helps to cook food evenly

CAUTION

• Place the rotating ring first
• Fit the turntable onto the rotating axis and make sure that it is geared in properly

6) Control panel

See below in details (the control panel is subject to change without prior notice)

7) Outer cover

Used for wrapping and protecting the internal structural parts and electrical components of the whole machine

8) Waveguide cover

It is inside the microwave oven, next to the wall of control panel.

WARNING

Never remove the waveguide cover

The maximum setting is 35 minutes, there is a ringtone at the end, and the knob returns to the "0" position.

2. MICROWAVE FUNCTION

There are five firepower files:

HIGH	100% power output	700W	(Quick cooking)
M.High	80% power output	550W	(Normal cooking)
Med	55% power output	390W	(Slow cooking)
M.Low	30% power output	200W	(Defrost food)
LOW	17% power output	120W	(Keep warm)

Below is some food defrosting time advice:

	Weight	Defrost time
Meat	0.1~1.0kg	1:30~26:00
Poultry	0.2~1.0kg	2:30~22:00
Sea food	0.1~0.9kg	1:30~14:00

OPERATION

1) Connect the cord

• Before connecting the cord, make sure the timer is set to "0" position.
• Do not block the ventilation.

2) Place the food on the glass turntable and close the door
- Food must be contained in a utensil
3) Select the desired power level

4) Set the timer

If desired time is less than 10 minutes, turn the firepower knob to over 10 minutes position and then turn back to the desired time setting.

5) Once the desired time is set, the cooking begins. If pausing in between is needed, just open the door at any time, and close it to resume operation.
6) When it times out and cooking ends, the microwave oven produces a bell ring, the inside lamp will also be automatically turned off.

If food is removed before time out, make sure to set back the timer to "0" position, this avoids the microwave oven from operating in empty load.

UTENSILS GUIDELINE

Depending on the cooking method, it is necessary to choose a safe and suitable vessel. If it is not properly selected, it will not only affect the cooking effect, but also cause damage to the vessel or microwave oven. Please refer to the table below for use:

Material of container	Microwave	Notes
Heat-resistant ceramic	Yes	Never use the ceramics which are decorated with metal rim or glazed
Heat-resistant plastic	Yes	Can not be used for long time microwave cooking
Heat-resistant glass	Yes
Grill rack	No
Plastic film	Yes	It should not be used when cooking meat or chops as the over-temperature may do damage to the film

COOKING TIPS

The following factors may affect the cooking result:

Food arrangement

Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible.

Cooking time length

Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns.

Cooking food evenly

Food such as chicken, hamburger or steak should be turned once during cooking.

Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking

Allow standing time

After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner

Whether the food is done

Color and hardness of food help to determine if it is done, these include:

• Steam coming out from all parts of food, not just the edge
• Joints of poultry can be moved easily
• Pork or poultry shows no signs of blood
• Fish is opaque and can be sliced easily with a fork

Browning dish

When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring.

Microwave safe plastic wrap

When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt

Microwave safe plastic cookware

Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded.

MAINTENANCE

SERVICING

Please check the following before calling for services.

1. Place one cup of water (approx. 150ml) in a glass measure in the oven and close the door securely. Oven lamp should go off if the door is closed properly. Let the oven work for 1 min.
2. Does the oven lamp light?
3. Does the cooling fan work?
   (Put your hand over the rear ventilation openings.)
4. Does the turntable rotate?
   (The turntable can rotate clockwise or counter clockwise. This is quite normal.)
5. Is the water inside the oven hot after 1 minute?

If “NO” is the answer to any of the above questions, please check your wall socket and the fuse in your meter box.

If both the wall socket and the fuse are functioning properly, CONTACT YOUR NEAREST SERVICE CENTER APPROVED.

SERVICING SAFEGUARDS

Caution: MICROWAVE RADIATION

1. Warning: There is microwave radiation and high voltage in the microwave. Except for maintenance technicians, it is strictly forbidden to dismantle it by yourself to avoid harm to the human body. Do not expose to radiation from microwave generators or other conducted microwave energy components!

Warning: When the microwave oven is running, the surface temperature will be very high!

1. During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth.

2. Magnetron
   • High voltage transformer
   • High voltage capacitor
   • High voltage diode

3. The following conditions may cause undue microwave exposure during servicing.

4. Improper fitting of magnetron;

5. Improper matching of door interlock, door hinge and door;
6. Improper fitting of switch support;
7. Door, door seal or enclosure has been damaged.

Correct Disposal of this product

This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:- the WEEE should not be treated as domestic waste;- the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

CANDY

FOUR À MICRO-ONDES MANUEL D'INSTRUCTIONS

Line drawing of a microwave oven with two circular control knobs (no text or symbols)

CMW20SMSLI

PAP

CONSIGNES DE SÉCURITÉ IMPORTANTES LISEZ ATTENTIVEMENT ET CONSERVEZ CE MANUEL POUR POUVOIR LE CONSULTER EN CAS DE BESOIN

INSTRUCTIONS SUR LE PRODUIT

Labeled diagram of a microwave oven with numbered parts for identification

Line drawing of a computer monitor with a screen and mouse (no text or symbols)

Line drawing of a microwave oven with two circular control knobs (no text or symbols)

CMW20SMSLI

PAP

Labeled diagram of a microwave oven with numbered parts for identification

Simple line drawing of a cabinet or enclosure with handle and door (no text or symbols)

Line drawing of a microwave oven with two circular control knobs (no text or symbols)

CMW20SMSLI

PAP

POMEMBNA VARNOSTNA NAVODILA. POZORNO PREBERITE IN SHRANITE ZA POZNEJŠO UPORABO.

Labeled diagram of a microwave oven with numbered parts for identification

Pokritost valovoda

1) Zaklepanje vrat

1. NASTAVITEV URE

Line drawing of a microwave oven with two control knobs and a front panel (no text or symbols)

CMW20SMSLI

PAP

DŮLEŽITÉ BEZPEČNOSTNÍ POKYNY POZORNĚ SI PŘEČTĚTE A USCHOVEJTE PRO BUDOUCÍ POUŽITÍ

USCHOVEJTE SI TYTO POKYNY

DŮLEŽITÁ OCHRANNÁ OPATŘENÍ

Labeled diagram of a microwave oven with numbered parts for identification

Line drawing of a microwave oven with two circular control knobs (no text or symbols)

CMW20SMSLI

PAP

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY POZORNE SI HO PREČÍTAJTE A ODLOŽTE NA POUŽITIE AJ V BUDÚCNOSTI

Labeled diagram of a microwave oven with numbered parts for identification

Line drawing of a microwave oven with two circular control knobs (no text or symbols)

CMW20SMSLI

PAP

INSTRUCTIUNI IMPORTANTE DE SIGURANTĂ CITITI CU ATENȚIE ȘI PĂSTRATI PENTRU A PÚTEA CONSULTA PE VIITOR

Labeled diagram of a microwave oven with numbered parts for identification

Line drawing of a mechanical device with no visible text or symbols
