H7560B - Humidifier PureGuardian - Free user manual and instructions

Product Type	Ultrasonic Humidifier Cold/Warm Mist
Brand	PureGuardian
Model	H7560B
Tank Capacity	5 liters (1.32 gal)
Continuous Runtime	Up to 90 hours
Max Mist Output	> 40 ml/h (14 oz/h)
Antimicrobial Technology	Silver Clean™ integrated into the tank
Mist Setting	3 levels (low, medium, high)
Mist Temperature	Cool (room temperature) or warm (≈26.5 °C)
Humidistat	Automatic (50%) or adjustable (40% - 75% in 5% increments)
Timer	1 to 12 hours or continuous operation
Auto Shut-Off	Yes: low water level, target humidity reached, thermal safety (OH)
Night Light	Yes, switchable
Digital Display	Real-time humidity level and settings
Ultrasonic Disk Cleaning	Cleaning brush included, descaling with white vinegar
Recommended Maintenance	Weekly descaling depending on water hardness
Safety	Thermal protection with "OH" display, automatic shut-off
Warranty	Limited 3 years (parts and labor)
Spare Parts	Original Guardian Technologies only
Repairability	Do not open the motor yourself (voids warranty)
Included Accessories	Cleaning brush, mist extensions

Frequently Asked Questions - H7560B PureGuardian

Why is my humidifier not producing any mist?

Check that the appliance is plugged in and the tank is properly installed. Clean the ultrasonic disk with the included brush. Make sure the water level is sufficient.

White dust is settling on furniture, what should I do?

White dust is caused by hard water. Use distilled water to reduce mineral deposits. Clean the ultrasonic disk regularly.

A bad smell is coming from the humidifier

Thoroughly clean the appliance according to the instructions. Empty and completely dry the tank before refilling with fresh water. Do not use any additives in the water.

How to set the timer?

Press the Timer button to select a duration from 1 to 12 hours. The appliance will automatically shut off after the chosen time.

What does the 'OH' display mean?

'OH' indicates that the thermal safety has activated. Let the appliance cool down. If the problem persists, contact customer service.

Can essential oils be used with this humidifier?

No, this would damage the materials of the appliance. Do not add any additives to the water.

How to clean the ultrasonic disk?

Unplug the appliance, empty the base, then use the included cleaning brush to gently scrub the disk. If there is scale, apply a diluted white vinegar solution.

Why is water accumulating around the appliance?

Reduce the mist level. Make sure the appliance is on a level and waterproof surface. Point the nozzle away from objects.

The humidity display is flashing, is this normal?

Yes, this occurs when the ambient humidity is below 15%. The appliance is working normally to increase the humidity level.

How to store the humidifier at the end of the season?

Clean and descale the appliance, dry it completely. Do not leave water in the tank or base. Store it in its original box in a cool, dry place.

USER MANUAL H7560B PureGuardian

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. In order to be eligible for this Limited Warranty, an original sales receipt or comparable substitute proof of purchase bearing the date of original purchase is required. Refer to the original product carton or specific product/model page on the Guardian Technologies website for warranty length for your particular model. This warranty applies only to the original purchaser of this product from the original date of purchase. This warranty covers product purchased from authorized distributors only.

This warranty applies to repair or replacement of product found to be defective in materials or workmanship. This warranty does not apply to damage resulting from unusual wear, commercial, abusive, unreasonable use or supplemental damage. This warranty does not cover damage from unauthorized repairs or from any use not in accordance with the instruction manual. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.)

To submit product under warranty the complete machine must be delivered pre-paid to Guardian Technologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll free to the number listed below.

USA and Canada

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Please go to www.guardiantechnologies.com to register your product. We consider the registration process important to ensuring superior service to our customers, however submitting the warranty registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above.

Additional copies of the instruction manual can be obtained by accessing and printing directly from our website or calling customer service.

guardian

technologies™

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian

technologies™

USE & CARE INSTRUCTIONS

Line drawing of a white portable air purifier with control panel and digital display (no text or symbols)

Ultrasonic Humidifier

Model No. H7550, H7560

3-Year Limited Warranty

Customer Service

1.866.603.5900

www.guardiantechnologies.com

Date Purchased month ____ year ____

English E - 1 French F - 1 Spanish S - 1

Use GENUINE Guardian Technologies replacement parts only.

REV0718

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

• CAUTION: To reduce the risk of severe burns, keep this product out of the reach of children and pets.
• Disassembly, repair or remodeling by an unauthorized person may result in serious harm and will void the manufactures warranty.
• Always place this humidifier on a firm, flat & level surface. This humidifier may not work properly on an uneven surface.
• Do not place this product on cloth, carpet or an absorbent surface. This may block air inlet.
• This product releases mist. Do not place this humidifier directly on wood furniture, flooring or any surfaces that could be damaged by water. Manufacturer does not accept any liability for damage in the case of the unit being placed incorrectly.
• Do not use if the plug is damaged or loose.
• Before filling or cleaning the unit, make sure it is unplugged.
• Once the humidifier has been plugged in, do not tilt or move the unit.
• Do not handle the plug with wet hands.
• Do not excessively bend, twist, pull or damage the power cord.
• Avoid placing this product where the humidity spout is pointed directly at an object or person.
• Do not inhale the mist/vapor expelled from the product or drink water from the tank.
• Do not fill the water tank with hot or boiling water.
• Do not use this product in direct sunlight or near a heat source such as a stove, heater or radiator.
• If the water tank becomes cracked or damaged, do not use.
• Do not keep this product running for an extended period of time.
• Unplug the cord when unit is not in use for an extended period of time and/or when no one is home.
• Do not keep water in the tank when not in use for an extended period of time.
• Do not clean the unit, water tank or water reservoir with detergents or chemicals of any kind.
• The use of water additives in the tank including ethereal/essential oils, fragrances, eucalyptus, water conditioners, etc. will damage the appliance materials and as a consequence the whole unit. Any use of such additives in the tank will void the manufactures warranty.
• Do not use this product near any other electronic device.

• Do not cover the spray spout at any time during use. Do not put anything on or in the tank.

• IMPORTANT: Neither humans nor animals can hear the high frequency vibrations.

• When unplugging from outlet hold humidifier securely.
• Do not place cord over objects.
• Do not get water in or on the power cord or where it connects to the product.
• Do not use near a sink.
• Do not touch the water tank during operation.
• Do not submerse the unit in water or pour water on the unit or in the humidity spout.
• When emptying water from water tank, pour on drain side.
• Do not cover the spout with cloth or hand and do not use without the spout.
• Use clean or distilled water in tank. Hard water areas will require more frequent cleaning.
  Stop using your humidifier and contact your physician if you have respiratory symptoms which you believe are associated with periods of use of your home humidifier, even if you are following maintenance directions.

WARNING: This product can expose you to chemicals including lead or lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.

For more information go to www.P65Wamings.ca.gov.

This equipment has been tested and found to comply with the limits for a Consumer ISM equipment, pursuant to Part 18 of the FCC Rules. Although tested, it may affect these devices. If the humidifier is found to interfere, separate the device and/or the humidifier. Conduct only the user maintenance found in this manual. Other maintenance and servicing can cause harmful interference and can void the required FCC compliance.

SPECIFICATIONS

HUMIDIFYING MODE: Cool/Warm Ultrasonic Mist TANK CAPACITY: 2 gallons

SUCCESSIVE HUMIDITY HOURS: Up to 90 hours depending on environmental conditions

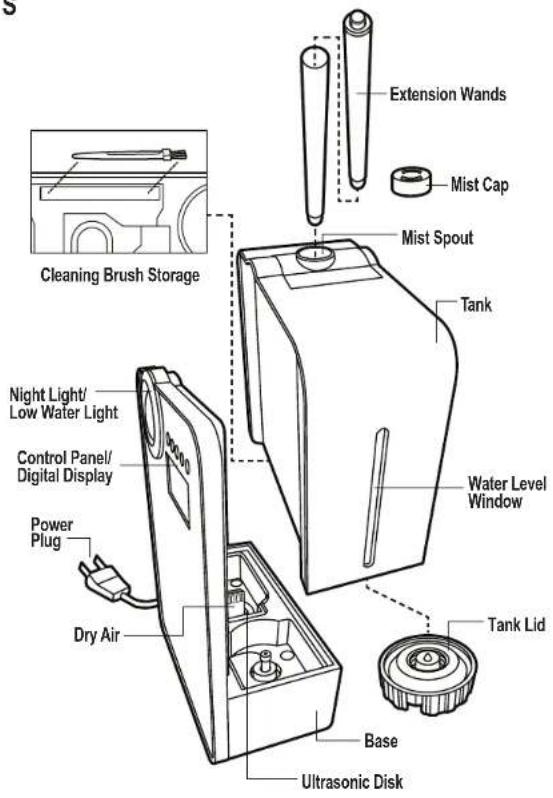

PARTS

FUNCTIONS HIGHLIGHTS

POWER

Tums humidier ON/OFF.

Select humidifying temperature based on need. Warm humidity will use more power but will humidify your room quicker. Turns night light on/off.

AUTO HUMIDISTAT

Monitors the humidity in the room and adjusts output to maintain an ideal humidity of 50%.

TIMER

Preset the humidier to automatically turn off in 1 to 12 hours.

ADJUSTABLE HUMIDISTAT

Preset the humidier to run at necessary time and mist control setting to reach desired humidity.

MIST CONTROL

The spray volume or amount of mist that is produced by the unit can be adjusted to three levels based on need.

SILVER CLEAN TECHNOLOGY

Unlike other humidifiers that grow slimy mold and mildew, the pureguardianTM Ultrasonic Humidifier uses Silver CleanTM technology embedded in the tank to give the growth of mildew and mold on the surface of the water tank.

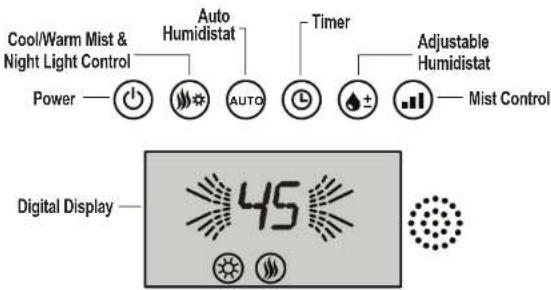

CONTROL PANEL BUTTON FUNCTIONS

SET UP

DIRECTIONS FOR USE

Select a firm, level, flat location - at least six inches (15 cm) from any wall or object for proper air flow. Place the humidifier on a water-resistant surface, as water can damage furniture and some flooring.

Do not place unit directly on carpet, towels, blankets or other absorbent surfaces.

Guardian Technologies will not accept responsibility for damage caused by water spillage.

FILLING - Make sure unit is unplugged.

Hand holding a device with an upward arrow, no visible text or symbols

1. Separate the tank from the base of the unit.

1. Flip over water tank and open the tank lid, turning it to the left.

Line drawing of a rectangular device with a piping bag attached, no text or symbols present

1. Pour cool, clean water directly into the tank. Do not pour anything but water into the tank.

1. Close the tank lid, turning it to the right. It is important to FIRMLY secure cap after filling the tank with water.

Line drawing of a hand holding a device with a downward arrow indicating motion (no text or symbols)

1. Attach the tank to the base of the unit and plug in.

Simple line drawing of a mechanical device with two vertical rods and a base (no text or symbols)

6. Extension Wands

If desired, assemble extension wands by fitting ends together. Then attach to the humidity spout. The wands will extend the mist to a higher level in the air to help disperse throughout the room.

DIRECTIONS FOR USE

Simple black circular icon with a power button symbol on white background (no text or numbers)

7. Power button

Before turning on make sure there is water in the unit. Press the Power button.

8. Select Desired Settings

See "Control Operation" section for available unit functions. Note: When you power "on" the humidistat reading range is from 15% to 90%. If the room humidity is below 15%, the display reading will flash.

Line drawing of a portable camera with a control panel and cable (no text or symbols)

9. Water Level Window & Auto Shut Off Feature

The tank includes a water level window so you can easily see when it is time to re ll with water. The unit will automatically shut off and a low water icon will blink on the display panel if the water level is too low. If this happens, unplug the unit, remove the tank and refill.

DIRECTIONS FOR USE

Tums night light on/off. Selects cool or warm mist. Water temperature is maintained at room temperature for cool setting and 80 degrees for warm. Allow 15 minutes for water to warm. Follow instructions for desired combination. The images show the screen display for the combination of the cool/warm mist and night light settings.

Default: Night light/Warm mist control on.

Press 1 Time: Night light OFF. Warm mist ON.

Press 2 Times: Night light ON. Cool mist ON.

Press 3 Times: Night light OFF. Cool mist ON.

2. Auto Humidistat

This is a preset setting. Press the Auto button to activate the automatic humidity function, then the ideal humidity of 50% is maintained, including warm mist and night light. When the humidity level in the room is less than the auto humidity level (50%), the humidifier will continue to produce moisture automatically. Once the room level is met, the humidifier will turn itself off.

3. Timer

Press the Timer button to determine the operating time, it can be regulated between 1 and 12 hours or for continuous operation.

E-8

DIRECTIONS FOR USE

4. Adjustable Humidistat

Set the desired humidity in % by pressing the Adjustable Humidistat button. We recommend a relative humidity of between 40% and 50%. The appliance can be regulated from 40% to 75% in 5% increments. If the humidity exceeds the desired setting, the appliance will turn itself off. The appliance will not turn itself off if it has been set for Continuous Operation ("Co"). The desired value is shown while you are making the selection. After a few seconds, the display automatically switches to the current value. Note: If the room humidity is below 15% then the display will fash.

5. Mist Control

When you press the Mist Control button there are three options:

Press once for LOW. Press twice for MEDIUM. Press three times for HIGH.

6. Low/No Water

When it is time to refill, the low water indicator will blink on the display.

7. Safety Mode "OH"

The humidifier is equipped with a thermal safety device that will display "OH" when activated. If it enters a mode showing "OH" it will automatically restart when cooled down. If the unit does not automatically restart, then allow the unit to cool and cycle the power button to reset and start the humidifier.

Important: If the unit continues to display "OH" or shut down, there may be an abnormal condition and the unit may need service. Call Customer Service

E-9

CLEANING

1. Always unplug the unit before servicing in any way.

GENERAL CLEANING

1. Water tank. Empty water tank. Remove mist spout and clean with fresh water and a light brush (bottle cleaning brush is recommended).

2. Outer surface of the unit. Wipe the surface of the unit with a soft, damp cloth if needed. If you notice an accumulation of water during usage, reduce humidity and dry outer surface with a cloth.

DESCALING

• Depending on usage and water type, cleaning to remove scale may be required weekly or every other week to optimize unit performance.
• If you live in a hard water area, we recommend the use of distilled water for your humidifier. This will help reduce the precipitation of minerals or 'white dust'.
• Do not clean the unit or water tank with detergents or cleaning chemicals of any kind.

ULTRASONIC DISK

1. Unplug unit.
2. Remove the tank and empty all water from unit base and tank.
3. Locate the ultrasonic disk on the inside center of the base unit.
4. Use ONLY the enclosed cleaning brush to gently clean disk and remove build up and deposits. Do not scrub or scrape the ultrasonic disk.

If scale becomes difficult to remove with brush:

1. Fill the Base with: mixture of 1 tsp. white vinegar and 1 tsp. water.
2. Let solution stand for 5 minutes.
3. With the vinegar in the Base, clean all interior surfaces with a soft cloth or brush to help remove scale.
4. Also check mist nozzle and mist tube in water tank. Clean as needed.
5. Rinse the Base thoroughly with water to remove scale and vinegar solution.

END OF SEASON STORAGE

• Follow the Cleaning and Descaling instructions when the humidifier will be stored at the end of the season.
• Dry the humidifier completely before storing. DO NOT store with water inside the Base or Water Tank.
• Pack the unit in its original carton and store in a cool, dry location.

NOTE: IF YOU EXPERIENCE A PROBLEM DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF. DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE HUMIDIFIER OR PERSONAL INJURY.

*Clean the disk with the brush only. No other cleaning tool should be used. BRUSH ONLY.

TROUBLE SHOOTING GUIDE

PROBLEM	SOLUTION
Water vapor and humidity are not produced.	Power Plug: Unplug and then try again. Power Failure: When the power is returned, try again. Tank Installation: Make sure the tank is correctly attached. The surface of the ultrasonic disk is dirty: Clean ultrasonic disk.
Air blows but water vapor is not produced.	Excessive Water: Remove a certain amount of water from the tank. The desired humidity is lower than the current temperature: Increase the desired humidity. Detergent residue and/or oil ingredients from cosmetics, etc. may be in tank; wash out tank and try again. The surface of the ultrasonic disk is dirty: Clean ultrasonic disk. If you use hard water, replace with softer water.
Humidity level is low.	The surface of the ultrasonic disk is dirty: Clean ultrasonic disk. The water in the unit is too cold: Replace with cool, but not cold water. Damage on the ultrasonic disk: Contact Customer Service
Warm humidity is not produced.	It may take 10-15 minutes before warm humidity is created. The mist may not feel warm due to the fact it is so fine and is cooled rather quickly from the air in your home. Test by either feeling the base of the unit which should be warm to the touch or by allowing the unit to run for approximately 30 minutes on warm setting in a closed 200 sq. foot room or smaller. The room should feel moderately warmer if the unit is working properly.
The humidity has a bad smell.	Poor maintenance or dirty water: Clean the product thoroughly, and fill it with fresh water.
White dust is forming on nearby furniture.	Hard water may deposit a certain amount of dust. Dust in the air also settles because of added humidity in the room. Use distilled water if this becomes a nuisance.
Unit has stopped working.	No or low water. Unplug unit and refill tank. The humidifier is equipped with a thermal safety device that will display “OH” when activated. If it enters a mode showing “OH” it will automatically restart when cooled down. If the unit does not automatically restart, then allow the unit to cool and cycle the power button to reset and start the humidifier. Important: If the unit continues to display “OH” or shut down, there may be an abnormal condition and the unit may need service. Call Customer Service
Water is accumulating outside of unit or area surrounding unit.	Saturation of humidity. Lower mist control setting. Unit not level and water is accumulating. Unplug and place on level surface. Point spray away from objects. Raise unit on a water-resistant level surface 2-3 feet off of floor.
Water dripping when refilling. Cap not tight.	Water remaining on bottom of tank. Wipe tank or tilt to drain before transporting. Twist to firmly secure cap after filling tank with water.
Increased noise level.	Unit must be placed on a at, level, hard surface. Make sure it is NOT placed on a soft or absorbent surface.
Humidifier display not reaching “auto” or desired humidity level.	There are a few things that can affect the reading. The climate (example - if in a very cold climate, the furnace will run frequently, letting dry air into the room). The room may be too large and may be open to other spaces. Try warm humidification, sometimes this increases the humidity faster. Also, unplugging it for a period of 5-8 minutes. Sometimes it is possible to overload the unit when rst getting the product and trying out all the buttons.

GARANTIE LIMITÉE

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1 866 603-5900

www.guardiantechnologies.com

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian

technologies™

UTILISATION ET INSTRUCTIONS D'ENTRETIEN

Line drawing of a white portable air purifier with control panel and digital display (no text or symbols)

Hand holding a device with an upward arrow, no visible text or symbols

Line drawing of a rectangular device with a piping bag inserted, no text or symbols present

Line drawing of a hand holding a device with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a mechanical device with two vertical rods and a cylindrical component (no text or symbols)

Simple black circular icon with a power button symbol on white background (no text or labels)

1. Bouton Marche/Arrêt

Line drawing of a portable camera with control panel and cable (no text or symbols)

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian

technologies™

Line drawing of a white portable air purifier with control panel and digital display (no text or symbols)

Line drawing of a hand holding a device with an upward arrow indicating motion (no text or symbols)

Line drawing of a water dispenser with a faucet (no text or symbols)

Hand holding a device with a downward arrow indicating compression or disassembly (no text or symbols)

Simple line drawing of a device with two vertical tubes and a base, no text or symbols present.

6. Extensiones telescópicas

Simple electrical button symbol: a power button with a minus sign, enclosed in a rectangular border (no text or labels)

Line drawing of a portable electronic device with no visible text or symbols
