H910BL - Humidifier PureGuardian - Free user manual and instructions

Product Type	Ultrasonic Table Humidifier
Brand	PureGuardian
Model	H910BL
Humidification Mode	Ultrasonic Cool Mist
Input Voltage	110-240 V AC, 50/60 Hz
Output Voltage	24 V DC, 0.5 A
Power	12 W
Tank Capacity	0.79 L
Maximum Runtime	Up to 14 hours (low setting)
Dimensions (L x W x H)	11 x 16 x 21.3 cm
Weight	0.45 kg
Mist Speeds	2 (low/high)
Built-in Night Light	Yes, with on/off modes
Mist Direction	360°
Anti-Mold Technology	Silver Clean
Water Level Indicator	LED (green = ok, red = refill)
Auto Shut-Off	Yes (tank removed or low level)
Included Accessories	Cleaning brush, power adapter
Recommended Cleaning	Soft water, descaling with white vinegar
Warranty	1 year limited
Customer Service	1 866 603-5900

Frequently Asked Questions - H910BL PureGuardian

What to do if the humidifier emits no mist?

First check that the unit is properly plugged in and the outlet works. Make sure the water tank is correctly seated on the base. If the problem persists, clean the ultrasonic disc with the included brush.

Why is air circulating but no mist is emitted?

Remove some water from the tank (too much water possible). Increase the desired mist level. Clean the ultrasonic disc. Use soft water or distilled if water is hard. Check for detergent residue in the tank.

The humidity level is very low, what to do?

Clean the ultrasonic disc with the brush. Replace the water with fresh water (not cold). If the disc is damaged, contact customer service at 1 866 603-5900.

How to eliminate bad odors from the humidifier?

Thoroughly clean the unit and fill it with soft water. Lack of maintenance or stagnant water can cause odors. Follow the cleaning instructions in the manual.

Why is there white dust on nearby furniture?

This is due to using hard water which leaves mineral deposits. Use distilled water to reduce this. Ambient dust may also settle due to humidity.

The night light does not turn on, what to do?

Refer to the mode chart in the manual. The night light turns on or off by pressing the power button a certain number of times. For example, mode 2 turns on the night light on low speed.

The power button is red, what does it mean?

The red light indicates the water tank is empty or nearly empty. Fill the tank with soft water to allow the unit to restart automatically.

The tank does not align correctly on the base

The tank only fits one way. Rotate the tank until it fits correctly on the base. Do not force.

How to clean the ultrasonic disc?

Unplug the unit, remove the tank and empty the water from the base. Use only the included cleaning brush to gently scrub the disc in the center of the base. Do not scrape or use other accessories.

A red/pink film appears around the disc, what to do?

This is a sign of mineral deposits or mold. Clean the humidifier more frequently. Use distilled water and follow descaling instructions with white vinegar.

USER MANUAL H910BL PureGuardian

guardian technologies™

USE & CARE INSTRUCTIONS

Line drawing of a steam iron machine with control panel and buttons (no text or symbols)

pureguardian®

Table Top Ultrasonic Humidifier

guardian technologies™

Guardian Technologies LLC

26251 Bluestone Blvd. | Euclid, Ohio 44132

1.866.603.5900 | www.guardiantechnologies.com

Model No. H910BL

1-Year Limited Warranty

www.guardiantechnologies.com

1.866.603.5900

REV0615

English E-1

French F-1

Spanish S - 1

Date Purchased

month

year ____

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

WARNING: THE CORDS, WIRES AND/OR CABLES SUppLIED WITH THIS pPRODUCT CONTAIN CHEMICALS, INCLUDING LEAD OR LEAD COMPOUNDS, KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. WASH HANDS AFTER USING. (CALIFORNIA CODE OF REGULATIONS PROPOSITION 65)

• CAUTION: To reduce the risk of severe burns, keep this product out of the reach of children and pets.
• Disassembly, repair or remodeling by an unauthorized person may result in serious harm and will void the manufactures warranty.
• Always place this humidifier on a firm, flat & level surface. This humidifier may not work properly on an uneven surface.
• Do not place this product on cloth, carpet or an absorbent surface. This may block air inlet.
• This product releases mist. Do not place this humidifier directly on wood furniture, flooring or any surfaces that could be damaged by water. Manufacturer does not accept any liability for damage in the case of the unit being placed incorrectly.
• Do not use if the plug is damaged or loose.
• Before filling or cleaning the unit, make sure it is unplugged.
• Once the humidifier has been plugged in, do not tilt or move the unit.
• Do not remove the water tank from the unit while it is on.
• Do not handle the plug with wet hands.
• Do not excessively bend, twist, pull or damage the power cord.
• Avoid placing this product where the humidity spout is pointed directly at an object or person.
• Do not inhale the mist/vapor expelled from the product or drink water from the tank.
• Do not fill the water tank with hot or boiling water.
• Do not use this product in direct sunlight or near a heat source such as a stove, heater or radiator.
• If the water tank becomes cracked or damaged, do not use.
• Do not keep this product running for an extended period of time.
• Unplug the cord when unit is not in use for an extended period of time and/or when no one is home.
• Do not keep water in the tank when not in use for an extended period of time.

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

• Do not clean the unit, water tank or water reservoir with detergents or chemicals of any kind.
• The use of water additives including ethereal/essential oils, fragrances, eucalyptus, water conditioners, etc. will damage the appliance materials and as a consequence the whole unit. Any use of such additives will void the manufactures warranty.
• Do not use this product near any other electronic device.
• Do not cover the spray spout at any time during use. Do not put anything on or in the tank.
• IMPORTANT: Neither humans nor animals can hear the high frequency vibrations.
• When unplugging from outlet hold humidifier securely.
• Do not place cord over objects.
• Do not get water in or on the power cord or where it connects to the product. Do not use near a sink.
• Do not touch the water tank during operation.
• Do not submerse the unit in water or pour water on the unit or in the humidity spout.
• When emptying water from water tank, pour on drain side.
• Do not cover the spout with cloth or hand and do not use without the spout.
• Use clean or distilled water in tank. Hard water areas will require more frequent cleaning.

PRODUCT SPECIFICATIONS AND PARTS

SPECIFICATIONS

MODEL NUMBER: H910BL

HUMIDIFYING MODE: Ultrasonic Cool Mist

SUCCESSIONE HUMIDITY HOURS: Up to approximately 14 hours between tank refills on low setting

DIMENSIONS: 4.33"L x 6.30"W x 8.40"H

WEIGHT: 1 lb.

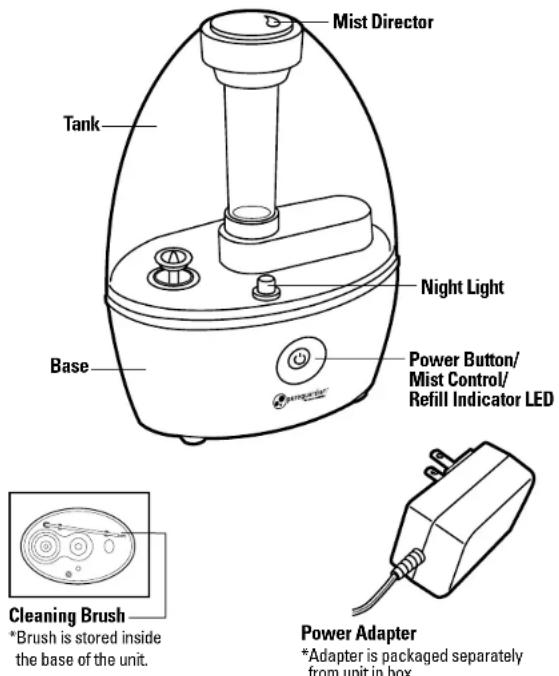

PARTS

READ AND SAVE THESE INSTRUCTIONS FUNCTIONS AND FEATURES

2-SPEED MIST CONTROL

The mist control (Low or High) can be selected by pressing the power button according to the Mode Chart below.

MODE	# of Power Button Pushes	Setting Night Light
Mode 1 1 Low Speed OFF
Mode 2 2 Low Speed ON
Mode 3 3 High Speed ON
Mode 4 4 High Speed OFF

WATER SHORTAGE INDICATOR

When the unit is low on water, the Power Button LED will change from green to red, and the unit will shut off. Simply add more water to continue use.

MIST DIRECTOR

The mist director can be selected through 360° by turning the spout.

SILVER CLEAN TECHNOLOGY

Unlike other humidifiers that grow slimy mold and mildew, the pureguardian ^™ Ultrasonic Humidifier uses Silver Clean ^17 technology embedded in the tank to fight the growth of mildew and mold on the surface of the water tank.

NIGHT LIGHT

See mode chart above. The night light can be turned on and off with the Power Button on the front of the humidifier.

HUMIDIFIER TANK

When the humidifier tank is removed from the body of the unit the power automatically shuts off.

DIRECTIONS FOR USE

SET UP

Select a firm, level, flat location - at least six inches (15 cm) from any wall or object for proper air flow. Place the humidifier on a water-resistant surface, as water can damage furniture and some flooring. Do not place unit directly on carpet, towels, blankets or other absorbent surfaces.

Guardian Technologies will not accept responsibility for damage caused by water spillage.

FILLING

Make sure unit is unplugged.

1. Separate the tank from the base of the unit.

1. Open the tank lid, turning it to the left.

Line drawing of a kitchen sink with faucet and cup (no text or symbols)

1. Pour cool, clean water directly into the tank. Do not pour anything but water into the tank.

1. Close the tank lid, turning it to the right. It is important to FIRMLY secure cap after filling the tank with water.

1. Plug Power Adapter into back of humidifier unit. Plug into outlet.

Line drawing of a hand pressing a button on a cylindrical device (no text or symbols)

1. Press the Power Button to turn on. *See Mode Chart for further operating instructions.
   NOTE: If you live in a hard-water area, we recommend the use of distilled water for your humidifier. This will help reduce the precipitation of minerals or 'white dust'.

CLEANING

CLEANING

• Always unplug the unit before servicing in any way.

GENERAL CLEANING

• Inside the base of the unit. Pour excess water out of the unit. Wash out the unit with fresh water using the cleaning brush and a soft cloth as needed. Do not submerse the base of the unit into water, or allow water to enter inside the dry air exhaust port of the unit.
• Water tank. Empty water tank. Remove mist nozzle and clean the mist tube with fresh water and a light brush (bottle cleaning brush is recommended).
• Outer surface of the unit. Wipe the surface of the unit with a soft, damp cloth if needed. If you notice an accumulation of water during usage, reduce humidity and dry outer surface with a cloth.

DESCALING

• Depending on usage and water type, cleaning to remove scale may be required weekly or every other week to optimize unit performance.
• If you live in a hardwater area, we recommend the use of distilled water for your humidifier. This will help reduce the precipitation of minerals or 'white dust'.
• Do not clean the unit or water tank with detergents or cleaning chemicals of any kind.

ULTRASONIC DISK

1. Unplug unit.
2. Remove the tank and empty all water from unit base and tank.
3. Locate the ultrasonic disk on the inside center of the base unit.
4. Use ONLY the enclosed cleaning brush to gently clean disk and remove build up and deposits. Do not scrub or scrape the ultrasonic disk.

Diagram of a mechanical or optical setup with concentric circles and a magnified inset showing internal components (no text or symbols)

Ultrasonic Disk
*Clean the disk with the brush only. No other cleaning tool should be used. BRUSH ONLY.

If scale becomes difficult to remove with brush:

1. Fill the Base with: mixture of 1 tsp. white vinegar and 1 tsp. water.
2. Let solution stand for 5 minutes.
3. With the vinegar in the Base, clean all interior surfaces with a soft cloth or brush to help remove scale.

CLEANING

1. Also check mist nozzle and mist tube in water tank. Clean as needed.
2. Rinse the Base thoroughly with water to remove scale and vinegar solution.

END OF SEASON STORAGE

• Follow the Cleaning and Descaling instructions when the humidifier will be stored at the end of the season.
• Dry the humidifier completely before storing. DO NOT store with water inside the Base or Water Tank.
• Pack the unit in its original carton and store in a cool, dry location.

NOTE: IF YOU EXPERIENCE A PROBLEM DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF. DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE HUMIDIFIER OR PERSONAL INJURY.

TROUBLESHOOTING GUIDE

pROBLEM SOLUTION
Water vapor and humidity are not produced.	Power Plug: Unplug and then try again.Power Failure: When the power is returned, try again.Tank Installation: Make sure the tank is correctly attached.The surface of the ultrasonic disk is dirty: Clean ultrasonic disk.(see pg. E-7)
Air blows but water vapor is not produced.	Excessive Water: Remove a certain amount of water from the tank.The desired humidity is lower than the current temperature: Increase the desired humidity.Detergent residue and/or oil ingredients from cosmetics, etc may be in tank; wash out tank and try again.The surface of the ultrasonic disk is dirty: Clean ultrasonic disk.(see pg. E-7)If you use hard water, replace with softer water.
Humidity level is low. The surface of the	ultrasonic disk is dirty: Clean ultrasonic disk.(see pg. E-7)The water in the unit is too cold: Replace with cool, but not cold water.Damage on the ultrasonic disk: Contact Customer Service 1.866.603.5900
The humidity has a bad smell. Poor ma	tenance or dirty water: Clean the product thoroughly, and fill it with fresh water. (see pg. E-7, E-8)
White dust is forming on nearby furniture.	Hard water may deposit a certain amount of dust. Dust in the air also settles because of added humidity in the room. Use distilled water if this becomes a nuisance.
Night light is off. See Mode Chart. (see pg. E-5)
Power Button is red. Water tank needs	to be refilled with water.
Tank won't align properly back onto base of unit.	Tank only fits on base in one direction. Try turning the tank around until it fits securely in place on base.
Red/pink film or residue build-up on or around ultrasonic disk.	See cleaning instructions. (see pg. E-7, E-8)Clean humidifier more frequently.

LIMITED WARRANTY

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. Save your original sales receipt to validate start of warranty period. Warranty is not valid without receipt.

If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty does not cover unauthorized repairs. The warranty does not include unusual wear, damage resulting from accident, or unreasonable use of the product. This warranty only covers the product when used with genuine Guardian Technologies accessories. This warranty covers product that was purchased from authorized distributors. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.)

The product warranty registration can be completed online at

www.guardiantechnologies.com. We consider the registration process important to ensuring superior service to our customers, however submitting the warranty registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above. To submit product under warranty the complete machine must be delivered pre-paid to Guardian Technologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll free to the number listed below.

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

This product has been tested and complies with the requirements for Federal Communications Commission, Part 18 for Radio/TV/Communication interference. Although tested, it may affect these devices. If the humidifier is found to interfere, separate the device and/or the humidifier. Conduct only the user maintenance found in this manual. Other maintenance and servicing can cause harmful interference and can void the required FCC compliance.

©2007 Guardian Technologies LLC

E-10 F-1

guardian technologies™

UTILISATION ET INSTRUCTIONS D'ENTRETIEN

Line drawing of a portable air conditioner with a cylindrical tube and base (no text or symbols)

pureguardian®

Line drawing of a kitchen sink with faucet and cup (no text or symbols)

Line drawing of a hand pressing a button on a small electronic device (no text or symbols)

Technical diagram of a mechanical assembly with concentric circles and a magnified inset showing internal components (no text or labels)

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

©2007 Guardian Technologies LLC

F-10

guardian technologies™

Line drawing of a portable air conditioner with a cylindrical tube and two buttons (no text or symbols)

pureguardian®

ÍNDICES: 24V CC, 12W

VOLTAJE DE ENTRADA: 110-240V CA 50/60 Hz

VOLTAJE DE SALIDA: 24V CC, 0.5A

CAPACIDAD DEL DEPÓSITO: 0.795 litros (0.21 galones)

Line drawing of a kitchen sink with faucet and base (no text or symbols)

Line drawing of a hand pressing a button on a small electronic device (no text or symbols)

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

©2007 Guardian Technologies LLC
