Product Type	Ultrasonic Humidifier
Brand	PureGuardian
Model	H5225WCA
Tank Capacity	2.0 gal (7.6 L)
Maximum Runtime	Up to 100 hours (low setting)
Humidification Modes	Cool mist and warm mist
Warm Mist Temperature	26.5 °C (80 °F)
Built-in Timer	2, 4, or 8 hours
Nightlight	Yes, switchable
Antimicrobial Technology	Silver Clean™ embedded in the tank
Essential Oil Tray	Yes (with included pad)
Filling	Top fill with cap
Auto Shut-off	Yes, when water level is low
Ultrasonic Disk	Cleanable with included brush
Recommended Descaling	Once a week or two depending on water hardness
Warranty	Limited one year
Customer Service	1.866.603.5900
Included Accessories	Cleaning brush, essential oil pad
Replacement Parts	Vapor tube, pads (sold separately)

Frequently Asked Questions - H5225WCA PureGuardian

The humidifier is not producing mist. What should I do?

Check that the unit is plugged in and the outlet works. Clean the ultrasonic disk with the provided brush. If the problem persists, contact customer service.

White dust is settling on furniture.

This is due to hard water. Use distilled water to reduce mineral deposits. Clean the unit regularly.

The emitted mist has a bad odor.

Thoroughly clean the unit and refill with fresh water. Poor maintenance or stale water can cause odors.

The humidity level is low.

Clean the ultrasonic disk. If the water is too cold, replace it with cool water (not cold). If the disk is damaged, contact customer service.

Water is pooling around the unit.

Reduce the mist setting. Make sure the unit is on a level surface and point the nozzle away from objects. Elevate the unit on a waterproof surface.

The noise level has increased.

Place the unit on a flat, stable, non-absorbent surface. Avoid uneven surfaces.

The unit turns off by itself.

The water level is low. Unplug, fill the tank, and plug back in. The unit will resume automatically.

The unit is not emitting warm mist.

Wait 10 to 15 minutes for the water to heat up. The mist may feel cool because the droplets are fine. Test by touching the base, which should be warm.

The essential oil aroma is not noticeable.

Add a few drops of essential oil to the pad in the tray. Replace the pad if needed. Never add oil to the water tank.

How do I clean the ultrasonic disk?

Unplug the unit. Remove the vapor tube. Use only the included brush to gently clean the disk. Do not scrub with other objects.

USER MANUAL H5225WCA PureGuardian

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. In order to be eligible for this Limited Warranty, an original sales receipt or comparable substitute proof of purchase bearing the date of original purchase is required. Refer to the original product carton or specific product/model page on the Guardian Technologies website for warranty length for your particular model. This warranty applies only to the original purchaser of this product from the original date of purchase. This warranty covers product purchased from authorized distributors only.

This warranty applies to repair or replacement of product found to be defective in materials or workmanship. This warranty does not apply to damage resulting from unusual wear, commercial, abusive, unreasonable use or supplemental damage. This warranty does not cover damage from unauthorized repairs or from any use not in accordance with the instruction manual. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.)

To submit product under warranty the complete machine must be delivered pre-paid to Guardian Technologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll free to the number listed below.

USA and Canada

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Please go to www.guardiantechnologies.com to register your product. We consider the registration process important to ensuring superior service to our customers, however submitting the warranty registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above.

Additional copies of the instruction manual can be obtained by accessing and printing directly from our website or calling customer service.

guardian technologies™

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 · www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian technologies™

USE & CARE INSTRUCTION

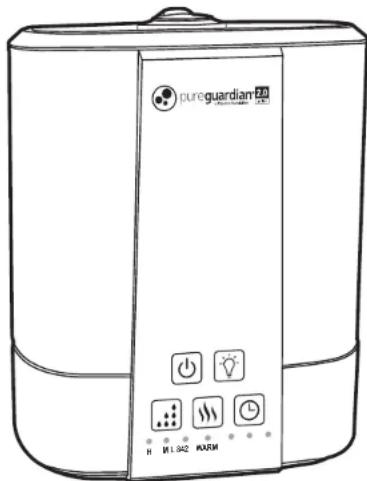

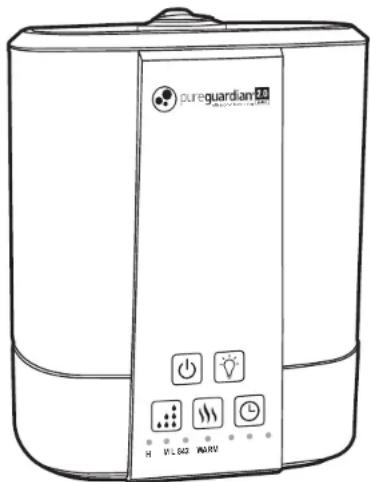

Easy Top Fill Ultrasonic Humidifier

Model No. H5225

3-Year Limited Warranty

Customer Service

1.866.603.5900

www.guardiantechnologies.com

Date Purchased month ____ year ____

English E - 1 French F - 1 Spanish S - 1

Use GENUINE Guardian Technologies replacement parts only. REV0618

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

• CAUTION: To reduce the risk of severe burns, keep this product out of the reach of children and pets.
• Disassembly, repair or remodeling by an unauthorized person may result in serious harm and will void the manufactures warranty.
• Always place this humidifier on a firm, flat & level surface. This humidifier may not work properly on an uneven surface.
• Do not place this product on cloth, carpet or an absorbent surface. This may block air inlet.
• This product releases mist. Do not place this humidifier directly on wood furniture, flooring or any surfaces that could be damaged by water. Manufacturer does not accept any liability for damage in the case of the unit being placed incorrectly.
• Do not use if the plug is damaged or loose.
• Before filling or cleaning the unit, make sure it is unplugged.
• Once the humidifier has been plugged in, do not tilt or move the unit.
• Do not handle the plug with wet hands
• Do not excessively bend, twist, pull or damage the power cord.
• Avoid placing this product where the humidity spout is pointed directly at an object or person.
• Do not inhale the mist/vapor expelled from the product or drink water from the tank.
• Do not fill the water tank with hot or boiling water.
• Do not use this product in direct sunlight or near a heat source such as a stove, heater or radiator.
• If the water tank becomes cracked or damaged, do not use.
• Do not keep this product running for an extended period of time.
• Unplug the cord when unit is not in use for an extended period of time and/or when no one is home.
• Do not keep water in the tank when not in use for an extended period of time.
• Do not clean the unit, water tank or water reservoir with detergents or chemicals of any kind.
• The use of water additives in the tank including ethereal/essential oils, fragrances, eucalyptus, water conditioners, etc. will damage the appliance materials and as a consequence the whole unit. Any use of such additives in the tank will void the manufactures warranty.
• Do not use this product near any other electronic device.

• Do not cover the spray spout at any time during use. Do not put anything on or in the tank.

• IMPORTANT: Neither humans nor animals can hear the high frequency vibrations.

• When unplugging from outlet hold humidifier securely.
• Do not place cord over objects.
• Do not get water in or on the power cord or where it connects to the product.
• Do not use near a sink.
• Do not touch the water tank during operation.
• Do not submerse the unit in water or pour water on the unit or in the humidity spout.
• When emptying water from water tank, pour on drain side.
• Do not cover the spout with cloth or hand and do not use without the spout.
• Use clean or distilled water in tank. Hard water areas will require more frequent cleaning.

Stop using your humidifier and contact your physician if you have respiratory symptoms which you believe are associated with periods of use of your home humidifier, even if you are following maintenance directions.

WARNING: This product can expose you to chemicals including lead or lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.

For more information go to www.P65Warnings.ca.gov.

This equipment has been tested and found to comply with the limits for a Consumer ISM equipment, pursuant to Part 18 of the FCC Rules.

Although tested, it may affect these devices. If the humidifier is found to interfere, separate the device and/or the humidifier. Conduct only the user maintenance found in this manual. Other maintenance and servicing can cause harmful interference and can void the required FCC compliance.

SPECIFICATIONS

HUMIDIFYING MODE: Ultrasonic Cool/Warm Mist TANK CAPACITY: 2.0 gallons

SUCCESSIVE HUMIDITY HOURS: Up to approximately 100 hours between tank refills when on lowest mist setting.

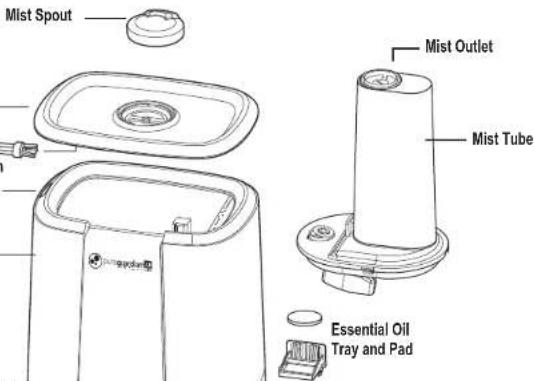

PARTS

SILVER CLEAN™ TECHNOLOGY

Silver Clean™ technology is embedded in the tank to fight the growth of mildew and mold on the surface of the water tank.

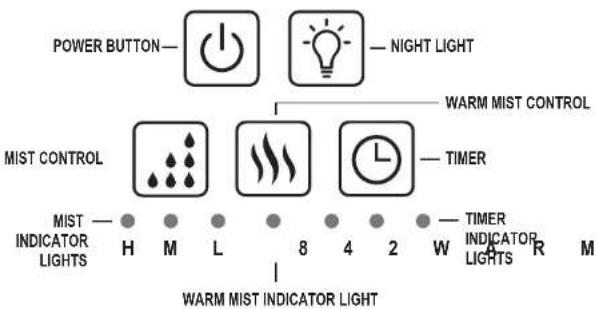

CONTROL PANEL

DIRECTIONS FOR USE

SET UP

Select a firm, level, flat location - at least six inches (15 cm) from any wall or object for proper air flow. Place the humidifier on a water-resistant surface, as water can damage furniture and some flooring. Do not place unit directly on carpet, towels, blankets or other absorbent surfaces. Guardian Technologies will not accept responsibility for damage caused by water spillage.

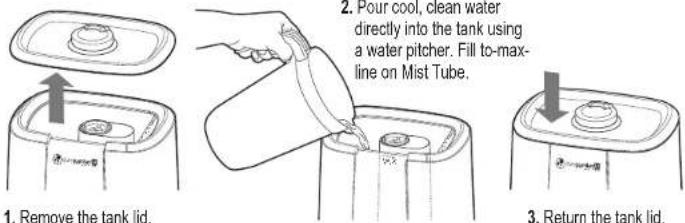

FILLING - Make sure unit is unplugged.

1. Add a few drops of your favorite essential oil to the pad in the tray. (Oil not included)

WARNING: DO NOT add oils or other additives directly into the water tank. Add only to the pad in the tray. Oils added to the tank will damage the tank and the whole unit. Any use of such additives in the tank will void the manufacturers warranty. Pureguardian essential oils and replacement pads sold separately at www.guardiantechnologies.com

5. WATER REFILL INDICATOR

When the unit is low on water the 3 mist LED's will blink until the unit is refilled or turned off. Simply add more water to continue use. Unit will automatically resume running when water tank have been refilled.

DIRECTIONS FOR USE (cont.)

CONTROL OPERATION

NOTE: If control panel lights are off - push any button to wake up, then proceed with control operation below.

Power Button

Before turning on make sure there is water in the unit. Press the Power Button.

Night Light Feature

Press the Night Lamp button to turn night light on/off.

Mist Control Button

When you press the Mist Control button there are three options:

Press once for LOW

Press twice for MEDIUM

Press three times for HIGH

Warm Humidification Control

Press to select warm mist. When warm is selected, LED will light. Water temperature is maintained at room temperature for cool setting and 80 degrees for warm. Allow 15 minutes for water to warm.

WARM

Timer

Press the Timer button to select either 2, 4, or 8 hours. The unit will turn off in that time.

CLEANING

1. Always unplug the unit before servicing in any way.

GENERAL CLEANING

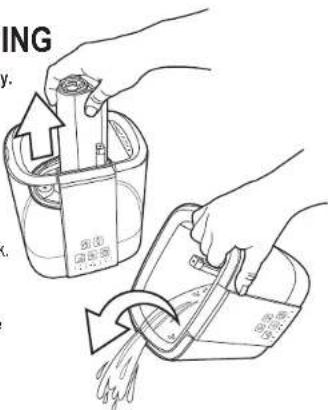

1. Water tank. Remove the mist tube by rotating it counter clockwise. Empty the tank by pouring all the water on the left side (see arrow inside tank). Clean the mist tube with fresh water and a light brush (bottle cleaning brush is recommended). Return mist tube after cleaning. Turn clockwise to lock.
2. Outer surface of the unit. Wipe the lid and surface of the unit with a soft, damp cloth if needed. If you notice an accumulation of water during usage, reduce humidity and dry outer surface with a cloth.

CLEANING (cont.)

DESCALING

• Depending on usage and water type, cleaning to remove scale may be required weekly or every other week to optimize unit performance.
• If you live in a hard water area, we recommend the use of distilled water for your humidifier. This will help reduce the precipitation of minerals or 'white dust'.
• Do not clean the unit or water tank with detergents or cleaning chemicals of any kind.

ULTRASONIC DISK

1. Unplug unit.
2. Remove the mist tube by rotating it counter clockwise. Empty the tank by pouring all the water on the left side (see arrow inside tank).
3. Locate the ultrasonic disk on the inside center of the base unit.
4. Use ONLY the enclosed cleaning brush to gently clean disk and remove build up and deposits.

Do not scrub or scrape the ultrasonic disk.

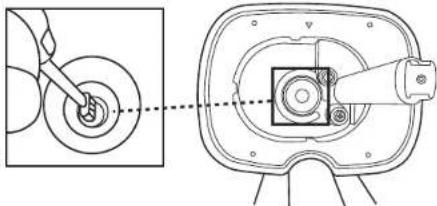

Looking down at the inside of empty tank.
Ultrasonic Disk
Clean the disk with the brush only. No other cleaning tool should be used. BRUSH ONLY

Technical diagram showing a mechanical assembly with a close-up view of a circular component being inserted (no text or symbols present)

If scale becomes difficult to remove with brush:

1. Fill the tank with: mixture of 1 tsp. white vinegar and 1 tsp. water.
2. Let solution stand for 5 minutes.
3. With the vinegar in the tank, clean all interior surfaces with a soft cloth or brush to help remove scale.
4. Also check mist nozzle and mist tube in water tank. Clean as needed.
5. Rinse the tank thoroughly with water to remove scale and vinegar solution.

END OF SEASON STORAGE

• Follow the Cleaning and Descaling instructions when the humidifier will be stored at the end of the season.
• Dry the humidifier completely before storing. DO NOT store with water inside the Base or Water Tank.
• Pack the unit in its original carton and store in a cool, dry location.

NOTE: IF YOU EXPERIENCE A PROBLEM DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF. DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE HUMIDIFIER OR PERSONAL INJURY.

TROUBLE SHOOTING GUIDE

PROBLEM	SOLUTION
Water vapor and humidity are not produced.	Power Plug: Unplug and then try again.Power Failure: When the power is returned, try again.The surface of the ultrasonic disk is dirty: Clean ultrasonic disk.
Air blows but water vapor is not produced.	Excessive Water: Remove a certain amount of water from the tank.Excessive Water in mist tube. Remove water from tank and mist chamber and try again.Detergent residue and/or oil ingredients from cosmetics, eta may be in tank; wash out tank and try again.The surface of the ultrasonic disk is dirty: Clean ultrasonic disk.If you use hard water, replace with softer water.
Humidity level is low.	The surface of the ultrasonic disk is dirty: Clean ultrasonic disk.The water in the unit is too cold: Replace with cool, but not cold water.Damage on the ultrasonic disk: Contact Customer Service
The humidity has a bad smell.	Poor maintenance or dirty water: Clean the product thoroughly, and fill it with fresh water.
White dust is forming on nearby furniture.	Hard water may deposit a certain amount of dust. Dust in the air also settles because of added humidity in the room. Use distilled water if this becomes a nuisance.
Unit has stopped working.	No or low water. Unplug unit and refill tank.
Water is accumulating outside of unit or area surrounding unit.	Saturation of humidity. Lower mist control setting.Unit not level and water is accumulating. Unplug and place on level surface. Point spray away from objects. Raise unit on a water-resistant level surface 2-3 feet off of floor.
Increased noise level.	Unit must be placed on a flat, level, hard surface.Make sure it is NOT placed on a soft or absorbent surface.
3 blinking blue LED lights.	Indicates low water. Unplug and refill tank.
Warm humidity is not produced	It may take 10-15 minutes before warm humidity is created. The mist may not feel warm due to the fact it is so fine and is cooled rather quickly from the air in your home. Test by either feeling the base of the unit which should be warm to the touch or by allowing the unit to run for approximately 30 minutes on warm setting in a closed 200 sq. foot roor or smaller. The room should feel moderately warmer if the unit is working properly.
Cannot smell aroma scent.	Add a few more drops of oil to the aroma pad or replace aroma pad with a new one.
